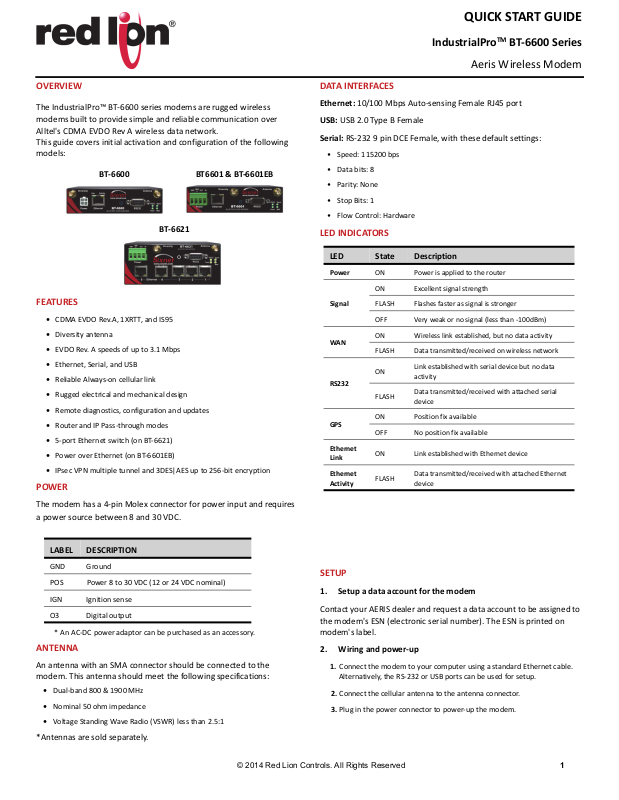

Red Lion BT-6600 Series Quick Start Guide

QUICK START GUIDE

IndustrialProTM BT-6600 Series

Aeris Wireless Modem

OVERVIEW

The IndustrialPro™ BT-6600 series modems are rugged wireless modems built to provide simple and reliable communication over Alltel's CDMA EVDO Rev A wireless data network.

This guide covers initial activation and configuration of the following models:

BT-6600

BT6601 & BT-6601EB

BT-6621

FEATURES

• CDMA EVDO Rev.A, 1XRTT, and IS95

• Diversity antenna

• EVDO Rev. A speeds of up to 3.1 Mbps

• Ethernet, Serial, and USB

• Reliable Always-on cellular link

• Rugged electrical and mechanical design

• Remote diagnostics, configuration and updates

• Router and IP Pass-through modes

• 5-port Ethernet switch (on BT-6621)

• Power over Ethernet (on BT-6601EB)

• IPsec VPN multiple tunnel and 3DES|AES up to 256-bit encryption

POWER

DATA INTERFACES

Ethernet: 10/100 Mbps Auto-sensing Female RJ45 port

USB: USB 2.0 Type B Female

Serial: RS-232 9 pin DCE Female, with these default settings:

• Speed: 115200 bps

•Data bits: 8

•Parity: None

•Stop Bits: 1

• Flow Control: Hardware

LED INDICATORS

LED State Description

Power ON Power is applied to the router

ON Excellent signal strength

Signal

WAN

RS232

GPS

Ethernet Link

Ethernet Activity

FLASH Flashes faster as signal is stronger

OFF Very weak or no signal (less than -100dBm)

ON Wireless link established, but no data activity

FLASH Data transmitted/received on wireless network

FLASH

ON Position fix available

OFF No position fix available

ON Link established with Ethernet device

FLASH

Link established with serial device but no data activity

Data transmitted/received with attached serial device

Data transmitted/received with attached Ethernet device

The modem has a 4-pin Molex connector for power input and requires a power source between 8 and 30 VDC.

LABEL DESCRIPTION

GND Ground

POS Power 8 to 30 VDC (12 or 24 VDC nominal)

IGN Ignition sense

O3 Digital output

* An AC-DC power adaptor can be purchased as an accessory.

ANTENNA

An antenna with an SMA connector should be connected to the modem. This antenna should meet the following specifications:

• Dual-band 800 & 1900 MHz

• Nominal 50 ohm impedance

• Voltage Standing Wave Radio (VSWR) less than 2.5:1

*Antennas are sold separately.

SETUP

1. Setup a data account for the modem

Contact your AERIS dealer and request a data account to be assigned to the modem's ESN (electronic serial number). The ESN is printed on modem's label.

2. Wiring and power-up

1. Connect the modem to your computer using a standard Ethernet cable.

Alternatively, the RS-232 or USB ports can be used for setup.

2. Connect the cellular antenna to the antenna connector.

3. Plug in the power connector to power-up the modem.

Quick Start Guide

3. Start BlueVue Device Manager Software

1. Download and install the latest version of BlueVue Device Manager from

www.redlion.net.

2. When launched, it will attempt to connect to 192.168.0.1 by default, once connected to the modem, the Modem Diagnostic window will open. (Note that 192.168.0.1 connects to the Ethernet cable. To connect to the USB port use 192.168.111.1):

Troubleshooting: If BlueVue displays “Detecting Modem at

192.168.0.1” indefinitely, then:

• Make sure the modem is powered on.

• Check the Ethernet Link LED on the modem. If it’s off, it usually means you have a problem with the Ethernet cable or with your computer’s network card.

• Close all other network connections (such as WiFi)

• Set your computer to obtain an IP address automatically

4. Confirm that the modem is acquiring a cellular signal

The Signal LED should be on or flashing, indicating that the modem has a signal. BlueVue Device Manager displays signal information in the top right of its window; a minimum of 1 bar is required to connect to the carrier with the modem.

Troubleshooting: If the Signal LED is off, then there may be an issue

with the antenna or cellular coverage might be too low in your current location.

5. Activate the modem

This step programs the phone number and other Aeris specific settings into the modem so that it may be used on the Aeris wireless network.

1. Click on the ACT button located at the top and enter the following information provided by Aeris:

a. Master Lock Code: a 6-digit number

b. Phone number (MDN): a 10-digit number

c. MIN/MSID: a 10-digit number. If you were not provided with an MIN/

MSID, enter the MDN here.

d. Click on Submit and wait for activation to complete.

2. Click on the DIAG button located at the top left to navigate to the Modem Diagnostic screen. Click on the Refresh button at the bot-

tom and check the phone number reported by the modem under Modem Identification: it should match the MDN provided by Aeris.

Troubleshooting: If the above does not occur, then the modem most

likely has no account. Contact the wireless service provider who provided you with the account and ask them to confirm that the phone number and MIN/MSID assigned correspond to the modem's ESN (electronic serial number), and that the account is ready to be used.

3. Confirm the modem has successfully connected to the cellular network:

• The WAN LED will be on or flashing.

• In BlueVue, click the DIAG button, the WAN IP should indicate the IP

address assigned to the modem by the cellular network.

SETUP IS COMPLETE

The modem should be ready for use as a basic internet access point. For more advanced modem configuration, consult the support section on our website: www.redlion.net

INSTALLATION AND HAZARDOUS AREA WARNINGS

Suitable for use in Class I, Division 2, Groups A, B, C and D hazardous locations, or non-hazardous locations only. All power, input and output (I/O) wiring must be in accordance with Class I, Division 2 wiring methods and in accordance with the authority having jurisdiction.

WARNING - EXPLOSION HAZARD - DO NOT DISCONNECT EQUIPMENT UNLESS POWER HAS BEEN SWITCHED OFF OR THE AREA IS KNOWN TO BE NON-HAZARDOUS.

WARNING - EXPLOSION HAZARD - SUBSTITUTION OF COMPONENTS MAY IMPAIR SUITABILITY FOR CLASS I, DIVISION 2.

AVERTISSEMENTS POUR INSTALLATION ET ENDROITS DANGEREUX

Cet équipement est adapté pour une utilisation en Classe I, Division 2, Groupes A, B, C et D pour endroits dangereux , ou endroits non-dangereux seulement. Tout câblage électrique, entrée et sortie (I / O) doivent être en conformité avec Classe I, Division 2 méthodes de câblage et conformément à l'autorité compétente.

AVERTISSEMENT - RISQUE D'AVERTISSEMENT - NE DÉBRANCHEZ PAS L'ÉQUIPEMENT PENDANT QUE LE CIRCUIT EST DIRECT OU À MOINS QUE L'ENVIRONNEMENT SOIT CONNU POUR ÊTRE NON-DANGEREUX.

AVERTISSEMENT - RISQUE D'EXPLOSION - LA SUBSTITUTION DE TOUT COMPOSANT PEUT NUIRE À LA CONFORMITÉ DE CLASSE I, DIVISION 2.
