RED Motion mount TI PL, Motion mount TI Canon Operation Manual

RED MOTION MOUNT

OPERATION GUIDE

MOTION MOUNT TI PL | MOTION MOUNT TI CANON

RED.COM

RED MOTION MOUNT OPERATION GUIDE

TABLE OF CONTENTS

Disclaimer 3
Copyright Notice 3
Trademark Disclaimer 3
Compliance Statements 3
Safety Instructions 5

Chapter 1: MOTION MOUNT Introduction 6

Variable ND Filter 6
IR Filter and Linear Polarization 6
Soft Shutter 6
Square Shutter 6
MOTION MOUNT Components 7
Hardware and System Requirements 7
Additional Resources 7

Chapter 2: MOTION MOUNT Installation 8

Lens Mount Alignment 9
Remove a Lens Mount 9
Install the MOTION MOUNT 10

Chapter 3: MOTION MOUNT Operation 12

MOTION MOUNT Settings 12
Access the MOTION MOUNT Menu 12
Neutral Density (ND) 13
MOTION MOUNT Shutter Types 19
Map Keys for MOTION MOUNT Settings 24

Chapter 4: MOTION MOUNT Maintenance 25

Storage Instructions 25
Clean MOTION MOUNT Glass 25

Chapter 5: Troubleshoot the MOTION MOUNT 27

Camera Does Not Recognize the MOTION MOUNT 27
Irregular Out-of-Focus Bokeh Effects and Flare 27
Double Exposures in Captured Footage 28

Appendix A: Technical Specifications 29

RED MOTION MOUNT Ti PL 29
RED MOTION MOUNT Ti Canon 29
Neutral Density and Shutter Angles 30
Maximum Frame Rates 31

Appendix B: MOTION MOUNT Compatibility 32

Compatibility Requirements 32
Compatible PL Lenses and Devices 33
Incompatible PL Lenses and Devices 35
Compatible Canon EF Lenses 35
Non-Linear Editing (NLE) Applications 35

COPYRIGHT © 2015 RED.COM, INC

955-0013, REV-K | 2

RED MOTION MOUNT OPERATION GUIDE

DISCLAIMER

RED has made every effort to provide clear and accurate information
in this document, which is provided solely for the user’s information.
While thought to be accurate, the information in this document is
provided strictly “as is” and RED will not be held responsible for is­sues arising from typographical errors or user’s interpretation of the
language used herein that is different from that intended by RED.
All safety and general information is subject to change as a result of
changes in local, federal or other applicable laws.

RED reserves the right to revise this document and make changes
from time to time in the content without obligation to notify any per­son of such revisions or changes. In no event shall RED, its employ­ees or authorized agents be liable to you for any damages or losses,
direct or indirect, arising from the use of any technical or operational
information contained in this document.

For comments or questions about content in this document, please
send a detailed email to [e-mail].

COPYRIGHT NOTICE

COPYRIGHT© 2015 RED.COM, INC.
All trademarks, trade names, logos, icons, images, written material,

code, and product names used in association with the accompa­nying product are the copyrights, trademarks, or other intellectual
property owned and controlled exclusively by RED.COM, INC.

TRADEMARK DISCLAIMER

All other company, brand, and product names are trademarks or
registered trademarks of their respective holders. RED has no affili­ation to, is not associated with or sponsored by, and has no express
rights in third-party trademarks. ARRI is a registered trademark of
ARRI Group. Zeiss is a registered trademark of Carl Zeiss, Inc. Leica
is a registered trademakr of Leica Microsystems. Canon is a regis­tered trademark of Canon, U.S.A. Cooke is a registered trademark
of Cooke Optics, Ltd. Fujinon is a registered trademark of Fujinon,
Inc. TORX is a registered trademark of Acument Intellectual Proper­ties, LLC in the UnitedStates or other countries.

FEDERAL COMMUNICATIONS COMMISSION (FCC) STATE­MENTS

This equipment has been tested and found to
comply with the limits for a Class B digital
device, pursuant to part 15 of the FCC Rules.
These limits are designed to provide reason­able protection against harmful interference
in a residential installation. This equipment
generates, uses and can radiate radio fre-

quency energy and, if not installed and used
in accordance with the instructions, may cause harmful interference
to radio communications. However, there is no guarantee that inter­ference will not occur in a particular installation. If this equipment
does cause harmful interference to radio or television reception,
which can be determined by turning the equipment off and on, the
user is encouraged to try to correct the interference by one or more
of the following measures:

 Reorient or relocate the receiving antenna.
 Increase the separation between the equipment and receiver.
 Connect the equipment into an outlet on a circuit different from

that to which the receiver is connected.

 Consult the dealer or an experienced radio/TV technician for

help.

In order to maintain compliance with FCC regulations, shielded
cables must be used with this equipment. Operation with non-ap­proved equipment or unshielded cables is likely to result in interfer­ence to radio and TV reception. The user is cautioned that changes
and modifications made to the equipment without the approval of
manufacturer could void the users authority to operate this equip­ment.

NOTE: This device complies with Part 15 of the FCC Rules.
Operations subjected to the following two conditions (1) this device

may not cause harmful interference, and (2) this device must accept
any interference received, including that may cause undesirable in­terference.

COMPLIANCE STATEMENTS

INDUSTRIAL CANADA EMISSION COMPLIANCE STATEMENTS

This device complies with Industry Canada license-exempt RSS
standards RSS 139 and RSS 210. Operation is subject to the follow­ing two conditions: (1) this device may not cause interference, and
(2) this device must accept any interference, including interference
that may cause undesired operation of the device.

This Class B digital apparatus complies with Canadian ICES-003.
Le présent appareil est conforme aux CNR d’Industrie Canada ap-

plicables aux appareils radio exempts de licence. L’exploitation est
autorisée aux deux conditions suivantes : (1) l’appareil ne doit pas
produire de brouillage, et (2) l’utilisateur de l’appareil doit accepter
tout brouillage radioélectrique subi, même si le brouillage est sus­ceptible d’en compromettre le fonctionnement. Cet appareil numéri­que de la classe B est conforme à la norme NMB-003 du Canada.

CAUTION: Exposure to Radio Frequency Radia­tion.

The device shall be used in such a manner that the potential for hu­man contact is minimized

This equipment complies with FCC radiation exposure limits set
forth for an uncontrolled environment. This equipment should be
installed and operated with a minimum distance of 20 cm between
the radiator and your body.

CAUTION: Regulations of the FCC and FAA
prohibit airborne operation of radio-frequency
wireless devices because there signals could
interfere with critical aircraft instruments.

CAUTION: If the device is changed or modified
without permission from RED, the user may
void his or her authority to operate the equip­ment.

COPYRIGHT © 2015 RED.COM, INC 955-0013, REV-K | 3

RED MOTION MOUNT OPERATION GUIDE

AUSTRALIA AND NEW ZEALAND STATEMENTS

RED declares that the radio equipment described in this document
comply with the following international standards.

 IEC 60065 - Product Safety
 ETSI EN 300 328 - Technical requirement for radio equipment

RED declares digital devices described in this document comply
with the following Australian and New Zealand standards.

 AS/NZS CISPR 22 – Electromagnetic Interference
 AS/NZS 61000.3.2 – Power Line Harmonics
 AS/NZS 61000.3.3 – Power Line Flicker

JAPAN STATEMENTS

This is a Class B product based on the
standard of the Voluntary Control Council
for Interference (VCCI) for information tech­nology equipment. If this equipment is used
near a radio or television receiver in a do­mestic environment, it may cause radio in­terference. Install and use the equipment
according to the instruction manual.

EUROPEAN UNION COMPLIANCE STATEMENTS

RED declares that the radio
equipment described in this
document comply with the
R&TTE Directive (1999/5/
EC) issued by the Commis­sion of the European Com­munity.

Compliance with this directive implies conformity to the following
European Norms (in brackets are the equivalent international stan­dards).

 EN 60065 (IEC 60065) – Product Safety
 ETSI EN 300 328 Technical requirement for radio equipment
 ETSI EN 301 489 General EMC requirements for radio equip-

ment.

INFORMATION

Products with the CE marking comply with the EMC Directive
(2004/108/EC) and the Low Voltage Directive (2006/95/EC) issued
by the Commission of the European Community. Compliance with
these directives implies conformity to the following European Prod­uct Family Standards.

 EN 55022 (CISPR 22) – Electromagnetic Interference
 EN 55024-1 (CISPR 24) – Electromagnetic Immunity
 EN 61000-3-2 (IEC610000-3-2) – Power Line Harmonics
 EN 61000-3-3 (IEC610000) – Power Line Flicker
 EN 60065 (IEC60065) – Product Safety

WASTE ELECTRICAL AND ELECTRONIC EQUIPMENT (WEEE)

The Waste Electrical and Electronic Equip­ment (WEEE) mark applies only to countries
within the European Union (EU) and Norway.
This symbol on the product and accompany­ing documents means that used electrical
and electronic products should not be mixed
with general household waste. For proper
treatment, recovery and recycling, please
take this product to designated collection
points where it will be accepted free of
charge. Alternatively, in some countries you
may be able to return your products to your
local retailer upon purchase of an equivalent

new product.
Disposing of this product correctly will help save valuable resources

and prevent any potential negative effects on human health and the
environment, which could otherwise arise from inappropriate waste
handling. Please contact your local authority for further details of
your nearest designated collection point. Penalties may be appli­cable for incorrect disposal of this waste, in accordance with you
national legislation.

For business users in the European Union, if you wish to discard
electrical and electronic equipment, please contact your dealer or
supplier for further information.

USAGE RESTRICTIONS FOR PRODUCTS THAT INCORPORATE
REDLINK

Products that fall into this category are denoted
by inclusion of the Class 2 identifier symbol (ex­clamation mark in a circle) accompanying the CE
Mark on the products regulatory label, example to
the left.

FRANCE

Usage Restrictions - Geographic Area Where Restriction Applies :
France

For mainland France

 2.400 - 2.4835 GHz (Channels 1-16) authorized for indoor use
 2.400 - 2.454 GHz (Channels 1-10) authorized for outdoor use

Restrictions d’utilisation - Zone géographique où les restrictions
s’appliquent : France

Pour la France métropolitaine

 2.400 - 2.4835 GHz (Canaux 1 à 16) autorisé en usage intérieur
 2.400 - 2.454 GHz (canaux 1 à 10) autorisé en usage extérieur

NORWAY

This subsection does not apply for the geographical area within a
radius of 20 km from the centre of Ny-Ålesund

Dette gjelder ikke for det geografiske området innenfor en radius av
20 km fra sentrum av Ny-Ålesund

RESPONSIBLE PARTY

RED Digital Cinema
34 Parker
Irvine, CA 92618
USA

COPYRIGHT © 2015 RED.COM, INC

955-0013, REV-K | 4

RED MOTION MOUNT OPERATION GUIDE

SAFETY INSTRUCTIONS

 DO NOT use the camera or accessories near water. Avoid ex-

posing your camera to moisture. The unit is not waterproof,
so contact with water could cause permanent damage to the
unit as well as electric shock and serious injury to the user. DO
NOT use the camera in the rain or under other conditions with
high moisture without appropriate protection, and immediately
remove power source if camera or accessories are exposed to
moisture.

WARNING: To reduce the risk of fire or elec­tric shock, do not expose the camera to
rain or moisture.

 DO NOT expose the camera to laser beams, as laser beams

may damage the sensor.

 DO NOT expose your camera to excessive vibration or impact

(shock). Be careful not to drop your camera. Internal mecha­nisms may be damaged by severe shock. Mechanical alignment
of optical elements may be affected by excessive vibration.

 ELECTROMAGNETIC INTERFERENCE: The use of devices us-

ing radio or other communication waves may result in the mal­function or interference with the unit and/or with audio and
video signals.

 Clean only using a dry cloth. When cleaning your camera, re-

member that it is not waterproof and moisture can damage
electronic circuitry. DO NOT rinse or immerse any element of
the camera, lens or other accessory, keep them dry at all times.
DO NOT use soaps, detergents, ammonia, alkaline cleaners,
and abrasive cleaning compounds or solvents. These sub­stances may damage lens coatings and electronic circuitry.

 Maintain sufficient ventilation—DO NOT block any ventilation

openings or obstruct cooling fan airflow.

CAUTION: Proper camera ventilation re­quires a minimum 0.5" (1.25 cm) clearance
between the camera ventilation openings
and external surfaces. Verify that objects
that can block the fan intake and ex­haust ports do not impede airflow. Failure
to permit adequate airflow may result in
overheating of the camera, degraded op­eration and in extreme situations, damage
to the camera.

 DO NOT bypass the third prong of the grounding-type plug on

the power cord of the DSMC AC Power Adaptor. A grounding­type plug has two blades and a third “grounding” prong. The
third prong is provided for your safety. A grounding-type plug
shall be connected to an outlet with a protective earthen con­nection. If the grounding-type plug does not fit into your outlet,
do not attempt to modify the plug or outlet, consult a qualified
electrician.

 Protect all power cords from being pinched, walked on or

driven over by a vehicle. Replace any power cords suspected
of sustaining damage due to crushing or other forms physical
damage.

Products marked with this symbol are
class 2 devices. These devices are not
provided with a grounding type plug.

CAUTION: The power cord plug for the
DSMC AC Power Adaptor is used as the
power disconnect. To disconnect all power
from the DSMC AC Power Adaptor, unplug
the power cord plug from the wall outlet.
During use, the power cord plug should
remain easily accessible at all times.

 Lithium-ion batteries may be subject to special handling re-

quirements pursuant to federal and local laws. Please refer to
specific shipping instructions included with your battery re­garding proper transport of your battery. Do not handle your
battery if it is damaged or leaking. Disposal of batteries must
be in accordance with local environmental regulations. For
example, California law requires that all rechargeable batter­ies must be recycled by an authorized recycle center. Storing
batteries fully charged or in high temperature conditions may
permanently reduce the life of the battery. Available battery
capacity may also be temporarily lessened after storage in low
temperature conditions.

WARNING: DO NOT expose the battery to
excessive heat.

 DO NOT operate or store near any heat sources such as radia-

tors, heat registers, stoves, or any other apparatus that pro­duce heat. Store in a protected, level and ventilated place.
Avoid exposure to temperature extremes, damp, severe vibra­tion, strong magnetic fields, direct sunlight or local heat sourc­es during storage. Remove any batteries from the camera be­fore storage. Recommended storage and usage temperatures
for your camera, lenses and other accessories are:

‒ Operating range: 0°C to 40°C (32°F to 104°F)
‒ Storage range: –20°C to 50°C (–4°F to 122°F)

If there are any performance issues with your camera or acces­sories when operating within this temperature range, please file
a support ticket on https://support.red.com.

 The DSMC Side Handle, side SSD modules, rear modules, and

lens mounts are NOT HOT SWAPPABLE, meaning you cannot
remove or install them while the camera is turned on. Before
installing or removing any of these accessories, you MUST turn
off the camera. Failure to do so may result in damage to the ac­cessory and/or camera that will not be covered under warranty.

COPYRIGHT © 2015 RED.COM, INC 955-0013, REV-K | 5

WARNING: Danger of explosion if an incor­rect battery is charged with the RED Char­ger or is used to power the camera and
accessories. Replace only with the same
or equivalent type battery.

CAUTION: Refer all service and repair to
qualified RED service personnel. To reduce
the risk of electric shock, and damage to
the camera or accessories, DO NOT at­tempt to perform any servicing other than
any procedures that are recommended in
the operating instructions.

INDOOR USE ONLY: Products marked with
this symbol are designed for use indoors
only.

RED MOTION MOUNT OPERATION GUIDE

MOTION MOUNT

01

The RED MOTION MOUNT® is a revolutionary and adjustable lens mount system for your camera. The
MOTION MOUNT integrates a global shutter, temporal anti-aliasing soft shutter, and variable neutral density
(ND) system. This enables on-the-fly shutter adjustments to reduce motion blur and temporal aliasing. The ND
filter also includes a linear polarizer and IR filter for improved image color and contrast.

NOTE: HDRx
NOTE: The MOTION MOUNT is compatible with EPIC, SCARLET

VARIABLE ND FILTER

The electronic variable ND filter provides adjustable optical density for the camera. The amount of optical
density varies based on the active shutter type. Adjust the ND value using a touchscreen or user keys, without
having to change physical filters.

 Soft/Square Shutter: Range is 0.48 to 1.20 (1.60 to 4.00 stops)

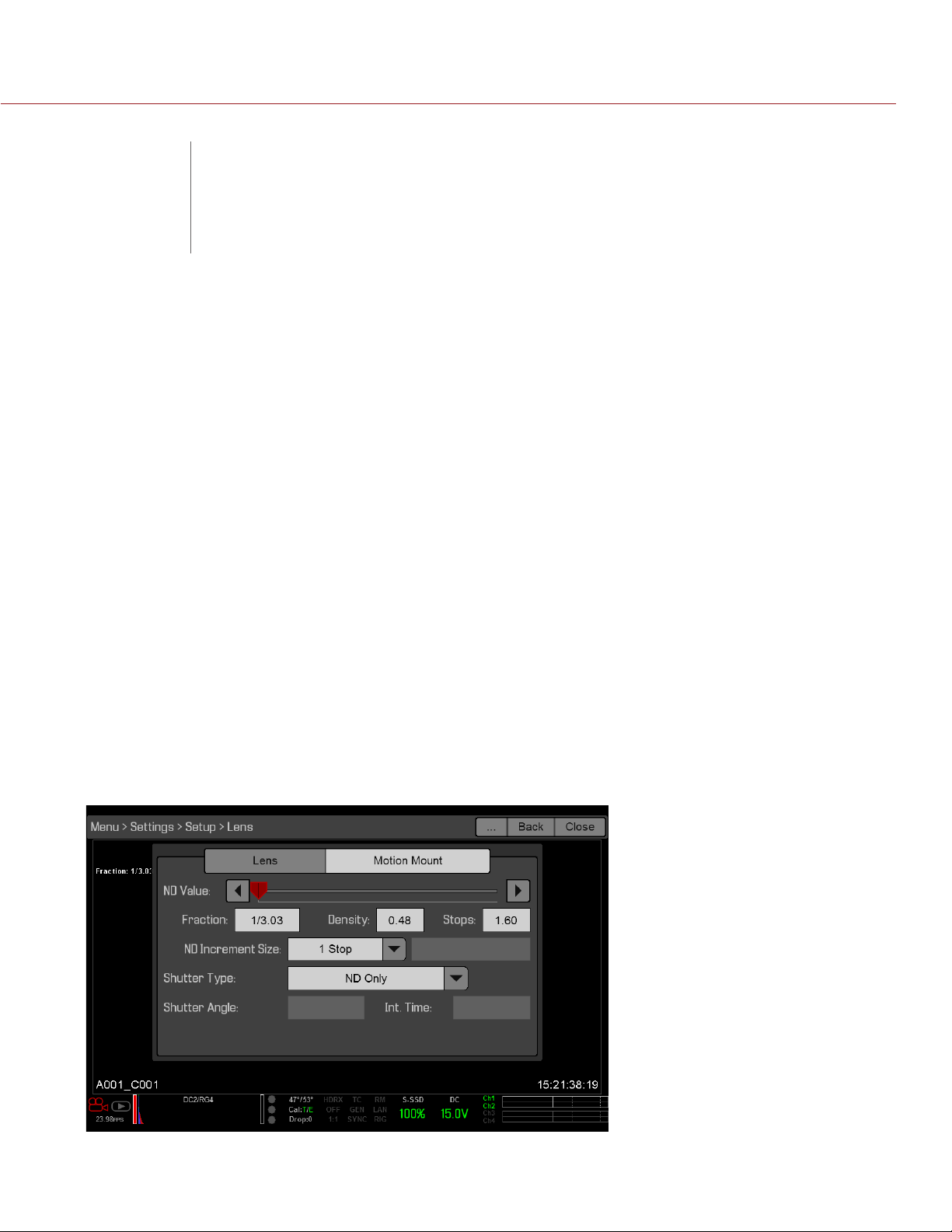

 ND Only: Range is 0.48 to 2.40 (1.60 to 8.00 stops)

NOTE: While the MOTION MOUNT is installed, the adjustable electronic ND filter provides a minimum light loss
of 1.60 stops (0.48 optical density).

®

is not available while the MOTION MOUNT is installed.

INTRODUCTION

®

, and WEAPON® cameras.

IR FILTER AND LINEAR POLARIZATION

The MOTION MOUNT incorporates an IR-cut filter and new color science, providing accurate and natural
color over a wide range of color temperatures. The IR-cut filter ensures rich, deep shadows in your shots and
minimizes IR contamination at high ND levels, without the need for a separate hot mirror.

The built-in linear polarizer improves image quality by increasing contrast and reducing unwanted glare from
light that passes through the MOTION MOUNT to the image sensor.

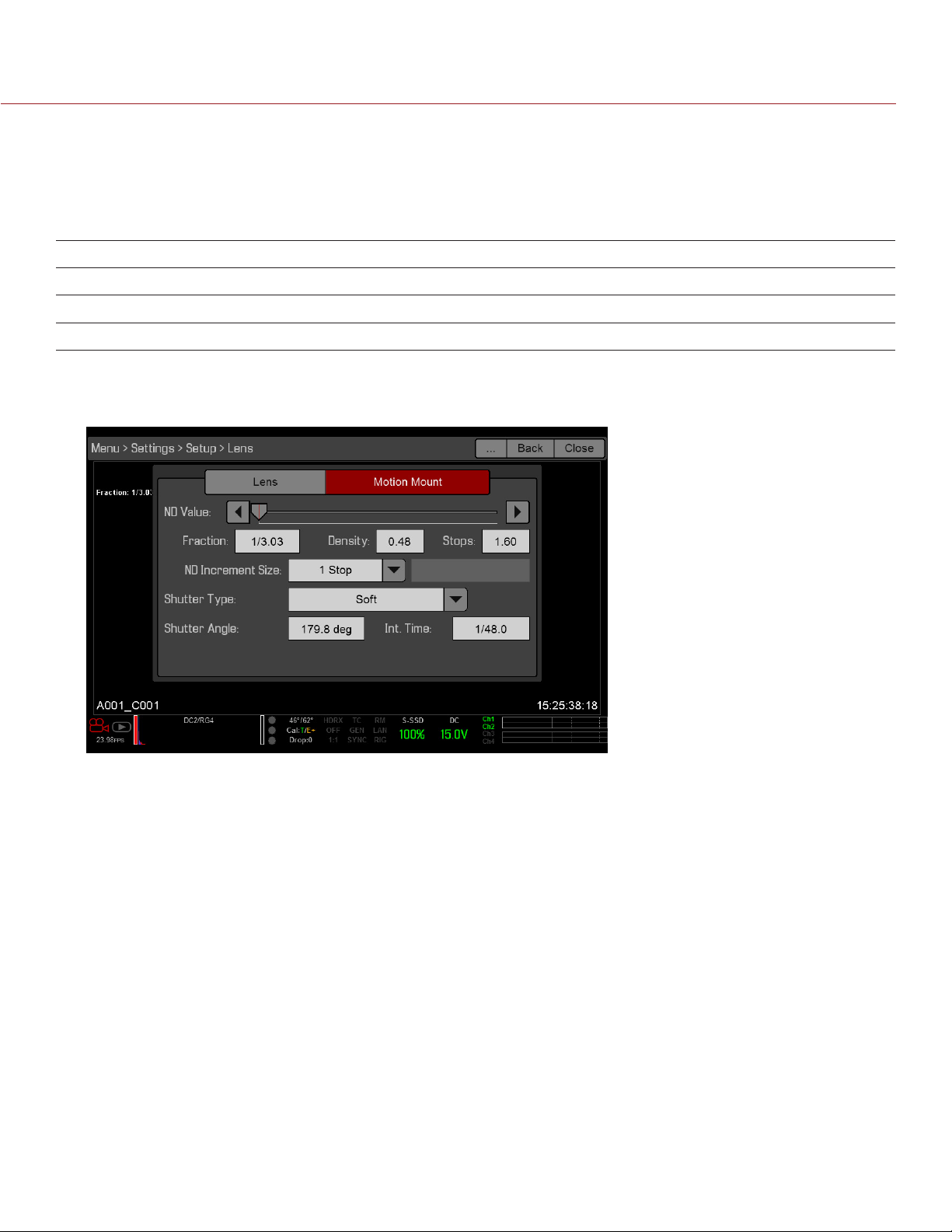

SOFT SHUTTER

The MOTION MOUNT Soft shutter performs temporal anti-aliasing in your footage, eliminating sampling rate
issues caused by temporal aliasing. This is commonly referred to as the “wagon-wheel effect”. Effectively,
the MOTION MOUNT improves your images and footage by ensuring smooth and natural motion. As its name
implies, the Soft shutter “softens” the edges of blur, resulting in crisp, smooth motion, and pans.

For more information about temporal anti-aliasing, see the Temporal Aliasing with Cinema article available at

www.red.com/learn/red-101/cinema-temporal-aliasing.

SQUARE SHUTTER

The MOTION MOUNT Square shutter, also referred to as “global shutter,” eliminates rolling shutter artifacts,
such as partial illumination caused by strobes and flashing light. The global shutter ensures uniform exposure
throughout your image, regardless of strobes or motion.

For more information about global shutters, see the Global & Rolling Shutters article available at www.red.com/

learn/red-101/global-rolling-shutter.

COPYRIGHT © 2015 RED.COM, INC

955-0013, REV-K | 6

RED MOTION MOUNT OPERATION GUIDE

MOTION MOUNT COMPONENTS

Each MOTION MOUNT package contains one of the following:

 DSMC

 DSMC RED MOTION MOUNT Ti Canon

®

RED MOTION MOUNT Ti PL
‒ DSMC Mount Body Cap
‒ DSMC Mount Back Cap

‒ DSMC Mount Body Cap
‒ DSMC Mount Back Cap

®

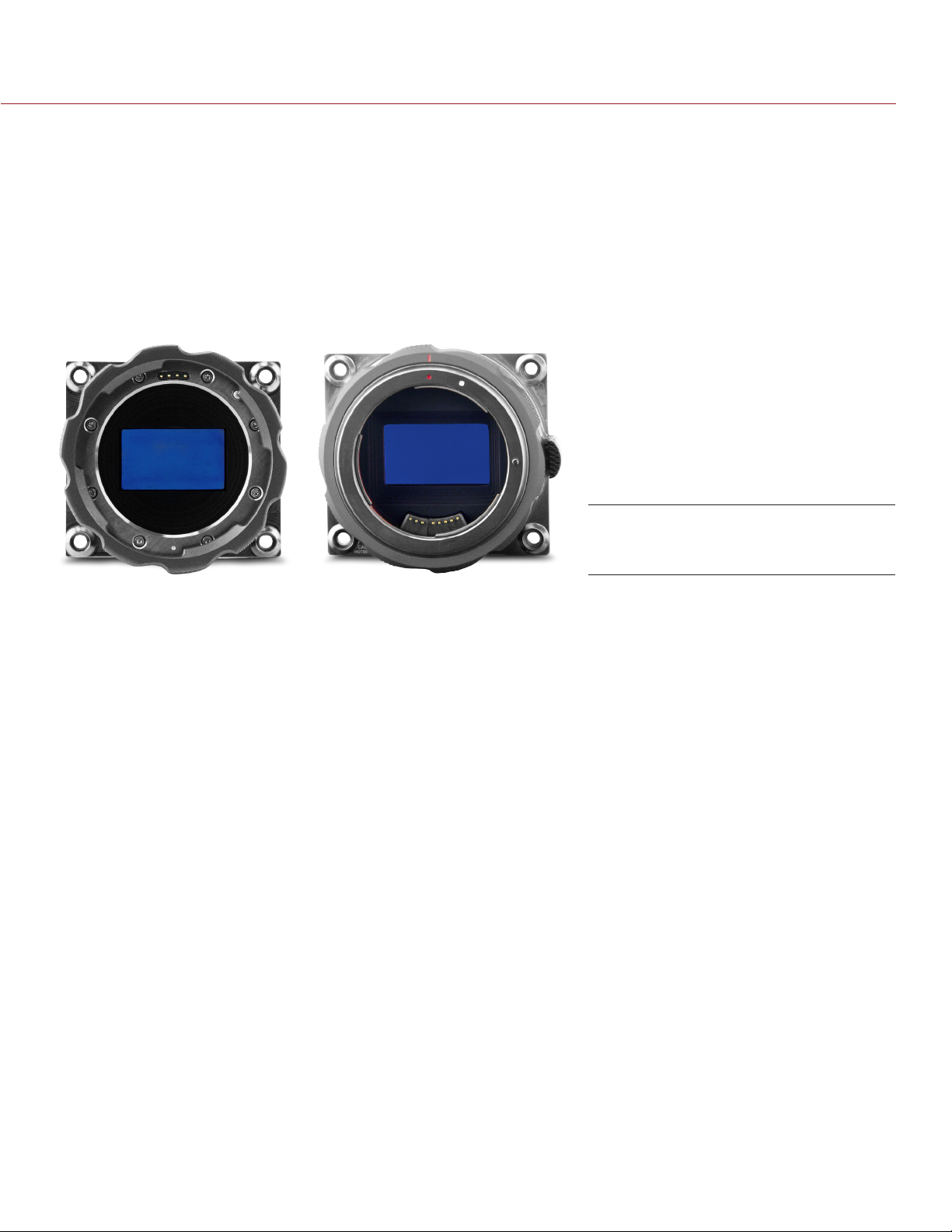

MOTION MOUNT Ti PL (left),
MOTION MOUNT Ti Canon (right)

IMPORTANT: If any components are damaged or missing, please file a support ticket at https://support.red.com.

HARDWARE AND SYSTEM REQUIREMENTS

The MOTION MOUNT is compatible with EPIC, SCARLET®, and WEAPON® cameras.

 Camera firmware v5.1.14 or later
 REDCINE-X PRO® Build 20.0.0 or later

NOTE: RED MOTION MOUNT Ti PL and RED MOTION MOUNT Ti Canon use identical filter and shutter
mechanisms. The only differences between the mounts are the mechanical locking systems and compatible
lenses.

NOTE: The MOTION MOUNT is 0.9 mm longer than the respective DSMC Ti PL Mount and DSMC Canon Mount.

ADDITIONAL RESOURCES

The following resources offer additional information about RED®, the camera system, and the RED community:

 RED.com: Check the official RED website for the latest information about RED products.
 RED Learn Articles: RED offers in-depth technical articles about RED cameras, post production, and digital

cinematography.

 RED.com/downloads: Go to the RED Downloads page to download the latest firmware, operation guides,

and post production software.

 Support.red.com: Check the RED SUPPORT site for FAQs, or to file a support ticket.
 DSMC Toolkit: Go to the RED Downloads page to download the DSMC Toolkit, which offers many helpful

tools and resources to customize and improve your camera workflow.

 Bomb Squad Support: For more information, contact your Bomb Squad representative.
 Reduser.net: Discuss all things RED on the REDUSER third-party forum.

COPYRIGHT © 2015 RED.COM, INC 955-0013, REV-K | 7

RED MOTION MOUNT OPERATION GUIDE

MOTION MOUNT

02

The RED MOTION MOUNT® is installed in the same way as other RED lens mounts. Installation and removal
steps provided in this section apply to the following lens mounts:

ITEM PART NUMBER

DSMC
DSMC Ti PL Mount 725-0022
DSMC Al Canon
DSMC Ti Canon Mount 725-0005
DSMC Al Nikon

®

Mg PL Mount 2.0 725-0024

®

INSTALLATION

®

Mount 725-0026

Mount 725-0006

DSMC Ti Nikon Mount 725-0007

®

DSMC Al Leica-M
DSMC MOTION MOUNT Ti PL 725-0012
DSMC MOTION MOUNT Ti Canon 725-0014

For more information on maintenance, go to “MOTION MOUNT Maintenance” on page 25.
WARNING: Lens mounts are NOT HOT SWAPPABLE, meaning you cannot install or remove a lens mount while

the camera is turned on. Before installing or removing the lens mount you MUST turn off the camera. Failure to
do so may result in damage to the lens mount or camera that will not be covered under warranty.

WARNING: Any damage to your camera, lens mount, or other equipment caused by the incorrect removal or
installation of lens mounts is NOT covered under any RED

NOTE: DO NOT allow dirt or debris to enter the camera opening during the installation or removal of a lens
mount. Take great care not to drop any screws into the camera opening, as damage may occur to the OLPF.

NOTE: Always avoid physical contact with the MOTION MOUNT glass during installation or removal.

Mount 725-0008

®

warranty.

COPYRIGHT © 2015 RED.COM, INC

955-0013, REV-K | 8

RED MOTION MOUNT OPERATION GUIDE

LENS MOUNT ALIGNMENT

MOTION MOUNT Ti PL (left),
MOTION MOUNT Ti Canon (right)

When installing the MOTION MOUNT, ensure that the lens mount is properly aligned. The forward-facing contact
pins differ between the two (2) mounts. RED MOTION MOUNT Ti PL contacts pins are located on the top of the
mount, while RED MOTION MOUNT Ti Canon contact pins are located on the bottom of the mount.

REMOVE A LENS MOUNT

REQUIRED TOOL: T20 TORX® driver

1. Turn off the camera.

2. Attach the camera to a stable platform or position the camera on a clean and level work surface so that the
lens mount screws are accessible.

3. Remove the lens, as well as any modules, cables, or other accessories that might interfere with removing
the lens mount.

4. Loosen and remove the four (4) M4 x 0.7 x 8 mm lens mount screws in a cross pattern (“X” pattern) using
a T20 TORX driver.

NOTE: Screw removal may require a large handle T20 TORX driver and additional leverage.
NOTE: The DSMC Mg PL Mount 2.0 has captive screws that are not removable from the mount.

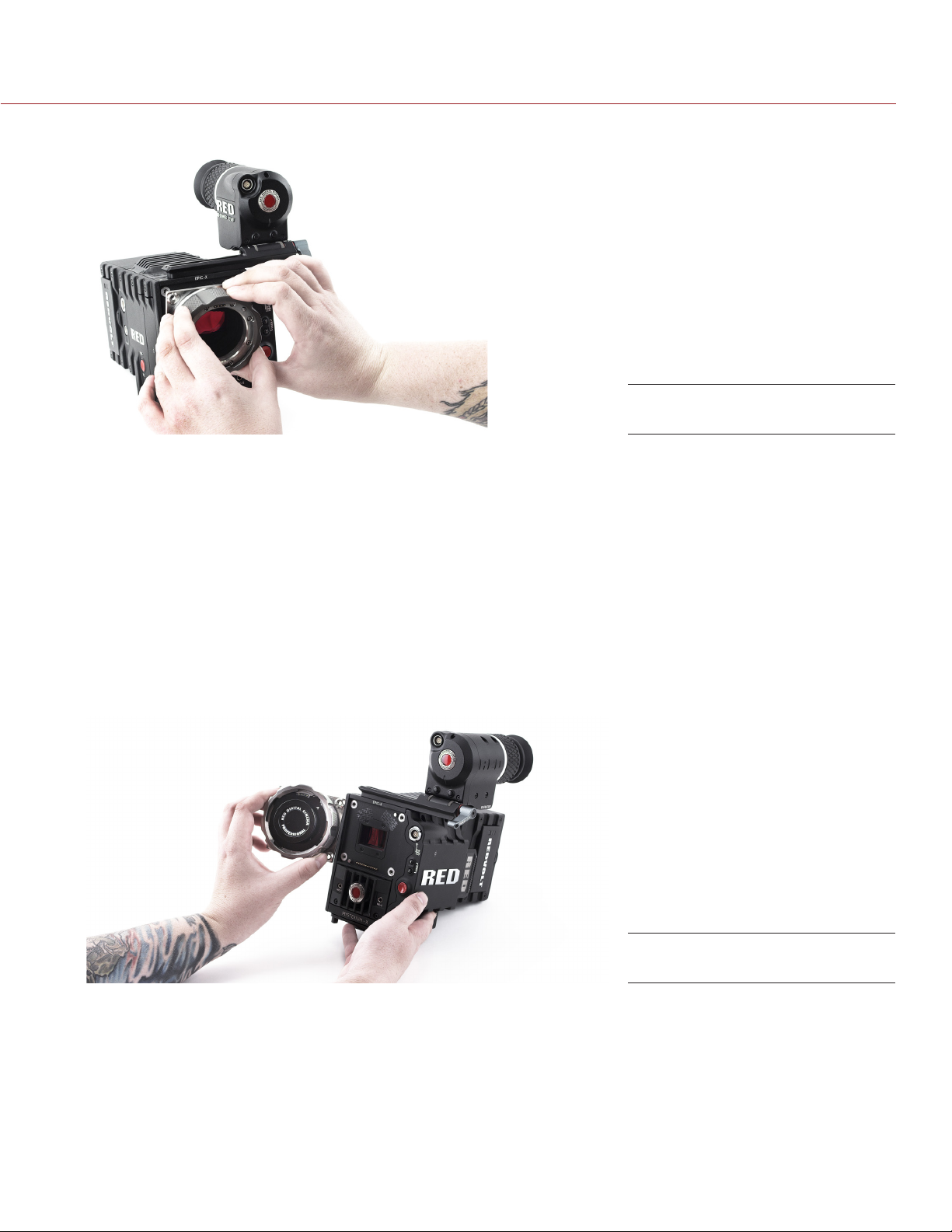

Remove the lens mount screws

COPYRIGHT © 2015 RED.COM, INC 955-0013, REV-K | 9

RED MOTION MOUNT OPERATION GUIDE

5. Remove the lens mount from the camera.

Remove the lens mount

NOTE: When the MOTION MOUNT is not in use the rear glass is blue. During operation the rear glass turns
yellow. If you remove the MOTION MOUNT shortly after operation, the glass turns yellow and develops blue
spots. As the glass cools, it returns to its original blue color. This color transition is typical behavior.

INSTALL THE MOTION MOUNT

REQUIRED TOOL: T20 TORX® driver

Turn off the camera and remove any accessories or cables that may interfere with installation before proceeding.

1. Inspect the gold electrical contact pins on the front of the camera and the gold contact pads on the rear of
the MOTION MOUNT. Ensure that they are free of any contamination.

2. Align the MOTION MOUNT on the front of the camera. The camera connection pins must align with the
MOTION MOUNT pins.

Align MOTION MOUNT pins

COPYRIGHT © 2015 RED.COM, INC

955-0013, REV-K | 10

RED MOTION MOUNT OPERATION GUIDE

3. Replace and loosely tighten the four (4) M4x0.7 x 8 mm lens mount screws in a cross pattern (“X” pattern).
WARNING: DO NOT FULLY TIGHTEN.

Install Screws

4. Tighten the four (4) lens mount screws evenly using a T20 TORX driver in a cross pattern (“X” pattern). DO
NOT exceed 350 in-oz, or damage may occur.

WARNING: DO NOT OVERTIGHTEN.
NOTE: The DSMC Mg PL Mount 2.0 has captive screws that are not removable from the mount.

5. After installation, a hardware rediscover or firmware upgrade may be required. If the MOTION MOUNT is
not recognized, you are unable to access the MOTION MOUNT menu at Menu > Settings > Setup > Lens.

To perform a hardware rediscover, go to Menu > Settings > Maintenance > Rediscover. A system reboot is
required after a hardware rediscover.

NOTE: For more information and troubleshooting, go to “Camera Does Not Recognize the MOTION MOUNT” on

page 27.

NOTE: If you need to replace any screws, please contact your Bomb Squad representative.

COPYRIGHT © 2015 RED.COM, INC 955-0013, REV-K | 11

RED MOTION MOUNT OPERATION GUIDE

MOTION MOUNT

03

MOTION MOUNT SETTINGS

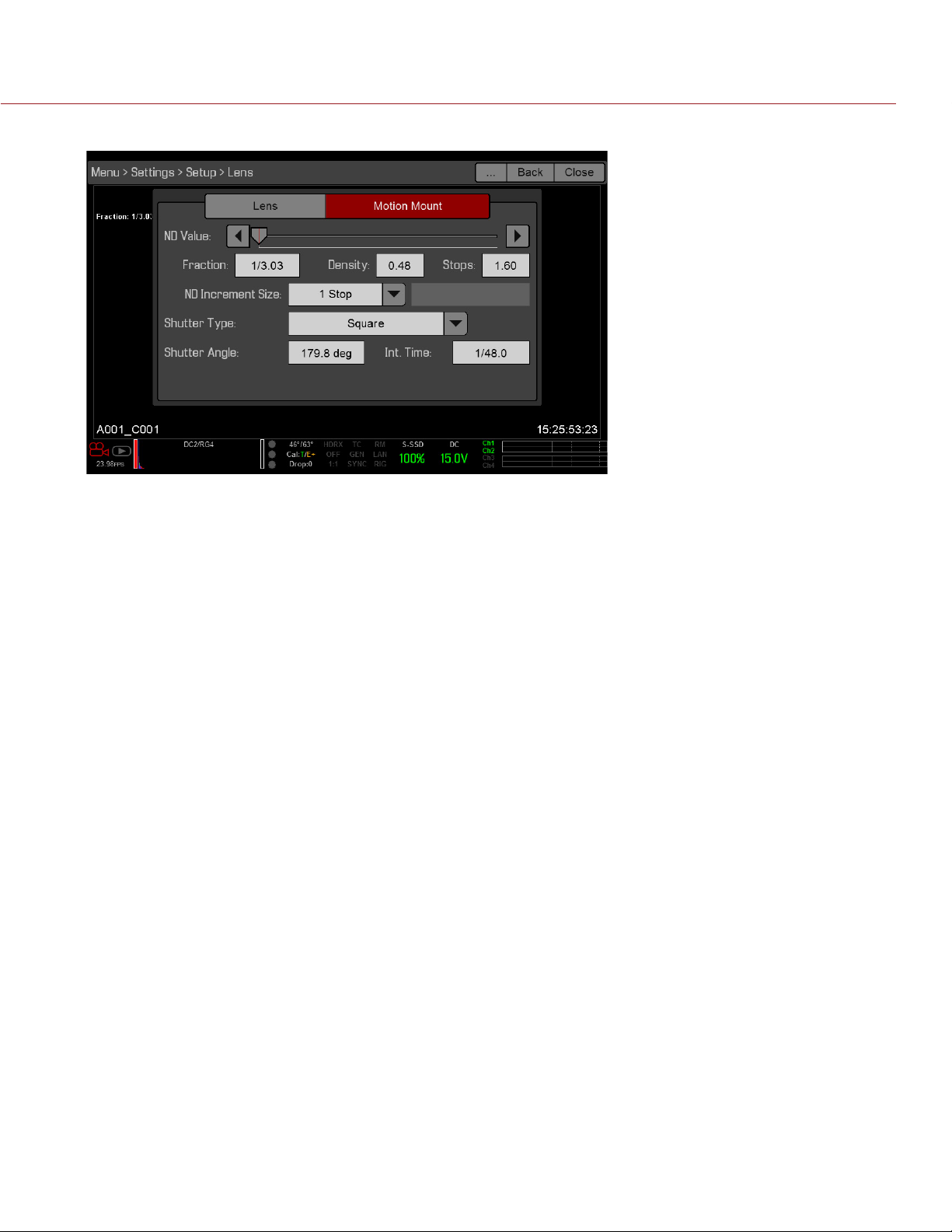

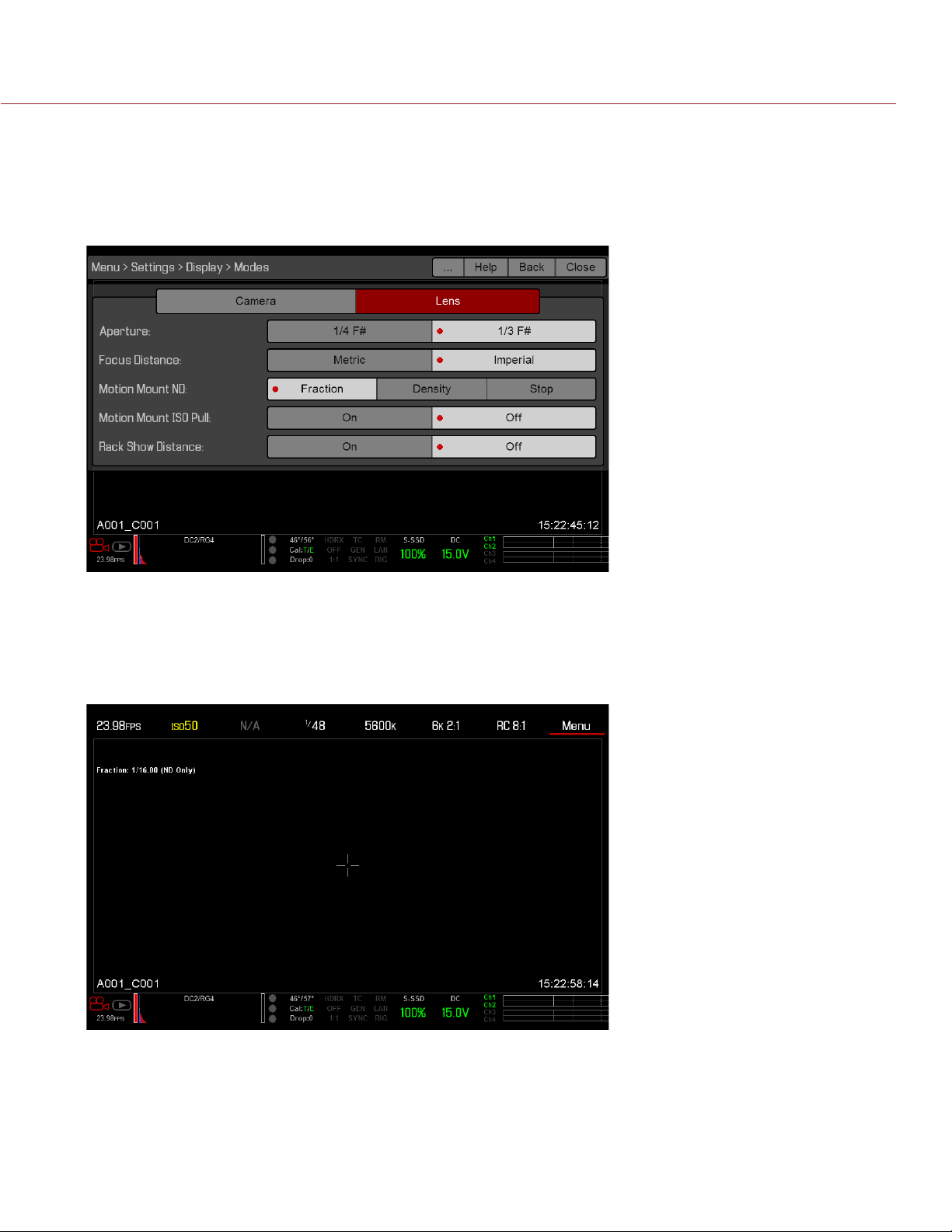

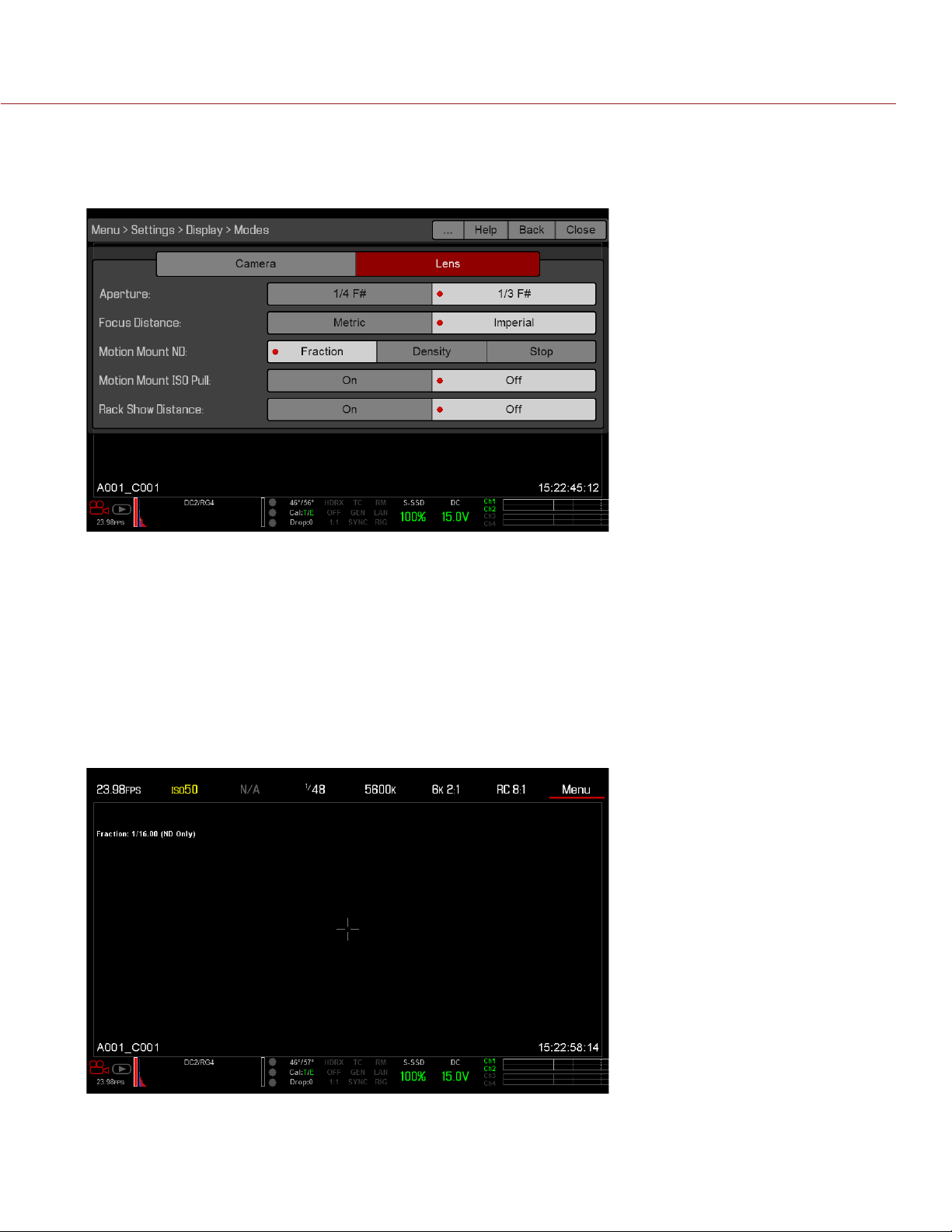

The RED MOTION MOUNT® delivers variable ND and shutter options based on the selected shutter type. The
following shutter types are available in Menu > Settings > Lens > Motion Mount.

 ND Only: Disables Soft and Square shutters. The MOTION MOUNT functions only as an ND filter. For more

information, go to “Neutral Density (ND)” on page 13.

 Soft: Enables the Soft shutter, softening blur and reduction of temporal aliasing. The MOTION MOUNT

continues to function as an ND filter. For more information, go to “Soft Shutter” on page 20.

 Square: Enables the Square shutter, ensuring consistent exposure and smooth motion. The MOTION MOUNT

continues to function as an ND filter. For more information, go to “Square Shutter” on page 22.

The maximum shutter angle is restricted on the “ND Only” shutter type when ND is below 0.60 (2 stops). If the
shutter angle that you want is not available with the selected frame rate, increase the ND value to 0.60 (2 stops)
or more and try again.

NOTE: The ND setting cannot be changed while recording.
NOTE: These instructions are specific to camera firmware version v5.2.28.

OPERATION

ACCESS THE MOTION MOUNT MENU

To adjust MOTION MOUNT settings, follow the instructions below:
NOTE: These menu settings are only accessible when the MOTION MOUNT is installed.

1. Turn on the camera.

2. Go to Menu > Settings > Setup > Lens > Motion Mount.

COPYRIGHT © 2015 RED.COM, INC

955-0013, REV-K | 12

RED MOTION MOUNT OPERATION GUIDE

NEUTRAL DENSITY (ND)

The MOTION MOUNT provides a variable ND filter that incorporates an IR filter and polarizer. You can adjust the
ND setting using the on-screen display, or by mapping the following functions to camera keys:

 MOTION MOUNT: Increment ND
 MOTION MOUNT: Decrement ND

Variable ND functionality is always enabled when the MOTION MOUNT is installed.
For more information on key mapping, go to “Map Keys for MOTION MOUNT Settings” on page 24.

SELECT NEUTRAL DENSITY (ND) SETTINGS

1. Select an ND value using the ND Value slider.
Alternatively, select the settings box and enter a value that you want.

‒ Fraction: Displays the neutral density value as a fraction of light transmission.
‒ Density: Displays the neutral density value as an optical density value.
‒ Stop: Displays the neutral density value as a stop loss.

2. Select an ND Increment Size.

3. If you select Custom, enter the new increment size in the field next to the ND Increment Size drop-down
menu. You can select any increment in the range 0.01 to 4.00 stops.

NOTE: When an ND value over 4.00 stops is selected while in “ND Only,” the ND value on the main screen
overlay turns yellow. The following message also displays in the MOTION MOUNT menu screen: “High ND
with wide apertures may cause bokeh asymmetry”.

For more information on bokeh asymmetry, go to “Out-of-Focus Field Modification” on page 15.

COPYRIGHT © 2015 RED.COM, INC 955-0013, REV-K | 13

RED MOTION MOUNT OPERATION GUIDE

NEUTRAL DENSITY (ND) RANGE

The table below provides the available fraction values, optical density values, and stop losses. The values
provided are in increments of 1/2 and 1/3 stops.

The available ND range is based on the currently selected shutter type.

 ND Only: The available optical density range for “ND Only” is 0.48 to 2.40 (1.60 to 8.00 stops).
 Soft: The available optical density range for “Soft” is 0.48 to 1.20 (1.60 to 4.00 stops).
 Square: The available optical density range for “Square” is 0.48 to 1.20 (1.60 to 4.00 stops).

ND VALUES SHUTTER TYPES

FRACTION DENSITY STOPS ND ONLY SOFT/SQUARE

1/3.03 0.48 1.60 √ √
1/3.18 0.50 1.67 √ √

1/4.00 0.60 2.00 √ √
1/5.06 0.70 2.34 √ √
1/5.66 0.75 2.50 √ √
1/6.36 0.80 2.67 √ √
1/8.00 0.90 3.00 √ √
1/10.13 1.01 3.34 √ √
1/11.31 1.05 3.50 √ √
1/12.73 1.10 3.67 √ √
1/16.00 1.20 4.00 √ √
1/20.25 1.31 4.34 √ X
1/22.63 1.35 4.50 √ X
1/25.46 1.41 4.67 √ X
1/32.00 1.51 5.00 √ X
1/40.50 1.61 5.34 √ X
1/45.25 1.66 5.50 √ X
1/50.91 1.71 5.67 √ X
1/64.00 1.81 6.00 √ X
1/81.01 1.91 6.34 √ X
1/90.51 1.96 6.50 √ X
1/101.83 2.01 6.67 √ X
1/128.00 2.11 7.00 √ X
1/162.02 2.21 7.34 √ X
1/181.02 2.26 7.50 √ X
1/203.66 2.31 7.67 √ X
1/256.00 2.40 8.00 √ X

COPYRIGHT © 2015 RED.COM, INC

955-0013, REV-K | 14

RED MOTION MOUNT OPERATION GUIDE

OUT-OF-FOCUS FIELD MODIFICATION

Use of “ND Only” with a high ND value and wide aperture may cause unwanted results, including distortion or
flaring in the out-of-focus field. In some instances, vignetting may also occur at the edge of the image. This is
typical when using lenses with smaller image circles. RED recommends that you do not exceed 4.00 stops of
ND when shooting with wide apertures.

NOTE: For instance, if the MOTION MOUNT is set to 8.00 stops of ND, and the lens is set to T1.8, instead of
the normal circular bokeh pattern, the out-of-focus area may have unwanted or intense flare.

AVOID FLARE AND DISTORTION

Use the following tips to avoid or dramatically reduce flare and distortion.

 Increase T-Stop to T4.0 or greater: Increase the T-Stop to T4.0 or greater to dramatically reduce bokeh

distortion.

 Reduce ND setting: Reduce the ND setting to five (5) stops or less to produce a more symmetrical bokeh.
 Install a traditional ND filter: Use a traditional ND filter if a shot requires a wide aperture (to limit depth-of-

field) and also requires eight (8) stops of ND. Adjust the MOTION MOUNT to four (4) stops of ND and install
an ND filter. This removes bokeh distortion and flare, and also enables the use of the Soft and Square
shutter types.

NOTE: Effects of flare and distortion are negligible at apertures greater than T4.0. Flare and distortion may vary
based on the lens. RED recommends testing each lens in conjunction with the MOTION MOUNT before an
important shoot.

NOTE: Selecting an ND value over 4.00 stops in “ND Only” results in the ND value on the main screen overlay
turning yellow. The following message displays on the MOTION MOUNT menu: “High ND with wide apertures
may cause bokeh asymmetry”.

COPYRIGHT © 2015 RED.COM, INC 955-0013, REV-K | 15

RED MOTION MOUNT OPERATION GUIDE

DISPLAY EFFECTIVE ISO

When using any ND filter, including the MOTION MOUNT, the effective ISO is reduced because the ND filter
reduces light transmission to the sensor. To display the effective ISO (on the main screen) and native camera
sensor ISO (in the ISO/FLUT® screen), follow the instructions below:

1. Go to Menu > Settings > Display > Modes > Lens.

2. Select the MOTION MOUNT ISO Pull setting that you want:

‒ On: Displays the effective ISO.
‒ Off: Displays actual ISO.

3. Select Close to return to the main screen.
The effective ISO displays in yellow.

COPYRIGHT © 2015 RED.COM, INC

955-0013, REV-K | 16

RED MOTION MOUNT OPERATION GUIDE

4. Go to Menu > Settings > Look > ISO/FLUT, or select ISO in the Upper Status Row (Basic Menu).

5. Select an ISO value on the slider.
NOTE: Remember, changing the effective ISO changes the native ISO of the camera and NOT the ND value.

To view or change the native ISO, press and hold the ISO value to access the Advanced ISO menu. The
native ISO is the first value.

NOTE: RED® recommends that you follow standard exposure best practices and select your ISO value based
on the native ISO.

COPYRIGHT © 2015 RED.COM, INC 955-0013, REV-K | 17

RED MOTION MOUNT OPERATION GUIDE

DISPLAY NEUTRAL DENSITY (ND) SETTINGS

You can configure how the ND settings display in the graphical user interface (GUI).

1. Go to Menu > Settings > Display > Modes > Lens.

2. Select one of the following MOTION MOUNT ND display settings:

‒ Fraction: Displays the neutral density value as a fraction of light transmission.
‒ Density: Displays the neutral density value as an optical density value.
‒ Stop: Displays the neutral density value as a stop loss.

3. Select Close to exit.
The ND value displays in the top left corner of the Live Action Area on the GUI.
NOTE: Using a high ND with wide apertures may cause asymmetrical bokeh. If you select an ND value over

4.00 stops with “ND Only” selected, the ND value on the main screen overlay turns yellow. A warning
message also displays in the MOTION MOUNT menu on the camera. For more information about bokeh
asymmetry, go to “Out-of-Focus Field Modification” on page 15.

COPYRIGHT © 2015 RED.COM, INC

955-0013, REV-K | 18

RED MOTION MOUNT OPERATION GUIDE

MOTION MOUNT SHUTTER TYPES

Based on the selected shutter type, the MOTION MOUNT overrides control of all shutter operations. The
MOTION MOUNT can operate at frame rates up to 109.98 FPS.

Use the table below to help determine which MOTION MOUNT shutter type to use:

SHUTTER TYPE ARTIFACTS

ROLLING SHUTTER TEMPORAL ALIASING
SOFT SHUTTER
SQUARE SHUTTER

None Dramatically reduced

None No effect

SELECT MOTION MOUNT SHUTTER TYPE AND SETTINGS

1. Go to Menu > Settings > Setup > Lens > Motion Mount.

2. Select one of the following shutter types from the Shutter Type drop-down menu:

‒ Soft: For more information, go to “Soft Shutter” on page 20.
‒ Square: For more information, go to “Square Shutter” on page 22.

COPYRIGHT © 2015 RED.COM, INC 955-0013, REV-K | 19

RED MOTION MOUNT OPERATION GUIDE

3. Select a Shutter Angle or Int. Time (Integration Time).

SOFT SHUTTER

The MOTION MOUNT Soft shutter is a breakthrough for cinematography, using a liquid crystal shutter to solve
CMOS rolling and global shutter problems. Different from a standard global shutter, the Soft shutter causes the
liquid crystal to rapidly ramp from opaque to clear in a rounded wave. This exposes the sensor to light, taking
many discrete captures of the scene. This technique eliminates the effects of temporal aliasing and reduces
rolling shutter artifacts.

Temporal Aliasing Advantages:

 Shows correct direction of rotation of cyclical motion, such as rotating propellers.
 Softens blur while preserving clarity.
 Reduces judder while panning.
 Renders movement accurately and naturally.
 Reduces flickering without requiring continuous or synchronized lighting.

Rolling Shutter Advantages:

 Reduces striping or tearing artifacts from uncontrolled strobes and flashes.
 Reduces skew, also known as the “jello” effect, so that fast-moving subjects are not angled or sheared.
 Ensures that images are not blurred or wobbled due to rapid camera movements.

SOFT SHUTTER FRAME RATES

You can use the MOTION MOUNT shutter at frame rates up to 109.98 FPS, but the Soft shutter is most effective
at reducing temporal aliasing artifacts and rolling shutter artifacts at lower frame rates.

SOFT SHUTTER ANGLE

The Soft shutter angle ranges from 62.1° to 194.4°. The available shutter angle range at any given time
depends on the selected frame rate.

For the most natural and realistic motion, use a Soft shutter angle of 194.4°. Then, adjust the shutter angle if
necessary.

COPYRIGHT © 2015 RED.COM, INC

955-0013, REV-K | 20

RED MOTION MOUNT OPERATION GUIDE

SOFT SHUTTER: STROBE SAFE OPERATION

The table below provides recommended maximum shutter angles for recording strobe lights using the Soft
shutter.

FRAME RATE RESOLUTION

1K 2K 3K 4K 5K 6K
1
2
4
8
12
16
24
25
30
40
48
50
60
72
75
90
96

194° 194° 193° 193° 192° 192°

193° 193° 192° 191° 190° 190°

192° 191° 190° 188° 186° 185°

190° 188° 185° 182° 179° 176°

188° 186° 181° 176° 171° 167°

186° 183° 176° 169° 163° 157°

183° 177° 167° 157° 147° 139°

182° 176° 166° 155° 145° 137°

180° 172° 160° 147° 135° 125°

175° 165° 149° 131° 115° 102°

171° 159° 140° 119° 99° 83°

170° 157° 137° 116° 95° 79°

165° 150° 126° 100° 76° None

159° 141° 112° 81° None None

157° 139° 109° 76° None None

150° 128° 92° None None None

147° 123° 85° None None None

100
120

CAUTION: Firmware versions earlier than v5.2.14 allow values outside of these ranges. Settings outside of the

supported range result in a double exposure of the frame.

145° 121° 80° None None None

135° 106° None None None None

COPYRIGHT © 2015 RED.COM, INC 955-0013, REV-K | 21

RED MOTION MOUNT OPERATION GUIDE

SQUARE SHUTTER

The MOTION MOUNT Square shutter is a global shutter that provides consistent, full illumination for every
frame. The MOTION MOUNT fundamentally changes the way your camera exposes for motion, reducing skew
and smear artifacts.

The MOTION MOUNT Square shutter assists in the following ways:

 Reduces striping or tearing artifacts from uncontrolled strobes and flashes.
 Reduces skew, also known as the “jello” effect, so that fast-moving subjects are not angled or sheared.
 Ensures images are not blurred or wobbled due to rapid camera movements.

SQUARE SHUTTER FRAME RATES

The Square shutter operates at frame rates up to 109.98 FPS; however, the Square shutter is most effective at
reducing rolling shutter artifacts at lower frame rates.

SQUARE SHUTTER ANGLE

The Square shutter angle ranges from 62.1° to 180°. The available shutter angle range at any given time
depends on the selected frame rate.

For the most natural and realistic motion in Square shutter mode, start at a shutter angle of 180°. Adjust the
shutter angle from there as needed.

COPYRIGHT © 2015 RED.COM, INC

955-0013, REV-K | 22

RED MOTION MOUNT OPERATION GUIDE

SQUARE SHUTTER: STROBE SAFE OPERATION

The table below provides recommended maximum shutter angles for recording strobe lights using the Square
shutter.

FRAME RATE RESOLUTION

1K 2K 3K 4K 5K 6K
1
2
4
8
12
16
24
25
30
40
48
50
60
72
75
90
96

180° 180° 180° 180° 180° 180°

180° 180° 180° 180° 180° 180°

180° 180° 180° 180° 180° 180°

180° 180° 180° 180° 180° 180°

180° 180° 180° 180° 180° 180°

180° 180° 180° 180° 180° 180°

180° 180° 180° 180° 180° 171°

180° 180° 180° 180° 179° 169°

180° 180° 180° 180° 167° 154°

180° 180° 180° 162° 142° 126°

180° 180° 172° 147° 123° 103°

180° 180° 169° 143° 118° 97°

180° 180° 155° 123° 93° 69°

180° 174° 138° 100° 64° None

180° 172° 134° 94° None None

180° 158° 113° 65° None None

180° 152° 105° None None None

100
120

CAUTION: Firmware versions earlier than v5.2.14 allow values outside of these ranges. Settings outside of the

supported range result in a double exposure of the frame.

179° 149° 99° None None None

167° 131° 71° None None None

COPYRIGHT © 2015 RED.COM, INC 955-0013, REV-K | 23

RED MOTION MOUNT OPERATION GUIDE

MAP KEYS FOR MOTION MOUNT SETTINGS

Program user keys to quickly adjust ND value and shutter settings without accessing the menus. To map keys,
go to Menu > Settings > Setup > Keys.

You can map the following MOTION MOUNT actions to a user key:

KEY ACTION DESCRIPTION

MOTION MOUNT: Decrement ND Decrements the ND value by the ND Increment Size selected in the

MOTION MOUNT menu.

MOTION MOUNT: Increment ND Increments the ND value by the ND Increment Size selected in the

MOTION MOUNT menu.
MOTION MOUNT: 2.00 stop Changes the ND to 2.00 stops.
MOTION MOUNT: 3.00 stop Changes the ND to 3.00 stops.
MOTION MOUNT: 4.00 stop Changes the ND to 4.00 stops.
MOTION MOUNT: 5.00 stop Changes the ND to 5.00 stops.
MOTION MOUNT: ND Max In “ND Only”, changes the ND to 2.41.

In “Soft” or “Square”, changes the ND to 1.20.
MOTION MOUNT: ND Min Changes the ND value to 0.48.
MOTION MOUNT: ND Only Changes the Shutter Type to “ND Only”.
MOTION MOUNT: Soft Shutter Changes the Shutter Type to “Soft”.
MOTION MOUNT: Square Shutter Changes the Shutter Type to “Square”.

COPYRIGHT © 2015 RED.COM, INC

955-0013, REV-K | 24

RED MOTION MOUNT OPERATION GUIDE

MOTION MOUNT

04

STORAGE INSTRUCTIONS

Follow these instructions to protect the RED MOTION MOUNT® when not in use:

 Protect the MOTION MOUNT while not in use by replacing the DSMC

Mount Back Cap.

 Store the MOTION MOUNT in a clean, dry environment.

CLEAN MOTION MOUNT GLASS

As with all optical glass, any type of physical contact with the glass may scratch or damage the surface. RED®
recommends that you clean the MOTION MOUNT glass using physical contact only if absolutely necessary.

Before cleaning the MOTION MOUNT glass with swabs or wipes and a cleaning solution, ALWAYS use an
air bulb to remove any solid particles. Cleaning the MOTION MOUNT glass without removing solid particles
increases the risk of scratching the optical surface.

WARNING: Handle the MOTION MOUNT glass carefully. Failure to follow proper cleaning instructions may scratch
or damage the optical surface.

MAINTENANCE

®

Mount Body Cap and the DSMC

GENERAL CLEANING INSTRUCTIONS

 Avoid using the MOTION MOUNT in dusty or hazardous environments.
 Avoid physical contact with the glass.
 DO NOT rinse the MOTION MOUNT or immerse it in water.
 DO NOT use compressed air to clean the MOTION MOUNT.
 DO NOT use soaps, detergents, ammonia, alkaline cleaners, or abrasive cleaning compounds to clean the

MOTION MOUNT.
 DO NOT apply cleaning solution directly to the MOTION MOUNT glass.
 DO NOT use an excess of cleaning solution.
 DO NOT reuse swabs or wipes.

AIR BULBS

Use a rubber air bulb to remove any solid particles, such as dirt or dust. Use an ionized air bulb to remove solid
particles as well as static build-up.

WARNING: DO NOT use compressed air and gas dusters to clean the MOTION MOUNT, since the high pressure,
oily residue, cold air, particulates, and moisture may cause damage. Damage to the MOTION MOUNT or any
components of the camera system caused by using compressed air or gas dusters is not covered under
warranty.

COPYRIGHT © 2015 RED.COM, INC

955-0013, REV-J | 25

RED MOTION MOUNT OPERATION GUIDE

SWABS, WIPES, AND CLEANING SOLUTIONS

Before cleaning the optical surface with swabs or wipes, ALWAYS use an air bulb to remove any solid particles.
Cleaning an optical surface without removing solid particles greatly increases the risk of scratching the surface.

If you MUST clean the optical glass, use lens-grade wipes or flexible uniform swabs and a high quality sensor
or lens cleaning solution.

Follow the instructions below:

1. Apply a few drops of cleaning solution directly to the swab or wipe.

2. Gently sweep the swab or wipe across the length of the glass in a uniform motion.

‒ When using a swab: Ensure that the swab provides full coverage of the glass. Gently sweep the swab

across the length of the glass. DO NOT place the corners of the swab on the glass.

‒ When using a wipe: Gently sweep the wipe across the length of the glass with a flat, non-rigid flexible

instrument in a uniform motion. DO NOT sweep the wipe across the glass with your finger.

WARNING: DO NOT reuse swabs or wipes, since they may have gathered dirt or debris from the glass.

COPYRIGHT © 2015 RED.COM, INC

955-0013, REV-J | 26

RED MOTION MOUNT OPERATION GUIDE

TROUBLESHOOT

05

This chapter provides troubleshooting tips for the RED MOTION MOUNT®. If you continue to experience issues
after troubleshooting, please file a support ticket at https://support.red.com.

CAMERA DOES NOT RECOGNIZE THE MOTION MOUNT

SYMPTOM

The camera does not recognize an installed MOTION MOUNT.

EXPLANATION

Camera firmware must be v5.1.14 or later to recognize to MOTION MOUNT. If necessary, load the latest camera
firmware, then perform a hardware rediscover.

THE MOTION MOUNT

POTENTIAL RESOLUTIONS

 Upgrade your camera firmware to v5.1.14 or later from https://support.red.com.
 Perform a hardware rediscover.

A. Go to Menu > Settings > Maintenance > Rediscover.
B. Select Yes.
C. Turn off and reboot the camera.

IRREGULAR OUT-OF-FOCUS BOKEH EFFECTS AND FLARE

SYMPTOM

Footage displays irregular out-of-focus bokeh effects, distortion, or flare.

EXPLANATION

The MOTION MOUNT may produce irregular out-of-focus bokeh effects, distortion, or flare in “ND Only” when
an ND value over 4.00 stops is selected and a very wide aperture is used.

POTENTIAL RESOLUTIONS

 Increase aperture to greater than T4.0.
 Reduce the MOTION MOUNT ND value to 4.00 or less.

For more information on bokeh asymmetry, go to “Out-of-Focus Field Modification” on page 15.

COPYRIGHT © 2015 RED.COM, INC

955-0013, REV-J | 27

RED MOTION MOUNT OPERATION GUIDE

DOUBLE EXPOSURES IN CAPTURED FOOTAGE

SYMPTOM

Recorded footage displays irregular motion blur or duplicate images, also known as “ghosting”.

EXPLANATION

The MOTION MOUNT Soft and Square shutters provide improvements in temporal aliasing and motion at frame
rates up 109.98 FPS, but are more effective at lower frame rates.

POTENTIAL RESOLUTIONS

 Reduce the frame rate used in the shot to below 109.98 FPS and try again.
 Ensure that you are using a recommended shutter angle.

For more information, go to “Soft Shutter Angle” on page 20 or “Square Shutter Angle” on page 22.

COPYRIGHT © 2015 RED.COM, INC

955-0013, REV-J | 28

RED MOTION MOUNT OPERATION GUIDE

TECHNICAL

A

RED MOTION MOUNT TI PL

SPECIFICATION DESCRIPTION

Dimensions Height: 3.23" (82.0 mm)

Weight 11.2 oz (318 g), Mount Only
Material Machined titanium

SPECIFICATIONS

Width: 3.23" (82.0 mm)
Depth: 1.43" (36.2 mm)

Operating Temperature 0°C to 40°C (32°F to 104°F)
Storage Temperature –20°C to 50°C (–4°F to 122°F)
Maximum Altitude 20,000 ft
Humidity Range 0 to 90% RH
Shock 10 g
Input Voltage 5.0 VDC
Power Consumption 1.5 W

RED MOTION MOUNT TI CANON

SPECIFICATION DESCRIPTION

Dimensions Height: 3.14" (79.9 mm)

Width: 3.35" (85.0 mm)

Depth: 0.92" (23.3 mm)
Weight 8.0 oz (227 g), Mount Only
Material Machined titanium
Operating Temperature 0°C to 40°C (32°F to 104°F)
Storage Temperature –20°C to 50°C (–4°F to 122°F)
Maximum Altitude 20,000 ft
Humidity Range 0 to 90% RH
Shock 10 g
Input Voltage 5.0 VDC
Power Consumption 1.5 W

COPYRIGHT © 2015 RED.COM, INC

955-0013, REV-J | 29

RED MOTION MOUNT OPERATION GUIDE

NEUTRAL DENSITY AND SHUTTER ANGLES

SPECIFICATION DESCRIPTION

Soft/Square Shutter Optical Density Range 0.48 to 1.20 (1.60 to 4.00 stops)
Square (Global) Shutter Angle Range
Soft Shutter Angle Range
ND Only Optical Density Range 0.48 to 2.40 (1.60 to 8.00 stops)
ND Only Angle Range 1° to 360°

1. Camera firmware versions prior to v5.2.14 DO NOT limit maximum frame rate. RED® recommends using a maximum frame rate of 109.98
with a RED MOTION MOUNT®. Selecting frame rates higher than 109.98 FPS, may result in double exposures.

2. Values are based on camera firmware v5.2.28. Values outside of provided ranges are allowed in firmware versions earlier than v5.2.14.
Frame rate settings outside of the supported range may result in a double exposures.

2

2

62.1° to 180°

62.1° to 194.4°

COPYRIGHT © 2015 RED.COM, INC

955-0013, REV-J | 30

RED MOTION MOUNT OPERATION GUIDE

MAXIMUM FRAME RATES

When the Soft or Square shutters are enabled, the maximum frame rate (FPS) is limited to ensure that the
camera and MOTION MOUNT capture the highest quality image without exposure issues.

RESOLUTION WEAPON

DRAGON (CF)

WEAPON

1

DRAGON (MG)

1

EPIC
DRAGON

2

DRAGON

SCARLET

2

EPIC
MYSTERIUM-X

SCARLET

2

MYSTERIUM-X

6K FF 51.92 51.92 51.92 12.08 – –
6K 2:1 52.79 52.79 52.79 12.08 – –
6K WS 58.42 58.42 58.42 12.08 – –
6K HD 52.16 52.16 52.16 12.08 – –
5K FF 56.95 56.95 56.95 48.73 56.71 12
5K 2:1 58.73 58.73 58.73 51.40 58.42 12
5K WS 64.49 64.49 64.49 60.92 64.61 12
5K HD 56.95 56.95 56.95 48.73 56.71 12
4K FF 64.68 64.68 64.68 60.92 64.61 30
4K 2:1 66.51 66.51 66.51 64.25 – –
4K WS 72.36 72.36 72.36 72.36 72.68 36
4K HD 64.68 64.68 64.68 60.92 64.61 30
3K FF 74.49 74.49 74.49 74.49 74.32 48
3K 2:1 76.30 76.30 76.30 76.30 – –
3K WS 82.01 82.01 82.01 81.01 82.11 60

2

3K HD 74.49 74.49 74.49 74.49 74.32 48
2K FF 88.05 88.05 88.05 88.05 87.93 60
2K 2:1 89.73 89.73 89.73 89.73 – –
2K WS 95.05 95.05 95.05 95.05 95.11 75
2K HD 88.05 88.05 88.05 88.05 87.93 60

1. Maximum frame rates are based on camera firmware v6.1. Values may vary slightly based on the camera firmware version.

2. Maximum frame rates are based on camera firmware v5.2.28. Values may vary slightly based on the camera firmware version.

COPYRIGHT © 2015 RED.COM, INC 955-0013, REV-J | 31

RED MOTION MOUNT OPERATION GUIDE

A

A

70.00

REVISIONS

ECO/MECO REV DESCRIPTION NAME DATE

01

D

C

B

3

2

1

MOTION MOUNT

B

The RED MOTION MOUNT® Ti PL and MOTION MOUNT Ti Canon® enable you to mount most PL cinema lenses
and Canon EF compatible lenses to your camera.

WARNING: Using lenses, adaptors, or other accessories that are not compatible with the MOTION MOUNT may
damage the internal glass or other elements in the lens mount.

WARNING: Lenses, adaptors, and other PL-mount devices with mounting elements that protrude more than

27.73 mm behind the PL mounting flange are not compatible with the MOTION MOUNT.
NOTE: Any damage to the MOTION MOUNT Ti PL or the camera system caused by using incompatible lenses

(including non-standard PL lenses) or devices is not covered under warranty.

COMPATIBILITY

COMPATIBILITY REQUIREMENTS

Some lenses are NOT compatible with the MOTION MOUNT due to the liquid crystal glass and shape of the
baffle inside the mount.

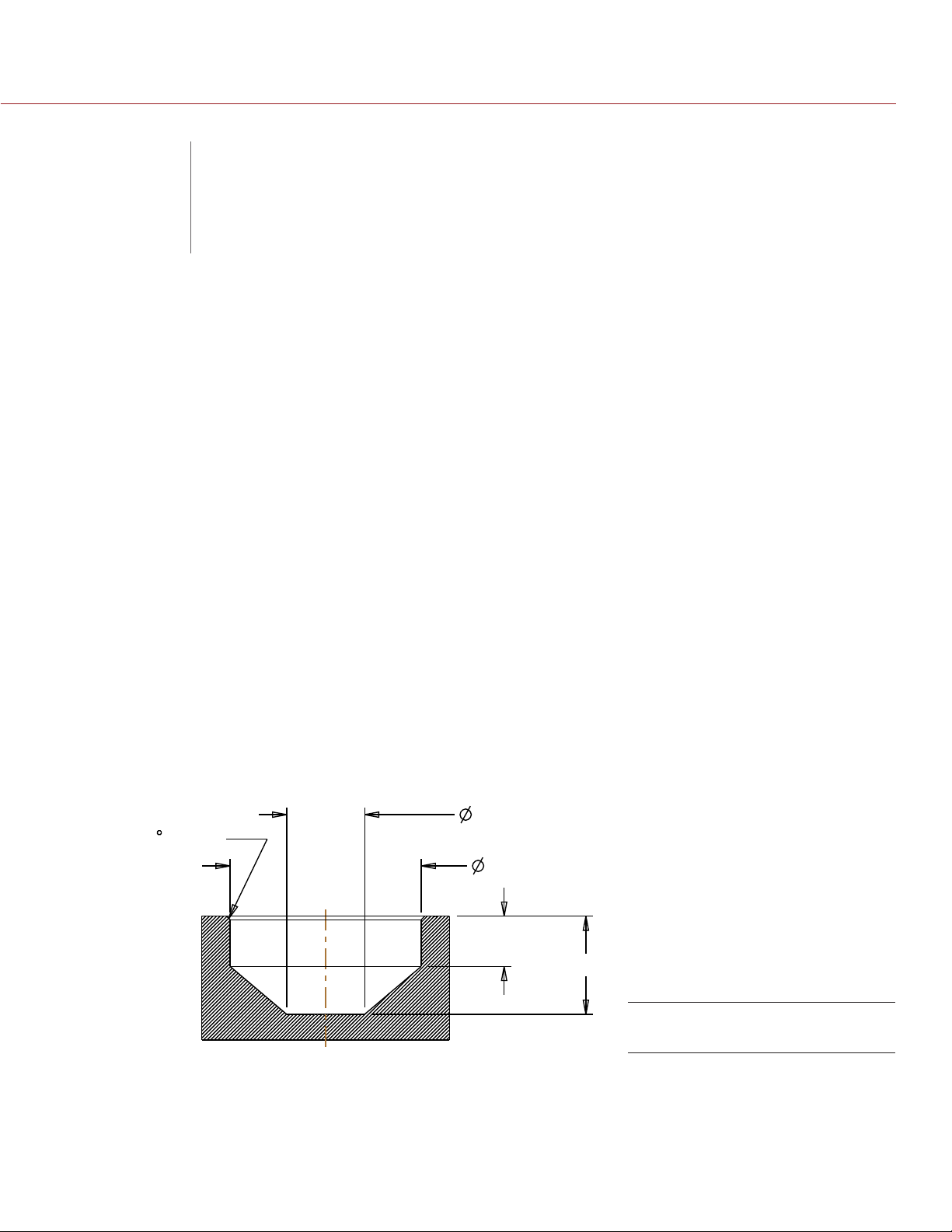

Refer to the following diagram to determine if the maximum protrusion depth and maximum protrusion diameter
of a particular lens is compatible with the MOTION MOUNT. If any of the protruding lens elements extend
beyond these dimensions, the lens IS NOT COMPATIBLE.

DO NOT use lenses that have mounting elements that exceed the following values:

WARNING: Use of a lens that extends beyond these dimensions may damage the MOTION MOUNT.

CHAMFER 45 X 1.00

 Maximum Protrusion Depth: 27.73 mm
 Maximum Protrusion Diameter at a Protrusion Depth of 14.20 mm: 54.00 mm
 Maximum Protrusion Diameter at a Protrusion Depth of 27.73 mm: 22.00 mm

22.00

+0.03

54.00

14.20

27.73

COPYRIGHT © 2015 RED.COM, INC

MOTION MOUNT Safe Zone

955-0013, REV-J | 32

RED MOTION MOUNT OPERATION GUIDE

COMPATIBLE PL LENSES AND DEVICES

The MOTION MOUNT Ti PL is compatible with the lenses and devices listed in the table below:

COMPATIBLE PL LENS/DEVICE FOCAL LENGTH

Angénieux Optimo 17–80mm T2.2

24–290mm T2.8
28–76mm T2.6
28–340mm T3.2

1.4x Extender

2.0x Extender

®

/Fujinon® Alura 18–80mm T2.6

ARRI

30–80mm T2.8
45–250mm T2.8

®

ARRI/Zeiss

Master Prime 16mm T1.3

18mm T1.3
21mm T1.3
25mm T1.3
27mm T1.3
32mm T1.3
35mm T1.3
40mm T1.3
50mm T1.3
75mm T1.3

ARRI/Zeiss Standard Speed 10mm T2.1

50mm T2.1

ARRI/Zeiss Super Speed 18mm T1.3

25mm T1.3
35mm T1.3
50mm T1.3
85mm T1.3

ARRI/Zeiss Ultra Prime 14mm T1.9

20mm T1.9
40mm T1.9

Century 1.4x Extender

2.0x Extender

®

Cooke

5i 18mm T1.4

25mm T1.4
32mm T1.4
50mm T1.4
75mm T1.4

COPYRIGHT © 2015 RED.COM, INC 955-0013, REV-J | 33

RED MOTION MOUNT OPERATION GUIDE

COMPATIBLE PL LENS/DEVICE FOCAL LENGTH

Cooke S4 Prime 14mm T2.0

18mm T2.0
21mm T2.0
25mm T2.0
27mm T2.0
32mm T2.0
35mm T2.0
40mm T2.0
50mm T2.0
65mm T2.0
75mm T2.0

100mm T2.0
Fujinon Cabrio 19–90mm T2.9
Fujinon Premiere 14.5–45mm T2.0

24–180mm T2.6

75–400mm T2.8–3.8
Hawk V-Lite Anamorphic 45mm T2.2

65mm T2.2
RED PRO PRIME 25mm T1.8

35mm T1.8

50mm T1.8

85mm T1.8

100mm T1.8

300mm T2.9
RED PRO ZOOM 17–50mm T2.9

18–85mm T2.9
RED ZOOM 18–50mm T3.0

50–150mm T3.0

COPYRIGHT © 2015 RED.COM, INC

955-0013, REV-J | 34

RED MOTION MOUNT OPERATION GUIDE

INCOMPATIBLE PL LENSES AND DEVICES

The MOTION MOUNT Ti PL is NOT COMPATIBLE with the lenses and devices listed in the table below:

INCOMPATIBLE PL LENS/DEVICE FOCAL LENGTH DESCRIPTION

Angénieux Optimo DP Series 16–42mm T2.8

30–80mm T2.8

ARRI/Zeiss Standard Speed 12mm T2.1

16mm T2.1
20mm T2.1
24mm T2.1
32mm T2.1
40mm T2.1

Cooke S2/S3 Speed Panchro 32mm T2.3 The rear flange depth is too long and interferes

PL-to-B4 Adaptor N/A The rear face of the PL-to-B4 Adaptor interferes

RED FOCUS N/A The rear face of the RED FOCUS interferes with

RED PRO PRIME 18mm T1.8 The extended PL cover ring interferes with the

DP Series lenses have a flange depth that does
not meet standard specification for PL lenses.

The rear flange depth of these lenses are
too wide or too long and interfere with the
MOTION MOUNT.

with the MOTION MOUNT glass.

with the MOTION MOUNT glass.

the MOTION MOUNT glass.

ridges on the baffle inside the MOTION MOUNT
Ti PL, preventing installation.

COMPATIBLE CANON EF LENSES

The MOTION MOUNT Ti Canon supports all lenses that are compatible with the DSMC® Canon Mount.
For more information and a full list of compatible lenses, see the DSMC Operation Guide, available at www.red.

com/downloads.

NON-LINEAR EDITING (NLE) APPLICATIONS

The .R3D files captured using the MOTION MOUNT are compatible with the following applications:

 REDCINE-X PRO Build 20.0.0 or later
 Adobe
 Avid® Media Composer
 DaVinci® Resolve
 Edius
 Final Cut Pro

NOTE: Final Cut Pro requires Apple® Workflow Plugin, available at www.red.com/downloads.

 Vegas™ Pro

COPYRIGHT © 2015 RED.COM, INC 955-0013, REV-J | 35

®

Premiere® Pro CC or later

®

Pro

®

7 or Final Cut Pro® X

RED DIGITAL CINEMA

COPYRIGHT© 2015 RED.COM, INC.

All trademarks, trade names, logos, icons, images, written material, code and product names used in
association with the accompanying product are the copyrights, trademarks or other intellectual property owned
and controlled exclusively by RED.COM, INC.
