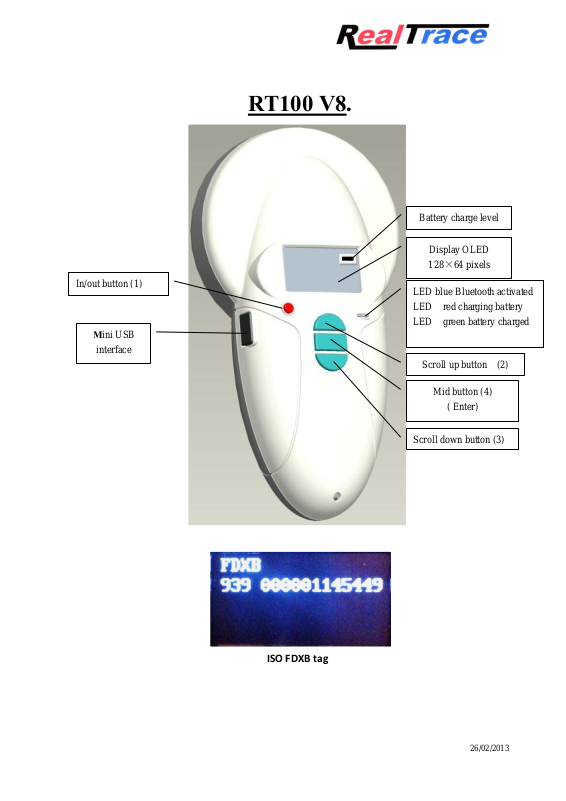

REALTRACE RT100V8 Users Manual
RT100 V8.
Battery charge level
Display OLED
128×64 pixels
In/out button (1)
Mini USB
interface
LED blue Bluetooth activated
LED red charging battery
LED green battery charged
Scroll up button (2)
Mid button (4)
( Enter)
Scroll down button (3)
ISO FDXB tag
26/02/2013
Frequency
134.2kHz Read and write ISO 14223
Protocol
ISO11784/5 FDX-A, FDX-B, EM4102, HDX
Reading range
≥8 cm（12mm×2mm, glass tag）
Display
128×64，black and white，OLED
Keys
4 buttons
Indication
Battery charge control and Bluetooth . Buzzer
USB port
USB virtual comport，bluetooth virtual com.port
Power supply
Lithium battery，1400mAh，3.7V
Dimension
155mm (L)×82(W)×33(H)
Net weight
155g
Charging mode
Mini USB
Accessories
Mini USB cable, Product instructions. Battery.
Compliance certifications
FCC、CE certification
Memory
Up to 1000 ID numbers
Reader characteristics
26/02/2013
Bluetooth RT 100 V8 reader
Externally, nothing distinguishes the Bluetooth version of the V8 reader from the basic
version.
To find the version of a reader, the user must switch on the V8 and then select the
“Bluetooth” menu and activate the function. If the reader is equipped with Bluetooth
transmission, a blue LED will flash. If not, the command will have no effect.
The Bluetooth function consumes energy. It is therefore recommended to activate this
function only for the time necessary for its use.
To stop Bluetooth communication, simply select the “Bluetooth” menu and deactivate the
function or else switch off the reader.
Communication via Bluetooth is limited to around ten metres and depends on the
environment of your PC. To activate Bluetooth on your PC, please consult your computer
user manual. Don’t forget to deactivate the security of Bluetooth on your PC because the
V8 don’t ask a security code.
Data transmission by Bluetooth or via the USB
cable
To be able to transmit the tag numbers read or the numbers recorded in the memory
(maximum 1200), via Bluetooth or using the USB cable, the user needs to have installed the
appropriate driver* on his PC (Pl2303_Prolific_Driver Installer_v1210.exe). This driver can
be downloaded free of charge from our website or from
www.4shared.com/zip/wpeAz3PT/file.html
Once the driver is installed on your PC you will need to have application software to view
and potentially record the data sent by the reader.
You can use Hyperterminal if your operating system is XP, or Datatransfer (Felixcan) or
Realtrace Terminal with XP or Windows 7. Firstly, you will need to enter the
communication parameters and the number of the USB port that your reader will be

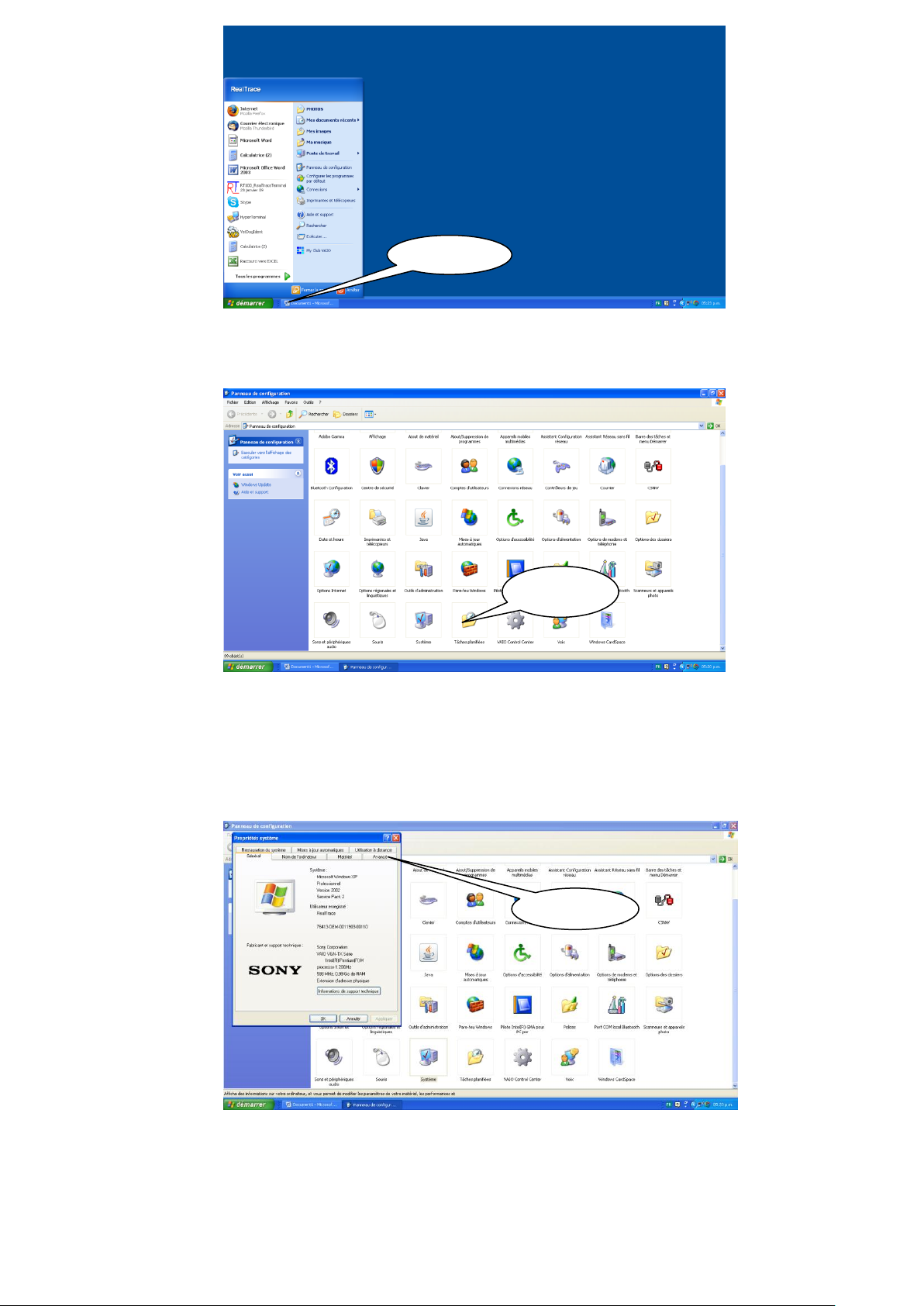

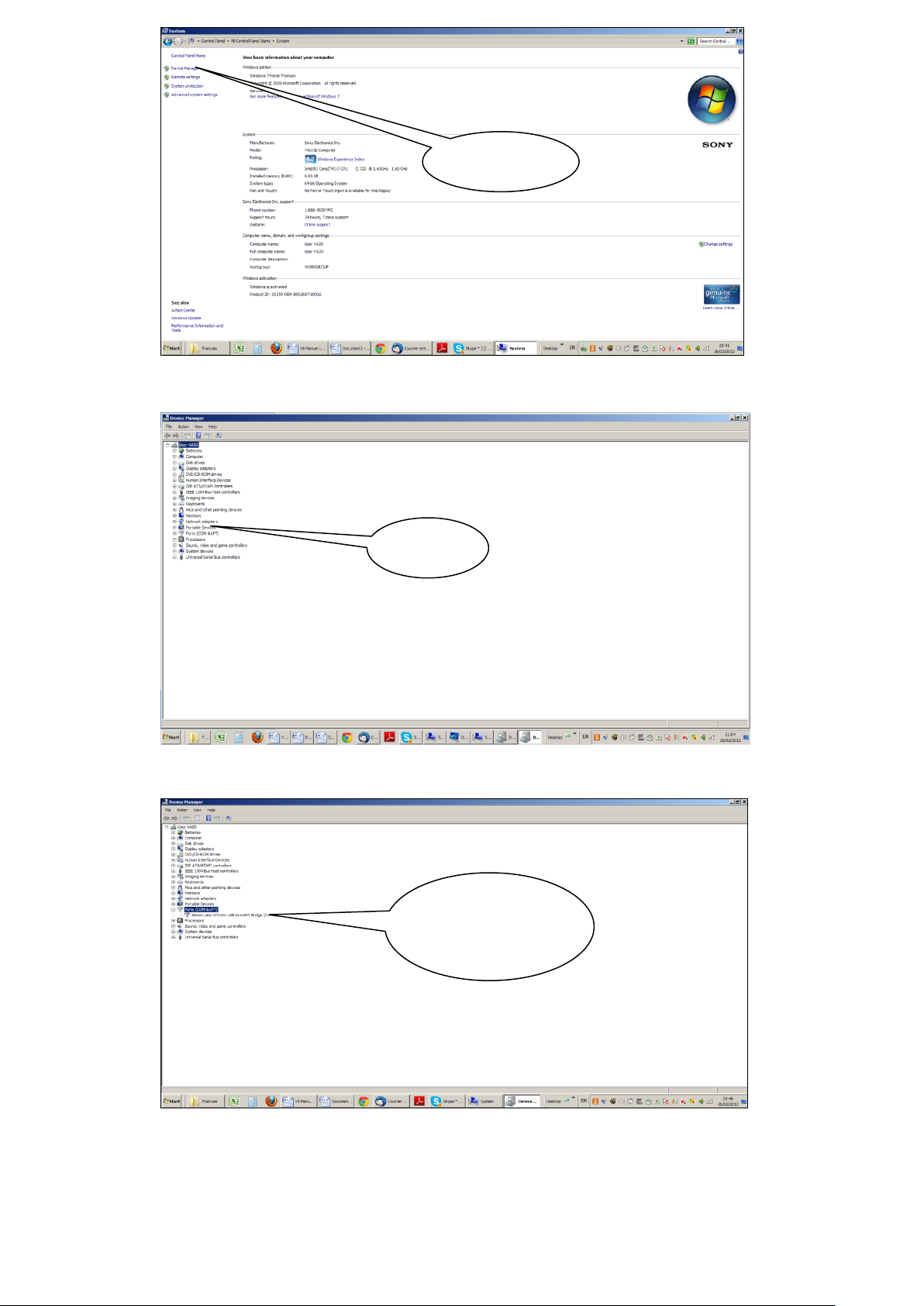

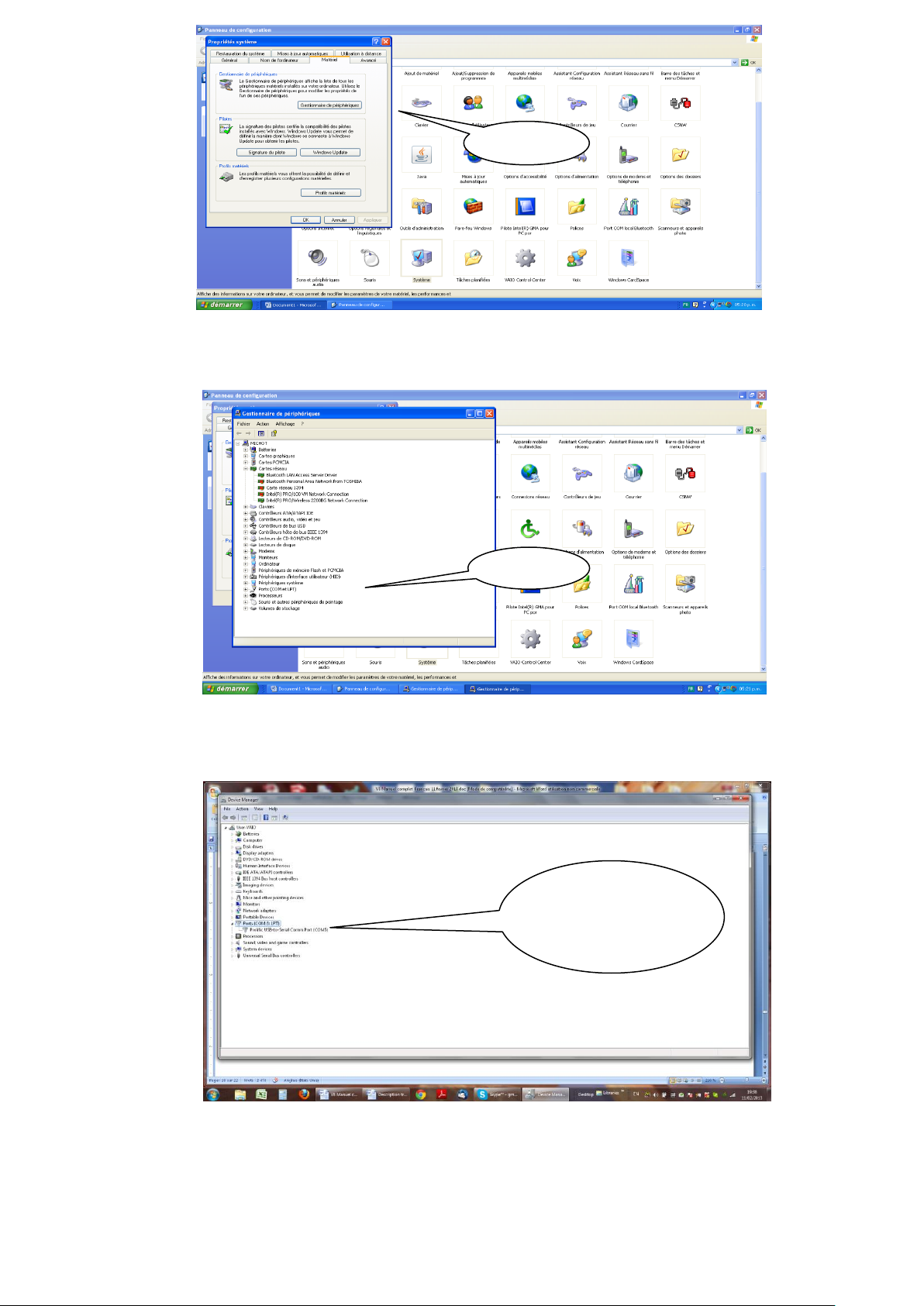

connected to. Please consult below the section in the chapter entitled: “How to find out
which USB port the V8 is connected to”.

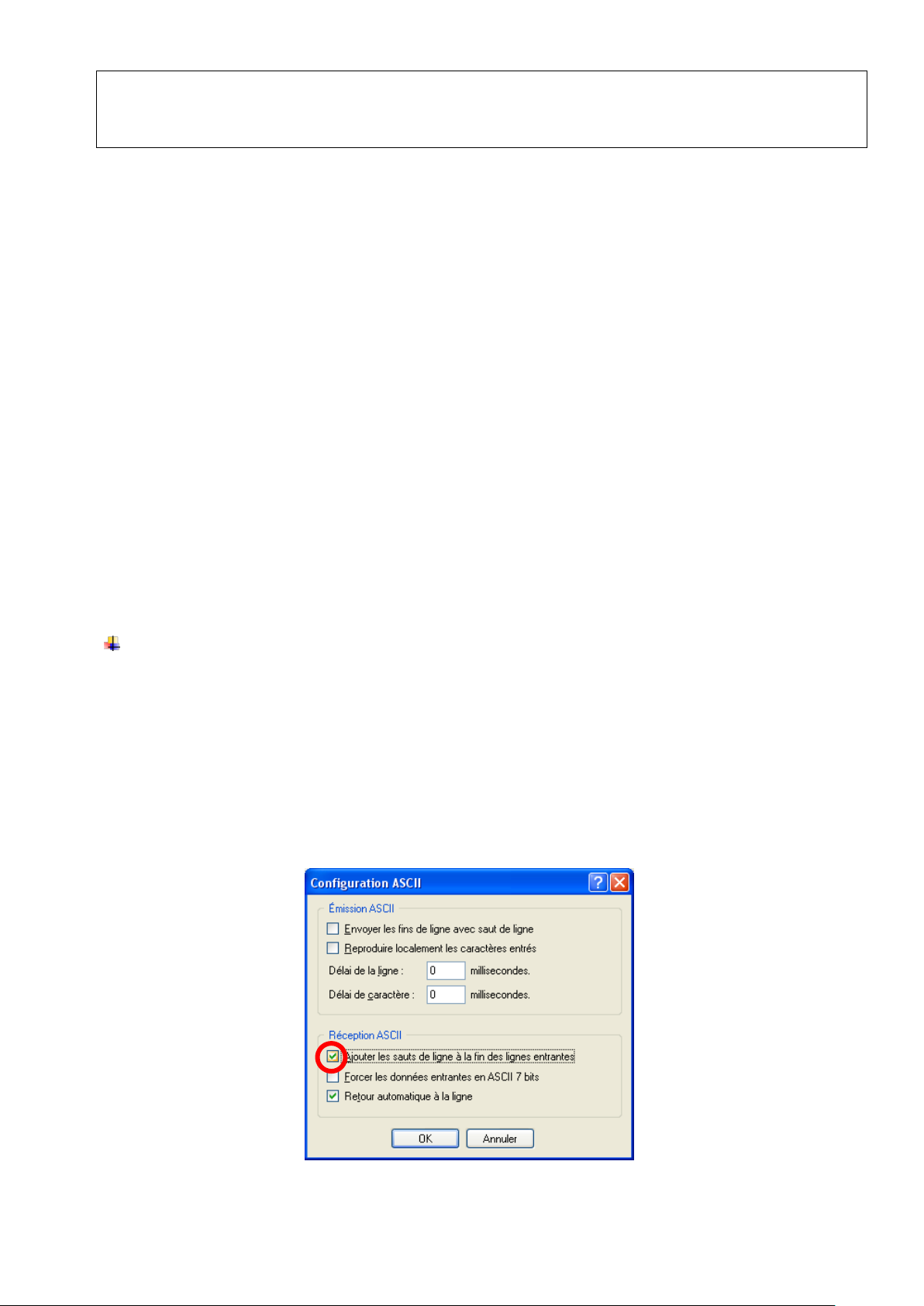

The data to be entered are:
- bits per second: 9600
- data bits: 8
- stop bits: 1
- parity: none
- flow control: none
* A driver is a program enabling an operating system, in this case Windows XP or
Windows 7 on a PC, to recognise a hardware peripheral and use it.
26/02/2013
System « WOOSIT »
Writing the animal owner’s telephone number(s) in the ISO tag
Our wish to constantly innovate and improve our products has led us to offer vets the option of
personalising the tag, if they wish, before implanting it in the animal.
The main technological advance offered by this V8 reader is that it will allow reading and display of
data which can be entered by the vet in the majority of the “tags” currently marketed worldwide,
provided that they comply with the ISO standard.
Realtrace has developed a system called “WOOSIT
- A reader /programmer the PetSCAN RT150
information to the “chip” before injecting it into the animal
- The PetSCAN V8 which now offers the possibility to read and display the ID number but also
to display additional data recorded by the vet in the memory as the phone number of the owner.
Due to the low memory capacity available in ISO chips (used up until then) the “WOOSIT” system
is limited to the recording of one or two telephone numbers of 16 digits each. The vet and/or the
owner of the animal may choose these numbers.
This system is totally compliant with the ISO 11784/85 standard of 1996 in addition to the new 14223
standard* (May 2011) concerning the recording of data in advanced transponders.
It protects the asepsis of the chip, as the writing of the data is carried out via the cap which protects
the needle.
If the owner prefers this, after the recording of one or two telephone numbers, the memory area used
for this record can be blocked, making it impossible to delete or subsequently modify this
information.
®
” which is comprised of:
(1)
which enables the vet to write additional
(2)
.
With the “WOOSIT” system, finding the owner of an animal will be particularly easy as reading the
“chip” with the V8 will provide the phone number(s) of the administrator of the database and/or
the owner of the pet.
Naturally, any pet owner who does not wish to use this service can simply enter nothing in the
memory area of the chip, as is currently the case.
.
ID number and phones numbers
(1)Patented
(2)sous réserve que les blocks 3/9/10/11/12/13 (EM4305) ou 9/10/11/12/13/14/15 (EM 4569) ne soient pas
verrouillés par le fournisseur de la « puce ».
*L'ISO 14223-1:2011 spécifie l'interface hertzienne entre l'émetteur-récepteur et le transpondeur évolué utilisé
pour l'identification des animaux par radiofréquence, à compatibilité ascendante totale avec les spécifications
données dans l'ISO 11784 et l'ISO 11785.
26/02/2013
After 25 seconds After 60 seconds
Reading
20 seconds max.
No transponder
found!
FDXB
939 2784879521125
Bluetooth
Charging indicator light
SCAN
NoTransponder
found!

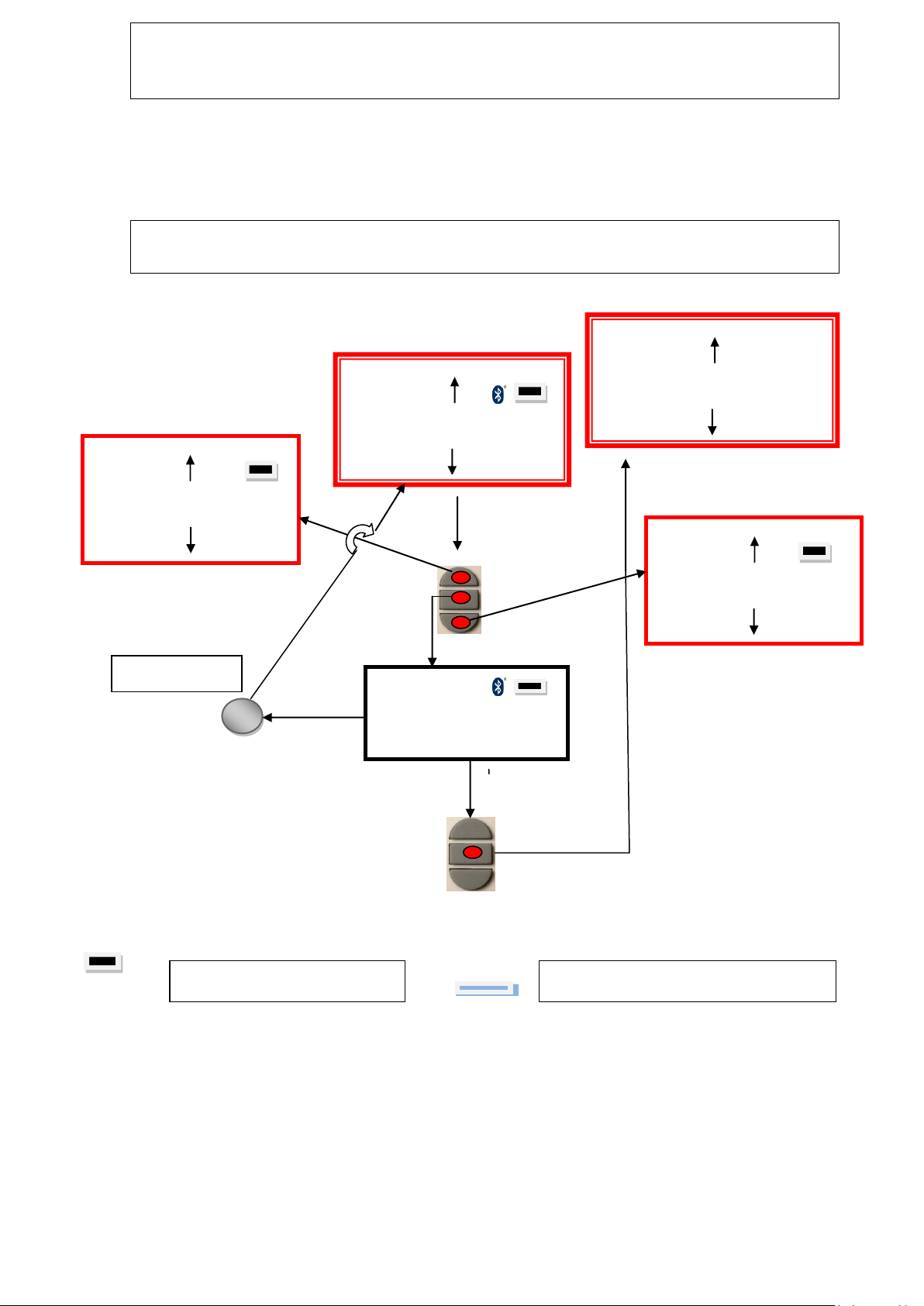

Synoptic Menu SCAN
26/02/2013

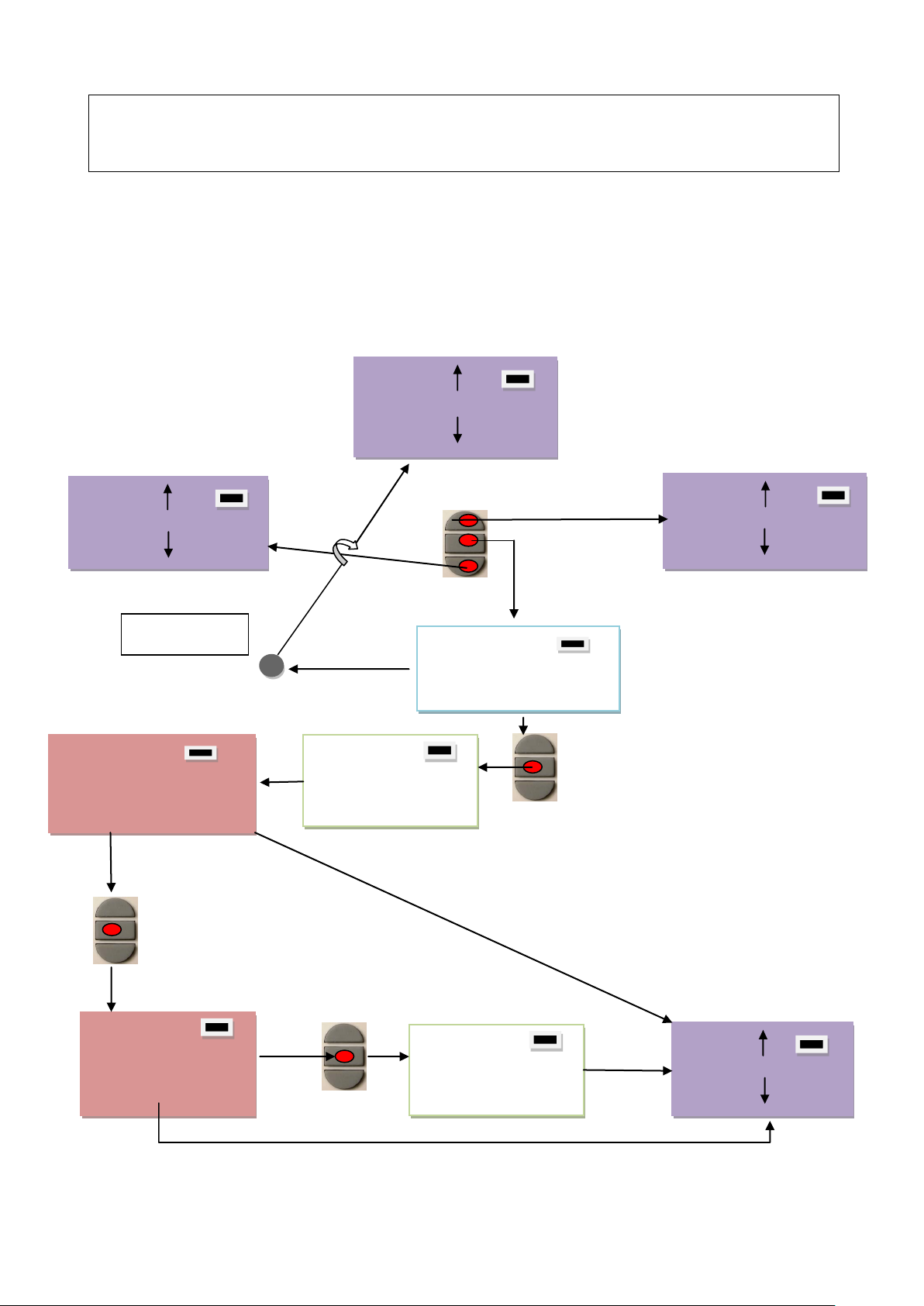

Language
Memory
English
English OK
5 seconds
Français
Français OK
5 seconds
Español
Español OK
5 seconds
Italiano
Portugues
Deutsch
Polish
SCAN
Italiano OK
5 seconds
Portugues OK
5 seconds
Deutsch OK
5 seconds
Polish OK
5 seconds
Synoptic Menu “Language”
26/02/2013

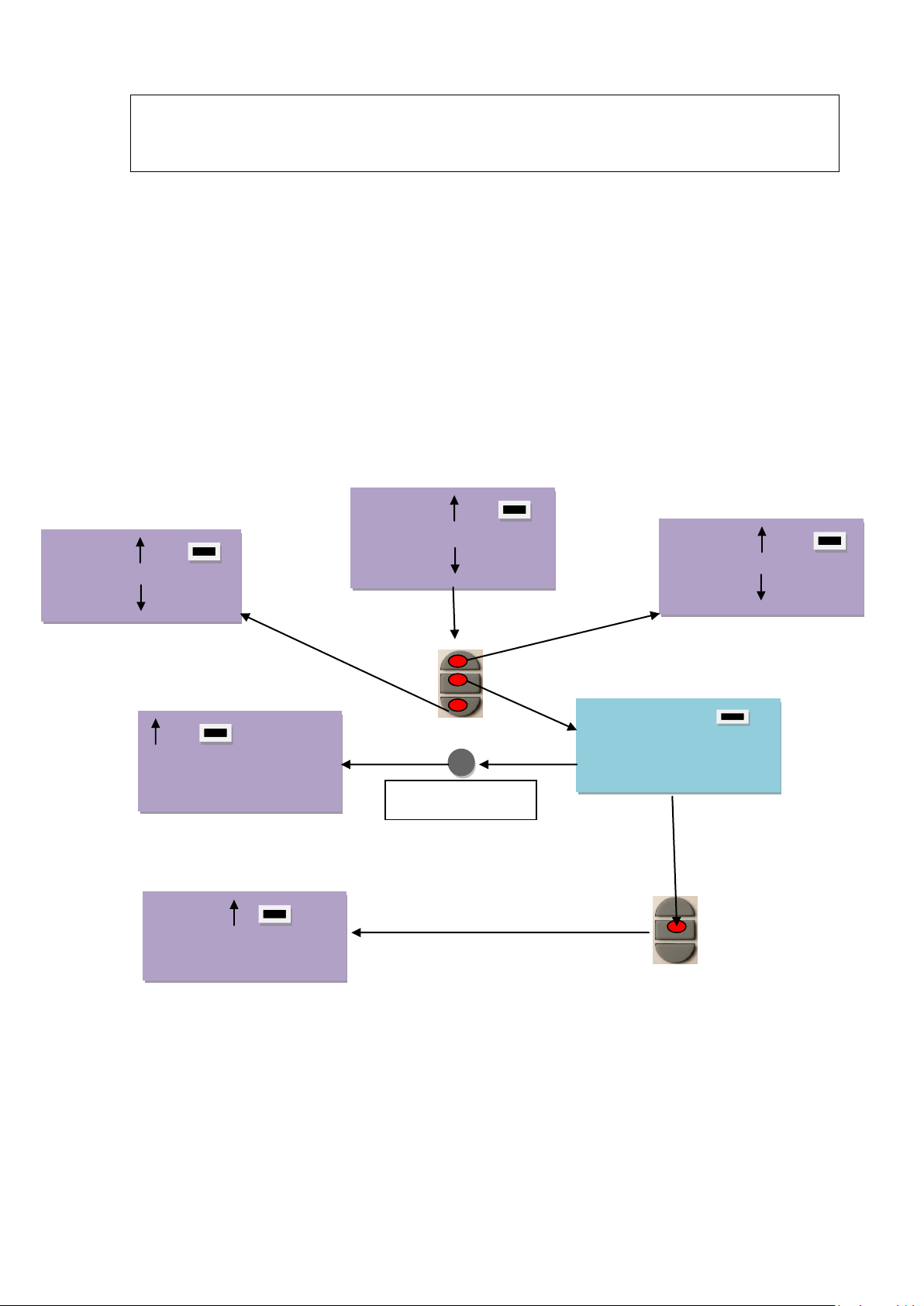

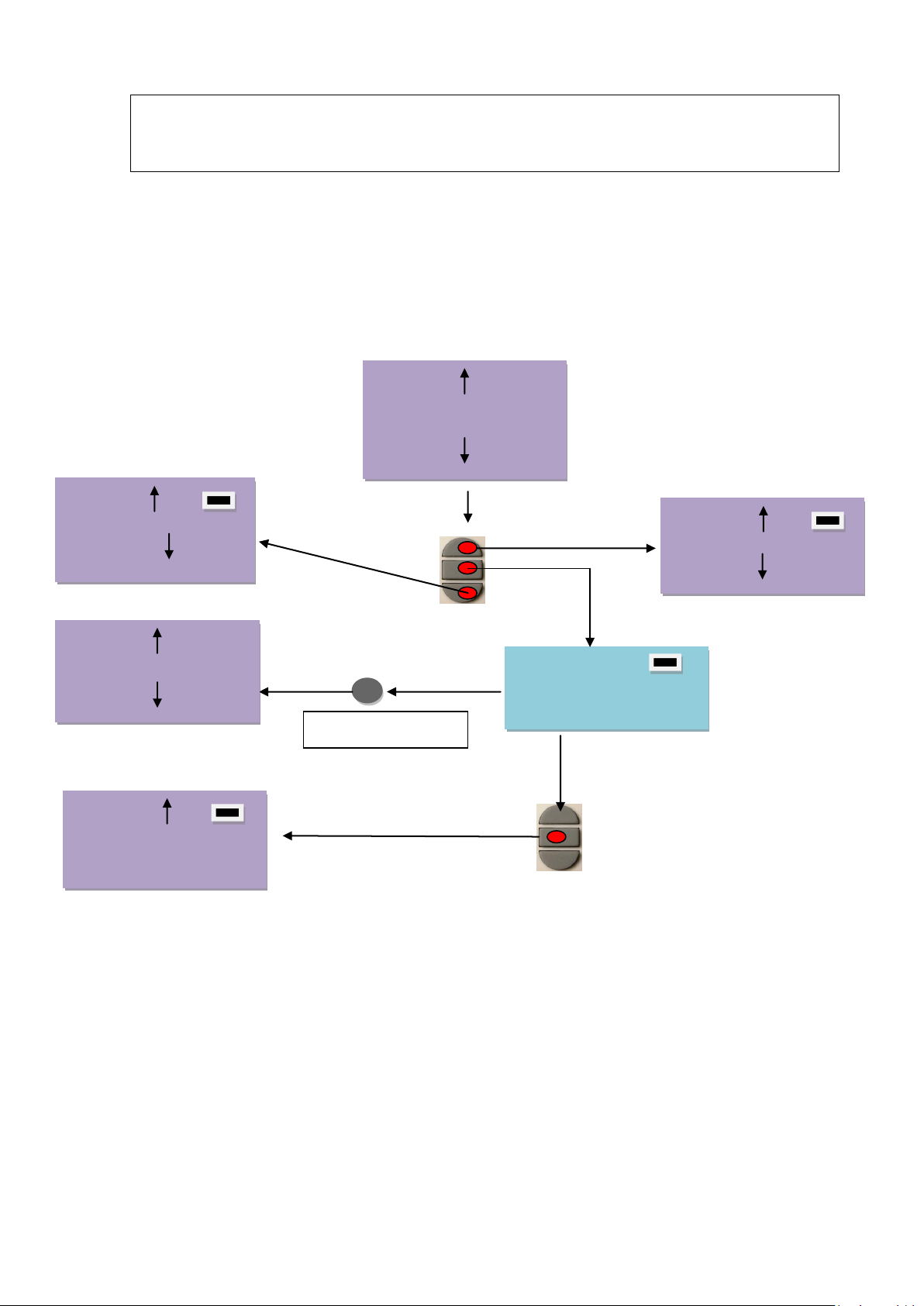

Bluetooth
Enable
Memory
SCAN
Enable Bluetooth
Bluetooth
Bluetooth
Button IN/OUT
Synoptic Menu “Bluetooth 1”
26/02/2013
