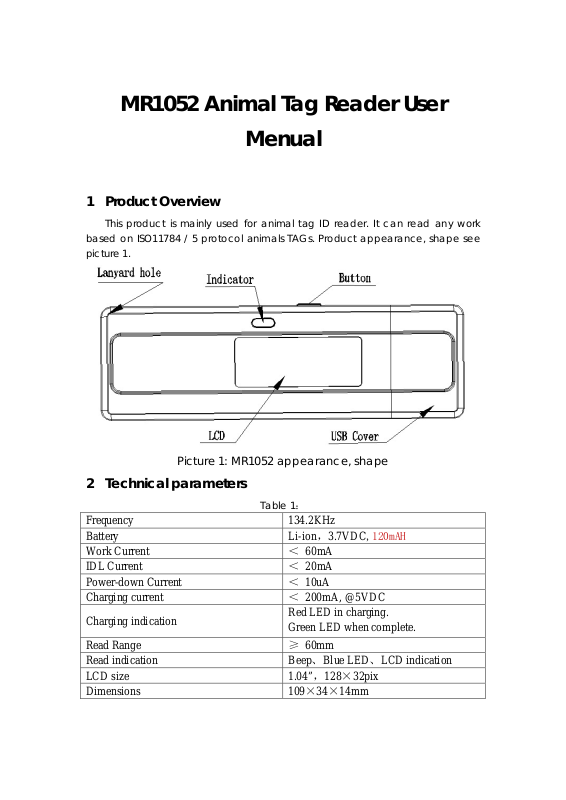

MR1052 Animal Tag Reader User
Menual
1 Product Overview
This product is mainly used for animal tag ID reader. It can read any work
based on ISO11784 / 5 protocol animals TAGs. Product appearance, shape see
picture 1.
Picture 1: MR1052 appearance, shape
2 Technical parameters
Table 1：
Frequency 134.2KHz
Battery Li-ion，3.7VDC,120mAH
Work Current ＜ 60mA
IDL Current ＜ 20mA
Power-down Current ＜ 10uA
Charging current ＜ 200mA, @5VDC
Charging indication
Read Range ≥ 60mm
Read indication Beep、Blue LED、LCD indication
LCD size 1.04”，128×32pix
Dimensions 109×34×14mm
Red LED in charging.
Green LED when complete.
3 Operation
3.1 Power On
Push the “Button”, the Key Reader power on. LCD display “Welcome!
Pocket Reader”.
3.2 Power Off
The Key Reader will auto power off in the absence of any action. But, except
that the Key Reader is connecting to PC by a cable line.
3.3 Set language
When The Key Reader is power down, push the “Button” 3 ~ 5 seconds, enter
to setting language mode, and the language will scroll on the LCD. Each
language will remain 2 seconds on the screen. When the language you want to
setting, just push the “Button” key, then Key Reader will use the setting when next
power on.
3.4 Charge
Directly connected to the PC by USB cable, the Key Reader will
charging automatically.
Red LED light when in charging, Green LED light when charge
complete.
When Li-ion is low power, the Key Reader may not read any tags, or
can read tag in a very short distance, screen light weekly.
3.5 Identification
Push “Button” key, scan tag in 20 seconds.
When identify a tag, LCD display as follow:
ccc --- country code, xxxxxxxxxx --- UID.
Or display as picture 2 if scan no tag:
Note: In the process of identifying, the LCD is off, and the blue LED is
blinking until the reader identification to a tag.
3.6 See ID by hyperterminal
Directly connected to the PC by USB cable.
Open hyperterminal, use the setting as follow:
ccc xxxxxxxxxxxx
Picture 1
No Tag Found!
Picture 2
Choose
icon.
Give a name:
“Key Reader”.
Picture 3
Choose the
“COM” that you
connected to the
Picture 4
Baud rate:
p
9600b
Data bit:
parity checking:
none
Stop bit: 1bit
s
Data flow control:
none
Picture 5
Push “Button” key, and read a tag, see the data from hyperterminal.
Country code and
UID is here.
Picture 6
FCC STATEMENT
1. This device complies with Part 15 of the FCC Rules.
Operation is subject to the following two conditions:
(1) This device may not cause harmful interference, and
(2) This device must accept any interference received, including
interference that may cause undesired operation.
2. Changes or modifications not expressly approved by the party
responsible for compliance could void the user’s authority to
operate the equipment.
NOTE: This equipment has been tested and found to comply with the
limits for a Class B digital device, pursuant to Part 15 of the FCC
Rules. These limits are designed to provide reasonable protection
against harmful interference in a residential installation. This
equipment generates, uses and can radiate radio frequency
energy and, if not installed and used in accordance with the
instructions, may cause harmful interference to radio
communications. However, there is no guarantee that
interference will not occur in a particular installation. If this
equipment does cause harmful interference to radio or television
reception, which can be determined by turning the equipment
off and on, the user is encouraged to try to correct the
interference by one or more of the following measures:
-- Reorient or relocate the receiving antenna.
-- Increase the separation between the equipment and receiver.
-- Connect the equipment into an outlet on a circuit different
from that to which the receiver is connected.
-- Consult the dealer or an experienced radio/TV technician for help.
