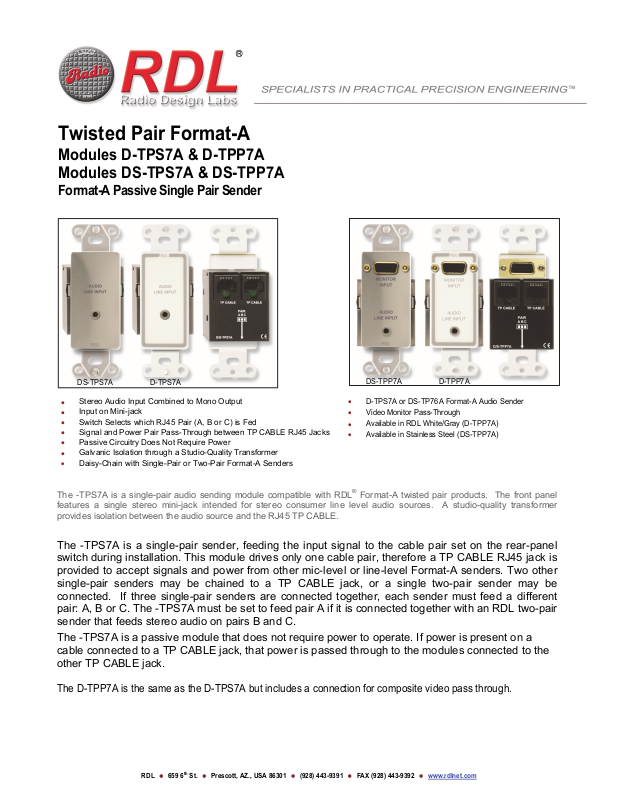

Twisted Pair Format-A

Modules D-TPS7A & D-TPP7A
Modules DS-TPS7A & DS-TPP7A

Format-A Passive Single Pair Sender

DS-TPS7A

Stereo Audio Input Combined to Mono Output



Input on Mini-jack



Switch Selects which RJ45 Pair (A, B or C) is Fed



Signal and Power Pair Pass-Through between TP CABLE RJ45 Jacks



Passive Circuitry Does Not Require Power



Galvanic Isolation through a Studio-Quality Transformer


 Daisy-Chain with Single-Pair or Two-Pair Format-A Senders

The -TPS7A is a single-pair audio sending module compatible with RDL® Format-A twisted pair products. The front panel
features a single stereo mini-jack intended for stereo consumer line level audio sources. A studio-quality transformer
provides isolation between the audio source and the RJ45 TP CABLE.

D-TPS7A

DS-TPP7A

D-TPS7A or DS-TP76A Format-A Audio Sender



Video Monitor Pass-Through



Available in RDL White/Gray (D-TPP7A)


 Available in Stainless Steel (DS-TPP7A)

D-TPP7A

The -TPS7A is a single-pair sender, feeding the input signal to the cable pair set on the rear-panel
switch during installation. This module drives only one cable pair, therefore a TP CABLE RJ45 jack is
provided to accept signals and power from other mic-level or line-level Format-A senders. Two other
single-pair senders may be chained to a TP CABLE jack, or a single two-pair sender may be
connected. If three single-pair senders are connected together, each sender must feed a different
pair: A, B or C. The -TPS7A must be set to feed pair A if it is connected together with an RDL two-pair
sender that feeds stereo audio on pairs B and C.

The -TPS7A is a passive module that does not require power to operate. If power is present on a
cable connected to a TP CABLE jack, that power is passed through to the modules connected to the
other TP CABLE jack.

The D-TPP7A is the same as the D-TPS7A but includes a connection for composite video pass through.

RDL  659 6th St.  Prescott, AZ., USA 86301  [phone]  FAX [phone]  www.rdlnet.com

TWISTED PAIR Format-A

Model D-TPS7A & D-TPP7A

Installation/Operation

Declaration of Conformity available from rdlnet.com.
Sole EMC specifications provided on product package.
Specifications are subject to change without notice.

Model DS-TPS7A & DS-TPP7A
Format-A Passive Single-Pair Sender

STEP 1: Set the PAIR selector so the module is driving the desired pair A, B or C of the Format-A cable. If the module is connected

together with one or two other single-pair senders, each sender must be set to a different pair. If connected together with a two-pair
sender, the switch must be set to pair A.

STEP 2: Connect a high-impedance unbalanced audio source to the input (-10 dBu 3.5 mm mini-jack).

STEP 3: Connect the twisted pair cable(s) and mount the module.

RJ45 Standard wiring

Pair A: Audio +4 dBu

Pair B: Audio +4 dBu

Pair C: Audio +4 dBu

Pair D: Power +24 Vdc

RJ45 conductor colors shown are for 568A standard. The 568B standard may be used if the connectors at both ends of the cable are wired identically.

TYPICAL PERFORMANCE

Input: 3.5mm mini-jack, unbalanced stereo combined to mono
Input Level: -10 dBV, +22 dBu max
Format-A Signal Pair Used: Switch-selectable A, B, or C (rear-panel switch)
Format-A Input: RJ45 TP CABLE

Radio Design Labs Technical Support Centers

U.S.A. [phone], [phone]; Fax: [phone]

891-4645A

Europe [NH Amsterdam] (++31) 20-6238 983; Fax: (++31) 20-6225-287

Tab on bottom of connector

(1) + White / Green
(2) – Green
(3) + White / Orange
(4) – Blue
(5) + White / Blue
(6) – Orange
(7) + White / Brown
(8) – Brown

Output: RJ45 TP CABLE, RDL TP Format-A
Frequency Response: 20 Hz to 20 kHz (±0.5 dB)
THD: < 0.1% (50 Hz to 20 kHz); <0.001% (1 kHz typ)
Power Requirement: Passive
Dimensions: 1.6” (4.06 cm) W; 4.11” (10. 45 cm) H; 1.89” (4.8 cm) D
