Page 1

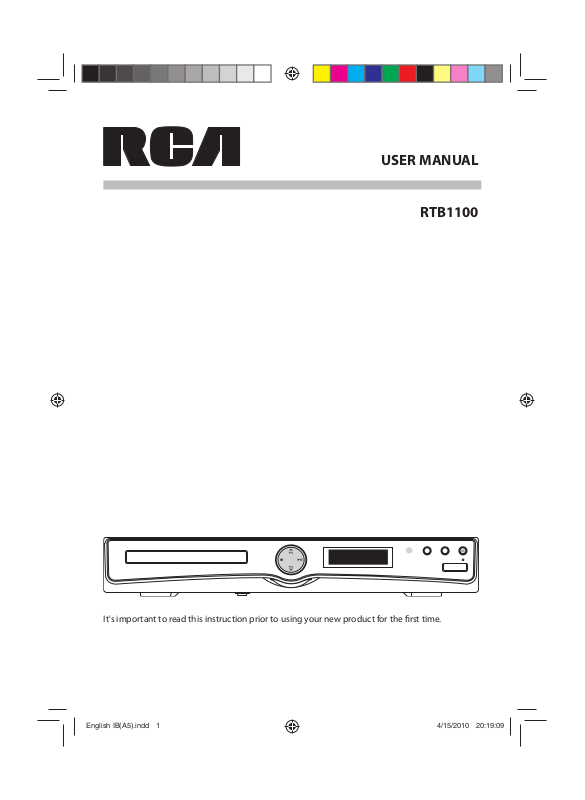

USER MANUAL

RTB1100

It's important to read this instruction prior to using your new product for the  rst time.

English IB(A5).indd 1English IB(A5).indd 1 4/15/2010 20:19:094/15/2010 20:19:09

Page 2

FCC Information

This device complies with part 15 of the FCC Rules. Operation is subject to the following two conditions: (1) This device may not cause harmful interference, and (2) this device must accept any interference received, including interference that may cause undesired operation.

This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation. This equipment generates, uses and can radiate radio frequency energy and, if not installed and used in accordance with the instructions, may cause harmful interference to radio communications.

However, there is no guarantee that interference will not occur in a particular installation. If this equipment does cause harmful interference to radio or television reception, which can be determined by turning the equipment off and on, the user is encouraged to try to correct the interference by one or more of the following measures:

Reorient or relocate the receiving antenna.

•

Increase the separation between the

•

equipment and receiver. Connect the equipment into an outlet on

•

a circuit different from that to which the receiver is connected. Consult the dealer or an experienced radio /

•

TV technician for help.

WARNING: Changes or modi cations to this unit not expressly approved by the party responsible for compliance could void the user's authority to operate the equipment.

This Home Theater has earned the ENERGY STAR.

Ventilation

You must adequately ventilate the product. Make sure there is adequate space around the unit to provide proper air flow for ventilation. See diagram.

7 cm

10 cm

This product complies with DHHS Rules 21 CFR Subchapter J. Applicable at the date of manufacture.

10 cm

7 cm

For your Safety

The AC power plug is polarized (one blade is wider than the other) and only  ts into AC power outlets one way. If the plug won’t go into the outlet completely, turn the plug over and try to insert it the other way.

If it still won’t  t, contact a quali ed electrician to change the outlet, or use a di erent one. Do not attempt to bypass this safety feature.

Removing the power plug is the only way to completely remove power from your product. Make sure the power plug remains easily accessible.

Note: This unit has been designed to play back BD-video with region “A” and DVD-video with region “1”. You cannot play back BD-video or DVD-video that are labeled for other regions. Look for the symbols on the right on your BD-video or DVD-video. If these region symbols do not appear on your BD-video or DVD-video, you cannot play back the disc in this unit. The letter or number inside the globe refers to region of the world. A BD-video or DVD-video labeled for a speci c region can only be played back in the unit with the same region code.

-1-

English IB(A5).indd 3English IB(A5).indd 3 4/15/2010 20:19:104/15/2010 20:19:10

Page 3

Important Information

THE LIGHTNING FLASH AND ARROWHEAD WITHIN THE TRIANGLE IS A WARNING SIGN ALERTING YOU OF “DANGEROUS VOLTAGE” INSIDE THE PRODUCT.

THE EXCLAMATION POINT WITHIN THE TRIANGLE IS A WARNING SIGN ALERTING YOU OF IMPORTANT INSTRUCTIONS ACCOMPANYING

SEE MARKING ON BACK OF PRODUCT

WARNING: TO PREVENT FIRE OR ELECTRICAL SHOCK HAZARD, DO NOT EXPOSE THIS PRODUCT TO RAIN OR MOISTURE.

CAUTION: USE OF CONTROLS OR ADJUSTMENTS OR PERFORMANCE OF PROCEDURES OTHER THAN THOSE SPECIFIED MAY RESULT IN HAZARDOUS RADIATION EXPOSURE.

CAUTION: DANGER OF EXPLOSION IF BATTERY IS INCORRECTLY REPLACED. REPLACE ONLY WITH THE SAME OR EQUIVALENT TYPE.

WARNING: TO BE COMPLETELY DISCONNECT THE POWER INPUT , THE MAINS PLUG OF APPARA- TUS SHALL BE DISCONNECTED FROM THE MAINS. THE MAINS PLUG OF APPARATUS SHOULD NOT BE OBSTRUCTED OR SHOULD BE EASILY ACCESSED DURING INTENDED USE.

Service Information

This product should be serviced only by those specially trained in appropriate servicing techniques.

Main plug is used as the disconnect device, it shall remain operable and should not be obstructed during intended use. To be completely disconnected the apparatus from supply mains, the main plug of the apparatus shall be disconnected from the mains socket outlet completely.

Caution

Invisible laser radiation when open and interlocks defeated. Avoid exposure to beam. Class 1 laser product. This system must be opened only by quali ed technicians to prevent accidents caused by the laser beam.

THE PRODUCT.

CAUTION: TO REDUCE THE RISK OF ELECTRIC SHOCK, DO NOT REMOVE COVER (OR BACK). NO USER SERVICEABLE PARTS INSIDE. REFER SERVICING TO QUALIFIED SERVICE PERSONNEL.

DVD Copy Protection

In accordance with the DVD standard, your DVD player is equipped with a Copy Protection system, which can be switched on and o by the DVD disc itself, in order to make any recording of the relevant DVD disc onto a videotape of very poor picture quality, or even impossible. This product incorporates copyright protection technology that is protected by method claims of certain U.S. patents and other intellectual property rights owned by Macrovision Corporation and other rights owners. Use of this copyright protection technology must be authorized by Macrovision Corporation, and is intended for home use only unless otherwise authorized by Macrovision Corporation Reverse engineering or disassembly is prohibited.

-2-

English IB(A5).indd 4English IB(A5).indd 4 4/15/2010 20:19:104/15/2010 20:19:10

Page 4

Important Information

Important Battery Information

• Do not mix di erent types of batteries or new and old batteries. Do not use rechargeable batteries.

• In order to avoid any risk of explosion, observe the polarities indicated inside the battery compartment. Replace only with the type of batteries speci ed. Do not dispose of them in a  re or recharge them.

• If you are not using the remote control for a long period of time, remove the batteries.

Please respect the environment and prevailing regulations. Before you dispose of batteries or accumulators, ask your dealer whether they are subject to special recycling and if they will accept them for disposal.

Illustrations contained in this document are for representation only.

CLASS 1 LASER PRODUCT APPAREIL À LASER DE CLASSE 1 PRODUCTO LASER DE CLASE 1

CAUTION:

This product utilizes a laser. Use of controls or adjustments or performance of procedures other than those specified may result in hazardous radiation exposure. Do not open covers and do not repair yourself. Refer servicing to qualified personnel.

This Class B digital apparatus complies with Canadian ICES-003. Cet appareil numérique de la classe B est conforme à la norme du NMB-003 du Canada.

WARNING To reduce the risk of  re or electric shock, do not expose this product to rain or moisture. No objects  lled with liquids, such as vases, should be placed on the apparatus.

Double insulation when servicing use only identical replacement parts.

This product contains a low power laser device.

-3-

English IB(A5).indd 5English IB(A5).indd 5 4/15/2010 20:19:104/15/2010 20:19:10

Page 5

Important Safety Instructions

Please Read and Save for Future Reference.

Some of the following information may not apply to your particular product; however, as with any electronic product, precautions should be observed during handling and use.

Read these instructions.

•

Keep these instructions.

•

Heed all warnings.

•

Follow all instructions.

•

Do not use this apparatus near water.

•

Clean only with a dry cloth.

•

Do not block any ventilation openings.

•

Install in accordance with the manufacturer’s instructions. Do not install near any heat sources such

•

as radiators, heat registers, stoves, or other apparatus (Including amplifiers) that produce heat. Only use attachments / accessories speci ed by

•

the manufacturer. Do not defeat the safety purpose of the

•

polarized or grounding-type plug. A polarized plug has two blades with one wider than the other. A grounding type plug has two blades and a third grounding prong. The wide blade or the third prong is provided for your safety. If the provided plug does not  t into your wall outlet, consult an electrician for replacement of the obsolete outlet. Protect the power cord from being walked on

•

or pinched particularly at plugs, convenience receptacles, and the point where they exit from the apparatus. Unplug this apparatus during lightning storms

•

or when unused for long periods of time. Use only with a cart, stand, tripod, bracket, or

•

table specified by the manufacturer, or sold with the apparatus. When a cart is used, use caution when moving the cart/apparatus combination to avoid injury from tip-over. Refer all servicing to qualified service personnel.

•

Servicing is required when the apparatus has been damaged in any way, such as the power cord or plug is damaged, liquid has been spilled or objects have fallen into the apparatus, the apparatus has been exposed to rain or moisture, does not operate normally, or has been dropped.

]

Portable Cart

Warning

Additional Safety Information

• The apparatus shall not be exposed to dripping or splashing and that no objects  lled with liquids, such as vases, shall be placed on the apparatus.

• Always leave su cient space around the product for ventilation. Do not place product in or on a bed, rug, in a bookcase or cabinet that may prevent air  ow through vent openings.

• Do not place lighted candles, cigarettes, cigars, etc. on the product.

• Connect power cord only to AC power source as marked on the product.

• Care should be taken so that objects do not fall into the product.

• Do not attempt to disassemble the cabinet. This product does not contain customer serviceable components.

If your product operates on batteries, adhere to the following precautions:

A. Any battery may leak electrolyte if mixed with a

di erent battery type, if inserted incorrectly, or if all batteries are not replaced at the same time.

B. Any battery may leak electrolyte or explode if

disposed of in  re or an attempt is made to charge a battery not intended to be recharged.

C. Discard leaky batteries immediately. Leaking

batteries can cause skin burns or other personal injury. When discarding batteries, be sure to dispose of them in the proper manner, according to your state/provincial and local regulations.

D. Battery shall not be exposed to excessive heat

such as sunshine,  re or the like.

-4-

English IB(A5).indd 6English IB(A5).indd 6 4/15/2010 20:19:104/15/2010 20:19:10

Page 6

Features

• Full high-de nition video playback at up to 1080p resolution for an amazing viewing experience. Upconversion of standard de nition DVDs for enhanced picture quality at up to 1080p over an HDMI connection.

• Rich multi-channel surround sound.

• Easy and simple HDTV connection using a single HDMI cable (cable not included).

• Multiple outputs for connecting your home theater system or ampli er.

• PIP functionality that lets you display primary and secondary video at the same time (if available on the Blu-ray Disc).

• Pop-up menu display without interrupting playback (if available on the Blu-ray Disc).

• HDMI 1080p/60fps output (Blu-ray Disc only) that provides smooth playback of video with a frame rate of 60 frames per second (TV must be connected with an HDMI cable and be compatible with 1080p 60 frame).

Connections and Setup

Accessories Provided

Remote control and 2

AAA batteries

One Pig-Tail

antenna wire

Left and right front

speakers

Composite

video cable

Subwoofer

One external AM

loop antenna

Left and right Sur-

round speakers

Center speaker

-5-

English IB(A5).indd 7English IB(A5).indd 7 4/15/2010 20:19:104/15/2010 20:19:10

Page 7

Connections and Setup

Things to Consider before You Connect

• Ensure that the mains supply in your house complies with that indicated on the identi cation sticker located on the back of your unit.

• Install your unit horizontally, away from any source of heat ( replace) or appliances creating strong magnetic or electric  elds. The components of this unit are sensitive to heat. The maximum ambient temperature should not exceed 35°C / 95°F.

• Leave enough space around the unit to allow adequate ventilation: 10 cm/4 inches on either side and above the top, and 5 cm/2 inches at the rear.

• The humidity of the room should not exceed 75%. If you have to use the unit outdoors, do not expose it to rain or splashing water. The apparatus should not be exposed to dripping or splashing and no objects  lled with liquids, such as vases, should be placed on the apparatus.

• Moving the unit from a cold place to a warm one can cause condensation on some components inside the unit. Let the condensation disappear on its own before turning the unit on again.

• Before moving the unit, make sure the disc tray is empty.

• Where the mains plug or an appliance coupler is used as a disconnect device, the disconnect device shall remain readily operable.

• Other important use and cleaning information at the end of the booklet.

Connecting the Antennas

FM antenna

White

The AM and FM antennas connect to the AM and FM terminals on the system’s back panel. They must be hooked up in order to receive clear reception.

AM Antenna

AM Loop Antenna

1. Uncoil the AM antenna wire.

2. Press down on the antennas tab to open the terminal.

3. Make sure the white wire on the AM loop antenna is inserted into the AM loop terminal and the other wire is inserted into the ground loop terminal.

Connecting to Your TV (VIDEO)

VIDEO IN

Blue

Red

VIDEO

Component Video Cable (not supplied)

Green

Method 1

Composite video jack (yellow)

• The basic video jack is color-coded yellow.

• Video cable (yellow) is supplied for the

connection for good picture quality.

• Connect the video OUT jack on the receiver

to the Video IN jack on your TV so the video content goes from the receiver to the screen.

Method 2

Component video jacks (Pr, Pb, Y)

• The component video jacks are color-coded

green, blue and red.

• Additional component video cables (not

supplied) are required to provide better picture quality. They are usually color-coded green, blue and red.

• Connect the component video OUT jacks on the

receiver to the component video IN jacks on your TV so the video content goes from the receiver to the screen.

-6-

Method 1Method 2

Video Cable

English IB(A5).indd 8English IB(A5).indd 8 4/15/2010 20:19:104/15/2010 20:19:10

Page 8

Connections and Setup

• If your television is a high definition television, use the unit’s HDMI output to get the highest possible video resolution.

• If one of the devices is not working, check that all the cables have been inserted properly into the jacks.

• If your component has only one input for audio (mono), connect it to the left (white L/Mono) audio jack on the TV and don’t connect the right audio part of the cable.

Connecting AUDIO OUT to an Audio System (via 2-Channel Analog Audio Output)

Connect the AUDIO OUT jacks from the unit to the AUDIO IN jacks on TV, VCR, Stereo system or other audio component.

VCR

Stereo system

AUDIO IN

Connecting to Your TV (via HDMI input)

HDMI stands for High De nition Multimedia Interface. HDMI transfers digital audio and uncompressed digital video on a single cable. You can select the resolution of the player’s HDMI output to match your TV’s resolution capabilities, please see instructions on page 18 for Resolution setting.

HDHDMI

HDMI cable

(not supplied)

To HDMI

output

Note: Refer to the owner’s manual of the connected

TV as well.

To HDMI input

Red

White

Audio cable

(not included)

-7-

English IB(A5).indd 9English IB(A5).indd 9 4/15/2010 20:19:114/15/2010 20:19:11

Page 9

Connections and Setup

Connecting AUDIO IN from External Sources such as TV

Using AUDIO IN Jacks

Connect the AUDIO IN jacks from the unit to the AUDIO OUT jacks on VCR, TV, SAT/Cable Box or other component. Press either SOURCE button on the main unit or AUX button on the remote control to select AUX mode.

White

Red

Digital Optical Input

Connect components capable of outputting Dolby digital (e.g. TV or SAT/Cable Box) or standard PCM (CD) format digital signals. Use a  ber optical cable for this digital audio connection. (Cable not included). Press OPTICAL button on remote control or SOURCE button on main unit to select OPTICAL for digital audio output components.

Cable BoxVCR

SAT/

Audio cable

(not included)

AUDIO OUT

Connecting your player to a wired router

Connect an Ethernet cable (CAT5 or better with RJ45 connector) to the ETHERNET jack on the back of your player and to an Ethernet jack on a hub or broadband router.

Hub or broadband router

Notes:

• Do not connect a modular phone cable to the ETHERNET jack.

• When plugging or unplugging the cable, hold the connector on the end of the cable. When unplugging, do not pull on the cable. Press down the lock tab and pull the connector out of the jack.

• Because there are various connection con gurations, follow the instructions from your telecommunication carrier or Internet service provider.

LAN

LAN cable

(not included)

-8-

English IB(A5).indd 10English IB(A5).indd 10 4/15/2010 20:19:114/15/2010 20:19:11

Page 10

Connections and Setup

Connecting the Speakers

Speaker wires are color-coded to match the terminals. Connect the speaker wire from the back of each speaker to the corresponding color terminal at the back of the unit. Press down the tab to open the terminal and insert the wire. Release the tab to lock wire in the terminal.

Front Speakers

Center Speaker

Subwoofer

Right

Green and Black

Purple and Black

Red and

Black

Left

White and Black

Insert

Press

Release

Blue and BlackGray and Black

Rear Speakers

(Surround Sound)

To adjust each speaker volume level for optimum listening experience.

(1) Press the LE VEL button on the remote control to select FL (front Left speaker). (2) Press the or buttons to adjust the value up or down (between -10dB and +10dB). (3) Repeat step (1) and (2) for the other speakers FR, SL, SR, CT, SW.

Speaker gains may be set to levels of up to +10dB, actual max levels may also depend on your Volume Setting.

Right Left

Note: When connecting the speakers, make sure the polarities (“+” speaker wire to “+” on the receiver) of speaker wires and terminals match. For example, red wire to red terminal on the receiver. If the cords are reversed, the sound will be distorted. Do not let the speaker wires touch each other, it will damage the system’s ampli er.

-9-

English IB(A5).indd 11English IB(A5).indd 11 4/15/2010 20:19:114/15/2010 20:19:11

Page 11

Connections and Setup

Positioning Speakers

Courtesy Dolby Laboratories

1. Left, Right (Front Speakers) Front speakers carry primarily music and sound e ects.

2. Center In surround mode, the center speaker carries most of the dialog as well as music and e ects. It should be set between the left and right speakers.

3. Surround (Rear Speakers) The surround speakers’ overall sound balance should be as close as possible to the front speakers. Proper placement is vital to establish an evenly distributed sound  eld.

4. Subwoofer A subwoofer is designed to reproduce powerful low bass e ects (explosions, the rumble of spaceships, etc.).

Front Speaker Placement

For best results, follow the speaker placement below.

Alignment Align the center speaker evenly with (A) or slightly behind (B) (the left and right speakers), but not ahead of them.

Angle Place the left and right speakers to form a 45-degree angle with your favorite viewing position to duplicate the soundtrack mixer’s perspective.

Height The three front speakers should be as close as possible to the same height. This often requires placing the center speaker directly on top (A) or beneath (B) the TV set.

Note:

Center speaker provided with this unit is magnetically shielded to protect your TV set. It is not recommended to place speakers without magnetic shield near the TV set.

-10-

English IB(A5).indd 12English IB(A5).indd 12 4/15/2010 20:19:114/15/2010 20:19:11

Page 12

Connections and Setup

Better Surround Placement

Location If possible, place surround speakers to either side of the listening area, not behind it.

Height If space permits, install surround speakers 2-3 feet above viewers. This helps to minimize localization e ects.

Aiming Aim surround speakers straight across the room, not down at viewers, to help create a more open, spacious surround sound  eld.

Alternative Surround Placement

Rear wall If rear wall mounting is the only choice, aim the speakers at each other (A), towards the front (B) or towards the sidewalls (C, D). Experiment with placement until sounds seem to surround you, rather than come from behind you.

No adjacent walls Surround speakers can go on stands facing each other to approximate sidewall mounting (A), or to the sides or rear of the viewing area, aimed upwards; they can go right on the  oor, or preferably, a few feet o the  oor such as on end tables (B).

Test Tone/Channel Balance

Channel Balance

Your receiver is equipped with a test signal generator to help balance the audio level for each channel. See Audio Setup under The Setup Menu section for more details on how to access this feature.

Level Adjustment and Surround Channel Level Expectation

Even though you adjust the surround channel to be as loud as the others on the test signal, you may  nd that surround channels seems quieter for actual TV and Movie content. This is because producers use surround for subtle atmospherics and ambience, and only rarely for special e ects.

Overview of Controls - Front Panel Controls

Stop playback.

Adjust the volume.

Start/pause playback.

Press to open or close the disc tray.

Select the input sources. Press repeatedly to select: BD/USB, OPTICAL, AUX, TUNER.

Switch the unit on and o .

Connect a USB  ash drive to this port.

-11-

English IB(A5).indd 13English IB(A5).indd 13 4/15/2010 20:19:114/15/2010 20:19:11

Page 13

Overview of Controls

OPEN/CLOSE Press to open or close the disc tray. ON/STANDBY Press to turn on your unit, or put your unit in standby

Numbers In playback mode, press GOTO button, then press

CLEAR Press to clear an input. GOTO Press to search for a title, chapter, track or time. A(red),

B(green), C(yellow), D(blue)

VOL+/- Press to increase or decrease the volume. MUTE Press to turn o sound. Press again to turn the

POP UP During Blu-ray Disc playback, press to open a menu

SKIP

REV Press to fast reverse. STOP Press to stop playback. PLAY/PAUSE Press to start or pause playback. FWD Press to fast forward.

, /TUNE ,

/TUNE , OK Con rms your selection. EXIT Press to return to the previous menu. SETUP Press to access the speaker setting and test tone.

OPTICAL Press to select OPTICAL input source. AUX Press to select AUX input source. TUNER Press to select TUNER mode, and toggle between

mode. When your unit is in standby mode, power is still entering your unit. To disconnect power, unplug the power cord.

the number buttons to enter a title, chapter, track, or time.

When playing a Blu-ray Disc that has a Java application, press to control playback. For more information, see the documentation that came with the Blu-ray Disc.

sound back on.

that lets you control Blu-ray Disc playback. During DVD playback, press to open the DVD title menu (if available).

/ Press to go to the next or previous chapter (Blu-ray

Disc/DVD) or track (CD). In tuner mode, press to go to the next higher /lower preset station.

Navigate through the menus. The left and right arrows also tune the radio frequency in the tuner mode.

To enable or disable the Center speaker/surround speakers, press this button, and press Speaker or Surround Speaker, then use the remote control to choose YES or NO.

To start or end the test tone, press this button, and

/ buttons to select TS TONE, then press OK

press button. The audio signal will be sent to a di erent speaker every approximately two seconds; you can also use you wish to test and adjust, you’ll hear a test tone coming from the speaker you select, use buttons to adjust the level to your desired setting. Press OK button to exit this function.

the FM and AM bands.

/ buttons to select the speaker channel

/ buttons to select Center

/ buttons on

-12-

English IB(A5).indd 14English IB(A5).indd 14 4/15/2010 20:19:114/15/2010 20:19:11

Page 14

Overview of Controls

BD/USB Press to select the BD/USB mode. LEVEL Toggle channels for di erent level settings. Adjusts

REPEAT

MEM/ANGLE Stores a station in tuner mode.

ZOOM Press to zoom in on the video. Each time you press

EQ Selects among preset equalizer mode (POP, ROCK,

INFO Accesses the Info menu. PiP Press to turn PiP (picture in picture) mode on or

AUDIO Accesses the audio function. PiP Audio can be

SURROUND/ SUBWOOFER

DIMMER/ NIGHT

MENU Accesses the disc menu during playback.

the value using Press to repeat the current title, chapter, track, or repeat all.

This button is only used for DVD/CD discs.

Accesses the camera angle function for Blu-ray or DVD discs if available.

this button, the magni cation level changes. This button is only used for DVD discs .

CLASSIC, JAZZ, BASS, TREBLE and FLAT). Press the corresponding button to select the desired sound mode. This function is only available in Stereo mode. Note: For BASS and TREBLE e ects, you can

/ buttons on the remote control to adjust

use the value up or down by step 2 dB (between -10dB and +10dB).

o . This function is only available by Blu-ray discs if available on disc.

selected through cursor if secondary Audio is available on the Blu-ray Disc. Selects between Stereo and Mono mode for Tuner (FM).

Press repeatedly to display current Surround Sound setting or display current Subwoofer setting (Soft/ Balance/Strong/Powerful). To change settings,  rst press repeatedly to access the current Surround or Subwoofer setting, then use remote control to change the current setting.

Press repeatedly to show the display window brightness level or the current NIGHT mode, then

/ buttons on the remote control to change

use the current setting. Note: NIGHT mode is only available for set and e ective during Dolby Digital signal playback.

SUBTITLE Accesses the subtitle function.

PiP Subtitle can be selected through cursor if secondary subtitle is available on the Blu-ray Disc.

/ .

/ buttons on the

Note: Insert the two “AAA” (included with this unit) bat-

teries into the remote control prior to use.

-13-

English IB(A5).indd 15English IB(A5).indd 15 4/15/2010 20:19:114/15/2010 20:19:11

Page 15

Basic Playback Operations

Compatible Discs

• Blu-ray Disc

• DVD-video (DVD-ROM)

• DVD+RW, DVD-RW

• DVD+/-R

• Audio CDs (CDDA)

• JPEG

Regional Coding

This unit has been designed to play back BD-video with region “A” and DVD-video with region “1”. You cannot play back BD-video or DVD-video that are labeled for other regions. Look for the symbols on the right on your BD-video or DVD-video. If these region symbols do not appear on your BD-video or DVD-video, you cannot play back the disc in this unit. The letter or number inside the globe refers to region of the world. A BD-video or DVD-video labeled for a speci c region can only be played back in the unit with the same region code.

Playing a Blu-ray Disc or DVD

1. Turn on your television set.

2. Press ON/STANDBY button on the remote control or STANDBY/ON button located on the unit’s front panel. Press BD/USB on the remote control.

3. Press

OPEN/CLOSE button to open the disc

tray.

4. Place a disc onto the disc tray with the label side up.

5. Press

OPEN/CLOSE button again to close the

disc tray.

6. After loading a disc, playback starts automatically, or the disc menu appears. If the disc menu appears, select the Play option to begin playback.

Controlling Blu-ray Disc or DVD Playback

• To start or pause playback, press button. The sound is muted when your unit is in pause mode. To resume normal playback, press button.

• To stop playback, press tings menu is displayed. To resume playback, press

or button to select DVD/BD-ROM, then press OK button. Depending on the disc, playback starts where it stopped or at the beginning of the disc. If you press

button. The Set-

button twice,

playback stops completely. Press button to start playback again at the beginning of the disc.

• To fast forward or fast reverse, press forward) or

(fast reverse). Each time you press one of these buttons, the fast-forward or fast-reverse speed increases from Fast X2, Fast X4, Fast X8, Fast X16, Fast X32, Fast X64, to Fast X128. Press

• Press either the

to resume normal playback.

or button according to

the desired direction.

Press the

button to skip to the start of the current chapter or skip to previous chapters. Press the

button to skip to the beginning of

the next chapter.

Playing  les on a data disc or USB thumb drive

When you insert a data disc or USB thumb drive containing picture or video  les into your unit, icons are added to the menu to indicate that video or picture  les are available for playback.

Videos

Settings

Pictures

To play video  les:

1. Press

or button to select Videos, then

press OK button. A menu opens.

2. Press

button, and press or buttons to select Play Files, then press OK button. A dialogue window appears.

Please select Play mode

Play All

Cancel

-14-

(fast

English IB(A5).indd 16English IB(A5).indd 16 4/15/2010 20:19:124/15/2010 20:19:12

Page 16

Basic Playback Operations

3. Press

or button to select Play All (plays all

 les), then press OK button to start playback.

• If you want to see information about the  le that is playing, press INFO button on the re- mote control.

To create a playlist:

1. Insert a disc or plug in a USB  ash drive, select Videos, then press

2. Press

or button to select Optical Disc or

button.

USB, then press OK button. A  le browser window opens with a list of  les and folders.

3. Press

or button to select a  le or folder, then press OK button. If you selected a folder, the  les in the folder are displayed. Press

button to select a  le, then press OK button.

The following menu opens:

Add to Playlist

Play (File)

4. Press or button to select Add to Playlist, then press OK button. The  le is added to the playlist now.

Notes:

• If the  le you selected is already in the playlist, Remove from playlist appears. When you add a  le to the playlist, Remove all from playlist appears on the screen automatically. You can use Remove

all from playlist, Previous Folder and Play Files to control playback.

• Press EXIT button in the  le browser window can return to the upper folder.

Viewing photographs

This unit can display digital photographs  les that have been stored on to a data disc or USB  ash drive.

1. Insert a disc or USB  ash drive with photograph. The following menu opens:

Videos

Settings

Pictures

2. Press or button to select Pictures, then press OK button.

3. Press

button.

4. Press

To create a playlist:

1. Insert a disc or plug in a USB  ash drive, select

2. Press

3. Press

4. Press

To add a JPEG  le to the playlist:

1. Insert a disc or plug in a USB  ash drive, select

2. Press

or button to select an option, then

press OK button. You can select:

• Main Menu - Returns to the main menu.

• Play Files - Press

or button to select an

option, then press OK button.

Pictures, then press

button.

or button to select Optical Disc or USB, then press OK button. A  le browser window opens with a list of  les and folders.

button.

or button to select an option, then press OK button. You can select:

• Add all to playlist - Adds all  les to the playlist.

• Previous folder - returns the previous menu.

• Play Files - Plays all  les or plays  les in the current folder.

Pictures, then press

button.

or button to select Optical Disc or

USB, then press OK button.

-15-

English IB(A5).indd 17English IB(A5).indd 17 4/15/2010 20:19:124/15/2010 20:19:12

Page 17

Basic Playback Operations

3. Press , , or buttons to select a  le or folder, then press OK button. If you selected a folder, the  les in the folder are displayed. Press

, , or buttons to select a  le, then press

OK button. The following menu appears:

4. Press OK button again to add the selected  le to the playlist.

Add to Playlist

Playing an audio CD

1. Press ON/STANDBY button on the remote control or STANDBY/ON button located on the unit’s front panel.

Press OPEN/CLOSE button to open the disc tray.

3. Place a CD on the disc tray with the label facing up, then press the disc tray. It may take a few seconds for the CD to load.

4. After loading a disc, playback starts automatically.

5. To eject the CD, press

To control audio CD playback:

• To start or pause playback, press The sound is muted when your unit is in pause mode. To resume normal playback, press button.

• To stop playback completely, press start playback again, press starts at the beginning of the CD.

• To fast-forward, press mal playback, press

• To fast-reverse, press mal playback, press

• Press either the the desired direction.

Press the

current track or skip to previous tracks. Press the next track.

• To select a track, press GOTO button once, en- ter the track number with the number buttons, then press OK button. Press GOTO button twice to select a desired time position by pressing the appropriate number buttons and OK button.

OPEN/CLOSE button to close

OPEN/CLOSE button.

button.

button. To

button. Playback

button. To resume nor-

button.

button. To resume nor-

button.

or button according to

button to skip to the start of the

button to skip to the beginning of the

Displaying Blu-ray Disc information

• Press INFO button, your unit displays informa- tion about the Disc, such as type of disc, current elapsed time in title, total number of chapters.

• Press INFO button again to exit.

Note: The information displayed for discs other than Blu-ray Discs will be di erent.

Searching for a title, chapter, or elapsed time

1. During playback, press GOTO button one or more times to select a search mode.

• One press selects Goto Title mode.

• Two presses selects Goto Chapter mode.

• Three presses selects Goto Time mode.

2. Press the number buttons to enter the title number, chapter number, or time, then press OK button. Your unit goes to the title, chapter, or time you entered.

Repeating a title, chapter, or CD track (DVD/CD)

• Press REPEAT button one or more times to se- lect a repeat mode.

Using PiP (picture-in-picture) mode

Some Blu-ray Discs are compatible with picture-inpicture (PiP) mode. In PiP mode, the primary video is displayed on the full screen, and the secondary video is displayed in a small window.

Primary video

Secondary video

• Press PiP button to turn PiP mode on or o .

• Press AUDIO or SUBTITLE button to turn the audio/subtitle for the video in the PiP window on or o . Then use cursor buttons and OK button to select your preferred options.

Notes:

• The available options of Audio vary from di erent disc format.

• PiP Subtitle is not available for all discs. It only applies to Blu-ray discs that supports picture-in-picture features.

-16-

English IB(A5).indd 18English IB(A5).indd 18 4/15/2010 20:19:124/15/2010 20:19:12

Page 18

Basic Playback Operations The Setup Menu

Using a disc popup menu

1. During Blu-ray or DVD playback, press POP UP button. The Blu-ray popup menu or the title menu of DVD disc opens.

2. Press

, , or buttons to select an option,

then press OK button.

Selecting a play source

• Press SOURCE button on the front panel of the unit repeatedly to select BD/USB, OPTICAL, AUX, TUNER.

• Press BD/USB button on the remote control to select BD/USB mode.

• Press OPTICAL button on the remote control to select OPTICAL mode.

• Press AUX button on the remote control to select AUX mode.

• Press TUNER button on the remote control to select TUNER mode.

Selecting the audio mode

1. Press AUDIO button. Your unit displays audio channel information, such as 01/03 Eng Dolby Digital. 01 indicates the currently selected audio channel. 03 indicates the total number of audio channels. Eng (English) indicates the audio language. Dolby Digital describes the currently selected audio format.

2. Press

button and press or button to

select an audio mode, then press OK button.

Selecting the camera angle (Blu-ray Disc and DVD disc)

Some discs o er di erent camera angles for speci c scenes. To change the camera angle:

1. Press MEM/ANGLE button on the remote control. The selected angle will be displayed on the display bar at the top of the TV screen.

2. Press button and press or button to select the desired angle, then press OK button. If the disc was recorded using a single camera angle, this function is not available.

IMPORTANT!

Many BD-Live compatible discs require content to be downloaded onto USB  ash drive in order to access the available BD-Live features. A USB  ash drive with free space > 1GB needs to be inserted prior to inserting the BD-Live compatible disc.

The Settings menu appears automatically when the unit is in BD/USB stop mode.

Language Setting

1. In the main menu of Settings, press button, then use

2. Press button and press or button to select an option, then press OK button.

3. Press or button to select the language you wish, then press OK button to con rm your selection.

4. Press or EXIT button to go to the previous menu.

• If the selected language is not available on a disc, the disc’s language will be used instead.

• If the language chosen is available, it is automatically selected when you display the subtitles or press SUBTITLE button on the remote control. Otherwise, the subtitle language indicated on the disc is selected.

or button to select Language.

Display

Audio

Settings

Language

System

Network

Notes

Language

OSD English

Menu Auto

Audio Auto

Subtitle None

-17-

English IB(A5).indd 19English IB(A5).indd 19 4/15/2010 20:19:124/15/2010 20:19:12

Page 19

The Setup Menu

Display Setting

1. In the main menu of Settings, press button, then use

2. Press button and press or button to select an option, then press OK button.

3. Press option, and then press OK button to con rm your selection.

4. Press menu.

HDMI Status

This option displays the HDMI status. If an HDMI TV is connected, Connected appears. If an HDMI TV is not connected, Disconnected appears.

HDMI Preferred Format

This option shows the best HDMI format for the connected TV.

Resolution

You can de ne the video output resolution in this option.

HDMI Auto: If your TV is a high-de nition

1080p: If the TV is a high-de nition TV

1080i: If your TV is a high-de nition TV

720p: If your TV is a high-de nition TV

or button to select Display.

Settings

System

Network

Display

Audio

Language

Display

HDMI Status Connected

HDMI Preferred Format

TV Type NTSC

Resolution 1080p

TV Aspect 16:9 Wide

Film Mode Off

1080i

or button to select the desired

or EXIT button to go to the previous

TV(HDTV) connected to the HDMI jack on your player and you want your player to set the output resolution based on information exchanged between the TV and your player over the HDMI cable.

(HDTV) capable of 1080p (any frame rate) connected to the HDMI jack on your player.

(HDTV) capable of 1080i only.

(HDTV) capable of 720p only.

480p: If your TV is an enhanced-de ni-

tion TV (EDT V).

480i: If your TV is a standard-de nition

NTSC TV (American or Asian SD TV).

Notes:

• Selecting a resolution the TV does not support could result in an unstable picture or loss of the picture. See the documentation that came with the TV to  nd the resolutions the TV supports.

• Only the HDMI output on your unit supports 1080p video output at any frame rate. If the TV is connected to the component output, the video output is limited to 1080i or lower.

TV Aspect

16:9 wide, 16:9 Pillarbox, 4:3 Pan and Scan, and 4:3 Letter Box are available for your choice.

Film Mode

Movies are recorded on  lm at a rate of 24 pictures (frames) per second. Many of the movies on Blu-ray discs are recorded on the discs at this frame rate. However, not all TVs can display 24 progressive frames/second of video. If the TV cannot display this frame rate, you need to turn o Film Mode.

Note: Only your unit’s HDMI output supports 1080p video output at any frame rate. The component outputs are limited to 1080i, regardless of the Film Mode setting.

-18-

English IB(A5).indd 20English IB(A5).indd 20 4/15/2010 20:19:124/15/2010 20:19:12

Page 20

The Setup Menu

Audio Setting

1. In the main menu of Settings, press button, then use

2. Press button and press or button to select an option, then press OK button.

3. Press option, and then press OK button to con rm your selection.

4. Press or EXIT button to go to the previous menu.

PCM Downsampling

If your player is connected to an audio receiver or TV with an optical cable, you will need to select the highest PCM sampling rate the ampli er supports.

If you DO NOT have a surround sound receiver connected to your player through one of the digital audio jacks (optical), select 48kHz. Otherwise, select the highest sampling rate the receiver supports. See the documentation that came with the receiver.

There are 3 options (48kHz, 96kHz and O ) are available.

or button to select Audio.

Network

Audio

PCM Downsamoling 48K hz

Digital Output PCM 5.1

Settings

Display

Audio

Language

System

or button to select the desired

Digital Output

• PCM 5.1 — Sends a PCM audio signal of up to

5.1 channels over the HDMI connection and up to 2 channels over the optical connection.

• PCM Stereo — Sets the output to PCM Stereo if you have not an audio receiver connected to your Blu-ray Dsic player or the audio receiver connected to Blu-ray Disc player is not a 5.1 channel receiver.

• Bitstream HD — Sends the original bitstream from the disc over the HDMI and SPDIF connections using highest quality possible. HDMI has the higher quality capabilities with advanced audio CODECs like TrueHD and DTSHD. Blu-ray audio is limited to the soundtrack for the main moive (No PiP audio and no e ects audio).

• Bitstream Legacy — Sends the original bitstream from the disc over the HDMI and SPDIF connections using legacy audio formats. Blu-ray audio is limited to the soundtrack for the main movie (No PiP audio andno e ects audio).

• Bitstream Mixed — Sends mixed and encoded Blu-ray audio streams in a single bitstream. This mode is primarily intended for use with SPDIF

5.1CH receivers to produce mixed Blu-ray audio in surround sound.

Note: Setting the optical audio output’s PCM downsampling sampling rate too high may result in unpredictable audio playback. If you are not sure, set the rate to 48kHz.

-19-

English IB(A5).indd 21English IB(A5).indd 21 4/15/2010 20:19:134/15/2010 20:19:13

Page 21

The Setup Menu

System Setting

1. In the main menu of Settings, press button, then use

2. Press button and press or button to select an option, then press OK button.

3. Press or buttons to select the desired option, and then press OK button to con rm your selection.

4. Press or EXIT button to go to the previous menu.

Optical Disc AutoPlay

If On is selected, it will load data and play back automatically when you insert a Blu-ray disc. When O is selected and if you insert a Blu-ray disc, the disc you can select will be displayed on the Settings menu.

BD-Live Internet Access

• Limit Access — Allows Internet access with valid “BDLive” network access approval.

• Always Allow Access — Always allows BD-Live Internet access.

• Prohibit Access — Never allows BD-Live Internet access.

BD-Live Storage

The available storage space is displayed next to BD-Live Storage.

Erase Blu-ray Storage

If you choose OK to erase Blu-ray storage, all bookmarks and BD-Live content saved in memory are deleted.

Update Via Network

This option displays the required storage space if the BD player is connected to internet for upgrade.

or button to select System.

Audio

Optical Disc AutoPlay On

BD-Live Internet Access Always Allow Access

Language

BD-Live Storage internal USB (0.0 KB Free)

Erase Blu-ray Storage

Settings

System

Network

Display

Update Via Network Required Storage: 48 MB

Restore factory defaults

System

Restore factory settings and deactivate

Restore factory defaults

If you choose OK in the prompt message box, all settings will be restored to the factory defaults.

Network Setting

1. In the main menu of Settings, press button, then use

2. Press

3. Press or button to select Wire d, then press OK button. The IP Settings screen appears. If the network connection is active, Link Up appears next to Link Status. If the network connection is not active, Link Down displays next to Link Status.

4. Press or button to select IP Mode, then press OK button.

5. Press can select:

• Dynamic — Uses DHCP to automatically obtain an IP address.

• Manual — Lets you manually con gure network settings, such as IP address, subnet mask, and gateway settings.

• O — Disables the network interface.

or button to select Network.

button.

Language

Settings

System

Network

Display

Audio

Wired

Network Test

IP Settings

Link Status

MAC Address

IP Mode

IP Address

Subnet Mask

Gateway

Primary DNS

Secondary DNS

Apply

xx:xx:xx:xx:xx:xx

Cancel

or button to select an IP Mode. You

Link Down

Dynamic

0.0.0.0

-20-

English IB(A5).indd 22English IB(A5).indd 22 4/15/2010 20:19:134/15/2010 20:19:13

Page 22

The Setup Menu

6. Press or EXIT button to go to the previous menu.

Network Test

You can test the connectivity of the network con guration by “pinging” an IP address. Pinging means sending a signal to an IP address and waiting for a retuning signal.

AUX/OPTICAL

TV, VCR, SAT/Cable Box or portable audio players can be connected to AUDIO IN jacks at the back of the unit so that sound from the auxiliary component comes into the unit and out through the speakers.

Connecting Auxiliary Components

Refer to Connecting AUDIO IN from external sources such as TV for details on connecting the

auxiliary components to the unit.

Selecting AUX/OPTICAL Mode

Press either SOURCE button on the main unit or AUX/OPTICAL button on the remote control to select AUX/OPTICAL mode.

Sound Output in AUX or OPTICAL Mode

• You may change the Surround Sound setting to STEREO mode if you like (see instructions under Overview of Controls). However, we recommend you leave the system in full surround mode.

• If the auxiliary audio signal is mono, there will be no output from some speakers in full surround mode.

-21-

English IB(A5).indd 23English IB(A5).indd 23 4/15/2010 20:19:134/15/2010 20:19:13

Page 23

Radio

The unit has a built-in tuner that allows for FM radio function. The AM loop antenna allows for AM radio function.

Manual tuning

1. Connect the FM antenna and the AM loop antenna at the back of the unit.

2. Press TUNER button.

3. Tune a station by pressing TUNE repeatedly until the desired station is found. Alternatively, you can press and hold the same buttons down for about two seconds to activate the automatic search function. In this mode the unit will automatically tune frequencies until it  nds a station.

4. Repeat step 3 to tune to another radio station.

5. Press TUNER button to toggle between FM and AM.

/ buttons

Storing radio stations

The unit can store up to 30AM/30FM radio stations in its memory. You can enter every single radio station yourself or the unit can store all available radio stations automatically in ascending order.

Automatic preset programming

1. Press TUNER button to enter the Tuner mode.

2. Press and hold TUNER button for two seconds to start automatic preset programming.

3. Radio frequencies will be scanned and stored automatically. When all the available radio stations are stored or all 30AM/30FM memory locations are full, the auto preset programming function will stop.

Manual preset

1. Tune to a radio station (see Manual tuning for details).

2. Press MEM/ANGLE button. While the Program Preset number is still  ashing, input your desired preset number using the numeric buttons, then press MEM/ANGLE button to store it.

Retrieving preset stations

1. Press TUNER button to enter the Tuner mode.

2. Press

/ buttons to search up or down for the preset stations or directly press the numeric buttons.

Tips:

• When the FM station broadcasts Stereo

sound is found, ST is displayed.

• When you manually tune into a weak FM

station, press AUDIO button on remote control to switch from Stereo to Mono mode. This will reduce the background noise.

• If there is any interference, change the

antenna’s position until ideal sound reception is obtained. TV and other electronic devices could be the cause of interference, so try to position the antenna away from them.

• A weak signal can a ect the Automatic

preset programming function’s e ciency. Adjust the antenna for better reception and a more e cient search.

-22-

English IB(A5).indd 24English IB(A5).indd 24 4/15/2010 20:19:134/15/2010 20:19:13

Page 24

Troubleshooting

The unit does not switch on.

• Make sure it is plugged in.

• Press STANDBY/ON button on the remote con- trol or ON/STANDBY button on the front of the unit.

The device switches o spontaneously.

• The devices switches o automatically when it is in STOP mode for more than 30 minutes without any user intervention. Switch it on again.

• It might be impossible to read the disc.

• Insert the disc with the printed side facing up.

• Check that the disc can actually be played by this device.

• Clean the disc.

Blu-ray Disc or DVD does not play

• Make sure that the disc has the correct region code.

• Some Blu-ray discs will only play over an HDMI connection.

Picture-in-Picture(PiP) does not work on a Bluray Disc

• Make sure that the disc supports PiP mode.

When playing a BD-Live disc, the screen is black

• Erase BD Storage.

• Make sure that the internet connection is working.

• Make sure that the internet cable is connected securely and correctly to the unit and the internet jack. Some discs require an Internet connection to play.

Cannot connect to the internet

• Make sure that the Internet connection is set up correctly.

• Test the Internet connection to make sure that it is working.

• Make sure that the BD-Live Internet Access option is not set to Prohibit Access.

• Make sure that the disc your are playing is a legal copy.

After connecting to the Internet, cannot download a  le

• Erase BD Storage.

• Make sure that the internet connection is working.

• Try a di erent USB  ash drive.

File was downloaded, but playback from  le pauses

• Make sure that the USB  ash drive is a USB 2.0 device. Using a USB1.1 device may cause pausing.

• Try a di erent USB  ash drive.

There is no picture.

• Check that the TV is operating correctly.

• Check the connections.

• Select the AV input assigned to the unit on the TV.

• Replace the HDMI cable with a better one. A bad HDMI cable can cause loss of video.

The picture is of poor quality (with snow or lines).

• Check the connections.

There is no sound or the sound is of poor quality.

• Check the connections.

• Make sure the speakers are connected.

• Make sure the MUTE function is not on.

No surround sound.

• Check to see if system is actually in full Surround mode. To do this, press the SURROUND button on the remote control - the front panel display should indicate the current setting. If current setting is STEREO, the surround speakers and center speaker will be inactive. Press / button to change surround mode accordingly instead of STEREO.

Note: Di erent  le/disc can have di erent au-

dio type. Press SURROUND button on remote control follow by or buttons can select the among available surround modes with showing on front display.

-23-

English IB(A5).indd 25English IB(A5).indd 25 4/15/2010 20:19:134/15/2010 20:19:13

Page 25

Troubleshooting

Additional Information

I can’t  nd my  le in the JPEG listing.

• Make sure the  le name is valid.

The remote control does not work or works only intermittently.

• Check that batteries are inserted or change them.

• Aim the remote control at the unit. The infrared beam must not be blocked or interrupted.

• Check that the remote control is con gured to control the device you are trying to operate with it.

The subtitles do not appear.

• Check that the BD/DVD disc provides subtitles.

• Refer to the section on how to display subtitles.

The disc menu language is not the correct one.

• The disc menu language has not been set up.

• The language of your choice is not available on the disc.

Precautions

Use

• If your unit has been stored in a cool place for any length of time, during a journey for example, wait for about 2 hours before using it.

• The openings located on the top and bottom are for ventilation and must not be obstructed.

• During thunderstorms, we recommend that you isolate the unit from the electrical supply so that it is not damaged by electrical or electromagnetic surges.

• This unit is designed for continuous use.

Switching o the unit to standby mode does

not disconnect it from the mains supply. To completely isolate the equipment, remove the plug from the mains jack as some components remain connected to the electrical supply.

• If you notice any burning or smoke, disconnect the unit immediately to avoid any risk of electrocution.

• Do not attempt to look inside the unit through the disk tray opening or any other opening. You may be electrocuted or exposed to laser radiation.

• This unit is for domestic use only and must not be used for industrial purposes.

• Total or partial copying of recordings protected by copyright legislation, without the explicit permission of the holder of the rights, contravenes current legislation. Copying or downloading music  les for sale or any other business purpose constitutes or could constitute a violation of copyright law.

Cleaning

• Use a soft, dry, clean cloth. Regularly dust the vents at the back or sides.

• Using solvents, abrasive or alcohol-based products risks damaging the unit.

• If an object or liquid enters inside the unit, unplug it immediately and have it checked by an authorized servicer or service center.

-24-

English IB(A5).indd 26English IB(A5).indd 26 4/15/2010 20:19:134/15/2010 20:19:13

Page 26

Additional Information

Handling and Caring for Discs

• Handle your discs with care. Hold the disc with your  ngers at the edges or through the hole.

• Insert the disc with the label facing up (for a single-sided disc).

• Place the disc properly into the tray in the allotted holder.

• Use a soft cloth to clean discs if necessary, always wiping from the centre to the edge.

• Always put discs back in their cases after use and store in a vertical position.

• Do not close the tray with two discs in it or with a disc not sitting correctly in the holder.

• Do not play cracked, chipped or warped discs nor try to repair them with adhesive tape or glue.

• Do not write on a disc.

• Do not move the unit when a disc is being played.

• Do not scratch discs or store them in places exposed to direct sunlight, high humidity or high temperatures.

• Do not use aerosol cleaners, benzene, anti-static liquids or any other solvent for cleaning discs. When cleaning, wipe gently with a soft damp (water only) cloth from the centre to the edge, avoiding circular motions, which could cause scratches and interference during playback.

Compatible Formats

In order to ensure playback, discs must conform with BD, DVD or CD standards. This unit may not play some recordings or ﬁ les due to differences in recording formats, software used and disc types.

BD-ROM

BD-ROMs (Blu-ray Disc Read-Only Memory) are commercially produced discs and are available in the same capacities as BD below. Other than conventional movie and video contents, these discs have enhanced features such as interactive content, menu operations using pop-up menus (see below), selection of subtitle display, and slideshow. Although a BD-ROM may contain any form of data, most BD ROM discs will contain movies in High De nition format, for playback on Blu-ray Disc players.

Blu-ray Disc (BD)

A disc format developed for recording/playing high-de nition (HD) video (for HDTV, etc.), and for storing large amounts of data. A single layer Bluray Disc holds up to 25 GB, and a dual-layer Blu-ray Disc holds up to 50 GB of data.

DVD-Video

Digital video discs - 12 cm, single or double sided, single or dual layer. DVDs are high density optical discs on which high quality picture and audio are recorded by means of digital signals.

DVD-R, DVD-RW, DVD+R, DVD+RW

Most DVD-R and DVD+R (one recording only), DVD-RW and DVD+RW discs (rewritable), depending on the DVD writer and discs used. Recordings using DVD-R and DVD-RW discs must be made in Video DVD mode. Recordings using DVD+RW discs must be made in accordance with the speci cations for DVD+RW discs with a 4.7 GB capacity.

DVD+Rewritable

Audio CDs

Audio CDs (12 cm).

CD-R, CD-RW

Most CD-R (one recording only) and CD-RW discs (rewritable).

CD-Rs written during a multisession recording can be played, provided that the session has ended before the disc is played (depending on the write software).

However, depending on the condition of the CD-writer, computer and the disc used, you may  nd that not all discs will play. When playing a CD-R disc, it is normal for the unit to take up to 60 seconds to recognize the disc before starting to play.

-25-

English IB(A5).indd 27English IB(A5).indd 27 4/15/2010 20:19:134/15/2010 20:19:13

Page 27

Additional Information

If the disc is not recognized after a period of 120 seconds, remove the disc, and insert it again.

• Do not use its full capacity.

• CD-Rs should be preferably used instead of CD-RWs (rewritable CDs) as, in certain cases,

CD-RW playback may be faulty.

• Use reliable, good-quality CD write software.

• Close all other applications on the computer to ensure reliable CD-R disc recording.

JPEG Files

CD-R and CD-RW with JPEG  les. Certain JPEG  les, including progressive JPEG  les, cannot be read by this unit. The total number of  les and folders on the disc should be less than 650. Make sure that  les have the “.jpg” extension. Files without the “.jpg” extension will not be able to be read by the unit --- even thought the  les are shown as JPEG images on your computer.

“Blu-ray Disc” and are trademarks.

“BD-Live” and “BD-Live” logo are trademarks of Blu-ray Disc Association.

Manufactured under license from Dolby Laboratories. Dolby and the double-D

Dolby Laboratories.

5,974,380; 5,978,762; 6,487,535 & other U.S. and worldwide patents issued & pending. DTS and the Symbol are registered trademarks & the DTS logos are trademarks of DTS, Inc. © DTS, Inc. All Rights Reserved.

registered trademarks of HDMI Licensing LLC.

symbol are trademarks of

Manufactured under license from Dolby Laboratories. Dolby, Pro Logic, and the double-D symbol are trademarks of Dolby Laboratories.

Manufactured under license under U.S. Patent #’s: 5,451,942; 5,956,674;

HDMI, the HDMI logo and High-De nition Multimedia Interface are trademarks or

Java and logo are trademarks or registered trademarks of Sun Microsystems, Inc. in the United States and/or other countries.

-26-

English IB(A5).indd 28English IB(A5).indd 28 4/15/2010 20:19:134/15/2010 20:19:13

Page 28

Additional Information

Speci cations:

Ampli er Section:

RMS Output Power: Dolby Digital Mode with 10% Total Harmonic Distortion Front, Rear and Center Channel: 167 Watts per channel (1kHz, 8Ω) Subwoofer Channel: 167 Watts (100Hz, 8Ω) Total RMS Output Power, Dolby Digital mode: 1000 W

Muting Attenuation: 65 dB Frequency Response: 200Hz /3dB, 1KHz ref. Subwoofer Frequency Response: 10Hz/-3dB, 80Hz ref. Signal to Noise Ratio: 65 dB (Dolby Digital mode)

AM Tuner Section:

Frequency Response: 2kHz +/-6dB, 1kHz ref. Usable Sensitivity: 800uV/m @ S/N 20dB Signal to Noise: 38dB IF Rejection: 35dB

FM Tuner Section:

Frequency Response: 15kHz +/-3dB, 1kHz ref. Quieting: 24dBu Signal to Noise: 60dB(stereo) / 65dB(mono) IF Rejection: 50dB

Dimensions (H x W x D mm):

Unit: 67 x 430 x 335 Front and Surround Speakers: 180 x 105 x 101 Center Speaker: 105 x 180 x 101 Subwoofer: 370 x 180 x 330

-27-

English IB(A5).indd 29English IB(A5).indd 29 4/15/2010 20:19:134/15/2010 20:19:13

Page 29

Limited Warranty

AVC MULTIMEDIA (“AVC”) makes the following limited warranty. This limited warranty extend to the

original consumer purchaser and is limited to non-commercial use of the product.

One Year Parts & Labor Warranty AVC products purchased in the United States or Canada are warranted to be free from defects in

materials or workmanship for a period of one year from the date of their original retail purchase. If the unit fails to conform to this warranty, we will service the product using new or refurbished parts and products, at AVC ’s sole discretion.

During a period of one year from the e ective warranty date, AVC will provide, when needed, service labor to repair a manufacturing defect at its designated Service Center. To obtain warranty service in the United States or Canada, you must  rst call our Customer Support Center at 1-877-252-6873, during the hours

listed in the box below. The determination of service will be made by AVC Customer Support. PLEASE DO NOT RETURN YOUR UNIT TO AVC WITHOUT PRIOR AUTHORIZATION. New or remanufactured

replacements for defective parts or products will be used for repairs by AVC at its designated Service Center for one year from the e ective warranty date. Such replacement parts or products are warranted for an additional one year from the date of repair or replacement. The Customer will be required to ship the unit to the Service Center indicated at the time Customer Support is contacted to make the necessary repairs. The customer is responsible for all transportation charges to the service facility.

Packaging and Shipping Instruction

When you send the product to the AVC service facility you must use the original carton box and packing material or an equivalent as designated by AVC.

Your Responsibility

(1) You must retain the original sale receipt to provide proof of purchase. (2) These warranties are e ective only if the product is purchased and operated in the United States or

Canada.

(3) Warranties extend only to defects in material or workmanship, and do not extend to any product

or parts which have been lost or discarded, or damage to product or parts caused by misuse, accident, improper operation or maintenance, or use in violation of instructions provided with the product, or to product which has been altered or modi ed without authorization of AVC , or to products or parts thereof which have had the serial number removed or changed.

-28-

English IB(A5).indd 30English IB(A5).indd 30 4/15/2010 20:19:134/15/2010 20:19:13

Page 30

Limited Warranty

Out of Warranty

In the event your product requires repair after the limited warranty period has expired, please contact our Customer Support Center at

1-877-252-6873 or

www.RCAav.com

Hours: Monday–Thursday: 9am–7pm, Friday: 9am–5pm, Saturday: 9am–NOON Eastern time.

Important:

You are responsible for any transportation, shipping or insurance relative to the return of product to our Product Returns Center.

All warranties implied by state law, including the implied warranties of merchantability and  tness for a particular purpose, are expressly limited to the duration of the limited warranties set forth above. With the exception of any warranties implied by state law as hereby limited, the foregoing warranty is exclusive and in lieu of all other warranties, guarantees, agreements and similar obligations of manufacturer or seller with respect to the repair or replacement of any parts. In no event shall AVC be liable for consequential or incidental damages.

No person, agent, distributor, dealer or company is authorized to change, modify or extend the terms of these warranties in any manner whatsoever. The time within action must be commenced to enforce any obligation of AVC arising under the warranty or under any statute, or law of the United States or Canada or any state thereof, is hereby limited to one year from the date of purchase. This limitation does not apply to implied warranties arising under state law.

This warranty gives you speci c legal rights and you may also have other rights, which may vary, from state to state. Some states do not allow limitation on how long an implied warranty lasts, when an action may be brought, or the exclusion or limitation of incidental or consequential damages, so the above provisions may not apply to you.

For more information on other products and services, please visit our web site at

www.RCAav.com

Important: Also keep your “Bill of Sale” as proof of purchase.

Model no. ................................................................................ Product name ....................................................................

Type of set. ........................................................................................................................................................................................

Serial no. ................................................................................. Invoice no. ............................................................................

Date purchased .................................................................... Dealer name .......................................................................

FOR SERVICE AND REPAIR, PLEASE VISIT

Speci cations and external appearance are subject to change without notice.

www.RCAav.com

-29-

English IB(A5).indd 31English IB(A5).indd 31 4/15/2010 20:19:134/15/2010 20:19:13

Page 31

Printed in China

811-110091W010

English IB(A5).indd 32English IB(A5).indd 32 4/15/2010 20:19:134/15/2010 20:19:13
