RCA RMW743 User Manual

Microwave Oven

RMW743

1. READ these instructions carefully before installing and operating the oven. Keep
them for further reference.

2. Record in the space below the “SERIAL NO.” found on the nameplate on your
oven and retain this information for future reference.

SERIAL NO.:

Please save sales receipt for warranty.

PRECAUTIONS TO AVOID POSSIBLE EXPOSURE TO

EXCESSIVE MICROWAVE ENERGY

1. Do not attempt to operate this oven with the door-open since open-door operation can result
in harmful exposure to microwave energy. It is important not to defeat or tamper with the
safety interlocks.

2. Do not place any object between the oven front face and the door or allow soil or cleaner
residue to accumulate on sealing surfaces.

3. Do not operate the oven if it is damaged. It is particularly important that the oven door close
properly and that there is no damage to the:
a) Door (bent),
b) Hinges and latches (broken or loosened),
c) Door seals and sealing surfaces.

4. The oven should not be adjusted or repaired by anyone except properly qualified service

personnel.

PRECAUTIONS TO AVOID POSSIBLE EXPOSURE TO EXCESSIVE MICROWAVE

ENERGY ...................................................................................................................................... 1

IMPORTANT SAFETY INSTRUCTIONS................................................................................ 2

GROUNDING INSTRUCTIONS ............................................................................................... 3

UTENSILS GUIDE...................................................................................................................... 4

COOKING TECHNIQUES......................................................................................................... 5

BEFORE YOU CALL FOR SERVICE..................................................................................... 6

SPECIFICATIONS...................................................................................................................... 6

PART NAMES ............................................................................................................................. 6

CONTROL PANEL ..................................................................................................................... 7

OPERATION INSTRUCTIONS................................................................................................. 8

Setting the clock .................................................................................................................... 8

Setting the oven timer............................................................................................................ 8

Setting a cooking program..................................................................................................... 8

Speed defrost ......................................................................................................................... 8

Cook by weight...................................................................................................................... 9

Defrost by weight .................................................................................................................. 9

Setting child lock ................................................................................................................... 9

QUICK COOK SETTINGS ...................................................................................................... 10

CLEANING AND CARE ...........................................................................................................11

CONTENT

1

IMPORTANT SAFETY INSTRUCTIONS

When using electrical appliances, basic

safety precautions should be followed,

including the following:

WARNING - To reduce the risk of burns,

electric shock, fire, and injury to persons

or exposure to excessive microwave

energy:

1. Read all instructions before using the

appliance.

2. Read and follow the specific

"PRECAUTIONS TO AVOID

POSSIBLE EXPOSURE TO

EXCESSIVE MICROWAVE

ENERGY" found on page1.

3. This appliance must be grounded.

Connect only to properly grounded

outlet. See "grounding instructions” found

on page 4.

4. Install or locate this appliance only in

accordance with the provided

installation instructions.

5. Some products such as whole eggs

and sealed containers -for example,

closed glass jars- are able to explode

and should not be heated in this oven.

6. Use this appliance only for its

intended use as described in this

manual. Do not use corrosive

chemicals or vapors in this appliance.

This type of oven is specifically

designed to heat, cook, or dry food. It

is not designed for industrial or

laboratory use.

7. As with any appliance, close

supervision is necessary when used

by children.

8. To reduce the risk of fire in the oven

cavity:

 Do not overcook food. Carefully

attend appliance when paper, plastic,

or other combustible materials are

placed inside the oven to facilitate

cooking.

 Remove wire twist-ties from paper or

plastic bags before placing bag in

oven.

 If materials inside the oven should

ignite, keep oven door closed, turn

oven off, and disconnect the power

cord or shut off power at the fuse or

circuit breaker panel.

 Do not use the cavity for storage

purposes. Do not leave paper

products, cooking utensils or food in

the cavity when not in use.

9. Liquids, such as water, coffee, or tea

can be overheated beyond the boiling

point without appearing to be boiling

due to surface tension of the liquid.

Visible bubbling or boiling when the

container is removed from the

microwave oven is not always present.

THIS COULD RESULT IN VERY HOT

LIQUIDS SUDDENLY BOILING

OVER WHEN THE CONTAINER IS

DISTRURBED OR A UTENSIL IS

INSERTED INTO THE LIQUID. To reduce

the risk of injury to person:

 Do not overheat the liquid.

2

 Stir the liquid both before and

halfway through heating it.

 Do not use straight-sided containers

with narrow necks.

 After heating, allow the container to

stand in the microwave oven for a

short time before removing the

container.

 Use extreme care when inserting a

spoon or other utensil into the

container.

10. Do not heat oil or fat for deep-frying. It

is difficult to control the temperature of

oil in microwave oven.

11. Pierce foods with heavy skins such as

potatoes, whole squash, apples and

chestnuts before cooking.

12. The contents of feeding bottles and

baby jars should be stirred or shaken,

or hot water spilled may cause burns,

and the temperature should be

checked before serving in order to

avoid burns.

13. Cooking utensils may become hot

because of heat transferred from the

heated food. Potholders may be

needed to handle the utensil.

14. Do not cover or block any openings on

the appliance.

15. Do not store or use this appliance

outdoors. Do not use this product near

water, for example, near a kitchen sink,

in a wet basement, near a swimming

pool, or similar locations.

16. Do not operate this appliance if it has

a damaged cord or a plug, if it is not

working properly or if it has been

damaged or dropped.

17. Do not immerse cord or plug in water.

Keep cord away from heated surface.

Do not let cord hang over edge of

table or counter.

18. Use only thermometers, which are

specifically designed for use in

microwave ovens.

19. Do not operate any heating or cooking

appliance beneath this appliance.

20. Be certain the glass tray and roller

rings are in place when you operate

the oven

21. This appliance should be serviced

only by qualified service personnel

contact nearest authorized service

facility for examination, repair, or

adjustment.

SAVE THESE INSTRUCTIONS

3

GROUNDING INSTRUCTIONS

This appliance must be grounded. In the
event of an electrical short circuit,
grounding reduces risk of electric shock by
providing an escape wire for the electric
current. The appliance is equipped with a
cord having a grounding wire with a
grounding plug. The plug must be plugged
into an outlet that is properly installed and
grounded.
WARNING: Improper use of the grounding
plug can result in a risk of electric shock.

Electrical Requirements

The electrical requirements are a 120 volt
60 Hz, AC only, 15 amp. It is recommended
that a separate circuit serving only the oven
be provided. The oven is equipped with a
3-prong grounding plug. It must be plugged
into a wall receptacle that is pr
installed and grounded.

Power Supply Cord

1. A short power supply cord is provided
to reduce the risks resulting from
becoming entangled in or tripping over
a longer cord.

2. Longer cord sets or extension cords
are available and may be used if care
is exercised in their use.

3. If long cord or extension cord is used˖
a) The marked electrical rating of the

operly

cord set or extension cord should
be at least as great as the
electrical rating of the appliance.

b) The extension cord must be a

grounding-type 3-wire cord, and
The longer cord should be
arranged so that it will not drape
over the counter top or table top
where it can be pulled on by
children or tripped over
unintentionally.

Notes:

1. If you have any questions about the
grounding
consult a qualified electrician or
service person.

2. Neither RCA nor the dealer can
accept any liability for damage to the
oven or personal injury resulting from
failure to observe the electrical
connection procedures.

Radio or TV Interference

Should there be any interference caused by
the microwave oven to your radio or TV,
check that the microwave oven is on a
different circuit, relocated the radio or TV as
far away from the oven as feasible or check
position and signal of receiving antenna.

or electrical instructions,

UTENSILS GUIDE

This section lists which utensils can be
used in the microwave, which ones have
limited use for short periods, and which
ones should not be used in the microwave.

Recommended

g Microwave browning dish ü Use to

brown the exterior of small items such as

chops, or pancakes. Follow

steaks,
the directions provided with your
browning dish.

g Microwaveable plastic wrap ü Use to

retain steam. Leave a small opening for
some steam to escape and avoid placing
it directly on the food.

g Paper towels and napkins ü Use for

short-term heating and covering; These

absorb excess moisture and prevent
spattering. Do not use recycled paper
towels, which may contain metal and
could ignite.

gGlass and glass-ceramic bowls and dishes
ü Use for heating or cooking.
g Paper plates and cups ü Use for

short-term heating at low temperatures.
Do not use recycled paper, which may
contain metal and could ignite.

gWax paper ü Use as a cover to prevent

spattering.

gThermometers ü Use only those labele

“Microwave Safe” and follow all directions.
Check the food in several places.
Conventional thermometers may be used

4

d

on microwave food once the food has
been removed from the oven.

Limited Use

Aluminum foil ü Use narrow strips of foil

g

to prevent overcooking of exposed areas.

Using too much foil can damage your

oven, so be careful.

g Ceramic, porcelain, and stoneware ü

Use these if they are labeled “Microwave
Safe”.

If they are not labeled, test them to make

sure they can be used safely.

gPlastic ü Use only if labeled “Microwave

Safe”. Other plastics can melt.

gStraw, wicker, and wood ü Use only for

short-term heating, such as warming
dinner rolls for a few seconds. Baskets
and bowls may be flammable.

Not Recommended

COOKING TECHNIQUES

gGlass jars and bottles ü Regular glass is

too thin to be used in a microwave. It can
shatter and cause damage and injury.

gPaper bags ü These are a fire hazard,

except for popcorn bags that are
designed for microwave use.

gStyrofoam plates and cups ü These can

melt and leave an unhealthy residue on
food.

gPlastic storage and food containers ü

Containers such as margarine tubs can
melt in the microwave.

gMetal utensils ü These can damage your

oven. Remove all metal before cooking.

Note: Should you wish to check if a dish is
safe for microwaving, place the empty dish
in the oven and microwave on HIGH for 30
seconds. A dish which becomes very hot
should not be used.

Your microwave makes cooking easier than
conventional cooking, provided you keep
these considerations in mind:

Stirring
Stir foods such as casseroles and

vegetables while cooking to distribute heat
evenly. Food at the outside of the dish
absorbs more energy and heats more
quickly, so stir from the outside to the center.
The oven will turn off when you open the
door to stir your food.

Arrangement
Arrange unevenly shaped foods, such as

chicken pieces or chops, with the thicker,
meatier parts toward the outside of the
turntable where they receive more
microwave energy. To prevent overcooking,
place delicate areas, such as asparagus
tips, toward the center of the turntable.

Shielding

Shield food with narrow strips of aluminum
foil to prevent overcooking. Areas that need
shielding include poultry wing-tips, the ends
of poultry legs, and corners of square
baking dishes. Use only small amounts of
aluminum foil. Larger amounts can damage

your oven.
Turning
Turn foods over midway through cooking to

expose all parts to microwave energy. This
is especially important with large foods such
as roasts.

Standing

Foods cooked in the microwave build up
internal heat and continue to cook for a few
minutes after heating stops. Let foods stand
to complete cooking, especially foods such
as cakes and whole vegetables. Roasts
need this time to complete cooking in the
center without overcooking the outer areas.
All liquids, such as soup or hot chocolate,
should be shaken or stirred when cooking is
complete. Let liquids stand a moment
before serving. When heating baby food,
stir well at removal and test the temperature
before serving.

Adding moisture

Microwave energy is attracted to water
molecules. Food that is uneven in moisture
content should be covered or allowed to
stand so that the heat disperses evenly.
Add a small amount of water to dry food to
help it cook.

5

BEFORE YOU CALL FOR SERVICE

If the oven fails to operate:
A) Check to ensure that the oven is plugged

in securely. If it is not, remove the plug
from the outlet, wait 10 seconds and
plug it in again securely.

B) Check for a blown circuit fuse or a

tripped main circuit breaker. If these
seem to be operating properly, test the

outlet with another appliance.
IF NONE OF THE ABOVE RECTIFIES THE SITUATION, THEN CONTACT A QUALIFIED
TECHNICIAN. DO NOT TRY TO ADJUST OR REPAIR THE OVEN YOURSELF.

C) Check to ensure that the control panel is

programmed correctly and the timer is
set.

D) Check to ensure that the door is securely

closed engaging the door safety lock
system. Otherwise, the microwave
energy will not flow into the oven.

SPECIFICATIONS

Power Consumption 120V~60Hz, 1050W

W007 tuptuO

Operation Frequency 2450MHz

Outside Dimensions (H×W×D) 10 5/16×1713/16×129/16 inches.

Oven Cavity Dimensions (H×W×D) 8 11/16×123/8×11 9/16 inches.

.tf.uc7.0 yticapaC nevO

.sbl1.32 .xorppA thgieW teN

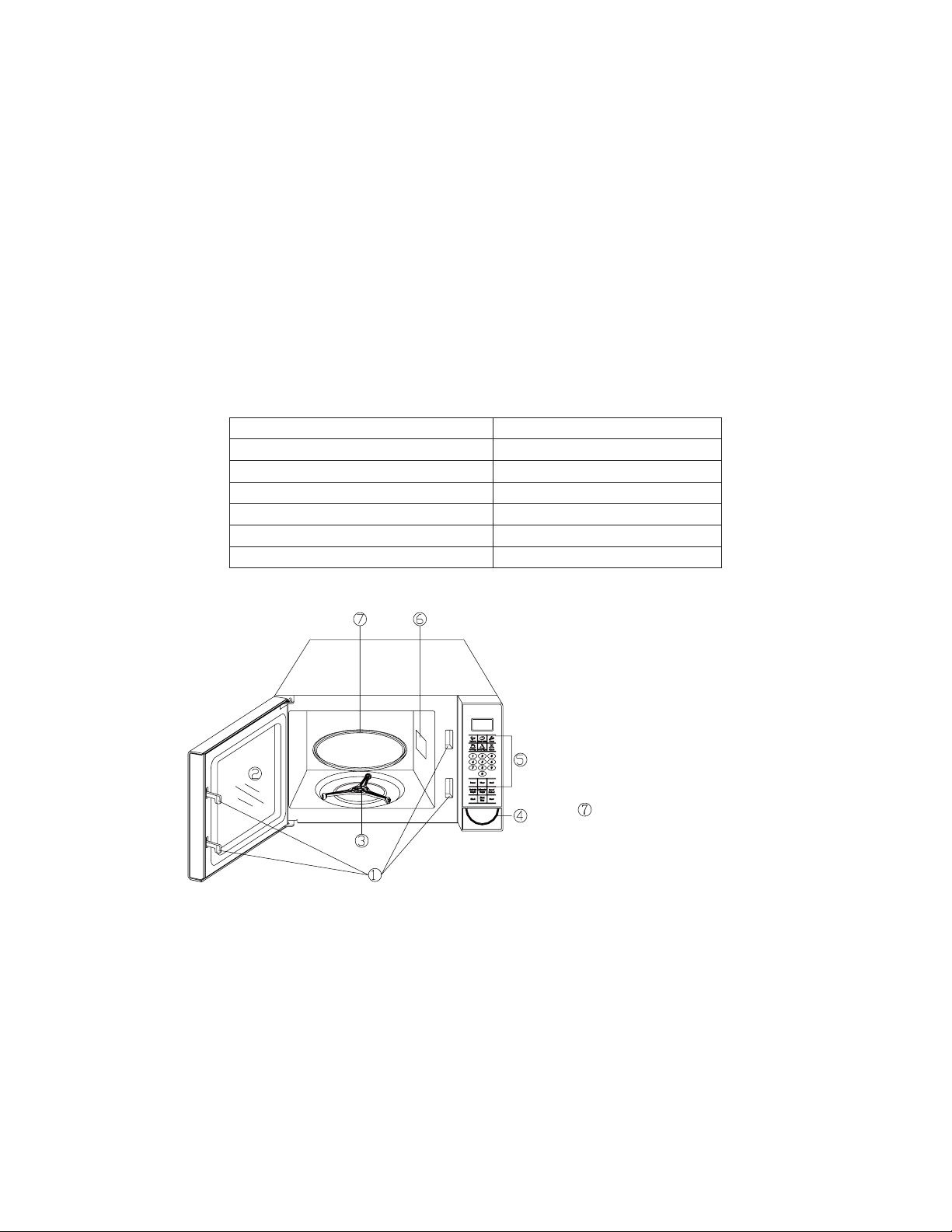

PART NAMES

① Door Safety Lock System

② Oven Window

③ Turntable Roller

④ Door Release Button

⑤ Control Panel

⑥ Wave Guide

Glass Tray

DO NOT REMOVE THE CARDBOARD OVEN AIR

VENT COVER THAT IS INSIDE THE MICROWAVE!

6

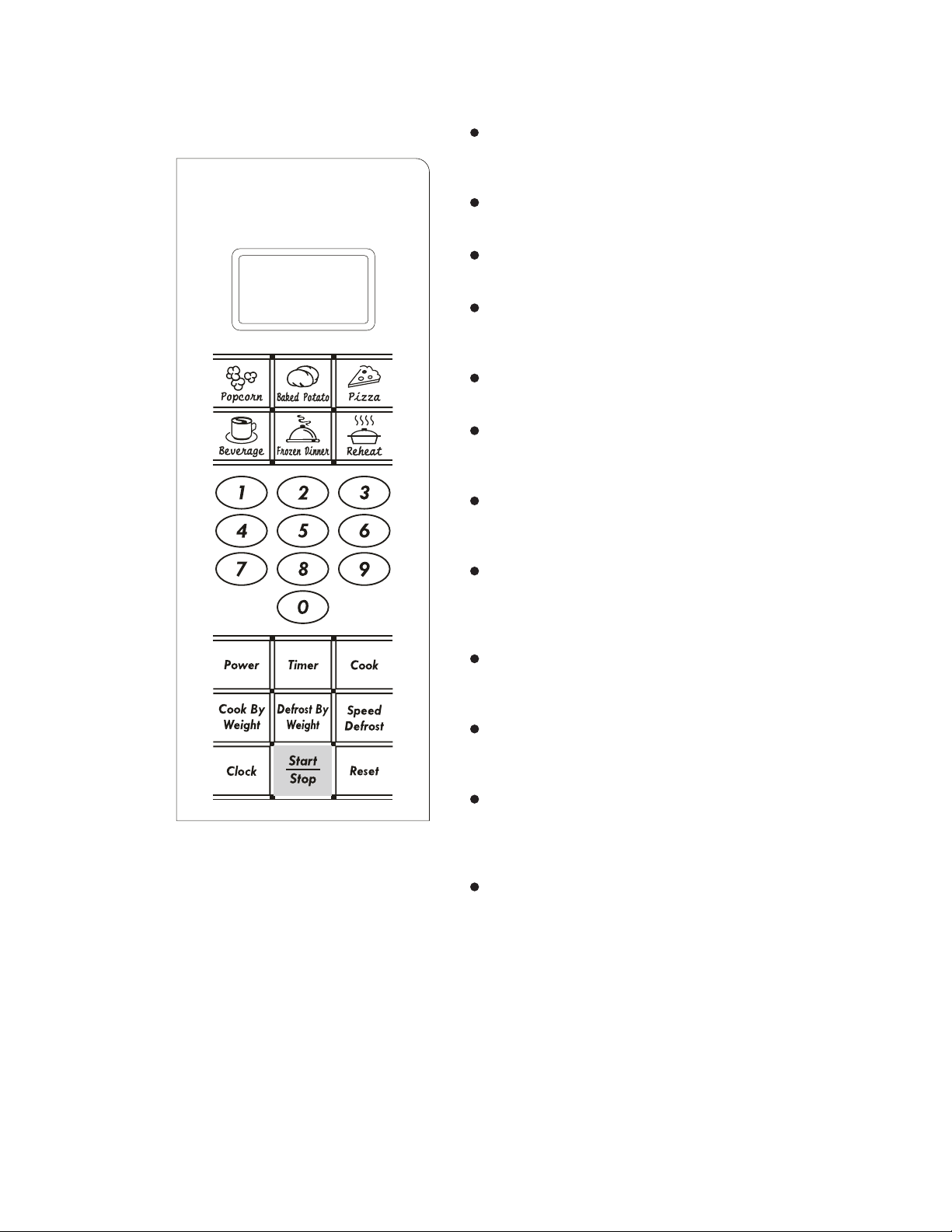

CONTROL PANEL

DISPLAY

Cooking time, power, indicators and present
time are displayed.

QUICK COOK BUTTONS

Instant settings to cook popular foods.

NUMBER PADS (0-9)

Touch to set times or weights.

CLOCK

Use to set the time of day or recall the time of
day.

RESET

Use to clear all previous settings.

POWER

Use to set power level. To check power level
during cooking, touch POWER LEVEL pad.

TIMER

Timer functions independently, even while a
cooking program is in process.

COOK

Use for multi-stage cooking. Enables cooking
at multiple power and time settings
automatically.

DEFROST BY WEIGHT

Programmed defrosting based on the weight of
the foods to be defrosted.

COOK BY WEIGHT

Programmed cooking based on the weight of
the foods to be cooked.

SPEED DEFROST

Quick defrost function that alternates defrost
and stand times to quickly and effectively
defrost foods.

START/STOP

Touch to start or stop cooking.

7

OPERATION INSTRUCTIONS

SIGNALS DURING OVEN SETTINGS
ONE SIGNAL: Oven accepts the entry.

SETTING THE CLOCK

1. Touch CLOCK pad.

2. Use the number pads to enter the

correct time.

3. Touch CLOCK pad again.

NOTE:
gThis is a 12-hour cycle clock. When the
oven is first plugged in or when power
resumes after a power interruption, the
display will show ENTER CLOCK TIME. If
you prefer not to have the clock displayed,
touch RESET.

SETTING THE OVEN TIMER

1. Touch TIMER.

2. Enter the amount of time by touching

the number pads.

3. Touch START/STOP.

NOTE:
gThe maximum time you can enter is 99
minutes and 99 seconds.
gTime countdown can be seen in display
before clock or cooking time returns to
display.
gTouch TIMER and then touch RESET to
cancel TIMER during timing process.

ETTING A COOKING PROGRAM

S

A. One-stage Cooking

1. Use the number pads to set a

cooking time. You can set a cooking
time from one second to 99 minutes
and 99 seconds.

2. If you want to set a power level other

than 100% power, touch POWER
LEVEL, and then use the number
pads to enter the power level.

3. Touch START/STOP to start cooking.

Use the digits to set a cooking power
level:

Number pad Cooking power

1ǃ0 100%

9 90%
8 80%
7 70%
6 60%

TWO SIGNALS: Oven does not accept
the entry, check and try again.

5 50%
4 40%
3 30%
2 20%
1 10%
0 0%

B. Two-stage Cooking

Some recipes require different stages of
cooking at different temperatures.

1. SET STAGE 1:

Follow steps 1 and 2 in “One-stage
Cooking”. DO NOT TOUCH
START/STOP.

2. SET STAGE 2:

Touch COOK then enter proper cooking
time and (lower) power level. (Most
2-stage recipes use lower power for
second stage.)

3. Touch START/STOP.

NOTE:
g After total time has elapsed, signals
sound and END appears in display. Touch
any button or open oven door to clear
END before starting another cooking
function.

SPEED DEFROST

1. Touch SPEED DEFROST.

2. Enter desired defrosting time by

touching correct number pads.

3. Touch START/STOP.

NOTE:
gThe longest defrosting time is 99 minutes
and 99 seconds.
gDuring defrosting program, the system
will pause automatically and sound to
remind users to turn meat over, after that
touch START/STOP to resume the
defrosting.
gAfter time has elapsed signals sound and
END appears in display. Touch any button
or open oven door to clear END before
starting another cooking function.
gAfter setting SPEED DEFROST, oven
can be programmed to automatically
switch to one or two-stage cooking.

8

gFor speed defrost and one stage cooking,
follow steps above. Before touching
START/STOP, touch COOK; enter time
and power level and then touch
START/STOP.
gFor speed defrost and two stage cooking,
follow steps above. Before touching
START/STOP, touch COOK; enter
two-stage cooking programs and then
touch START/STOP.

COOK BY WEIGHT

1. Touch COOK BY WEIGHT.

2. Enter the one digit code by touching

the correct number pad.

3. Use the number pads to enter weight.

4. Touch START/STOP.

Cook By Weight Code Description

CODE TYPE MAX WEIGHT

1 Beef 5 lb. 16 oz.

2 Mutton 5 lb. 16 oz.

3 Pork 5 lb. 4 oz.

Note:

gWeight must be in pounds and ounces.
gOunce weights less than 10 must be

preceded by a 0. If label gives weight in
pounds only, change the fraction of a
pound to ounces using the following chart.

Converting Fractions of a Pound to
Ounces

Fractions of a

Less than .03 0

.03 to .09 1
.10 to .15 2
.16 to .21 3
.22 to .27 4
.28 to .34 5
.35 to .40 6
.41 to .46 7
.47 to .53 8

.54 to 59 9
.60 to .65 10
.66 to .71 11

Ounces

.72 to .78 12
.79 to .84 13
.85 to .90 14
.91 to .97 15

above .97

go to next

even
gDuring cooking, the system will pause
automatically and sound to remind users
to turn meat over, after that touch
START/STOP to resume cooking.
g After total cooking time, signals sound
and END appears in display. Touch any
button or open oven door to clear END
before starting another cooking function.

DEFROST BY WEIGHT

1. Touch DEFROST BY WEIGHT pad.

2. Use the number pads to enter weight.

3. Touch START/STOP pad.

NOTE:
gWeight must be in pounds and ounces.
Ounce weights less than 10 must be
preceded by a 0. If label gives weight in
pounds only, change the fraction of a
pound to ounces using the chart given
above.
gThe maximum weight you can enter is 5
lb. 16 oz.
gDuring defrosting program, the system
will pause automatically and sound to
remind users to turn meat over, after that
touch START/STOP to resume the
defrosting.
gAfter total defrosting time, signals sound
and END appears in display. Touch any
button or open oven door to clear END
before starting another cooking function.

SETTING CHILD LOCK

The child lock prevents unsupervised
operation by children.
To set: In standby mode, press and hold
RESET for 3 seconds. Lock indication
appears on the display.
To cancel: Press and hold RESET for 3
seconds. Lock indication disappears.

9

QUICK COOK SETTINGS

The QUICK COOK settings allow you to
cook or reheat food automatically without
entering power level or time.

For smaller portions, simply touch the
applicable pad and START/STOP. For
larger portions, press the pad twice.

FROZEN DINNER, BAKED POTATO and
BEVERAGE allow you to cook multiple
amounts of the same food. Simply touch
pad once, and ENTER AMT appears in
the display. Enter the amount of servings
and start.

BAKED POTATO

For potatoes (4 to 6 oz. per entries):

1. Touch BAKED POTATO once.

2. Enter number of potatoes by touching
number pads from 1 to 4.

3. Touch START/STOP.

For larger potatoes (8 to 10 oz. per
entries):

1. Touch BAKED POTATO twice.

2. Enter number of potatoes by touching
number pads from 1 to 4.

3. Touch START/STOP.

POPCORN

1. Touch POPCORN.

POPCORN automatically sets the cooking
time for a 3.5 oz. bag of microwave
popcorn.

2. Touch START/STOP.

NOTE:

To change the preset POPCORN time:
Touch POPCORN twice. ENTER TIME is
displayed. Touch number pads to enter
minutes and seconds. Touch
START/STOP. This new cooking time will
remain whenever you use the POPCORN
setting until you reset it.

PIZZA

Reheating a slice of pizza:

1. Touch PIZZA once.

2. Touch START/STOP.

Heating a whole pizza:

1. Touch PIZZA twice.

2. Touch START/STOP.

BEVERAGE

For cups (5 to 7 oz. per share):

1. Touch BEVERAGE once.

2. Enter number of cups by touching
number pads from 1 to 4.

3. Touch START/STOP.

For larger coffee mugs (9 to 11 oz. per
share):

1. Touch BEVERAGE twice.

2. Enter number of mugs by touching
number pads from 1 to 4.

3. Touch START/STOP.

FROZEN DINNER

For one or two small (7-9 oz. per share)
frozen dinners:

1. Touch FROZEN DINNER once.

2. For 1 entree, touch the number pad
“1”. For 2 entrees, touch the number
pad “2”.

3. Touch START/STOP pad.

Microwaving one or two larger (10-12 oz.
per share) frozen dinners:

1. Touch FROZEN DINNER twice.

2. For 1 entree, touch the number pad
“1”. For 2 entrees, touch the number
pad “2”.

3. Touch START/STOP.

REHEAT

1. Touch REHEAT pad.

2. Touch START/STOP.

NOTE:

This setting lets you reheat a dinner plate
of chilled leftovers with good results.

10

CLEANING AND CARE

1. When cleaning surfaces of door and

oven that comes together on closing

the door, use only mild, nonabrasive

soups, or detergents applied with a

sponge or soft cloth.

2. Turn off the oven and remove the power

plug from the wall socket before cleaning.

3. Keep the inside of the oven clean. When

food splatters or spilled liquids adhere to

oven walls, wipe with a damp cloth. Mild

detergent may be used if the oven gets

very dirty. Avoid the use of spray and

other harsh cleaners as they may stain,

streak or dull the door surface.

4. The outside surfaces should be cleaned

with a damp cloth. To prevent damage to

the operating parts inside the oven, water

should not be allowed to seep into the

ventilation openings.

5. Wipe the window on both sides with a

damp cloth to remove any spills or

spatters.

6. Do not allow the control panel to become

wet. Clean with a soft, damp cloth. When

cleaning the control panel, leave oven

door open to prevent oven from

accidentally turning on.

7. If steam accumulates inside or around the

outside of the oven door, wipe with a soft

cloth. This may occur when the

microwave oven is operated under high

humidity conditions, this is normal.

8. It is occasionally necessary to remove the

glass tray for cleaning. Wash the tray in

warm sudsy water or in a dishwasher.

9. The roller ring and oven floor should be

cleaned regularly to avoid excessive

noise. Simply wipe the bottom surface of

the oven with mild detergent. The roller

ring may be washed in mild sudsy water

or dishwasher. When removing the roller

ring from cavity floor for cleaning, be

sure to replace in the proper position.

10. Remove odors from your oven by

combining a cup of water with the juice

and skin of one lemon in a deep bowl,

microwave for 5 minutes. Wipe

thoroughly and dry with a soft cloth.

11. When it becomes necessary to replace

the oven light, please consult a dealer to

have it replaced.

12. Please do not dispose this appliance into

the domestic rubbish bin; it should be

disposed to the particular disposal center

provided by the municipalities.

11
