USER'S

GUIDE

CAM CO

Important Safety Information

Be sure to read all the safety information before you begin to use this product.

I I

camcorder or AC adapter/charger to rain or moisture.

iWARNING: To reduce the risk of fire or shock hazard, do not expose I

This symbol indicates "dangerous voltage"

RISKOF ELECTRICSHOCK

DO NOT OPEN

RISO_JEDECHOC

Et.ECTRIQUENEPASOU'V'RtR

TO REDUCE THE RISK OF ELECTRIC SHOCK, DO NOT REMOVE THE COVER (OR BACK). NO USER-SERVICEABLE PARTS ARE INSIDE. REFER SERVICING TO QUALIFIED SERVICE PERSONNEL.

Cautions

inside the product that presents a risk of electric shock or personal injury.

This symbol indicates important instructions accompanying the product.

._,-_f ,;,'.....: _,:

CAUTION: To prevent electric shock, match wide blade of plug to

wide slot, fully insert.

ATTENTION: Pour 6viter les chocs 61ectriques, introduire la lame

la plus large de la fiche dans la borne correspondante de la prise et pousser jusqu au fond.

To reduce risk of injury, charge only rechargeable batteries

recommended by the manufacturer for this camcorder. Other types of batteries may burst causing damage and personal injury.

FCC Regulations state that unauthorized changes or modifications to this equipment may void the user's authority to operate it.

Product Registration

Please fill out the product registration card and return it immediately.

Returning this card allows us to contact you if needed. Keep your sales receipt for proof of purchase to obtain warranty parts

and service and attach it here. Record the serial ,and model numbers located on the bottom of the camcorder.

Model No: ProV800C Serial No: Purchase Date: Purchased From:

We want to make sure you enjoy your new camcorder. If you have any questions, call:

Camcorder Exchange Warranty .......... 800-283-651)3 (pages 90-91)

Customer Service ......................................... 800-336-1900 (page 89)

Accessories ............................................. 800-338-0376 (pages 76-81)

Safety Information .............................. i

Product Registration ........................... i

Table of Contents ............................ 1-2

First-Time Operation

• Assistance .......................................... 3

• Unpack Camcorder &

Accessories ...................................... 3

• Attach the Adapter/Charger ............... 4

• Adjust Handstrap ............................... 4

• Open Lens Cover ............................... 4

• Insert a Tape ...................................... 5

• Turn on Camcorder ............................ 5

• Select a Recording Speed .................. 6

• Set the FULL A UTO/PRESET

Switch .............................................. 6

• Use LCD Monitor or

Viewfinder to View Recording ....... 7

• Start and Stop Recording ................... 8

• Turn off the Camcorder ..................... 8

• Close Lens Cover

and LCD Monitor ............................ 8

• Review Camcorder's

Operating Controls ..................... 9-11

Powering Your Camcorder

• Using Adapter/Charger .................... 12

• Using Rechargeable Battery ....... 13-15

• Using Optional Car Cord Adapter... 16

Recording Tips .................................. 17

Video Cassettes ............................ 18-19

Recording

• Making a Recording ................... 20-23

• Viewing What You Record Using the LCD Monitor or

Viewfinder ................................ 24-25

• LCD Monitor or Viewfinder

Displays ..................................... 26-29

• Play Back Your Recording ................ 8

(continued on next page)

Recording (continued)

• Time-Lapse Recording ......... 58-59

• Microphone ...................................... 30

• Flying Erase Head ........................... 30

• Auto Head Cleaner .......................... 30

• Tally Light ....................................... 30

• Quick Record ................................... 30

• Tape Positioning .............................. 31

• Quick Review .................................. 31

• Camera Edit ..................................... 31

• Full Auto Mode ............................... 32

• Electronic Indexing ......................... 32

• Exposure Control ............................. 33

• White Balance ............................ 34-35

• Focusing ..................................... 36-37

• Electronic Image Stabilizer ............ 38

• Zooming .......................................... 39

• Recording Menu .............................. 40

• Tele Macro Zooming ................... 41

• Gain Up (Slow Shutter) ................ 42

• Color Filter ................................... 43

• Tape Time Remaining Display ..... 44

• Title .......................................... 45-47

• Fading or Wiping In and Out ..... 60-61

• Production Effects ...................... 62-63

• Attaching the Shoulder Strap ........... 64

Traveling Tips ................................... 65

Playback

• Using the Cassette Adapter...66-67

• Playback Using the LCD

Monitor or Viewfinder ............ 68

• Playback Features

• Visual Searching ...................... 69

• Tape Positioning ...................... 69

• Stop-Action Pause ................... 69

• Time Counter ........................... 70

• Tracking ................................... 71

• Playback on TV (or VCR) With

A UDIO/VTDEO IN Jacks ...72-73

• Playback on TV Without

Audio/Video Inputs ............ 74-75

Optional Accessories ................... 76-81

• Accessory Order Form ........... 79-81

• Date/Time Display

• Install the Clock Lithium Cell ...48

• Set the Date and Time ............... 49

• Select Date and/or Time

You Want to Record .......... 50-51

• Sub Menu ....................................... 52

• Tall)" Light .................................. 53

• JLIP ID NO ................................ 53

• Self-Timer Recording ........... 54-55

• Animation Recording ........... 56-57

Care and Maintenance ............... 82-83

Trouble Checks ........................... 84-87

Specifications .................................... 88

Information to User .......................... 88

Customer Assistance and Service ...89

Limited Warranty ....................... 90-91

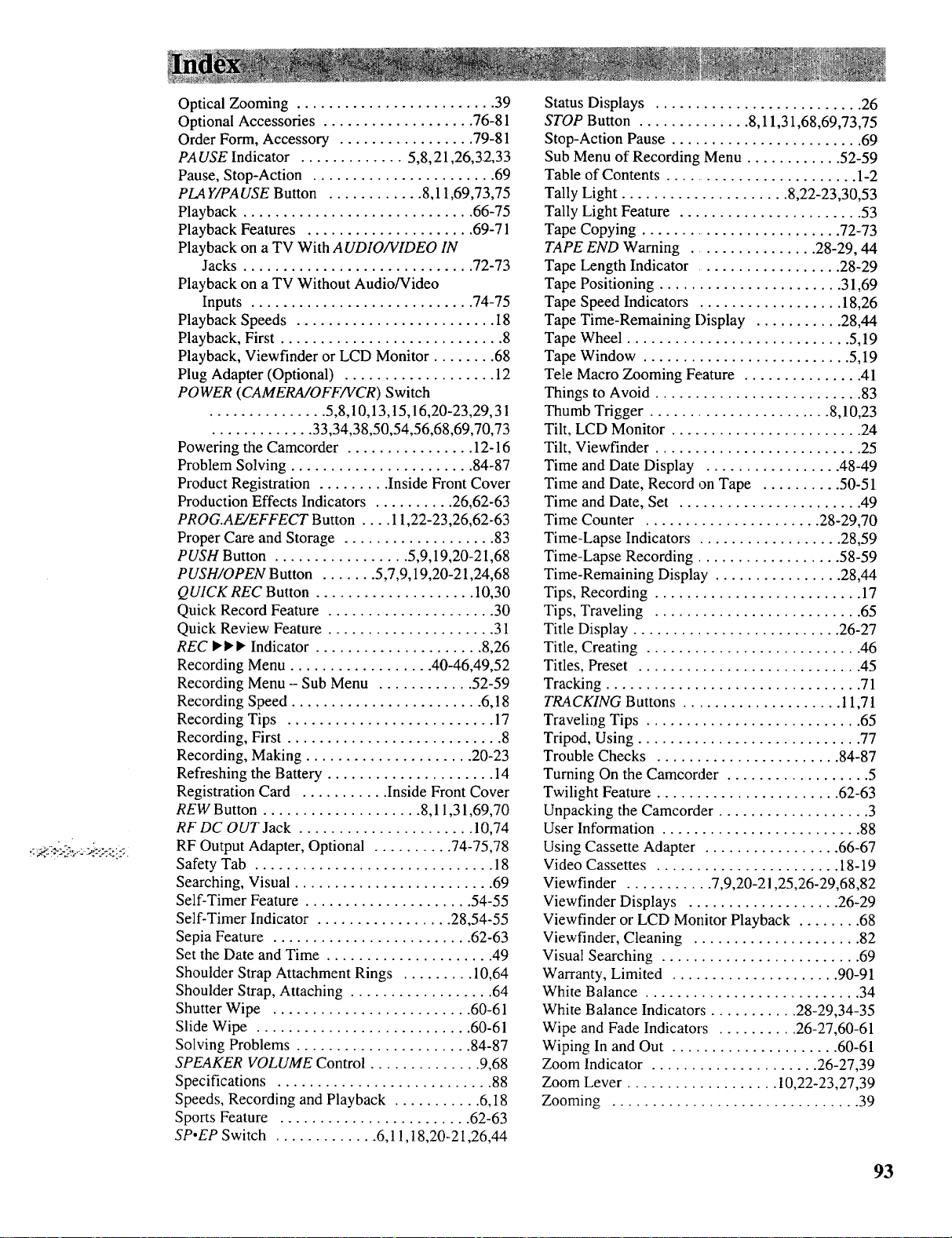

Index (Alphabetical) ................... 92-93

This section describes only the basic steps necessary to set up your camcorder to record. Refer to the other sections for detailed operation and feature options.

Assistance

The toll-free numbers are available to help you with any problem you may encounter.

Camcorder Exchange Warranty ..... 800-2813-6503

Customer Service ................ 800-336-1900

Accessories .................... 800-338-0376

t,,-

1. Unpack the camcorder and accessories.

• Save the packing materials and box in case you ever need to ship or store your

camcorder.

• The items shown below are packed with your camcorder. If any are missing or appear damaged, contact your dealer immediately.

WA_ING:

jz NICKEL

,nH

aN:i

Rechargeable 6-Volt Battery

Model ProV800C

BATTERY MUST _'_

BE _CYCLED OR DISPOSED OF

PROPERLY. Shoulder Strap

Part No. 218858

Part No. 236130

$ o. ii .... _,- , * .

AC Adapter/Charger

Part No. 236689

and DC Cable

Part No. 233087

Clock Cell

3-Volt Micro Lithium Cell - such as CR2025 - available

from most local drug stores and camera shops. Use of

other cells present a risk of fire or explosion.

Caution: Do not

use this adapter/

purpose other than charging the

Cassette Adapter

Part No, 237583

power to the camcorder.

Cautions: :Lithium cell battery,-Must be disposed of properly. Never

handle pufic'tured or leaking cell: May Cause burns or personal injury. Keep our,of the hands of children. Can cause death or injury if swallowed.

If swallowed, consult a physician immediately for emergency treatment. The lithium cell used in this device may explode resulting in a fire or

chemical burn if mistreated. Do not recharge, disassemble, heat above 212°F (100*C), or incinerate.

Never use metallic tweezers to hold the cell, and never short circuit the + and - sides of the cell.

Cassette Adapter Battery

(Size "AA" 1.5 Volt)

(continued on next page)

2. Attach the adapter/charger.

Since the battery must be charged before it can be used the first time,

attach the adapter/charger to the camcorder.

To AC 100-240V, 50/60 Hz

Adapter/Charger

DC OUT Jack

POWER

Indicator

A. Connect one end of the DC cable to

the DC OUT jack on the adapter/charger.

B. Connect the other end of the DC

cable to the DC IN jack on the camcorder as shown above.

3. Adjust the handstrap to fit your hand.

• Lift the flap on the handstrap and

separate the velcro strip.

C. Plug the adapter/charger's plug into

an operating outlet. The adapter/ charger's POWER indicator will

light

LENS COVER

Handstrap Velcro Strip (Under Flap)

Handstrap Flap

4. Slide LENS COVER control to open lens cover.

• Insert your hand, adjust the strap to fit snugly, refasten the strap, and

close the flap.

5. Insert a tape.

before opening

cassette compa_ent.

PUSH/OPEN Button

PUSH

Button

Tape Wheel

_Tape Window

EJECT Button

• Press PUSH/OPEN to open the LCD

monitor. Open the monitor at least 60 ° before opening the cassette compartment.

• Press EJECT to open the cassette

• Insert the cassette with the tape wheel facing up and the tape window

facing out.

• Press the PUSH button to lock the cassette compartment closed.

compartment.

• Turn the tape wheel on the cassette

to remove any slack from the tape.

6. Place POWER (CAMERA/OFF/VCR) switch in CAMERA. .........:'..................

Switch and

Indicator

• The power indicator will light and the camcorder will enter record

pause. -=PAUSE--appears in the viewfinder or LCD monitor when

the camcorder is in record pause.

• The position of this switch tells the camcorder whether you want to

record (CAMERA), turn the power off (OFF), or play back tapes (VCR).

The camcorder will automatically turn off if it remains in record pause

for five minutes. Place POWER in OFF and then back in CAMERA.

,(continued on next page)

7. Select a recording speed.

SPoEp Switch

Repeatedly press the SpoEp switch to select a recording speed. The indicator

for the speed selected appears in the viewfinder and LCD panel.

Select SP or EP recording speed.

• SP - Standard play provides the best

picture, but the shortest recording time (20 minutes with a TC-20 tape).

• EP - Extended play provides three times the recording time as SP

(60 minutes with a TC-20 tape). EP has slightly more picture noise in

normal playback.

Note: The length of the tape you are using

must be selected in the recording menu for the camcorder to correctly calculate the recording time remaining on the tape. Details are on

page 44.

8. Set the FULL AUTO/PRESET switch to FULL AUTO.

• This places the camcorder in the full

auto mode.

• Place the FULL A UTO/PRESET switch in FULL AUTO to have the

camcorder automatically control the focus, exposure, and white balance.

FULL AUTO/ PRESET Switch

• Many of the special effects do not operate in FULL AUTO. Details on

page 32.

Use the LCD monitor or viewfinder to view what you are recording.

You can watch what you are recording on the color LCD monitor or in the black- and-white viewfinder. When the LCD monitor is open more than 60 °, the

viewfinder is automatically turned off. When you close the LCD monitor, the viewfinder is automatically turned on.

BRIGHT Control

Eyepiece

LCD Monitor

Focus Control

Viewfinder

PUSH/OPEN Button

Use the LCD Monitor

• Make sure the monitor is open at

least 60 °. The viewfinder will be automatically turned off.

• Tilt the LCD monitor (up to 45 ° up or down).

• Adjust the brightness of the image by turning the BRIGHT control.

Note: When recording on a bright sunny day, the LCD monitor may be hard to see.

Use the viewfinder.

Use the Viewfinder

• Make sure the monitor is closed and

locked. The viewfinder will be automatically turned on.

• Adjust the viewfinder for a

comfortable viewing condition.

° Turn the eyepiece focus control to

adjust the focus of the viewfinder for your vision.

(continued on next page)

Thumb Trigger

POWER (VCR/OFF/CAMERA ) Switch

Power Indicator

REW Button

PLA Y/PA USE

Button

10.

Start and stop recording.

• Press and release the thumb trigger to start recording. _ appears in

the viewfinder or LCD monitor, and the tally light will light when the camcorder is recording.

• Press and release the thumb trigger again to stop recording. The

camcorder is now in the record-

pause mode. -= PAUSE appears in the viewfinder or on the

LCD monitor.

11.

Play back what you have

REC

recorded.

• Place the POWER switch in VCR.

• Press REW to rewind the tape.

• Press PLA Y/PA USE to play back the tape on the LCD monitor or in

the viewfinder.

• Press STOP when you are finished playing back the tape.

• Details on viewfinder and LCD

monitor playback are on page 68.

12. Place the POWER switch in OFF to turn off the camcorder.

The power indicator will turn off.

13. Close the lens cover and close

and lock the LCD monitor.

14. Review camcorder's operating controls.

Microph_

Lens __y _ht

LCD

Monitor

PUSH/OPEN

Button

SPEAKER

VOLUME

Speaker

BRIGHT

Control

PUSH

Button

Viewfinder Eyepiece

Focus Control

Eyepiece

EJECT Button

FULL AUTO/

PRESET Switch

(continued on next page)

14. Review camcorder's operating controls. (Continued)

Power Zoom Lever

QUICK REC

Button

"W" - Wide Angle "T" - Telephoto

.>.¢4.-;> :_: .:Q, : ...

Shoulder Strap

Attachment Ring

Clock Cell Compa

Attach Battery Here-

DC In Jack (Attach AC Adapter/Charger Here)

Shoulder Strap Attachment Ring

BA TT. RELEASE Button

AUDIO, RF DC OUT, and

VIDEO Jacks (Under Cover)

LENS

COVER

Control

Trigger Handstrap

POWER (VCR/O FF/CAMERA ) Switch and Indicator

JLIP Connector

14. Review camcorder's operating controls.

TRACKING Buttons

SPoEP Button

Also COUNTER R/M

(Reset/Memory) Button _..._ _

MAN.W.BAL (Manual [ COUNTERR/M

White Balance) Button ] 1"--'7

I MAN.W.BAL

REW (Rewind) Button

(Also EDIT SEARCH - Button)

CE3 7-,-7

TRACKING

FF STOP PLAY/PAUSE

PLA Y/PA USE Button

STOP Button

FF (Fast Forward) Button

(Also EDIT SEARCH + Button)

Butt°n __v E_s _ _ I __ --NEAR and l_ ButtOn

FADE/WIPE Button -- and • Button

Using the Adapter/Charger to Power Your Camcorder

The adapter/charger attaches to the camcorder and lets you power your camcorder directly from standard household power. The adapter/charger operates on 100-240

volts, 50/60 Hz, so it can be used virtually anywhere in the world to power the camcorder or recharge the battery.

To AC 100-240V, 50/60 Hz

__ Adapter/Charger

DC OUT Jack

POWER

Indicator

i_ DC In

Attach Adapter/Charger

1. Connect one end of the DC cable to the DC OUT jack on the

adapter/charger.

2. Connect the other end of the DC cable to the DC in jack on the camcorder as

shown above.

3. Plug the adapter/charger's plug into the nearest AC outlet (100-240V, 50/60Hz).

4. If the adapter/charger is properly connected, its POWER indicator will

light.

C • •

aution. Do not use this adapter/

charger for any other purpose other than charging the 236130, FB 1260 or FB 120

to the

Remove Adapter/Charger

1. Unplug the adapter/charger from the wall outlet.

2. Remove the DC cable from the adapter/charger and camcorder.

Using an Optional Plug Adapter An optional plug adapter may be required

in some countries.

OptionalAC _f AC 100-240V Plug Adapter'

1. Plug the adapter/charger's plug into

the AC plug adapter.

2. Plug the AC plug adapter into the AC outlet.

Using the Battery to Power Your Camcorder

The battery must be charged as described on the next page before it can be used the first time. Initial charging will take approximately 100 minutes. When fully charged,

the battery should supply about 75 minutes of operating time (depending on how much you use the LCD monitor, zoom, and pause). Conserve battery power by turning the

camcorder off during recording breaks.

POWER Switch

BATT. RELEASE Button

Attach the Charged Battery If the DC cable is attached to the

camcorder, remove it before attaching the battery. Also, install the lithium clock

cell before attaching the battery pack.

Details on page 48.

1. Hook the top end of the battery to the back of the camcorder as shown above.

2. Press the bottom of the battery down

until it locks into place.

ATTENTION: The RBRC seal on the battery used in your Thomson Consumer Electronics product indicates that we are

participating in a program to collect and recycle Nickel Cadmium batteries throughout the United States. Please call

1-800-8-BATTERY for information or contact your local

recycling center.

and Indicator

excessive heat- over

149"F_(65"C) could be

haz a;us.

3. Place the POWER switch in CAMERA. The power indicator will light.

Remove the Battery Press and hold BATT. RELEASE on the- camcorder while removing the battery.

Using the Battery to Power Your Camcorder (Continued)

:_-_i._._.:.-: =" .:. :"

Hold Battery Flush and

POWER

Indicator

END

Indicat_

REFRESH

Button

REFRESH

Indicator

CHG

Indicator

Caution: When a batte_ is attached to the

adapter/chargeri do not turn them upsidedown! The

baffe_ may fall off and be damaged or Cause injury. _

Charge the Battery If the DC cable is attached to the DC OUT jack on the adapter/charger, remove

its plug.

1. Align reference mark on battery with mark on adapter/charger.

2. Hold the battery flush against the adapter/charger and slide it in the

direction of the arrow.

3. Plug adapter/charger into nearest AC outlet (I 00-240V, 50/60Hz).

4. If the battery is properly connected, the adapter/charger's CHG (charge) indicator will light.

Note: If you try to charge a battery that has not been charged for a long period of

time, it may take a few minutes for the CHG indicator to light.

Reference Marks

To AC Wall Outlet 100-240

Volts, 50/60 Hz.

Adapter/Charger

Use the REFRESH Button The battery will provide increased

operation time if you "refresh" it after five chargings. The refresh feature

"refreshes" the battery by completely discharging it.

1. Attach battery to adapter/charger.

2. Press REFRESH. The REFRESH indicator will light and the battery will

begin discharging.

3. When discharging is completed, the

REFRESH indicator will turn off, and the CHG indicator will light. The

battery will then charge.

4. After the battery is charged, the END indicator will light. Remove the

battery from the adapter/charger.

5. After the battery is charged, the END indicator will light.

6. Remove the charged battery by sliding

it off the adapter/charger.

7. Attach the charged battery to the

camcorder.

Battery Level Indicator

The battery level indicator appears on the

LCD monitor or in the viewfinder and shows you the amount of power in the

rechargeable battery.

Battery Level Indicator

on LCD Monitor or in

Viewfinder

• When _ appears, the battery is

fully charged.

• As the power is used _ and

appear.

When the battery power is almost gone,

k I /

c---q flashes. The camcorder will turn

s i

off automatically after a few seconds. Place the POWER switch in OFF to

turn off the camcorder before replacing the battery.

The battery level indicator will not be recorded on the tape when it appears.

Battery Care and Storage _:_:=_:,_,-:: ..... : _+

Recharging takes approximately 100 minutes depending on the battery's

condition.

• Refreshing takes approximately five hours and 30 minutes depending on the

battery's condition.

• After repeated charging and use,

operation time will gradually decrease. When operation time becomes too short

to be useful, it is time to replace the

battery.

• If the battery discharging must be stopped in the middle, remove the

battery from the adapter/charger before unplugging it from the AC outlet.

• Let a hot battery cool down before

attaching it to the adapter/charger.

• The battery will provide better service if its power is completely drained

before storing it for long periods of time (30 days or more).

• The battery should be charged in the temperature range of 50-95 °F ( l 0-35°C) to prevent damag:e.

• Do not operate the battery at temperatures below 32°F (0°C) or

above 104°F (40°C). The battery may be damaged if operated at temperatures

above 122°F (50°C). Operation time will decrease at extremely low

temperatures.

• Store the battery at normal room

temperature.

Optional Car Cord Adapter

The optional DCC08 car cord shown on

page 76 allows you to power your

camcorder from the cigarette lighter socket of a car, truck, or RV. It converts

12-volts to a 6-volt output.

Note: Consult the installation and operating

instructions enclosed with the DCC08 for

complete operating instructions.

Using the DCC08 Car Cord Adapter

Cigarette

Lighter Socket

POWER Indicator

Power

Connector

Use only car cord adapter DCC08 with this camcorder. Use of any other car

cord adapter may damage the camcorder and void your warranty.

)-.

Optional DCC08 Car Cord Adapter

l° Place the POWER switch in OFF to

turn off the camcorder. Power indicator on the camcorder turns off.

2. If the battery or DC cable is attached to the camcorder, remove it.

3. Hold the top of the power connector flush against the camcorder and press

the bottom of the power connector down until it locks into place.

4. Take the vehicle's cigarette lighter out of the socket.

5. Insert the car cord's cigarette lighter

plug into the vehicle's cigarette lighter socket. The POWER indicator on the

car cord adapter will light.

6. Place the POWER switch in CAMERA to turn on the camcorder. The power

indicator on the camcorder lights.

Caution: Make sure the camcorder's

power is turned off before removing the car cord's'plug from the cigarette lighter

socket.

In case of fire or theft, make a video

recording of your home and contents to

store in a safe place.

• Try to make sure indoor scenes are well-lit. This improves picture quality

and color reproduction.

• Do not move the camcorder rapidly from side-to-side while recording. A steady, gradual "pan" avoids blurring and "jitter".

• Use the viewfinder or LCD monitor to make sure the camcorder is level while

recording or your scenes will appear

"tilted".

• Use the LCD monitor to shoot a scene from a high or low angle, such as over a

crowd.

• Do not bump or tap the camcorder's

microphone while recording because this sound will be recorded.

• Fading in and out of scenes will make your videos appear more professional.

• Learn to use the special effects available with your camcorder to add

variety to your recordings.

Be aware of video and audio backgrounds. Background details

barely noticed while you are taping may show up as visual "clutter" on

your recording. Background noises (especially TV sets, radios, household appliances, traffic sounds, etc.) can

detract from the sound you want to record.

Avoid long "still" shots of landmarks and scenic attractions. Recordings are

more interesting if they include people and details. "Local color" will give

travel videos lasting appeal. Consider recording a familiar or landmark scene

from an unfamiliar vantage point.

• Include close-ups of individuals when taping family outings or group

functions.

We recommend that our cassettes be used with your camcorder. Use of poor quality tapes or tapes that have been damaged or mishandled can contaminate the video heads,

resulting in a snowy picture or no picture at all during playback. Because there is no control over the type of tape purchased or rented by consumers, head cleaning is not

covered under warranty. It is considered normal maintenance. The automatic head-cleaning system minimizes the need for accessory cleaners or

cleaning by a Servicenter. This system is activated whenever :you insert or remove a cassette.

Erase Protection - Safety Tab :_.............................................. :.............................. :....

You can use your video cassettes over and over again. To erase a previous recording,

just record over it.

A. Remove

safety tab or

slide tab to

REC OFF.

Recording and Playback Speeds and Times _:: ....

The camcorder records and plays back in standard speed (SP) or extended play (EP). Select the recording speed using the SpoEp switch. The selected speed will be displayed on the LCD monitor or in the viewfinder. Listed below are the maximum SP

and EP recording times for popular VHS-C cassettes.

• SP - Standard play provides the best picture (less picture noise), but the

shortest recording time (20 minutes with a TC-20 tape).

° EP - Extended play provides three

times the recording time as SP (60 minutes with a TC-20 tape). EP

has slightly more picture noise than SP in normal playback. This may not be

noticeable.

Cassette

B. Cover hole

TC-20 TC-30

TC-40

with vinyl tape or slide tab to REC ON to

record over tape.

Recording Time

20 Min.

30 Min. .40 Min.

60 Min. 90 Min.

120 Min.

Inserting and Removing Cassettes

)_ )/,/'Tape

_'Tape

PUSH/OPEN

Button

PUSH Button

EJECT Button

Wheel

Window

Cautiolt_:

Open monitor at least 60° before opening cassette compartment.

and the tape window facing out. The cassette should slide easily

into the compartment. Do:not force the cassette.

Before inserting a cassette, turn the tape wheel on the side of the cassette in the

direction shown to remove any slack in the tape.

Tape Wheel

1. Press PUSH/OPEN to open the LCD monitor. Open the monitor at least 60 °

before opening the cassette compartment.

2. Press EJECT to open the cassette

compartment.

• Turn the tape wheel on the cassette

• Insert the cassette with the tape

3. Press the PUSH button to lock the cassette door into place.

4. If you are not going to use the LCD monitor to view what you are recording or playing back, close and

lock the monitor.

Cassette Care and Storage ............................

• When you are finished with a cassette, • rewind it, remove it from the

camcorder, and label it.

• Store cassettes vertically in their

protective cases at normal room temperatures. Do not leave your •

camcorder or cassettes in a car or outdoors for an extended period. .

Excessive heat or cold may damage your cassettes.

• Keep the cassette away from strong magnetic fields such as electric motors

and other devices.

Keep dust from entering the cassette

compartment. All dust is abrasive and will cause excessive wear on the tape and the camcorder's recording or

playback heads.

Do not use cassettes with damaged or

spliced tape.

Do not use a cassette if it has been

damaged or exposed to moisture. The tape may jam and!or damage your

camcorder.

to remove any slack from the tape.

wheel facing up and the tape window

facing out.

Making a Recording

The steps below tell you how to make a recording using some of the recording features. Each feature is described in detail on the following pages.

SPoEP Switch

LENS COVER Control

Eyepiece

Focus

POWER Switch Control

60_:_fore Tape Wheel op_n[hg _se_

compartment.:

m0nito_ at least _

PUSH/OPEN Button

MENU Button

FADE/0

WIPE

\ '""_--..V" Tape Window

[ EJECT Button

PUSH Button

FULL AUTO/ PRESET Switch

• Button

1. Attach a power supply.

Attach the adapter/charger, charged

battery, or optional DC car cord.

2. Insert a tape.

• Press PUSH/OPEN to open the LCD

monitor. Open the monitor at least 60° before opening the cassette

compartment.

• Press EJECT to open the cassette compartment.

• Turn the tape wheel on the cassette to remove any slack from the tape.

• Insert the cassette with the tape wheel facing up and the tape

window facing out.

• Press the PUSH button on the side of the cassette compartment to lock the

cassette holder into place.

Use the Viewfinder

• Make sure the monitor is closed and locked. The viewfinder will be

automatically turned on.

• Adjust the viewfinder ff)r a

comfortable viewing position.

• Turn the eyepiece focus control to adjust the focus of the viewfinder for

your vision.

6. Select a recording speed and tape

length. A. Place the SPoEp switch in SP or EP

to select a recording speed.

B. Make sure the FULL AUTO/

PRESET switch is in PRESET.

C. Press the MENU button and use the

• or • button to highlight TAPE

LENGTH. Use • and • to select

Slide the LENS COVER control to open the lens cover.

Place the POWER switch in

CAMERA.

The power indicator will light and the camcorder will enter record pause.

_=PAUSE=--appears in the viewfinder or

on the LCD monitor.

o Use the LCD monitor or viewfinder

to view what you are recording.

Use the LCD Monitor

• Make sure the monitor is open at least 60 °. The viewfinder will be

automatically turned off.

• Tilt the LCD monitor (up to 45 ° up or down).

the length of the tape you are using (T20, T30, or T40) so the

camcorder can correctly calculate

the time remaining. Press the

MENU button again to remove the

menu.

• Adjust the brightness of the image by turning the BRIGHT dial.

(continued on next page)

Making a Recording (Continued)

EDIT SEARCH - Button

Power Zoom Lever

POWER

EDIT SEARCH + Button

LENS

COVER

Control

EFFECT

Button

FADE/WIPE _

Button

Tally Light \

FULL AUTO/PRESET Switch

MENU Q

FADE/

• Button

Select a production special effect to

add variety to your recordings.

A. Make sure the FULL AUTO/

PRESET switch is in PRESET.

Press PROG.AE/EFFECT to display the production effects menu

in the viewfinder or on the LCD monitor.

Press PROG.AE/EFFECT again to select the effect you want. The

effect is selected automatically and its indicator appears in the

viewfinder or on the LCD monitor.

• Select Cinema (16X9 effect),

Sepia (brown-tone effect),

Twilight (dusk and twilight

scenes), Sports (fast moving action), or HI.S (hi-speed shutter

for even faster moving action).

• The effect is automatically activated, and its indicator

appears.

• Details are on pages 62-63.

The effect is automatically activatecl, and its indicator

appears.

Details are on pages 60-61.

9. Start and stop recording.

• Press and release the thumb trigger

REC

tO start recording. _ appears in the viewfinder or on the LCD

monitor and the tally light lights

when the camcorder is recording.

• Press and re.lease the the thumb trigger again to stop recording. The

camcorder is now in record pause.

-=PAuse- appears.

• The camcorder will automatically turn off if it remains in record pause

for five minutes. Place the POWER switch in OFF and then back in

CAMERA.

10. Zoom in and out.

• Zoom in and out using the zoom T and W lever.

Add fades and wipes. A. Make sure the FULL AUTO/

PRESET switch is in PRESET.

Press the FADE/WIPE button to display the fade menu in the

viewfinder or on the LCD monitor.

Repeatedly press the FADE/WIPE button to select a fade or wipe.

• Select Black Fader, Blue Fader,

Mosaic Fader, Shutter Wipe, or Slide Wipe.

11. Review what you have recorded.

• Press and quickly release EDIT SEARCH- to review the last few

seconds of your recording.

• Press and hold EDIT SEARCH - or + to visually see what you have

recorded. Release the button to begin recording at that point.

12. When you are finished, place POWER switch in OFF, close and

lock the LCD monitor, and close the lens cover.

Viewing What You Are Recording Using the LCD Monitor or Viewfinder

You can watch what you are recording on the color LCD monitor or in the black-and-white viewfinder. When the LCD monitor is open more than 60 ° in CAMERA, the viewfinder is automatically turned off. When you close the

LCD monitor, the viewfinder is automatically turned on.

Use the LCD Monitor

BRIGHT Dial

LCD Monitor

PUSH/OPEN Button

1. Press the PUSH/OPEN button and open the LCD monitor.

Make sure the monitor is open at least 60 °. The viewfinder will be

automatically turned off.

2. You can tilt the monitor up or down 45 ° for convenient viewing.

Control

Viewfinder

3. Adjust the brightness of the image by turning the BRIGHT dial. This

does not effect the brightness of the recording you are making.

• Turn the dial toward "+" to

brighten the image.

• Turn the dial toward "-" to

• Tilt the monitor down to record from a high angle, such as over a

crowd.

Tilt the monitor up to record from a low angle, such as when

you are kneeling.

darken the image.

4. When you are finished, close the monitor and lock it into place.

Note: When recording on a bright sunny

day, the LCD monitor may be hard to see.

Use the viewfinder.

Use the Viewfinder

The camcorder's viewfinder is a miniature monitor that displays the picture seen by the camcorder when recording. When the LCD monitor is open more

than 60 °, the viewfinder is automatically turned off.

Viewfinder

Focus Control

Adjust Viewfinder for Convenient

Viewing

For convenient viewing, you can slide the

viewfinder out from the camcorder and

rotate it up and down. Eyepiece Focus Control

The eyepiece focus control lets you set the focus of the viewfinder for your

personal vision. If you wear eyeglasses,

Cautions

When carrying the cameorder with the shoulder strap, close and lock the LCD monitor and put the viewfinder down and slide it in. This helps

prevent possible damage to the monitor or viewfinder from bumping against your body as you move.

you probably can operate the camcorder without them.

It is easiest to set the correct focus by focusing on one of the viewfinder's on-

screen displays.

Look through the viewfinder and adjust

the eyepiece focus control for your vision.

The eyepiece focus control does not affect the focus of the picture actually recorded

by the camcorder.

LCD Monitor or Viewfinder Displays

Happy Birthday

Tape Speed Indicators (SP or EP)

The tape speed selected with the

SP. EP button appears here.

• Details on page I8. Status Displays

•The _ indicator appears when the camcorder is recording.

•The - PAUSE_=indicator appears

during record pause.

Production Effects Indicators

The indicator for the production effect selected with the PROG.AE/

EFFECT button appears here. When the FULL AUTO/PRESET

switch is in FULLAUTO, Cinema is automatically selected. Place the

switch in PRESET to select the other effects.

• IZl appears when you select Cinema to "letterbox" record with

black bars so you can play back your recordings on a 16X9 TV.

• 1_ appears when you select Sepia to give your recordings a brown- tone like old photographs,

• *_ appears when you select Twilight to record scenes at dusk

and twilight.

• ._ appears when you select Sports to record fast moving action, such

as sporting events.

• _" appears when you select HI.S 1/2000 to re,cord even faster

moving action than Sports.

• Details are on pages 62-63.

Fade and Wipe Indicators

Title

i_ _ ,._i

The indicator for the fade or wipe

scene transition selected with the

FADE/WIPE button appears here. When the FULL A UTO/PRESET

switch is in FULL AUTO, Black Fader is automatically selected.

Place the switch in PRESET to select the other fades or wipes.

• [] appears when you select Black Fade and a black screen fades in

and out.

• [] appears when you select Blue Fade and a blue screen fades in and

out.

• [] appears when you select

Mosaic Fade and the picture turns

into a mosaic pattern as you fade in and out.

• _ appears when you select Shutter Wipe and a black screen

wipes in from top and bottom or

the image pushes open the black screen from the center to the top

and bottom.

• [] appears when you select Slide

Wipe and a black screen wipes in

from the left or the image moves in from fight to left..

• Details are on pages 60-61.

Change Indicator ($) This indicator will appear to let you

know that an item in the recording menu has been changed from the

original factory setting.

The preset title you select or the title

you create will appear in this area.

• The title will be recorded on your tape when it appears.

• Details are on pages 45-4Z

Date or Date and Time

The date, time, or date and time appears in this area when you press

the DISPLAY button.

• These displays will be recorded on your tape when they appear.

• Details are on pages 49-51. LENS COVER Indicator

• LENS COVER: When you turn on the camcorder, this indicator briefly

flashes to remind you to open the

lens cover.

• LENS COVER: This indicator may flash when the camcorder is used in

dark areas -- even if the lens cover is open.

Battery Level Indicator

• This indicator shows power left in the rechargeable battery.

• This indicator flashes when the battery is almost empty.

• Details are on page 15.

Zoom Indicator

The zoom indicator appears here when you use the zoom lever.

• Details on page 39.

(continued on next page)

LCD Monitor or Viewfinder Displays

--40min

[_ INDEX _

rAPE END _\

MWB

-+ .- +

Time Remaining Display

The approximate time remaining on the tape is automatically displayed

here. The correct Tape Length must be set in the recording menu.

Details are on page 44.

Self-Timer, Animation, and Time-

Lapse Indicators

• The interval time selected for self- timer or time-lapse recording ( D

15S, 30S, lmin, or 5rain) appears here. Details are on pages 54-55

and 58-59.

• The rec time selected for animation or time-lapse recording ( ,i 1/4S,

1/2S, 1S, or 5S) appears here.

Details are on pages 56-57 and 58-59.

Electronic Image Stabilizer ( _, )

This indicator appears when the electronic image stabilizer is turned

on with the EIS button.

• See page 38for details.

@ Dew Warning (_)

The dew indicator appears when excessive raoisture (condensation)

has entered the camcorder. The camcorder will not operate when

this indicator appears. Place the camcorder in a warm, dry area until

this indicator disappears.

TAPE END Warning

• TAPE END appears when the end of the tape is reached during

recording or a cassette is inserted with its tape already at the end.

Tape Length

The tape length (T20, T30, or 7"40)

selected with the Tape Length

feature on the recording menu appears here. Details are on

page 44.

Cassette Warning

•The _ indicator appears when a cassette is in the camcorder.

• The ['ar_ indicator flashes when the POWER switch is set to CAMERA

and there is no cassette in the

camcorder.

Time-Counter

(_ Exposure Indicator

• This indicator appears when you are adjusting brightness manually

using the + or - button. The FULL

AUTO/PRESET switch must be in

PRESET.

• Details are on page 33.

White Balance Indicators

• If you adjust white balance manually, the indicator (MWB, -'.o,:-,

€- or :,_:) for the mode you

select appears here. The FULL

AUTO/PRESET switch must be in

PRESET.

• Details are on pages 34-35.

INDEX Indicator

• INDEX appears when an index mark is being made on the tape.

Details are on page 32.

• The time counter appears during

playback. It is not recorded.

• An "'M" appears in front of the time counter when memory-stop is on.

• Details are on page 70.

Manual Focus Indicators ( _+X )

These indicators appear when focus

is adjusted manually using the

NEAR or FAR button. The FULL AUTO/PRESET switch must be in

PRESET.

• Manual focus lock indicators (4,)

appear when focus is moving toward near or far.

• Low-contrast indicators ( a ± ) flash when the auto-focus system

cannot focus properly.

• Details are on pages 36-37.

(_ Lithium Cell ( _ )

• This indicator flashes for a few seconds when you first turn on the

camcorder and the time and date

have not been set.

• This indicator also appears when the clock cell is missing or it needs

to be replaced. Details are on

page 48.

Microphone

QUICK REC Button

Tally Light

Microphone

The microphone picks up the sound during a recording. It is more sensitive to sounds coming from the direction the

lens is pointed.

Flying Erase Head

A separate erase head is mounted on

the spinning headwheel (hence the term "flying"). This allows you to make clean

edits without the "glitches" or "rainbow noise" that may occur at the beginning or

the end of recordings.

Auto Head Cleaner

The camcorder has an automatic head- cleaning system. Whenever a cassette is

inserted or removed, this system is activated.

The head-cleaning system minimizes the need for accessory cleaners or cleaning

by a Servicenter.

Tally Light

The tally light lights when the camcorder is recording.

The tally light can be turned off using the record menu. See page 53°

Quick Record

Quick record lets you make five second recordings for quick scene transitions.

Place VCR/OFF/CAMERA switch in

CAMERA.

• Press and release QUICK REC to make a five-second recording. The

camcorder will record for five seconds and return to record pause.

• Press and hold QUICK REC to continue recording. Release the button to return

the camcorder to record pause. Press the thumb trigger to start normal

recording at this point.

Notes: Fading does not operate when you use the QUICK RE('. button to record.

Quick recording cannot be used during animation or time-lapse recording.

SEARCH - and +) Buttons

POWER Switch

and FF (Also EDIT

Tape Positioning

Place POWER switch in VCR and press

STOP.

• Press and quickly release REW or FF to rewind or fast-forward the tape. Press

STOP to stop the tape.

Quick Review Feature

Press and release EDIT SEARCH- when

the camcorder is in record pause to review the last few seconds of a

recording. The POWER switch must be in CAMERA.

The camcorder will play back the last few seconds of the recording, return the

tape to its previous position, and return to record pause.

Camera Edit Feature

The camera edit feature allows you to position the tape when the camcorder is

in record pause. Place VCR/OFF/

CAMERA switch in CAMERA.

• Press and hold EDIT SEARCH - to visually search the recorded tape in

reverse.

• Press and hold EDIT SEARCH + to visually search forward on the

recorded tape.

Release the button to return camcorder to record pause at that point on the tape.

Press the thumb trigger to start recording at this point.

Full Auto Mode

FULL AUTO/PRESET Switch

1. Place the POWER switch in CAMERA.

• The only tilde/wipe that you can use

is the black fader.

• The power indicator will light and the camcorder will enter record

pause. =-PAUSE--=appears in the viewfinder or on the LCD monitor.

2. Place the FULL A UTO/PRESET switch in FULL AUTO.

3. Press the thumb trigger to start

• The only production special effects , you can use is cinema.

• Menu changes cannot be made.

4. Place the FULL AUTO/PRESET switch in PRESET to turn off the full

auto mode.

recording.

• The camcorder will control the focus, exposure, and white balance

for you.

Electronic Indexing ............

An index mark is automatically recorded at the beginning of a recording after the date advances and a cassette is inserted. When you play back the

indexed tape in a VCR that has a compatible indexing feature called "VHS Index Search System", the invisible marks can be located automatically.

See VCR owner's manual.

INDEX flashes in the viewfinder or on the LCD monitor when an index mark is

recorded.

Notes: No other function can be performed during index recording.

If the date changes during recording, an index mark is placed on the tape.

INDEX

INDEX Indicator on LCD

Monitor or Viewfinder

Exposure Control

When the FULL A UTO/PRESET switch is in FULL A UTO, the camcorder controls the iris for you. Under normal conditions, the camcorder will adjust brightness

automatically. You may need to adjust brightness manually when the background is too bright or too dark in comparison with the subject.

A UTO/PRESET Switch

EFFECT

MENU 0

PROG.AE/_

FADEJ _'_

WIPE

- Button

Manual Exposure

1. Place the POWER switch in CAMERA.

• The power indicator will light and the camcorder will enter record

pause. - PAUSE_- appears in the

viewfinder or on the LCD monitor.

2. Place the FULL AUTO/PRESET switch in PRESET.

• Press + to brighten the image.

• Press - to darken the image.

• The exposure level indicator (+_O1 to 06) appears in the

viewfinder.

To Turn Off Manual Exposure

Press both + and- at the same time or

place the FULL AUTO/PRESET switch in FULL AUTO.

Conditions Requiring Manual

Exposure

• When recording with a bright

background or reverse lighting.

• When recording with a very dark background or very bright subject.

• When recording a reflective natural background -- such as a beach or when skiing.

White Balance

Making colors look natural is what white balance is all about. This is achieved by adjusting the way the camcorder "sees" and records the light source in the scene you

wish to record. Your camcorder is equipped with automatic white balance. However, under certain conditions, such as recording an object with various shades of the same

color or when recording a predominant red or brown object outdoors, you may want to adjust white balance manually.

N. W.BAL.

Button

FULL AUTO/

PRESET

Switch

Auto White Balance

During auto white balance, the

camcorder will automatically adjust the

white balance.

1. Place the POWER switch in CAMERA.

2. Place the FULL AUTO/PRESET switch in FULL AUTO.

Manual White Balance

1. Place the POWER switch in CAMERA.

2. Place the FULL AUTO/PRESET switch in PRESET.

3. Press the MAN. W.BAL. (manual white balance) button until one of the manual white balance indicators

appears in the viewfinder or on the LCD monitor.

• Select MVCB when shooting

subjects with different color temperatures and adjust the white

balance as follows: Note: Connecting your camcorder to

a color TV monitor may be helpful when making white balance

adjustments.

(continued on next page)

MWB

%,-

HalOgen _ Tungsten

Light"

A. Point camcorder at a white, flat

object such as a piece of white

paper.

B. Press and hold MAN. W.BAL .for

at least three seconds. The MWB indicator will flash

while the camcorder is adjusting white balance and stop flashing

when it is ready to record. Note: To change the tint for special

recording, substitute colored paper for white. The white balance is

adjusted based on the color.

Red paper - deeper green Blue paper - orange

Yellow paper - deeper purple

o n e oudy

• Select ;o: when recording outdoors on a sunny day.

• Select -_;,, when recording outdoors on a cloudy day.

• Select 7- when recording using halogen or tungsten lighting.

4. To have camcorder automatically control white balance, repeatedly press MAN. W_BAL. until no white

balance indicator appears in the viewfinder or on the LCD monitor

(or place the FULL AUTO/PRESET switch in PRESET).

Note: Manual white balance does not

operate if Sepia is selected as a program

effect.

Focusing

Under normal conditions, the camcorder can adjust focus automatically. certain conditions, you may need to focus manually.

Lever

FAR

FULL AUTO/PRESET Switch

Button

Under

Auto Focus

During auto focus the camcorder will focus automatically on the object located

in the center area of the viewfinder or

LCD monitor.

Place the FULL A UTO/PRESET switch

in FULL AUTO to turn on the auto focus feature.

Notes: The low-contrast indicator ( a _.) in the viewfinder indicates the auto-

focus system may not operate correctly due to low illumination, low or no contrast,

repeated patterns, or two subjects at different distances overlapping.

If you zoom in too close to the subject, the camcorder will automatically zoom out so it

can focus.

Focus Lock Feature

The focus lock feature is useful when objects pass between your subject and the

camcorder or your main subject is not located in the center of the viewfinder or

LCD monitor.

1. Place the FULL A UTO/PRESET

switch in PRESET.

2. Center the main object in the viewfinder or LCD monitor.

3. Press FAR or NEAR to focus on the main subject. The focus is locked on

the subject and ( a _. ) appears on the LCD monitor or in the viewfinder.

4. Press FAR and NEAR together (or place FULL A UTO/PRESET switch

in FULL AUTO) to turn auto focus

back on.

Manual Focus

Under certain conditions, such as those listed, you may need to focus manually.

Set the FULL A UTO/PRESET switch to PRESET.

adjusted any farther, the a indicator will flash. When the focus cannot be

Slide the power zoom lever toward T to zoom in on your subject. To

maintain proper focus throughout the zoom range, you must zoom in on the

subject before adjusting the focus.

Press NEAR or FAR to display a clear

picture in the center of the viewfinder.

adjusted any closer, the _,t indicator will flash.

4. Release the NEAR or FAR button to lock in the manual focus.

5. Press NEAR and FAR together

(or place FULL A UTO/PRESET switch in FULL A UTO) to turn auto focus

back on.

The a -It- indicators appear in the viewfinder. The • or • indicator will

flash. When the focus cannot be

Conditions Requiring Manual Focus _ _,'_:_"_!!I__''_ ....

• When recording a subject through a • When the subject is not in the center of window, the viewfinder.

• When recording a subject having a close foreground and a background that is far away.

• When recording two subjects at different distances that overlap in the same scene.

• When recording in low-light situations.

• When recording a scene with fast motions, like a tennis swing.

Electronic Image Stabilizer (EIS)

The electronic image stabilizer helps compensate for unstable images

caused by camera shake that can be created by recording out of a moving vehicle or while walking.

EIS Button

To Turn On EIS

1. Place the POWER switch in CAMERA.

2. Press the EIS button. The EIS indicator appears in the viewfinder or

on the LCD monitor.

EIS Indicator in Viewfinder

or on LCD Monitor

Turn off EIS when using a tripod. Stabilization may not be possible if hand

shake is excessive or when shooting the following:

• Subjects with vertical or horizontal stripes.

• Low contrast subjects or backgrounds or dark or dim subjects.

• Subject with excessive backlighting.

• Scenes with movements in various directions.

To Turn Off EIS Press the EIS button. The EIS indicator

disappears from the viewfinder.

Zooming

The motorized zoom lens allows you to zoom in and out for close ups or wide-angle shots just by sliding the power zoom lever on the camcorder.

Power Zoom Lever

T = Telephoto

W = Wide Angle

Zoom Level Indicator in

Viewfinder or on LCD Monitor

To Zoom In and Out

Optical zooming allows you to zoom in and out up to 14X.

• To move the lens in the telephoto

(close-up) direction, slide the power zoom lever toward T.

• To move the lens in the wide angle direction, slide the lever toward W.

• The zoom level indicator appears in the

viewfinder or on the LCD monitor.

Note: If you are trying to zoom in very close to a subject and the camcorder zooms out, try

using Tele Macro zooming. See page 41.

Digital Zooming

Digital zooming doubles the maximum

14X normal optical zooming. The zoom

indicator does not operate during digital zooming.

Zoom speed varies according to how far you zoom in or out.

Notes: You may need to focus manually during digital zooming. Zoom in, adjust the

focus manually or use focus lock, and then zoom in or out.

The quality of the image may not be as good in digital zooming as optical zooming.

Recording Menu

The main recording menu lets you select and set several recording features:

Tele Macro (close-up), Gain Up (light adjustment), Color Filter, Tape Length, Title, and Date/Time. The Sub Menu lets you turn the tally light on or off, set interval and

recording times for self-timer, animation, and time-lapse recording, and set an ID number.

FULL AUTO/

\ PRESET Switch

"_ Button \

MENU Button

FADE/

WIPE 0

• Button

To Display the Recording Menu

1. Make sure the FULL A UTO/PRESET switch is in PRESET.

. Press the MENU button. The

recording menu will appear in the viewfinder or on the LCD monitor.

TeleMacro OFF

Gain Up AGC Color Filter NOR.

Tape Length T20 Title

Date/Time

Sub Menu

Button

4. If you select Tele Macro, Gain Up, Color Filter, or Tape Length, press '_

or • to select the option you want for that feature.

If you select Date/Time or Title, press

• to access the selection menu for the

feature.

5. Press MENU to exit the menu.

Notes: If you want to change another feature, repeat steps 3 and .4.

Recording Menu in Viewfinder

or on LCD Monitor

Press • or • to highlight the feature you want to adjust.

If you make a change in the recording menu,

• ' appears in the viewfinder or on the LCD

monitor.

Recording Menu -- Tele Macro Zooming Feature

Tele Macro (close-up), zooming allows you to zoom in on subjects that are too close to focus on during normal zooming. If the subject is more than approximately 23 inches

away, use normal zooming.

Button

MENU Button

FADE/

WIPE

To Turn on Tele Macro

Make sure the FULL A UTO/PRESET

switch is in PRESET.

Press the MENU button. The

recording menu will appear in the viewfinder or on the LCD monitor.

Tete Macro OFF

Gain Up AGC Color Filter NOR.

Tape Length "1"20 Title

Date/Time Sub Menu

• Button

Button

4. Press • or 4 to select OFF or I_ON.

Select _ON if you want to record a small subject within approximately

23 inches.

• Select OFF for normal zooming.

Press MENU to exit the menu.

Note: Depending on the position of the zoom, the Tens may go out of focus.

3. Make sure Tele Macro is highlighted or press A or • to highlight it.

Recording Menu m Tape Time-Remaining Display

The approximate time remaining on the tape in the camcorder is automatically displayed in the viewfinder. The Tape Length feature in the recording: menu must be

set correctly for the length tape you are using before the camcorder can correctly calculate time remaining.

30min

SP=EP I

Switch

30min

TAPE END

29min

I I

3rain

2min

(Flashing)

lmin

(Flashing)

0rain

(Flashing)

Set the Tape Length

Make sure the FULL A UTO/PRESET switch is in PRESET.

Press the MENU button. The recording menu will appear in the

viewfinder or on the LCD monitor.

Tele Macro OFF Gain Up AGC

Color Filter NOR.

Tap_Len_th _, ', T20:

Title Date/Time Sub Menu

3. Press • or • to highlight Tape Length.

4. Press '_ or _ to select the length of tape you are using:

• Select T20 if you are using a tape

with 20 minutes recording time in SP speed.

• Select T30 if you are using a tape with 30 minutes recording time in

SP speed.

• Select T40 if you are using a tape

with 40 minutes recording time in SP speed.

Press MENU to exit the menu.

Notes: The time-remaining indicator will start flashing when the remaining tape time

reaches two minutes. TAPE END appears when the tape reaches its

end during recording or a cassette is loaded with its tape already at the end.

Recording Menu- Gain Up

The gain up feature allows you to take bright and natural recordings even in areas

with low or poor lighting.

FULl, A UTO/

E'RESET Switch

• Button

MENU Button

FADE/

WIPE (_

To Set Gain Up

I. Make sure the FULL AUTO/PRESET

switch is in PRESET.

2. Press the MENU button. The recording menu will appear in the

viewfinder or on the LCD monitor.

Tele Macro OFF

Color Filter NOR. Tape Length T20

Title Date/Time Sub Menu

Button

• Button

4. Press • or I_ to select AGC or _OFF.

• Select ,I_OFF when lighting is not a

problem.

• Select AGC to record a subject in a dark environment. The picture will

be brighter, with slightly more "video noise".

5. Press MENU to exit the menu.

3. Press • or • to highlight Gain Up.

,..'

Recording Menu _ Color Filter

This feature allows you to add a red or blue tint to the recording.

.o.

,..,,

,b,4

,I/:? _

FULL A UTO/

• Button ,,

,:i!_:•

.:.,

Button

• Button

To Set Color Filter

Make sure the FULL A UTO/PRESET switch is in PRESET.

Press the MENU button. The recording menu will appear in the

viewfinder or on the LCD monitor.

i._ ,

Tele Macro OFF

Tape Length T20 Title

Date/Time

Sub Menu

4. Press • or _ to select NOR., @RED,

or I_BLUE.

• Select NOR. for normal recording

• Select @RED to add a reddish tint to

your recording.

• Select I_BLUE to add a bluish tint to your recording.

5. Press MENU to exit the menu.

3. Press • or • to highlight Color

Filter.

,_.j.

Recording Menu u Tape Time-Remaining Display

The approximate time remaining on the tape in the camcorder is automatically displayed in the viewfinder. The Tape Length feature in the recording menu must be

set correctly for the length tape you are using before the camcorder can correctly calculate time remaining.

SPoEP

Set the Tape Length

Make sure the FULL A UTO/PRESET

switch is in PRESET.

Press the MENU button. The recording menu will appear in the

viewfinder or on the LCD monitor.

30rain

30min

TAPE END

29rain

'4,

3rain

2rain

(Flashing)

1rain

(Flashing)

0rain

(Flashing)

• Select 7"20if you are using a tape

with 20 minutes recording time in SP speed.

• Select T30 if you are using a tape with 30 minutes recording time in

SP speed.

Tele Macro OFF

Gain Up AGC

Color Filter NOR. TapbLength i', _T20_

Title

Date/Time Sub Menu

3. Press • or • to highlight Tape

Length.

4. Press "I or _ to select the length of tape you are using:

• Select 7140if you are using a tape

with 40 minutes recording time in SP speed,

5. Press MENU to exit the menu.

Notes: The time-remaining indicator will

start flashing when the remaining tape time

reaches two minutes.

TAPE END appears when the tape reaches its end during recording or a cassette is loaded

with its tape already at the end.

Recording Menu m Title

The title feature lets you choose one of eight preset titles or create your own title -- up to 18 characters to superimpose on a scene. The clock cell battery must be

installed as shown on page 48 before you can create or store your own title.

FULL AUTO/

• Button \

PRESET Switch

MENU Button

FADE/

WIPE

• Button

To Add a Preset Title to Your Recordings

1. Make sure the FULL A UTO/PRESET switch is in PRESET.

Press the MENU button. The recording menu will appear in the

viewfinder or on the LCD monitor.

Tele Macro OFF Gain Up AGC

Color Filter NOR. Tape Length T20

Date/Time

Sub Menu

Button

4. Press • to display the title menu.

OFF _' : Happy Birthday

Our Vacation Merry Christmas

A Special Day Happy Holidays Our New Baby

Wedding Day Congratulations (Set Character)

5. Press • or • to highlight the preset title you wish to use.

Press • or • on the mode select dial to highlight Title.

6. Press MENU to display the title in the viewfinder or on the LCD

monitor. It will be superimposed on

your tape during recording.

(continued on next page)

Recording Menu- Title (Continued)

Button \

Switch

MENU Button

FADE/

WIPE

To Create Your Own Title

1. Make sure the FULL A UTO/PRESET

switch is in PRESET.

2. Press the MENU button. The recording menu will appear in the

viewfinder or on the LCD monitor

3. Press • or • to highlight Title.

Tele Macro OFF Gain Up AGC

Color Filter NOR. Tape Length T20

Date/Time

Sub Menu

• Button

Button

4. Press _ to display the title menu.

5. Press • or • to highlight (Set

Character).

OFF Happy Birthday

Our Vacation Merry Christmas

A Special Day Happy Holidays

Our New Baby

6. Press I_ to display the set character menu.

A B C D E F G H I

_\K L M N 0 P Q R S

T U V W X Y Z _ _ U

: '-I!?_

oi _3_s6789

:_iI t!i i '

End Clear

Note: If you wish to erase a previous title, highlight Clear, and press MENU.

10.When you are finished, press •, V, I_, or • to highlight End.

11.Press MENU to return to the title menu, or press MENU twice to

remove all menus from the screen and display and record your title.

Note: The title will be recorded on your tape whenever it appears in the viewfinder

or on the LCD monitor.

7. Press •, V, I_, or • to highlight the character you wish to use.

8. Press MENU to enter the character in your title.

9. Repeat steps 7 and 8 until you have completed your title (up to 18 characters).

A B C DE F G H I

/J\K L M N 0 P Q R S

T U V W X Y Z _ _J O

A E 0 I U N _ _ _ &

: , _ / ! ? _, _

0 i 2 3 4 5 6 7 8 9

TAYLOR IS TWO!

End Clear

1. Display the title menu, use • or • to highlight OFF and press MENU.

Notes: To select the location of a character, press •, V, _', or • to move

the cursor to the row of squares at the bottom. Then press I_ or • to highlight the location where you want to place the

character.

To correct a character, highlight the character you want to correct and press • and • together.

If you wish to erase a previous title or all characters, highlight Clear, and press

MENU.

2. Press MENU to remove the title menu from the screen.

Happy Birthday

Our Vacation

Merry Christmas

A Special Day

Happy Holidays Our New Baby Wedding Day

Congratulations

(SetCharacter)

Date/Time Display -- Install the Clock Lithium (;ell

The clock cell indicator _ will flash for a few seconds in the viewfinder or on the

LCD monitor when you turn on the camcorder if the cell has not been installed or needs to be replaced•

Insert object here to remove cell.

Clock Cell

(+ Side Facing Out) --

:: .i

Clock Cell Compartment

° Make sure camcorder is turned off, and

remove any power supply attached to the camcorder.

2. Press release tab of clock cell compart-

To Remove Battery

To remove battery, insert a pointed non-

metallic object between battery and

compartment and lift.

ment cover and open the compartment.

3. Insert the clock cell with the "+" terminal facing out.

4. Close the compartment cover. It will click into place.

Cautions: Lithium cell battery. Replace only with 3-volt lithium cell - such as

inJury. Keep out of the hands of children. Can cause death or injury if swallowed, ff

swallowed, consult a physician immediately for emergency treatment. The lithium cell used in this device may explode resulting in a fire or chemical burn if

mistreated. Do not recharge, disassemble, heat above 212°F (100°C), or incinerate. Never use metallic tweezers to hold the cell, and never short circuit the + and - sides

of the cell.

Recording Menu m Date/Time Display

The date and time must be set before it can be displayed and recorded on your tapes. The clock cell must be installed as shown on the previous page before the date can be set and recorded.

• Button \

PRESET Switch

MENU Button w,pE([[D

FADE/

• Button

To Set the Date and Time

Make sure the FULL A UTO/PRESET switch is in PRESET.

Press the MENU button. The recording menu will appear in the

viewfinder or on the LCD monitor.

Tele Macro OFF Gain Up AGC

Color Filter NOR. Tape Length T20

Title Sub Menu

3. Press • or • to highlight Date/Time.

4. Press • to display the date and time

screen.

5. Press • or • to enter the correct month. Press • to go forward or •

to go back.

6. Press • to start the day flashing.

7. Repeat steps 5 and 6 to set the year, hour (including AM and PM), and

minutes.

Note: If you want to return the date and time to the previous setting, press • or •

to highlight Cancel and press MENU.

Press • or • to highlight Set.

Press the MENU button. The camcorder's internal clock will start

and you will return to the recording menu.

\ I /

JAN 1.00 AM 12:01 Set Cancel

Notes: Press MENU twice to start the

clock and remove all the menus from the

viewfinder.

If you enter an invalid date, Input Error

appears in the viewfinder. Press A, _', •, or • and enter the correct day.

Date/Time Display

The clock cell must be installed and the date and time set before the date and/or time can be selected and recorded on your tape.

PROG AE/

EFFECT (_

FADE/

WIPE"

To Select the Date, Time, or Date and Time You Want to Record On Your Tape

1. Attach a power supply and place

POWER switch in CAMERA. The

power indicator will light.

2. Repeatedly press DISPLAY to select the date, time, or date and time you

want to record.

• Date Display: The date will be

displayed and recorded.

• Time: The time will be displayed and recorded.

• Date and Time Display: The date and time will be displayed and

recorded.

• Date and Time Off: No date or time will be displayed or recorded.

Date/Time Display

g ,

;:7

),,,

iN ,

,€.

To Record the Date, Time, or Date and Time on Your Tape

1. Place the camcorder in record pause.

2. Repeatedly press the DISPLAY button

to display the date, time, or date and time you have previously stored.

3. Begin recording.

4. Press the DISPLAY button to remove

the display from the viewfinder when you are finished recording it.

5. To record the display again, place the camcorder in record pause and press the DISPLAY button to select the

mode you want to record.

Note: If you do not want to record a date or time, press DISPLAY to select the date

and time off mode.

Recording Menu m Sub Menu

The sub menu lets you turn the tally light on or off, set interval and recording times for the self-timer, time-lapse recording, or animation recording. You can also set a JLIP

ID number for a device (such as a personal computer).

FULL AUTO/

_witch

• Button ,,

'k._÷t' '

'2"

)

,,+,

, .,.

•a/, :'

MENU Button

FADE/

WIPE C_

• Button

To Change a Feature in the Sub Menu

1. Make sure the FULL AUTO/PRESET switch is in PRESET.

2. Press the MENU button. The recording menu will appear in the

viewfinder or on the LCD monitor.

Tele Macro OFF Gain Up AGC

Color Filter NOR. Tape Length T20

Title Date/Time

Button

ii ii: :i i_i: :

Interval Timer OFF

Rec Time OFF JLIP ID NO. 0 7

Press • to start the highlighted item

flashing.

Press • or • to adjust the highlighted item.

,,;

.,/,-

3. Press • or • to highlight Sub Menu.

4. Press • to display the sub menu.

5. Press • or • to highlight the item you want to adjust.

Note: If you want to change anotiher

feature, repeat steps 5, 6, and 7.

Press 'I to return to the recording menu, or press MENU to exit both

menus.

;*2,

Y,:

.:2:,

Sub Menu -- Tally Light and JLIP ID NO.

--Tally Light

JLIP Connector

To Turn the Tally Light ON or OFF ..................

•' ';-:2 '" '.- . • ;.'_" b,>'f -J

1. Follow steps 1-4 on the previous page.

2. Press • or • to highlight Tally.

4. Press • or • to turn the tally light

ON or OFF.

• Select ONto have the tally light

turn on during recording.

Tally::: :ON

• Select OF[" if you do not want the

Interval Timer OFF

Rec Time OFF

tally light to light.

5. Press • to stop Talh, flashing and

JLIP ID NO. 0 7

return to the recording menu, or press MENU to exit both menus.

3. Press • to start Tally flashing.

Set theJLIPID NO. _"_"_"_"_"_'_"__"_''": ....... : .........:' : '_::................

The camcorder has a JLIP (Joint Level Interface Protocol) connector that may be used in the future to connect a device, such as a home computer.

To Select a JLIP ID NO.

1. Follow steps 1-4 on the previous page.

2. Press • or • to highlight JLIP ID NO.

Tally ON Interval Timer OFF

Rec Time OFF JLIPIDNO. :: 0

3. Press • to start JLIP ID NO. flashing.

4. Press • or • to select a number from 01 to 99.

Press • to stop JLIP ID NO. flashing and return to the recording menu, or press MENU to exit both menus.

Sub Menu m Self-Timer

The self-timer lets you set the camcorder to delay recording so you can be in the scene when recording begins.

FULL AUTO/

iwitch

• Button.,

MENU Button

• Button

To Set the Self-Timer

1. Place the POWER switch in CAMERA. The power indicator will

light.

2. Place FULL A UTO/PRESET switch in

PRESET.

3. Press the MENU button. The recording menu will appear in the

viewfinder or on the LCD monitor.

Button

Tele Macro OFF Gain Up AGC

Color Filter NOR. Tape Length T20

Title Date/Time

4. Press • or • to highlight Sub Menu.

5. Press • to display the sub menu.

6. Press • or • to highlight Interval

Timer.

Tally ON

IntervaITimer OFF

Rec Time OFF

JLIP ID NO. 0 7

7. Press • to start Interval Timer

flashing.

9. Press • twice to return to the recording menu.

10.Press MENU to exit the menu. Q and the amount of delayed recording time

appear in the viewfinder or on the LCD monitor.

_;_ 5min

_PAUSE _---

Self-Timer Indicator in Viewfinder

or on LCD Monitor

Tally ON

Ihte_al+;_ +OFF+ --

Rec Time OFF JLIP ID NO. 0 7

15S

30S

1rain

5rain

OFF

8. Press • or • to select the amount of

time you want the recording delayed.

• Select 15S to delay the recording for 15 seconds.

• Select 30S to delay the recording for 30 seconds.

• Select lmin to delay the recording for one minute.

• Select 5min to delay the recording for five minutes.

11. Press the thumb trigger to start self-

timer recording. The camcorder will start recording after the amount of time you have set. It will continue

recording until you press the thumb trigger to stop recording.

Notes: If the tally light is turned on, it starts flashing. About five seconds before recording begins, the tally light will start flashing faster. It will stop flashing when

recording begins. To stop self-timer recording before it has

started, press the thumb trigger again, and set the Interval Timer to OFF.

12.Turn off the interval time when you are

finished by selecting Interval Time OFF in the Sub Menu.

• Select OFF if you do not want the

camcorder to delay recording.

Sub Menu m Animation Recording

Animation recording produces an illusion of movement for an otherwise stationary scene or object by shooting a series of pictures of slightly different poses (such as cartooning).

FULL it UTO/

;witch

• Button \

MENU Button

• Button

To Record Using Animation

1. Place the POWER switch in CAMERA. The power indicator will

light.

2. Place FULL AUTO/PRESET switch in

PRESET.

3. Make sure the recording speed is set to SP.

Button

Tele Macro OFF Gain Up AGC

Color Filter NOR. Tape Length T20

Title Date/Time

Sub_nu : !;

4. Press the MENU button. The

recording menu will appear in the viewfinder or on the LCD monitor.

5. Press • or • to highlight Sub Menu.

6. Press • to display the sub menu.

Tally ON

Interval Timer OFF R_iTrn_'i ): i,,_:ii:i_! _

Press MENU to select a

10.

recording time.

11.

Press MENU to exit the menu.

and the amount of recording

time appear in the viewfinder or on the LCD monitor.

JLIP ID NO. 0 7

7. Press • or • to highlight Rec Time.

8. Press • to start Rec Time flashing.

Tally ON

Interval Timer OFF

JLIP ID NO. 0 7

Press • or • to select the amount of

time you want the camcorder to

record.

1/4S

1/2S

OFF

"IllI 14S

PAUSE

12. Press the thumb trigger to start recording.

Note: The recording stops automatically after the selected

period of recording time. You may

want to take two to five shots of the subject in the same position.

13. Move the subject and repeat step 11 for the desired number

of shots.

14.

Turn off the recording time when you are finished by selecting Rec Time OFF in the

Sub Menu.

• Select 1/4S, 1/2S, IS, or 5S to have the camcorder record for 1/4

second, 1/2 second, one second, or five seconds.

• Select OFF to turn off the recording time.

Note: Fades and wipes do not operate during animation recording.

Sub Menu -- Time-Lapse Recording

Time-lapse recording makes automatic recordings at preset time intervals. The recording will show subtle changes (such as shifts in cloud formations

or plant growth) when it remains focused on an object.

FULL A UTO/

• Button

PRESET Switch

MENU Button

FADE/

WIPE C_

• Button

To Record Using Time Lapse

1. Place the POWER switch in

CAMERA. The power indicator will

light.

2. Place FULL AUTO/PRESET switch in

PRESET.

3. Make sure the recording speed is set to SP.

4. Press the MENU button. The

Button

Tele Macro OFF

Gain Up AGC Color Filter NOR.

Tape Length T20

Title Date/Time Sub Menu

recording menu will appear in the viewfinder or on the LCD monitor.

5. Press • or • to highlight Sub Menu.

6. Press • to display the Sub Menu.

Tally ON

lntervalTimer OFF

Rec _me OFF

JLIP ID NO. 0 7

1/4S 30S

112S

OFF

lmin

5min

, OFF

7. Press • or • to highlight Rec Time.

8. Press • to start Rec Time flashing.

9. Press • or • to select the amount of time you want the camcorder to

record.

• Select 1/4S, 1/2S, 1S, or 5S to have

the camcorder record for 1/4

second, 1/2 second, one second, or five seconds.

• Select OFF to turn off the

recording time.

10.Press • to highlight Interval Timer. 11 .Press • to start Interval Timer

flashing.

12.Press • or • to select the amount of

time you want between recordings.

• Select 15S, 30S, lmin, or 5min to set the intervals between recording

to 15 seconds, 30 seconds, one

minute, or five minutes.

• Select OFF to turn off the Interval Timer.

13. If necessary, adjust the exposure control, focus, and stabilizer before

step 14.

14.Press MENU to exit the menu. ,_ and

15S

the amount of recording time, and and the amount of interval time appear

in the viewfinder or on the LCD monitor.

® 5min

,t= 1/4S

PAUSE

15.Press the thumb trigger to start recording.

Notes: The camcorder will start and stop

recording the selected amount of time.

If the tally light is turned on, it flashes with the flash speed increasing five seconds before recording begins.

16.Turn off the interval and recording

time when you are finished by selecting Interval Timer OFF and Rec

Time OFF in the Sub Menu.

Note: Fades and wipes do not operate during time-lapse recording.

Fading or Wiping In and Out

You can add a professional touch to your recordings when you use the fade or

wipe features. The picture gradually appears on a black or blue screen and disappears leaving a black or blue screen. The speed of the fade or wipe is

automatically controlled by the camcorder.

FULL AUTO/

PRESET Switch

• Button \

FADE/WIPE Buttc • Button

Indicator Menu Function

Black Fader Fades in or out on a black screen.

_-] Blue Fader Fades in or out on a blue screen.

Mosaic Fader Fades in or out with a full screen mosaic effect.

Shutter Wipe

Slide Wipe

Wipes in with a black screen from the top and bottom. Wipes out from the center towards the top and bottom leaving a black screen.

Wipes in with a black screen from the left. Wipes out with the image moving from right to left leaving a black screen.

Button

To Fade or Wipe

1. Place the POWER switch in CAMERA. The power indicator will

light.

2. Place FULL A UTO/PRESET switch in FULL AUTO or PRESET.

• FULL AUTO/PRESET Switch in

FULL A UTO

Press the FADE/WIPE button to turn the black fader on or off.

[] appears in the viewfinder or on

the LCD monitor.

[]

• FULL AUTO/PRESET Switch in

PRESET

Press the FADE/WIPE button to display the fade/wipe menu.

1 [] Black Fader 2 [] Blue Fader 3 [] Mosaic Fader 4 [] Shutter Wipe

5 IT] Slide Wipe

3.Press FADE/WIPE to highlight the fade or wipe you want to select.

Note: The fade or wipe you select is automatically activated and the fade/wipe menu is removed from the

viewfinder o:r LCD monitor in approximately two seconds.

4.Press the thumb trigger to start recording and fade or wipe in.

Note: If you select a fade or wipe

Note: This is the only fade you can use in the full auto mode.

during recording, press the thumb trigger to fade or wipe out.

To Turn Off Fade or Wipe ",:i:_'_'.... _:_',_:i_:!

When FULL A UTO/PRESET switch is in

FULL AUTO, press FADE/WIPE.

When FULL AUTO/PRESET switch is in PRESET, press FADE/WIPE to display

_;OFF

1 [] Black Fader

2 [] Blue Fader 3 [] Mosaic Fader

4 [] Shutter Wipe 5 [] Slide Wipe

the fade/wipe menu, and then press

FADE/WIPE repeatedly to highlight OFF.

Note: The fade or wipe will be turned off and the menu will automatically be

removed from the viewfinder or LCD monitor in approximately two seconds.

Production Effects

You can add a professional touch to your recordings when you use some of the production effects while recording.

witch

Indicator

Cinema

Sepia

Twilight

Sports

HI.S 1/2000

Function

The camcorder records black bars at the top and bottom of the picture to produce the wide-screen

effect. This is also known as "letter box" recording. Use when you play back your recordings on a 16X9

TV.

Gives your recording a brownish tint like old photos. Combine with cinema mode for a classic look.

Use to record a scene at dusk or twilight. Also used to record fireworks for a more natural and dramatic

look. Auto gain is turned off, and white balance is set to outdoors.

Use to clearly capture fast-moving action with less blurring. Use when playing back the recording on a VCR featuring special effects, such as pause or slow

motion.

Sets shutter speed to !/2000. Use to record fast- moving action with less blurring. Can capture faster

action than sports mode. Use outdoors and in well- lit situations when playing back recording on VCR featuring special effects, such as pause or slow

motion.

To Use a Production Effect

1. Place the POWER switch in

CAMERA. The power indicator will

light.

2. Place FULL A UTO/PRESET switch in FULL AUTO or PRESET.

• FULL AUTO/PRESET Switch in

FULL AUTO

Press the PROG.AE/EFFECT button to turn the Cinema mode on or off.

O appears in the viewfinder or on

the LCD monitor.

OFF :

1 Q Cinema 2 Gi Sepia 3 *.,) Twilight 4 ._ Sports

5 € HI.S 1/2000

Press PROG.AE/EFFECT to highlight the effect you want to select.

Note: The effect you select is automatically activated and the menu is

removed from the viewfinder or LCD monitor in approximately two seconds.

Press the thumb trigger to start recording with the effect you selected.

Note: This is the only production effect

you can use in FULLAUTO.

• FULL A UTO/PRESET in PRESET

Press the PROG.AE/EFFECT button to display the production effect

menu.

To Turn Off a Production Effect

When FULL AUTO/PRESET switch is in FULL AUTO, press PROG.AE/

EFFECT.

When FULL AUTO/PRESET switch is in PRESET, press PROG.AE/EFFECT

to display the production effect menu, and then press PROG.AE/EFFECT

repeatedly to highlight OFF.

Notes: When Sepia is activated, pressing MAN. W.BAL. has no effect.

Certain effects cannot be used together with other functions. When an effect not suitable

in the current situation is selected, its indicator flashes irt the viewfinder or in the LCD monitor.

OFF

1 0 Cinema

2 I_1 Sepia 3 *_1 Twilight 4 -_ Sports

5 _ HI.S 1/2000

Note: The effect will be turned off and the

menu will automatically be removed from

the viewfinder or LCD monitor in approximately two, seconds.

Attaching the Shoulder Strap

The camcorder's shoulder strap is designed to let you carry the camcorder from your shoulder and - when you are ready to shoot - bring the camcorder to shooting position

in one quick movement.

To Attach the Shoulder Strap

If the strap keeper is over a double section

of the strap, slide the strap keeper off the

end of the strap. Replace the keeper

on the strap between the buckle and the

end of the strap as shown.

Loop the end of the strap over the top of the shoulder strap attachment ring.

Buckle

Keeper

4. Attach the other end of the strap to the other shoulder strap attachment ring.

Adjust the shoulder strap to the desired length.

Slide both keepers up snugly against the shoulder strap attachment rings to

prevent the strap from slipping.

Rings

Thread the end of the strap back through the keeper and buckle making

sure it is threaded under the outer strap. Make sure the strap is not

twisted.

Cautions: :When carrying the

close andIock the LCD monitor and

firmly attached before using it to

Write down your camcorder's

serial number and keep it separate from the camcorder when

traveling. If your camcorder is lost or stolen, you will be able to identify it.

Use extra care to avoid damage to your camcorder and accessories

when operating them at a beach or pool. Spray, sand, and dust

should be avoided. If your lens has been exposed to the elements,

clean it only with proper lens cleaning supplies.

• Make sure you have any plug adapters that you may need

before taking your camcorder to other countries. Consult your

dealer for advice.

Carry your camcorder in a carrying case when traveling. See page 76 for a case designed

especially for this camcorder. An ordinary suitcase or carry bag does not offer the protection

your camcorder needs. Treat your camcorder as carry-on

luggage to protect it from rough handling.

Playback Using the LCD Monitor or Viewfinder

You can view tapes in color using the LCD monitor or black-and-white using

the viewfinder. You can hear the sound from the tapes on the built-in speaker when you use the monitor.

BRIGHT

SPEAKER Control

VOLUME

Control

PUSH/OPEN PUSH Button _EJECT Button Button LCD

Monitor

To Play Back a Tape

Attach a power supply.

Use the LCD Monitor

• Make sure the monitor is open at

Attach the adapter/charger, charged

battery, or optional DC car cord.

Insert a tape.

• Press PUSH/OPEN to open the LCD

• Tilt the LCD monitor (up to 45 ° up

• Adjust the brightness of the image

monitor. Open the monitor at least 60 ° before opening the cassette

• Adjust speaker volume with the

compartment.

• Press EJECT to open the cassette compartment.

• Make sure the monitor is closed and

• Turn the tape wheel on the cassette to remove any slack from the tape.

• Insert the cassette with the tape

• Adjust the viewfinder for a

wheel facing up and the tape window facing out

• Turn the eyepiece focus control to

• Press the PUSH button to lock the

cassette compartment closed.

3. Place the POWER switch in VCR. The power indicator will light.

4. Use the LCD monitor or viewfinder to view what you are recording.

5. Press PLA Y/PA USE to begin playback.

• If necessary, adjust tracking.

• During playback, use the playback

Eyepiece Focus

Control

least 60 °. The viewfinder will be automatically turned off.

or down).

by turning the BRIGHT dial.

SPEAKER VOLUME control.

Use the Viewfinder

locked. The viewfinder will be automatically turned on.

comfortable viewing condition.

adjust the focus of the viewfinder for your vision.

features on the next pages.

Viewfinder

6. Press STOP when you are finished.

Playback Features

Button

POWER Switch in VCR

Visual Searching

• During playback, press and release FF or REW if you want to search the tape visually in forward or reverse.

• Press PLA Y/PA USE on the camcorder to return to normal playback.

• For brief searching, press and hold FF or REW for more than two seconds.

• Release the button to return to normal playback.

Note: Noise bars may appear and the picture may become monochrome or darken during

searching.

Stop-Action Pause

• During playback, press PLA Y/PA USE to "stop the action" and view one frame

of the tape.

Tape Positioning

Place POWER switch in VCR and press

STOP.

• Press REW or FF to rewind or fast- forward the tape.

• Press STOP to stop the tape.

• Press PLA Y/PA USE on the camcorder to return to normal playback.

!:!iii_ili_!iiiiiiiiiiiiiiiiiiiiiilL

Playback Features (Continued)

COUNTER R/M (Reset/Memory) Button

STOP Button

•_i _.

_...

,,G

, %'.

POWER Switch in VCR

Thumb Trigger

Time Counter

The time-counter display shows the actual time elapsed when playing back a segment of tape. The memory-stop feature helps locate a certain point on the tape. When

memory stop is on, the tape will stop automatically during rewind or fast forward when the time counter reaches M 0.'00:00.

To Use the Memory-Stop Feature

1. Place the POWER switch in VCR,

locate the place on the tape you want

to return to, and press COUNTER R/M

for more than two seconds to reset the counter to 0:00:00.

M 0:00:00

Time Counter With

Memory Stop Turned On

2. Press COUNTER R/M again to turn on

memory stop. An M appears before the time counter.

3. Continue to play the tape. When you want to return to the place you marked,

press the STOP button.

4. Press REW. The tape will rewind to the time counter reading of M 0:00:00.

5. Press COUNTER R/M to turn off memory stop. The M disappears.

Note: The time counter does not operate on blank portions of tape.

,.i

'j?

,,L

//,

,[,,

'rL

Playback Features (Continued)

".:'i

Buttons

-Z._

_ •

i:u* ,

,,I,

Tracking During playback, streaks may appear in the playback picture. Press either

TRACKING button to move the streaks up or down and out of the picture.

,, During stop-action playback, pressing

one of the TRACKING buttons may

reduce picture "jitter" (picture bouncing

Note: The TRACKING buttons may have no effect on tapes recorded on other camcorders

or VCRs.

up and down). Some "jitter" is normal.

Simultaneously press both TRACKING

buttons to return tracking to its preset center.

rt"

i:i,

,:%

• %1

k _

.%.

. ,

._i:-_

,_r

":'.

Playback on TV (or VCR) with AUDIO/VIDEO IN Jacks

To connect your camcorder to a TV monitor (or VCR) with AUDIO/VIDEO IN jacks,

you will need an optional audio/video cable such as VH83 shown on page 78. If your TV is already connected to a VCR, you can attach the camcorder to the VCR and watch what the camcorder is recording or playing on the TV.

Back of

Mono VCR or

TV Monitor (_White

Audio Plug

Audio/Video

Output Cable

(Optional)

A UDIO Jack

Yellow Video Plug

°'°°'-°°,°..°°

°° °

OR--

Back of (_) "

Stereo VCR or Y-Adapter White ." .

TV Monitor (Optional) Audio Audio/Video ""

Plug Output Cable .."" ..""

___ _ / _(Optional) ..'" ...'"

ow Video Plug

Installation

on one

(_) Attach the white end of

the audio/video cable to the AUDIO IN jack on the TV (or VCR).

Notes: If your cable does not have white and yellow plugs, just be sure to attach the same color to the audio jacks.

If your TV (or VCR) has stereo AUDIO IN jacks, attach the plug to the one labeled MONO. If one is not labeled MONO, you

may need a Y-adapter, such as AH25,

shown on page 78 to hear both channels.

plug

Attach yellow plug to VIDEO IN jack on the TV (or VCR).

Attach the white the other end of the audio/video cable to the AUDIO

jack (located under the small cover)

on the back of the camcorder. Attach yellow plug yellow

VIDEO jack on the camcorder.

the

plug

the to the

the

72 (continued on next page)

Playback Operation and How to Copy Tapes on the VCR

1. A. Camcorder connected directly to

TV: Turn on the TV and tune it to the video input channel.

B. Camcorder connected to VCR that

is already connected to TV: Turn on VCR and place it in the line,

video, or camera mode. (If your VCR does not have a line, video, or

camera mode, consult the VCR owner's manual.) Operate the TV

as you normally do to see the signal coming from the VCR.

2. Place the POWER switch in VCR to turn on the camcorder. The power

indicator will light.

3. Press PLA Y/PA USE.

• During playback, use the playback features described on pages 69-70.

• If noise bars appear on the screen, adjust tracking as described on

page 71.

To copy what the camcorder is playing, place a blank cassette in the VCR, and

press the VCR's RECORD button. Make sure the memory-stop feature is

turned off (press COUNTER R/M) or the camcorder will enter play pause when the

counter reaches M 0:00:00.

5. Press STOP when you are finished.

Viewing What the Camcorder is Seeing (or Recording)

1. A.

Camcorder connected directly to 3. TV: Turn on the TV, and tune it to

the video input channel.

B°

Camcorder connected to VCR that

is already connected to TV: Turn

on VCR and place it in the line,

video, or camera mode. (If your

Press the thumb trigger to begin recording. You can watch what the

camcorder is seeing (or recording) on the TV screen.

Notes: When the camcorder is used as a camera, turn the TV's volume down to prevent a high-pitched squeal caused by

feedback.

VCR does not have a line, video, or

camera mode, consult the VCR

Press the thumb trigger on the

camcorder to pause recording.

owner's manual.) Operate the TV as you normally do to see the signal

coming from the VCR.

2. Place the POWER switch

in CAMERA.

Playback on a TV Without Audio/Video Inputs

To connect your camcorder to a TV without audio/video inputs, you will need an optional 1CVA147C RF output adapter and an optional coaxial RF cable, such as VH82

or VH90 shown on page 78. If your TV has AUDIO and VIDEO IN jacks (or is connected to a VCR), refer to pages 72-73.

VHF Antenna

Optional Coaxial RF Cable

(such as VH82 or VH90)

Back of TV

•¢CIDc- ) t

Opti!_2_mer_ _

(Such as VH54) "_"_ [I

OUT TO TV Connector

Optional

300-75 Ohm Transformer

IN FROM ANT

Connector

CH3/CH4 Switch

Installation

Disconnect the VHF antenna from your TV. Connect the antenna to the

IN FROM ANT connector on the RF output adapter if you are going to leave

the adapter connected to the TV. Note: If your VHF antenna is the fiat

twin-lead type attached by two screws, you will also need an optional 300/75 ohm

transformer.

VCRFFV Switch

AUDIO, RF DC OUT, VIDEO Jacks

Adapter's Plug

Optional RF Output Adapter (1CVA147C)

Attach end of the coaxialoptional

one

RF cable to the OUT TO TV connector on the adapter, and attach

the other end to the VHF input on your TV as shown.

Note: If your TV has 300 ohm screw terminals, you will need a 751300 ohm

transformer, such as VH54, shown on

page 78.

Attach the RF output adapter's plug to the AUDIO, RF DC OUT, and

VIDEO jacks located under the small

cover on the back of the camcorder.

Playback Operation

1. Set the CH3/CH4 switch on the RF

output adapter to channel 3 or 4.

2. Turn on the TV, and tune it to the same channel you selected with the

RF output adapter's CH3/CH4 switch.

3. Place adapter's VCR/TV switch in

VCR.

. Place POWER in VCR. Power

indicator will light.

Viewing What the Camcorder Is Recording

5. Press PLA Y/PA USE on the camcorder.

• During playback, use the playback features described on pages 69-70.

• If noise bars appear on the screen, adjust tracking as described on

page 71.

Press STOP on the camcorder when

you are finished.

1. Turn on the TV and tune it to channel 5. 3 or4.

2. Set the CH3/CH4 switch on the RF output adapter to the same channel

you selected on the TV.

3. Place adapter's VCRiTV switch in

VCR.

Press the thumb trigger to begin recording. You can watch what the camcorder is seeing (or recording) on

the TV screen.

Note: When the camcorder is used as a camera, turn the TV's volume down to

prevent a high-pitched squeal caused by feedback.

4. Place POWER in CAMERA. Power

indicator will light. 6.

Press the thumb trigger on the camcorder to pause recording.

Normal TV Viewing

For normal TV viewing, you may leave the camcorder and place the adapter's the RF output adapter hooked up to the VCR/TV switch in TV.

TV. Disconnect the adapter's plug from

Note to Cable TV Installer This reminder is provided to call your attention to Article 820-40 of the

National Electrical Code (Section 54 of Canadian Electrical Code, Part I), that provides guidelines for proper grounding and, in particular, specifies

that the cable ground shall be connected to the grounding system of the building as close to the point of cable entry as practical.

We invite you to take a look at some great ideas for sparking creativity

and adding to the fun of using your compact VHS camcorder. The following pages have a selection of accessories to help make your

memorable moments look and sound even better.

These accessories are designed to make the process of recording and watching your videos more enjoyable.

To order accessories, contact your local Dealer.

If a dealer is not nearby, all accessories are available through toll-free

ordering or by using the order form on page 79.

AC201A Soft Carrying Case

Custom compact soft case designed especially to provide protection and utility

for your compact VHS camcorder and most accessories. Rugged fabric lined

with soft non-abrasive material and

generous padding. Has three outside pockets with storage for lens filters,

adapters, batteries, and tapes.

DCC08 Car Cord Adapter

This car cord adapter enables you to operate your camcorder from your car,

truck, or RV by plugging the car cord directly into the vehicle's cigarette lighter

socket. The DCC08 is designed specifically to convert power from a

12-volt battery to a 6-volt output.

Cautions: The DCC08 is designed to be used only with vehicles having

negative ground electrical systems.

Use only car cord adapter DCC08 with

this camcorder. Use of any other car cord adapter may damage the

camcorder and void your warranty.

Order Form for Camcorder Model ProV800C

Description

Super Lightweight Tripod Soft Camcorder Case

Y-Adapter AC Battery Charger

Car Cord Adapter Rechargeable Battery (Extended)

Rechargeable Battery (Standard) 75-300 Cable Transformer

Coaxial RF Cable Audio/Video Cable Coaxial RF Cable

RF Output Adapter Shoulder Strap

AC Adapter/Charger

and

DC Cable

Cassette Adapter

Part No. Price AC088 $ 39.95

AC201A $ 39.95

AH25 $ 2.95

CPS91 $ 59.95

DCC08 $ 89.95 FBI20 $ 89.95 FB 1260 $ 49.95 VH54 $ 2.95 VH82 $ 6.95

VH83 !$ 5.95 VH90 ,$ 7.95

ICVAI47C $ 59.95

218858 $ 12.95 236689 $ 96.45

233087 $ 237583 $

27.80

71.35

Qty.

Total

.g=

,,b,,,a

_D _D

Prices are subject to change without notice.

Total Merchandise ........................................................... $

Sales Tax ......................................................................... $.

We are required by law to collect the appropriate sales tax for each individual state, county, and

locality to which the merchandise is being sent.

Shipping and Handling .................................................... $

Total Amount Enclosed ................................................ $.

Use VISA, MasterCard, or Discover.

Money order or check must be in U.S. currency only. No COD or cash.

,5',

..;i.

5.00

;'o;,

-r ,L

;:2,'

,Q .:¢?

Charge your order on your VISA,

MasterCard, or Discover Card by

filling in below

USE YOUR CREDIT CARD

IMPORTANT: Copy complete account number

from your VISA card

VISA

I-TS-I-IIII II-TS-II III

My card expires: _

IMPORTANT: Copy complete account number

from your MasterCard

_-5--_-Y-_F]-FY-]lllll

Copy Number

above your

name on

MasterCard

IMPORTANT:

11111 My.car_I-I"-lFT]

Copy complete account number from your Discover Card

expires:

_-TT-q F-7-]--TqF]-5-n _-TS-]

My card expires: _

;.i€',

,, 2

._'

AUTHORIZED SIGNATURE

Prices are subject to change without notice.

Print or type your name and _ A complete and correct

your mailing label, of waiting.

address clearly. This will be _+ order will save you days

Name:

Street:

Apt:

City:

State: Zip:

Please make sure that both sides of this form have been filled out completely•

• Allow 4 weeks for delivery.

• All accessories are subject to availability.

:i°i_

,.c:l

.4,,,,d

.y.

,:4,

,,_,

:-L

.:!( •

77,

,!-.

,'t

To order accessories, contact your local Dealer.

If a dealer is not nearby, you can also follow the directions below to order by telephone or direct-by-mail.

United States and Canada Orders

To place your order by phone, have your Visa, MasterCard, or Discover card

ready and call the toll-free number listed below between 8AM and 8PM (EST) Monday through Friday or between 9AM and 5PM (EST) Saturday.

Use this number only to place an order for accessory items listed on

this order form.

1 - 800 - 338 - 0376

To place your order by mail, detach and mail the completed order form with credit card information, money order, or check in U.S. currency (made payable

to Thomson Consumer Electronics, Inc.) to the following address:

Video Accessories

PO Box 8419 Ronks, PA 17573

Cleaning the Camcorder

To clean the camcorder's exterior, remove any power source connected to

the camcorder and gently wipe it with a clean soft cloth•

Caution: Use of strong cleaning

products, such as those containing

alcohol or benzine, may damage

:the camcorder.

Cleaning the Camcorder's Lens ......: ......... : _ : :

To clean the camcorder's lens, blow it with a blower brush, and then gently wipe the lens with a cleaning tissue and commercially prepared cleaning solution designed for use on camera lens. Improper cleaning

may scratch the lens.

Caution: Do not

touch the lens with

your fingers. The

oil from your skin

can damage the

Lens;

lens.

i_ k

:::.

,fi

Cleaning the Camcorder's LCD Monitor ..:: : _ _'

1. Press PUSH/OPEN and open the LCD monitor.

2. Carefully wipe the monitor with a clean soft cloth.

LCD Monitor

3. Close the monitor.

Cleaning the Camcorder's Viewfinder

The viewfinder eyepiece can be removed for cleaning.

1. Turn the eyepiece counterclockwise and pull it out.

2. Remove dust using a blower brush.

?_,.

i)'

3. Reattach the eyepiece by aligning the reference marks, and then turn

the eyepiece clockwise until it clicks.

th,

".-=-.-x:..:...: i:

Proper Care and Storage

• Keep dust and grit from entering the

camcorder's cassette door. Dust and grit are abrasive and will cause

excessive wear to both the camcorder's

recording/playback heads and cassettes.

• Always close the lens cover and LCD monitor when the camcorder is not in

use. Before handling your camcorder, make

sure your hands and face are free from any chemical products such as suntan

lotion, as it may damage the finish.

• The camcorder can be damaged by

improper storage: or handling. Do not subject the camcorder to swinging,

shaking, or dropping.

• Do not store the camcorder in temperatures below -22°F (-30C) or

above 149°F (65C).

• When the camcorder is not in use,

always remove the cassette and

AC adapter/charger or battery.

• Retain the original carton for future storage or shipping purposes.

Things to Avoid _:'_'_ ........ ......._'_:_:' ,:_-_ _ "_: _'_'_:_' ',_ ...... : :

• Do not attempt to disassemble your • Do not operate the camcorder near the camcorder. There are no user-

serviceable parts inside.

• Avoid operating your camcorder immediately after moving it from a cold

location to a warm location. Give the camcorder 1-1/2 to 2 hours to reach a

stable temperature before inserting a

cassette. When the camcorder is

moved from cold to warm,

condensation may cause the tape to

stick to the headwheel and damage the

headwheel or tape.

• Do not aim your camcorder at the sun or other bright objects.

• Do not leave your camcorder in direct sunlight for extended periods of time.

The resulting heat buildup could permanently damage the camcorder's

internal parts.

• Do not operate the camcorder in extremely humid environments.

ocean as salt water or salt water spray may damage the internal parts of the

camcorder.

• Do not operate the camcorder for extended periods in temperatures below 40°F (4C) or above 95°F (35C).

• Do not expose the camcorder or adapter/charger to rain or moisture. If

either component becomes wet, turn off

the power and take the unit to an

Authorized RCA Camcorder Servicenter.

• Do not use an adapter/charger or batteries other than the ones specified

for the camcorder. Use of the wrong accessories may cause damage to the

camcorder.

° Do not operate the LCD monitor if the

back becomes hot. Close and lock the monitor or turn off the camcorder to

cool down the monitor.

Troubles sometimesarecausedby simple"faults" thatyou caneasily correct without the help of a servicetechnicianby first checking afew basicremedies.

Before you call or take your camcorderto anAuthorized RCA CamcorderServicenter, look below for thetype of trouble you areexperiencing. Thenperform thesimple

checksandadjustmentslisted for thattrouble. If service shouldbe necessary,the warranty information lists what your warranty

coversandexplainshow to getservice.

No power

Won't record or playback

• Place the POWER switch in CAMERA or VCR to turn on the camcorder. The POWER indicator will light.

• If using battery, it may need to be recharged.

• If using AC adapter/charger, make sure it is plugged into a working outlet.

• If the dew indicator (1"/1)flashes on the LCD monitor or in the viewfinder, there is moisture in the camcorder. Wait

until the dew indicator no longer appears before operating the camcorder.

• Make sure POWER switch is in correct position for desired operation.

• There may not be a cassette in the camcorder.

• Try ejecting and reinserting the cassette.

• The cassette tape may be broken, try another cassette.

• You may have reached the end of the cassette, try rewinding it.

Won't playback

Won' t record

No picture

Camcorder turns

itself off

• POWER switch must be in VCR position.

• Safety tab has been removed. (See page 18.)

• POWER switch must be in CAMERA.

• Open lens cover.

Place POWER switch to OFF and then in CAMERA or

VCR to turn back on. If camcorder is left in record pause

or play pause for several minutes, it will turn itself off to prevent tape wear.

Tape stops during rewind or fast

forward

Time-counter memory may be on. Whenever an "M"

appears with the time-counter display, the camcorder will stop rewinding (or fast forwarding) when counter reads

M 0:00:00. Press REW or FF again to continue rewinding or fast forwarding, or press COUNTkTR R/M to

turn off the memory-stop feature.

Camcorder remains in pause mode

Sound is too low or distorted

Dew indicator flashing in

viewfinder or LCD monitor

Poor auto-focus

operation

• Press PLAY/PA USE to return to normal playback.

• Subject was too far from camcorder.

If the dew indicator (g]) flashes on the LCD monitor or in the viewfinder, there is moisture in the camcorder. Wait until this indicator no longer appears before operating the camcorder.

• Subject is dark or behind glass. Auto-focus may not work under these conditions. Place the FULL

A UTO/PRESET switch in PRESET and focus manually.

See pages 36-3Z

• Subject is not in center of LCD monitor or viewfinder or two subjects are at different distances. Place FULL

A UTO/PRESET switch in PRESET and focus manually.

See pages 36-37.

• Auto focus is automatically turned off when some effects are selected with the FULL A UTO/PRESET switch. Place FULL

A UTO/PRESET switch in FULL AUTO. See page 32.

Vertical white lines appear when shoot-

ing bright object

Viewfinder or LCD monitor displays are

dark or out of focus

Picture is too dark or subject too dark

• This may occur when background extremely contrasts with the subject.

• Lens is smudged, and image appears unfocused.

• Eyepiece focus control is misadjusted.

• Adjust BRIGHT control on LCD monitor.

• For best results, only use higher shutter speeds outdoors. Place the FULL A UTO/PRESET switch in FULL AUTO.

• Add more light using the exposure control. See page 33.

(continued on next page) 85

'3!

i'.i

;+"

,5:

,Colors do not look

natural on recording

Picture recorded

with special effect

Picture recorded in

brown tone

Picture recorded with black bars at

top and bottom

Title recorded on tape

Date and/or time

were recorded on tape

• Try adjusting white balance. See pages 34-35.

• Program effect may be selected. Press PROG.AE/EFFECT to turn off the special effect. See pages 62-63.

Sepia ([-_] ) selected with PROG.AE/EFFECT. Press PROG.AE/EFFECT to turn off Sepia. See page 62-63.

Camcorder is set to the Cinema mode. Press PROG.AE/EFFECT to turn off Cinema. See page's 62-63.

• Title is recorded whenever it appears in viewfinder or on LCD monitor. Remove the title. See pages 45-47.

• Displays will be recorded on tape whenever they appear. Press DISPLAY to remove them from viewfinder when

recording. See pages 50-51.

Date and/or time are • incorrect •

No picture in viewfinder

No sound from built-in speaker

during playback

Tally light does not turn on during recording

Tape won't eject

Clock lithium cell battery may need replacing. See page 48. Date or time may need to be set. See page 49.

• Viewfinder is automatically turned off when you open LCD monitor more than 60°• Close and lock LCD monitor to see

picture in viewfinder.

• Speaker is automatically turned off when LCD monitor is not open more than 60 °. Open LCD monitor.

• Volume turned down. Adjust SPEAKER VOLUME control.

• Turn the Tally Light feature on. See page 53.

• Battery too low. Recharge battery.

• LCD monitor must be open at least 60 °.

._,'

'C,

9'i

Back of LCD ° monitor is hot

Bright spots appear • on monitor or areas

of color are not clear •

Error number

(EO1, E02, etc.) appears on LCD

monitor or in

viewfinder

Battery runs down • sooner than

expected •

Light used for monitor causes it to get hot. Close the monitor or turn off the unit to cool the monitor down.

Due to high-precision technology, black spots or bright spots may appear on LCD monitor. These are not recorded on the

tape. Pressing on the surface or edge of the monitor may cause blurring.

Try disconnecting power source. Wait ten seconds and then connect power source again. If error number does. not

disappear from viewfinder, consult your Authorized RCA

Camcorder Servicenter.

LCD monitor requires more battery power to operate than the viewfinder.

If camcorder has not been used for some time, charge the battery using the REFRESH feature on the adapter/charger.

Battery run times are measured when the camcorder is recording continuously. You can check your battery by first

fully charging it and then aiming the camcorder at: a clock and recording the picture of the clock. When the recording

stops, play the last recorded section, and note the clock time. A one-hour battery should give you about 60 minutes of

recording time. In practical use, you may not be able to record for the full time because the camera uses battery

current when it is waiting between recordings (record-pause mode) and while you focus and zoom.

,,,

?,!,

General

Power requirement: 6VDC Power consumption:

LCD Monitor off,

Viewfinder on: 5.7 watts

LCD Monitor on,

Viewfinder off: 7.5 watts

Weight: 2.3 lbs. (1,000g)

Dimensions - Including Viewfinder

4-15/16"(W) x 4-1/2"(H) x 9-1/16"(D)

124 (W) x 113(H) x 230(D) mm

Camera Section

Image Sensor: 1/4" CCD Imager Lens: F1.2, (f = 4.1-57.4 mm)

Filter Diameter: 46 mm

Viewfinder

1/2" Black and White CRT

LCD Monitor

3" Diagonally Measured

LCD/TFT Active Matrix System

Tripod Mount

One 1/4" x 20 Threaded Hole

Video Recorder Section

Format: VHS-C Record/Playback System:

Four VideoRecord/Playback Heads

One Flying Erase Head

Video Signal: EIA Standard NTSC

Color

Output: 1 Vp-p, 75 Ohms, Unbalanced

(via VIDEO Out Jack)

Audio Section

Output: -8dBs, 1 k-ohm (via AUDIO

Out Jack)

Speaker: 20mm Round x 1, Monaural

AC Adapter/Charger

Power requirement: 100-240 V, 50/60 Hz. Power consumption: 23 watts

Weight: .7 lbs. (320g) Dimensions:

6"(W) x 1.7"(H) x 2.7"(D)

150 (W) x 42(H) x 68(D) mm

,-.. ,

.-2_

AI"

4-: '?,;i

This equipment has been tested and found to comply with the limits for a Class B digital device and RF lighting device pursuant to Part 15 and part 18 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a

residential installation. This equipment generates, uses, and can radiate radio frequency energy and, if not installed and used in accordance with the instructions, may

cause harmful interference to radio communications.

However, there is no guarantee that interference will not occur in a particular

installation. If this equipment does cause

harmful interference to radio or television reception, which can be determined by

turning the equipment off and on, the user is encouraged to try to correct the interference

by one or more of the following measures:

• Reorient or relocate the receiving antenna.

• Increase the separation between the equipment and receiver.

• Connect the equipment into an outlet on a circuit different from that to which the

receiver is connected.

• Consult the dealer or an experienced radiofFV technician for help.

Alterations or modifications carried out without appropriate authorization may

invalidate the user's FCC right to operate the equipment.

/,5

,!_2,

. ¢,"

v,'

'. ?i

',L

-r

721.

You can reach Thomson at the

following number:

800-283-6503

(Toll free inside U.S.A.)

Thomson provides a toll-free telephone number to help you with any problems

you may encounter with your camcorder. Many can be diagnosed over the phone,

and if necessary, a replacement unit can

Our toll-free Camcorder number

operates from 8 a.m. to 5 p.m., CST

Monday - Friday

for U.S. customers only

be shipped to you. Please have your camcorder model/serial number and date

of purchase ready when you call. If your

unit is out of warranty, we will quote the cost of an exchange unit to you.

Returning equipment to Thomson for repair or exchange

If we are unable to resolve your problem over the phone, we will gladly service

your unit or exchange it for a new or, at

our option, refurbished camcorder. Refer to the limited warranty to learn

about your specific rights and responsibilities.

Important information to customers Thomson Consumer Electronics

The Thomson representative who authorized the return of your equipment

will give you an RA number over the phone. They will also provide you with

instructions on where and how to return your camcorder. Write the number in

large, clear characters on the outside of the box to avoid confusion and

misunderstandings. Shipments without an RA number clearly visible on the

outside of the box will be returned to you at your expense.

Include a brief note describing the problem and any conversations about the

problem you have had with Thomson personnel. Include your name, address

Always consult Thomson and get a Return Authorization number before

returning anything! Obtain a Return

Authorization (RA) number from the telephone representative before returning

your equipment to avoid delays, accounting errors, or even loss of your

unit.

who ship defective equipment to

and model/serial number of your camcorder. These numbers are located

on the bottom of your unit. If your camcorder is within the warranty period, please provide a copy of the bill of sale

to verify purchase date. Use the original box and packing material to protect the

equipment from damage in shipment.

For your protection, insure all shipments

for full replacement value and use a

reliable shipper. Thomson assumes no

responsibility for warranty shipments from the customer to the factory if not

shipped in the manner prescribed by Thomson.

What your warranty covers:

• Any defect in materials or

workmanship.

For how long after your purchase:

• 90 days for labor charges.

• One year for parts. (The warranty period for rental units begins with the first rental or 45 days

from date of shipment to the rental firm, whichever comes first.)

What we will do: During the initial 90 days

• Exchange your camcorder with a new or refurbished unit, or repair your

camcorder. The option will be ours. There will be no cost to you.

After the 90 days and within one year

• Exchange your camcorder with a new or refurbished unit, or repair your

camcorder. The option will be ours. Parts will be provided at no charge, but you will be responsible for the cost

of labor required for the repair.

How you get service:

• Call 1-800-283-6503 and have your unit's date of purchase and

model/serial number ready. The model/serial number information is on

the bottom of your camcorder.

• A representative will troubleshoot your problem over the phone. If the

representative determines that you should receive a replacement unit, you

will be provided with a Return Authorization (RA) number and the

location of a nearby exchange point if one exists. No returns will be

accepted without the RA number.

To receive a replacement camcorder before you return yours:

If you are located near an

exchange point:

1. We will send a replacement unit to

the exchange point next business day

delivery in the continental USA.

2. The exchange location will notify you of its arrival.

3. Take your unit, including all accessories, and your evidence of purchase date, such as a bill of sale, to

the exchange location and you will be provided the new or refurbished unit.

4. If the repairs were covered by your warranty, you will not be billed.

If you are not located near an exchange point:

1. Provide your Discover, MasterCard or

Visa account number and expiration date to our phone representative. This is for security purposes. If we receive

your unit including all accessories within 14 days from the date you were

provided an RA number, only items not covered by warranty will be

charged to your account. IF YOUR UNIT INCLUDING ALL

ACCESSORIES IS NOT RECEIVED WITHIN 14 DAYS,

THE SUGGESTED RETAIL VALUE OF THE CAMCORDER

AND/OR ACCESSORIES WILL

BE CHARGED TO YOUR CREDIT CARD. This amount will

be credited if the unit is subsequently received.

2. We will send you a replacement unit next business; day delivery in the

continental LISA.

3. You will receive an invoice packed with the replacement product, but will not be charged for the unit portion of

the invoice amount if we receive your unit including all accessories within

14 days from the date you were

provided the RA number. Any labor and parts charges not covered by the

warranty w'ill be included and charged against your account.

4. Ship the unit back to us along with all accessories included with your

camcorder using the replacement unit's carton. Shipping instructions

will be included in the carton along with your RA number, which will allow you to easily ship the unit back

to us. Make sure you insure your

shipment in case of damage or loss.

Include with the shipment:

• Evidence of purchase date, such as a

bill of sale, to verify your unit's

warranty eligibility.

• A brief note describing your camcorder' s problem.

• Your name, address, and phone number.

Return transportation, storage, handling, and insurance costs are your sole responsibility. We accept no liability in case of damage or loss.

To receive a replacement unit after we have received your unit:

1. Write the RA number on the outside of the carton used to return the unit.

Make sure you insure your ship- ment in case of damage or loss.

2. Carefully pack the unit along with all accessories included with your

camcorder, using the original box and packing material if possible.

3. Include with the shipment:

• Evidence of purchase date, such as a bill of sale, to verify your unit's

warranty eligibility.

• A brief note describing your camcorder' s problem.

• Your name, address, and phone number.

Return transportation, storage, handling, and insurance costs are your

responsibility. We accept no liability in case of damage or loss.

4. Include a cashier's check or money order for payment if there are any out of warranty labor or parts charges

which were indicated by the representative, and you elected not to

use your credit card.

5. Upon receipt of your product, a new

or refurbished unit will be shipped to you next day delivery in the

continental USA.

To have your Camcorder repaired by an Authorized RCA Camcorder

Servicenter:

• Check with your dealer or call 1-800- 336-1900 for the Authorized RCA

Camcorder Servicenter nearest you.

• Take your unit to the Authorized RCA

Camcorder Servicenter of your choice.

• Show the Authorized RCA

Camcorder Servicenter representative evidence of purchase date, such as a

bill of sale.

• Pick up your camcorder when repairs

are complete.

What your warranty does not cover:

• Adjustment of customer controls.

• Damage from misuse or neglect.

• A unit that has been modified or

incorporated into other products or is used for institutional or other

commercial purposes.

• Batteries for remote control and clock.

• Cleaning of video/audio heads.

• Camcorders purchased or serviced

outside the USA.

• Return transportation, storage, and

handling costs of your unit, including insurance for loss or damage.

• Acts of God, such as but not limited

to lightning damage.

Product Registration:

• Please complete and mail the Product

Registration Card packed with your camcorder. It will make it easier to

contact you should it ever be necessary. The return of the card is not required for warranty coverage.

How State Law relates to warranty:

• This warranty gwes you specific legal

rights, and you may have other rights that vary from state to state.

If you purchased your camcorder

outside the USA:

• This warranty does not apply. Contact your dealer for warranty information.

-. _ o.

+ • and- • Buttons

............... 11,20-21,33,40-47,49,52-59

Accessories, Included ...................... 3

Accessories, Optional ................... 76-81

Accessory, Order Form ................. 79-81

Adapter/Charger, Using .................. 4,12

Animation Indicators ................... 28,57

Animation Recording ................... 56-57

Assistance ................. 1,3,89,Back Cover

Audio/Video Cable (Optional) ............ 72,78

A UDIOAZlDEO Jacks ................... 10,72

Auto Focus ............................. 36

Auto Head Cleaner ..................... . .30

BA TT. RELEASE Button ................ 10,13

Battery Level Indicator ............... 15,26-27

Battery Safety Precautions ................. 13

Battery, Care and Storage .................. 15

Battery, Using Rechargeable ............. 13-15

Black Fader .......................... 60-61

Blue Fader ........................... 60-61

BRIGHT Control .................... 7,9,24,68

Camcorder Lens, Cleaning ................. 82

Camcorder, Cleaning ...................... 82

Camcorder, Powering ................... 12-16

Camcorder, Turning On .................... 5

Camcorder, Unpacking ..................... 3

Camera Edit Feature ...................... 31

CAMERA/OFF/VCR Switch

............... 5,8,10,13,15,16,20-23,29-31

............. 33,34,38,50,54,56,68,69,70,73

Car Cord Adapter, Optional .............. 16,76

Care and Maintenance .................. 82-83

Care and Storage of Battery ................ 15

Cassette Adapter ...................... 66-67

Cassette Adapter, Install Battery ............. 66

Cassette Door .......................... 5,19

Cassette Warning Indicator .............. 28-29

Cassettes, Care and Storage ................. 19

Cassettes, Inserting and Removing ........... 19

Cautions ................... Inside Front Cover

Change Indicator ...................... 26-27

Charging the Battery ...................... 14

Checking Problems .................... 84-87

Cinema Feature ....................... 62-63

Cleaning Camcorder ...................... 82

Clock Cell Compartment ................ 10,48

Clock Cell Warning ................. 28-29,48

Clock Cell, Installing ...................... 48

Color Filter ............................. 43

Contents ............................... 1-2

Controls, Camcorder .................... 9-11

Copying Tapes ........................ 72-73

COUNTER R/M Button ................. 70,73

Customer Assistance ......... 1,3,89,Back Cover

Date and Time Display ............ 26-27,48-49

Date and Time, Record on Tape .......... 50-51

Date and Time, Set ....................... 49

DC IN Jack, Camcorder ................ 4,10,12

Design Specifications ..................... 88

Dew Warning Indicator .................... 28

Digital Zooming ......................... 39

DISPLAY Button .................... 11,50-51

Displays, Viewfinder and LCD Monitor .... 26-29

EDIT SEARCH + and - Buttons ..... 11,22-23,31

EIS (Electronic Image Stabilizer) Button .... 11,38

EIS Indicator .......................... 28,38

EJECT Button ................ 5,9,19,20-21,68

Electronic Image Stabilizer ................. 38

Electronic Indexing ....................... 32

Erase Protection .......................... 18

Exposure Control ......................... 33

Exposure Indicator .................... 28-29

Eyepiece Focus Control ......... 7,9,20-21,25,68

Fade and Wipe Indicators .......... 26-27,60-61

FADE/WIPE Button .......... 11,22-23,27,60-61

Fading In and Out ..................... 60-61

FAR • and NEAR • Buttons

............... 11,29,36-37,40-47,49,52-59

FF Button ........................... 11,31,69

First-Time Operation .................... 3-11

Flying Erase Head ........................ 30

Focus Indicators .................. 28-29,36-37

Focus Lock Feature ....................... 37

Focusing ............................. 36-37

Full Auto Mode ........................ 6,32

FULL A UTO/PRESET Switch ...... 6,9,20-21,26

........ 29,32-37,40-47,49,52,54,56,58,60-63

Gain Up Feature ......................... 42

Hand Strap ............................ 4,10

High Shutter Speed Feature .............. 62-63

Included Accessories ....................... 3

INDEX Indicator .................... 28-29,32

Information to User . ...................... 88

Inserting and Removing Cassettes ........... 19

Installing Clock Cell ...................... 48

JLIP ID No.............................. 53

LCD Monitor ....... 7,9,19,20-21,24,26-29,68,82

LCD Monitor or Viewfinder Playback ........ 68

Lens ................................. 9,82

Lens, Cleaning ............................ 82

LENS COVER Control ......... 4,10,20-21,22-23

LENS COVER Indicator ................. 26-27

Limited Warranty ...................... 90-91

Maintenance and Care .................. 82-83

Making a Recording .................... 20-23

MAN. W.BAL Button ................. 11,34-35

Manual Focus ........................... 37

Manual Focus Indicators ........... 28-29,36-37

Memory-Stop Feature ..................... 70

MENU Button ......... 11,20-21,40-47,49,52-59

Microphone ........................... 9,30

Mosaic Fader ......................... 60-61

NEAR I_ and FAR • Buttons

............... 11,29,36-37,40-47,49,52-59

Operation, First-Time .................... 3-11

Optical Zooming ......................... 39

Optional Accessories ................... 76-81

Order Form, Accessory ................. 79-81

PA USE Indicator ............. 5,8, 21,26,32,33

Pause, Stop-Action ....................... 69

PLA Y/PA USE Button ............ 8,11,69,73,75

Playback ............................. 66-75

Playback Features ..................... 69-71

Playback on a TV With AUDIO/VIDEO IN

Jacks ............................. 72-73

Playback on a TV Without Audio/Video

Inputs ............................ 74-75

Playback Speeds ......................... 18

Playback, First ............................ 8

Playback, Viewfinder or LCD Monitor ........ 68

Plug Adapter (Optional) ................... 12

POWER (CAMERA/OFF/VCR) Switch

............... 5,8,10,13,15,16,20-23,29,31

............. 33,34,38,50,54,56,68,69,70,73

Powering the Camcorder ................ 12-16

Problem Solving ....................... 84-87

Product Registration ......... Inside Front Cover

Production Effects Indicators .......... 26,62-63

PROG.AE/EFFECT Button .... 11,22-23,26,62-63

Proper Care and Storage ................... 83

PUSH Button ................. 5,9,19,20-21,68

PUSH/OPEN Button ....... 5,7,9,19,20-21,24,68

QUICK REC Button .................... 10,30

Quick Record Feature ..................... 30

Quick Review Feature ..................... 31

REC _.1_!, Indicator ..................... 8,26

Recording Menu .................. 40-46,49,52

Recording Menu - Sub Menu ............ 52-59

Recording Speed ........................ 6,18

Recording Tips .......................... 17

Recording, First ........................... 8

Recording, Making ..................... 20-23

Refreshing the Battery ..................... 14

Registration Card ........... Inside Front Cover

REW Button .................... 8,11,31,69,70

RF DC OUT Jack ...................... 10,74

RF Output Adapter, Optional .......... 74-75,78

Safety Tab .............................. 18

Searching, Visual ......................... 69

Self-Timer Feature ..................... 54-55

Self-Timer Indicator ................. 28,54-55

Sepia Feature ......................... 62-63

Set the Date and Time ..................... 49

Shoulder Strap Attachment Rings ......... 10,64

Shoulder Strap, Attaching .................. 64

Shutter Wipe ......................... 60-61

Slide Wipe ........................... 60-61

Solving Problems ...................... 84-87

SPEAKER VOLUME Control .............. 9,68

Specifications ........................... 88

Speeds, Recording and Playback ........... 6,18

Sports Feature ........................ 62-63

SpoEp Switch ............. 6,11,18,20-21,26,44

Status Displays .......................... 26

STOP Button .............. 8,11,31,68,69,73,75

Stop-Action Pause ........................ 69

Sub Menu of Recording Menu ............ 52-59

Table of Contents ......................... 1-2

Tally Light ..................... 8,22-23,30,53

Tally Light Feature ....................... 53

Tape Copying .......................... 72-73

TAPE END Warning ................ 28-29, 44

Tape Length Indicator .................. 28-29

Tape Positioning ....................... 31,69

Tape Speed Indicators .................. 18,26

Tape Time-Remaining Display ........... 28,44

Tape Wheel ............................ 5,19

Tape Window .......................... 5,19

Tele Macro Zooming Feature ............... 41

Things to Avoid .......................... 83

Thumb Trigger ....................... 8,10,23

Tilt, LCD Monitor ........................ 24

Tilt, Viewfinder .......................... 25

Time and Date Display ................. 48-49

Time and Date, Record on Tape .......... 50-51

Time and Date, Set ....................... 49

Time Counter ...................... 28-29,70

Time-Lapse Indicators .................. 28,59

Time-Lapse Recording .................. 58-59

Time-Remaining Display ................ 28,44

Tips, Recording .......................... 17

Tips, Traveling .......................... 65

Title Display .......................... 26-27

Title, Creating ........................... 46

Titles, Preset ............................ 45

Tracking ................................ 71

TRACKING Buttons .................... 11,71

Traveling Tips ........................... 65

Tripod, Using ............................ 77

Trouble Checks ....................... 84-87

Turning On the Camcorder .................. 5

Twilight Feature ....................... 62-63

Unpacking the Camcorder ................... 3

User Information ......................... 88

Using Cassette Adapter ................. 66-67

Video Cassettes ....................... 18-19

Viewfinder ........... 7,9,20-21,25,26-29,68,82

View finder Displays ................... 26-29

Viewfinder or LCD Monitor Playback ........ 68

Viewfinder, Cleaning ...................... 82

Visual Searching ......................... 69

Warranty, Limited ..................... 90-91

White Balance ........................... 34

White Balance Indicators ........... 28-29,34-35

Wipe and Fade Indicators .......... 26-27,60-61

Wiping In and Out ..................... 60-61

Zoom Indicator ..................... 26-27,39

Zoom Lever ................... 10,22-23,27,39

Zooming ............................... 39

Need Assistance? We want to help!

U.S. Consumers:

Customer Service 800-336-1900

• • • • • • • • • • • • • • • • •

Accessories 800-338-0376

Canadian Consumers:

English 800-522-0338 French 800-522-0445

If your camcorder needs service, please

contact your dealer or the nearest Servicenter

from the yellow pages. Please do not send any products to the Indianapolis address listed

in this manual or on the carton. This will only add delays in service for your product.

• • • • • ee • • • • • • ee • • • • ee • •e •

• •e • • • • • • • •e • ee • • • • • • • • • •

f,,_ THOMSON CONSUMER ELECTRONICS

10330 N Meridian Street

Indianapolis, IN 46290

Marca(s) Registrada(s) Printed in Japan

Part Number 96-ProV800C-1

LYT0003-004A(VP)

RCA PROV800C Owner’s Manual

Specifications and Main Features

Frequently Asked Questions

User Manual
