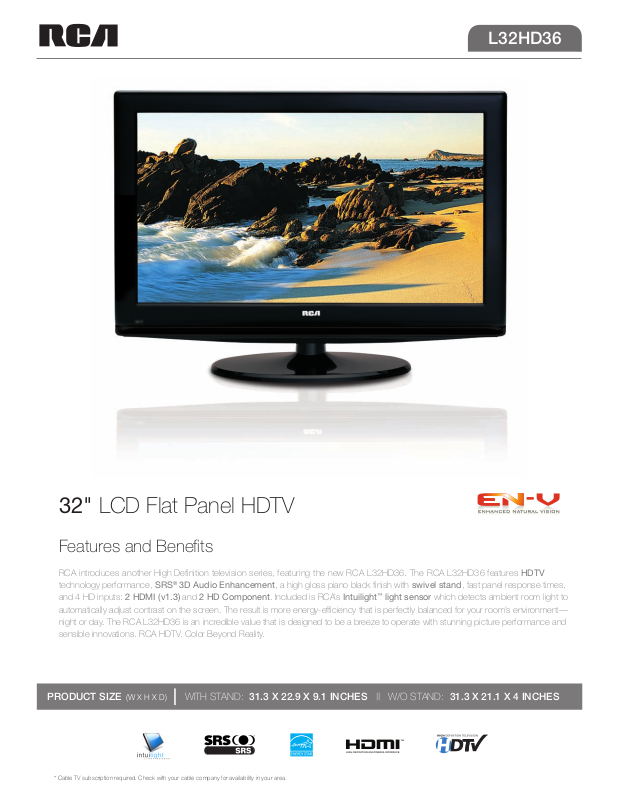

L32HD36
32" LCD Flat Panel HDTV
Features and Benefits
RCA introduces another High Definition television series, featuring the new RCA L32HD36. The RCA L32HD36 features HDTV
technology performance, SRS® 3D Audio Enhancement, a high gloss piano black finish with swivel stand, fast panel response times,
and 4 HD inputs: 2 HDMI (v1.3) and 2 HD Component. Included is RCA’s Intuilight™ light sensor which detects ambient room light to
automatically adjust contrast on the screen. The result is more energy-efficiency that is perfectly balanced for your room’s environment—
night or day. The RCA L32HD36 is an incredible value that is designed to be a breeze to operate with stunning picture performance and
sensible innovations. RCA HDTV. Color Beyond Reality.
PRODUCT SIZE
* Cable TV subscription required. Check with your cable company for availability in your area.
(W X H X D)
WITH STAND: 31.3 X 22.9 X 9.1 INCHES || W/O STAND: 31.3 X 21.1 X 4 INCHES
L32HD36
AUDIO
ANTENNA/
CABLE
DIGITAL AUDIO
OUTPUT(Optical)
PC INPUT
VIDEO
HDMI 1
INPUT
HDMI 2
/DVI
INPUT
L
AUDIO
R
COMPONENT
INPUT (CMPT)
AUDIO/IVIDEO
INPUT 1 (VID1)
Pr
Pb
Y
AUDIO
VIDEO
L
R
RS86A SIDE
AV OVERL AY
(Without DVD)
RS86A SIDE
AV OVERL AY
(With DVD)
S-VIDEO INPUT
AUDIO-L
AUDIO-R
VIDEO
AUDIO/VIDEO
INPUT 2 (VID2)
HDMI 3
INPUT
Tv522 SIDE
AV OVERL AY
S-VIDEO INPUT
AUDIO-L
AUDIO-R
VIDEO
SERVI CE
AUDIO/VIDEO
INPUT 2 (VID2)
AUDIO-L
AUDIO-R
VIDEO
SERVI CE
AUDIO/VIDEO
INPUT 2 (VID2)
S-VIDEO INPUT
AUDIO-L
AUDIO-R
VIDEO
AUDIO/VIDEO
INPUT 2 (VID2)
HDMI 3
INPUT
S-VIDEO INPUT
AUDIO-L
AUDIO-R
VIDEO
SERVI CE
AUDIO/VIDEO
INPUT 2 (VID2)
AUDIO-L
AUDIO-R
VIDEO
SERVI CE
AUDIO/VIDEO
INPUT 2 (VID2)
Specifications
TECHNOLOGY
Tuner NTSC/ATSC/QAM
Analog Video Formats (NTSC/480i) Composite, S-Vid,
Component
Video Formats (480p, 720p, 1080i) Component, RGB, HDMI
HDTV Capability Yes
Category LCD
Display Type LCD
Screen Size 32W
Display Aspect Ratio 16:9
Display Resolution 1366x768
Brightness (cd/m2) 450
Contrast Ratio 1500:1
Viewing Angle Horizontal/Vertical 176/176
Response Time 8 ms
Adjustable Color Temperature Yes
Adjustable Picture Control Bright, Cont, Sharp,
Color, Tint
Format Control Yes
Comb Filter 3D Y/C
Reverse 3:2 Pull Down (Film Mode) Yes
Noise Reduction 3D
SOUND
Audio Power (Watts) Front Speakers 8 W/CH x 2
Treble, Bass, Balance, Volume,
Mute Control Yes
Broadcast Stereo SRS® 3D
Second Audio Program (SAP) Yes
Dolby* Processing Yes
Headphone Adjustments Yes
CONVENIENCE
Side Panel Controls Power, CH +/–, Vol +/–,
Menu
Auto Channel Search Yes
Multilingual On–Screen–Display English, French, Spanish
Channel Labelling Yes
Closed Caption Capability Yes
ENERGY STAR® Qualified Yes
Parental Control (V–Chip) USA & Canada
Picture Reset Yes
Picture Memory Presets Yes
Clock Yes
Sleep Timer Yes
PC Compatibility Yes (via RGB)
REAR CONNECTIONS — INPUTS
RF Input (ATSC/NTSC) 1
Composite Video Input 1
Audio Input for Composite 1 (shared with YPrPb)
RGB Input 1
Audio Input for RGB 1 - 3.5mm PC Audio
Component Video Input
(YCrCb/YPrPb) 1
Audio Input for Component Video 1 (shared with composite)
HDMI Inputs ** 2 V1.3 (1 DVI compatible)
Audio input for DVI 1 L/R
RCA products are designed
with the environment in mind.
REAR CONNECTIONS — OUTPUTS
Digital Audio Output (SPDIF) 1 - Optical
SIDE PANEL — INPUTS
Composite Video Input 1
S-Video Input 1
Audio Input for Composite 1
HDMI Inputs ** 0
USB Input 1 - SW Upgrade
SIDE PANEL — OUTPUTS
Headphone Jack Output Yes
REMOTE CONTROL
Model Number RC2254702
Type Universal
Batteries Included Yes
SUPPLIED ACCESSORIES
Power Supply Internal
Power Cord Yes
Quick Start Guide Yes
User’s Guide & Warranty (E/F/S) Go to RCA.com/Television
GENERAL
TV Finish High-gloss black
Stand Included (swivel)
VESA Wall Mount Compatible Yes (200 x 100) (M4/11)
Packaging Size (HxWxD) inches 25.7 x 35.9 x 9.5
Weight (lbs) (Product/Packaged) 34.2 / 39.7
ENERGY STAR and the ENERGY STAR mark are registered U.S. marks.
* Dolby is a registered trademark of Dolby Laboratories.
** HDMI, the HDMI logo and High-Definition Multimedia Interface are trademarks
or registered trademarks of HDMI Licensing LLC.
SRS® and the SRS Symbol are a trademarks of SRS Labs, Inc.
Product features, definitions and physical specifications are subject to change
without notice. RCA and associated marks are trademarks of THOMSON S.A.
used under license to TTE CORPORATION.
JACK PANELS
Side Panel Back Panel
