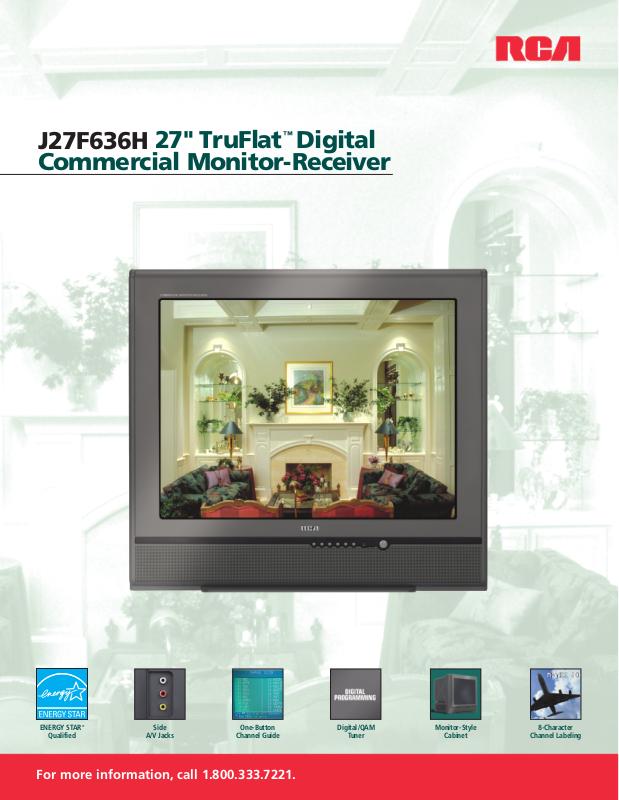

J27F636H
27" TruFlat
Digital
Commercial Monitor-Receiver
ENERGY STAR
Qualified
®
Side
A/V Jacks
One-Button
Channel Guide
For more information, call 1.800.333.7221.
Digital/QAM
Tuner
Monitor-Style
Cabinet
MOVIES 20
MOVIES 20
8-Character
Channel Labeling
![](/html/9b/9bae/9baeca533d3d43a8639f6f2a2ef23d022def3cdf76acd6c63347084ef3af809d/bg2.png)
J27F636H TruFlat™Digital
R
L/MONO
VIDEO
L
/MONO
A
UDIO
ANALOG
A
NTENNA
DIGITAL
A
NTENNA
R
VIDEO
S-VIDEO
AUDIO
VIDEO 1
Picture Technology
Flat Tube reduces peripheral screen reflections and glare by over 60% compared
to standard tubes. Offers a wider effective viewing area from any angle. Detail
clarity adds realism.
High-Performance Video System with advanced circuitry to deliver outstanding
picture performance, with up to 720 lines of horizontal resolution.*
C
omb Filtercreates even more superb color, sharpness and detail in the picture,
e
liminating blurred edges between colors and reducing dot crawl.
Sound Technology
Broadcast Stereo Sound and SAP for rich, stereo sound or SAP (secondary
audio program) where available. 3.5 watts /channel.
Sound Logic™Audio Leveler eliminates sound blasts during commercial breaks,
maintaining a more consistent overall audio level.
Commercial Features
ATSC/NTSC/QAM Tuner for a wide range of options using off-air, satellite/cable
or internally generated program signals.
Channel-Guide with One-Button Access for an on-screen listing of all
available channels and their identification labels.
8-Character Channel Labeling allows for on-screen display of both network
affiliation and channel number
User Remote with TV1/TV2/TV3 Capability allows simultaneous control
of multiple monitors in the same room.
ENERGY STAR®Qualification saves energy costs.
Configuration Menus with Non-Volatile Memory for site-specific
specifications and limitations on how televisions can be operated and retained,
even when power is lost.
Selectable Weak Signal Muting mutes audio, blanks video and provides an
on-screen message if signal is weak or lost.
Selectable Clock and Scheduler with automatic time set allows TV signal to
automatically set time (where available); scheduled turn on/off events can be
one-time or recurring.
Volume Limiter and Initial Volume establish maximum and consistent initial
volume settings each time television is turned on.
Selectable Automatic Turn-Off permits television to turn off automatically
after a period of inactivity
Side Access A/V Jacks offer convenient connection of external audio or
video components.
Front Panel Lockout prevents tampering.
Monitor-Style Cabinet with mounting bosses provides integral
mounting ability
.
.
.
Specifications
Lines of Horizontal Resolution: 720*
Inputs: Rear: 1 composite or S-Video, 1 L/R audio,
Analog RF,, Digital RF
Side: 1 composite video, 1 L/R audio
side
rear
Power Cord: 10-foot, 3-prong grounded
Power Requirements: 120VAC (+/-)10%, 60Hz
Power Consumption: Stand-by: less than 1 watt (ENERGY STAR Qualified)
Operating: 101 watts
Cabinet: Construction: high-impact flame-retardant
polystyrene, spill-resistant back
Finish: textured dark gray
Dimensions: 24.2"H, 27"W, 21.1"D
Remote: Guest Remote included (R130K1)
Shipping Weight: Product: 128 lbs. / Shipping 139 lbs.
Limited Warranty: 1 year parts and labor, 2 years picture tube
* Lines per picture width based on EIA measurement criteria.
This television receiver provides display of television closed-captioning in accordance with §15.119
of the FCC rules. This television does not support color attributes of television closed-captioning.
Optional Accessories
Master Remote (R130K2)
The RCA Master Remote maintains control of all setup menus,
including audio and video functions.
Technology, Inc.
TTE
©2006
ca.com/rcacommercial •
.r
www
Commercial Sales and Distribution •MS INH605
101 West 103rd Street • Indianapolis, Indiana 46290-1024
Printed in U.S.A. 9/06-5M
TV pictures simulated. Specifications subject to change without notice. ENERGY STAR and the ENERGY STAR mark are registered U.S. marks.
RCA and associated marks are trademarks of THOMSON S.A.used under license to TTE Corporation. J27F636H-0
