USER'S

GUIDE

CO

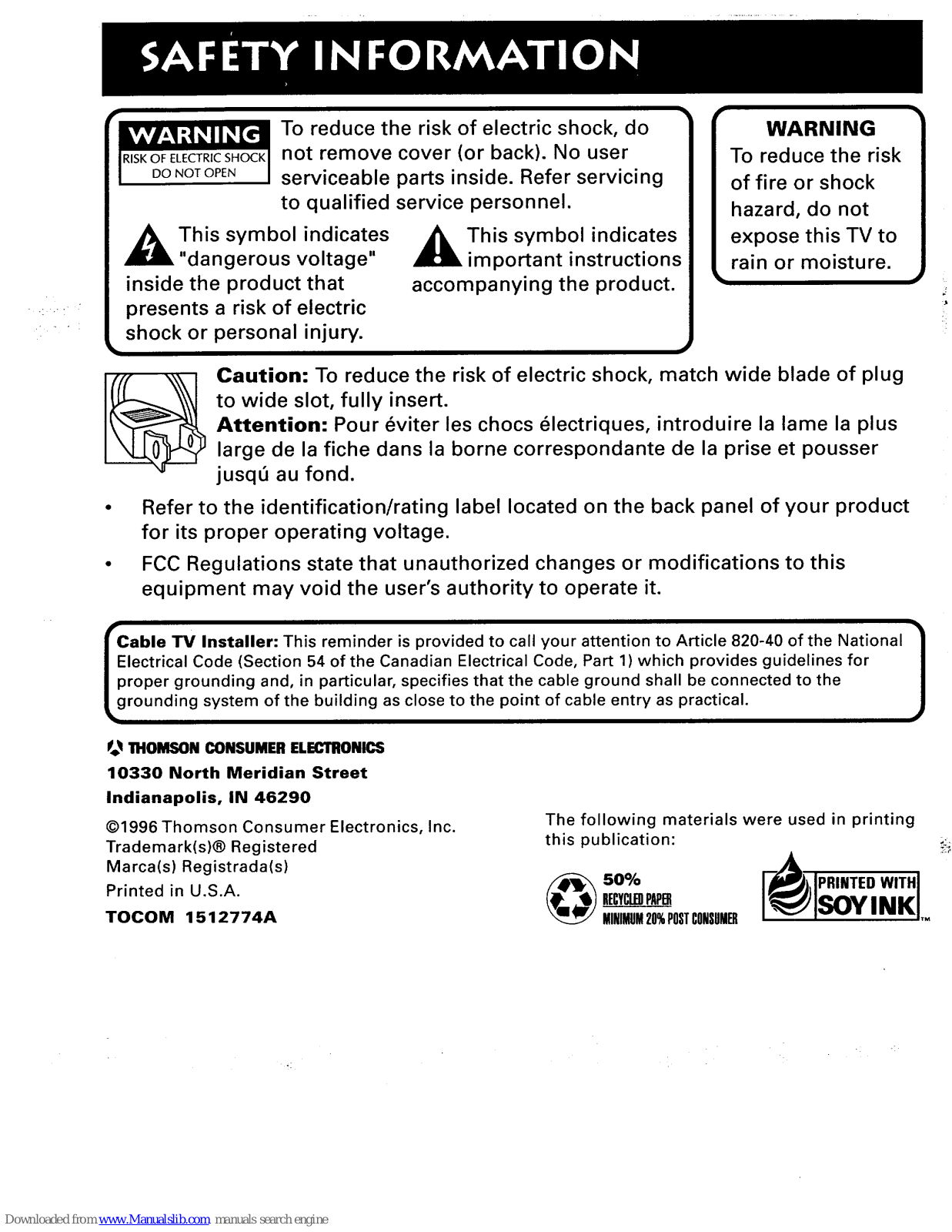

ikvAvi;WtJ_ll _[_.!1 To reduce the risk of electric shock, do

RISKOFELECTRIC SHOCK I not remove cover (or back). No user

DONOTOPENI serviceable parts inside. Refer servicing

to qualified service personnel.

_k his symbol indicates

"dangerous voltage"

inside the product that
presents a risk of electric

shock or personal injury.

_llL his symbol indicates

important instructions

accompanying the product.

WARNING

To reduce the risk
of fire or shock

hazard, do not

expose this TV to

rain or moisture.

Caution: To reduce the risk of electric shock, match wide blade of plug

to wide slot, fully insert.
Attention: Pour _viter les chocs _lectriques, introduire la lame la plus

large de la fiche dans la borne correspondante de la prise et pousser

jusqe au fond.

Refer to the identification/rating label located on the back panel of your product

for its proper operating voltage.

FCC Regulations state that unauthorized changes or modifications to this
equipment may void the user's authority to operate it.

able TV Installer: This reminder is provided to call your attention to Article 820-40 of the National |

ectrical Code (Section 54 of the Canadian Electrical Code, Part 1) which provides guidelines for

J

roper grounding and, in particular, specifies that the cable ground shall be connected to the
rounding system of the building as close to the point of cable entry as practical.

_ 1HOMSON CONSUMER ELECTRONICS

10330 North Meridian Street

Indianapolis, IN 46290

©1996 Thomson Consumer Electronics, Inc.
Trademark(s)® Registered
Marca(s) Registrada(s)

Printed in U.S.A.

TOCOM 1512774A

The following materials were used in printing
this publication:

uEcYctmPAPm SOYINK

MINIMUM20%POSTCONSUMER ,-

+:.

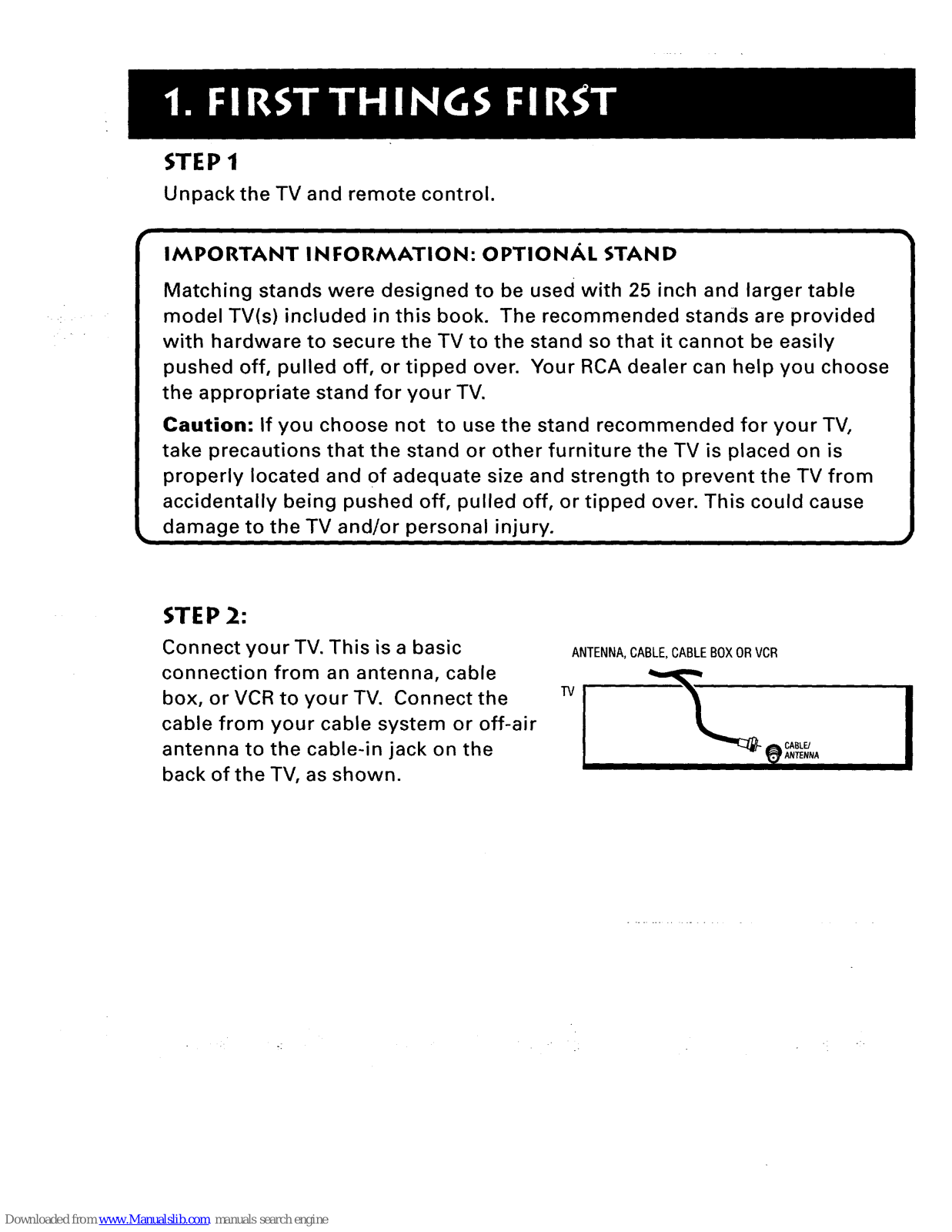

STEP 1

Unpack the TV and remote control.

IMPORTANT IN FORMATION: OPTIONAL STAN D
Matching stands were designed to be used with 25 inch and larger table

model TV(s) included in this book. The recommended stands are provided

with hardware to secure the TV to the stand so that it cannot be easily

pushed off, pulled off, or tipped over. Your RCA dealer can help you choose

the appropriate stand for your TV.
Caution: If you choose not to use the stand recommended for your TV,

take precautions that the stand or other furniture the TV is placed on is

properly located and of adequate size and strength to prevent the TV from
accidentally being pushed off, pulled off, or tipped over. This could cause
damage to the TV and/or personal injury.

STE P 2:

Connect your TV. This is a basic
connection from an antenna, cable

box, or VCR to your TV. Connect the
cable from your cable system or off-air
antenna to the cable-in jack on the
back of the TV, as shown.

ANTENNA,CABLE,CABLEBOXORVCR

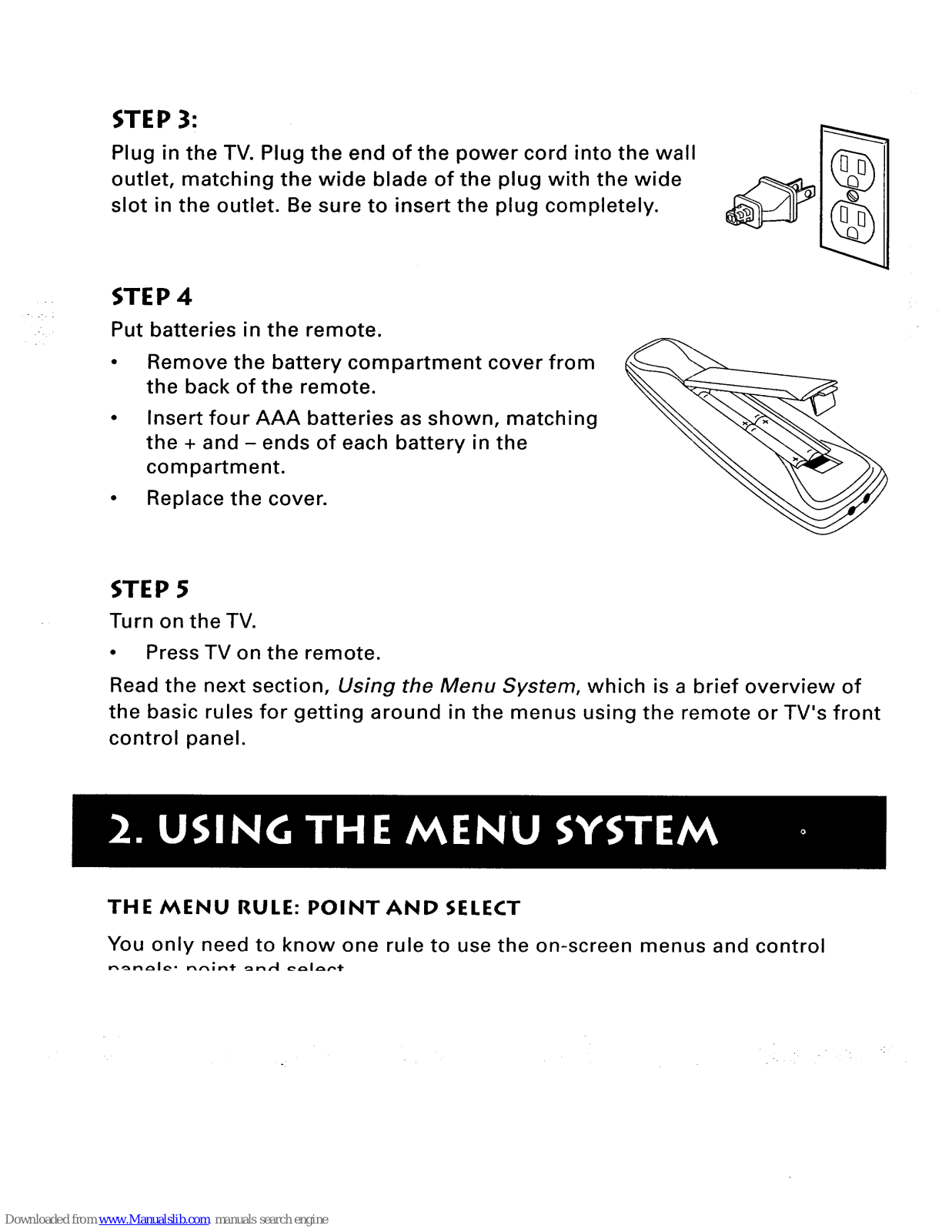

STEP 3:

Plug in the TV. Plug the end of the power cord into the wall
outlet, matching the wide blade of the plug with the wide
slot in the outlet. Be sure to insert the plug completely.

STE P 4

Put batteries in the remote.

• Remove the battery compartment cover from
the back of the remote.

• Insert four AAA batteries as shown, matching
the + and- ends of each battery in the

compartment.

• Replace the cover.

STE P 5

Turn on the TV.

• Press TV on the remote.

Read the next section, Using the Menu System, which is a brief overview of
the basic rules for getting around in the menus using the remote or TV's front
control panel.

THE MENU RULE" POINTAND SELECT

You only need to know one rule to use the on-screen menus and control

r-,_n,_le- _,"_;n÷ _nA e._l_.,',÷

. C

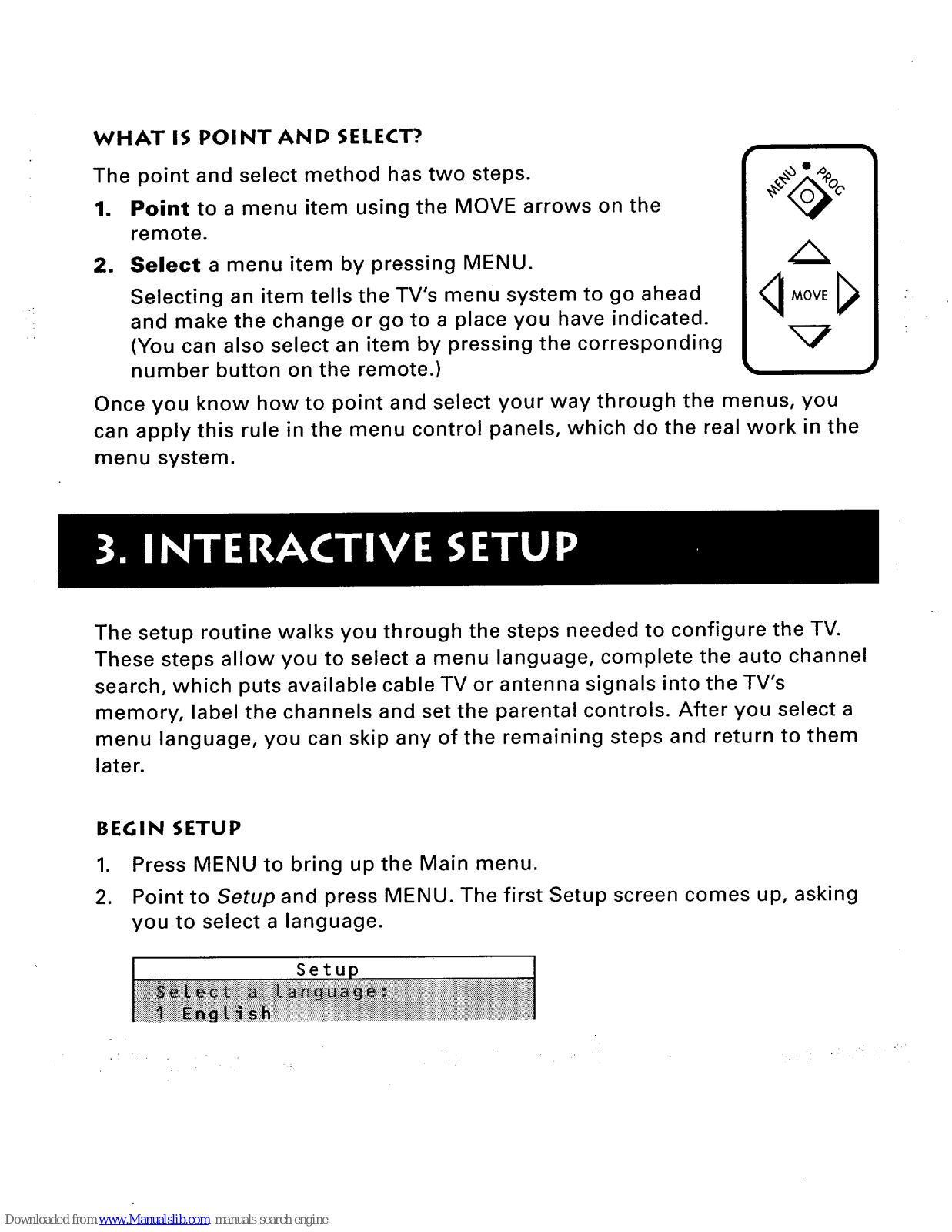

WHAT IS POINT AND SELECT?

The point and select method has two steps.

1. Point to a menu item using the MOVE arrows on the
remote.

2. Select a menu item by pressing MENU.
Selecting an item tells the TV's menu system to go ahead

and make the change or go to a place you have indicated.
(You can also select an item by pressing the corresponding
number button on the remote.)

p_

.-,3 e ,o^

Once you know how to point and select your way through the menus, you

can apply this rule in the menu control panels, which do the real work in the

menu system.

The setup routine walks you through the steps needed to configure the TV.
These steps allow you to select a menu language, complete the auto channel
search, which puts available cable TV or antenna signals into the TV's

memory, label the channels and set the parental controls. After you select a
menu language, you can skip any of the remaining steps and return to them

later.

BEGIN SETUP

1. Press MENU to bring up the Main menu.

2. Point to Setup and press MENU. The first Setup screen comes up, asking
you to select a language.

Setu

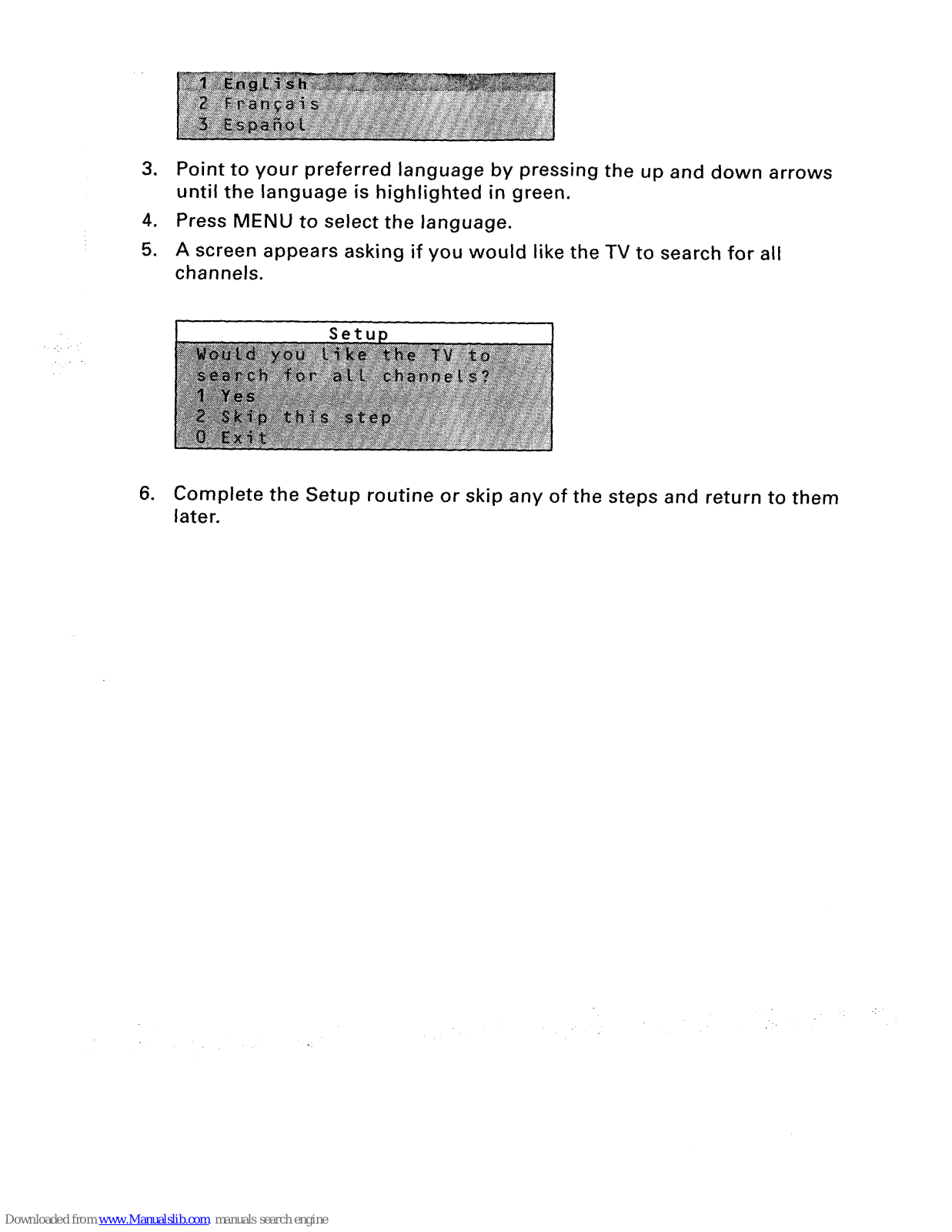

3. Point to your preferred language by pressing the up and down arrows
until the language is highlighted in green.

4. Press MENU to select the language.

5. A screen appears asking if you would like the TV to search for all
channels.

- .-. r •

Set

6. Complete the Setup routine or skip any of the steps and return to them

later.

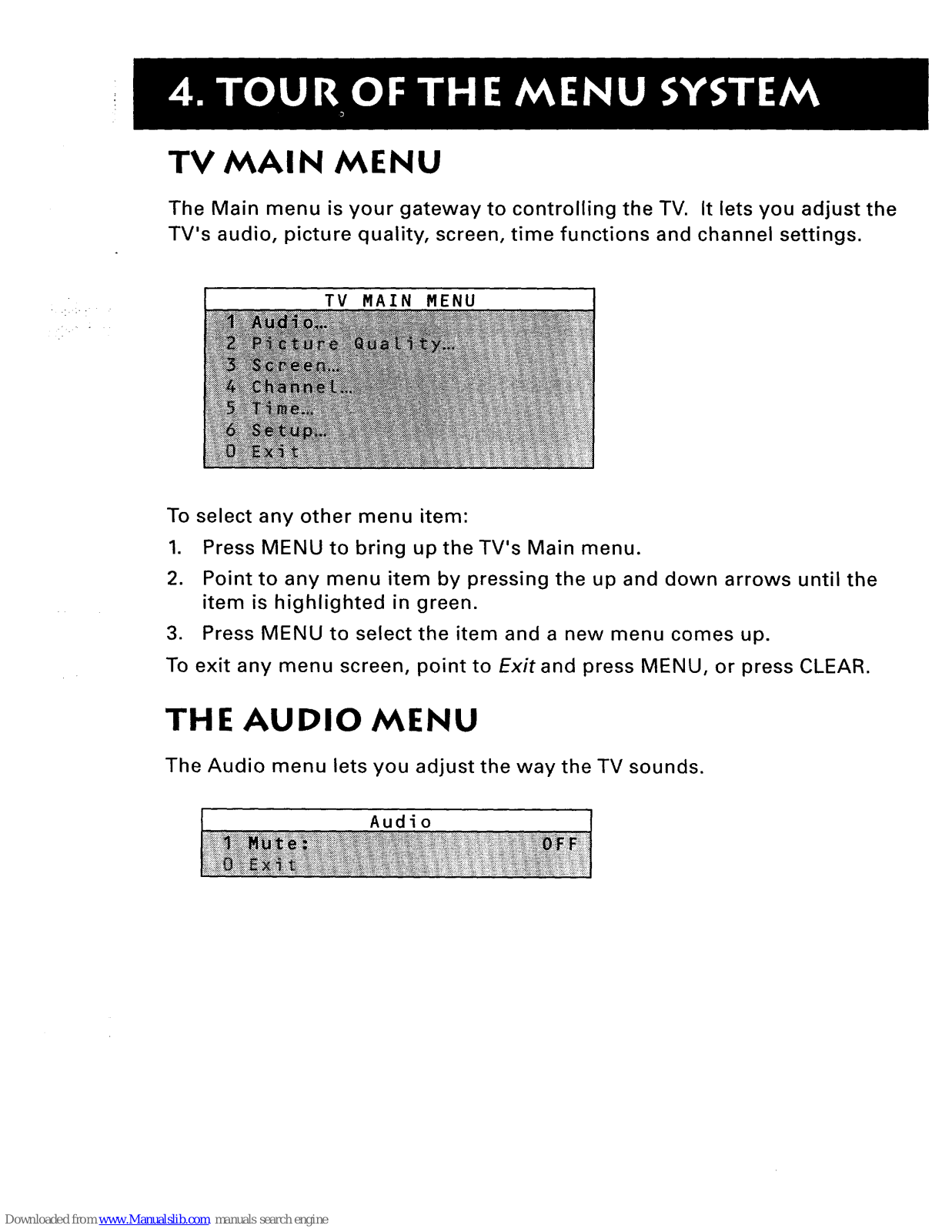

TV MAIN MENU

The Main menu is your gateway to controlling the TV. It lets you adjust the

TV's audio, picture quality, screen, time functions and channel settings.

TV MAIN MENU

To select any other menu item:

1. Press MENU to bring up the TV's Main menu.

2. Point to any menu item by pressing the up and down arrows until the
item is highlighted in green.

3. Press MENU to select the item and a new menu comes up.
To exit any menu screen, point to Exit and press MENU, or press CLEAR.

THE AUDIO MENU

The Audio menu lets you adjust the way the TV sounds.

Audio

Mute lurns OTTme I vs souncl. I-ress IVII-I_IU [0 IOCJgl_ [I]e IVlUU{_ I_LILUI'_
between ON and OFF.

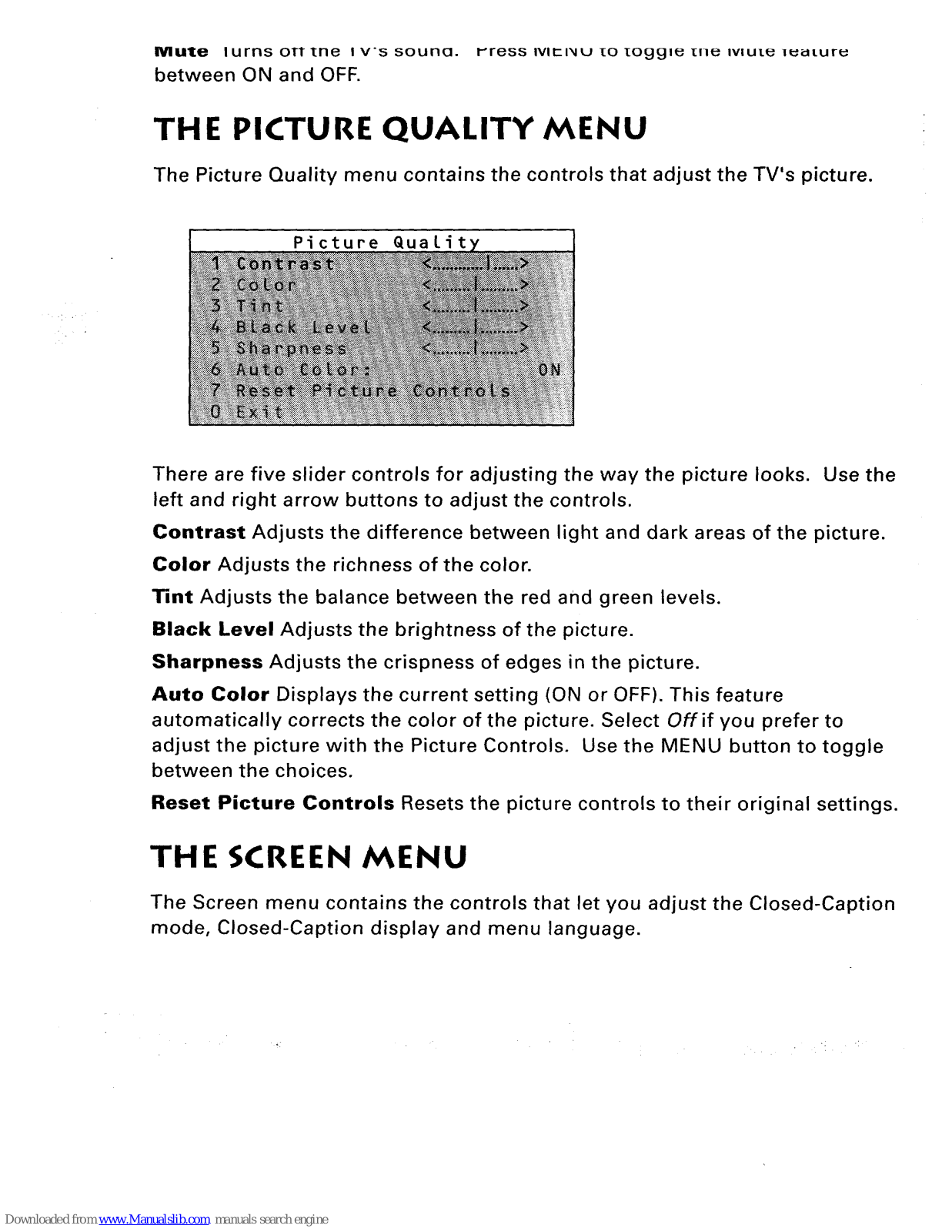

THE PICTURE QUALITY MENU

The Picture Quality menu contains the controls that adjust the TV's picture.

Picture Qualit

There are five slider controls for adjusting the way the picture looks. Use the

left and right arrow buttons to adjust the controls.

Contrast Adjusts the difference between light and dark areas of the picture.

Color Adjusts the richness of the color.
Tint Adjusts the balance between the red and green levels.
Black Level Adjusts the brightness of the picture.
Sharpness Adjusts the crispness of edges in the picture.
Auto Color Displays the current setting (ON or OFF). This feature

automatically corrects the color of the picture. Select Off if you prefer to
adjust the picture with the Picture Controls. Use the MENU button to toggle

between the choices.

Reset Picture Controls Resets the picture controls to their original settings.

THE SCREEN MENU

The Screen menu contains the controls that let you adjust the Closed-Caption

mode, Closed-Caption display and menu language.

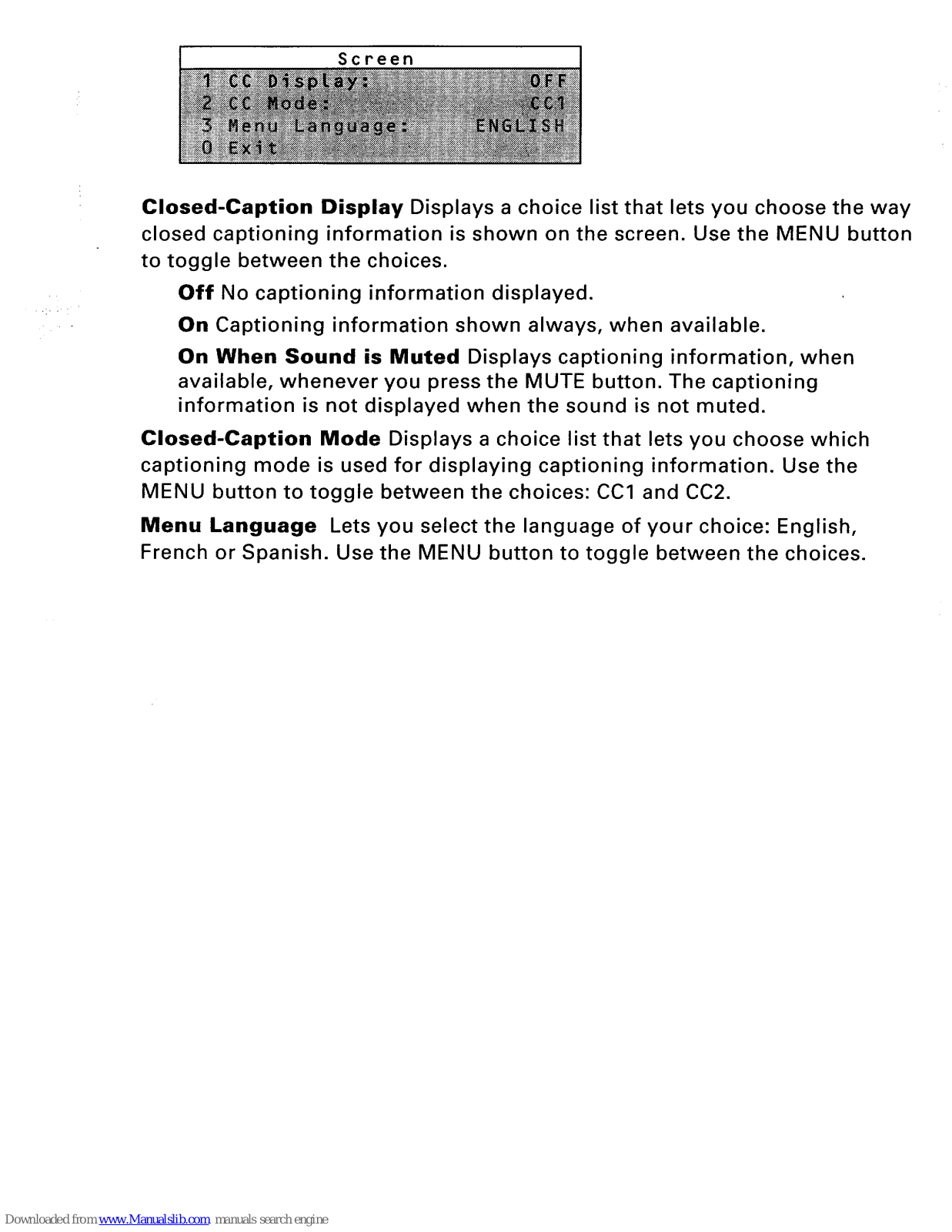

Screen

Closed-Caption Display Displays a choice list that lets you choose the way
closed captioning information is shown on the screen. Use the MENU button

to toggle between the choices.

Off No captioning information displayed.
On Captioning information shown always, when available.

On When Sound is Muted Displays captioning information, when
available, whenever you press the MUTE button. The captioning

information is not displayed when the sound is not muted.

Closed-Caption Mode Displays a choice list that lets you choose which
captioning mode is used for displaying captioning information. Use the

MENU button to toggle between the choices: CC1 and CC2.

Menu Language Lets you select the language of your choice: English,
French or Spanish. Use the MENU button to toggle between the choices.

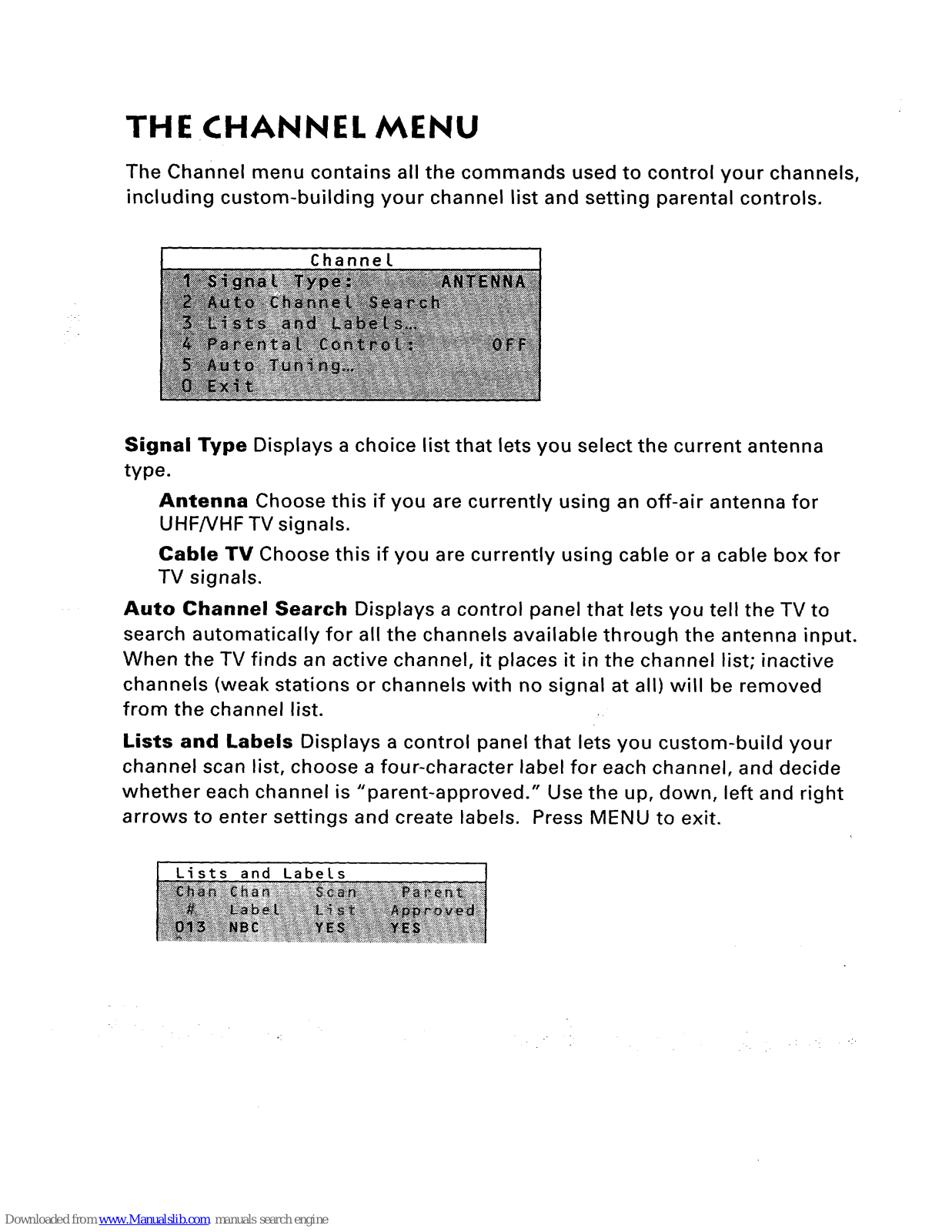

THECHANNEL MENU

The Channel menu contains all the commands used to control your channels,

including custom-building your channel list and setting parental controls.

Channel

Signal Type Displays a choice list that lets you select the current antenna
type.

Antenna Choose this if you are currently using an off-air antenna for

UHF/VHF TV signals.

Cable TV Choose this if you are currently using cable or a cable box for

TV signals.

Auto Channel Search Displays a control panel that lets you tell the TV to
search automatically for all the channels available through the antenna input.
When the TV finds an active channel, it places it in the channel list; inactive
channels (weak stations or channels with no signal at all) will be removed

from the channel list.
Lists and Labels Displays a control panel that lets you custom-build your

channel scan list, choose a four-character label for each channel, and decide
whether each channel is "parent-approved." Use the up, down, left and right
arrows to enter settings and create labels. Press MENU to exit.

Lists and Labels

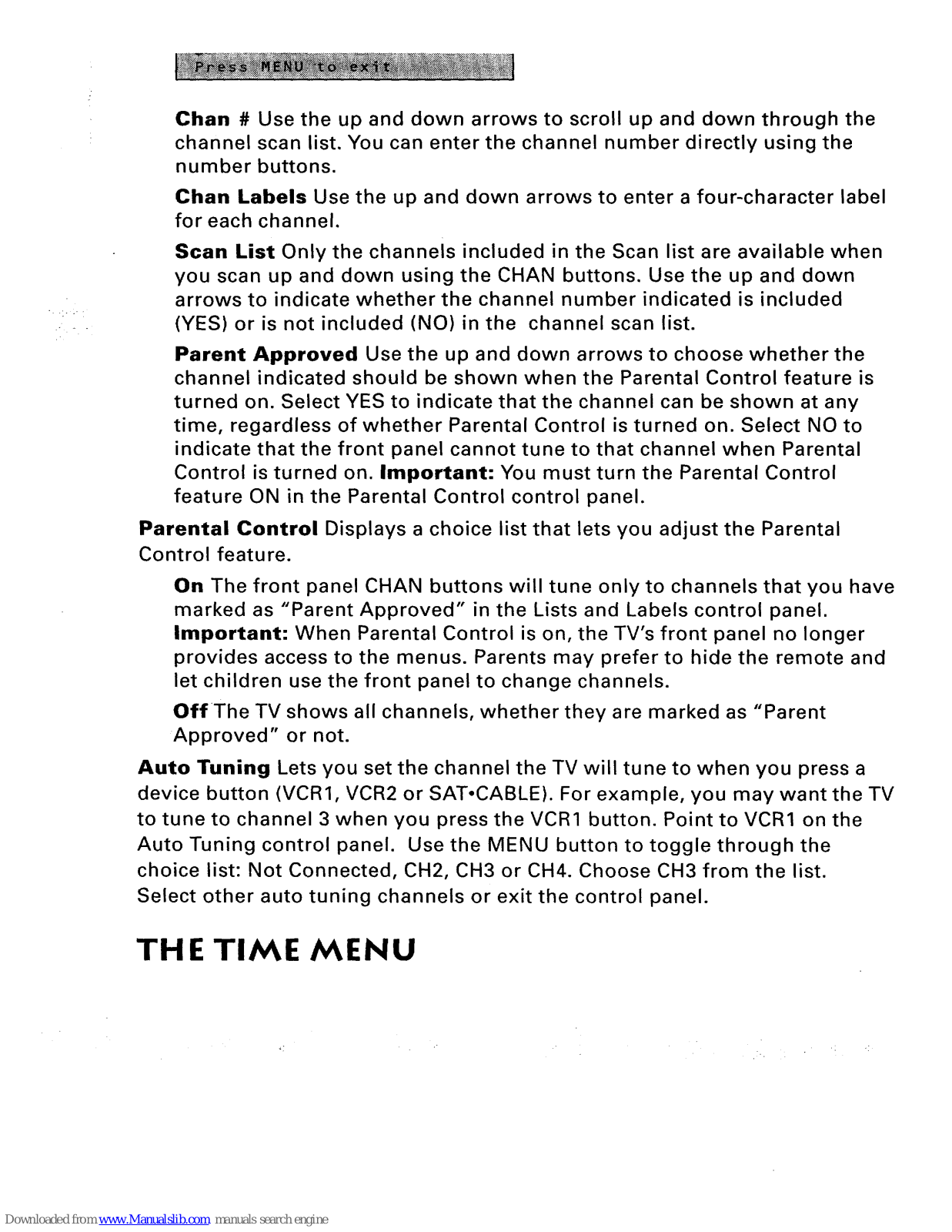

Chan# Use the up and down arrows to scroll up and down through the
channel scan list. You can enter the channel number directly using the

number buttons.

Chan Labels Use the up and down arrows to enter a four-character label
for each channel.

Scan List Only the channels included in the Scan list are available when
you scan up and down using the CHAN buttons. Use the up and down
arrows to indicate whether the channel number indicated is included
(YES) or is not included (NO) in the channel scan list.

Parent Approved Use the up and down arrows to choose whether the

channel indicated should be shown when the Parental Control feature is
turned on. Select YES to indicate that the channel can be shown at any
time, regardless of whether Parental Control is turned on. Select NO to

indicate that the front panel cannot tune to that channel when Parental

Control is turned on. Important: You must turn the Parental Control
feature ON in the Parental Control control panel.

Parental Control Displays a choice list that lets you adjust the Parental
Control feature.

On The front panel CHAN buttons will tune only to channels that you have

marked as "Parent Approved" in the Lists and Labels control panel.
Important: When Parental Control is on, the TV's front panel no longer
provides access to the menus. Parents may prefer to hide the remote and
let children use the front panel to change channels.

OffThe TV shows all channels, whether they are marked as "Parent
Approved" or not.

Auto Tuning Lets you set the channel the TV will tune to when you press a
device button (VCR1, VCR2 or SAT.CABLE). For example, you may want the TV
to tune to channel 3 when you press the VCR1 button. Point to VCR1 on the
Auto Tuning control panel. Use the MENU button to toggle through the
choice list: Not Connected, CH2, CH3 or CH4. Choose CH3 from the list.
Select other auto tuning channels or exit the control panel.

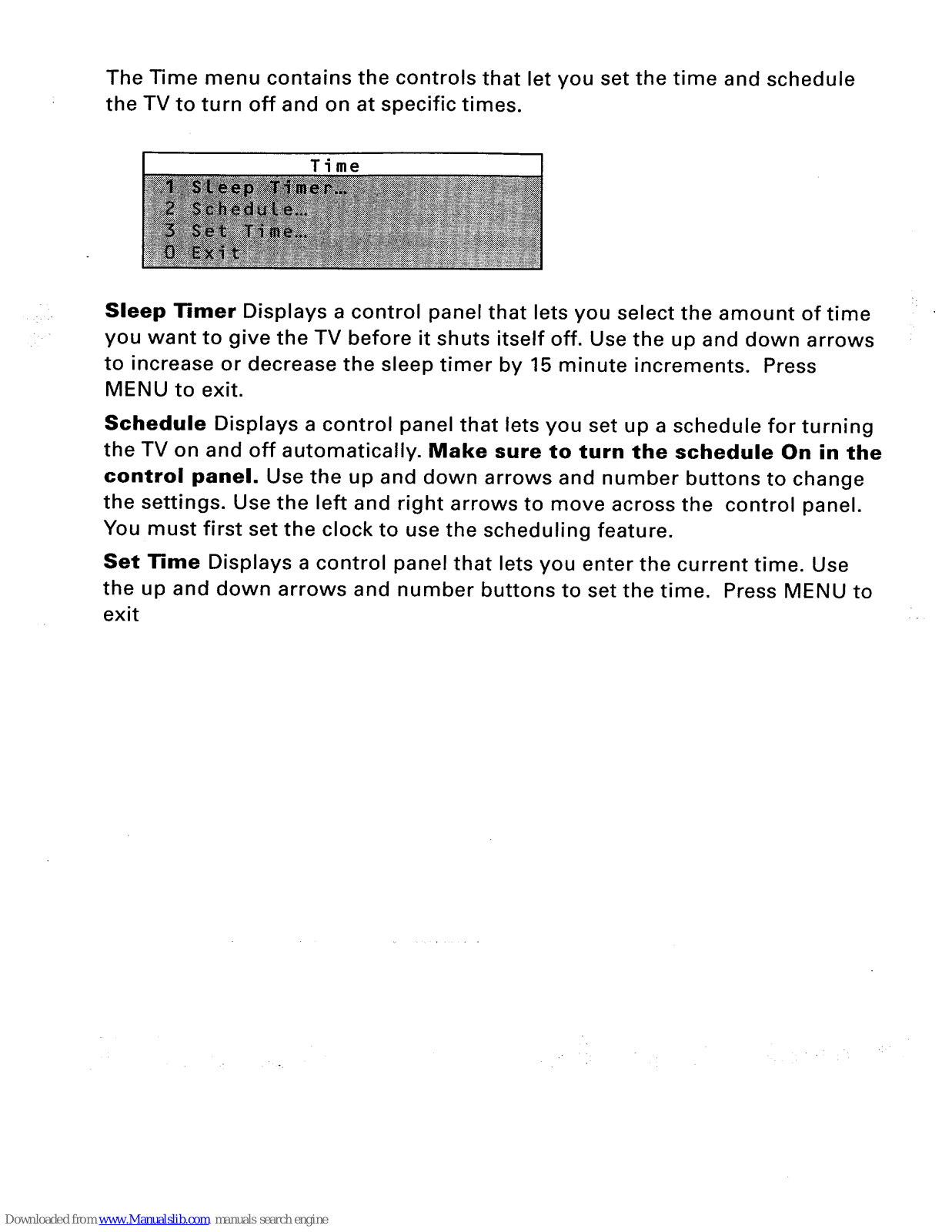

THE TIME MENU

The Time menu contains the controls that let you set the time and schedule
the TV to turn off and on at specific times.

Time

Sleep Timer Displays a control panel that lets you select the amount of time
you want to give the TV before it shuts itself off. Use the up and down arrows

to increase or decrease the sleep timer by 15 minute increments. Press

MENU to exit.

Schedule Displays a control panel that lets you set up a schedule for turning

the TV on and off automatically. Make sure to turn the schedule On in the

control panel. Use the up and down arrows and number buttons to change

the settings. Use the left and right arrows to move across the control panel.
You must first set the clock to use the scheduling feature.

Set Time Displays a control panel that lets you enter the current time. Use

the up and down arrows and number buttons to set the time. Press MENU to
exit

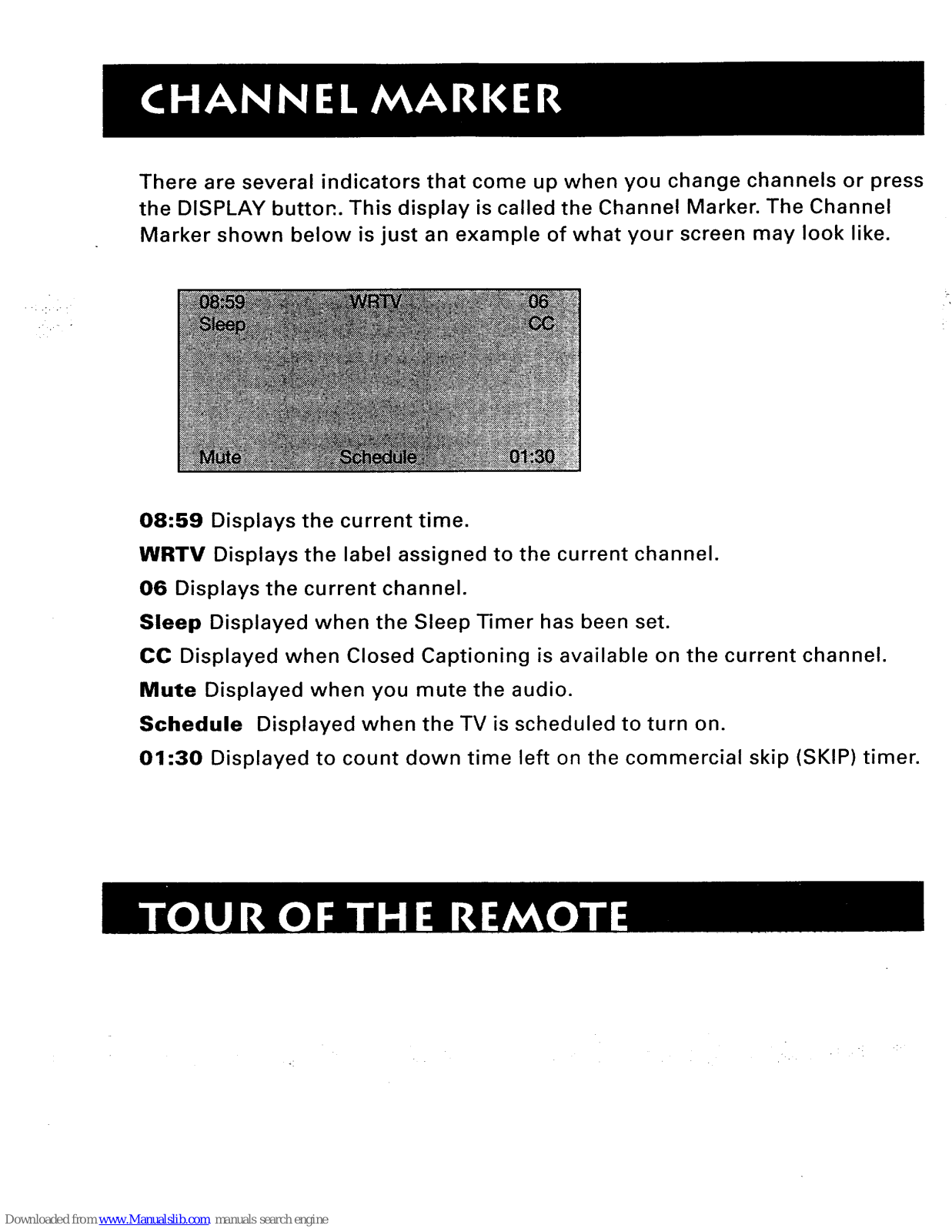

There are several indicators that come up when you change channels or press
the DISPLAY button. This display is called the Channel Marker. The Channel

Marker shown below is just an example of what your screen may look like.

• ..._..-:

o

08:59 Displays the current time.
WRTV Displays the label assigned to the current channel.

06 Displays the current channel.

Sleep Displayed when the Sleep Timer has been set.

CC Displayed when Closed Captioning is available on the current channel.
Mute Displayed when you mute the audio.

Schedule Displayed when the TV is scheduled to turn on.

01:30 Displayed to count down time left on the commercial skip (SKIP) timer.

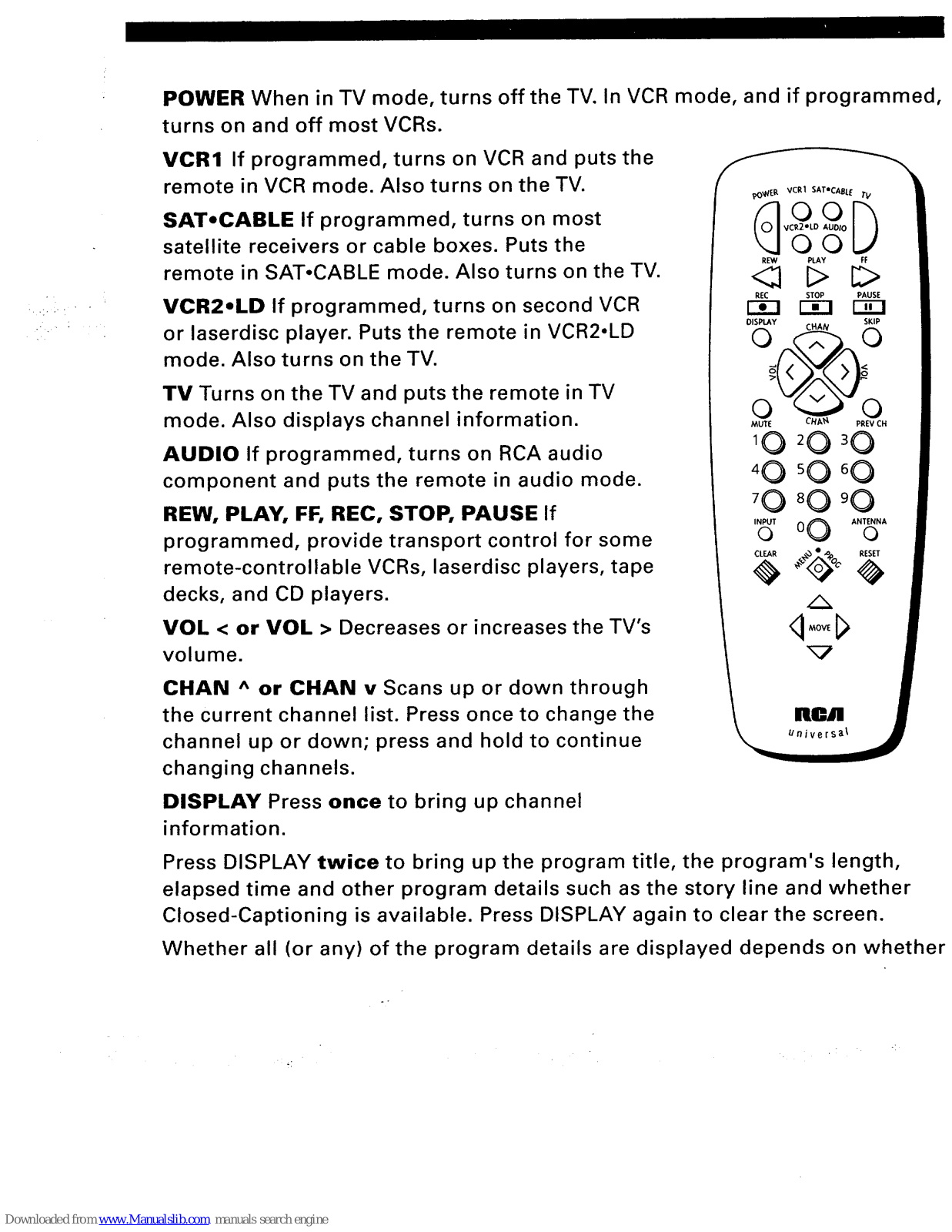

POWER When in TV mode, turns off the TV. In VCR mode, and if programmed,
turns on and off most VCRs.

VCR1 If programmed, turns on VCR and puts the

remote in VCR mode. Also turns on the TV.

SAT.CABLE If programmed, turns on most
satellite receivers or cable boxes. Puts the

remote in SAT-CABLE mode. Also turns on the TV.

VCR2,LD If programmed, turns on second VCR

or laserdisc player. Puts the remote in VCR2,LD
mode. Also turns on the TV.

TV Turns on the TV and puts the remote in TV

mode. Also displays channel information.

AUDIO If programmed, turns on RCA audio
component and puts the remote in audio mode.

REW, PLAY, FF, REC, STOP, PAUSE If
programmed, provide transport control for some

remote-controllable VCRs, laserdisc players, tape

decks, and CD players.
VOL < or VOL > Decreases or increases the TV's

volume.

CHAN ^ or CHAN v Scans up or down through
the current channel list. Press once to change the

channel up or down; press and hold to continue
changing channels.

DISPLAY Press once to bring up channel

information.

_pO',tR-_. VCR1 SATaCABLE TV

REW PLAY FF

REC STOP PAUSE

[3C]

DISPLAY SKIP

MUTE CHA_ PREV CH

INPUTQ 0 0 ANTENNA{_

CLEAR _,,%,_0C " _RESET

Press DISPLAY twice to bring up the program title, the program's length,

elapsed time and other program details such as the story line and whether
Closed-Captioning is available. Press DISPLAY again to clear the screen.

Whether all (or any) of the program details are displayed depends on whether

the program provider has sent the information along with the program.

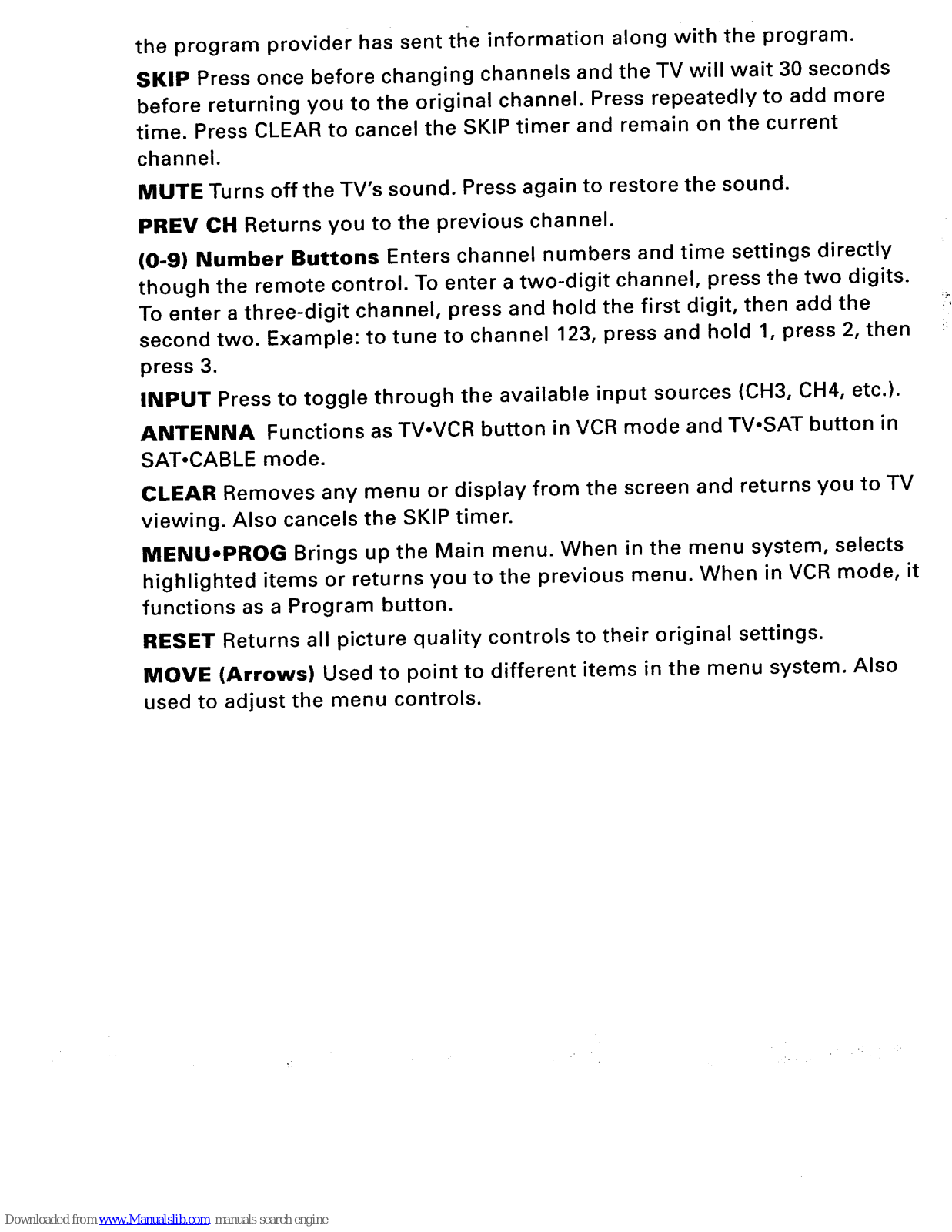

SKIP Press once before changing channels and the TV will wait 30 seconds
before returning you to the original channel. Press repeatedly to add more

time. Press CLEAR to cancel the SKIP timer and remain on the current

channel.

MUTE Turns off the TV's sound. Press again to restore the sound.
PREV CH Returns you to the previous channel.

(0-9) Number Buttons Enters channel numbers and time settings directly

though the remote control. To enter a two-digit channel, press the two digits.
To enter a three-digit channel, press and hold the first digit, then add the

second two. Example: to tune to channel 123, press and hold 1, press 2, then

press 3.

INPUT Press to toggle through the available input sources (CH3, CH4, etc.).
ANTENNA Functions as TV,VCR button in VCR mode and TV.SAT button in

SAT*CABLE mode.
CLEAR Removes any menu or display from the screen and returns you to TV

viewing. Also cancels the SKIP timer.
MENU,PROG Brings up the Main menu. When in the menu system, selects

highlighted items or returns you to the previous menu. When in VCR mode, it
functions as a Program button.

RESET Returns all picture quality controls to their original settings.
MOVE (Arrows) Used to point to different items in the menu system. Also

used to adjust the menu controls.

i"

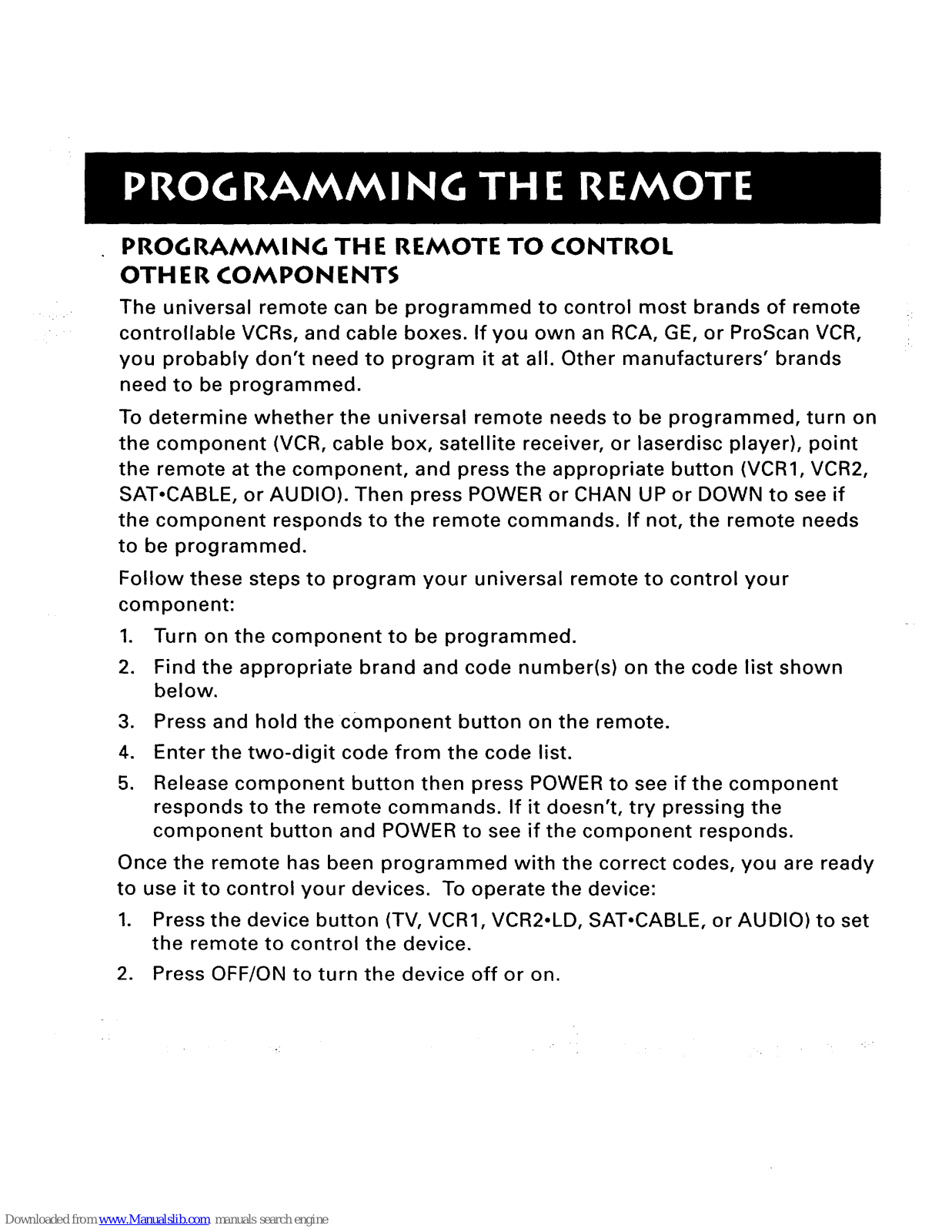

PROGRAMMING THE REMOTE TO CONTROL

OTHER COMPONENTS

The universal remote can be programmed to control most brands of remote

controllable VCRs, and cable boxes. If you own an RCA, GE, or ProScan VCR,
you probably don't need to program it at all. Other manufacturers' brands

need to be programmed.

To determine whether the universal remote needs to be programmed, turn on
the component (VCR, cable box, satellite receiver, or laserdisc player), point
the remote at the component, and press the appropriate button (VCR1, VCR2,
SAT.CABLE, or AUDIO). Then press POWER or CHAN UP or DOWN to see if
the component responds to the remote commands. If not, the remote needs
to be programmed.

Follow these steps to program your universal remote to control your
component:

1. Turn on the component to be programmed.

2. Find the appropriate brand and code number(s) on the code list shown
below.

3. Press and hold the component button on the remote.

4. Enter the two-digit code from the code list.

5. Release component button then press POWER to see if the component

responds to the remote commands. If it doesn't, try pressing the
component button and POWER to see if the component responds.

Once the remote has been programmed with the correct codes, you are ready
to use it to control your devices. To operate the device:

1. Press the device button (TV, VCR1, VCR2.LD, SAT.CABLE, or AUDIO) to set

the remote to control the device.

2. Press OFF/ON to turn the device off or on.

3. Use the remote buttons that apply to that device.

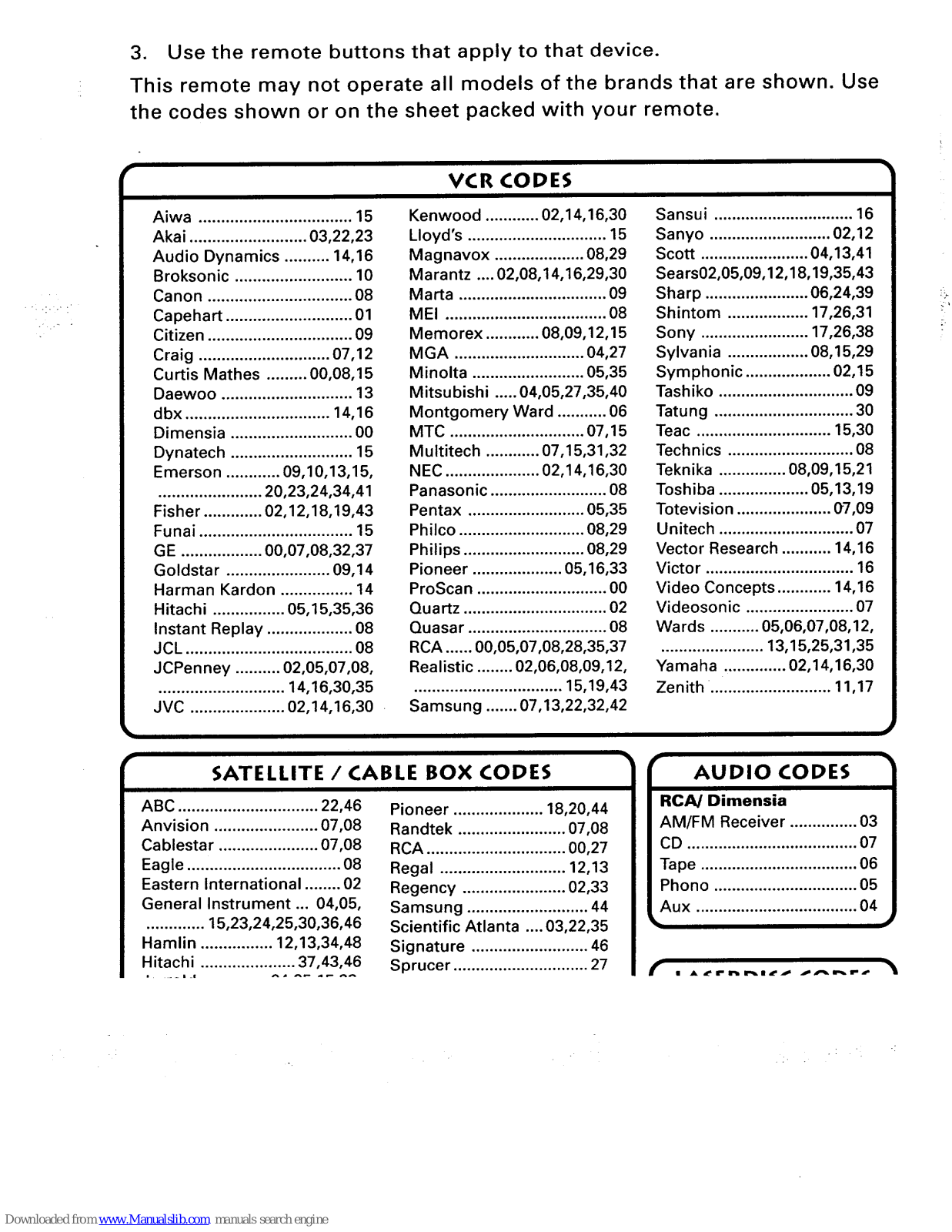

This remote may not operate all models of the brands that are shown.
the codes shown or on the sheet packed with your remote.

Use

- = •

VCR CODES

Aiwa .................................. 15

Akai .......................... 03,22,23

Audio Dynamics .......... 14,16

Broksonic .......................... 10

Canon ................................ 08

Capehart ............................ 01

Citizen ................................ 09

Craig ............................. 07,12

Curtis Mathes ......... 00,08,15

Daewoo ............................. 13

dbx ................................ 14,16

Dimensia ........................... 00

Dynatech ........................... 15

Emerson ............ 09,10,13,15,

....................... 20,23,24,34,41

Fisher ............. 02,12,18,19,43

Funai .................................. 15

GE .................. 00,07,08,32,37

Goldstar ....................... 09,14

Harman Kardon ................ 14

Hitachi ................ 05,15,35,36

Instant Replay ................... 08

JCL ..................................... 08

JCPenney .......... 02,05,07,08,

............................ 14,16,30,35

JVC ..................... 02,14,16,30

Kenwood ............ 02,14,16,30

Lloyd's ............................... 15

Magnavox .................... 08,29

Marantz .... 02,08,14,16,29,30

Marta ................................. 09

MEI .................................... 08

Mem orex ............ 08,09,12,15

MGA ............................. 04,27

Minolta ......................... 05,35

Mitsubishi ..... 04,05,27,35,40

Montgomery Ward ........... 06

MTC .............................. 07,15

Multitech ............ 07,15,31,32

NEC ..................... 02,14,16,30

Panasonic .......................... 08

Pentax .......................... 05,35

Philco ............................ 08,29

Philips ........................... 08,29

Pioneer .................... 05,16,33

ProScan ............................. 00

Quartz ................................ 02

Quasar ............................... 08

RCA ...... 00,05,07,08,28,35,37

Realistic ........ 02,06,08,09,12,

................................. 15,19,43

Samsung ....... 07,13,22,32,42

SATELLITE / CABLE BOX CODES

Sansui ............................... 16

Sanyo ........................... 02,12

Scott ........................ 04,13,41

Sea rs02,05,09,12,18,19,35, 43

Sharp ....................... 06,24,39

Shintom .................. 17,26,31

Sony ........................ 17,26,38

Sylvan ia .................. 08,15,29

Symphonic ................... 02,15

Tash iko .............................. 09

Tatung ............................... 30

Teac .............................. 15,30

Technics ............................ 08

Teknika ............... 08,09,15,21

Toshiba .................... 05,13,19

Totevision ..................... 07,09

Unitech .............................. 07

Vector Research ........... 14,16

Victor ................................. 16

Video Concepts ............ 14,16

Videosonic ........................ 07

Ward s ........... 05,06,07,08,12,

....................... 13,15,25,31,35

Yamaha .............. 02,14,16,30

Zenith. .......................... 11,17

ABC ............................... 22,46

Anvision ....................... 07,08

Cablestar ...................... 07,08

Eagle .................................. 08

Eastern International ........ 02

General Instrument ... 04,05,

............. 15,23,24,25,30,36,46

Hamlin ................ 12,13,34,48

Hitachi ..................... 37,43,46

• __| i

Pioneer .................... 18,20,44

Randtek ........................ 07,08

RCA ............................... 00,27

Regal ............................ 12,13

Regency ....................... 02,33

Samsung ........................... 44

Scientific Atlanta .... 03,22,35

Signature .......................... 46

Sprucer .............................. 27

AUDIO CODES

RCA/Dimensia

AM/FM Receiver ............... 03

CD ...................................... 07

Tape ................................... 06

Phono ................................ 05

Aux .................................... 04

f • _ /'Ph hi/'# t ^ I'q, I" a" "_

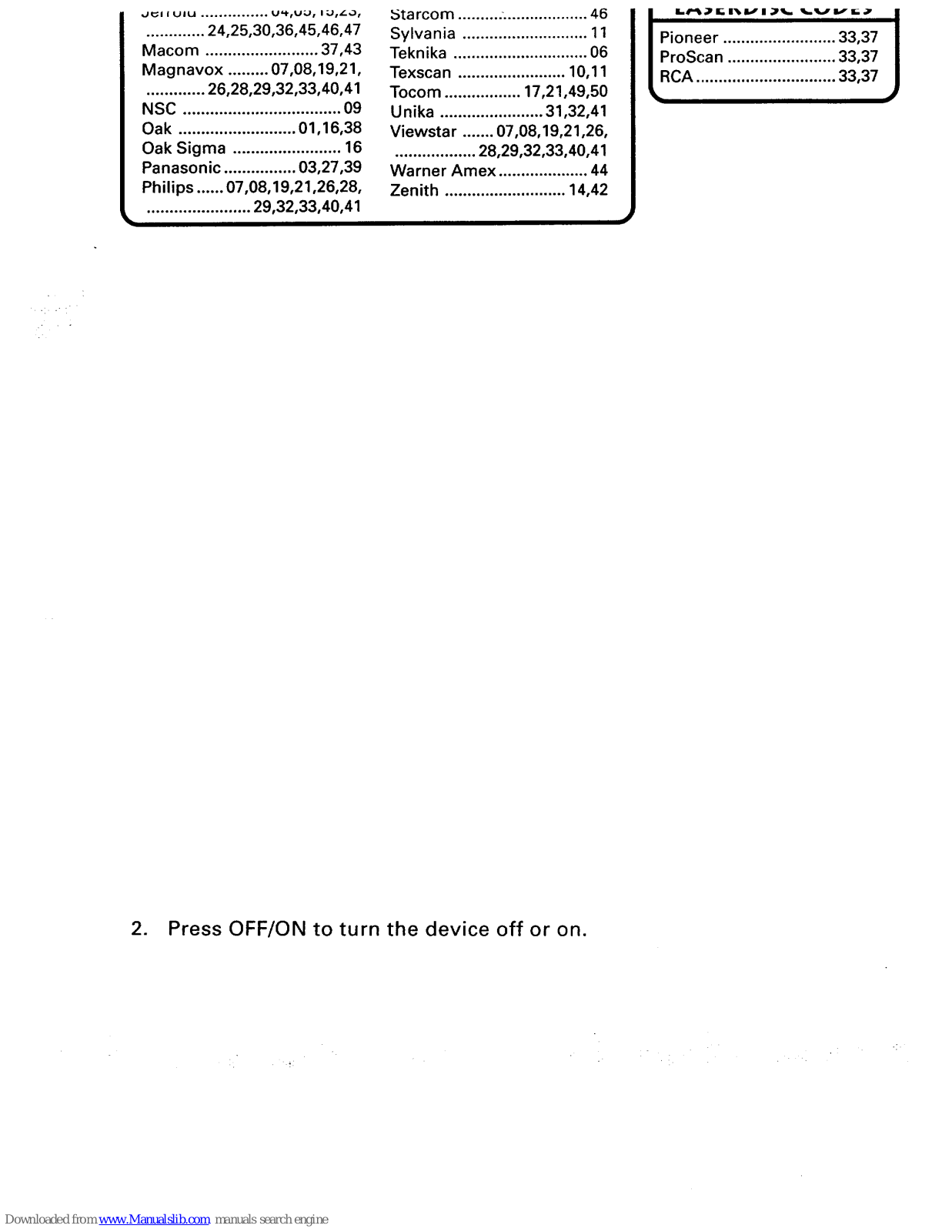

.............24,26,30,36,45,46,47

Macom .........................37,43

Magnavox .........07,08,19,21,

.............26,28,29,32,33,40,41

NSC ................................... 09

Oak .......................... 01,16,38

Oak Sigma ........................ 16

PanasonJc ................ 03,27,39

Phi lips ...... 07,08,19,21,26,28,

....................... 29,32,33,40,41

:Starcom ......... .................... 46

Sylvania ............................ 11

Teknika .............................. 06

Texscan ........................ 10,11

Tocom ................. 17,21,49,50

Unika ....................... 31,32,41

Viewsta r ....... 07,08,19,21,26,

.................. 28,29,32,33,40,41

Warner Amex .................... 44

Zenith ........................... 14,42

IL41_i' _ IE 1% IJ I _qll II, _l./ W I_, a'

Pioneer ......................... 33,37

ProScan ........................ 33,37

RCA ............................... 33,37

._ .. •

2. Press OFF/ON to turn the device off or on.

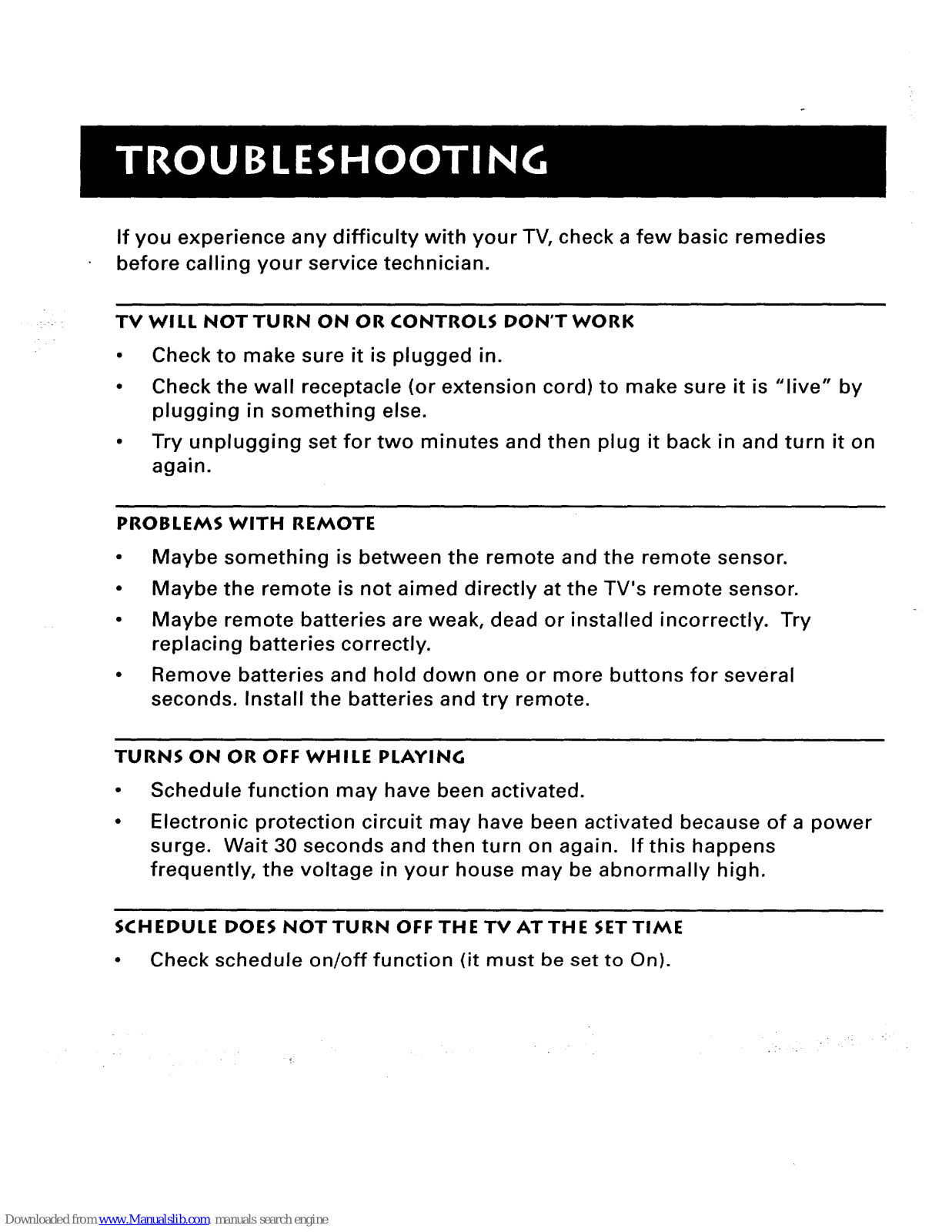

If you experience any difficulty with your TV, check a few basic remedies
before calling your service technician.

TV WILL NOT TURN ON OR CONTROLS DON'T WORK

• Check to make sure it is plugged in.

• Check the wall receptacle (or extension cord) to make sure it is "live" by
plugging in something else.

• Try unplugging set for two minutes and then plug it back in and turn it on
again.

PROBLEMS WITH REMOTE

• Maybe something is between the remote and the remote sensor.

• Maybe the remote is not aimed directly at the TV's remote sensor.

• Maybe remote batteries are weak, dead or installed incorrectly. Try
replacing batteries correctly.

• Remove batteries and hold down one or more buttons for several

seconds. Install the batteries and try remote.

TURNS ON OR OFF WHILE PLAYING

Schedule function may have been activated.
Electronic protection circuit may have been activated because of a power

surge. Wait 30 seconds and then turn on again. If this happens

frequently, the voltage in your house may be abnormally high.

SCHEDULE DOES NOT TURN OFF THE TV AT THE SET TIME

• Check schedule on/off function (it must be set to On).

• Check to make sure clock is set to the correct time.

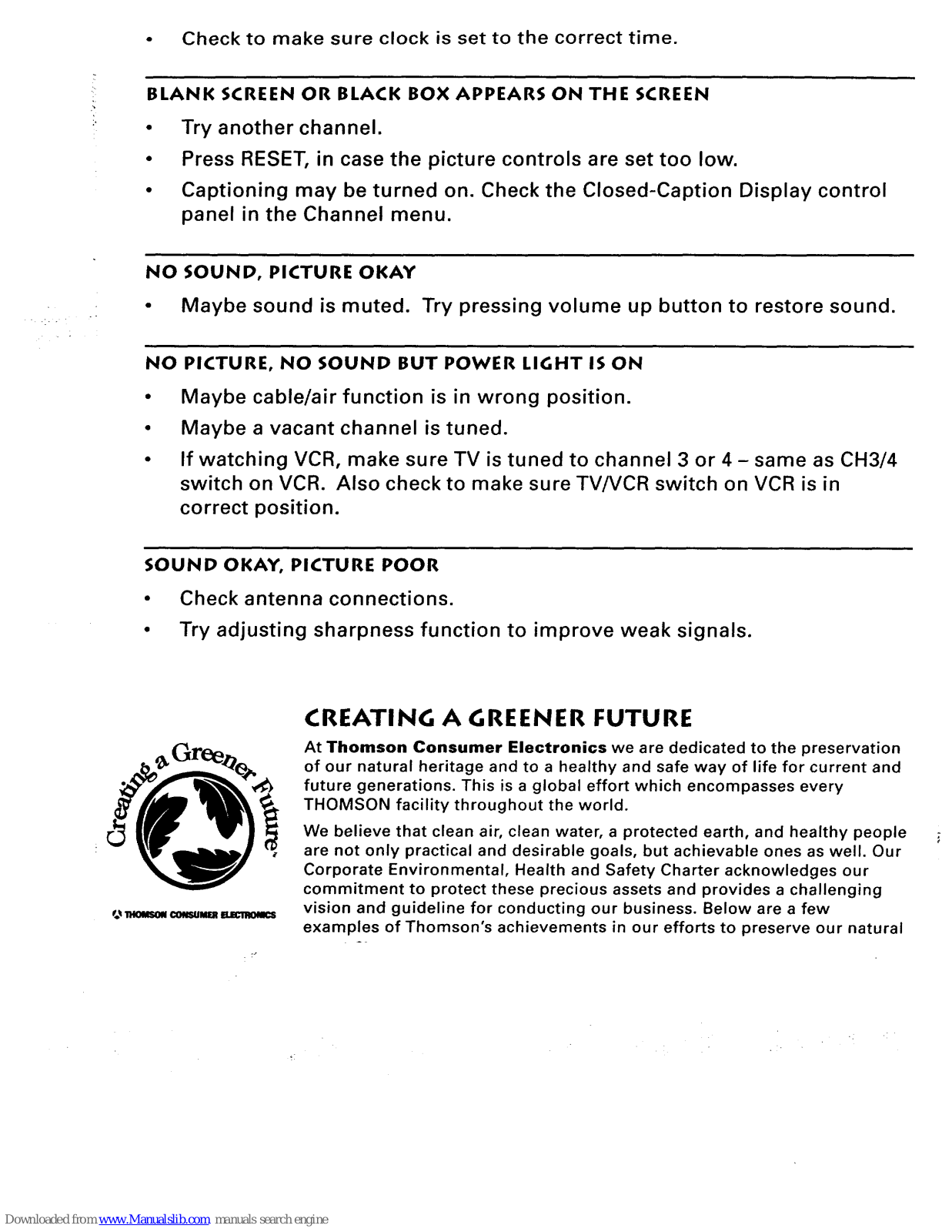

BLANK SCREEN OR BLACK BOX APPEARS ON THE SCREEN

• Try another channel.

• Press RESET, in case the picture controls are set too low.

• Captioning may be turned on. Check the Closed-Caption Display control
panel in the Channel menu.

NO SOUND, PICTURE OKAY

• Maybe sound is muted. Try pressing volume up button to restore sound.

NO PICTURE, NO SOUND BUT POWER LIGHT IS ON

• Maybe cable/air function is in wrong position.

• Maybe a vacant channel is tuned.

• If watching VCR, make sure TV is tuned to channel 3 or 4- same as CH3/4
switch on VCR. Also check to make sure TVNCR switch on VCR is in
correct position.

SOUND OKAY, PICTURE POOR

• Check antenna connections.

• Try adjusting sharpness function to improve weak signals.

_ IlIOMSOli C_UmEII B.I_'IlIOICS

CREATING A GREENER FUTURE

At Thomson Consumer Electronics we are dedicated to the preservation
of our natural heritage and to a healthy and safe way of life for current and

future generations. This is a global effort which encompasses every
THOMSON facility throughout the world.

We believe that clean air, clean water, a protected earth, and healthy people
are not only practical and desirable goals, but achievable ones as well. Our
Corporate Environmental, Health and Safety Charter acknowledges our
commitment to protect these precious assets and provides a challenging
vision and guideline for conducting our business. Below are a few
examples of Thomson's achievements in our efforts to preserve our natural

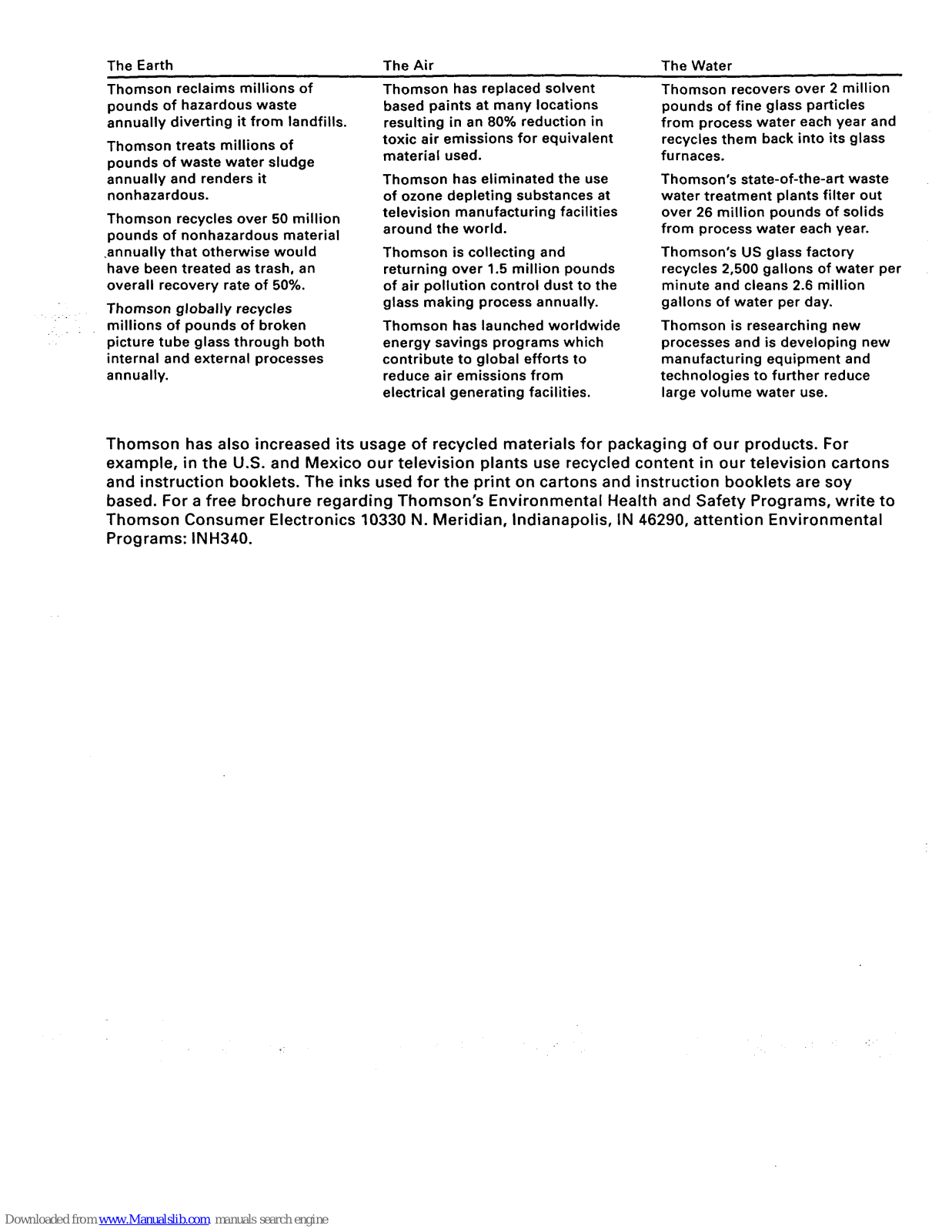

The Earth The Air The Water
Thomson reclaims millions of

pounds of hazardous waste

annually diverting it from landfills.
Thomson treats millions of

pounds of waste water sludge

annually and renders it

nonhazardous.

Thomson recycles over 50 million

pounds of nonhazardous material

.annually that otherwise would

have been treated as trash, an
overall recovery rate of 50%.

Thomson globally recycles
millions of pounds of broken
picture tube glass through both
internal and external processes
annually.

Thomson has replaced solvent
based paints at many locations
resulting in an 80% reduction in

toxic air emissions for equivalent
material used.

Thomson has eliminated the use
of ozone depleting substances at
television manufacturing facilities

around the world.
Thomson is collecting and

returning over 1.5 million pounds
of air pollution control dust to the

glass making process annually.
Thomson has launched worldwide

energy savings programs which
contribute to global efforts to
reduce air emissions from
electrical generating facilities.

Thomson recovers over 2 million
pounds of fine glass particles
from process water each year and
recycles them back into its glass

furnaces.
Thomson's state-of-the-art waste

water treatment plants filter out
over 26 million pounds of solids
from process water each year.

Thomson's US glass factory
recycles 2,500 gallons of water per

minute and cleans 2.6 million
gallons of water per day,

Thomson is researching new
processes and is developing new
manufacturing equipment and

technologies to further reduce

large volume water use.

Thomson has also increased its usage of recycled materials for packaging of our products. For

example, in the U.S. and Mexico our television plants use recycled content in our television cartons
and instruction booklets. The inks used for the print on cartons and instruction booklets are soy
based. For a free brochure regarding Thomson's Environmental Health and Safety Programs, write to
Thomson Consumer Electronics 10330 N. Meridian, Indianapolis, IN 46290, attention Environmental
Programs: INH340.

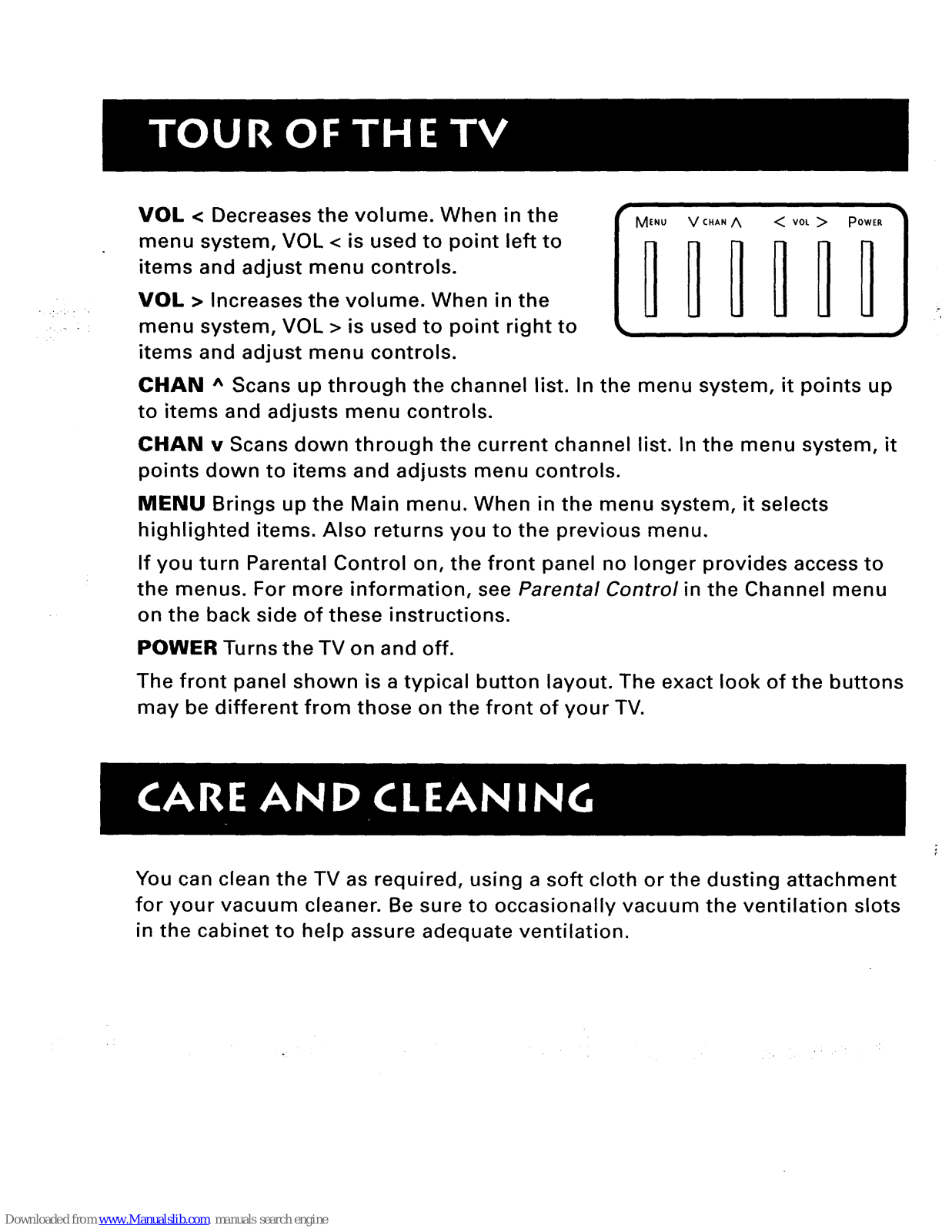

VOL < Decreases the volume. When in the
menu system, VOL < is used to point left to
items and adjust menu controls.

VOL > Increases the volume. When in the
menu system, VOL > is used to point right to

items and adjust menu controls.

MENu V CHANA < VOL> powER

CHAH ^ Scans up through the channel list. In the menu system, it points up

to items and adjusts menu controls.

CHAN v Scans down through the current channel list. In the menu system, it
points down to items and adjusts menu controls.

MENU Brings up the Main menu. When in the menu system, it selects
highlighted items. Also returns you to the previous menu.

If you turn Parental Control on, the front panel no longer provides access to
the menus. For more information, see Parental Control in the Channel menu
on the back side of these instructions.

POWER Turns the TV on and off.

The front panel shown is a typical button layout. The exact look of the buttons

may be different from those on the front of your TV.

You can clean the TV as required, using a soft cloth or the dusting attachment
for your vacuum cleaner. Be sure to occasionally vacuum the ventilation slots
in the cabinet to help assure adequate ventilation.

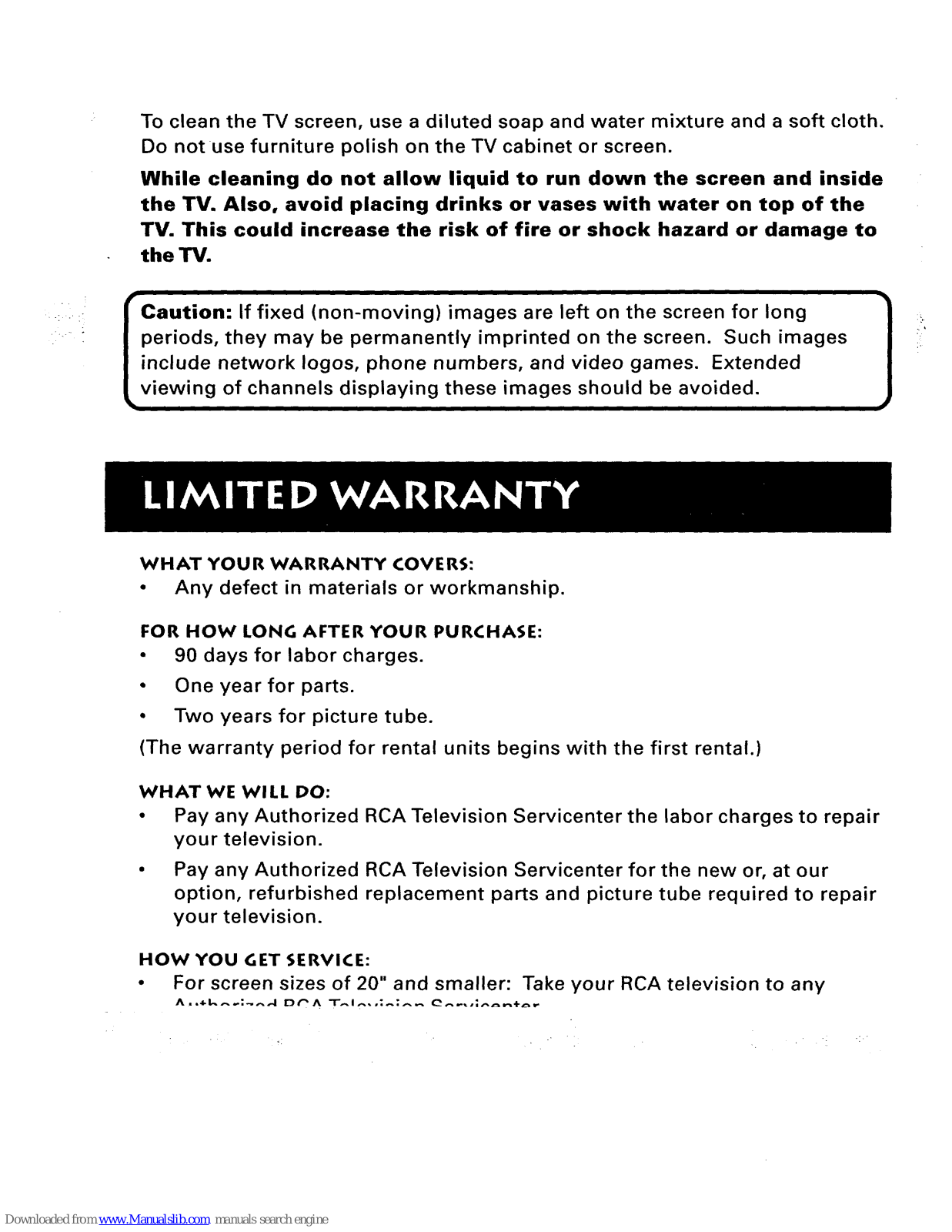

To clean the TV screen, use a diluted soap and water mixture and a soft cloth.

Do not use furniture polish on the TV cabinet or screen.

While cleaning do not allow liquid to run down the screen and inside
the TV. Also, avoid placing drinks or vases with water on top of the
TV. This could increase the risk of fire or shock hazard or damage to
the TV.

Caution: If fixed (non-moving) images are left on the screen for long

periods, they may be permanently imprinted on the screen. Such images
include network Iogos, phone numbers, and video games. Extended

viewing of channels displaying these images should be avoided.

#

i-

WHAT YOUR WARRANTY COVERS:

• Any defect in materials or workmanship.

FOR HOW LONG AFTER YOUR PURCHASE:

• 90 days for labor charges.

• One year for parts.

• Two years for picture tube.

(The warranty period for rental units begins with the first rental.)

WHAT WE WILL DO:

• Pay any Authorized RCA Television Servicenter the labor charges to repair

your television.

Pay any Authorized RCA Television Servicenter for the new or, at our
option, refurbished replacement parts and picture tube required to repair

your television.

HOW YOU GET SERVICE:

• For screen sizes of 20" and smaller: Take your RCA television to any

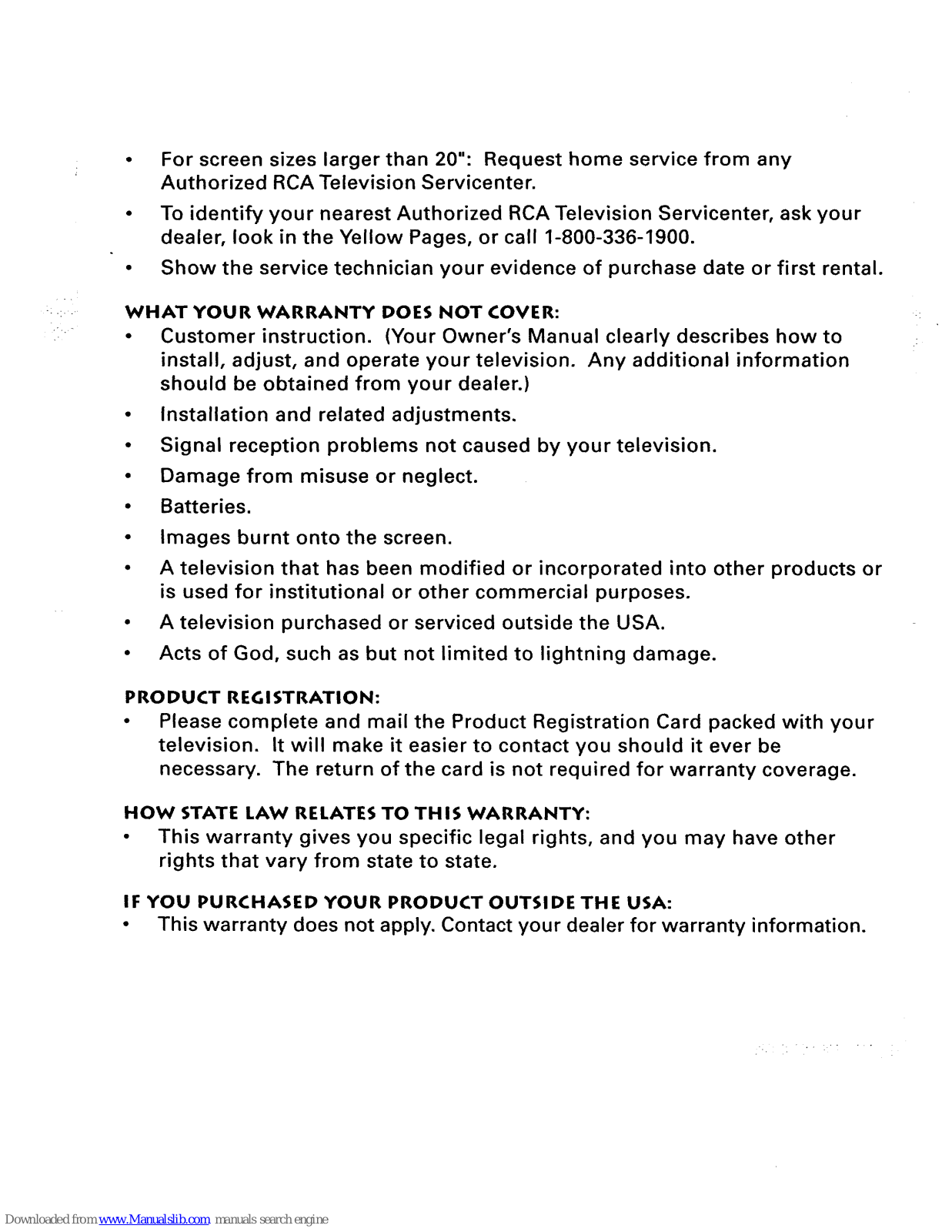

For screen sizes larger than 20": Request home service from any

Authorized RCA Television Servicenter.
To identify your nearest Authorized RCA Television Servicenter, ask your

dealer, look in the Yellow Pages, or call 1-800-336-1900.
Show the service technician your evidence of purchase date or first rental.

WHAT YOUR WARRANTY DOES NOT COVER:

• Customer instruction. (Your Owner's Manual clearly describes how to
install, adjust, and operate your television. Any additional information

should be obtained from your dealer.)

• Installation and related adjustments.

• Signal reception problems not caused by your television.

• Damage from misuse or neglect.

• Batteries.

• Images burnt onto the screen.

• A television that has been modified or incorporated into other products or

is used for institutional or other commercial purposes.

• A television purchased or serviced outside the USA.

• Acts of God, such as but not limited to lightning damage.

PRODUCT REGISTRATION:

• Please complete and mail the Product Registration Card packed with your

television. It will make it easier to contact you should it ever be

necessary. The return of the card is not required for warranty coverage.

HOW STATE LAW RELATES TO THIS WARRANTY:

• This warranty gives you specific legal rights, and you may have other
rights that vary from state to state.

IF YOU PURCHASED YOUR PRODUCT OUTSIDE THE USA:

• This warranty does not apply. Contact your dealer for warranty information.
