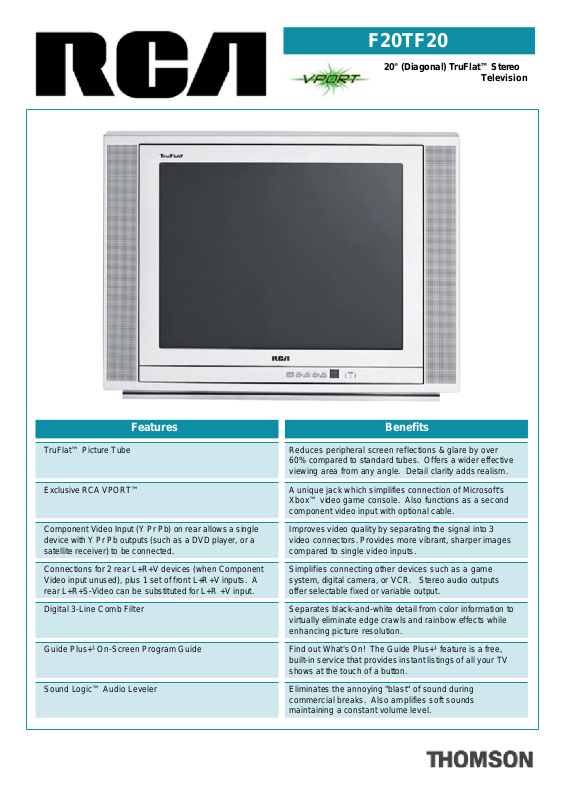

F20TF20

20" (Diagonal) TruFlat™ Stereo

Television

Features Benefits

TruFlat™ Picture Tube

Exclusive RCA VPORT™

Component Video Input (Y Pr Pb) on rear allows a single
device with Y Pr Pb outputs (such as a DVD player, or a
satellite receiver) to be connected.

Connections for 2 rear L+R+V devices (when Component
Video input unused), plus 1 set of front L+R+V inputs. A
rear L+R+S-Video can be substituted for L+R +V input.

Digital 3-Line Comb Filter

Guide Plus+¹ On-Screen Program Guide

Sound Logic™ Audio Leveler

Reduces peripheral screen reflections & glare by over
60% compared to standard tubes. Offers a wider effective
viewing area from any angle. Detail clarity adds realism.

A unique jack which simplifies connection of Microsoft's
Xbox™ video game console. Also functions as a second
component video input with optional cable.

Improves video quality by separating the signal into 3
video connectors. Provides more vibrant, sharper images
compared to single video inputs.

Simplifies connecting other devices such as a game
system, digital camera, or VCR. Stereo audio outputs
offer selectable fixed or variable output.

Separates black-and-white detail from color information to
virtually eliminate edge crawls and rainbow effects while
enhancing picture resolution.

Find out What's On! The Guide Plus+¹ feature is a free,
built-in service that provides instant listings of all your TV
shows at the touch of a button.

Eliminates the annoying "blast" of sound during
commercial breaks. Also amplifies soft sounds
maintaining a constant volume level.

F20TF20

Technical Specifications :

BRAND

Brand RCA


Screen Size - diagonal (inch) 20 TruFlat™
Category Table TV
Aspect Ratio 4x3
Screen Type TruFlat™
Adjustable Color Temperature Yes
Auto Color Balance (AKB) Yes
Auto Color Control Yes
Comb Filter Digital 3-Line
Dynamic BlackStretch Circuitry Yes
Preferred Picture Presets Yes

SOUND

Sound Type MTS Stereo
Second Audio Program (SAP) Yes
Sound Logic™ Audio Leveler Yes
Tone Control Bass & Treble + Balance
Balance Control Yes
Front Speakers (number) 2
Front-Fired Speaker System Yes

RECEPTION

Tuning Capability NTSC

CONVENIENCE

Auto Channel Search Yes
Channel Labeling ­ Closed Captioning Yes
Commercial Skip Yes
Guide Plus+ Program Guide¹ Yes (Free Service)
Interactive Set-up w/ Menus Yes
Multilingual On-Screen Display English/French/Spanish
On-Screen Time & Channel Display Yes
One-Touch VCR Record (Gemstar) Yes
One Button Launch for Inputs Yes - Auto Tune
Parental Control (V-Chip) Yes
Pic Memory Presets for Vid Inputs Yes
Picture Reset Yes
Programmable Timer System Clock/Sleep/Wake/Scheduler

REAR CONNECTORS

RCA VPORT™ Yes
Audio/Video Inputs (Composite) 2 Sets if Component Video Not Used
S-Video Input 1 - Auto-Detectible
Component Video Input (YPrPb) 1Set if 1Set of L+R+V Not Used
Audio Outputs 1 Set - L&R Audio
Audio Outputs (Type) Switchable - Variable/Fixed
G-Link¹ Connector Yes
F Terminal 1

FRONT CONNECTORS

Audio/Video Inputs (Composite) 1 L&R Audio, 1 Video
Headphone Jack Yes

SPECIFICATIONS

Finish Silver Diamond
Product Size (WxHxD) inches 24 1/2 x 18 x 19
Approx. Shipping Weight, lbs 68.9
AC/DC Power Options AC Only

REMOTE CONTROL

Remote Model Number RCR160TCM1
Remote Type Universal Glo-in-the-Dark

INCLUDED ACCESSORIES

Instruction Book Languages English/French

1 - Guide Plus+ and G-LINK are trademarks of Gemstar-TV Guide International Inc.

Xbox is a trademark of Microsoft Corporation in the United States and/or other countries.

©2003 Thomson Inc.
Trademark(s) ® Registered
Marca(s) Registrada(s)

Photos and features subject to change without notice. Illustration of product finish may vary
from actual color.

Revised 4/23/03
