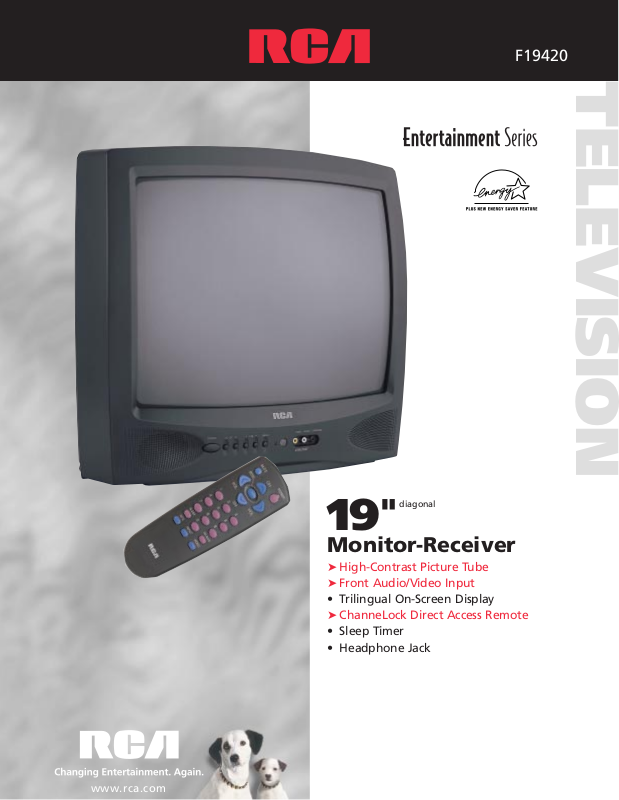

TELEVISION

19

"

Monitor-Receiver

➤High-Contrast Picture Tube
➤Front Audio/Video Input

• Trilingual On-Screen Display

➤ChanneLock Direct Access Remote

• Sleep Timer

• Headphone Jack

F19420

diagonal

Specifications

• Cabinet

Ebony Texture

• Dimensions: 171⁄2" H, 191⁄2" W, 18" D

• Approx. Shipping Weight: 47 Lbs.

Remote

➤ChanneLock Direct Access Remote

CRK211TA1

Ergonomic design and color-coded buttons
make it easy to control power, volume, direct
access of channels, plus TV picture adjustments
and features.


• Dynamic BlackStretch Circuitry

Extends black levels in bright scenes to
enhance contrast and detail.

• Contrast/Color Tracking System

Synchronizes contrast and color settings to
maintain vibrant images.

• Adjustable Picture Control

Custom picture settings are just a button-press
away. Adjust and store Contrast, Color, Tint,
Black Level, and Sharpness settings for personal
picture performance depending on your own
individual tastes.

➤Hi-Con Picture Tube

Increases contrast under bright room conditions.

• 181-Channel Tuning Capability

1

Digitally controlled frequency synthesis tuning
system “locks on” to cable and standard
signals with unsurpassed accuracy.

Sound

• Front-Fired Speaker System

Front-fired full-range frequency driver provides
excellent imaging while localizing voices at
the screen.

Convenience

• Picture Reset (Preset)

Instantly returns picture to factory settings for
Color, Tint, Contrast, Brightness, and Sharpness.

• Auto Channel Search

System automatically scans for and locks active
channels into channel memory.

• On-Screen Menu System

On-screen displays make it easy to adjust
more picture, sound, and convenience features
from either the remote control or the TV front
panel buttons.

• Energy Star Compliant

• Trilingual On-Screen Display

Allows the on-screen menu system to be
displayed in one of three languages (English,
French, or Spanish).

• On-Screen Time and Channel Display

Displays time and channel number at the press
of a button.

• Programmable Timer System

Convenient scheduling system can be used in a
variety of ways:

–Sleep Timer

Automatically turns off the TV after a preset
time period — for those times when you drift
off to sleep in front of the television.

–Alarm Timer

Wake up to your favorite morning show or turn
on your television automatically to catch your
favorite program.

• V-Chip Parental Control

Puts control back into the hands of the viewer
by blocking unwanted television broadcasts
with U.S. Government required circuitry. Blocks
three types of programs: regular television
programs, broadcast movies and unrated
programs.

Program rating information is sent by the
broadcaster continuously during the program.
The television will match program rating to
user preference and block the entire program
(when program is aired with the encoded
signal). User preference is secured using a
four-digit password.

• Non-Volatile Memory

In case of most power outages, the picture
adjustments and channel selections are stored
in electronic memory.

• Caption Vision Closed Caption
Capability

2

Assists the hearing impaired, helps children
learn to read, and aids in the teaching of
English as a second language. Built-in Closed
Caption Decoder displays the audio portion of a
program as text on the TV screen (when
program is aired with the encoded signal).

Connections

➤Front Audio/Video Input (Gameport)

Color-coded front monitor panel provides
direct audio and video connections for
optimum performance and system flexibility.
Front jacks allow quick connections for video
games and camcorders. (Front jacks override
rear jacks.)

• Headphone Jack

• Front Panel

• Back Panel

Plus

• Limited Warranty

– 90 days for labor charges.
– One year for parts.
– Two years for picture tube.
– See RCA dealer or visit www.rca.com for

complete details.

1 Check your cable company’s compatibility requirements.
2 This television receiver provides display of television closed captioning in

accordance with §15.119 of the FCC rules. This television receiver does not
support color attributes of television closed captioning.

©2000 Thomson Consumer Electronics, Inc.

Form S-F19420

Trademark(s) ® Registered
Marca(s) Registrada(s)
Photos and features subject to change
without notice. Illustration of product finish
may vary from actual color. Screen sizes
measured diagonally.

PC13771

F19420

VIDEO AUDIO

VIDEO IN

AUDIO IN
