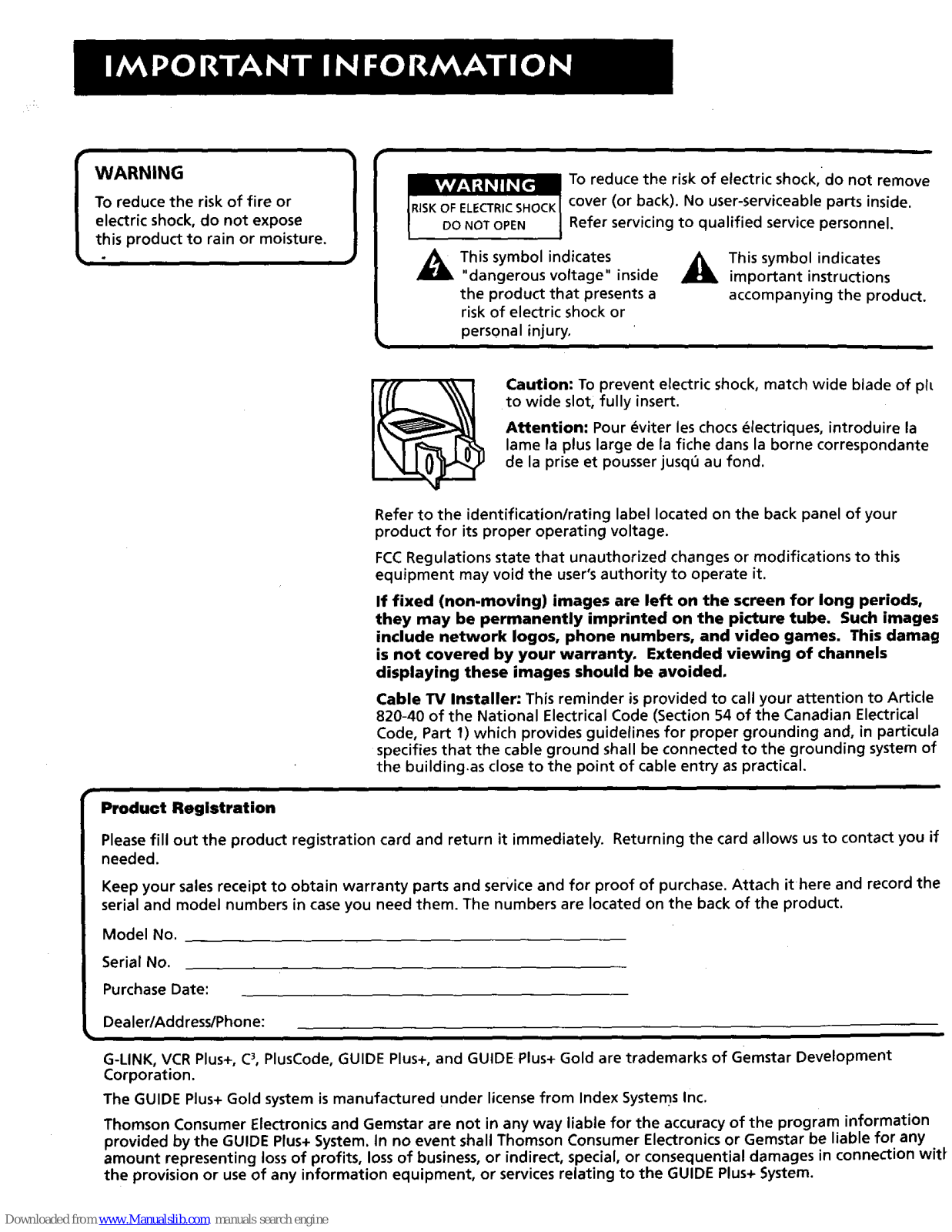

WARNING

To reduce the risk of fire or

electric shock, do not expose
this product to rain or moisture.

I To reduce the risk of electric shock,do not remove

RISKOF ELECTRICSHOCK

l DO NOTOPEN

cover (or back). No user-serviceable parts inside.

Refer servicing to qualified service personnel.

A

This symbol indicates

"dangerous voltage" inside

the product that presents a

risk of electric shock or

A This symbol indicates

important instructions
accompanying the product.

personal injury,

Caution: To prevent electric shock, match wide blade of pit

to wide slot, fully insert.

Attention: Pour _viter les chocs _lectriques, introduire la

lame la plus large de la fiche dans la borne correspondante

de la prise et pousser jusq_ au fond.

Refer to the identification/rating label located on the back panel of your
product for its proper operating voltage.

FCCRegulations state that unauthorized changes or modifications to this

equipment may void the user's authority to operate it.

If fixed (non-moving) images are left on the screen for long periods,

they may be permanently imprinted on the picture tube. Such images

include network Iogos, phone numbers, and video games. This damag
is not covered by your warranty, Extended viewing of channels
displaying these images should be avoided,

Cable TV Installer: This reminder is provided to call your attention to Article
820-40 of the National Electrical Code (Section 54 of the Canadian Electrical
Code, Part 1) which provides guidelines for proper grounding and, in particula
specifies that the cable ground shall be connected to the grounding system of
the building.as close to the point of cable entry as practical.

Product Registration
Please fill out the product registration card and return it immediately. Returning the card allows us to contact you if

needed.
Keep your sales receipt to obtain warranty parts and service and for proof of purchase. Attach it here and record the

serial and model numbers in case you need them. The numbers are located on the back of the product.

Model No.

Serial No.

Purchase Date:
Dealer/Add ress/Phone:

G-LINK, VCR Plus+, C3,PlusCode, GUIDE Plus+, and GUIDE Plus+ Gold are trademarks of Gemstar Development

Corporation.
The GUIDE Plus+ Gold system is manufactured under license from Index Systems Inc.
Thomson Consumer Electronics and Gemstar are not in any way liable for the accuracy of the program information

provided bythe GUIDE Plus+ System. In no event shall Thomson Consumer Electronics or Gemstar be liable for any

amount representing loss of profits, loss of business, or indirect, special, or consequential damages in connection wit|
the provision or use of any information equipment, or services relating to the GUIDE Plus+ System.

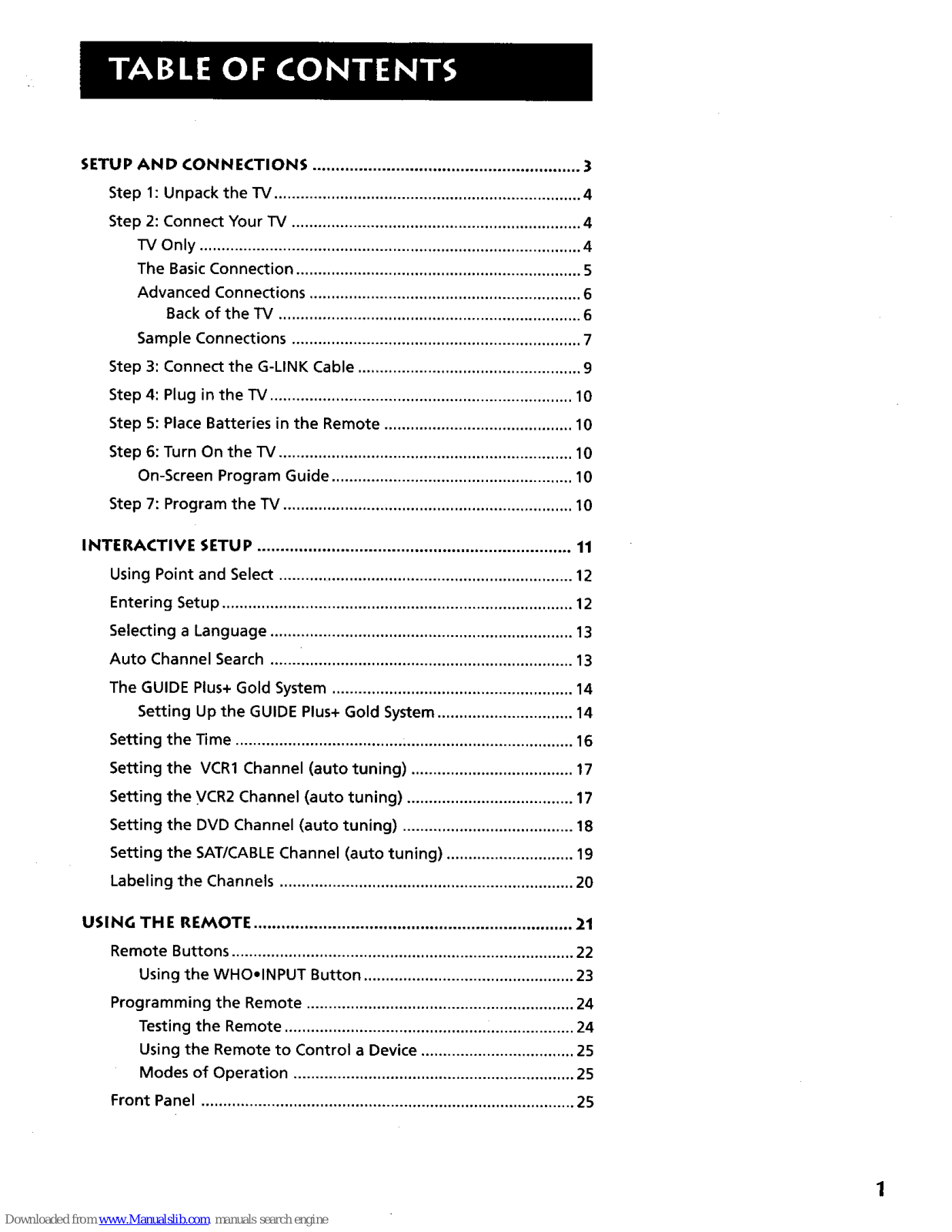

SETUPAND CONNECTIONS.......................................................... 3

Step 1: Unpack the "IV ...................................................................... 4

Step 2: Connect Your TV .................................................................. 4

TV Only ....................................................................................... 4

The Basic Connection ................................................................. 5

Advanced Connections .............................................................. 6

Back of the TV ..................................................................... 6

Sample Connections .................................................................. 7

Step 3: Connect the G-LINK Cable ................................................... 9

Step 4: Plug in the TV ..................................................................... 10

Step 5: Place Batteries in the Remote ........................................... 10

Step 6: Turn On the TV ................................................................... 10

On-Screen Program Guide ....................................................... 10

Step 7: Program the TV .................................................................. 10

INTERACTIVE SETUP .................................................................... 11

Using Point and Select ................................................................... 12

Entering Setup ................................................................................ 12

Selecting a Language ..................................................................... 13

Auto Channel Search ..................................................................... 13

The GUIDE Plus+ Gold System ....................................................... 14

Setting Up the GUIDE Plus+ Gold System ............................... 14

Setting the Time ............................................................................. 16

Setting the VCR1 Channel (auto tuning) ..................................... 17

Setting the _/CR2 Channel (auto tuning) ...................................... 17

Setting the DVD Channel (auto tuning) ....................................... 18

Setting the SAT/CABLE Channel (auto tuning) ............................. 19

Labeling the Channels ................................................................... 20

USING THE REMOTE ..................................................................... 21

Remote Buttons .............................................................................. 22

Using the WHO-INPUT Button ................................................ 23

Programming the Remote ............................................................. 24

Testing the Remote .................................................................. 24

Using the Remote to Control a Device ................................... 25

Modes of Operation ................................................................ 25

Front Panel ..................................................................................... 25

USING THE MENU SYSTEM ......................................................... 27

Menus and Control Panels ............................................................. 28

Audio Menu .................................................................................... 30

Using the Remote to Select an Audio Processor .......................... 31

Picture Quality Menu ..................................................................... 32

Screen Menu ................................................................................... 33

Using Closed Captioning ......................................................... 34

Channel Menu ................................................................................ 35

Time Menu ...................................................................................... 36

Other Menus ................................................................................... 36

FEATURES AND CONTROLS ......................................................... 37

GUIDE Plus+ Gold Menu ................................................................ 38

About the GUIDE Plus+ Gold System ............................................ 38

Getting In & Out of the GUIDE Plus+ Gold System ................ 39

Downloading Data .................................................................. 39

The Different GUIDE Plus+ Gold System Menus .................... 39

Grid Guide ........................................................................... 40

Sort ...................................................................................... 41

Schedule .............................................................................. 42

Messages ............................................................................. 43

Editor ................................................................................... 43

Channel Marker .............................................................................. 46

Parental Controls and V-Chip ........................................................ 47

V-Chip TV Rating Limit ............................................................ 48

V-Chip Movie Rating Limit ...................................................... 52

V-Chip Unrated Program Block ............................................... 53

Channel Block .......................................................................... 53

Front Panel Block ..................................................................... 53

Lock/Unlock Parental Controls ................................................ 53

REFERENCE ..................................... ................................................ 54

Troubleshooting ............................................................................. 54

Care and Cleaning .......................................................................... 55

RCA Limited Warranty ................................................................... 56

Accessory Information ................................................................... 58

INDEX ............................................................................................. 61

2

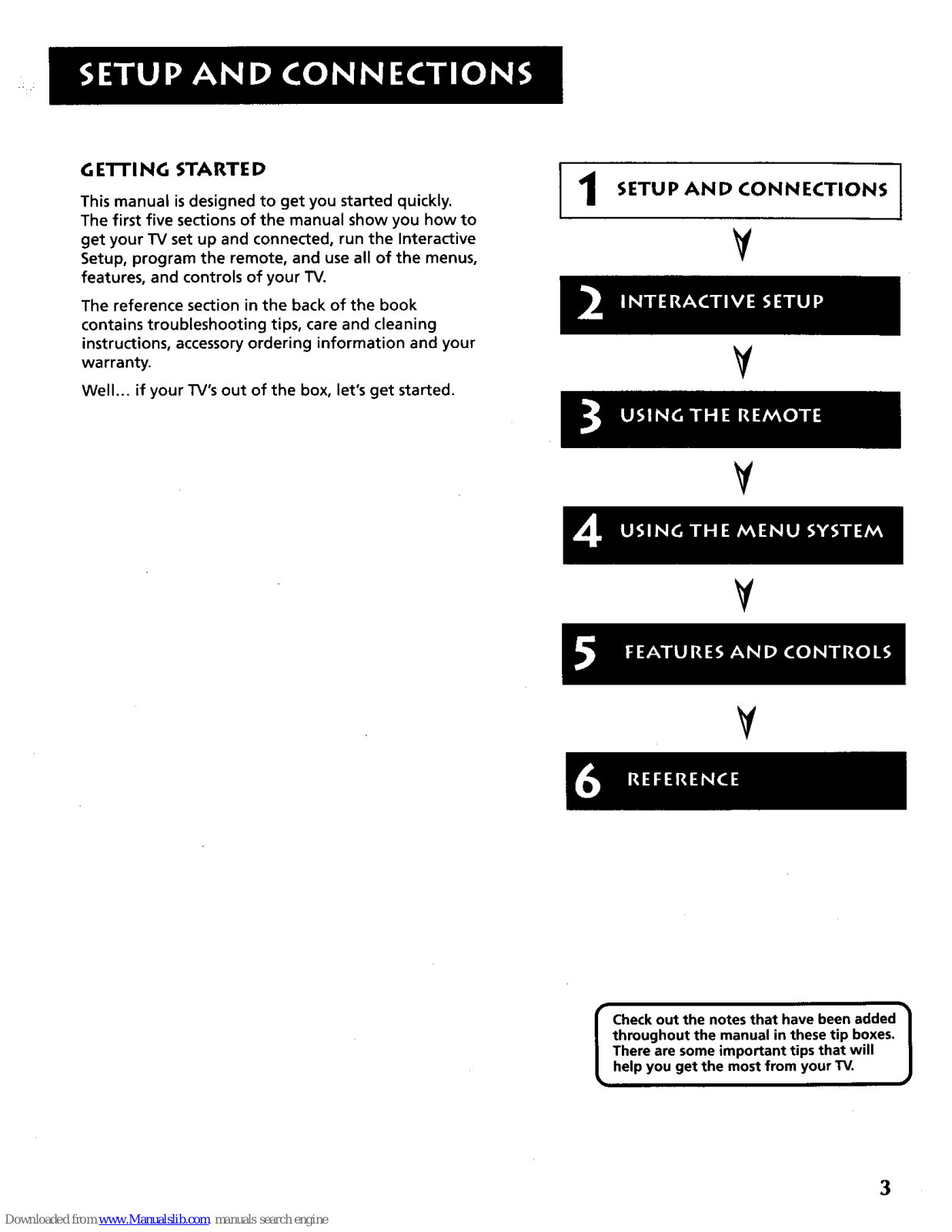

G E'I-I'I NG STARTE D

This manual is designed to get you started quickly.
The first five sections of the manual show you how to

get your TV set up and connected, run the Interactive
Setup, program the remote, and use all of the menus,

features, and controls of your TV.
The reference section in the back of the book

contains troubleshooting tips, care and cleaning
instructions, accessory ordering information and your

warranty.
Well... if your TV's out of the box, let's get started.

1

SETUP AND CONNECTIONS

V

V

I

V

V

V

I Checkout the notesthat have been added /

throughout the manual in these tip boxes.

J

Thereare someimportant tips that will
help you get the most from yourTV.

3

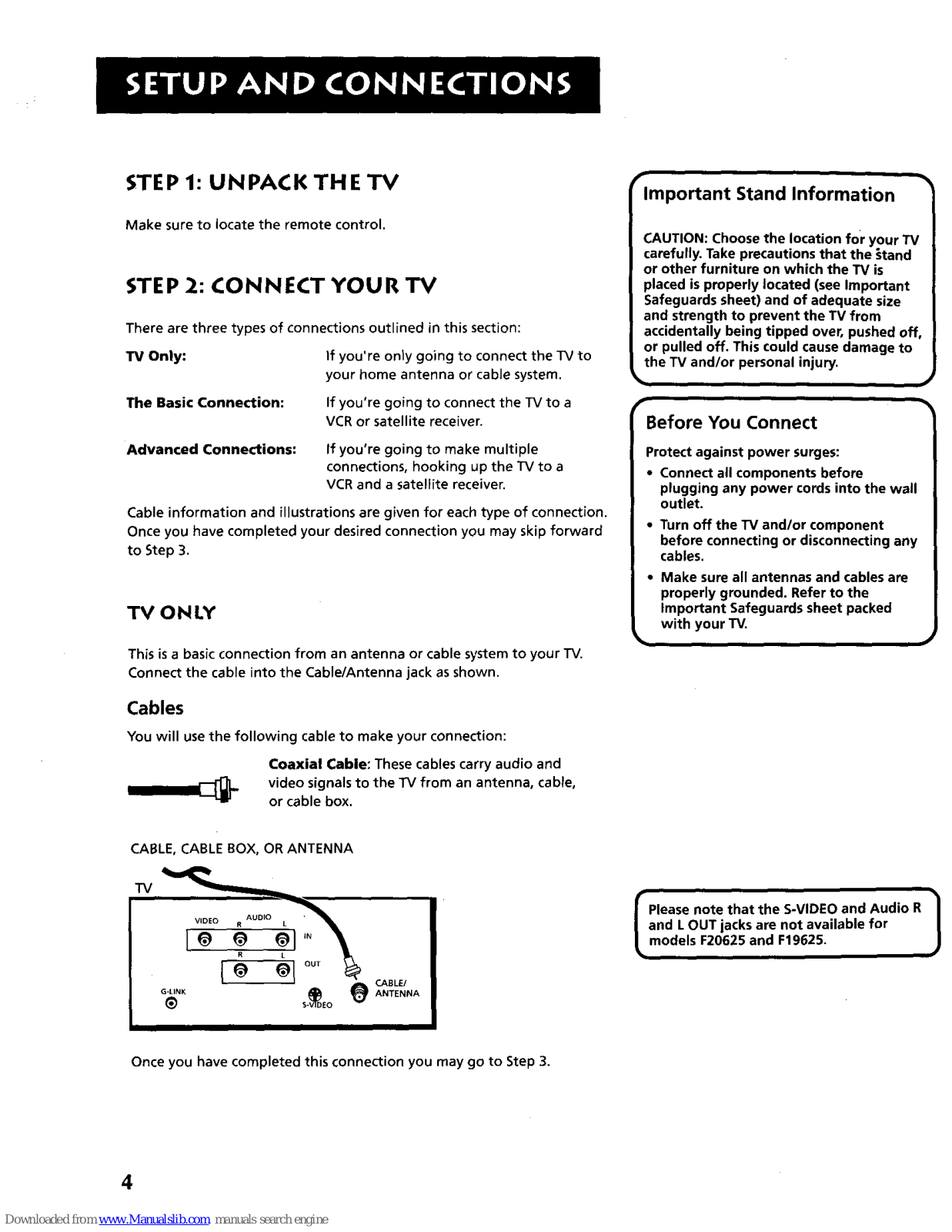

STEP 1: UNPACK THE TV

Make sure to locate the remote control.

STEP 2: CONNECT YOUR TV

There are three types of connections outlined in this section:
TV Only: If you're only going to connect the TV to

your home antenna or cable system.

The Basic Connection:

If you're going to connect the TV to a

VCR or satellite receiver.

Advanced Connections:

If you're going to make multiple
connections, hooking up the TV to a

VCR and a satellite receiver.

Cable information and illustrations are given for each type of connection.
Once you have completed your desired connection you may skip forward
to Step 3.

TV ONLY

This is a basic connection from an antenna or cable system to your TV.
Connect the cable into the Cable/Antenna jack as shown.

Cables

You will use the following cable to make your connection:

Coaxial Cable: These cables carry audio and
video signals to the "IV from an antenna, cable,
or cable box.

Important Stand Information

CAUTION: Choose the location for your TV
carefully. Take precautions that the _tand
or other furniture on which the TV is

placed is properly located (see Important
Safeguards sheet) and of adequate size
and strength to prevent the TV from
accidentally being tipped over, pushed off,
or pulled off. This could cause damage to
the TV and/or personal injury.

Before You Connect

Protect against power surges:

• Connect all components before
plugging any power cords into the wall

outlet.

• Turn off the TV and/or component
before connecting or disconnecting any

cables.

• Make sure all antennas and cables are
properly grounded. Refer to the
Important Safeguards sheet packed
with your TV.

CABLE, CABLE BOX, OR ANTENNA

TV

CABLE/

G-rINK

e s Eo e A.,E..A

I Please note that the S-VIDEO and Audio R l

and L OUT lacks are not available for

J

models F20625 and F19625.

Once you have completed this connection you may go to Step 3.

4

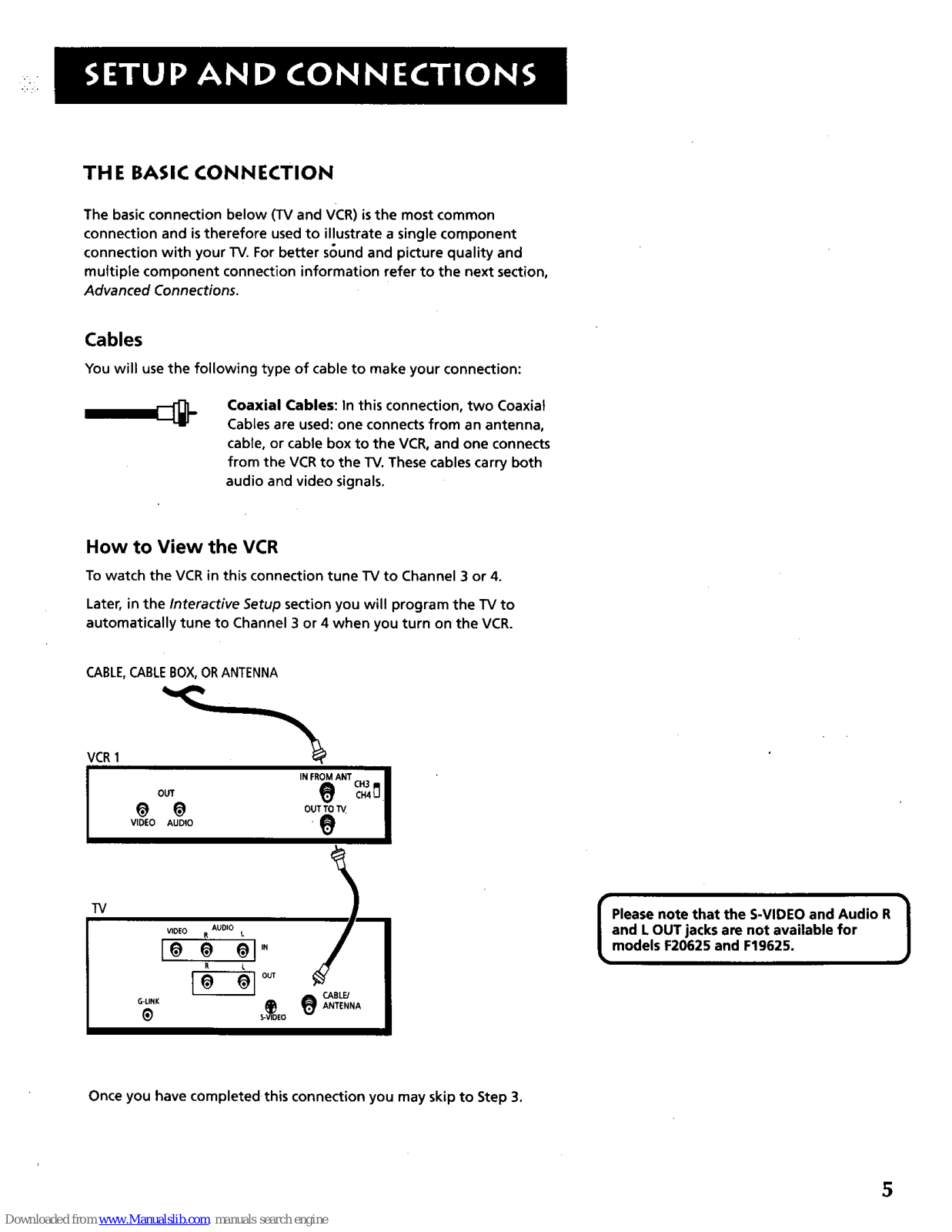

THE BASIC CONNECTION

The basic connection below (TV and VCR) is the most common
connection and is therefore used to illustrate a single component

connection with your "iV. For better sound and picture quality and

muttiple component connection information refer to the next section,

Advanced Connections,

Cables

You will use the following type of cable to make your connection:

Coaxial Cables: In this connection, two Coaxial
Cables are used: one connects from an antenna,

cable, or cable box to the VCR, and one connects
from the VCR to the TV. These cables carry both

audio and video signals,

How to View the VCR

To watch the VCR in this connection tune "IV to Channel 3 or 4.

Later, in the Interactive Setup section you will program the TV to
automatically tune to Channel 3 or 4 when you turn on the VCR.

CABLE,CABLEBOX,ORANTENNA

VCR1

IN FROM ANT I

@ @ 00T,0

VIDEO AUDIO

VIDEO R AUDIO k ,_

/

R L

OUT

G-LINK CABLE/

S-_DEO _ ANTENNA

I Please note that the S-VIDEO and Audio R |

and L OUT jacks are not available for

J

models F20625 and F19625.

Once you have completed this connection you may skip to Step 3.

5

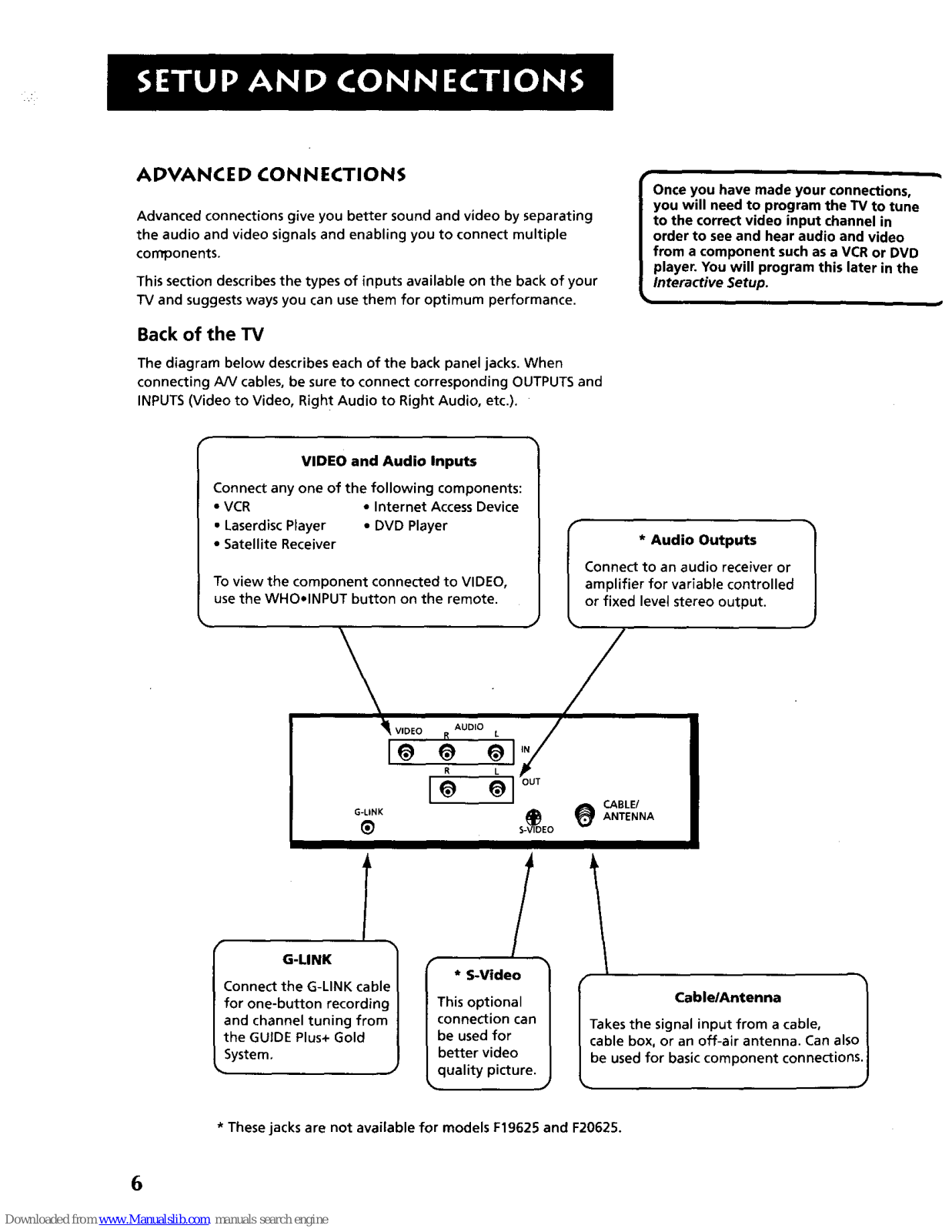

ADVANCED CONNECTIONS

Advanced connections give you better sound and video by separating
the audio and video signals and enabling you to connect multiple
components.

This section describes the types of inputs available on the back of your
TV and suggests ways you can use them for optimum performance.

Back of the TV

The diagram below describes each of the back panel jacks. When

connecting AN cables, be sure to connect corresponding OUTPUTS and

INPUTS (Video to Video, Right Audio to Right Audio, etc.).

Once you have made your connections,
you will need to program the TV to tune
to the correct video input channel in

order to see and hear audio and video
from a component such as a VCR or DVD

player. You will program this later in the

Interactive Setup.

f

VIDEO and Audio Inputs

Connect any one of the following components:

• VCR • Internet Access Device

• Laserdisc Player • DVD Player

• Satellite Receiver

To view the component connected to VIDEO,

use the WHO.INPUT button on the remote. I * Audio Outputs

Connect to an audio receiver or
amplifier for variable controlled

or fixed level stereo output.

vioI

CABLE/

G-LINK

s Eo A.,ENN

G-LINK

T

Connect the G-LINK cabh
for one-button recordinc

and channel tuning from

the GUIDE Plus+ Gold

System,

/

* S-Video

This optional

connection can
be used for
better video

quality picture.

I CablelAntenna 1

/Takes the signal input from a cable, I

|cable box, or an off-air antenna. Can also|

Lbe used for basic component connectionsJ

* These jacks are not available for models F19625 and F20625.

6

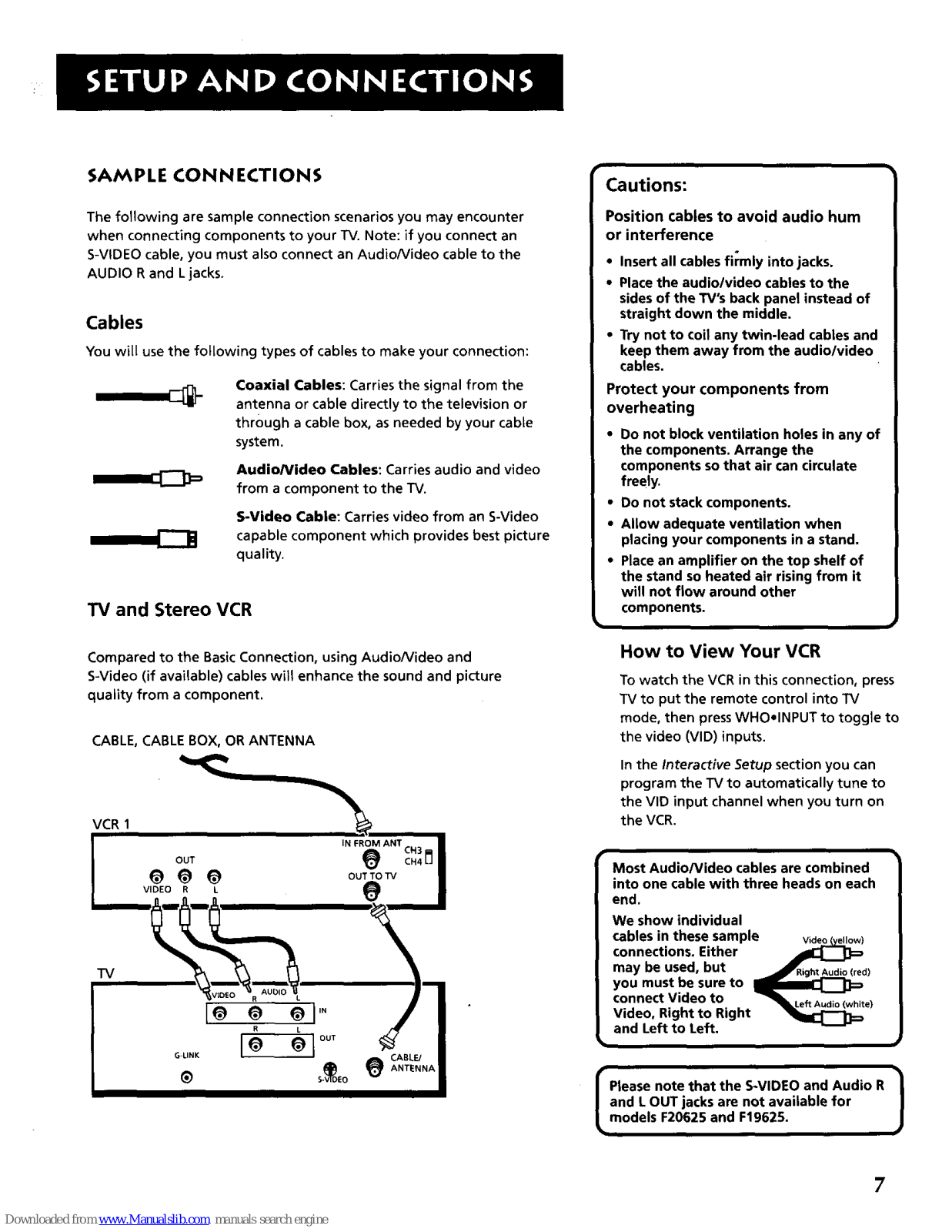

SAMPLE CONNECTIONS

The following are sample connection scenarios you may encounter
when connecting components to your TV. Note: if you connect an
S-VIDEO cable, you must also connect an Audio/Video cable to the
AUDIO R and Ljacks.

Cables

You will use the following types of cables to make your connection:

Coaxial Cables: Carries the signal from the
antenna or cable directly to the television or

through a cable box, as needed by your cable

system.
Audio/Video Cables: Carries audio and video

from a component to the TV.
S-Video Cable: Carries video from an S-Video

capable component which provides best picture

quality.

TV and Stereo VCR

Compared to the Basic Connection, using Audio/Video and
S-Video (if available) cables will enhance the sound and picture
quality from a component.

CABLE, CABLE BOX, OR ANTENNA

VCR 1

lim___ VD_EO _RUT __V_IEo _R AI_DIO I_L ''N INOU_ TM_RoMeANTc 3c 40'l

CABLE/

e S-_DEO _ ANTENNA

Cautions:

Position cables to avoid audio hum
or interference

• Insert all cables firmly into jacks.

• Place the audio/video cables to the

sides of the TV's back panel instead of

straight down the middle.

• Try not to coil any twin-lead cables and

keep them away from the audio/video
cables.

Protect your components from
overheating

• Do not block ventilation holes in any of

the components. Arrange the

components so that air can circulate
freely.

• Do not stack components.

• Allow adequate ventilation when

placing your components in a stand.

• Place an amplifier on the top shelf of

the stand so heated air rising from it
will not flow around other

components.

How to View Your VCR

To watch the VCR in this connection, press
TV to put the remote control into TV

mode, then press WHOelNPUT to toggle to
the video (VlD) inputs.

In the Interactive Setup section you can
program the TV to automatically tune to

the VlD input channel when you turn on
the VCR.

Most Audio/Video cables are combined

into one cable with three heads on each

end.
We show individual

cables in these sample Video(yellow)

connections. Either
may be used, but _,ght Audio(red)

you must be sure to

connect Video to _ke_ Audio(white)
Video, Right to Right

and Left to Left.

I Please note that the S-VIDEO and Audio R |

"t

and L OUT jacks are not available for

J

models F20625 and F19625.

7

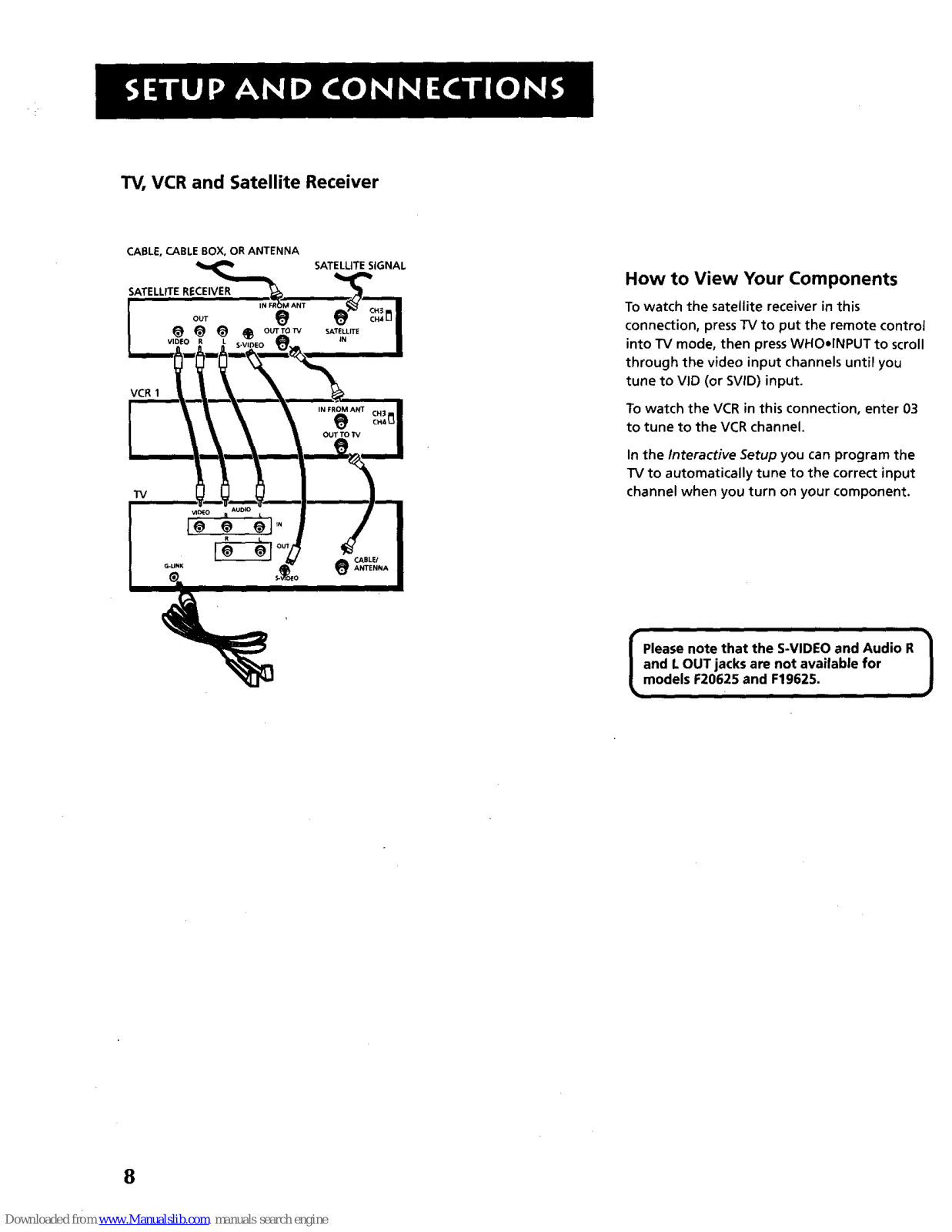

TV, VCR and Satellite Receiver

CABLE, CABLE BOX, OR ANTENNA

SATELLITE RECEIVER

VCR1

SATELLITE SIGNAL

How to View Your Components

To watch the satellite receiver in this

connection, press TV to put the remote control

into TV mode, then press WHOolNPUT to scroll
through the video input channels until you
tune to VID (or SVID) input.

To watch the VCR in this connection, enter 03

to tune to the VCR channel.

In the Interactive Setup you can program the

TV to automatically tune to the correct input

channel when you turn on your component.

I Please note that the S-VIDEO and Audio R |

and L OUT jacks are not available for

J

models F20625 and F19625.

8

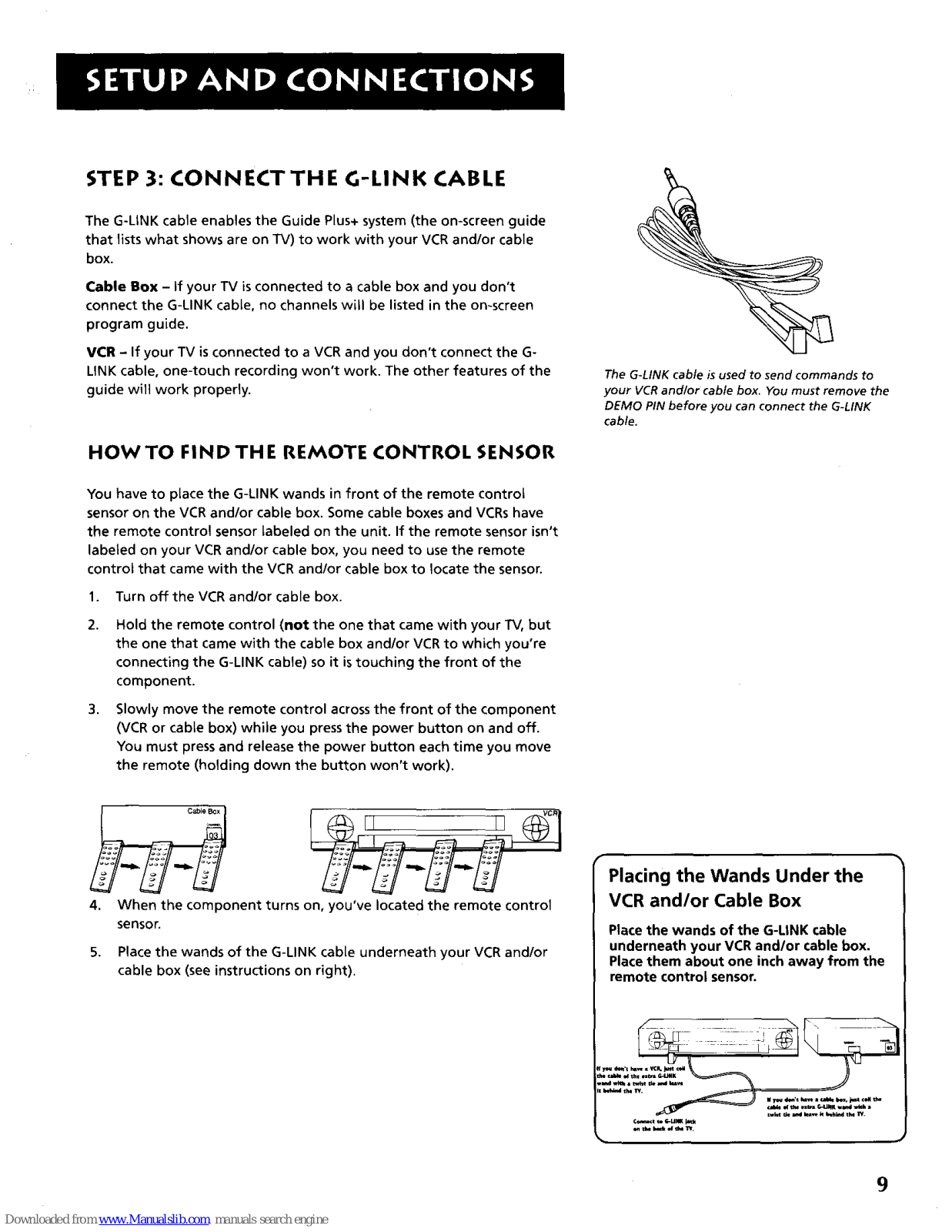

STEP 3: CONNECT THE G-LINK CABLE

The G-LINK cable enables the Guide Plus+ system (the on-screen guide
that lists what shows are on TV) to work with your VCR and/or cable

box.

Cable Box - If your TV is connected to a cable box and you don't

connect the G-LINK cable, no channels will be listed in the on-screen
program guide.

VCR - If your TV is connected to a VCR and you don't connect the G-
LINK cable, one-touch recording won't work. The other features of the
guide will work properly.

HOWTO FIND THE REMOTE CONTROL SENSOR

The G-LINK cable is used to send commands to
your VCR andlor cable box. You must remove the

DEMO PIN before you can connect the G-LINK
cable.

You have to pLace the G-LINK wands in front of the remote control
sensor on the VCR and/or cable box. Some cable boxes and VCRs have

the remote control sensor labeled on the unit. If the remote sensor isn't

labeled on your VCR and/or cable box, you need to use the remote
control that came with the VCR and/or cable box to locate the sensor.

1. Turn off the VCR and/or cable box.

2,

Hold the remote control (not the one that came with your TV, but
the one that came with the cable box and/or VCR to which you're
connecting the G-LINK cable) so it is touching the front of the
component.

3,

Slowly move the remote control across the front of the component
(VCR or cable box) while you press the power button on and off.

You must press and release the power button each time you move
the remote (holding down the button won't work).

4. When the component turns on, you've located the remote control
sensor.

5. Place the wands of the G-LINK cable underneath your VCR and/or
cable box (see instructions on right).

Placing the Wands Under the
VCR and/or Cable Box

Place the wands of the G-LINK cable

underneath your VCR and/or cable box.
Place them about one inch away from the
remote control sensor.

9

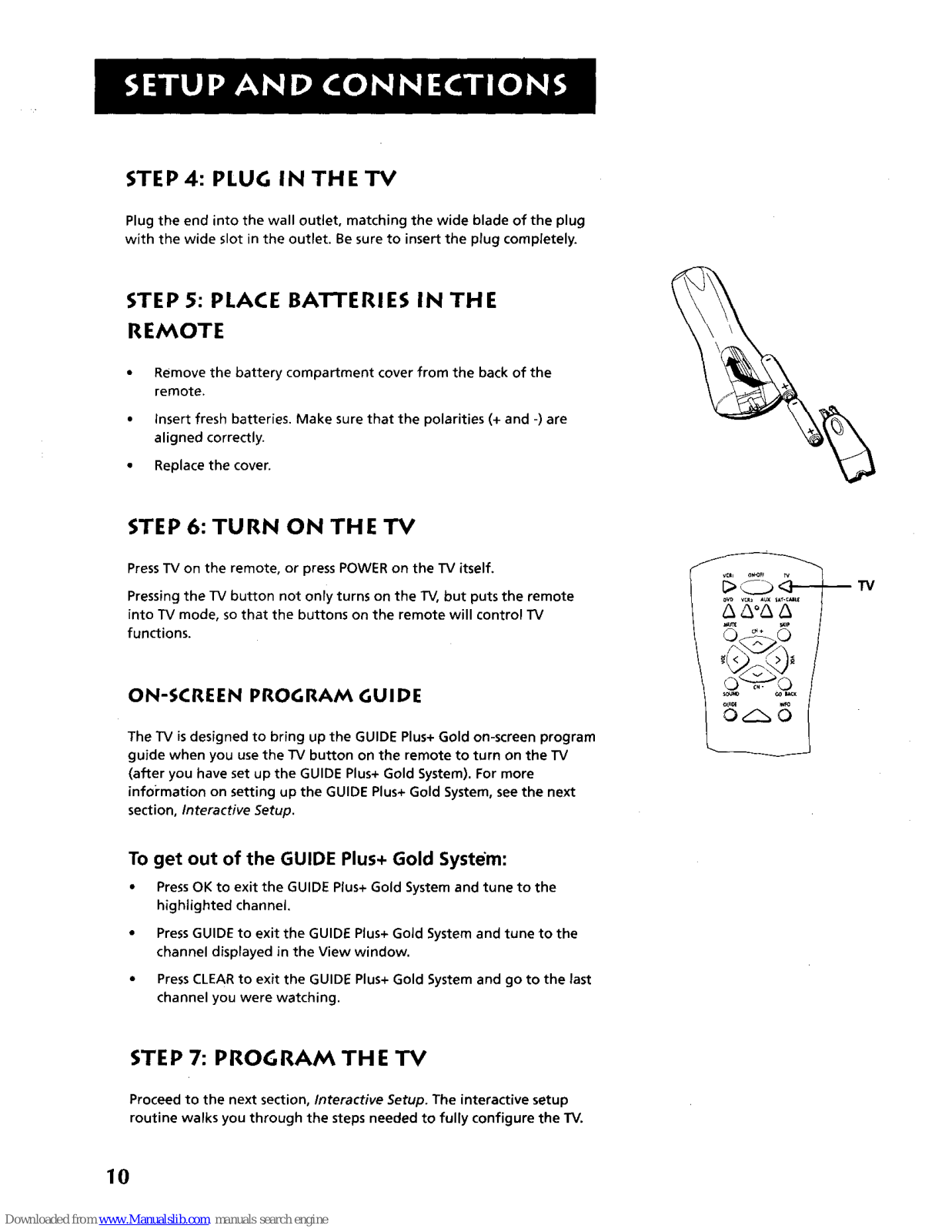

STEP 4: PLUG IN THE TV

Plug the end into the wall outlet, matching the wide blade of the plug

with the wide slot in the outlet. Be sure to insert the plug completely.

STEP 5: PLACE BA'n'ERIES IN THE

REMOTE

Remove the battery compartment cover from the back of the

remote.
insert fresh batteries. Make sure that the polarities (+ and -) are

aligned correctly+

• Replace the cover.

STEP 6: TURN ON THE TV

Press TV on the remote, or press POWER on the TV itself.
Pressing the TV button not only turns on the TV, but puts the remote

into TV mode, so that the buttons on the remote will control TV
functions.

ON-SCREEN PROGRAM GUIDE

The TV is designed to bring up the GUIDE Plus+ Gold on-screen program
guide when you use the TV button on the remote to turn on the "IV
(after you have set up the GUIDE Plus+ Gold System). For more
info_'mation on setting up the GUIDE Plus+ Gold System, see the next
section, Interactive Setup.

TV

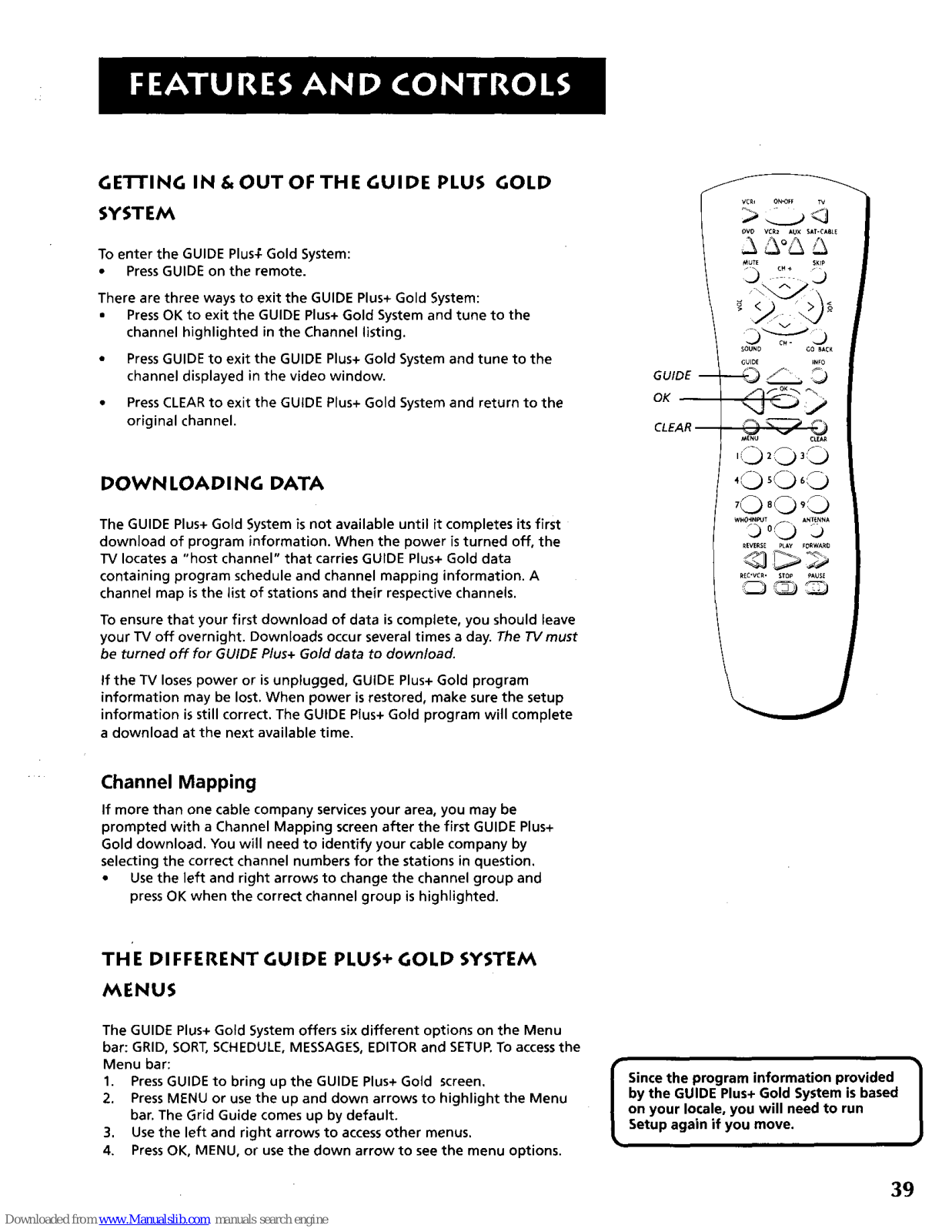

To get out of the GUIDE Plus+ Gold Syste'm:

• Press OK to exit the GUIDE Plus+ Gold System and tune to the
highlighted channel.

• Press GUIDE to exit the GUIDE Plus+ Gold System and tune to the
channel displayed in the View window.

• Press CLEAR to exit the GUIDE Plus+ Gold System and go to the last
channel you were watching.

STEP 7: PROGRAM THE TV

Proceed to the next section, Interactive Setup. The interactive setup
routine walks you through the steps needed to fully configure the "IV.

10

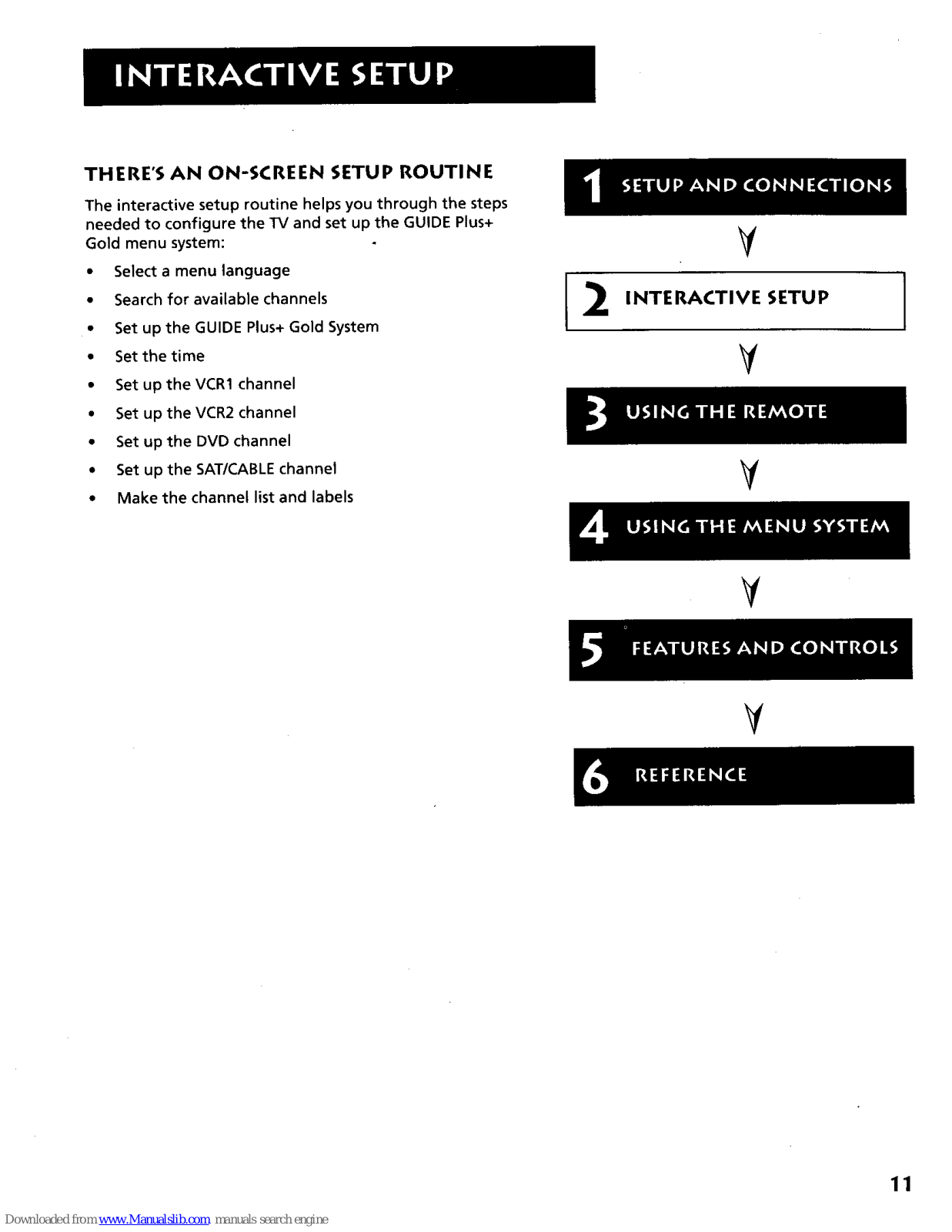

THERE'S AN ON-SCREEN SETUP ROUTINE

The interactive setup routine helps you through the steps

needed to configure the TV and set up the GUIDE Plus+
Gold menu system:

• Select a menu language

• Search for available channels

• Set up the GUIDE Plus+ Gold System

• Set the time

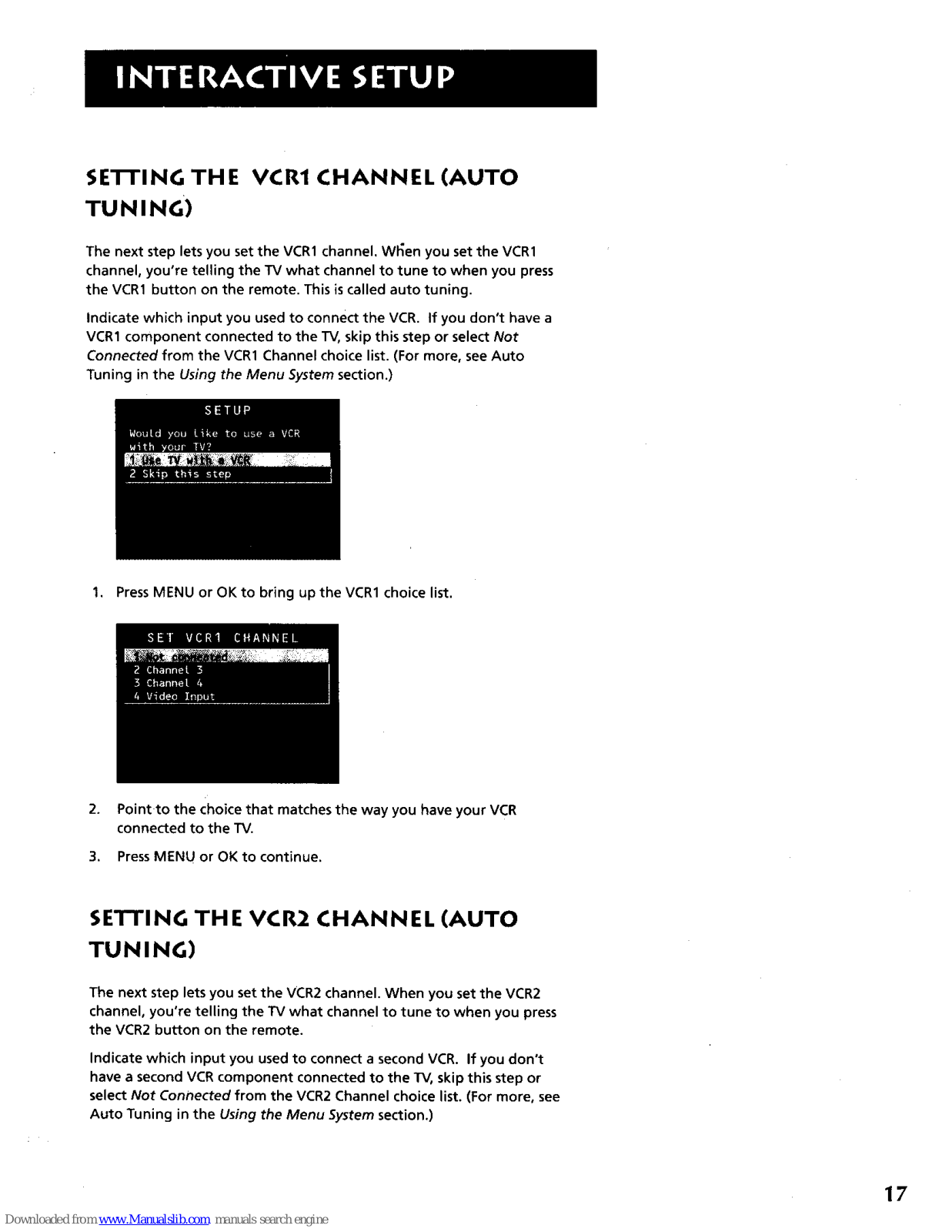

• Set up theVCR1 channel

• Set up theVCR2 channel

• Set up the DVD channel

• Set up the SAT/CABLE channel

• Make the channel list and labels

V

INTERACTIVE SETUP

V

V

V

V

11

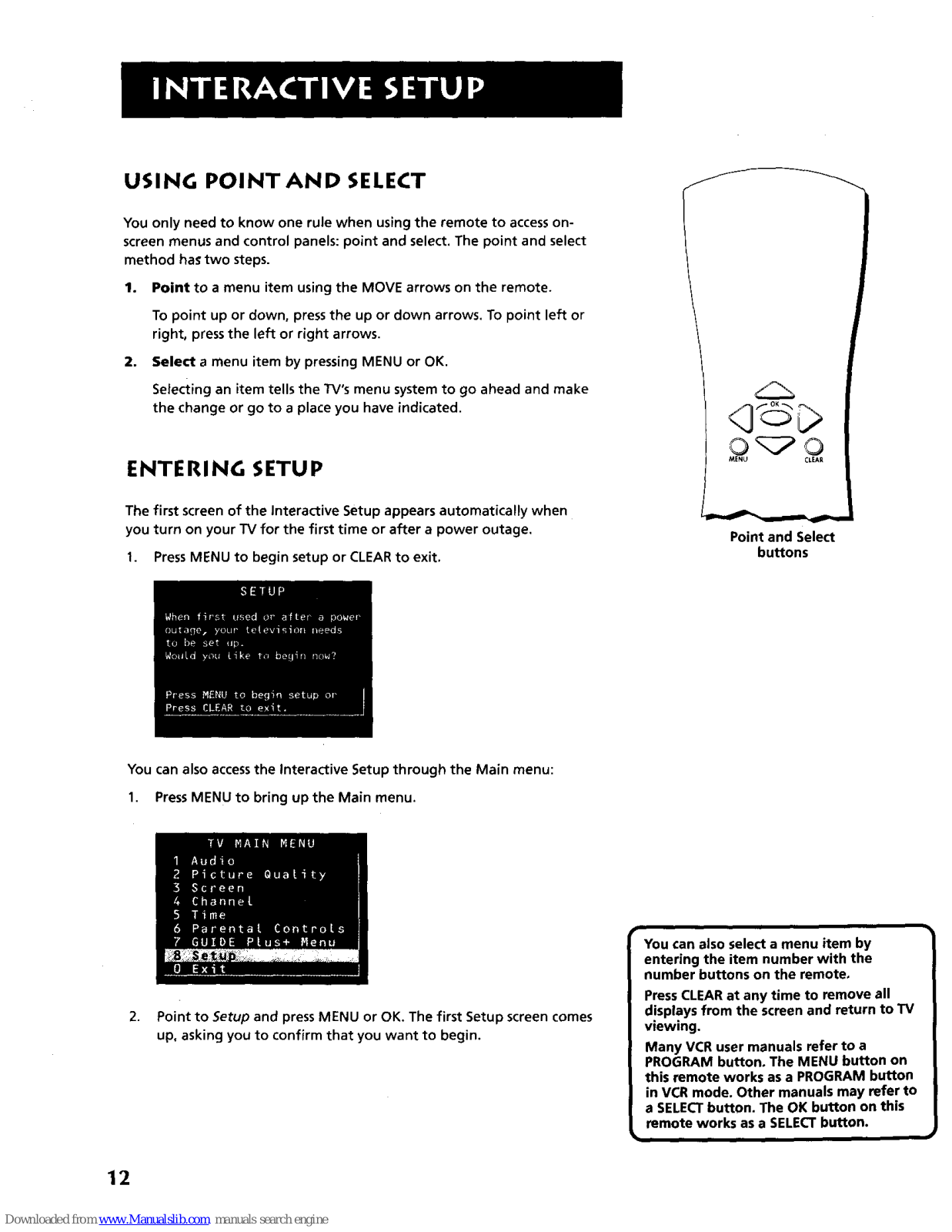

USING POINTAND SELECT

You only need to know one rule when using the remote to access on-
screen menus and control panels: point and select. The point and select
method has two steps.

1. Point to a menu item using the MOVE arrows on the remote.
To point up or down, press the up or down arrows. To point left or

right, press the left or right arrows.

2. Select a menu item by pressing MENU or OK.
Selecting an item tells the TV's menu system to go ahead and make

the change or go to a place you have indicated.

ENTERING SETUP

The first screen of the Interactive Setup appears automatically when

you turn on your TV for the first time or after a power outage.

1. Press MENU to begin setup or CLEAR to exit.

MENU CLEAR

Point and Select

buttons

You can also accessthe Interactive Setup through the Main menu:

1. PressMENU to bring up the Main menu.

2.

Point to Setup and press MENU or OK, The first Setup screen comes
up, asking you to confirm that you want to begin.

F

You can also select a menu item by
entering the item number with the

number buttons on the remote,

Press CLEAR at any time to remove all
displays from the screen and return to TV

viewing.

Many VCR user manuals refer to a
PROGRAM button, The MENU button on

this remote works as a PROGRAM button
in VCR mode. Other manuals may refer to
a SELECTbutton. The OK button on this
remote works as a SELECT button.

12

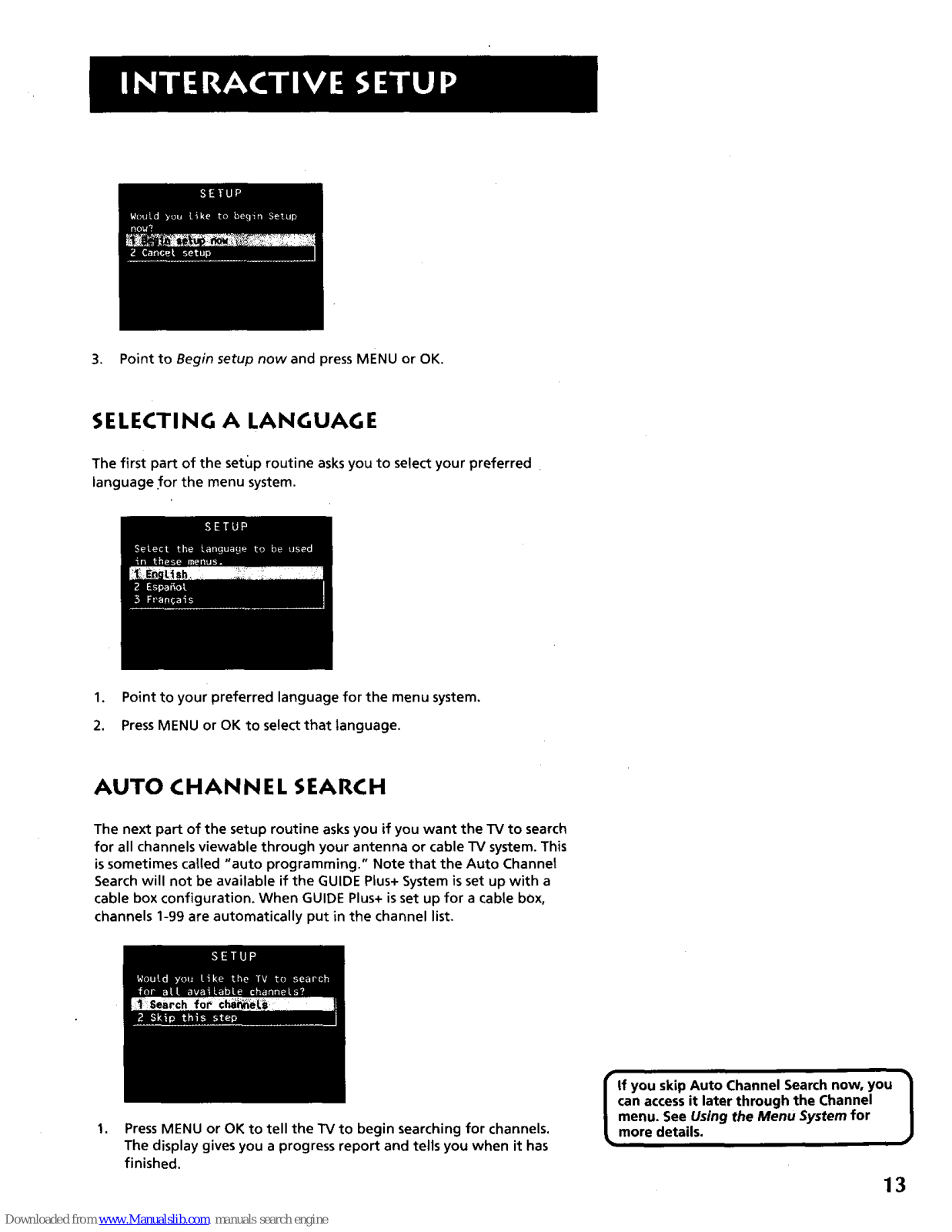

3. Point to Begin setup now and press MENU or OK.

SELECTING A LANGUAGE

The first part of the setup routine asks you to select your preferred

language for the menu system.

1. Point to your preferred language for the menu system.

2. Press MENU or OK to select that _anguage.

AUTO CHANNEL SEARCH

The next part of the setup routine asks you if you want the TV to search

for all channels viewable through your antenna or cable TV system. This
is sometimes called "auto programming." Note that the Auto Channet
Search will not be available if the GUIDE Plus+ System is set up with a
cable box configuration. When GUIDE Plus+ is set up for a cable box,
channels 1-99 are automatically put in the channel list.

1,

Press MENU or OK to tell the TV to begin searching for channels.

The display gives you a progress report and tells you when it has
finished.

if you skip Auto Channel Search now, you I

can access it later through the Channel

J

menu. See Using the Menu System for
more details.

13

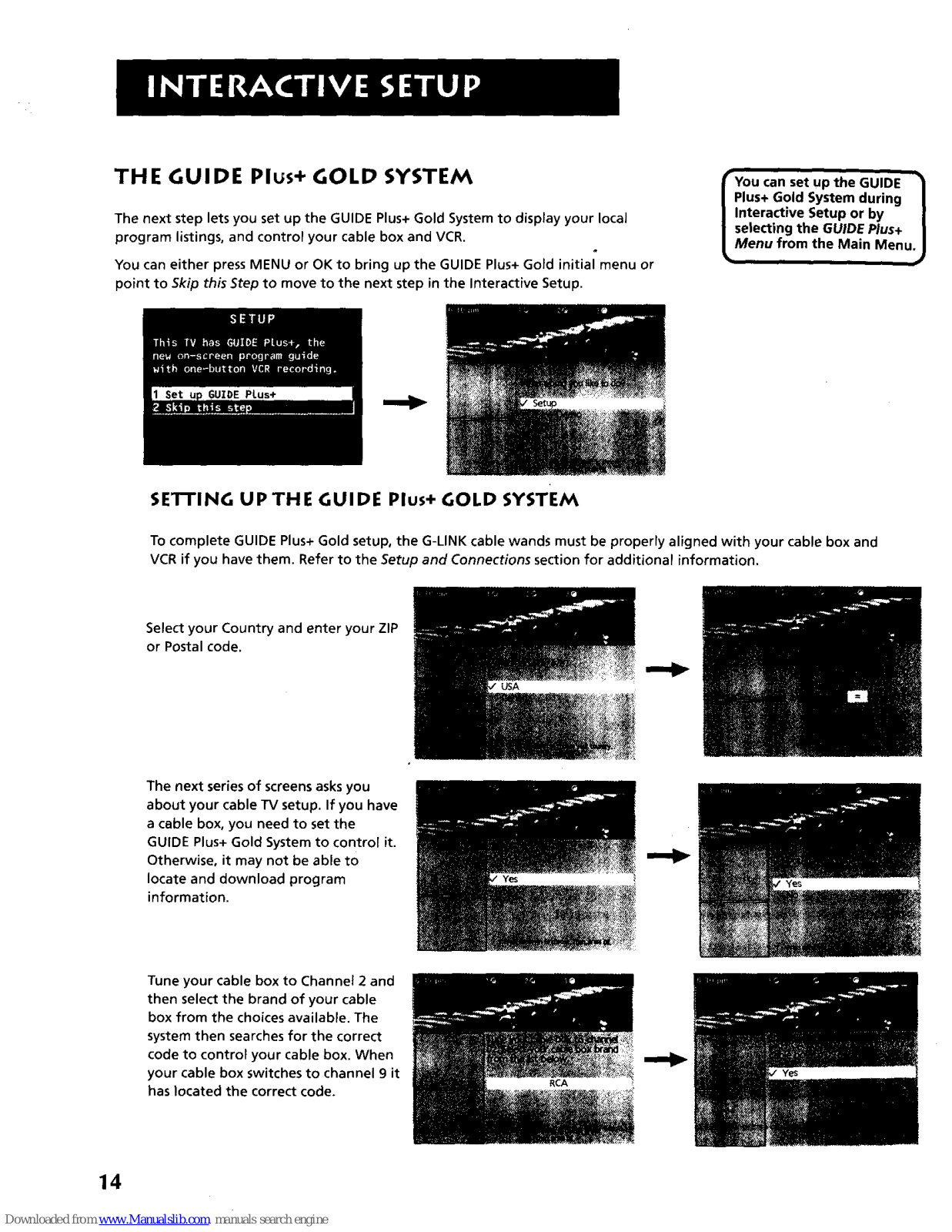

THE GUIDE Plus+ GOLD SYSTEM

The next step lets you set up the GUIDE Plus+ Gold System to display your local

program listings, and control your cable box and VCR.
You can either press MENU or OK to bring up the GUIDE Plus+ Gold initial menu or

point to Skip this Step to move to the next step in the Interactive Setup.

I You can set up the GUIDE

Plus+ Gold System during I
Interactive Setup or by |
selecting the GUIDE Plus+ I

Menu from the Main Menu.)

GUZDE PLus+

SEIII'ING UPTHE GUIDE Plus+ GOLD SYSTEM

To complete GUIDE Plus+ Gold setup, the G-LINK cable wands must be properly aligned with your cable box and
VCR if you have them. Refer to the Setup and Connections section for additional information.

Select your Country and enter your ZIP
or Postal code.

J USA

The next series of screens asks you
about your cable TV setup. If you have
a cable box, you need to set the
GUIDE Plus+ Gold System to control it.
Otherwise, it may not be able to
locate and download program

information.

Tune your cable box to Channel 2 and
then select the brand of your cable

box from the choices available. The

system then searches for the correct

code to control your cable box. When

your cable box switches to channel 9 it

has located the correct code.

14

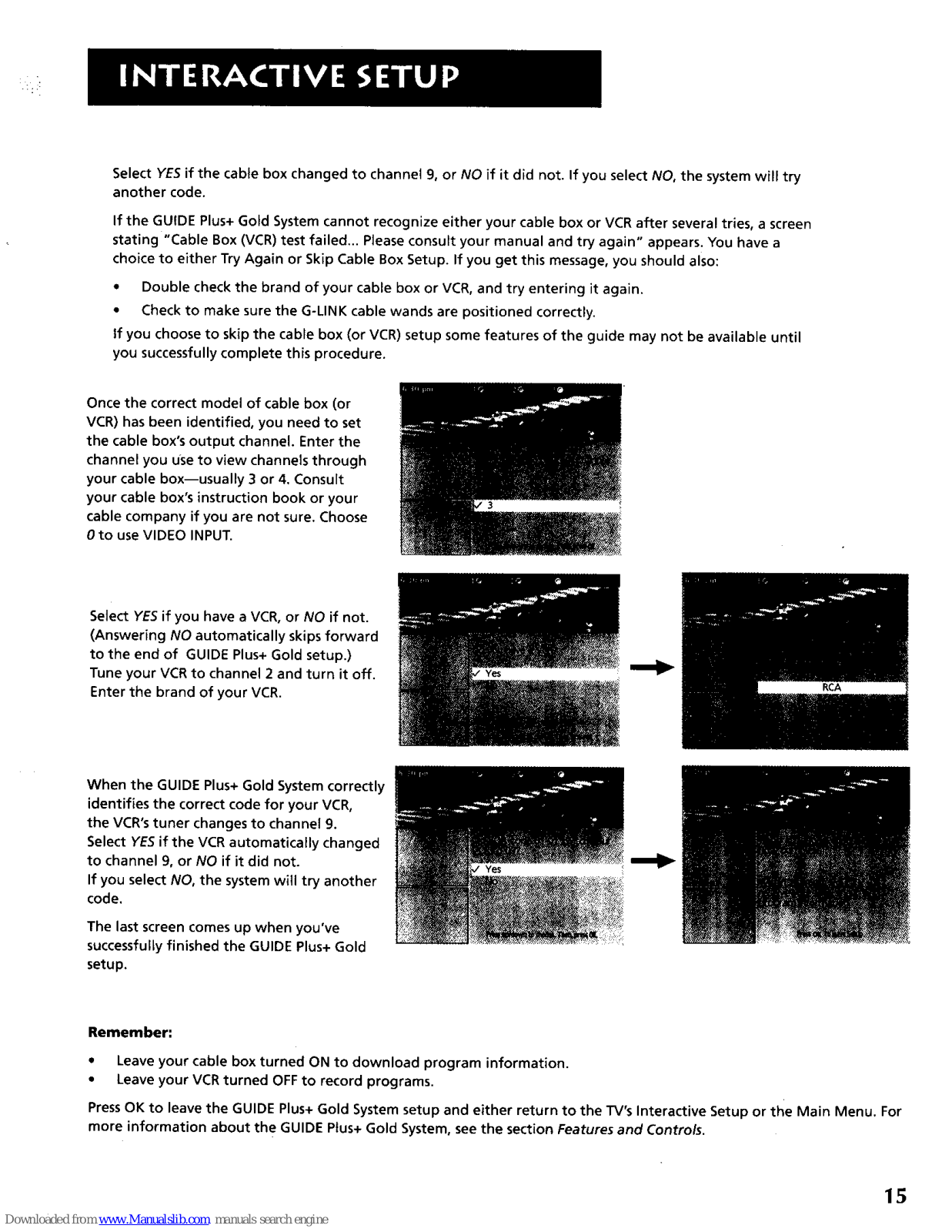

Select YES if the cable box changed to channel 9, or NO if it did not. If you select NO, the system will try
another code.

If the GUIDE Plus+ Gold System cannot recognize either your cable box or VCR after several tries, a screen
stating "Cable Box (VCR) test failed... Please consult your manual and try again" appears. You have a
choice to either Try Again or Skip Cable Box Setup. If you get this message, you should also:

• Double check the brand of your cable box or VCR, and try entering it again.

• Check to make sure the G-LINK cable wands are positioned correctly.

If you choose to skip the cable box (or VCR) setup some features of the guide may not be available until
you successfully complete this procedure.

Once the correct model of cable box (or
VCR) has been identified, you need to set

the cable box°s output channel. Enter the
channel you use to view channels through

your cable box--usually 3 or 4. Consult
your cable box's instruction book or your
cable company if you are not sure. Choose

0 to use VIDEO INPUT.

Select YES if you have a VCR, or NO if not.
(Answering NO automatically skips forward

to the end of GUIDE Plus+ Gold setup.)
Tune your VCR to channel 2 and turn it off.

Enter the brand of your VCR.

When the GUIDE Plus+ Gold System correctly

identifies the correct code for your VCR,
the VCR's tuner changes to channel 9.
Select YES if the VCR automatically changed

to channel 9, or NO if it did not.

If you select NO, the system will try another
code.

The last screen comes up when you've
successfully finished the GUIDE Plus+ Gold

setup.

Yes

Remember:

• Leave your cable box turned ON to download program information.

• Leave your VCR turned OFF to record programs.

Press OK to leave the GUIDE Plus+ Gold System setup and either return to the TV's Interactive Setup or the Main Menu. For

more information about the GUIDE Ptus+ Gold System, see the section Features and Controls.

15

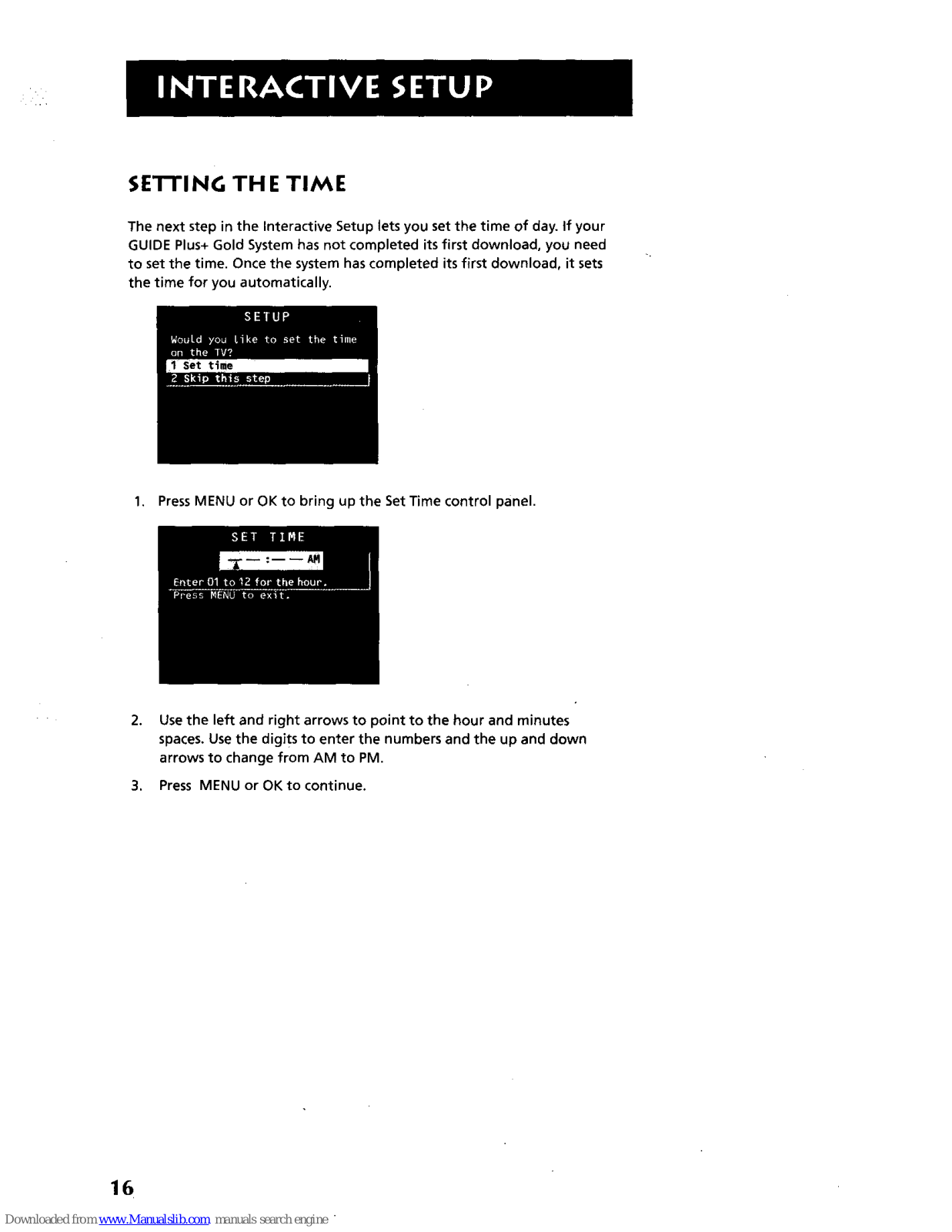

SE'IIFING THE TIME

The next step in the Interactive Setup lets you set the time of day. If your

GUIDE Plus+ Gold System has not completed its first download, you need

to set the time. Once the system has completed its first download, it sets

the time for you automatically.

1. Press MENU or OK to bring up the Set Time control panel.

2.

Use the left and right arrows to point to the hour and minutes

spaces. Use the digits to enter the numbers and the up and down

arrows to change from AM to PM.

3. Press MENU or OK to continue.

16

SE'I-I'ING THE VCR1 CHANNEL (AUTO

TUNING)

The next step lets you set the VCR1 channel. Wt_en you set the VCR1

channel, you're telling the TV what channel to tune to when you press

the VCR1 button on the remote. This is called auto tuning.

Indicate which input you used to connect the VCR. If you don't have a
VCR1 component connected to the TV, skip this step or select Not
Connected from the VCR1 Channel choice list. (For more, see Auto
Tuning in the Using the Menu System section.)

1. Press MENU or OK to bring up the VCR1 choice list.

2. Point to the choice that matches the way you have your VCR
connected to the TV.

3. Press MENU or OK to continue.

SE'I-FING THE VCR2 CHANNEL (AUTO

TUNING)

The next step lets you set the VCR2 channel. When you set the VCR2

channel, you're telling the "IV what channel to tune to when you press

the VCR2 button on the remote.

Indicate which input you used to connect a second VCR. If you don't
have a second VCR component connected to the TV, skip this step or

select Not Connected from the VCR2 Channel choice list. (For more, see
Auto Tuning in the Using the Menu System section.)

17

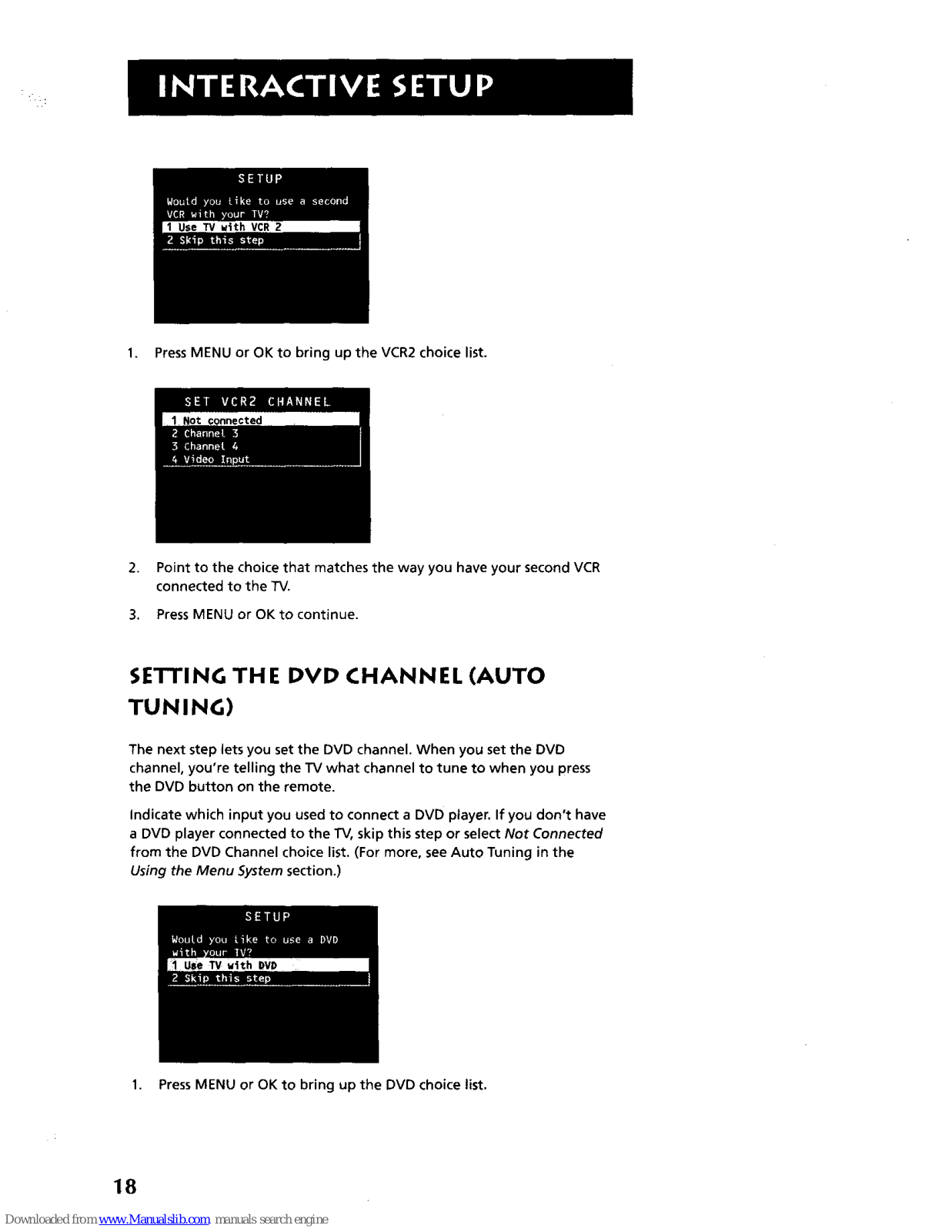

1. Press MENU or OK to bring up the VCR2 choice list.

2. Point to the choice that matches the way you have your second VCR
connected to the TV.

3. Press MENU or OK to continue.

SE'I-FING THE DVD CHANNEL (AUTO

TUNING)

The next step lets you set the DVD channel. When you set the DVD
channel, you're telling the TV what channel to tune to when you press

the DVD button on the remote.

indicate which input you used to connect a DVD player. If you don't have

a DVD player connected to the TV, skip this step or select Not Connected

from the DVD Channel choice list. (For more, see Auto Tuning in the
Using the Menu System section.)

1. Press MENU or OK to bring up the DVD choice list.

18

2. Point to the choice that matches the way you have your DVD player
connected to the TV.

3. Press MENU or OK to continue.

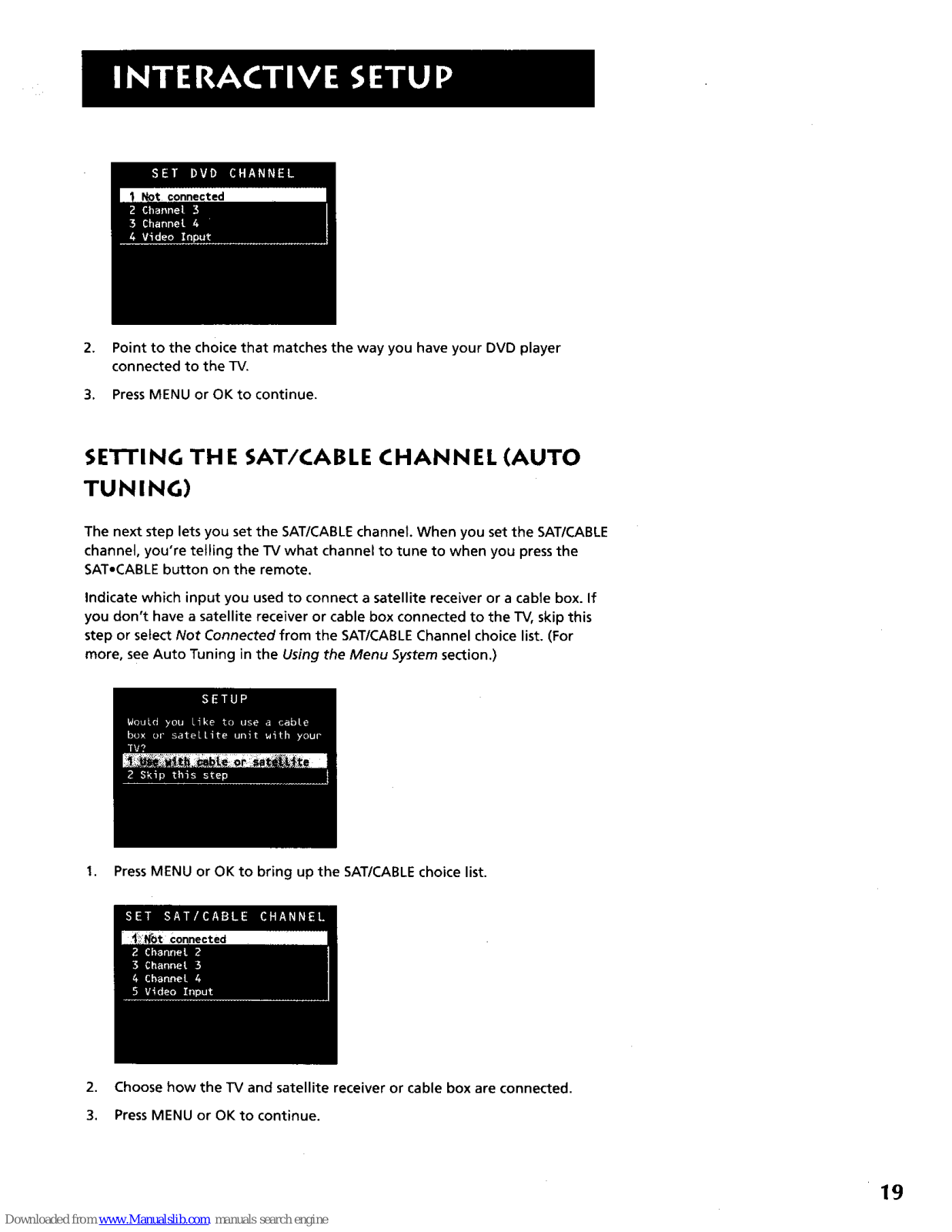

SETTING THE SAT/CABLE CHANNEL (AUTO

TUNING)

The next step lets you set the SAT/CABLE channel. When you set the SAT/CABLE
channel, you're telling the TV what channel to tune to when you press the

SATeCABLE button on the remote.

Indicate which input you used to connect a satellite receiver or a cable box. If

you don't have a satellite receiver or cable box connected to the TV, skip this
step or select Not Connected from the SAT/CABLE Channel choice list. (For

more, see Auto Tuning in the Using the Menu System section.)

1. PressMENU or OK to bring up the SAT/CABLE choice list.

2. Choose how the TV and satellite receiver or cable box are connected.

3. Press MENU or OK to continue.

19

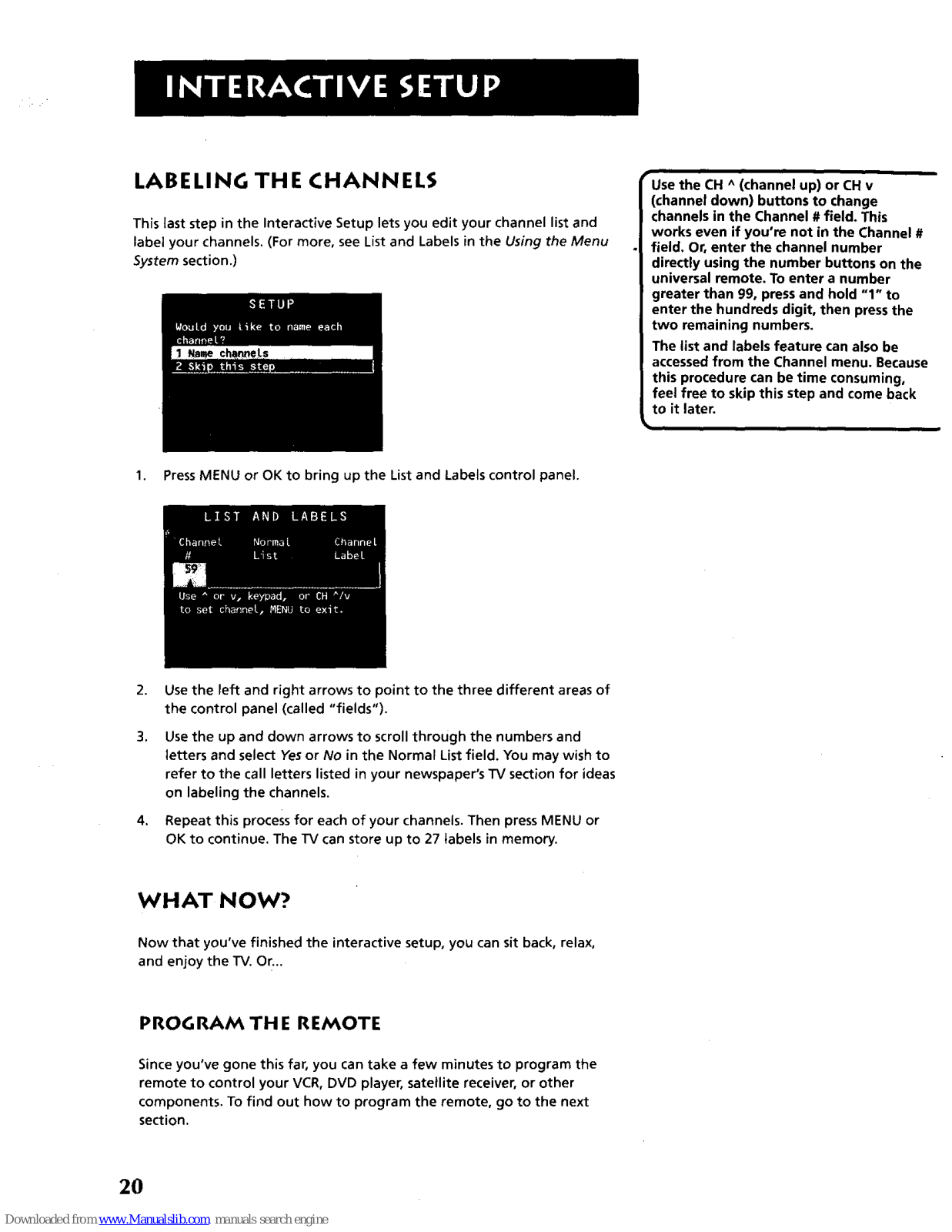

LABELING THE CHANNELS

This last step in the Interactive Setup lets you edit your channel list and

label your channels. (For more, see List and Labels in the Using the Menu

System section.)

rUse the CH ^ (channel up) or CH v

(channel down) buttons to change
channels in the Channel # field. This

works even if you're not in the Channel #
field, Or, enter the channel number

directly using the number buttons on the
universal remote. To enter a number

greater than g9, press and hold "1" to
enter the hundreds digit, then press the
two remaining numbers.

The list and labels feature can also be
accessed from the Channel menu. Because

this procedure can be time consuming,
feel free to skip this step and come back
to it later.

1. Press MENU or OK to bring up the List and Labels control panel.

2.

3.

4,

Use the left and right arrows to point to the three different areas of
the control panel (called "fields").

Use the up and down arrows to scroll through the numbers and
letters and select Yesor No in the Normal List field. You may wish to
refer to the call letters listed in your newspaper's TV section for ideas
on labeling the channels.

Repeat this process for each of your channels. Then press MENU or

OK to continue. The TV can store up to 27 _abels in memory.

WHAT NOW?

Now that you've finished the interactive setup, you can sit back, relax,
and enjoy the TV. Or...

PROGRAM TH E REMOTE

Since you've gone this far, you can take a few minutes to program the

remote to control your VCR, DVD player, satellite receiver, or other

components. To find out how to program the remote, go to the next

section.

2O

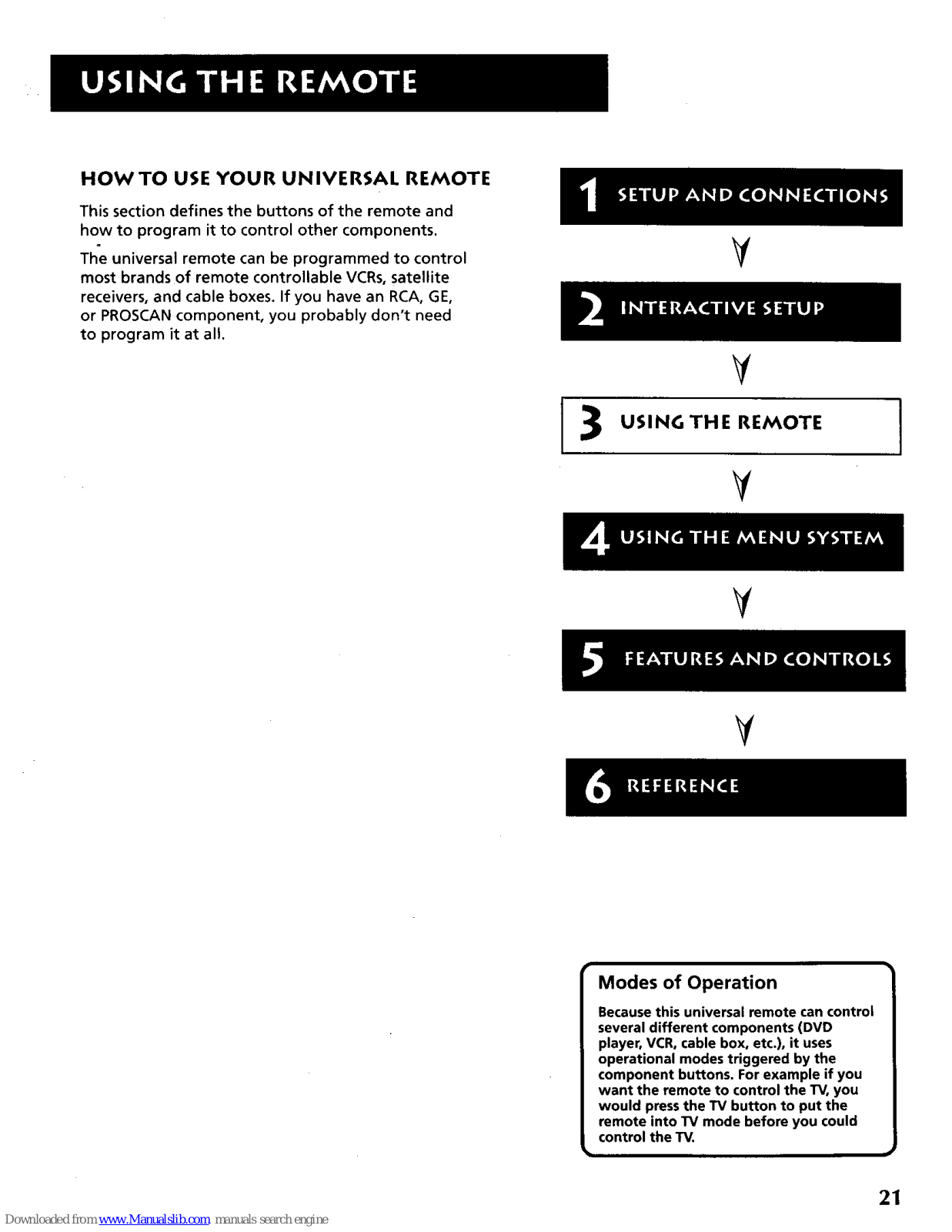

HOWTO USE YOUR UNIVERSAL REMOTE

This section defines the buttons of the remote and

how to program it to control other components.
The universal remote can be programmed to control

most brands of remote controllable VCRs, satellite
receivers, and cable boxes. If you have an RCA, GE,

or PROSCAN component, you probably don't need
to program it at all.

13

USING THE REMOTE

¥

V

V

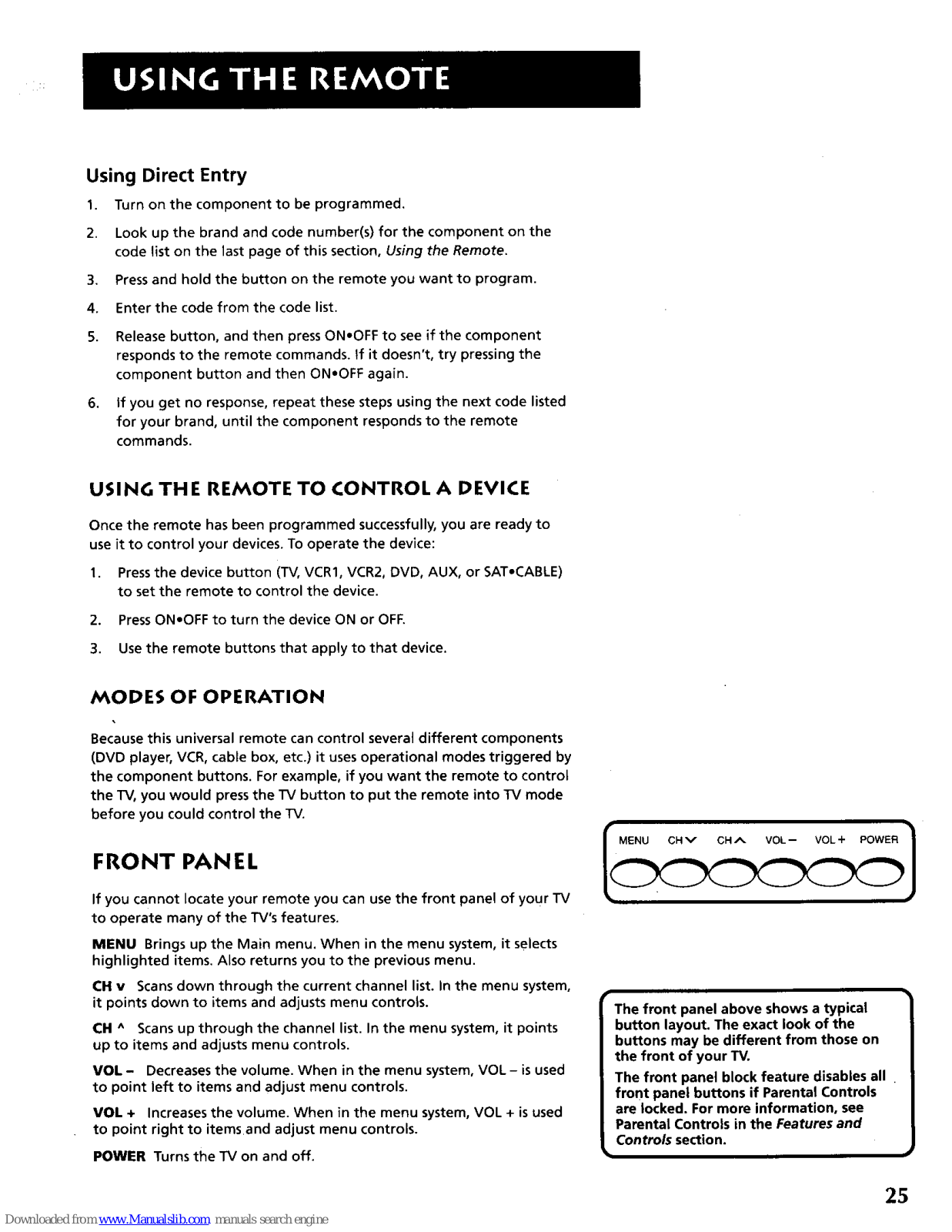

Modes of Operation

Because this universal remote can control
several different components (DVD

player, VCR, cable box, etc.), it uses
operational modes triggered by the
component buttons. For example if you
want the remote to control the TV, you
would press the TV button to put the
remote into TV mode before you could

control the TV.

21

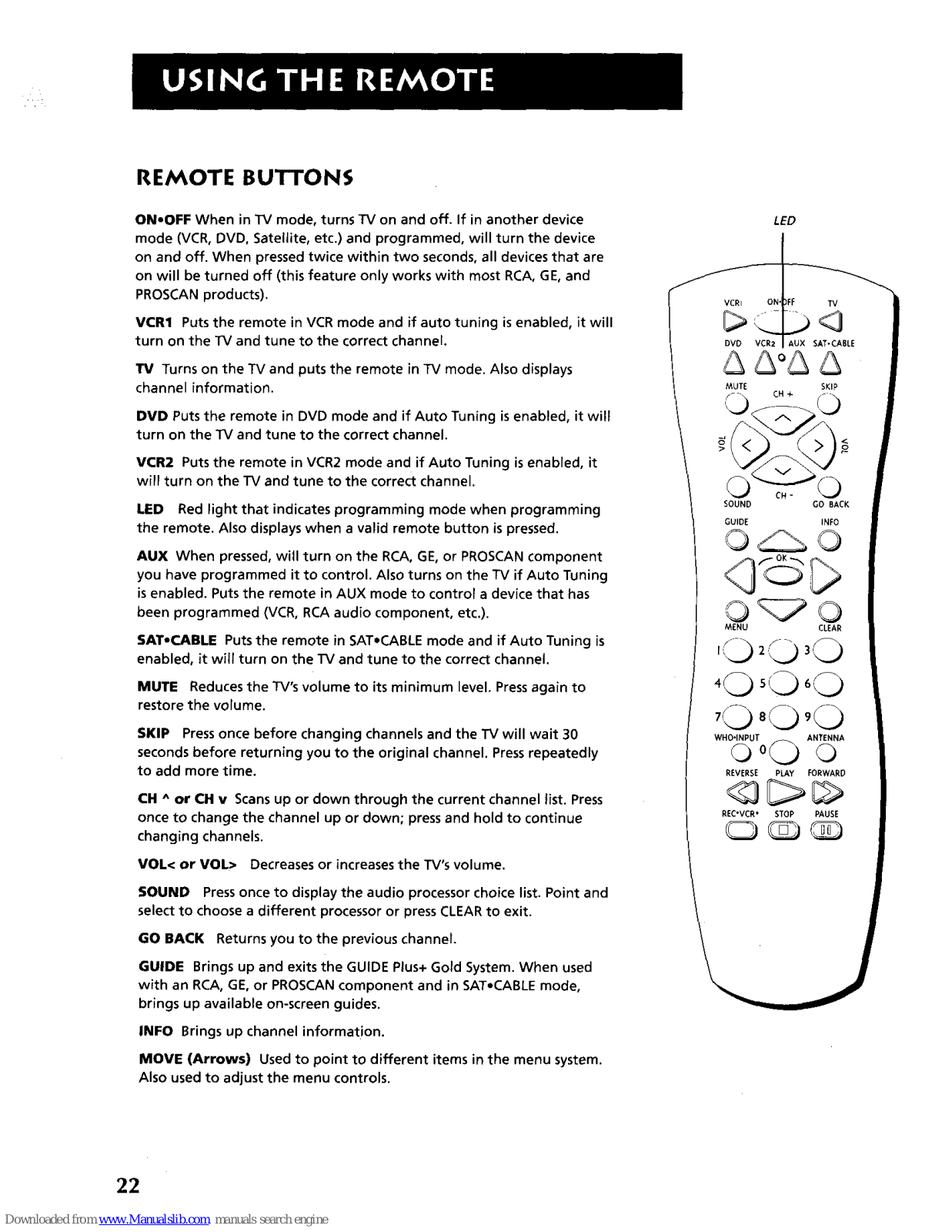

REMOTE BUTTONS

ON.OFF When in TV mode, turns TV on and off. If in another device
mode (VCR, DVD, Satellite, etc.) and programmed, will turn the device
on and off. When pressed twice within two seconds, all devices that are

on will be turned off (this feature only works with most RCA, GE, and
PROSCAN products).

VCR1 Puts the remote in VCR mode and if auto tuning is enabled, it will
turn on the TV and tune to the correct channel.

TV Turns on the TV and puts the remote in TV mode. Also displays
channel information.

DVD Puts the remote in DVD mode and if Auto Tuning is enabled, it will

turn on the TV and tune to the correct channel.
VCR2 Puts the remote in VCR2 mode and if Auto Tuning is enabled, it

will turn on the TV and tune to the correct channel.

LED Red light that indicates programming mode when programming
the remote. Also displays when a valid remote button is pressed.

AUX When pressed, will turn on the RCA, GE, or PROSCAN component
you have programmed it to control. Also turns on the TV if Auto Tuning

is enabled. Puts the remote in AUX mode to control a device that has
been programmed (VCR, RCA audio component, etc.).

SAT-CABLE Puts the remote in SAToCABLE mode and if Auto Tuning is
enabled, it will turn on the TV and tune to the correct channel.

MUTE Reduces the TV's volume to its minimum level, Press again to

restore the volume.

SKIP Press once before changing channels and the TV will wait 30
seconds before returning you to the original channel. Press repeatedly
to add more time.

CH ^ or CH v Scans up or down through the current channel list. Press
once to change the channel up or down; press and hold to continue
changing channels.

VOL< or VOL> Decreases or increases the TV's volume.

SOUND Press once to display the audio processor choice list. Point and

select to choose a different processor or press CLEAR to exit.

GO BACK Returns you to the previous channel.
GUIDE Brings up and exits the GUIDE Plus+ Gold System. When used

with an RCA, GE, or PROSCAN component and in SAT.CABLE mode,
brings up available on-screen guides.

INFO Brings up channel information.

MOVE (Arrows) Used to point to different items in the menu system.

Also used to adjust the menu controls.

LED

VCRI ON" )FF TV

DVO VCR2 AUX SAT.CABLE

MUTE SKIP

SOUND GO BACK

GUIDE INFO

©

M[NU CLEAR

,1©2:031©

4©s© °10

WHO'INPUT ANTENNA

0°0 0

REVERSE PLAY FORWARD

REC'VCR* STOP PAUSE

22

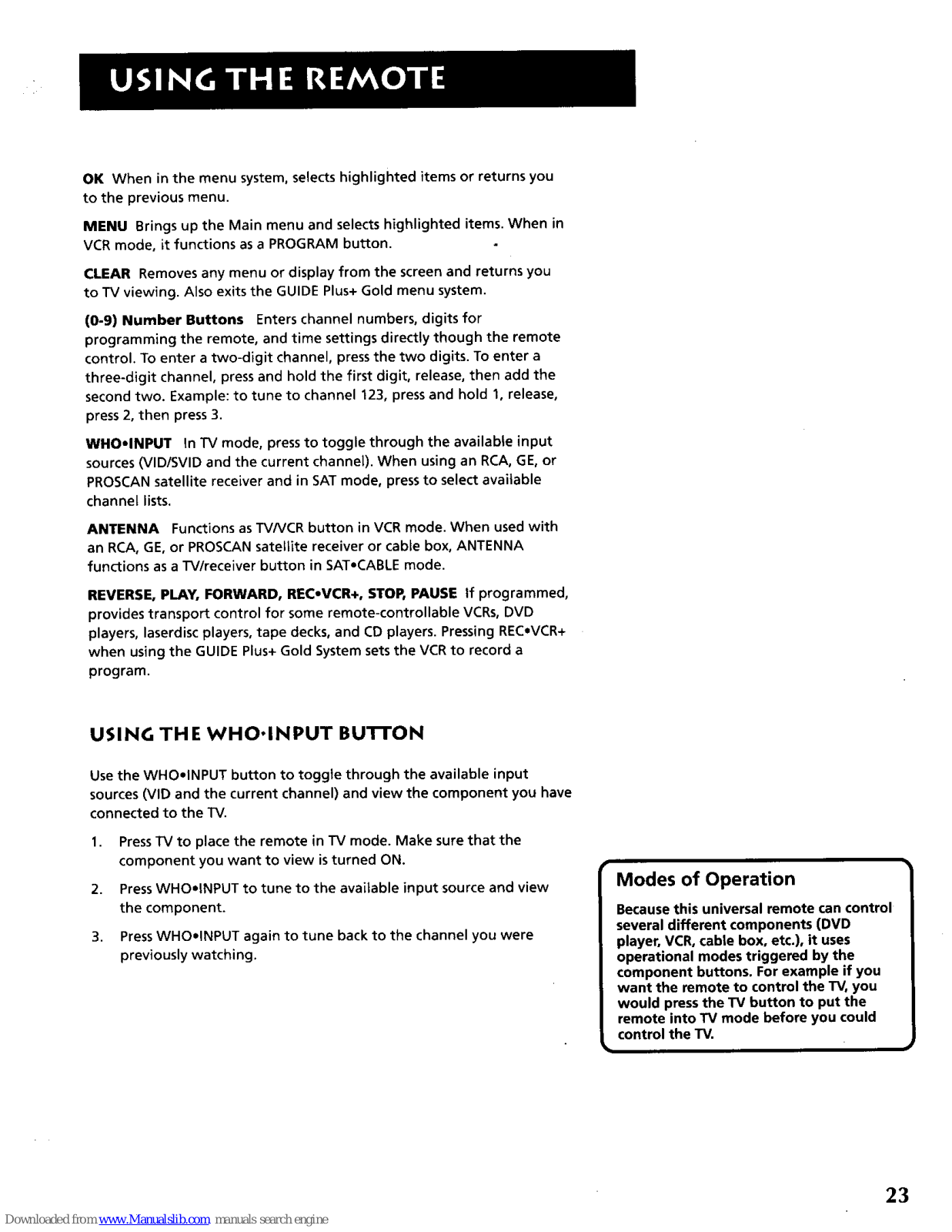

OK When in the menu system, selects highlighted items or returns you
to the previous menu.

MENU Brings up the Main menu and selects highlighted items. When in
VCR mode, it functions as a PROGRAM button.

CLEAR Removes any menu or display from the screen and returns you
to TV viewing. Also exits the GUIDE Plus+ Gold menu system.

(0-9) Number Buttons Enters channel numbers, digits for
programming the remote, and time settings directly though the remote

control. To enter a two-digit channel, press the two digits. To enter a
three-digit channel, press and hold the first digit, release, then add the

second two. Example: to tune to channel 123, press and hold 1, release,

press 2, then press 3.

WHOoINPUT In TV mode, press to toggle through the available input

sources (VID/SVID and the current channel). When using an RCA, GE, or
PROSCAN satellite receiver and in SAT mode, press to select available

channel lists.

ANTENNA Functions as TV/VCR button in VCR mode. When used with
an RCA, GE, or PROSCAN satellite receiver or cable box, ANTENNA

functions as a TV/receiver button in SAToCABLE mode.

REVERSE, PLAY, FORWARD, RECoVCR+, STOP, PAUSE If programmed,
provides transport control for some remote-controllable VCRs, DVD

players, laserdisc players, tape decks, and CD players. Pressing RECeVCR+
when using the GUIDE Plus+ Gold System sets the VCR to record a

program.

USING TH E WHO.INPUT BUI-I'ON

Use the WHOelNPUT button to toggle through the available input

sources (VID and the current channel) and view the component you have
connected to the TV.

1. Press TV to place the remote in TV mode. Make sure that the
component you want to view is turned ON.

2. Press WHOoINPUT to tune to the available input source and view

the component.

3. Press WHOolNPUT again to tune back to the channel you were

previously watching.

Modes of Operation

Because this universal remote can control

several different components (DVD

player, VCR, cable box, etc.), it uses
operational modes triggered by the
component buttons. For example if you

want the remote to control the TV, you
would press the TV button to put the
remote into TV mode before you could

control the TV.

23

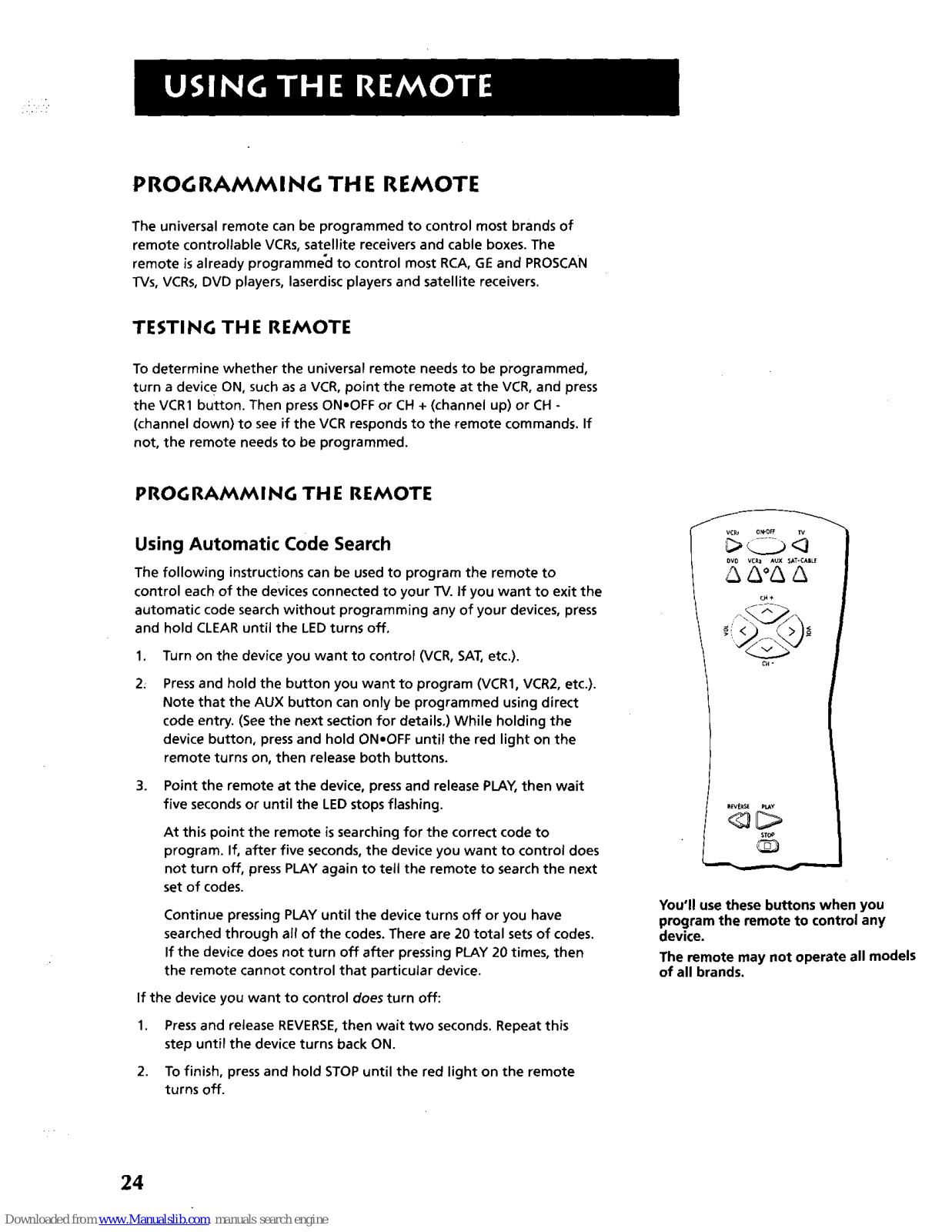

PROGRAMMING TH E REMOTE

The universal remote can be programmed to control most brands of
remote controllable VCRs, satellite receivers and cable boxes. The
remote is already programmed to control most RCA, GE and PROSCAN
TVs, VCRs, DVD players, laserdisc players and satellite receivers.

TESTING THE REMOTE

To determine whether the universal remote needs to be programmed,
turn a devic e ON, such as a VCR, point the remote at the VCR, and press

the VCR1 button. Then press ON.OFF or CH + (channel up) or CH *
(channel down) to see if the VCR responds to the remote commands. If

not, the remote needs to be programmed.

PROGRAMMING THE REMOTE

Using Automatic Code Search

The following instructions can be used to program the remote to
control each of the devices connected to your "IV. If you want to exit the
automatic code search without programming any of your devices, press

and hold CLEAR until the LED turns off.

1. Turn on the device you want to control (VCR, SAT, etc.).

2_

Press and hold the button you want to program (VCR1, VCR2, etc.).
Note that the AUX button can only be programmed using direct
code entry. (See the next section for details,) While holding the
device button, press and hold ON.OFF until the red light on the

remote turns on, then release both buttons.

3. Point the remote at the device, press and release PLAY,then wait
five seconds or until the LED stops flashing.

At this point the remote is searching for the correct code to

program. If, after five seconds, the device you want to control does
not turn off, press PLAY again to tell the remote to search the next

set of codes.

Continue pressing PLAY until the device turns off or you have
searched through all of the codes. There are 20 total sets of codes.

If the device does not turn off after pressing PLAY 20 times, then

the remote cannot control that particular device.

If the device you want to control does turn off:

1. Press and release REVERSE,then wait two seconds. Repeat this
step until the device turns back ON.

2. To finish, press and hold STOP until the red light on the remote
turns off.

STC_

You'll use these buttons when you
program the remote to control any

device.
The remote may not operate all models

of all brands.

24

Using Direct Entry

1. Turn on the component to be programmed.

2. Look up the brand and code number(s) for the component on the
code list on the last page of this section, Using the Remote.

3. Pressand hold the button on the remote you want to program.

4. Enter the code from the code list.

5. Release button, and then press ONeOFF to see if the component
responds to the remote commands. If it doesn't, try pressing the

component button and then ONeOFF again.

6. if you get no response, repeat these steps using the next code listed
for your brand, until the component responds to the remote

commands.

USING THE REMOTE TO CONTROL A DEVICE

Once the remote has been programmed successfully, you are ready to

use it to control your devices. To operate the device:

1. Press the device button (TV, VCR1, VCR2, DVD, AUX, or SAToCABLE)
to set the remote to control the device.

2. Press ONeOFF to turn the device ON or OFR

3. Use the remote buttons that apply to that device.

MODES OF OPERATION

Because this universal remote can control several different components
(DVD player, VCR, cable box, etc.) it uses operational modes triggered by
the component buttons. For example, if you want the remote to control
the TV, you would press the TV button to put the remote into TV mode
before you could control the TV.

FRONT PANEL

If you cannot locate your remote you can use the front panel of your TV
to operate many of the TV's features.

MENU Brings up the Main menu. When in the menu system, it selects
highlighted items. Also returns you to the previous menu.

CH v Scans down through the current channel list. In the menu system,

it points down to items and adjusts menu controls.

CH ^ Scans up through the channel list. In the menu system, it points

up to items and adjusts menu controls.

VOL - Decreases the volume. When in the menu system, VOL - is used
to point left to items and adjust menu controls.

VOL + Increases the volume. When in the menu system, VOL + is used
to point right to items and adjust menu controls.

POWER Turns the TV on and off.

The front panel above shows a typical
button layout. The exact look of the

buttons may be different from those on
the front of your TV.

The front panel block feature disables all
front panel buttons if Parental Controls

are locked. For more information, see
Parental Controls in the Features and
Controls section.

25

|'li

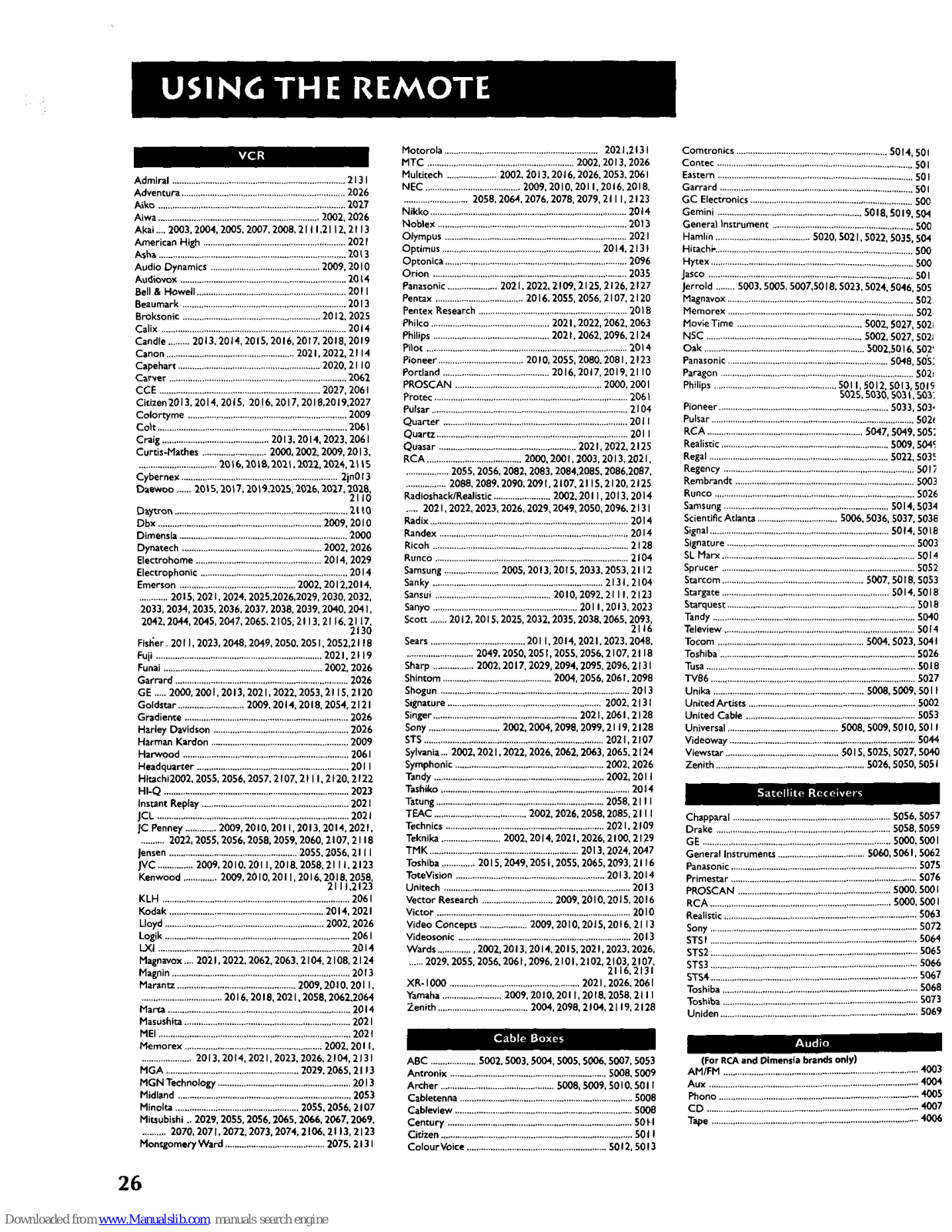

Admiral .........................................................................213 I

Adventura .....................................................................2026

Aik_ ...............................................................................2027

Aiwa ....................................................................2002, 2026

Akai .... 2003, 2004, 2005.2007, 2008, 21 I 1,2112, 2113

American High ............................................................202/

A_ha ...............................................................................2013

Audio Dynamics ..............................................2009, 2010

Bell& Howell ...............................................................201 I

Beaumark .....................................................................2013

Broksonic ..........................................................2012. 2025

Dalix ..............................................................................2014

Candle .........2fi13, 20_4, 2015, 2016, 20r 7. 2018, 2019

Canon ......................................................202I, 2022, 2f 14

Capehart ............................................................2020, 21 I0

C_r_er ...........................................................................2062

CCE ....................................................................2027, 206 I

Citizen2013,2014,2015, 2016, 2017, 2018,2019,2027

Colortyme ...................................................................2009

Colt ................................................................................ 2061

Craig .............................................2013, 2014, 2023, 206 I

Curtis-Mathes ...........................2000.2002. 2009, 2013,

................................. 2016, 20 IB,2021.9-022, 2024, 2115

Cybernex ..................................................................2in013

Daewoo ...,.. 2015 2017, 2019,2025, 2026, 2027, _.02g,

2 10

Da_ror_.........................................................................21IO

Dbx .....................................................................2009, 2010

Dimensia .......................................................................20(30

Dynatech ...........................................................2002.2026

Electrohome .....................................................2014, 2029

Electrophonic ..............................................................2014

Emerson .................................................2002, 2012,2014,

............2015, 202 I, 2024, 2025,2026_2029,2030, 2032,

2033, 2034, 2035, 2036, 2037. 2038, 2039, 2040, 204 I,

2042,2044,2045,2047,2065.2105,2113,2116,2117,

2130

Fisher. 20_I, 2023, 2048, 2049, 2050, 205I, 2052,2118

Fuji ......................................................................2021,2H9

Funai...................................................................2002, 2026

Garrard .........................................................................2026

GE_.,.2000,2001,2013,2021,2022,2053,2115,2120

Goldstar ............................2009, 2014, 2018. 2054, 212 I

Gradiente .....................................................................2026

Harley Davidson .................................................L...,. 2026

Harman Kardon ..........................................................2009

Harwood ......................................................................2061

Headquarter ................................................................201 I

Hitachi2002, 2055, 2056, 2057. 2r07, 2f I I, 2120,2122

HI-Q ..............................................................................2023

Instant Replay..............................................................202 I

JCL .................................................................................2021

]C Penney .............2009_2010, 201 I,2013, 2014.202 f,

.......... 2022, 2055, 2056, 2058, 2059, 2060, 2107, 2118

Jensen ......................................................205g, 2056, 211I

JVC............... 2009,2010, 201l, 2018, 2058, 21 1I, 2123

Kenwood .............. 2009.2010 2011,2016,2018.2058,

2 L2 23

KLH ...............................................................................206 I

Kodak .................................................................2014, 202I

Lloyd ...................................................................2002, 2026

Logik ..............................................................................206 I

LXI ................................................................................. 2014

Magnavox .... 202 I, 2022, 2062,2063, 2104, 2100, 2124

Hagnin ...........................................................................2013

Marantz ..................................................2009, 2010, 201 I,

..................................2016, 2018,202 I, 2058, 2062,2064

Marta .............................................................................2014

Masushita ......................................................................202 I

MEI .................................................................................2021

Memorex ..........................................................2002, 201 I,

.....................2013,2014,2021,2023.2026,2104,2131

MGA ........................................................2029, 2065, 2113

MGN Technology ........................................................2013

Midland .........................................................................2053

MinoRa ....................................................2055, 2056, 2107

Mitsubishi .. 2029, 2055.2056. 2065.2066_ 2067. 2069,

.......... 2070,2071.2072,2073,2074,2106,2113,2123

Montgomery Ward ..........................................2075, 2131

Motorola .................................................................2021,2131

MTC ..............................................................2002, 2013, 2026

Multitech .....................2002, 2013,2016, 2026, 2053,2061

NEC ........................................2009,2010,2011,2016,2018,

...........................2050, 2064, 2076,2078, 2079, 21 I I, 2123

Nikko ...................................................................................2014

Noblex ................................................................................20t3

Olympus .............................................................................202 I

Optimus ...................................................................2014,213F

Optonica .............................................................................2096

Orion ..................................................................................2035

Panasonic.....................2021,2022,2109,2125,2126,2127

Pentax .....................................2016, 2055, 2056, 2107, 2120

Pentex Research ...............................................................2018

Phileo ..................................................2021,2022, 2062, 2063

Philips .................................................202 L2062, 2096, 2124

P_lot .....................................................................................2014

Pioneer....................................2010, 2055,2080. 208 I, 2123

Portland .............................................2016,2017, 2019,2110

PROSCAN ..............................................................2000, 200I

Protec ..................................................................................206I

Pulsar ...................................................................................2104

Quarter ..............................................................................201I

Quartz .................................................................................201 I

Quasar ..........................................................202 I, 2022, 2125

RCA ........................................2000,2001,2003,2013,2021,

..................2055, 2056,20E2, 2083. 2084,2085, 2086,2087,

.................2088, 2DEg,2090, 2091. 2107121IS,2120, 2125

RadioshackdRealistic........................2002. 201 I, 2013, 2014

..... 2021,2022, 2023, 2026, 2029, 2049, 2050,2096, 213 I

Radix....................................................................................2014

Randex ................................................................................2014

Ricoh ...................................................................................2128

Runco ..................................................................................2104

Samsung.......................20¢5, 2013, 2015, 2033, 2053, 2112

Sanky ........................................................................2131,2104

Sansui .................................................2010, 2092, 21 I I, 2123

Sanyo .............................................................201I, 2013, 2023

Scott ...,. 2012, 2015, 2025, 2032, 2035.2038, 2065, 2093,

2116

Sears ........................................201 I, 2014,202 I. 2023, 2048,

............................2049, 2050, 20g I. 2055, 2056, 2107, 2118

Sharp .................2002, 2017, 2029, 2094, 2095, 2096, 213 I

Shintom..............................................2004, 2056, 206 I. 2098

Shogun ................................................................................2013

Signature .................................................................2002, 213 I

Singer.............................................................202 I, 206 I, 2128

Sony ..............................2002, 2004, 2098, 2099, 2119, 212g

STg ............................................................................202 I, 2107

Sylvania,.. 20¢2, 202 I, 2022, 2026, 2062, 2063, 2065, 2124

Symphonic ...............................................................2002, 2026

Tandy ........................................................................2002, 201

Tashiko ................................................................................2014

Tatung .......................................................................2058, 21 I I

TEAC .......................................2002, 2026, 2058, 2085, 21 I I

Technics ...................................................................202I, 2109

Teknika .........................2002, 2014,2021,2026, 210_, 2129

TMK ...............................................................2013, 2024, 2047

Toshiba ..............2015, 2049, 205 I, 2055, 2065,2093, 2116

ToteVision ...............................................................2013, 2014

Unitech ...............................................................................2013

Vector Research ..............................2009, 2010, 2015, 2016

Victor ..................................................................................2010

Video Concepts ....................2009,2010,2015,2016, 2113

Videosonie .........................................................................2013

Wards ..............,2002, 2013, 2014, 2015, 202I, 2023, 2026,

......2029,2055 2056 2061 2096 2101 2102 2103 2107,

21 6,213

XR- 1000 .......................................................202 I, 2026,206 I

Yamaha.........................2009, 2010, 201 I, 2018, 2058, 21 I I

Zenith ......................................2004,2098,2104,2119,2120

ABC ...................5002. 5003.5004, 5005, $006, 5007, 5053

Antronix ..................................................................5008, 5009

Archer ................................................5008, 5009, 5010, 501I

Cabletenna .........................................................................5008

Cableview ...........................................................................513013

Century ..............................................................................SOFI

Citizen .................................................................................501 I

Colour Voice ...........................................................5012, 5013

Comtronics ................................................................5014, 50 I

Contec ...................................................................................501

Eastern...................................................................................50 I

Garrard ..................................................................................501

GC Electronics.....................................................................500

Gemini .............................................................501g,5019, g04

General Instrument ............................................................500

Hamlin ........................................5020, 502 I, 5022, 5035.504

Hitachh....................................................................................500

Hytex ......................................................................................500

Jasco.......................................................................................501

)errold .,..... 5003, 5005, 5007,5018. 5023, 5024, 5046, 505

Magnavox ...............................................................................502

Memorex ...............................................................................502

Movie Time .....................................................5002,5027, 502_

NSC ..................................................................5002, 5027, 502J

Oak ....................................................................5002,5016, 502'

Panasonic ....................................................................5048, 505_

Paragon ..................................................................................S02e

Ph ps ........................................ 5011,S012,5013 S015

5025,5030, 503i, 505_

Pioneer ........................................................................5033, 503"

Pulsar......................................................................................502t

RCA ..................................................................5047, 5049, 505_

Realistic .......................................................................5009, 504c,

Regal ............................................................................5022, 503E

Regency .................................................................................5012

Rembrandt ............................................................................5003

Runco .....................................................................................5026

Samsung......................................................................5014, 5034

Scientific Adanta ..................................5006, 5036, 5037. 5038

Signal............................................................................5014, 5018

Signature ................................................................................5003

SL Marx ..................................................................................5014

Sprucer ..................................................................................5052

5tarcom ............................................................5007, 501fi,5053

Stargate ....................................................................... 5014, 5018

Starquest................................................................................5018

Tandy ......................................................................................g040

Teleview.................................................................................5014

To€ore..............................................................5004, 5023.504 I

Toshiba...................................................................................5026

Tusa.........................................................................................5018

TVfi6 .......................................................................................5027

Unika ................................................................5008, 5009, 501 F

United Artists .......................................................................5002

United Cable ........................................................................5053

Universal ...............................................5000. 5009, 5010, 501 I

Videoway ...............................................................................5044

Viewstar ................................................501S,5025, 5027, 5040

Zenith ...............................................................5026, 5050. 505 J

Chapparal ...................................................................5056, 5057

Drake ..........................................................................5050, g059

GE ................................................................................5000, 5001

General Instruments .....................................5060,506 I. 5062

Panasonic...............................................................................5075

Primestar ...............................................................................5076

PROSCAN .................................................................g000, 500 I

RCA .............................................................................5000, 5001

Realistic ..................................................................................5063

Sony ........................................................................................5072

STS I........................................................................................5064

STS2........................................................................................5065

STS3........................................................................................5066

STS4........................................................................................5067

Toshiba...................................................................................5068

Toshiba...................................................................................5073

Uniden ....................................................................................5069

_T'II"

(For RCAand Dimensia brandsonly)

AM/FM ...................................................................................4003

Aux .........................................................................................4004

Phono ................................ ..................................................... _5

CD ..........................................................................................4007

Tape ........................................................................................4006

26

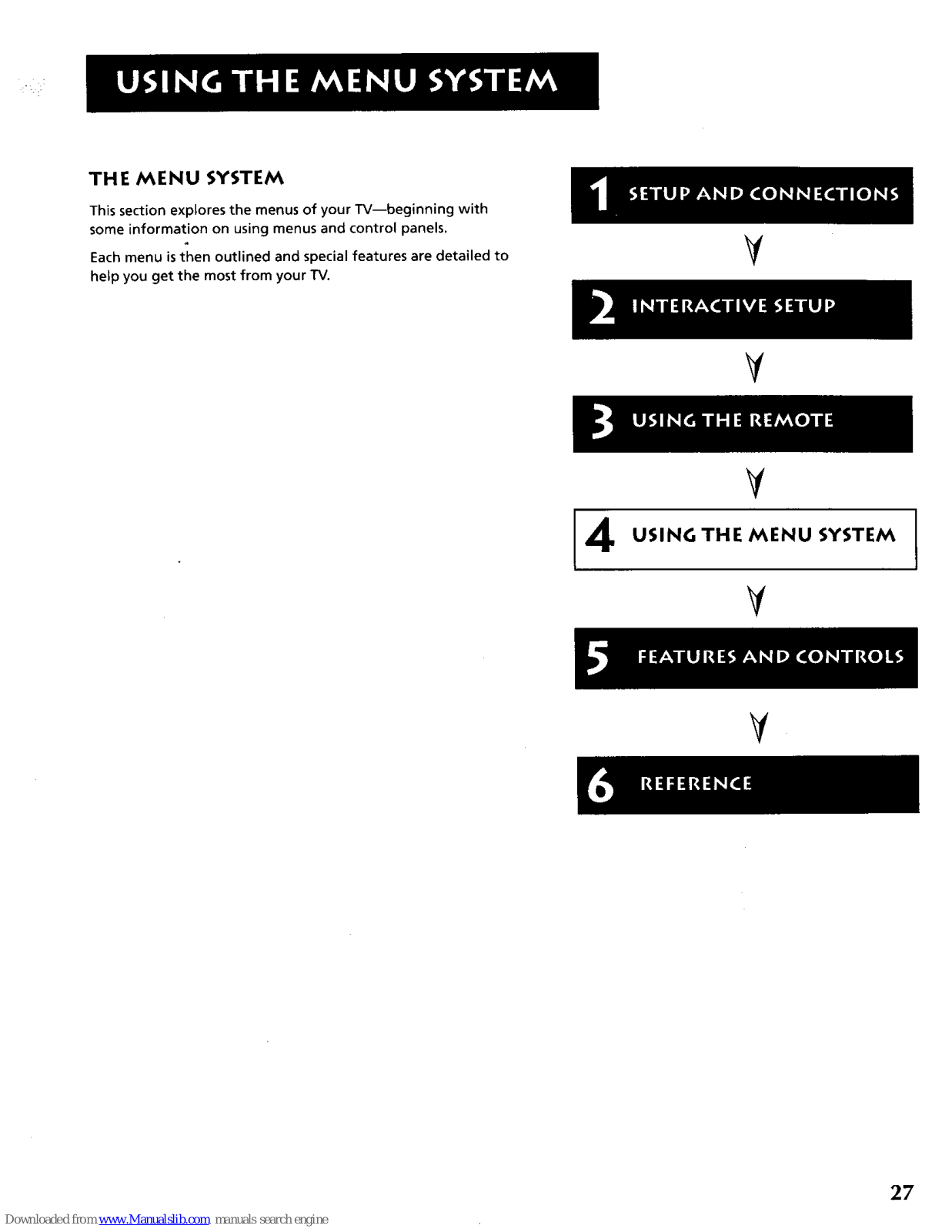

THE MENU SYSTEM

This section explores the menus of your TV--beginning with

some information on using menus and control panels.
Each menu is then outlined and special features are detailed to

help you get the most from your TV.

V

V

¥

USING THE MENU SYSTEM

V

V

27

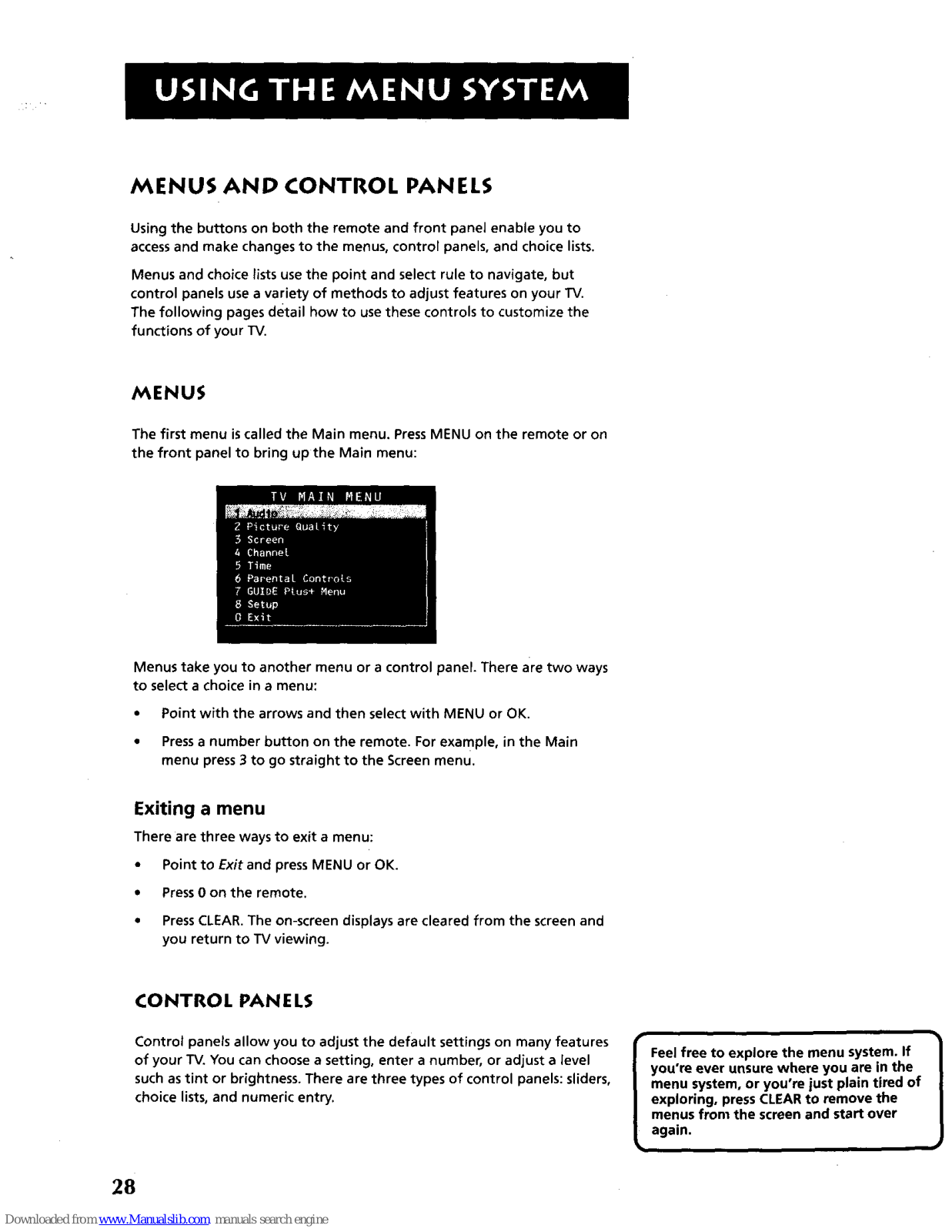

MENUS AND CONTROL PANELS

Using the buttons on both the remote and front panel enable you to
access and make changes to the menus, control panels, and choice lists.

Menus and choice lists use the point and select rule to navigate, but
control panels use a variety of methods to adjust features on your TV.
The following pages detail how to use these controls to customize the

functions of your TV.

MENUS

The first menu is called the Main menu. Press MENU on the remote or on

the front panel to bring up the Main menu:

Menus take you to another menu or a control panel. There are two ways
to select a choice in a menu:

• Point with the arrows and then select with MENU or OK.

• Press a number button on the remote. For example, in the Main
menu press 3 to go straight to the Screen menu.

Exiting a menu

There are three ways to exit a menu:

• Point to Exit and press MENU or OK.

• Press 0 on the remote.

• Press CLEAR. The on-screen displays are cleared from the screen and
you return to TV viewing.

CONTROL PANELS

Control panels allow you to adjust the default settings on many features

of your TV. You can choose a setting, enter a number, or adjust a level
such as tint or brightness. There are three types of control panels: sliders,
choice lists, and numeric entry.

Feel free to explore the menu system. If

you're ever unsure where you are in the

menu system, or you're just plain tired of
exploring, press CLEAR to remove the
menus from the screen and start over
again.

28

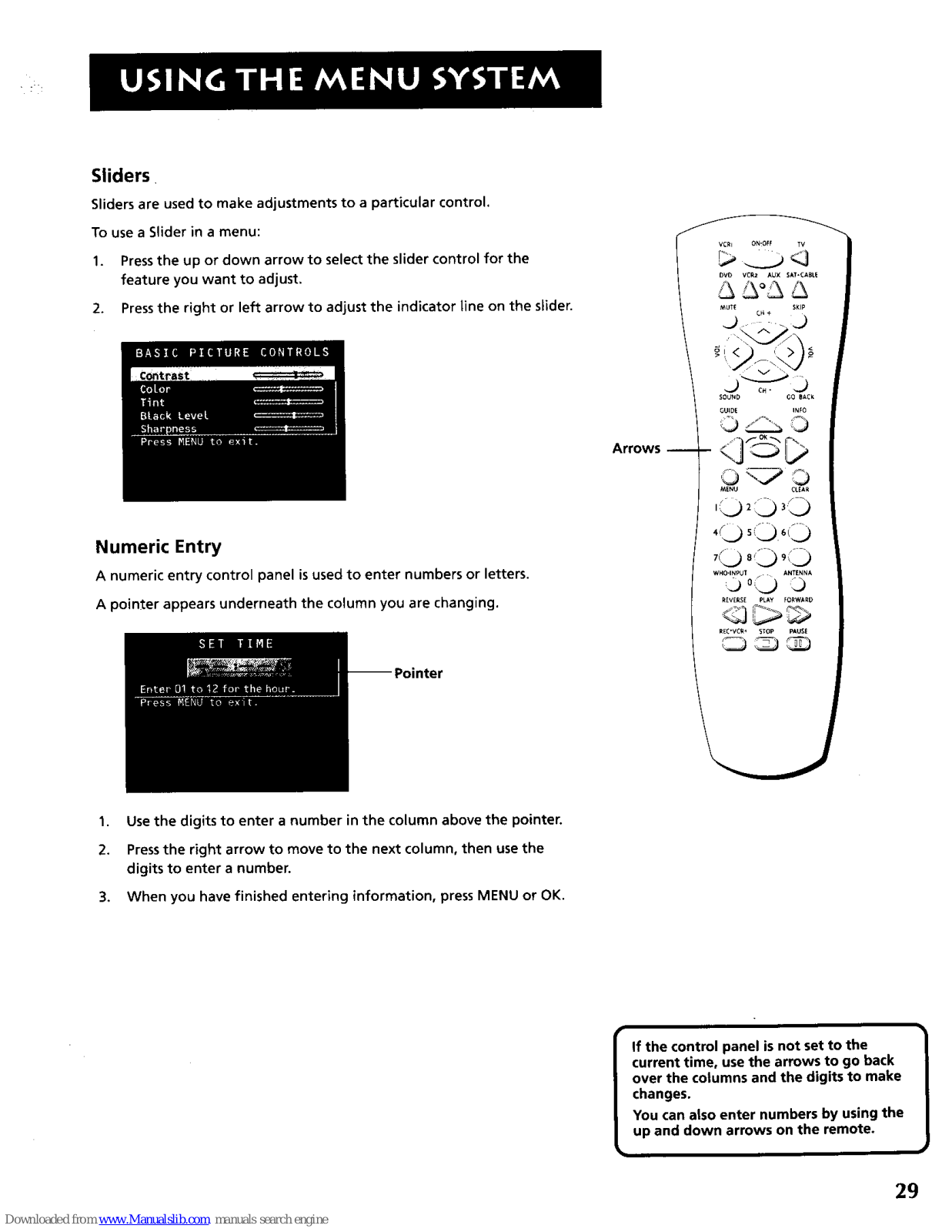

Sliders

Sliders are used to make adjustments to a particular control.
To use a Slider in a menu:

1. Pressthe up or down arrow to select the slider control for the

feature you want to adjust.

2. Press the right or left arrow to adjust the indicator line on the slider.

Numeric Entry

A numeric entry control panel is used to enter numbers or letters,

A pointer appears underneath the column you are changing.

Arrows --

VCRI ONtOFF TV

DVD VCRZ AUX SAT,CAStE

MUTE SKIP

MEnU CLEA_

D

,'0.0'C)

WHO'INPUT _ ANTENNA

REVEI_SE pLAy FORW_I)

_EC'Y¢_* _ P_US_

1. Use the digits to enter a number in the column above the pointer.

2. Press the right arrow to move to the next column, then use the
digits to enter a number.

3. When you have finished entering information, press MENU or OK.

If the control panel is not set to the
current time, use the arrows to go back

over the columns and the digits to make

changes.
You can also enter numbers by using the

up and down arrows on the remote.

29

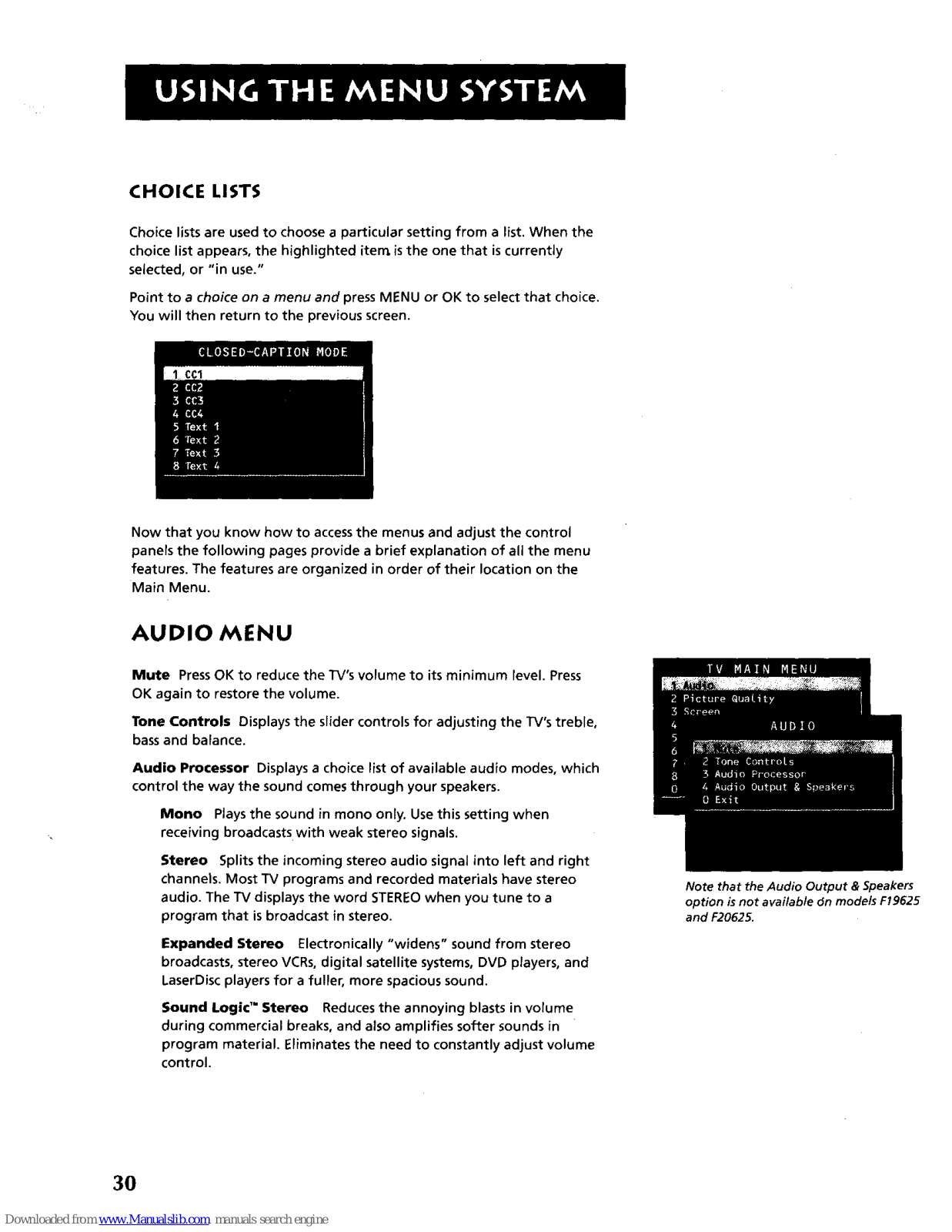

CHOICE LISTS

Choice lists are used to choose a particular setting from a list. When the
choice list appears, the highlighted iter_ is the one that is currently
selected, or "in use."

Point to a choice on a menu and press MENU or OK to select that choice.
You will then return to the previous screen.

Now that you know how to access the menus and adjust the control
panels the following pages provide a brief explanation of all the menu

features. The features are organized in order of their location on the

Main Menu.

AUDIO MENU

Mute Press OK to reduce the TV's volume to its minimum level. Press

OK again to restore the volume.
Tone Controls Displays the slider controls for adjusting the TV's treble,

bass and balance.
Audio Processor Displays a choice list of available audio modes, which

control the way the sound comes through your speakers.

Mono Plays the sound in mono only. Use this setting when
receiving broadcasts with weak stereo signals.

Stereo Splits the incoming stereo audio signal into left and right
channels. Most "iV programs and recorded materials have stereo
audio. The TV displays the word STEREO when you tune to a
program that is broadcast in stereo.

Expanded Stereo Electronically "widens" sound from stereo
broadcasts, stereo VCRs, digital satellite systems, DVD players, and
LaserDisc players for a fuller, more spacious sound.

Sound Logic" Stereo Reduces the annoying blasts in volume
during commercial breaks, and also amplifies softer sounds in

program material. Eliminates the need to constantly adjust volume
control.

Note that the Audio Output & Speakers
option is not available dn models F19625

and F20625.

3O

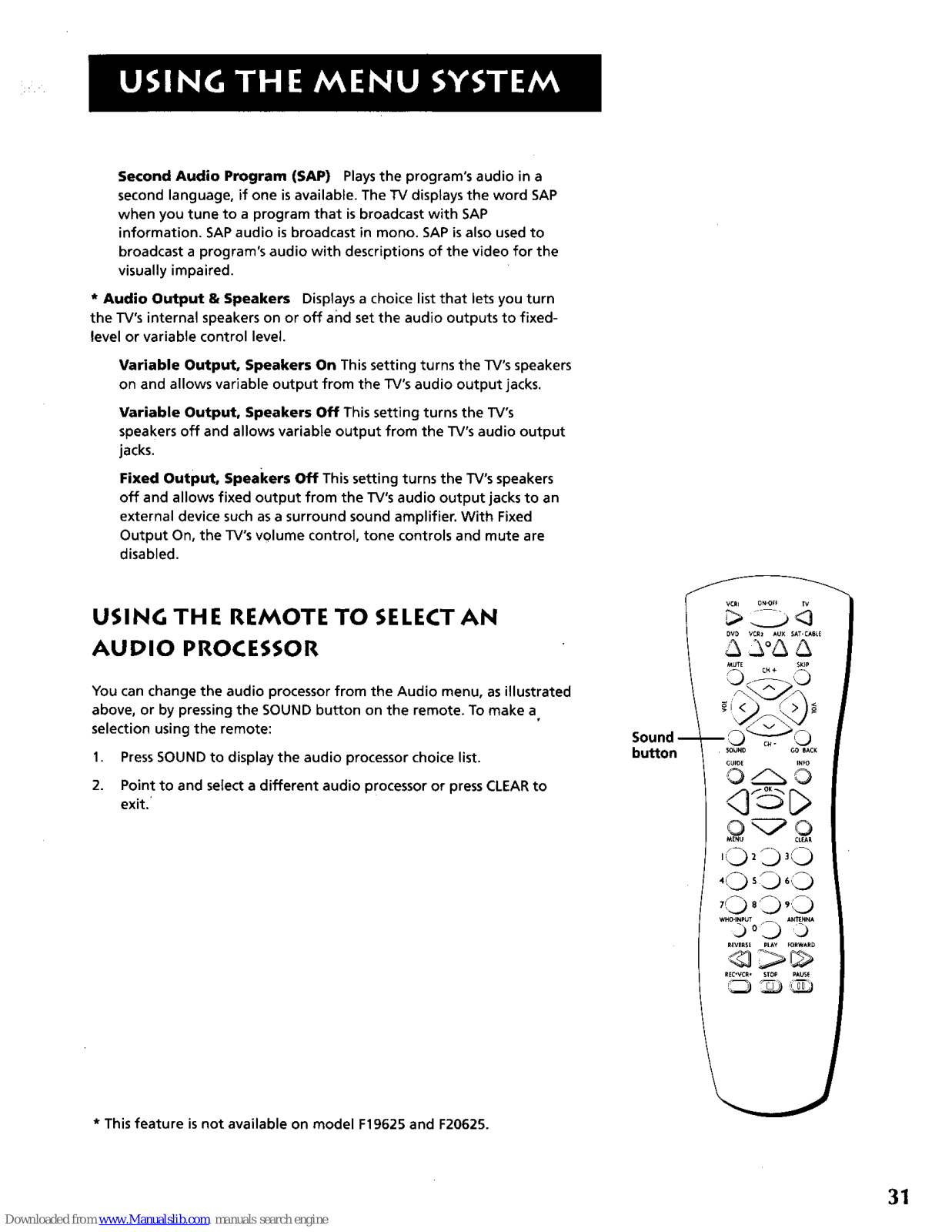

Second Audio Program (SAP) Playsthe program's audio in a
second language, if one isavailable. The TV displays the word SAP
when you tune to a program that is broadcast with SAP

information. SAP audio is broadcast in mono. SAP isalso used to
broadcast a program's audio with descriptions of the video for the

visually impaired.

* Audio Output & Speakers Displays a choice list that lets you turn
the TV's internal speakers on or off and set the audio outputs to fixed-

level or variable control level.

Variable Output, Speakers On This setting turns the TV's speakers
on and allows variable output from the TV's audio output jacks.

Variable Output, Speakers Off This setting turns the TV's
speakers off and allows variable output from the TV's audio output

jacks.

Fixed Output, speakers off This setting turns the TV's speakers
off and allows fixed output from the TV'S audio output jacks to an

external device such asa surround sound amplifier. With Fixed
Output On, the TV's volume control, tone controls and mute are
disabled.

USING THE REMOTE TO SELECT AN

AUDIO PROCESSOR

You can change the audio processor from the Audio menu, as illustrated
above, or by pressing the SOUND button on the remote. To make a
selection using the remote:

1. Press SOUND to display the audio processor choice list.

2. Point to and select a different audio processor or press CLEAR to
exit.'

VCRI 0N'OFF • TV

Sound -- -- _,) _"_'_- 0
button souNo coaACK

WHO,INPUT __ A_NNA

R_VERSE PLAY FORW*RD

REC*VCa, STOP PAUS_

* This feature is not available on model F19625 and F20625.

31

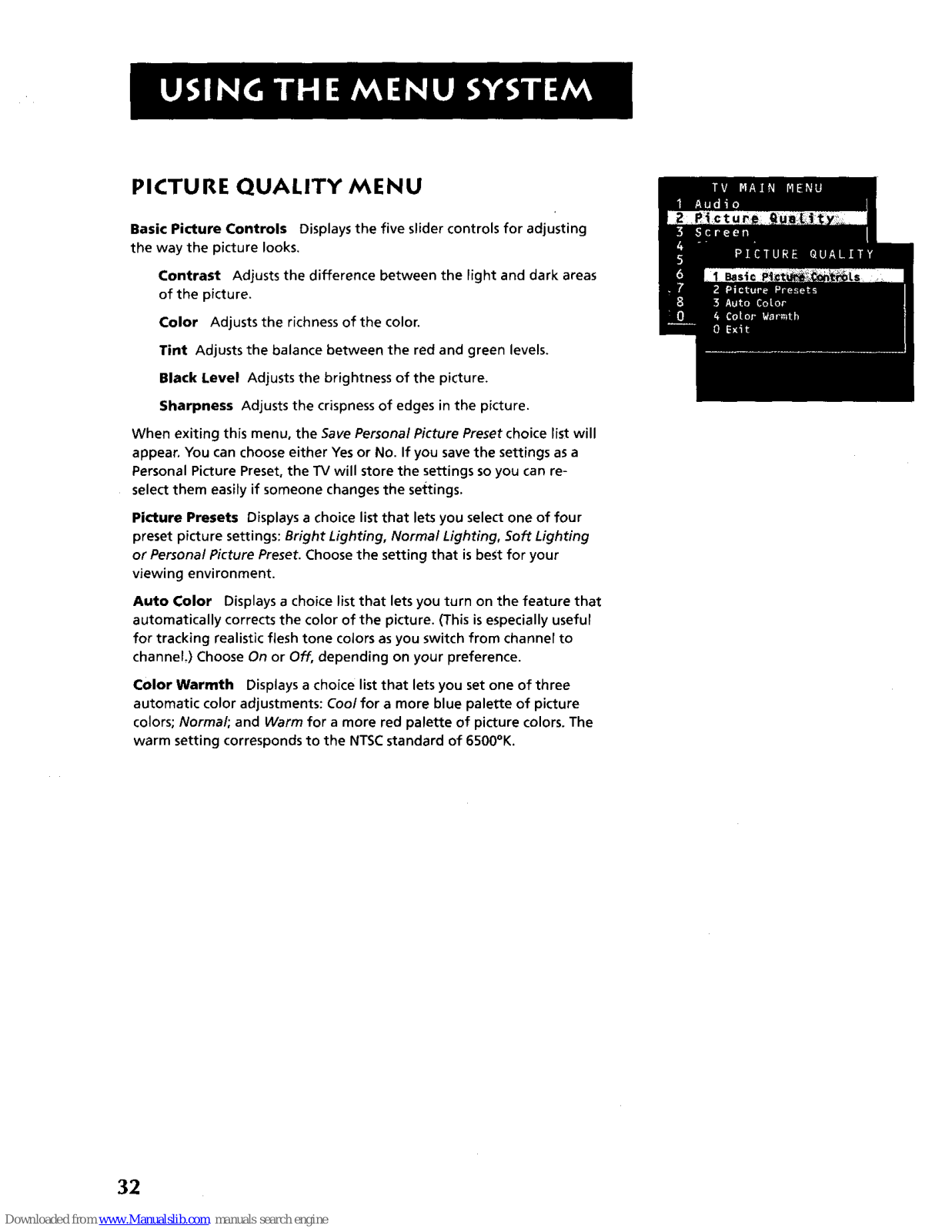

PICTURE QUALITY MENU

Basic Picture Controls Displays the five slider controls for adjusting

the way the picture looks.

Contrast Adjusts the difference between the light and dark areas

of the picture.
Color Adjusts the richness of the color.
Tint Adjusts the balance between the red and green levels.
Black Level Adjusts the brightness of the picture.
Sharpness Adjusts the crispness of edges in the picture.

When exiting this menu, the Save Personal Picture Preset choice list will

appear, You can choose either Yes or No. If you save the settings as a
Personal Picture Preset, the "IVwill store the settings so you can re-
select them easily if someone changes the settings.

Picture Presets Displays a choice list that lets you select one of four

preset picture settings: Bright Lighting, Normal Lighting, Soft Lighting
or Personal Picture Preset. Choose the setting that isbest for your

viewing environment.
Auto Color Displays a choice list that lets you turn on the feature that

automatically corrects the color of the picture. (This is especially useful
for tracking realistic flesh tone colors as you switch from channel to
channel,) Choose On or Off, depending on your preference.

Color Warmth Displays a choice list that lets you set one of three

automatic color adjustments: Cool for a more blue palette of picture
colors; Normal; and Warm for a more red palette of picture colors. The

warm setting corresponds to the NTSCstandard of 6500°K.

32

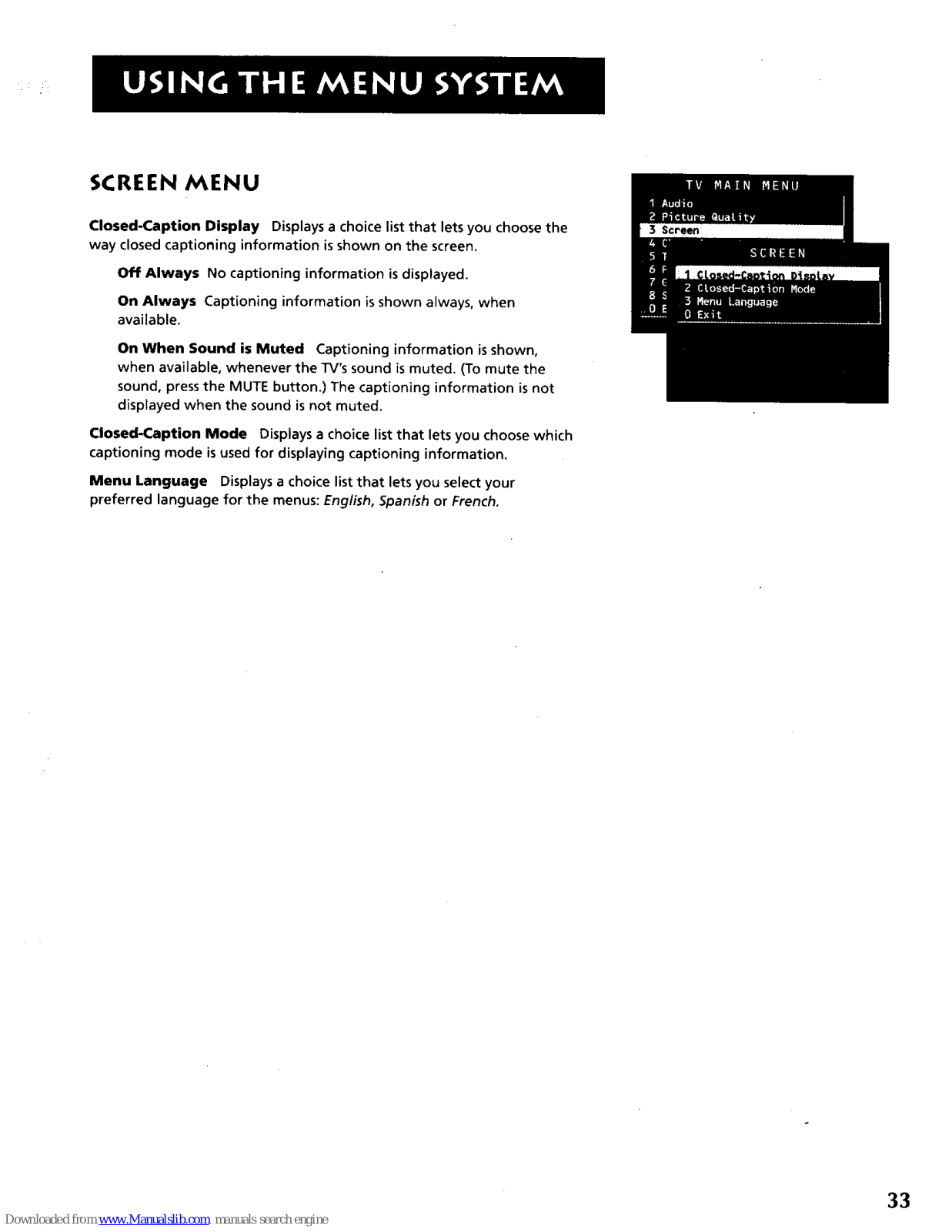

SCREEN MENU

Closed-Caption Display Displays a choice list that lets you choose the
way closed captioning information is shown on the screen.

Off Always No captioning information is displayed.

On Always Captioning information is shown always, when
available.

On When Sound is Muted Captioning information is shown,

when available, whenever the TV's sound is muted. (To mute the

sound, press the MUTE button.) The captioning information is not
displayed when the sound is not muted.

Closed-Caption Mode Displays a choice list that lets you choose which
captioning mode is used for displaying captioning information.

Menu Language Displays a choice list that lets you select your
preferred language for the menus: English, Spanish or French.

33

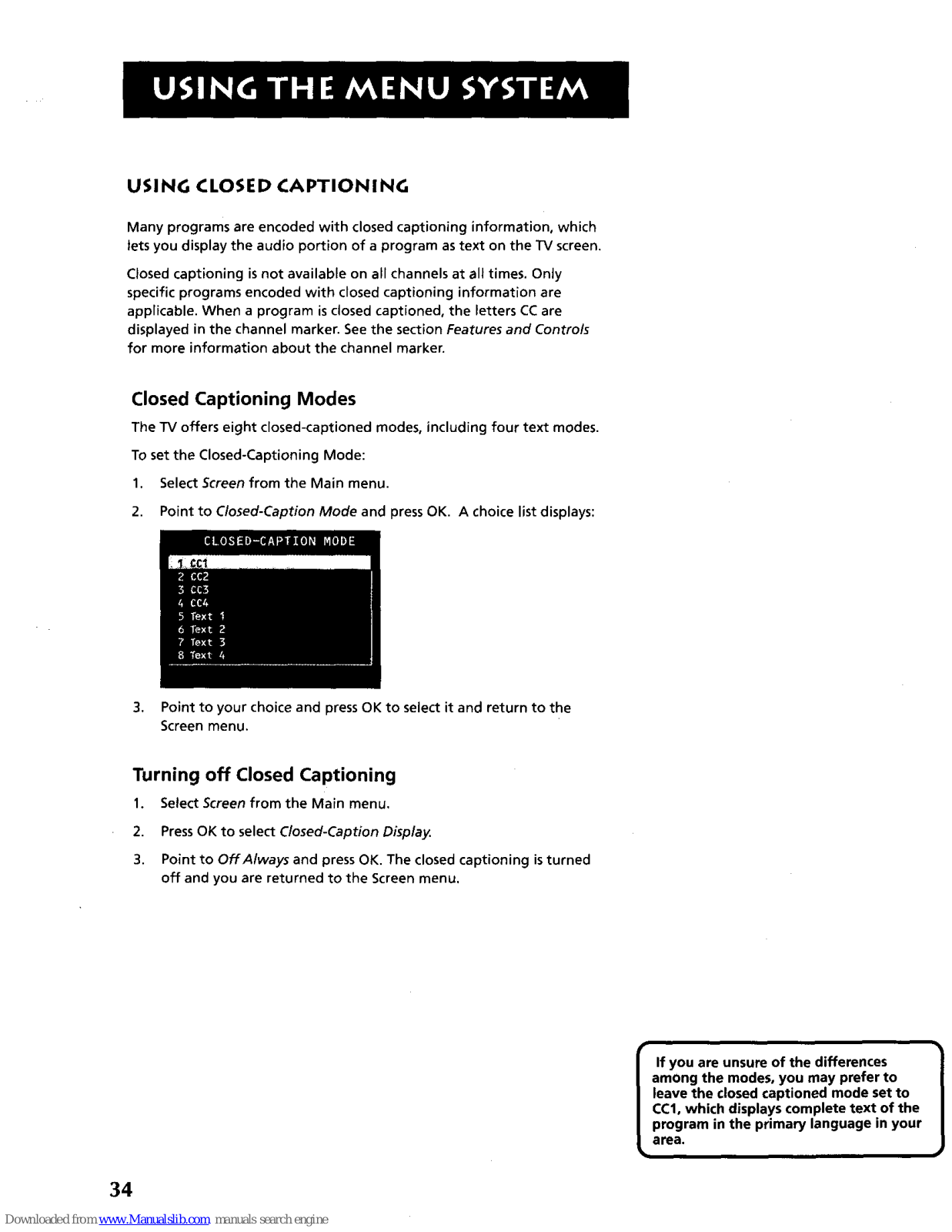

USING CLOSED CAPTIONING

Many programs are encoded with closed captioning information, which
tets you display the audio portion of a program as text on the TV screen.

Closed captioning is not available on all channels at all times. Only
specific programs encoded with closed captioning information are
applicable. When a program is closed captioned, the letters CC are

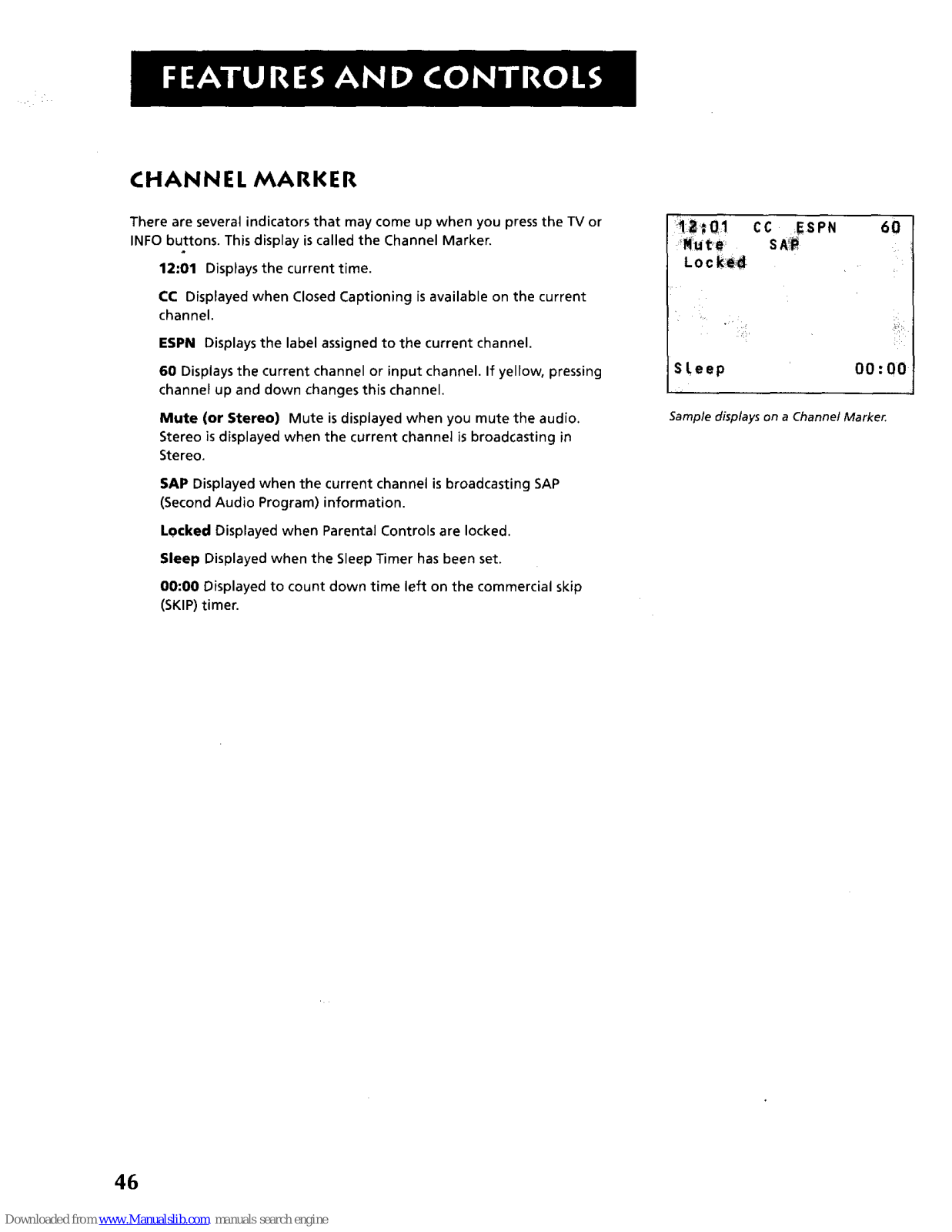

displayed in the channel marker. See the section Features and Controls

for more information about the channel marker.

Closed Captioning Modes

The TV offers eight closed-captioned modes, including four text modes.
To set the Closed-Captioning Mode:

1, Select Screen from the Main menu.

2. Point to Closed-Caption Mode and press OK. A choice list displays:

3. Point to your choice and press OK to select it and return to the
Screen menu.

Turning off Closed Captioning

1. Select Screen from the Main menu,

2. PressOK to select Closed-Caption Display.

3. Point to Off Always and press OK. The closed captioning is turned
off and you are returned to the Screen menu,

If you are unsure of the differences

among the modes, you may prefer to

leave the closed captioned mode set to
CC1, which displays complete text of the
program in the primary language in your

area.

34

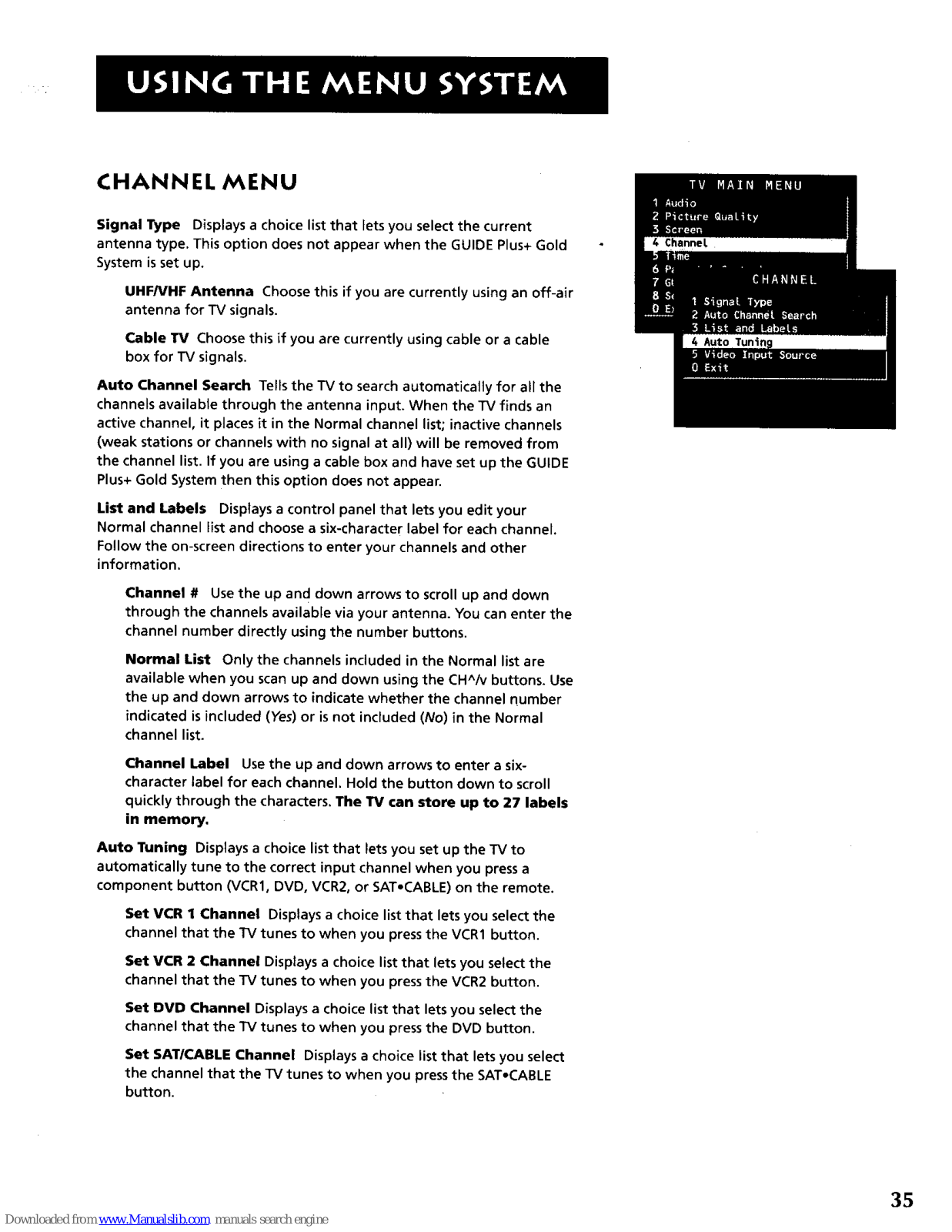

CHANNEL MENU

Signal Type Displays a choice list that lets you select the current
antenna type. This option does not appear when the GUIDE Plus+ Gold

System is set up.

UHF/VHF Antenna Choose this if you are currently using an off-air
antenna for TV signals.

Cable "IV Choose this if you are currently using cable or a cable

box for TV signals.

Auto Channel Search Tells the "iV to search automatically for all the
channels available through the antenna input. When the TV finds an

active channel, it places it in the Normal channel list; inactive channels
(weak stations or channels with no signal at all) will be removed from

the channel list. If you are using a cable box and have set up the GUIDE

Plus+ Gold System then this option does not appear.

List and Labels Displays a control panel that lets you edit your

Normal channel list and choose a six-character label for each channel.
Follow the on-screen directions to enter your channels and other

information.

Channel # Use the up and down arrows to scroll up and down
through the channels available via your antenna. You can enter the
channel number directly using the number buttons.

Normal List Only the channels included in the Normal list are
available when you scan up and down using the CH^/v buttons. Use

the up and down arrows to indicate whether the channel number

indicated is included (Yes) or isnot included (No) in the Normal

channel list.

Channel Label Use the up and down arrows to enter a six-
character label for each channel. Hold the button down to scroll

quickly through the characters. The TV can store up to 27 labels

in memory.

Auto Tuning Displays a choice list that lets you set up the "iV to
automatically tune to the correct input channel when you press a

component button (VCR1, DVD, VCR2, or SAToCABLE) on the remote.

Set VCR I Channel Displays a choice list that lets you select the
channel that the TV tunes to when you press the VCR1 button.

Set VCR 2 Channel Displays a choice list that lets you select the
channel that the "IV tunes to when you press the VCR2 button.

Set DVD Channel Displays a choice list that lets you select the
channel that the TV tunes to when you press the DVD button.

Set SAT/CABLE Channel Displays a choice list that lets you select
the channel that the TV tunes to when you press the SAToCABLE

button.

35

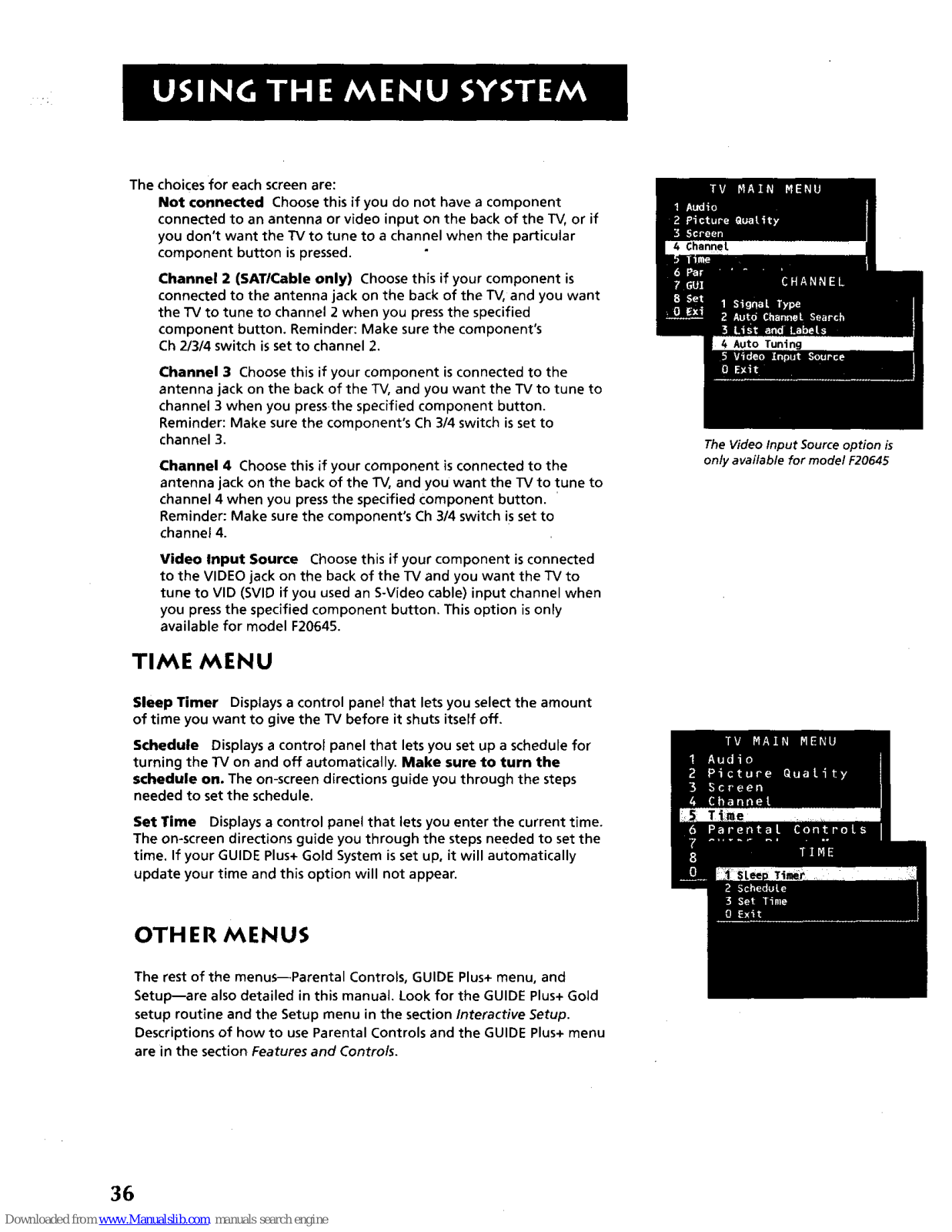

The choices for each screen are:

Not connected Choose this if you do not have a component

connected to an antenna or video input on the back of the TV, or if
you don't want the TV to tune to a channel when the particular

component button is pressed.

Channel 2 (SATICable only) Choose this if your component is
connected to the antenna jack on the back of the TV, and you want

the "IV to tune to channel 2 when you press the specified

component button. Reminder: Make sure the component's
Ch 2/3/4 switch isset to channel 2.

Channel 3 Choose this if your component is connected to the
antenna jack on the back of the TV, and you want the TV to tune to
channel 3 when you press the specified component button.

Reminder: Make sure the component's Ch 3/4 switch isset to
channel 3.

Channel 4 Choose this if your component isconnected to the

antenna jack on the back of the TV, and you want the TV to tune to

channel 4 when you press the specified component button.

Reminder: Make sure the component's Ch 314 switch is set to
channel 4.

Video Input Source Choose this if your component isconnected
to the VIDEO jack on the back of the TV and you want the TV to

tune to VID (SVID if you used an S-Video cable) input channel when
you press the specified component button. This option is only

available for model F20645.

TIME MENU

The Video Input Source option is

only available for model F206,15

Sleep Timer Displays a control panel that lets you select the amount
of time you want to give the TV before it shuts itself off.

Schedule Displays a control panel that lets you set up a schedule for
turning the TV on and off automatically. Make sure to turn the
schedule on. The on-screen directions guide you through the steps

needed to set the schedule.

Set Time Displays a control panel that lets you enter the current time.
The on-screen directions guide you through the steps needed to set the
time. If your GUIDE Plus+ Gold System isset up, it will automatically

update your time and this option will not appear.

OTHER MENUS

The rest of the menus_Parental Controls, GUIDE Plus+ menu, and

Setup_are also detailed in this manual. Look for the GUIDE Plus+ Gold
setup routine and the Setup menu in the section Interactive Setup.

Descriptions of how to use Parental Controls and the GUIDE Plus+ menu

are in the section Features and Controls.

36

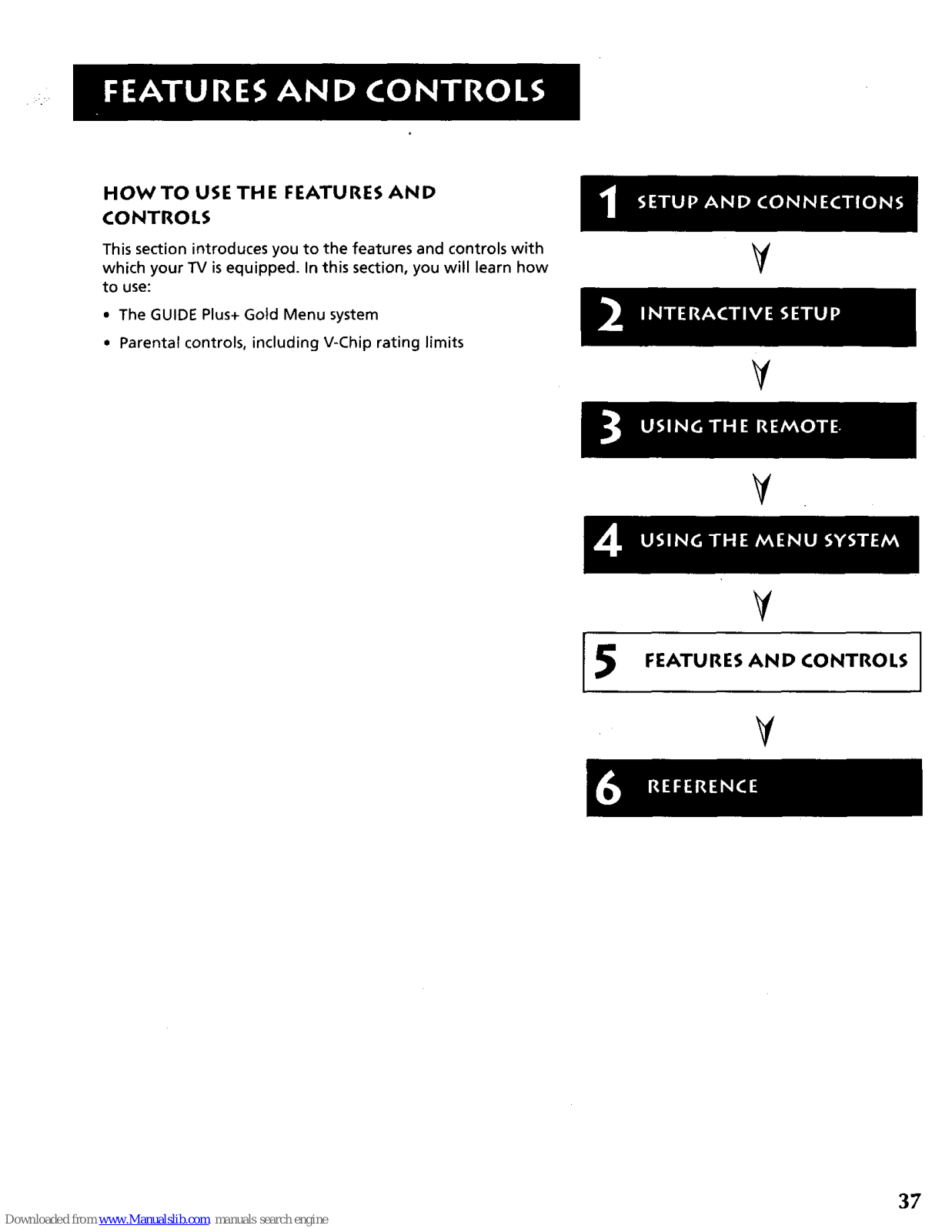

HOW TO USE THE FEATURES AND

CONTROLS

This section introduces you to the features and controls with
which your TV is equipped. In this section, you will learn how

to use:

• The GUIDE Plus+ Gold Menu system

• Parental controls, including V-Chip rating limits

V

¥

¥

FEATURES AND CONTROLS

V

37

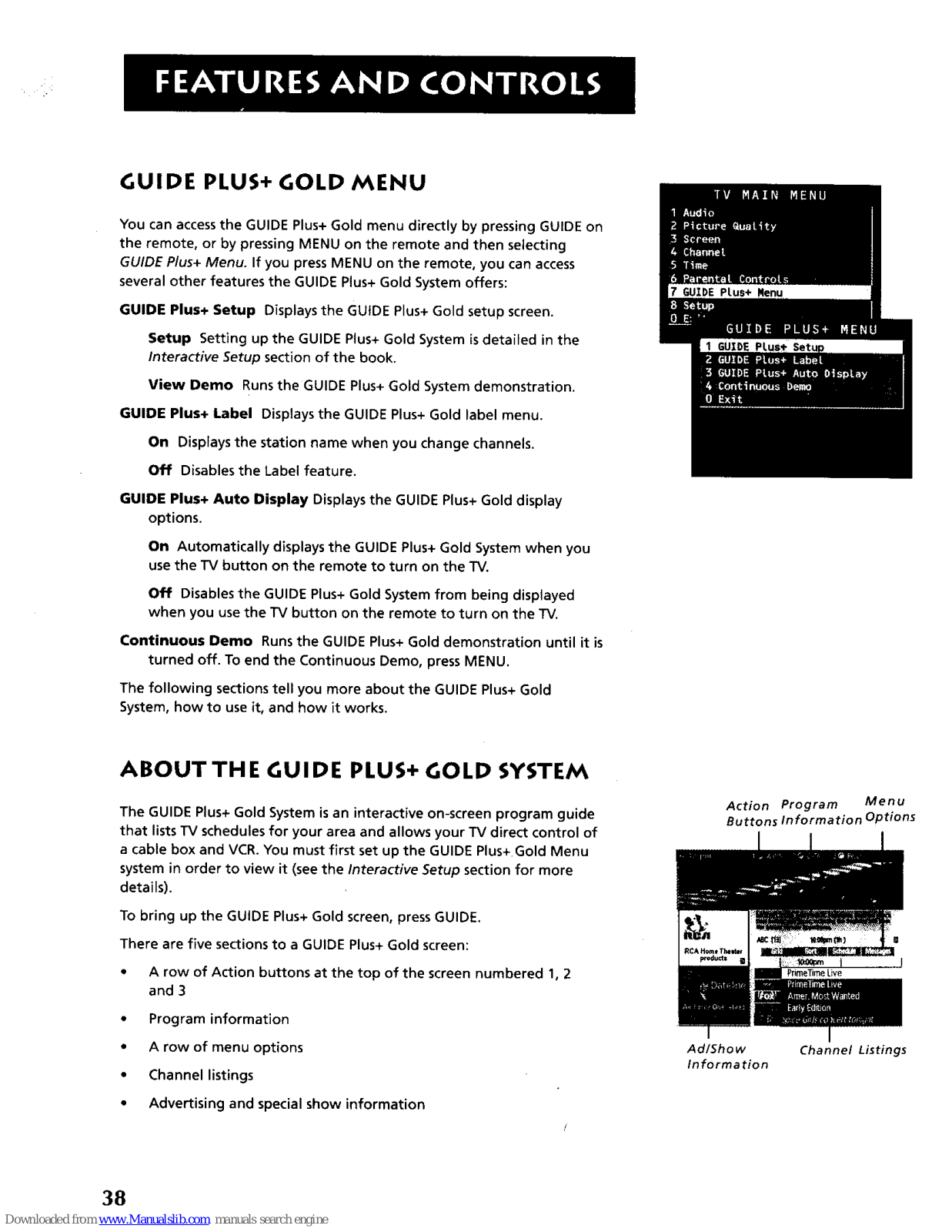

GUIDE PLUS+ GOLD MENU

You can access the GUIDE Plus+ Gold menu directly by pressing GUIDE on
the remote, or by pressing MENU on the remote and then selecting

GUIDE Plus+ Menu. If you press MENU on the remote, you can access
several other features the GUIDE Plus+ Gold System offers:

GUIDE Plus+ Setup Displays the GUIDE Plus+ Gold setup screen.

Setup Setting up the GUIDE Plus+ Gold System is detailed in the
Interactive Setup section of the book.

View Demo Runs the GUIDE Plus+ Gold System demonstration.

GUIDE Plus+ Label Displays the GUIDE Plus+ Gold label menu.

On Displays the station name when you change channels.
Off Disables the Label feature.

GUIDE Plus+ Auto Display Displays the GUIDE Plus+ Gold display

options.

On Automatically displays the GUIDE Plus+ Gold System when you
use the TV button on the remote to turn on the "iV.

Off Disables the GUIDE Plus+ Gold System from being displayed
when you use the TV button on the remote to turn on the TV.

Continuous Demo Runs the GUIDE Plus+ Gold demonstration until it is

turned off. To end the Continuous Demo, press MENU.

The following sections tell you more about the GUIDE Plus+ Gold
System, how to use it, and how it works.

ABOUTTHE GUIDE PLUS+ GOLD SYSTEM

The GUIDE Plus+ Gold System is an interactive on-screen program guide
that lists TV schedules for your area and allows your TV direct control of

a cable box and VCR. You must first set up the GUIDE Plus+Gold Menu
system in order to view it (see the Interactive Setup section for more

details).
To bring up the GUIDE Plus+ Gold screen, press GUIDE.

There are five sections to a GUIDE Plus+ Gold screen:

• A row of Action buttons at the top of the screen numbered 1, 2
and 3

• Program information

• A row of menu options

• Channel listings

• Advertising and special show information

Action Program Menu
Buttons Information Options

Ad/Show Channel Listings

Information

38

GE'n'ING IN & OUT OF THE GUIDE PLUS GOLD
SYSTEM

To enter the GUIDE Plus_ Gold System:

• Press GUIDE on the remote.
There are three ways to exit the GUIDE Plus+ Gold System:

• Press OK to exit the GUIDE Plus+ Gold System and tune to the
channel highlighted in the Channel listing.

Press GUIDE to exit the GUIDE Plus+ Gold System and tune to the
channel displayed in the video window.

Press CLEAR to exit the GUIDE Plus+ Gold System and return to the
original channel.

DOWN LOADI NG DATA

The GUIDE Plus+ Gold System is not available until it completes its first

download of program information. When the power is turned off, the
TV locates a "host channel" that carries GUIDE Plus+ Gold data

containing program schedule and channel mapping information. A
channel map is the list of stations and their respective channels.

To ensure that your first download of data is complete, you should leave
your TV off overnight. Downloads occur several times a day. The TV must

be turned off for GUIDE Plus+ Gold data to download.
If the TV loses power or is unplugged, GUIDE Plus+ Gold program

information may be lost. When power is restored, make sure the setup
information is still correct. The GUIDE Plus+ Gold program will complete

a download at the next available time.

GUIDE I
OK

CLEAR

Channel Mapping

If more than one cable company services your area, you may be
prompted with a Channel Mapping screen after the first GUIDE Plus+
Gold download. You will need to identify your cable company by
selecting the correct channel numbers for the stations in question.

• Use the left and right arrows to change the channel group and
press OK when the correct channel group is highlighted.

THE DIFFERENT GUIDE PLUS+ GOLD SYSTEM

MENUS

The GUIDE Plus+ Gold System offers six different options on the Menu

bar: GRID, SORT, SCHEDULE, MESSAGES, EDITOR and SETUR To access the

Menu bar: I

1. Press GUIDE to bring up the GUIDE Plus+ Gold screen.

2. Press MENU or use the up and down arrows to highlight the Menu
bar. The Grid Guide comes up by default.

3. Use the left and right arrows to access other menus.

4. Press OK, MENU, or use the down arrow to see the menu options.

Since the program information provided
by the GUIDE Plus+ Gold System is based

on your locale, you will need to run

Setup again if you move.

]

39

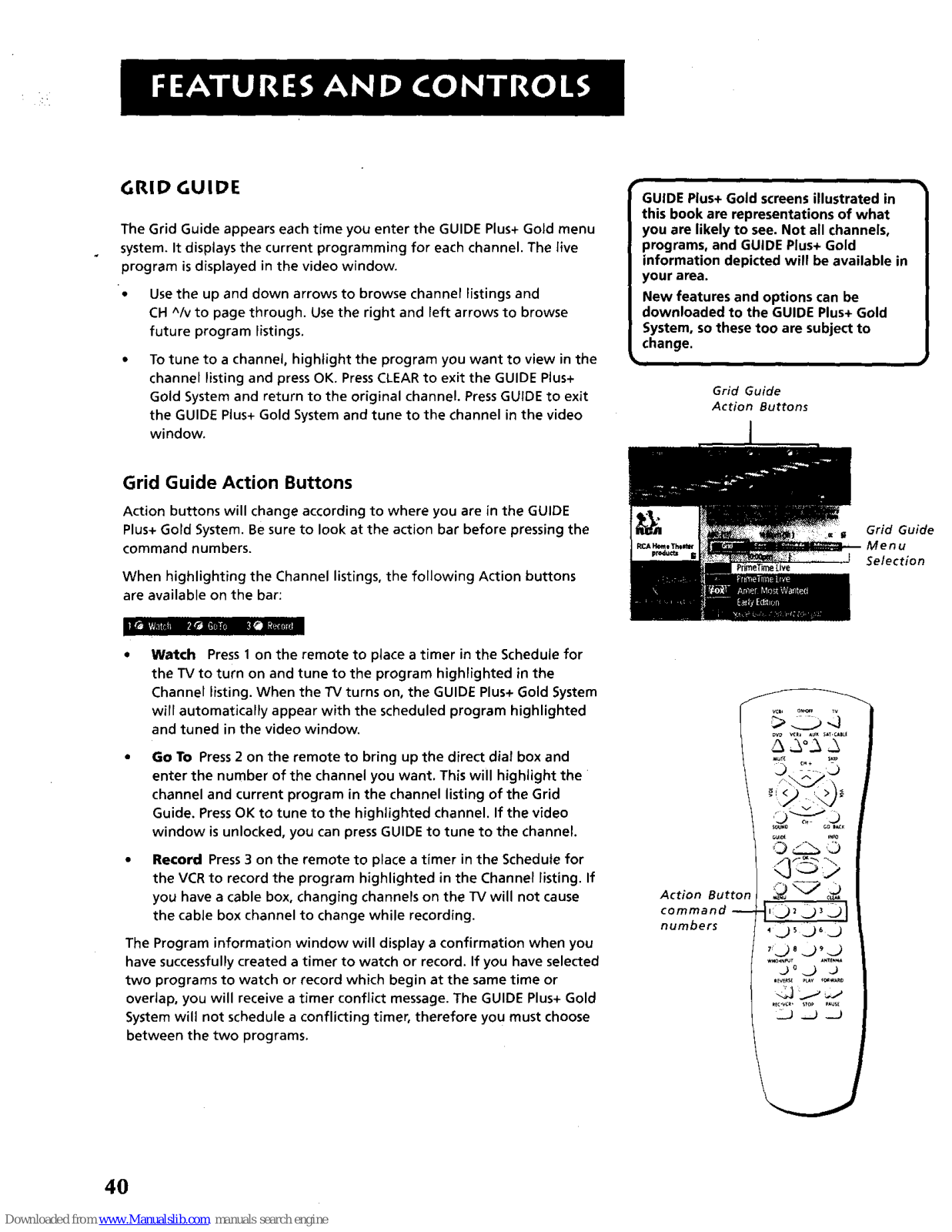

GRID GUIDE

The Grid Guide appears each time you enter the GUIDE Plus+ Gold menu
system. It displays the current programming for each channel. The live

program is displayed in the video window.

"o

Use the up and down arrows to browse channel listings and

CH ^/v to page through. Use the right and left arrows to browse

future program listings.
To tune to a channel, highlight the program you want to view in the

channel listing and press OK. PressCLEAR to exit the GUIDE Plus+
Gold System and return to the original channel. Press GUIDE to exit
the GUIDE Plus+ Gold System and tune to the channel in the video

window.

I GUIDE Plus+ Gold screens illustrated in

this book are representations of what
you are likely to see. Not all channels,

programs, and GUIDE Plus+ Gold
information depicted will be available in
your area.

New features and options can be
downloaded to the GUIDE Plus+ Gold

System, so these too are subject to

change.

Grid Guide

Action Buttons

I

Grid Guide Action Buttons

Action buttons will change according to where you are in the GUIDE
Plus+ Gold System. Be sure to look at the action bar before pressing the

command numbers.

When highlighting the Channel listings, the following Action buttons
are available on the bar:

Grid Guide

Menu
Selection

Watch Press 1 on the remote to place a timer in the Schedule for
the TV to turn on and tune to the program highlighted in the
Channel listing. When the "IV turns on, the GUIDE Plus+ Gold System
will automatically appear with the scheduled program highlighted

and tuned in the video window.

Go To Press 2 on the remote to bring up the direct dial box and

enter the number of the channel you want. This will highlight the

channel and current program in the channel listing of the Grid

Guide. Press OK to tune to the highlighted channel. If the video
window is unlocked, you can press GUIDE to tune to the channel.

Record Press 3 on the remote to place a timer in the Schedute for

the VCR to record the program highlighted in the Channel listing. If
you have a cable box, changing channels on the TV will not cause
the cable box channel to change while recording.

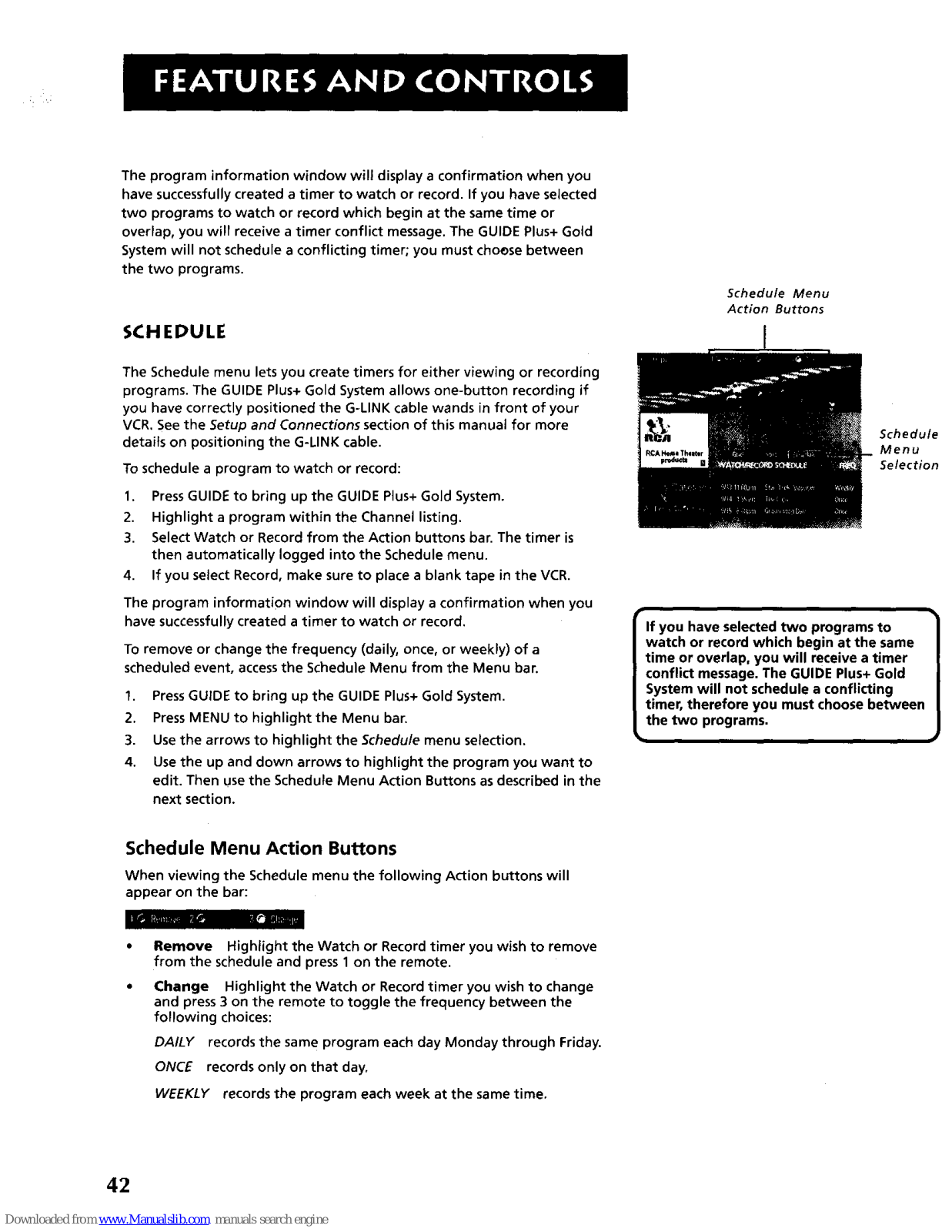

The Program information window will display a confirmation when you
have successfully created a timer to watch or record. If you have selected
two programs to watch or record which begin at the same time or

overlap, you will receive a timer conflict message. The GUIDE Plus+ Gold

System will not schedule a conflicting timer, therefore you must choose

between the two programs.

_ t0 i*cK
_Ul_ INFO

Action Button _ _ c_

command --
numbers , _.)s _26 j

W_O_N_T ANTIN_

j o._.) .j,

IEVE_'_ p_AV _WAR_

4O

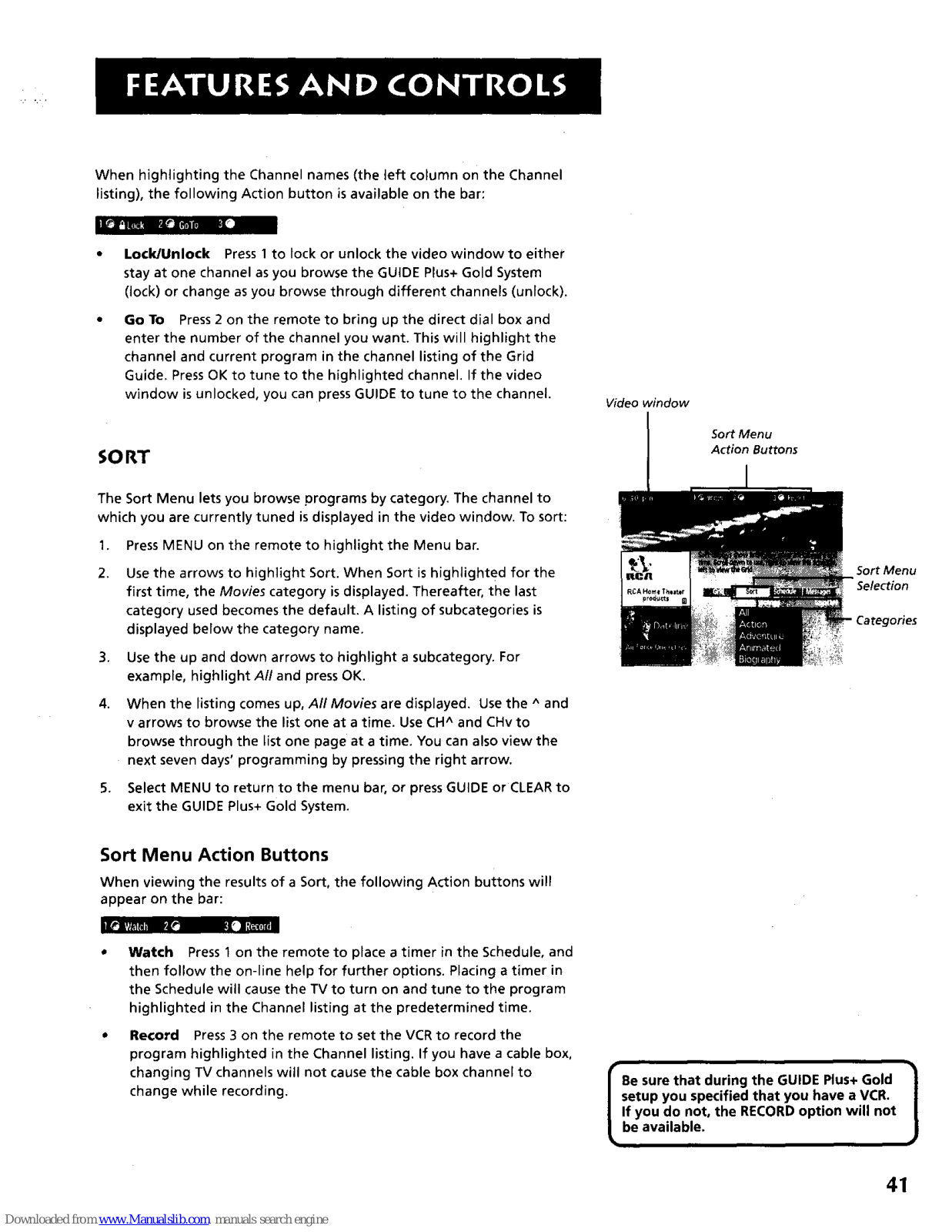

When highlighting the Channel names (the left column on the Channel

listing), the following Action button isavailable on the bar:

Lock/Unlock Press 1 to lock or unlock the video window to either

stay at one channel as you browse the GUIDE Plus+ Gold System

(lock) or change as you browse through different channels (unlock).

Go To Press 2 on the remote to bring up the direct dial box and

enter the number of the channel you want. This will highlight the

channel and current program in the channel listing of the Grid

Guide. Press OK to tune to the highlighted channel. If the video
window is unlocked, you can press GUIDE to tune to the channel.

SORT

The Sort Menu lets you browse programs by category. The channel to
which you are currently tuned is displayed in the video window. To sort:

1. Press MENU on the remote to highlight the Menu bar.

2.

Use the arrows to highlight Sort. When Sort is highlighted for the
first time, the Movies category is displayed. Thereafter, the last
category used becomes the default. A listing of subcategories is

displayed below the category name.

3. Use the up and down arrows to highlight a subcategory. For
example, highlight All and press OK.

4,

When the listing comes up, All Movies are displayed. Use the ^ and
v arrows to browse the list one at a time. Use CH^ and CHv to

browse through the list one page at a time. You can also view the
next seven days' programming by pressing the right arrow.

5. Select MENU to return to the menu bar, or press GUIDE or CLEAR to
exit the GUIDE Plus+ Gold System.

Video window

Sort Menu
Action Buttons

Sort Menu

Categories

Sort Menu Action Buttons

When viewing the results of a Sort, the following Action buttons will

appear on the bar:

Watch Press 1 on the remote to place a timer in the Schedule, and

then follow the on-line help for further options. Placing a timer in
the Schedule will cause the TVto turn on and tune to the program
highlighted in the Channel listing at the predetermined time.

Record Press 3 on the remote to set the VCR to record the
program highlighted in the Channel listing. If you have a cable box,

changing TV channels will not cause the cable box channel to
change while recording.

I Be sure that during the GUIDE Plus+ Gold |

setup you specified that you have a VCR.

J

If you do not, the RECORD option will not

be available.

41

The program information window will display a confirmation when you
have successfully created a timer to watch or record. If you have selected
two programs to watch or record which begin at the same time or
overlap, you will receive a timer conflict message. The GUIDE Plus+ Gold
System will not schedule a conflicting timer; you must choose between
the two programs.

SCHEDULE

The Schedule menu lets you create timers for either viewing or recording

programs. The GUIDE Plus+ Gold System allows one-button recording if
you have correctly positioned the G-LINK cable wands in front of your

VCR. See the Setup and Connections section of this manual for more
details on positioning the G-LINK cable.

To schedule a program to watch or record:

1. Press GUIDE to bring up the GUIDE Plus+ Gold System.

2. Highlight a program within the Channel listing,

3. Select Watch or Record from the Action buttons bar. The timer is
then automatically logged into the Schedule menu.

4. If you select Record, make sure to place a blank tape in the VCR.

The program information window will display a confirmation when you

have successfully created a timer to watch or record.

To remove or change the frequency (daily, once, or weekly) of a

scheduled event, access the Schedule Menu from the Menu bar.

1. Press GUIDE to bring up the GUIDE Plus+ Gold System.

2. Press MENU to highlight the Menu bar.

3. Use the arrows to highlight the Schedule menu selection.

4. Use the up and down arrows to highlight the program you want to
edit. Then use the Schedule Menu Action Buttons as described in the

next section.

Schedule Menu
Action Buttons

Schedule

Menu

Selection

If you have selected two programs to

watch or record which begin at the same
time or overlap, you will receive a timer
conflict message. The GUIDE Plus+ Gold

System will not schedule a conflicting

timer, therefore you must choose between
the two programs.

Schedule Menu Action Buttons

When viewing the Schedule menu the following Action buttons will

appear on the bar:

Remove Highlight the Watch or Record timer you wish to remove
from the schedule and press 1 on the remote.

Change Highlight the Watch or Record timer you wish to change
and press 3 on the remote to toggle the frequency between the

following choices:

DAILY records the same program each day Monday through Friday.

ONCE records only on that day.

WEEKLY records the program each week at the same time.

42

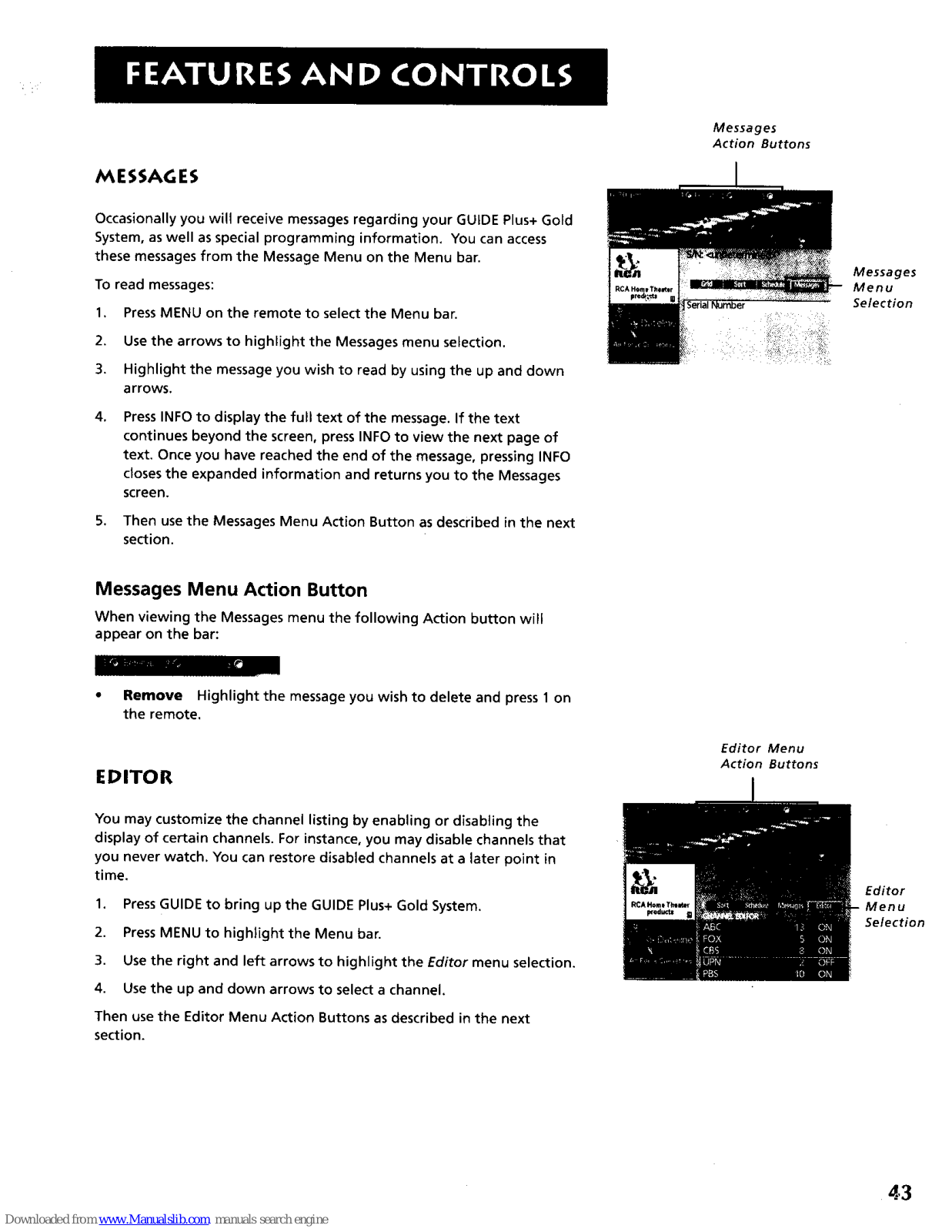

MESSAGES

Occasionally you will receive messages regarding your GUIDE Plus+ Gold
System, as well as special programming information, You can access

these messages from the Message Menu on the Menu bar.
To read messages:

1. Press MENU on the remote to select the Menu bar.

2. Use the arrows to highlight the Messages menu selection.

3. Highlight the message you wish to read by using the up and down
arrows.

4. Press INFO to display the full text of the message. If the text
continues beyond the screen, press INFO to view the next page of
text. Once you have reached the end of the message, pressing INFO
closes the expanded information and returns you to the Messages

screen.

5. Then use the Messages Menu Action Button as described in the next
section.

Messages

Action Buttons

Messages
Menu

Selection

Messages Menu Action Button

When viewing the Messages menu the following Action button will
appear on the bar:

• Remove Highlight the message you wish to delete and press 1 on

the remote,

EDITOR

Editor Menu

Action Buttons

You may customize the channel listing by enabling or disabling the
display of certain channels. For instance, you may disable channels that
you never watch. You can restore disabled channels at a later point in

time,

1. Press GUIDE to bring up the GUIDE Plus+ Gold System.

2. Press MENU to highlight the Menu bar.

3. Use the right and left arrows to highlight the Editor menu selection.

4. Use the up and down arrows to select a channel.
Then use the Editor Menu Action Buttons as described in the next

section.

Editor

Menu

Selection

4,3

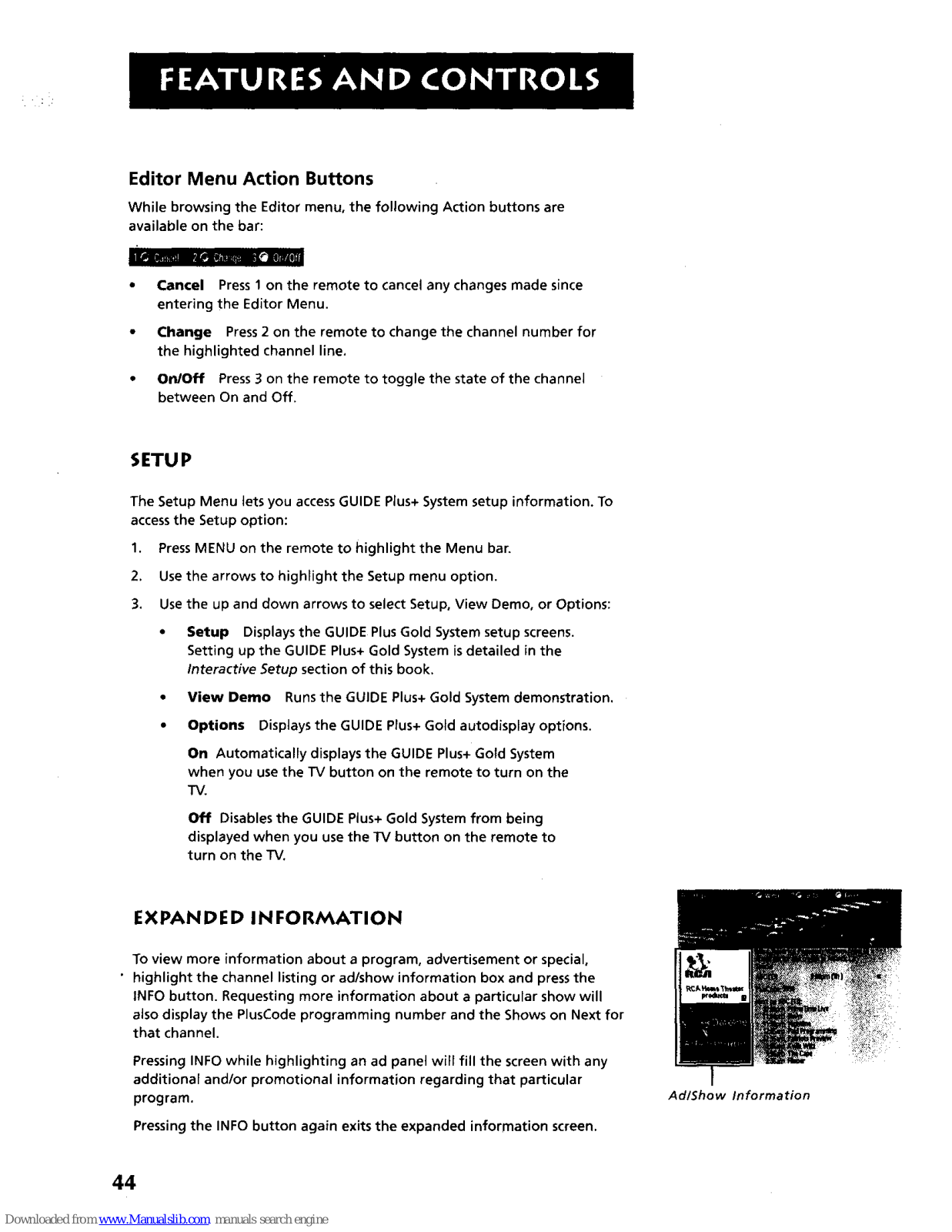

Editor Menu Action Buttons

While browsing the Editor menu, the following Action buttons are

available on the bar:

Cancel Press 1 on the remote to cancel any changes made since
entering the Editor Menu.

Change Press2 on the remote to change the channel number for
the highlighted channel line.

On/Off Press 3 on the remote to toggle the state of the channel

between On and Off.

SETUP

The Setup Menu lets you access GUIDE Plus+ System setup information. To

access the Setup option:

1. Press MENU on the remote to highlight the Menu bar.

2. Use the arrows to highlight the Setup menu option.

3. Use the up and down arrows to select Setup, View Demo, or Options:

• Setup Displays the GUIDE Plus Gold System setup screens.
Setting up the GUIDE Plus+ Gold System is detailed in the
Interactive Setup section of this book.

• View Demo Runs the GUIDE Plus+ Gold System demonstration.

• Options Displays the GUIDE Plus+ Gold autodisplay options.

On Automatically displays the GUIDE Plus+ Gold System
when you use the "IV button on the remote to turn on the

TV.

Off Disables the GUIDE Plus+ Gold System from being
displayed when you use the TV button on the remote to

turn on the TV.

EXPANDED INFORMATION

To view more information about a program, advertisement or special,

• highlight the channel listing or ad/show information box and press the

INFO button. Requesting more information about a particular show will

also display the PlusCode programming number and the Shows on Next for
that channel.

Pressing INFO while highlighting an ad panel wiFI fill the screen with any
additional and/or promotional information regarding that particular
program.

Pressing the INFO button again exits the expanded information screen.

AdlShow Information

44

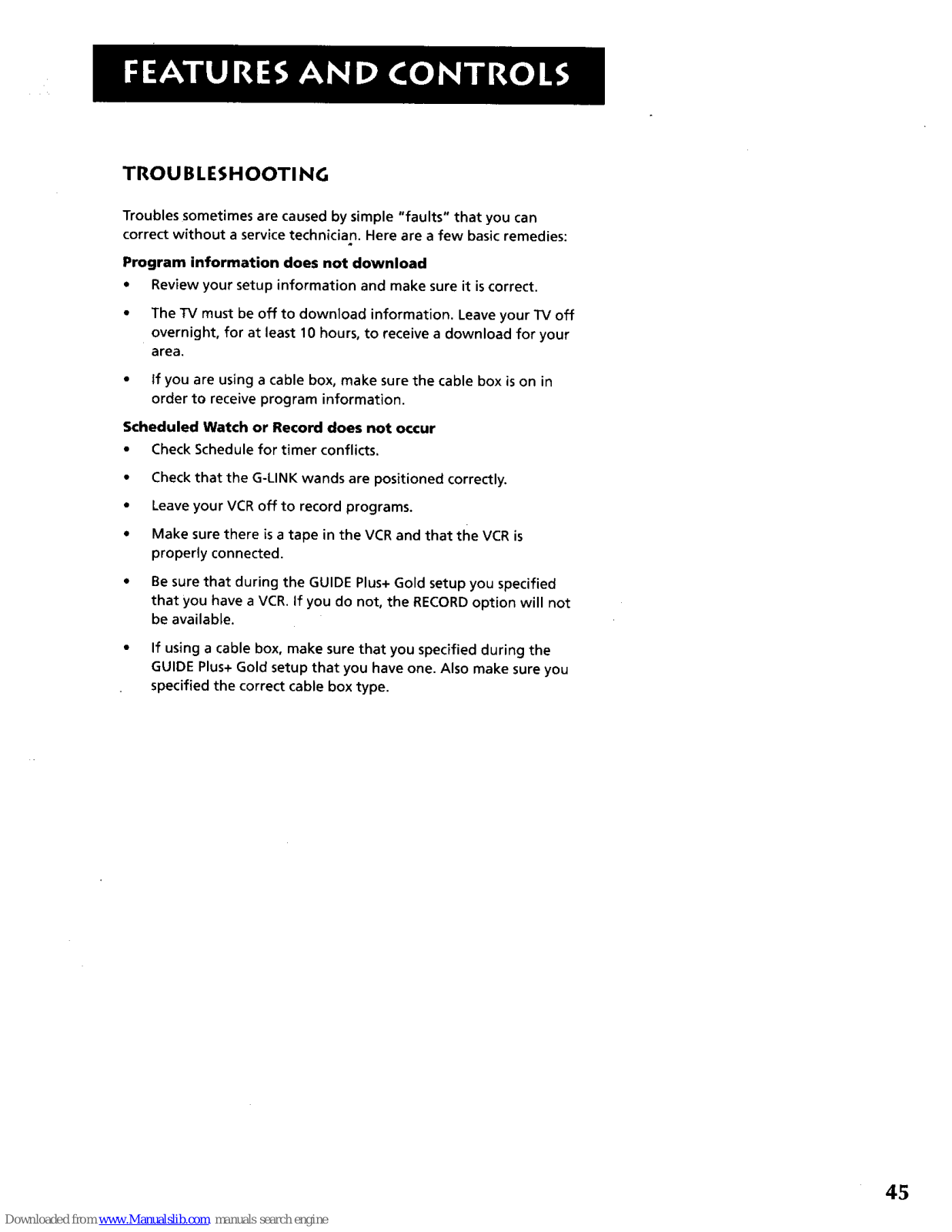

TROU BLESHOOTING

Troubles sometimes are caused by simple "faults" that you can
correct without a service technician. Here are a few basic remedies:

Program information does not download

• Review your setup information and make sure it is correct.

• The TV must be off to download information. Leave your TV off
overnight, for at least 10 hours, to receive a download for your

area.

• if you are using a cable box, make sure the cable box is on in
order to receive program information.

Scheduled Watch or Record does not occur

• Check Schedule for timer conflicts.

• Check that the G-LINK wands are positioned correctly.

• Leave your VCR off to record programs.

• Make sure there is a tape in the VCR and that the VCR is
properly connected.

• Be sure that during the GUIDE Plus+ Gold setup you specified
that you have a VCR. If you do not, the RECORD option will not

be available.

• If using a cable box, make sure that you specified during the
GUIDE Plus+ Gold setup that you have one. Also make sure you

specified the correct cable box type.

45

CHANNEL MARKER

There are several indicators that may come up when you press the TV or

INFO buttons. This display is called the Channel Marker.

12:01 Displays the current time.
CC Displayed when Closed Captioning is available on the current

channel.
ESPN Displays the label assigned to the current channel.
60 Displays the current channel or input channel. If yellow, pressing

channel up and down changes this channel.

Mute (or Stereo) Mute is displayed when you mute the audio.
Stereo is displayed when the current channel is broadcasting in

Stereo.
SAP Displayed when the current channel is broadcasting SAP

(Second Audio Program) information.

Locked Displayed when Parental Controls are locked.

Sleep Displayed when the Sleep Timer has been set.
00:00 Displayed to count down time left on the commercial skip

(SKIP) timer.

:_Z]Ol CC [_SPN

ute sA_

LOC_

60

SLeep 00:00

Sample displays on a Channel Marke_

46

PARENTAL CONTROLS AN D V-CHIP

The Parental Controls menu allows you to program your TV so that children

cannot see certain programs, channels, or use the front panel controls.

The first three choices in the Parental Controls menu involve software inside
your TV (dubbed V-Chip) which allows you to block TV programs and movies

based on violence, sex, or other content you may believe children should not
view. In other words, it lets you program your TV so it will not display certain

programs. Once you block programs, you or other adults are not limited to only
parent-approved programs; you can unblock programs by entering a password.

The software inside your TV comes turned "oft," so if you choose not to

implement it, you can just ignore it,

When turned "on," the software reads a code that most broadcasters send with programs. That code tells the

software the program's age-based rating (TV-MA, TV-14, etc.) and content themes (Violence (V), Adult Language (L),
etc.). If you have blocked the rating and/or content themes that the program contains, you will receive the message,

"This channel is not approved for viewing," when you turn to that particular channel. Broadcasters are not required

to provide content themes, so programs received with no content themes will only be blocked if you block their age-

based rating. You can also block out programs that have been given a rating of "Not Rated," and programs that are

considered "unrated" because no code has been sent by the broadcaster.

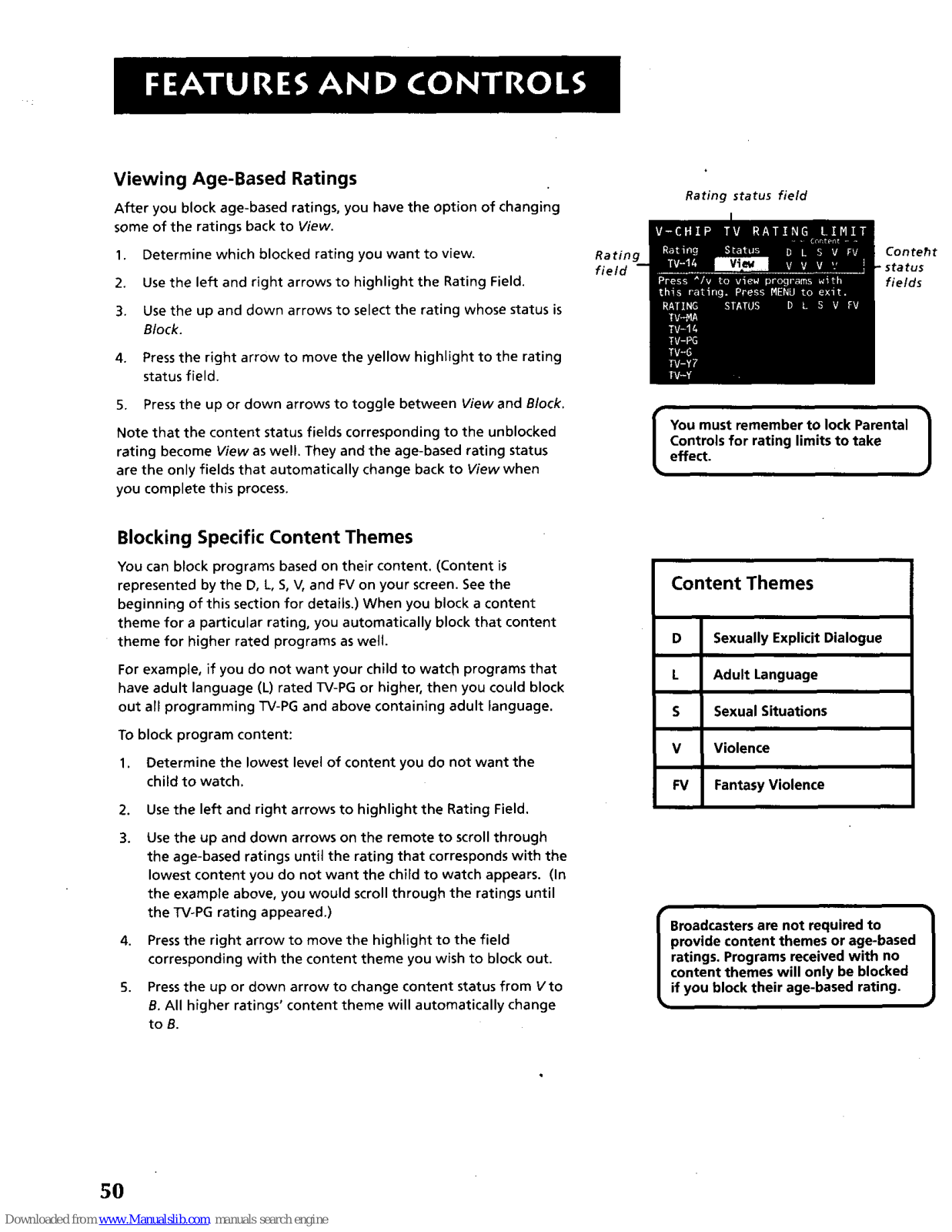

The TV age-based ratings and content themes you can block are listed in the table below.

Age-Based
Rating Description and Content Themes for Age-Based Ratings

Mature Audience Only. Specifically designed to be viewed by adults and may be unsuitable for

TV-MA children under 17. It contains one or more of the following content themes: crude indecent

language (L), explicit sexual activity (S), or graphic violence (V).

Parents Strongly Cautioned. Contains some material that many parents would find unsuitable for

children under 14. Parents are strongly urged to exercise greater care in monitoring this program and

TV-14 are cautioned against letting children under the age of 14 watch unattended. This program contains

one or more of the following content themes: intensely suggestive dialogue (D), strong coarse

language (L), intense sexual situations (S), or intense violence (V).
Parental Guidance Suggested. Contains material that parents may find unsuitable for younger

children. Many parents may want to watch it with their younger children. The program contains one
or more of the following content themes: some suggestive dialogue (D), infrequent coarse

TV-PG language (L), some sexual situations (S), or moderate violence (V).

General Audience. Most parents would find this program suitable for all ages. It contains little or no

TV-G sexual dialogue (D), no strong language (L), or sexual situations (S), and little or no

violence (V).

Directed to Children 7 years and older. Designed for children ages 7 and above. It may be more

TV-Y7 appropriate for children who have acquired the developmental skills needed to distinguish between

make-believe and reality. Themes and elements in this program may include mild fantasy violence
(IV) or comedic violence, or may frighten children under the age of 7.

TV-Y All Children. Themes and elements in this program are designed for a young audience, including

children from ages 2-6. It is not expected to frighten younger children.

47

V-CHIP TV RATING LIMIT

The V-Chip TV Rating Limit lets you decide what TV programs can and

cannot be viewed.

To set TV programming limits:

1, Choose Parental Controls from the Main menu. If Parental Controls

have previously been locked, you must enter your password. If they are
not locked, you will get a message reminding you that your limits will
not be effective until you lock Parental Controls.

2. Press MENU to continue.

3. Highlight and select V-Chip TVRating Limit.

4. Once you get to the V-Chip TV Rating Limit screen, use the arrows and
OK on your remote to change the status of a TV program rating or

content theme from View to Block.

The following sections give you more details about how to change the
status of TV program limits.

The Rating Limit Screen

Below isan example of where items are located within the Rating Limit screen.

Rating Field
Lets you select from a list of age-based

ratings you can block or view.

Rating Status Field
Lets you select whether the status of the age-
based rating limit to the left is View or Block.

I

Rating Settings Area

Content Themes

Lists the content

themes you can block

or view,

Lets you see the current block/view state of age-based ratings and
associated content. The View (V) settings are coded in green, and
the Block (B) settings are coded in red.

--Content Status

Fields

Lets you select which
content themes to

view for the selected
rating, and whether

the status of the
content theme is

currently View (V) or

Block (B).

48

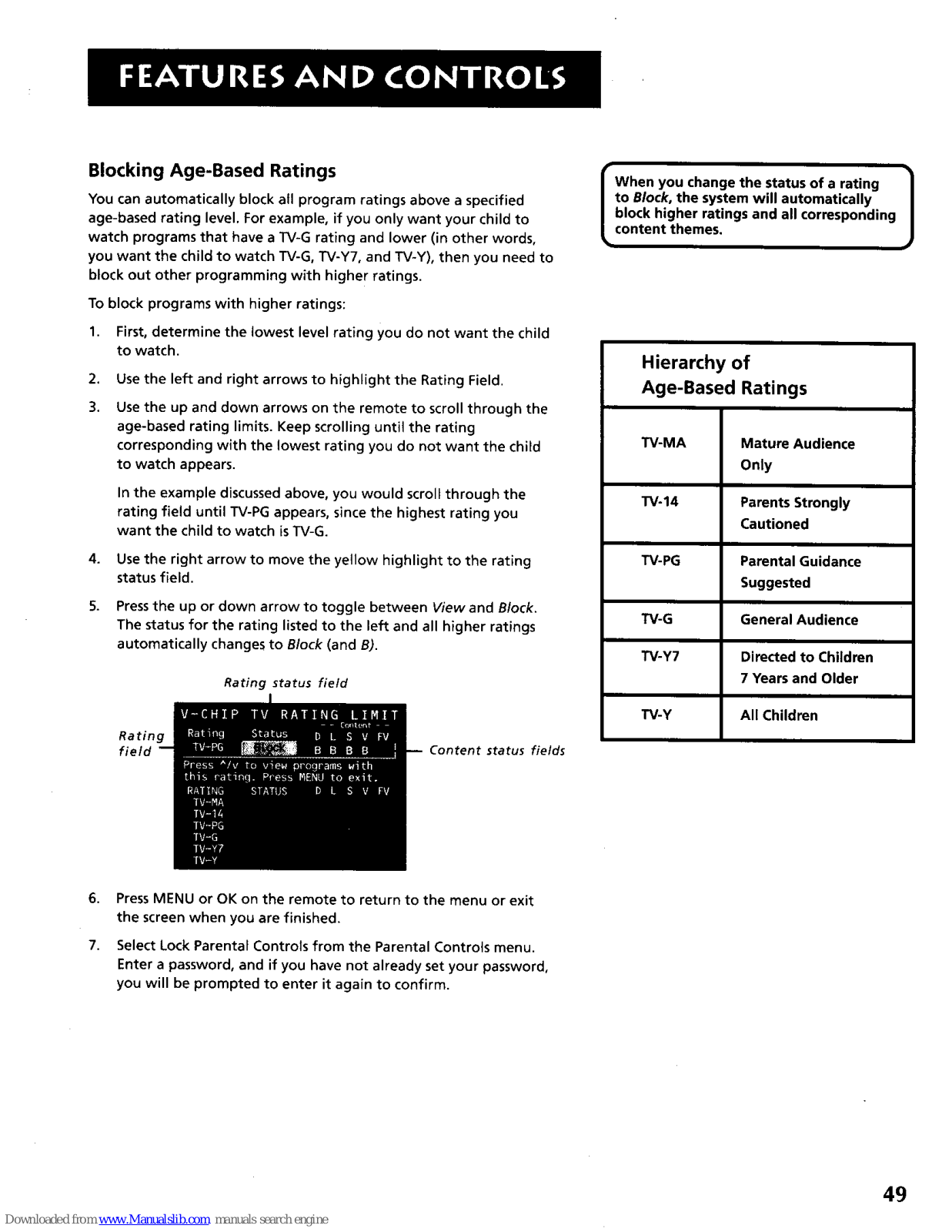

Blocking Age-Based Ratings

You can automatically block all program ratings above a specified
age-based rating level. For example, if you only want your child to
watch programs that have a TV-G rating and lower (in other words,
you want the child to watch TV-G, TV-Y7, and TV-Y), then you need to
block out other programming with higher ratings.

To block programs with higher ratings:

1. First, determine the lowest level rating you do not want the child
to watch.

2,

3.

4.

Use the left and right arrows to highlight the Rating Field.
Use the up and down arrows on the remote to scroll through the

age-based rating limits. Keep scrolling until the rating
corresponding with the lowest rating you do not want the child

to watch appears.

In the example discussed above, you would scroll through the

rating field until TV-PG appears, since the highest rating you
want the child to watch isTV-G.

Use the right arrow to move the yellow highlight to the rating
status field.

5. Press the up or down arrow to toggle between View and Block.
The status for the rating listed to the left and all higher ratings
automatically changes to Block (and B).

Rating status field

Rating
field Content status fields

I When you change the status of a rating /

to Block, the system will automatically

J

block higher ratings and all corresponding
content themes.

Hierarchy of

Age-Based Ratings

TV-MA Mature Audience

Only

TV.14 Parents Strongly

Cautioned

TV-PG Parental Guidance

Suggested

TV-G General Audience

"rv-Y7 Directed to Children

7 Years and Older

TV-Y All Children

6,

7.

Press MENU or OK on the remote to return to the menu or exit
the screen when you are finished.

Select Lock Parental Controls from the Parental Controls menu.

Enter a password, and if you have not already set your password,

you will be prompted to enter it again to confirm.

49

Viewing Age-Based Ratings

After you block age-based ratings, you have the option of changing
some of the ratings back to View.

1. Determine which blocked rating you want to view.

2. Use the left and right arrows to highlight the Rating Field.

3. Use the up and down arrows to select the rating whose status is

Block.

4. Pressthe right arrow to move the yellow highlight to the rating

status field.

5. Press the up or down arrows to toggle between View and Block,
Note that the content status fields corresponding to the unblocked

rating become View aswell. They and the age-based rating status
are the only fields that automatically change back to Wew when

you complete this process.

Rating
field

Rating status field

Conteht

-status

fields

I ou must remember to lock Parental 1

Controls for rating limits to take
effect.

Blocking Specific Content Themes

You can block programs based on their content. (Content is

represented by the D, L, S, V, and FV on your screen. See the

beginning of this section for details.) When you block a content
theme for a particular rating, you automatically block that content
theme for higher rated programs as well.

For example, if you do not want your child to watch programs that

have adult language (L) rated TV-PG or higher, then you could block

out all programming TV-PG and above containing adult language.

To block program content:

1. Determine the lowest level of content you do not want the
child to watch.

2. Use the left and right arrows to highlight the Rating Field.

3.

Use the up and down arrows on the remote to scroll through
the age-based ratings until the rating that corresponds with the

lowest content you do not want the child to watch appears. (In
the example above, you would scroll through the ratings until
the TV-PG rating appeared.)

4. Press the right arrow to move the highlight to the field

corresponding with the content theme you wish to block out.

5. Press the up or down arrow to change content status from Vto
B. All higher ratings' content theme will automatically change

to B.

Content Themes

D Sexually Explicit Dialogue

L Adult Language

S Sexual Situations

V Violence

FV Fantasy Violence

• ]

Broadcasters are not required to
provide content themes or age-based

ratings. Programs received with no
content themes will only be blocked

if you block their age-based rating.

k

5O

Rating

Rating status field

Content status fields

• You must remember to lock Parental
Controls for rating limits to take

J

effect.

6. Press MENU or OK to return to the menu or exit the screen.

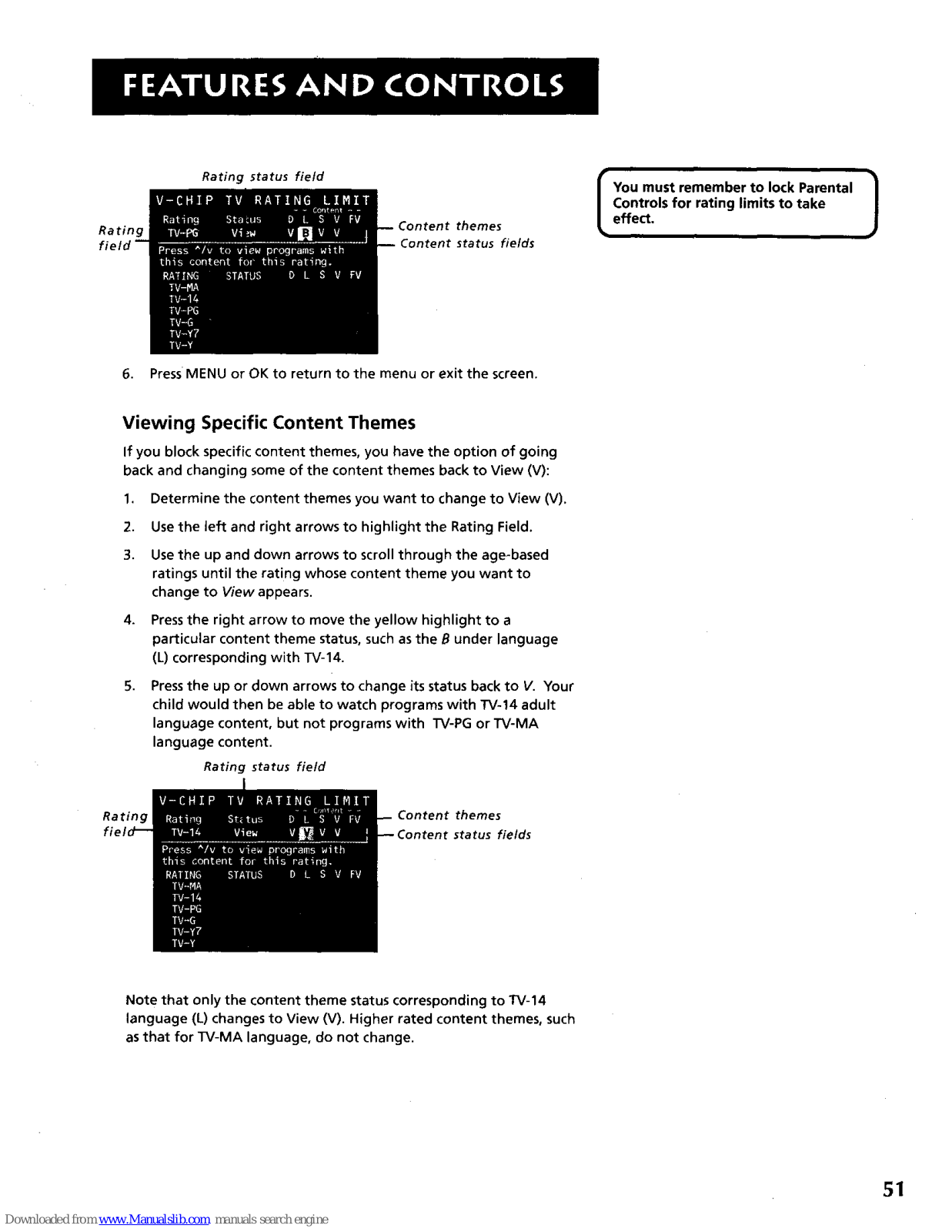

Viewing Specific Content Themes

If you block specific content themes, you have the option of going
back and changing some of the content themes back to View (V):

1. Determine the content themes you want to change to View (V).

2. Use the left and right arrows to highlight the Rating Field.

3. Use the up and down arrows to scroll through the age-based
ratings until the rating whose content theme you want to
change to View appears.

4. Press the right arrow to move the yellow highlight to a
particular content theme status, such as the B under language
(L) corresponding with TV-14.

5. Press the up or down arrows to change its status back to V. Your
child would then be able to watch programs with TV-14 adult
language content, but not programs with "I'V-PG or TV-MA
language content.

Rating status field

Ratin

t status fields

Note that only the content theme status corresponding to TV-14
language (L) changes to View (V). Higher rated content themes, such

as that for TV-MA language, do not change.

51

V-CHIP MOVIE RATING LIMIT

You set movie rating limits by blocking movies rated above a specified level.

Blocking Movie Ratings

If you only want your child to watch movies that have a PG rating and lower
(in other words, movies rated PG and G), then you could automatically block

out all other movies with higher ratings.

To block movies:

2.

Highlight the rating field and press the up and down arrows to find the
rating that is the lowest rating you do not want the child to watch. (In
the example above, you would point to the rating status button
corresponding to PG-13, since the highest rating you want the child to

watch is PG.)
Use the right arrow to highlight the rating status field. Press the up and

down arrows to change the button from View to Block. All higher
ratings' View buttons will automatically change to Block.

Rating fieldRating status field

Some movies may be given a Not Rated/

(NR) rating. After blocking movie

J

ratings, you must set NR to View
separately to view NR movies.

3. Press OK to return to the menu or exit the screen.

4. If Parental Controls are not locked, you must lock them so the movie
rating limits will take effect. See the section Locking Parental Controls.

Viewing Movie Ratings

After you block movie ratings, you have the option of changing some of the
rating status buttons back to View:

1. Highlight the rating field and press the up and down arrows to find the
rating you want to view.

2. Use the right arrow to highlight the rating status field. Press the up and
down arrows to change the button from Block to View.

For example, if movies with a rating of PG-13 and higher are blocked, you
can change the rating status button corresponding with NC-17. Your child

would then be able to watch all movies with a G, PG, and NC-17 rating.

3. Press MENU or OK to exit the screen, and be sure parental controls are
locked (see the section Locking Parental Controls).

I You must remember to lock Parental 1

Controls for rating limits to take
effect.

Rating field Rating status field

52

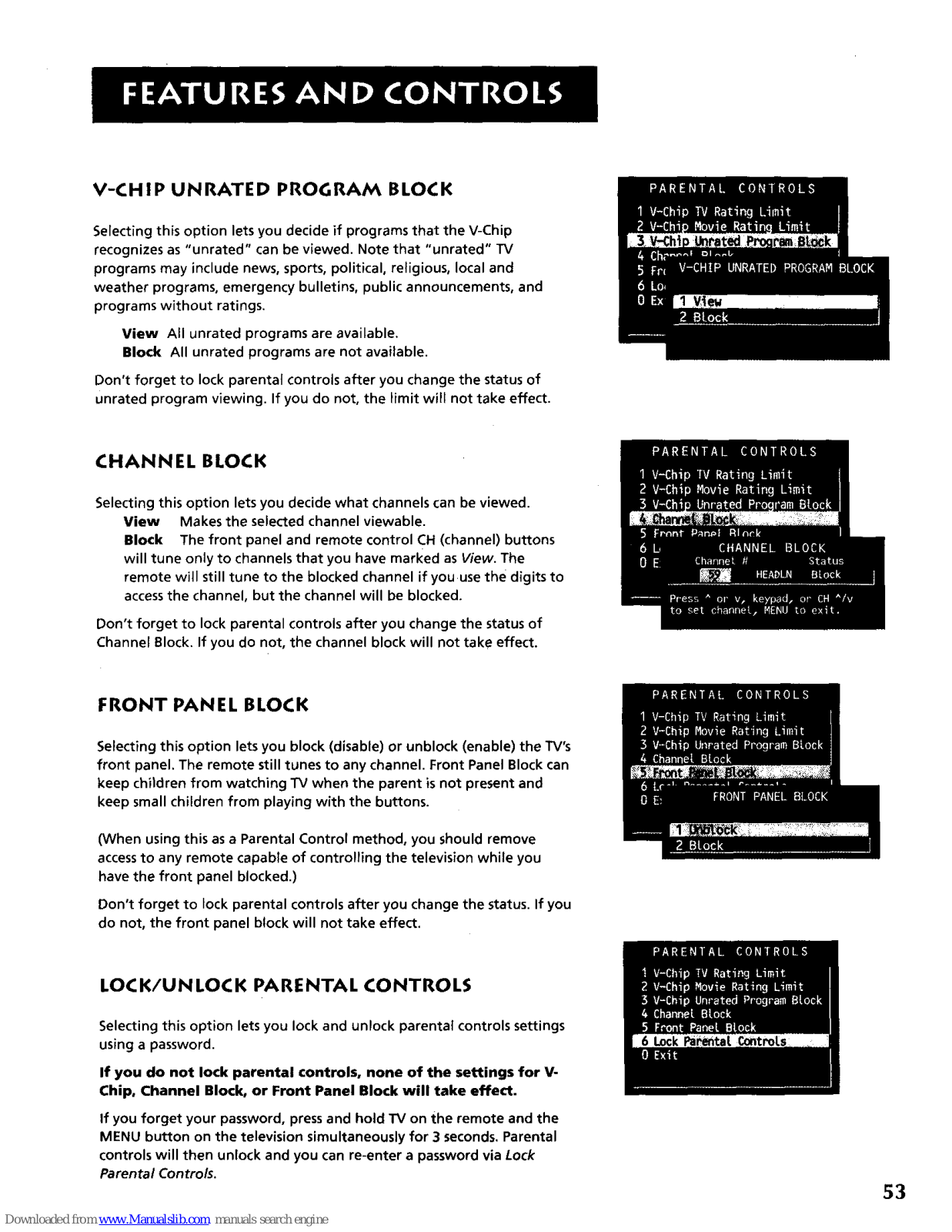

V-CHIP UNRATED PROGRAM BLOCK

Selecting this option lets you decide if programs that the V-Chip

recognizes as "unrated" can be viewed. Note that "unrated" TV
programs may include news, sports, political, religious, local and
weather programs, emergency bulletins, public announcements, and
programs without ratings.

View All unrated programs are available.

Block All unrated programs are not available.

Don't forget to lock parental controls after you change the status of
unrated program viewing. If you do not, the limit will not take effect.

CHANNEL BLOCK

Selecting this option lets you decide what channels can be viewed.

View Makes the selected channel viewable.

Block The front panel and remote control CH (channel) buttons

will tune only to channels that you have marked as View. The
remote will still tune to the blocked channel if you use the digits to
access the channel, but the channel will be blocked.

Don't forget to lock parental controls after you change the status of
Channel Block. If you do not, the channel block will not take effect.

FRONT PANEL BLOCK

Selecting this option lets you block (disable) or unblock (enable) the TV's

front panel. The remote still tunes to any channel. Front Panel Block can

keep children from watching "IV when the parent is not present and
keep small children from playing with the buttons.

(When using this as a Parental Control method, you should remove
access to any remote capable of controlting the television while you
have the front panel blocked.)

Don't forget to lock parental controls after you change the status. If you
do not, the front panel block will not take effect.

LOCK/UNLOCK PARENTAL CONTROLS

Selecting this option lets you lock and unlock parental controls settings
using a password.

If you do not lock parental controls, none of the settings for V-
Chip, Channel Block, or Front Panel Block will take effect.

If you forget your password, press and hold "IV on the remote and the

MENU button on the television simultaneously for 3 seconds. Parental
controls will then unlock and you can re-enter a password via Lock

Parental Controls.

6 Lock

53

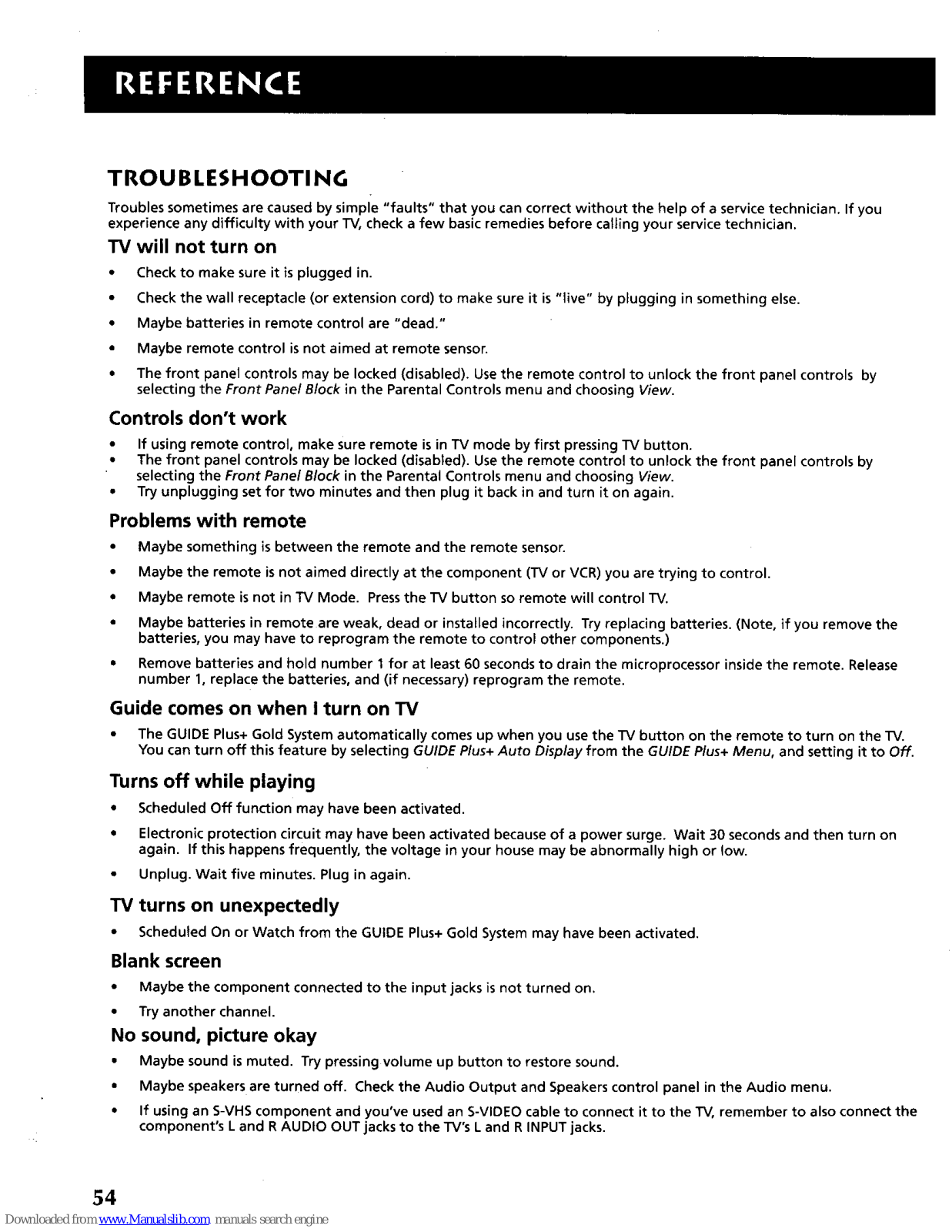

TROUBLESHOOTING

Troubles sometimes are caused by simple "faults" that you can correct without the help of a service technician. If you

experience any difficulty with your "IV, check a few basic remedies before calling your service technician.

TV will not turn on

• Check to make sure it is plugged in.

• Check the wall receptacle (or extension cord) to make sure it is "live" by plugging in something else.

• Maybe batteries in remote control are "dead."

• Maybe remote control is not aimed at remote sensor.

• The front panel controls may be locked (disabled). Usethe remote control to unlock the front panel controls by
selecting the Front Pane/Block in the Parental Controls menu and choosing View.

Controls don't work

• If using remote control, make sure remote isin TV mode by first pressing "iV button.

• The front panel controls may be locked (disabled). Use the remote control to unlock the front panel controls by
selecting the Front Pane/Block in the Parental Controls menu and choosing View.

• Try unplugging set for two minutes and then plug it back in and turn it on again.

Problems with remote

• Maybe something is between the remote and the remote sensor.

• Maybe the remote isnot aimed directly at the component (TV or VCR) you are trying to control.

• Maybe remote is not in TV Mode. Press the TV button so remote will control TV.

• Maybe batteries in remote are weak, dead or installed incorrectly. Try replacing batteries. (Note, if you remove the
batteries, you may have to reprogram the remote to control other components.)

• Remove batteries and hold number 1 for at least 60 seconds to drain the microprocessor inside the remote. Release

number 1, replace the batteries, and (if necessary) reprogram the remote.

Guide comes on when I turn on TV

• The GUIDE Plus+ Gold System automatically comes up when you use the "iV button on the remote to turn on the TV.
You can turn off this feature by selecting GUIDE P/us+ Auto Display from the GUIDE P/us+ Menu, and setting it to Off.

Turns off while playing

• Scheduled Off function may have been activated.

• Electronic protection circuit may have been activated because of a power surge. Wait 30 seconds and then turn on
again. If this happens frequently, the voltage in your house may be abnormally high or low.

• Unplug. Wait five minutes. Plug in again.

TV turns on unexpectedly

• Scheduled On or Watch from the GUIDE Plus+ Gold System may have been activated.

Blank screen

• Maybe the component connected to the input jacks is not turned on.

• Try another channel.

No sound, picture okay

• Maybe sound is muted. Try pressing volume up button to restore sound.

• Maybe speakers are turned off. Check the Audio Output and Speakers control panel in the Audio menu.

• If using an S-VHS component and you've used an S-VIDEO cable to connect it to the TV, remember to also connect the
component's L and RAUDIO OUT jacks to the TV's L and R INPUT jacks.

54

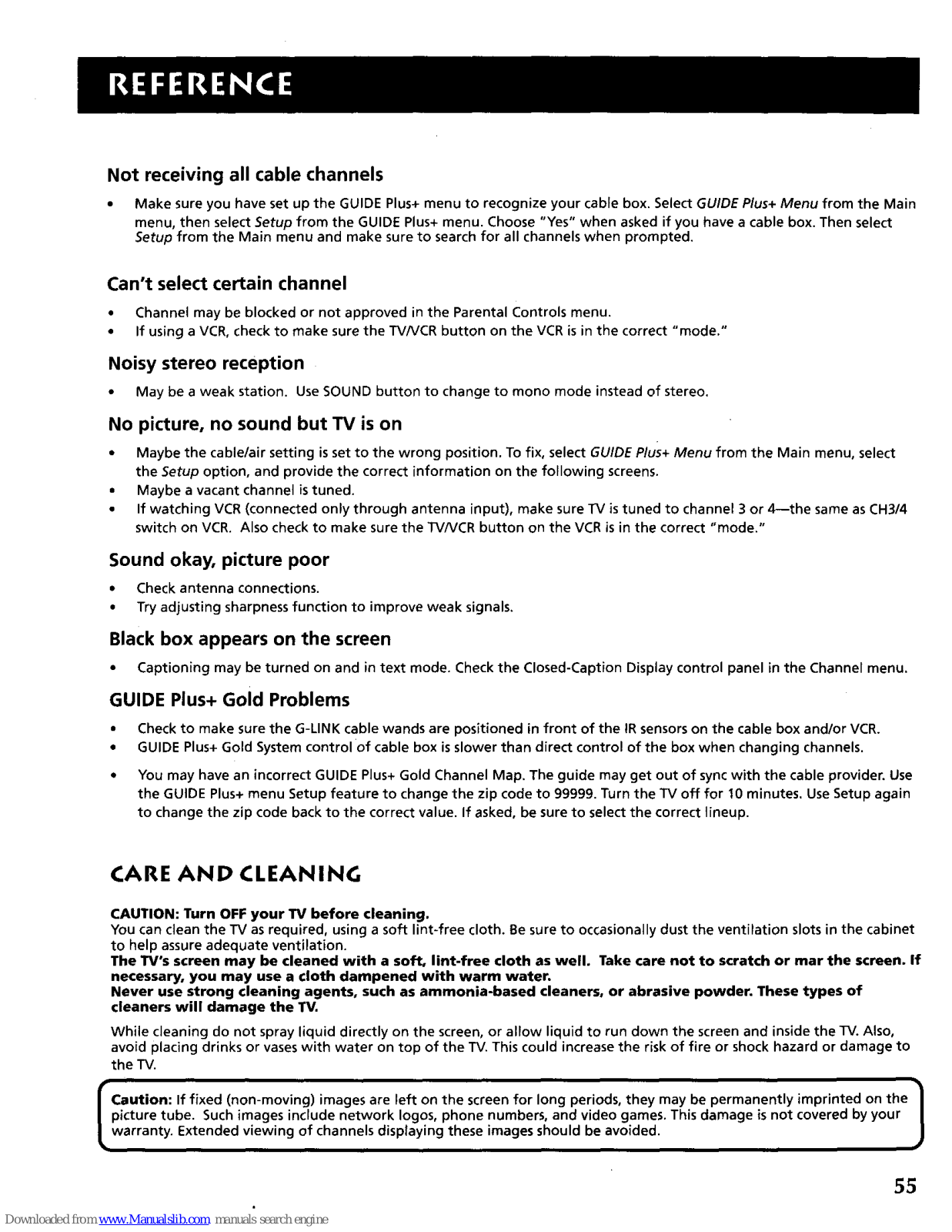

Not receiving all cable channels

• Make sure you have set up the GUIDE Plus+ menu to recognize your cable box. Select GUIDE Plus+ Menu from the Main
menu, then select Setup from the GUIDE Plus+ menu. Choose "Yes" when asked if you have a cable box. Then select

Setup from the Main menu and make sure to search for all channels when prompted.

Can't select certain channel

• Channel may be blocked or not approved in the Parental Controls menu.

• If using a VCR, check to make sure the TV/VCR button on the VCR is in the correct ° mode."

Noisy stereo reception

• May be a weak station. Use SOUND button to change to mono mode instead of stereo.

No picture, no sound but TV is on

• Maybe the cable/air setting is set to the wrong position. To fix, select GUIDE Plus+ Menu from the Main menu, select
the Setup option, and provide the correct information on the following screens.

• Maybe a vacant channel is tuned.

• If watching VCR {connected only through antenna input), make sure TV istuned to channel 3 or 4--the same as CH3/4
switch on VCR. Also check to make sure the TV/VCR button on the VCR is in the correct "mode."

Sound okay, picture poor

• Check antenna connections.

• Try adjusting sharpness function to improve weak signals.

Black box appears on the screen

• Captioning may be turned on and in text mode. Check the Closed-Caption Display control panel in the Channel menu.

GUIDE Plus+ Gold Problems

• Check to make sure the G-LINK cable wands are positioned in front of the IR sensors on the cable box and/or VCR.

• GUIDE Plus+ Gold System control of cable box is slower than direct control of the box when changing channels.

• You may have an incorrect GUIDE Plus+ Gold Channel Map. The guide may get out of sync with the cable provider. Use

the GUIDE Plus+ menu Setup feature to change the zip code to 99999. Turn the TV off for 10 minutes. Use Setup again
to change the zip code back to the correct value. If asked, be sure to select the correct lineup.

CARE AND CLEANING

CAUTION: Turn OFF your TV before cleaning.
You can clean the TV as required, using a soft lint-free cloth. Be sure to occasionally dust the ventilation slots in the cabinet
to help assure adequate ventilation.
The TV's screen may be cleaned with a soft, lint-free cloth as well. Take care not to scratch or mar the screen. If
necessary, you may use a cloth dampened with warm water.
Never use strong cleaning agents, such as ammonia-based cleaners, or abrasive powder. These types of

cleaners will damage the TV.
While cleaning do not spray liquid directly on the screen, or allow liquid to run down the screen and inside the TV. Also,

avoid placing drinks or vases with water on top of the TV. This could increase the risk of fire or shock hazard or damage to
the TV.

Ca_t_on: If fixed (non-moving)images are left on the screen for long periods, they may be permanently imprinted on the I

pic u e tub)e.. Such images inc:lude network Iogos, phone numbers, and video games. This damage is not covered by your

J

warranty. Extended viewing of channels displaying these images should be avoided.

55

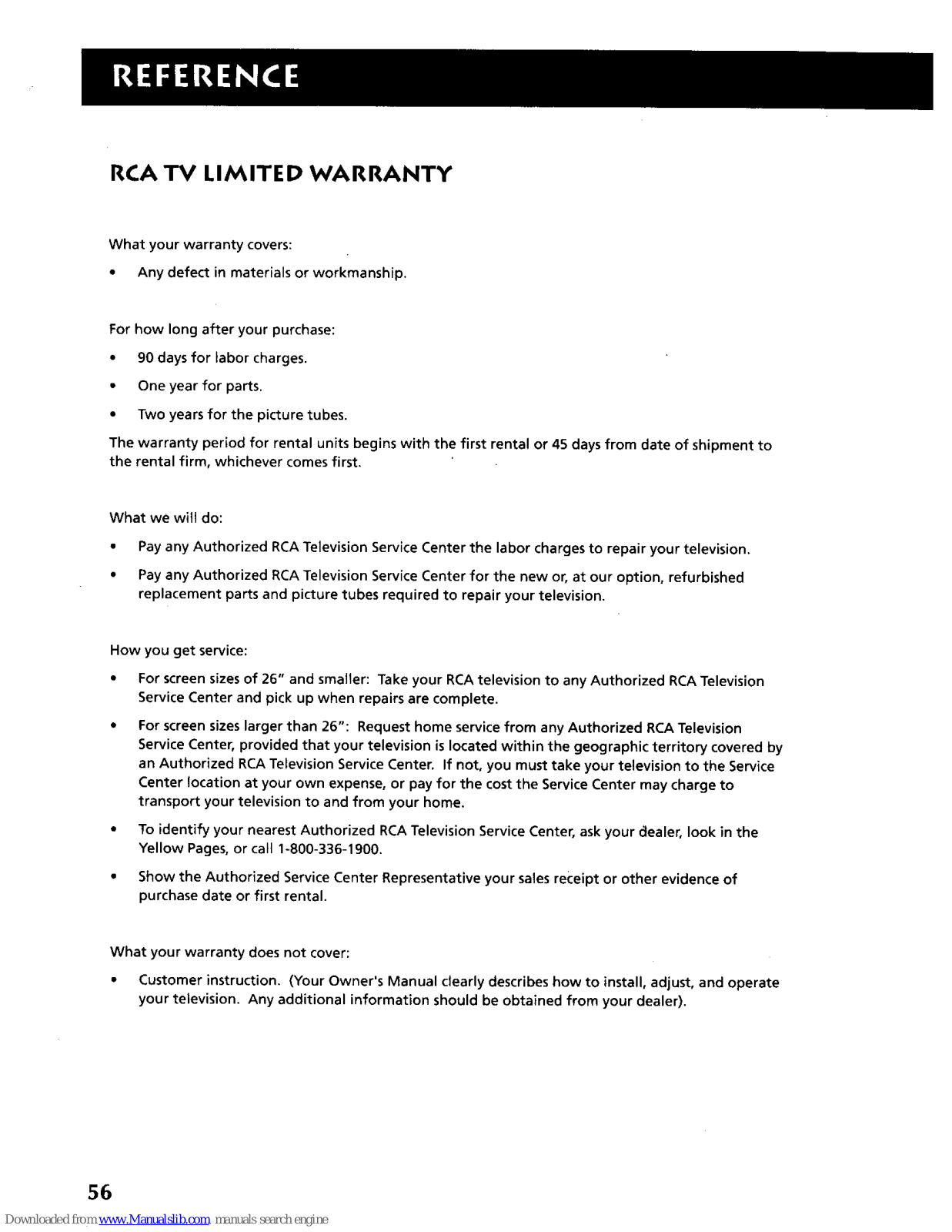

RCA TV LIMITED WARRANTY

What your warranty covers:

• Any defect in materials or workmanship,

For how long after your purchase:

• 90 days for labor charges.

• One year for parts.

• Two years for the picture tubes.

The warranty period for rental units begins with the first rental or 45 days from date of shipment to
the rental firm, whichever comes first.

What we will do:

• Pay any Authorized RCA Television Service Center the labor charges to repair your television,

• Pay any Authorized RCA Television Service Center for the new or, at our option, refurbished
replacement parts and picture tubes required to repair your television.

How you get service:

• For screen sizes of 26" and smaller: Take your RCA television to any Authorized RCA Television
Service Center and pick up when repairs are complete.

For screen sizes larger than 26": Request home service from any Authorized RCA Television
Service Center, provided that your television is located within the geographic territory covered by
an Authorized RCA Television Service Center, If not, you must take your television to the Service
Center location at your own expense, or pay for the cost the Service Center may charge to
transport your television to and from your home.

• To identify your nearest Authorized RCA Television Service Center, ask your dealer, look in the
Yellow Pages, or call 1-800-336-1900.

• Show the Authorized Service Center Representative your sales receipt or other evidence of
purchase date or first rental.

What your warranty does not cover:

• Customer instruction. (Your Owner's Manual dearly describes how to install, adjust, and operate
your television. Any additional information should be obtained from your dealer).

56

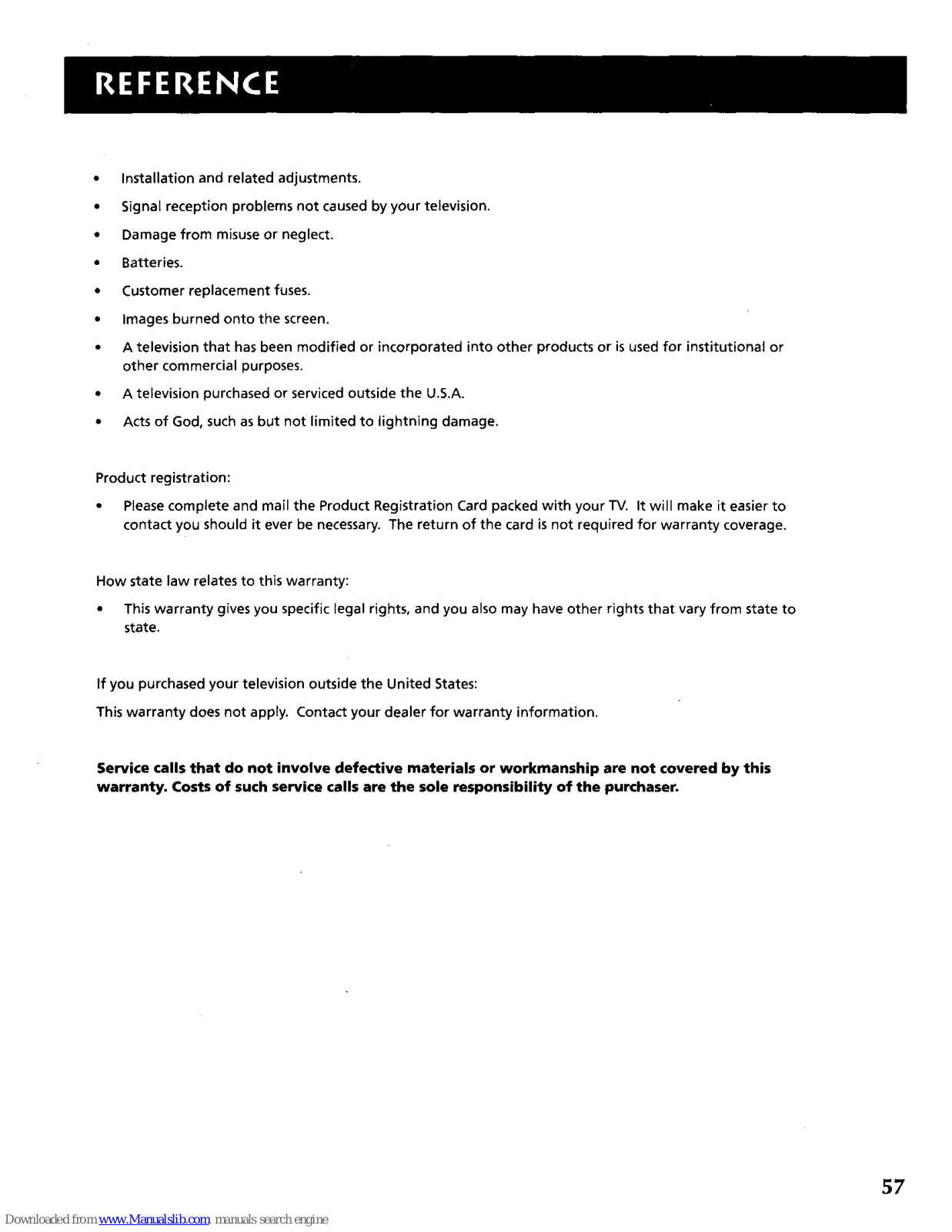

• Installation and related adjustments.

• Signal reception problems not caused by your television.

• Damage from misuse or neglect.

• Batteries.

• Customer replacement fuses.

• Images burned onto the screen.

• A television that has been modified or incorporated into other products or is used for institutional or
other commercial purposes.

• A television purchased or serviced outside the U.S.A.

• Acts of God, such as but not limited to lightning damage.

Product registration:

• Please complete and mail the Product Registration Card packed with your TV. It will make it easier to
contact you should it ever be necessary. The return of the card is not required for warranty coverage.

How state law relates to this warranty:

• This warranty gives you specific legal rights, and you also may have other rights that vary from state to

state.

If you purchased your television outside the United States:
This warranty does not apply. Contact your dealer for warranty information.

Service calls that do not involve defective materials or workmanship are not covered by this
warranty. Costs of such service calls are the sole responsibility of the purchaser.

57

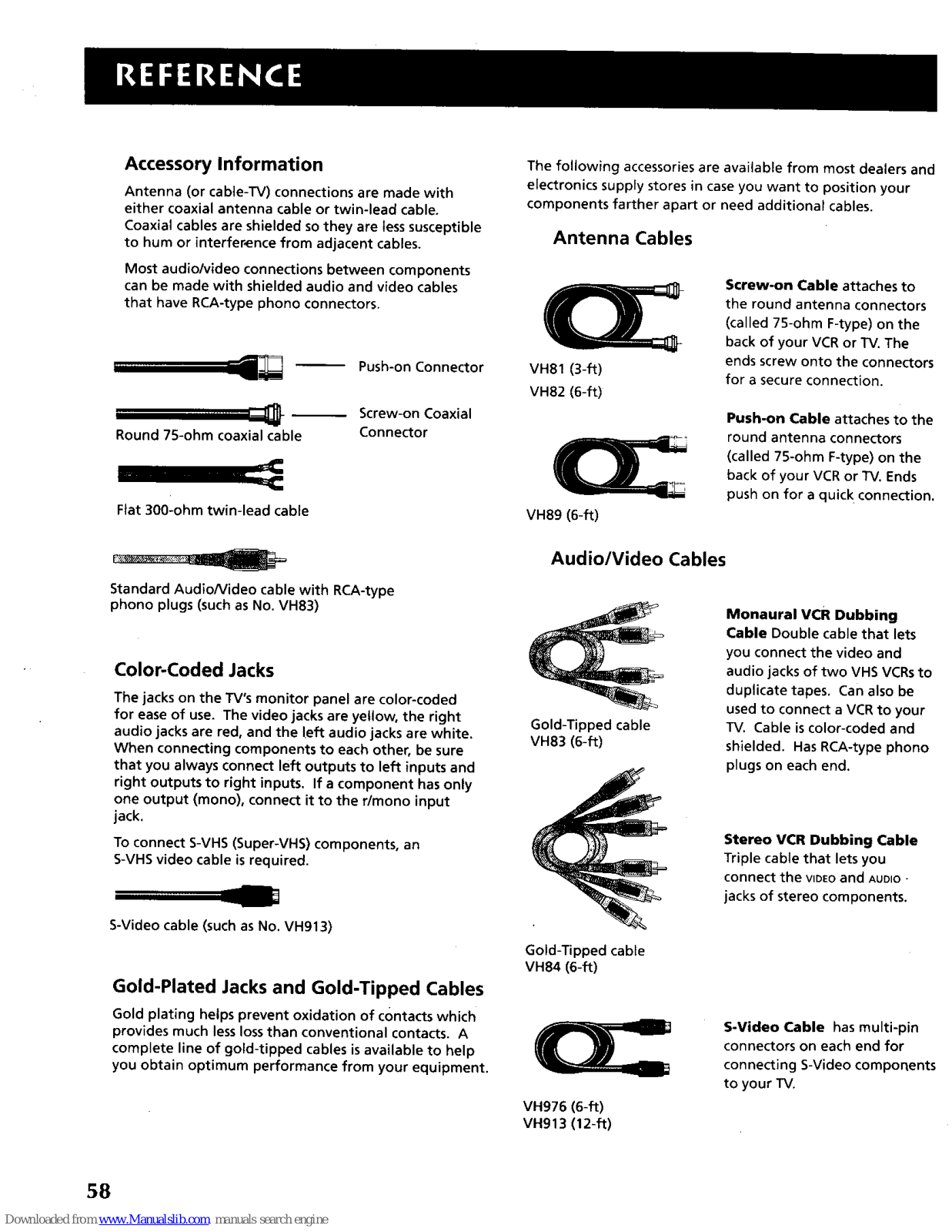

Accessory Information

Antenna (or cabie-TV) connections are made with

either coaxial antenna cable or twin-lead cable.
Coaxial cables are shielded so they are tesssusceptible

to hum or interference from adjacent cables.
Most audio/video connections between components

can be made with shielded audio and video cables
that have RCA-type phono connectors.

i _ -- Push-on Connector

Screw-on Coaxial

Round 7S-ohm coaxial cable Connector

Flat 300-ohm twin-lead cable

The following accessories are available from most dealers and
electronics supply stores in case you want to position your

components farther apart or need additional cables.

Antenna Cables

VH81 (3-ft)
VH82 (6-ft)

VH89 (6-ft)

Screw-on Cable attaches to
the round antenna connectors

(called 75-ohm F-type) on the
back of your VCR or TV. The

ends screw onto the connectors
for a secure connection.

Push-on Cable attaches to the
round antenna connectors

(called 75-ohm F-type) on the

back of your VCR or TV, Ends
push on for a quick connection.

Standard Audio/Video cable with RCA-type
phono plugs (such as No. VH83)

Color-Coded Jacks

The jacks on the TV's monitor panel are color-coded
for ease of use. The video jacks are yellow, the right

audio jacks are red, and the left audio jacks are white.
When connecting components to each other, be sure
that you always connect left outputs to left inputs and

right outputs to right inputs. If a component has only

one output (mono), connect it to the r/mono input
jack.

To connect S-VHS (Super-VHS) components, an
S-VHS video cable is required.

S-Video cable (such as No. VH913)

Gold-Plated Jacks and Gold-Tipped Cables

Gold plating helps prevent oxidation of contacts which
provides much lesslossthan conventional contacts. A

complete line of gold-tipped cables is available to help
you obtain optimum performance from your equipment.

Audio/Video Cables

Gold-Tipped cable

VH83 (6-ft)

Monaural VCR Dubbing
Cable Double cable that lets

you connect the video and
audio jacks of two VHS VCRs to
duplicate tapes. Can also be

used to connect a VCR to your
TV. Cable is color-coded and

shielded. Has RCA-type phono

plugs on each end.

Stereo VCR Dubbing Cable
Triple cable that lets you

connect the WDEOand AUDIO-
jacks of stereo components.

Gold-Tipped cable
VH84 (6-ft)

VH976 (6-ft)
VH913 (12-ft)

S-Video Cable has multi-pin
connectors on each end for

connecting S-Video components

to your TV.

58

_J

J_j

i

J j J

,I .j,j.j

CRK76TE1

Splitter
VH47

ANT200

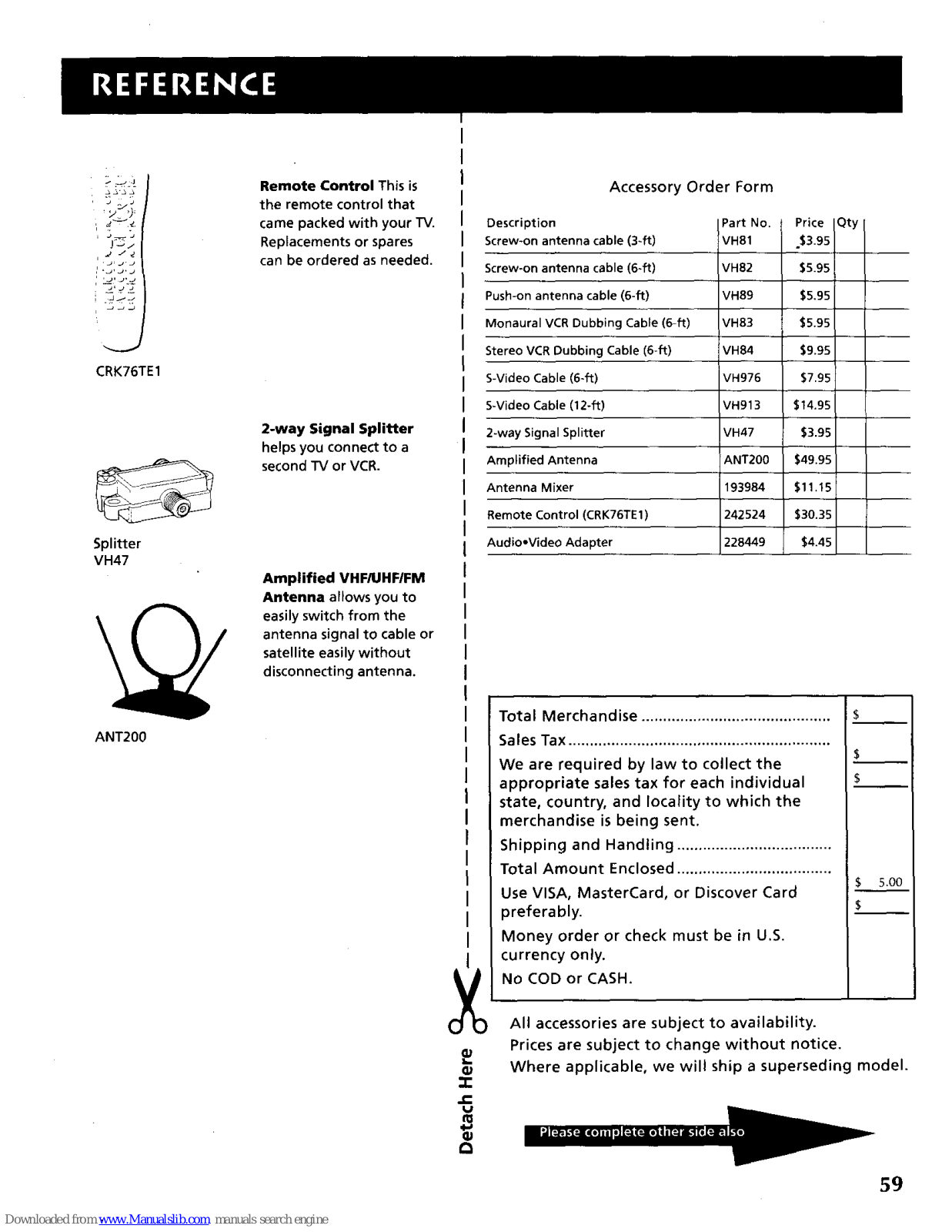

Remote Control This is

the remote control that
came packed with your TV.

Replacements or spares

can be ordered as needed.

2-way Signal Splitter

helps you connect to a
second TV or VCR.

Amplified VHF/UHF/FM
Antenna allows you to

easily switch from the
antenna signal to cable or
satellite easily without
disconnecting antenna.

I

Accessory Order Form

Description

Screw-on antenna cable (3-ft)
5crew-on antenna cable (6-ft)

Push-on antenna cable (6-ft)

Monaural VCR Dubbing Cable (6 f_)

Stereo VCR Dubbing Cable (6-ft)
S-Video Cable (6-ft)

S-Video Cable (12-(_)

2-way Signal Splitter

Amplified Antenna

Antenna Mixer

Remote Control (CRK76TE1)

AudiooVideo Adapter

Part No.

IVH81

VH82

VH89

VH83
VH84

VH976

VH913
VH47

ANT200

193984

242524
228449

$5.95

$5.95
$5.95

$9.95
$7.95

$14.95

$3.95

$49.95

$11.15

$30.35

$4.45

"I"

t_

Total Merchandise ............................................

Sales Tax .............................................................

We are required by law to collect the
appropriate sales tax for each individual
state, country, and locality to which the
merchandise is being sent.

Shipping and Handling ....................................

Total Amount Enclosed ....................................

Use VISA, MasterCard, or Discover Card
preferably.

Money order or check must be in U.S.

currency only.

No COD or CASH.

$

$
$

_s 5.00

All accessories are subject to availability.
Prices are subject to change without notice.
Where applicable, we will ship a superseding model.

59

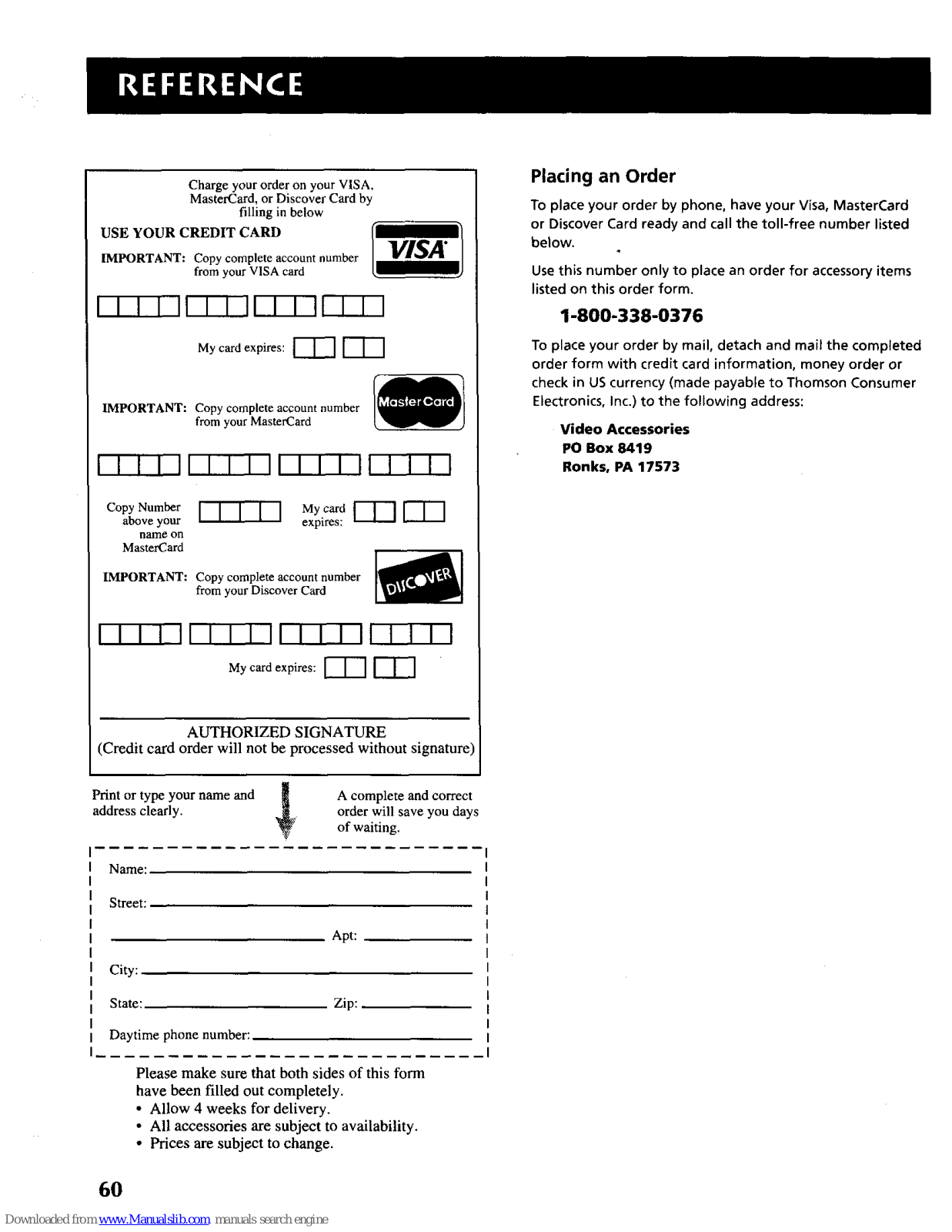

Charge your order on your VISA,
MasterCard, or Discover Card by

filling in below

USE YOUR CREDIT CARD

IMPORTANT: Copy complete account number

from your VISA card

VISA"

My card expires: _

IMPORTANT: Copy complete account number

from your MasterCard

r-N-r-q f-r-q- 7-r-l-N f-T-1-N

Copy Number

above your

nain_ on

MasterCard

Myc dl I II I I

expires:

IMPORTANT: Copy complete account number

from your Discover Card

rr-r-n rN-N FFF

Mycard expires: [---['--]

AUTHORIZED SIGNATURE

(Credit card order will not be processed without signature)

Print or type your name and
address clearly.

Name:

Street:

A complete and correct

order will save you days
of waiting.

D

Apt:

City:

State: Zip:

Daytime phone number:

Please make sure that both sides of this form
have been filled out completely.

• Allow 4 weeks for delivery.

• All accessories are subject to availability.

• Prices are subject to change.

Placing an Order

To place your order by phone, have your Visa, MasterCard
or Discover Card ready and call the toll-free number listed

below.

Use this number only to place an order for accessory items
listed on this order form.

1-800-338-0376

To place your order by mail, detach and mail the completed

order form with credit card information, money order or

check in US currency (made payable to Thomson Consumer

Electronics, Inc.) to the following address:

Video Accessories
PO Box 8419

Ronks, PA 17573

6O

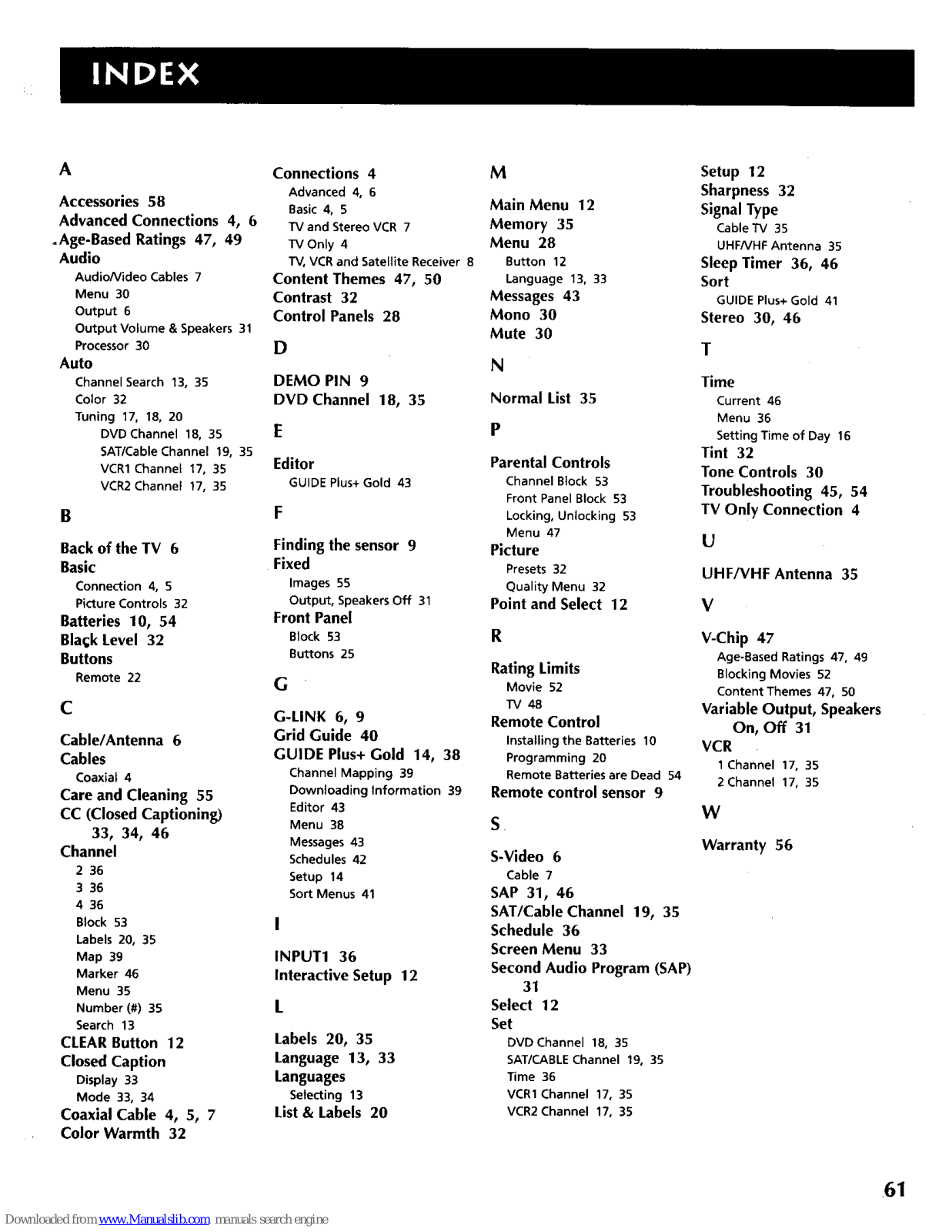

A

Accessories 58
Advanced Connections 4, 6

.Age-Based Ratings 47, 49

Audio

Audio/Video Cables 7

Menu 30
Output 6
Output Volume & Speakers 31

Processor30

Auto

Channel Search 13, 35

Color 32
Tuning 17, 18, 20

DVD Channel 18, 35
SAT/CableChannel 19, 35
VCR1Channel 17, 35
VCR2Channel 17, 35

B

Back of the TV 6
Basic

Connection 4, 5

Picture Controls 32

Batteries 10, 54
Black Level 32
Buttons

Remote 22

C

Cable/Antenna 6
Cables

Coaxia_4

Care and Cleaning 55
CC (Closed Captioning)

33, 34, 46

Channel

2 36

3 36

4 36

Block 53

Labels 20, 35

Map 39

Marker 46

Menu 35

Number (#) 35

Search 13

CLEAR Button 12

Closed Caption

Display 33

Mode 33, 34

Coaxial Cable 4, 5, 7
Color Warmth 32

Connections 4

Advanced 4, 6

Basic 4, 5

TV and Stereo VCR 7
TV Only 4

TV, VCR and Satellite Receiver 8

Content Themes 47, 50
Contrast 32

Control Panels 28

D

DEMO PIN 9
DVD Channel 18, 35

E

Editor

GUIDE Plus+ Gold 43

Finding the sensor 9
Fixed

Images 55

Output, SpeakersOff 31

Front Panel

Block 53
Buttons 25

G

G-LINK 6, 9

Grid Guide 40
GUIDE Plus+ Gold 14, 38

Channel Mapping 39
Downloading Information 39

Editor 43
Menu 38

Messages 43
Schedules 42

Setup 14
Sort Menus 41

I

INPUT1 36
Interactive Setup 12

L

Labels 20, 35

Language 13, 33

Languages

Selecting 13

List& Labels 20

M

Main Menu 12

Memory 35

Menu 28

Button 12
Language 13, 33

Messages 43
Mono 30

Mute 30

N
Normal List 35

P

Parental Controls

Channel Block 53
Front Panel Block 53

Locking, Unlocking 53
Menu 47


Presets32

Quality Menu 32

Point and Select 12

R

Rating Limits

Movie 52
TV 48

Remote Control

Installing the Batteries 10
Programming 20

Remote Batteriesare Dead 54

Remote control sensor 9

S

S-Video 6

Cable 7

SAP 31, 46
SAT/Cable Channel 19, 35

Schedule 36

Screen Menu 33
Second Audio Program (SAP)

31

Select 12
Set

DVDChannel 18, 35
SAT/CABLEChannel 19, 35

Time 36
VCR1 Channel 17, 35

VCR2 Channel 17, 35

Setup 12
Sharpness 32

Signal Type

Cable TV 35

UHF/VHFAntenna 35

Sleep Timer 36, 46
Sort

GUIDEPlus+Gold 41

Stereo 30, 46

T

Time

Current 46

Menu 36

Setting Time of Day 16

Tint 32
Tone Controls 30

Troubleshooting 45, 54
TV Only Connection 4

U

UHF/VHF Antenna 35

V

V-Chip 47

Age-Based Ratings 47, 49

Blocking Movies 52

Content Themes 47, 50

Variable Output, Speakers

On, Off 31

VCR

1 Channel 17, 35
2Channel 17, 35

W

Warranty 56

61

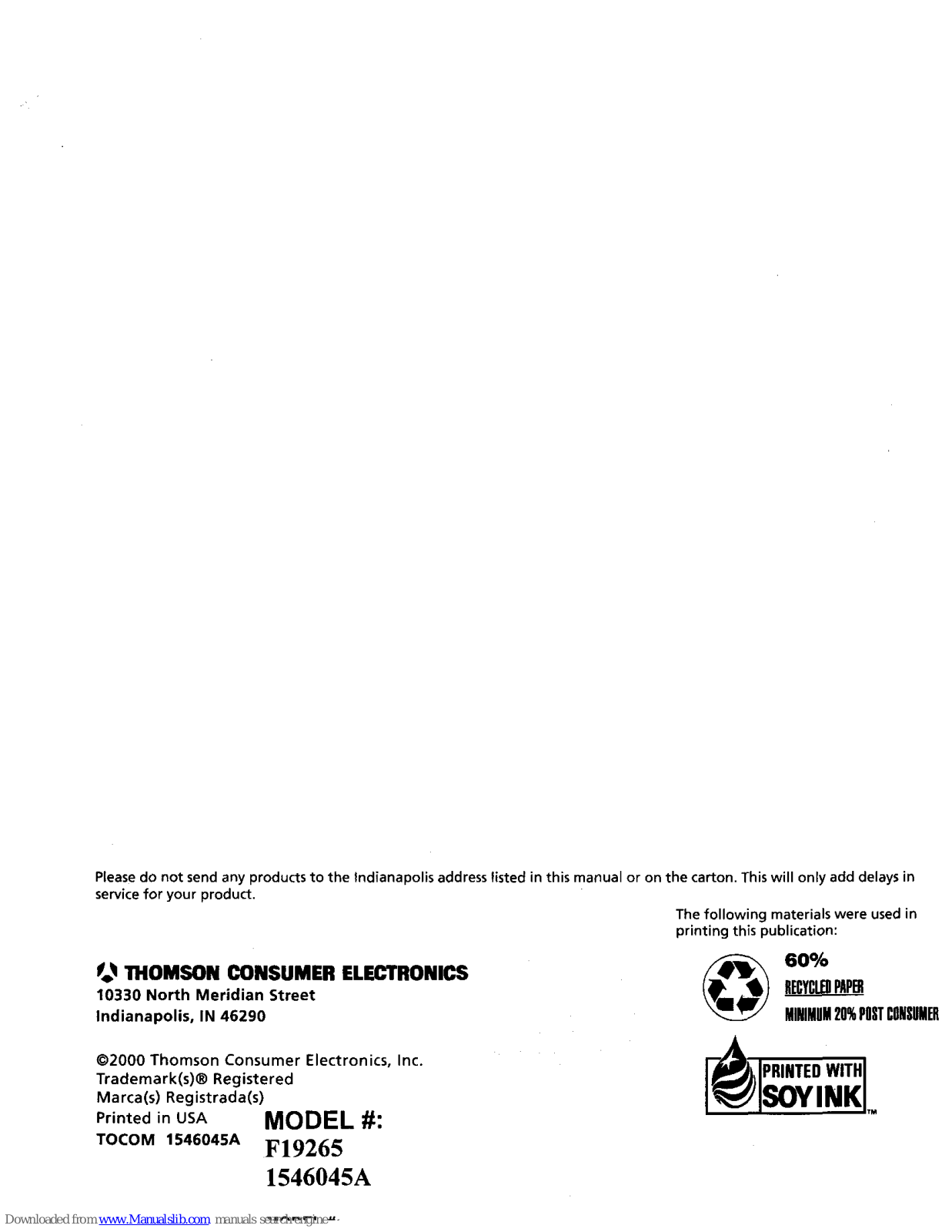

Please do not send any products to the _ndianapolis address listed in this manual or on the carton. This will only add delays in
service for your product.

The following materials were used in

printing this publication:

g,_ THOMSON CONSUMER ELECTRONICS

10330 North Meridian Street
Indianapolis, IN 46290

©2000 Thomson Consumer Electronics, Inc.
Trademark(s)® Registered

Marca(s) Registrada(s)

Printed in USA MODEL #:

TOCOM 1546045A F19265

60%

RECY_y_LLLLL_PAPER
MINIMUM20%POSTCONSOHER

1546045A
