RCA DRD222RD User Manual

Important--Use These Remote Codes

The codes on this sheet supersede the codes in the user's guide. Please refer to your user's guide for the instructions on how to program the remote using these codes. The remote is already programmed to operate most PROSCAN, RCA, and GE product.

Abex ........................................................................... 1172

Admiral ........................................................... 1001, 1173

Adventura .................................................................. 1174

Aiko ............................................................................ 1016

Akai ............................................................................. 1002

Alleron ....................................................................... 1046

Amtron ...................................................................... 1038

Anam National .............................................. 1003, 1038

AOC .................... 1004, 1005, 1006, 1007, 1175, 1176

Audiovox ................................................................... 1038

Belcor ......................................................................... 1004

Bell & Howell ...................................... 1001, 1083, 1162

Bradford ..................................................................... 1038

Brokwood ................................................................. 1004

Candle ....................................... 1004, 1006, 1008, 1174

Capehart .................................................................... 1175

Celebrity .................................................................... 1002

Centurion .................................................................. 1009

Citizen ....................................... 1004, 1006, 1008, 1016

......................................... 1038, 1105, 1171, 1174, 1177

Clairtone ................................................................... 1176

Colortyme ...................................................... 1004, 1006

Concerto ........................................................ 1004, 1006

Contec/Cony ................ 1012, 1013, 1014, 1038, 1176

Craig ........................................................................... 1038

Crown ............................................................. 1038, 1171

Curtis Mathes ..................................... 1000, 1004, 1006

.................................................... 1015, 1105, 1162, 1171

CXC ........................................................................... 1038

Daewoo .................................... 1004, 1005, 1006, 1016

.................................................... 1017, 1018, 1127, 1171

Daytron ................................................ 1004, 1006, 1171

Dimensia .................................................................... 1000

Dumont .......................................................... 1004, 1151

Dynatech ................................................................... 1178

Electroband .................................................... 1002, 1176

Electrohome ................. 1003, 1004, 1006, 1019, 1022

Emerson ............................................... 1004, 1006, 1012

........ 1014, 1023, 1024, 1025, 1026, 1027, 1028, 1029

........ 1030, 1031, 1032, 1033, 1034, 1035, 1036, 1037

........ 1038, 1039, 1041, 1042, 1043, 1044, 1046, 1047

........ 1123, 1124, 1162, 1171, 1176, 1177, 1179, 1191

Envision ........................................................... 1004, 1006

Fisher ................... 1048, 1049, 1050, 1051, 1162, 1180

Fujitso ......................................................................... 1046

Funai ................................................................ 1038, 1046

Futuretec ................................................................... 1038

GE .............. 1000, 1003, 1004, 1006, 1022, 1052, 1054

......... 1055, 1087, 1164, 1165, 1166, 1167, 1168, 1181

Gibralter ......................................................... 1004, 1151

Goldstar ..........................1004, 1005, 1006, 1012, 1019

.................... 1056, 1057, 1058, 1155, 1156, 1171, 1172

Grundy ................................................. 1038, 1046, 1171

Hallmark ......................................................... 1004, 1006

Harvard ...................................................................... 1038

Hitachi ....... 1004, 1006, 1012, 1013, 1059, 1060, 1061

.................... 1135, 1136, 1137, 1138, 1139, 1140, 1141

......... 1142, 1143, 1144, 1145, 1146, 1148, 1150, 1179

IMA ............................................................................. 1038

Infinity ......................................................................... 1062

Janeil ........................................................................... 1174

JBL ............................................................................... 1062

JCB .............................................................................. 1002

JC Penny ......................... 1000, 1004, 1005, 1006, 1008

............................... 1022, 1052, 1054, 1058, 1063, 1064

.................... 1072, 1087, 1105, 1128, 1171, 1172, 1181

Jensen .............................................................. 1004, 1006

JVC ................................... 1012, 1013, 1054, 1060, 1065

.................... 1066, 1067, 1089, 1157, 1158, 1159, 1182

Kawasho .............................................. 1002, 1004, 1006

Kaypani ....................................................................... 1175

Kenwood ............................................. 1004, 1006, 1019

Kloss Novabeam ...................... 1068, 1069, 1174, 1183

KTV ................................. 1038, 1070, 1171, 1176, 1177

Loewe ......................................................................... 1062

Logik ........................................................................... 1083

Luxman ........................................................... 1004, 1006

LXI .............................................. 1000, 1006, 1049, 1062

.......................................... 1071, 1072, 1073, 1162, 1181

Magnavox ............1004, 1006, 1008, 1019, 1062, 1068,

.................... 1069, 1074, 1075, 1076, 1077, 1088, 1089

.................... 1130, 1131, 1132, 1133, 1134, 1183, 1184

Majestic ...................................................................... 1083

Marants ...................................................................... 1062

Marantz ..................................... 1004, 1006, 1062, 1078

Megatron ........................................................ 1006, 1059

MEI .............................................................................. 1176

Memorex ........................ 1001, 1006, 1082, 1083, 1162

MGA ........................................... 1004, 1005, 1006, 1019

........................................ 1022, 1051, 1079, 1080, 1082

Midland .......................... 1054, 1151, 1171, 1172, 1181

Minutz ........................................................................ 1052

Mitsubishi ...................... 1004, 1005, 1006, 1019, 1022

................... 1051, 1079, 1080, 1081, 1082, 1083, 1125

Montgomery Ward .................................................. 1083

Motorola ......................................................... 1003, 1173

MTC .................... 1004, 1005, 1006, 1105, 1176, 1178

Multitech ......................................................... 1038, 1178

Multivision ................................................................. 1084

NAD .......................................... 1006, 1071, 1072, 1185

NEC ................................ 1003, 1004, 1005, 1006, 1089

Nikko............................................................... 1006, 1016

NTC ........................................................................... 1016

Onwa .......................................................................... 1038

Optimus ..................................................................... 1185

Optonica ......................................................... 1095, 1173

Orion ............................................................... 1035, 1191

Panasonic .................................. 1003, 1054, 1062, 1170

Philco ........ 1003, 1004, 1005, 1006, 1008, 1012, 1019

........ 1062, 1068, 1069, 1074, 1075, 1077, 1183, 1184

Philips ....... 1003, 1004, 1008, 1012, 1019, 1062, 1068

........ 1069, 1074, 1075, 1076, 1086, 1087, 1088, 1089

Pilot .................................................................. 1004, 1171

Pioneer ..... 1004, 1006, 1090, 1091, 1092, 1179, 1185

Portland ......................... 1004, 1005, 1006, 1016, 1171

Price Club .................................................................. 1105

Prism ........................................................................... 1054

PROSCAN ..................................................... 1000, 1181

Proton ............................ 1004, 1006, 1012, 1093, 1175

Pulsar .......................................................................... 1151

Pulser .......................................................................... 1004

Quasar ...................................... 1003, 1054, 1070, 1094

Radio Shack/Realistic ............. 1000, 1004, 1006, 1012

.............................. 1038, 1049, 1095, 1162, 1171, 1172

RCA ..................... 1000, 1003, 1004, 1005, 1006, 1007

........ 1019, 1096, 1098, 1099, 1100, 1101, 1102, 1103

....... 1129, 1179, 1181, 1187, 1188, 1190, 1198, 1199

Rhapsody ................................................................... 1176

Runco ......................................................................... 1151

Sampo ............................. 1004, 1006, 1171, 1172, 1175

Samsung ......................... 1004, 1005, 1006, 1012, 1015

.............................. 1019, 1104, 1105, 1106, 1171, 1172

Samsux ....................................................................... 1171

Sansui .......................................................................... 1191

Sanyo ......................................... 1004, 1048, 1049, 1050

.............................. 1080, 1107, 1108, 1162, 1180, 1189

Scotch ......................................................................... 1006

Scott .......... 1004, 1006, 1012, 1024, 1035, 1038, 1046

Sears ................................ 1000, 1004, 1006, 1013, 1019

............................... 1046, 1048, 1049, 1050, 1051, 1066

......... 1071, 1072, 1109, 1110, 1162, 1180, 1181, 1189

Sharp ................................ 1004, 1006, 1012, 1029, 1095

............................... 1111, 1112, 1113, 1122, 1171, 1173

Shogun ........................................................................ 1004

Signature .............................................. 1001, 1083, 1115

Simpson ..................................................................... 1008

Sonic ........................................................................... 1176

Sony ............................................................................ 1002

Soundesign ..................... 1004, 1006, 1008, 1038, 1046

Squareview ................................................................ 1189

SSS .................................................................... 1004, 1038

Starlite ........................................................................ 1038

Supre-macy ............................................................... 1174

Supreme ..................................................................... 1002

Sylvania ................................................. 1004, 1006, 1008

............................... 1019, 1062, 1068, 1069, 1074, 1075

.................... 1076, 1077, 1088, 1116, 1161, 1183, 1184

Symphonic ........................................... 1033, 1038, 1189

Tandy .......................................................................... 1173

Tatung .............................................................. 1003, 1178

Technics ..................................................................... 1054

Techwood ............................................ 1004, 1006, 1054

Teknika ...... 1004, 1005, 1006, 1008, 1012, 1013, 1016

......... 1038, 1046, 1076, 1082, 1083, 1105, 1170, 1171

Telecaption ................................................................ 1117

TMK ................................................................. 1004, 1006

Toshiba ...................................... 1049, 1071, 1072, 1089

............................... 1105, 1109, 1117, 1118, 1160, 1162

Totevision .................................................................. 1171

Universal ......................................................... 1052, 1087

Victor .............................................................. 1066, 1182

Vidtech ................................................. 1004, 1005, 1006

Viking .......................................................................... 1174

Wards........ 1000, 1001, 1004, 1005, 1006, 1019, 1024

.................... 1033, 1046, 1052, 1062, 1069, 1074, 1075

....... 1076, 1083, 1087, 1088, 1095, 1119, 1120, 1184

Yamaha ...................................... 1004, 1005, 1006, 1019

Zenith ................... 1004, 1083, 1151, 1152, 1153, 1154

CRK17

TOCOM 15428670

USER’S GUIDE

satellitereceiversatellitereceive rsatellitereceiversatelliterecei versatellitereceiversatelliterec eiversatllitereceiversatelliterecei versatellitereceiversatelliterece iversatellitereceiversatelliterec eiversatellitereceiversatellitere ceiversatellitereceiversatelliter eceiversatellitereceiversatellite receiversatellitereceiversatellit ereceiversatellitereceiversatell itereceiversatellitereceiversatel litereceiversatellitereceiversate litereceiversatellitereceiversate litereceiversatellitereceiversate littereceiversatellitereceiversat ellitereceiversatellitereceiversa tellitereceiversatellitereceivers atellitereceiversatellitereceiver satellitereceiversattelitereceive rsatellitereceiversatellitereceiv ersatellitereceiversatelliterecei versatellitereceiversatelliterec eiversatellitereceiversatellitere ceiversatellitereceiversatellite receiversatell iterec eitersatellite rece iversatellite re ceiversa te littere cei versat ellit ereceiv ers atellite r eceive

Safety Information

WARNING

To reduce risk of ﬁre or

WARNING

RISK OF ELECTRIC SHOCK

DO NOT OPEN

TO REDUCE THE RISK OF ELECTRIC SHOCK, DO NOT REMOVE COVER (OR BACK). NO USER SERVICEABLE PARTS INSIDE. REFER SERVICING TO QUALIFIED SERVICE PERSONNEL.

shock hazard, do not expose this receiver to rain or moisture.

This symbol indicates “dangerous voltage” inside the product that presents a risk of

This symbol indicates important instructions accompanying the product.

electric shock or personal injury.

Cautions

Note to Cable TV Installer: This reminder is provided to call your attention to Article 820-40 of the National

Do not stack electronic components or other objects on top of the receiver.

The slots on top of the receiver must be left uncovered to allow proper airfow to the unit. Blocking the airflow to the unit could impair performance or damage your receiver and other components.

Do not stack the receiver on top of a “hot component” such as an audio power amplifier.

FCC Regulations state that unauthorized changes or modifications to this equipment may void the user’s authority to operate it.

Electrical Code (Section 54 of the Canadian Electrical Code, Part 1) which provides guidelines for proper grounding and, in particular, specifies that the cable ground shall be connected to the grounding system of the building as close to the point of cable entry as practical.

Note to Satellite Dish Installer: This reminder is provided to call your attention to Article 810 and in particular

article 810-15 of the National Electrical Code which covers proper installation and grounding of television receiving equipment as well as to article 820-40 of the National Electrical Code which specifies that the satellite dish cable ground shall be connected to the grounding system of the building as close to the point of cable entry as practical.

IMPORTANT NOTICE: This device incorporates an anticopy process technology that is protected by U.S.

patents and other intellectual property rights. The anticopy process is licensed for non-commercial, home use only. Reverse engineering or disassembly is prohibited.

Care and Cleaning: Use a soft cloth or the dusting attachment of your vacuum cleaner to dust your

receiver. Remove dust from the ventilation holes on the top and bottom.

Plastic surfaces are easily scratched and can be marred by alcohol and various solvents. Avoid excessive use of oil-based furniture polishes since the materials used in the cabinet will accumulate more dust. A non-abrasive, anti-static cleaner/polisher is recommended.

Product Registration

Please fill out the product registration card and return it immediately. Returning the card allows us to contact you if needed.

Keep your sales receipt to obtain warranty parts and service and for proof of purchase. Attach it here and record the serial and model numbers in case you need them. The numbers are located on the back of the player.

Model No. ____________________________________________________

Serial No. ____________________________________________________

Purchase Date: ________________________________________________

Dealer/Address/Phone: ___________________________________________________________________________________

Table of Contents

Setup and Connections ........................................ 3

Step 1: Unpack the System ............................................................. 4

Step 2: Connect Your Receiver to Your TV and VCR...................... 4

Things to Know Before Connecting Components .................. 4

Jacks and Cables........................................................................ 5

Back of the Receiver ................................................................. 6

Basic Connection ....................................................................... 7

Advanced Connection .............................................................. 8

Step 3: Find the Video Input Channel on your TV....................... 10

Step 4: Interactive Setup ............................................................... 10

Step 5: Place Batteries in the Remote Control ............................ 10

Step 6: Plug in and Turn on the System ....................................... 10

Step 7: Order Programming ......................................................... 10

Using the Remote ............................................... 11

Remote Control Buttons ............................................................... 12

The Point and Select Method ....................................................... 13

Programming the Remote Control .............................................. 13

Testing the Remote ................................................................. 13

Modes of Operation ............................................................... 14

Program Guides .................................................. 15

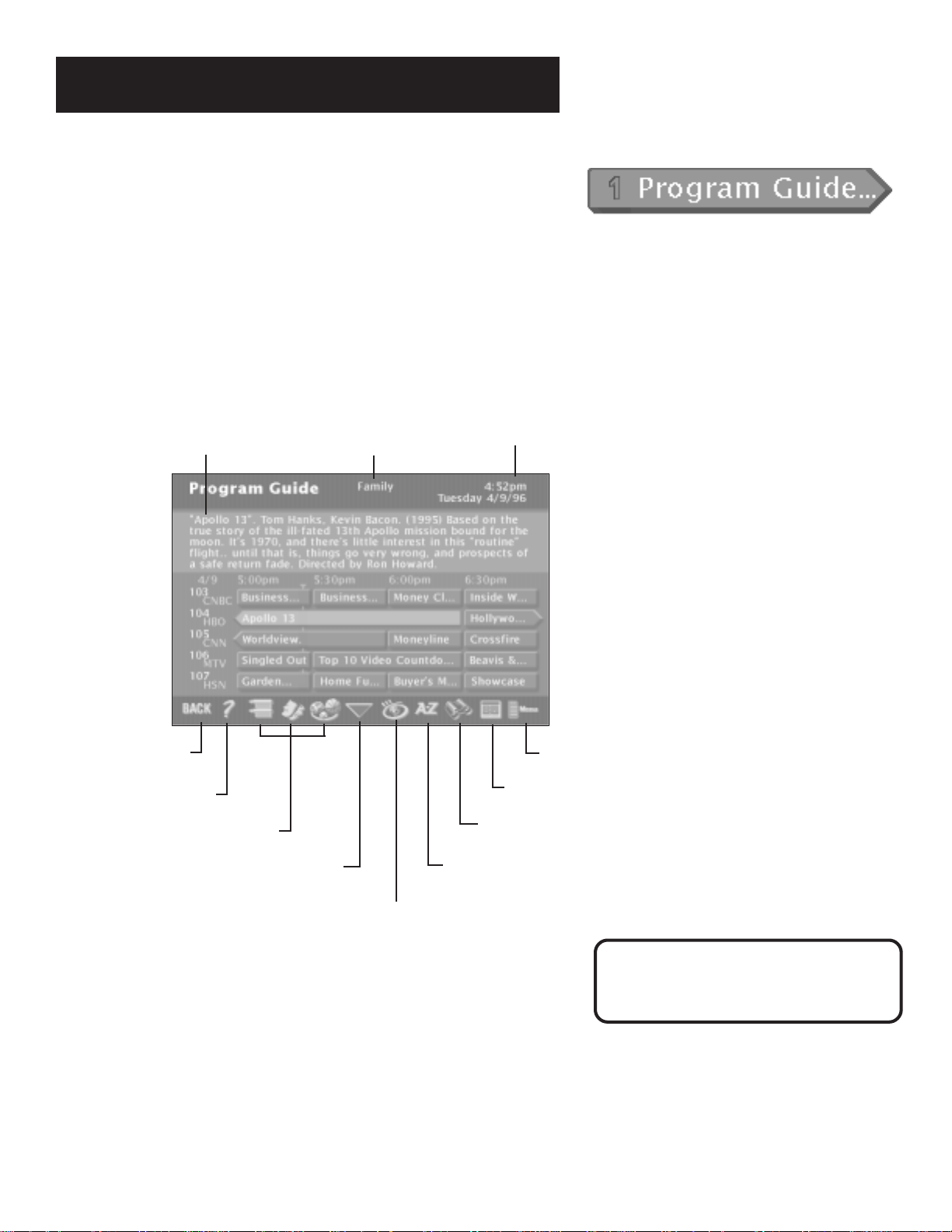

Anatomy of a Program Guide ...................................................... 16

Bringing Up the Program Guides ........................................... 16

The Channel Banner ...................................................................... 17

Using the GUIDE Button ............................................................... 18

Getting Around in the Guides ...................................................... 18

Tuning to a Program ............................................................... 19

Additional Program Guides .......................................................... 20

Sorting the Guides ........................................................................ 22

The Menu System ............................................... 27

Using the Menu System ................................................................ 28

Back and Help ......................................................................... 28

Menu Descriptions .................................................................. 29

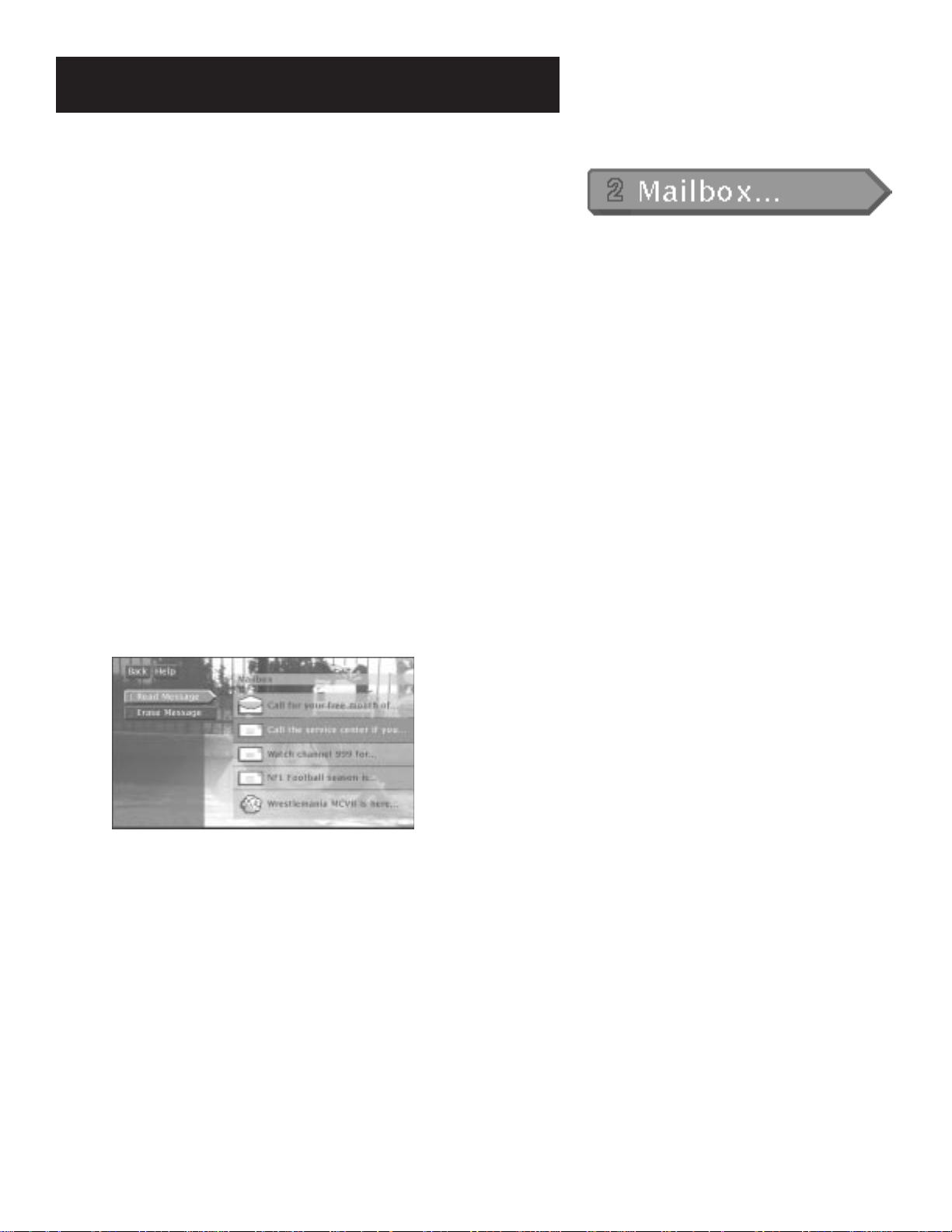

The Mailbox ................................................................................... 31

How to Tell When You Have Mail .......................................... 31

Checking your Mail ................................................................. 31

Pay-Per-View Programs ................................................................. 32

Purchasing and Previewing .................................................... 32

Tuning to a PPV Program ....................................................... 32

Table of Contents

Using the Attractions Guide................................................... 33

Using the Purchases Menu ..................................................... 34

Reviewing and Canceling an

Upcoming Purchase ................................................................ 35

Spending Limits ....................................................................... 35

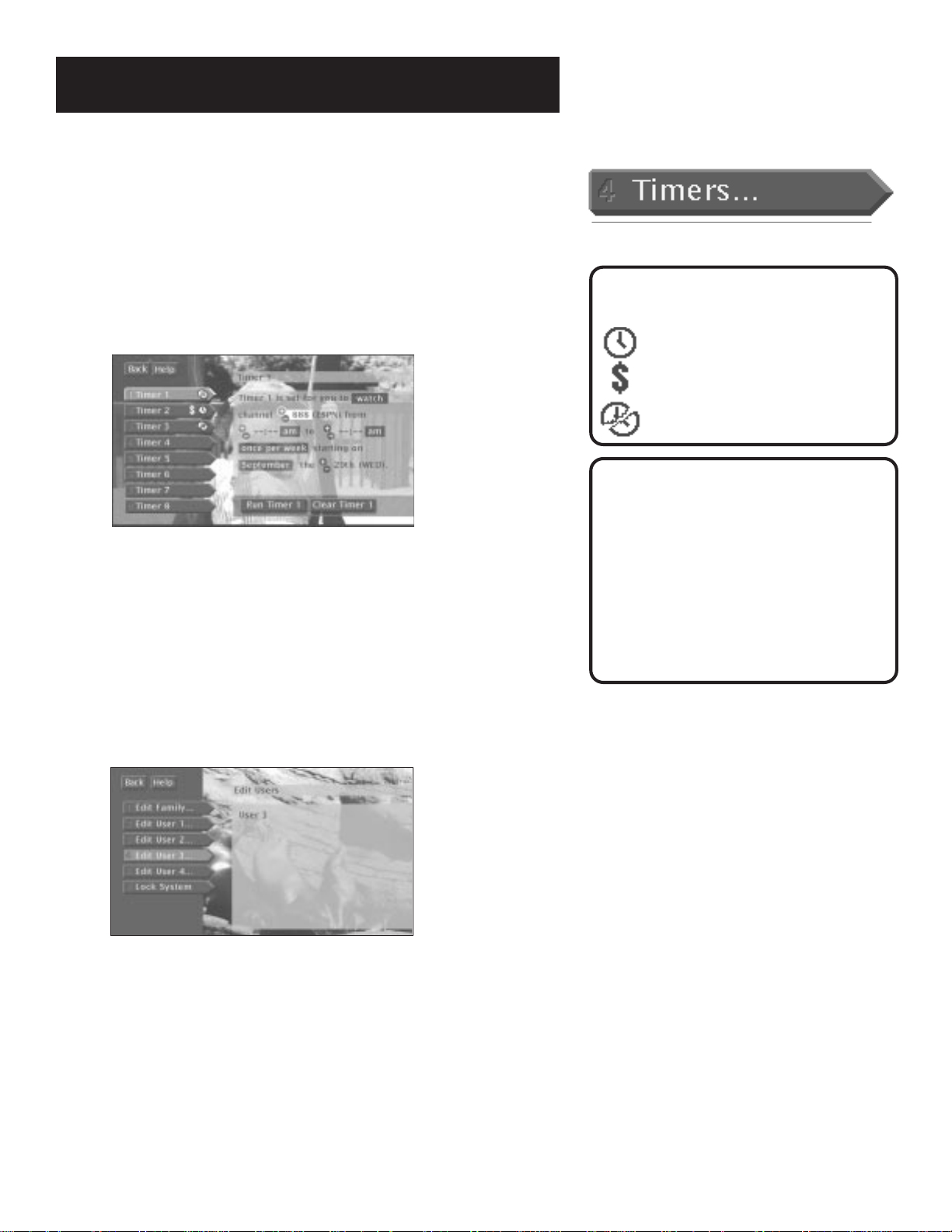

Timers Feature ............................................................................... 36

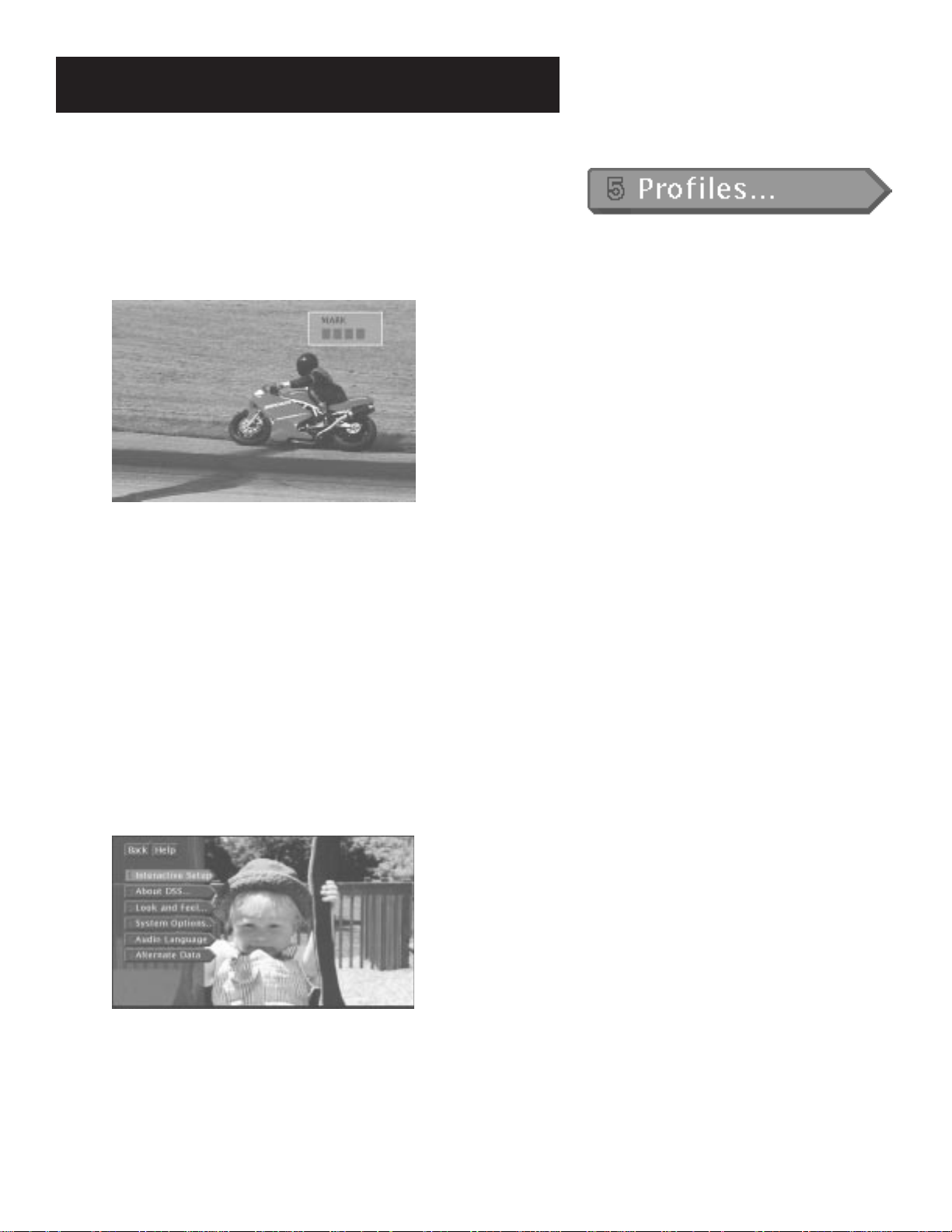

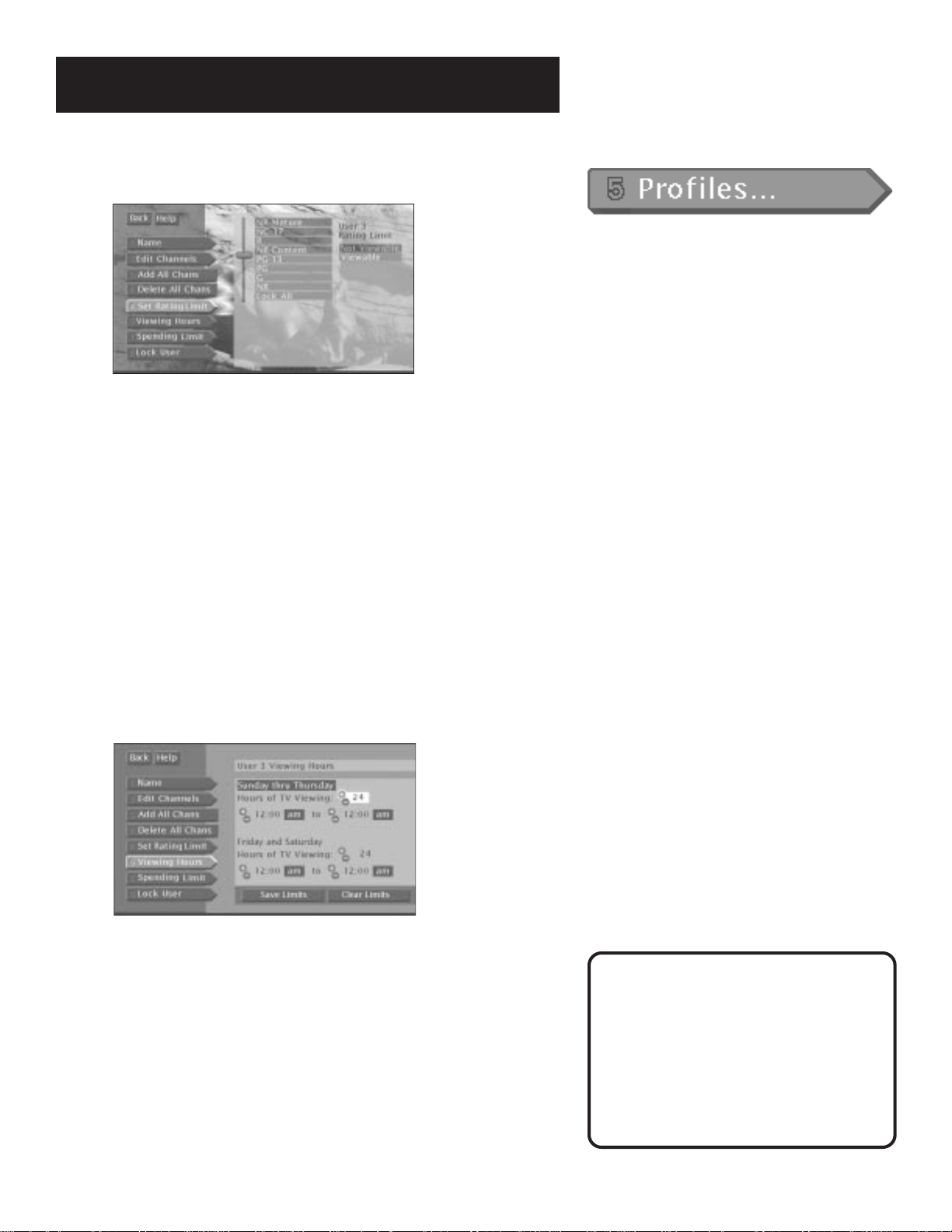

Profiles ........................................................................................... 36

Creating a Profile Channel List .............................................. 37

Setting the Ratings Limit ........................................................ 37

Viewing Hours......................................................................... 38

Setting Up Spending Limits .................................................... 39

Locking a User’s Profile........................................................... 39

Locking the System ................................................................. 40

Choosing Your Profile ............................................................. 41

Options .......................................................................................... 41

Look and Feel .......................................................................... 42

System Options ....................................................................... 43

Audio Language ..................................................................... 43

Alternate Data ........................................................................ 43

The Dish Pointing Menu Screen ................................................... 44

Using the On-Screen Signal Meter........................................ 45

Home Control ................................................................................ 46

Edit Fetch Menu ............................................................................ 48

Customizing the Fetch Menu ................................................. 49

Customizing the FETCH Button.............................................. 50

Tips & Troubleshooting ...................................... 51

Appendix A: Warranty Information .................. 55

Appendix B: FCC Regulations ............................ 58

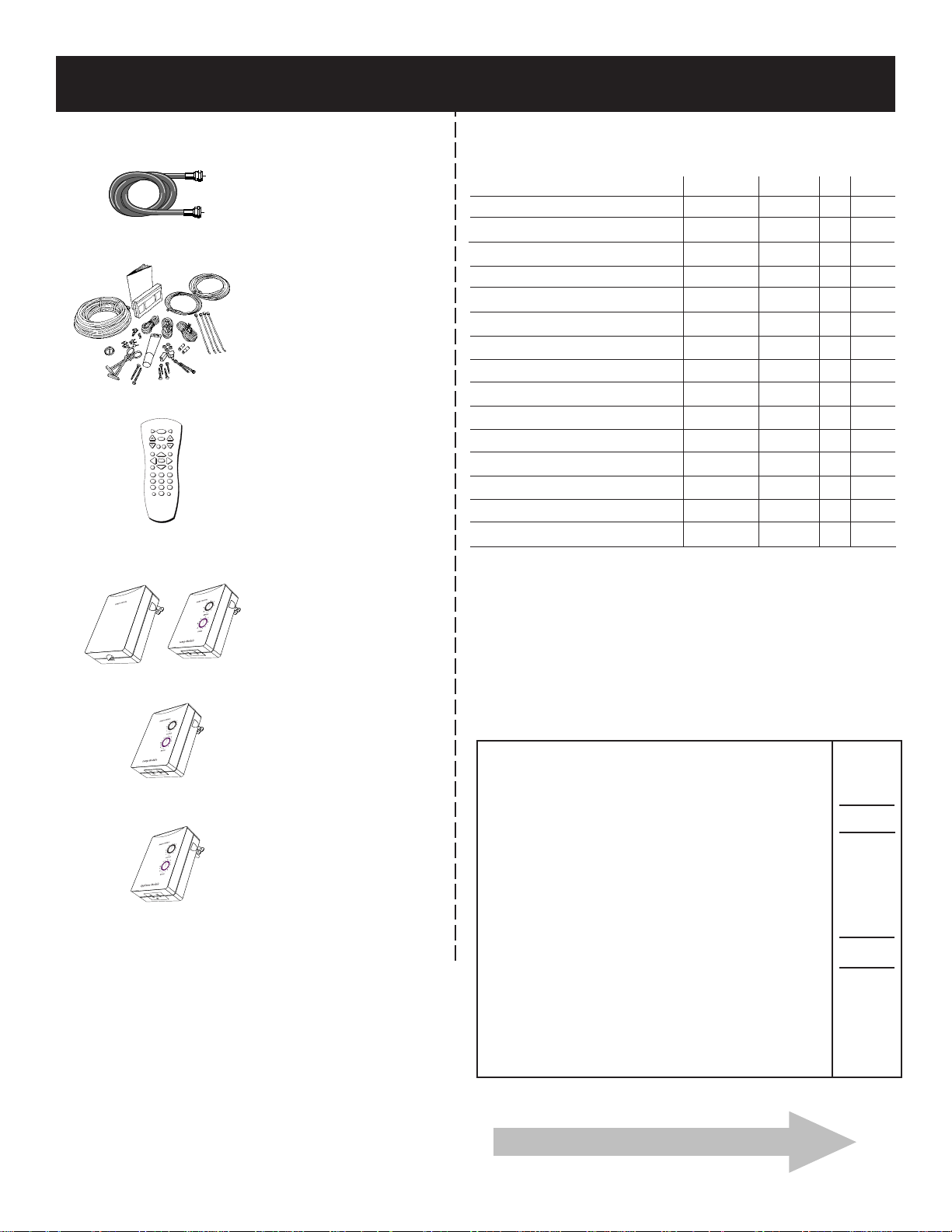

Appendix C: Accessories .................................... 59

Index .................................................................... 61

StarSight-Licensed: The manufacture and sale of the television schedule feature of this product was licensed under one or more of the following patents of StarSight Telecast, Inc.; U.S. Patent Nos. 4,706,121; 4,977,455; 5,151,789; 5,335,277: and 5,353,121.

Setup and Connections

Getting Started

This manual is designed to get you started quickly. The first three sections of the manual introduce you to your satellite system and show you how to use the on-screen guides and menus.

In Setup and Connections, you’ll learn:

• about the jacks and cables

• things to know before connecting the components

• different ways to connect the receiver to your TV

• how to order programming

Using the Remote defines the buttons of the remote and how to program it.

Program Guides details the items and features associated with the different guides.

The Rest Of The Manual

The rest of the book includes menu information, troubleshooting information—such as running a system test— and an index.

Setup and Connections

➣

Using the Remote

➣

Program Guides

➣

The Menu System

➣

Tips & Troubleshooting

Setup and Connections

Step 1: Unpack the System

Make sure to locate the remote control.

Step 2: Connect Your Receiver to Your TV and VCR

During the satellite dish antenna installation, the receiver may have been connected to your TV with just a coaxial cable for the system test. Depending on what components you have, another connection may provide better picture and audio quality. The following sections provide cable and connection information to help you decide what connection is best for you.

Things to Know Before Connecting

Components

Protect Your Components from Power Surges

• Connect all components before plugging any power cords into the wall outlet.

• Always turn off the receiver, TV and other components before you connect or disconnect any cables.

Position Cables Correctly to Avoid Audio Hum or Interference

• Insert all cable plugs firmly into their jacks.

• Place the audio/video cables to the sides of the TV’s back panel instead of straight down the middle after you connect your components.

• Try not to coil any twin-lead cables and keep them away from the audio/video cables as much as possible.

• Make sure all antennas and cables are properly grounded. Refer to the Safety sheet packed with your unit.

Setup and Connections

Protect Your Components from Overheating

• Do not block ventilation holes in any of the components. Arrange the components so that air can circulate freely.

• Do not stack components.

• Allow adequate ventilation when placing your components in a stand.

• Place an amplifier or receiver on the top shelf of the stand so heated air rising from it will not flow around other components.

Jacks and Cables

Below is a description of the jacks and cables you can use to make connections. Note that not all cables may come with your system.

S-Video Jack and Cable

The S-Video jack provides the best picture quality for your system.

This jack is available on many TVs and is used in conjunction with audio cables to connect the receiver to your TV. Remember also to connect the left and right audio cables because the S-Video jack carries only the picture signal, not the sound.

RF Jacks and Coaxial Cables (F-type)

The RF jacks provide good picture and mono sound quality, and are to be used if audio/video connections are not available for your TV.

These jacks are required for antenna or cable-TV connections. The RF jacks on the receiver are labeled IN FROM ANT and OUT TO TV.

S-Video Jack

RF Jack

Setup and Connections

Back of the Receiver

The diagram below describes each of the back panel jacks found on your receiver. When connecting A/V cables, be sure to connect corresponding OUTPUTS and INPUTS (Video to Video, Right Audio to Right Audio, etc.).

OUT TO TV Use to connect the receiver to your TV. However, if your TV has audio/ video jacks, you should use those jacks to get better picture and sound quality.

IN FROM ANT Use to connect an off-air antenna or cable TV signal to the receiver.

VIDEO Provides better picture quality than the OUT TO TV jack. If your TV has audio/video capability, use this jack to connect the receiver to your TV. You must also connect the AUDIO jacks for sound.

SATELLITE IN

Use to connect the receiver to the satellite dish antenna.

AUDIO (R and L) Provide better sound quality than the OUT TO TV jack. If your TV has audio/video capability, use these jacks to connect the receiver to your TV. You must also connect the VIDEO jack.

SATELLITE IN

PHONE JACK Use to connect the receiver to a

VIDEO

OUT

TO TV

FROM

ANT

AUDIO

S-VIDEO

HOME

CONTROL

PHONE JACK

phone line. The satellite receiver periodically calls out to program providers.

HOME CONTROL This jack allows you to connect the receiver to accessories, such as the

S-VIDEO Provides the best picture quality. If

Home Control base module.

your TV has S-VIDEO capability, use this jack along with the audio/ video jacks to connect the receiver to your TV.

Setup and Connections

Basic Connection

SATELLITE RECEIVER

SATELLITE IN

VCR

IN FROM ANT

CH3 CH4

OUT TO TV

OUT

TO TV

FROM

ANT

SATELLITE DISH

CABLE OR OFF-AIR ANTENNA

How to View Your Components

To watch programming received via satellite with this connection, tune the TV to either channel 3 or 4. (The default is channel 3. You may change the output channel to 4 by choosing Systems Options from the Main menu and selecting Output Channel.)

To record programming, tune the receiver to the desired channel and set your VCR to record on channel 3 or 4.

To view VCR recordings, tune the TV to the VCR output channel (usually CH 3 or 4) and set your VCR to play. If your VCR is a brand other than RCA, GE, or P

ROSCAN, you may need to

program the remote to control the VCR. See the next section, “Programming the Remote.”

CAUTION

Do not stack electronic components or other objects on top of the receiver. See “Safety Information” inside the front cover.

Setup and Connections

Advanced Connection

SATELLITE RECEIVER

OUT

FROM

TO TV

ANT

VCR

CH3 CH4

SATELLITE IN

IN FROM ANT

OUT TO TV

SATELLITE DISH

AUDIO

CABLE OR OFF-AIR ANTENNA

VIDEO

S-VIDEO

How to View Your Components

To watch the satellite receiver in this connection, tune the TV to the video input channel. (To find your TV’s video input channel, follow Step 3 on the next page). Then tune the receiver to the desired channel.

To record programming, tune the receiver to the desired channel. Then set your VCR to record on channel 3 or 4.

To view VCR recordings, tune the TV to the VCR output channel (usually channel 3 or 4) and set your VCR to play. If your VCR is a brand other than RCA, GE, or P

ROSCAN,

you may need to program the remote to control the VCR. See the next section, “Programming the Remote.”

CAUTION

Do not stack electronic components or other objects on top of the receiver. See “Safety Information” inside the front cover.

VIDEOAUDIO

S-VIDEO

Setup and Connections

Step 3: Find the Video Input Channel on your TV

• Note: You do not need to complete this step if you used the basic connection.

If you used the advanced connection, you must tune your TV to the video input channel to see the satellite screens. Since there are so many brands and models of TVs, there are just as many ways to access a TV’s video input channel. Below are some things you can try.

• If your TV brand is RCA, GE, or P that came with your receiver. Then press the WHO•INPUT button on the remote.

• If your TV brand is not RCA, GE, or P Owner’s Manual.

If you cannot find your TV Owner’s Manual, you will have to investigate. You might access the TV’s video input channel by:

• pressing a button on the remote

• finding it through the TV’s menu system

• tuning directly to it by pressing a specific channel number

• going through all channels in the list by pressing the channel up or down buttons on the TV Below are lists of some of the different ways manufacturers label the video input channel.

ROSCAN, press TV on the remote

ROSCAN, consult your TV

Video Channel Variations

Button/switch on the TV

VIDEO SIGNAL VID 1 VID 2 S-VID S-VIDEO

Button on the TV Remote

VID 1 LINE VID VIDEO S-VID INPUT SOURCE AUX

Channel #

00 90 91 92 VID 1 VID 2

Signal Flow

The whole idea of choosing a video input channel can be explained by the way the signal flows through your components and ends up as a picture on your TV screen.

To learn more about how signal flow works, see the example in the “Troubleshooting” section.

Setup and Connections

Step 4: Interactive Setup

If you self-installed your satellite dish antenna, you may have already used the interactive setup to find the dish pointing coordinates, acquire and fine-tune the signal, and run a system test.

If you need to run the interactive setup again, select Options from the Main menu, then select Interactive Setup.

If you did not self-install the satellite dish antenna, you may just want to check your dish pointing coordinates, or run the signal strength meter. Select Dish Pointing from the Main menu.

Step 5: Place Batteries in the Remote Control

Follow these steps whenever you need to install or change the batteries in your receiver remote.

1. Remove the cover from the battery compartment.

2. Insert batteries in the battery compartment, matching the + and – end of each battery.

3. Replace the cover.

STEP 6: Plug in and Turn on the System

Plug the end into the wall outlet, matching the wide blade of the plug with the wide slot in the outlet. Be sure to insert the plug completely.

To turn on the system, press the DIRECTV button on the remote or the ON•OFF button on the front panel. If your TV brand is RCA, GE, or P

ROSCAN, press the TV button on the remote to turn on the TV. If your TV

brand is not RCA, GE, or P Remote,” for details on how to use the remote to control your TV.

ROSCAN, see the next section, “Using the

Step 7: Order Programming

After you have installed your system, you should contact the service providers, DIRECTV or USSB, to receive programming.

Programming with DIRECTV: Call 1-800-347-3288

Programming with USSB: Call 1-800-204-USSB

When you order programming, you need to know your Access Card number. To get the number, select Options from the Main menu, then System Options, and then select System Test.

Wait for the system to run all of its tests. The Access Card number is displayed at the end of the system test.

Write the Access Card number in the space below for easy reference:

______________________________

Using the Remote

How to use your Universal Remote

This section defines the buttons on the remote and describes how to program it.

The universal remote can be programmed to control most brands of remote controllable TVs. If you have an RCA, GE, or PROSCAN TV, you probably don’t need to program it at all.

Setup and Connections

➣

Using the Remote

➣

Program Guides

➣

The Menu System

➣

Tips & Troubleshooting

Using the Remote

WHO•INPUT ANTENNA

INFO

GUIDE

CLEAR

FETCH

VOL

CHAN

MUTE

GO

BACK

TVON•OFF

DIRECTV

Remote Control Buttons

ON•OFF Turns the device you are controlling on or off. You can also use the power button on the top of the receiver to turn it on and off.

DIRECTV Tells the remote to control the satellite receiver.

TV Tells the remote to control the TV.

VOL UP/DOWN Adjusts the audio volume.

FETCH Either brings up the Fetch menu or executes the function you

assign to the button.

CHAN UP/DOWN Use to scan up and down through the channels in the current channel list. If you are in the program guide or menu system, use the CHAN UP/DOWN buttons to page up and down a screen at a time. You can also use the CHAN UP/DOWN buttons on the top of the receiver to change channels.

MUTE Reduces the TV’s volume to its minimum level. Press again to restore the volume.

GO BACK Moves you back and forth between your last two selected channels. In the menu system, returns you to the previous screen.

GUIDE Brings up the on-screen program guide. Press the GUIDE button several times to toggle through the different types of guides.

INFO Brings up the on-screen channel banner. Press again to get program details.

ARROWS Use the navigation arrows to move the on-screen highlight up, down, left, or right. Using the arrows to highlight a menu item is also called “pointing.”

OK Selects a highlighted choice in the menu system.

MENU Brings up the Main menu. If you are already in the menu system,

press OK or MENU to select a highlighted choice.

CLEAR Removes the on-screen displays and returns to normal viewing.

DIGIT KEYS (0 - 9) Use the digit keys to tune directly to a channel. If

you are in the menu system, use the digit keys to enter numbers for the time, date, channel and passwords.

WHO•INPUT Press the WHO•INPUT button one or more times to toggle through your user profiles. It also accesses the line input channel.

ANTENNA Lets you switch the source of the video signal from satellite signals to an off-air antenna or cable signal when using the OUT TO TV jack.

Using the Remote

The Point and Select Method

Point and Select is the two-step method you use to navigate through the satellite system’s menu system and program guides. Once you know how to point and select, you can explore the menus.

1. Point

You point by pressing the arrow keys on the remote. Pressing the arrow keys moves the on-screen highlight to different items in the program guide and the menu screens. Pressing an arrow once moves the highlight one space in the direction of the arrow.

For example, to point down (that is, to move the highlight toward the bottom of the screen), press the down arrow. To point right, press the right arrow.

2. Select

CLEAR

Once you have pointed to an item on the screen, select it by pressing the OK button on the remote. Selecting an item tells the menu system to go ahead and make the change you have indicated.

For example, the instructions in the User’s Manual might tell you to Point to the Back button and press OK.

Programming the Remote Control

The satellite receiver’s remote can be programmed to control most brands of remote controllable TVs. The remote is programmed to control most RCA, GE and P programmed to control other manufacturers’ brands.

Testing the Remote

To determine whether the universal remote needs to be programmed, turn on the TV, point the remote at the TV, and press the TV button. Then press ON•OFF or CH␣ ^ (channel up) or CH␣ v (channel down) to see if the TV responds to the remote commands. If not, the remote needs to be programmed.

Programming the Remote

1. Turn on the TV.

2. Look up the brand and code number(s) for the component on the code list on the next page.

3. Press and hold the TV button.

ROSCAN TVs. The remote needs to be

Don’t worry about getting stuck inside a menu. Pressing the CLEAR button on the remote takes you out of the menu system and back to the program you were watching.

This remote may not operate all models of the brands that are shown. Use the codes shown in this manual, or on the sheet packed with your remote.

4. Enter the code from the code list.

Using the Remote

5. Release the button, and then press ON•OFF to see if the component responds to the remote commands. If it doesn’t, try pressing the component button and then ON•OFF again.

6. If you get no response, repeat these steps using the next code listed for your brand until the component responds to the remote commands.

Modes of Operation

Because this universal remote can control both the TV and the receiver, it uses operational modes triggered by the component buttons. For example if you want the remote to control the TV, you would press the TV button to put the remote into TV mode before you can control the TV.

TV Codes

A-Mark .....................................................................................................................102

Admiral ............................................................................................................ 005,114

Amtron .................................................................................................................... 064

Akai ................................................................................................................... 002,103

Anam ................................................................................................................ 104,105

Anam National ............................................................................................... 038,106

AOC ......................................................................................... 011,019,027,088,107

Bell&Howell .................................................................................................... 005,013

Candle ...................................................................................................... 011,027,033

Citizen .............................................................................................. 011,027,033,064

Colortyme .............................................................................................. 011,027,084

Concerto .........................................................................................................011,027

Contec/Cony .......................................................................... 036,037,040,042,064

Craig ......................................................................................................................... 064

Curtis Mathes ......................................................................... 000,011,015,027,037

CXC ......................................................................................................................... 064

Daewoo ................................................................................. 011,019,027,0112,116

Daytron............................................................................................................ 011,027

Dimensia ..................................................................................................................000

Electrohome ............................................................ 006,011,014,027,038,061,068

Emerson .................................. 011,026,027,028,029,030,031,032,037,042,053,

............................................................ 064,065,067,075,076,078,079,094,095,096

Envision ............................................................................................................ 011,027

Fisher ................................................................................................ 017,021,039,041

Funai ......................................................................................................................... 064

GE ...................................... 000,008,009,011,012,027,038,068,086,089,091,116

Goldstar ............................................................ 003,004,006,011,019,027,037,050

Hallmark .......................................................................................................... 011,027

Hitachi ....................... 009,011,027,036,037,040,047,048,063,080,094,097,098

Infinity ...................................................................................................................... 013

JBL ............................................................................................................................. 013

Jensen ............................................................................................................... 011,027

JVC ..................................................................... 012,024,036,037,040,048,051,074

Kawasho .................................................................................................. 002,011,027

Kenwood ......................................................................................... 006,011,014,027

Kloss Novabeam ............................................................................................ 035,043

KTV .......................................................................................................................... 078

Loewe ....................................................................................................................... 013

Luxman ............................................................................................................ 011,027

LXI .................................................................................... 000,013,018,021,023,054

Magnavox ........... 006,007,010,011,013,016,027,033,035,043,049,066,087,089

Marants .................................................................................................................... 013

Marantz ............................................................................................ 011,013,027,069

Memorex .................................................................................................................005

MGA .................................................. 006,011,014,019,022,027,041,056,061,068

Mitsubishi ........................................ 006,011,014,019,022,027,041,055,056,061,068,108

MTC ........................................................................................................................ 011,019,027

Multivision .............................................................................................................................. 081

NAD ................................................................................................................................ 018,023

NEC ................................................................................................. 011,014,019,027,038,084

Panasonic ................................................................................................ 012,013,038,086,111

Penney .............................................................. 000,008,011,019,027,040,068,077,086,088

Philco .........................006,007,010,011,013,016,019,027,033,035,037,038,043,087,089

Philips ................................ 002,006,007,010,011,013,016,033,035,037,038,043,066,073

Pioneer ............................................................................................ 011,027,045,062,093,113

Portland .......................................................................................................... 011,019,027,037

ProScan ................................................................................................................................... 000

Proton ............................................................................................................. 011,027,037,072

Quasar ............................................................................................................ 012,038,092,111

Radio Shack ..................................................................... 000,021,025,036,037,059,064,078

RCA .......................................... 000,006,011,019,027,034,038,044,046,088,100,101,109

Realistic ...................................................................................................................................021

Sampo ............................................................................................................................. 011,027

Samsung ........................................................... 006,011,014,015,019,027,036,037,077,110

Sanyo ............................................................................................... 017,021,039,056,057,058

Scott ........................................................................................................................ 028,037,064

Sears ................................................................................ 000,006,011,014,017,018,021,023,

........................................................................................... 027,039,040,041,051,071,083,095

Sharp ................................................................ 011,020,025,027,037,052,053,059,060,108

Signature ................................................................................................................. 005,094,108

Sony ......................................................................................................................................... 002

Soundesign ............................................................................................................. 011,027,033

Sylvania .............................. 006,007,010,011,013,016,027,033,035,043,049,066,087,089

Symphonic .............................................................................................................. 064,076,115

Tatung ......................................................................................................................................038

Technics .................................................................................................................................. 012

Techwood ....................................................................................................................... 011,027

Teknika ............................................................................. 011,019,027,033,036,037,040,066

Telecaption .............................................................................................................................090

TMK ................................................................................................................................. 011,027

Toshiba ............................................................................. 018,021,023,040,071,077,085,090

Universal ......................................................................................................................... 008,009

Victor ...................................................................................................................................... 051

Vidtech ............................................................................................................................019,027

Wards............................... 000,005,006,007,008,009,010,011,013,019,025,027,028,035,

.......................................................................................................... 043,059,066,076,082,089

Yamaha ............................................................................................................ 006,014,019,027

Zenith ...................................................................................................................... 001,099,114

Program Guides

What is a Program Guide?

A program guide is an on-screen programming schedule. There are several types of guides, each presenting the schedule in a different format.

Using the program guide is easy as long as you remember the Point and Select rule. Point to items on the screen by pressing the arrow keys on the remote or front panel. Then, press OK to tune to that program.

Setup and Connections

➣

Using the Remote

➣➣

Program Guides

The Menu System

➣

Tips & Troubleshooting

Program Guides

Anatomy of a Program Guide

The following diagram shows you the kind of information you will see in the program guides.

Program titles and information

Returns you to previous screen

Help gives you more information

Sort the guide by: Topics, Movies, or Sports

“Family” is one of five selectable Profiles

Scrolls through the guide

Indicates current time

Takes you to the Main menu

Displays more sorting options

Searches guide for specific information

Sorts the current guide alphabetically by title

Shows all available programs

Bringing Up the Program Guides

You can access the program guides by pressing MENU on the remote and selecting Program Guide, or by using the GUIDE button on the remote.

Program Guides

The Channel Banner

The channel banner appears whenever you tune to a channel, exit a guide, or press INFO on the remote. Use the arrow buttons and OK to choose an item.

On-screen icons represent frequently-used menu items. Some icons also change appearance to show the item’s status. Some of the items you select in the guides can also be selected in the channel banner.

Program titles and information

Takes you to the Main menu

Locks and unlocks the system

Sorts the guide alphabetically by title

Main menu icon When selected, will take you to the Main menu.

Green Unlock icon The system is unlocked. Spending, viewing and

other limits can be accessed and changed.

Yellow Unlock icon A password has been entered to override family or profile limits. No limits can be accessed or changed.

“Family” is one of five selectable Profiles

Cycles through the Alternate Audio choices

Use Home Control or Data Port

Read mail from program providers

Searches guide for specific information

Yellow Unlock icon with a “P” A password has been entered to

override limits for the current program. After the program ends, limits are restored.

Red Lock icon No limits can be accessed or changed. A password is required to override limits or access the system.

AlphaSort icon When selected, allows you to sort program titles alphabetically.

Highlighted Scout (binoculars) icon A Scout has found program information.

Highlighted Mail icon Indicates a message in your mailbox.

Home Control or Data Port icons The icon changes appearence

depending on how the Home Control jack on the back panel is used.

Alternate Audio icon When selected, cycles through the alternate audio choices.

Program Guides

Using the GUIDE Button

Each press of the GUIDE button takes you to an alternate type of program guide.

The Grid Guide

The Grid Guide shows seven channels in a time-and-channel format, with the full title of the highlighted program at the top of the guide.

The Detail Guide

The Detail Guide shows five channels in a time-and-channel format, with program information for the highlighted program at the top of the guide.

The SurfGuide

The SurfGuide displays seven channels in a half-hour time-and-channel format. Press the right arrow button to extend the SurfGuide to show the next two hours.

Grid Guide

Getting Around in the Guides

This section describes how to change channels and move around the program guide.

Point to Channels with the number keys (0-9)

You can point quickly to any channel in the program guide by entering the channel number with the number keys (0-9). For example, to point to channel 228, press the numbers 2-2-8 on the remote. To point to channel 530, press 5-3-0.

Scrolling Channel By Channel

The programs that you see on the TV screen make up one section—or page—of the total program guide. You can scroll to other sections using the arrows: point to other times with the left and right arrows; point to other channels with the up and down arrows.

Scrolling Page By Page

If you want to scroll up or down through the program guide faster, press the CHAN UP/DOWN buttons on the remote control. The highlight scrolls a page at a time.

Detail Guide

SurfGuide

By default, the Detail Guide appears when you press GUIDE on the remote. You can change the default guide from the Detail Guide to the Grid Guide or SurfGuide.

Select Options from the Main menu. Select Look and Feel, then set the Default Guide.

Program Guides

Tuning to a Program

To tune directly to a current program listed in the guide, point to the program and press OK.

To see information about a program in the guide, press INFO.

The Program Details screen appears and gives you several options.

Then, you can select:

• View Channel to tune to that channel

• Buy Program to purchase the program

• Other Times to see what other times the program is available. The program title is automatically entered and sorted in the AlphaSort control panel.

The options available to you may vary according to the type of program you select.

Program Guides

Additional Program Guides

Besides the Detail Guide, Grid Guide, and SurfGuide, there are a few more guides: the Channel Guide, the Logo Guide and the Attractions Guide.

You can access these guides by selecting the Other Guides button at the bottom of the Detail Guide and Grid Guide.

The Channel Guide

Displays a channel’s programming schedule in a channel-by-channel format.

Other Guides button

The Logo Guide

Displays channel logos for the current user’s profile.

You can point to any program then tune to that channel or get more information by pressing the OK or INFO buttons.

Exiting A Program Guide

There are three ways to exit a guide:

• Point to a channel and press OK.

• Point to Back and press OK.

• Press CLEAR or GO BACK on the remote.

Program Guides

The Attractions Guide

Displays a list of channels that show coming attractions and special events information.

The Other Guides button also lets you sort the guide by different variables, such as future times, user profile channel lists, and channel groups. You can then choose a guide format to view the program information.

Select the Other Guides button. You can select multiple sort parameters. For example, you could sort the guide by pay-per-view movies that are available at a future time.

Other Guides button

Select Guide Data and use the arrow and OK buttons to choose the Guide Data group.

Guide Data lets you see what’s on in the future.

Program Guides

Then, select PPV in the Channel Groups category.

Channel Groups is another way to sort types of programming.

Select Back, or press the GO BACK button on the remote to return to the previous guide. You can also choose another guide format from the category list.

Sorting the Guides

Sorting the guide is a way of organizing the guide to show only the types of programs that interest you. There are several on-screen buttons that sort the guide in different ways.

The Sorting buttons appear at the bottom of the Grid Guide and Detail Guide.

Program Guides

Topics

The Topics button sorts the guide according to the current user’s preferences. Select the Topics button to sort the guide.

The Topics button changes to the Topics Themes button. Press the Topics Themes button to edit the current user’s themes preferences. These preferences are saved in each user’s profile.

Checkmark the themes that interest you.

Topics button

Topics Themes button

Select the categories, and checkmark the themes you would like to appear when you select the Topics button in the guides. Programming that fits the description of checkmarked themes will appear in the guide when you sort by the Topics button.

Movies

Select the Movies button to list movies only. After selecting Movies, the Movies button changes to a Movies Themes button.

Select the Movies Themes button to sort the guide to list specific types of movies, such as comedies or musicals.

Select a Movies Themes that interests you.

Movies button

Movies Themes button

Program Guides

Sports

Select the Sports button to list sporting events only. After selecting Sports, the Sports button changes to a Sports Themes button.

Select the Sports Themes button to sort the guide to list specific types of sports, such as basketball or soccer.

Select a Sports Theme that interests you.

All

The All button resets the guide to show all available topics, channels and listings for the current Profile.

AlphaSort

AlphaSort lists in alphabetical order all the program titles in the current guide. Select the AlphaSort button to search for specific program titles that are in the current program guide. Use the arrow button to highlight a character, then press OK.

For example, to search for the program, Auto Racing, the first letter you should point to and select is “A”. (Words like “The”, “A” and “An” appear at the end of a title.) All titles that begin with “A” appear in the AlphaSort list. Next, enter the letter “U”. All titles beginning with “AU” appear in the list.

Sports button

Sports Themes button

All button

AlphaSort button

AlphaSort searches for specific titles in the guide.

Program Guides

Continue entering the specific title’s letters until it appears in the

AlphaSort list. If you enter the wrong letter, select either Backspace or Clear All.

Use the arrow buttons to highlight the title you are looking for. Press the OK button to select it, or the INFO button to see more information. Only titles that are in the current program guide can be found by AlphaSort.

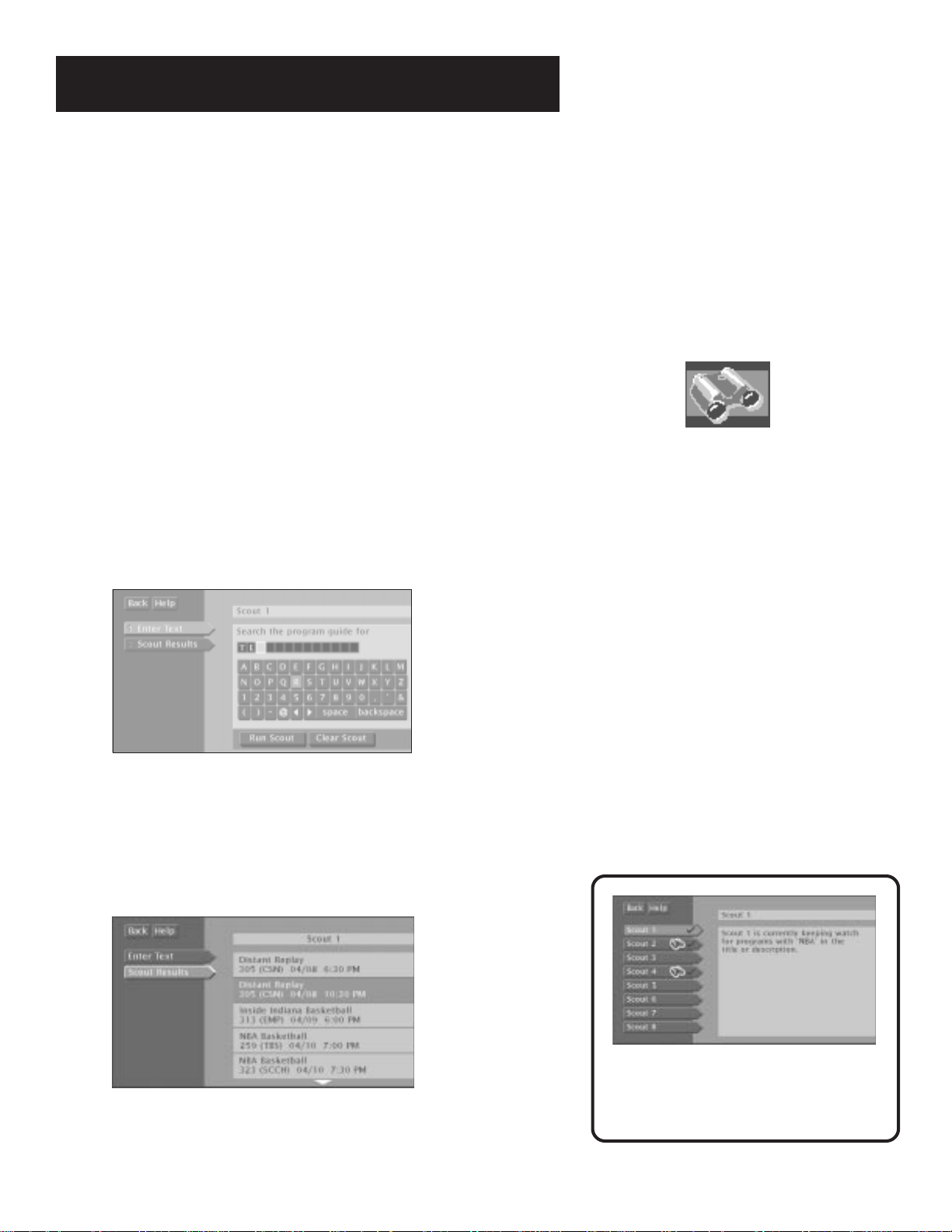

Scout

The Scout button lets you assign “Scouts” to search the guide for very specific program information, such as actors’ names or program descriptions. Select the Scout button from the Program Guide to view the available scouts.

Point to an available Scout, and select it. Select the Enter Text button to set up the information the Scout will look for in the program guide. Use the on-screen keyboard to enter the desired search parameters.

For example, if you are interested in National Basketball Association events, enter a common term you might see in program information, like “NBA.”

Scout button

Select Enter Text to set up a Scout.

If “NBA” appears within a program title or program description, the program will be included in the Scout Results program list.

The Scout will search for information when the receiver is off. (This may take up to 30 minutes for a full guide search.) You can check a Scout’s results by selecting a Scout button.

Scouts look for specific program information.

A checkmark next to the Scout means it is in use.

A highlighted binocular icon means the Scout has found something.

Program Guides

The Other Buttons

Back

Exits the guide and returns you to normal viewing on the current channel. Press OK to continue.

Help

Brings up additional information about the guide. Press OK to continue.

Down Arrow

The arrow button allows you to scroll down through other channels in the guide. Point to the down arrow, and then press OK to scroll down through the program guide.

The Main menu

Back button

Help button

Arrow button

Brings up the system Main menu. Press OK to continue.

Main menu button

The Menu System

What’s a Menu?

The on-screen menu is a list of choices, just like a menu in a restaurant. And, just as a restaurant menu is divided into sections such as appetizers, entrees, and desserts, the onscreen menus are also separated into sections to help you find the information you need.

Don’t Forget Point and Select

As with all of the on-screen displays, you use Point and Select to navigate.

Setup and Connections

➣

Using the Remote

➣

Program Guides

➣➣

The Menu System

Tips & Troubleshooting

The Menu System

Using the Menu System

To bring up the Main menu, press MENU on the remote.

Use point and select to choose an item from the Main menu.

To use the menu system, you need to know the Point and Select rule. Use the arrows on the remote to point to an item on the screen, and then press OK to select it.

Back and Help

Use the MENU button to bring up the Main menu, and then use Point and Select to choose a menu option.

There are Back and Help buttons at the top of most screens. Point to Back and press OK to leave that screen. Point to Help to see more

information about that screen.

Exiting a Screen

There are three ways to exit a menu:

• Point to Back and press OK.

• Press the CLEAR button on the remote control. The on-screen displays clear from the screen and you return to TV viewing.

• Press the GO BACK button on the remote. You return to the previous on-screen display or normal programming.

Using Help

All menus have a Help button. For example, selecting the Help button from the Main menu shows you information about using the Main menu screen.

The rest of the Help buttons in the menu system bring up helpful information explaining one aspect of that menu.

If the Main menu doesn’t appear when you press MENU, the remote might not be in satellite mode. Try pressing the DIRECTV button on the remote, and then OK.

Context-Sensitive Help

Most of the screens contain information to help you decide what to do next. If you get stuck, look for the help text.

The Menu System

Menu Descriptions

This section briefly describes each of the available Main menu options. More information about each menu and its features is included later in this chapter.

Program Guide

Shows the on-screen programming schedules.

Mailbox

Use to read mail messages from your program providers.

Purchases

Use to review or cancel upcoming purchases, and to review past purchases.

Timers

Allows you to schedule the satellite system to tune to a specific channel at a specific time.

Profiles

Allows you to set ratings limits, spending limits, and viewing hours, as well as create favorite channel lists.

Options

Allows you to find out more about the receiver and remote, change how your system looks, run the system test, and install a new access card.

Dish Pointing

Use to find your dish pointing coordinates, and to access the on-screen signal strength meter.

Home Control

With the proper equipment, this feature lets you control certain devices and appliances in your house.

Don’t Be Afraid to Explore

Once you’ve learned the basics, feel free to poke around the menu system—exploring is the best way to learn. The context-sensitive help at the bottom of the screen provides instructions for getting through any particular menu or control panel. Remember, press CLEAR at any time to leave the menu system and return to regular system viewing.

Don’t Forget About the CLEAR Button

Press the CLEAR button on the remote to remove the on-screen menus and return to normal viewing.

The Menu System

The Program Guide

Selecting Program Guide brings up your default program guide: the Detail Guide, the Grid Guide or SurfGuide.

Anatomy of a Program Guide

The following diagram shows you the kind of information you will see in the Detail Guide and Grid Guide.

Program titles and information

Returns you to previous screen

Help gives you more information

Sort the guide by: Topics, Movies, or Sports

“Family” is one of five selectable Profiles

Scrolls through the guide

Indicates current time

Takes you to the Main menu

Displays more sorting options

Searches guide for specific information

Sorts the current guide alphabetically by title

Shows all available programs

Bringing Up the Program Guides

Besides selecting Program Guide in the Main menu, you can press the GUIDE button on the remote.

Want More Information?

Read the section in this book called Program Guides for all the details.

The Menu System

The Mailbox

The mailbox shows you messages that are sent—or “mailed”—from your program providers. For example, you may receive a message calling your attention to a new service.

How to Tell When you Have Mail

There are two ways to tell if you have mail, depending on whether the satellite receiver is turned on or off.

• If the receiver is turned on, the mail icon in the channel banner is highlighted.

• If the receiver is turned off, the power light on the front panel of the receiver flashes.

Checking Your Mail

Select Mailbox on the Main menu or channel banner to view your mail.

1. Point to a message and press OK. The message is opened for you to read.

Mail provides the latest information from program providers.

2. Press OK again to close the letter.

After you read a message and want to erase it, point to Erase Message and press OK. When you exit the display screen, messages not erased are saved in memory.

The Menu System

Pay-Per-View Programs

Pay-per-view programs (PPV) are programs that you purchase—like a movie ticket—on an event-by-event basis. For instance, a channel with pay-per-view programs may run nothing but previews for movies. After previewing the movie, you can purchase it or find out more details about it. PPV programs are labeled “PPV” in the Program Guide.

Purchasing and Previewing

There are several ways to purchase and preview PPV movies and events:

• Tune to a PPV program’s channel. Program providers may offer onscreen purchase instructions, usually as the PPV program begins.

• Choose a PPV program from the program guide.

• Preview a coming attraction by selecting a channel from the Attractions Guide.

Tuning to a PPV Program

When you use the channel buttons or digits on the remote to tune to a Pay-Per-View channel, you need to press the INFO button to bring up the Program Details screen in order to purchase a program.

Use the program guide to get to the Program Details screen.

Follow the on-screen instructions to purchase the selected program.

You may need to enter your four-digit password to order a PPV program if it costs more than the spending limit you set up in the Profiles menu.

The Menu System

Using the Program Guide for PPV

Programs

Another way to get to the Program Details screen is by using the program guide. Highlight the program name in the guide and press INFO.

The Program Details screen gives you several options.

You need to connect your phone line to your satellite receiver to be able to order PPV programs using the on-screen menus.

You can select:

• View Channel to tune to that channel

• Buy Program to purchase the program

• Other Times to see what other times the program is available. The program title is automatically entered and sorted in the AlphaSort control panel. If no other times are available, this option will not be available.

The options available to you may vary according to the type of program you select.

Using the Attractions Guide

Your program providers may offer future programming events not currently listed in your Program guide. These events are called “coming attractions,” and can be previewed in the Attractions Guide.

1. Press the GUIDE button on the remote until the Detail Guide or Grid Guide appears on-screen.

2. Use the down arrow button to move the highlight to the bottom of the screen.

3. Point to and select the Other Guides button.

4. Point to and select the Attractions Guide.

The Menu System

The Other Guides menu provides several guide formats.

5. Point to a channel and select it.

The Attractions Guide is accessed through the Other Guides menu.

Using the Purchases Menu

The Purchases menu allows you to review upcoming and past purchases.

The Purchases menu shows you upcoming or past purchases, and spending limits.

The list of purchases may be longer than one screen; use the down arrow keys to see more items. The display also shows the title, channel, date, time, and cost of each program.

• Note that the Past Purchases list might be modified after each billing cycle and show purchases for which you have already paid.

The Menu System

Reviewing and Canceling an

Upcoming Purchase

Use Point and Select to choose an upcoming purchase from the Future Purchases screen. You can review the program description, as well as

cancel an upcoming purchase.

The Purchase Edit screen lets you cancel an upcoming purchase.

Spending Limits

Use the Spending Limit option to indicate a per-event spending limit for pay-per-view programs.

1. Point to Spending Limit, and press OK.

You can set a per-event spending limit for each Profile.

2. Use the digits on the remote or use the arrow keys to enter a singleprogram spending limit.

After a spending limit is set and the system is locked, you must enter a password to purchase a pay-per-view program that costs more than your spending limit allows.

Important!

Spending limits are in effect only when the system is locked. See the section “Locking the System” for details.

The Menu System

Timers Feature

The Timers feature allows you to preset your system to automatically tune to a particular channel at a predetermined time.

To use the Timers feature, select Timers from the Main menu to bring up the Timers screen. Select a Timer (1-8) and then use the arrow keys to complete the on-screen sentence. When the sentence is complete, select

Run Timer.

Complete the on-screen sentence to set up a timer.

Profiles

When you select Profiles from the Main menu, the first screen you see is the Master Edit control panel. In addition to the Family profile, you can create as many as four different profiles that can be easily accessed by using the WHO button on the remote control.

On-screen icons are an easy way to understand the timers:

Indicates the timer is set.

Indicates the timer is set for

a PPV.

Indicates a timer conflict.

Editing or Canceling a Timer

From the Timers screen, select the Timer you want to edit or cancel, and then do the following:

• Use the arrows keys to edit the Timer, then select Run Timer.

• Select Clear Timer to cancel the timer.

• To watch the program daily or weekly, edit that program’s

timer.

You can personalize the profile by entering a name.

You can personalize each profile.

You can also edit the user profiles. Select a profile from the Edit Users control panel. By moving down the options you can create or edit the user’s channel list, set a ratings limit, viewing hours, per-event spending limits and assign a profile password.

The Menu System

Creating a Profile Channel List

1. Point to and select a user.

2. Point to Edit Channels and press OK.

To start, you can add or delete all channels.

3. Use the arrow keys to point to a channel, and press OK to remove (or replace) the check mark. Checkmarked items appear in the channel list.

Add or Delete All Channels

You might be able to save time when creating a channel list by using the Add All Chans option or the Delete All Chans option to either add all channels or delete all channels before removing or adding individual channels.

Also, program providers may make additional channels available. To prevent new channels from appearing in a profile channel list, choose Delete All Chans and checkmark only the channels you want to appear in the list.

Setting the Ratings Limit

The Ratings Limit menu enables you to set a maximum viewing limit for rated movies (based on the MPAA ratings system), as long as the program provider has transmitted the proper code.

• Note that the ratings limit cannot be enforced if a program has not been rated, if rating information for that program is not transmitted by the program provider, or if the system has not been locked.

The Menu System

1. Point to Set Rating Limit and press OK.

Use the arrow keys to move the selector up and down.

2. Use the up and down arrows to move the rating selector to the highest rating you want to be able to view. In the preceding illustration, movies that are rated up to and including a “PG-13” rating can be viewed.

After the Rating Limit is set and the system is locked, you must enter the system password to watch programs with a rating higher than your limit.

Viewing Hours

Use the Viewing Hours option to limit the total amount of time, as well as the viewing hours that a user can watch programming.

1. Point to Viewing Hours, and press OK.

You can limit viewing seven days a week.

2. Use the digits on the remote or point to the + or – and press OK to complete the on-screen sentence. Choose the days to view, how many hours can be viewed each day (0-24 hours) and when programming can be viewed. Be sure to lock the system for these limits to take effect.

Important!

You need to lock the system in order for rating limits, channel limits, viewing hours, and spending limits to go into effect.

After you lock the system, you need to enter the system password to edit the limits. See “Locking the System” for details.

The Menu System

Setting Up Spending Limits

Select the Spending Limit option to indicate a per-event spending limit for pay-per-view programs.

1. Point to Spending Limit, and press OK.

You can set a per-event spending limit for each profile.

2. Use the digits on the remote or use the arrow keys to enter a singleprogram spending limit.

After a Spending Limit is set and the system is locked, you must enter the system password to purchase a pay-per-view program that costs more than your Spending Limit allows.

Locking a User’s Profile

Each user can be assigned a personal password to lock his or her profile. When a password is assigned, the user must enter the password before he or she can view programs using that profile. Profile passwords do not allow access to, or editing of the profile limits. You must enter the system password to edit profile limits.

1. Point to Lock User and press OK.

After the system has been locked, you must enter the correct password in order to access the Edit Users control panel.

Don’t Forget Your Password

Each user can have a password.

2. Use the arrow or digit keys to select each number of the password.

If you forget a USER password, you need to unlock the system and then assign a new user password.

If you forget the SYSTEM password, contact your program provider’s authorization center.

The Menu System

Locking the System

You can lock the system activate the ratings, spending, viewing, and channel limits you have set up. When you lock the system, no one can modify any of these settings without first entering the four-digit system password.

1. Point to Lock System and press OK.

Locking the system protects the limits you set up.

2. Use the arrows or the digits to enter a four-digit system password.

3. Enter the password a second time to confirm it.

For the changes to take effect, you must exit out of the menu system.

Unlocking the System

When the system is unlocked, the channel, spending, viewing, and ratings limits that you set are no longer in effect. To unlock:

1. Point to Unlock System in the Profiles menu and press OK.

2. Point to Yes and press OK to confirm that you want to unlock the system.

When you attempt to access a channel that is blocked by one or more limits and the system is locked, you will be asked to unlock the system by entering the four-digit system password.

If you enter the password to override a limit, all limits are unlocked until you turn off the receiver. When you turn on the receiver again, the system will be locked, and the Family profile channel list will be selected. If you want to re-lock the system without turning off the receiver, you can select the lock icon in the channel banner.

Program Unlock

If the system is locked and you want to access a blocked program without unlocking all settings, press INFO and highlight the Lock icon in the channel banner. Make sure to check the box beside “Unlock this program only,” and enter the system password. This program is no longer blocked, but all other settings remain in effect.

The Lock/Unlock icons in the channel banner provide an easy way to lock or unlock the system. Just press INFO and select the icon to change the lock status.

Green Unlock icon The system is unlocked. Spending, viewing and other limits can be accessed and changed.

Yellow Unlock icon A password has been entered to override family or profile limits. No limits can be accessed or changed.

Yellow Unlock icon with a “P” A password has been entered to override limits for the current program. After the program ends, limits are restored.

Red Lock icon No limits can be accessed or changed. A password is required to override limits or access the system.

The Menu System

Choosing Your Profile

Each time you turn on the receiver, the Family profile is selected by default. To select a different Profile:

1. Press the WHO•INPUT button to scroll through the profiles.

The WHO•INPUT button toggles through the profiles.

2. When your profile appears, enter your four-digit personal password to activate your profile.

• If the profile is not password protected, you can just press

OK to activate it.

The channel, spending, ratings and viewing limits associated with the chosen profile will be active only when the system is locked.

Options

The Options menu lets you set up preferences for the look and feel of the system as well as how some of the features work.

The Options menu lets you change how the system works.

The following sections explain your options when changing your personal preferences. Follow the on-screen instructions to make changes to the system.

The Menu System

Interactive Setup

If you self-installed your satellite dish antenna, you may have already used the interactive setup to find the dish pointing coordinates, acquire and fine-tune the signal, and run a system test. If you just want to check your dish pointing coordinates, or run the signal strength meter, select Dish Pointing from the Main menu.

System Info

Select System Info from the Options menu to choose from a list of on- line Help topics. Point and select to find out about the specific parts of the satellite system.

Program Guide shows a screen-by-screen overview of the Program Guide features.

Menu System shows a screen-by-screen overview of the satellite system menus.

Remote Control shows a descriptive list of the remote control buttons.

Front Panel shows a list of the receiver’s front panel features. Point to

an item to see a brief description.

Back Panel shows a list of the receiver’s back panel features. Point to an item to see a brief description.

Glossary shows a list of common satellite system and TV terms. Point to a glossary item to see a brief description.

Look and Feel

Default Guide lets you choose which guide appears first when you press the GUIDE button on the remote. The choices are Grid Guide, Detail Guide and SurfGuide.

Color Scheme lets you pick which color appears in the guides and menu system.

Translucency lets you choose the translucency of the menu displays. Slide the indicator bar to make the screens more opaque or less opaque.

Animation lets you select which graphics are displayed and also lets you select the animation time-out.

Edit Fetch lets you combine your favorite menu items onto one menu, or assign one function to the Fetch button on the remote.

The Menu System

System Options

System Test The System Test display screen is accessed through the

Options menu, and allows you to initiate diagnostic procedures on the satellite system. You should use this feature to get your Access Card number, or when your receiver doesn’t seem to be working correctly.

A message screen appears, telling you whether the system passed each test. If your system fails a test, run the system test several times before concluding that there is a problem. Occasional fluctuations in the phone line or satellite signal can give temporary false readings.

New Access Card Periodically, your program provider may issue you a replacement Access Card. The New Access Card Setup display screen allows you to transfer the information from the old card onto the new one. The Access Card fits into the receiver through the front panel.

Follow the display screen prompts to initialize your new card. Once you have transferred the information to the new card, your old card becomes invalid.

Because your specific account information is stored in the access card, power failures should have no effect on your satellite system.

Remote Setup Lets you choose which remote button will control the satellite system if you are using a universal remote that did not come with the system.

Output Channel Lets you choose on which channel to view satellite programming, either channel 3 or channel 4.

Picture Size The Picture size display screen allows you to choose between a standard TV screen and a Cinema option. A standard TV screen has an aspect ratio of 4:3; the Cinema option has an aspect ratio of 16:9.

Data Port Lets you choose whether the low speed data port is used for low speed data or communicating with the Home Control Base accessory. See the Home Control section in this book for more information.

Audio Language

When you select Audio Language from the Options menu, the Audio Language display screen comes up.

Point to the audio language or audio type you want and press OK. The satellite system audio will then automatically be set to the selected language (when the language is available).

Alternate Data

Selects from among the available data on the current channel.

The Menu System

The Dish Pointing Menu Screen

Follow these steps to obtain your dish pointing coordinates:

1. Turn on your television and satellite receiver.

2. Tune your television to the satellite receiver’s output channel.

3. Press MENU on the remote to bring up the Main menu.

4. Use the arrows to highlight Dish Pointing, and then press OK to access the dish pointing screen.

NOTE: The menu screen that you see may be slightly different from the one pictured here.

5. Use the arrows on the remote or the front panel to highlight Zip Code, and then press OK.

6. Enter the zip code for the dish installation location.

7. Record the elevation and azimuth numbers below.

Elevation _____________ Azimuth ___________

Elevation is the up/ down angle that the dish is pointed.

Azimuth is the sideto-side direction that the dish is pointed.

You only need to use one of the available methods to find your dish pointing coordinates. If you know the zip code for the dish location, use that.

The Menu System

Using the On-Screen Signal Meter

The signal strength meter is used to determine whether or not you are receiving the satellite signal; it also indicates the strength of the satellite signal.

Follow these steps to bring up the on-screen signal meter:

1. Turn on your television and satellite receiver.

2. Tune your television to the satellite receiver’s output channel.

3. Press MENU on the remote to bring up the Main menu.

4. Use the arrows to highlight Dish Pointing, and then press OK to access the dish pointing screen.

5. Use the arrows on the remote to highlight Signal Meter and then press OK.

If the dish is pointed to the correct azimuth and elevation, the signal meter will show you the current signal strength (and you should hear a continuous tone).

If you are not receiving a signal, you need to incrementally adjust the azimuth setting on the dish. After you receive a signal, you will want to continue to adjust the azimuth to try to get the best possible signal.

Important

Changing transponders is not the same as fine-tuning the dish. Although the signal strength may appear to change, this may be due to different types of interference. To fine-tune the dish, consult the Installation Guide and follow the instructions on adjusting the dish elevation and azimuth.

Peak Signal

The “Peak Signal” indicates the highest signal strength you have obtained, which is not necessarily the highest possible signal.

While the maximum signal strength is 100, the signal strength you achieve will probably be less. Although there is no difference in picture quality between signal strengths of 60 and 85, the higher the signal, the less likely you are to experience negative effects in degraded conditions such as rain or snow (called “rain fade”).

The Menu System

Home Control

Home Control lets you remotely control several lamps and devices through your receiver.

Home Control Setup

The Home Control Data Interface connects to the HOME CONTROL jack on the back of the receiver. Once connected, you must tell the receiver to use this port for Home Control.

1. Press OK to bring up the Main menu.

2. Point to and select Options.

3. Point to and select System Options.

4. Point to and select Data Port and choose Home Control as the default setting.

Device Setup

1. From the Main menu select Home Control.

Home Control can control several devices.

2. Select a device you would like to control.

3. Complete the on-screen sentence using the arrow buttons and OK. Press OK to scroll through the lists of devices and locations.

To use the home control feature, you must connect one end of the Home Control Data Interface to a remote module attached to the appliance you want to control. The other end should connect to the HOME CONTROL jack on the back of the receiver via a coiled telephone handset cord (available from most retailers).

Home Control Jack on the Back Panel

Home control modules are available as accessories sold through your satellite dealer or the accessories order form at the back of this book.

The Menu System

Keep track of devices by assigning a label.

4. Use the arrow buttons and OK to select the house and module codes that match the device’s remote module and label the module. Select Save Setup to complete the setup.

Device Control

Once the device is set up, there are two ways to control it: with the menu system or with a timer. Select a device from the Home Control menu screen. You can then turn it on, turn it off, or adjust the brightness for lamp modules.

Select Edit Setup to change a device.

Control the device from the menu.

To schedule a timer:

1. Select Set Timer.

2. Schedule a timer by completing the on-screen sentence.

On-screen icons are an easy way to understand the timers:

Indicates the timer is set.

Indicates the timer is suspended.

You can schedule several timers to control the same device at different times.

The Menu System

Complete the on-screen sentence to schedule a timer.

3. Use the arrows and OK to enter an on and off time.

4. Point to and select Run Timer.

Clear Timer removes all the timer information. Suspend turns off the timer, but saves the timer information.

Edit Fetch Menu

The Edit Fetch menu gives you the option of using Fetch in two ways:

• You can customize eight functions on the Fetch menu, or

• You can customize the Fetch button on the remote to take a certain action each time it is pressed.

To view the Edit Fetch Menu, press MENU to bring up the Main menu, select Options, select Look and Feel, and then select Edit Fetch.

The Edit Fetch menu is a convenient way to call up frequently used menu items.

The Menu System

Customizing the Fetch Menu

To customize your Fetch menu:

1. Press MENU to bring up the Main menu.

2. Point to and select Options, Look and Feel, and then Edit Fetch.

3. Select Fetch Control.

4. Press OK to choose Show Fetch Menu.

5. Select Fetch List from the Edit Fetch menu.

6. Choose which eight menu items you would like to include in your customized menu by checkmarking them with the OK key.

Choose which menu items to include in your customized Fetch menu.

7. Press the left arrow key to confirm your selections and return to the menu.

When you would like to access your customized menu, press the FETCH button on the remote control.

The Menu System

Customizing the FETCH Button

To customize the FETCH button on the remote so it performs one function when pressed:

1. Press MENU to bring up the Main menu.

2. Point to and select Options, Look and Feel, and then Edit Fetch.

3. Select Fetch Control.

4. Choose Assign One Function.

5. Select Fetch List from the Edit Fetch menu.

6. Choose which menu item you would like to assign to the FETCH button by pointing and selecting.

Choose which menu item to assign to the FETCH button.

7. Press the left arrow key to confirm your selection and return to the menu.

You may press the FETCH button on the remote and execute the assigned function at any time while viewing satellite programming.

Tips & Troubleshooting

Tips for Solving Problems

You may have some questions about using your satellite system that you are unsure how to answer. This section provides the answers to such questions. You will find how to run a system test, and how to diagnose and correct problems.

Setup and Connections

➣

Using the Remote

➣

Program Guides

➣

The Menu System

➣

Tips & Troubleshooting

Running the System Test

The System Test allows you to run a basic diagnostics check on your satellite system. If you are experiencing any trouble with your system, run the system test. It will allow you to get your Access Card number, or to initiate diagnostic procedures on the satellite system.

First make sure that:

• All connections—jacks, cables, etc.—are correctly in place. See the section “Setup and Connections” for more information.

• There are batteries in the remote, and they are working correctly.

• The Access Card is installed in the receiver.

Follow these steps to run the system test:

1. Turn on your TV and the receiver.

2. Press the DIRECTV button on the remote to put the remote in satellite system mode, then press MENU to bring up the Main menu.

3. Point to and select Options.

4. Point to and select System Options.

5. Point to and select System Test.

6. If your system does not pass the system test, check these potential trouble areas: cabling, pointing the satellite dish, phone connection, and access card.

You should run a system test several times before concluding that there is a problem. Occasional fluctuations in the phone line or satellite signal can give temporary false readings.

7. If you continue to have problems, call 1-800-679-4776.

Fine-Tuning the Signal

If you self-installed your satellite dish antenna, you may have already used the interactive setup to find the dish pointing coordinates, acquire and fine-tune the signal, and run a system test.

If you need to run the interactive setup again, select Options from the Main menu, then select Interactive Setup.

If you just want to check your dish pointing coordinates, or run the signal strength meter, select Dish Pointing from the Main menu.

Tips & Troubleshooting

How Signal Flow works

Satellite Signal

From dish antenna

Digital Satellite Receiver

If you use coaxial cables (and no audio/video cables), view the satellite or off-air antenna signal by tuning the:

TV to channel 3

VCR to channel 3

SATELLITE IN

ANT IN

OUT TO TV

OUT

FROM

ANT

Audio Out

Right

Left

Video Out

Video

S-Video

VCR

CH 3 CH 4

TV Signal

From antenna or cable

If you use coaxial cables along with audio/video cables, view the satellite signal or off-air antenna by tuning the TV to its video input channel.

Audio/video cables

Coaxial cables

ANT IN

Audio In

Left

Right

Video

Video In

S-Video

How the Satellite Signals get to Your TV

In the example above:

1. Program providers send signals to your antenna dish.

2. The antenna dish sends the signal to the receiver’s SATELLITE IN jack.

3. The signal continues through the coaxial cable to the VCR and then to the TV. (The VCR may seem like an unnecessary link in the chain, but this setup lets you record programming and off-air antenna/cable programming.)

If you use audio/video cables, the satellite signal also flows through the audio/video cables to the TV’s line inputs (left, right, and video or S-video).

How Off-Air Antenna/Cable Signals get to Your TV

In the example above:

1. Off-air/cable broadcasters send signals to your off-air antenna or through cable to your home.

2. The signal continues through the coaxial cable to the receiver and then to the VCR. The signal can also pass through the VCR to the TV. (The VCR may seem like an unnecessary link in the chain, but this setup lets you record programming and off-air antenna/cable programming.)

Tips & Troubleshooting

Wrong picture

The receiver and most VCRs let you toggle between pictures: one is the picture from the receiver and one is from the VCR. If you don’t see the picture you think you should be seeing, try using these buttons to toggle between the pictures:

• Press the TV/VCR button on the VCR remote or on the VCR’s front panel.

• Press the ANTENNA button on the remote control.

Taking either of these actions lets you switch the source of the video signal from satellite to the off-air antenna or cable, and vice versa.

Problems with the remote

• Maybe something is between the remote and the remote sensor.

• Maybe the remote is not in satellite mode. Press the DIRECTV button so the remote will control the satellite receiver.

• Maybe the batteries in the remote are weak, dead or installed incorrectly. Try replacing batteries. (Note, if you remove the batteries, you may have reprogram the remote to control other components.)

• Remove the batteries and hold the number 1 button for at least 60 seconds to drain the microprocessor inside the remote. Release the button, replace the batteries, and (if necessary) reprogram the remote.

• Remove all batteries for approximately 12 hours. Then replace batteries and (if necessary) reprogram the remote.

Blank screen

• Maybe the device (VCR, receiver, DVD, etc.) connected to the input jacks is not on.

• Try another channel, because there may just not be any programming on at that time.

Receiver will not turn on

• Check to make sure it is plugged in.

• Check the wall receptacle (and extension cord, if applicable) to make sure it is “live” by plugging in something else.

• Maybe batteries in remote control are “dead.”

• Maybe remote control is not aimed at remote sensor.

• The front panel controls may be locked (disabled). Use the remote control to unlock the front panel controls by selecting the Front Panel Lockout in the Parental Controls menu and choosing Unlock.

LED Light Flashes on front panel

• You have mail. Read the message by selecting Mailbox from the Main Menu and selecting the message. Flashing will stop.

Turns off while playing

• Schedule off function may have been activated.

• Electronic protection circuit may have been activated because of a power surge. Wait 30 seconds and then turn on again. If this happens frequently, the voltage in your house may be abnormally high or low.

TV Turns on or changes channels unexpectedly

• Scheduled Watch from the Timers menu may have been activated.

Appendix A: Warranty Information

Repair Help

Thomson Consumer Electronics offers hardware repair service should you encounter any problems with your satellite system. Many problems can be diagnosed over the phone, or if necessary, a replacement unit can be shipped to you. Please have your satellite system model, serial number and date of purchase ready when you call. If your unit is out of warranty, we will quote the cost of an exchange unit to you. Refer to RCA Satellite System Limited Warranty for the repair service phone number.

Returning Equipment to Thomson for Repair or Exchange

If we are unable to resolve your problem over the phone we will gladly service your unit or exchange it for a new or refurbished unit. Refer to the limited warranty included in the booklet to learn about your specific rights and responsibilities. Always consult Thomson and get a Return Authorization number before returning anything. Obtain a Return Authorization (RA) number from the telephone representative before returning your equipment to avoid delays, accounting errors, or even loss of your unit.

Important Information to Customers Who Ship Defective Equipment to Thomson Consumer Electronics

The Thomson representative who authorizes the return of your equipment will give you an RA number over the phone. The representative will also provide you with instructions on where and how to return your unit. Write the number in large, clear characters on the outside of the box. To avoid confusion and misunderstandings, shipments without an RA

number clearly visible on the outside of the box will be returned to you at your expense.

Include a brief note describing the problem and any conversations you have had with Thomson personnel about the problem. Include your name, address and model/serial number of your unit. These numbers are located on the back of your receiver. If your satellite system is within the warranty period, please provide a copy of the bill of sale to verify purchase date. Use the original box and packing material to protect the equipment from damage in shipment. For your protection, insure all shipments for full replacement value and use a reliable shipper. Thomson assumes no responsibility for warranty shipments from the customer to the factory if not shipped in the manner prescribed by Thomson.

RCA SATELLITE SYSTEM LIMITED WARRANTY

What your warranty covers:

• Any defect in materials or workmanship.

For how long after your purchase:

• 90 days - Unit exchange, which includes parts and labor.

• 91 days to 1 year - Unit exchange, which includes parts only; you pay the labor.

• The warranty for rental units begins with the first rental or 45 days from date of shipment to the rental firm, whichever comes first.

What we will do:

• During the initial 90 days: Exchange the defective portion of your satellite receiver with a new or, at our option, refurbished unit.

• After the 90 days and within one year: Exchange the defective portion of your satellite receiver with a new or, at our option, refurbished unit. We will charge you a flat exchange cost to replace a defective receiver. This charge covers the labor cost for its repair.

Appendix A: Warranty Information

How you get service:

• Call 1-800-679-4776 and have your unit’s date of purchase and model/serial number ready. The model/serial number information is on the back of your receiver.

• A representative will troubleshoot your problem over the phone.

• If the representative determines that you should receive a replacement receiver you will be provided with a Return Authorization (RA) number and the location of a nearby exchange point if one exists. No returns will be accepted without the RA number.

• If the representative determines that your antenna/dish is defective he or she will arrange for its repair or replacement.

Option 1

1. Provide your Discover, Mastercard or Visa account number and expiration date to your phone representative. This is for security purposes only and your account will not be charged at this time.

2. We will send you a replacement unit.

3. If you return the unit to us within 14 days from the date you were provided a RA number, only items not covered by warranty will be charged to your account. If your unit is not received within 14 days, the suggested retail value of the receiver will be charged to your credit card. This amount will be credited, less a $10 handling fee, if the unit is subsequently received.

4. Ship your defective unit back to us using the replacement unit’s carton. Shipping instructions will be included on the carton along with your RA number which will allow you to easily ship the unit back to us. Make sure you insure your shipment in case of damage or loss. Include with the shipment:

• Evidence of purchase date such as a bill of sale.

• A brief note describing your receiver problem.

• Your name, address and phone number.

Option 2

1. We will send a replacement unit to our exchange point.

2. The exchange location will notify you of its arrival.

3. Take your unit and evidence of purchase date, such as a bill of sale, to the exchange location and you will be provided the new or refurbished unit. Please retain all accessories such as the remote control hand unit.

4. If the repairs are covered by your warranty, you will not be billed.

Thomson assumes no responsibility of warranty shipments from the customer to the factory if not shipped in the manner prescribed by Thomson.

To receive a replacement receiver after we have received your unit:

• Write the RA number on the outside of the carton used to return the unit. Make sure you insure your shipment in case of damage or loss.

• Carefully pack the unit using the original box and packing material if possible. Please retain all accessories that were included with your unit such as the remote control hand unit.

• Include with the shipment:

1. Evidence of purchase date such as a bill of sale.

2. A brief note describing your receiver problem.

3. Your name, address and phone number.

• The representative will advise the address to mail a cashier’s check or money order for payment if there are any out of warranty labor or parts charges, and you elect not to use your credit card.

• After we receive your product, a new or refurbished unit will be shipped to you.

Appendix A: Warranty Information

What your warranty does not cover:

• Acts of God, such as but not limited to lightning damage.

• Adjustment of customer controls.

• Damage from misuse or neglect.

• A unit that has been modified or incorporated into other products or is used for institutional or other commercial purposes.

• Batteries.

• Units purchased, serviced or operated outside the U.S.A. and Alaska.

• For units intended for use in Alaska, this warranty does not cover installation or the dish antenna. It only covers the satellite receiver.

• Loss of programming.

• Installation.

• Shipping damage if the unit was not packed and shipped in the manner prescribed by Thomson.

• Storage fees may be charged by the exchange point if you fail to pickup the replacement unit in a timely manner.

Product Registration:

• Please complete and mail the Product Registration Card packed with your product. It will make it easier to contact you should it ever be necessary. The return of the card is not required for a warranty coverage.

How state law relates to warranty:

• This warranty gives you specific legal rights and you may have other rights that vary from state to state.

If you purchased your product outside the United States:

• This warranty does not apply. See your dealer for warranty information.

Appendix B: FCC Regulations

FCC Registration Information

Your satellite system equipment is registered with the Federal Communications Commission and is in compliance with parts 15B and 68, FCC Rules and Regulations.

1. Notification to the Local Telephone Company.

On the bottom of this equipment is a label indicating among other information, the FCC Registration number and Ringer Equivalence Number (REN) for the equipment. You must, upon request, provide this information to your telephone company.

The REN is useful to determine the number of devices you may connect to your telephone line and still have all these devices ring when your telephone number is called. In most (but not all) areas, the sum of the RENs of all devices connected to one line should not exceed 5. To be certain of the number of devices you may connect to your line as determined by the REN, you should contact your local telephone company. Note: This equipment may not be used on coin service provided by the telephone company. Party lines are subject to state tariffs, and therefore you may not be able to use your own telephone equipment if you are on a party line. Check with your local telephone company. Notice must be given to the telephone company upon permanent disconnection of your equipment from your line.

2. Rights of the Telephone Company.

Should your equipment cause trouble on your line which may harm the telephone network, the telephone company shall, where practicable, notify you that temporary discontinuance of service may be required. Where prior notice is not practicable and the circumstances warrant such action, the telephone company may temporarily discontinue service immediately. In case of such temporary discontinuance, the telephone company must: (1) promptly notify you of such temporary discontinuance (2) afford you the opportunity to correct the situation and (3) inform you of your right to bring a complaint to the Commission pursuant to procedures set forth in Subpart E of Part 68, FCC Rules and Regulations.

The telephone company may make changes in its communications facilities, equipment, operations of procedures where such action is required in the operation of its business and not inconsistent with FCC Rules and Regulations. If these changes are expected to affect the use or performance of your telephone equipment, the telephone company must give you adequate notice, in writing, to allow you to maintain uninterrupted service.

Radio Interference

This equipment has been type tested and found to comply with the limits for a Class B Digital Device in accordance with the specifications in Part 15 of FCC Rules. These rules are designed to provide reasonable protection against radio and television interference in a residential installation. This equipment generates, uses and can radiate radio frequency energy and, if not installed and used in accordance with the instructions, may cause harmful interference to radio communications. However, there is no guarantee that interference will not occur in a particular installation.

If this equipment does cause interference to radio or television reception (which you can determine by turning the equipment off and on), try to correct the interference by one or more of the following measures:

• Reorient or relocate the receiving antenna (that is, the antenna for radio or television that is “receiving” the interference).

• Change the position of the satellite receiver with respect to the radio or television equipment that is receiving interference.

• Move the satellite receiver away from equipment receiving interference.

• Plug the satellite receiver into a different wall outlet so the receiver and equipment receiving interference are on different branch circuits.

If these measures do not eliminate interference, please consult your dealer or an experienced radio/television technician for additional suggestions. Also, the Federal Communications Commission has prepared a helpful booklet, “How To Identify and Resolve Radio/TV Interference Problems”. This booklet is available from the U.S. Government Printing Office, Washington, D.C. 20402. Please specify stock number 004-000-00345-4 when ordering copies.

Appendix C: Accessories

Accessory Order Form for Satellite Systems

VOL

MUTE

GUIDE

WHO•INPUT ANTENNA

RG-6 Coaxial Burial Cable with weatherproof “F” connectors

Self-Installer’s Kit contains cable and hardware to install the dish and connect the system.

TVSAT ON•OFF

FETCH

CHAN GO BACK

INFO

CLEAR

Remote Control replaces a lost remote. Or, order a second remote for convenience.

Description

RG-6 Coaxial Cable

12 feet D912 $12.95

25 feet D925 $15.95

50 feet D950 $21.95

75 feet D975 $29.95

100 feet D901 $35.95

S-Video Cable 12 feet D913 $12.95

Weatherproof “F” Connector (2) D905 $␣ ␣ 5.30

TVRO Bullet Amplifier D903 $24.95

Self-Installer’s Kit DKIT96 $69.95

Remote Control 240968 $34.95

Home Control Kit HCDSS10 $59.95

Lamp Module HC10LM $14.95

2-Prong Appliance Module HC20AM $16.95

3-Prong Appliance Module HC30AM $16.95

Part No.

Price

Qty

HCDSS10 Home Control Kit contains a Data Interface that connects to the receiver and a lamp module.

HC10LM Lamp module lets you control incandescent lamps. Use to dim/brighten and turn lamps on/off.

HC20AM or HC30AM Appliance modules turn small appliances, like coffee pots, popcorn makers, or stereo, on or off. Also controls non-incandescent lamps Choose 2 prong (HC20AM) or 3 prong (HC30AM).

Prices are subject to change without notice.

Total Merchandise ...............................................................

Sales Tax .............................................................................

We are required by law to collect the appropriate sales tax

for each individual state, country, and locality to which

the merchandise is being sent.

Shipping, Handling, and Insurance .....................................

Total Amount Enclosed ........................................................

Use VISA, MasterCard, or Discover preferably.

Money order or check must be in U.S. currency only.

✂

No COD or CASH.

$ 5.00

All accessories are subject to availability.

Detach Here

Please complete other side also

Appendix C: Accessories

Charge your order on your VISA, MasterCard, or Discover Card by

USE YOUR CREDIT CARD

IMPORTANT: Copy complete account number

Copy Number

above your

name on

MasterCard

IMPORTANT: Copy complete account number

filling in below

from your VISA card

My card expires:

from your MasterCard

My card expires:

from your Discover Card

United States and Canada Orders

To place your order by phone, have your Visa,

MasterCard or Discover Card ready and call the toll-free number listed below between 8AM and 10PM (EST) Monday through Friday or between 9AM and 5PM (EST) Saturday.

Use this number only to place on order for accessory items listed on this order form.

1-800-338-0376

To place your order by mail, detach and mail the completed order form with credit card information, money order or check in US currency (made payable to Thomson Consumer Electronics, Inc.) to the following address:

Video Accessories PO Box 8419 Ronks, PA 17573

My card expires:

AUTHORIZED SIGNATURE

(Credit card order will not be processed without signature)

Prices are subject to change without notice.

Print or type your name and address clearly.

Name:

Street:

City:

State:

A complete and correct order will save you days of waiting.

Apt:

Zip:

Please make sure that both sides of this form have been filled out completely.

• Allow 4 weeks for delivery.

• All accessories are subject to availability.



• Prices are subject to change.

Index

Access Card

entry 43 number 10

Accessories 59 All button 24 AlphaSort button 24 Alternate data 43 Attractions Guide 21, 33 Audio Language 43

Back panel controls 6 Batteries

installing in remote 10

Buttons 12

Cancelling purchases 35 Channel banner 17

anatomy 17 icons 17

Channel Guide 18 Channel lists 37

add channels 37 delete channels 37

Codes 13 Connections 7-8

audio/video quality 8 jacks and cables 5

Data port 17, 46 Default guide 18 Detail Guide 18 Digital satellite receiver

back panel 6 connecting 7-8

DIRECTV button 12, 28, 52,

Dish Pointing 44

azimuth 44 elevation 44 menu 44

Exiting

menus 28, 29 program guides 16, 20

Fetch

button 50 customizing 48-49 menu 49

Front panel controls 6, 12

Glossary 42 Grid Guide 18 GUIDE button 16, 18

Help 26 Home Control 46

accessories 46, 59 icon 17 menu 46 setup 46 timers 47

Icons 16, 40, 47 Interactive setup 10

Light on front panel 31, 54 Locking

a profile 39 the system 40

Logo Guide 20 Look and feel 42

Mailbox

checking your mail 31, 54 icon 17

Main menu 28 Menu system 28

exit 28 help 28 navigation 13

Menus

Dish Pointing 44 Fetch 48 Home Control 46 Mailbox 31 Options 43 Profiles 36 Program Guide 16 Purchases 32 Timers 36

Movies button 23

Options menu 41 Other Guides

Attractions Guide 21 button 21

Passwords 32 Pay-per-view programs 32

tuning to 32

Power (on/off) 12, 54 Profiles

channel lists 37 choosing 41 locking 39 menu 29, 38 ratings limits 37 spending limits 39 unlocking 40 viewing hours 38

Program guides 16, 18

anatomy 16 Attractions Guide 21 buttons 18 Channel Guide 18 default 18 Detail Guide 18 exiting 18 Grid Guide 18 Logo Guide 20 scrolling 18 sorting 22 SurfGuide 18

Programming the Remote 13

to control a TV 13

Purchases 32

cancelling 35 menu 34 reviewing 35 spending limits 35

Ratings limit 37 Remote control

batteries 10 buttons 12 programming 13

Reviewing purchases 35

Scout 25 Screen, blank 54 Scrolling 18

Signal meter 45

peak signal 44

Sorting

program guides 22

Sorting by

All button 22 AlphaSort button 24 Movies button 23 Other Guides button 20 Scout button 25 Sports button 22 Topics button 21

Spending limits 35, 38 Sports button 24 SurfGuide 18 System Info 42 System lock 40 System options 42 System test 43, 53 System unlock 40

Timer feature

editing or cancelling 36, 54

Timers

Home Control 47 icons 46

Timers menu 36 Topics button 23 Troubleshooting 52 Tuning to a program 19

Unlocking

a profile 39 the system 40

Viewing hours limit 38

Warranty information 55
