nCR

camcorder

user's guide

CC8251

Important Safety Information

Be sure to read all the safety information before you begin to use this product.

WARNING: To reduce the risk of fire or shockhazard, do not expose

camcorder or AC adapter/charger to rain or moisture.

RISK_ELECn:UCSHOCK

DO NOT OPEN

This symbol indicates "dangerous voltage" inside the product that presents a risk of electric shock or personal injury.

This symbol indicates important instructions accompanying the product.

TO REDUCE THE RISK OF ELECTRIC SHOCK, DO NOT REMOVE THE COVER (OR BACK). NO USER-SERVICEABLE PARTS ARE INSIDE. REFER SERVICING TO QUALIFIED SERVICE PERSONNEL.

Cautions

CAUTION: To prevent electric shock, match wide blade of plug to

wide slot, fully insert.

ATTENTION: Pour 6viter les chocs 61ectriques, introduire la lame

la plus large de la fiche dans la borne correspondante de la prise et pousser jusqu au fond.

To reduce risk of injury, charge only rechargeable batteries recom- mended by the manufacturer for this camcorder. Other types of

batteries may burst causing damage and personal injury. FCC Regulations state that unauthorized changes or modifications to

this equipment may void the user's authority to operateit.

Product Registration .

Please fill out the product registration card and return it immediately. Returning this card allows us to contact you if needed.

Keep your sales receipt for proof of purchase to obtain warranty parts and service and attach it here.. Record the serial number and model

numbers located on the bottom of the camcorder.

Model No: CC8251

Serial No:

Purchase Date: .....

Purchased From: _ _ ....

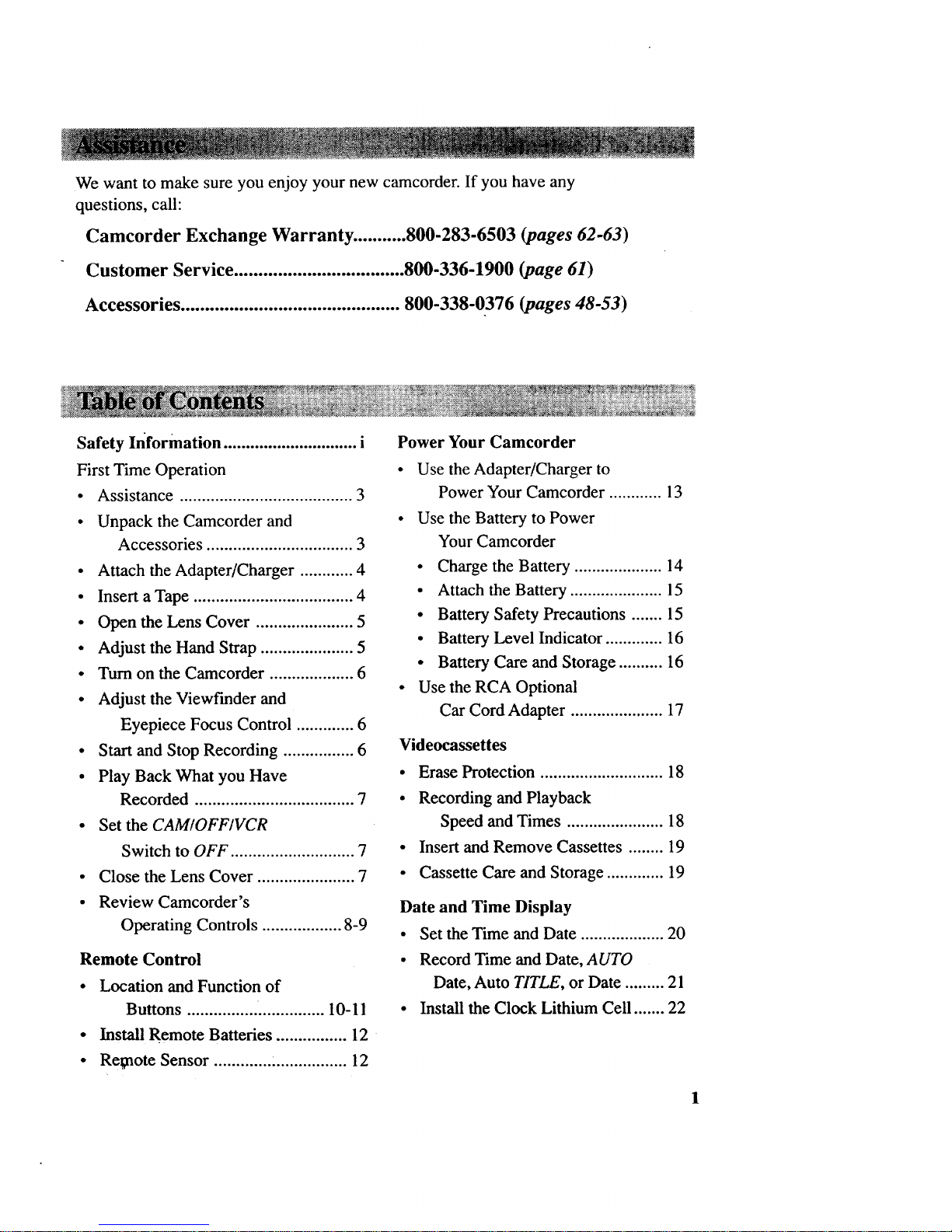

Wewantto makesureyouenjoyyournewcamcorder.If youhaveany questions,call:

Camcorder Exchange Warranty ...........800-283-6503 (pages62-63)

Customer Service ................................... 800-336-1900 (page 61)

Accessories ............................................. 800-338-0376 (pages 48-53)

Safety Information .............................. i

First Time Operation

• Assistance ....................................... 3

• Unpack the Camcorder and

Accessories ................................. 3

• Attach the Adapter/Charger ............ 4

• Insert a Tape .................................... 4

• Open the Lens Cover ...................... 5

• Adjust the Hand Strap ..................... 5

• Turn on the Camcorder ................... 6

• Adjust the Viewfinder and

Eyepiece Focus Control ............. 6

• Start and Stop Recording ................ 6

• Play Back What you Have

Recorded .................................... 7

• Set the CAM/OFF/VCR

Switch to OFF ............................ 7

• Close the Lens Cover ...................... 7

• Review Camcorder's

Operating Controls .................. 8-9

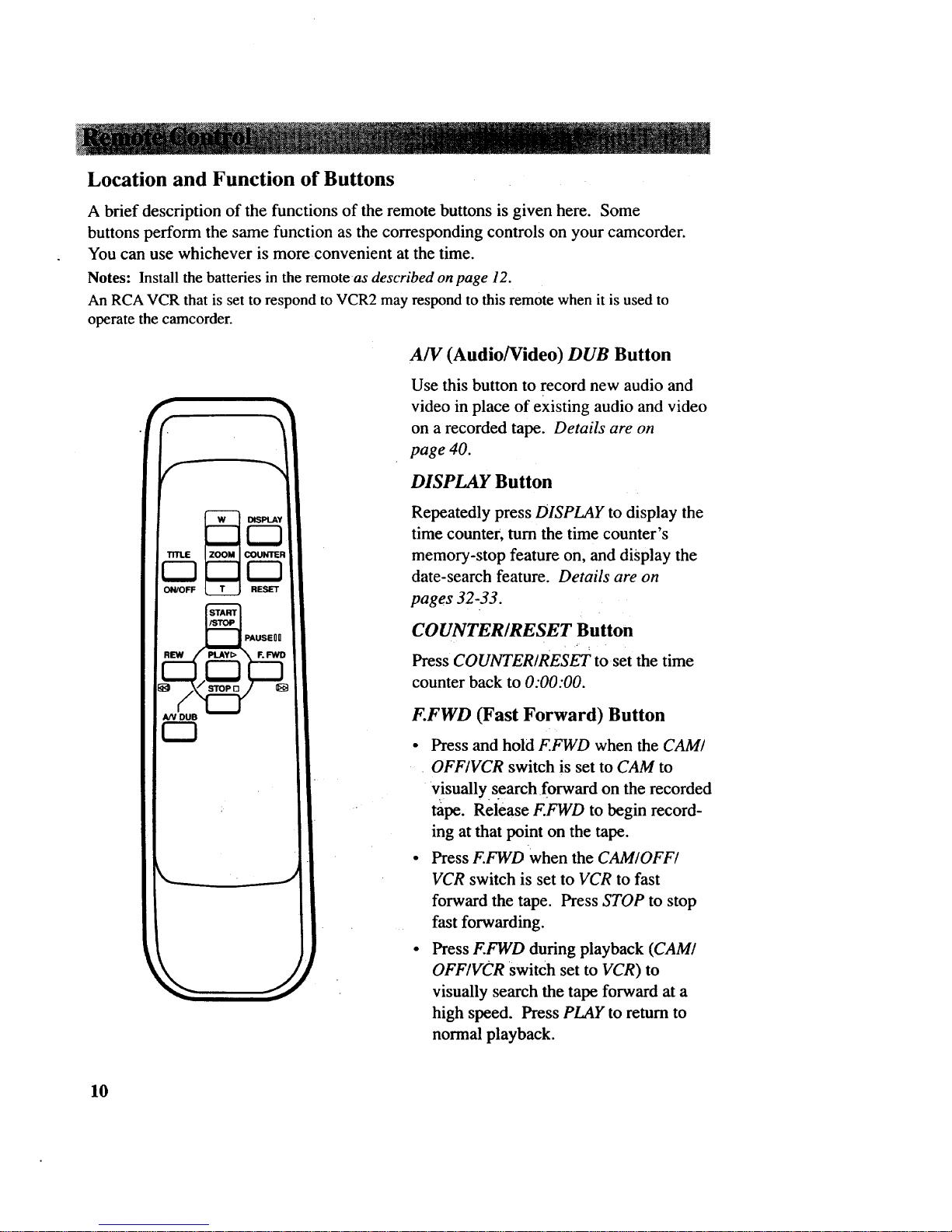

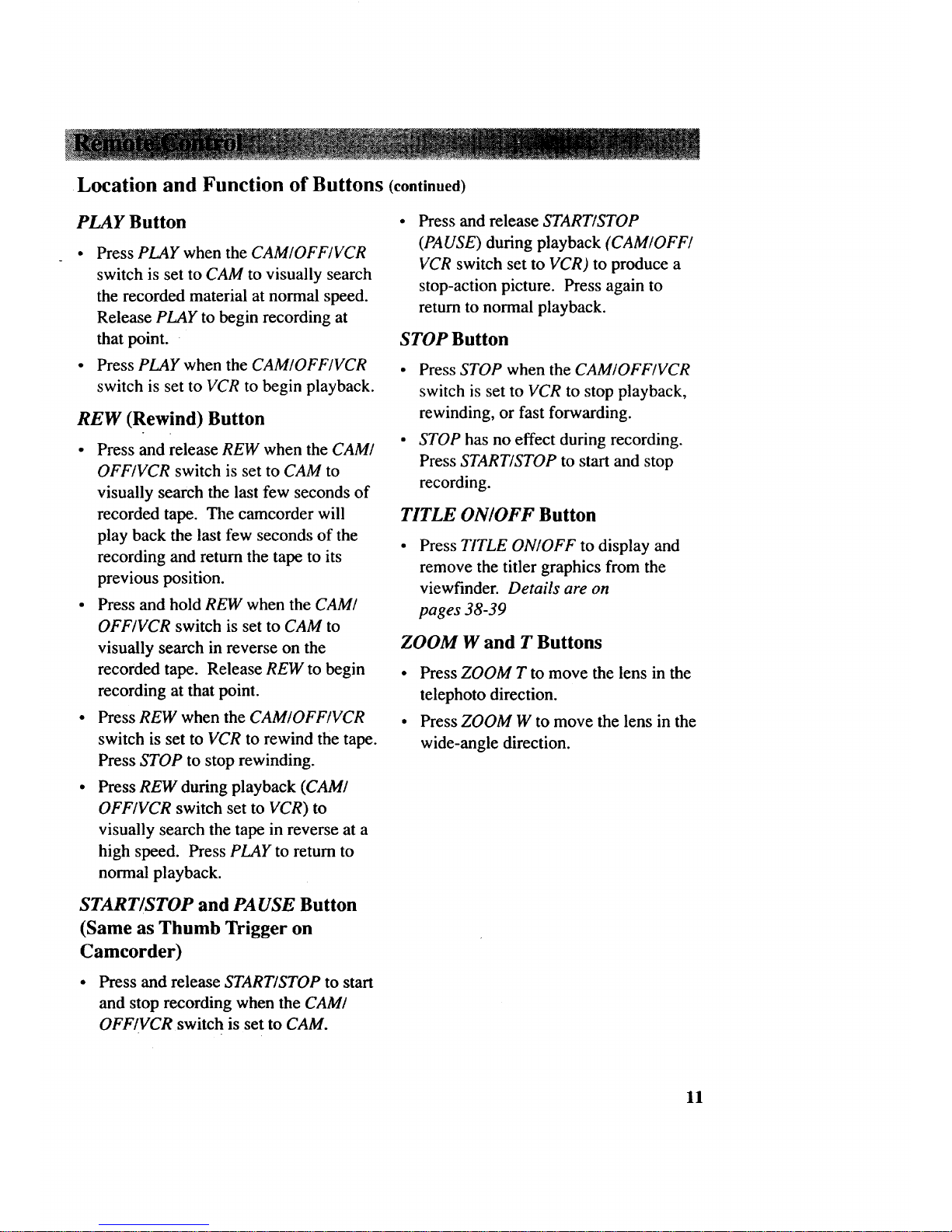

Remote Control

• Location and Function of

Buttons ............................... 10-11

• Install Remote Batteries ................ 12

• Re;note Sensor ............. :................ 12

Power Your Camcorder

Use the Adapter/Charger to

Power Your Camcorder ............ 13

Use the Battery to Power

Your Camcorder

• Charge the Battery .................... 14

• Attach the Battery ..................... 15

• Battery Safety Precautions ....... 15

• Battery Level Indicator ............. 16

• Battery Care and Storage .......... 16

Use the RCA Optional

Car Cord Adapter ..................... 17

Videocassettes

• Erase Protection ............................ 18

• Recording and Playback

Speed and Times ...................... 18

• Insert and Remove Cassettes ........ 19

• Cassette Care and Storage ............. 19

Date and Time Display

• Set the Time and Date ................... 20

• Record Time and Date, AUTO

Date, Auto TITLE, or Date ......... 21

• Install the Clock Lithium Cell ....... 22

Recording

• Use the Viewfinder

to See What You Record .......... 23

• Viewfinder Displays ................. 24-25

• Microphone ................................... 26

• Flying Erase Head ................ ......... 26

• Tally Light ..................................... 26

• Quick Review Feature ................... 26

• Camera Edit Feature ..................... 27

• Program AE (Auto Exposure) ....... 27

• Fociasing

• Auto Focus ................................ 28

• Manual Focus ........................... 28

• Macro Focus ............................. 29

• Tape-Remaining Display ............... 29

• Zooming

• Use the Zoom Lever ................. 30

• Instant Zoom. ............................ 30

• Fade In and Out of Scenes ............ 31

• DISPLAYButton... ......................... 32

• Time Counter ............................ 32

• Memory-Stop Feature ............ 32

• Date Search ............................... 33

• Digital Effects ............................... 34

• 16 X 9 Mode ............................. 35

• Negative Mode ......................... 36

• Digital Zooming ....................... 36

• Mirror Mode ............................. 37

• Mosaic Mode ............................ 37

• Titler

• Create a Title ............................. 38

• Record a Title on the Tape

in the Camcorder ................... 39

• Record a Title While Copying

a Tape .................................... 39

• ,_,udio and Video Dub ................... 40

• Recording Tips .............................. 41

• Camcorder Holding Tips ............... 41

• Travel Tips .................................... 41

Playback

• Playback a Tape in the

Viewfinder ............................ 42

• Playback Features

• Stop-Action Pause ..................... 43

• Visual Searching ........................ 43

• Tape Positioning ........................ 43

• Playback on TV (or VCR) with

Audio/Video Input Jacks ..... 44-45

• Playback on TV Without

Audio/Video Input Jacks ..... 46-47

Optional Accessories

• Accessories ................................... 48

• Using the Optional Tripod ............ 49

• Attaching the Optional Shoulder

Strap .......................................... 50

• Accessory Order Form ............. 51-53

Trouble Checks ........................... 54-57

Care and Maintenance

• Clean the Camcorder ..................... 58

• Clean the Camcorder's Lens ......... 58

• Clean the Camcorder's

Viewfinder ................................. 58

• Proper Care and Storage ............... 59

• Things to Avoid ............................. 59

Specifications .................................... 60

Information to User ..................... .... 60

Customer Assistance ........................ 61

Limited Warranty ............... ........ 62-63

Index ............................................ 64-68

This section describes the basic steps necessary to set up your camcorder to record. Refer to the other sections for detailed operation and feature options.

Assistance

The toll-free numbers are available to help you with any problem you may encounter.

Camcorder Exchange Warranty ............... 800-283-6503

Customer Service ................................... 800-336-1900

Accessories ............................................. 800-338-0376

Unpack the camcorder and accessories.

• Save the packing materials and box in case you ever need to ship or-store your camcorder.

• The items shown below are packed with your camcorder. If any are missing or appear damaged, contact your dealer immediately.

"AA" Batteries

for Remote

Camcorder

Model CC8251

AC Adapter/Charger

Stock No. 241250

DC Cable: Stock No. 233407

Remote Control

Stock No. 241920

Rechargeable 7.2-Volt Battery

Stock No. BB65L

Audio/Video

Output Cable

Stock No. 233408

<S)

Clock Cell

3-Volt Micro Lithium

Cell - such as CR2025 - available from most local

drug stores and camera

shops. Use.f other cells

present a risk of fire or explclsion.

(continued on next page)

2. Attach the adapter/charger. To AC 100-240V, 50/60 Hz

JlCOUT Jack It'[]_

ble F "_/

DC C J Adapter/

DC IN 6V Jack Charger

Since the battery must be charged before it can be used the first time,

attach the adapter/charger to the camcorder.

1. Attach one end of the adapter/

charger's DC cable to the DC OUT jack on the side of the adapter/charger.

2. Attach the other end of the cable to the DC IN 6V jack on the

camcorder.

3. Plug the adapter/charger's plug

into an operating outlet.

4. Details are on page 13.

Insert a tape .................................................................................................................................................................................................................................................

Cassette Holder

EJECT Switch

Tab

Tape Window

Cassette Door (Presson

PUSH LOCK to close.)

1.Slide EJECT to open the cassette

compartment. _ EJECT

appears in the viewf'mder.

2. Insert the cassette fully with the

, safety tab and tape window

facing out into the cassette compartmen t.

3. Press on the area labeled PUSH: LOCK until the door clicks.

4. Open the lens cover.

Lens Cover CLOSE/ OPEN Switch

• Align the lens cover CLOSE/ OPEN switch to OPEN to open the

lens cover.

Note: Press in the small button on the

switch when you set the switch to

CLOSE.

5. Adjust the hand strap. _______

Handstrap Flap

Handstrap

• Open the handstrap, insert your

hand, and adjust the handstrap to fit your hand. Close the handstrap pad securely.

.€

(continued on next page)

_iece

Focus Control

Viewfinder

Thumb Trigger

Switch

6. Turn on the camcorder.

• Press and hold the small button

on the CAM/OFF/VCR switch while you set it to CAM. The

camcorder enters record-pause.

• The position of this switch tells

the camcorder whether you want to record (CAM), turn the power off (OFF), or play back tapes (VCR).

• The camcorder automatically

turns off if it remains in record- pause for five minutes. Place

the switch to OFF and then back to CAM.

Notes:

The TAPE indicator flashes in the

viewfinder when there is moisture in the camcorder. Remove the tape and wait an

hour before inserting the tape in the camcorder again.

If you want the date and time displayed on your recordings, you must set it. See

Date and Time Display on pages 20-22.

Adjust the viewfinder and eyepiece focus control.

Rotate the viewfinder into a comfortable viewing position.

Turn the eyepiece focus control to adjust the focus of the viewfinder

for your vision.

8. Start and stop recording.

• Press and release the thumb

trigger to start recording. REC

appears in the viewfinder when the camcorder is recording.

• Press and release the thumb trigger again to stop recording.

The camcorder is now in the record-pause mode ( • IIappears in

the viewfinder when the camcorder is in record-pause).

sCover

CLOSE/OPEN

Switch

Play back what you have recorded.

1. Press the thumb trigger to pause

recording.

2. Press and hold the small button on the CAM/OFF/VCR switch while you set it to VCR.

3. Press REW/REVIEW to rewind

the tape.

4. Press PLAY to play backthe tape.

5. Press STOP when you are finished playing backthe tape.

10.

11.

Details on viewfinder playback are

on page 42. _ _ _ •

Set the CAM/OFF/VCR switch to OFF to turn off the camcorder.

Close the lens cover.

Press and hold the •small button on the lens cover CLOSE/OPEN switch while you set it to CLOSE.

• . .

12. Review camcorder's operating controls.

Viewfinder

Eyepiece Focus

Control

_- Shoulder Strap

Attachment Ring

Lens

Tally Light

Remote Sensor

ZOOM Button

EFFECTS Button

Button

v/A

Buttons

PUSH LOCK

Button (Press here to close cassette

Cover compartment.)

CLOSEIOPEN

Switch

Button

Rechargeable

Battery Here

Shoulder Strap

Attachment Ring

DC IN 6V Jack (Attach

Adapter/Charger's DC Cord Here)

12. Review camcorder's operating controls. (continued)

EJECT

• Button

Button /

REW/REVIEW / [_

Button _-_

STOP

Button

Audio (White) and Video

(Yellow) Jacks (Under Small Cover)

RF Output

Connector

(Under Small Cover)

VCR Switch

Thumb Trigger

Power Zoom Lever

Strap Flap

Hand Strap

Clock Cell Compartment Tripod

Mounting Hole

Location and Function of Buttons

A brief description of the functions of the remote buttons is given here. Some buttons perform the same function as the corresponding controls on your camcorder.

You can use whichever is more convenient at the time.

Notes: Install the batteries in the remote as described on page 12. An RCA VCR that is set to respond to VCR2 may respond to this remote when it is used to

operate the camcorder.

A/V (Audio/Video) DUB Button

Use this button to record new audio and video in place of existing audio and video on a recorded tape. Details are on

page 40.

DISPLAY Button

Repeatedly press DISPLAY to display the time counter, turn the time counter's

memory-stop feature on, and display the date-search feature. Details are on

pages 32-33.

COUNTER/RESET Button Press COUNTER/RESET to set the time

counter back to 0:00:00.

F.FWD (Fast Forward) Button

• Press and hold FFWD when the CAM/ OFF/VCR switch is set to CAM to

visually search forward on the recorded

tape. Release F.FWD to begin record- ing at that point on the tape.

• Press F.FWD when the CAM/OFF/ VCR switch is set to VCR to fast

forward the tape. Press STOP to stop fast forwarding.

• Press F.FWD during playback (CAM/ OFF/VCR Switch set to VCR) to

visually search the tape forward at a high speed. Press PLAY to return to

normal playback.

Location and Function of Buttons (continued)

PLAY Button

• Press PLAY when the CAM/OFF/VCR

switch is set to CAM to visually search the recorded material at normal speed. Release PLAY to begin recording at that point.

• Press PLAY when the CAM/OFF/VCR switch is set to VCR to begin playback.

REW (Rewind) Button

• Press and release REW when the CAM/ OFF/VCR switch is set to CAM to visually search the last few seconds of recorded tape. The camcorder will play back the last few seconds of the recording and return the tape to its previous position.

• Press and hold REW when the CAM/

OFF/VCR switch is set to CAM to visually search in reverse on the recorded tape. Release REW to begin

recording at that point.

• Press REW when the CAM/OFF/VCR switch is set to VCR to rewind the tape.

Press STOP to stop rewinding.

• Press REW during playback (CAM/ OFF/VCR switch set to VCR) to

visually search the tape in reverse at a high speed. Press PLAY to return to normal playback.

START/STOP and PAUSE Button (Same as Thumb Trigger on

Camcorder)

• Press and release START/STOP to start and stop recording when the CAM/

OFF/VCR switch is set to CAM.

Press and release START/STOP (PAUSE) during playback (CAM/OFF/

VCR switch set to VCR) to produce a stop-action picture. Press again to

return to normal playback.

STOP Button

• Press STOP when the CAM/OFF/VCR switch is set to VCR to stop playback, rewinding, or fast forwarding.

• STOP has no effect during recording. Press START/STOP to start and stop recording.

TITLE ON/OFF Button

Press TITLE ON/OFF to display and remove the titler graphics from the viewfinder. Details are on

pages 38-39

ZOOM W and T Buttons

• Press ZOOM T to move the lens in the

telephoto direction.

• Press ZOOM W to move the lens in the wide-angle direction.

Install Remote Batteries

1. Slide the battery cover on the back of the remote in the direction of the

arrow to remove it.

Notes: Never place anything heavy on top of the remote or lay it upside down.

Replace batteries when camcorder fails to respond to the remote. Remove the batteries from the remote if it will not be used for a month or more to prevent possible damage from the battery. If leakage occurs, wipe up the liquid inside the compart- ment and replace the batteries.

2. Insert the batteries making sure to

match the + and - of the batteries to

the + and - in the battery compartment.

3. Replace the battery compartment

cover.

Remote Sensor

The remote operates the camcorder by infrared light, so it is protected from electrical and sound interference. However, the remote must be aimed directly at the camcorder's remote sensor. There cannot be any obstructions between them.

Note: The camcorde_: may not respond to the

remote if its sensor is exposed to direct

sunlight or strong artificial light.

Use the Adapter/Charger to Power Your Camcorder

The adapter/charger attaches to the camcorder and lets you power your camcorder

directly from standard household power. The adapter/charger operates on 100-240 volts, 50/60 Hz, so it can be used virtually anywhere in the world to power the camcorder or recharge the battery.

To AC 100-240V, 50/60 Hz

DC IN 6V Jack

DC OUT Jack

II oc Cable .

J Adapter/

Charger

Attach Adapter/Charger

1. Attach one end of the adapter/ charger's DC cable to the DC OUT

jack on the side of the

adapter/charger.

2. Attach the other end of the cable to the DC IN 6V jack on the camcorder.

3. Plug the adapter/charger's plug into an operating AC outlet (100-240V, 50/ 60Hz).

Caution: D6 nO[:_fig_this:adapted:

Remove Adapter/Charger

1. Unplug the adapter/charger from the

wall outlet.

2. Remove the DC cable from the adapter/charger and camcorder.

Using an Optional Plug Adapter

An optional plug adapter might be required in some countries.

Optional AC AC 100-240V

Plug Adapter

1. Plug the adapter[charger's plug into the AC plug adapter.

2. Plug the AC plug adapter into the AC outlet.

Use the Battery to Power Your Camcorder

Charge the Battery

You must charge the battery before you can use it the first time. Initial charging will take approximately 130 minutes. The camcorder's operating time depends on how often you turn the power on and off and how much you use zoom and pause. Conserve battery power by turning the camcorder off during recording breaks.

To AC 100-240V, 50/60 Hz

CHARCE

Indicator

Rechargeable Battery

• (Hold battery flush and

Adapter/Charger slide down.)

Charge the Battery

If the DC cable is attached to the DC OUT jack on the adapter/charger,

remove it.

Plug adapter/charger into nearest AC outlet. The red POWER indicator on

the adapter/charger lights. Align reference mark on the bottom of

the battery with the mark on the adapter/charger. Hold the battery

flush against the adapter/charger and slide it down in the direction of the

arrow. The green CHARGE indicator

lights.

3. The CHARGE indicator will repeatedly light for three seconds and

then go off to show that the battery is approximately 70% charged. The

CHARGE indicator turns off when the battery is completely charged.

4. Unplug the adapter/charger and remove the charged battery by sliding

it up and off the adapter/charger.

Note: If you reattach a fully charged battery, the CHARGE indicator will light.

This does not indicate the battery is not charged.

5. Attach the charged battery to the camcorder as shown on the next page.

Use the Battery to Power Your Camcorder (continued)

BATTERY

Switch

Rechargeable Battery (Hold battery flush and slide down.)

Attach the Charged Battery

If the DC cable is attached to the camcorder, remove it before attaching the battery.

1. Set the CAM/OFF/VCR switch to

OFF.

2. Align the bottom of the battery to the arrow on the back of the camcorder

so the battery fits in the grooves.

3. Hold the battery flush against the camcorder while sliding it down in the direction of the arrow.

4. Press and hold the small button on the CAM/OFF/VCR switch while you

slide it to CAM.

Remove the Battery Remove the battery from the camcorder

when you are finished.

1. Set the CAM/OFF/VCR switch to

OFF.

2. Slide and hold the BATTERY EJECT switch while you slide the battery up

and remove it from the camcorder.

Battery Safety Precautions _.'___ " _ .... _ _'

• If the POWER indicator on the adapter/

charger starts flashing, remove the battery, and reattach it. If after several attempts, the indicator continues to flash, your battery cannot take a charge and must be replaced.

• Throwing the battery into a fire or exposing the battery to excessive heat - over 149°F (65*C) could be hazardous.

• Do not attempt to disassemble or

modify the battery. There are no user-

serviceable parts inside.

• Use the battery only with specified AC

adapter/chargers and camcorders.

• If leakage from a damaged battery

contacts your skin or clothing, wash it off immediately with running water.

Do not short the battery's terminals. Allow the battery to cool down before

attaching it to the adapter/charger.

Use the Battery to Power Your Camcorder (continued)

Battery Level Indicator

The battery level indicator appears in the viewfinder and shows you the amount of

power in the rechargeable battery. The battery level indicator will not be recorded on the tape when it appears in the viewfinder.

• When _ appears, the battery is fully charged.

• As the power is used _"--", _ _,

--, and ,, appear.

• When the battery power is almost gone, _ :: • flashes in the viewfinder. Recharge the battery or use the adapter/ charger before continuing to use the camcorder. Set the CAM/OFF/VCR

switch to OFF to turn off the cam- corder before replacing the battery.

Note: The battery level indicator does not appear when you use the adapter/charger or car cord adapter to power the camcorder.

CautiOns: When a battery reaches i

_mpty during use, the camcorder: :i

turns off? _The battery sh_Uld':!_tiifiiii_::_!::',_i

have enough reservepower_t 0 ei_ct i:

cassette,_ _wer the-eame_td¢_::i_i: ::i::i the adap:ier[charger o!7reCh_i:__!::i :::':

Battery Care and Storage

• Discharge the battery when not in

use to provide better service and longer performance.

• The battery should be charged at a temperature of 32°F -104*F (0°C - 40°C) to prevent damage.

• Do not operate the battery at temperatures below 14*F (-10*C) or above 113°F (45*C). The battery might be damaged if operated at temperatures above 122°F (50°C). Operation time will decrease at extremely low temperatures.

• After repeated chargings and use the

operation time will decrease. When the operation time becomes too short to be useful, it is time to replace the battery.

• Store the battery at normal room temperature. High temperatures will damage the battery.

• Discharge the battery before storage and charge it before use.

Use the RCA Optional Car Cord Adapter

The optional DCC06 car cord shown on

page 48 allows you to power your

camcorder from the cigarette lighter

socket of a car, truck, or RV. It converts 24- and 12-volts to a 6-volt output. Note: Consult the installation and operating

instructions enclosed with the DCC06 for complete operating instructions.

Use the DCC06 Car Cord Adapter

pter/Charger's

DC Cable

DC IN 6 Jack

Optional Car Cord (DCC06)

DC Cigarette Lighter

OUTPUT Socket

Jack

1. Set the CAM/OFF/VCR switch to

OFF to turn off the camcorder.

2. Connect one of the DC cable's small plugs into the DC OUTPUT jack on

the car cord adapter.

3. Attach the other end of the DC cable

to the DC IN 6V jack located on the back of the camcorder.

4. Take the vehicle's cigarette lighter out

of the socket.

5. Insert the car cord's cigarette lighter

plug into the vehicle's cigarette lighter socket.

. Press and hold the small button on

the CAM/OFF/VCR switch while you set it to CAM to turn on the camcorder.

Notes: Consult the vehicle owner's manual to see if the vehicle's ignition switch must be tumed on before the DC car cord will operate. When using the car cord to power the camcorder, the battery level indicator has no meaning.

Makesureyouselectgoodqualitytapesfor yourcamcorder.Useof poorquality tapesor tapesthathavebeendamagedormishandledcancontaminatethevideo heads,resultingin asnowypictureornopictureatall duringplayback.Becausethere isnocontroloverthetypeof tapepurchasedorrentedbyconsumers,headcleaningis not coveredunder warranty. It is considerednormalmaintenance.

Playinganewtapefor approximately30minuteswill oftensatisfactorilycleanthe headsandimprovethepicturequality.

Erase Protection - Safety Tab __:_

You can use your videocassettes over and over again. To erase a previous recording,

just record over it.

Safety Tab

To prevent erasure, close the safety tab

(expose red).

To record again,

open safety tab (cover red).

Record and Playback Speed and Times_

The camcorder records and plays back in standard speed (SP). Listed below are the

maximum recording times for popular 8mm cassettes.

P6-20 P6-45 P6-60 P6-90 P6-120

20 Minutes 45 Minutes 60 Minutes

90 Minutes

2 Hours

Insert and Remove Cassettes

Cassette Holder

_Safety Tab

Cassette Door (Press on rape Window

PUSH LOCK to close.)

Slide EJECT to open the cassette compartment. _ EJECT appears

in the viewfinder. Insert the cassette fully with the

safety tab and tape window facing out.

3. Press on the area labeled PUSH LOCK until the cassette door clicks.

4. Remove, rewind and label the cassette when you are finished recording.

Cassette Care and Storage

• When you are finished with a cassette,

rewind it, remove it from the

camcorder, and label it.

• Close the safety tab to prevent acciden- tal erasure of your recording=.

• Do not touch or cover the small holes • in the cassette or use cassettes with

damaged or spliced tape.

• Store cassettes vertically in their protective cases at normal room

temperatures. Do not leave your • camcorder or cassettes in a car or

outdoors for an extended period.

Excessive heat or cold might damage your cassettes.

Keep the cassette away from strong magnetic fields such as electric motors and other devices.

Keep dust from entering the cassette compartment. All dust is abrasive and will cause excessive wear on the tape and the camcorder's recording or playback heads.

Do not use a cassette if it has been damaged or exposed to moisture. The

tape might jam and/or damage your camcorder.

Set the Time and Date

You must set the correct date and time before it can be displayed and recorded on your tapes. The clock cell must be installed as described on page 22.

Button

VCR Switch

STOP Button

DATE/DISP Button

Attach a power supply to the camcorder.

Press and hold the small button on the CAM/OFF/VCR switch while you set

it to CAM.

3. Press the DATE/DISP button to

display the date and time. A flashing cursor lets you know which part of the display you are setting.

Note: If the flashing cursor does not appear, press and hold DATE/DISP and then press STOP.

4. Repeatedly press FFWD or REW/

REVIEW until the correct month

appears. Press and hold the button to advance the digits faster.

1 2 : OOAM

111998

5. When the correct month is displayed, press STOP. The cursor moves to the next part of the display.

6. Repeat steps 4 and 5 to set the correct month, day, year, hour, minute(s), and

AM/PM.

After setting AM or PM, press the DATE/DISP button to remove the

flashing cursor and start the internal clock.

To Correct the Date or Time

To correct the date or time, press and hold the DATE/DISP button and then press STOP. The display and the flashing cursor appear. Use STOP, F.FWD, and

REW/REVIEW to correct the time or date. Press DATE/DISP to remove the flashing

cursor and start the clock.

i ..........

Record the Time and Date, AUTO Date, Auto TITLE, or Date

The time and date, AUTO date, auto TITLE and date, date only, or no display can be recorded on your tape. Whenever one of these displays appears, it will be recorded.

To Select the Display to Record

Repeatedly press DATE/D1SP to select

the display you want to record.

• Date and Time Display: The date

and time will be displayed and

recorded.

(S)AUTO Date: The date is

automatically recorded for approxi- mately ten seconds at the beginning of the recording.

• (_ TITLE: The date and title you

have created are displayed and recorded for approximately ten

seconds at the beginning of the

recording.

• Date Display: The date is dis-

played and recorded.

• No Display: No display is dis-

played or recorded.

Install the Clock Lithium Cell

The lithium cell must be installed before you set the time and date.

1. Set the CAM/OFF/VCR switch to OFF and remove any power supply.

_Cloc _kCell/ _Y--Clock Cell

Compartment Holder

Remove the cell holder from the camcorder.

Clock Cell (+ Side Facing Up)

__--Cl_ckCell

( )

CIo°CmkCr_lmle/nt _--C_tkCell

4. Place the cell holder back into the

camcorder. Press it in firmly to lock into place.

Note: Remove the battery from the camcorder if it will not be used for a month or more. This

will prevent possible damage from battery leakage. If leakage occurs, wipe up the liquid inside the compartment and replace the battery.

3. Insert the clock cell into the cell holder with the + side facing up.

Use the Viewfinder to See What You Record

The camcorder's viewfinder is a miniature monitor that displays the picture seen by

the camcorder when recording.

Adjust Viewfinder for Convenient Viewing

For convenient viewing, rotate the viewfinder into a comfortable viewing position and adjust the eyepiece.

Eyepiece

Viewfinder

•Eyepiece Focus Control

The eyepiece focus control lets you set

the focus of the viewfinder for your vision. If you wear eyeglasses, you

probably can operate the camcorder

without them. It is easiest to set the correct focus by

focusing on one of the viewfinder's on,

screen displays. Look through the viewfinder and adjust the eyepiece focus control for your vision.

The eyepiece focus control does not affect the focus of the picture actually recorded by the camcorder.

Viewfinder Displays

Several displays that aid in the operation of the camcorder appear in the viewfinder.

AE:60 FOCUS 0:00:35M

BIW _-_l

16X9

ZOOM NO TAPE

I0:30AM

REC 11/18/1998

AE:60 (Auto Exposure) Shutter Speed The shutter speed selected by the

camcorder appears here.

Battery Level Indicator (.-----)

This indicator displays the amount of time left on the rechargeable battery. Details

are on page 16.

Digital Effects (16X9) Press the D. EFFECTS button to select a digital effect mode.

• Select 16X9 to make a recording

that you're going to play back on a

16X9 TV. Select NEGPOS to reverse the image

from positive to negative. Select ZM:2 to activate the extended zoom mode - wide angle to 130 times. ZOOM appears when you zoom over

16 times.

• Select MIRROR to record a symmetric

image on the left and right.

• Select MOSAIC to record a mosaic image.

• Details are on pages 34-37.

Fade Indicator (B/W) Press the FADE button to select a fade.

• Select [] to white fade.

• Select [_] to wipe fade.

• Select [] to zoom fade.

• Select B/W to black-and-white fade.

• Details are on page 31.

FOCUS Indicator

• FOCUS appears during manual focus.

• No focus indicator appears during auto focus. Details are on page 28.

Status Displays

The following displays appear to tell you

the status of the camcorder.

¥iewfinder Displays (continued)

• The REC indicator appears during recording.

• The • II indicator appears during record-pause.

• A/V DUB appears during audio/video dubbing.

• The • • indicator appears when the camcorder is fast-forwarding.

• The •• indicator appears when the carricorder is rewinding.

Time Counter with Memory Stop

(0:00:35M) or SEARCH Repeatedly press DISPLAY on the remote

to display the time counter, turn memory stop on, and display SEARCH for the date

search feature.

• The time counter shows the amount of elapsed recording or playback time.

• M appears after the time counter when memory stop is turned on.

Details are on page 32.

Note: During playback or play pause, you can also press DATE/DISP on the cam- corder to turn memory stop on and off.

• You can search for the beginning or end of recordings made on a certain

date when SEARCH appears. Details

are on page 33.

Tape Warnings (TAPE, NO TAPE, and TAPE END)

• TAPE flashes when you try to record with the safety tab closed.

• TAPE flashes when a damaged tape is

inserted. Remove the tape and replace it with a new one.

• TAPE flashes when moisture is

I_resent in the camcorder. Remove the

tape and wait an hour before reinserting.

• NO TAPE flashes when you try to

record with no cassette inserted.

• TAPE END flashes when there is approximately three minutes of

recording time left on the tape.

• TAPE END briefly appears when you reach the end of the cassette when

you're recording.

Tape-Remaining Indicator (_)

This display shows the approximate

amount of tape left for recording or playback. Details are on page 29.

Time and Date Display

Press the DATE/DISP button to display the time and date, AUTO date, auto

TITLE, date only, or no date when the

camcorder is in record-pause.

• These displays are recorded on the

tape when they appear in the viewfinder.

• Details are on pages 20-21.

Zoom ( t )' ZOOM, andLZOOM

Indicators

zoom indicator ( ! ) appears

The

when you use the power zoom lever (T and W).

• ZOOM appears when you zoom with the T button more than i 6 times.

• LZOOM appears when you press the INST. ZOOM button to enlarge the

picture 1.5 times.

• Details are on pages 30 and 36.

phone

Tally Light

CAM/OFF/

Switch

REW/REVIEW

Button

Microphone

The microphone picks up the sound during a recording. It is more sensitive to sounds coming from the direction the lens is pointed.

Flying Erase Head

A separate erase head is mounted on the

spinning headwheel (hence the term "flying"). This allows you to make clean edits without the "glitches" or "rainbow noise" that might occur at the beginning or end of recordings.

Tally Light

The tally light on the front of the

camcorder lights when the camcorder is

recording.

Quick Review Feature

Press and release REW/REVIEW (REW on remote) when the camcorder is in record-pause to review the last few seconds of a recording. The CAM/OFF/

VCR switch must be set to CAM. The camcorder will play back the last few

seconds of the recording, return the tape to its previous position, and return to record-pause.

F.FWD

Butt°n_ / I£

PLAY [ _'_ _ [[["_ I_

stoP J

Button _ _

REW/REVIEW

Button

REW

Button--

PLAY

Button j

--F.FWD

Button

_STOP

Button

Camera Edit Feature

The camera edit feature allows you to position the tape when the camcorder is

in record-pause. Press and hold the small

button on the CAM/OFF/VCR switch while you set it to CAM.

• Press and hold REW/REVIEW (REW

on remote) to visually search the recorded tape in reverse.

• Press and hold F.FWD to visually search forward on the recorded tape.

• Press and hold PLAY to view the recorded tape at normal speed.

When you release the button, the cam- corder returns to record-pause at that point on the tape.

Program AE (Auto Exposure)

The camcorder automatically selects the

best shutter speed and adjusts the iris according to recording conditions.

AE:60

The AE indicator for the shutter speed selected (1/60, 1/100, 1/120, 1/180, 1/250,

1/350, 1/500, 1/750, 1/1000, 1/1500,

1/2000, or 1/4000 second) appears in the

viewfinder.

Focusing

The camcorder can adjust focus automatically under normal conditions. You might need to focus manually under certain conditions.

Zoom Lever

FOCUS •/v Buttons

Auto Focus

During auto focus, the camcorder focuses on the object located in the center

area of the viewfinder.

• Auto focus operates on the telephoto "T" side from approximately 3.3 feet to infinity.

• Auto focus operates on the wide-angle "W'" side from approximately 3/8 inches from the lens surface to infinity.

• No indicator appears in the viewfinder during auto focus.

Note: The lens must be clean for the camcorder to focus accurately.

Manual Focus

You might need to focus manually under certain conditions, such as those listed on

the following page.

Press and hold the small button on the CAM/OFF/VCR switch while you set

it to CAM.

2. PressFOCUS •/• togethertotum on manual focus. FOCUS appears in the viewfinder during manual focus.

3. Slide the zoom lever to T to zoom in on the subject and center the subject in

the viewfinder.

4. Adjust the focus for a subject nearer

or farther away.

• Press and hold FOCUS • to focus

clearly on a near subject.

• Press and hold FOCUS • to focus

clearly on a subject far away.

5. When you are finished focusing manually, press FOCUS •/v together to turn on auto focus. FOCUS disappears from the viewfinder.

Focusing (continued)

Macro Focus

You can focus on objects as close as 3/8 inch from the camcorder lens with macro

focus.

Make sure FOCUS does not appear in the viewfinder. If it does, press FOCUS A/v together to turn off

manual focus.

2. Slide the zoom lever to W until the lens is completely zoomed out.

3. Position the subject in the center of

the viewfinder.

Notes: Zooming is not possible when using macro focus. To change the size of the subject, move the camcorder's lens closer or farther away from it.

For best results, increase illumination when recording using macro focus.

Conditions Requiring Manual Focus * When recording a subject through a

window.

• When recording a subject having a close foreground and a background that is far away.

• When recording in low-light situa-

tions.

• When recording two subjects at different distances that overlap in the

same scene.

• When the subject is not in the center

of the scene.

• When recording a scene with fast

motions, like a tennis swing.

Tape-Remaining Display _,___,_____

The tape-remaining display shows the

approximate amount of tape remaining for

recording or playback.

Tape-Remaining Display

in Viewfinder

The camcorder takes approximately ten seconds to calculate the tape remaining when you first start playing or record- ing a tape.

ii,

.... appears while the

camcorder calculates the amount of tape remaining. Once tape remaining has been calcu-

lated, it automatically updates and is readily available as long as the same tape remains in the camcorder.

When ml appears, all or most of the tape remains.

m,--,-- and m_--- appear as the tape is

being used. When the tape is almost at its end

(approximately three minutes of recording time remain), TAPE END

flashes in the viewfinder. TAPE END appears briefly when the

end of the cassette is reached during recording.

Zooming

The zoom lens allows you to zoom in (enlarge the image from 1-16 times) for close- ups or zoom out for wide-angle shots. Instant zooming lets you magnify the picture

1.5 times regardless of the position of the zoom lever. Digital zooming lets you zoom

in on a subject with magnification up to 130 times as described on page 36.

Zoom Lever

Zoom Buttons

(T and

_ Button

Use the Zoom Lever (T and W)

To zoom in or out from wide angle to 32 times, slide the zoom lever (ZOOM

T and W on remote).

• To move the lens in the telephoto (close-up) direction, slide the lever to T (press ZOOM T on remote).

• To move the lens in the wide-angle direction, slide the lever to W (press ZOOM W on remote).

The zoom level indicator appears in the viewfinder.

ZOON

ZOOM appears when you zoom more than 16 times.

Note: Some deterioration of the picture might occur with zoom ratios over 16.

Instant Zooming

. Press the INST. ZOOM button to

magnify the subject 1.5 times. L ZOOM appears during instant

zooming.

Notes: Some deterioration of the picture might occur during instant zooming.

Instant zooming does not operate during MIRROR and MOSAIC digital effects.

Fade In and Out of Scenes

You can add a professional touch to your recordings when you fade in and out of scenes. Both the picture and sound gradually appear or disappear. The speed of the fade is controlled by the camcorder.

"FADE Button

START/STOP

Button

Fade In

Press the thumb trigger (START/ 3.

STOP on remote) to pause recording.

Repeatedly press FADE to select the fade you want to use. The indicator for the fade you select will appear.

• Select _-_ (white) to fade in and

out to/from a white screen.

• Select [_] (black wipe) to fade in and out to/from a black screen.

• Select _-_ (zoom) to fade in and out while zooming. 2.

• Select B/W (black-and-white) to fade in and out to/from a black-

and-white picture.

• Select no fade indicator if you do

not want to fade in or out.

Note: The last fade used appears the first time you press FADE.

Press the thumb trigger (START/

STOP on remote) to start recording.

The picture and sound gradually appear in place of the blank screen.

Fade Out

During recording, repeatedly press FADE to select a fade.

Note: The last fade used appears the first time you press FADE.

Press the thumb trigger (START/ STOP on remote) to stop recording. The picture and sound gradually disappear.

DISPLAY Button

Press the DISPLAY button on the remote to display the time counter, time counter with memory stop, or date search indicator. During playback or play pause, you can also press the DATE/DISP button on the camcorder to turn memory stop on or off.

Time Counter

The time-counter display shows the actual time elapsed when recording or playing back a segment of tape. The memory-

stop feature helps locate a certain point on

the tape. Turn memory stop on to stop the

tape automatically during rewind or fast forward when the time counter reaches

O:O0:OOM.

To Use the Memory-Stop Feature

Start recording or playing back the tape. Locate the place on the tape you want to retum to and press COUNTER

RESET on the remote to reset the

counter to 0:00:00. Notes: The camcorder stops rewinding or

fast forwarding when the counter reaches

O:O0:OOM. To continue rewinding or fast

forwarding, press the button again. The time counter automatically resets to

O:O0:OOMwhenever a cassette is inserted.

2. Continue to record or play the tape. When you want to return to the place you marked, press the thumb trigger on the camcorder (START/STOP on the remote) to stop recording or STOP to stop playback.

3. Press DISPLAY on the remote to display the time counter. Press

DISPLAY again to turn on the

memory-stop feature. An M appears after the time counter.

Note: During playback, you can also press DATE/DISP on the camcorder to turn memory stop on or off.

DISPLAY Button (continued)

_CA START/

DATE/ _ STOP

(PAUSE)

D/SP n _..__ _ _ Button_

f-_-_zz_.._ M/OFF/ REW

VCR Switch Butt°n/

_'---Th umb

_"X_EE W/RETIEgg er

_ Button

STOP Button

/DISPLAY

Button

COUNTER

RESET

Button

_STOP

Button

Time Counter (continued)

4. Press and hold the small button while you set the CAM/OFF/VCR switch to

VCR.

5. Press REW/REVIEW (REW on

remote). The tape rewinds to the time counter reading of O:O0:OOM.

Date Search

You can search for the beginning or end of recordings you make on a certain day. The cassette must remain in the camcorder for date search to operate. The clock cell must

be installed and the date and time set.

1. Attach a power supply and press and hold the small button on the CAM/

OFF/VCR switch while you set it to VCR.

2. Repeatedly press DISPLAY on the remote to display SEARCH in the

viewfinder.

3. If you are in the middle of the day's

recording, press REW/REVIEW or

F.FWD to search for the beginning or

end of the recording.

• Press F.FWD to search for the end

of the day's recording. SEARCHI; I,, appears in the viewfinder.

The camcorder locates the beginning or end of the day's recording and enters the stop mode. SEARCH

disappears from the viewfinder. Notes: The cassette must remain in the camcorder. If you insert a cassette and start recording, that location is the starting point for that day. Date search only operates on tapes recorded

• Press REWIREV1EW (REW on . :_.on this camcorder.

remote) to search for the beginning

---oftheday'sree-Ording__SEARCH To StopDate Search ......

. appears in the viewfinder. - Press STOP to stopa search in progress.

Digital Effects

The camcorder has a digital processor that allows you to record using five special digital effects: 16X9, a negative image, 130 times digital zoom, a symmetric mirror image, or a mosaic image. Each effect is described in detail on the next pages.

D. EFFECTS

Button

To Select a Digital Effect

1. Repeatedly press the D. EFFECTS button. The indicator for the digital effect you

select appears in the viewfinder.

ZM:2

Digital Effects (continued)

16X9 Mode

The camcorder has a wide recording mode that lets you make recordings compatible with the 16X9 format. When 16X9 is activated, the camcorder records black bars at the top and bottom of the picture to produce the wide-screen effect. This is also known as "letterbox" recording.

New 16x9 TV Screen

Standard Shape TV Screen

the

Place the camcorder in record pause. Repeatedly press the D. EFFECTS

button until 16X9 appears. Press the thumb trigger to start

recording. To turn off 16X9 recording, press the

thumb trigger to pause recording, and repeatedly press D. EFFECTS until no digital effects display appears.

16X9 Mode

16X9

16X9 Display in

Viewfinder

Normal Mode

Digital Effects (continued)

Negative Mode

The camcorder has a negative mode that lets you turn the image negative.

1. Place the camcorder in record-pause.

2. Repeatedly press D. EFFECTS until NEGPOS appears.

3. Press the thumb trigger to start

To turn off negative recording, press the thumb trigger to pause recording,

and repeatedly press D. EFFECTS until no digital effects display appears.

recording.

Negative Mode

Normal Mode

Digital Zooming ___ The camcorder has digital zooming that allows you to zoom in on a subject with

magnification up to 130 times. Normal zooming is up to 32 times.

1. Place the camcorder in record-pause.

2. Repeatedly press D. EFFECTS until ZM:2 appears. Use the zoom lever to

zoom in and out. ZOOM appears when you zoom above 16X.

3. Press the thumb trigger to start recording.

4. To turn off digital zooming, press the

thumb trigger to pause recording, and repeatedly press D. EFFECTS until no

digital effects display appears. Note: As the zoom level increases during digital zooming, the picture will gradually

become less sharp. Use the high zoom levels

mainly for special effects.

Digital Zooming Mode

Digital Effects (continued) Mirror Mode

The camcorder has a mirror mode that lets you display a symmetric image on the left and right, obtained by placing a mirror at the center of the screen.

1. Place the camcorder in record-pause.

2. Repeatedly press D. EFFECTS until MIRROR appears.

3. Press the thumb trigger to start recording.

Mirror Mode

4. To turn off mirror recording, press the

thumb trigger to pause recording, and repeatedly press D. EFFECTS until no

digital effects display appears.

Note: Mirror recording cannot be used with digital zooming, instant zooming, or the zoom

fade feature.

Normal Mode

Mosaic Mode

The mosaic feature lets you add a mosaic effect to your recording.

1. Place the camcorder in record-pause.

2. Repeatedly press D. EFFECTS until MOSAIC appears.

3. Press the thumb trigger to start recording.

Mosaic

4. To turn off mosaic recording, press the

thumb trigger to pause recording, and repeatedly press D. EFFECTS until no digital effects display appears.

Note: Mosaic recording cannot be used with digital zooming, instant zooming, or the zoom

fade feature.

Normal Mode

Titler

The camcorder's built-in titler can store a title in memory. The created title can be displayed and recorded at any time. The built-in character register contains more than

45 different characters. Your title can contain a total of 32 characters on two lines.

DATE/

Button _ _'J[ ]7jF.FWD

\ _._..___ I_.._CAM/OFF/

STOP [

Button _ I_ \ _ _-.-Thumb

____REW/R_VIEW Trigger

Button

TITLE

ON/OFF

Button--

REW

Button --

START/ STOP

.-Button

-F.FWD

Button

"STOP

Button

To Create a Title

1. Attach a power source to the 6. camcorder. Press and hold the small

button on the CAM/OFF/VCR switch 7. while you set it to CAM or VCR.

2. Press TITLE ON/OFF on the remote to display the titler graphics in the viewfinder. A flashing cursor appears.

Note: When the CAM/OFF/VCR switch is in CAM, repeatedly pressing DATE/DISP

will also display the title in the viewfinder. To

3. Press STOP to move the flashing 1. cursor to the place where you want to begin your title.

4. Press F.FWD or REW/REVIEW (REW 2. on remote) until the first character you want appears in the viewfinder.

See the chart on the next page for 3. available characters.

5. After youhave selected the first

charactei', pressSTOP tOmove the flashing cursor to the place where you want the next character to appear.

38'

Repeat steps 4and 5 until you have completed the title.

When you are finished, press TITLE

ON/OFF to store the title and remove the title graphics from the viewfinder. Remember: Press TITLE ON/OFF on the remote to remove the titler graphics from

the viewfinder for normal recording.

Correct an Error

Press TITLE ON/OFF on the remote to display the titler graphics in the

viewfinder. Press STOP to move the flashing

cursor over the character you want to correct.

Press F.FWD or REW!REVIEW (REW on remote) until the correct character

.: .+

appears. +i! : Note: If you want to delete a character,

press F.FWD or REWIREVIEW (REW on

remote) until the blank space appears.

Titler (continued)

Chart of Characters in Titler's Register

AB C DEFGHIJKLM

N 0 P QR5S6 TU VW X34 78 " Y Z

01 2 9? . / ,

- + : < > ! (BiankSpace)

Record a Title on a Tape in the

Attach a power source to the camcorder. Press and hold the small button on the CAM/OFF/VCR switch

4. Press the thumb trigger (START/STOP on the remote) to start recording the

title.

while you set it to CAM. Locate the place on the tape where

you want to record the title. Note: If you record a title on a

prerecorded tape, the audio and video is erased where the title is inserted. A three-

to-four second pause of blank tape appears before the existing audio and

video return. To eliminate the pauses of blank tape, use

the audio and video dub feature to add titles to prerecorded tapes. Details are on

page 40.

Press TITLE ON/OFF on the remote to display the titler graphics in the

viewfinder.

After you have recorded the title for the desired length of time, press

TITLE ON/OFF to remove the titler graphics. The camcorder will now

record normally. If you do not want to continue recording, press the thumb trigger (START/STOP on the remote). Remember: Remove the titler graphics for normal recording. Note: You can also use the automatic title recording feature to automatically record

the title and date for ten seconds when you

begin recording. Press the DATE/DISP

button to display (S) TITLE before

starting to record.

Record a Title While Copying a Tape from the Camcorder to Another VCR

1. Attach a power source to the camcorder.

2. Place the tape you want to copy in

the camcorder and press and hold the small button on the CAM/OFF/

VCR switch while you set it to VCR.

3. Place a blank tape in the VCR, and place the VCR in record-pause.

4. Start copying the tape from the

camcorder to the VCR. Details are

on pages 44-45.

When you see the place on the tape you want to insert the title, press

TITLE ON/OFF on the remote:

6. After you have recorded the title for the desired time, press TITLE ON/ OFF to stop recording the title.

7. Stop the camcorder and VCR when

you are finished copying the tape.

Important Note: Remove the titler graphics for normal recording.

Audio and Video Dub

The audio/video dub feature lets you record new audio (sound) and video (picture) from the camcorder's built in microphone and camera onto a previously recorded tape.

_F.FWD

(( ((_-J)/_'__-_'_ __ Button

eL4r \\ __ _ I[ J CAM/OFF/ Button __ VCR Switch

STOP - I

Button _ I_-_ \ _ _----Thumb

REW/REVIEW

Button

To Audio and Video Dub

nutton l[

Button

A/V I[_

START/ STOP and

(PAUSE) Button

--F.FWD Button

"STOP

Button

lo Press and hold the small button on the

CAM/OFF/VCR switch while you set it to VCR.

2. Insert the tape you want to dub and press PLAY. Press the thumb trigger

(PAUSE on remote) exactly at the

place where you want to stop dubbing

to place the camcorder in play-pause.

3. Press DISPLAY on the remote twice

to display the time counter with memory stop. Press COUNTER/

RESET on the remote to reset the counter to O:O0:OOM.

. Use PLAY, F.FWD, and/or REW/

REVIEW (REW on remote) to locate a

point on the tape that is a few seconds before the place on the tape where you want to begin dubbing.

5. Press and hold A/VDUB on the remote and then press PLAY. Release

both buttons at the same time. A/V DUB n will appear in the viewfinder when the camcorder is ready to begin dubbing.

6. To begin dubbing, press the thumb

trigger (PAUSE on remote).

u disappears while you dub.

7. The camcorder stops dubbing when the time counter reaches O:O0:OOM.

Notes: The camcorder will enter the stop mode after remaining in dub pause for more

than five minutes. The date search feature does not operate

during audio/video dubbing. Noise might appear at the end of the dubbed

portion.

Recording Tips

• Try to make sure indoor scenes are

well-lit. This improves picture quality and color reproduction.

• Do not move the camcorder rapidly from side-to-side while recording. A steady, gradual "pan" avoids blurring and "jitter."

• Use the viewfinder to make sure the camcorder is level while recording so that y.our scenes won't appear "tilted."

• Do not bump or tap the camcorder's

microphone while recording - the sound will be recorded.

• Include close-ups of individuals when

taping family outings or group func- tions.

• Fading in and out of scenes makes your videos appear more professional.

• Be aware of video and audio back- grounds. Background details barely noticed while you are taping may show

up as visual "clutter" on your record- ing. Background noises (especially TV sets, radios, household appliances, traffic sounds, etc.) can detract from the sound you want to record.

• Avoid long "still" shots of landmarks and scenic attractions. Recordings are

more interesting if they include people and details. "Local color" will give travel videos lasting appeal. Consider recording a familiar or landmark scene from an unfamiliar vantage point.

To film at different angles, raise the viewfinder.

• Hold the camcorder horizontally. Keep your feet slightly apart and upper arms close to your body.

• Stand against a wall to give your recordings more stability.

• Use an optional tripod for stable images.

• When possible, rest your elbows on a table or other stable surface to help keep the camcorder steady.

• Do not pick up the camcorder by the viewfinder.

Write down your camcorder's serial number and keep it separate from the camcorder when traveling. If your camcorder is lost or stolen, you will be able to identify it.

Use extra care when you use your camcorder or accessories at a beach or

pool. Spray, sand, and dust should be avoided. If your lens has been exposed to the elements, clean it only with proper lens cleaning supplies.

Make sure you have any adapters that you might need before taking your

camcorder to other countries. Consult

your dealer for advice. Carry your camcorder in a carrying

case when traveling. See page 48for a

carrying case designed for your camcorder. An ordinary suitcase or

carry bag does not offer the protection your camcorder needs. Treat your camcorder as carry-on luggage to protect it from rough handling.

Viewfinder Playback and Playback Features

The simplest way to watch tapes using the camcorder is in the viewfinder. You can

use the playback features during viewfinder playback. There is no sound during viewfinder playback.

PUSH LOCK

View de ................_:............ :.:....-.:.:................. _..............................................

Play Back a Tape in the " fin r .............................................................................................................

Attach a power supply. 3. Attach either the adapter/charger, a

charged battery, or an optional car cord. 4.

Insert a tape.

• Slide EJECT to open the cassette compartment.

• Insert the cassette with the safety

tab and window facing out.

• Press on the area labeled PUSH

LOCK to close the cassette com- partment door.

• The camcorder onlyplays back

,tapes recorded in the SP speed.

Press and hold the small button on the CAM/OFF/VCR switch while you

set it to VCR.

Adjust the viewfinder.

• Adjust the viewfinder into a

comfortable viewing position.

• Turn the eyepiece focus control to adjust the focus of the viewfinder for your vision.

Press PLAY to begin playback.

• During playback, use the playback

features on the next page.

Press STOP when you are

finished.

Viewfinder Playback and Playback Features (continued)

REW

Button --

PA USE

Button

Playback Features

Stop-Action Pause

• During playback, press the thumb trigger (PAUSE on remote) to "stop the action" and view one frame of

the tape.

• Press the thumb trigger (PAUSE on remote) again to return to normal playback.

Visual Searching

During playback, press and hold F.FWD or REW/REVIEW (REW on remote) if

you want to search the tape visually in forward or reverse.

• Release the button to return to normal playback.

Tape Positioning Press and hold the small button on the

CAM/OFF/VCR switch while you set it

to VCR.

• Press and quickly release REW/REVIEW (REW on remote) or F.FWD to rewind or fast-forward the tape.

• Press STOP to stop the tape.

Playback on TV (or VCR)-with Audio/Video Inputs

To connect your camcorder to a TV monitor (or VCR) with audio and video inputs, use

the audio/video cable that was packed with your camcorder. If your TV is already connected to a VCR, attach the camcorder to the VCR and watch what the camcorder is

recording or playing on the TV.

_DIO'" ] White Audio Plug

AUIN l..... jack

VIDEO / _ Yellow .....

1 _ Video Plug _ .......

IH . _L -'" _ideo Cable _ .......

• ...........

/® '"

Back of Yellow Video Plug _ -" ,'° VCR or White ,, Z

TV Monitor -OR- Audio Plug ,° /7

Yellow

Video Plug

L._

v,,_o@.

Back of

Stereo

VCR or

TV Monitor

'-_ Y-Adapter

White Audio Plug

Yello

Jack ,:_

.... ..°-

..-"" _ White

Audio

Plug

Audio/Video Cable

Yellow Video Plug

Installation

Attach the white plug on one end of

the audio/video cable to the AUDIO IN jack on the TV (or VCR).

Notes: If your cable does not have white and yellow plugs, attach the same color to the audio jacks.

If your TV (or VCR) has stereo AUDIO IN

jacks, attach the plug to the0ne labeled

MONO. If one is not labeled MONO, you: need a Y-adapter, such 'as AH25, shown on

page 48 to hear both channels.

Attach the yellow plug to the VIDEO

IN jack on the TV (or VCR).

Attach the white plug on the other

end of the audio/video cable to the

audio jack and the yellow plug to the yellow video jack.

The jacks are located under the small

cover on the back of the camcorder.

Playback Operation and How to Copy Tapes on the VCR

1. A. Camcorder connected directly to TV: Turn on the TV and tune it to

the video input channel.

B. Camcorder connected to VCR that 4.

is already connected to TV: Turn on VCR and place it in the "line" or "camera mode". (If your VCR

does not have a "line" or "camera mode", consult the VCR owner's manual.) Operate the TV as you

normally do to see the signal coming from the VCR. 5.

2. Press and hold the small button on the CAM/OFF/VCR switch while you set

it to VCR.

3. Press PLAY.

• During playback, use the playback

features on page 43.

To copy what the camcorder is

playing, place a blank cassette in the VCR, and press the VCR's RECORD button.

Note: Make sure the memory-stop feature

is turned off (press DISPLAY on the remote) or the camcorder will enter play- pause when the counter reaches O:O0:OOM.

Press STOP when you are finished.

Note: The camcorder only plays back tapes recorded ifi the SP speed.

Viewing What the Camcorder is Seeing (or Recording) .. •

1. m.

Camcorder connected directly to TV: Turn on the TV, and tune it to the video input channel.

2. Press and hold the small button on the

CAM/OFF/VCR switch while you set

it to CAM.

B° Camcorder connected to VCR that

is already connected to TV: Turn on VCR and place it in the "line"

or "camera mode". (If your VCR does not have a "line" or "camera

mode", consult the VCR owner's manual.) Operate the TV as you

normally do to see the signal coming from the VCR.

Note: Turn the TV's volume down to prevent a high-pitched squeal caused by feedback.

Press the thumb trigger (START/STOP button on remote) to begin recording.

You can watch what the camcorder is seeing (or recording) on the TV screen.

Playback on a TV Without Audio/Video Inputs

To connect your camcorder to a TV without audio/video inputs, you need an optional CRF81A RF output adapter shown on page 48. If your TV has audio and

video inputs (or is connected to a VCR), refer to pages 44-45.

Back of TV(

Audio/Video Out Connector

Located Behind

mall Cover)

VHF Antenna

VHF Antenna Optional 300/75 ohm

Transformer

CH3/CH4

Switch

Installation

Disconnect the VHF antenna from

your TV. Connect the antenna to the

ANT IN connector on the RF output

adapter if you are going to leave the adapter connected to the TV.

Note: If your VHF antenna is the flat twin-lead type attached by two screws, you need an optional 300/75 ohm transformer.

Attach the RF output adapter's cable

to the VHF input on your TV as

shown.

Note: If your TV has 300 ohm screw terminals, you need a 75/300 ohm transformer, such as VH54, shown on

page 48.

Attach the RF output adapter's plug to

the RF output connector located under the small cover on the side of the camcorder.

Playback Operation

1. Set the CH3/CH4 switch on the

RF output adapter to CH3 or CH4.

2. Tum on the TV, and tune it to the same channel you selected with the RF output adapter's CH3/CH4 switch.

3. Press and hold the small button on the CAM/OFF/VCR switch while you set

it to VCR.

4. Press PLAY on the camcorder.

• During playback, use the playback

features described on page 43.

5. Press STOP on the camcorder when you are finished.

Viewing What the Camcorder Is Recording ........................._ .......

1. Turn on the TV and tune it to channel 3. 3 or 4. Turn the TV's volume down to

prevent a high-pitched squeal caused by feedback. 4.

2. Set the CH3/CH4 switch on the RF output adapter to the same channel

you selected on the TV.

Press and hold the small button on the

CAM/OFF/VCR switch while you set it to CAM.

Press the thumb trigger (START/STOP

button on remote) to begin recording. You can watch what the camcorder is

seeing (or recording) on the TV screen.

Normal TV Viewing

For normal TV viewing, leave the RF output adapter hooked up to the TV. Disconnect the adapter's plug from

the camcorder or turn the camcorder's power off. :

Note to Cable TV Installer This reminder is provided to call your attention to Article 820-40 of the

National Electrical Code (Section 54 of Canadian Electrical Code, Part I), that provides guidelines for proper grounding and, in particular, specifies that the

cable ground shall be connected to the grounding system of the building as

close to the' point of cable entry as practical. ,_-.... _ _ __ i '

We invite you to take a look at some great ideas for sparking creativity and adding to the fun of using your VHS camcorder. The following pages have a selection of accessories to help make your memorable moments look and sound even better.

These accessories are designed to make the process of recording and watching your videos more enjoyable.

To order accessories, contact your local Dealer.

If a dealer is not nearby, all accessories are available through toll-free ordering or by using the order form on page 51.

AC201A Soft Carrying Case CRF81A RF Output Adapter

Custom compact soft case designed especially to provide protection and utility

for your 8mm camcorder and most accessories. Rugged Aczoia lined with soft non-abrasive material and generous padding. The carrying case has three outside pockets with storage for lens filters, adapters, batteries, and tapes.

DCC06 DC Car Cord Adapter

This RF output adapter is used to connect

your camcorder to a standard TV (one without audio/video inputs) for playback. If your antenna cable is the flat twin-lead type attached by two screws, you need a 300-to-75 ohm transformer. If your TV has 300 ohm antenna screw terminals, you need an optional 75-to-300 ohm

transformer such as VH54.

VH54 Cable Transformer

This 75-to-300 ohm transformer is used to connect the RF output adapter's cable to

the 300 ohm screw terminals on a TV.

AH25 Y-Adapter

This car cord adapter enables you to operate your camcorder from your car, truck, or RV by plugging the car cord directly into the vehicle's cigarette lighter socket. The DCC06 is designed specificallytoconverrpower from a " 24- 8r 12-volt battery to a 6-volt output.

This Y-adapter allows you to connect

.your camcorder's mono audio cable to

a stereo TV or VCR.

Using the Optional AC088 Tripod

Mounting the camcorder on a tripod, such as AC088, keeps the camcorder steady and produces excellent video results.

This tripod's fluid-effect head provides smooth camera pan and tilt. The quick-release

mount makes it easy to attach or remove the camcorder. The grooved, tubular 3-section leg design folds down to 26" when not in use. Rubber feet allow for sure footing.

Attaching the Optional 215770 Shoulder Strap

An optional shoulder strap lets you carry the camcorder from your shoulder and - when you are ready to shoot - bring the camcorder to shooting position in one quick movement.

To Attach the Shoulder Strap

Thread each end of the strap through

one of the attachment rings.

Thread each end of the strap back into

its buckle. Pull on the strap to make sure it is securely fastened before using the shoulder strap to support the

camcorder.

. . . . .

Order Form for Camcorder Model CC8251

Description Part No. Price Qty. Total

Super Lightweight Tripod AC088 $ 39.95 Soft Camcorder Case AC201A $ 39.95

Y-Adapter! ..... AH25 $ 2.95

Rechargeable Battery BB65L $ 99.95

RF Output Adapter CRF81A $ 89.95

Car Cord Adapter DCC06 $ 89.95

75-300 Cable Transformer VH54 $ 2.95

Shoulder Strap 215770 $ 11.15

DC Cable 233407 $ 12.65

Audio/Video Cable 233408 $ 38.20

AC Adapter/Charger 241250 $ 89.95

Remote Control 241920 $ 39.95

Total Merchandise ........ ......................... . ........................................... .....: ........ $

Sales Tax .......................................................................................................... $

We are required by law to collect the appropriate sales tax for each individual state, county, and

locality to which the merchandise is beiiig sent.

Shipping and Handling ..................................................................................... $

5.00

Total Amount Enclosed ................................................................................. $

Use VISA, MasterCard, or Discover. Money order orcheck must be in U.S. currency only. No COD or cash.

Prices are subject to change without notice.

Charge your order on your VISA,MasterCard,

or Discover Card by filling in below

USE YOUR CREDIT CARD

IMPORTANT: Copy complete account number from your VISA card f_"

'I-I-1 I-V'I-GI-I-'N T-1 Exp,ra,io. ate:I--I--1

IMPORTANT: Copy complete account number from your MasterCard

I---I--I-N I I I I II---I---I--NI---I---I---_

Copy Number above your name on MasterCard _ Expiration date: I I It I I

IMPORTANT: Copy complete account number from your Discover Card

I---I---I-_I--l---l-T-II---I-l_ I--V-I-_

Expiration date: [--[--1 _

AUTHORIZED SIGNATURE

Prices are subject to change without notice.

Print or type your name and address clearly.

A complete and correct order will

Name:

Daytime Phone:

Street:

City:

State:

Apt:

Zip:

save you days of waiting.

..I

Please make sure that both sides of this form have been filled out completely.

• Allow 4 weeks for delivery.

• All accessories are subject to availability. ....

t_.

€.1

To order accessories, contact your local Dealer.

If a dealer is not nearby, you can also follow the directions below to order by telephone or direct-by-mail.

United States and Canada Orders

To place your order by phone, have your Visa, MasterCard, or Discover card ready and call the toll-free number listed below between 8 AM and 10 PM (EST)

Monday through Friday or between 9AM and 5PM (EST) Saturday.

Use this number only to place an order for accessory items listed on this order form.

1-800-338-0376

To place your order by mail, detach and mail the completed order form with credit card information, money order, or check in U.S. currency (made payable to Thomson Consumer Electronics, Inc.) to the following address:

Video Accessories PO Box 8419 Ronks, PA 17573

If you're having trouble with your camcorder, you probably can correct the problem yourself. Before you take your camcorder to an Authorized RCA Camcorder Service Center or call a service person, use the chart below. Find the problem and try the

adjustment(s) that is listed to the right. If service should be necessary, read your warranty to find out what is covered and how

to get service.

No power

Won't record or play back

TAPE appears in the viewfinder

• Set the CAM/OFF/VCR switch to CAM or VCR to turn on the camcorder.

• If using battery, it may need to be recharged.

• If using AC adapter/charger, make sure it is plugged

into a working outlet.

No picture

Camcorder turns off

• If using AC adapter/charger, make sure it is plugged

into a working outlet:

• Make sure CAM/OFF/VCR switch is set to correct

position for desired operation.

• There might not be a cassette in the camcorder.

• Try ejecting and reinserting the cassette.

• The cassette tape might be broken, try another cassette.

• You might have reached the end of the cassette, try rewinding it.

Moisture condensation might cause the tape to stick to the headwheel and damage the headwheel or tape. Remove tape and give the camcorder an hour to reach a

stable temperature before reinserting a cassette.

Won't play back * CAMERA/OFF/VCR switch must be set to VCR.

Won't record * Safety tab closed. Seepage 18.

• CAM/OFF/VCR switch must be set to CAM.

• Set lens cover OPEN/CLOSE switch to OPEN.

Set the CAM/OFF/VCR switch to OFF and then to CAM or VCR to turn back on. If camcorder is left in record-pause or play-pause for several minutes, it turns off to prevent tape wear.

Sound is too low or distorted

Tape stops during rewind or fast forward

or will not operate during rewind or fast forward

Camcorder remains in play-pause mode

Poor auto-focus operation

Viewfinder displays are out of focus

Picture quality is poor during playback

Picture recorded with a special fade or digital effect (such as

negative, 16X9, mosaic, or mirror)

Black bars on top and

bottom of picture

• Subject was too far from camcorder.

• Whenever memory stop is turned on, the camcorder will stop rewinding (or fast forwarding) when the time counter reads O:O0:OOM. Press REW/REVIEW (REW on remote) or F.FWD again to continue rewinding or fast forwarding, or press DISPLAY on the remote to

remove the time counter.

• Make sure titler graphics do not appear in viewfinder. Press TITLE ON/OFF button on remote to remove.

• Make sure flashing cursor does not appear in date or time display. Press DATE/DISP button to remove.

• Press the thumb trigger (START/STOP PAUSE on remote) to return to normal playback.

• Lens is smudged and image appears unfocused.

• Eyepiece focus control is maladjusted.

• If FOCUS appears in viewfinder, press FOCUS • and FOCUS • together to turn on auto focus.

• Eyepiece focus control is maladjusted. See page 23.

• Camcorder only has one speed (SP). If the tape was recorded at a different speed, it cannot be played back

on this camcorder.

A fade or fade wipe mode has been selected. Turn off the fade effect by pressing FADE. See page 31. A digital recording effect has been selected. Turn off the digital effects by pressing D. EFFECTS.

See pages 34-37

• 16X9 feature selected. See page 35.

Dateand/ortimeor title wererecorded

ontape

Dateand/ortime are incorrect

Remotecontrolwill

not operate camcorder

Power is turned on but function buttons will not operate

Bright, crystal- shaped spots appear in viewfinder

Colored bright spots appear in viewfinder

• Displays are recorded on tape whenever they appear in the viewfinder. Remove them from the viewfinder

when recording. See pages 21 and 39.

• When (S) DATE or TITLE is selected, the display is automatically recorded when you begin recording or change the cassette. See page 21.

• The title is recorded whenever it appears in the viewfinder. Press the TITLE ON/OFF button on the

remote to remove the title from the viewfinder. See

page 39.

Date or time may need to be set. See page 20. Clock lithium cell battery may need replacing.

See page 22.

• Aim remote at remote sensor on camcorder.

• Remote must be within 16 feet of the camcorder.

• Remote batteries need replacing. See page 12.

• CAM/OFF/VCR switch must be set to CAM or VCR.

• Remote sensor on the _amcorder is exposed to direct sunlight or strong artificial light. This might interfere with operation of camcorder by remote.

Remove the power source and clock cell. After one minute the viewfinder displays will be reset. You will have to reset your features.

• Sunlight is directly entering the lens.

Black spots or bright spots of light (red, green, or blue) may appear in the viewfinder. These spots are not recorded on the tape and are not due to a defect in the unit.

Rechargeable batteryrunsdown soonerthan

expected

Batteryruntimesaremeasuredwhenthe camcorderisrecordingcontinuously.Tocheck yourbattery;chargeit completely,aimthe camcorderataclock,andrecordtheclock.

Whenthecamcorderstopsrecording,playthe

lastpartof thetapeandcheckthetimeonthe clock. A one-hourbatteryshouldgiveyouabout 60minutesof recordingtime. In practicaluse,a fully chargedbatterymightnotrecordfor 60 minutesbecausethebatteryusespowerwhen youpausethe•recordingandusesextrapower whenyouzoom.

Clean the Camcorder

To clean the camcorder's exterior, remove

any power source connected to the camcorder and gently wipe it with a clean

soft cloth.

Clean the Camcorder's Lens .......

To clean the camcorder's lens, blow it with a blower brush, and then gently wipe the lens with cleaning tissue and commercially prepared cleaning solution designed for

use on camera lens. Improper cleaning might scratch the lens.

Lens

Clean the Camcorder's Viewfinder

You can remove the viewfinder eyepiece for cleaning.

1. Turn the eyepiece counterclockwise

until it stops and pull it out.

Gently use a soft non-abrasive cloth,

cotton swab, blower brush, or lens cleaning paper to clean the miniature

monitor.

Reattach the eyepiece by aligning

the raised mark (D) to the center of the viewfinder. Turn the eyepiece clockwise until it stops.

Proper Care and Storage

Keep dust and grit from entering the camcorder's cassette door. Dust and

grit are abrasive and cause excessive wear to both the camcorder's

recording/playback heads and cassettes.

Always close the lens cover on the camcorder when it is not in use.

Before handling your camcorder, make

sure ygur hands and face are free from any chemical products such as suntan lotion, as it might damage the finish.

The camcorder might be damaged by

improper storage or handling. Do not subject the camcorder to swinging, shaking, or dropping.

Do not store the camcorder in temperatures below -22"F (-30°C) or

above 149°F (65*C). When the camcorder is not in use,

always remove the cassette and AC adapter/charger or battery.

Retain the original carton for future storage or shipping purposes.

Things to Avoid

Do not attempt to disassemble your camcorder. There are no user-

serviceable parts inside.

Avoid operating your camcorder

immediately after moving it from a

cold location to a warm location. Give

the camcorder 2 to 3 hours to reach a

stable:temperature before inserting a

cassette. When the camcorder is

moved from cold to warm,

condensation might cause the tape to

stick to the headwheel and damage the

headwheel or tape.

Do not aim your camcorder at the sun

or other bright objects.

• Do not leave your camcorder in direct

sunlight for extended periods of time.

The resulting heat buildup might

permanently damage the camcorder's

internal parts.

., _.: _ _ ..... • , • :.

• Do not operate the camcorder in extl'emely humid environments.

Do not operate the camcorder near the ocean as salt water or salt water spray might damage the internal parts of the

camcorder. _ Do not operate the camcorder for

extended periods in temperatures below 40*F (4°C) or above 95°F (35 *C).

Do not expose the camcorder or adapter/charger to rain or moisture. If any component becomes wet, turn off the power and take the unit to an

Authorized RCA Camcorder

Service Center.

Do not use an adapter/charger or batteries other than the ones specified

for the camcorder. Use of the wrong accessories might cause damage to the

camcorder.

General

Power requirement: 7.2VDC Power consumption: 4 watts Weight: 1.67 lbs, without battery

or cassette

Camera Section

Scanning: 525 lines/60 fields/30 frames Image Sensor: 1/4" CCD Imager Lens: F1.4 - 2.8 (4 - 64mm)

Diameter: 46 mm

Dimensions - Including Viewfinder:

3-7/8" (W) x 4-1/2" (H) x 9-7/16" (D) 98 (W) x 115 (H) x 239 (D) mm

Video Recorder Section

Format: 8mm Record/playback system: Two xiide0 record/playback heads

One flying erase head ,_.,..:

Video signal: EIA standard

NTSC color

Tape speed: 14.3 mm/sec. Video output: 1.0Vp-p, 75 ohm Audio output: -7.8 dBs (316Vms) Fast forward/rewind time: less than 8 minutes with P6-120 cassette

AC Adapter/Charger

Power requirement: 100-240 V,

50/60 Hz. Power consumption: 20 watts max Weight: 12 ounces (330g)

Dimensions:

2-13/16"(W) x 1.3/4"(H) x 5-15/16"(D)

74 (W) x 44 (H) x 151 (D) mm

Tripod Mount

One 1/4" x 20 threaded hole

This equipment has been tested and found to comply with the limits for a Class B digital device pursuant to Part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful

interference ina residential installation. This equipment generates, uses, and can radiate radio frequency energy and, if not installed

and used in accordance with the instructions, may cause harmful interference to radio communications. However, there is no guarantee that interference will not occur in a particular installation. If this equipment does

cause harmful interference to radio or television reception, which can be determined

by turning the equipment off and on, the user

is encouraged to try to correct the interference by one or more of the following measures:

• R_orient or relocate the receiving antenna.

• Increase the separation between the equipment and receiver.

• Connect the equipment into an outlet on a circuit different from that to which the

receiver is connected.

• Consult the dealer or an experienced radio/ TV technician for help.

Alterations or modifications carried out without appropriate authorization may

invalidate the user's FCC right to operate the equipment.

_i k-

You can reach Thomson at the

following number:

800-283-6503

(Toll free inside U.S.A.)

Our toll-free Camcorder number

operates from 8 a.m. to 5 p.m., CST

Monday - Friday

for U.S. customers only

Thomson provides a toll-free telephone number to help you with any problems you may encounter with your camcorder. Many can be diagnosed over the phone, and if necessary, repair or replacement will be

arranged. Please have your camcorder model/ serial number and date of purchase ready when you call. If your unit is out of warranty, we will quote the cost of a repair or replacement unit to you.

Returnlngequipment to Thomson for

If we are unable to resolve your problem over the phone, we will gladly service your unit or exchange it for a new or, at our option,

refurbished camcorder. Refer to the limited

warranty on the next page to learn about your specific rights and responsibilities.

repair or exchange

Always consult Thomson and get a Return

Authorization number before returning

anything! Obtain a Retum Authorization

(RA) number from the telephone representative before returning your equipment to avoid delays, accounting errors,

or even loss of your unit.

Important information to customers who ship defective equipment to Thomson Consumer Electronics

The Thomson representative who authorized the return of your equipment will give you an RA number over the phone. They will also

provide you with instructions on where and how to return your camcorder. Write the number in large, clear characters on the outside of the box. To avoid confusion and

misunderstandings, shipments without an RA number clearly visible on the outside of the box will be returned to you at your expense.

Include a brief note describing the problem

and any conversations about the problem you have had with Thomson personnel.

Include your name, address and model/serial number of your camcorder. These numbers

are located on the bottom of your unit.

If your camcorder is within the warranty

period, please provide a copy of the bill of sale

to verify purchase date. Use the original box

and packing material to protect the equipment

from damage in shipment.

For your protection, insure all shipments for

full replacement value and use a reliable

shipper. Thomson assumes no responsibility

for warranty shipments from the customer to the factory if not shipped in the manner prescribed by Thomson.-

5. " .......

What your warranty covers:

• Any defect in materials or

workmanship.

For how long after your purchase:

• 90 days for labor charges.

• One year for parts. The warranty period for rental units begins with the first rental or 45 days from date of shipment to the rental firm, whichever comes first.

What we will do:

During the initial 90 days

• Repair your camcorder or exchange your camcorder with a new or refurbished unit. The option will be ours. There will be no cost to you.

After the 90 days and within one year

• Repair your camcorder or exchange your camcorder with a new or refurbished unit. The option will be ours. Parts will be provided at no charge, but you will be responsible for

the cost of labor required for the

repair.

How you get service:

1. Call 1-800-283-6503 and have your

unit's date of purchase and model/

serial number ready. The model/ serial number information is on the

bottom of your camcorder.

2. A representative will troubleshoot

your problem over the phone. If the representative determines that your unit is defective, you will be provided

with a Return Authorization (RA)

number, and the location to which your

unit should be returned. No returns will be accepted without the RA

number.

Write the RA number on the outside

of the carton used to return the unit. Make sure you insure your shipment in

case of damage or loss.

Carefully pack the unit excluding all

accessories, using the original box and

packing material if possible. Include with the shipment:

• Evidence of purchase date, such as a bill of sale, to verify your unit's warranty eligibility.

• A brief note describing your camcorder problem.

• Your name, address and phone

number.

Return transportation, handling and insurance costs are your responsibility.

We accept no liability in case of damage or loss.

6. The representative will advise the address to mail a cashier's check or

money order for payment if there are

any out of warranty labor or parts

charge s.

7. Your camcorder will be returned to you

when it is repaired.

To have your camcorder repaired by an Authorized RCA Camcorder Service Center:

Check with your dealer or Call 1=800-

336-1900 for the Authorized RCA ....

Camcorder Service Center nearest you.

Take your unit to the Authorized RCA Camcorder Service Center of your

choice.

• Show the Authorized RCA Camcorder Service Center representative evidence of purchase date, such as a bill of sale.

• Pick up your camcorder when repairs are complete.

What your warranty does not cover:

• Adjustment of customer controls.

• Damage from misuse or neglect.

• A unit that has been modified or incorporated into other products or is

used for institutional or other

commercial purposes.

• Batteries for remote control and clock.

• Cleaning of video/audio heads.

• Camcorders purchased or serviced outside the U.S.A.

• Return transportation and handling costs of your unit, including insurance for loss or damage.

• Acts of God, such as but not limited to lightning damage.

How State Law relates to warranty:

This warranty gives you specific legal

rights and you also may have other rights that vary from state to state.

If you purchased your Camcorder outside the United States:

• This warranty does not apply. Contact your dealer for warranty information.

Product Registration:

Please complete and mail the Product Registration Card packed with your

camcorder. It will make it easier to contact you should it ever be necessary.

The return of the card is not required for warranty coverage.

16X9 feature 35 16X9 indicator 24, 35

AN DUB button 10, 40 AN DUB indicator 25, 40 Accessories

included 3 optional 48

order form 51

Adapter/charger

accessory 3 charging battery 14 using 4, 13

AE focus indicators 24, 27 Assistance, customer 1, 3, 61 Attaching optional shoulder strap 50

Audio and video dub 40 Audio and video jacks 9, 44

Audio/video output cable

accessory 3

Auto focus 28

Battery

accessory 3 attaching and removing 15

care 16 charging 14

safety precautions 15 storage 16

using 14 BATTERY EJECT button 8, 15 Battecy level indicator 16, 24, 25

Cable TV installer note 47 CAM/OFF/VCR switch

6, 7, 9, 10, 11, 15, 16, 17, 20, 22,

26, 27, 28, 32, 33, 38, 39, 40, 42, 43, 45, 47

Camcorder

cleaning 58 holding tips 41 operating controls 8

turn on 6 Camera edit feature 27 Car cord

using optional 17

Care and maintenance

cleaning the camcorder viewfinder 58 cleaning the lens 58 cleaning the viewfinder 58 proper care and storage 59 things to avoid 59

Care and storage

camcorder 59 cassette 19

Cassette compartment 42 Cassette door 4 Cassette EJECT indicator 4, 19 Cassette holder 4

Cassettes

care and storage 19

insert and remove 19

video 18 Cautions i Cell compartment 22

Cell holder 22

Chart of characters in titler 39 Checks, trouble 54

Cleaningthecamcorder'slens58 Cleaningtheviewf'mder58 Clockcell

accessory3 install22

Clockcellcompartment9 Clocklithiumcell 22

CLOSE/OPENswitch5, 7, 8 Contents1

Copytapes45 COUNTER/RESETbutton10,32

Customerassistanceandservice61

D. EFFECTS button 8, 24, 34, 35, 36, 37 Date search 33 DATE/DISP button

8, 20, 21, 25, 32, 38, 39

DC cable 14, 17

accessory 3

using 4 DC IN 6V jack 8, 13, 17 DC OUT jack 4 Design specifications 60 Digital effects 34

Digital effects indicators 24, 34 Digital zooming 36 DISPLAY button 10, 25, 32, 33, 45

date search 33

memory stop 32

time counter 32

Displays, viewfinder 24, 25 Dubbing 40

EJECT button 4, 9, 16, 19, 42 Erase protection 18 Eyepiece focus control 6, 8, 23, 42

F.FWD button

9, 10, 20, 27, 33, 38, 40, 43 FADE button 8, 31 Fade feature 31 Fade indicators 24, 31 Fast-forwarding indicator 25 First time operation 3 Flying erase head 26 Focus

auto 28 macro 29

manual 28 FOCUS buttons 8, 28 FOCUS indicator 24, 28, 29 Focusing 28, 29

Hand strap 5, 9 Hand strap flap 9 Head cleaning 18

I.ZOOM indicator 25, 30 Important safety information i

Indicators

16X9 24, 35

AN DUB 25, 40 AE focus 24, 27

batterylevel 16, 24 cassette EJECT 4, 19

digital effects 24, 34

fade 24, 31 fast-forwarding 25 FOCUS 24, 28, 29 I.ZOOM 25, 30

in viewfinder 24

memory stop 25, 32

MIRROR 24, 37 MOSAIC 24, 37 NEGPOS 24, 36 NO TAPE 25

pause 6, 25 REC 6, 25

record-pause 6 rewind 25

SEARCH 25, 33 status 24 TAPE 25

tape counter 32 TAPE END 25, 29 tape-remaining 25, 29 time counter 25, 32

ZM:2 24, 36 ZOOM 24, 25, 30, 36

zoom level 25, 30 Information to user 60 Insert and remove cassettes 19

INST. ZOOM button 8, 30 Instant zooming 30

Leng 7, 8, 27

Lens cover 5, 7, 8 Letterbox recording 35

Macro focus 29 Manual focus 28, 29 Memory stop 32 Memory stop indicator 25, 32

Microphone 8, 26, 41 MIRROR indicator 24, 37 Mirror mode 37

MOSAIC indicator 24, 37 Mosaic mode 37

Negative mode 36

NEGPOS indicator 24, 36 NO TAPE indicator 25

Operating controls 8

Optional accessories 48 Optional plug adapter 13 Order form, accessories 51

PAUSE button 11, 40, 43 PLAY button 7, 9, 11, 27, 40, 42, 45, 47 Playback

first 7 viewfmder 42

Playback features 43

memory-stop 32 stop-action pause 43 tape counter 32 tape positioning 43

visual searching 43

Playback on a TV without audio/video inputs

Playback on TV (or VCR) with audio/video In

Jacks 44 Playback speed 18 Plug adapter, optional 13

Powering your camcorder

using adapter/charger 13 using battery 14

using optional car cord adapter 17 Problem solving 54 Product registration i Program AE 27

PUSH LOCK button 4, 8, 19, 42

Quick review feature 26

REC indicator 6, 25 Record-pause indicator 6 Recording

16X9 35

letterbox 35 speed 18 tips 41

Registration i

Remote

accessory 3 accessory batteries 3

buttons 10 install batteries 12

sensor 8, 12 REWbutton 11, 33, 38, 40, 43 REW/REVIEW button

7, 9, 20, 26, 27, 33, 38, 40, 43 Rewinding indicator 25 RF output adapter, optional 46 RF output connector 9, 46

Safety information i Safety precautions

battery 15

Safety tab 4, 18, 19, 42 SEARCH indicator 25, 33

Searching during playback 43 Sensor, remote 12 Shoulder strap

attaching optional 50

attachment rings 8, 50 Solving problems 54 SPspeed 18, 42 Specifications 60 Speed

recording and playback 18 START/STOPbutton 31, 32, 39, 45, 47 Status indicators 24 STOP button

7, 9, 10, 11, 20, 32, 33, 38, 43, 45, 47

Stop-action pause 43

Table of contents 1 Tally light 8, 26 Tape

inserting 4 Tape copying 45 Tape counter 32

TAPE END indicator 25, 29 TAPE indicator 6, 25

Tape positioning 43 Tape warnings 25 Tape-remaining display 25, 29 Things to avoid 59 Thumb trigger

6, 7, 9, 11, 31, 35, 39, 40, 43

Time and date

correct 20

display 20, 25

recording 21

setting 20

Time counter 25, 32, 40

Tips

camcorder holding 41 recording 41 travel 41

Title

record 21 TITLE ON/OFF button 11, 38, 39 Titler 38, 39

chart of characters 39

correct an error 38

create a title 38 record while copying a tape 39 recording 39

Travel Tips 41 Tripod mounting hole 9 Tripod, using 49

Trouble checks 54

Unpack camcorder and accessories 3

Videocassettes 18 Viewfinder 6, 8, 41

adjust for viewing 23 displays 24, 25 eyepiece focus control 23 playback 42 use to record 23

Warnings i

Warnings, tape 25

ZM:2 indicator 24, 36

ZOOM buttons 11, 30 ZOOM indicator 24, 25, 30, 36 Zoom level indicator 25, 30 Zoom lever 9, 30, 36

Zooming 30

digital 36 instant 30

using zoom buttons 30 using zoom lever 30

_ THOMSON CONSUMER ELECTRONICS

10330 N Meridian Street Indianapolis, IN 46290

Trademark(s) ® Registered

Marca(s) Registrada(s) Printed in Japan

15357370

QR19293

RCA CC8251 User Manual

Specifications and Main Features

Frequently Asked Questions

User Manual
