USER‘S GUIDE

CC615

CAMCORDER

Important Safety Information

Be sure to read all the safety information before you begin to use this product.

Cautions

CAUTION: To prevent electric shock, match wide blade of plug to

wide slot, fully insert.

ATTENTION: Pour éviter les chocs électriques, introduire la lame

la plus large de la fiche dans la borne correspondante de la prise et pousser jusqu au fond.

To reduce risk of injury, charge only rechargeable batteries recommended by the manufacturer for this camcorder. Other types of batteries may burst causing damage and personal injury.

FCC Regulations state that unauthorized changes or modifications to this equipment may void the user’s authority to operate it.

Product Registration

Please fill out the product registration card and return it immediately. Returning this card allows us to contact you if needed.

Keep your sales receipt for proof of purchase to obtain warranty parts and service and attach it here. Record the serial and model numbers located on the bottom of the camcorder.

Model No: _____________________________________ Serial No: _____________________________________ Purchase Date: _____________________________________ Purchased From: _____________________________________

WARNING: To reduce the risk of fire or shock hazard, do not expose

camcorder or AC adapter/charger to rain or moisture.

RISK OF ELECTRIC SHOCK

DO NOT OPEN

This symbol indicates “dangerous voltage” inside the product that presents a risk of electric shock or personal injury.

This symbol indicates important instructions accompanying the product.

RISQUE DE CHOC

ELECTRIQUE NE PAS OUVRIR

CAUTION

ATTENTION

TO REDUCE THE RISK OF ELECTRIC SHOCK, DO NOT REMOVE THE COVER (OR BACK). NO USER-SERVICEABLE PARTS ARE INSIDE. REFER SERVICING TO QUALIFIED SERVICE PERSONNEL.

CC615

Table of Contents

Safety Information..............................i

Product Registration...........................i

Table of Contents............................1-2

First-Time Operation

• Assistance..........................................3

• Unpack Camcorder &

Accessories......................................3

• Attach the Adapter/Charger...............4

• Insert a Tape......................................4

• Open Lens Cover...............................5

• Adjust Handstrap...............................5

• Turn on Camcorder............................5

• Select a Recording Speed..................6

• Set the QUICK SET Dial...................7

• Adjust Viewfinder and

Eyepiece Focus Control...................7

• Start and Stop Recording...................8

• Play Back Your Recording................8

• Turn off the Camcorder.....................8

• Review Camcorder’s

Operating Controls.....................9-10

Powering Your Camcorder

• Using Adapter/Charger....................11

• Using Rechargeable Battery.......12-14

• Using Optional Car Cord Adapter...15

Video Cassettes............................16-17

(continued on next page)

Assistance

We want to make sure you enjoy your new camcorder. If you have any questions, call:

Camcorder Exchange Warranty..............800-283-6503 (pages 66-67)

Customer Service.............................................800-336-1900 (page 65)

Accessories.................................................800-338-0376 (pages 52-57)

Table of Contents

Recording

• Making a Recording...................18-19

• Recording Tips ................................20

• Traveling Tips .................................20

• Viewfinder.......................................21

• Viewfinder Displays...................22-24

• Tally Light.......................................25

• Microphone......................................25

• Flying Erase Head ...........................25

• Tape Positioning..............................25

• Electronic Indexing .........................25

• Quick Review..................................26

• Auto Head Cleaner..........................26

• Camera Edit.....................................26

• Time Counter With Memory Stop...27

• Tape Time-Remaining Display .......28

• QUICK SET Dial.............................29

• White Balance .................................30

• MODE Button..................................31

• Fading In and Out............................32

• 16X9 Mode......................................33

• Focusing (Auto and Manual) .....34-35

• Exposure Control (Iris)....................36

• Zooming ..........................................36

• Attaching the Optional

Shoulder Strap............................37

• Titler...........................................38-39

• Date and Time Display

• Install the Clock’s Cell.................40

• Set the Time and Date..................41

• Record the Date, Time, or

Title.......................................42-43

Playback

• Viewfinder Playback.......................44

• Visual Searching..............................45

• Stop-Action Pause...........................45

• Tracking...........................................45

• Using the Cassette Adapter........46-47

• Playback on TV (or VCR) with AUDIO/VIDEO IN Jacks 48-49

• Playback on TV Without

Audio/Video Inputs..................50-51

Optional Accessories...................52-57

• Accessory Order Form...............55-57

Care and Maintenance ...............58-59

Trouble Checks ...........................60-63

Specifications ....................................64

Customer Assistance and Service ...65

Limited Warranty.......................66-67

Index (Alphabetical) ...................68-69

First-Time Operation

Model CC615

MODE

QUICK SET

1. Unpack the camcorder and accessories.

• Save the packing materials and box in case you ever need to ship or store your camcorder.

• The items shown below are packed with your camcorder. If any are missing or appear damaged, contact your dealer immediately.

Rechargeable 6-Volt Battery Part No. FB1260

Cassette Adapter

Part No. VCA115A or 221338

Clock Cell 3-Volt Micro Lithium Cell – such as CR2025 – is available from most local drug stores and camera shops. Use of other cell presents a risk of fire or explosion.

AC Adapter/Charger

Part No. 221339 or 217010

WARNING: NICKEL CADMIUM BATTERY MUST BE DISPOSED OF PROPERLY.

+ -

Cassette Adapter

Battery

(Size "AA" 1.5 Volt)

Caution: Do not use this

adapter/charger for any purpose other than charging the FB1260 or FB120 battery pack or supplying power to the camcorder.

Cautions: Lithium cell battery. Must be disposed of properly. Never handle punctured or leaking cell. May cause burns or personal injury.

Keep out of the hands of children. Can cause death or injury if swallowed. If swallowed, consult a physician immediately for emergency treatment.

The lithium cell used in this device may explode resulting in a fire or chemical burn if mistreated. Do not recharge, disassemble, heat above 212˚F (100˚C), or incinerate.

Never use metallic tweezers to hold the cell, and never short circuit the + and – sides of the cell.

POW

CHG END REFRESH

Assistance

The toll-free numbers are available to help you with any problem you may encounter.

Camcorder Exchange Warranty . . . . .800-283-6503

Customer Service . . . . . . . . . . . . . . . .800-336-1900

Accessories . . . . . . . . . . . . . . . . . . . .800-338-0376

This section describes only the basic steps necessary to set up your camcorder to record. Refer to the other sections for detailed operation and feature options.

3.Insert a tape.

• Slide EJECT.

• Turn the tape wheel on the cassette to remove any slack from the tape.

• Insert the cassette with the tape wheel facing up and the tape window facing out.

• Press on the area labeled PUSH until the cassette door locks into place.

First-Time Operation

CAMERA

VCR OFF

AUDIO RF

VIDEO

POWER

CHG END REFRESH

POWER

Indicator

DC OUT Jack

Power Connector

Adapter/Charger

Reference Marks

To AC 100240V, 50/60 Hz

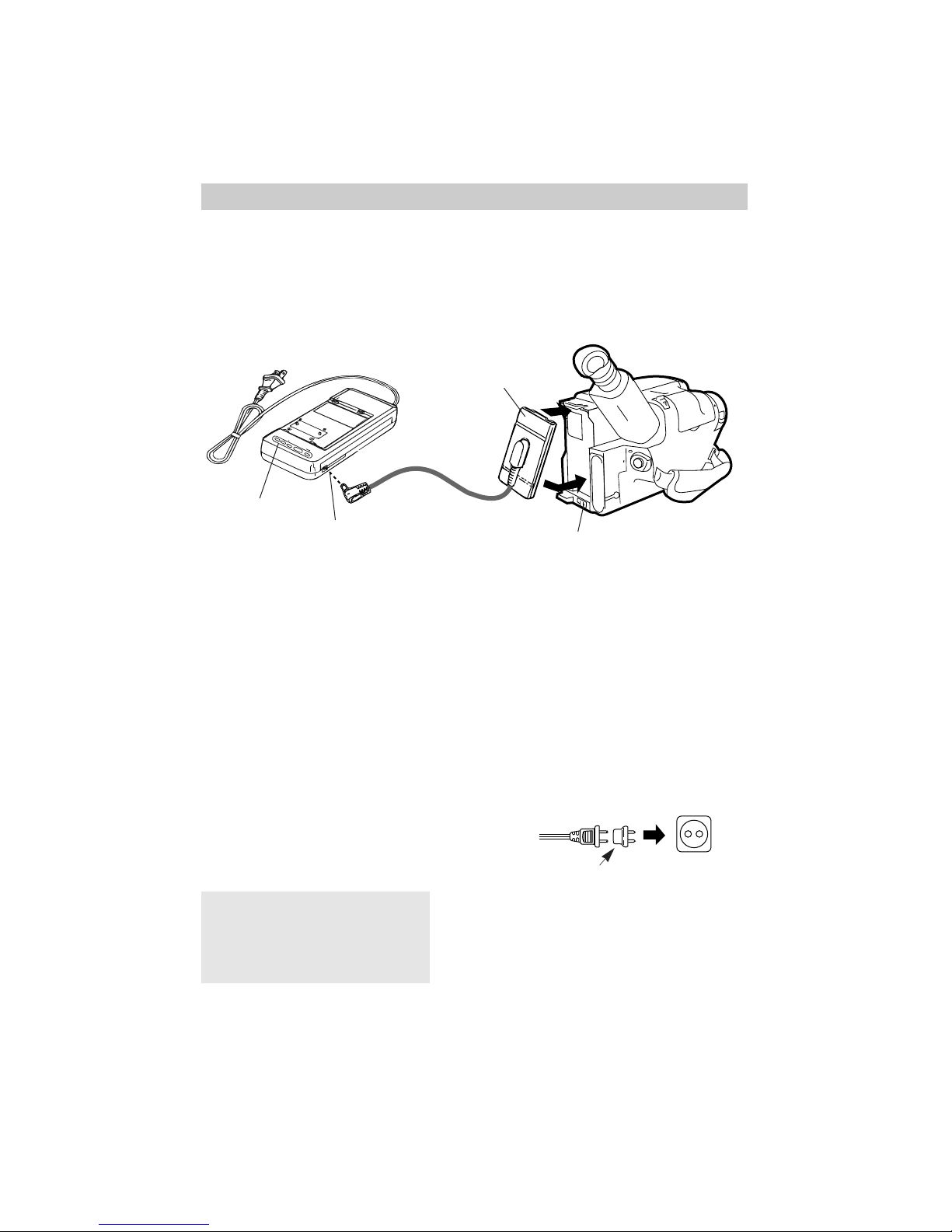

2.Attach the adapter/charger.

Since the battery must be charged before it can be used the first time, attach the adapter/charger to the camcorder.

(continued on next page)

A. Connect the power connector’s

small plug into the DC OUT jack on the adapter/charger.

B. Align the reference mark on the

power connector with the mark on the camcorder. Hold the top of the power connector flush against the back of the camcorder, and press the bottom of the power connector down until it locks into place.

C. Plug the adapter/charger’s plug into

an operating outlet. The adapter/ charger’s power indicator will light.

AUDIO

DATE/TIME/CHAR––SET

•30•40 TRACKING

R/M

PLAY/PAUSE

STOP

REW

RCH

RF DC OUT

VIDEO

CAMERA

VCR OFF

EJECT

ODE

QUICK SET

Tape Wheel

Tape Window

PUSH

Here to Close

First-Time Operation

EJECT Button

6.Place VCR/OFF/CAMERA switch in CAMERA.

The power indicator will light and the camcorder will enter record pause. appears in the viewfinder when the camcorder is in record pause.

The position of this switch tells the camcorder whether you want to record (CAMERA), turn the power off (OFF), or play back tapes (VCR).

The camcorder will automatically turn off if it remains in record pause for five minutes. Place VCR/OFF/CAMERA switch in OFF and then back in CAMERA.

PAUSE

Handstrap Flap

Handstrap Velcro Strip (Under Flap)

VCR/OFF/CAMERA Switch and Power Indicator

LENS COVER

Control

4.Slide LENS COVER control to open lens cover.

5.Adjust the handstrap to fit your hand.

• Lift the flap on the handstrap and separate the velcro strip.

• Insert your hand, adjust the strap to fit snugly, and refasten the

strap.

AUDIO

DATE/TIME/CHAR––SET

•30•40 TRACKING

R/M

PLAY/PAUSE

STOP

REW

RCH

RF DC OUT

VIDEO

CAMERA

VCR

OFF

First-Time Operation

7.Select a recording speed and tape length using SP•SLP/T20•30•40 switch.

(continued on next page)

SP•SLP/T20•30•40

Switch

Select SP or SLP recording speed.

• SP – Standard play provides the best picture, but the shortest recording time (20 minutes with a TC-20 tape).

• SLP – Extended play provides three times the recording time as SP (60 minutes with a TC-20 tape). SLP has slightly more picture noise in normal playback.

Set the length of the tape you are using so the camcorder can correctly calculate the recording time remaining on the tape.

Repeatedly press the SP•SLP/ T20•30•40 switch.

• Select T20 SP if you are using a tape with 20 minutes or less recording time and want to record in SP speed.

• Select T20 SLP if you are using a tape with 20 minutes or less recording time and want to record in SLP speed.

• Select T30 SP if you are using a tape with 30 minutes recording time and want to record in SP speed.

• Select T30 SLP if you are using a tape with 30 minutes recording time and want to record in SLP speed.

• Select T40 SP if you are using a tape with 40 minutes recording time and want to record in SP speed.

• Select T40 SLP if you are using a tape with 40 minutes recording time and want to record in SLP speed.

MODE

QUICK SET

Electronic Viewfinder

Eyepiece Focus Control

QUICK SET Dial

8.Set the QUICK SET dial to AUTO.

• This places the camcorder in the AUTO mode.

• In the AUTO mode, the fade, 16X9, manual focus, exposure, display, and titler controls will not operate.

9.Adjust the viewfinder and eyepiece focus control.

• Rotate the viewfinder into a

comfortable operating position.

• Turn the eyepiece focus control to

adjust the focus of the viewfinder for your vision.

First-Time Operation

AUDIO

DATE/TIME/CHAR––SET

•30•40 TRACKING

R/M

PLAY/PAUSE

STOP

REW

RCH

RF DC OUT

VIDEO

CAMERA

VCR

OFF

First-Time Operation

10. Start and stop recording.

• Press and release the thumb trigger to start recording. REC

666

appears in the viewfinder, and the tally light will light when the camcorder is recording.

• Press and release the thumb trigger again to stop recording. The camcorder is now in the recordpause mode ( appears in the viewfinder).

PAUSE

11. Play back what you have recorded.

• Place the VCR/OFF/CAMERA

switch in VCR.

• Press REW to rewind the tape.

• Press PLAY/PAUSE to play back

the tape in the viewfinder.

• Press STOP when you are finished

playing back the tape.

• Details on viewfinder playback are

on page 44.

12. Place the VCR/OFF/CAMERA

switch in OFF to turn off the camcorder.

The power indicator will turn off.

Thumb Trigger

Power Indicator

PLAY Button

REW Button

STOP Button

VCR/OFF/CAMERA Switch

MODE

QUICK SET

First-Time Operation

Lens

MODE Button

F2 Button

F1 Button

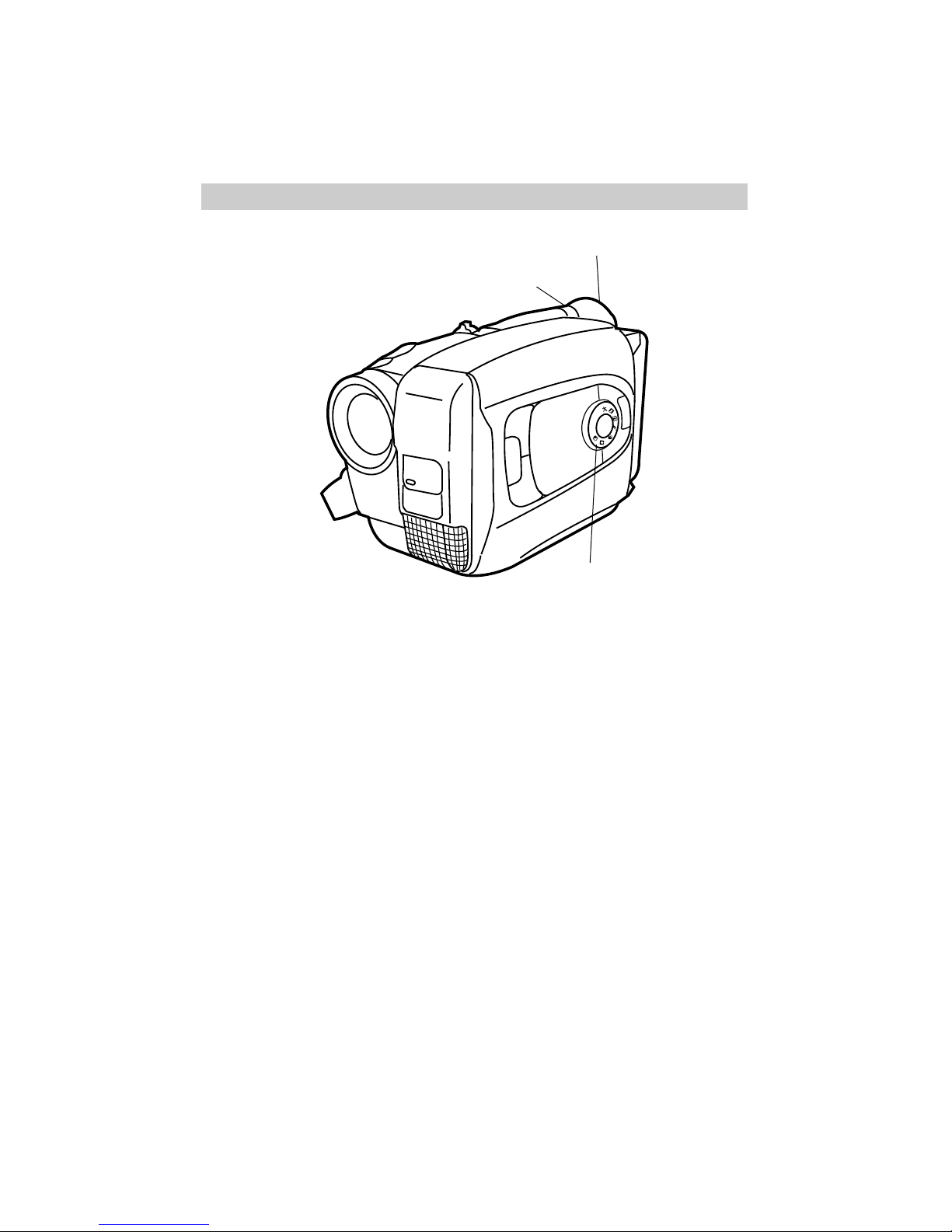

13. Review camcorder’s operating controls.

Tally Light

Cassette Door

PUSH here to close.

EJECT Button

QUICK SET Dial

Viewfinder

Power Zoom Lever “W” - Wide Angle “T” - Telephoto

Eyepiece Focus Control

Eyepiece

Microphone

LENS COVER

Control

(continued on next page)

SP-SLP/T20•30•40

COUNTER R/M TRACKING

MAN.W.BAL

DATE/TIME/CHAR SET

AUDIO

DATE/TIME/CHAR––SET

•30•40 TRACKING

R/M

PLAY/PAUSE

STOP

REW

RCH

RF DC OUT

VIDEO

EDIT – SEARCH

REW FF STOP PLAY/PAUSE

CAMERA

VCR

OFF

FF Button (Also EDIT SEARCH + Button)

REW Button (Also EDIT SEARCH – Button)

SP•SLP/T20•30•40 Button (Also COUNTER R/M Button)

MAN.W.BAL (Manual White Balance) Button

PLAY/PAUSE Button

STOP Button

SET Button

DATE/TIME/CHAR + and – Buttons

(Also TRACKING Buttons)

Handstrap

Thumb Trigger

AUDIO, RF DC OUT, and VIDEO Jacks

BATT. RELEASE Button

Shoulder Strap Attachment Ring

Clock Cell Compartment

Shoulder Strap Attachment Ring

Attach Battery or Power Connector for AC Adapter/Charger Here

VCR/OFF/CAMERA Switch and Power Indicator

First-Time Operation

B (Bright) and C (Color) Controls on the Bottom of Viewfinder (See Trouble

Checks for Details.)

13. Review camcorder’s operating controls.

Powering Your Camcorder

Attach Adapter/Charger

1. Plug power connector’s plug into DC OUT jack on adapter/charger.

2. Align the reference mark on the power connector with the mark on the camcorder. Hold the top of the power connector flush against the back of the camcorder, and press the bottom of the power connector onto the camcorder until it locks into place.

3. Plug the adapter/charger’s plug into the nearest AC outlet (100-240V, 50/60Hz).

4. If the adapter/charger is properly connected, its POWER indicator will light.

Remove Adapter/Charger

1. Unplug the adapter/charger from the wall outlet.

2. Press and hold BATT. RELEASE on the camcorder while removing the power connector.

Using an Optional Plug Adapter

An optional plug adapter may be required in some countries.

1. Plug the adapter/charger’s plug into the AC plug adapter.

2. Plug the AC plug adapter into the AC outlet.

Optional AC Plug Adapter

AC 100-240V

AUDIO RF

VIDEO

POWER

CHG END REFRESH

CAMERA

VCR OFF

DC OUT Jack

POWER

Indicator

Power Connector

To AC 100-240V, 50/60 Hz

BATT. RELEASE Button

Caution: Do not use this

adapter/charger for any other purpose other than charging the FB1260 or FB120 battery pack or supplying power to the camcorder.

Using the Adapter/Charger to Power Your Camcorder

The power connector attaches to the camcorder and lets you power your camcorder directly from standard household power. The adapter/charger operates on 100-240 volts, 50/60 Hz, so it can be used virtually anywhere in the world to power the camcorder or recharge the battery.

Charge the Battery

If the power connector is attached to the DC OUT jack on the adapter/charger, remove its plug.

1. Align reference mark on battery with mark on adapter/charger.

2. Hold the battery flush against the adapter/charger and slide it in the direction of the arrow.

3. Plug adapter/charger into nearest AC outlet (100-240V, 50/60Hz).

4. If the battery is properly connected, the adapter/charger’s CHG (charge) indicator will light.

Note: If you try to charge a battery that has not been charged for a long period of time, it may take a few minutes for the CHG indicator to light.

5. After the battery is charged, the END indicator will light.

6. Remove the charged battery by sliding

it off the adapter/charger.

7. Attach the charged battery to the

camcorder.

POWER

CHG END REFRESH

Adapter/Charger

POWER

Indicator

Hold Battery Flush and Slide

Reference Marks

CHG

Indicator

END

Indicator

REFRESH

Indicator

REFRESH

Button

To AC Wall Outlet 100-240 Volts, 50/60 Hz.

Caution

When a battery is attached to the adapter/charger, do not turn them upside down. The battery may fall off and be damaged or cause injury.

Use the REFRESH Button

The battery will provide increased operation time if you “refresh” it after five chargings. The refresh feature “refreshes” the battery by completely discharging it.

1. Attach battery to adapter/charger.

2. Press REFRESH. The REFRESH indicator will light and the battery will begin discharging.

3. When discharging is completed, the REFRESH indicator will turn off, and the CHG indicator will light. The battery will then charge.

4. After the battery is charged, the END indicator will light. Remove the battery from the adapter/charger.

Powering Your Camcorder

ATTENTION: NICKEL CADMIUM BATTERY MUST BE DISPOSED OF PROPERLY. THE PRODUCT THAT YOU HAVE PURCHASED USES A RECHARGEABLE BATTERY. AT THE END OF ITS USEFUL LIFE, UNDER VARIOUS STATE AND LOCAL LAWS, IT MAY BE ILLEGAL TO DISPOSE OF THIS BATTERY INTO THE MUNICIPAL WASTE STREAM. CHECK WITH YOUR LOCAL SOLID WASTE OFFICIALS FOR DETAILS IN YOUR AREA FOR RECYCLING OPTIONS OR PROPER DISPOSAL.

Powering Your Camcorder

AUDIO

VIDEO

CAMERA

VCR OFF

Attach the Charged Battery

If the power connector is attached to the camcorder, remove it before attaching the battery. Also, install the lithium clock cell before attaching the battery pack.

Details on page 40.

1. Align the reference mark on the battery with mark on back of camcorder.

2. Hold the top of the battery flush against the camcorder and press the bottom of

Using the Battery to Power Your Camcorder

the battery down until it locks into place.

3. Place the VCR/OFF/CAMERA switch in CAMERA. The power indicator will light.

Remove the Battery

Press and hold BATT. RELEASE on the camcorder while removing the battery.

Battery Safety Precautions

Do not short the battery’s terminals.

Do not attempt to disassemble or modify the battery. There are no user-serviceable parts inside.

Use the battery only with specified adapter/chargers and camcorders.

Throwing the battery into a fire or exposing to excessive heat – over 149ºF (65ºC) could be hazardous.

Marker Switch

Reference Marks

The battery must be charged as described on the previous page before it can be used the first time. Initial charging will take approximately 70 minutes. When fully charged, the battery should supply about 65 minutes of operating time (depending on how much you use the zoom and pause). Conserve battery power by turning the camcorder off during recording breaks.

Note: The small marker switch on top of the battery is for use as a personal reminder to help you remember to recharge the battery. It has no other function.

BATT. RELEASE

Ni - Cd

VCR/OFF/CAMERA Switch and Power Indicator

Battery Level Indicator

The battery level indicator appears in the viewfinder and shows you the amount of power in the rechargeable battery.

Powering Your Camcorder

Battery Care and Storage

• Recharging takes approximately 70 minutes depending on the battery’s condition.

• Refreshing takes approximately 210 minutes depending on the battery’s condition.

• After repeated charging and use, operation time will gradually decrease. When operation time becomes too short to be useful, it is time to replace the battery.

• If the battery discharging must be stopped in the middle, remove the battery from the adapter/charger before unplugging it from the AC outlet.

• Let a hot battery cool down before attaching it to the adapter/charger.

• When appears, the battery is

fully charged.

• The battery will also provide better service if its power is completely drained before storing it for long periods of time (30 days or more).

• The battery should be charged in the temperature range of 50-95°F (10-35C) to prevent damage.

• Do not operate the battery at temperatures below 32°F (0C) or above 104°F (40C). The battery may be damaged if operated at temperatures above 122°F (50C). Operation time will decrease at extremely low temperatures.

• Store the battery at normal room temperature.

Battery Level Indicator

in Viewfinder

• As the power is used and

appear.

• When the battery power is almost gone,

flashes in the viewfinder. The camcorder will turn off automatically after a few seconds. Place the POWER switch in OFF to turn off the camcorder before replacing the battery.

The battery level indicator will not be recorded on the tape when it appears in the viewfinder.

Powering Your Camcorder

1. Place the POWER switch in OFF to turn off the camcorder. Power indicator turns off.

2. If the battery is attached to the camcorder, remove it.

3. Hold the top of the power connector flush against the back of the camcorder and push the bottom of the power connector down until it locks into place.

4. Take the vehicle’s cigarette lighter out of the socket.

5. Insert the car cord’s cigarette lighter plug into the vehicle’s cigarette lighter socket. The POWER indicator on the car cord adapter will light.

6. Place the VCR/OFF/CAMERA switch in CAMERA to turn on the camcorder. The power indicator lights.on.

Cautions: The DCC08 is designed to be used only with vehicles having negative ground electrical systems.

Use only car cord adapter DCC08 with this camcorder. Use of any other car cord adapter may damage the camcorder and void your warranty.

POWER Indicator

Power

Connector

Cigarette

Lighter Socket

Optional DCC08 Car Cord Adapter

AUDIO RF

VIDEO

CAMERA

VCR OFF

Optional Car Cord Adapter

The optional DCC08 car cord shown on page 52 allows you to power your

camcorder from the cigarette lighter socket of a car, truck, or RV. It converts 12-volts to a 6-volt output.

Note: Consult the installation and operating instructions enclosed with the DCC08 for complete operating instructions.

Using the DCC08 Car Cord Adapter

Caution: Make sure the camcorder’s

power is turned off before removing the car cord’s plug from the cigarette lighter socket.

Video Cassettes

You can use your video cassettes over and over again. To erase a previous recording, just record over it.

Safety

Tab

A. Remove B. Cover hole

with vinyl tape.

safety tab.

We recommend that our cassettes be used with your camcorder. Use of poor quality tapes or tapes that have been damaged or mishandled can contaminate the video heads, resulting in a snowy picture or no picture at all during playback. Because there is no control over the type of tape purchased or rented by consumers, head cleaning is not covered under warranty. It is considered normal maintenance.

The automatic head-cleaning system minimizes the need for accessory cleaners or cleaning by a Servicenter. This system is activated whenever you insert or remove a cassette.

Erase Protection – Safety Tab

Recording and Playback Speeds and Times

The camcorder records and plays back in standard speed (SP) or extended play (SLP). Select the recording speed and tape length using the SP•SLP/T20•30•40 switch. The selected speed and tape length will be displayed in the viewfinder. Listed below are the maximum SP and SLP recording times for popular VHS-C cassettes.

Recording Time

Cassette SP SLP

TC-20 20 Min. 60 Min. TC-30 30 Min. 90 Min. TC-40* 40 Min. 120 Min.

* Will probably be available soon.

• SP – Standard play provides the best picture (less picture noise), but the shortest recording time (20 minutes with a TC-20 tape).

• SLP – Extended play provides three times the recording time as SP (60 minutes with a TC-20 tape). SLP has slightly more picture noise than SP in normal playback. This may not be noticeable.

EJECT

ODE

QUICK SET

Video Cassettes

Before inserting a cassette, turn the tape wheel on the side of the cassette in the direction shown to remove any slack in the tape.

Inserting and Removing Cassettes

Cassette Care and Storage

• When you are finished with a cassette,

rewind it, remove it from the camcorder, and label it.

• Store cassettes vertically in their

protective cases at normal room temperatures. Do not leave your camcorder or cassettes in a car or outdoors for an extended period. Excessive heat or cold may damage your cassettes.

• Keep the cassette away from strong

magnetic fields such as electric motors and other devices.

• Keep dust from entering the cassette compartment. All dust is abrasive and will cause excessive wear on the tape and the camcorder’s recording or playback heads.

• Do not use cassettes with damaged or spliced tape.

• Do not use a cassette if it has been damaged or exposed to moisture. The tape may jam and/or damage your camcorder.

1. Attach a power supply. Then slide and release EJECT to open the cassette compartment.

2. Insert or remove the cassette.

3. Close the cassette compartment door by pressing on the area labeled PUSH until it locks into place.

Tape Wheel

EJECT Button

Tape Window

PUSH

Here to Close Cassette Compartment Door

Safety Tab

Caution: Insert

the cassette only one way with the tape wheel facing up and the tape window facing out. The cassette should slide easily into the compartment. Do not force the cassette.

Tape Wheel

MODE

QUICK SET

Recording

Making a Recording

The steps below tell you how to make a recording and suggest using some of the recording features. Each feature is described in detail on the following pages.

1. Attach a power supply.

Attach the adapter/charger, charged battery, or optional DC car cord.

2. Insert a tape.

• Slide EJECT.

• Turn the tape wheel on the cassette to remove any slack from the tape.

• Insert the cassette with the tape wheel facing up and the tape window facing out.

3. Slide the LENS COVER control to open the lens cover.

4. Place the VCR/ OFF/CAMERA switch in CAMERA.

The power indicator will light and the camcorder will enter record pause.

appears in the viewfinder.

5. Adjust the viewfinder and eyepiece focus control for your vision.

PAUSE

AUDIO

DATE/TIME/CHAR––SET

•30•40 TRACKING

R/M

PLAY/PAUSE

STOP

REW

RCH

RF DC OUT

VIDEO

CAMERA

VCR OFF

MODE, F1, and F2 Buttons

Tally Light

SP•SLP/T20•30•40 Switch

Eyepiece Focus Control

EDIT SEARCH + Button

EDIT SEARCH – Button

LENS COVER Control

Power Zoom Button

EJECT

Button

VCR/OFF/CAMERA

Switch

QUICK SET Dial

Recording

6. Select a recording speed and tape length using the SP•SLP/T20•30•40 switch.

• Select SP or SLP recording speed.

• Set the length of the tape you are using (T20, T30, or T40) so the camcorder can correctly calculate time remaining.

7. Set the QUICK SET Dial.

• Place the dial in AUTO to place the camcorder in the AUTO mode.

• Place the dial in ( ) sports or ( ) fast speed shutter to record fast moving action.

• Place the dial in ( ) back light or ( ) front light to compensate for unusual lighting situations.

• Place the dial in ( ) spotlight to create the effect of the subject being in a spotlight.

• Place the dial in ( ) portrait to create the effect of the subject being in a frame.

• Place the dial in ( ) sepia to create the effect of an old movie.

• Place the dial in MAN and experiment with the MODE and F1 and F2 buttons.

• Select F1 FADE to fade in and out

of scenes.

• Select F2 16X9 to record using the

16X9 format.

• Select F1 FOCUS to manually

focus.

• Select F2 EXP. to adjust the iris

(brightness).

• Select F1 TITLE to select and record one of the preset titles.

•Select F2 DISP. to display and record the date, time and date, or create and record your own title.

8.Start and stop recording.

• Press and release the thumb trigger to start recording. REC

666

appears in the viewfinder and the tally light will light when the camcorder is recording.

• Press and release the thumb trigger again to stop recording. The camcorder is now in record pause.

appears in the viewfinder.

• The camcorder will automatically turn off if it remains in record pause for five minutes. Place the VCR/OFF/CAMERA switch in OFF and then back in CAMERA.

9.Use the zoom feature.

• Zoom in and out using the power zoom T and W lever.

10.Review what you have recorded.

• Press and release EDIT SEARCH – to review the last few seconds of the recording.

• Press and hold EDIT SEARCH – or + to visually see what you have recorded. Release the button to begin recording at that point.

PAUSE

Recording

Recording Tips

• In case of fire or theft, make a video recording of your home and contents to store in a safe place.

• Try to make sure indoor scenes are well-lit.

• Do not move the camcorder rapidly from side-to-side while recording. A steady, gradual “pan” avoids blurring and “jitter”.

• Use the viewfinder to make sure the camcorder is level while recording or your scenes will appear “tilted”.

• Do not bump or tap the camcorder’s microphone while recording because this sound will be recorded.

• Include close-ups of individuals when taping family outings or group functions.

• Fading in and out of scenes will make your videos appear more professional.

• When recording fast-moving action in outdoor light that you plan to view in stop-action or slow motion on a 3-5 head VCR, place the QUICK SET dial in sports ( ) or shutter ( ) to increase the shutter speed.

• Be aware of video and audio backgrounds. Background details barely noticed while you are taping may show up as visual “clutter” on your recording. Background noises (especially TV sets, radios, household appliances, traffic sounds, etc.) can detract from the sound you want to record.

• Avoid long “still” shots of landmarks and scenic attractions. Recordings are more interesting if they include people and details. “Local color” will give travel videos lasting appeal. Consider recording a familiar or landmark scene from an unfamiliar vantage point.

Traveling Tips

• Write down your camcorder’s serial number and keep it separate from the camcorder when traveling. If your camcorder is lost or stolen, you will be able to identify it.

• Use extra care to avoid damage to your camcorder and accessories when operating them at a beach or pool. Spray, sand, and dust should be avoided. If your lens has been exposed to the elements, clean it only with proper lens cleaning supplies.

• Make sure you have any plug adapters that you may need before taking your camcorder to other countries. Consult your dealer for advice.

• Carry your camcorder in a carrying case when traveling. See page 52 for a case designed especially for this camcorder. An ordinary suitcase or carry bag does not offer the protection your camcorder needs. Treat your camcorder as carry-on luggage to protect it from rough handling.

Recording

Cautions

Do not force the viewfinder to rotate completely around. This will damage the viewfinder and/or the camcorder.

When carrying the camcorder with an optional shoulder strap, put the viewfinder down. This helps prevent possible damage to the viewfinder from bumping against your body as you move.

Adjust Viewfinder for Convenient Viewing

For convenient viewing, you can slide the viewfinder out from the camcorder and rotate it up and down.

Viewfinder

The camcorder’s viewfinder is a miniature monitor that displays the picture seen by the camcorder when recording.

AUDIO RF

VIDEO

CAMERA

VCR

OFF

Eyepiece Focus Control

The eyepiece focus control lets you set the focus of the viewfinder for your personal vision. If you wear eyeglasses, you probably can operate the camcorder without them.

It is easiest to set the correct focus by focusing on one of the viewfinder’s onscreen displays.

Look through the viewfinder and adjust the eyepiece focus control for your vision.

The eyepiece focus control does not affect the focus of the picture actually recorded by the camcorder.

Viewfinder

Eyepiece Focus Control

Recording

Zoom Level

This indicator tells you whether you are zoomed in or zoomed out.

Details are on page 36.

Exposure Indicator Bar

This indicator appears when you are adjusting brightness manually.

Details are on page 36.

Preset Title

• The preset title you select will appear in this area.

• This title will be recorded on your tape when it appears.

• Details are on pages 38 and 42-43.

Viewfinder Displays

Date, Date/Time, or Created Title

• The date, AUTO DATE, date and

time, or title you created appears in this area of the viewfinder.

• These displays will be recorded on your tape when they appear.

• Details are on pages 42-43.

Battery Level Indicator

• This indicator shows how much

power is left in the rechargeable battery.

• This indicator flashes when the battery is almost empty.

• Details are on page 14.

0:00:00

10 : 55

DEC 25.95

LENS COVER

HAPPY HOLIDAYS

SPORTS

11 12

30MIN

Recording

Cassette Warning

• The indicator flashes when the VCR/OFF/CAMERA switch is set to CAMERA and the safety tab has been removed from the cassette.

• The indicator also flashes when the VCR/OFF/CAMERA switch is set to CAMERA and there is no cassette in the camcorder.

Time Remaining, Tape Length and Tape Speed (SP or SLP)

Time Remaining: The approximate

time remaining on the tape in the camcorder is automatically displayed. The correct tape length must be set.

• The time-remaining indicator will start flashing when the remaining tape time reaches two minutes.

• Details are on page 28.

Tape Length: The length of the tape in the camcorder (T20, T30, or

T40) selected with the SP•SLP/ T20•30•40 switch appears here.

• Details are on page 28.

Recording Speed: The recording speed (SP or SLP) selected with the SP•SLP/T20•30•40 switch appears here.

• Details are on pages 16 and 28.

Elapsed Time-Counter with

Memory Stop

• The time counter appears during

playback. It is not recorded on the tape.

• An “M” appears in front of the time counter when memory-stop is on.

• Details are on page 27.

Quick Set

• The indicator for the mode selected with the QUICK SET dial appears here.

• The indicator and mode both appear briefly when the mode is selected, and then only the indicator appears.

• Details are on page 29.

LENS COVER

When you turn on the camcorder, this indicator briefly flashes to remind you to open the lens cover.

Manual Focus

• Manual Focus Indicators ( ) appear when focus is adjusted manually.

• Manual Focus Lock Indicators (56) appear when manual focus is locked.

• Low-Contrast Indicators ( ) flash when the auto-focus system cannot focus properly.

• Details are on pages 34-35.

Lithium Cell ( )

• This indicator appears when the

clock cell has not been installed or it needs to be replaced.

• Details are on page 40.

(continued on next page)

Recording

White Balance

• The indicator for the manual white

balance selected with the MAN.W.BAL (manual white balance) button appears here.

• No indicator appears for automatic white balance.

• Details are on page 30.

Dew Warning ( )

The dew indicator appears when excessive moisture (condensation) has entered the camcorder. The camcorder will not operate when this indicator appears. Place the camcorder in a warm, dry area until this indicator disappears. When the dew indicator disappears, the camcorder will operate.

MODE Features (F1 and F2)

•The QUICK SET dial may not be in AUTO to use these features.

• The F1 and F2 features selected with the MODE button appear here.

• Details are on page 31.

Status Displays

•The REC

666

indicator appears here when the camcorder is recording.

• The indicator appears when the camcorder is in record pause.

• TAPE END appears when the end of the tape is reached during recording or a cassette is inserted with its tape already at the end.

INDEX and FADE

• INDEX flashes when an index mark is being recorded. Details are on

page 25.

• FADE appears when fade is selected and flashes when fade is activated. Details are on page 32.

PAUSE

Viewfinder Displays (continued)

REC

PAUSE

FADE

16X9

MWB

INDEX

16 17

FADE

Recording

Tally Light

The tally light lights when the camcorder is recording.

Microphone

The microphone picks up the sound during a recording. It is more sensitive to sounds coming from the direction the lens is pointed.

Flying Erase Head

A separate erase head is mounted on the spinning headwheel (hence the term “flying”). This allows you to make clean edits without the “glitches” or “rainbow noise” that may occur at the beginning or the end of recordings.

Tape Positioning

Place VCR/OFF/CAMERA switch in VCR and press STOP.

• Press and quickly release REW or FF to rewind or fast-forward the tape. Press STOP to stop the tape.

Tally Light

Electronic Indexing

An index mark is automatically recorded at the beginning of a recording after the date advances and a cassette is inserted. When you play back the indexed tape in a VCR that has a compatible indexing feature called “VHS Index Search System”, the invisible marks can be located automatically. See VCR owner’s manual.

INDEX flashes in the viewfinder when an index mark is recorded.

MODE

QUICK SET

INDEX

Note: No other function can be performed during index recording.

Microphone

AUDIO

DATE/TIME/CHAR––SET

•30•40 TRACKING

R/M

PLAY/PAUSE

STOP

REW

RCH

RF DC OUT

VIDEO

CAMERA

VCR

OFF

Recording

Quick Review Feature

Press and release EDIT SEARCH – when the camcorder is in record pause to review the last few seconds of a recording. The VCR/OFF/CAMERA switch must be in CAMERA.

The camcorder will play back the last few seconds of the recording, return the tape to its previous position, and return to record pause.

Auto Head Cleaner

The camcorder has an automatic headcleaning system. Whenever a cassette is inserted or removed, this system is activated.

The head-cleaning system minimizes the need for accessory cleaners or cleaning by a Servicenter.

Camera Edit Feature

The camera edit feature allows you to position the tape when the camcorder is in record pause. Place VCR/OFF/ CAMERA switch in CAMERA.

• Press and hold EDIT SEARCH – to visually search the recorded tape in reverse.

• Press and hold EDIT SEARCH +

to visually search forward on the

recorded tape.

Release the button to return camcorder to record pause at that point on the tape. Press the thumb trigger to start recording at this point.

VCR/OFF/CAMERA Switch in CAMERA

REW and FF (Also EDIT SEARCH – and +) Buttons

AUDIO

DATE/TIME/CHAR––SET

•30•40 TRACKING

R/M

PLAY/PAUSE

STOP

REW

RCH

RF DC OUT

VIDEO

CAMERA

VCR

OFF

Recording

Time Counter

The time-counter display shows the actual time elapsed when playing back a segment of a prerecorded tape. The memory-stop feature helps locate a certain point on the tape. When memory stop is on, the tape will stop automatically during rewind or fast forward when the time counter reaches M 0:00:00.

To Use the Memory-Stop Feature

1. Locate the place on the tape you want to return to, place the VCR/OFF/CAMERA switch in VCR, and press COUNTER R/M for more than two seconds to reset the counter to 0:00:00.

2. Press COUNTER R/M for less than one second to turn the time counter’s memory-stop feature on or off. When memory stop is on, an M appears before the time counter in the viewfinder.

3. Continue to play the tape. When you want to return to the place you marked, press the STOP button.

4. Press REW. The tape will rewind to the time counter reading of M 0:00:00.

M 0:00:00

COUNTER R/M Button

VCR/OFF/CAMERA Switch

Thumb Trigger

STOP

Button

REW

Button

Time Counter With

Memory Stop Turned On

Recording

AUDIO

DATE/TIME/CHAR––SET

•30•40 TRACKING

R/M

PLAY/PAUSE

STOP

REW

RCH

RF DC OUT

VIDEO

CAMERA

VCR

OFF

Tape Time-Remaining Display

The approximate time remaining on the tape in the camcorder is automatically displayed in the viewfinder. The SP•SLP/T20•30•40 switch must be set for the correct recording speed and tape length before the camcorder can correctly calculate time remaining.

SP•SLP/T20•30•40

Switch

30MIN T30 SP

30MIN

29MIN

3MIN

2MIN

(Flashing)

1MIN

(Flashing)

0MIN

(Flashing)

TAPE END

Time Counter With

Memory Stop Turned On

Set the Recording Speed and Tape Length

Before recording, repeatedly press the SP•SLP/T20•30•40 switch to select the recording speed and length of tape you are using.

• Select T20 SP if you are using a tape with 20 minutes or less recording time and want to record in SP speed.

• Select T20 SLP if you are using a tape with 20 minutes or less recording time and want to record in SLP speed.

• Select T30 SP if you are using a tape with 30 minutes recording time and want to record in SP speed.

• Select T30 SLP if you are using a tape with 30 minutes recording time and want to record in SLP speed.

• Select T40 SP if you are using a tape with 40 minutes recording time and want to record in SP speed.

• Select T40 SLP if you are using a tape with 40 minutes recording time and want to record in SLP speed.

Notes: The time-remaining indicator will start flashing when the remaining tape time reaches two minutes.

TAPE END appears when the tape reaches its end during recording or a cassette is loaded whose tape is already at its end.

Recording

QUICK SET Dial

The QUICK SET dial lets you select one of several different effects. Turn the dial to select the effect you want. The indicator for the effect will appear in the viewfinder. Set the dial to MAN for normal recording.

MODE

QUICK SET

QUICK SET Dial

AUTO

MAN

Sports

Back-Light

Front-Light

High Speed Shutter Speed

Spotlight

Portrait

Sepia

Places camcorder in full auto mode. 16X9, FADE, FOCUS, EXPOSURE, DISPLAY, TITLE, and MAN.W.BAL will not operate in this mode.

Use this mode for normal recording. Use when playing back recording on a VCR featuring

special effects, such as pause or slow motion. Uses high shutter speeds to clearly capture fast-moving action with less blurring.

Use when the subjects are in front of a window or with the sun to their back. Compensates for subjects appearing too dark because of backlighting.

Use when there is a strong front light on the subject such as spotlights. Compensates for subjects appearing too light because of strong front lighting.

Sets shutter speed to 1/2000. Use to record fast-moving action with less blurring. Can

capture faster action than sports mode. Use outdoors and in well-lit situations when playing back recording on VCR featuring special effects, such as pause or slow motion.

Use to give the effect of the subject being in a spotlight. Outer edges fade to black.

Gives the effect of the subject being framed. Outer edges are white while center subject remains clear.

Picture recorded in sepia (brownish red) that offer the vintage look of old movies. Use it with the 16X9 mode to create an authentic movie theater look. See pages 33.

Mode Indicator Uses

AUDIO

DATE/TIME/CHAR––SET

•30•40 TRACKING

R/M

PLAY/PAUSE

STOP

REW

RCH

RF DC OUT VIDEO

CAMERA

VCR OFF

Recording

Press

MAN.W.BAL

(Manual White Balance) to Display in Viewfinder

Auto White Balance

Manual White Balance

Outdoors — Sunny

Outdoors — Cloudy

MWB

Halogen or Tungsten

Light

To Adjust White Balance

1. Place the VCR/OFF/CAMERA switch in CAMERA, and make sure the QUICK SET dial is not set to AUTO.

2. Press MAN.W.BAL (manual white balance) until one of the manual white balance indicators appear in the viewfinder.

• Select when recording outdoors

on a cloudy day.

• Select when recording outdoors

on a sunny day.

• Select when recording using

halogen or tungsten lighting.

• Select MWB when shooting subjects

with different color temperatures and adjust the white balance as follows:

Note: It may help to connect your camcorder to a color TV monitor when making white balance adjustments.

A.Point camcorder at a white, flat

object such as a piece of paper. Adjust the focus manually.

B. Press and hold MAN.W.BAL for at

least three seconds. The MWB indicator flashes while adjusting and stops when finished.

3. To have camcorder automatically control white balance, repeatedly press MAN.W.BAL until no white balance indicator appears in viewfinder (or place QUICK SET dial in AUTO).

MAN.W.BAL Button

White Balance

Making colors look natural is what white balance is all about. This is achieved by adjusting the way the camcorder “sees” and records the light source in the scene you wish to record. Your camcorder is equipped with automatic white balance. However, under certain conditions, such as recording an object with various shades of the same color or when recording a predominant red or brown object outdoors, you may want to adjust white balance manually.

Recording

MODE Button

When the QUICK SET dial is in any position except AUTO, you can select any one of six functions using the MODE, F1, and F2 buttons. Repeatedly press MODE to select a function. The function selected appears in the viewfinder:

F1 — FADE F2 — 16X9 F1 — FOCUS F2 — EXP. F1 — TITLE F2 — DISP.

When the function you want to use appears, press F1 or F2 to select it. Each of the functions is described in detail on the following pages.

ODE

EJECT

MODE

FADE

16X9

F2F1

QUICK SET

Functions Selected

Repeatedly Press

MODE

Recording

You can add a professional touch to your recordings when you fade in and out of scenes. The picture will gradually appear or disappear. The speed of the fade is automatically controlled by the camcorder.

Fade In

1. Place the VCR/OFF/CAMERA switch to CAMERA. The power indicator will light. The camcorder will enter record pause. Center the subject or scene that you want to record in the viewfinder.

2. Make sure QUICK SET dial is not set

to AUTO.

3. Press MODE until FADE appears

in the viewfinder.

4. Press F1 to activate FADE. FADE

appears in the lower right-hand corner of the viewfinder.

5. Press the thumb trigger to start

recording. The screen turns blank and the camcorder will automatically fade into the scene you have selected.

Fade Out

1. Make sure QUICK SET dial is not set to AUTO.

2. Press MODE until FADE appears in the viewfinder.

3. Press F1 to activate FADE. FADE appears in the lower right-hand corner of the viewfinder.

4. Press the thumb trigger to stop recording. The camcorder will automatically fade out of the scene and enter record pause.

Note: When the QUICK SET dial is set to AUTO, FADE will not operate.

Fading In and Out

ODE

EJECT

QUICK SET

FADE

16X9

F2F1

1. Place the VCR/OFF/CAMERA switch to CAMERA. The power indicator will light. The camcorder will enter record pause.

2. Make sure QUICK SET dial is not set to AUTO.

3. Press MODE until 16X9 appears

in the viewfinder.

4. Press F2 to activate the 16X9 mode. Black bars appear at the top and bottom of the picture in the viewfinder.

5. Press the F2 button again to turn off

the 16X9 mode.

Note: When the QUICK SET dial is set to AUTO, the 16X9 mode will not operate.

To Record Using the 16X9 Mode

ODE

EJECT

QUICK SET

FADE

16X9

F2F1

Recording

New 16x9 TV Screen

Standard Shape TV Screen

Do not use this mode unless you have a compatible 16X9 TV. When played on a regular TV, black bars appear in the picture.

16X9 ModeNormal Mode

16X9 Mode

The camcorder has a 16X9 recording mode that lets you make recordings compatible with the 16X9 format. When 16X9 is activated, the camcorder records black bars at the top and bottom of the picture to produce the wide-screen effect. This is also known as “letter box” recording.

ODE

EJECT

QUICK SET

FOCUS

EXP.

F2F1

Focusing the Camcorder

Recording

Auto Focus

During auto focus the camcorder will focus automatically on the object located in the center area of the viewfinder.

• Place the QUICK SET dial in AUTO to turn on the auto focus feature.

Note: The low-contrast indicator ( ) in the viewfinder indicates the auto-focus system may not operate correctly due to low illumination, low or no contrast, repeated patterns, or two subjects at different distances overlapping.

Caution: During recording pauses, light entering the camcorder will operate the auto-focus feature and consume battery power.

Focus Lock Feature

The focus lock feature is useful when objects pass between your subject and the camcorder or your main subject is not located in the center of the viewfinder.

1. Center the main object in the viewfinder.

2. Make sure the QUICK SET dial is not set to AUTO.

3. Press MODE until FOCUS appears in the viewfinder.

4. Press F1 to activate focus lock. The focus lock indicators ( ) appear in the viewfinder.

5. Press the F1 button again to turn on

auto focus (or place QUICK SET dial in AUTO).

(continued on next page)

Recording

Manual Focus

Under certain conditions, such as those listed, you may need to focus manually.

1. Make sure the QUICK SET dial is not set to AUTO.

2. Slide the power zoom lever toward T to zoom in on your subject. To maintain proper focus throughout the zoom range, you must zoom in on the subject before adjusting the focus.

3. Press MODE until FOCUS appears in the viewfinder.

4. Press and hold F1 while sliding the power zoom lever toward T or W to display a clear picture in the center of the viewfinder focus.

For slow focusing, slide the power zoom lever a small amount. For fast focusing, slide the lever all the way up or down.

The indicators appear in the viewfinder. The 5or 6indicator will flash. When the focus cannot be adjusted any farther, the indicator will flash. When the focus cannot be adjusted any closer, the indicator will flash.

5. Release the power zoom button to lock in the manual focus. The indicators appear in the viewfinder.

6. To turn off manual focus, press F1 or place the QUICK SET dial to AUTO. The indicators disappear from the viewfinder.

Conditions Requiring Manual Focus

• When recording a subject through a window.

• When recording a subject having a close foreground and a background that is far away.

• When recording two subjects at different distances that overlap in the same scene.

• When the subject is not in the center of the viewfinder.

• When recording in low-light situations.

• When recording a scene with fast motions, like a tennis swing.

Recording

To Manually Control Brightness

1. Make sure the QUICK SET dial is not set to AUTO.

2. Press MODE until EXP. appears in the viewfinder.

3. Press and hold F2 while sliding the power zoom lever toward T to

Exposure Control (Iris)

The camcorder automatically adjusts the iris to provide the best picture. Under certain conditions, you may want to brighten or darken the image manually.

ODE

EJECT

QUICK SET

FOCUS

EXP.

F2F1

ODE

QUICK SET

EJECT

Zooming

The motorized zoom lens allows you to zoom in and out for close ups or wide-angle shots just by sliding the power zoom lever on the camcorder.

Power Zoom Lever

T = Telephoto

W = Wide Angle

• To move the lens in the telephoto (close-

up) direction, slide the power zoom lever toward T.

QUICK SET Dial

Zoom Level Indicator

in Viewfinder

brighten the image or toward W to darken the image.

The exposure indicator bar appears in the viewfinder.

4. To return to auto iris mode, press F2 (or place the QUICK SET dial in AUTO).

• To move the lens in the wide angle

direction, slide the lever toward W.

Zoom speed varies according to how far you zoom in or out. The zoom level indicator appears in the viewfinder.

1. If the strap keeper is over a double section of the strap, slide the strap keeper off the end of the strap. Replace the keeper on the strap between the buckle and the end of the strap as shown.

2. Loop the end of the strap over the top of the shoulder strap attachment ring.

3. Thread the end of the strap back through the keeper and buckle. Make sure the strap is not twisted.

Recording

Attaching an Optional Shoulder Strap

The optional ACS091 shoulder strap shown on page 52 is designed to let you carry the camcorder from your shoulder and – when you are ready to shoot – bring the camcorder to shooting position in one quick movement.

Cautions: When carrying the camcorder with the shoulder strap, you may find it convenient to rotate the viewfinder down and slide it to the front. This helps prevent possible damage to the viewfinder from bumping against your body as you move.

Make sure the shoulder strap is firmly attached before using it to carry the camcorder.

To Attach the Optional Shoulder Strap

4. Attach the other end of the strap to the other shoulder strap attachment ring.

5. Adjust the shoulder strap to the desired length.

6. Slide both keepers up snugly against the shoulder strap attachment rings to prevent the strap from slipping.

Keeper

Buckle

Attachment Rings

Recording

Titler

You can superimpose one of the eight preset titles stored in memory over the scene being recorded. You can also create your own title (up to 18 characters), store it, and record it alone or with one of the preset titles.

Recording a Title Stored in Memory

1. Place VCR/OFF/CAMERA switch in CAMERA. Power indicator will light.

2. Make sure the QUICK SET dial is not

set to AUTO.

3. Press MODE until TITLE appears

in the viewfinder.

4. Repeatedly press F1 to display the title

you want to record. The stored titles appear in the following order.

Title Off – No Title

HAPPY BIRTHDAY HAPPY HOLIDAYS

CONGRATULATIONS

OUR FAMILY

SOMEONE SPECIAL

VACATION

SUPER STAR

FIRST

Title you Created

Title Off – No Title

Note: You can record the title you created along with one of the titles stored in memory making it possible to record a pair of identical titles.

5. Press the thumb trigger to start recording. The title will be superimposed over the scene you are recording.

6. When you are finished recording the title(s), press F1 to remove it from the viewfinder.

(continued on next page)

ODE

EJECT

QUICK SET

TITLE

DISP.

F2F1

OUR FAMILY

Recording

Notes: To leave a blank space, select the

blank space in front of “A.” Press and hold the button to rapidly

advance the flashing cursor.

7. Press SET to select the character.

8. Repeat steps 6 and 7 until you have selected up to 18 characters for a title.

1. Place VCR/OFF/CAMERA switch in CAMERA. Power indicator will light.

2. Make sure the QUICK SET dial is not set to AUTO.

3. Press MODE until DISP. appears in the viewfinder.

4. Repeatedly press F2 to display SET CHAR (or a title you have previously stored) in the viewfinder.

5. Press SET. The CHARACTER SET

MODE menu appears with a flashing cursor.

TAYLOR WAYNE

Creating Your Own Title

After you create a title you can store it and record it alone or with one of the preset titles as described on pages 42-43.

AUDIO

DATE/TIME/CHAR––SET

•30•40 TRACKING

R/M

PLAY/PAUSE

STOP

REW

RCH

RF DC OUT

VIDEO

CAMERA

VCR OFF

DATE/TIME/CHAR + AND – Buttons

SET Button

9. Repeatedly press SET to store the title and remove the CHARACTER SET MODE menu from the viewfinder.

Notes: Only one title can be stored. To create a new title, store it over the old one.

To erase a character or title, select the blank space in front of the “A” for each character you want to erase.

The clock battery must be installed to store a title in memory.

CHARACTER SET MODE

A B C D E F G H I J K L M N O P Q R S T U V W X Y Z Ä Ö Ü

A E I O U Ñ Æ ø Å &

: . ,

’

- / ! ? ❤

0 1 2 3 4 5 6 7 8 9

5 6

` ` ` ` `

6. Repeatedly press DATE/TIME/CHAR + or – until the first character for your title is flashing.

AUDIO

VIDEO

CAMERA

VCR OFF

1. Make sure camcorder is turned off, and remove any power supply attached to the camcorder.

2. Press release tab of clock cell compartment cover and open the compartment.

3. Insert the clock cell with the “+” terminal facing out.

4. Close the compartment cover. It will click into place.

Recording

Install the Clock Lithium Cell

To Remove Cell

To remove battery, insert a pointed nonmetallic object between battery and compartment and lift.

Clock Cell Compartment

Clock Cell (+ Side Facing Out)

Insert object here to remove cell.

The clock cell indicator will appear in the viewfinder when the cell has not been installed or needs to be replaced. The cell should last approximately one year.

Cautions: Lithium cell battery. Replace only with 3-volt lithium cell – such as CR2025. Use of other cell presents a risk of fire or explosion. Must be disposed of properly. Never handle punctured or leaking cell. May cause burns or personal injury.

Keep out of the hands of children. Can cause death or injury if swallowed. If swallowed, consult a physician immediately for emergency treatment.

The lithium cell used in this device may explode resulting in a fire or chemical burn if mistreated. Do not recharge, disassemble, heat above 212˚F (100˚C), or incinerate.

Never use metallic tweezers to hold the cell, and never short circuit the + and – sides of the cell.

AUDIO

DATE/TIME/CHAR––SET

•30•40 TRACKING

R/M

PLAY/PAUSE

STOP

REW

RCH

RF DC OUT

VIDEO

CAMERA

VCR

OFF

1. Make sure the clock cell is installed.

2. Attach a power supply.

3. Place the VCR/OFF/CAMERA switch

in CAMERA. The power indicator will light.

4. Press the SET button. The date and

time display appear with a flashing cursor on the month. The flashing cursor lets you know which part of the display you are setting.

5. Repeatedly press DATE/TIME/CHAR

+ or – until the correct month appears.

Note: Press and hold the button to rapidly advance the digits.

6. Press SET to move flashing cursor to

the next part of the display.

Note: Press and hold the button to rapidly advance the flashing cursor.

7. Repeat steps 5 and 6 until you have

entered the correct month, day, year,

Recording

hour (including AM or PM), and minutes.

8. Press SET to remove the flashing cursor and start the clock.

Note: The clock begins when the minute digits stop flashing. The clock does not keep time while any digits are flashing.

To Correct the Displays

Press SET to display the time and date and select the item you want to change. Use DATE/TIME/CHAR + or – to enter the correct digit(s).

Repeatedly press SET to remove the flashing cursor and start the clock.

Set the Date and Time

After the date and time have been set, they can be displayed and recorded on your tapes. The clock cell must be installed.

SET Button

Viewfinder Display

DATE/TIME/CHAR + and – Buttons

DATE NOV 18.95

AM 12:00

VCR/OFF/CAMERA Switch and Power Indicator

• TV On-Screen Display: The

viewfinder displays will appear on the screen of a TV connected to the camcorder during record pause. In this mode the date will be displayed and recorded.

Note: This mode is not available during recording.

• Date Off: No date or time will be

displayed or recorded.

• Title Display: The title you created

will be displayed and recorded.

Note: If no title has been created, SET CHAR appears and a title can be created. Details are on page 39.

Recording

1. Attach a power supply and place

VCR/OFF/CAMERA switch in CAMERA. The power indicator will

light.

2. Make sure the QUICK SET dial is not set to AUTO.

3. Press MODE until DISP. appears in the viewfinder.

4. Repeatedly press F2 to select the date, time, or title you want to record.

• Date Display: The date will be

displayed and recorded.

• Auto Date: The date will be

automatically recorded for approximately five seconds.

• Date/Time Display: The date and

time will be displayed and recorded.

Select the Date, Time, or Title You Want to Record on Your Tape

The clock cell must be installed, and the date and time set before they can be selected and recorded. When the QUICK SET dial is in AUTO, the auto date mode is automatically selected.

ODE

EJECT

QUICK SET

TITLE

DISP.

F2F1

TAYLOR WAYNE

Recording

• The date has been set or changed.

• This display mode has just been selected.

• The tape has been changed or the tape compartment opened.

5. Press F2 to remove the display from the viewfinder when you are finished recording it.

6. To record the display again, place the camcorder in record pause and press F2.

1. Place the camcorder in record pause.

2. Place QUICK SET in MAN.

Note: Whenever the QUICK SET dial is in AUTO, AUTO DATE is automatically

selected.

3. Press MODE until DISP. appears in the viewfinder.

4. Repeatedly press F2 to display the date, time, or title you have previously stored in the viewfinder.

If you select AUTO DATE, it will automatically appear, be recorded for five seconds, and then disappear whenever:

AUTO DATE

NOV 18. 95NOV 18. 95

NOV 18. 95 PM 11:59

Auto Date Display

NOV 18. 95

Return to Date Display

TAYLOR WAYNE

Created Title Display

Viewfinder Displays

Date/Time Display

Date Display

TV On-Screen Display

Date Off Display

The mode selected will be recorded.

Press F2 to select mode.

To Record the Date, Time, or Title Display on Your Tape

Date and Time Displays

AUDIO

DATE/TIME/CHAR––SET

•30•40 TRACKING

R/M

PLAY/PAUSE

STOP

REW

RCH

RF DC OUT

VIDEO

CAMERA

VCR

OFF

Playback

FF Button

REW Button

PLAY/PAUSE

Button

STOP Button

EJECT

Button

To Play Back a Tape

1. Place VCR/OFF/CAMERA switch in VCR. The power indicator will light.

2. Slide EJECT and insert the cassette you want to play back. Close the cassette compartment.

VCR/OFF/CAMERA Switch in VCR

Power Indicator

Viewfinder Playback and Playback Features

3. Press PLAY/PAUSE to begin playback. If necessary, adjust tracking.

During playback, use the playback features.

4. Press STOP when you are finished.

Viewfinder Playback

AUDIO

DATE/TIME/CHAR––SET

•30•40 TRACKING

R/M

PLAY/PAUSE

STOP

REW

RCH

RF DC OUT

VIDEO

CAMERA

VCR OFF

Playback

TRACKING Buttons

Tracking

During playback, streaks may appear in the playback picture.

Visual Sear ching

• During playback, press and release FF or REW if you want to search the tape visually in forward or reverse.

• Press PLAY/PAUSE to return to normal playback.

• For brief searching, press and hold FF or REW for more than two seconds.

• Release the button to return to normal playback.

Stop-Action Pause

• During playback, press PLAY/PAUSE to “stop the action” and view one frame of the tape.

• Press PLAY/PAUSE to return to normal playback.

• Press either TRACKING button to move the streaks up or down and out of the picture.

• During stop-action playback, pressing one TRACKING button may reduce picture “jitter” (picture bouncing up and down). Some “jitter” is normal.

• Simultaneously press both TRACKING buttons to return tracking to its preset center.

Note: The TRACKING buttons may have no effect on tapes recorded on other camcorders or VCRs.

Playback Features

Caution: Pause is designed for momentary

interruptions and should not be used for an extended period of time. If the camcorder remains in pause for more than five minutes, it will automatically enter the stop mode and then turn off to prevent excessive tape wear.

Playback

Install Cassette Adapter’s Battery

Insert Cassette into Cassette Adapter

Using the Cassette Adapter

The camcorder uses a smaller size cassette, but records in standard VHS format. The cassette adapter allows you to play your VHS-C cassettes in a VCR just like other standard VHS cassettes.

Insert the VHS-C cassette into the cassette adapter. Insert the cassette adapter into the VHS VCR like a normal VHS cassette.

(continued on next page)

1. Remove battery compartment cover.

2. Install supplied “AA” battery so positive (+) and negative (–) ends align properly with (+) and (–) terminals in battery compartment.

3. Replace battery compartment cover.

Notes: Replace the battery when the load time becomes much longer than normal.

Remove the battery from the cassette adapter if it will not be used for a month or more. This will prevent possible damage from battery leakage. If leakage occurs, wipe up the liquid inside the compartment and replace the battery with a new one.

1. Before inserting the cassette into the adapter, remove any slack in the tape by turning the tape wheel on the side of the cassette.

2. Slide EJECT to the right to open the cassette compartment lid.

3. Insert the cassette with the tape window on the left and facing up.

Allow the cassette to drop into the adapter. Do not force the cassette.

Battery Compartment Cover

Cassette Compartment Lid

EJECT Switch

Tape Wheel

4. Gently close the cassette compartment lid until it locks into place. Make sure the cassette reel area under the adapter is free to turn while the cassette is loading.

Note: You should hear a whirring sound while the tape loads. The adapter’s load detector will automatically retract into the adapter.

Playback

Caution: If the load detector is still

extending from the side of the cassette adapter after you have attempted to load the cassette, loading is not complete. Try to load the cassette again. Attempting to insert the cassette adapter into a VCR with the load detector extending may cause damage to the adapter and/or VCR.

Remove Cassette from Cassette Adapter

1. Slide the adapter’s EJECT switch to the right. The load detector will extend from the side and the whirring sound indicates the tape is being released before the adapter’s cassette compartment lid opens.

2. Use the access hole on the bottom of the adapter to push the cassette up and remove it from the adapter.

3. Gently close the adapter’s cassette compartment lid.

Load Detector

Access Hole

Playback

Installation

1 Attach the white plug on one end of

the audio/video cable to the AUDIO IN jack on the TV (or VCR).

Notes: If your cable does not have white and yellow plugs, just be sure to attach the same color to the audio jacks.

If your TV (or VCR) has stereo AUDIO IN jacks, attach the plug to the one labeled MONO. If one is not labeled MONO, you may need a Y-adapter, such as AH25, shown on page 54 to hear both channels.

AUDIO

VIDEO

Back of

Mono VCR or

TV Monitor

White Audio Plug

Yellow Video Plug

Audio/Video Output Cable (Optional)

AUDIO

VIDEO

Y-Adapter (Optional)

VIDEO Jack

Back of

Stereo VCR or

TV Monitor

White Audio Plug

Yellow Video Plug

Audio/Video Output Cable (Optional)

AUDIO Jack

AUDIO

RF DC OUT

VIDEO

CAMERA

VCR OFF

Playback on TV (or VCR) with AUDIO/VIDEO IN Jacks

connect your camcorder to a TV monitor (or VCR) with AUDIO/VIDEO IN jacks, you will need an optional audio/video cable such as AH075G shown on page 54. If your TV is already connected to a VCR, you can attach the camcorder to the VCR and watch what the camcorder is recording or playing on the TV.

2 Attach the yellow plug to the VIDEO

IN jack on the TV (or VCR).

3 Attach the white plug on the other end

of the audio/video cable to the AUDIO jack (located under the small cover) on the back of the camcorder.

4 Attach the yellow plug to the yellow

VIDEO jack on the camcorder.

(continued on next page)

Playback

Playback Operation and How to Copy Tapes on the VCR

Viewing What the Camcorder is Seeing (or Recording)

Caution: The unauthorized recording

of copyrighted material may infringe the rights of others.

1. A.Camcorder connected directly to

TV: Turn on the TV and tune it to the video input channel.

B. Camcorder connected to VCR that

is already connected to TV: Turn on VCR and place it in the “line” or “camera mode”. (If your VCR does not have a “line” or “camera mode”, consult the VCR owner’s manual.) Operate the TV as you normally do to see the signal coming from the VCR.

2. Place the VCR/OFF/CAMERA switch

in VCR to turn on the camcorder. The power indicator will light.

3. Press PLAY/PAUSE.

•If noise bars appear on the screen,

press TRACKING – or +.

• During playback, use the playback features on page 45.

4. To copy what the camcorder is playing, place a blank cassette in the VCR, and press the VCR’s RECORD button.

Note: Make sure the memory-stop feature is turned off (press COUNTER R/M) or the camcorder will enter play pause when the counter reaches M 0:00:00.

5. Press STOP when you are finished.

1. A.Camcorder connected directly to TV: Turn on the TV, and tune it to the video input channel.

B. Camcorder connected to VCR that

2. Place the VCR/OFF/CAMERA switch in CAMERA.

Note: When the camcorder is used as a camera, turn the TV’s volume down to prevent a high-pitched squeal caused by feedback.

3. Press the thumb trigger to begin recording. You can watch what the camcorder is seeing (or recording) on the TV screen.

Note: During record pause, you can use the display feature to see the camcorder’s displays on the TV screen. Details are on pages 42-43.

Playback

AUDIO

DATE/TIME/CHAR––SET

•30•40 TRACKING

R/M

STO

REW

RCH

RF DC OUT

VIDEO

VHF Antenna

VHF

Back of TV

Optional Coaxial RF Cable (such as AH065G or AH066G)

Optional RF Output Adapter (1CVA147C)

Optional Transformer (Such as 193983)

IN FROM ANT

Connector

RF Output Adapter's Plug

CH3/CH4

Switch

Optional Transformer (Such as AH011)

VCR/TV Switch

AUDIO, RF DC OUT, VIDEO

Jacks

OUT TO TV Connector

CAMERA

VCR

OFF

Playback on a TV Without Audio/V ideo Inputs

To connect your camcorder to a TV without audio/video inputs, you will need an optional 1CVA147C RF output adapter and an optional coaxial RF cable, such as AH065G or AH066G shown on page 54. If your TV has AUDIO and VIDEO IN jacks (or is connected to a VCR), refer to pages 48-49.

Installation

1 Disconnect the VHF antenna from

your TV. Connect the antenna to the IN FROM ANT connector on the RF output adapter if you are going to leave the adapter connected to the TV.

Note: If your VHF antenna is the flat twin-lead type attached by two screws, you will also need an optional 300/75 ohm transformer, such as 193983 shown on page 54.

2 Attach one end of the optional coaxial

RF cable to the OUT TO TV connector on the adapter, and attach the other end to the VHF input on your TV as shown.

Note: If your TV has 300 ohm screw terminals, you will need a 75/300 ohm transformer, such as AH011, shown on

page 54.

3 Attach the RF output adapter’s plug to

the AUDIO, RF DC OUT, and VIDEO jacks located under the small cover on the back of the camcorder.

Viewing What the Camcorder Is Recording

Playback

Playback Operation

1. Set the CH3/CH4 switch on the RF output adapter to channel 3 or 4.

2. Turn on the TV, and tune it to the same channel you selected with the RF output adapter’s CH3/CH4 switch.

3. Place adapter’s VCR/TV switch in

VCR.

4. Place VCR/OFF/CAMERA in VCR. The power indicator will light.

5. Press PLAY/PAUSE on the camcorder.

• During playback, use the playback features described on page 45.

• If noise bars appear on the screen, adjust tracking as described on

page 45.

6. Press STOP on the camcorder when you are finished.

Note to Cable TV Installer

This reminder is provided to call your attention to Article 820-40 of the National Electrical Code (Section 54 of Canadian Electrical Code, Part I), that provides guidelines for proper grounding and, in particular, specifies that the cable ground shall be connected to the grounding system of the building as close to the point of cable entry as practical.

1. Turn on the TV and tune it to channel 3 or 4. When the camcorder is used as a camera, turn the TV’s volume down to prevent a high-pitched squeal caused by feedback.

2. Set the CH3/CH4 switch on the RF output adapter to the same channel you selected on the TV.

3. Place adapter’s VCR/TV switch in

VCR.

4. Place VCR/OFF/CAMERA in CAMERA. Power indicator will light.

5. Press the thumb trigger to begin recording. You can watch what the camcorder is seeing (or recording) on the TV screen.

Note: During record pause, you can use the display feature to see the camcorder’s displays on the TV screen. Details are on

pages 42-43.

Normal TV Viewing

For normal TV viewing, you may leave the RF output adapter hooked up to the TV. Disconnect the adapter’s plug from

the camcorder and place the adapter’s VCR/TV switch in TV.

AC025A Soft Carrying Case

Custom compact soft case designed especially to provide protection and utility for your compact VHS camcorder and most accessories. Rugged fabric lined with soft non-abrasive material and generous padding. Has three outside pockets with storage for lens filters, adapters, batteries, and tapes.

VCC1000 Video Color Control Center

The VCC1000 is two accessories in one. The color control center allows you to adjust the color intensity, tint, white balance, and sharpness of tapes being dubbed. This is especially helpful when the original tape was produced in poor lighting conditions or poor color settings.

The second feature, the character generator, lets you create titles that can be recorded on your tapes. This lets you add a professional and/or personal touch to your home videos.

Optional Accessories

DCC08 Car Cord Adapter

This car cord adapter enables you to operate your camcorder from your car, truck, or RV by plugging the car cord directly into the vehicle’s cigarette lighter socket. The DCC08 is designed specifically to convert power from a 12-volt battery to a 6-volt output.

Do not use any other car cord with this camcorder.

We invite you to take a look at some great ideas for sparking creativity and adding to the fun of using your compact VHS camcorder. The following pages have a selection of accessories to help make your memorable moments look and sound even better.

These accessories are designed to make the process of recording and watching your videos more enjoyable.

To order accessories, contact your local Dealer.

If a dealer is not nearby, all accessories are available through toll-free ordering or by using the order form on page 55.

Shoulder Strap ACS091

This shoulder strap is designed to let you carry the camcorder from your shoulder and – when you are ready to shoot – bring the camcorder to shooting position in one quick movement.

Optional Accessories

Mounting the camcorder on a tripod, such as AC088, will keep the camcorder steady and produce excellent video results.

This tripod’s fluid-effect head provides smooth camera pan and tilt. The quickrelease mount makes it easy to attach or remove the camcorder. The grooved, tubular 3-section leg design folds down to 26" when not in use. Rubber feet allow for sure footing.

Cautions: Before using a tripod, make sure it is stable enough to hold the camcorder without falling over. Do not transport the camcorder while attached to tripod.

When attaching your camcorder to a tripod, be careful not to force the tripod screw into the camcorder’s tripod mounting hole.

The tripod screw should not protrude into the camcorder more than approximately three-eighth (3/8) inch. Forcing the screw could damage the mounting hole on the bottom of the camcorder.

Using the Optional AC088 TripodFB1260 and FB120 Rechargeable

Batteries

These rechargeable nickel-cadmium batteries are designed specifically for long life. The FB1260 powers your camcorder approximately 65 minutes and the FB120 approximately 135 minutes (with video light off – depending on how much you use zoom and pause). Both can be recharged with the AC adapter/charger that came with your camcorder.

CPS91 AC Battery Charger

The CPS91 battery charger plugs directly into an AC outlet and charges the FB1260 and FB120 camcorder batteries. Because the CPS91 operates on 100-240 Volts, 50/60 Hz, it can be used virtually anywhere in the world. A plug adapter may be required in some countries. Charging takes approximately seven hours for the FB1260 (1-hour battery) and 13 hours for the FB120 (2-hour battery).

CHARGE

MODE

QUICK SET

All specifications and descriptions of accessories are subject to change without notice.

Optional Accessories

193983 Cable Transformer

This 300-to-75 ohm transformer is used to

connect a standard (300 ohm) antenna twin-lead to a standard round 75-ohm connector.

AH011 Cable Transformer

This 75-to-300 ohm transformer is used to

connect a standard 75-ohm antenna cable (such as AH065G or AH066G) to the 300-ohm screw terminals on a TV.

AH075G Audio/Video Cable

This six foot audio/video dubbing

cable can be used for copying tapes from the camcorder to another VCR or camcorder.

AH25 Y-Adapter

This Y-adapter allows you to connect your camcorder’s mono audio cable to a stereo TV or VCR.

1CVA147C RF Output Adapter

This RF output adapter is used with a coaxial RF cable, such as AH065G or AH066G, to connect your camcorder to a standard TV (one without audio/video inputs) for playback. If your antenna cable is the flat twin-lead type attached by two screws, you will also need a 300-75 ohm transformer such as 193983. If your TV has 300 ohm VHS screw terminals, you will need an optional 75-300 ohm transformer such as AH011.

Coaxial RF Cables

These RF cables are used with the RF output adapter to connect your camcorder to a standard TV (one without audio/video input jacks) for playback. If your antenna cable is the flat twin-lead type attached by two screws, you will also need a 300-75 ohm transformer such as

193983. If your TV has 300 ohm VHS screw terminals, you will need an optional 75-300 ohm transformer such as AH011.

All specifications and descriptions of accessories are subject to change without notice.

AH065G (6-ft) AH066G (10-ft)

Detach Here

✂

Please complete other side also

Accessory Order Form

Order Form for Camcorder Model CC615

Description Part No. Price Qty. Total

Soft Camcorder Case AC025A $ 59.95 Super Lightweight Tripod AC088 $ 39.95 Shoulder Strap ACS091 $ 13.95 75-300 Cable Transformer AH011 $ 1.90 Y-Adapter AH25 $ 1.95 Coaxial RF Cable AH065G $ 6.99 Coaxial RF Cable AH066G $ 8.99 Audio/Video Cable AH075G $ 10.99 AC Battery Charger CPS91 $ 59.95 Car Cord Adapter DCC08 $ 74.95 Rechargeable Battery (2 Hr.) FB120 $ 59.95 Rechargeable Battery (1 Hr.) FB1260 $ 49.95 RF Output Adapter 1CVA147C $ 52.30 300-75 Cable Transformer 193983 $ 6.95 Cassette Adapter 221338 $ 49.95

VCA115A $ 49.95

AC Adapter/Charger 221339 $159.95

217010 $159.95

Prices are subject to change without notice.

Total Merchandise ($10 Minimum Order)......................$__________

Sales Tax.........................................................................$__________

We are required by law to collect the appropriate sales tax for each individual state, county, and locality to which the merchandise is being sent.

Shipping, Handling, and Insurance.................................$ 5.00

Total Amount Enclosed................................................$__________

Use VISA or MasterCard preferably. Money order or check must be in U.S. currency only. No COD or cash.

Accessory Order Form

Detach Here

✂

Charge your order on your VISA

or MasterCard by

filling in below

USE YOUR CREDIT CARD

IMPORTANT: Copy complete account number

from your VISA card

IMPORTANT: Copy complete account number

from your MasterCard

My card expires:

Copy Number

above your

name on

MasterCard

AUTHORIZED SIGNATURE

Prices are subject to change without notice.

Name:

Street:

Apt:

City:

State:

Zip:

Print or type your name and address clearly. This will be your mailing label.

Please make sure that both sides of this form have been filled out completely.

A complete and correct order will save you days of waiting.

• Allow 8 weeks for delivery.

• All accessories are subject to availability.

• Where applicable, we will ship a superseding model.

Accessory Order Form

To order accessories, contact your local Dealer.

If a dealer is not nearby, you can also follow the directions below to order by telephone or direct-by-mail.

United States and Canada Orders

To place your order by phone, have your Visa or MasterCard ready and call the toll-free number listed below between 8AM and 8PM Eastern Standard Time. Use this number only to place an order for accessory items listed on

this order form.

1 – 800 – 338 – 0376

Most times your order will be shipped UPS within 72 hours of receipt. If ever it is not possible to ship within 30 days, we will notify you with an update on your order and an option to cancel.

To place your order by mail, detach and mail the completed order form with credit card information, money order, or check in U.S. currency (made payable to Thomson Consumer Electronics, Inc.) to the following address:

Video Accessories PO Box 8419 Ronks, PA 17573

For more information on these accessories (or current prices), write to the following address:

Video Accessories Customer Service Thomson Consumer Electronics, Inc. Distributor & Special Products 2000 Clements Bridge Rd Deptford, NJ 08096-2088

International Orders

This offer is valid only in the United States and Canada. For international orders, please send your request for a price quotation (not an order) to:

International Customer Service Thomson Consumer Electronics, Inc. Distributor & Special Products 2000 Clements Bridge Rd Deptford, NJ USA 08096-2088

Care and Maintenance

Cleaning the Camcorder

Cleaning the Camcorder’s Lens

To clean the camcorder’s lens, blow it with a blower brush, and then gently wipe the lens with cleaning tissue and commercially prepared cleaning solution designed for use on camera lens. Improper cleaning may scratch the lens.

Caution: Use of strong cleaning products, such as those containing alcohol or benzine, may damage the camcorder.

Caution: Do not touch the lens with your fingers. The oil from your skin can damage the lens.

MODE

QUICK SET

Lens

Reference Marks

Cleaning the Camcorder’s Viewfinder

The viewfinder eyepiece can be removed for cleaning.

1. Turn the eyepiece

counterclockwise and pull it out.

2. Remove dust using a blower brush.

3. Reattach the eyepiece by aligning

the reference marks, and then turn the eyepiece clockwise.

To clean the camcorder’s exterior, remove any power source connected to the camcorder and gently wipe it with a clean soft cloth.

Care and Maintenance

• Do not operate the camcorder near the

ocean as salt water or salt water spray may damage the internal parts of the camcorder.

• Do not operate the camcorder for

extended periods in temperatures below 40°F (4C) or above 95°F (35C).

• Do not expose the camcorder or

adapter/charger to rain or moisture. If either component becomes wet, turn off the power and take the unit to an Authorized RCA Camcorder Servicenter.

• Do not use an adapter/charger or

batteries other than the ones specified for the camcorder. Use of the wrong accessories may cause damage to the camcorder.

• The camcorder can be damaged by

improper storage or handling. Do not subject the camcorder to swinging, shaking, or dropping.

• Do not store the camcorder in

temperatures below -22°F (-30C) or above 149°F (65C).

• When the camcorder is not in use,

always remove the cassette and AC adapter/charger or battery.

• Retain the original carton for future

storage or shipping purposes.

Proper Care and Storage

• Keep dust and grit from entering the camcorder’s cassette door. Dust and grit are abrasive and will cause excessive wear to both the camcorder’s recording/playback heads and cassettes.

• Always close the lens cover when the camcorder is not in use.

• Before handling your camcorder, make sure your hands and face are free from any chemical products such as suntan lotion, as it may damage the finish.

Things to Avoid

• Do not attempt to disassemble your camcorder. There are no userserviceable parts inside.

• Avoid operating your camcorder immediately after moving it from a cold location to a warm location. Give the camcorder 1-1/2 to 2 hours to reach a stable temperature before inserting a cassette. When the camcorder is moved from cold to warm, condensation may cause the tape to stick to the headwheel and damage the headwheel or tape.

• Do not aim your camcorder at the sun or other bright objects.

• Do not leave your camcorder in direct sunlight for extended periods of time. The resulting heat buildup could permanently damage the camcorder’s internal parts.

• Do not operate the camcorder in extremely humid environments.

No power

Won’t record or playback

Won’t playback

Won’t record

No picture

Trouble Checks

Troubles sometimes are caused by simple “faults” that you can easily correct without the help of a service technician by first checking a few basic remedies.

Before you call or take your camcorder to an Authorized RCA Camcorder Servicenter, look below for the type of trouble you are experiencing. Then perform the simple checks and adjustments listed for that trouble.

If service should be necessary, the warranty information lists what your warranty covers and explains how to get service.

• Place the VCR/OFF/CAMERA switch in CAMERA or VCR

to turn on the camcorder. The power indicator will light.

• If using battery, it may need to be recharged.

• If using AC adapter/charger, make sure it is plugged into a working outlet.

• If the dew indicator ( ) flashes in the viewfinder, there is moisture in the camcorder. Wait until the dew indicator no longer appears before operating the camcorder.

• Make sure VCR/OFF/CAMERA switch is in correct position for desired operation.

• There may not be a cassette in the camcorder.

• Try ejecting and reinserting the cassette.

• The cassette tape may be broken, try another cassette.

• You may have reached the end of the cassette, try rewinding it.

• VCR/OFF/CAMERA switch must be in VCR position.

• Safety tab has been removed. (See page 16.)

• VCR/OFF/CAMERA switch must be in CAMERA.

• Open lens cover.

Trouble Checks and Adjustments

Camcorder turns itself off

Tape stops during rewind or fast forward

Camcorder remains in pause mode

Sound is too low or distorted

Dew Indicator flashing in viewfinder

Poor auto-focus operation

Trouble Checks

• Place VCR/OFF/CAMERA switch to OFF and then CAMERA or VCR to turn back on. If camcorder is left in

record pause or play pause for several minutes, it will turn itself off to prevent tape wear.

• Time-counter memory may be on. Whenever an “M” appears with the time-counter display, the camcorder will stop rewinding (or fast forwarding) when counter reads M 0:00:00. Press REW or FF again to continue rewinding or fast forwarding, or press COUNTER R/M to turn off the memory-stop feature.

• Press PLAY/PAUSE to return to normal playback.

• Subject was too far from camcorder.

• If the dew indicator ( ) flashes in the viewfinder, there is moisture in the camcorder. Wait until this indicator no longer appears before operating the camcorder.

• Subject is dark or behind glass. Auto-focus may not work under these conditions. Place QUICK SET dial in

MAN and focus manually. See pages 34-35.

• Subject is not in center of viewfinder or two subjects are

at different distances. Place QUICK SET dial in MAN and focus manually. See pages 34-35.

• Auto focus is automatically turned off when some effects are selected with the QUICK SET dial. Place QUICK SET dial in AUTO. See page 29.

Trouble Checks and Adjustments

(continued on next page)

Trouble Checks

Viewfinder displays are out of focus

Picture is too dark or subject too dark

Picture recorded with special effect

Picture recorded in brown tone

Picture recorded with black bars at top and bottom

Colors do not look natural on recording

Title recorded on tape

Power zoom lever does not operate zoom

• Lens is smudged, and image appears unfocused.

• Eyepiece focus control is misadjusted.

• The small controls on the bottom of the viewfinder control the brightness and color of the viewfinder. These controls have been set at the factory and should require no adjustment. If the brightness or color of the viewfinder ever do require adjustment, carefully use a plastic screwdriver. Make the adjustments with caution to prevent damaging the miniature controls.

• For best results, only use higher shutter speeds outdoors. Rotate QUICK SET dial to sports ( ) or Shutter( ). See page 29.

• Subject in front of a strong backlight. Rotate QUICK SET dial to select back-lit ( ). See page 29.

• Add more light using the exposure control. See page 36.

• QUICK SET dial may be turned to special effect mode. Turn the QUICK SET dial to AUTO. See page 29.

• SEPIA ( ) selected with QUICK SET dial. Turn the QUICK SET dial to AUTO. See page 29.

• Camcorder is set to the 16X9 mode. Turn off 16X9. See

page 33.

• Try adjusting white balance. See page 30.

• Title is recorded whenever it appears in viewfinder. Remove the title from viewfinder. See pages 42-43.

• Check MODE selected. Zoom lever operates other features when some modes are selected. See page 31.

Trouble Checks and Adjustments

Trouble Checks

Date and/or time were recorded on tape

Date and/or time are incorrect

Vertical white lines appear when shooting bright object

Error number (E01, E02, etc.) appears in viewfinder

• Displays will be recorded on tape whenever they appear in the viewfinder. Remove them from viewfinder when recording. See pages 42-43.

• When AUTO DATE is selected (QUICK SET dial in AUTO), display will automatically be recorded when you begin recording or change the cassette. See pages 42-43.

• Clock lithium cell battery may need replacing. See page 40.

• Date or time may need to be set. See pages 41.

• This may occur when background extremely contrasts with the subject.

• Try disconnecting power source. Wait ten seconds and then connect power source again. If error number does not disappear from viewfinder, consult your Authorized RCA Camcorder Servicenter.

Trouble Checks and Adjustments

Specifications

Information to User

General

Power requirement: 6VDC Power consumption: 5.7 watts (normal) Weight: 1.3 lbs. (790g) Dimensions – Including Viewfinder

4-3/8"(W) x 4-1/2"(H) x 8" (D) 110 (W) x 112 (H) x 213 (D) mm

Video Recorder Section

Format: VHS-C Record/Playback System:

Four video record/playback heads One flying erase head

Video Signal: EIA Standard NTSC

color

This digital apparatus does not exceed the Class B limits for radio noise emissions from digital apparatus as set out in the interferencecausing equipment standard entitled “Digital Apparatus”, ICES-003 of the Department of Communications.

Cet appareil numérique respecte les limites de bruits radioélectriques applicables aux appareils numériques de Classe B prescrites dans la norme sur le matériel brouilleur: “Appareils Numériques”, NMB-003 édictée par le ministre des Communications.

This equipment has been tested and found to comply with the limits for a Class B digital device and RF lighting device pursuant to Part 15 and part 18 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation. This equipment generates, uses, and can radiate radio frequency energy and, if not installed and used in accordance with the instructions, may cause harmful interference to radio communications. However, there is no guarantee that interference will not occur in a particular installation. If this equipment does cause harmful interference to radio or television reception, which can be determined by turning the equipment off and on, the user is encouraged to try to correct the interference by one or more of the following measures:

• Reorient or relocate the receiving antenna.

Camera Section

Image Sensor: 1/4" CCD Imager Tripod Mount: One 1/4" x 20 threaded

hole

Lens: f1/1.6

12:1 (4.2-50.4 mm) Diameter: 43 mm

AC Adapter/Charger

Power requirement: 100-240 V, 50/60 Hz. Power consumption: 23 watts Weight: Approx. 320 grams Dimensions: 150 (W) x 42 (H) x 68 (D) mm

• Increase the separation between the equipment and receiver.

• Connect the equipment into an outlet on a circuit different from that to which the receiver is connected.

• Consult the dealer or an experienced radio/TV technician for help.

Alterations or modifications carried out without appropriate authorization may invalidate the user’s FCC right to operate the equipment.

Customer Assistance and Service

You can reach Thomson at the

following number:

800-283-6503

(Toll free inside U.S.A.)

Our toll-free Camcorder number

operates from 8 a.m. to 5 p.m., CST

Monday – Friday

for U.S. customers only

Thomson provides a toll-free telephone number to help you with any problems you may encounter with your camcorder. Many can be diagnosed over the phone, and if necessary, a replacement unit can be shipped to you. Please have your camcorder model/serial number and date of purchase ready when you call. If your unit is out of warranty, we will quote the cost of an exchange unit to you.

If we are unable to resolve your problem over the phone, we will gladly service your unit or exchange it for a new or refurbished camcorder. Refer to the limited warranty on the reverse side to learn about your specific rights and responsibilities.

Always consult Thomson and get a Return Authorization number before returning anything! Obtain a Return

Authorization (RA) number from the telephone representative before returning your equipment to avoid delays, accounting errors, or even loss of your unit.

Returning equipment to Thomson for repair or exchange

Important information to customers who ship defective equipment to Thomson Consumer Electronics

The Thomson representative who authorized the return of your equipment will give you an RA number over the phone. They will also provide you with instructions on where and how to return your camcorder. Write the number in large, clear characters on the outside of the box. To avoid confusion and misunderstandings, shipments without an RA number clearly visible on the outside of the box will be returned to you at your expense.

Include a brief note describing the problem and any conversations about the problem you have had with Thomson personnel. Include your name, address

and model/serial number of your camcorder. These numbers are located on the bottom of your unit. If your camcorder is within the warranty period, please provide a copy of the bill of sale to verify purchase date. Use the original box and packing material to protect the equipment from damage in shipment.

For your protection, insure all shipments for full replacement value and use a reliable shipper. Thomson assumes no

responsibility for warranty shipments from the customer to the factory if not shipped in the manner prescribed by Thomson.

Limited Warranty

What your warranty covers:

• Any defect in materials or workmanship.

For how long after your purchase:

• 90 days for labor charges.

• One year for parts.

What we will do:

During the initial 90 days

• Exchange your camcorder with a new or, at our option, a refurbished unit or at your option, repair your camcorder at no cost to you.

After the 90 days and within one year

• Exchange your camcorder with a new or, at our option, a refurbished unit or at your option, repair your camcorder. Parts will be provided at no charge, but you will be responsible for the cost of labor required for the repair.

How you get service:

• Call 1-800-283-6503 and have your unit’s date of purchase and model/serial number ready. The model/serial number information is on the bottom of your camcorder.

• A representative will troubleshoot your problem over the phone. If the representative determines that you should receive a replacement unit, you will be provided with a Return Authorization (RA) number and the location of a nearby exchange point if one exists. No returns will be accepted without the RA number.

To receive a replacement camcorder before you return yours:

If you are located near an exchange point:

1. We will send a replacement unit to the exchange point next business day delivery.

2. The exchange location will notify you

of its arrival.

3. Take your unit, including all

accessories, and your bill of sale

which validates date of purchase to the exchange location and you will be provided the new or refurbished unit.

4. If the repairs were covered by your warranty, you will not be billed.

If you are not located near an exchange

point:

1. Provide your Discover, MasterCard or Visa account number and expiration date to our phone representative. This is for security purposes. If we receive your unit including all accessories within 14 days from the date you were provided a Return Authorization number, only items not covered by warranty will be charged to your account. IF YOUR UNIT

INCLUDING ALL ACCESSORIES IS NOT RECEIVED WITHIN 14 DAYS, THE SUGGESTED RETAIL VALUE OF THE CAMCORDER AND/OR ACCESSORIES WILL BE CHARGED TO YOUR CREDIT CARD. This amount will be credited

if the unit is subsequently received.

2. We will send you a replacement unit next business day delivery.

3. You will receive an invoice packed with the replacement product, but will not be charged for the unit portion of the invoice amount if we receive your unit including all accessories within 14 days from the date you were provided the RA number. Any labor and parts charges not covered by our warranty will be included and charged against your account.

4. Ship the unit back to us along with all accessories included with your camcorder using the replacement unit’s carton. Shipping instructions will be included in the carton along with your RA number, which will allow you to easily ship the unit back to us. Make sure you insure your

Limited Warranty

shipment in case of damage or loss.

Include with the shipment:

• A copy of your dated bill of sale to verify your unit’s warranty eligibility.

• A brief note describing your camcorder problem.

• Your name, address and phone number.

Return transportation, storage, and handling costs and insurance are your sole responsibility. We accept no liability in case of damage or loss.

To receive a replacement unit after we have received your unit:

1. Write the RA number on the outside of the carton used to return the unit.

Make sure you insure your shipment in case of damage or loss.

2. Carefully pack the unit along with all accessories included with your camcorder, using the original box and packing material if possible.

3. Include with the shipment:

• A copy of your dated bill of sale to verify your unit’s warranty eligibility.

• A brief note describing your camcorder problem.

• Your name, address and phone number.

Return transportation, storage, and handling costs, and insurance are your responsibility. We accept no liability in case of damage or loss.

4. Include a cashier’s check or money order for payment if there are any out of warranty labor or parts charges which were indicated by the representative, and you elected not to use your credit card.

5. Upon receipt of your product, a new or refurbished unit will be shipped to you next day delivery.

To have your Camcorder repaired by an Authorized RCA Camcorder Servicenter:

• Check with your dealer or call 1-800336-1900 for the Authorized RCA Camcorder Servicenter nearest you.

• Take your unit to the Authorized RCA Camcorder Servicenter of your choice.

• Show the Authorized RCA Camcorder Servicenter representative your sales receipt or other, evidence of purchase.

• Pick up your camcorder when repairs are complete.

What your warranty does not cover:

• Adjustment of customer controls.

• Damage from misuse or neglect.

• A unit that has been modified or incorporated into other products or is used for institutional or other commercial purposes.

• Battery for clock and other features.

• Cleaning of video/audio heads.

• Camcorders purchased or serviced outside the U.S.A.

• Return transportation, storage and handling costs of your unit, including insurance for loss or damage.

• Acts of God, such as but not limited to lightning damage.

Product Registration:

• Please complete and mail the Product Registration Card packed with your

camcorder. It will make it easier to contact you should it ever be necessary. The return of the card is not required for warranty coverage.

How State Law relates to warranty:

• This warranty gives you specific legal rights and you may have other rights that vary from state to state.

If you purchased your Camcorder outside the United States:

• Contact your dealer for warranty information.

16x9 Mode & Indicator . . . . . . . . . . . . . . .33

Accessories, Included . . . . . . . . . . . . . . . . .3

Accessories, Optional . . . . . . . . . . . . .52-57

Accessory, Order Form . . . . . . . . . . . .55-57

Adapter/Charger, Using . . . . . . . . . . . . .3,11

Assistance . . . . . . . . . . . .1,3,65,Back Cover

AUDIO/RF DC/VIDEO OUT

Jacks . . . . . . . . . . . . . . . . .10,11,15,49,51

Audio/Video Cable (Optional) . . . .48-49,54

AUTO Mode . . . . . . . . . . . . . . . . . . . . . .7,29

Auto Focus . . . . . . . . . . . . . . . . . . . . . . . .34

Auto Head Cleaner . . . . . . . . . . . . . . . . . .26

B (Bright) Control . . . . . . . . . . . . . . . .10,62

Back-Light Mode . . . . . . . . . . . . . . . . . . .29

BATT. RELEASE Button . . . . . . . . .10,11,13

Battery Level Indicator . . . . . . . . . . . .14,22

Battery Marker Switch . . . . . . . . . . . . . . .13

Battery Safety Precautions . . . . . . . . . . . .13

Battery, Care and Storage . . . . . . . . . . . . .14

Battery, Clock . . . . . . . . . . . . . . . . . . . .3,40

Battery, Clock Display . . . . . . . . . . . .22-23

Battery, Using Rechargeable . . . . . . . .12-14

C (Color) Control . . . . . . . . . . . . . . . . .10,62

Camcorder, Cleaning . . . . . . . . . . . . . . . .58

Camcorder, Powering . . . . . . . . . . . . .11-15

Camcorder, Turning On . . . . . . . . . . . . . . .8

Camcorder, Unpacking . . . . . . . . . . . . . . . .3

Camera Edit Feature . . . . . . . . . . . . . . . . .26

CAMERA/OFF/VCR Switch

. . . . . . . . . . . . . . . . . . . . 5,8,10,11,13-14,

. . . . . .18-19,26,30-36,38-40,44-45,49,51

Car Cord Adapter, Optional . . . . . . . . .15,52

Care and Maintenance . . . . . . . . . . . . .58-59

Care and Storage of Battery . . . . . . . . . . .14

Cassette Adapter . . . . . . . . . . . . . . . . .46-47

Cassette Door . . . . . . . . . . . . . . . . . . .4,9,17

Cassette Warning Indicator . . . . . . . . .22-23

Cassette, Inserting . . . . . . . . . . . . . . . . .4,17

Cassettes, Inserting and Removing . . . . . .17

Cautions . . . . . . . . . . . . .Inside Front Cover

Charging the Battery . . . . . . . . . . . . . . . . .12

Checking Problems . . . . . . . . . . . . . . .60-63

Cleaning Camcorder . . . . . . . . . . . . . . . . .58

Clock Battery Indicator . . . . . . . . . . . . . . .40

Clock Battery, Installing . . . . . . . . . . . . . .40

Clock Cell Compartment . . . . . . . . . . .10,40

Contents . . . . . . . . . . . . . . . . . . . . . . . . . .1-2

Controls . . . . . . . . . . . . . . . . . . . . . . . . .9-10

Copying Tapes . . . . . . . . . . . . . . . . . . .48-49

COUNTER R/M Button . . . . . . .10,27,49,51

Customer Assistance . . . .1,3,65,Back Cover

Date and Time . . . . . . . . . . . . . . . . . . .41-43

Date Displays . . . . . . . . . . . . . . . . .22,41-43

DATE/TIME/CHAR + and –

Buttons . . . . . . . . . . . . . . . . . . . .10,39,40

DATE/TIME/CHAR SET Button . . .10,39,40

Design Specifications . . . . . . . . . . . . . . . .64

Dew Warning . . . . . . . . . . . . . . . . .24,60,61

Displays, Viewfinder . . . . . . . . . . . . . .22-24

EDIT Jack . . . . . . . . . . . . . . . . . . . . . . . . .10

EDIT SEARCH + and –

Buttons . . . . . . . . . . . . . . . . .10,18-19,26

Edit Search Feature . . . . . . . . . . . . .18-19,26

EJECT Button . . . . . . . . . . . . . .4,9,17,18,44

Electronic Indexing . . . . . . . . . . . . . . . . . .25

Erase Protection . . . . . . . . . . . . . . . . . . . .16

Exposure Control . . . . . . . . . . . . . . . . . . .36

Exposure Level Indicator . . . . . . . . . . .22,36

Eyepiece Focus Control . . . . . . . . .7,9,18,21

F1 and F2

Buttons . . . . .9,18-19,31-36,38-39,42-43

FADE Indicators . . . . . . . . . . . . . . . . .24,32

Fading . . . . . . . . . . . . . . . . . . . . . . . . . . . .32

FF (Fast Forward) Button . . . . .10,25,44-45

First-Time Operation . . . . . . . . . . . . . . .3-10

Flying Erase Head . . . . . . . . . . . . . . . . . . .25

Focus Displays . . . . . . . . . . . . .22-23,34-35

Focus Lock Feature . . . . . . . . . . . . . . . . . .34

Focusing . . . . . . . . . . . . . . . . . . . . . . . .34-35

Front-Light Mode . . . . . . . . . . . . . . . . . . .29

Hand Strap . . . . . . . . . . . . . . . . . . . . . . .5,10

High-Speed Shutter Mode . . . . . . . . . . . . .29

Included Accessories . . . . . . . . . . . . . . . . .3

INDEX Display . . . . . . . . . . . . . . . . . .24-25

Indexing, Electronic . . . . . . . . . . . . . . . . .25

LENS COVER Control . . . . . . .5,9,18,22-23

LENS COVER Display . . . . . . . . . . . . .22-23

Lens . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .9

Lens, Cleaning . . . . . . . . . . . . . . . . . . . . .58

Limited Warranty . . . . . . . . . . . . . . . .66-67

Maintenance and Care . . . . . . . . . . . . .58-59

MAN (Manual) Mode . . . . . . . . . . . . . . . .29

MAN.W.BAL (Manual White Balance)

Button . . . . . . . . . . . . . . . . . . . . . . .10,30

Manual Focus . . . . . . . . . . . . . . . . . . . . . .35

Memory Stop Feature . . . . . . . . . . . . . . . .27

Microphone . . . . . . . . . . . . . . . . . . . . . .9,25

MODE Button . .9,18-19,31-36,38-39,42-43

Index

Mode Displays . . . . . . . . . . . . . . . . . . . . .24

MWB Indicator . . . . . . . . . . . . . . . . . . . . .30

Operation, First-Time . . . . . . . . . . . . . .3-10

Optional Accessories . . . . . . . . . . . . . .52-57

Order Form, Accessory . . . . . . . . . . . .55-57

Indicator . . . . . . . . . . . . . .5,8,19,24

Pause, Stop-Action . . . . . . . . . . . . . . . . . .45

PLAY/PAUSE Button . . . . .8,10,44-45,49,51

Playback . . . . . . . . . . . . . . . . . . . . . . . .44-51

Playback Features . . . . . . . . . . . . . . . . . . .45

Playback on a TV

With AUDIO/VIDEO IN Jacks . . . .48-49

Playback on a TV

Without Audio/Video Inputs . . . . . .50-51

Playback Speeds . . . . . . . . . . . . . . . . . .16,28

Playback, First . . . . . . . . . . . . . . . . . . . . . . .8

Playback, Viewfinder . . . . . . . . . . . . . . . .44

Plug Adapter . . . . . . . . . . . . . . . . . . . . . . .11

Portrait Mode . . . . . . . . . . . . . . . . . . . . . .29

Power Connector . . . . . . . . . . . . . . . . . . . .11

Power Indicator & Switch .5,8,10,11,13-14,

. . . . . .18-19,26,30-36,38-40,44-45,49,51

Powering the Camcorder . . . . . . . . . . .11-15

Problem Solving . . . . . . . . . . . . . . . . .60-63

Product Registration . . . .Inside Front Cover

Proper Care and Storage . . . . . . . . . . . . . .59

Quick Review . . . . . . . . . . . . . . . . . . . . . .26

QUICK SET

Dial . .7,9,18-19,22-23,29-36,38-39,42-43

QUICK SET Dial Displays . . . . . . . . .22-23

REC

666

Indicator . . . . . . . . . . . . .8,19,24

Recording and Traveling Tips . . . . . . . . .20

Recording Speeds . . . . . . . . . . . . . . .6,16,28

Recording, First . . . . . . . . . . . . . . . . . . .3-10

Recording, Making a . . . . . . . . . . . . . .18-19

Refreshing the Battery . . . . . . . . . . . . . . .12

Registration Card . . . . . .Inside Front Cover

REW (Rewind) Button . . . . . .8,10,25,44-45

RF Output Adapter, Optional . . . . .50-51,54

Safety Tab . . . . . . . . . . . . . . . . . . . . . . . . .16

Searching, Visual . . . . . . . . . . . . . . . . . . .45

Sepia Mode . . . . . . . . . . . . . . . . . . . . . . . .29

Shoulder Strap (Optional), Attaching . . .37

Shoulder Strap Attachment Rings . . . .10,37

Solving Problems . . . . . . . . . . . . . . . . .60-63

Specifications . . . . . . . . . . . . . . . . . . . . . .64

Speeds, Recording and Playback . . .6,16,28

Sports Mode . . . . . . . . . . . . . . . . . . . . . . .29

PAUSE

SP•SLP/T20•30•40

Switch . . . . . . . . .6,10,16,18-19,22-23,28

Status Displays . . . . . . . . . . . . . . . . . . . . .24

STOP Button . . . . . . . . . . . . . .8,10,25,44-45

Stop-Action Pause . . . . . . . . . . . . . . . . . . .45

Table of Contents . . . . . . . . . . . . . . . . . . .1-2

Tally Light . . . . . . . . . . . . . . . . . . . .9,18,25

TAPE END Display . . . . . . . . . . . . . . .24,28

Tape Copying . . . . . . . . . . . . . . . . . . .48-49

Tape Length Display . . . . . . . . . . . . . .22-23

Tape Positioning . . . . . . . . . . . . . . . . . . . .25

Tape Time Remaining . . . . . . . . . . . . . . . .28

Things to Avoid . . . . . . . . . . . . . . . . . . . .59

Thumb Trigger . . . . . . . . . . . . . . .8,10,18-19

Tilt, Viewfinder . . . . . . . . . . . . . . . . . . . . .21

Time Counter . . . . . . . . . . . . . . . . .22-23,27

Time Counter Display . . . . . . . . . . . . .22-23

Time Remaining Display . . . . . . . . . . .22-23

Title Displays . . . . . . . . . . . .22,38-39,42-43

Title, Creating New . . . . . . . . . . . . . . . . . .39

Titler . . . . . . . . . . . . . . . . . . . . . . . . . .38-39

Titles, Preset . . . . . . . . . . . . . . . . . . . . . . .38

Titles, Recording . . . . . . . . . . . . . . . . .42-43

TRACKING Buttons . . . . . . . . . .10,45,49,51

Tracking Feature . . . . . . . . . . . . . . . . . . . .45

Traveling and Recording Tips . . . . . . . . .20

Tripod, Using . . . . . . . . . . . . . . . . . . . . . .53

Trouble Checks . . . . . . . . . . . . . . . . . .60-63

Turning On the Camcorder . . . . . . . . . . . . .8

Unpacking the Camcorder . . . . . . . . . . . . .3

User Information . . . . . . . . . . . . . . . . . . . .64

Using Cassette Adapter . . . . . . . . . . . .46-47

VCR/OFF/CAMERA Switch

. . . . . . . . . . . . . . . . . . . . 5,8,10,11,13-14,

. . . . . .18-19,26,30-36,38-40,44-45,49,51

Video Cassettes . . . . . . . . . . . . . . . . . .16-17

VIDEO/RF DC/AUDIO OUT

Jacks . . . . . . . . . . . . . . . . .10,11,15,49,51

Viewfinder . . . . . . . . . . . . . . . . . . . . . . .7,21

Viewfinder Displays . . . . . . . . . . . . . .22-24

Viewfinder Playback . . . . . . . . . . . . . . . . .44

Viewfinder, Cleaning . . . . . . . . . . . . . . . .58

Visual Searching . . . . . . . . . . . . . . . . . . . .45

Warranty, Limited . . . . . . . . . . . . . . . .66-67

White Balance . . . . . . . . . . . . . . . . . . .24,30

White Balance Display . . . . . . . . . . . .24,30

Zoom Level Indicator . . . . . . . . . . . . .22,36

Zoom Lever . . . . . . . . . . . . . . . . .9,18-19,36

Index

If your camcorder needs service, please contact your dealer or the nearest Servicenter from the yellow pages. Please do not send any products to the Indianapolis address listed in this manual or on the carton. This will only add delays in service for your product.

1995 Thomson Consumer Electronics, Inc. Trademark(s)®Registered Marca(s) Registrada(s) Printed in Japan

Part Number 95-CC615-1

10330 North Meridian Street Indianapolis, IN 46290

Need Assistance? We want to help!

U.S. Consumers:

Camcorder Exchange Warranty . . . . . .800-283-6503

Customer Service . . . . . . . . . . . . . . . . .800-336-1900

Accessories . . . . . . . . . . . . . . . . . . . . .800-338-0376

Canadian Consumers:

English . . . . . . . . . . . . . . . . . . . . . . . . .800-522-0338

French . . . . . . . . . . . . . . . . . . . . . . . . .800-522-0445

RCA CC615 User Manual

Specifications and Main Features

Frequently Asked Questions

User Manual
