CC437

C A M C O R D E R

Important Safety Information

Be sure to read all the safety information before you begin to use this product.

WARNING: To reduce the risk of fire or shock hazard, do not expose

product or AC adapter/charger to rain or moisture.

RISK OF ELECTRIC SHOCK

DO NOT OPEN

CAUTION

ATTENTION

ELECTRIQUE NE PAS OUVRIR

TO REDUCE THE RISK OF ELECTRIC SHOCK, DO NOT REMOVE THE COVER (OR BACK). NO USER-SERVICEABLE PARTS ARE INSIDE. REFER SERVICING TO QUALIFIED SERVICE PERSONNEL.

CAUTION: To prevent electric shock, match wide blade of plug

to wide slot, fully insert. ATTENTION: Pour éviter les chocs électriques, introduire la lame

la plus large de la fiche dans la borne correspondante de la prise et pousser jusqu au fond.

To reduce risk of injury, charge only rechargeable batteries recommended by the manufacturer for this camcorder. Other types of batteries may burst causing damage and personal injury.

CAUTION: Avoid operating this product immediately after moving it from a cold location to a warm location. Give it 2 to 3 hours to reach a stable temperature before inserting a video cassette. When moved from a cold area to a warm location, moisture may condense on the head drum inside the machine. This moisture could cause the tape to stick to the headwheel and damage the headwheel or tape.

FCC Regulations state that unauthorized changes or modifications to this equipment may void the user’s authority to operate it.

This symbol indicates “dangerous voltage” inside the product that presents a risk of electric shock or personal injury.

This symbol indicates important instructions accompanying the product.RISQUE DE CHOC

Product Registration

Please fill out the product registration card and return it immediately. Returning this card allows us to contact you if needed.

Keep your sales receipt for proof of purchase to obtain warranty parts and service and attach it here. Record the serial and model numbers located on the bottom of the product.

Model _______________________________________________________ Serial No:_____________________________________________________ Purchase Date: ________________________________________________ Purchased From: ______________________________________________

CC437

Assistance

Table of Contents

We want to make sure you enjoy your new camcorder. If you have any questions, call:

Customer Service..................................... 800-336-1900 (Page 67)

Accessories......................................... 800-338-0376 (Pages 54-61)

Safety Information................................i

Product Registration.............................i

Contents.............................................1-2

First-Time Operation

• Assistance............................................3

• Unpack Camcorder and

Accessories ......................................3

• Attach the Adapter/Charger................4

• Remove Lens Cap and Attach

to Handstrap.....................................5

• Turn on the Camcorder.......................5

• Insert a Cassette ..................................6

• Position Viewfinder and

Adjust Eyepiece Focus Control .......6

• Start and Stop Recording ....................7

• Play Back What You Have

Recorded..........................................7

• Review the Camcorder’s

Operating Controls .......................8-9

Powering the Camcorder

• Using the Adapter/Charger...............10

• Using the Rechargeable Battery

• Charging.........................................11

• Attaching and Removing................12

• Care and Storage............................13

• Safety Precautions..........................13

• Battery Level Indicator...................14

• Using the Optional Thomson

Car Cord Adapter.......................15

Video Cassettes

• Erase Protection..............................16

• Recording and Playback Times......16

• Inserting and Removing

Cassettes.....................................17

Cassette Care and Storage................17

Traveling Tips ....................................18

Cassette Tips.......................................18

Table of Contents

Recording Features

• Quick Review....................................19

• Tape Positioning ...............................19

• Microphone.......................................19

• AI (Artificial Intelligence)................19

• Program AE (Auto Exposure)...........20

• Auto Focus........................................20

• Macro Focus......................................20

• Electronic Indexing...........................21

• Time Remaining Display..................21

• Viewfinder...................................22-23

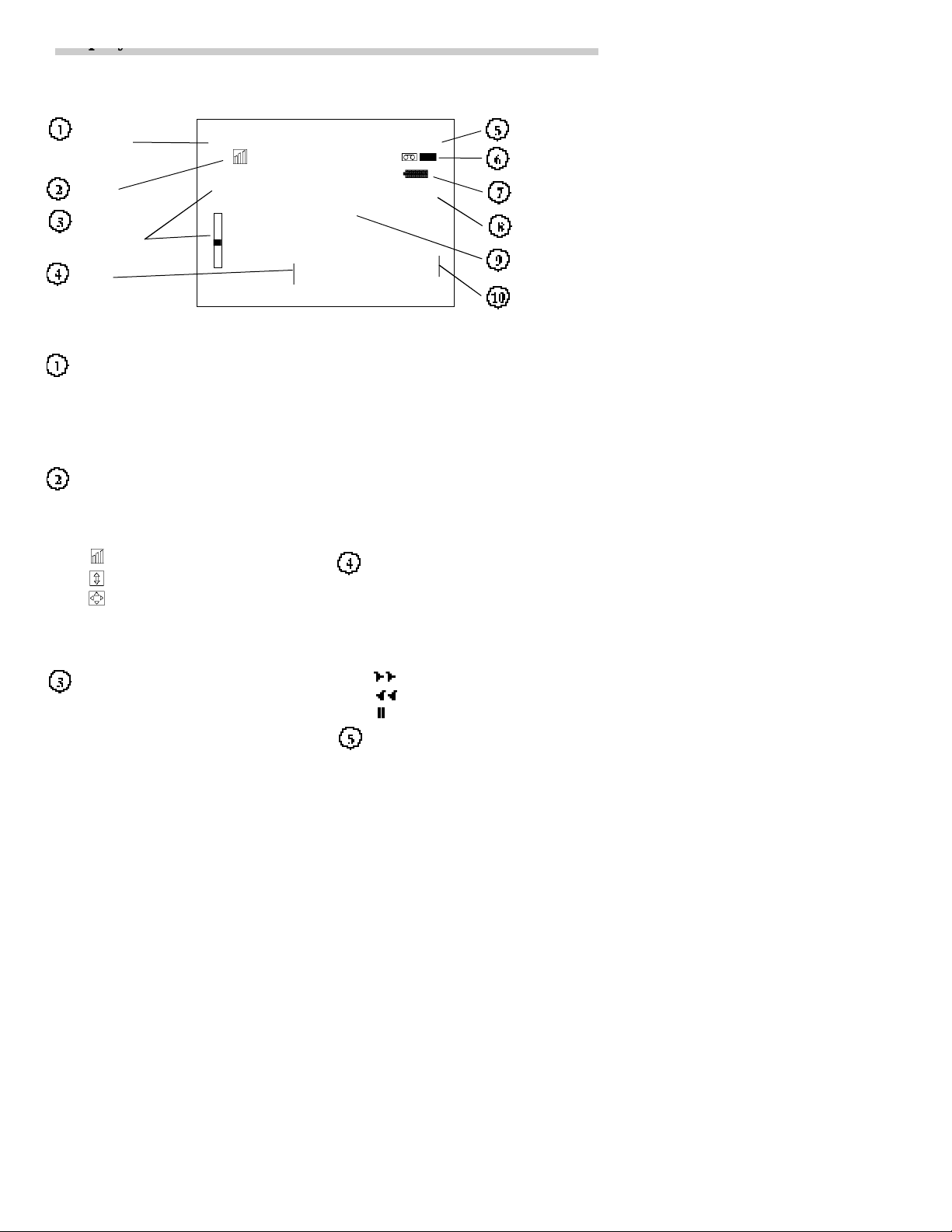

• Displays in Viewfinder................24-25

• Date and Time Display

• Set the Date and Time....................26

• Record the Date and Time

(or Date) on Your Tape.............27

• Charging the Clock Cell.................27

• Zooming

• Power Zoom Buttons......................28

• Instant Zoom ..................................29

• Digital Zoom..................................29

• 16 x 9 Mode....................................30

• Fading In and Out of Scenes.............31

• Tape Counter with Memory Stop......32

• ProEdit®Features

• Flying Erase Head..........................33

• Edit Search.....................................33

• Audio Dubbing..........................34-35

• Audio/Video Dubbing...............36-37

• Titler..........................................38-40

Recording Tips...................................41

Recording on the Camcorder ......42-43

Playback

• Viewfinder Playback.........................44

• Playback Features

• Stop-Action Pause.....................44-45

• Picture Search ...........................44-45

• Tracking .........................................45

• Playback on TV (or VCR) with

AUDIO/VIDEO IN Jacks.......46-47

• Playback on TV without

Audio and Video Inputs.........48-49

Color Enhancement Light............50-51

Attaching the Shoulder Strap...........52

Packing Carrying Case......................53

Information to User ...........................53

Specifications......................................54

Optional Accessories.....................54-61

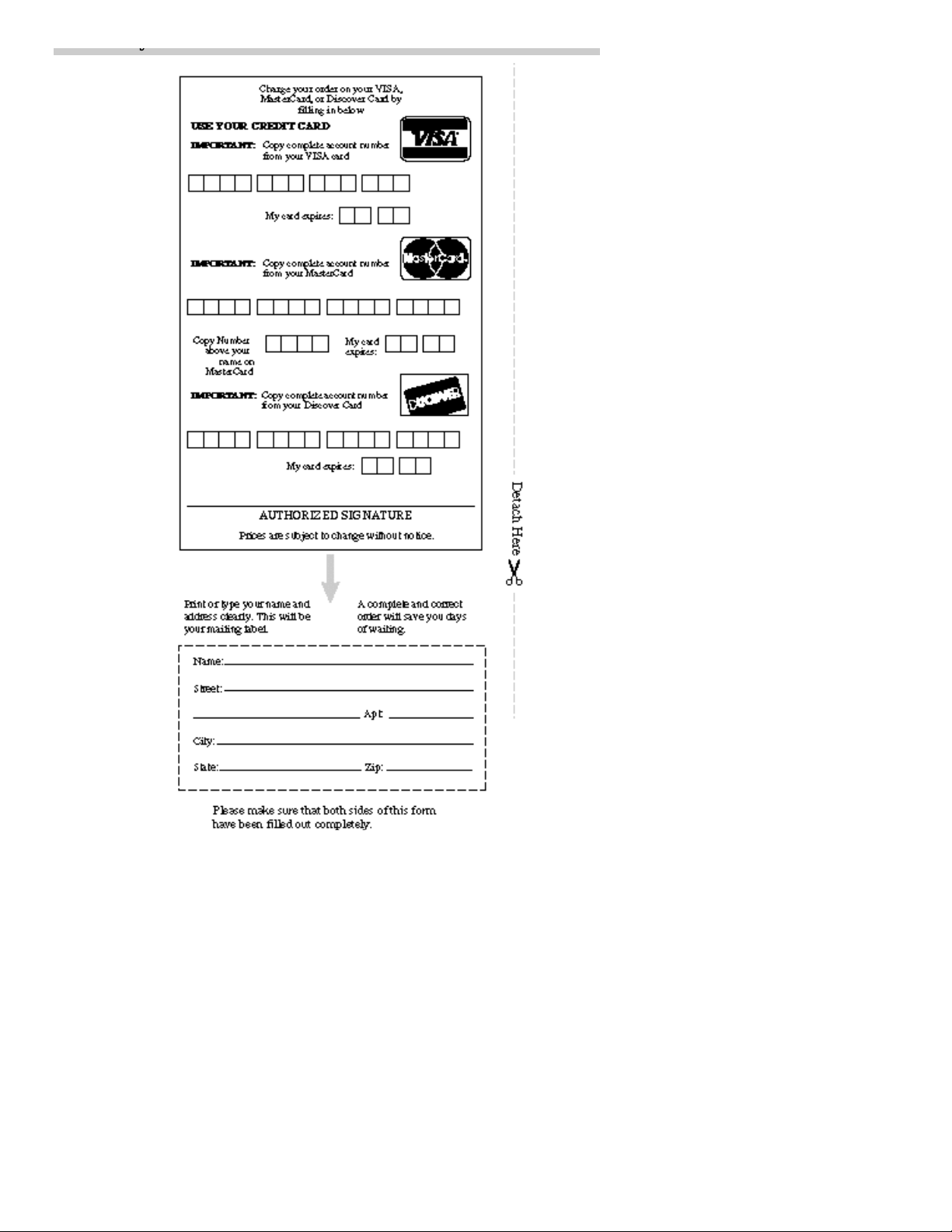

• Accessory Order Form.................59-61

Care and Maintenance.................62-63

Trouble Checks.............................64-66

Limited Warranty..............................67

Index (Alphabetical).....................68-69

First-Time Operation

• Save the box and packing materials in case you ever need to store or ship your camcorder.

• The items shown below are packed with your camcorder. If any of them are missing or appear damaged, contact your dealer immediately.

This section describes only the basic steps necessary to set up your camcorder to record. Refer to the other sections for detailed operation and feature options.

Assistance

The toll-free numbers are available to help you with any problem you may encounter.

Customer Service . . . . . . . . . . . . . . . .800-336-1900

Accessories . . . . . . . . . . . . . . . . . . . .800-338-0376

1. Unpack the camcorder and accessories.

WARNING: LEADACID BATTERY. MUST BE DISPOSED OF PROPERLY.

Rechargeable 10-Volt Battery

Stock No. EP096FS

Camcorder

Model CC437

Shoulder Strap

Stock No. 227327

AC Adapter/Charger: Stock No.

232595

DC Cable: Stock No. 209342

Carrying Case

Part No. 233110

Caution: Do not use this adapter/charger

for any purpose other than charging the

EP096FL or EP096FS battery pack or supplying power to the camcorder.

First-Time Operation

2. Attach the adapter/charger.

Since the battery must be charged before it can be used the first time, attach the adapter/charger to the camcorder.

• Attach one end of the adapter/charger’s DC cable to the DC OUTPUT jack on the

Adapter/Charger

DC OUTPUT

Jack

Adapter/Charger’s DC Cable

DC IN 9.6V Jack on Back of Camcorder

adapter/charger.

• Attach the other end of the cable to the DC IN 9.6V jack on the camcorder.

• Plug the adapter/charger’s plug into an operating outlet.

• Details are on page 10.

First-Time Operation

CAMERA/OFF/VCR Switch

Lens Cap

Handstrap

3. Remove the lens cap and attach it to the handstrap.

4. Turn on the camcorder.

The position of the CAMERA / O F F / V C R switch tells the camcorder whether you want to record (CAMERA), play back tapes (VCR), or turn off the power (OFF).

• Press and hold the small button on CAMERA / O F F / V C R while sliding it in CAMERA. The electronic viewfinder will come on.

First-Time Operation

Lens Cap on Handstrap

Cassette Door

Press Here to Close

Tape Window

Safety Tab

REC (Record) /PAUSE

Button

5 . I n s e rt a cassette.

• Press STOP/EJECT to open the cassette compartment.

• Insert the cassette with the safety tab facing up and the tape windows facing out.

• Press the cassette down gently until it locks into place, and close the cassette compartment door.

• Details are on page 17.

6 . Position viewfinder and adjust

eyepiece focus control.

• Grasp the viewfinder and rotate it horizontally.

• Pull the viewfinder out from the camcorder and rotate the eyepiece into a comfortable viewing position.

Caution: Pulling on the eyepiece may cause damage to the eyepiece or camcorder.

• If the image in the viewfinder is blurry, adjust the eyepiece focus control for your vision. Details are

on page 22.

First-Time Operation

7. Start and stop recording.

Start and stop recording by pressing and releasing REC/PAUSE. REC appears in the viewfinder. You do not have to hold the button to record.

Notes: If you do not record within five minutes, the camcorder will automatically shut off to prevent excessive tape wear. Press REC/PAUSE to turn on the camcorder.

Any material recorded on the tape will automatically be erased if you record over it.

8. Play back what you have recorded.

• Press REC/PAUSE to stop recording.

• Press and hold the small button on CAMERA / O F F / V C R while sliding it to VCR.

• Press REW(rewind)/REVIEW to rewind the tape.

• Press PLAY to play back the tape in the viewfinder.

• Press STOP/EJECT when you are finished playing back the tape.

• Details on viewfinder playback are on page 44.

CAMERA/OFF/VCR Switch

STOP/EJECT

PLAY

REW(Rewind)/ REVIEW

REC (Record) /PAUSE

Eyepiece Focus Control

Eyepiece

Electronic Viewfinder (Grasp Here to Move)

First-Time Operation

9. Review the camcorder’s operating controls.

VIDEO, AUDIO, and RF DC OUT Jacks (Located Behind Small Cover)

AV (Audio/Video) OUT/IN Switch

Lens

Lens Hood

Microphone

Light

BRIGHT Control

(Located Under Microphone)

Eyepiece Focus Control

Viewfinder

FADE Button

STOP/EJECT Button Also EDIT•ADV Button

F.FWD (Fast Forward) Button Also Title Select + Button

PLAY Button

AV DUB Button

DISPLAY Button

RESET Button

DATE/TIME Button

TITLER Button

CAMERA • O F F • V C R Switch

REW (Rewind/Review) Button Also Title Select – Button

INST. (Instant) ZOOM

Button

DIGITAL ZOOM Button

LIGHT AUTO/ OFF/ON Switch

First-Time Operation

9. Review the camcorder’s operating controls.

Power Zoom Buttons (W and T) also

TRACKING Buttons

DC IN 9.6V Jack

Shoulder Strap Attachment Ring

BATTERY

EJECT Lever

Cassette Door

Hand Strap with Lens Cap Holder

REC (Record) /PAUSE Button

Powering the Camcorder

1. Connect one end of the adapter/ charger’s cable to the adapter/ charger’s DC OUTPUT jack and the other end to the DC IN 9.6V jack on the back of the camcorder.

2. Plug the adapter/charger into the nearest AC outlet (120V, 50/60 Hz).

3. The POWER indicator on the adapter/charger will light when it is properly connected.

Notes: The adapter/charger cannot charge the battery and operate the camcorder at the same time. If you connect both, the adapter/charger will power the camcorder. Remove the adapter/charger’s cable from the DC OUTPUT jack to charge the battery.

When using the adapter/charger to power the camcorder, the battery level indicator may display . This indicator is used for battery operation and has no meaning when using the adapter/charger to power the camcorder.

To Remove the Adapter/Charger

1. Remove the adapter/charger’s plug from the AC outlet.

2. Remove the adapter/charger’s DC cable from the DC IN 9.6V jack on the camcorder.

on a power source other than 120 volts, 50/60 Hz, or the adapter/charger and camcorder may be damaged. If you wish to operate the AC adapter/charger on a power source other than 120 volts, 50/60 Hz, use only a transformer-type power converter. Do not use “solid-state” or “switching-type” power converters. They will damage your AC adapter/charger. An optional CPS014 shown on page 55 is designed for use on 100-240 volts, 50/60 Hz.

Using the Adapter/Charger to Power Your Camcorder

Plug in AC Outlet (120V, 50/60Hz)

Adapter/Charger

POWER

Indicator

Caution: Do not attempt to use a “power converter” to use your AC adapter/charger

DC OUTPUT

Jack

Adapter/Charger’s DC Cable

DC IN 9.6V Jack

Caution: Do not use this adapter/charger

for any purpose other than charging the EP096FS or EP096FL battery pack or supplying power to the camcorder.

Powering the Camcorder

1. Attach the battery to the adapter/ charger as shown. Align the reference arrow on the battery with the arrow on the adapter/charger. Hold the battery flush against the adapter/charger and slide it in the direction of the arrow.

Note: You cannot charge the battery and operate the camcorder from the adapter/ charger at the same time. Remove the adapter/charger’s DC cable from the camcorder to charge the battery.

2. Plug the adapter/charger into the nearest AC outlet (120 V, 50/60 Hz).

3. The CHARGE indicator will light while the battery is being charged.

When the indicator turns off, the

battery is fully charged.

4. Remove the battery from the adapter/charger by sliding the battery

up and off.

5. Attach the charged battery to the camcorder as shown on the next page.

Using the Battery to Power Your Camcorder

Charging the Battery

The battery must be charged before it can be used the first time. Charging will take approximately two hours depending on the condition of the battery. When fully charged, the battery should supply approximately 60 minutes of operating time (depending on how much you use zoom and pause). To extend the battery’s operation time, turn off the camcorder’s power when not in use.

Plug in AC Outlet (120 V, 50/60 Hz)

WARNING: LEADACID BATTERY. MUST BE DISPOSED OF PROPERLY.

Adapter/Charger

CHARGE

Indicator

Hold Battery Flush and Slide Down

Rechargeable Battery

Align Arrows

Caution: When a

battery is attached to the adapter/charger, do not turn them upside down. The battery may fall off and be damaged or cause injury.

Powering the Camcorder

Attach Charged Battery

1. Align reference arrow on battery with arrow on camcorder. Hold battery flush against camcorder while sliding it down in the direction of the arrow as shown.

2. Press and hold small button on CAMERA/OFF/VCR while placing it in CAMERA.

Using the Battery to Power Your Camcorder

CAMERA/OFF/VCR Switch

BATTERY EJECT Lever

Rechargeable Battery

Hold Battery Flush and Slide Down

Align Arrows

Remove the Battery

1. Slide CAMERA/OFF/VCR to OFF.

ATTENTION:LEAD-ACID BATTERY MUST BE DISPOSED

OF PROPERLY. THE PRODUCT THAT YOU HAVE PURCHASED USES A RECHARGEABLE BATTERY. AT THE END OF ITS USEFUL LIFE, UNDER VARIOUS STATE AND LOCAL LAWS, IT MAY BE ILLEGAL TO DISPOSE OF THIS BATTERY INTO THE MUNICIPAL WASTE STREAM. CHECK WITH YOUR LOCAL SOLID WASTE OFFICIALS FOR DETAILS IN YOUR AREA FOR RECYCLING OPTIONS OR PROPER DISPOSAL.

2. Press and hold BATTERY EJECT while sliding battery up and off the camcorder.

Powering the Camcorder

Battery Care

• Your battery will provide better service and longer performance if you charge it before and after use, and store it at normal room temperature.

• The battery should be charged at a temperature of 32ºF-95ºF (0ºC-35ºC) to prevent damage.

• Do not operate the battery at temperatures below 14ºF (-10ºC) or above 95ºF (35ºC). The battery may be

Battery Storage

• Store the battery at normal room

temperature.

• Lead acid batteries discharge if not used. Recharge the battery at least once every six months or you may not be able to recharge it.

Using the Battery to Power Your Camcorder

damaged if operated at temperatures above 122ºF (50ºC). Operation time will decrease at extremely low

temperatures.

• After repeated chargings and use, the operation time will gradually decrease. When operation time becomes too short to be useful, it is time to replace the battery.

• A battery stored for a long period may not supply power for the specified time. Additional rechargings may help

restore the battery’s operation time.

Allow battery to cool down before attaching it to adapter/charger. The CHARGE indicator will not light and the battery will not charge if you attach a hot battery.

Do not attempt to disassemble or modify the battery. There are no userserviceable parts inside.

Use the battery only with specified AC adapter/chargers and camcorders.

If leakage from a damaged battery contacts your skin or clothing, wash it off immediately with running water.

Batteries being recharged that have not been used for an extended period may continue to charge after the normal time. Do not charge a battery for more than 24 hours.

If both indicators on the adapter/ charger start flashing, remove the battery, and reattach it. If after several attempts — the indicators continue to flash — your battery cannot take a charge and must be replaced.

Throwing the battery into a fire or exposing the battery to excessive heat – over 149º F (65º C) could be hazardous.

Do not short the battery’s terminals.

Battery Safety Precautions

Powering the Camcorder

When DISPLAY is pressed, the battery level indicator ( ) appears in the camcorder’s viewfinder to show how much battery power is left in the rechargeable battery.

This indicator is not recorded on the tape.

• When the battery is fully charged, the display shows

• After a while, only appears.

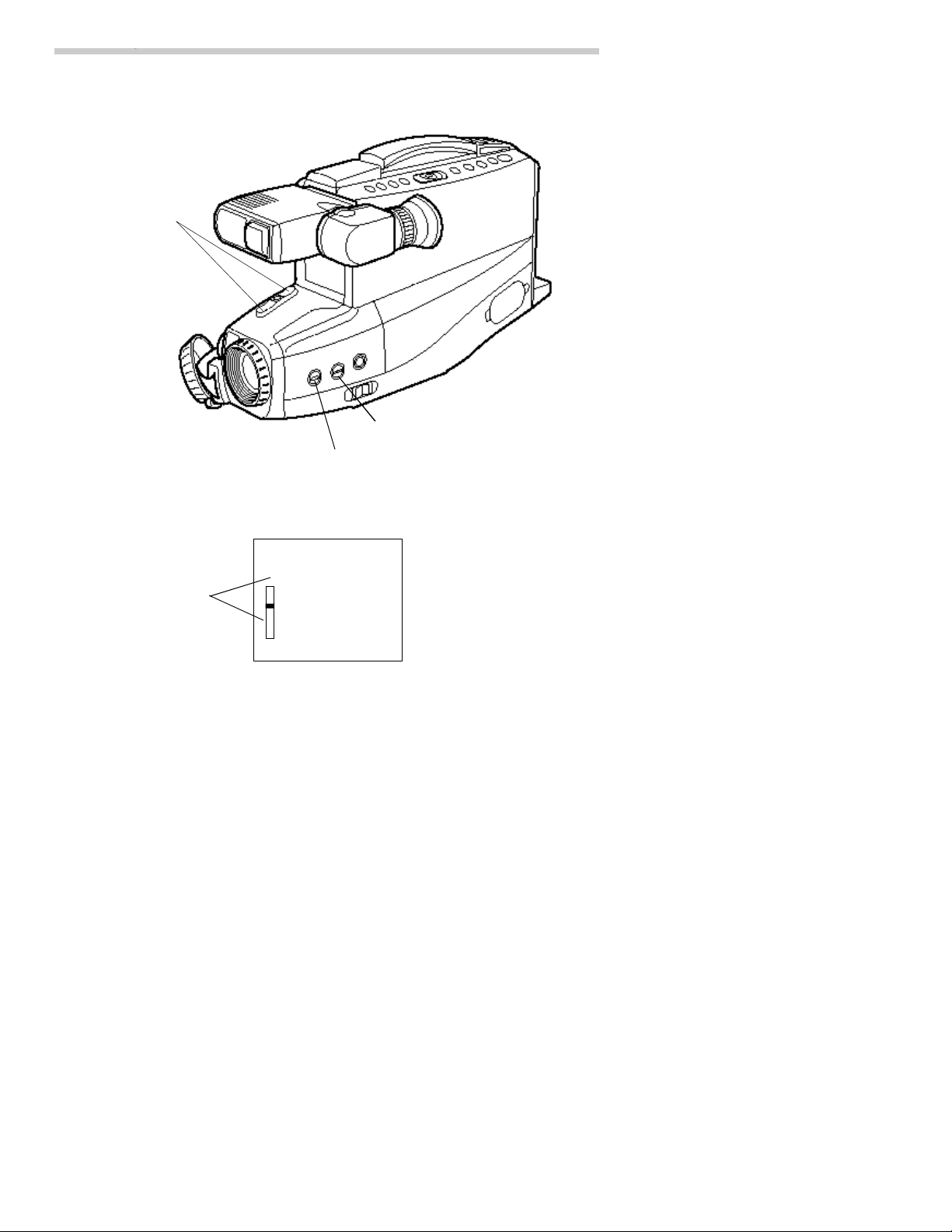

Check Battery Power (Battery Level Indicator)

Battery Level Indicator

Display in Viewfinder

• When the battery reaches the empty level, will start flashing. Recharge the battery or attach the adapter/charger before continuing to use the camcorder.

Notes: The battery level indicator has no meaning when you power the camcorder with the adapter/charger or optional car cord.

When a rechargeable battery is used to power the camcorder, flashes even if DISPLAY is not pressed to warn you that the battery power level is low.

Caution: When the battery reaches its empty level during use, the camcorder will turn off. However, the battery should have enough reserve power to eject the cassette when you press STOP/EJECT.

If the camcorder does not eject the cassette when you press STOP/EJECT, do not force the cassette door open. This will damage your camcorder.

Before attempting to eject the cassette, power your camcorder with the adapter/charger or recharge the battery.

Powering the Camcorder

To power your camcorder from the cigarette lighter socket of a car, truck, or RV, you need the optional car cord adapter DCC096 shown on page 55.

The DCC096 car cord is especially designed to convert power from a 12-volt battery to the 9.6-volt input jack on the camcorder.

Notes: The vehicle does not have to be turned on for the camcorder to operate from the DC

car cord.

When using the car cord to power the camcorder, the battery level indicator may display . This indicator is used for battery operation and has no meaning when

using the car cord to power the camcorder.

Using the Optional Thomson Car Cord Adapter

Caution: The DCC096 car cord is designed to be used only with vehicles having

12-volt negative ground electrical systems. Warning: To avoid possible damage to your camcorder, use only the DCC096.

It has positive tip polarity and is capable of converting 12-volts to 9.6 volts.

Cigarette Lighter Socket

Optional Car Cord Adapter (DCC096)

DC IN 9.6V Jack

1. Remove the adapter/charger’s DC cable or battery from the camcorder, if either is attached.

2. Connect the small plug on the car cord to the DC IN 9.6V jack located on the back of the camcorder.

3. Insert the other end of the car cord into the vehicle’s cigarette lighter socket.

4. Place the camcorder’s

CAMERA/OFF/VCR switch in CAMERA. If the car cord is connected

properly, the electronic viewfinder will come on.

Video Cassettes

To prevent accidental erasure, break the tab.

To record again, cover the hole with vinyl tape.

We recommend that our cassettes be used with your camcorder. Use of poor quality tapes or tapes that have been damaged or mishandled can contaminate the video heads, resulting in a snowy picture or no picture at all during playback. Because there is no control over the type of tape purchased or rented by consumers, head cleaning is not covered under warranty. It is considered normal maintenance.

If a snowy picture or no-picture condition persists, consider the use of a dry chemical non-abrasive head-cleaning tape. Be sure to follow the directions with the headcleaning kit carefully. Improper use of a head cleaner may damage your camcorder.

Erase Protection — Safety Tab

You can use your video cassettes over and over again. To erase a previous recording, just record over it.

Safety Tab

Recording and Playback Times

The camcorder records and plays back in VHS standard speed (SP). The chart shows the maximum SP recording times for popular VHS cassettes.

Video Cassettes

Inserting and Removing Cassettes

Caution: Insert

cassette with safety tab facing up and tape windows facing out. Cassette should slide easily into the compartment.

Gently push the cassette down until it locks into place.

Press Here to Close

Tape Windows

STOP/EJECT

Safety Tab

Cassette Care and Storage

Follow these directions for continued high-quality performance from your cassettes.

• Keep cassettes away from strong magnetic fields, such as electric motors and other devices.

• Do not use a cassette if it has been

damaged or exposed to moisture. The tape may jam or damage the camcorder.

• When you are finished recording, break off the safety tab on the cassette to prevent accidental erasure.

• Do not leave your camcorder or

cassettes in a car or outdoors for an extended period. Excessive heat or

cold may damage them.

• When you are finished with a cassette, rewind it and remove it from the camcorder.

• Label and store cassettes vertically in their protective cases at normal room temperatures. Excessive heat or cold may damage your cassettes.

• Keep dust from entering the cassette compartment. All dust is abrasive and will cause excessive wear on the tape and the camcorder’s recording or playback heads.

1. Attach a power source to the

camcorder (either a charged battery or adapter/charger).

2. Press STOP/EJECT on the top of the

camcorder to open cassette door.

3. Insert or remove the cassette from the cassette compartment.

4. Gently close the cassette door with your hand.

Camcorder Traveling and Cassette Tips

Traveling Tips

Write down your camcorder’s serial number and keep it separate from the camcorder when traveling. If your camcorder is lost or stolen, you will be able to identify it.

Make sure you have any plug adapters you need before taking your camcorder to other countries. Consult your dealer.

Use extra care to avoid damage to your camcorder and accessories when operating them at a beach or pool. Spray, sand, and dust should be avoided. If your lens has been exposed to the elements, clean it only with proper lens cleaning supplies.

Cassette Tips

Do not use a cassette if it has been damaged or exposed to moisture. The tape may jam or damage your camcorder.

When you are finished recording, break off the safety tab on the cassette to prevent accidental erasure.

Label your cassettes before storing them.

Carry your camcorder in a carrying case when traveling. See page 54 for a specially designed soft case. An ordinary suitcase or

carry bag does not offer the protection your camcorder needs. Treat your camcorder as carry-on luggage to protect it from rough handling.

Store your cassettes vertically in their protective cases at normal room temperature.

Do not leave your camcorder or cassettes in a car or outdoors for an extended period. Excessive heat or cold may damage them.

Camcorder Features

Quick Review

Press REW/REVIEW when CAMERA/ OFF/VCR is in CAMERA and the

camcorder is in record pause to review the last few seconds of a recording.

The camcorder will play back the last few seconds of the recording, return the tape to its previous position, and return to record pause.

Tape Positioning

When CAMERA/OFF/VCR is in VCR and the camcorder is in the stop mode, you can quickly fast-forward or rewind the tape.

• Press F.FWD (fast forward) to fast forward the tape. Press STOP/EJECT to stop fast-forwarding.

REW (Rewind)/REVIEW

CAMERA/OFF/VCR Switch

Microphone

STOP/EJECT

F.FWD (Fast Forward)

• Press REW/REVIEW to rewind the tape to the beginning. Press STOP/EJECT to stop rewinding.

Microphone

The microphone picks up sound during a recording. It is more sensitive to sounds coming from the direction the lens is pointed.

AI (Artificial Intelligence)

The camcorder will automatically adjust focus, white balance and iris according to the recording conditions.

Camcorder Features

Program AE (Auto Exposure)

Program auto exposure automatically selects the shutter speed and adjusts the iris according to the shutter speed.

Viewfinder Display

AE:60

M a c ro Focus

The macro-focus feature lets you focus on objects as close as 3/8 of an inch from the camcorder lens.

1. Press and hold zoom button “W” until the lens is completely zoomed out.

2. Position the subject in the center of the viewfinder.

N o t e s: Zooming is not possible when using macro focus. To change the size of the subject, move the camcorder’s lens closer or farther away from it.

For best results, increase illumination when recording using macro focus.

Auto Focus

The camcorder will focus on the subject in the center of the viewfinder. Auto focus operates on the telephoto “T” side from approximately 3.6 feet to infinity

and on the wide-angle “W” side 3/8 of an inch from the lens surface to infinity. The following conditions may prevent auto focus from operating properly.

When DISPLAY is pressed, the AE indicator for the shutter speed selected (1/60, 1/100, 1/120, 1/180, 1/250, 1/350,

1/500, 1/750, 1/1000, 1/1500, 1/2000, or 1/4000 second) appears in the

viewfinder.

• Subject has close foreground and

background far away.

• Two subjects at different distances that

overlap.

• Subject with distinct horizontal stripes

or small pattern.

• Subject not in center of the viewfinder.

• Subject with shiny surfaces or sharp angles.

• Recording in low-light situations.

• Recording through a window.

Camcorder Features

Electronic Indexing

Each time you begin recording (after the camcorder has been turned off for at least four hours), the camcorder will automatically record an index mark at the beginning of the new recording.

When you play back the indexed tape in a VCR that has a compatible indexing feature called “VHS Index Search System,” the invisible marks can be located automatically. See your VCR owner’s manual for index playback instructions.

Time Remaining Display

The time remaining display shows the amount of recording or playback time left on the tape in the camcorder.

Viewfinder Display

INDEX

Viewfinder Display

When DISPLAY is pressed so the display appears in the viewfinder, INDEX will appear briefly to let you know the camcorder is recording an index mark.

Note: The camcorder does not record index

marks every time you stop and start recording. An index mark is recorded only once — at the start of each day’s recording session (or whenever the camcorder has been turned off for at least four hours).

When DISPLAY is pressed so the display appears in the viewfinder, ”– – – – –” will appear for approximately ten seconds when you first start playing or recording a tape while the camcorder

calculates the time remaining. Once time remaining has been calculated, it will automatically be updated and readily available as long as the same tape remains in the camcorder.

Viewfinder

The camcorder’s viewfinder is a miniature monitor that displays the picture seen by the camcorder when recording. The viewfinder also can be used for viewing the tape during playback.

When carrying or storing the camcorder, return the viewfinder to the original position to prevent possible damage.

Eyepiece Focus Control

Caution: Pulling on the eyepiece may cause damage to the camcorder.

Viewfinder in carrying or storing position

Viewfinder in operating position

Pull here

Eyepiece

1. Grasp the viewfinder and rotate it horizontally.

2. Pull the viewfinder out from the camcorder and adjust the eyepiece for convenient viewing.

The eyepiece focus control lets you set the focus of the viewfinder for your personal vision. If you wear eyeglasses, you probably can operate the camcorder without them.

Set the correct focus by focusing on one of the viewfinder’s displays (such as the

counter). Look through the viewfinder, and adjust the eyepiece focus control for your vision.

The eyepiece focus control does not affect the focus of the picture actually recorded by the camcorder.

Eyepiece Focus Control

Viewfinder

Caution: Do not

force the eyepiece to rotate completely around. This will damage the eyepiece and/or the camcorder.

Eyepiece BRIGHT Control

BRIGHT

BRIGHT Control

Viewfinder brightness can be adjusted by turning the BRIGHT control. This does not affect the picture actually recorded by the camcorder.

Tilt Adjustment

For convenient viewing, you can rotate the eyepiece about 225º degrees.

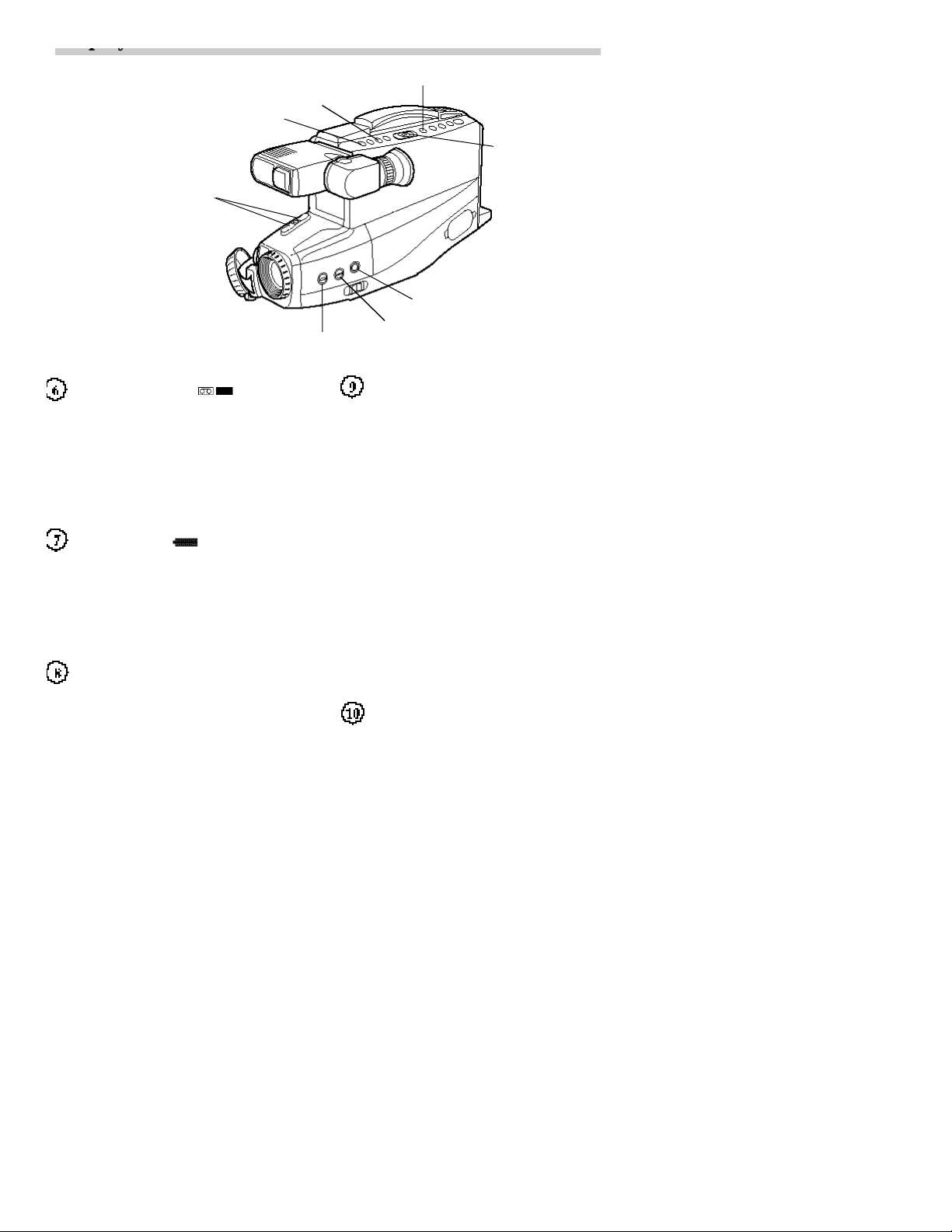

Displays in Viewfinder

A E (Auto Exposure) Shutter Speed

The shutter speed selected by the camcorder appears here. It is not recorded on the tape.

• Press DISPLAY to display the shutter speed.

Fade

Press FADE to select white, wipe, or zoom fade. It is not recorded on the tape.

• appears for white fade.

• appears for wipe fade.

• appears for zoom fade.

• Press DISPLAY to display the fade icon.

• Details are on page 31.

ZOOM and 16 x 9

Press DIGITAL ZOOM to select a digital zoom mode. The mode selected appears. It is not recorded on the tape. Press DISPLAY to display the zoom and 16 x 9.

• Select ZM:2 to activate the extended

zoom mode — wide angle to 100X.

• Select 16X9 to make a recording that

will be played back on a 16 x 9 wide screen TV.

AE Shutter Speed

FADE

ZOOM and

16 x 9

Status

AE:60 0000M

ZM:2 INDEX I.ZOOM NO TAPE

W A/V DUB 10:30AM

Viewfinder Displays

REC 11/18/1996

• ZOOM appears when you press power zoom button T and zoom in the telephoto direction more than 12 times.

• I.ZOOM appears when you press INST.ZOOM to enlarge the picture

1.5 times.

• The zoom level indicator appears when you press power zoom button T or W.

• Details are on pages 28-30.

Status

The following displays appear in this

area. They are not recorded on the tape.

• A/V DUB for audio/video dubbing.

• A. DUB for audio dubbing.

• REC for recording.

• during fast forward.

• during rewind.

• during record pause.

Tape Counter with Memory Stop (M)

The tape counter helps you locate tape segments. It is not recorded on the tape.

• Press DISPLAY to turn memory stop on or off.

Details are on page 32.

Tape Counter

Time Remaining

Battery Level

INDEX Display

TAPE, NO TAPE,

and TAPE END Time and Date

Displays in Viewfinder

T A P E , NO TAPE, and TAPE END

• TAPE flashes when you try to record and the safety tab has been removed.

• TAPE flashes when a damaged tape is inserted. Remove the tape and replace it with a new one.

• NO TAPE flashes when you try to record and there is no cassette in the camcorder.

• TAPE END flashes when you have approximately five minutes recording time left on the cassette.

• TAPE END briefly appears when you reach the end of the cassette during recording.

• These displays are not recorded when they appear.

Time and Date Display

• Press DATE / TIME repeatedly to display time and date, AUTO date, TITLE and date, date only, or no date display when the camcorder is in record pause.

• These displays are recorded when they appear.

• Details are on pages 26-27.

Power Zoom Buttons

Time Remaining ( )

This display shows the amount of recording or playback time remaining on the tape. It is not recorded on the tape.

• Press DISPLAY to display the time remaining.

• Details are on page 21.

Battery Level ( )

This indicator shows the amount of time left for the rechargeable battery. It is not recorded on the tape.

• Press DISPLAY to display the battery level.

• Details are on page 14.

INDEX

When DISPLAY is pressed, the display appears in the viewfinder. INDEX appears briefly when the camcorder automatically indexes the tape. It is not recorded on the tape. Details are on

page 21.

AV (Audio/Video) DUB

DATE/TIME

DISPLAY

INST. (INSTANT) ZOOM

CAMERA/OFF/VCR

FADE

DIGITAL ZOOM

Date and Time Display

12:00AM 1/ 1/1996

Set the Time and Date

DATE/TIME

REW (Rewind)/REVIEW

CAMERA/OFF/VCR

F.FWD (Fast Forward)

STOP/EJECT

1. Attach a power supply (battery or adapter/charger) to the camcorder.

2. Press and hold the small button on

CAMERA/OFF/VCR and place in CAMERA.

3. Press DATE / TIME to display the date and time in the viewfinder. A flashing cursor lets you know which part of the display you are setting.

Note: If flashing cursor does not appear, press and hold DATE/TIME and then press

STOP/EJECT.

4. Repeatedly press F.FWD or REW/REVIEW until correct month

appears. Press and hold the button to advance the digits faster.

5. When the correct digit is displayed, press STOP/EJECT. The cursor will move to the next part of the display.

6. Repeat steps 4 and 5 to set the correct month, day, year, hour, minute(s), and AM/PM.

7. After setting AM or PM, press DATE/TIME to remove the flashing cursor and start the internal clock.

To Correct the Date or Time

To correct the date or time, press and hold DATE/TIME and then press STOP/EJECT. The display will appear in the viewfinder along with the flashing cursor. Use F.FWD and REW/REVIEW to correct the time or date. Press DATE/TIME to remove the flashing cursor and start the clock.

Date and Time Display

The time and date, date only, or date and title can be recorded on your tape. Whenever one of the displays appears in the viewfinder, it will be recorded. The camcorder also has auto date and auto title features.

Charging the Ca m c o r d e r’s Built-in Clock Ba t t e ry

The camcorder has a built-in rechargeable clock battery.

This battery must be charged approximately every two months.

Recording Date and Time, Date, or Date and Title on Your Ta p e

11/18/1996

AUTO

11/18/1996

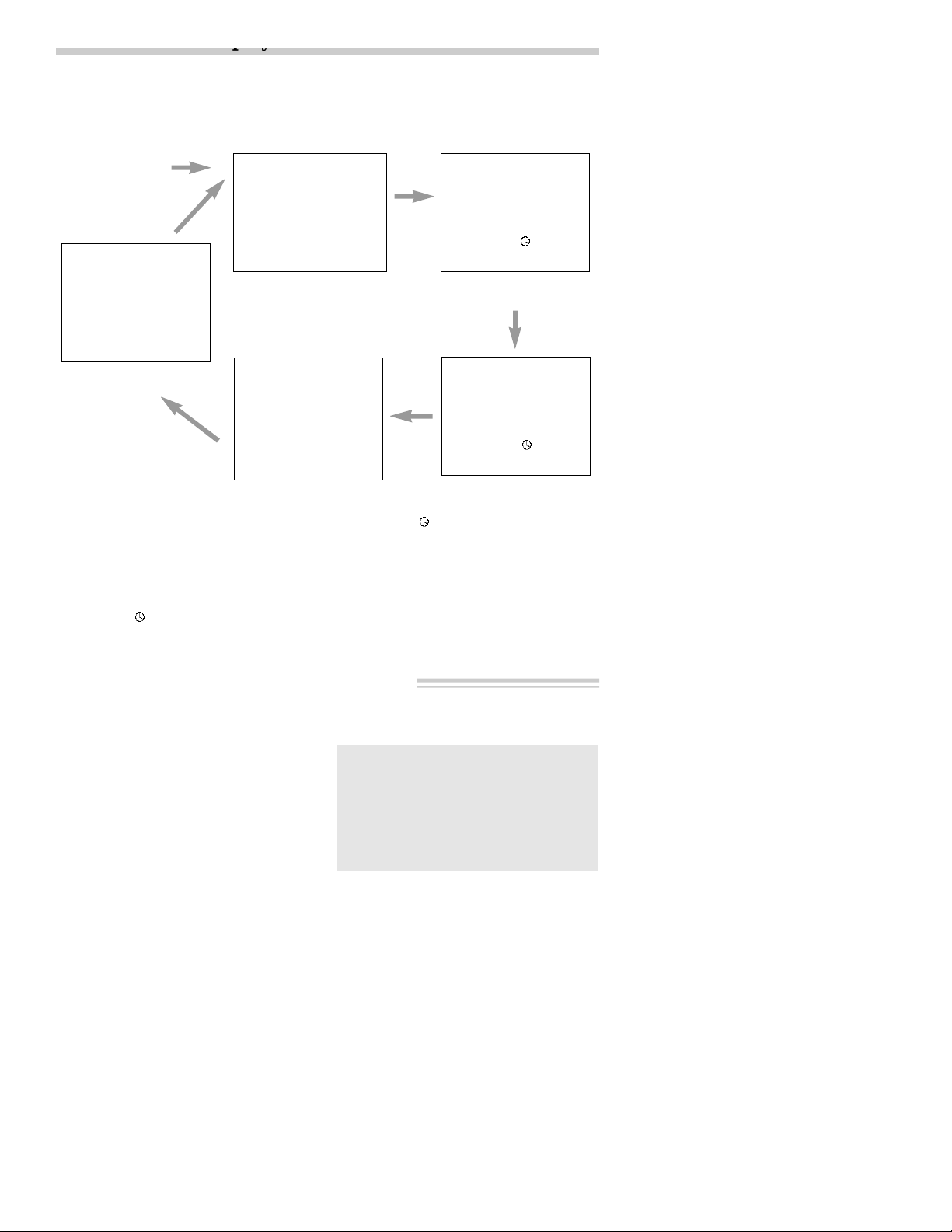

Repeatedly Press

DATE/ TIME

10:30AM 11/18/1996

Date and Time

No Display

Date Only

To Select Display to Record

1 . Repeatedly press D A T E / T I M E to select

the display you want to record.

• Select date and time to continuously record the date and time.

• Select AUTO to automatically record the date for 10 seconds at the beginning of the recording.

Auto Date

11/18/1996

Auto Title

• Select TITLE to automatically record the title and date for 10 seconds at the beginning of the recording.

• Select date only to continuously record the date.

• Select no display if you do not want

any of the displays recorded.

TITLE

1 . Attach a power supply (adapter/ charger

or charged battery) to the camcorder.

2 . Make sure CAMERA/OFF/VCR is

in O F F.

3 . Leave the power supply attached at least

24 hours.

Cautions: If this battery is not charged every two months, it will over-discharge and shorten its useful life.

Do not attempt to replace this battery. Take the camcorder to an authorized Servicenter.

Zooming

Using Power Zoom Buttons

Power Zoom Buttons

T = Telephoto

W = Wide Angle

When DISPLAY is pressed so the display appears in the viewfinder and the power zoom button is pressed, the zoom level is displayed in 10 steps for several seconds.

• Press “T” to move the lens in the “telephoto” (close-up) direction.

ZOOM appears in the viewfinder when you zoom in more than 12 times.

ZOOM

ZOOM and Zoom Level Indicator

• Press “W” to move the lens in the “wide-angle” direction.

INST.(Instant) ZOOM

DIGITAL ZOOM

Zooming (continued)

I.ZOOM

Instant Zoom Indicator

Using INST.(Instant) ZOOM

• Press INST.ZOOM to magnify the subject 1.5 times regardless of the position of the power zoom buttons. When DISPLAY is pressed, I.ZOOM

appears in the viewfinder during

instant zoom.

• Press INST.ZOOM again to turn off instant zoom.

The digital zoom feature allows you to zoom in on a subject with magnification of up to 100 times.

1. Press DISPLAY and repeatedly press DIGITAL ZOOM to select the digital zoom mode.

• The normal zoom mode is wide

angle to 12 times. No display appears in the viewfinder.

• Select ZM:2 to activate the extended

zoom mode — from wide angle to 100 times for special effects.

Digital Zooming

• Select 16X9 to make a recording that will be played back on a 16 X 9 TV.

See next page for details.

2. Press power zoom button “W” or “T” to control the digital zoom ratio.

Notes: ZOOM appears in the viewfinder for zoom levels above 12X. It will not be recorded on the tape.

As the zoom level increases in the ZM:2 mode, the picture will gradually become less sharp. Extremely high zoom levels are used mainly for special effects.

ZM:2 ZOOM

Zooming (continued)

1. Press DISPLAY and repeatedly press DIGITAL ZOOM to select 16 x 9. The

following display will appear in the viewfinder.

2. To turn off the 16 x 9 mode, repeatedly press the DIGITAL ZOOM button to return to the normal mode. No display will appear in the viewfinder.

To Record in the 16X9 Mode

16X9 Mode

The new 16 X 9 TV format provides a 30% wider picture than conventional TVs of the same height. The 16 X 9 recording mode lets you make recordings compatible with this new format. When the 16 X 9 mode is activated, the camcorder records black bars at the top and bottom of the picture to produce the wide-screen effect. This is known as “letter box” recording. When played back on a standard size TV, black bars appear in the picture.

Do not use this recording mode unless you have a 16 x 9 TV.

PostScript Picture

ROBBY SCAN

16X9 Mode

16 x 9 Indicator

16 x 9

PostScript Picture

ROBBY SCAN

Normal Mode

Fading In and Out of Scenes

You can add a professional touch to your recordings when you fade in and out of scenes. Both the picture and sound will gradually appear or disappear. The speed of the fade is controlled by the camcorder.

Fade In

1. Place the camcorder in record pause.

2. Repeatedly press FADE to select fade mode.

Note: The last fade mode used will appear the first time you press FADE.

3. Press REC/PAUSE to start recording. The picture and sound will gradually appear in place of the blank screen.

Fade Out

1. During recording, repeatedly press FADE to select the fade mode.

Note: The last fade mode used will appear the first time you press FADE.

2. Press REC/PAUSE to stop recording. The picture and sound will gradually disappear.

FADE

Select the Type of Fa d e

You can select white, wipe, or zoom fade. Press D I S P L A Y to display the fade mode icon.

• Select white fade to fade in and out from a white

screen. appears in the viewfinder.

• Select wipe fade to fade

in and out from a black screen. appears in the viewfinder.

• Select zoom fade to fade

in and out while zooming. appears in the viewfinder.

Repeatedly Press FADE

White Fade

No Fade

Wipe Fade

Zoom Fade

Tape Counter with Memory Stop

The tape counter acts as a handy reference to help you locate tape segments.

DISPLAY

F.FWD

REW/REVIEW

RESET

Memory Stop

The tape counter’s memory stop helps you locate a certain point on the tape. When memory stop is turned on, the tape will stop automatically during fast forward or rewind when the tape counter reaches “0000M.”

Using Memory Stop:

1. Press DISPLAY to display the tape counter with “M.”

2. Locate the place on the tape you want to return to and press RESET to reset tape counter to “0000M.”

4. Make sure CAMERA/OFF/VCR is in VCR. Then press REW/REVIEW. The tape will rewind until it reaches the tape counter reading of “0000M.”

Notes: Press DISPLAY to turn memory-stop

feature on or off. Whenever memory stop is turned on, the

camcorder will stop rewinding or fast forwarding when the counter reaches

“0000M.” To continue rewinding or fast forwarding the tape, press REW (rewind) or

F.FWD (fast forward) again. The tape counter is automatically reset to

“0000” whenever a cassette is inserted.

0000M

Memory Stop On

CAMERA/OFF/VCR

REC/PAUSE

3. Continue to record or play the tape. When you want to return to the place you marked, press REC/PAUSE to stop recording, or press STOP/EJECT to stop playback.

ProEdit Features

Edit Search

Flying Erase Head

ProEdit®System

The camcorder incorporates a complete package of advanced editing features to make it easy and fun to edit your home videos like a professional. The major ProEdit®System features are described here and on the following pages.

• Flying Erase Head

• Edit Search

• Audio Dub

• A/V (Audio and Video) Dub

• Titler

A separate erase head is mounted on the spinning headwheel (hence the term “flying”). The flying erase head allows you to make clean edits without “glitches” or “rainbow noise”.

The edit-search feature allows you to edit as you make your recording by using F.FWD, REW/REVIEW, and PLAY to precisely position the tape while the camcorder is in record pause.

• Press and hold REW/REVIEW to visually search the recorded tape in reverse.

• Press and hold F.FWD to visually search forward on the recorded tape.

• Press and hold PLAY to view the recorded tape at normal speed.

When you release the button, the camcorder will return to record pause at that point on the tape.

ProEdit Features

Audio Dubbing

Note: You will need an optional audio/video cable, such as VH83 shown on page 56. If the

audio source has separate left and right outputs, attach the audio plug to the one labeled MONO. If one is not labeled MONO, you may need a Y-adapter, as shown on page 56, to record audio from both the left and right channels.

ProEdit Features

Audio Dubbing

To Audio Dub

1. Press and hold the small button on CAMERA/OFF/VCR while sliding it to VCR.

2. If you are recording from a source connected to the white AUDIO jack on the side of the camcorder, place AV OUT/IN switch to IN.

3. Insert the tape you want to audio dub and use PLAY, F.FWD, and REW/REVIEW to locate a point on the tape a few seconds before you want to begin dubbing.

4. Press REC/PAUSE exactly where you want to begin dubbing. This will place the camcorder in play pause.

5. Press and hold AV DUB, and then press PLAY. Release both buttons at the same time. A. DUB will appear in the viewfinder when the camcorder is ready to begin audio dubbing.

The audio dub feature lets you record new audio (sound) on a previously recorded tape without erasing the original video (picture). The previous audio is erased and replaced with the new audio.

The audio dub feature increases your editing flexibility. Video segments can first be assembled and then a single narration or music background can be added.

The new audio can be added two different ways.

• You can speak into the camcorder’s built-in

• You can connect an external sound system to the

microphone.

white AUDIO jack on the camcorder.

A.DUB

6. To begin dubbing, start the audio source and press REC/PAUSE.

will disappear from the viewfinder

while you are dubbing.

7. Press STOP/EJECT when you are finished dubbing.

Remember: Place the AV OUT/INs w i t c h to OUT to record on the camcorder.

Notes: If you want to stop dubbing at a certain point on the tape, turn on memory stop, and set tape counter to “0000M” at the point where you want the dubbing to stop.

The camcorder will stop dubbing automatically when it reaches “0000M.”

ProEdit Features

Audio and Video Dubbing

ProEdit Features

To Audio and Video Dub

1. Press and hold the small button on CAMERA/OFF/VCR while sliding it in VCR.

2. If you are recording from a source connected to the AUDIO/VIDEO jacks on the side of the camcorder, place the AV OUT/IN switch to IN.

3. Insert the tape you want to dub and use PLAY, F.FWD, and REW/ REVIEW to locate a point on the tape a few seconds before you want to begin dubbing.

4. Press REC/PAUSE exactly where you want to begin dubbing. This will place the camcorder in play pause.

5. Press and hold AV DUB, and then press PLAY. Release both buttons at the same time. A. DUB will appear in the viewfinder when the camcorder is ready to begin audio dubbing.

6. Press and hold AV DUB, and then press PLAY again. Release both buttons at the same time. A/V DUB will appear in the viewfinder when the

Audio and Video Dubbing

The audio and video dubbing feature lets you record new audio (sound) and video (picture) on a previously recorded tape in the camcorder.

The source for the dubbing is the camcorder’s microphone and camera or a source connected to the AUDIO/VIDEO jacks on the side of the camcorder.

• To record from the camcorder’s microphone and

• To record from an external video source (VCR,

camera, no special connections are required.

laserdisc player, etc.), you will need an optional audio/video cable, such as AH83 shown on page 56.

camcorder is ready to begin audio and video dubbing.

Note: If you are dubbing from a source connected to the AV OUT/IN jacks, be sure to start it playing.

A/V DUB

7. To begin dubbing, press REC/PAUSE. will disappear from the viewfinder

while you are dubbing.

8. Press STOP/EJECT when you are

finished dubbing.

Remember: Place the AV OUT/INs w i t c h to OUT to record on the camcorder.

Notes: If you want to stop dubbing at a certain point on the tape, turn on memory stop and set the tape counter to “0000M” at the point where you want the dubbing to stop. The camcorder will stop dubbing automatically when it reaches “0000M.”

ProEdit Features

TITLER

CAMERA/OFF/VCR

Title Select - (Also REW/REVIEW)

Title Select +

(Also F.FWD)

EDIT•ADV

(Also STOP/EJECT)

Titler

The camcorder’s built-in titler can store a title in memory. The created title can be displayed and recorded at any time.

The built-in character register contains over 45 different characters for creating your titles. The title can contain up to 32 characters on two lines.

ProEdit Features

To Create a Title

1. Attach a power source to the camcorder, press and hold the small button on CAMERA/OFF/VCR while sliding it to CAMERA.

2. Press TITLER to display titler graphics in the viewfinder. A flashing cursor will appear.

3. Press EDIT•ADV to move the flashing cursor to the place you want to begin your title.

4. Select the first character for your title by pressing the Title Select + button or the – button until the character you want appears in the viewfinder.

See the “Chart of Characters in Titler’s Register” below for the characters available.

5. After you have selected the first character, press EDIT•ADV to move the flashing cursor where you want your next character to appear.

6. Repeat steps 4 and 5 until you have completed the title.

7. When you are finished, press TITLER to store the title and remove the title display from the viewfinder.

Important Note: Remember to remove the titler graphics from the viewfinder for normal recording.

To Correct an Error

Chart of Characters in Titler’s Register

1. Press TITLER to display the titler graphics in the viewfinder.

2. Press EDIT•ADV until the flashing cursor is placed over the character you wish to correct.

3. Press the Title Select + button or the – button until the correct character appears.

Note: If you want to delete a character, press + or – until the blank space appears.

A B C D E F G H I J K L M N O P Q R S T U V W X Y Z 0 1 2 3 4 5 6 7 8 9 ? ’ . / , – ; : < > ! (BLANK)

ProEdit Features

Recording a Title on a Tape in the Camcorder

To record a title on a tape in the camcorder, follow the steps below.

1. Attach a power source to the camcorder.

2. Place the tape you want to copy in the camcorder and place CAMERA/OFF/VCR in VCR.

3. Place a blank tape in the VCR, and place the VCR in record pause.

4. Start copying the tape from the camcorder to the VCR. Details for

copying a tape are on pages 46-47.

5. When you see the place on the tape you want to insert the title, press TITLER.

6. After you have recorded the title for the desired time, press TITLER to stop recording the title.

7. Stop the camcorder and VCR when you are finished copying the tape.

Important Note: Remember to remove the titler graphics from the viewfinder for normal

playback.

Recording a Title While Copying a Tape from Camcorder to Another VCR

This method of adding titles lets you keep the original tape as it is, and add titles to the copy you are making on another VCR. Connect your camcorder to a VCR as shown on

pages 46-47.

1. Attach a power source to the camcorder, slide CAMERA/OFF/VCR to CAMERA.

2. Locate the place on the tape where you want to record the title.

Notes: If you record a title on a prerecorded tape, the audio and video will be erased where the title is inserted. There will also be a three-to-four second pause of blank tape before the existing audio and video return.

Audio and video dubbing titles onto existing tapes will eliminate the pauses of blank tape. Details are on pages 36-37.

3. Press TITLER to display the titler graphics in the viewfinder.

4. Press REC/PAUSE to start recording the title.

5. After you have recorded the title for the desired length of time, press TITLER to remove titler graphics from the viewfinder. The camcorder will now record as normal. If you do not want to continue recording, press REC/PAUSE.

Important Note: Remember to remove the titler graphics from the viewfinder for normal recording.

Note: You can also use the automatic title recording feature to automatically record the title and date for 10 seconds when you begin recording. Press DATE/TIME to display

TITLE before starting to record.

Recording Tips

Be aware of video and audio backgrounds. Background details barely noticed while you are taping may show up as visual “clutter” on your recording. Background

noises (especially TV sets, radios, household appliances, traffic sounds, etc.) can detract from the sound you want to record.

Avoid long “still” shots of landmarks and scenic attractions. Recordings are more

interesting if they include people and details. “Local color” will give travel videos lasting appeal. Consider recording a familiar or landmark scene from an unfamiliar vantage point for added

interest. Remember to check the lighting before starting to record.

Try to avoid taping backlit subjects indoors. Bright light behind your subject may cause the subject to appear too dark.

Include close-up shots of individuals when taping family outings or group functions.

For a different perspective, try kneeling down (or laying) on the floor when

recording children or pets.

Make a recording of your home and contents to store in a safe place in case of fire or theft.

Practice recording under a variety of lighting conditions. This will help you respond quickly whenever you see a scene you want to record.

Fading in and out of scenes may make your videos appear more professional.

Do not move the camcorder rapidly from side-to-side while recording. A steady, gradual “pan” avoids blurring and “jitter”.

Use the viewfinder to make sure the camcorder is level while recording or your scenes will appear “tilted”.

Make sure indoor scenes are well-lit to improve picture quality and color reproduction.

Do not bump or tap the camcorder’s microphone while recording because this sound will be recorded.

Recording on the Camcorder from a VCR or TV Monitor

To record on a tape in your camcorder from a VCR or TV monitor with AUDIO OUT and VIDEO OUT jacks, you will need an optional audio/video cable, such as VH83 shown on page 56.

Recording on the Camcorder from a VCR or TV

Attach the white plug on one end of the audio/video cable to the AUDIO OUT jack on the VCR (or TV monitor).

Note: If your VCR or TV monitor has stereo left and right AUDIO OUT jacks, attach the plug to the one labeled MONO. If one of the audio jacks is not labeled MONO, you may need a Y-adapter, such as AH25 shown on page 56, to hear both channels.

Attach the yellow plug on the same end to the VIDEO OUT jack on the VCR (or TV monitor).

Attach the yellow plug on the other end of the audio/video cable to the yellow VIDEO jack and the white plug to the white AUDIO jack on the side of the camcorder.

Place the AV OUT/IN switch to IN.

Installation

Recording Operation and How to Copy Tapes on the Camcorder

1. A. Camcorder connected directly to TV monitor: Turn on the TV and tune it to the channel you want to record.

B. Camcorder connected to a VCR

that is already connected to a TV: Turn on the VCR and select the channel you want to record (or place the cassette you want to copy in the VCR). If you are copying a tape, press PLAY on the VCR when you are ready to start copying.

Note: If you want to see what is being recorded, turn on the TV and tune it to the channel that you normally use to see the signal from the VCR.

2. Press and hold the small button on the camcorder’s CAMERA/OFF/VCR switch while sliding it to CAMERA.

3. Insert a cassette in the camcorder with the safety tab intact.

4. Press REC/PAUSE to start the camcorder recording.

Note: If you are copying a tape, start the VCR playing the tape.

5. Press REC/PAUSE on the camcorder when you are finished.

Remember: Place the AV OUT/INs w i t c h to OUT to record on the camcorder.

Caution: The unauthorized recording of television programs and other materials may infringe the rights of others.

Viewfinder Playback and Playback Features

REW (Rewind)/REVIEW

STOP/EJECT

CAMERA/OFF/VCR Switch in VCR position

TRACKING

1. Attach a power supply to the camcorder.

2. Press and hold the small button on CAMERA/OFF/VCR while sliding it to VCR.

3. Press STOP/EJECT and insert the cassette you want to play back.

Note: The camcorder can only play back tapes recorded at SP speed.

4. Press PLAY to begin playback. Adjust TRACKING if necessary.

5. Press STOP/EJECT when you are finished.

F.FWD (Fast Forward)

Viewfinder Playback

Viewfinder Playback and Playback Features

Playback Features

Caution: Pause is designed for

momentary interruptions and should not be used for an extended period of time. If the camcorder remains in pause for more than five minutes, it will automatically remove the tape from the spinning heads to prevent excessive tape wear.

Tracking

Picture Search

During playback you can visually search the tape at a higher speed in forward or

reverse.

• Press and hold F.FWD to search the tape forward.

• Press and hold REW/REVIEW to search the tape in reverse.

• Release the button to return to normal playback.

Stop-Action Pause

During playback, you can view one frame of the tape.

• Press REC/PAUSE to stop the action.

• Press REC/PAUSE again to return to normal playback.

When you play a tape not recorded on your camcorder, streaks may appear. To remove the streaks, press either TRACKING button to move the streaks up or down and out of the picture.

Press either TRACKING button during stop-action (play-pause) to reduce picture “jitter” (picture bouncing up or down).

Remove the cassette to reset the camcorder’s tracking to its preset center.

The TRACKING buttons only affect tape playback. They have no effect during

recording.

TRACKING

(Also Power Zoom)

Playback on a TV or VCR with AUDIO and VIDEO INJ a c k s

To connect your camcorder to a TV monitor (or VCR) with AUDIO IN and VIDEO IN jacks, you will need an optional audio/video cable, such as VH83 shown on page 56. If your TV is already connected to a VCR, you can attach the camcorder to the VCR and watch what the camcorder is recording or playing on the TV.

Caution: The unauthorized recording of television programs and other materials may infringe the rights of others.

Playback on a TV or VCR with AUDIO and VIDEO INJ a c k s

1. A. Camcorder connected directly to

TV monitor: Turn on the TV and tune it to its video input channel.

B. Camcorder connected to VCR that

is already connected to TV: Turn on VCR and place it in the “line” or “camera” mode. (If your VCR does not have a “line” or “camera” mode, consult the VCR owner’s manual.) Operate the TV as you normally do to see the signal coming from the VCR.

2. Press and hold the small button on the camcorder’s CAMERA/OFF/VCR

switch while sliding it to VCR. Insert the cassette you want to playback (or

copy).

Note: The camcorder can only play back

tapes recorded at the SP speed.

3. Press PLAY on the camcorder. To copy what the camcorder is playing, place a

blank cassette in the VCR and start the VCR recording. Adjust the tracking on the camcorder if necessary. Details are

on page 45.

• During playback, use the playback features described on page 45.

4. Press STOP/EJECT when you are finished.

Attach the white plug on one end of the audio/video cable to the AUDIO IN jack on the TV or VCR.

Note: If your TV (or VCR) has stereo left and right AUDIO IN jacks, attach the plug to the one labeled MONO. If one of the jacks is not labeled MONO, you may need a Y-adapter, such as AH25 shown on page 56, to hear both channels.

Attach the yellow plug on the same end of the audio/video cable to the VIDEO IN jack on the TV or VCR.

Attach the yellow plug on the other end of the audio/video cable to the yellow VIDEO jack and the white plug to the white AUDIO jack on the side of the camcorder.

Place the AV OUT/IN switch to OUT.

Playback Operation and How to Copy Tapes on a VCR

Watching What the Camcorder is Seeing or Recording on the TV

1. A. Camcorder connected directly to TV: Turn on the TV, and tune it to its video input channel.

B. Camcorder connected to VCR that

2. Press and hold the small button on the camcorder’s CAMERA/OFF/VCR switch while sliding it to CAMERA. Insert the cassette you want to record on.

Note: When the camcorder is used as a camera, turn the TV’s volume down to prevent a high-pitched squeal caused by feedback.

3. Press the camcorder’s REC/PAUSE button to begin recording. You can watch what the camcorder is seeing or recording on the TV screen.

Playback on a TV Without Audio and Video Inputs

Disconnect the VHF antenna from your TV. If you are going to leave the RF adapter connected to the TV, connect the antenna to the RF output adapter.

A.If antenna is round 75-ohm cable,

connect it to IN FROM ANT connector on RF output adapter.

B.If antenna is flat twin-lead,

connect flat-lead connectors to screw terminals on optional 30075 ohm transformer. Then connect transformer to IN FROM ANT connector on RF output adapter.

Attach one end of coaxial RF cable to OUT TO TV connector on RF adapter, and attach other end of the cable to VHF input on TV as shown.

Note: If TV has screw terminals, you may need an optional 75-to-300 ohm transformer, such as AH011.

Attach RF output adapter’s yellow plug to the VIDEO jack, small plug to the RF DC OUT jack, and white plug to the AUDIO jack on the side of the camcorder.

Place the AV OUT/IN switch to OUT.

To connect your camcorder to a TV without audio and video input jacks. You will need an optional RF output adapter (such as CRF95) and an optional coaxial RF cable (such as VH82 or VH85) shown on page 56.

Playback on a TV Without Audio and Video Inputs

Playback Operation

1. Set the channel selector switch on the RF output adapter to CH3 or CH4.

2. Turn on the TV and tune it to the same channel (3 or 4) you selected with the channel selector switch on the RF output adapter.

3. Press and hold the small button on the camcorder’s CAMERA/OFF/VCR switch while sliding it to VCR.

4. Insert the cassette you want to play back into the camcorder.

Note: The camcorder can only play back tapes recorded at the SP speed.

Watch What the Camcorder is Seeing or Recording on the TV

5. Press PLAY on the camcorder. Adjust tracking on the camcorder, if

necessary. Details are on page 45.

• During playback, use the playback features described on page 45.

6. Press STOP/EJECT on the camcorder when you are finished playing back the

tape.

1. Turn on the TV and tune it to channel 3 or 4 (the same channel you selected with the CH3/CH4 switch on the RF output adapter).

2. Press and hold the small button on the camcorder’s CAMERA/OFF/VCR switch while sliding it to CAMERA. Insert the cassette you want to record on.

3. Press the camcorder’s REC/PAUSE button to begin recording. You can

watch what the camcorder is seeing or recording on the TV screen.

Note: When the camcorder is used as a

camera, turn the TV’s volume down to prevent a high-pitched squeal caused by feedback.

Normal TV Viewing

For normal TV viewing, you can leave the RF output adapter hooked up to the TV. Just disconnect the adapter’s plug

Note to Cable-TV Installer: This reminder is provided to call your attention to Article 820-40 of the National Electrical Code (Section 54 of Canadian Electrical Code, Part I), that provides guidelines for proper grounding and, in particular, specifies that the cable ground shall be connected to the grounding system of the building as close to the point of cable entry as practical.

from the camcorder or turn the camcorder’s power off.

Color Enhancement Light

To Use the Color Enhancement Light

and light automatically turn off. Press REC/PAUSE to turn camcorder back on.

Notes: Turn on the light only when you need it. The power consumption of the light is approximately two-thirds that of the camcorder. When the light is on, the operation time of the rechargeable battery is reduced.

Avoid bumping or shaking the light when in use. The light’s bulb is sensitive when hot and may burn out.

Do not allow water to drop on the light when in operation.

The color enhancement light helps create brighter, sharper pictures.

Dangers: During operation and after

using the light, the front surface and

bulb of the light will be very hot. To avoid burns, do not touch them.

To prevent overheating, do not block or cover the ventilation holes on the

color enhancement light. Never use the color enhancement light in

the vicinity of explosives or highly flammable materials.

Light

LIGHT AUTO/OFF/ON

1.Attach the rechargeable battery or AC adapter/charger to power the camcorder.

2.Press and hold the small button on

CAMERA/OFF/VCR and place it in

CAMERA.

3.Select a position for the LIGHT AUTO/OFF/ON switch.

• Place in AUTO to have the light

automatically turn on when the camcorder is aimed at a dark object and turn off when aimed at a bright object.

N o t e : A cassette must be inserted for A U T O to operate.

• Place in ON to have the light turn on

whenever CAMERA/OFF/VCR is in

CAMERA.

• Place in OFF to turn off the light. If the camcorder is left in record pause

for more than five minutes, the power

Color Enhancement Light

To Remove and Replace Light Case

1. To remove front case, press and hold the lower hook while removing it.

2. To replace the front case, pass the bulb through the hole of the reflection plate, and attach the lower hook to the light.

3. Press front of case to light.

Notes: Do not touch the bulb with your fingers. It may shorten its service life.

Make sure the front case of the light is properly attached after removing it or replacing a bulb.

When replacing the bulb, only use #221111 to reduce the risk of fire and other hazards.

See the installation instructions packed with

the replacement bulb when replacing the bulb.

Caution: Use only bulb #221111 when replacing the bulb to reduce the risk of fire or other hazards.

Removing and Replacing the Front Case of the Light

Light

Reflection Plate

Bulb

Front Case

Lower Hook

Attaching the Shoulder Strap

The shoulder strap is designed to let you carry the camcorder from your shoulder and — when you are ready to shoot — bring the camcorder to shooting position in one quick movement.

Cautions: When carrying the camcorder with the shoulder strap, place the viewfinder in its original position. This helps prevent possible damage to the

viewfinder from bumping against your body as you move. Make sure the shoulder strap is firmly attached before using it to carry your camcorder.

To Attach the Shoulder Strap

1.Unfasten one end of the shoulder strap from the buckle. Make sure you leave the buckle on the strap.

2.Thread one end of the shoulder strap through one of the shoulder strap rings as

shown below in diagrams A and B.

Diagram A Diagram B

Shoulder Strap Rings

3.Thread the strap back into the buckle as shown below. Pull on the strap and make sure it is fastened correctly and tightly before using it to support your camcorder.

4.Repeat steps 1–3 to attach the other end of the shoulder strap.

Packing Carrying Case

The carrying case that came with your camcorder is specially designed to provide protection for your camcorder and its accessories. See below for details on packing your case.

Two Hour Battery Type

One Hour Battery Type

Adapter/Charger

Information to User

This equipment has been tested and found to comply with the limits for a Class B digital device and RF lighting device, pursuant to Part 15 and part 18 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation. This equipment generates, uses, and can radiate radio frequency energy and, if not installed and used in accordance with the instructions, may cause harmful interference to radio communications. However, there is no guarantee that interference will not occur in a particular installation. If this equipment does cause harmful interference to radio or television reception, which can be determined by turning the equipment off and on, the user is encouraged to try to correct the interference by one or more of the following measures:

• Reorient or relocate the receiving antenna.

• Increase the separation between the equipment and receiver.

Camcorder

Audio/Video Cable

• Connect the equipment into an outlet on a circuit different from that to which the receiver is connected.

• Consult the dealer or an experienced radio/TV technician for help.

Alterations or modifications carried out without appropriate authorization may invalidate the user’s FCC right to operate the equipment.

This Class B digital apparatus meets all requirements of the Canadian InterferenceCausing Equipment Regulations.

Cet appareil numérique de la Classe B respecte toutes les exigences du Réglement sur le matérial brouilleur du Canada.

Specifications

General

Power requirement: 9.6VDC Power consumption: 8 watts (normal) Weight: 4.4 lbs. (2 kg)

Dimensions:

4-1/4"(W) x 8-3/8"(H) x 13-1/8"(D) (108 x 213 x 334mm)

Video Recorder Section

Format: VHS Record/Playback System:

Two video record/playback heads One flying erase head

Headwheel Cylinder Diameter: 62 mm Video Signal: EIA Standard NTSC

Color

Camera Section

Scanning: 525 Lines/60 Fields/30

Frames

Image Sensor: 1/4” high/resolution,

solid state CCD imager

Tripod Mount: One 1/4" x 20 threaded

hole

Lens: f1.6 — 12:1 (4-48mm)

Diameter: 46 mm

Adapter/Charger

Power Requirement: 120 V 50/60 Hz Power Consumption: 30 Watts (max) Weight: (390 grams) Dimensions:

(78 x 52 x 155 mm)

Optional Accessories

We invite you to take a look at some great ideas for sparking creativity and adding to the fun of using your camcorder. These pages have a selection of accessories to help make your memorable moments look and sound even better.

To order accessories, contact your local dealer.

Accessories are available by calling toll-free or by using the order form. See pages 59-61.

AC202 Soft Camcorder Case

This case provides exceptional protection and utility for full size camcorders and most accessories. It is constructed of rugged nylon fabric for years of reliable service and good looks.

Three outside pockets provide ample accessory storage with mesh-covered lens filter compartment and built-in holders for memo pads, pens, and other accessories. The hand grip and adjustable shoulder strap allow for convenient, comfortable transportation of the camcorder.

Optional Accessories

DCC096 DC (Battery) Car Cord

CPS014 ACA d a p t e r / C h a r g e r

EP096FS and EP096FL Rechargeable Batteries

C a u t i o n : Do not use any other car cord

with this camcorder.

This DC car cord enables you to operate your camcorder from your car, truck, or RV by plugging the car cord directly into the vehicle’s cigarette lighter.

This adapter/charger operates on 100240 volts, 50/60 Hz, so it can be used almost anywhere in the world to power your camcorder and recharge the EP096FS battery supplied with your camcorder.

It also charges the EP096FL (2 hour) battery. A simple plug adapter may be required in some countries.

These rechargeable lead-acid batteries are specifically designed for long life. The EP096FS can power your camcorder up to one hour and the EP096FL up to two hours (depending on how much you use the light, zoom, and pause).

Both batteries can be recharged with the AC adapter/charger that came packed with your camcorder. First charging takes approximately two hours for the EP096FS and three

hours for the EP096FL.

Optional Accessories

AH011 Cable Transformer

These RF cables are used with the RF output adapter to connect your camcorder to a standard TV (one without audio/video input jacks) for playback.

If your antenna cable is the flat twin-lead type attached by two screws, you will also need a 300-75 ohm transformer such as 193983.

If your TV has 300 ohm antenna screw terminals, you will need an optional 75-300 ohm transformer such as AH011.

CRF95 RF Output Adapter

This adapter is used with coaxial RF cable (VH82 or VH85) to connect your camcorder to a standard TV (one without audio/video input jacks) for playback. If your antenna cable is the flat twin-lead type attached by two screws, you will also need a 300-75 ohm transformer such as 193983. If your TV has 300 ohm antenna screw terminals, you will need an optional 75/300 ohm transformer such as AH011.

VH83 Audio/Video Cable

Coaxial RF Cables

VH82 (6-ft)

VH85 (12-ft)

193983 Cable Transformer

This six foot audio/video dubbing cable is used to connect your camcorder to a VCR or TV monitor to copy tapes.

AH25 Y-Adapter

This 300-to-75 ohm transformer is used to connect a standard 300-ohm antenna twin-lead to a standard round 75-ohm connector.

This 75-to-300 ohm transformer is used to connect a standard 75-ohm antenna cable, such as AH065G or AH066G, to the 300-ohm screw terminals on a TV.

This Y-adapter allows you to connect your camcorder’s mono audio cable to a stereo TV or VCR.

Optional Accessories

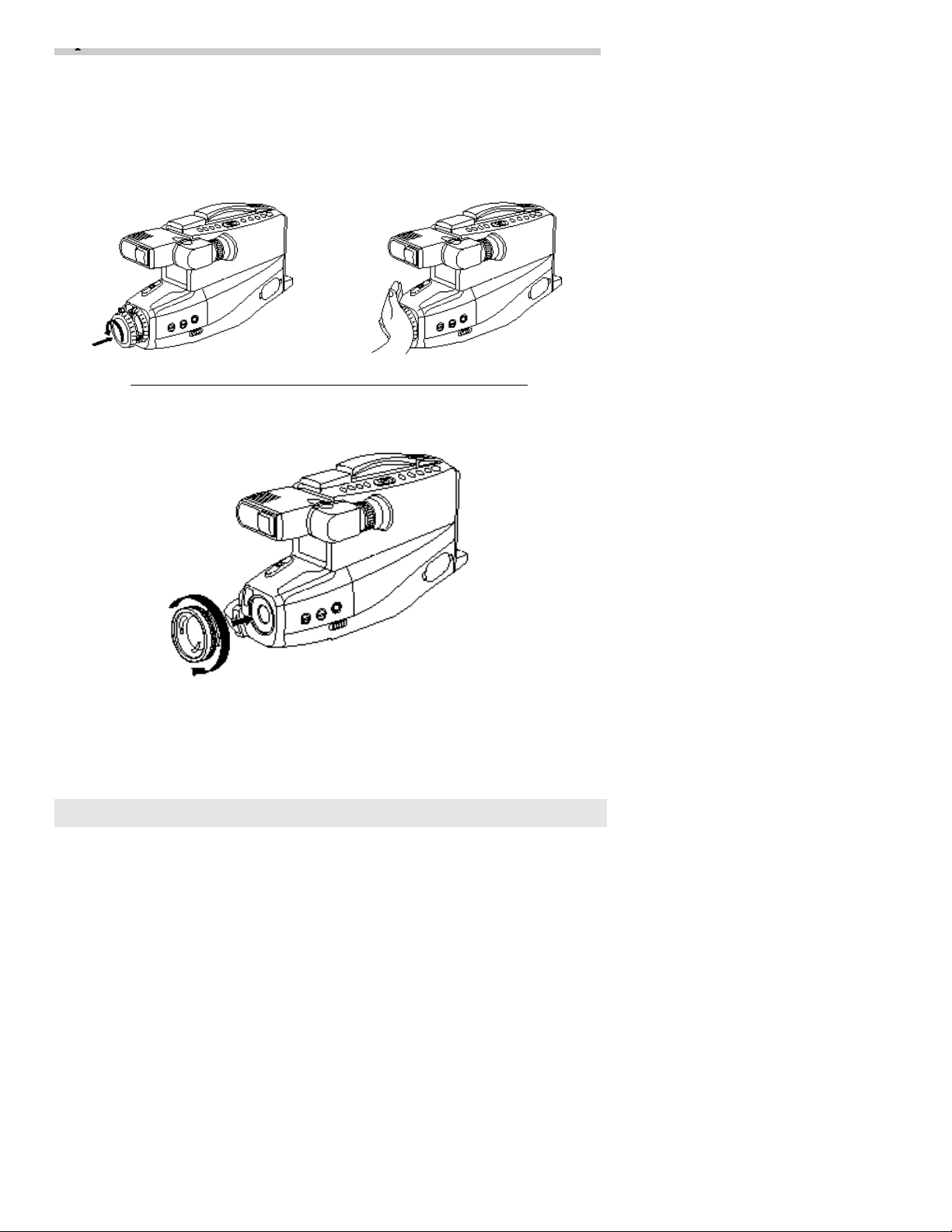

Removing the Lens Hood

Attaching Accessory Lens

The lens hood can be removed so you can attach optional accessories, such as wideangle lens, lens extender, or lens filter kit. Do not grasp the end of the lens hood. Attach the lens cap over the lens hood, then turn them counterclockwise to remove them.

Remove the lens hood as shown above. Turn the accessory lens clockwise into the camcorder’s lens. Make sure the lens is

tightened firmly, but do not over tighten.

All specifications and descriptions of accessories are subject to change without notice.

Optional Accessories

Using an Optional Tr i p o d

Mounting the camcorder on a tripod, such as AC093, will keep the camcorder steady and produce excellent video results.

AC093 Deluxe Tripod

This tripod’s fluid effect head provides smooth camera pan and tilt. Its quickrelease mount makes it easy to attach or remove the camcorder. The grooved, tubular 3-section leg design folds down to 24" when not in use and weighs only 4-1/4 lbs. Rubber feet allow for sure footing and the built-in retractable leg spikes eliminate the need for removing the feet.

Caution: Before using a tripod, make sure it is stable enough to hold the camcorder without falling over. Do not transport the camcorder attached to the tripod.

When attaching your camcorder to a tripod, be careful not to force the tripod screw into the camcorder’s tripod mounting hole.

The tripod screw should not protrude into the camcorder more than approximately three-eighth (3/8) inch. Forcing the screw could damage the mounting hole on the bottom of the camcorder.

All specifications and descriptions of accessories are subject to change without notice.

Accessory Order Form

Description Part No. Price Qty. Total

Soft Camcorder Case AC202 $ 49.95 Deluxe Tripod AC093 $ 59.95 Audio/Video Cable VH83 $ 4.39 Cable Transformer AH011 $ 1.59 RF Coaxial Cable (6-ft.) VH82 $ 3.29 RF Coaxial Cable (12-ft.) VH85 $ 5.75 Y-Adapter AH25 $ 1.95 Rechargeable Battery EP096FS $ 69.95 Rechargeable Battery EP096FL $ 79.95 AC Adapter/Charger CPS014 $219.95 RF Output Adapter CRF95 $ 69.95 Car Cord DCC096 $ 49.95 300-75 Cable Transformer 193983 $ 10.00 DC Cable 209342 $ 13.65 Shoulder Strap 227327 $ 10.35 Replacement Bulb (4 watt)

for Built-in Light 221111 $ 12.95

AC Adapter/Charger (Supplied) 232595 $169.95

Total Merchandise........................................................... $__________

Sales Tax......................................................................... $__________

We are required by law to collect the appropriate sales tax for each individual state, county, and locality to which the merchandise is being sent.

Shipping and Handling.................................................... $ 5.00

Total Amount Enclosed................................................ $__________

Use VISA, MasterCard, or Discover Card. Money order or check must be in U.S. currency only. No COD or cash.

Order Form for Camcorder Models CC437

Prices are subject to change without notice.

• Allow 4 weeks for delivery.

• All accessories are subject to availability.

• Where applicable, we will ship a superseding model.

Accessory Order Form

To order accessories, contact your local Dealer.

If a dealer is not nearby, you can also follow the directions below to order by telephone or direct-by-mail.

United States and Canada Orders

To place your order by phone, have your Visa, MasterCard, or Discover Card ready and call the toll-free number listed below between 8AM and 8PM (EST) Mon. - Fri., or 9AM - 5PM (EST) Sat. Use this number only to place an order for accessory

items listed on this order form.

1 – 800 – 338 – 0376

To place your order by mail, detach and mail the completed order form with credit card information, money order, or check in U.S. currency (made payable to Thomson Consumer Electronics, Inc.) to the following address:

Video Accessories PO Box 8419 Ronks, PA 17573

Care and Maintenance

Do not operate or leave your

camcorder in extremely humid environments.

Do not operate the camcorder for extended periods in temperatures below 40ºF (4ºC) or above 95ºF (35ºC).

Do not expose the camcorder or adapter/charger to rain or moisture. If either component becomes wet, turn off the power and take the unit to an Authorized RCA Camcorder Servicenter.

Always replace the lens cap on the lens when the camcorder is not in use.

The camcorder can be damaged by improper storage or handling. Do not subject the camcorder to swinging, shaking, or dropping.

Do not store the camcorder in temperatures below -22ºF (-30ºC) or above 149ºF (65ºC).

When the camcorder is not in use, always remove the cassette and AC adapter/ charger or battery.

Retain the original carton for future storage or shipping purposes.

Keep dust and grit from entering the camcorder’s cassette door. Dust and grit are abrasive and cause excessive wear to both the camcorder’s recording and playback heads and cassettes.

Do not use strong or abrasive detergents when cleaning your camcorder. They may damage the camcorder.

Before handling your camcorder, make sure your hands and face are free from any chemical products such as suntan lotion, as it may damage the finish.

Do not touch the lens with your fingers! The oil from your skin may damage the lens. To clean the lens, always use lenscleaning tissues and a commercially prepared cleaning solution designed for use on camera lens.

Things to Avoid Do not aim your camcorder at the sun or

other bright objects or leave your camcorder in direct sunlight. Doing so could permanently damage the camcorder’s internal parts.

Avoid operating your camcorder after moving it from a cold location to a warm location. Moisture may cause the tape to stick to the headwheel and damage the headwheel or tape. Give the camcorder 2 to 3 hours to reach a stable temperature before inserting a cassette.

Care and Maintenance

Cleaning the Camcorder

To clean the camcorder’s exterior, remove any power source connected to the camcorder and gently wipe it with a clean soft cloth.

Cleaning the Camcorder’s Lens

To clean the camcorder’s lens, blow it with a blower brush, and then gently wipe the lens with cleaning tissue and commercially prepared cleaning solution designed for use on camera lens. Improper cleaning may scratch the lens.

Caution: Use of strong cleaning products, such as those containing alcohol or benzine, may damage the camcorder.

Caution: Do not touch the lens with your fingers. The oil from your skin can damage the lens.

Cleaning the Camcorder’s Viewfinder

The viewfinder eyepiece can be removed for cleaning.

1. Turn the eyepiece counterclockwise and pull it out.

2. Gently use a cotton swab or blower brush to remove the dust.

3. Reattach the eyepiece by aligning the reference marks, and then turn the eyepiece clockwise.

Trouble Checks

Troubles sometimes are caused by simple “faults” that you can easily correct without the help of a service technician by first checking a few basic remedies.

Before you call or take your camcorder to an Authorized RCA Camcorder Servicenter, look below for the type of trouble you are experiencing. Then perform the simple checks and adjustments listed for that trouble.

Trouble Checks and Adjustments

No Power

Will Not Record or Play Back

Will Not Play Back

Will Not Record

No Picture in Viewfinder

Tape Does Not Rewind or Fast Forward

• If using the rechargeable battery, it may need recharging.

• If using the AC adapter/charger, make sure it is plugged into a working AC outlet.

• Make sure there is a cassette in the camcorder.

• Try ejecting and re-inserting the cassette.

• The cassette tape is broken — try another cassette.

• You have reached the end of the cassette — try rewinding it.

• Moisture condensation may cause the tape to stick to the headwheel and damage the headwheel or tape. Give the camcorder 2 to 3 hours to reach a stable temperature before re-inserting a cassette.

• CAMERA/OFF/VCR switch must be in VCR.

• Safety tab has been removed from cassette.

See page 16.

• CAMERA/OFF/VCR switch must be in CAMERA.

• A/V OUT/IN switch must be in OUT to record on the camcorder.

• Make sure the lens cap has been removed.

• Make sure titler graphics do not appear in viewfinder. Press TITLER to remove them.

Trouble Checks

Tape Stops During Rewind or Fast Forward

Camcorder Remains in Play Pause

Poor Picture Quality During Recording

Viewfinder Displays Are Out of Focus

Poor Auto-Focus Operation

Poor Picture Quality During Playback

Recorded Audio is Too Low

• The tape counter’s memory-stop feature may be turned on. When an “M” appears behind the tapecounter display, the camcorder will stop rewinding or

fast-forwarding when the counter reads “0000M”.

Press the REW/REVIEW or F.FWD button again to

continue, or press DISPLAY to turn off memory stop.

• Press REC/PAUSE to return to normal playback.

• There is insufficient light. Add more light.

• Use the color enhancement light to add more light.

Details are on pages 50-51.

• Try adjusting the eyepiece focus control. Details are

on page 22.

• Lens may be smudged and image appears unfocused.

• Viewfinder eyepiece focus or BRIGHT control may

be adjusted incorrectly. Details are on pages 22-23.

• Tape was recorded on a different camcorder or VCR.

If the picture contains black-and-white streaks, press one of the TRACKING buttons to correct.

• Camcorder only has one speed (SP). If the tape was recorded on a different VCR at a different speed, it cannot be played back in this camcorder.

• Subject may have been too far from the camcorder.

Trouble Checks and Adjustments

Trouble Checks

AE Shutter-Speed or INDEX Indicator Does Not Appear in Viewfinder

Date and Time (or Date) were Recorded on the Tape

Date and Time Appear Incorrect

Camcorder Does Not Turn On and/or Function Buttons Will Not Operate

• CAMERA/OFF/VCR switch must be in CAMERA, and press DISPLAY to display the indications.

• Date and time (or date) will be recorded on the tape whenever they appear in the viewfinder. Press DATE/TIME to remove them from the viewfinder when recording.

• Make sure the date and time have been set. Details

on page 26.

• The camcorder’s internal clock battery may need recharging. Details on page 27.

• Remove the power source. After one minute press the reset switch gently using a non-metallic pointed item, such as a toothpick, until you feel a click. This resets the camcorder to the factory settings and erases the date, time, and custom settings.

Note: When connecting a power source again, wait for about one minute after the reset switch is pressed.

Trouble Checks and Adjustments

Reset Switch

Limited Warranty

What your warranty covers:

• Any defect in material or workmanship.

For how long after your purchase:

• Ninety days for labor charges.

• One year for parts. The warranty period for rental units begins with the first rental.

What we will do:

• Pay any Authorized RCA Camcorder Servicenter the labor charges to repair your camcorder.

• Pay any Authorized RCA Camcorder Servicenter for the new or, at our option, refurbished replacement parts required to repair your camcorder.

How you get service:

• Check with your RCA Camcorder Dealer or call 1-800-336-1900 for the Authorized RCA Camcorder Servicenter nearest you. State that you have an RCA camcorder.

If an Authorized RCA Camcorder Servicenter is conveniently near you:

• Take your camcorder to the Authorized RCA Camcorder Servicenter of your choice.

• Show the service center representative your sales receipt or other evidence of purchase date.

• Pick up your camcorder when repairs are completed.

If an Authorized RCA Camcorder Servicenter is not located conveniently near you:

• Pack the camcorder so that it will not be damaged during shipping. (We recommend using the original carton and packing materials.) Include any cables and other accessories originally furnished with the camcorder.

• Include in the camcorder carton (1) a copy of your sales receipt or other evidence of purchase date, (2) your

name and address, and (3) a brief description of the problem.

• Ship the camcorder to an Authorized RCA Camcorder Servicenter.

• Pay any charges billed to you by the Servicenter for service not covered by the warranty.

What your warranty does not cover:

• Customer instruction. (Your owner’s manual clearly describes how to install,

adjust, and operate your camcorder. Any additional information should be obtained from your dealer.)

• Installation and related adjustments.

• Cleaning of video/audio heads.

• Damage from misuse or neglect.

• Battery for clock or other features.

• A camcorder that has been modified or incorporated into other products or is used for institutional or other commercial purposes.

• A camcorder purchased or serviced outside the USA.

• Acts of God, such as but not limited to lightning damage.

Product Registration:

• Please complete and mail the product registration card packed with your

camcorder. It will make it easier to

contact you should it ever be necessary.

The return of the card is not required

for warranty coverage.

How state law relates to this warranty:

• This warranty gives you specific legal

rights and you also may have other rights that vary from state to state.

If you purchased your camcorder

outside the United States:

• This warranty does not apply. Contact your dealer for warranty information.

A.(Audio) DUB Indicator . . . . .24,35,37

Index

A/V DUB Indicator . . . . . . . . . . . . .24,37

Accessories, Included . . . . . . . . . . . . . .3

Accessories, Optional . . . . . . . . . .54-61

Accessory Lens, Attaching . . . . . . . . .57

Accessory Order Form . . . . . . . . . .59-61

Adapter/Charger, Using . . . . . . . . . .4,10

Adjustments and Checks . . . . . . . .64-66

AE Displays . . . . . . . . . . . . . . . . . .20,24

AI (Artificial Intelligence) . . . . . . . . .19

Assistance . . . . . . . . . . . . . . . . . . . . . .67

Attaching Adapter/Charger . . . . . . .4,10

Attaching the Rechargeable Battery . .12

Attaching the Shoulder Strap . . . . . . .52

Audio Dubbing . . . . . . . . . . . . . . .34-35

Audio/Video Dubbing . . . . . . . . . .35-37

AUDIO/VIDEO Jacks

. . . . . . . . . . . . .8,34-37,42-43,46,48

AUTO Date Display . . . . . . . . . . . . . .27

AV (Audio/Video) OUT/IN Switch

. . . . . . . . . . . . .8,34-37,42-43,46,48

AV DUB Button . . . . . . . . . . .8,25,35,37

Battery, Attaching and Removing . . . .12

Battery Care and Storage . . . . . . . . . .13

Battery Charging . . . . . . . . . . . . . . . . .11

Battery, Clock . . . . . . . . . . . . . . . . . . .27

BATTERY EJECT Lever . . . . . . . . .9,12

Battery Level Indicator . . . . . . .14,24-25

Battery, Rechargeable . . . . . . . . . .11-14

Battery Safety Precautions . . . . . . . . .13

BRIGHT Control . . . . . . . . . . . . . . . . .23

Bulb Replacement,Video Light . . . . .51

Camcorder, Cleaning . . . . . . . . . . . . .63

Camcorder Operating Controls . . . . .8-9

Camcorder, Powering . . . . . . . . . .10-15

Camcorder, Recording On From a

VCR or TV Monitor . . . . . . . .42-43

Camcorder, Unpacking . . . . . . . . . . . . .3

CAMERA/OFF/VCR Switch . .5,7,12,19,

. . . . .26-27,35,37,38-40,43,44,47,49

Car Cord, Optional . . . . . . . . . . . . .15,55

Card, Registration . . . . . . . . . . . . . . . . .i

Care and Maintenance . . . . . . . . . .62-63

Care and Storage, Battery . . . . . . . . . .13

Care and Storage, Cassettes . . . . . . . .17

Carrying Case, Packing . . . . . . . . . . . .53

Cassette Door . . . . . . . . . . . . . . . . . .9,17

Cassette, Inserting and Removing . .6,17

Cassette Tips . . . . . . . . . . . . . . . . . . . .18

Cassettes, Video . . . . . . . . . . . . . . .16-17

Charging the Battery . . . . . . . . . . . . . .11

Chart of Title Characters . . . . . . . . . . .39

Checking Battery Power . . . . . . . . . . .14

Checks and Adjustments . . . . . . . .64-66

Cleaning the Camcorder . . . . . . . . . . .63

Clock Battery, Charging . . . . . . . . . . .27

Color Enhancement Light . . . . . . .50-51

Contents . . . . . . . . . . . . . . . . . . . . . . .1-2

Copying Tapes . . . . . . . . . . .42-43,46-47

Correcting the Date and Time . . . . . . .26

Customer Assistance .1,3,67,Back Cover Date and Time Displays . . .24-25,26-27

Date and Time Recording . . . . . . . . . .27

DATE/TIME Button . . . . . . . .8,25,26-27

DC IN 9.6V Jack . . . . . . . . . . . . . . . . . .9

Design Specifications . . . . . . . . . . . . .54

DISPLAY Button . . . . . . . . . .8,24-25,32

Dubbing . . . . . . . . . . . . . . . . . . . . .34-37

Edit Search . . . . . . . . . . . . . . . . . . . . .33

EDIT—ADV Button . . . . . . . . . .8,38-40

Electronic Indexing . . . . . . . . . . . . . . .21

Erase Protection . . . . . . . . . . . . . . . . .16

Eyepiece Focus Control . . . . . . . .6,8,22

F.FWD Button . .8,19,26,32,33,35,37,45

FADE Button . . . . . . . . . . . . . . .8,24,31

FADE Indicators . . . . . . . . . . . . . .24,31

Fading . . . . . . . . . . . . . . . . . . . . . . . .31

First-Time Operation . . . . . . . . . . . . .3-9

Flying Erase Head . . . . . . . . . . . . . . . .33

Focus, Auto and Macro . . . . . . . . . . . .20

Handstrap . . . . . . . . . . . . . . . . . . . . . .5,9

INDEX Indicator . . . . . . . . . . . .21,24-25

Indexing, Electronic . . . . . . . . . . . . . .21

Information to User . . . . . . . . . . . . . . .53

Lens Hood . . . . . . . . . . . . . . . . . . . . . . .8

Lens Cap Holder . . . . . . . . . . . . . . . . . .9

Lens Cap, Remove . . . . . . . . . . . . . . . .5

Lens Hood, Removing . . . . . . . . . . .8,57

Lens, Cleaning . . . . . . . . . . . . . . . . . .63

LIGHT AUTO/OFF/ON Switch . . . .8,50

Light Bulb, Replacing . . . . . . . . . . . . .51

Light, Built-in . . . . . . . . . . . . . . .8,50-51

Limited Warranty . . . . . . . . . . . . . . . .67

Maintenance and Care . . . . . . . . . .62-63

Memory Stop Feature . . . . . . . . . . . . .32

Microphone . . . . . . . . . . . . . . . . . . .8,19

NO TAPE Indicator . . . . . . . . . . . .24-25

Operating Controls, Camcorder . . . . .8-9

Index

Operation, First-Time . . . . . . . . . . . .3-9

Optional Accessories . . . . . . . . . . .54-61

Optional Car Cord . . . . . . . . . . . . .15,55

Order Form, Accessories . . . . . . . .59-61

PAUSE Indicator . . . . . . . . . . . . . .35,37

Picture Search . . . . . . . . . . . . . . . . . . .45

PLAY Button . . . .7,8,33,35,37,44,47,49

Playback on a TV with

AUDIO/VIDEO IN Jacks . . . . .46-47

Playback on a TV

without Audio/Video Inputs . .48-49

Playback, First . . . . . . . . . . . . . . . . . . . .7

Playback, Viewfinder . . . . . . . . . . . . .44

Plug Adapter, Optional . . . . . . . . . . . .10

Power Zoom Buttons . . . . . . . .24-25,28

Powering Your Camcorder . . . . . .10-15

Problem Solving . . . . . . . . . . . . . .64-66

Product Registration . . . . . . . . . . . . . . .i

ProEdit Features . . . . . . . . . . . . . .33-40

Program AE (Auto Exposure) . . . . . . .20

Quick Review . . . . . . . . . . . . . . . . . . .19

REC Indicator . . . . . . . . . . . . . . . . . .7,24

REC/PAUSE Button

. . . . . . .7,9,31,32,35,37,40,45,47,49

Rechargeable Battery . . . . . . . . . . .11-14

Recording Date and Time . . . . . . . . . .27

Recording on the Camcorder . . . . .42-43

Recording Speed . . . . . . . . . . . . . . . . .16

Recording Tips . . . . . . . . . . . . . . . . . .41

Recording Titles . . . . . . . . . . . . . . . . .40

Recording, First . . . . . . . . . . . . . . . . . . .7

Registration Card . . . . . . . . . . . . . . . . . .i

Removing Lens Hood . . . . . . . . . . . . .57

Removing the Rechargeable Battery .12

Replacing Bulb of Video Light . . . . . .51

RESET Button . . . . . . . . . . . . . . . . .8,32

REVIEW Button . . . . . . . . . . . . . . . .8,19

REW (Rewind) Button

. . . . . . . . . .7,8,19,26,32,33,35,37,45

RF DC OUT Jack . . . . . . . . . . . . . . .8,48

RF Output Adapter . . . . . . . . . .48-49,56

Safety Information . . . . . . . . . . . . . . . . .i

Safety Precautions, Battery . . . . . . . . .13

Safety Tab . . . . . . . . . . . . . . . . . . . . . .16

Set the Date and Time . . . . . . . . . . . . .26

Shoulder Strap Attachment Rings . .9,52

Shoulder Strap, Attaching . . . . . . . . . .52

Solving Problems . . . . . . . . . . . . . .64-66

SP (Standard Play) Speed . . . . . . . . . .16

Specifications . . . . . . . . . . . . . . . . . . .54

Status Displays . . . . . . . . . . . . . . . . . .24

Stop Action Pause . . . . . . . . . . . . . . . .45

STOP/EJECT Button

. . . . . .6,7,8,17,19,26,32,35,37,47,49

Tab, Safety . . . . . . . . . . . . . . . . . . . . .16

Table of Contents . . . . . . . . . . . . . . . .1-2

TAPE END Indicator . . . . . . . . . . .24-25

TAPE Indicator . . . . . . . . . . . . . . .24-25

Tape Copying . . . . . . . . . . .42-43,46-47

Tape Counter . . . . . . . . . . . . . . . . .24,32

Tape Positioning . . . . . . . . . . . . . . . . .19

Things to Avoid . . . . . . . . . . . . . . . . .62

Tilt Adjustment . . . . . . . . . . . . . . . . . .23

Time and Date Display . . . .24-25,26,27

Time and Date Recording . . . . . . . . . .27

Time Remaining Display . . . . . . . .21,25

Tips, Cassette . . . . . . . . . . . . . . . . . . .18

Tips, Recording . . . . . . . . . . . . . . . . . .41

Tips, Traveling . . . . . . . . . . . . . . . . . .18

Title Select + and – Buttons . . . .8,38-40

Title Select Button . . . . . . . . . . .8,38-40

TITLER Button . . . . . . . . . . . . . .8,38-40

Titler . . . . . . . . . . . . . . . . . . . . . . .38-40

TRACKING (Also Power Zoom)

Buttons . . . . . . . . . . . . . . . . . . .44,45

Traveling Tips . . . . . . . . . . . . . . . . . . .18

Tripod, Using . . . . . . . . . . . . . . . . . . .58

Trouble Checks . . . . . . . . . . . . . . .64-66

Unpacking the Camcorder . . . . . . . . . .3

Using a Tripod . . . . . . . . . . . . . . . . . .58

Using Adapter/Charger . . . . . . . . . . . .10

Using the Rechargeable Battery . .11-14

VIDEO/AUDIO Jacks . . . . . . . . . . . . . . .

. . . . . . . . . . . . . . . .8,34-37,42-43,46,48

Video Cassettes . . . . . . . . . . . . . . .16-17

Video Light . . . . . . . . . . . . . . . . . .50-51

Viewfinder . . . . . . . . . . .6,8,22-23,44,63

Viewfinder Playback . . . . . . . . . . . . . .44

Viewfinder, Cleaning . . . . . . . . . . . . .63

Warranty, Limited . . . . . . . . . . . . . . . .67

Zoom Buttons . . . . . . . . . . . . . . . . .9,28

Zoom Level Control . . . . . . . . . . . .24,28

Zooming . . . . . . . . . . . . . . . . . . . . . . .28

Need Assistance? We want to help!

U.S. Consumers:

Customer Service . . . . . . . . . . . . . . . . .800-336-1900

Accessories . . . . . . . . . . . . . . . . . . . . .800-338-0376

Canadian Consumers:

English . . . . . . . . . . . . . . . . . . . . . . . . .800-522-0338

French . . . . . . . . . . . . . . . . . . . . . . . . .800-522-0445

Please do not send any products to the Indianapolis address listed in this manual or on the carton. This will only add delays in service for your product.

10330 N Meridian Street Indianapolis, IN 46290

1996 Thomson Consumer Electronics, Inc. Trademark(s)® Registered Marca(s) Registrada(s) Printed in Japan

Part Number 96-CC437-1

QR14433

RCA CC437 User Manual

Specifications and Main Features

Frequently Asked Questions

User Manual
