camcorder

user's guide

CC434/CC439

Important Safety Information

Be sure to read all the safety information before you begin to use this product.

i WARNING: To reduce the risk of fire or shock hazard, do not expose [

product or AC adapter/charger to rain or moisture.

RISKOFE_d3TFUCSHOCK

DO NOT OPEN

RISQUE I_ CHOC

EI.EC1TgOgE NE PASOUVRIR

This symbol indicates "dangerous w)ltage" inside the product that presents a risk of

electric shock or personal injury.

This symbol indicates important instructions accompanying the product.

TO REDUCE THE RISK OF ELECTRIC SHOCK, DO NOT REMOVE THE COVER (OR BACK). NO USER-SERVICEABLE PARTS ARE INSIDE. REFER SERVICING TO QUALIFIED SERVICE PERSONNEL.

_ AUTION: To prevent electric shock, match wide blade of plug

to wide slot, fully insert. ATTENTION: Pour 4viter les chocs 41ectriques, introduire la lame

la plus large de la fiche dans la borne correspondante de la prise et pousser jusqu au fond.

To reduce risk of injury, charge only rechargeable batteries recommended by the manufacturer for this camcorder. Other types of batteries may burst causing damage and personal injury.

CAUTION: Avoid operating this product immediately after moving it from a cold location to a warm location. Give it 2 to 3 hours to reach a stable temperature

before inserting a video cassette. When moved from a cold area to a warm location, moisture may condense on the head drum inside the machine. This

moisture could cause the tape to stick to the headwheel and damage the

headwheel or tape. FCC Regulations state that unauthorized changes or modifications to this

equipment may void the user's authority to operate it.

Product Registration

Please fill out the product registration card and return it immediately. this card allows us to contact you if needed.

Returning

Keep your sales receipt for proof of purchase to obtain warranty parts and service and attach it here. Record the serial and model numbers located on the bottom of

the product.

Model Serial No:

Purchase Date: Purchased From:

We want to make sure you enjoy your new camcorder. If you have any questions, call:

Customer Service ..................................... 800-336-11900 (Page 71)

Accessories ......................................... 800-338-0376 (Pages 58-65)

Safety Information ................................ i

Product Registration ............................. i

Contents ............................................. 1-2

First-Time Operation

• Assistance ............................................ 3

• Unpack Camcorder and

Accessories ...................................... 3

• Attach the Adapter/Charger ................ 4

• Remove Lens Cap and Attach

to Handstrap ..................................... 5

• Turn on the Camcorder ....................... 5

• Insert a Cassette .................................. 6

• Position Viewfinder and

Adjust Eyepiece Focus Control ....... 6

• Start and Stop Recording .................... 7

• Play Back What You Have

Recorded .......................................... 7

• Review the Camcorder's

Operating Controls ....................... 8-9

Powering the Camcorder

• Using the Adapter/Charger ............... 10

• Using the Rechargeable Battery

• Charging ......................................... 1 l

• Attaching and Removing ................ 12

• Care and Storage ............................ 13

• Safety Precautions .......................... 13

• Battery Level Indicator ................... 14

• Using the Optional Thomson

Car Cord Adapter ........................ 15

Video Cassettes

• Erase Protection .............................. 16

• Recording and Playback Times ...... 16

• Inserting and Removing

Cassettes ..................................... 17

Cassette Care and Storage ................ 17

Traveling Tips ..................................... 18

Cassette Tips ....................................... 18

Recording Features

• Quick Review .................................... 19

• Tape Positioning ............................... 19

• Microphone ....................................... 19

• AI (Artificial Intelligence) ................ 19

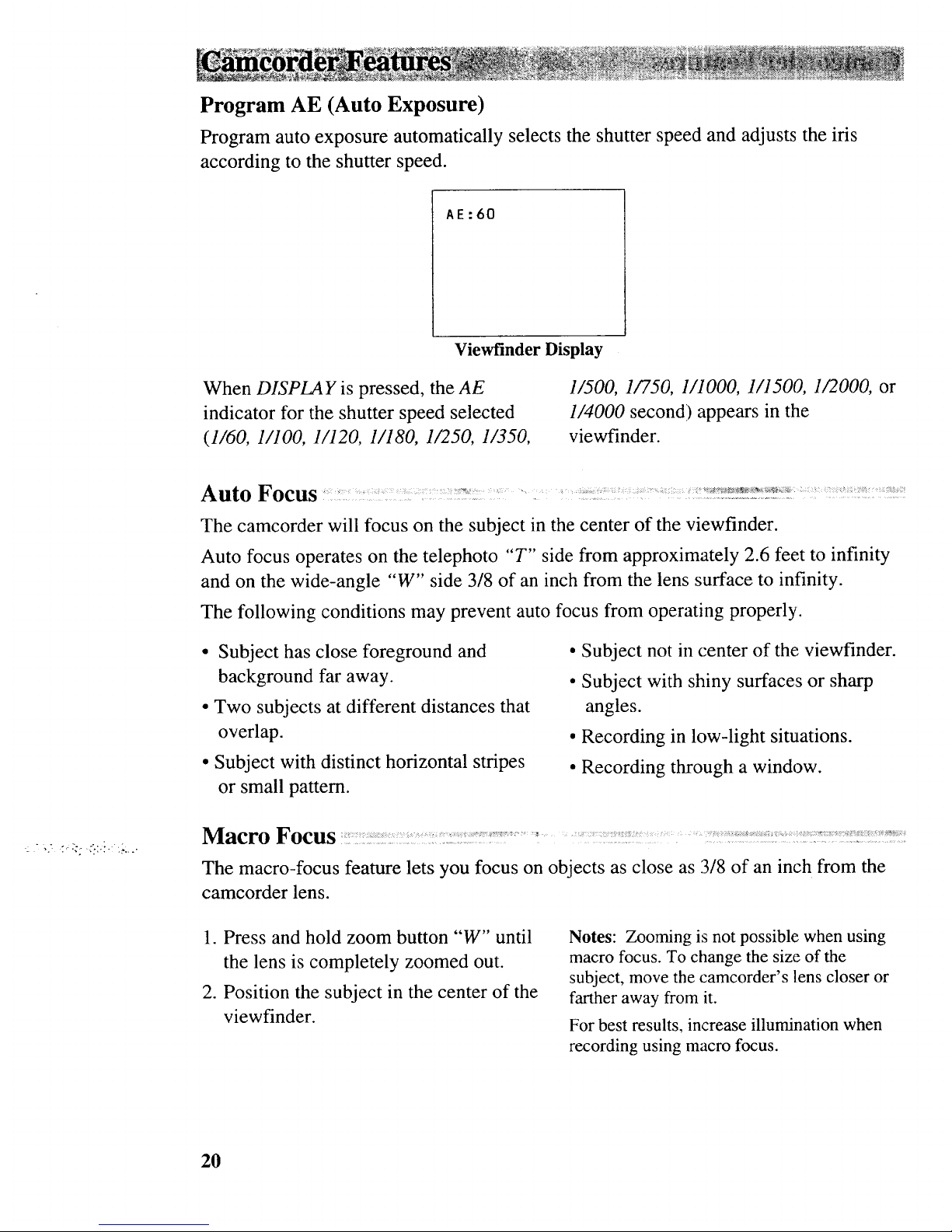

• Program AE (Auto Exposure) ........... 20

• Auto Focus ........................................ 20

• Macro Focus ...................................... 20

• Electronic Indexing ........................... 21

• Time Remaining Display .................. 21

• Viewfinder ................................... 22-23

• Displays in Viewfinder ................ 24-25

• Date and Time Display

• Set the Date and Time .................... 26

• Record the Date and Time

(or Date) on Your Tape ............. 27

• Charging the Clock Cell ................. 27

• Zooming

• Power Zoom Buttons ...................... 28

• Instant Zoom .................................. 28

• Special Effect Recording .................. 29

• 16x9Mode .................................... 30

• Negative Recording ........................ 31

• Digital Zooming ............................. 31

• Half-Mirror Recording ................... 32

• Mosaic Recording .......................... 32

• Electronic Image Stabilizer

(EIS-model 439 only) ........................ 33

• Fading In and Out of Scenes ........ 34-35

• Tape Counter with Memory Stop ...... 36

• ProEdit ® Features

• Flying Erase Head .......................... 37

• Edit Search ..................................... 37

• Audio Dubbing .......................... 38-39

• Audio/Video Dubbing ............... 40-41

• Titler .......................................... 42-44

Recording Tips .................................. .45

Recording on the Camcorder ...... 46-47

Playback

• Viewfinder Playback ........................ .48

• Playback Features

• Stop-Action Pause ...................... 48-49

• Picture Search ........................... .48-49

• Tracking ......................................... 49

• Playback on TV (or VCR) with

Audio/Video Input Jacks ........ 50-51

• Playback on TV without

Audio/Video Input Jacks ........ 52-53

Color Enhancement Light ............ 54-55

Attaching the Shoulder Strap ........... 56

Packing Carrying Case ...................... 57

Information to User ........................... 57

Specifications ..................................... .58

Optional Accessories ..................... 58-65

• Accessory Order Form ................. 63-65

Care and Maintenance ................. 66-67

Trouble Checks ............................. 68-70

Limited Warranty .............................. 71

Index (Alphabetical) ..................... 74-76

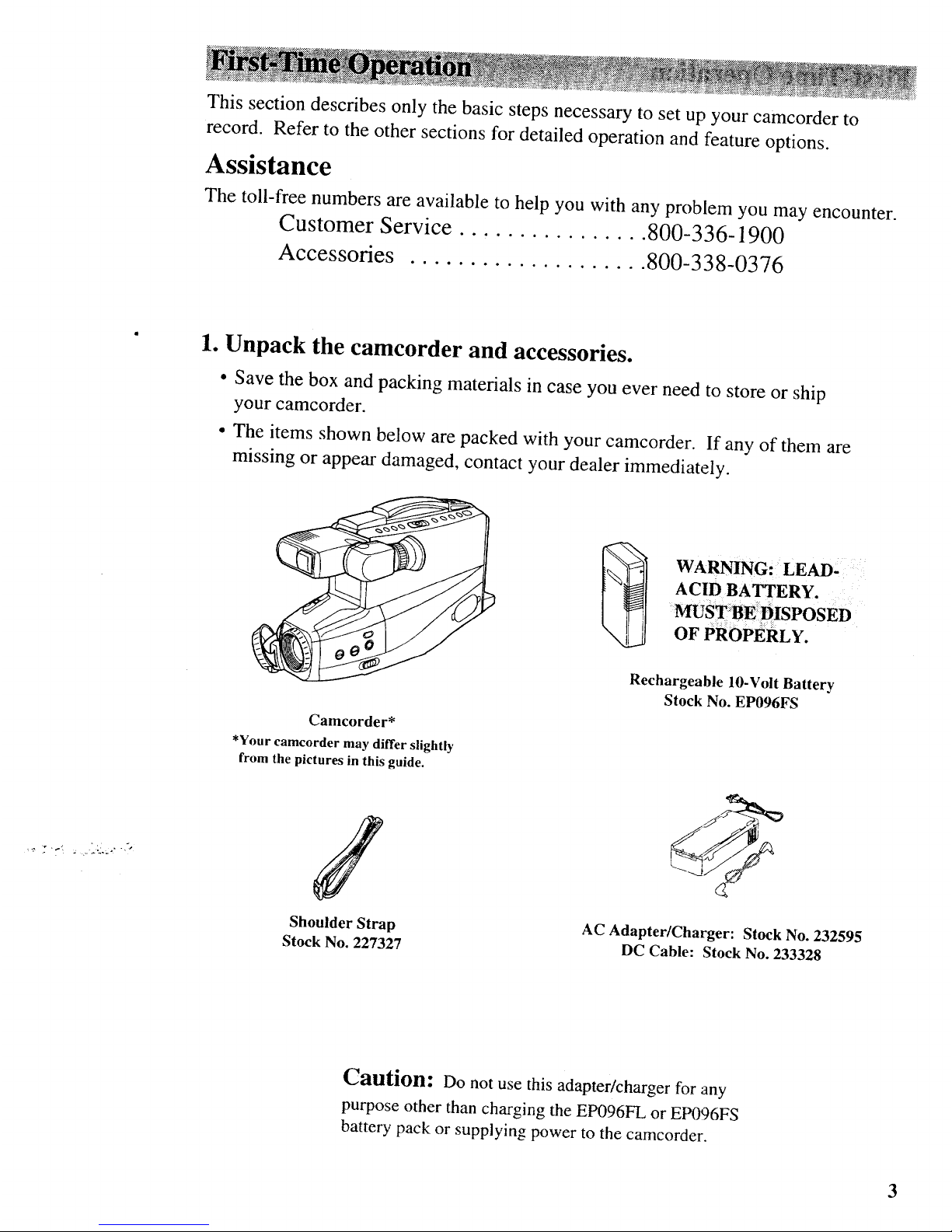

This section describes only the basic steps necessary to set up your camcorder to record. Refer to the other sections for detailed operation and feature options.

Assistance

The toll-free numbers are available to help you with any problem you may encounter.

Customer Service ................ 800-336-1900

Accessories .................... 800-338-0376

1. Unpack the camcorder and accessories.

• Save the box and packing materials in case you ever need to store or ship your camcorder.

• The items shown below are packed with your camcorder. If any of them are missing or appear damaged, contact your dealer immediately.

Camcorder*

*Your camcorder may differ slightly

from the pictures in this guide.

Shoulder Strap

Stock No. 227327

WARNING: LEAD:

ACID BATTERY. :

BEDISPOSED

ov P_OPERLV.

Rechargeahle 10-Volt Battery

Stock No. EP096FS

AC Adapter/Charger: Stock No. 232595

DC Cable: Stock No. 233328

Caution: Do not use this adapter/charger for any

purpose other than charging the EP096FL or EP096FS battery pack or supplying power to the camcorder.

Adapter/Charger

DC OUTPUT

Jack

Adapter/Charger's DC Cable

DC IN 9.6V Jack on

Back of Camcorder

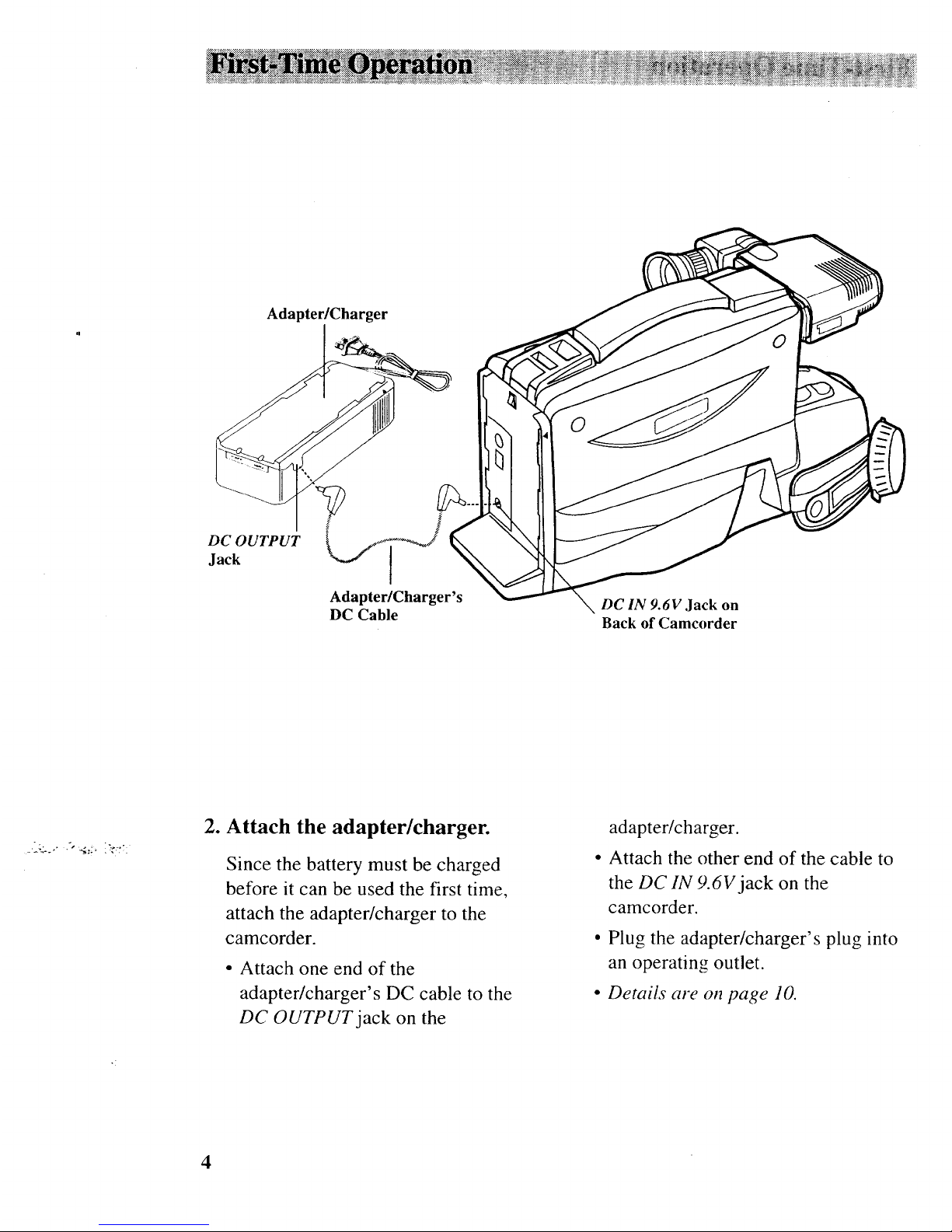

2. Attach the adapter/charger.

Since the battery must be charged before it can be used the first time,

attach the adapter/charger to the

camcorder.

• Attach one end of the adapter/charger's DC cable to the

DC OUTPUT jack on the

adapter/charger.

• Attach the other end of the cable to the DC IN 9.6V jack on the

camcorder.

• Plug the adapter/charger's plug into an operating outlet.

• Details are ol7 page 10.

CAMERA/OFF/VCR Switch

Handstrap

Lens Cap

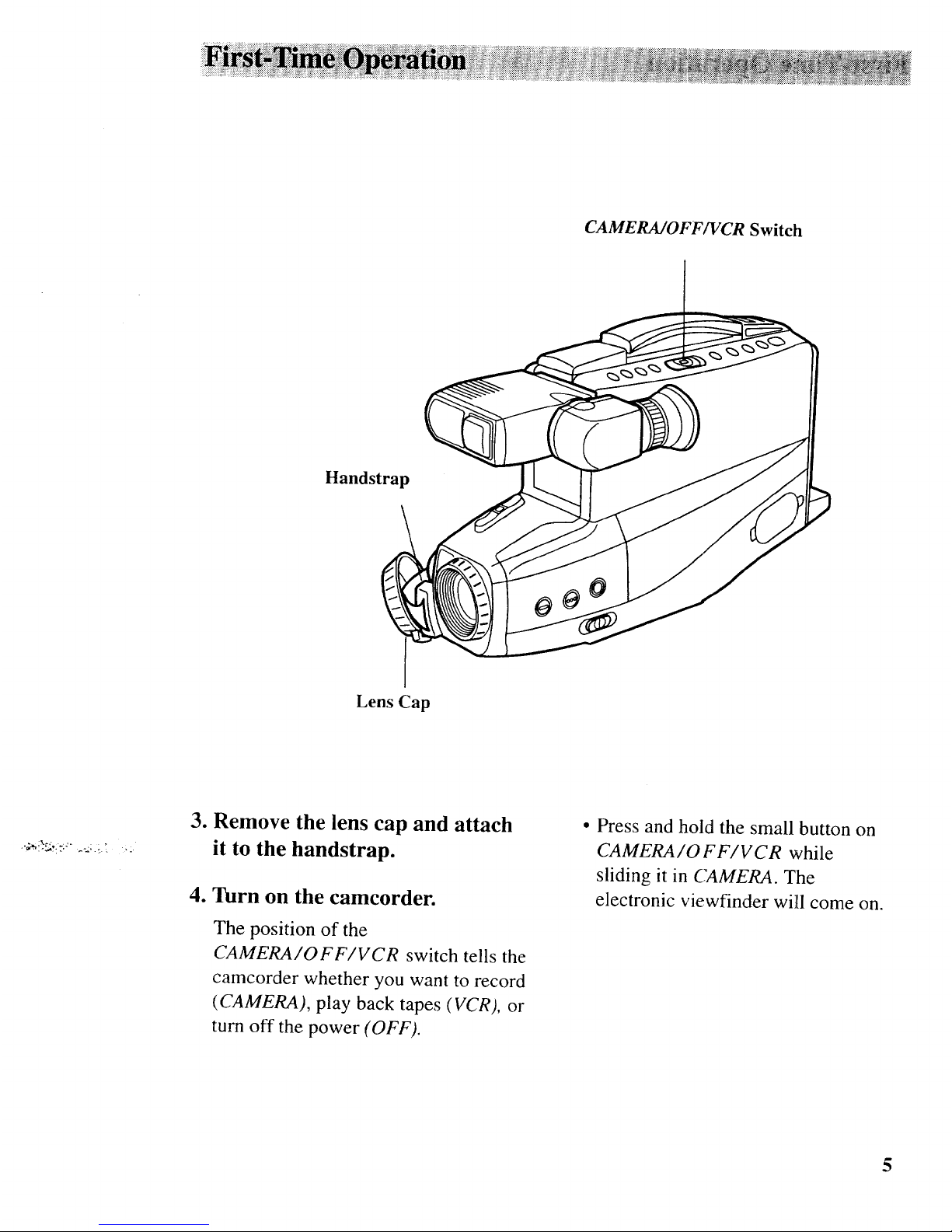

3. Remove the lens cap and attach it to the handstrap.

4. Turn on the camcorder.

The position of the

CAMERA/OFF/VCR switch tells the

camcorder whether you want to record

(CAMERA), play back tapes (VCR), or

turn off the power (OFF).

• Press and hold the small button on

CAMERA/O FF/VCR while sliding it in CAMERA. The

electronic viewfinder will come on.

Safety Tab

Tape Window

REC (Record)

/PAUSE

Button

Lens Cap on Handstrap

Cassette Door

Press Here to Close

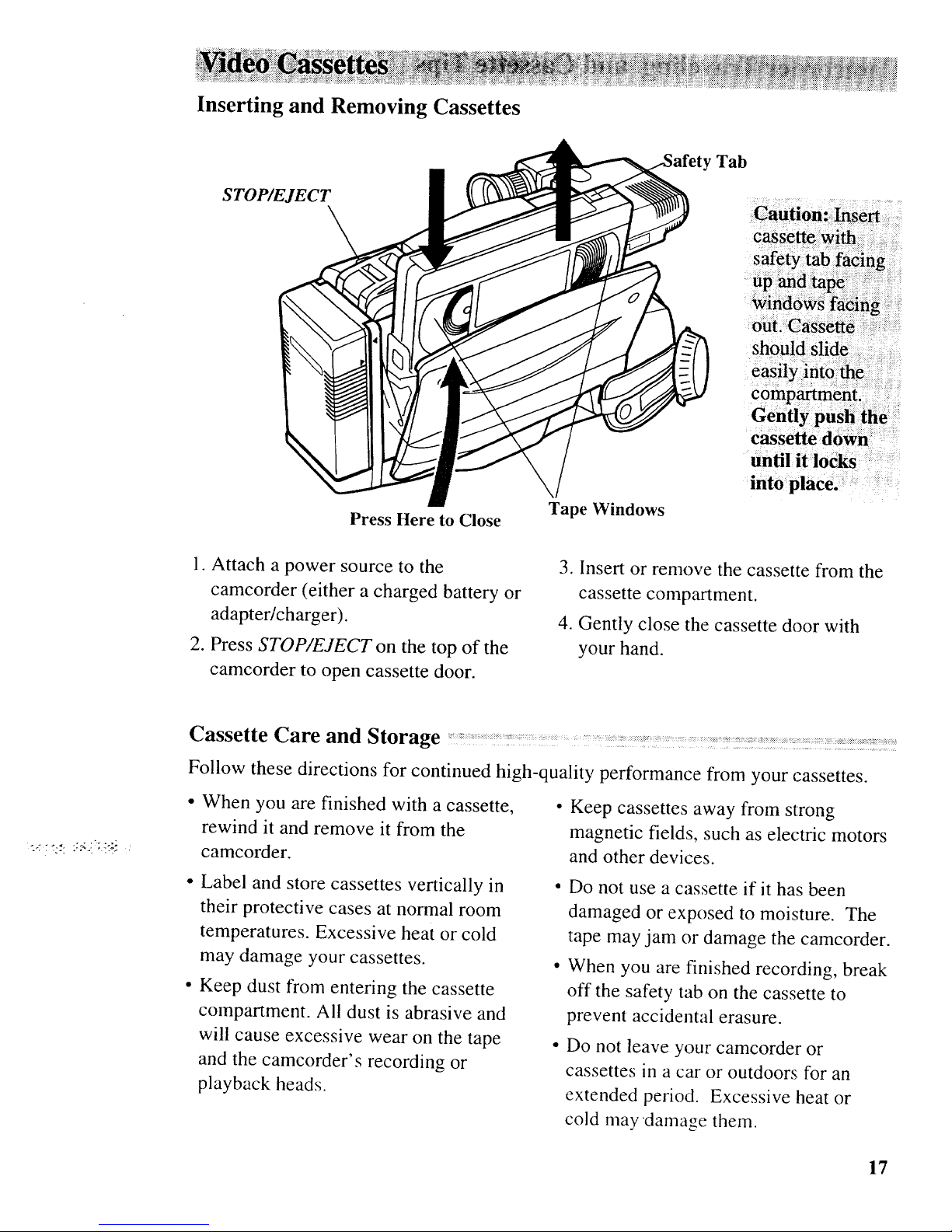

5. Insert a cassette.

• Press STOP/EJECT to open the

cassette compartment.

• Insert the cassette with the safety tab facing up and the tape windows facing out.

• Press the cassette down gently until it locks into place, and close the

cassette compartment door.

• Details are on page 1Z

6. Position viewfinder and adjust eyepiece focus control.

• Grasp the viewfinder and rotate it

horizontally.

Pull the viewfinder out from the

camcorder and rotate the eyepiece

into a comfortable viewing position.

Caution: Pulling on the eyepiece may cause damage, to the eyepiece or

camcorder.

If the image in the viewfinder is blurry, adjust the eyepiece focus

control for your vision. Details are

on page 22.

CAMERA/OFF/VCR Switch

REC (Record

/PAUSE

STOP/EJECT

PLAY

REVIEW

Eyepiece

"" Electronic

Viewfinder (Grasp Here

to Move)

Start and stop recording.

Start and stop recording by pressing and releasing REC/PAUSE. REC appears in the viewfinder. You do not

have to hold the button to record. Notes: If you do not record within five

minutes, the camcorder will automatically shut off to prevent excessive tape wear.

Press REC/PA USE to turn on the camcorder.

Any material recorded on the tape will automatically be erased if you record

over it.

8. Play hack what you have recorded.

• Press REC/PA USE to stop recording.

• Press and hold the small button on

CAMERA/OFF/VCR while sliding

it to VCR.

• Press REW(rewind)/REVIEW to rewind the tape.

• Press PLAY to play back the tape in

the viewfinder.

• Press STOP/EJECT when you are finished playing back the tape.

• Details on vie_t2finder playback are

on page 48.

::' :.... n,,

First-Time ,Jr,eration

9. Review the camcorder's operating controls.

DISPLA Y Button

RESET Button

DA TE/TIME Button

TITLER Button

A VDUB Button

REW (Rewind/Review) Button Also Title Select - Button

PIA Y Button

F.FWD (Fast Forward) Button Also Title Select + Button

STOP/EJECT Button Also EDIT'ADV Button

Microphone

Viewfinder

Light_

BRIGHT Control

(Located Under Microphone)

Eyepiece

Focus

Control

(Electronic

Image Stabilizer) Button for Model

CC439 Only)

Lens

LIGHT AUTO!

OFF/ON Switch

A V (Audio/Video)

for Model CC439 only

Lens Hood

FADE Button

DIGITAL EFFECTS Button

INST. (Instant} ZOOM

Button

VIDEO, A UI)IO, and RF DC OUT

,lacks ll,ocaled Behind Small Cover)

:_- . :_ :_:_ :_: : : %: i : +

9. Review the camcorder's operating controls.

BATTERY

EJECT Lever

Shoulder Strap Attachment

Ring

REC (Recordt /PA USE Button

Hand Strap with Lens Cap Holder

DC IN 9.6V .lack

Cassette Door

Power Zoom Buttons

(W and T) also TRACKING Buttons

::::.::.::_::_:::ii_:_._:::;.:::i;_-:#;;:::? :,: . :i;:_.: .:i:: _:: .. • ::-!i::::!:: :i:.::::?::.i:!:i:::!:.: .:: :: : ii_ / ::i::!_:!_?i::.::::::

:.:. :_::

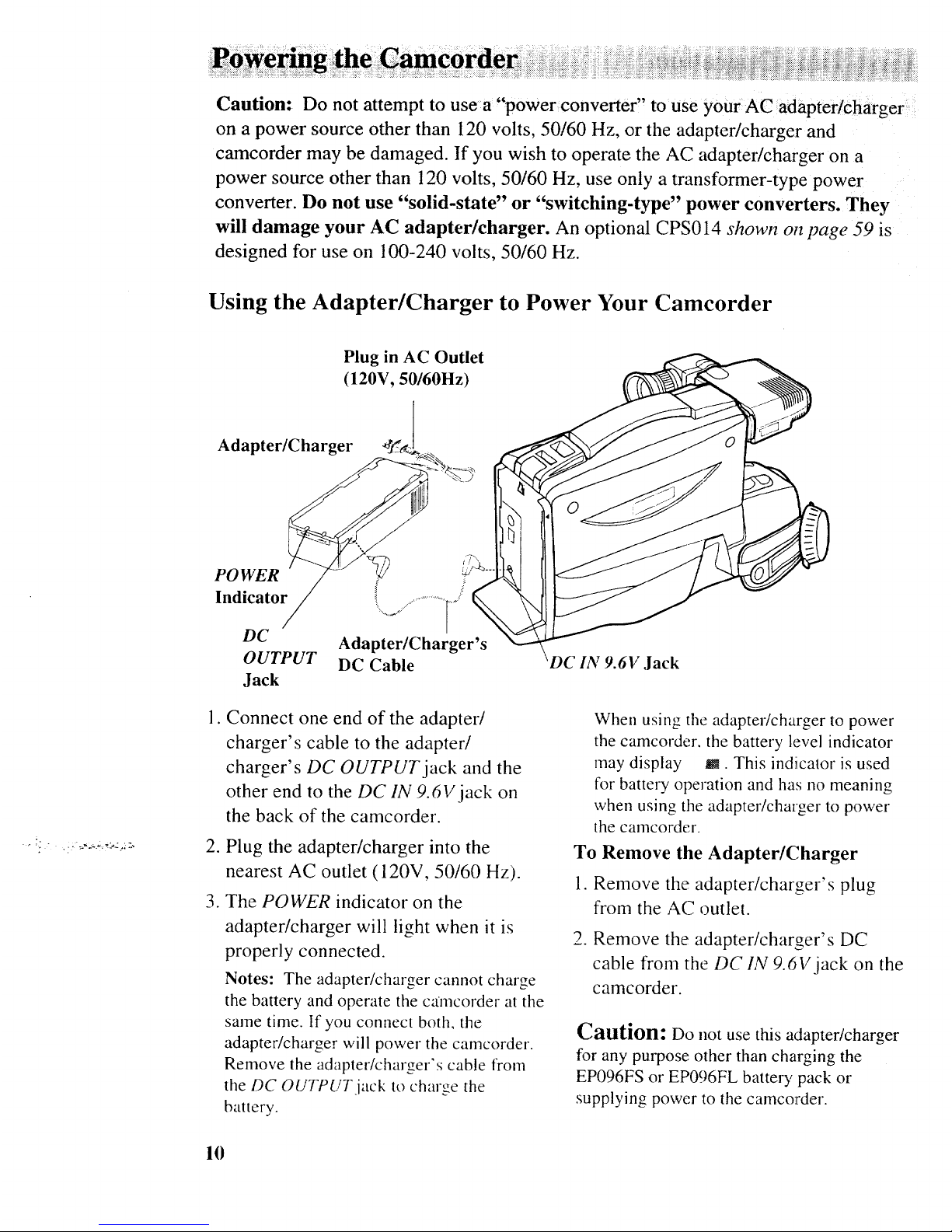

Caution: Do not attempt to use a "power converter" to use your AC adapter/charger

on a power source other than 120 volts, 50/60 Hz, or the adapter/charger and camcorder may be damaged. If you wish to operate the AC adapter/charger on a

power source other than 120 volts, 50/60 Hz, use only a transformer-type power converter. Do not use "solid-state" or "switching-type" power converters. They

will damage your AC adapter/charger. An optional CPS014 shown on page 59 is designed for use on 100-240 volts, 50/60 Hz.

Using the Adapter/Charger to Power Your Camcorder

Plug in AC Outlet

(120V, 50/60Hz)

Adapter/Charge__._..:_._

IO2a% / ? ,<

DC Adapter/Charger's

OUTPUT DC Cable

Jack

l .

Connect one end of the adapter/ charger's cable to the adapter/

charger's DC OUTPUT jack and the other end to the DCIN9.6Vjack on

the back of the camcorder. Plug the adapter/charger into the

nearest AC outlet (120V, 50/60 Hz).

The POWER indicator on the

adapter/charger will light when it is

properly connected. Notes: The adapter/charger cannot charge

the battery and operate the cmncorder at the same time. If you connect both, the adapter/charger will power the camcorder.

Remove the adapter/charger's cable from the DC OUTPUT jack to charge the

battery.

'DC IN 9.6V Jack

When using the adapter/charger to power the camcorder, the battery level indicator

may display m. This indicator is used for battery operation and has no meaning when using the adapter/charger to power

the camcorder.

To Remove the Adapter/Charger

1. Remove the adapter/charger's plug from the AC outlet.

2. Remove the adapter/charger's DC cable from the DC IN 9.6V jack on the

camcorder.

Caution: Do not use this adapter/charger

for any purpose other than charging the EP096FS or EP096FL battery, pack or

supplying power to the camcorder.

P0 ring the Camcorder ::

Using the Battery to Power Your Camcorder

Charging the Battery

The battery must be charged before it can be used the first time. Charging will take approximately two hours depending on the condition of the battery. When fully

charged, the battery should supply approximately 60 minutes of operating time (depending on how much you use zoom and pause). To extend the battery's operation

tirne, turn off the camcorder's power when not in use.

Plug in AC Outlet (120 V, 50/60 Hz)

WARNING: LEAD- ACID BATTERY. MUST BE DISPOSED OF PROPERLY.

Hold Batter),

Flush and

Slide Down

Rechargeable Battery

Align Arrows

Adapter/Charger

CHARGE

Indicator . _ :__z

1. Attach the battery to the adapter/ charger as shown. Align the reference

arrow on the battery with the a_Tow on

the adapter/charger. Hold the battery flush against the adapter/charger and

slide it in the direction of the arrow. Note: You cannot charge the battery and

operate the camcorder from the adapter/ charger at the same time. Remove the

adapter/charger's DC cable from the camcorder to charge the battery.

2. Plug the adapter/charger into the nearest AC outlet ( 120 V. 50/60 Hz).

Caution: When a

battery is attached to

the adapter/charger,

do not turn them

upside down.: The

battery may fall off

and be damaged or

cause injury,

3. The CHARGE indicator will light while the battery is being charged.

When the indicator turns off, the battery is fully charged.

4. Remove the battery from the

adapter/charger by sliding the battery

up and off.

5. Attach the charged battery to the

camcorder as shown on the next page.

Using the Battery to Power Your Camcorder

CAMERA/OFF/VCR Switch

BATTER Y EJECT Lever

Rechargeable

Battery

Hold Battery Flush and

Slide Down

Align Arrows

o .

-.'-: 2/." " • _52-_'_

Attach Charged Battery

1. Align reference arrow on battery with arrow on camcorder. Hold battery flush against camcorder while sliding

it down in the direction of the arrow as

shown.

2. Press and hold small button on CAMERA/OFF/VCR while placing it

in CAMERA.

Remove the Battery

1. Slide CAMERA!OFF/VCR to OFF.

2. Press and hold BATTERY EJECT

while sliding battery up and off the camcorder.

ATTENTION: LEAD-ACID BATTERY MUST BE DISPOSED

OF PROPERLY. THE PRODUCT THAT YOU HAVE PURCHASED USES A RECHARGEABLE BATTERY. AT THE END OF ITS

USEFUL LIFE, UNDER VARIOUS STATE AND LOCAL LAWS, IT

MAY BE ILLEGAL TO DISPOSE OF THIS BATTERY INTO THE MUNICIPAL WASTE STREAM. CHECK WITH YOUR LOCAL

SOLID WASTE OFFICIALS FOR DETAILS 1N YOUR AREA FOR RECYCLING OPTIONS OR PROPER DISPOSAL.

Using the Battery to Power Your Camcorder

Battery Care

• Your battery will provide better service and longer performance if you charge it

before and after use, and store it at normal room temperature.

• The battery should be charged at a temperature of 32"F-95°F (0°C-35°C) to

prevent damage.

• Do not operate the battery at temperatures below 14°F (- 10°C) or

above 95°F (35°C). The battery may be

damaged if operated at temperatures above 122°F (50°C). Operation time

will decrease at extremely low temperatures.

After repeated chargings and use, the operation time will gradually decrease.

When operation time becomes too short to be useful, it is time to replace the

battery.

Battery Storage

Store the battery at normal room temperature.

Lead acid batteries discharge if not used. Recharge the battery at least once

every six months or you may not be able to recharge it.

• A battery stored for a long period may

not supply power for the specified time. Additional rechargings may help

restore the battery's operation time.

Battery Safety Precautions ............

Batteries being recharged that have not been used for an extended period may

continue to charge after the normal

time. Do not charge a battery for more than 24 hours.

If both indicators on the adapter/ charger start flashing, remove the battery, and reattach it. If after several attempts - the indicators continue to

flash your battery cannot take a charge and must be replaced.

Throwing the battery into a fire or exposing the battery to excessive heat -

over 149 ° F (65 ° C) could be hazardous. Do not short the battery's terminals.

4: ??? :;: :_:_ :_ ¸¸ =

Allow battery to cool down before attaching it to adapter/charger. The

CHARGE indicator will not light and the battery will not charge if you attach

a hot battery. Do not attempt to-disassemble or

modify the battery. There are no user- serviceable parts inside.

Use the battery only with specified AC adapter/chargers and camcorders.

If leakage from a damaged battery contacts your skin or clothing, wash it off immediately with running water.

Check Battery Power (Battery Level Indicator)

Battery Level Indicator

Display in Viewfinder

When DISPLAY is pressed, the battery level indicator ( ,_m ) appears in the

camcorder's viewfinder to show how

much battery power is left in the

rechargeable battery. This indicator is not recorded on the tape.

• When the battery is fully charged, the

display shows ,sam

• After a while, only m appears.

• When the battery reaches the empty

level, _ will start flashing. Recharge the battery or attach the adapter/charger before continuing to

use the camcorder.

Notes: The battery level indicator has no meaning when you power the camcorder with

the adapter/charger or optional car cord. When a rechargeable battery is used to power

the camcorder, I flashes even if

DISPLAY is not pressed to warn you that the battery power level is low.

Before attempting to eject the cassette, power your camcorder with the adapter/charger or recharge the battery.

Using the Optional Thomson Car Cord Adapter

To power your camcorder from the cigarette lighter socket of a car, truck, or RV, you

need the optional car cord adapter DCC096 shown on page 59. The DCC096 car cord is especially designed to convert power from a 12-volt battery to

the 9.6-volt input jack on the camcorder.

Caution: :Me DCC096car cord is designed to be used only with vehicles having 12-volt negative ground electrical systems.

Warning: To avoid possible damage to your camcorder, use only the DCC096. It has positive tip polarity and is capable of converting 12-volts to 9.6 volts.

Cigarette Lighter Socket

///,,

/ J

Optional Car Cord /

DC IN 9.6V Jack

Adapter (DCC096)

1. Remove the adapter/charger's DC

cable or battery from the camcorder, if either is attached.

2. Connect the small plug on the car cord to the DC IN 9.6V jack located on the

back of the camcorder.

3. Insert the other end of the car cord into

the vehicle's cigarette lighter socket.

4. Place the camcorder's

CAMERA/OFF/VCR switch in CAMERA. If the car cord is connected

properly, the electronic viewfinder will

come on.

Notes: The vehicle does not have to be turned on for the camcorder to operate from the DC

car cord.

When using the car cord to power the camcorder, the battery level indicator may

display In . This indicator is used for battery operation and has no meaning when using the car cord to power the camcorder.

We recommendthat goodquality cassettesbeusedwith your camcorder.Useof poor quality tapesor tapesthat havebeendamagedor mishandledcancontaminatethe

video heads,resulting in a snowy picture or no picture at all during playback.Because thereis nocontrol over the type of tapepurchasedorrentedby consumers,head

cleaning is not covered under warranty. It is considered normal maintenance. If a snowy picture or no-picture condition persists, consider the use of a dry chemical

non-abrasive head-cleaning tape. Be sure to follow the directions with the head- cleaning kit carefully. Improper use of a head cleaner may damage your camcorder.

Erase Protection m Safety Tab :::::::::::::::::::::::::::::::::::::::::::::::::::::::::::::::::::::::::::::::::::::::::::::::::::::::::::::::::::::::::::::::::::::

You can use your video cassettes over and over again. To erase a previous recording,

just record over it.

To prevent accidental erasure, break the tab.

To record again, cover the hole with vinyl tape.

::::>_-.-x:--5., : i:

Recording and Playback Times : ...........: _:: ........:: .. ::_:::: :: .....

The camcorder records and plays back in VHS standard speed (SP). The chart shows the maximum SP recording times for popular VHS cassettes.

T-60 60 Min.

T- 120 2 Hrs. T-160 2 Hrs., 40 Min.

T-180 3 Hrs.

Inserting and Removing Cassettes

STOP/EJECT

Tab

cassette with I _....

safety tab facing::

_indo:ws fadifig ::

should slide

Press Here to Close

1. Attach a power source to the camcorder (either a charged battery or

adapter/charger).

2. Press STOP/EJECT on the top of the camcorder to open cassette door.

Tape Windows

compartment.

cassette down

into place. ._

3. Insert or remove the cassette from the cassette compartment.

4. Gently close the cassette door with your hand.

Cassette Care and Storage : : :' :::::_:::: " : :-::_:': : ':':::'::_':'::::_:_'_::_::: :_::::':':::_:_:_::::::::::::_' Follow these directions for continued high-quality performance from your cassettes.

When you are finished with a cassette, rewind it and remove it from the

camcorder.

Keep cassettes away from strong

magnetic fields, such as electric motors and other devices.

Label and store cassettes vertically in their protective cases at normal room

temperatures. Excessive heat or cold may damage your cassettes.

Keep dust from entering the cassette

compartment. All dust is abrasive and

will cause excessive wear on the tape

and the camcorder's recording or playback heads.

• Do not use a cassette if it has been

damaged or exposed to moisture. The tape may jam or damage the camcorder.

• When you are finished recording, break

off the safety tab on the cassette to prevent accidental erasure.

° Do not leave your camcorder or

cassettes in a car or outdoors for an extended period. Excessive heat or

cold may damage them.

Traveling Tips

Write down your camcorder's serial number and keep it separate from the

camcorder when traveling. If your camcorder is lost or stolen, you will be

able to identify it. Make sure you have any plug adapters

you need before taking your camcorder to

other countries. Consult your dealer.

Use extra care to avoid damage to your

camcorder and accessories when operating

them at a beach or pool. Spray, sand, and dust should be avoided. If your lens has been exposed to the elements, clean it

only with proper lens cleaning supplies.

Carry your camcorder in a carrying case when traveling. See page 58 ibr a specially designed soft case. An ordinary

suitcase or carry bag does not offer the protection your camcorder needs. Treat

your camcorder as carry-on luggage to protect it from rough handling.

Cassette Tips .......

Do not use a cassette if it has been damaged or exposed to moisture. The tape

may jam or damage your camcorder. When you are finished recording, break

off the safety tab on the cassette to prevent accidental erasure.

Label your cassettes before storing them.

Store your cassettes vertically in their protective cases at normal room

temperature. Do not leave your camcorder or cassettes

in a car or outdoors for an extended

period. Excessive heat or cold may damage them.

STOP/EJECT

F.FWD (Fast Forward) {

REW (Rewind)/REVIEW

CAMERA/OFF/VCR Switch

Microphone

Quick Review Press REW/REVIEW when CAMERA/

OFF/VCR is in CAMERA and the camcorder is in record pause to review

the last few seconds of a recording. The camcorder will play back the last

few seconds of the recording, return the

tape to its previous position, and return to record pause.

Tape Positioning

When CAMERA/OFF/VCR is in VCR and the camcorder is in the stop mode, you

can quickly fast-forward or rewind the tape.

• Press F.FWD (fast forward) to fast forward the tape. Press STOP/EJECT

to stop fast-forwarding.

• Press REW/REVIEW to rewind the tape to the beginning. Press STOP/EJECT to stop rewinding.

Microphone

The microphone picks up sound during a recording. It is more sensitive to sounds

coming from the direction the lens is pointed.

AI (Artificial Intelligence) The camcorder will automatically adjust

focus, white balance and iris according to the recording conditions.

Program AE (Auto Exposure) Program auto exposure automatically selects the shutter speed and adjusts the iris

according to the shutter speed.

AE:60

Viewfinder Display

When DISPLAY is pressed, the AE indicator for the shutter speed selected

(1/60, 1/100, 1/120, 1/180, 1/250, 1/350,

1/500, 1/750, 1/1000, 1/1500, 1/2000, or 1/4000 second) appears in the

viewfinder.

Auto Focus :. : - _,: ' _:_'_

The camcorder will focus on the subject in the center of the viewfinder. Auto focus operates on the telephoto "T" side from approximately 2.6 feet to infinity

and on the wide-angle "W" side 3/8 of an inch from the lens surface to infinity.

The following conditions may prevent auto focus from operating properly.

• Subject has close foreground and

background far away.

• Two subjects at different distances that overlap.

• Subject with distinct horizontal stripes or small pattern.

• Subject not in center of the viewfinder.

• Subject with shiny surfaces or sharp angles.

• Recording in low-light situations.

• Recording through a window.

Macro Focus .....................: :. ..... _ : " _' _ _:_'

The macro-focus feature lets you focus on objects as close as 3/8 of an inch from the camcorder lens.

1. Press and hold zoom button "W" until the lens is completely zoomed out.

2. Position the subject in the center of the viewfinder.

Notes: Zooming is not possible when using macro focus. To change the size of the subject, move the camcorder's lens closer or farther away from it.

For best results, increase illumination when recording using macro focus.

Electronic Indexing

Each time you begin recording (after the camcorder has been turned off for at least four hours), the camcorder will automatically record an index mark at the beginning of the new recording.

When you play back the indexed tape in a VCR that has a compatible indexing feature called "VHS Index Search System," the invisible marks can be located automatically.

See your VCR owner's manual for index playback instructions.

INDEX

Viewfinder Display

When DISPLAY is pressed so the display appears in the viewfinder, INDEX will

appear briefly to let you know the camcorder is recording an index mark.

Note: The camcorder does not record index marks every time you stop and start recording.

An index mark is recorded only once -- at the start of each day's recording session (or

whenever the camcorder has been turned off for at least four hours).

Time Remaining Display ..................................................... ::: :"_=................. ...........':= ..........

The time remaining display shows the amount of recording or playback time left on the tape in the camcorder.

_---ql

Viewfinder Display

When DISPLAY is pressed so the display appears in the viewfinder, " "

will appear for approximately ten seconds when you first start playing or

recording a tape while the camcorder

calculates the time remaining. Once time remaining has been calculated, it will

automatically be updated and readily available as long as the same tape

remains in the camcorder.

The camcorder's viewfinder is a miniature monitor that displays the picture seen by the camcorder when recording. The viewfinder also can be used for viewing the tape during playback.

When carrying or storing the camcorder, return the viewfinder to the original position to prevent possible damage.

-- °

Viewfinder in carrying

or storing position

Viewfinder in operating position

Eyepiece

Pull

Caution. _lling on the eyepiece may cause damage to the camcorder!

1. Grasp the viewfinder and rotate it 2.

horizontally.

Pull the viewfinder out from the camcorder and adjust the eyepiece for

convenient viewing.

Control

Focus

The eyepiece focus control lets you set the focus of the viewfinder for your

personal vision. If you wear eyeglasses, you probably can operate the camcorder

without them.

Set the correct focus by focusing on one

of the viewfinder's displays (such as the

counter). Look through the viewfinder, and adjust the eyepiece focus control for

your vision. The eyepiece focus control does not

affect the focus of the picture actually recorded by the camcorder.

Eyepiece BRIGHT Control

BRIGHT Control

Viewfinder brightness can be adjusted by turning the BRIGHT control. This

does not affect the picture actually recorded by the camcorder.

Tilt Adjustment :::::::_'

For convenient viewing, you can rotate the eyepiece about 225 ° degrees.

force the eyepiece

aroun& ::-_s: will damagethe! _::_i_

eyepiece and/or,the

camcorder ....

@ @ ®

AE Shutter Speed --

Electronic Imapg...-_ Stabilizer_

FADE

Zoom and Digital Effects

Status

NO TAPE

A/V DUB

REC

INDEX

10 30AM

Viewfinder Displays

-®

Tape Counter Memory Stop (M)

Time Remaining

Battery Level

INDEX

TAPE, NO TAPE,

and TAPE END

Time and Date

AE (Auto Exposure) Shutter Speed

The shutter speed selected by the

camcorder appears here. It is not

recorded on the tape.

• Press DISPM Y to display the

shutter speed.

Electronic Image Stabilizer (Model CC439 only)

• .'Y appears when the electronic

image stabilizer is turned on.

• Press EIS to turn the electronic image stabilizer on and off.

• Details are on page 33.

Fade Press FADE to select white, wipe, zoom

or black-and-white fade. It is not recorded on the tape.

• [_ appears for white fade.

• [_] appears for wipe fade.

• Select 16X9 to make a recording that will be played back on a 16 x 9 wide

screen TV.

• Select NEG POS to invert an image from positive to negative.

• Select ZM:2 to activate the extended zoom mode -- wide angle to 130X.

• Select MIRROR to record a symmetric image on the left and right.

• Select MOSAIC to record a checkered image.

• ZOOM appears when you press power zoom button T and zoom in the

telephoto direction more than

16 times.

• I.ZOOM appears when you press INST.ZOOM to enlarge the picture

1.5 times.

• The zoom level indicator appears when you press power zoom button

Tor W.

• [] appears for zoom fade. • Details are on pages 28-32.

• B/W appears for black-and-white fade. @ Status

• Press DISPLAYto display the fade icon.

• Details are on pages 34-35.

ZOOM and Digital Effects Press DIGITAL EFFECTS to select a

digital effect mode. The mode selected appears. It is not recorded on the tape.

Press DISPLAY to display the digital effect mode display.

The following displays appear in this area. They are not recorded on the tape.

• A/V DUB for audio/video dubbing.

• A. DUB for audio dubbing.

• REC for recording.

• I_l,, during fast forward.

• • • during rewind.

• II during record pause.

DA TE/TIME

DISPLAY

A V (Audio/Video) }UB

CAMERA/OFF/VCR

Power Zoom

Buttons

INST. (INSTANT) ZOOM

(_) Tape Counter with Memory Stop (M)

The tape counter helps you locate tape segments. It is not recorded on the tape.

• Press DISPLAY to turn memory stop on or off.

Details are on page 36.

Time ( z_ m )

Remaining

This display shows the amount of recording or playback time remaining on the tape. It is not recorded on the tape.

• Press DISPLAY to display the time remaining.

• Details are on page 21.

Battery Level (_)

This indicator shows the amount of time left for the rechargeable battery. It is not

recorded on the tape.

• Press DISPLAY to display the battery level.

• Details are on page 14.

INDEX

When DISPLAY is pressed, the display appears in the viewfinder. INDEX appears

briefly when the camcorder automatically indexes the tape. It is not

recorded on the tape. Details are on

page 21.

FADE

DIGITAL EFFECTS

- EIS (Electronic Image Stabilizer) Button for

CC439 Model Only

TAPE, NO and TAPE END

TAPE,

• TAPE flashes when you try to

record and the safety tab has been removed.

• TAPE flashes when a damaged

tape is inserted. Remove the tape and replace it with a new one.

• NO TAPE flashes when you try to

record and there is no cassette in the camcorder.

• TAPE END flashes when you have approximately five minutes

recording time left on the cassette.

• TAPE END briefly appears when you reach the end of the cassette

during recording.

• These displays are not recorded when they appear.

Time and Date Display

• Press DATE/TIME repeatedly to display time and date, AUTO date, TITLE and date, date only, or no date display when the camcorder is in record pause.

• These displays are recorded when they appear.

• Details are on pages 26-27.

Set the Time and Date

REW (Rewind)/REVIEW

CAMERA/OFF/VCR [

DATE/TIME

F.FWD (Fast Forward)

STOP/EJECT

Attach a power supply (battery or adapter/charger) to the camcorder.

Press and hold the small button on

CAMERA/OFF/VCR and place in CAMERA.

Press DATE/TIME to display the date and time in the viewfinder. A flashing

cursor lets you know which part of the display you are setting.

Note: If flashing cursor does not appear, press and hold DATEZI'IME and then press

STOP/EJECT.

,I_:OOAM

I/ 1/1997

/I\

4. Repeatedly press F. FWD or REW/REVIEW until correct month

appears. Press and hold the button to advance the digits faster.

5. When the correct digit is displayed, press STOP/EJECT. The cursor will move to the next part of the display.

6. Repeat steps 4 and 5 to set the correct month, day, year, hour, minute(s), and

AM/PM.

7. After setting AM or PM, press DATE/TIME to remove the flashing

cursor and start the internal clock.

To Correct the Date or Time

To correct the date or time, press and hold DATE/TIME and then press

STOP/EJECT. The display will appear in the viewfinder along with the flashing

cursor. Use F.FWD and REW/REVIEW to correct the time or date. Press

DATE/TIME to remove the flashing cursor and start the clock.

Recording Date and Time, Date, or Date and Title on Your Tape

The time and date, date only, or date and title can be recorded oll your tape. Whenever one of the displays appears in the viewfinder, it will be recorded. The camcorder also

has auto date and auto title features.

Repeatedly Press

DATE/TIME

10:30AM 11/18/1997

Dateand Time

® AUTO

11/18/1997

Auto Date

No Display

11/18/1997

Date Only

@ TITLE

11/18/1997

AutoTitle

To Select Display to Record

1. Repeatedly press DATE/TIME to select the display you want to record.

• Select date and time to continuously record the date and time.

• Select ® AUTO to automatically record the date for 10 seconds at the

beginning of the recording.

• Select ® TITLE to automatically record the title and date for 10

seconds at the beginning of the recording.

• Select date only to continuously record the date.

• Select no display if you do not want any of the displays recorded.

Charging the Camcorder's Built-in Clock Battery .... ..........................: .............

The camcorder has a built-in rechargeable clock battery.

This battery must be charged approximately every two months.

Attach a power supply (adapter/charger or charged battery) to the camcorder.

2. Make sure CAMERA/OFF/VCR is

in OFF.

3. Leave the power supply attached at least 24 hours.

Cautions: If this battery is not charged every two months, it will over-discharge

and shorten its useful life.

Do not attempt to replace this battery, Take the camcorder to an authorized

Servicenter.

Using Power Zoom Buttons

Power Zoom Buttons

T = Telephoto

W = Wide Angle

EFFECTS

(Instant) ZOOM

ZOOM and Zoom

Level Indicator

_ZOOM

When DISPLAY is pressed so the display appears in the viewfinder and the power

zoom button is pressed, the zoom level is displayed in 10 steps for several seconds.

• Press "T" to move the lens in the "telephoto" (close-up) direction.

ZOOM appears in the viewfinder when you zoom in more than 16 times.

• Press "W" to move the lens in the "wide-angle" direction.

Using INST. (Instant) ZOOM

Instant Zoom Indicator

I.ZOOM

• Press INST.ZOOM to magnify the subject 1.5 times regardless of the position of the power zoom buttons.

When DISPLAY is pressed, LZOOM

appears in the viewfinder during instant zoom.

• Press INST.ZOOM again to turn off instant zoom.

The digital processor in this camcorder allows you to record pictures and add special effects, such as, 16X9, a negative image, 130 times digital zoom feature, a symmetric

image (obtained by placing a mirror at the center of the screen), and a mosaic image.

DIGITAL EFFECTS

Repeatedly Press DIGITAL EFFECTS

16X9 NEGPOS ZM:2

16X9 Mode

Negative Mode Digital Zoom Mode

MOSAIC MIRROR

Normal Mode

Mosaic Mode Mirror Mode

16X9 Mode

The new 16 X 9 TV format provides a 30% wider picture than conventional TVs of the

same height. The 16 X 9 recording mode lets you make recordings compatible with this new format. When the 16 X 9 mode is activated, the camcorder records black bars

at the top and bottom of the picture to produce the wide-screen effect. This is known as "letter box" recording. When played back on a standard size TV, black bars appear in

the picture.

Do not use this recording mode unless you have a 16 x 9 TV.

New 16x9 TV Screen

Standard Shape TV Screen

16X9 Mode Normal Mode

To Record in the 16X9 Mode

1. Press DISPLAY and repeatedly press DIGITAL EFFECTS to select 16 x 9.

The following display will appear in

the viewfinder.

To turn off the 16 x 9 mode, repeatedly press the DIGITAL

EFFECTS button to return to the normal mode. No display will appear

in the viewfinder.

k.'-

Negative Recording

Negative Mode Normal Mode

l°

Place the camcorder in record pause. Press DISPLAY and repeatedly press

DIGITAL EFFECTS until NEGPOS appears in the viewfinder. The image

in the viewfinder will become negative.

3. Press REC/PAUSE to start recording.

4. Press DIGITAL EFFECTS when in

recording pause until normal mode is restored.

Digital Zooming

Zooming Mode

The digital zoom feature allows you to zoom in on a subject with magnification

of up to 130 times.

1. Press DISPLA Y and repeatedly press DIGITAL EFFECTS to select the

digital zoom mode.

• The normal zoom mode is wide

angle to 16 times. No display appears in the viewfinder.

• Select ZM:2 to activate the extended

zoom mode -- from wide angle to

130 times for special effects.

Normal Mode

2. Press power zoom button "W" or "T" to control the digital zoom ratio.

Notes: ZOOM appears in the viewfinder for zoom levels above 16X. It will not be

recorded on the tape. As the zoom level increases in the ZM:2 mode, the picture will gradually become less

sharp. Extremely high zoom levels are used mainly for special effects.

Half-MirrorRecording

Mirror Mode

The digital effects feature lets you display a symmetric image on the left and

right, obtained by placing a mirror at the center of the screen.

1. Place the camcorder in record pause.

2. Press DISPLAY and repeatedly press DIGITAL EFFECTS until MIRROR

appears in the viewfinder.

Normal Mode

3. Press REC/PA USE to start recording.

4. Press DIGITAL EFFECTS in

recording pause until normal mode is

restored.

Note: This function cannot be used with digital zoom, instant zoom, image stabilizer

(CC439 only) or zoom fade function.

Mosaic Recording

Mosaic Mode

The digital effects feature lets you display a checkered image.

1. Place the camcorder in record pause.

2. Press DISPLAY and repeatedly press DIGITAL EFFECTS unit MOSAIC

appears in the viewfinder.

Normal Mode

3. Press REC/PA USE to start recording.

4. Press DIGITAL EFFECTS in recording pause until normal mode is

restored.

Notes: This function cannot be used with

digital zoom, instant zoom, image stabilizer (CC439 only) or zoom fade function.

The electronic image stabilizer (EIS) corrects slight shaking of images during some recording modes (only on model CC439)

• While zooming in on a distant object.

• When recording an approaching small object.

• When recording while walking or riding in a vehicle.

• When recording through a vehicle's window.

_IS Button

To Use EIS Button

1. Press EIS to display _ in the viewfinder.

EIS Indicator

in Viewfinder

2. Press REC/PAUSE to start and stop

recording.

3. When you are finished, press EIS to turn off EIS and remove @ from the

viewfinder.

Note: EIS may not operate correctly when wide-angle or telephoto lens adapters are

used.

When the EIS is switched on, there

will be a small change in picture size.

This is normal.

You canaddaprofessional touch to your recordingswhen you fade in andout of scenes.Both thepicture andsoundwill graduallyappearor disappear. Thespeedof

thefade is controlled by thecamcorder.

FADE

Select the Type of Fade

You can select white, wipe, zoom, or black-and-white fade. Press DISPLAY to

display the fade mode icon.

• Select white fade to fade in and out

from/to a white screen. _]_ appears in the viewfinder.

• Select wipe fade to fade in and out from/to a black, yellow, blue or green screen. [_] appears in the viewfinder.

• Select zoom fade to fade in and out while zooming. [] appears in the

viewfinder.

Select black-and-white fade to fade in/out from/to a black-and-white

picture. B/W appears in the viewfinder.

Notes: You cannot use zoom fade with the special effects MIRROR mode or MOSAIC

mode.

If you press the DIGITAL EFFECTS button after setting the fade function, the fade

functin will be released. After setting the DIGITAL EFFECTS mode, reset the fade

function.

Repeatedly Press FADE

[]

YEL

White Fade Black Wipe Fade

Yellow Wipe Fade

[_ BLU

No Fade

B/W

Blue Wipe Fade

F$-tGRN

Black-and-White Fade

Zoom Fade Green Wipe Fade

Fade In

1. Place the camcorder in record pause.

2. Repeatedly press FADE to select fade mode.

Note: The last fade mode used will appear the first timeyou press FADE.

3. Press REC/PA USE to start recording. The picture and sound will gradually

appear in place of the blank screen.

Fade Out

1. During recording, repeatedly press FADE to select the fade mode.

Note: The last fade mode used will appear the first time you press FADE.

Press REC/PA USE to stop recording. The picture and sound will gradually disappear.

The tapecounteractsasa handy referenceto helpyou locatetapesegments.

CAMERA/OFF/VCR

RESET REW/REVIEW

DISPLA Y F. F WD

MemoryStop _ ! -_i:._ _:! :: ' , : : , _' ,_-..::_:i_'_:.!i_'_:i'":_!.i.._._:_.::. The tape counter's memory stop helps you locate a certain point on the tape. When

memory stop is turned on, the tape will stop automatically during fast forward or rewind when the tape counter reaches "O000M."

Using Memory Stop:

1. Press DISPLAY to display the tape counter with "M."

2. Locate the place on the tape you want to return to and press RESET to reset

tape counter to "O000M."

Make sure CAMERA/OFF/VCR is in

VCR. Then press REW/REVIEW. The

tape will rewind until it reaches the tape counter reading of "'O000M."

jMemory

O000M _ Stop On

Continue to record or play the tape. When you want to return to the place

you marked, press REC/PA USE to stop recording, or press STOP/EJECT

to stop playback.

Notes: Press DISPLAY to turn memory-stop feature on or off.

Whenever memory stop is turned on, the camcorder will stop rewinding or fast forwarding when the counter reaches

"O000M.'" To continue rewinding or fast forwarding the tape, press REW (rewind) or F. FWD (fast forward) again.

The tape counter is automatically reset to "0000" whenever a cassette is inserted.

ProEdit ®System

i lm

m m

Flying Erase Head

Edit Search Audio Dub

A/V (Audio and Video) Dub Titler

The camcorder incorporates a complete package of advanced editing features to make it easy and fun to edit your home videos like a professional. The

major ProEdit ® System features are described here and on the following pages.

Flying Erase Head

---

A separate erase head is mounted on the spinning headwheel (hence the term "flying"). The flying

erase head allows you to make clean edits without "glitches" or "rainbow noise".

Edit Search

,'_---. _)o.;_.-_27.-.--:..'.-..___

m I

The edit-search feature allows you to edit as you

make your recording by using F.FWD,

REW/REVIEW, and PLAY to precisely position the

tape while the camcorder is in record pause.

• Press and hold REW/REVIEW to visually search the recorded tape in reverse.

• Press and hold F.FWD to visually search forward on the recorded tape.

• Press and hold PMY to view the recorded tape at normal speed.

When you release the button, the camcorder will return to record pause at that point on the tape.

Audio Dubbing (Connection for Model CC439 Only)

This illustration which applies to the model CC439 shows how to connect an audio device to model CC439 camcorder using the AUDIO 0 UT j acks. Audio dubbing

operation is explained on the following page.

A V DUB Button

A V OUT/IN Switch_

(This switch applies

to CC439 only.)

r--AUDIO --1

IN OUT J]

VCR or Tape Deck '"_ ..... " '

_, Audio/Video Cable White _,J

........_ '_:_ ........ xeilow

Yellow Video Plug Video Plug (No connection)

f---AUDIO "--'1

R IN L R OUTL

@@@@

Back of stereo VCR, Tape Deck,

Laser Disc Player or CD Player

-OR-

(no connection)

White Audio Plug

Yellow

Video Plug

no connection)

White Audio Plug

Y-Adapter (such as AH25)

Audio/Video Cable (such as VH83)

Yellow Video Plug (No connection)

Note: You will need an optional audio/video cable, such as VH83 shown on page 60. If the

audio source has separate left and fight outputs, attach the audio plug to the one labeled MONO. If one is not labeled MONO, you may need a Y-adapter, as shown on page 60, to record audio

from both the left and right channels.

Audio Dubbing

The audio dub feature lets you record new audio

(sound) on a previously recorded tape without erasing the original video (picture). The previous audio is erased and replaced with the new audio.

The audio dub feature increases your editing

flexibility. Video segments can first be assembled and then a single narration or music background can be

added.

The new audio can be added:

• You can speak into the camcorder's built-in

microphone. (Applicable to CC434 and CC439)

• You can connect an external sound system to the white AUDIO jack on the CC439 camcorder only.

. . . ..

To Audio Dub

° Press and hold the small button on

CAMERAJOFF/VCR while sliding it

to VCR.

For model CC439, if you are recording from a source connected to

the white AUDIO jack on the side of the camcorder, place AV OUT/IN

switch to IN.

3. Insert the tape you want to audio dub and use PLAY, F.FWD, and

REW/REVIEW to locate a point on the

tape a few seconds before you want to begin dubbing.

4. Press REC/PA USE exactly where you want to begin dubbing. This will place

the camcorder in play pause.

5. Press and hold AVDUB, and then

press PLAK Release both buttons at the same time. A. DUB Jl will appear

in the viewfinder when the camcorder

is ready to begin audio dubbing.

A.DUB

To begin dubbing, start the audio source and press REC/PAUSE.

, will disappear from the viewfinder

while you are dubbing.

7. Press STOP/EJECT when you are finished dubbing.

Remember: For CC439 only, place the

A V OUT/IN switch to OUT to record on the camcorder.

Notes: If you want to stop dubbing at a certain point on the tape, turn on memory

stop, and set tape counter to "0000M" at the

point where you want the dubbing to stop. The camcorder will stop dubbing automatically when it reaches "O000M."

Audio and Video Dubbing (Connection for CC439 Model Only)

This illustration which applies to the model CC439 shows how to connect an audio/video device to model CC439 camcorder using the A UDIO/VIDEO jacks.

Audio/video dubbing operation is explained on the following page.

m m

A V DUB Button

AUDIO

OUT

VIDEO

OUT

Back of

VCR or

TV Monitor

F-Lb.

AUDIO

OUT

Back of

Stereo

VCR or

TV Monitor

A V OUT/IN Switcl ff-r-_--l_

(This switch applies

to CC439 only.)

Yellow ,, White

Jack ,," " i Jack

White Audio Plug i _ ; "

# ,

Yellow ', ' ' i

_ Audio/Video Cable Video Plug _ '," '

.- ""_ _%_ (such as VH83) _ ,,

Yellow Video Plug "_'_',__ "

White

-OR- AudioPlug : '.

Y_liow _

VideoPlug V /_/

_ White

_ Audio

White Audio Plug

-'_--_ _ Y Adapter / Cudio/Video a ie

__.._ is_chasAa2S) / _ A.d" ' oCb

..... _ P' __._Ef (such as VH83)

Yellow Video Plug

Note: To record from an external video source (VCR, laserdisc player, etc.), you will need an optional audio/video cable, such as AH83 shown on page 60.

Audio and Video Dubbing

The audio and video dubbing feature lets you record new

audio (sound) and video (picture) on a previously recorded

tape in the camcorder.

The source for the dubbing is:

• the camcorder's built-in microphone and camera (applicable to CC434 and CC439) or

• a source connected to the AUDIO/VIDEO jacks on the side of the CC439 camcorder only.

To Audio and Video Dub

1. Press and hold the small button on CAMERA/OFF/VCR while sliding it

to VCR.

2. For CC439 model, if you are recording from a source connected to

the AUDIO/VIDEO jacks on the side of the camcorder, place the A V

OUT/IN switch to IN.

3. Insert the tape you want to dub and use PLAY, F.FWD, and REW/ REVIEW to locate a point on the tape

a few seconds before you want to begin dubbing.

4. Press REC/PAUSE exactly where you want to begin dubbing. This will place

the camcorder in play pause.

5. Press and hold AVDUB, and then press PLAY. Release both buttons at the same time. A. DUB II will appear

in the viewfinder when the camcorder is ready to begin audio dubbing.

6. Press and hold AVDUB, and then press PLAY again. Release both

buttons at the same time. A/VDUB II will appear in the viewfinder when the

camcorder is ready to begin audio and video dubbing.

A/V DUB

Note: For CC439 model only, if you are

dubbing from a source connected to the

AV OUT/IN jacks, be sure to start it playing.

7. To begin dubbing, press REC/PAUSE.

II will disappear from the viewfinder

while you are dubbing.

8. Press STOP/EJECT when you are finished dubbing.

Remember: For CC439 only, place the

AV OUT/IN switch to OUT to record on

the camcorder.

Notes: If you want to stop dubbing at a certain point on the tape, turn on memory stop

and set the tape counter to "O000M" at the

point where you want the dubbing to stop. The camcorder will stop dubbing

automatically when it reaches "O000M."

i_ •

!, _.

:_,

Titler

w m

The camcorder's built-in titler can store a title in memory. The created title can be displayed and

recorded at any time. The built-in character register contains over 45

different characters for creating your titles. The title can contain up to 32 characters on two lines•

!4'

'hi;

!f;;

'?, .'r

CAMERA/OFF/VCR

TITLER

Title Select - (Also

REW/REVIEW)

Title Select +

polo l

• _ (Also STOPIEJECT)

}ii

- %; . "L?

.°

.L )2:

To Create a Title

1. Attach a power source to the

camcorder, press and hold the small button on CAMERA/OFF/VCR while

sliding it to CAMERA.

2. Press TITLER to display titler graphics in the viewfinder. A flashing cursor will appear.

3. Press EDIToADV to move the flashing cursor to the place you want to begin

your title.

4. Select the first character for your title

by pressing the Title Select + button or the - button until the character you

want appears in the viewfinder.

To Correct an Error

1. Press TITLER to display the titler graphics in the viewfinder.

2. Press EDIToADV until the flashing cursor is placed over the character you

wish to correct.

See the "Chart of Characters in Titler' s Register" below for the characters

available.

5. After you have selected the first character, press EDIT°ADV to move the flashing cursor where you want

your next character to appear.

6. Repeat steps 4 and 5 until you have completed the title,

7. When you are finished, press TITLER to store the title and remove the title

display from the viewfinder.

Important Note: Remember to remove the titler graphics from the viewfinder for normal

recording.

• Press the Title Select + button or the

- button until the correct character appears.

Note: If you want to delete a character, press + or - until the blank space appears.

l]"

,?,

,¢

.j,

characters in T_tler s Re ister

..... : .... ::. g

ABCDE FGH I JKLMNO PQRS TUVWXY Z 0 12 3 4 5 6 7 8 9 ? '

• / , -- ; : < > ! (BLANK)

L':

,:il

,-2L

,2,' L

i;.i

i.j •

Recording a Title on a Tape in the Camcorder To record a title on a tapein the camcorder, follow the steps below.

1. Attach a power source to the 4. Press REC/PA USE to start recording camcorder, slide CAMERA/OFF/VCR the title. to CAMERA.

Locate the place on the tape where

you want to record the title.

Notes: If you record a title on a pre- recorded tape, the audio and video will be

erased where the title is inserted. There will also be a three-to-four second pause of

blank tape before the existing audio and video return.

Audio and video dubbing titles onto existing tapes will eliminate the pauses of

blank tape. Details are on pages 40-41.

Press TITLER to display the titler graphics in the viewfinder.

After you have recorded the title for the desired length of time, press

TITLER to remove titler graphics from

the viewfinder. The camcorder will now record as normal. If you do not

want to continue recording, press

REC/PA USE.

Important Note: Remember to remove the titler graphics from the viewfinder t'ornormal

recording. Note: You can also use the automatic title recording feature to automatically record the

title and date for I0 seconds when you begin recording. Press DATERIME to display (9

TITLE before starting to record.

Recording a Title While Copying a Tape from Camcorder to Another VCR

This method of adding titles lets you keep the original tape as it is, and add titles to the

copy you are making on another VCR. Connect your camcorder to a VCR as shown on

pages 50-51.

1. Attach a power source to the camcorder.

2. Place the tape you want to copy in the camcorder and place

CAMER,MOFF/VCR in VCR.

3. Place a blank tape in the VCR, and place the VCR in record pause.

4. Start copying the tape from the camcorder to the VCR. Details for

copying a tape are on pages 50-51.

5. When you see the place on the tape you want to insert the title, press

TITLER.

6. After you have recorded the title for the desired time, press TITLER to stop

recording the title.

7. Stop the camcorder and VCR when you are finished copying the tape.

Important Note: Remember to remove the titler graphics from the viewfinder for normal

playback.

,,5¸

,tI

• ,k

",2

Make a recording of your home and contents to store in a safe place in case of

fire or theft. Practice recording under a variety of

lighting conditions. This will help you respond quickly whenever you see a scene

you want to record.

Fading in and out of scenes may make your videos appear more professional.

Do not move the camcorder rapidly from side-to-side while recording. A steady,

gradual "pan" avoids blurting and "jitter". Use the viewfinder to make sure the

camcorder is level while recording or your scenes will appear "tilted".

Make sure indoor scenes are well-lit to

improve picture quality and color reproduction.

Do not bump or tap the camcorder's microphone while recording because this

sound will be recorded.

Be aware of video and audio backgrounds. Background details barely noticed while

you are taping may show up as visual "'clutter" on your recording. Background

noises (especially TV sets, radios,

household appliances, traffic sounds, etc.) can detract from the sound you want to

record.

Avoid long "still" shots of landmarks and

scenic attractions. Recordings are more

interesting if they include people and details. "Local color" will give travel videos lasting appeal. Consider recording

a familiar or landmark scene from an unfamiliar vantage point for added

interest. Remember to check the lighting before starting to record.

Try to avoid taping backlit subjects indoors. Bright light behind your subject may cause the subject to appear too dark.

Include close-up shots of individuals when taping family outings or group

functions.

For a different perspective, try kneeling down (or laying) on the floor when

recording children or pets.

To record on a tape on the CC439 camcorder from a VCR or TV monitor with AUDIO OUT and VIDEO OUT jacks, you will need an optional audio/video cable, such as

VH83 shown on page 60.

A V DUB Button

(_)A V OUT/IN

(This switch applies

to CC439 only.)

AUDIO

OUT

VIDEO

OUT

Back of

VCR or

TV Monitor

7--L_"

AUDIO

OUT

VIDEO

OUT (_

Back of

Stereo

VCR or

TV Monitor

i_ Y-Adapter

Yellow

Video Plug

White Audio Plug

White

Audio

Plug

Audio/Video Cable (such as VH83)

Yellow Video Plug

Installation

Attach the white plug on one end of the audio/video cable to the AUDIO

OUT jack on the VCR (or TV

monitor). Note: If your VCR or TV monitor has

stereo left and right AUDIO OUT jacks, attach the plug to the one labeled

MONO. If one of the audio jacks is not labeled MONO, you may need a

Y-adapter, such as AH25 shown on

page 60, to hear both channels.

Attach the yellow plug on the same end to the VIDEO OUT jack on the VCR (or TV monitor).

Attach the yellow plug on the other end of the audio/video cable to the

yellow VIDEO jack and the white plug to the white AUDIO jack on the

side of the camcorder. Place the AV OUT/IN switch to IN.

Recording Operation and How to Copy Tapes on the Camcorder

1. A.

Camcorder connected directly to TV monitor: Turn on the TV and

tune it to the channel you want to record.

Camcorder connected to a VCR that is already connected to a TV:

Turn on the VCR and select the channel you want to record (or

place the cassette you want to copy in the VCR). If you are copying a

tape, press PLAY on the VCR when you are ready to start copying.

Note: If you want to see what is being recorded, turn on the TV and tune it to

the channel that you normally use to see the signal from the VCR.

2. Press and hold the small button on the camcorder's CAMERA/OFF/VCR

switch while sliding it to CAMERA.

3. Insert a cassette in the camcorder with

the safety tab intact.

4. Press REC/PA USE to start the camcorder recording.

Note: If you are copying a tape, start the VCR playing the tape.

5. Press REC/PAUSE on the camcorder when you are finished.

Remember: Place the A V 0 UT/IN switch to OUT to record on the camcorder.

Caution: The unauthorized recording of television programs and other materials may infringe the rights of others.

CAMERA/O FF/VCR Switch in VCR position

0000 ._"

REW (Rewind)/REVIEW

F.FWD (Fast Forward)

STOP/EJECT

TRA

. "_-.::= "_,=:<' -'_: :7-.-:.

Viewfinder Playback ...... : ..........

1. Attach a power supply to the camcorder.

2. Press and hold the small button on

CAMERA/OFF/VCR while sliding it to VCR.

3. Press STOP/EJECT and insert the cassette you want to play back.

Note: The camcorder can only play back

tapes recorded at SP speed.

4. Press PLAY to begin playback. Adjust

TRACKING if necessary.

5. Press STOP/EJECT when you are finished.

Playback Features

Stop-Action Pause

During playback, you can view one

frame of the tape.

• Press REC/PA USE to stop the action.

• Press REC/PA USE again to return to normal playback.

Caution: Pause isdesigned for momentary interruptions and should not

be used for aft extended period of time. If thecamcorder remains in pause for

more than five minutes, it will automatically remove the tape from the

spinninghe_s to prevent excessive

. q.

tape wear.

Picture Search

During playback you can visually search the tape at a higher speed in forward or

reverse.

• Press and hold F.FWD to search the

tape forward.

• Press and hold REW/REVIEW to

search the tape in reverse.

• Release the button to return to normal playback.

Tracking ...........................................................'::

TRACKING

(Also Power Zoom)

When you play a tape not recorded on your camcorder, streaks may appear.

To remove the streaks, press either

TRACKING button to move the streaks

up or down and out of the picture. Press either TRACKING button during

stop-action (play-pause) to reduce picture "jitter" (picture bouncing up or down).

Remove the cassette to reset the camcorder's tracking to its preset center.

The TRACKING buttons only affect tape playback. They have no effect during

recording.

To connect the camcorder to a TV monitor (or VCR) with AUDIO IN and

VIDEO IN jacks, you will need an optional audio/video cable, such as VH83 shown on

page 60. If your TV is already connected to a VCR, you can attach the camcorder to

the VCR and watch what the camcorder is recording or playing on the TV.

A V OUT/IN

Switch

(This switch applies to CC439 only.)

: :, ":.>_:j:z;Z%_:;.<.;,

AUDIO

VIDEO

Back of VCR or

TV Monitor

7--L_"

AUDIO

k_.@

VIDEO

IN 8-

Back of

Stereo

VCR or

TV Monitor

White

AUDIO

Jack

Caution: The unauthorized recording of television programs and other materials may infringe the rights of others.

Attach the white plug on one end of the audio/video cable to the AUDIO

IN jack on the TV or VCR. Note: If your TV (or VCR) has stereo

left and right AUDIO IN jacks, attach the plug to the one labeled MONO. If one of

the jacks is not labeled MONO, you may

need a Y-adapter, such as AH25 shown

on page 60, to hear both channels.

Attach the yellow plug on the same end of the audio/video cable to the

VIDEO IN jack on the TV or VCR.

Attach the yellow plug on the other end of the audio/video cable to the

yellow VIDEO jack and the white plug to the white AUDIO jack on the

side of the camcorder. For CC439 model, place the

A V 0 UT/IN switch to OUT.

Playback Operation and How to Copy Tapes on a VCR "_ _'_............._'_...................._.........................

I. A. Camcorder connected directly to

TV monitor: Turn on the TV and tune it to its video input channel.

B. Camcorder connected to VCR that

is already connected to TV: Turn on VCR and place it in the "line" or

"camera" mode. (If your VCR does not have a "line" or "camera"

mode, consult the VCR owner's manual.) Operate the TV as you nonnally do to see the signal

coming from the VCR.

2. Press and hold the small button on the camcorder's CAMERA/OFF/VCR

switch while sliding it to VCR. Insert the cassette you want to playback (or

copy). Note: The camcorder can only play back

tapes recorded at the SP speed.

3. Press PLAY on the camcorder. To copy what the camcorder is playing, place a

blank cassette in the VCR and start the VCR recording. Adjust the tracking on

the camcorder if necessary. Details are

oli page 49.

• During playback, use the playback

features described on page 49.

4. Press STOP/EJECT when you are finished.

Watching What the Camcorder is Seeing or Recording on the TV ..............................

l.h.

Camcorder connected directly to 2. TV: Turn on the TV, and tune it to

its video input channel. Camcorder connected to VCR that is already connected to TV: Turn on

VCR and place it in the "line" or "camera" mode. (If your VCR does

not have a "line" or "camera" mode, consult the VCR owner's

manual.) Operate the TV as you normally do to see the signal

coming fi-om the VCR.

Press and hold the small button on the

camcorder's CAMERA/OFF/VCR

switch while sliding it to CAMERA. Insert the cassette you want to

record on. Note: When the camcorder is used as a

camera, turn the TV's volume down to prevent a high-pitched squeal caused by

feedback. Press the camcorder's REC/PA USE

button to begin recording. You can watch what the camcorder is seeing or

rccordim, on the TV screen.

To connectthe camcordertoa TV without audioandvideo input jacks. You will needanoptional RFoutput adapter(suchasCRF95)andan optional coaxial RF cable(such asVH82 or VH85) shown oll page 60.

Antenna

I I",

OR @ OR ',

Antenna _\

Optional 300/75 ohm \

Transformer \

Back of TV (such as 193983) \

OR ",, \

I ,,.,

Iv_I'" Optional 75-300 Ohm

Transformer

FROM

ANT

Optional Coaxial RF Cable (such as VH82 or VH85)

A V OUT/IN Switch

(This switch applies to CC439 only.)

Channel Selector

OUT

TO TV

Optional RF Output Adapter

(such as CRF95)

Disconnect the VHF antenna from your TV. If you are going to leave

the RF adapter connected to the TV, connect the antenna to the RF output

adapter. A.If antenna is round 75-ohm cable,

connect it to IN FROM ANT connector on RF output adapter.

B. If antenna is flat twin-lead,

connect flat-lead connectors to screw terminals on optional 300-

75 ohm transformer. Then connect

transformer to IN FROM ANT connector on RF output adapter.

Attach one end of coaxial RF cable

to OUT TO TV connector on RF adapter, and attach other end of the

cable to VHF input on TV as shown.

Note: If TV has screw terminals, you may need an optional 75-to-300 ohm

transformer, such as AH011.

Attach RF output adapter's yellow plug to the VIDEO jack, small plug

to the RF DC OUT jack, and white plug to the AUDIO jack on the side

of the camcorder.

For CC439 model, place the

A V OUT/IN switch to OUT.

Playback Operation

1. Set the channel selector switch on the RF output adapter to CH3 or CH4.

2. Turn on the TV and tune it to the same channel (3 or 4) you selected with the

channel selector switch on the RF output adapter.

3. Press and hold the small button on the camcorder's CAMERA/OFF/VCR

switch while sliding it to VCR.

4. Insert the cassette you want to play back into the camcorder.

Note: The camcorder can only play back tapes recorded at the SP speed.

5. Press PLAY on the camcorder. Adjust

tracking on the camcorder, if necessary. Details are on page 49.

• During playback, use the playback features described on page 49.

6. Press STOP/EJECT on the camcorder when you are finished playing back the

tape.

Watch What the Camcorder is Seeing or Recording on the TV ::: :::::: ::_.!:: :

1. Turn on the TV and tune it to channel 3 or 4 (the same channel you selected

with the CH3/CH4 switch on the RF output adapter).

2. Press and hold the small button on the camcorder' s CAMERA/OFF/VCR

switch while sliding it to CAMERA. Insert the cassette you want to

record on.

. Press the camcorder's REC/PAUSE

button to begin recording. You can watch what the camcorder is seeing

or recording on the TV screen.

Note: When the camcorder is used as a

camera, turn the TV's volume down to

prevent a high-pitched squeal caused by feedback.

Normal TV Viewing ...... .........

For normal TV viewing, you can leave the RF output adapter hooked up to the TV. Just disconnect the adapter's plug

from the camcorder or turn the camcorder's power off.

Note to Cable-TV Installer: This reminder is provided to call your attention to Article

820-40 of the National Electrical Code (Section 54 of Canadian Electrical Code, Part I), that provides guidelines for proper grounding and, in particular, specifies that the

cane ground shall be connected to the grounding system of the building as close to the point of cable entry as practical.

Thecolor enhancementlight helpscreatebrighter, sharperpictures.

LIGHT A UTO/OFF/ON

To Use the Color Enhancement Light

1. Attach the rechargeable battery or AC adapter/charger to power the

camcorder.

2. Press and hold the small button on

CAMERA/OFF/VCR and place it in CAMERA.

3. Select a position for the LIGHT A UTO/OFF/ON switch.

Place in AUTO to have the light

automatically turn on when the camcorder is aimed at a dark object and turn off when aimed at a bright

object. Note: A cassette must be inserted tor

AUTO to operate. Place in ON to have the light turn on

whenever CAMERA/OFF/VCR is in

CAMERA.

• Place in OFF to turn off the light. If the camcorder is left in record pause

for more than five minutes, the power

and light automatically turn off. Press REC/PA USE to turn

camcorder back on.

Notes: Turn on the light only when you need it. The power consumption of the

light is approximately two-thirds that of the camcorder. When the light is on, the

operation time of tile rechargeable battery is reduced.

Avoid bumping or shaking the light

when in use. The light's bulb is sensitive

when hot and may burn out. Do not allow water to drop on the light

when in operation.

Dangers: During operation and after using the light, the front surface and

bulb of the light will be very hot. To avoid burns, do not touch them.

To prevent overheating, do not block or cover the ventilation holes on the

color enhancement light. Never use the color enhancement light in

the vicinity of explosives or highly flammable materials.

Removing and Replacing the Front Case of the Light

Light Bulb

Front Case

Reflection Plate

Lower Hook

To Remove and Replace Light Case

1. To remove front case, press and hold

the lower hook while removing it.

2. To replace the front case, pass the bulb through the hole of the reflection

plate, and attach the lower hook to the light.

3. Press front of case to light.

Notes: Do not touch the bulb with your

fingers. It may shorten its service life.

Make sure the front case of the light is properly attached after removing it or replacing a bulb.

When replacing the bulb, only use #221111 to reduce the risk of fire and other hazards.

See the installation instructions packed with the replacement bulb when replacing the bulb.

Caution: Use only bulb#221111 when

replacing the bulb to reduce the risk of

fire or other hazards.

The shoulder strap is designed to let you carry the camcorder from your shoulder and

-- when you are ready to shoot -- bring the camcorder to shooting position in one quick movement.

Cautions: When carrying the camcorder with the shoulder strap, place the viewfinder in its original position_: :'This::helpsprevent possibledamage to the

viewfinder from bumping ag_ns@our body as you move .... :

_i;:_! i i:' :!I_::__;.._ :;::., ::_:i :.,_:::_::}...... ": ::. _:::::_::-.." :: :::

Make sure the slabulder strap is_|y_a_efiedbefrre:us_g':it'to_c_ your camcorder.

To Attach the Shoulder Strap

1. Unfasten one end of the shoulder strap from the buckle. Make sure you leave the buckle on the strap.

2. Thread one end of the shoulder strap through one of the shoulder strap rings as

shown below' in diagrams A and B.

Diagram A

Shoulder Strap Rings

Diagram B

3. Thread the strap back into the buckle as shown below. Pull on the strap and make

sure it is fastened correctly and tightly before using it to support your camcorder.

4. Repeat steps 1-3 to attach the other end of the shoulder strap.

The carrying case provides protection for your camcorder and its accessories. See below for details on packing your case.

_'[ I.,

Two Hour Battery Type__ _ __----_

(Optional) __(_) - Camcorder

Audio/Video Cable (Optional)

One Hour Battery Type [ (Optional) • _, J

Adapter/Charger

This equipment has been tested and found to comply with the limits for a Class B digital device and RF lighting device, pursuant to

Part 15 and part 18 of the FCC Rules. These limits are designed to provide reasonable

protection against harmful interference in a residential installation. This equipment generates, uses, and can radiate radio

frequency energy and, if not installed and used in accordance with the instructions, may

cause harmful interference to radio communications. However, there is no

guarantee that interference will not occur in a particular installation. If this equipment does

cause harmful interference to radio or television reception, which can be determined

by turning the equipment off and on, the user is encouraged to try to correct the interference : :

by one or more of the following measures:

• Reorient or relocate the receiving antenna.

• Increase the separation between the equipment and receiver.

• Connect the equipment into an outlet on a circuit different from that to which the

receiver is connected.

• Consult the dealer or an experienced radio/TV technician for help.

Alterations or modifications carried out without appropriate authorization may

invalidate the user's FCC right to operate the

equipment.

General

Power requirement: 9.6VDC

Power consumption: 8 watts (normal) Weight: 4.4 lbs. (2 kg)

Dimensions:

4-1/4"(W) x 8-3/8"(H) x 13-1/8"(D) (108 x 213 x 334mm)

Video Recorder Section

Format: VHS

Record/Playback System:

Two video record/playback heads One flying erase head

Headwheel Cylinder Diameter: 62 mm

Video Signal: EIA Standard NTSC

Color

ii _:_!!ii¢ii

Camera Section

Scanning: 525 Lines/60 Fields/30

Frames

Image Sensor: 1/4" high/resolution,

solid state CCD imager

Tripod Mount: One 1/4" x 10 threaded

hole

Lens: fl.4 -- 16:1 (4-64mm)

Diameter: 46 mm

Adapter/Charger

Power Requirement: 120 V 50/60 Hz Power Consumption: 30 Watts (max)

Weight: (390 grams) Dimensions:

(78 x 52 x 155 ram)

We invite you to take a look at some great ideas for sparking creativity and adding to the fun of using your camcorder. These pages have a selection of accessories to help

make your memorable moments look and sound even better. To order accessories, contact your local dealer.

Accessories are available by calling toll-free or by using the order form. See

pages 63-65.

AC202 Soft Camcorder Case

This case provides exceptional protection and utility for full size camcorders and most accessories. It is constructed of rugged nylon fabric for years of reliable service and good looks.

Three outside pockets provide ample accessory storage with mesh-covered lens filter compartment and built-in holders for memo pads, pens, and other accessories. The hand grip and adjustable shoulder strap allow

for convenient, comfotlable transportation of the camcorder.

DCC096 DC (Battery) Car Cord

This DC car cord enables you to operate

your camcorder from your car, truck, or RV by plugging the car cord directly into

the vehicle's cigarette lighter.

Caution: Do not use any other (ar co_d with this camcorder.

CPS014 AC Adapter/Charger

This adapter/charger operates on 100- 240 volts, 50/60 Hz, so it can be used

almost anywhere in the world to power your camcorder and recharge the EP096FS battery supplied with your

camcorder.

It also charges the EP096FL (2 hour)

battery. A simple plug adapter may be required in some countries.

EP096FS and EP096FL Rechargeable Batteries

These rechargeable lead-acid batteries

are specifically designed for long life.

The EPO96FS can power your camcorder

up to one hour and the EP096FL up to

two hours (depending on how much you

use the light, zoom, and pause).

Both batteries can be recharged with the AC adapter/charger that came packed with your camcorder. First charging takes approximately two

hours for the EP096FS and three hours for the EPO96FL.

VH83 Audio/Video Cable

This six foot audio/video dubbing cable is used to connect your camcorder to a VCR or TV monitor to

copy tapes.

CRF95 RF Output Adapter

This adapter is used with coaxial RF cable (VH82 or VH85) to connect your camcorder to a standard TV (one without

audio/video input jacks) for playback. If your antenna cable is the flat twin-lead type attached by two screws, you will also

need a 300-75 ohm transformer such as 193983. If your TV

has 300 ohm antenna screw terminals, you will need an

optional 75/300 ohm transformer such as VH54.

Coaxial RF Cables

VH82 (6-ft)

VH85 (12-ft)

These RF cables are used with the RF output adapter to connect your camcorder to a standard TV (one without audio/video input jacks) for playback.

If your antenna cable is the flat twin-lead type attached by two screws, you will also need a 300-75 ohm transformer

such as 193983. If your TV has 300 ohm antenna screw terminals, you will

need an optional 75-300 ohm transformer such as VH54.

193983 Cable Transformer

This 300-to-75 ohm transformer is used to connect a standard 300-ohm antenna twin-lead to a standard round

75-ohm connector.

VH54 Cable Transformer

This 75-to-300 ohm transformer is used to connect a standard 75-ohm antenna cable, such as AH065G or

AH066G, to the 300-ohm screw terminals on a TV.

AH25 Y-Adapter

This Y-adapter allows you to connect your camcorder's mono

audio cable to a stereo TV or VCR.

Removing the Lens Hood

The lens hood can be removed so you can attach optional accessories, such as wide- angle lens, lens extender, or lens filter kit. Do not grasp the end of the lens hood.

Attach the lens cap over the lens hood, then turn them counterclockwise to

remove them.

Attaching Accessory Lens

Remove the lens hood as shown above. Turn the accessory lens clockwise into the camcorder's lens. Make sure the lens is

tightened firmly, but do not over tighten.

All specifications and descriptions of accessories are subject to change without notice.

Using an Optional Tripod

Mounting the camcorder on a tripod, such as AC093, will keep the camcorder steady

and produce excellent video results.

AC093 Deluxe Tripod

This tripod's fluid effect head provides

smooth camera pan and tilt. Its quick-

release mount makes it easy to attach or

remove the camcorder. The grooved, tubular 3-section leg design folds down to 24" when not in use and weighs only

4-1/4 lbs. Rubber feet allow for sure footing and the built-in retractable leg

spikes eliminate the need for removing the feet.

Caution: Before using a tripod, make sure it is stable enough to hold the camcorder without falling over. Do not transport the camcorder attached to the tripod.

When attaching your camcorder to a tripod, be careful not to force the tripod screw into the camcorder's tripod mounting hole.

The tripod screw should not protrude into the camcorder more than approximately

three-eighth (3/8) inch. Forcing the screw could damage the mounting hole on the

bottom of the camcorder.

All specifications and descriptions of accessories are subject to change without notice.

¢3

Order Form for Camcorder Models CC434/CC439

Description Part No. Price Qty. Total Soft Camcorder Case AC202 $ 49.95

Deluxe Tripod AC093 $ 59.95 Y-Adapter AH25 $ 2.95

AC Adapter/Charger CPS014 $219.95

RF Output Adapter CRF95 $ 69.95 Car Cord DCC096 $ 49.95

Rechargeable Battery EP096FS $ 69.95 Rechargeable Battery EP096FL $ 79.95

Cable Transformer VH54 $ 2.95

RFCoaxial Cable (6-ft.) VH82 $ 6.95 Audio/Video Cable VH83 $ 5.95

RF Coaxial Cable (12-ft.) VH85 $ 7.95 300-75 Cable Transformer 193983 $ 10.00

Replacement Bulb (4 watt)

for Built-in Light 221111 $ 12.95

Shoulder Strap 227327 $ 10.35

AC Adapter/Charger (Supplied) 232595 $169.95

DC Cable 233328 $ 13.65

Total Merchandise ...........................................................

Sales Tax .........................................................................

We are required by law to collect the appropriate sales tax for each individual state, county, and locality to which the merchandise is being sent.

Shipping and Handling ....................................................

Total Amount Enclosed ................................................

Use VISA, MasterCard, or Discover Card. Money order or check must be in U.S. currency only.

No COD or cash.

$ 5.00

Prices are subject to change without notice.

• Allow 4 weeks for delivery.

• All accessories are subject to availability.

• Where applicable, we will ship a superseding model.

Charge your order on your VISA,MasterCard,

or Discover Card by filling in below

USE YOUR CREDIT CARD

IMPORTANT: Copy complete account number from your VISA card

F-T-]--_I I I I__FT-_ Expirationdace:r-'-]'_r-_

IMPORTANT: Copy complete account number from your MasterCard

IIII I[-T--r-N r-T-]---_ I I I I I

Cop5, Number above your name on MasterCard _ Expiration date: _

IMPORTANT:

FWFq-1 I

Expiration date:

Copy complete account nmnber from },our Discover Card

I I I II I I I IFI---I-_

AUTHORIZED SIGNATURE

Prices arc subject to change without notice.

Print or type your name and address

clearly. This will be your mailing label.

A complete and correct order will save you days of waiting.

%..'.o'°;"-.4,.<..7 4 :_ 7.:

Nallle:

Street:

City:

State:

Apt:

Zip:

Please make sure that both sides of this form have been filled out completely.

• Allow 4 weeks for delivery.

• All accessories are subject to availability.

_D _D

i!i:i!i!_!:i!_i

To order accessories, contact your local Dealer. If a dealer is not nearby, you can also follow the directions below to order by

telephone or direct-by-mail.

United States and Canada Orders

To place your order by phone, have your Visa, MasterCard, or Discover Card ready and call the toll-free number listed below between 8AM and 8PM (EST) Mon.- Fri.,

or 9AM - 5PM (EST) Sat. Use this number only to place an order for accessory items listed on this order form.

1 - 800 - 338 - 0376

To place your order by mail, detach and mail the completed order form with credit card information, money order, or check in U.S. currency (made payable to Thomson

Consumer Electronics, Inc.) to the following address:

Video Accessories PO Box 8419

Ronks, PA 17573

_ . . 2'&2°" '¢'.';.;" _ :

Keepdustandgrit from enteringthe

camcorder's cassettedoor. Dust andgrit are abrasiveandcauseexcessivewear to

both the camcorder'srecordingand playback headsandcassettes.

Do not usestrongor abrasivedetergents whencleaning your camcorder. They maydamagethecamcorder.

Before handling your camcorder,make sureyour handsandface arefreefrom

any chemical products suchassuntan lotion, asit may damagethe finish.

Do not touch the lens with your finger!! Theoil from your skin maydamagethe

lens. To clean thelens,alwaysuselens-

cleaningtissuesanda commercially preparedcleaningsolution designedfor

useon cameralens.

Always replacethelens capon thelens whenthecamcorderis not in use.

Thecamcordercan bedamagedby

improper storageor handling. Do not subjectthecamcorderto swinging, shaking,or dropping.

Do notstorethecamcorderin temperaturesbelow -22°F (-30°C) or

above149°F(65°C).

When the camcorder is not in use, always remove the cassette and AC adapter/ charger or battery.

Retain the original carton for future

storage or shipping purposes.

• .54,:> ...:::..,!..r>5.

Things to Avoid :i:::::i_::i:i:::_:i:i: _:._::.i:_i:_i:.:::::i:_::_::_:i::...............

Do not aim your camcorder at the sun or other bright objects or leave your

camcorder in direct sunlight. Doing so could permanently damage the

camcorder's internal parts.

Avoid operating your camcorder after moving it from a cold location to a warm

location. Moisture may cause the tape to stick to the headwheel and damage the

headwheel or tape. Give the camcorder 2 to 3 hours to reach a stable temperature

before inserting a cassette.

Do not operate or leave your camcorder in extremely humid

environments.

Do not operate the camcorder for extended periods in temperatures

below 40°F (4°C) or above 95°F

(35°C).

Do not expose the camcorder or adapter/charger to rain or moisture.

If either component becomes wet, turn off the power and take the unit to

an Authorized RCA Camcorder Servicenter.

Cleaning the Camcorder

To clean the camcorder's exterior, remove any power source connected to the camcorder and gently wipe it with a clean soft cloth.

Caution: Use of strong cleaning _ products, such as those contaimng alcohol or benzine, may damage

the camcorder.

Cleaning the Camcorder's Lens ..................

: _: xs 3 _5_:_: _:_3 t_

To clean the camcorder's lens, blow it with a blower brush, and then gently wipe the lens with cleaning tissue and commercially prepared cleaning solution designed for use

on camera lens. hnproper cleaning may scratch the lens.

Caution: Do not touch the lens with your fingers. The oil from

your skin can damage the lens.

Cleaning the Camcorder's Viewfinder

The viewfinder eyepiece can be removed for cleaning.

1. Turn the eyepiece counterclockwise and pull it

out.

2. Gently use a cotton swab or blower brush to remove the dust.

Mark

Reattach the eyepiece by aligning the reference marks, and then turn the eyepiece clockwise.

,i_:i_ _.__:,:_,:_:_ :::__+_.__ _: ,.i_!__ :_i_i_i_i4__i!_!_+__ v_ _:_.i,i_i_i_!! i!i!_

Troubles sometimes are caused by simple "faults" that you can easily conect without the help of a service technician by first checking a few basic remedies.

Before you call or take your camcorder to an Authorized RCA Camcorder Servicenter, look below for the type of trouble you are experiencing. Then perform the simple

checks and adjustments listed for that trouble.

No Power

Will Not Record or Play Back

Checks and Adjustments

• If using the rechargeable battery, it may need

recharging.

• If using the AC adapter/charger, make sure it is

plugged into a working AC outlet.

• Make sure there is a cassette in the camcorder.

• Try ejecting and re-inserting the cassette.

• The cassette tape is broken -- try another cassette.

• You have reached the end of the cassette -- try rewinding it.

• Moisture condensation may cause the tape to stick to the headwheel and damage the headwheel or tape.

Give the camcorder 2 to 3 hours to reach a stable temperature before re-inserting a cassette.

[

Will Not Play Back I • CAMERA/OFF/VCR switch must be in VCR.

Will Not Record

No Picture in Viewfinder

Tape Does Not Rewind or Fast Forward

Safety tab has been removed from cassette.

See page 16. CAMERA/OFF/VCR switch must be in CAMERA.

A/V OUT/IN switch must be in OUTto record on the

camcorder (model CC439 only).

• Make sure the lens cap has been removed.

• Make sure titler graphics do not appear in viewfinder. Press TITLER to remove them.

Trouble

Tape Stops During Rewind or Fast

Forward

Camcorder Remains in Play Pause

Poor Picture Quality During Recording

Viewfinder Displays Are Out of Focus

Poor Auto-Focus Operation

Poor Picture Quality During Playback

Recorded Audio is Too Low

Checks and Adjustments:

The tape counter's memory-stop feature may be turned on. When an "M" appears behind the tape-

counter display, the camcorder will stop rewinding or fast-forwarding when the counter reads "O000M".

Press the REW/REVIEW or F.FWD button again to

continue, or press DISPLAY to turn off memory stop.

• Press REC/PA USE to return to normal playback.

There is insufficient light. Add more light.

Use the color enhancement light to add more light.

DetaiL_are on pages 54-55.

• Try adjusting the eyepiece focus control. Details are on page 22.

Lens may be smudged and image appears unfocused.

Viewfinder eyepiece locus or BRIGHT control may

be adjusted incon'ectly. Details are on pages 22-23.

• Tape was recorded on a different camcorder or VCR.

If the picture contains black-and-white streaks, press

one of the TRACKING buttons to con'ect.

• Camcorder only has one speed (SP). If the tape was recorded on a different VCR at a different speed, it

cannot be played back in this camcorder.

• Subject may have been too far from the camcorder.

AE Shutter-Speed or

INDEX Indicator Does

Not Appear in Viewfinder

Date and Time (or Date) were Recorded on the

Tape

Date and Time Appear Incorrect

Camcorder Does Not Turn On and/or

Function Buttons Will Not Operate

• CAMERA/OFF/VCR switch must be in CAMERA,

and press DISPLAY to display the indications.

Date and time (or date) will be recorded on the tape whenever they appear in the viewfinder. Press

DATE/TIME to remove them from the viewfinder when recording.

• Make sure the date and time have been set. Details

on page 26.

• The camcorder's internal clock battery may need

recharging. Details on page 27.

Remove the power source. After one minute press the

reset switch gently using a non-metallic pointed item, such as a toothpick, until

you feel a click. This resets the camcorder to the factory

settings and erases the date,

time, and custom settings. Note: When connecting a power source again, wait for

about one minute after the reset switch is pressed.

A_ i_:_T_ Switch

_C439 Only)

Reset Switch

:_ : -._i,_ ..:._,._ _;-.':_: ?:=

You can reach Thomson at the

following number:

800-283-6503

(Toll free inside U.S.A.)

Our toll-free Camcorder number

operates from 8 a.m. to 5 p.m., CST

Monday - Friday

for U.S. customers only

Thomson provides a toll-free telephone

number to help you with any problems

you may encounter with your camcorder. Many can be diagnosed over the phone,

and if necessary, a replacement unit can be shipped to you. Please have your camcorder model/serial number and date

of purchase ready when you call. If your unit is out of warranty, we will quote the

cost of a repair or replacement unit to you.

Returning equipment to Thomson for repair or exchange

If we are unable to resolve your problem

over the phone, we will gladly service your unit or exchange it for a new or, at our option, refurbished camcorder.

Refer to the limited warranty on the reverse side to learn about your specific

rights and responsibilities.

Always consult Thomson and get a

Return Authorization number before returning anything! Obtain a Return

Authorization (RA) number from the telephone representative before returning

your equipment to avoid delays, accounting errors, or even loss of your

unit.

Important information to customers

Thomson Consumer Electronics

The Thomson representative who authorized the return of your equipment

will give you an RA number over the phone. They will also provide you with

instructions on where and how to return your camcorder. Write the number in

large, clear characters on the outside of

the box. To avoid confusion and misunderstandings, shipments without an

RA number clearly visible on the outside of the box will be returned to you at your

expense. Include a brief note describing the

problem and any conversations about the problem you have had with Thomson

personnel. Include your name, address

who ship defective equipment to

and model/serial number of your camcorder. These numbers are located

on the bottom of your unit. If your camcorder is within the warranty period,

please provide a copy of the bill of sale

to verify purchase date. Use the original

box and packing material to protect the

equipment from damage in shipment.

For your protection, insure all shipments

for full replacement value and use a

reliable shipper. Thomson assumes no

responsibility for warranty shipments from the customer to the factory if not

shipped in the manner prescribed by

Thomson.

" :' ;"_--;i: 5;.. :':,.... ,. 2..-¸ _.

What your warranty covers:

• Any defect in materials or workmanship. For how long after your purchase:

• 90 days for labor charges.

• One year for parts. The warranty period for rental units begins

with the first rental or 45 days from date of shipment to the rental firm, whichever

comes first.

What we will do:

During the initial 90 days

• Exchange your camcorder with a new or refurbished unit, or repairyour camcorder.

The option will be ours. There will be no cost to you.

After the 90 days and within one year

• Exchange your camcorder with a new or refurbished unit, or repair your camcorder.

The option will be ours. Parts will be provided at no charge, but you will be

responsible for the cost of labor required for the repair.

How you get service:

• Call 1-800-283-6503 and have your unit's date of purchase and model/serial number

ready. The model/serial number information is on the bottom of your

camcorder.

• A representative will troubleshoot your problem over the phone. If the representative determines that you should

receive a replacement unit, you will be provided with a Return Authorization (RA) number and the location of a nearby

exchange point if one exists. No returns will be accepted without the RA number.

To receive a replacement camcorder before

you return yours:

If you are located near an exchange point:

1. We will send a replacement unit to the

exchange point next business day delivery in the continental USA.

2. The exchange location will notify you of its arrival.

3. Take 5,our unit, excluding all accessories, and your evidence of purchase date, such as a bill of sale, to the exchange location and you will be provided the new or

refurbished unit.

4. If the repairs were covered by your warranty, you will not be billed.

If you are not located near an exchange

point:

1. Provide your Discover, MasterCard o1" Visa account number and expiration date

to our phone representative. This is for security purposes. If we receive your unit within 14 days from the date you were

provided an RA number, only items not

covered by warranty will be charged to

your account. IF YOUR UNIT IS NOT RECEIVED WITHIN 14 DAYS, THE

SUGGESTED RETAIL VALUE OF THE CAMCORDER WILL BE

CHARGED TO YOUR CREDIT CARD. This amount will be credited if

the unit is subsequently received.

2. We will send you a replacement unit next

business day delivery in the continental USA.

3. You will receive an invoice packed with the replacement product, but will not be

charged for the unit portion of the invoice amount if we receive your unit within 14 days from the date you were provided the

RA number. Any labor and parts charges not covered by the warranty will be included and charged against your

account.

4. Ship the unit back to us using the replacement unit's carton. Shipping

instructions will be included in the carton along with your RA number, which will

alloxv you to easily ship the unit back to

US.

Make sure you insure your shipment in case of damage or loss.

Include with the shipment:

• Evidence of purchase date, such as a bill

of sale, to verify your unit's warranty eligibility.

• A brief note describing your camcorder's problem.

• Your name, address, and phone number.

Return transportation, storage, handling, and insurance costs are your sole responsibility. We accept no liability in case of damage or

loss.

To receive a replacement unit after we have received your unit:

1. Write the RA number on the outside of the carton used to return the unit. Make

sure you insure your shipment in case of damage or loss.

2. Carefully pack the unit using the original

box and packing material if possible.

3. Include with the shipment:

• Evidence of purchase date, such as a bill of sale, to verify your unit's warrant 5,

eligibility.

• A brief note describing your camcorder problem.

• Your name, address, and phone number.

Return transportation, storage, handling, and

insurance costs are your responsibility. We

accept no liability in case of damage or loss.

4. The representative will advise the address to mail a cashier's check or money order

tor payment if there are any out of warranty labor or parts charges, and you

elected not to use your credit card.

5. Upon receipt of your product and applicable payment, a new or refurbished

unit will be shipped to you next day delivery in the continental USA.

To have your Camcorder repaired by an

Authorized RCA Camcorder Servicenter:

• Check with your dealer or call 1-800-336-

1900 for the Authorized RCA Camcorder

Servicenter nearest w)u.

• Take your unit to the Authorized RCA

Camcorder Servicenter of your choice.

• Show the Authorized RCA Camcorder Servicenter representative evidence of

purchase date, such as a bill of sale.

• Pick up your camcorder when repairs are complete.

What your warranty does not cover:

• Adjustment of customer controls.

• Damage from misuse or neglect.

• A unit that has been modified or

incorporated into other products or is used for institutional or other commercial

purposes.

• Batteries for remote control and clock.

• Cleaning of video/audio heads.

• Camcorders purchased or serviced outside the USA.

• Return transportation, storage, and

handling costs of your unit, including insurance for loss or damage.

• Acts of God, such as but not limited to

lightning damage.

Product Registration:

• Please complete and mail the Product Registration Card packed with your

camcorder. It will make it easier to contact you should it ever be necessary.

The return of the card is not required for

warranty coverage.

How State Law relates to warranty:

• This warranty gives you specific legal rights, and you may have other rights that

vary from state to state.

If you purchased your camcorder

outside the USA:

• This warranty does not apply. Contact your dealer for wawanty

information.

A. (Audio) DUB Indicator ..... 24,39,41

A!V DUB Indicator ............. 24,41

Accessories, Included .............. 3

Accessories, Optional .......... 58-65

Accessory Lens, Attaching ......... 61

Accessory Order Form .......... 63-65

Adapter/Charger, Using .......... 4,10

Adjustments and Checks ........ 68-70

AE Displays .................. 20,24

AI (Artificial Intelligence) ......... 19

Assistance ...................... 71

Attaching Adapter/Charger ....... 4,10

Attaching the Rechargeable Battery .. 12

Attaching the Shoulder Strap ....... 56

Audio Dubbing ............... 38-39

Audio/Video Dubbing .......... 39-41

A UDIO/VIDEO Jacks

..... ........ 8,38-41,46-47,50,52

AUTO Date Display .............. 27

A V (Audio/Video) OUT/IN Switch

............. 8,38-41,46-47,50,52

AV DUB Button ........... 8,25,39,41

Battery, Attaching and Removing .... 12

Battery Care and Storage .......... 13

Battery Charging ................. 11

Battery, Clock ................... 27

BATTERY EJECT Lever ......... 9,12

Battery Level Indicator ....... 14,24-25

Battery, Rechargeable .......... 11-14

Battery Safety Precautions ......... 13

BRIGHT Control ................. 23

Bulb Replacement,Video Light ..... 55

Camcorder, Cleaning ............. 67

Camcorder Operating Controls ..... 8-9

Camcorder, Powering .......... 10-15

Camcorder, Recording On From a

VCR or TV Monitor ........ 46-47

Camcorder. Unpacking ............. 3

CAMERA/O FF/VCR Switch..5,7,12,19,

..... 26-27,39,41,42-44,47,48,51,53

Car Cord, Optional ............. 15,59

Card, Registration ................. i

Care and Maintenance .......... 66-67

Care and Storage, Battery .......... 13

Care and Storage, Cassettes ........ 17

Carrying Case, Packing ............ 57

Cassette Door .................. 9,17

Cassette, Inserting and Removing . .6,17

Cassette Tips .................... 18

Cassettes, Video ............... 16-17

Charging the Battery .............. 11

Chart of Title Characters ........... 43

Checking Battery Power ........... 14

Checks and Adjustments ........ 68-70

Cleaning the Camcorder ........... 67

Clock Battery, Charging ........... 27

Color Enhancement Light ....... 54-55

Contents ....................... 1-2

Copying Tapes ........... 46-47,50-51

Correcting the Date and Time ....... 26

Customer Assistance. 1,3,71,Back Cover

Date and Time Displays ...24-25,26-27

Date and Time Recording .......... 27

DA TERIME Button ........ 8,25,26-27

DC IN 9.6V Jack .................. 9

Design Specifications ............. 58

DIGITAL EFFECTS Button ..... 29-32

DISPLAY Button .......... 8,24-25,36

Dubbing ..................... 38-41

Edit Search ..................... 37

EDIT--ADV Button .......... 8,42-44

EIS (Electronic Image Stabilizer) Button 33

Electronic Indexing ............... 21

Erase Protection ................. 16

Eyepiece Focus Control ........ 6,8,22

F.FWD Button . .8,19,26,36,37,39,41,49

• _:..-_-:_ ::__i_;i_:;. _

FADE Button ............... 8,24,35

FADE Indicators .............. 24,35

Fading ........................ 35

First-Time Operation ............. 3-9

Flying Erase Head ................ 37

Focus, Auto and Macro ............ 20

Handstrap ...................... 5,9

INDEX Indicator ............ 21,24-25

Indexing, Electronic .............. 21

Information to User ............... 57

Lens Hood ....................... 8

Lens Cap Holder .................. 9

Lens Cap, Remove ................ 5

Lens Hood, Removing ........... 8,61

Lens, Cleaning .................. 67

LIGHT A UTO/OFF/ON S witch .... 8,55

Light Bulb, Replacing ............. 55

Light, Built-in ............... 8,54-55

Limited Warranty ............. 74-76

Maintenance and Care .......... 66-67

Memory Stop Feature ............. 36

Microphone ................... 8,19

NO TAPE Indicator ............ 24-25

Operating Controls, Camcorder ..... 8-9

Operation, First-Time ............ 3-9

Optional Accessories ........... 58-65

Optional Car Cord ............. 15,59

Order Form, Accessories ........ 63-65

PA USE Indicator .............. 39,41

Picture Search ................... 49

PLAY Button .... 7,8,37,39,41,48,51,53

Playback on a TV with

A UDIO/VIDEO IN Jacks ..... 50-51

Playback on a TV

without Audio/Video Inputs . .52-53

Playback, First .................... 7

Playback, Viewfinder ............. 48

Plug Adapter, Optional ............ 10

Power Zoom Buttons ........ 24-25,28

Powering Your Camcorder ...... 10-15

Problem Solving .............. 68-70

Product Registration ............... i

ProEdit Features .............. 37-44

Program AE (Auto Exposure) ....... 20

Quick Review ................... 19

REC Indicator .................. 7,24

REC/PA USE Button

....... 7,9,35,36,39,41,44,49,51,53

Rechargeable Battery ........... 11- 14

Recording Date and Time .......... 27

Recording on the Camcorder ..... 46-47

Recording Speed ................. 16

Recording Tips .................. 45

Recording Titles ................. 44

Recording, First ................... 7

Registration Card .................. i

Removing Lens Hood ............. 61

Removing the Rechargeable Battery .12

Replacing Bulb of Video Light ...... 55

RESET Button ................. 8,36

REVIEW Button ................ 8,19

REW (Rewind) Button

.......... 7,8,19,26,36,37,39,41,49

RF DC OUT Jack ............... 8,52

RF Output Adapter .......... 52-53,60

Safety Information ................. i

Safety Precautions, Battery ......... 13

Safety Tab ...................... 16

Set the Date and Time ............. 26

Shoulder Strap Attachment Rings . .9,56

Shoulder Strap, Attaching .......... 56

Solving Problems.............. 68-70

SP(StandardPlay) Speed .......... 16

Specifications ................... 58

StatusDisplays .................. 24

StopAction Pause................ 49

STOP/EJECT But_on

...... 6,7,8,17,19,26,36,39,41,51,53

Tab, Safety ..................... 16

Table of Contents ................ 1-2

TAPE END Indicator ........... 24-25

TAPE Indicator ............... 24-25

Tape Copying ........... 46-47,50-51

Tape Counter ................. 24,36

Tape Positioning ................. 19

Things to Avoid ................. 66

Tilt Adjustment .................. 23

Time and Date Display .... 24-25,26,27

Time and Date Recording .......... 27

Time Remaining Display ........ 21,25

Tips, Cassette ................... 18

Tips, Recording .................. 45

Tips, Traveling .................. 18

Title Select + and - Buttons .... 8,42-44

Title Select Button ........... 8,42-44

TITLER Button .............. 8,42-44

Titler ....................... 42-44

TRACKING (Also Power Zoom)

Buttons ................... 48-49

Traveling Tips ................... 18

Tripod, Using ................... 62

Trouble Checks ............... 68-70

Unpacking the Camcorder .......... 3

Using a Tripod .................. 62

Using Adapter/Charger ............ 10

Using the Rechargeable Battery .. 11-14

VIDEO/A UDIO Jacks ...............

................ 8,38-41,46-47,50,52

Video Cassettes ............... 16-17

Video Light .................. 54-55

Viewfinder ........... 6,8,22-23,48,67

Viewfinder Playback .............. 48

Viewfinder, Cleaning ............. 67

Warranty, Limited ............. 74-76

Zoom Buttons ................. 9,28

Zoom Level Control ............ 24,28

Zooming ....................... 28

_11__ -_I_I__L_ _li_ IfI

Need Assistance.9 We want to help!

U.S. Consumers:

Customer Service 800-336-1900

Accessories 800-338-0376

Canadian Consumers:

English 800-522-0338 French 800-522-0445

Please do not send any products to the

Indianapolis address listed in this manual or

on the carton. This will only add delays in

service for your product.

g,_t11'IOMSON CONSUMER ELECTRONICS

10330 N Meridian Street

Indianapolis, IN 46290

Marca(s) Registrada(s) Printed in Japan

TOCOM 15242600

QR16002

RCA CC434 User Manual

Specifications and Main Features

Frequently Asked Questions

User Manual
