RCA 13R400TD User Manual

TV/DVD

User's Guide

Changing Entertainment. Again.

Important Information

CAUTION

RISK OF ELECTRIC SHOCK DO

NOT OPEN

Caution: To reduce the risk of electric shock, do not remove cover (or back). No user serviceable parts inside. Refer servicing to qualified service personnel.

This symbol indicates important instructions accompanying the product.

This symbol indicates that this product incorporates double insulation between hazardous mains voltage and user accessible parts. When servicing use only identical replacement parts.

This symbol indicates "dangerous voltage" inside the product that presents a risk of electric shock or personal injury.

Notes:

This DVD player is designed and manufactured to respond to the Region Management Information. If the Region number of a DVD disc does not correspond to the Region number of this DVD player, this DVD player cannot play the disc. The Region number for this DVD player is Region No 1.

This device is protected by U.S. patent numbers 4,631,603 and 4,577,216 and 4,819,098 and other intellectual property rights. The use of Macrovision’s copy protection technology in the device must be authorized by Macrovision and is intended for home and other limited pay-per-view uses only, unless otherwise authorized in writing by Macrovision. Reverse engineering or disassembly is prohibited.

WARNING

To reduce the risk of fire or electric shock, do not expose this product to rain or moisture.

The apparatus shall not be exposed to dripping or splashing and that no objects filled with liquids, such as vases, shall be placed on the apparatus.

CAUTION

THIS PRODUCT UTILIZES A LASER. USE OF CONTROLS OR ADJUSTMENTS OR PERFORMANCE OF PROCEDURES OTHER THAN THOSE SPECIFIED HEREIN MAY RESULT IN HAZARDOUS RADIATION EXPOSURE. DO NOT OPEN COVERS AND DO NOT REPAIR YOURSELF. REFER SERVICING TO QUALIFIED PERSONNEL.

Refer to the identification/rating label located on the back panel of your product for its proper operating voltage.

FCC Regulations state that unauthorized changes or modifications to this equipment may void the user’s authority to operate it.

Caution: Using video games or any external accessory with fixed images for extended periods of time can cause them to be permanently imprinted on the picture tube (or projection TV picture tubes). ALSO, some network/program logos, phone numbers, etc. may cause similar damage. This damage is not covered by your warranty.

Cable TV Installer: This reminder is provided to call your

attention to Article 820-40 of the National Electrical Code (Section 54 of the Canadian Electrical Code, Part 1) which provides guidelines for proper grounding and, in particular, specifies that the cable ground shall be connected to the grounding system of the building as close to the point of cable entry as practical.

Product Registration

Please fill out the product registration card (packed separately) and return it immediately. For U.S. customers: Your RCA Consumer Electronics product may also be registered at www.rca.com/productregistration. Registering this product allows us to contact you if needed.

CLASS 1

LASER

PRODUCT

Product Information

Keep your sales receipt to obtain warranty parts and service and for proof of purchase. Attach it here and record the serial and model numbers. These numbers are located on the product.

Model No. ____________________ Serial No. __________________Purchase Date: ____________________

Dealer/Address/Phone: ______________________________________________________________________

Table of Contents

Explanation of Jacks and Cables ........ 2

Video Jacks and Cables .......................................2

Audio Jacks and Cables ....................................... 2

Top Panel Controls ............................... 3

The Buttons On the Remote control ..4

TV Function Buttons ............................................ 4

DVD Function Buttons......................................... 5

Putting Batteries in the Remote......... 5

TV Menus .............................................. 6

TV Menu Navigation ............................................6

The PICTURE menu ...............................................6

The SOUND menu .................................................7

The TIMER menu ...................................................7

The FUNCTION menu ...........................................7

The PARENTAL CONTROL menu

and V-CHIP ..................................... 8

Blocking TV Ratings .......................................... 10

Blocking Specific Content Themes ................ 11

V-Chip Movie Rating Limit ............................. 12

Parental Guide On (Activate V-Chip) ........... 13

Child Lock ............................................................ 13

Change Password............................................... 13

DVD Menu Navigation ....................... 16

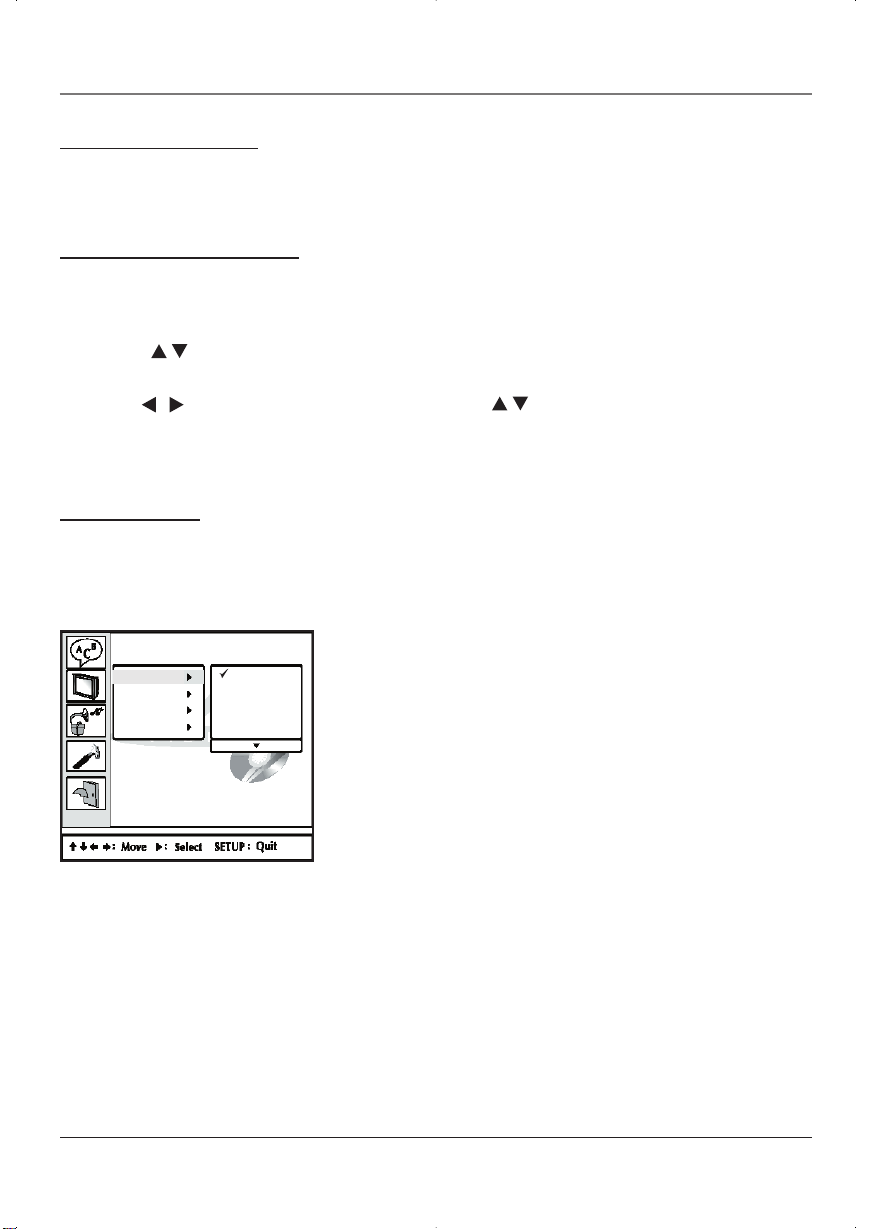

Setup Menus ....................................... 16

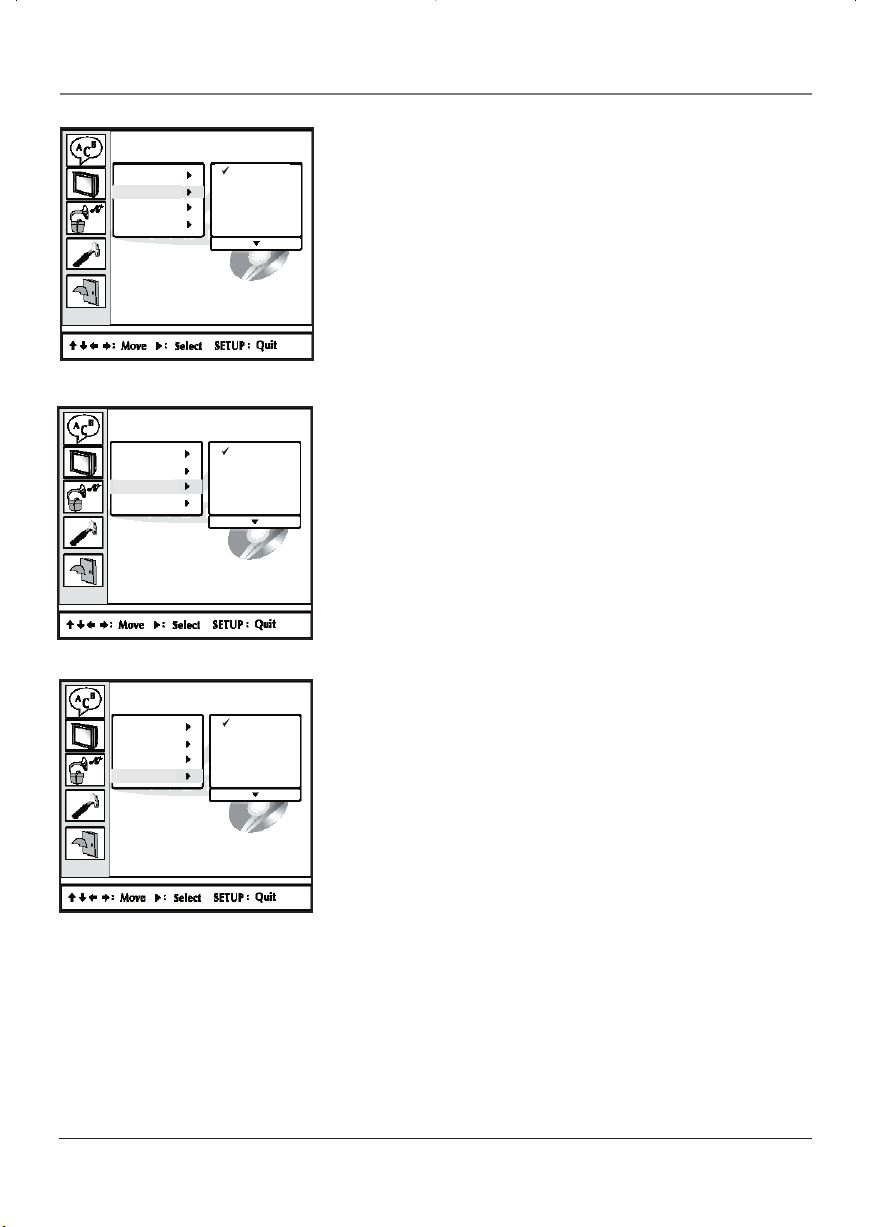

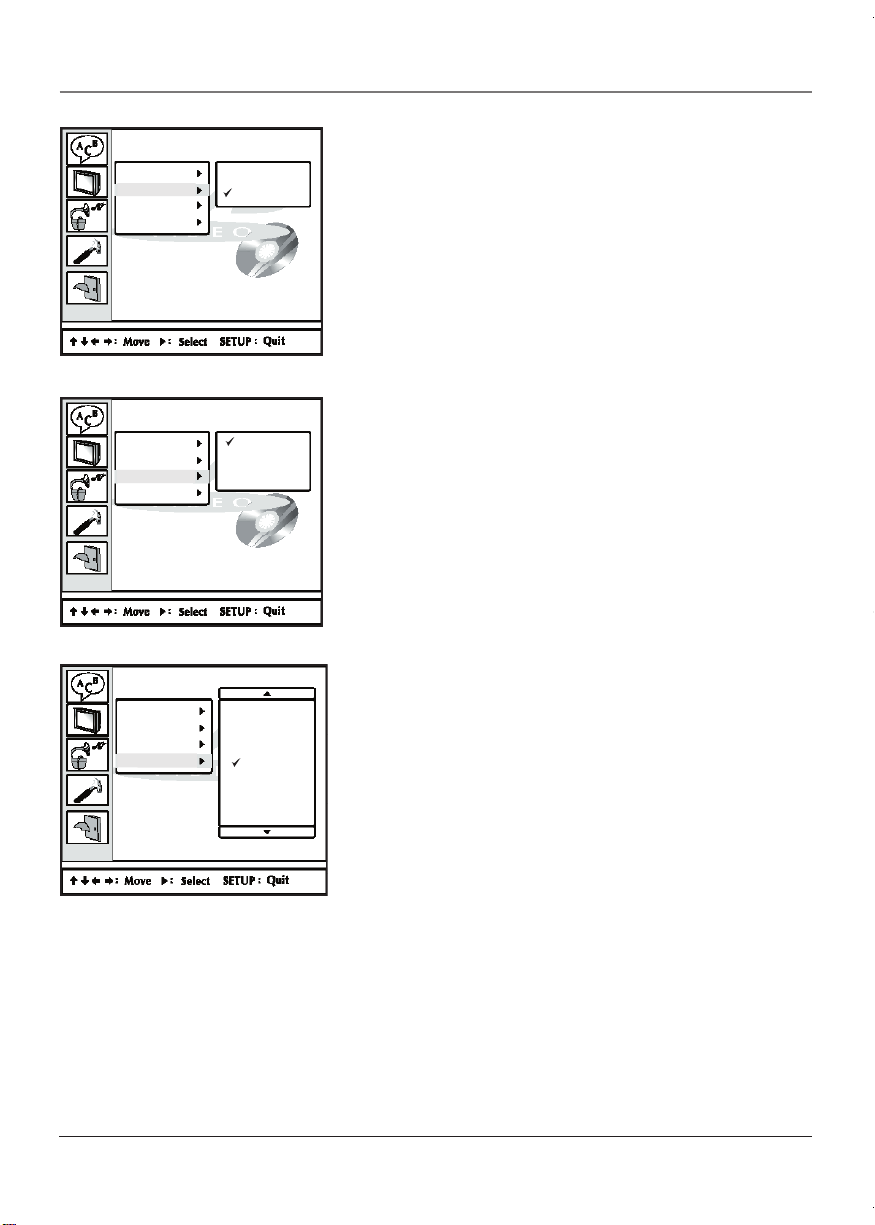

The Language Setup Menu ............................. 16

OSD ........................................................................ 16

Menu ..................................................................... 17

Audio ..................................................................... 17

Subtitle ................................................................. 17

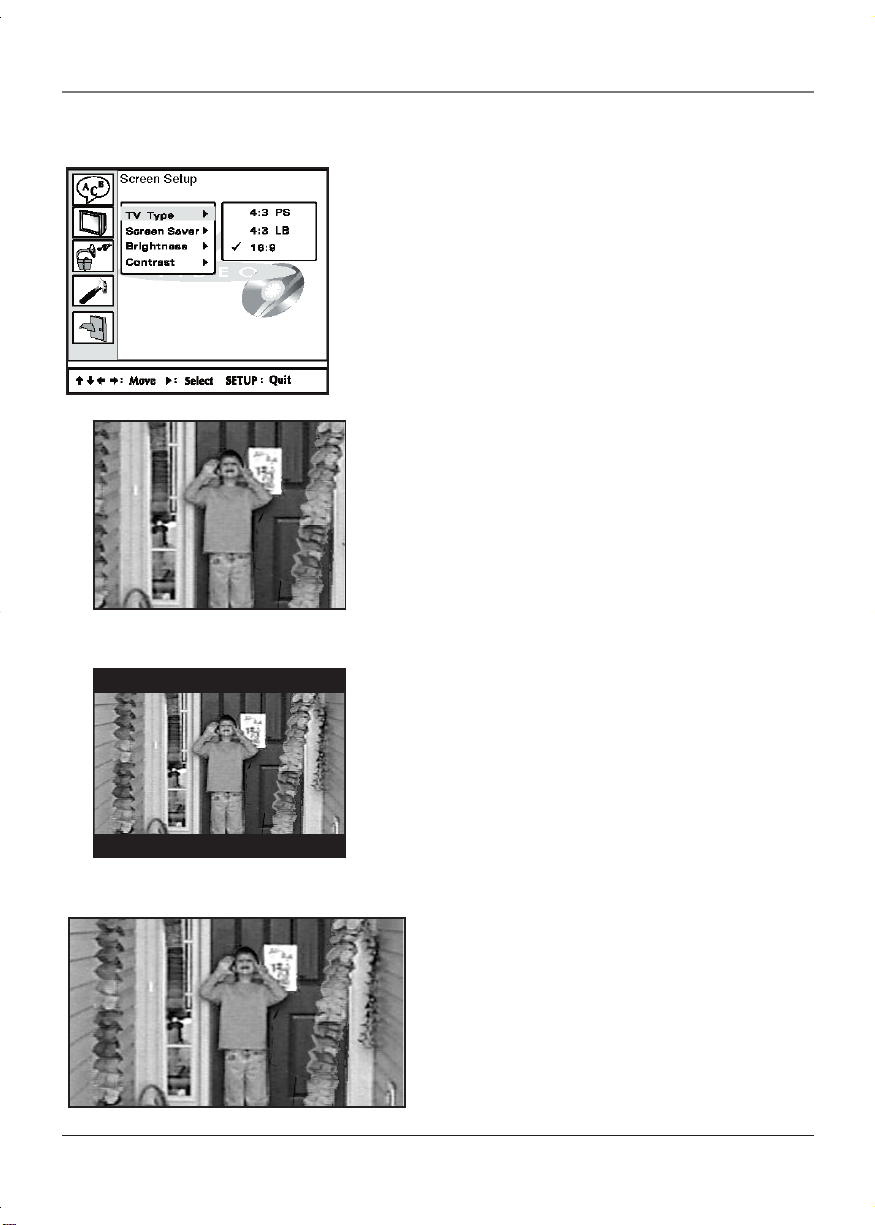

The Screen Setup Menu ....................18

TV Type.................................................................. 18

Screen Saver........................................................ 19

Brightness ............................................................ 19

Contrast ................................................................ 19

The Audio Setup Menu ......................20

(not available on model 13R400TD)

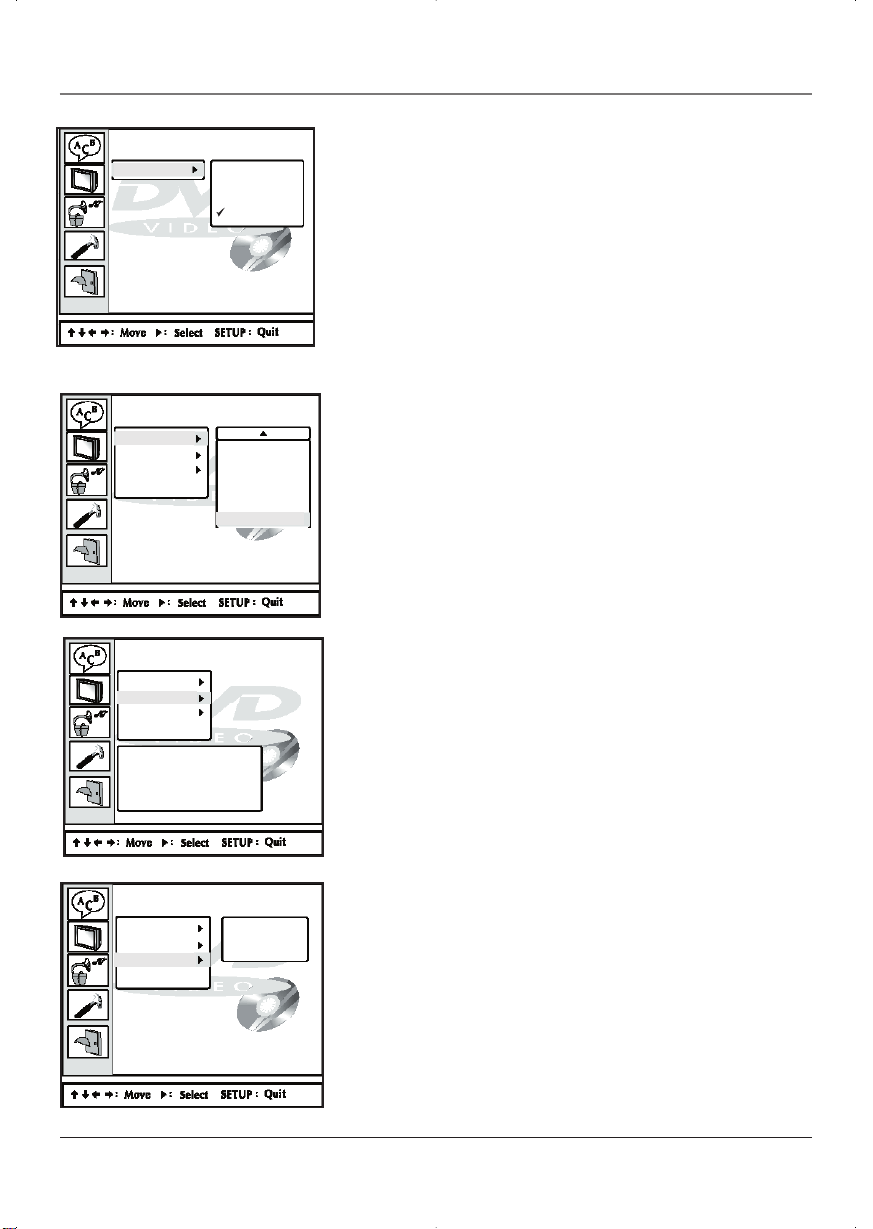

The Custom Setup Menu ................... 20

Parental Ctrl ........................................................ 20

Password .............................................................. 20

Defaults ................................................................ 20

Playing Audio CDs ..............................21

Scan Disc .............................................................. 21

Track Advance or Reverse................................ 21

Pause ..................................................................... 21

DVD Basics ..........................................14

Regional Coding ................................................. 14

Using Different Menus ..................................... 14

Types of Discs Your DVD Will Play ................ 14

Search Options ...................................15

Picture Scan ........................................................ 15

Skip ........................................................................ 15

Playback Options ................................15

Chapter Advance................................................ 15

Repeat ................................................................... 15

Zoom ..................................................................... 15

DVD Menu System ............................. 16

Table of Contents 1

Playing mp3 Discs .............................. 21

Playing Picture CDs ............................ 22

Playing CD-ROM files (JPEG

or mp3) .........................................22

Troubleshooting .................................. 23

Recommendations and information

concerning discs ...........................26

Additional Information ......................27

Maintenance of Cabinet .................................. 27

Formation of Condensation ............................ 27

Limited Warranty ...............................28

Connections and Setup

(

back panel

ANTENNA IN

L (MONO

)

VIDEO

(

sid

e panel

)

VIDEO

AUDI

)

INPUT

HEADPHONE

Explanation of Jacks and Cables

You can connect other components to your TV/DVD player such as a VCD, video camera or audio receiver. There are several ways to connect your other components to your TV/DVD player depending upon the cables you have and the jacks that are on the back of the components. Different jacks and cables provide a different level of performance. The jacks on the back of your TV/DVD Player and the cables used to connect them are explained below.

Note: If you do not connect a cable, antenna, or another component to your TV, the TV will automatically

shut off after 15 minutes to save power.

VIDEO Jacks and Cables

The basic Video jack (usually color-coded yellow) is also referred to as composite video. Composite video is better than the video quality you get from an RF coaxial cable (the type used to plug the cable feed into a TV).

VIDEO

L (MONO

)

Usually the video cable is bundled with the audio cables (white and red).

AUDIO L (left) and R (right) Jacks and Cables

These jacks send the audio from other components to the TV. The audio jacks and cables are often color-coded (red for right audio, and white for left audio). You must connect audio cables to the AUDIO L and R jacks on the TV/DVD Player and the corresponding Audio Input Jacks on the component no matter which Video jack you connect (VID1, DVD, FRONT).

Note: If your component has only one input for audio (mono), connect it to the left (white L/Mono) audio jack on the TV and don’t connect the right audio part of the cable.

2 Connections and Setup

Connections and Setup

Top Panel Controls

If you cannot locate your remote, you can use the top panel buttons of your TV to operate many of the TV/ DVD’s features.

INPUT Toggles the Video Input Channels from TV, VID1, DVD, FRONT.

VOL- Decreases the volume. In the menu system, acts like the left arrow button on the remote control and

adjusts menu controls.

VOL+ Increases the volume. In the menu system, acts like the right arrow button on the remote control and adjusts menu controls.

CH- Scans down through the current channel list. In the menu system, acts like the down arrow button on the remote control and adjusts menu controls.

CH+ Scans up through the channel list. In the menu system, acts like the up arrow button on the remote control and adjusts menu controls.

POWER Turns the TV/DVD on and off.

Play/Pause Plays/pauses disc playback.

Stop Stops disc playback.

Open/Close Opens and closes the disc tray.

Connections and Setup 3

The Remote Control

DVD

VCR TV

VOL

MUTE GO BACK

CLEAR

OKOK

PRESETS

GUIDE

123

INPUT

REVERSE

RECORD

SPEED

AGAIN

PLAY

STOP

ZOOM

ON OFF

SKIP

INFO

ANTENNA

FORWARD

PAUSE

OPEN CLOSE

The Buttons On the Remote control

TV Function Buttons

TV Puts the remote in TV mode. When the TV is off, press to turn on the TV.

Mute Lowers the volume to the minimum level. Press again to restore volume.

ON•OFF Turns the TV on and off.

VOL (+/-) buttons Decreases or increases the volume.

CH (+/-) buttons Scans up or down through the current channel list.

Press once to change the channel; press and hold to continue changing channels.

Go Back Returns to the previous channel. If you are in the menu system, GO BACK takes you to the previous menu screen.

CLEAR Removes a menu or display from the screen and returns you to TV viewing. For menus with digit inputs, pressing CLEAR will clear the last number entered.

MENU Displays the Picture menu.

Arrow buttons ( through the on-screen menu system.

OK button When a menu is on screen, press OK to toggle the item that is highlighted on or off.

PRESETS Brings up picture presets.

SKIP Press the button twice to begin channel scan. Press again to select

the current channel.

CC Turns closed captioning on and off.

INFO Displays channel information. Press again to remove the

information from the screen.

0-9 (Number buttons) Use the number buttons to enter channel numbers. To enter a two-digit channel, press the two digits. To enter a three-digit channel, press and hold the first digit for two seconds until two dashes appear to the right of the number, then add the second two. Example: to tune a channel 123, press and hold 1 for two seconds, press 2, then press 3.

INPUT Toggles between available inputs.

/ / ) Press the arrow buttons to navigate

4 The Remote Control

DVD

VCR TV

VOL

MUTE GO BACK

CLEAR

OKOK

PRESETS

GUIDE

123

INPUT

REVERSE

RECORD

SPEED

AGAIN

PLAY

STOP

ZOOM

ON OFF

SKIP

INFO

ANTENNA

FORWARD

PAUSE

OPEN CLOSE

The Remote Control

DVD Function Buttons

DVD Puts the remote in DVD mode.

CH+/CH- ( , ) advances to the next chapter or track.

reverses to the preceding chapter or track.

MENU Displays menus and other options that are available on the current disc (if the disc contains this information).

Arrow buttons ( the on-screen menu system.

OK button When a menu is on the screen, press OK to select the item that is highlighted on or off.

GUIDE When the DVD player is not playing a disc, displays the DVD player setup menu.

INFO Displays the title, chapter and time information. Press again to remove information from the screen.

SKIP Advances the title, chapter, or time counter to a specific location on a DVD. See page 15 for more information.

0-9 (Number buttons) Use to input information such as chapter numbers, and track numbers.

FORWARD Searches forward through a disc while it is in play mode. Press repeatedly to increase speed.

PLAY Begins disc play (and closes disc tray if it is open).

PAUSE Pauses disc play. When disc play is paused, press PLAY or PAUSE

to resume playback.

REVERSE Searches backward through a disc while it is in play mode. Press repeatedly to increase speed.

STOP Stops disc play.

AGAIN Press to repeat a chapter or title on DVDs, or a track or disc for

audio CDs.

ZOOM Zooms in on the picture when playing DVD discs.

OPEN/CLOSE Press this button to open/close the DVD drawer.

/ / ) Press the arrow buttons to move through

Putting Batteries in the Remote

Remove the cover of the battery compartment. Insert two AAA batteries, with the polarities as indicated, inside the compartment. Replace the cover.

Note: If you are not going to use the remote for a long period of time, remove the batteries to avoid damage due to leakage.

The Remote Control 5

Using TV Menus

TV Menus

TV Menus let you control picture quality and features available for TV viewing. There is a different menu system for DVD features, described on page 16.

TV Menu Navigation

1. To bring up the TV menu, press the MENU button.

2. Use the arrow buttons ( submenu icon at the top of the menu.

) on the remote (or the VOL +/- buttons on the top of TV) to highlight a

3. Press the

4. Use the arrow buttons ( setting.

5. Press the MENU button on the remote to exit the menu system.

Note: Make sure that the remote control is in the TV mode.

/ buttons on the remote (or CH +/- on the top of TV) to select the option.

) on the remote (or the VOL +/- buttons on the top of TV) to change the

The PICTURE Menu

The PICTURE menu allows you make adjustments to your picture


CONTRAST 1 BRIGHTNESS 18 COLOR 50 SHARPNESS 50 TINT 0 COMBFILTER ON COLOR TEMP NORMAL

settings.

CONTRAST Use the /

BRIGHTNESS Use the

COLOR Use the

SHARPNESS Use the

TINT Use the

contrast between the light and dark areas of the picture.

brightness of the picture.

color intensity or saturation.

sharpness of the picture.

balance between the red and green levels.

arrow buttons to adjust the

COMBFILTER Turns the comb filter on or off.

COLOR TEMP Provides three color adjustments: Cold for

more blue in the picture, Normal, and Warm for more red in the picture.

6 Using TV Menus

SOUND

PRESET USER BASS 50 TREBLE 50 BALANCE 0 SURROUND OFF

TIMER

SLEEP TIMER 20

Using TV Menus

The SOUND menu

The SOUND menu offers different audio options.

PRESET Provides four preset audio settings

BASS Use the

TREBLE Use the

BALANCE Use the

SURROUND Turns the surround sound on or off.

The TIMER menu

SLEEP TIMER Use the

(USER /SPEECH/THEATER/MUSIC).

low-pitched sound.

high-pitched sound.

speaker balance.

automatically off after a given time. Press the clock (up to two hours).

arrow buttons to decease/increase

arrow buttons to adjust left/right

arrow buttons to turn the TV

arrow button to add 10 minutes to the

The FUNCTION menu

LANGUAGE Selects the language you want the menus to

FUNCTION

LANGUAGE ENGLISH BLACK STRETCH OFF NOISE REDUCE OFF CLOSE CAPTION CC1 CC ON MUTE ON

BLACK STRETCH Turns the black stretch function on or off.

NOISE REDUCE Turns the noise reduce function on or off .

CLOSE CAPTION Offers eight closed captioned modes,

CC ON MUTE When turned on, automatically brings

Using TV Menus 7

be displayed in.

including four text modes.

up close captioning when the MUTE button is pressed.

Using TV Menus

The TUNING menu

SOURCE Selects AIR or CABLE. Select AIR to receive

TUNING

SOURCE AIR CHANNEL 18 DELETE CH NO FINE TUNE AUTO SEARCH

CHANNEL Use the

DELETE CH Select YES to skip the channel above. `

FINE TUNE Fine tunes a channel for best reception.

AUTO SEARCH Starts channel search and stores the

The PARENTAL CONTROL menu and V-CHIP

The Parental Controls menu allows you to program your TV/DVD so that children cannot see certain programs and channels.

The Parental Controls menu involve software inside your TV/DVD (V-Chip) which allows you to “block” TV programs and movies based on violence, sex, or other content you think children should not view. It lets you program your TV so it will not display certain programs. You can “unblock” programs by entering a password.

When Parental Controls is turned ON the software reads a code that most broadcasters send with programs. That code tells the software the program’s age-based rating (TV-MA, TV-14, etc.) and content themes (Violence (V), Adult Language (L), etc.).

Broadcasters are not required to provide content themes, so programs received with no content themes will only be blocked if you block their age-based rating. You can also block out programs that have been given a rating of “Not Rated,” and programs that are considered “unrated” because no code has been sent by the broadcaster.

a broadcast signal. Select CABLE to receive a CATV signal.

/ the VOL +/- button on the top of the TV) to scroll through the channels available via your antenna. You can enter the channel number directly using the number buttons.

Select NO to go to the channel above.

channels automatically.

buttons on the remote ( or

The TV age-based ratings are listed in the table on the following page.

PASSWORD You need a password to enter the PARENTAL CONTROL menu. The initial password is 5898.

PARENTAL GUIDE Select “OFF” to turn V-CHIP off. Select “ON” to activate V-CHIP.

TV RATING Select to display the TV Rating submenu.

The TV ratings and content themes you can block are listed on pages 10 and 11.

The first time you use this menu you should change the password.

When you enter the correct password, the PARENTAL GUIDE menu is displayed.

8 Using TV Menus

+ 22 hidden pages
