Page 1

U S E R M A N

U A L

M O D E L : R Z 0 9 - 0 2 70

Page 2

PACKAGE CONTENTS

Razer Blade Laptop

Power adapter + regional power cord

Micro-fiber cleaning cloth

Important Product Information Guide

F O R G A M E R S . B Y G A M E R S .

™

Page 3

DEVICE LAYOUT

A. Array microphone B. Webcam indicator light C. Built-in webcam D. 15.6” Display E. Power button F. Stereo speakers G. Backlit keyboard

H. Precision glass touchpad

Front LED power indicator

F O R G A M E R S . B Y G A M E R S .

J. Thunderbolt™ 3 port (USB-C™) K. USB 3.1 ports L. HDMI 2.0 port M. Mini DisplayPort™ 1.4 N.

Kensington security slot

O. Power port P. Gigabit Ethernet port Q. 3.5 mm combo port

™

Page 4

SETTING UP YOUR RAZER BLADE

CONNECT THE POWER ADAPTER AS FOLLOWS:

Make sure that the AC plug is properly inserted into the power outlet and the power adapter. Insert the power adapter’s connector into the Razer Blade’s power port. Press the power button to turn on your Razer Blade.

*Use the appropriate power cord for your region.

For first time use, please fully charge your Razer Blade or connect it to a power outlet before turning it on. It takes at least 2 hours to fully charge the Razer Blade.

F O R G A M E R S . B Y G A M E R S .

™

Page 5

CONNECTING TO THE INTERNET

Disclaimer: The screens shown are subject to change based on the current version of your Operating System. The software version is Windows 10 Pro.

1. Click the wireless network icon ( ) to bring up the Wireless network list. The system will automatically search for wireless networks in range.

F O R G A M E R S . B Y G A M E R S .

™

Page 6

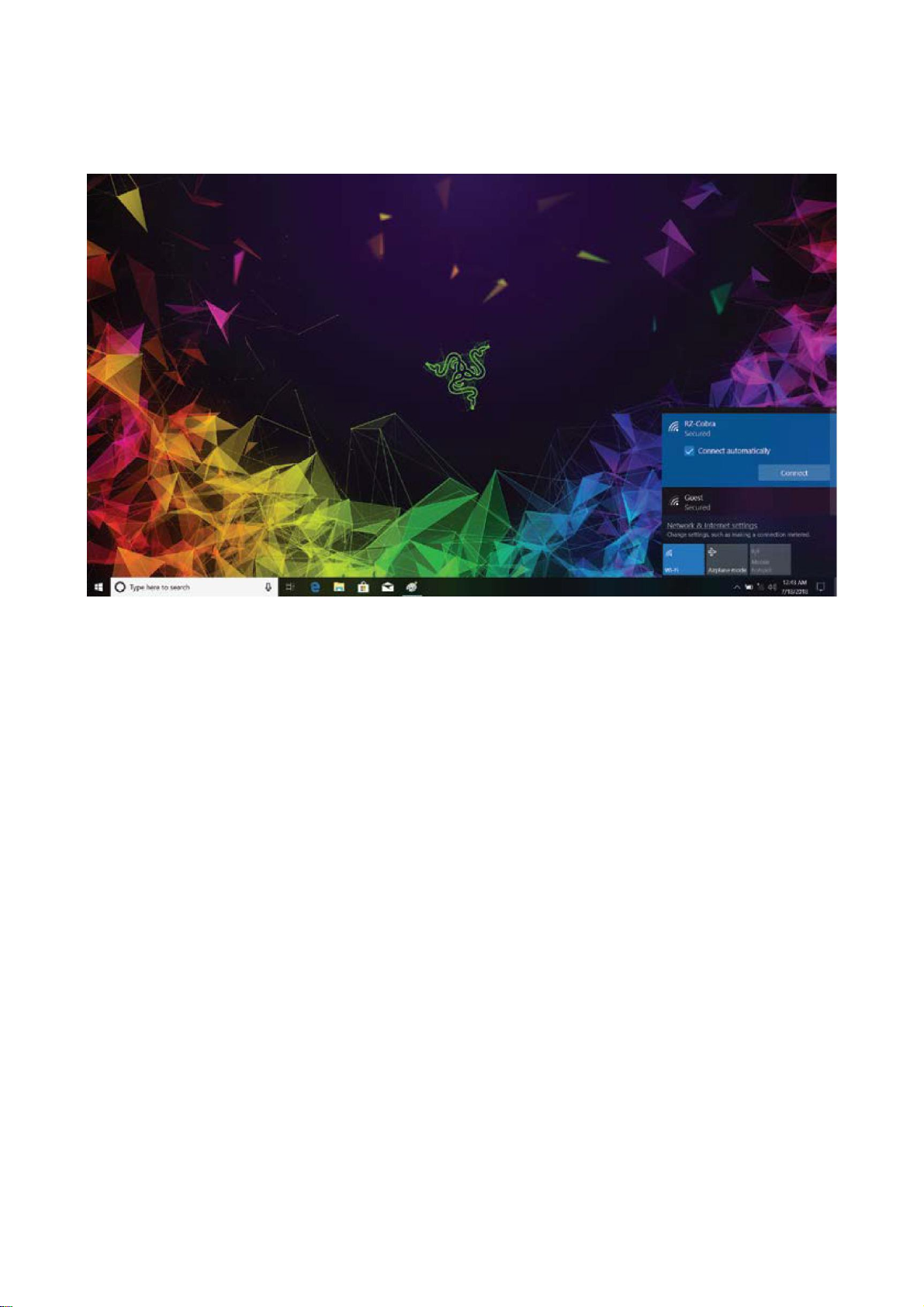

2. Click the network you wish to connect to and click Connect.

F O R G A M E R S . B Y G A M E R S .

™

Page 7

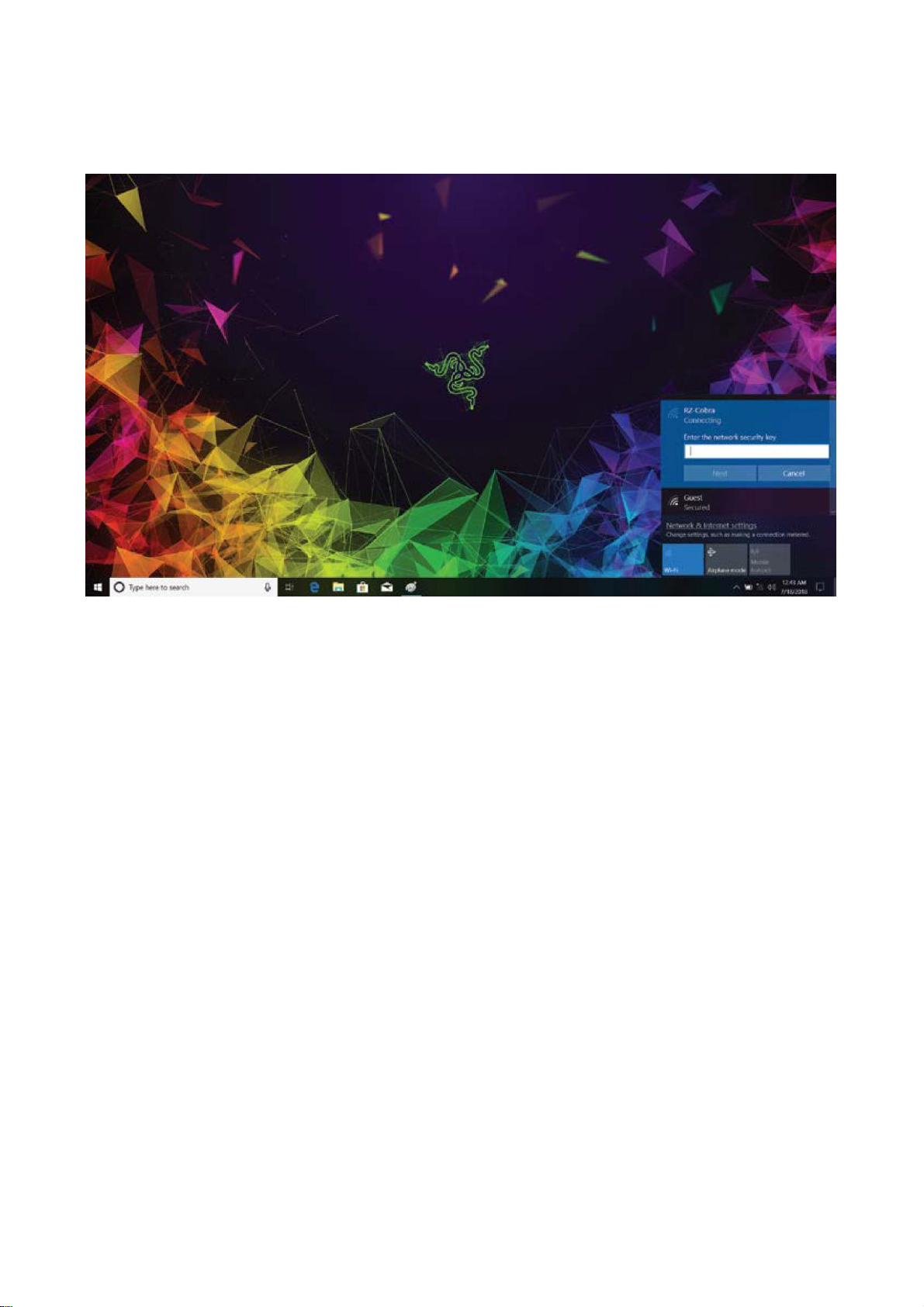

3. Enter the network password (if any) and select whether to enable network sharing. Click Next.

4. Once you are connected to the wireless network, click anywhere outside the window to return to the desktop.

F O R G A M E R S . B Y G A M E R S .

™

Page 8

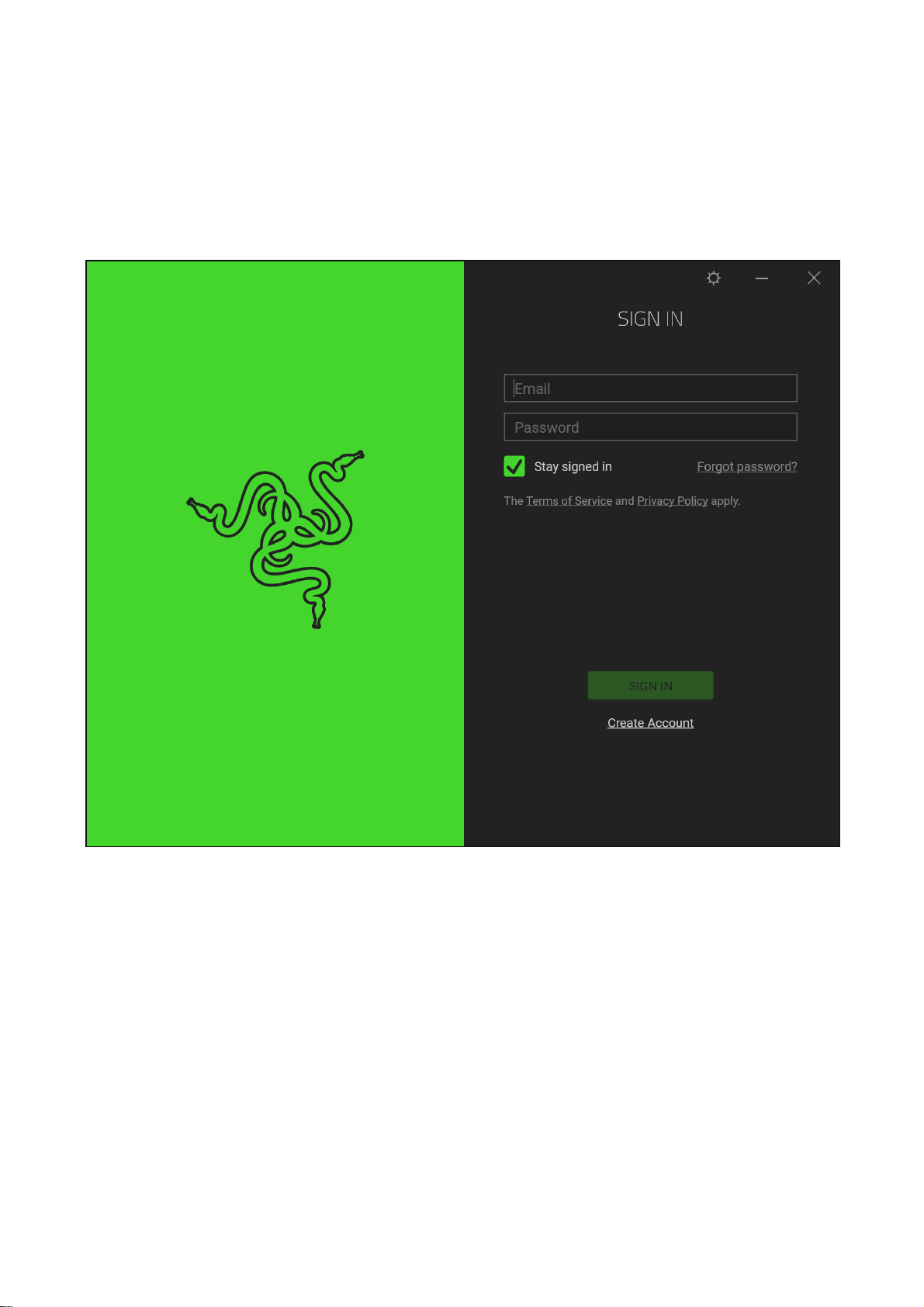

RAZER SYNAPSE 3 ACCOUNT CREATION & INSTALLATION Razer Synapse 3 allows your Ra zer Blade and other supported Razer peripherals to download drivers

and firmware updates. Razer Synapse 3 also enables your custom settings to be stored on cloud servers so that they can be accessed anytime, anywhere.

1. Razer Synapse 3 will start automatically once you enter Windows 10.

2. Register for a Razer Synapse 3 account and confirm your new account.

3. Open Razer Synapse 3 and login to your account.

4. Wait until Razer Synapse 3 automatically downloads and installs the necessary drivers.

F O R G A M E R S . B Y G A M E R S .

™

Page 9

( ( ( ( (

USING YOUR RAZER BLADE

STATUS INDICATOR

Sleep On

Front LED indicator

KEYBOARD FEATURES

Low battery (10% left)

Low battery (3% left)

Pressing the “FN” key in combination with the function keys will activate their secondary functions.

Function keys Secondary function description

The audio volume controls allow you to mute ( ), decrease ( ) and increase ( ) the audio output.

Toggles the monitor output.

The media keys allow you to play/pause ) the current track, return to the

F O R G A M E R S . B Y G A M E R S .

previous track ) or skip to the next track ).

The screen brightness keys allow you to decrease ( ) or increase ( ) the brightness of the Razer Blade’s screen.

The LED control keys allow you to decrease ) or increase ) the brightness of your keyboard’s LEDs.

™

Page 10

REGISTRATION / TECHNICAL SUPPORT

REGISTRATION Register your product online at razerid.razer.com/warranty using your Razer ID to get real-time

information on your product’s warranty status.

If you haven’t registered for a Razer ID yet, register now at razerid.razer.com to get a wide range of Razer benefits.

F O R G A M E R S . B Y G A M E R S .

™

Page 11

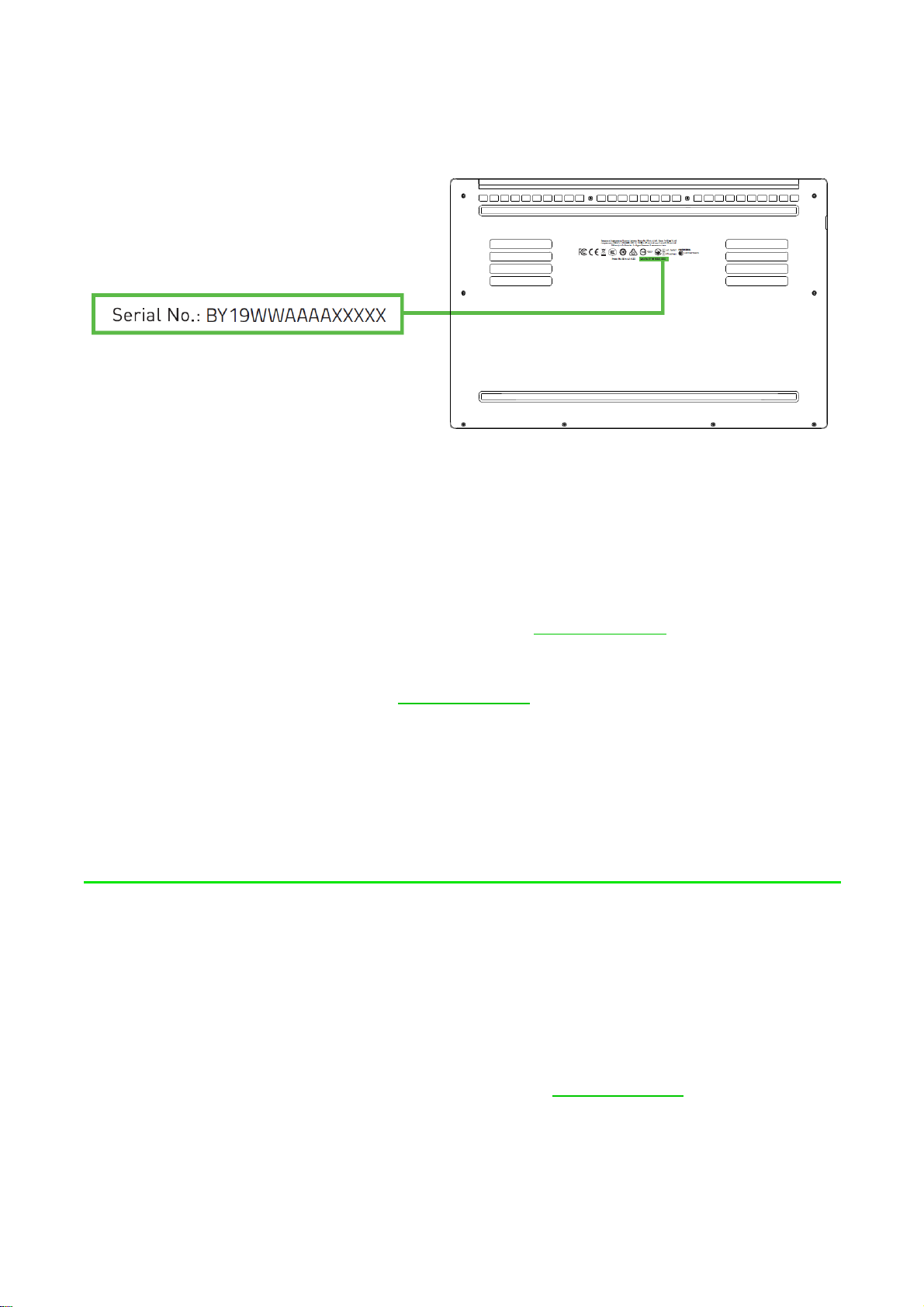

Y o ur p r od uc t ’s s er i al n um b er c an

b e f o un d h er e .

TECHNICAL SUPPORT

1 year limited manufacturer’s warranty.

1 year limited battery warranty.

Access to manual and free online technical support at support.razer.com

Please refer to the Online Master Guide at support.razer.com for in-depth instructions on how to configure and use your Razer Blade.

SAFETY AND MAINTENANCE

SAFETY GUIDELINES In order to achieve maximum safety while using your Razer Blade, we suggest that you adopt the

following guidelines:

1. Should you have trouble operating the device properly and troubleshooting does not work, unplug the device and contact the Ra zer hotline or go to support.razer.com for assistance.

F O R G A M E R S . B Y G A M E R S .

™

Page 12

2. Do not take apart the device (doing so may void your warranty) and do not attempt to operate it under abnormal current loads.

3. Keep the device away from liquid, humidity or moisture. Operate the device only within the specific temperature range of 0°C (32°F) to 40°C (104°F). Should the temperature exceed this range, unplug and/or switch off the device in order to let the temperature stabilize to an optimal level.

COMFORT Research has shown that long periods of repetitive motion, improper positioning of your computer

peripherals, incorrect body position, and poor habits may be associated with physical discomfort and injury to nerves, tendons, and muscles. Below are some guidelines to avoid injury and ensure optimum comfort while using your Razer Blade.

1. Position your laptop directly in front of you. If you have an external mouse, position it next to the laptop. Place your elbows next to your side, not too far away and your mouse within easy

reach.

2. Adjust the height of your chair and table so that the laptop is at or below elbow height.

3. Keep your feet well supported, posture straight and your shoulders relaxed.

4. During gameplay, relax your wrist and keep it straight. If you do the same tasks with your hands repeatedly, try not to bend, extend or twist your hands for long periods.

5. Do not rest your wrists on hard surfaces for long periods. When using an external mouse, use a wrist rest to support your wrist while gaming.

6. Do not sit in the same position all day. Get up, step away from your desk and do exercises to stretch your arms, shoulders, neck and legs.

7. If you should experience any physical discomfort while using your laptop, such as pain, numbness, or tingling in your hands, wrists, elbows, shoulders, neck or back, please consult a qualified medical doctor immediately.

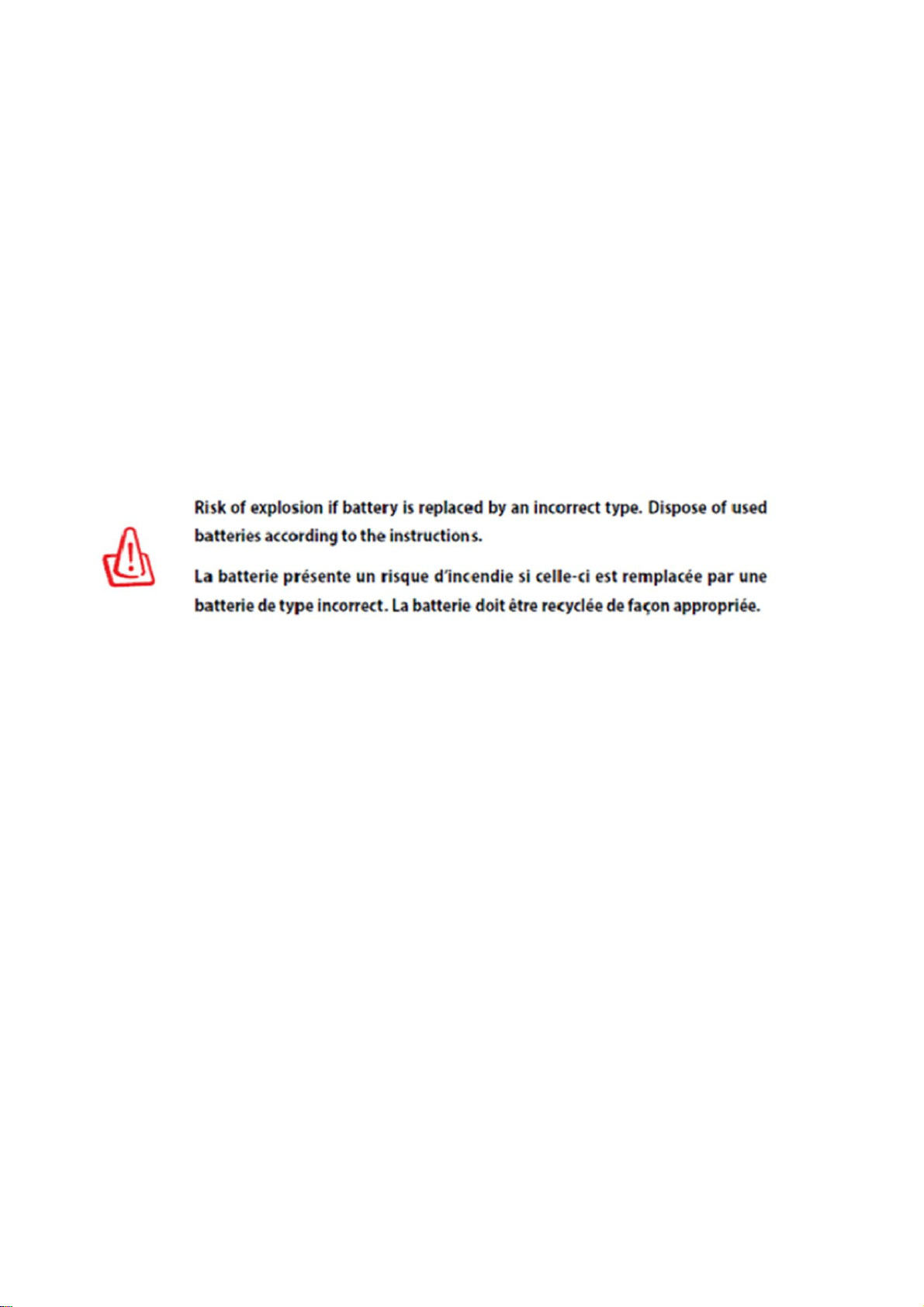

BATTERY WARNING The Razer Blade contains an internal, lithium-ion rechargeable battery. In general, the life expectancy

of such battery is dependent upon usage. If you suspect that the lithium-ion rechargeable battery inside the Razer Blade may be drained (has a low charge), try charging it. If the battery does not recharge after several attempts, it may be non-operational.

Do not open, mutilate, or expose to conducting materials (metal), moisture, liquid, fire, or heat. Doing so may cause the battery to leak or explode, resulting in personal injury. Do not use or charge the battery if leaking, discolored, or deformed. Do not leave the rechargeable battery discharged or unused for extended periods. When not using your Razer Blade battery for more than 30 days, be

F O R G A M E R S . B Y G A M E R S .

™

Page 13

sure to store the battery in a fully charged state. Do not tamper with the battery. Dispose of the used battery according to local regulations.

FCC DECLARATION OF CONFORMANCE This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant

to part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation. This equipment generates, uses and can radiate radio frequency energy and, if not installed and used in accordance with the instructions, may cause harmful interference to radio communications. However, there is no guarantee that interference will not occur in a particular installation. If this equipment does cause harmful interference to radio or television reception, which can be determined by turning the equipment off and on, the user is encouraged to try to correct the interference by one or more of the following measures:

Reorient or relocate the receiving antenna.

Increase the separation between the equipment and the receiver.

Connect the equipment into an outlet on a circuit different from that to which the receiver is

connected.

Consult the dealer or an experienced radio TV technician for help.

For more information, refer to the online help system on razer.com.

FCC CAUTION STATEMENT Any changes or modifications not expressly approved by the party responsible for compliance could

void the user's authority to operate this equipment.

This device complies with Part 15 of the FCC Rules. Operation is subject to the following two conditions:

This device may not cause harmful interference, and

This device must accept any interference received, including interference that may cause

undesired operation.

IMPORTANT NOTE: FCC Radiation Exposure Statement:

This equipment complies with FCC radiation exposure limits set forth for an uncontrolled environment. End users must follow the specific operating instructions for satisfying RF exposure compliance. This transmitter must not be co-located or operating in conjunction with any other antenna or transmitter.

F O R G A M E R S . B Y G A M E R S .

™

Page 14

USAGE RESTRICTIONS This Razer device was developed and designed to comply with the various wireless and telecom

agency requirements throughout the world. This ensures that the device do not cause any harm to Public Switching Telecommunication Networks (PSTN) and do not violate any power and frequency spectrum allocations on a country by country basis. This device was also designed to be compliant with regulatory agency limits for Electromagnetic Compatibility (EMC).

IMPORTANT NOTICE FOR USE IN HEALTHCARE ENVIRONMENTS This Razer device is not a medical device and is not listed under UL or IEC 60601 (or equivalent). This

device should be kept at a certain distance to avoid harmful effects to patients or medical equipment.

AVIATION USAGE RESTRICTIONS Certain restrictions apply to this device while on-board an aircraft. Razer encourages you to

understand these restrictions to ensure the flight’s safety and security.

F O R G A M E R S . B Y G A M E R S .

™

Page 15

LEGALESE

By Gamers.”, and “Powered by Razer Chroma” logo are trademarks or registered trademarks of Razer Inc. and/or affiliated companies in the United States or other countries.

Windows and the Windows logo are trademarks of the Microsoft group of companies.

DisplayPort™ and the DisplayPort™ logo are trademarks owned by the Video Electronics Standards Association (VESA®) in the United States and other countries. Manufactured under license from Dolby Laboratories.

Dolby, Dolby Atmos, and the double-D symbol are registered trademarks of Dolby Laboratories.

Thunderbolt and the Thunderbolt logo are trademarks of Intel Corporation in the U.S. and/or other countries.

The terms HDMI and HDMI High-Definition Multimedia Interface, and the HDMI Logo are trademarks or registered trademarks of HDMI Licensing LLC in the United States and other countries.

Razer Inc. (“Razer”) may have copyright, trademarks, trade secrets, patents, patent applications, or other intellectual property rights (whether registered or unregistered) concerning the product in this guide. Furnishing of this guide does not give you a license to any such copyright, trademark, patent or other intellectual property right. The Razer Blade (the “Product”) may differ from pictures whether on packaging or otherwise. Razer assumes no responsibility for such differences or for any errors that may appear. Information contained herein is subject to change without notice.

LIMITED PRODUCT WARRANTY For the latest and current terms of the Limited Product Warranty, please visit razer.com/warranty.

LIMITATION OF LIABILITY Razer shall in no event be liable for any lost profits, loss of information or data, special, incidental, indirect,

punitive or consequential or incidental damages, arising in any way out of distribution of, sale of, resale of, use of, or inability to use the Product. In no event shall Razer’s liability exceed the retail purchase price of the Product.

GENERAL These terms shall be governed by and construed under the laws of the jurisdiction in which the

Product was purchased. If any term herein is held to be invalid or unenforceable, then such term (in so

F O R G A M E R S . B Y G A M E R S .

™

Page 16

far as it is invalid or unenforceable) shall be given no effect and deemed to be excluded without invalidating any of the remaining terms. Razer reserves the right to amend any term at any time without notice.

Canada Statement This device complies with Industry Canada’s licence-exempt RSSs. Operation is subject to the following two conditions: (1) This device may not cause interference; and (2) This device must accept any interference, including interference that may cause undesired operation of

the device.

Le présent appareil est conforme aux CNR d’Industrie Canada applicables aux appareils radio exempts de

licence. L’exploitation est autorisée aux deux conditions suivantes : (1) l’appareil ne doit pas produire de brouillage; (2) l’utilisateur de l’appareil doit accepter tout brouillage radioélectrique subi, même si le brouillage est

susceptible d’en compromettre le fonctionnement.

"This transmitter must not be co-located or operating in conjunction with any other antenna or transmitter. This equipment should be installed and operated with a minimum distance of 0 mm between the radiator and your body.

Cet émetteur ne doit pas être Co-placé ou ne fonctionnant en même temps qu'aucune autre antenne ou émetteur. Cet équipement devrait être installé et actionné avec une distance minimum de 0 mm entre le radiateur et votre corps."

The device for operation in the band 5150-5250 MHz is only for indoor use to reduce the potential for harmful interference to co-channel mobile satellite systems

les dispositifs fonctionnant dans la bande 5150-5250 MHz sont réservés uniquement pour une utilisation à

l’intérieur afin de réduire les risques de brouillage préjudiciable aux systèmes de satellites mobiles utilisant

les mêmes canaux; This Class B digital apparatus complies with Canadian ICES-003.

Cet appareil numérique de la classe B est conforme à la norme NMB-003 du Canada. Hereby, Razer Inc. declares that the radio equipment type RZ09-0270 is in compliance with Directive

2014/53/EU. The full text of the EU declaration of conformity is available at the following internet address: www.razerzone.com.

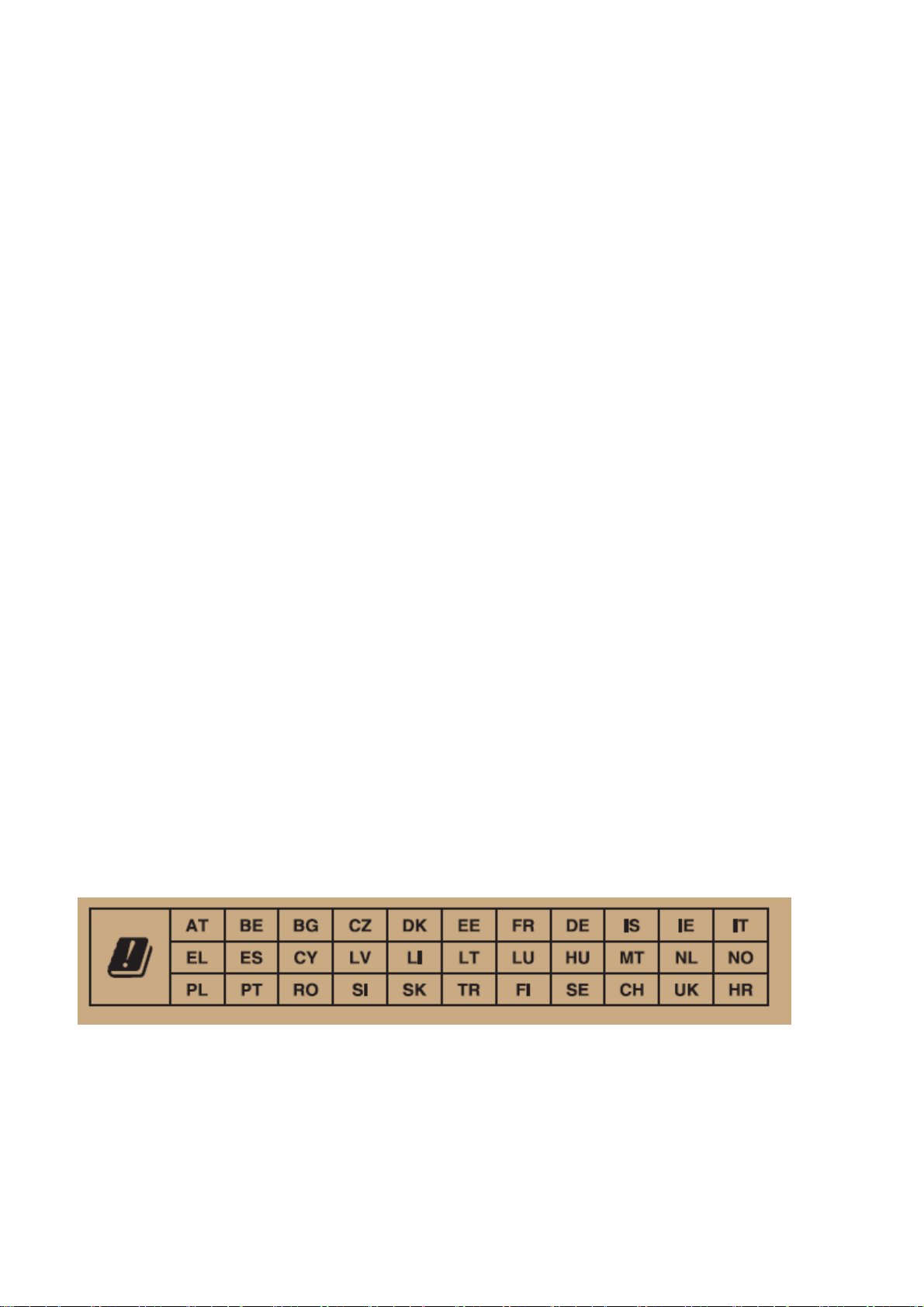

In all EU member states, operation of 5150-5350MHz is restricted to indoor use only.

Support Wireless Frequency (Max e.r.i.p):

BT 3.0（2402-2480MHz）:6.37dBm BT LE（2402-2480MHz）: 6.46dBm WIFI 2.4GHz(2412-2472MHz):19.93dBm

WIFI 5GHz(5150- 5350MHz):22.93dBm WIFI 5GHz(5470 -5725MHz):22.89dBm WIFI 5GHz(5725-5850MHz):13.83dBm

RF exposure (SAR): The device can safely be used with a distance of 0 mm to the human body.
