Raytek RAYMI3100 Specifications

MI3

1M, 2M

Noncontact Temperature Measurement for Industrial Applications and OEMs

Raytek® MI3 – a new level of
innovation and performance
in noncontact temperature
measurement

MI3 1M, 2M Highlights

59

(2.31)

2

(0.08)

41

(1.625)

22

(.875)

19 (.76)

Full R

39

(1.54)

5

(.196)

5 (.196)

40

(1.52)

2X 13

(2X .50)

38

(1.5)

19

(.75)

2X 90º

2X 45º

Specifications

n

Innovative multi-sensor design–up to 8 sensing

heads/system, each individually addressable

n

Fast response times of 10 mSec

n

Standard laser target sighting

n

Rugged IP65 rated sensing heads survive ambient

temperatures to 120°C (248ºF) without cooling

n

Intuitive user interface with high resolution

LCD display for easy set-up

n

Precision high resolution 100:1 optics

n

User configurable analog outputs

(0/4-20mA, 0-5/10V, type J, K, R or S t/c)

n

Standard USB 2.0 digital interface for remote set-up

n

Optional network communications interfaces

RS485, Modbus

®

, Profibus, Ethernet and Profinet
analog all outputs with galvanic isolation
(Analog DIN 6TE variant only):
from power supply
from channel to channel

n

Isolated solid state alarm relay output

n

Adjustable Emissivity, Peak Hold, Valley Hold

and Averaging functions

n

Datatemp® Multi-drop and field calibration

software included

n

Full range of accessories

n

Automatic sensing head detection–plug and play

n

Built in HTTP-Server and 64 MB data logger for

communication boxes with Ethernet variant

®

The Raytek

MI3 is a powerful two-piece infrared temperature
measurement system with miniature sensing head and separate
communications electronics. The sensor is small enough to be installed
just about anywhere, yet it outperforms much larger systems. Available
in either a rugged cast metal electronics enclosure, an innovative multi­channel DIN mountable enclosure, or low cost OEM configurations, the
MI3 offers a host of advanced signal processing features you won’t
normally find in sensors costing much more.

The MI3 features a variety of sensing head options. High temperature
sensors with a measurement range of 250°C to 1800°C (482°F to
3272

°F), fast response (10 mSec), 1.0, 1.6 µm spectral response
sensors and laser sighted 100:1 optics provide an impressive solution
for your process needs. The rugged stainless steel sensing head ensures
reliable long term performance in the harshest industrial environments.
Although the MI3 sensor is small in size, it has all the performance you
need for the most demanding applications.

Standard features include adjustable Emissivity, Peak Hold, Valley Hold,
and Averaging functions. All sensor parameters are easily adjustable
on the built-in user interface keypad, or remotely with the Windows
7 compatible DataTemp software via the built-in USB interface.
Advanced features further extend the power of the MI3 and include
user configurable alarm output, digital “recipe” table inputs that can be
easily interfaced to an external control system, an external reset input for
signal processing, and external inputs for analog emissivity adjustment
or reflected energy compensation. Optional RS485, Modbus

®

, Profibus or
Analog output network interfaces simplify intergration with a factory or
machine control system.

The MI3’s miniature size and low cost per measurement point make
it ideal for installation at multiple points in your process. The MI3 is
accurate, rugged, affordable, easy-to-install and operate. With the MI3,
precision infrared temperature measurement is now an economical
alternative.

Raytek MI3 – a new level of innovation and performance
in noncontact temperature measurement!

Spectral Response:
1M 1

2M 1.6

µm

µm

Optical Resolution: 100:1 (1M/2M)
Temperature Range:

1M 500°C to 1800°C (932°F to 3272°F)

2M 250ºC to 1400ºC (482ºF to 2552ºF)

System Accuracy:
Digital interface ±(0.5% of reading or 2ºC) whichever is greater

mA/V output ±(0.5% of reading or 2ºC) ±1ºC
TC output ±(0.5% of reading or 2ºC) ±1.5ºC

System Repeatability: ±0.25% of reading or ±1ºC whichever is greater
Temperature Resolution: 0.1°C or 0.2°F *
System Response Time: 10ms (90%)
Emissivity: 0.100 to 1.100 digitally adjustable

Increments of .001
Transmission: 0.100 to 1.000 digitally adjustable

Increments of .001
Signal Processing: Peak hold, valley hold, variable averaging filter,

adjustable up to 998 seconds

Nominal Optical Specifications

SF1 D:S = 100:1

0

3.94

7.87

0.47

0.24

0.08

2

6

12

0

100

200 300

SF3 D:S = 100:1

0

0.47

12

0

1000

®

0.51

39.4

13

78.7

0.79220.87

20

2000 2200

90.5

11.8

0.31

15.7

19.7

0.55

8

14

400

157.5

118.1

1.18

30

3000

Air purge collar

Right angle mirror

D:S is the optical
resolution expressed as

in.

a ratio of the distance to

0.79

the measurement spot
divided by the diameter
of the spot.

Optical resolution for the

20

MI3 1M and MI3 2M is

mm

500

100:1.

Nominal spot size based
on 90% energy.

in.

1.65

42

mm

4000

Adjustable Mounting Bracket

Electrical Specifications MI3COMM

Digital Interface USB 2.0

(RS485, Modbus, Profibus, Ethernet and Profinet optional)

Outputs: Scaleable 4-20mA, 0-20mA, 0-10V, 0-5V,
J, K, R or S thermocouple,
0-5V head ambient output

Inputs: Digital inputs for emissivity control,
ambient background temperature
compensation, trigger/hold input

Alarm Relay: 48 VAC, 300 mA,
optically isolated solid state relay

Cable Length*: 1m (3.3ft) standard
3m (10ft), 8m (26ft) and 15m (50ft) optional

Output Impedance
(T/C output): 20 ohms

Minimum Load Impedance
(mV output): 10K ohms

Maximum Loop Impedance 500 ohms
(mV output):

Power Draw: 4W max
Power Supply: 8–32VDC
Environmental Rating: IP 65 (NEMA-4)
Electronics Housing: -10°C to 65°C (14°F to 150°F)
Storage Temperature: -20°C to 85°C (-4°F to 185°F)
Relative Humidity: 10 to 95%, non-condensing
Electronics Weight: 270g (9.5oz)
EMI/EMC/ESD IEC EN61326-1 1:2006

*Maximum total cable length of 30 m (98 ft) when used with
XXXMI3CONNBOX Multichannel interface box

Electrical Specifications MI3MCOMM

Sensor Head Inputs Maximum of 4
Digital Interface USB 2.0 and RS485 standard.

Outputs Scaleable 4-20mA, 0-20mA, 0-10V, 0-5V,
(Analog MI3MCOMMA Box) J, K, R or S thermocouple, 0-5V head
ambient output galvanic isolation

Inputs: Trigger input

Alarm Relay: 48 VAC, 300 mA, optically isolated

Cable Length*: 1m (3.3ft) standard
3m (10ft), 8m (26ft) and 15m (50ft) optional

Power Draw: 4W max

Power Supply: 8–32VDC

Electronics Housing: -10°C to 65°C (14°F to 150°F)

Storage Temperature: -20°C to 85°C (-4°F to 185°F)

Relative Humidity: 10 to 95%, non-condensing

*Maximum total cable length of 60m (197ft)

(Modbus, Profibus, Ethernet and Profinet optional)

Accessories

A full range of accessories for various applications and
industrial environments are available. Accessories include
items that may be ordered at any time and added on-site:

n

( XXXSYSPS) 24 VDC, 1.2A Power supply

n

( XXXMI3100FB) Fixed mounting bracket

n

( XXXMI3100ADJB) Adjustable mounting bracket

n

(XXXMI3100MN) Sensor head mounting nuts (2)

n

(XXXMI3100AP) Air purge collar

n

(XXXMI3100RAM) Right angle mirror

n

(XXXMI3CONNBOX) Multi-channel sensor interface box

for use with MI3COMM Box

n

(XXXUSB485) USB/RS485 Adapter for boxes with
RS485 interface

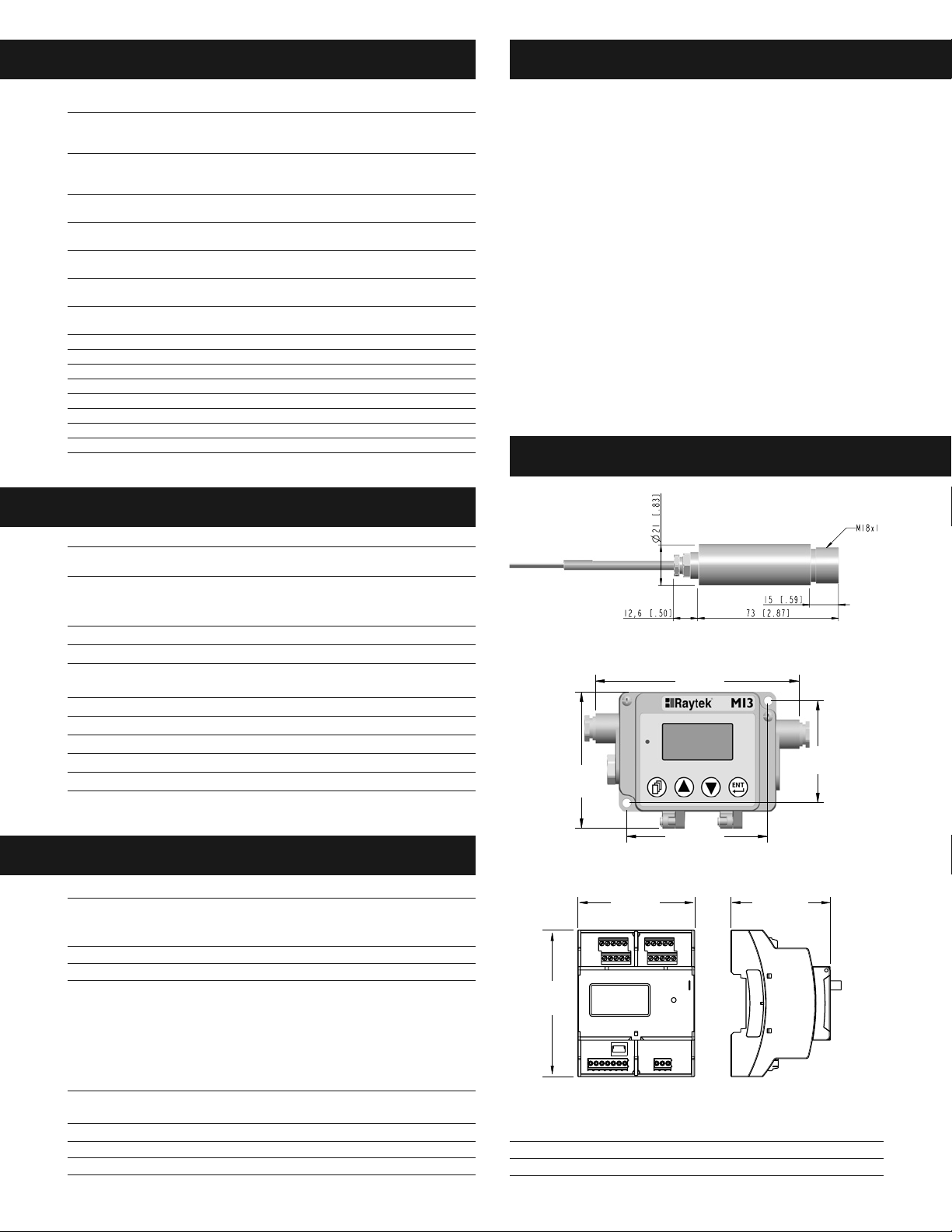

Sensor Dimensions

Sensing Head

MI3 Electronics Housing

104 (4)

52

69.3
(2.7)

(2)

Sensing Head Specifications

Environmental Rating: IP 65 (NEMA-4)
Head Ambient

Temperature Range:
1M and 2M models: -10ºC to 120ºC (14ºF to 248ºF)

Storage Temperature: -20°C to 85°C (-4°F to 185°F)
Relative Humidity: 10 to 95%, non-condensing
Construction:

Sensing head Stainless steel
Comm box (MI3) Zinc, die-cast
DIN Comm box (MI3M) Molded plastic
Sensing head cable PUR halogen free, flame
retardant insulation,
125°C (257ºF) max. temp

Weight:
Sensing head (w/3m cable) 240g (8.5oz)

Shock (sensing head) IEC 68-2-27 50g’s, 11ms, 3 axis
Vibration (sensing head) 68-2-6 3g’s, 10-150Hz, 3 axis
EMI/EMC/ESD IEC EN61326-1 1:2006

72.0 (2.8)

MI3M Multi-channel Electronics Housing

X

89.7

(3.53)

60.8 (2.39)

X Dimension Models

54 mm (2.1 in) RAYMI3MCOMMN
72 mm (2.8 in) RAYMI3MCOMM
108 mm (4.3 in) All other models

mm (inch)

mm (inch)

Sensing Heads

A

B C

D

RAYMI3

Optics

Each MI3 sensor system is comprised of (1) MI3 sensing head and (1) MI3COMM or MI3MCOMM communication module. The sensing head includes
one mounting nut and 1m (3.3ft) cable. Longer cables up to 15 m (50ft) maximum are available and must be specified at time of order. The MI3 sensing
head and MI3COMM box are ordered as separate items.

Temperature

Range

Model Options

Model

RAYMI3

Code A

100

Code B

1M 500°C to 1800°C (932°F to 3272°F)
2M 250ºC to 1400ºC (482ºF to 2552ºF)

Code C

SF1
SF3

Code D

CB3 3m (10ft) cable
CB8
CB15 15m (50ft) cable

Description

Miniature infrared sensing head with 1m (3.3ft) cable

Optical Resolution

100:1

Temperature Range

Optical Focus

200mm focus distance
2,200mm focus distance

Options

8m (26ft) cable

Communication Boxes

Model Description

RAYMI3COMM MI3 IR thermometer communication box with USB 2.0 communications, cast zinc housing and user-interface

RAYMI3COMM4 MI3 IR thermometer communication box with USB 2.0 communications and RS-485 communication option, cast zinc housing and user-interface

RAYMI3COMMM MI3 IR thermometer communication box with USB 2.0 communications and Modbus communication option, cast zinc housing and user-interface

RAYMI3COMMP MI3 IR thermometer communication box with USB 2.0 communications and Profibus communication option, cast zinc housing and user-interface

RAYMI3MCOMM Modular DIN mountable 4-channel IR communication box with user interface, USB 2.0 and RS485 communications

RAYMI3MCOMMM Modular DIN mountable 4-channel IR communication box with user interface, USB 2.0 and Modbus communications

RAYMI3MCOMMP Modular DIN mountable 4-channel IR communication box with user interface, USB 2.0 and Profibus communications

RAYMI3MCOMMN Modular DIN mountable 4-channel IR communication box with no user interface, display or RS485 interfaceIncludes USB 2.0 and alarm relay, only
RAYMI3MCOMMA Modular DIN mountable 4-channel IR communication box with user interface, USB 2.0 and 4 galvanic isolated analog outputs

RAYMI3COMME MI3 IR thermometer communication box with USB 2.0 communications and Ethernet communication and built in HTTP-Server option, cast zinc

RAYMI3COMMPN MI3 IR thermometer communication box with USB 2.0 communications and Profinet communication, cast zinc housing and user-interface
RAYMI3MCOMME Modular DIN mountable 4-channel IR communication box with user interface, USB 2.0 and Ethernet interface with built-in HTTP-Server.
RAYMI3MCOMMPN Modular DIN mountable 4-channel IR communication box with user interface, USB 2.0 and Profinet interface.

housing and user-interface
