High Performance Street Lighting
The Urban Plus series is a range of White-Light LED illuminators optimised for street and road lighting applications. With a
variety of wattages and optical distributions, Urban Plus is optimised for all ME/CE/S/P class applications. IP 66 rated and
made from robust marine grade aluminium, its powerful elliptical beam pattern allows for elevated mounting heights up to
15m, and the widest column spacing. Applications include multiple classes of roads, pedestrian routes, recreational, and
many other outdoor lighting purposes.
With an extremely low power consumption and high efficacy, Urban Plus delivers significant energy savings and outstanding
optical performance. It provides even output White-Light illumination and excellent colour rendition, delivering increased
safety and excellent visibility.
Urban Plus allows for a high speed installation, significantly reducing installation costs and time. It is provided in two
lightweight parts which can be installed by one person - half the labour required for lifting and installing traditional and
heavier street lighting. It is also supplied pre-wired with 11.2m of cable and plug, so that the electrician can wire in the
system at ground level – further reducing labour and time. Urban Plus is highly flexible. It features a unique and tool
free ‘Bi-Directional’ mounting system, to change the orientation of the head in only 3 seconds to accommodate for any
horizontal or vertical pole installation with no bracket modification – saving further installation time and labour costs. Urban
Plus also features an integrated ‘Easy-Beam’ adjustment system, allowing the user to alter the uplift of the illumination
to accommodate different mounting locations. This allows for high speed and precise commissioning without having to
demount or switch off the power – again saving installation time and labour costs.
All Urban Plus units feature a ‘Direct Thermal Transfer’ system. It uses the most direct heat channelling techniques with no
thermal barriers for the quickest and most effective heat dissipation over the large surface area, keeping the product cooler
and allowing the LEDs to deliver outstanding performance and consistency throughout the 50,000 hour operational life of
the illuminator. The Urban Plus series has been designed with easy access to the light engine, making it future proof any
upgradeable at any time. Urban Plus is available in 6 different optical distributions, with 13 different power options in 14,
28, 42, 56 and 70 LED arrangements.
Key Features
• Street Optimised Lighting for ME
CE/S/P Class applications
• Direct Thermal Transfer System
• High Speed Installation with 2 lightweight parts
• 100,000 Hours LED Life at L70 (50,000 driver lifetime)
• Various Power Consumptions
and Optical Distributions
• Quick Start
‘Easy-Beam’ Adjustment System ‘Bi- Directional’ Mounting System
• Bi-Directional Mounting System
• Excellent Colour Rendition & Even
Output Illumination
• Easy-Beam Adjustment System
• Surge Protection up to 10KV
•
High Efficacy- up to 106 lm
/W
• UMSUG coding is available for Urban
Plus illuminators
Raytec Global (excluding Americas) Raytec Americas:
Tel: +44 (0) 01670 520055
sales@rayteccctv.com
Version 2
www.rayteccctv.com
Tel: +1 613 270 9990
ussales@rayteccctv.com
Features Benefits
RAYLUX URBAN PLUS
Street optimised lighting for me/ce/s/p
applications
Various power consumptions and optical
distributions
High speed installation
Bi-directional mounting system
Easy-beam adjustment system
Direct thermal transfer system- optimum level
The powerful elliptical beam pattern allows for elevated
mounting heights up to 15m, and wide column spacing
needed for high performance street and road lighting.
Urban Plus offers a variety of different power consumptions
and optical distributions meaning that there is a solution for
any ME/CE/S/P class street lighting application
Provided in two lightweight parts each under 6kg, the
housing can be lifted by one person - half the labour required
compared to traditional and heavier street lighting. Also
supplied pre-wired with 11m of cable and plug for wiring at
ground level -significantly reduces installation time and costs.
The unique Bi-Directional mounting system allows the head
to be switched from horizontal to vertical mount in 3 seconds
– tool free adjustment with no bracket modification, further
reduces installation time and costs.
The Easy Beam Adjustments system allows the installer to
alter the uplift of the illumination to accommodate different
mounting locations and provide quick and easy
commissioning, without having to demount or switch off
power – high speed and precise.
Urban Plus features an integrated heat sink in the hood of the
unit for the most direct thermal transfer. It draws the heat
away from the LEDs and releases it straight out into the
atmosphere with no barriers to pass. The quick and direct
heat dissipation allows the LEDs to deliver outstanding
performance and consistency throughout the operational life
of the illuminator.
Product Dimensions
689
Raytec Global (excluding Americas) Raytec Americas:
Tel: +44 (0) 01670 520055
sales@rayteccctv.com
Version 2
www.rayteccctv.com
Tel: +1 613 270 9990
ussales@rayteccctv.com
209
249.6
76
276
Technical Specifications
RAYLUX URBAN PLUS
Number of LEDs
Power Consumption (W)
Total Luminous Flux (kilolumens)*
Efficacy (lm/w)
*Produc ed in acc ordance with I ES LM 79
11 16 21 26 31 47 48 65 79 90 120 154 170
1.1 1.7 2.1 2.6 3.3 4.6 5.1 6.4 7.6 8.9 11.9 14.9 16.4
100 106 100 100 106 98 106 98 96 99 99 97 96
Illuminator
CCT 4000K
CRI ≥70
S/P Ratio 1.2
Input Voltage 90-305 Vac
Input Frequency 45-63 Hz
Power Factor at 230V 50 Hz ≥0.9
Operating Temperature -40˚ to 45˚
Light Source SMT LED’s
Optics Optimised Lens Array
Wavelength White-Light
Product Weight 11.5 kg max
Dimensions 667 x 276 x 210mm (26” x11”x 8” approx)
Cable Length 11.2m(36.7 feet)
Aerodynamic Resistance End (max) 0.02 Front(max)0.09
Environmental IP66
14 28 42 56 70
Bracketry
RAPID DEPLOYMENT BRACKETRY INCLUDED
Post top and side entry mounting on Ø 60-76 mm poles
Optional Features
0-10v Dimming
Sensor Control
Constant Light Output
Automatic LED failure compensation system
Control Options
Photocell (NEMA or Miniature)
Standalone Dimming(DALI/0-10v)
CMS Compatible
Impact Resistance Glass 1K08 Polycarbonate 1K10
LED lifetime L70 at F10 100,000 hours at ambient of 25˚C in
Driver lifetime 50,000 hours at ambient of 25˚C
Design Standard Designed and manufactured to
Total Luminous
Flux & Efficacy
Materials PMMA lenses
accordance with IES LM 80
comply with EN60598
See table above
Polycarbonate or Glass Cover
IMS Board
Silicon Gasket
Optional Accessories
Spigot Adapter
PECU
Glare Shield
Glass Cover
Paint Colour (RAL Number)
Raytec Global (excluding Americas) Raytec Americas:
Tel: +44 (0) 01670 520055
sales@rayteccctv.com
Version 2
www.rayteccctv.com
Tel: +1 613 270 9990
ussales@rayteccctv.com
All Ray tec luminaires a re provi ded
with an industr y leading 5 year
warranty and have an expected
useful li fe in excess of 10 years
Available Beam Patterns
RAYLUX URBAN PLUS
STD Optic – Urban Road
Add ‘-STD’ to part code
NW Optic – Area
Add ‘-NW’ to part code
WD3 Optic – Residential Road
Add ‘-WD3’ to part code
ME Optic – M Class Road
Add ‘-ME’ to part code
WD Optic – Residential Road
Add ‘-WD’ to part code
ME2 Optic – M Class Road
Add ‘-ME2’ to part code
Build Your Own Part Code
The Urban Plus range offers a range of lighting solutions in various LED configurations, power consumptions and optical
distributions.
1) Start Part Code with UBPL
2) Select No of LEDs
3) Select Power Consumption
Number of LEDs
Power Consumption
4) Select Beam Pattern
There are 6 available beam patterns suitable for a variety of road classes. Add your chosen beam pattern to the end of part
code. E.g. UBPL-70-120-STD
Contact Raytec for details on which beam patterns are available per model
Raytec Global (excluding Americas) Raytec Americas:
Tel: +44 (0) 01670 520055
sales@rayteccctv.com
Version 2
www.rayteccctv.com
14 28 42 56 70
11, 16, 21, 26 31, 47 48, 65, 79 90 120, 154, 170
Tel: +1 613 270 9990
ussales@rayteccctv.com
RAYLUX URBAN PLUS
Energy Savings
Urban Plus has been designed to replace conventional lighting solutions in a wide range of applications including ME/
CE/S/P class of roads. Below are details of the potential savings and Return on Investment for 3 different scenarios.
Current Solution LED Solution Power Consumption Energy Saving
35W SOX Urban Plus 14 21W 37W 64%
135W SOX Urban Plus 42 79W 110W 58%
70W SON Urban Plus 28 31W 59W 66%
250W SON Urban Plus 70 154W 144W 48%
60W CPT Urban Plus 28 31W 39W 56%

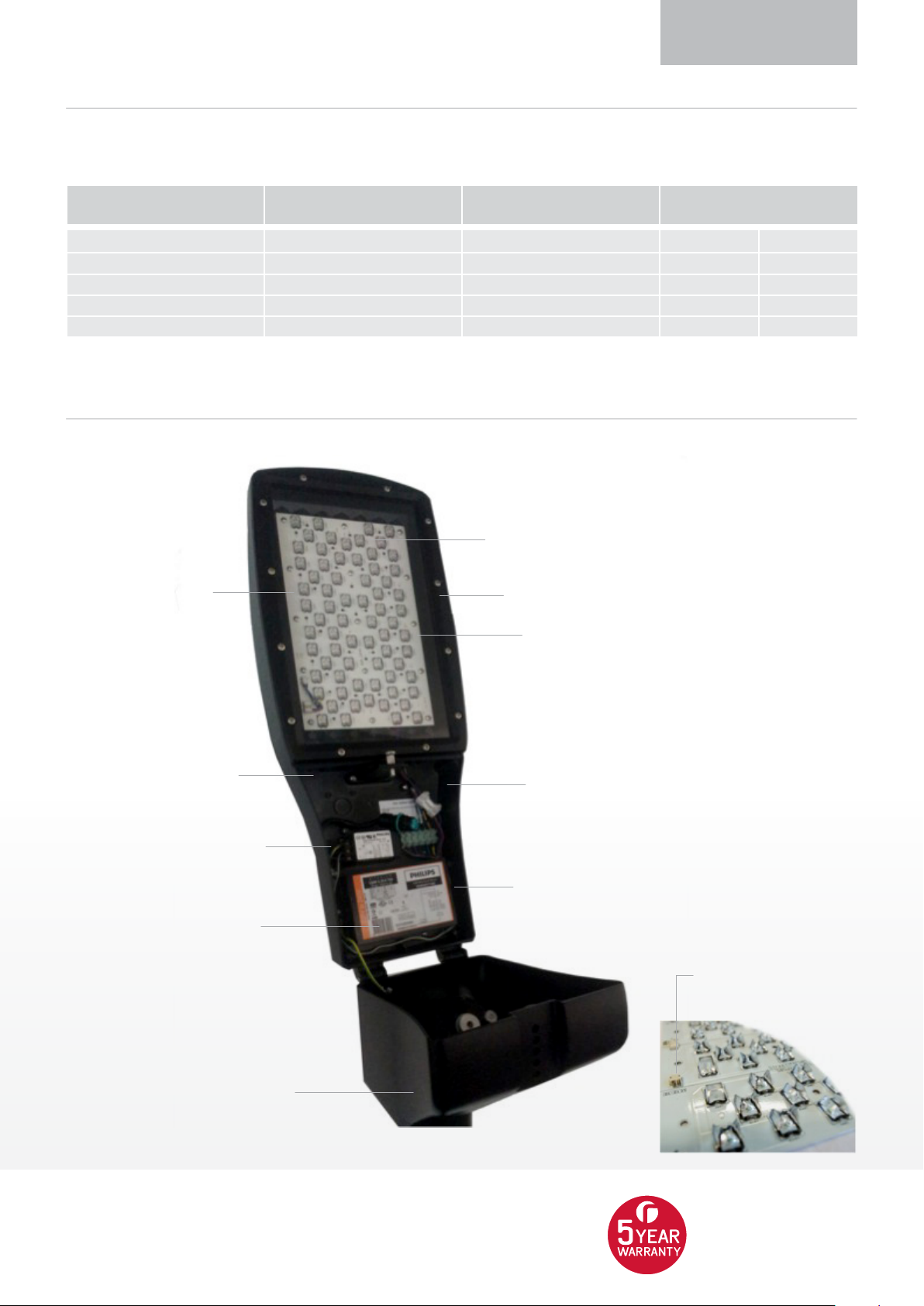

Urban Plus Up Close
IP 66 optical compartment
with Polycarbonate of
OptiWhite Glass cover
Tool free access to
electronic compartment
Surge Protection
DALI or 0 -10V
CMS compatible
Upgradeable light engine
Integrated thermal
management system
Multiple light engine variants
to suit any requirement
Plug and Play
connectors
up to 10KV
Stand alone fully
programmable part night
dimming function
Modular lens arrays ensure
no drop in uniformity in the
event of individual LED failure
High speed tool free
beam aiming from -15
10o in 2.5o increments
o
to
Raytec Global (excluding Americas) Raytec Americas:
Tel: +44 (0) 01670 520055
sales@rayteccctv.com
Version 2
www.rayteccctv.com
Tel: +1 613 270 9990
ussales@rayteccctv.com
All Ray tec luminaires a re provi ded
with an industr y leading 5 year
warranty and have an expected
useful li fe in excess of 10 years
