X2 View

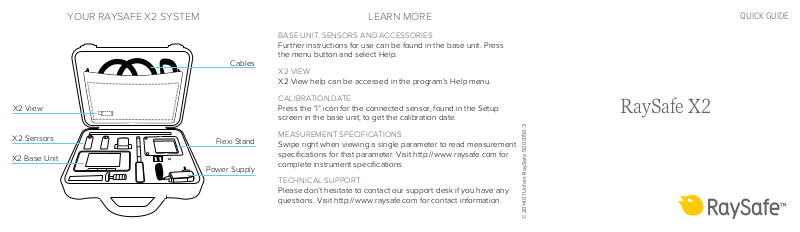

YOUR RAYSAFE X2 SYSTEM
Cables
LEARN MORE
BASE UNIT, SENSORS AND ACCESSORIES
Further instructions for use can be found in the base unit. Press
the menu button and select Help.
X2 VIEW
X2 View help can be accessed in the program’s Help menu.
CALIBRATION DATE
Press the “i” icon for the connected sensor, found in the Setup
screen in the base unit, to get the calibration date.
QUICK GUIDE
RaySafe X2
X2 Sensors
X2 Base Unit
Flexi Stand
Power Supply
MEASUREMENT SPECIFICATIONS
Swipe right when viewing a single parameter to read measurement
specifications for that parameter. Visit http://www.raysafe.com for
complete instrument specifications.
TECHNICAL SUPPORT
Please don’t hesitate to contact our support desk if you have any
questions. Visit http://www.raysafe.com for contact information.
© 2014.01 Unfors RaySafe 5000150-3
GETTING STARTED
Note! To change the base unit language, swipe right from Home screen (Setup screen),
press X2 Base Unit, and selec t language.
Turn on the base unit
Connect a sensor
Position and expose
NAVIGATING THE BASE UNIT
Menu Home Back
Press the power button shortly to
enter sleep mode. After a while in
sleep mode, the base unit will turn
Power
o automatically.
Press the button for 2 seconds to
turn it o immediately.
Swipe sideways on the screen to
access dierent views.
Swipe up and down to scroll between
measurements.
Tap on a parameter to get larger digits.
Swipe right to view the parameter
information with measurement specifications, and left to view waveform, if
available for the current parameter.
RAYSAFE X2 VIEW
Connect to a computer running X2 View to:
• import saved measurements
• analyze waveforms
• check X2 Online for updates
• export to Excel®
