MAJESTIC
OUTDOOR / INDOOR WOOD FIREPLACES
Model: ODSR36A
OWNERS INSTALLATION & OPERATING INSTRUCTIONS.
KEEP THESE INSTRUCTIONS FOR FUTURE REFERANCE.
CONTENTS
Part 1: Safety Information
Part 2: Installation Instructions
• Outdoor Installation
• Planning Information
• Mounting the Fireplace
• Framing
• Flue Installation
• Flue Offset Installation
• Positioning, safety Strips, Securing the fireplace
• Chase Installation
• Clearances
• Sidewall Protection
• Hearth Installations
Part 3: Warranty
Part 4: Additional Accessories
Part 5: Spare Parts List
2
Description
The model ODSR36A is a clean faced solid fuel wood burning fireplace
and is approved for Outdoor and Indoor installation when used with
the appropriate flue system.
Part 1: Safety Information
Please read these instructions prior to installing and
operating this appliance.
Warning: This appliance must be installed by a licensed
person. This appliance and flue system must be installed in
accordance with AS/ ANZ 2918 and the appropriate
requirements of the relevant building code or codes.
BEFORE INSTALLING YOUR APPLIANCE
Carefully read and understand all the instructions.
1. THIS APPLIACE IS HOT WHILE IN OPERATION KEEP
CHILDREN, CLOTHING AND FURNITURE AWAY, CONTACT MAY
CAUSE SKIN BURNS.
2. DO NOT INSTALL IN GARAGE OR NEAR FLAMMABLE FLUID
Check with the building inspector for compliance with local codes; a
permit may be required.
3. This appliance must be installed using Raypak approved flue kit and
installed as per the Australian standard AS/ANZ 2918 codes
This appliance must be flued directly off the appliance and discharged
to atmosphere.
4. DO NOT connect to any duct work to which another appliance is
connected.
5. DO NOT connect this unit to a chimney flue that is serving another
appliance.
6. DO NOT USE CHEMICALS OR FLUIDS TO START THE FIRE.
3
7. The flue should be inspected periodically and cleaned if necessary.
8. DO NOT store wood, flammable liquids or other combustible materials
close to the unit.
9. Contact your local fire authority for information on how to handle a
chimney fire. Have a clearly understood plan to handle a flue fire, turn
air control to the closed position and call the fire brigade.
10.DO NOT tamper with the combustion air control beyond the normal
adjustment.
11.DO NOT install combustible materials on the fire place surround.
This fire place is not designed to be a water tight fireplace. When
installing this unit against an external wall, the wall must be finished
before setting the unit in place.
12.Always leave the damper in the open position while the unit is in use
Once the required draw is obtained, close mesh screen to protect from
sparks that may occur.
13.DO NOT install these units into a mobile home or caravan. These units
are NOT mobile home approved.
Part 2: Installation Instructions
• OUTDOOR INSTALLATION
Read this manual prior to beginning this installation and check
that you have been provided with the correct components
necessary to carry out the installation.
1 Remove all parts from inside the fire box.
2 Check outdoor flue kit part number: ODSSFLKT
Contents
• 1 x 203 x 1220 mm ( 8’) Inner stainless steel flue
• 1 x 279 x 1100 mm ( 11‘) Outer stainless steel flue
• 1 x Stainless Steel Cowl
• 1 x Powder coated vented dress ring . # This vented dress
ring will only be required to be used ( situated on top of the
fireplace enclosure to provide ventilation within the enclosure )
when the fireplace is in a free standing position and the flue is
4
exposed above the fireplace housing, this applies for both
Indoor and Outdoor installations
Note: If this unit is installed outdoors and the flue is to be
installed in a chase construction ( see Fig 6 ) or requires a
roof penetration ( pergola or veranda ) you must use the
Indoor flue kit part number: ODIDSSFLKT
Select the location for the appliance. This appliance must not be installed
inside minimum clearances to the house and any combustibles materials as
shown in Fig 1 & Fig 2
WARINING: FAILURE TO FOLLOW THE MINIMUM CLEARANCE
REQUIREMENTS MAY RESULT IN AN UNSAFE INSTALLATION.
Fig 1 Specifications & Framing layout
5

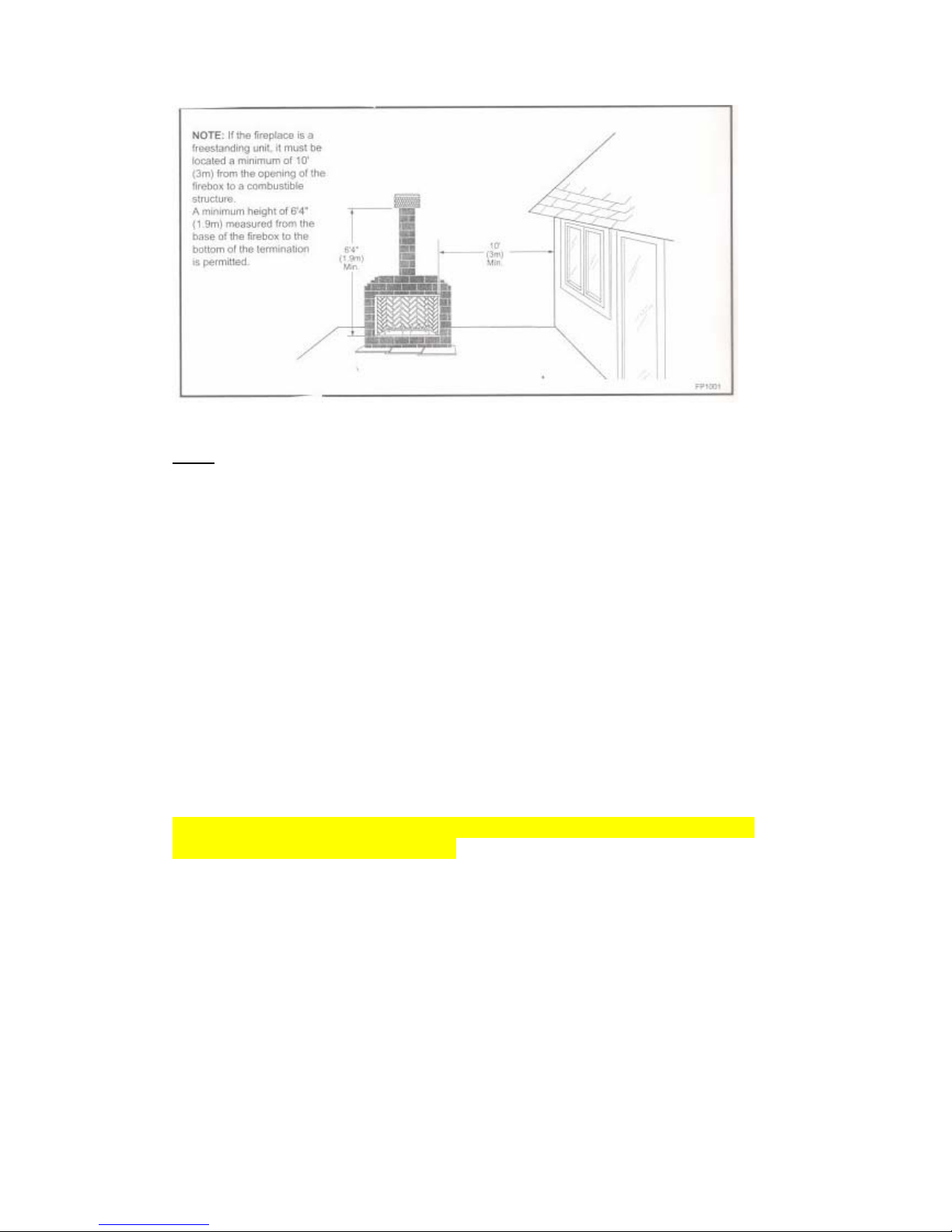

Fig 2 Free standing installation
Note: If the fire place is a free standing unit, it must be located a minimum
of 3m from the opening of the fire box to combustibles structure. A minimum
height of 1.9m measured from the base of the fire box to the flue termination
cowl is permitted.
• Planning Information
Preplanning an installation is very important to ensure safety, and to save
time and money. An installer must predetermine where a fireplace will be set
and how the flue system will be run.
• Mounting the Fireplace
A fireplace may only be mounted on a non combustible surface.
The fire place must be spaced 13 mm from a combustible back wall and 13
mm from either side wall or support.
• Framing
Option 1 Framing can be constructed before or after the fire place is set in
place, however most installers build the frame prior to fitting the fire place in
position Framing the fire place with 50 x 100 mm timber or heavier. Refer to
Fig 1 for framing dimensions.
