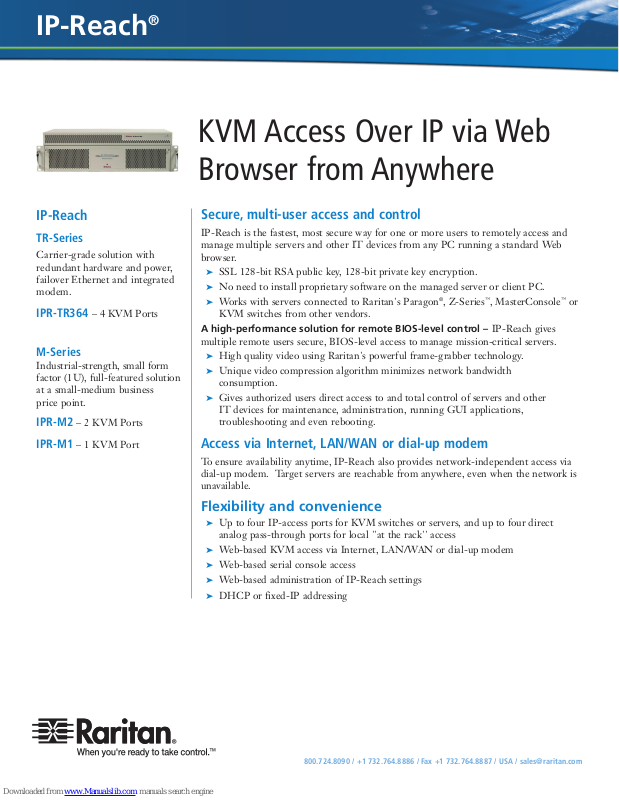

Page 1
Secure, multi-user access and control
IP-Reach is the fastest, most secure way for one or more users to remotely access and
manage multiple servers and other IT devices from any PC running a standard Web
browser.
➤ SSL 128-bit RSA public key, 128-bit private key encryption.
➤ No need to install proprietary software on the managed server or client PC.
➤ Works with servers connected to Raritan's Paragon
®
, Z-Series™, MasterConsole™or
KVM switches from other vendors.
A high-performance solution for remote BIOS-level control – IP-Reach gives
multiple remote users secure, BIOS-level access to manage mission-critical servers.
➤ High quality video using Raritan's powerful frame-grabber technology.
➤ Unique video compression algorithm minimizes network bandwidth
consumption.
➤ Gives authorized users direct access to and total control of servers and other
IT devices for maintenance, administration, running GUI applications,
troubleshooting and even rebooting.
Access via Internet, LAN/WAN or dial-up modem
To ensure availability anytime, IP-Reach also provides network-independent access via
dial-up modem. Target servers are reachable from anywhere, even when the network is
unavailable.
Flexibility and convenience
➤ Up to four IP-access ports for KVM switches or servers, and up to four direct
analog pass-through ports for local ''at the rack'' access
➤ Web-based KVM access via Internet, LAN/WAN or dial-up modem
➤ Web-based serial console access
➤ Web-based administration of IP-Reach settings
➤ DHCP or fixed-IP addressing
IP-Reach
TR-Series
Carrier-grade solution with
redundant hardware and power,
failover Ethernet and integrated
modem.
IPR-TR364 – 4 KVM Ports
M-Series
Industrial-strength, small form
factor (1U), full-featured solution
at a small-medium business
price point.
IPR-M2 – 2 KVM Ports
IPR-M1 – 1 KVM Port
KVM Access Over IP via Web
Browser from Anywhere
IP-Reach
®
800.724.8090 / +1 732.764.8886 / Fax +1 732.764.8887 / USA / [email protected]
Page 2
Raritan reliability
➤ Network-independent access via integrated modem
(TR-Series) or dedicated modem port (M-Series)
➤ Redundant power supplies and dual Ethernet ports with
failover (TR-Series)
➤ SNMP enabled
➤ Keyboard macro-mapping
➤ No impact on performance of target servers
➤ Firmware upgradeable over the network
Best-in-class security
➤ 100% encryption of all data, including keyboard, video
and mouse
➤ SSL 128-bit RSA public key, 128-bit private
key encryption
➤ Raritan user authentication with optional
RADIUS support
➤ Uses only one open network port to preserve strict
firewall settings
➤ Customizable user profiles for multi-level security
➤ Private security key and IP filtering
➤ User event logging
➤ Option to deactivate modem and/or browser access
➤ Automatic logout of idle users
Applications that address every situation
IP-Reach is designed to help you:
➤ Control servers within a building or across campus
➤ Manage servers at branch offices from a central site
➤ Provide remote support for world-wide data centers
➤ Troubleshoot, reconfigure and reboot servers
from home
➤ Provide convenient, secure, "lights out"
server management
➤ Provide secure access and protection of data on
development and production servers
Raritan / 400 Cottontail Lane / Somerset, NJ 08873 / USA / Raritan.com
Count on IP-Reach for anytime, anywhere access.
IP-Reach
KVM Switch
Non-Blocked Server Access
Internet
Remote User
Direct Analog Access
Page 3
IP-Reach works with standard Web browsers and allows simultaneous cross-platform server viewing. Plus, it works with Raritan
KVM switches and those from other vendors, too.
Convenience, performance, security — you
get it all with Raritan.
No proprietary software needed – IP-Reach works with
any standard Web browser. If you can only access your
servers over IP from a PC with proprietary client software
installed, you don't have true anytime, anywhere access.
Network-independent access – When the network is
down at 2:00 a.m. and you're 30 miles away, remote access
optimized for the LAN isn't very helpful. IP-Reach offers
bandwidth optimization for WAN access, plus dedicated
modem access.
Single KVM user interface – At a console in your data
center or a PC in your home. The superior Raritan video
compression algorithm and powerful frame-grabber technology ensure faster transmission of high-quality video with
bandwidth sensitivity.
OS independence – Unlike software solutions that are
platform-specific and OS-dependent, IP-Reach provides
remote access to servers across multiple platforms, regardless of their operating systems' health.
Best mouse synchronization – IP-Reach virtually
eliminates latency, the annoying wait for keystrokes or
mouse movements of the target server to "catch up" with
your operations at the remote PC.
CommandCenter-Ready
™
** – IP-Reach works with the
Paragon II System Controller (P2-SC), to integrate Paragon
with Raritan’s centralized CommandCenter
®
management
appliance. CommandCenter seamlessly integrates Paragon
II’s analog Cat5 KVM switching with Raritan’s Dominion
Series of digital KVM switches, serial console servers and
remote power control into a single, logical network with a
single sign-on to a single IP address.
Enjoy every advantage with IP-Reach.
Raritan is a leading supplier of solutions for managing IT infrastructure equipment and the mission-critical applications and services that run on it. Raritan was founded in 1985,
and since then has been making products that are used to control millions of servers at more than 50,000 network data centers, computer test labs and multi-workstation
environments around the world. From the small business to the enterprise, Raritan's complete line of compatible and scalable KVM and remote connectivity products offers IT
professionals the most reliable, flexible and secure in-band and out-of-band solutions to manage data center equipment applications and services, while improving operational
productivity. More information on the company is available at Raritan.com.
Raritan / 400 Cottontail Lane / Somerset, NJ 08873 / USA / Raritan.com
When you’re ready to take control,
do it with IP-Reach.
Call 1.800.724.8090 or visit Raritan.com/ipreach
Page 4
Raritan / 400 Cottontail Lane / Somerset, NJ 08873 / USA / Raritan.com
Specifications
©2005 Raritan Computer, Inc. Raritan, IP-Reach, Paragon and CommandCenter are registered trademarks of Raritan Computer, Inc.; CommandCenter-Ready, MasterConsole and
Z-Series are trademarks of Raritan Computer, Inc.; Sun is a registered trademark of Sun Microsystems, Inc.; PS/2 is a registered trademark of IBM Corporation.
*To qualify for advanced replacement under the standard warranty, you must register the product at http://www.raritan.com/standard_warranty.
**CommandCenter - Ready™applies to the following models: IPR-M1, IPR-M2, IPR-TR364.
-Specifications are subject to change without notice.
IP-Reach TR
Part Numbers IPR-TR364
Form Factor 2U, Rack mount chassis
Dimensions 19" (W) x 21.25" (D) x 3.5" (H)
482mm (W) x 540mm (D) x 89mm (H)
Weight 29.5 lbs (13.4 kg)
Power Redundant Power Supply
110/220V auto-switching; 50-60 Hz
KVM ports DB25 female — for server(s) or KVM switch(es)
IPR-TR364 — 4 ports
User ports DB25 male — for user console direct analog access
IPR-TR364 — 4 ports
Serial Port DB9M (DTE)
Admin Port PS/2®Keyboard; PS/2 Mouse; HD15 VGA Video
Remote Connection
Network Dual Failover 10/100 Ethernet (RJ45)
Modem Integrated 56K V.90 (RJ11 port)
Protocols TCP/IP, UDP, RADIUS, SNMP, SNTP, PAP, CHAP, HTTP
Screen Resolutions
PC text mode 720x400
PC graphic modes 640x480, 800x600, 1024x768, 1152x864,
1280x1024
Sun®video modes 1024x768, 1152x900, 1280x1024
Accessories (included)
Cables All cables to connect to PC or KVM Switch included
Remote Access
Software
Raritan Remote Control software; or access via Web
browser (Win32)
Warranty
Standard Two Years with Advanced Replacement*
IP-Reach M
Part Numbers IPR-M2; IPR-M1
Form Factor 1U, Rack mount brackets included
Dimensions 17.2" (W) x 10.4" (D) x 1.75" (H)
436mm (W) x 264mm (D) x 44mm (H)
Weight 8.6 lbs (3.91 kg) — IPR-M2
8.4 lbs (3.82 kg) — IPR-M1
Power 110/220V auto-switching; 50-60 Hz
KVM ports DB25 female — for server(s) or KVM switch(es)
IPR-M2 — 2 ports
IPR-M1 — 1 port
User ports PS/2 Keyboard, PS/2 Mouse, HD15 VGA Video; for
user console direct analog access
IPR-M2 — 2 ports
IPR-M1 — 1 port
Serial Port DB9M (DTE)
Admin Port PS/2 Keyboard; PS/2 Mouse; HD15 VGA Video
Remote Connection
Network 10/100 Ethernet (RJ45)
Modem DB9M (DTE)
Protocols TCP/IP, UDP, RADIUS, SNMP, SNTP DHCP, PAP CHAP,
HTTP
Screen Resolutions
PC text mode 720x400
PC graphic modes 640x480, 800x600, 1024x768, 1152x864,
1280x1024
Sun video modes 1024x768, 1152x900, 1280x1024
Accessories (included)
Cables All cables to connect to PC or KVM Switch included
Remote Access
Software
Raritan Remote Control software; or access via Web
browser (Win32)
Warranty
Standard Two Years with Advanced Replacement*
IPR-TR364 (rear view)
IPR-M2 (rear view)
