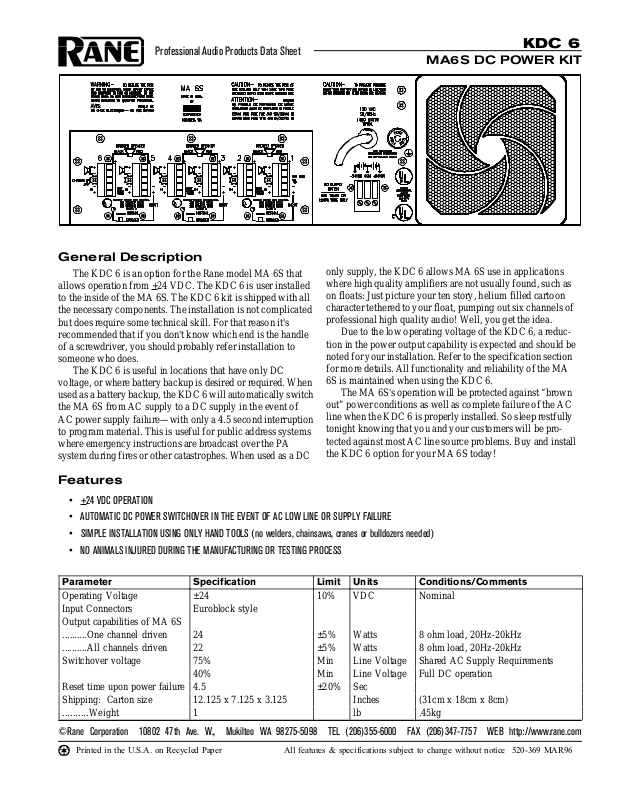

Professional Audio Products Data Sheet
General Description
The KDC 6 is an option for the Rane model MA 6S that
allows operation from +
to the inside of the MA 6S. The KDC 6 kit is shipped with all
the necessary components. The installation is not complicated
but does require some technical skill. For that reason it's
recommended that if you don't know which end is the handle
of a screwdriver, you should probably refer installation to
someone who does.
The KDC 6 is useful in locations that have only DC
voltage, or where battery backup is desired or required. When
used as a battery backup, the KDC 6 will automatically switch
the MA 6S from AC supply to a DC supply in the event of
AC power supply failure—with only a 4.5 second interruption
to program material. This is useful for public address systems
where emergency instructions are broadcast over the PA
system during fires or other catastrophes. When used as a DC
24 VDC. The KDC 6 is user installed
KDC 6
MA6S DC POWER KIT
only supply, the KDC 6 allows MA 6S use in applications
where high quality amplifiers are not usually found, such as
on floats: Just picture your ten story, helium filled cartoon
character tethered to your float, pumping out six channels of
professional high quality audio! Well, you get the idea.
Due to the low operating voltage of the KDC 6, a reduction in the power output capability is expected and should be
noted for your installation. Refer to the specification section
for more details. All functionality and reliability of the MA
6S is maintained when using the KDC 6.
The MA 6S's operation will be protected against “brown
out” power conditions as well as complete failure of the AC
line when the KDC 6 is properly installed. So sleep restfully
tonight knowing that you and your customers will be protected against most AC line source problems. Buy and install
the KDC 6 option for your MA 6S today!
Features
• +24 VDC OPERATION
• AUTOMATIC DC POWER SWITCHOVER IN THE EVENT OF AC LOW LINE OR SUPPLY FAILURE
• SIMPLE INSTALLATION USING ONLY HAND TOOLS (no welders, chainsaws, cranes or bulldozers needed)
• NO ANIMALS INJURED DURING THE MANUFACTURING OR TESTING PROCESS
Parameter Specification Limit Units Conditions/Comments
Operating Voltage ±24 10% VDC Nominal
Input Connectors Euroblock style
Output capabilities of MA 6S
..........One channel driven 24 ±5% Watts 8 ohm load, 20Hz-20kHz
..........All channels driven 22 ±5% Watts 8 ohm load, 20Hz-20kHz
Switchover voltage 75% Min Line Voltage Shared AC Supply Requirements
40% Min Line Voltage Full DC operation
Reset time upon power failure 4.5 ±20% Sec
Shipping: Carton size 12.125 x 7.125 x 3.125 Inches (31cm x 18cm x 8cm)
..........Weight 1 lb .45kg
©Rane Corporation 10802 47th Ave. W., Mukilteo WA 98275-5098 TEL (206)355-6000 FAX (206)347-7757 WEB http://www.rane.com
All features & specifications subject to change without notice 520-369 MAR96Printed in the U.S.A. on Recycled Paper
