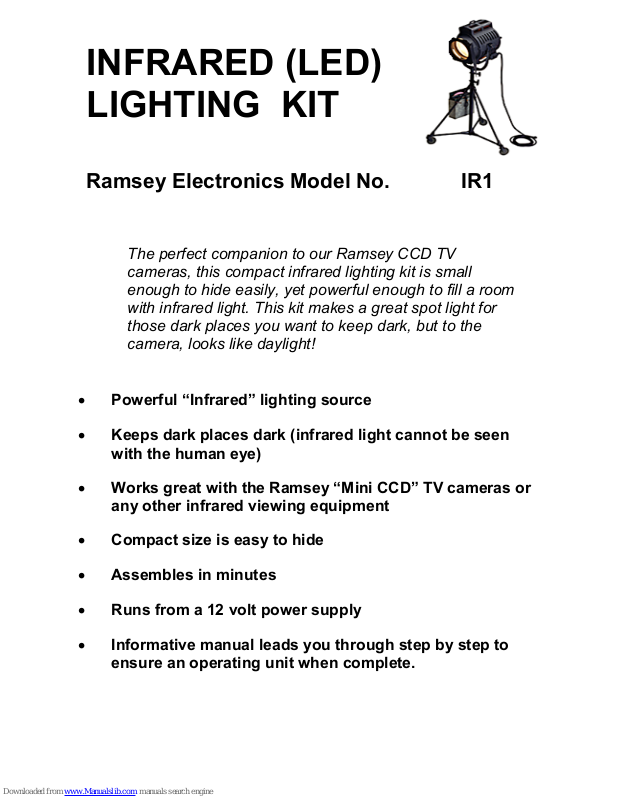

IR1 1
INFRARED (LED)
LIGHTING KIT
Ramsey Electronics Model No. IR1
The perfect companion to our Ramsey CCD TV
cameras, this compact infrared lighting kit is small
enough to hide easily, yet powerful enough to fill a room
with infrared light. This kit makes a great spot light for
those dark places you want to keep dark, but to the
camera, looks like daylight!
• Powerful “Infrared” lighting source
• Keeps dark places dark (infrared light cannot be seen
with the human eye)
• Works great with the Ramsey “Mini CCD” TV cameras or
any other infrared viewing equipment
• Compact size is easy to hide
• Assembles in minutes
• Runs from a 12 volt power supply
• Informative manual leads you through step by step to
ensure an operating unit when complete.
IR1 2
