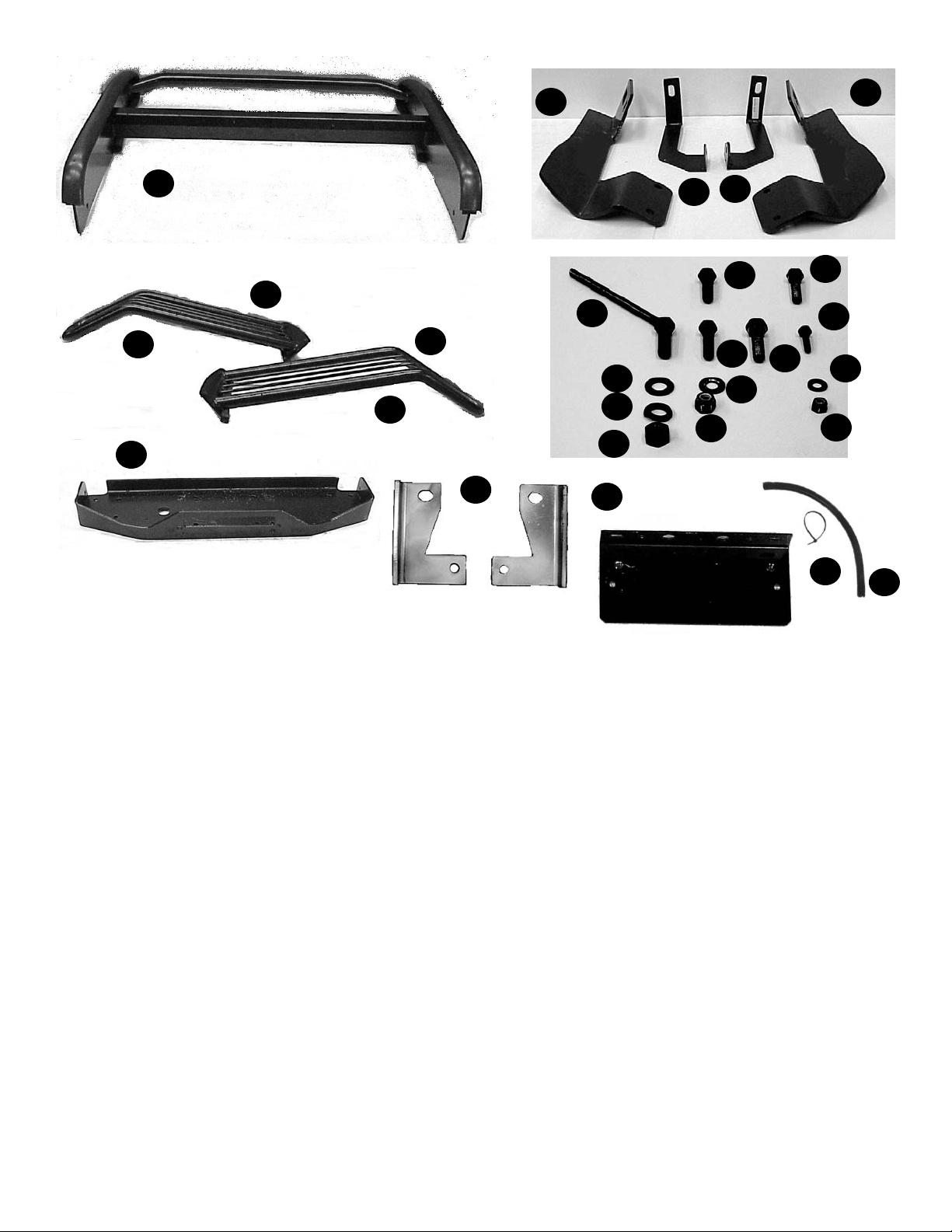

INSTALLATION INSTRUCTIONS

FOR SIERRA GRILLE GUARD KIT #295942 AND

WRAPAROUND KIT #295943

ON 2004-2007 FORD F-150

Notice

Ramsey kits are designed for use with Ramsey Winches only.

Use or sale of kits for other winches or applications voids warranty.

Warning

Ramsey offers mounting kits and winches for various vehicles. In crash tests on a limited number of automotive
manufacturer’s vehicles, winches/mounting kits, which have been properly mounted, have not interfered with air bag
operation.

The user/customer, or their installer, must verify that the mounting kit does not interfere with the factory air bag
sensors, which must not be relocated or modified in any way.

The user/customer should follow the vehicle manufacturer’s recommendations and those of a qualified mechanic to
determine if the winch/mounting kit might interfere with the air bag operation. The user/customer should then
determine the suitability of a winch/mounting kit on a particular vehicle.

PLEASE BE ADVISED THAT THE VEHICLE’S AIR BAG SYSTEM MAY NOT OPERATE PROPERLY IF THE
WINCH/MOUNTING KIT IS NOT INSTALLED IN COMPLIANCE WITH THE VEHICLE MANUFACTURER’S
RECOMMENDATIONS.

DO NOT ATTACH TOW HOOK TO ANY PART OF THE MOUNTING KIT UNLESS INSTRUCTED TO DO SO.

DO NOT SUBSTITUTE ATTACHING HARDWARE ITEMS (BOLTS, NUTS, OR WASHERS).

READ AND UNDERSTAND WINCH OWNER’S MANUAL BEFORE INSTALLATION AND OPERATION OF WINCH.
SEE WARNING AND CAUTIONS IN WINCH OWNER’S MANUAL.

IMPORTANT NOTES!

1. Right and left hand directions as if seated behind steering wheel.

2. All fastening hardware should be loosely assembled until directed to tighten.

RAMSEY WINCH COMPANY

P.O. BOX 581510

TULSA, OKLAHOMA 74158

PHONE: [phone] • FAX: [phone]

http://www.ramsey.com

913388-0307-D

FOR ALL VEHICLES WITHOUT FRONT TOW HOOKS, START
ON THIS PAGE.

FOR ALL VEHICLES EQUIPPED WITH FRONT TOW HOOKS,
START ON FOLLOWING PAGE.

Cut 2 L-shaped slots 4” x 3” 28-1/4” apart, centered on the
vehicle (in the bumper cavities), as shown at right. The right
and left lower mounting brackets will need to be inserted
through these slots, so use the lower mounts as guides to cut
slots.

Insert (2) 7/16 bolts with extensions (item #10) into round
openings on each side of each frame rail (one bolt for front
hole and one bolt for back hole). Once bolts extend through
bottom of frame rail, fasten lower mounting bracket (item #2)
using (2) 7/16 flat washers (item #16), (2) 7/16” lockwash­ers (item #15), and (2) 7/16 hex nuts (item #17). Do not
tighten until later.

Do the same on the right side of vehicle.

Continue with installation on Page 4.

2

FRAME RAIL

FOR ALL VEHICLES EQUIPPED WITH FRONT TOW
HOOKS, START ON THIS PAGE.

1. Remove tow hooks, but leave rear bolt threaded to nut
loose enough to slide tow hook off of frame.

2. Place lower mounting bracket (item #2) on top of tow
hook. The Lower mounting bracket will be mounted
between the tow hook and the frame.

3. Reinstall tow hook and lower mounting bracket using
existing hardware. Do not tighten until later.

3
