RAM 3500 2011, 4500 2011, 5500 2011 Owner's Manual

USER GUIDEUSER GUIDE

CHASSIS CAB 3500/4500/5500CHASSIS CAB 3500/4500/5500

2011

Information Provided by:

The driver’s primary responsibility is the safe operation of the vehicle. Driving while distracted can result in loss of vehicle control, resulting in an accident and personal injury. Chrysler Group LLC strongly recommends that the driver use extreme caution when using any device or feature that may take their attention off the road. Use of any electrical devices such as cell phones, computers, portable radios, vehicle navigation or other devices by the driver while the vehicle is moving is dangerous and could lead to a serious accident. Texting while driving is also dangerous and should never be done while the vehicle is moving. If you nd yourself unable to devote your full attention to vehicle operation, pull off the road to a safe location and stop your vehicle. Some States or Provinces prohibit the use of cellular telephones or texting while driving. It is always the driver’s responsibility to comply with all local laws.

IMPORTANT: This User Guide is intended to familiarize you with the

important features of your vehicle. The DVD enclosed contains your Owner’s Manual, Navigation/Media Center Manuals, Warranty Booklets, Tire Warranty and 24-Hour Towing Assistance (new vehicles purchased in the U.S.) or Roadside Assistance (new vehicles purchased in Canada) in electronic format. We hope you nd it useful. If you are the rst registered owner of your vehicle, you may obtain a printed copy of the Owner’s Manual, Navigation/Media Center Manuals or Warranty Booklet by calling 1-866-726-4636 (U.S.) or 1-800-387-1143 (Canada) or by contacting your dealer. Replacement DVD kits may be purchased by visiting www.techauthority.com. Copyright 2010 Chrysler Group LLC

CHASSIS CAB 3500/4500/5500CHASSIS CAB 3500/4500/5500

Information Provided by:

TABLE OF CONTENTS

Information Provided by:

INTRODUCTION/WELCOME

Welcome From Chrysler Group LLC . . . 2

CONTROLS AT A GLANCE

Driver Cockpit ...............4

Instrument Cluster ............6

GETTING STARTED

KeyFOB ..................8

Remote Start ................9

Theft Alarm ................9

Seat Belt ..................9

Supplemental Restraint System

(SRS) — Airbags .............10

Child Restraints ............. 11

Front Seats ................ 14

Heated/Ventilated Seats ........ 16

Heated Steering Wheel ......... 17

Tilt Steering Column / Adjustable

Pedals .................. 18

Diesel Engine Starting Procedures . . 19

OPERATING YOUR VEHICLE

Turn Signals/Wiper/Washer/High

Beams Lever ...............20

Headlight Switch ............ 21

Speed Control Lever ..........22

Electronic Range Select (ERS)

Operation ................ 23

Manual Climate Controls ........ 24

Automatic Temperature Control

(ATC) ...................24

Diesel Exhaust Brake

(Engine Braking) ............. 25

Idle-Up Feature (Diesel/Automatic

Transmission Only) ........... 26

Cool–Down Idle Chart – Diesel Only . . 26

Power Sliding Rear Window ...... 27

Wind Buffeting .............. 27

ELECTRONICS

Your Vehicle's Sound System .....28

Non-Touch-Screen Radios ....... 30

Touch-Screen Radios .......... 32

Steering Wheel Audio Controls .... 36

Uconnect™ Phone ...........36

Uconnect™ Voice Command ...... 39

Control .............. 40

iPod Electronic Vehicle Information Center

(EVIC) ................... 41

Programmable Features ........ 42

Power Inverter .............. 44

Power Outlet ............... 45

OFF-ROAD CAPABILITIES

Four-Wheel Drive Operation ...... 46

UTILITY

Trailer Towing Weights (Maximum Trailer

Weight Ratings) ............. 47

Integrated Trailer Brake Module .... 47

Recreational Towing (Behind

Motorhome, Etc.) ............ 47

Auxiliary Switches ............ 48

WHAT TO DO IN EMERGENCIES

24-Hour Towing Assistance -

U.S. Only ................. 49

Instrument Cluster Warning Lights . . 49

If Your Engine Overheats ........51

Jacking And Tire Changing ....... 52

Jump-Starting .............. 56

Emergency Tow Hooks ......... 58

Shift Lever Override ........... 59

Towing A Disabled Vehicle ....... 60

Freeing A Stuck Vehicle ......... 61

Event Data Recorder (EDR) ....... 62

MAINTAINING YOUR VEHICLE

Opening The Hood ...........63

Engine Compartment .......... 64

Fuel Filter/Water Separator —

Diesel Only ................ 66

Exhaust Regeneration — Diesel Only

Diesel Exhaust Fluid .......... 68

Fluids And Capacities .......... 71

Maintenance Chart ........... 73

Fuses ................... 78

Tire Pressures .............. 80

Wheel And Wheel Trim Care ...... 81

Exterior Bulbs .............. 81

.. 67

CONSUMER ASSISTANCE

Chrysler Group LLC Customer Center Chrysler Canada Inc. Customer

Center .................. 82

Assistance For The Hearing Impaired

Publications Ordering .......... 82

Reporting Safety Defects In The 50 United States And Washington, D.C. . 83

.82

.. 82

MOPAR ACCESSORIES

Authentic Ram Accessories By

MOPAR®................. 84

INDEX

..................85

INTRODUCTION/WELCOME

Information Provided by:

WELCOME FROM CHRYSLER GROUP LLC

Congratulations on selecting your new Chrysler Group LLC vehicle. Be assured that it represents precision workmanship, distinctive styling, and high quality - all essentials that are traditional to our vehicles.

Your new Chrysler Group LLC vehicle has characteristics to enhance the driver's control under some driving conditions. These are to assist the driver and are never a substitute for attentive driving. They can never take the driver's place. Always drive carefully.

Your new vehicle has many features for the comfort and convenience of you and your passengers. Some of these should not be used when driving because they take your eyes from the road or your attention from driving. Never text while driving or take your eyes more than momentarily off the road.

This guide illustrates and describes the operation of features and equipment that are either standard or optional on this vehicle. This guide may also include a description of features and equipment that are no longer available or were not ordered on this vehicle. Please disregard any features and equipment described in this guide that are not available on this vehicle. Chrysler Group LLC reserves the right to make changes in design and specifications and/or make additions to or improvements to its products without imposing any obligation upon itself to install them on products previously manufactured.

The User Guide has been prepared to help you quickly become acquainted with the important features of your vehicle. It contains most everything you will need to operate and maintain the vehicle, including emergency information.

The DVD includes a computer application containing detailed owner's information which can be viewed on a personal computer or MAC computer. The multimedia DVD also includes videos which can be played on any standard DVD player (including the Media Center Touch-Screen Radios). Additional DVD operational information is located on the back of the DVD sleeve.

For complete owner information, refer to your Owner's Manual on the DVD in the owner’s kit provided at the time of new vehicle purchase. For your convenience, the information contained on the DVD may also be printed and saved for future reference.

Chrysler Group LLC is committed to protecting our environment and natural resources. By converting from paper to electronic delivery for the majority of the user information for your vehicle, together we greatly reduce the demand for tree-based products and lessen the stress on our environment.

Vehicles Sold In Canada

With respect to any vehicles sold in Canada, the name Chrysler Group LLC shall be deemed to be deleted and the name Chrysler Canada Inc. used in substitution therefore.

INTRODUCTION/WELCOME

Information Provided by:

WARNING!

• Pedals that cannot move freely can cause loss of vehicle control and increase the risk of serious personal injury.

• Always make sure that objects cannot fall into the driver foot well while the vehicle is moving. Objects can become trapped under the brake pedal and accelerator pedal causing a loss of vehicle control.

• Failure to properly follow floor mat installation or mounting can cause interference with the brake pedal and accelerator pedal operation causing loss of control of the vehicle.

• Never use the ‘PARK’ position as a substitute for the parking brake. Always apply the parking brake fully when parked to guard against vehicle movement and possible injury or damage.

• Refer to your Owner's Manual on the DVD for further details.

CHRYSLER, DODGE, JEEP, ATF+4, MOPAR and Uconnect are registered trademarks of Chrysler Group LLC.

CONTROLS AT A GLANCE

Information Provided by:

DRIVER COCKPIT

CONTROLS AT A GLANCE

Information Provided by:

CONTROLS AT A GLANCE

Information Provided by:

INSTRUMENT CLUSTER

Warning Lights

- Low Fuel Warning Light

- Charging System Light**

- Oil Pressure Warning Light**

- Anti-Lock Brake (ABS) Light**

- Airbag Warning Light**

- Electronic Throttle Control (ETC) Light

- Engine Temperature Warning Light

- Transmission Temperature Warning Light

- Seat Belt Reminder Light

BRAKE

(See page 49 for more information.)

- Brake Warning Light**

- Malfunction Indicator Light (MIL)**

- SERV (Service) 4WD Indicator Light

CONTROLS AT A GLANCE

Information Provided by:

Indicators

- Cargo Lamp On Indicator

- Turn Signal Indicators

- High Beam Indicator

- Front Fog Light Indicator

- Vehicle Security Indicator*

- TOW/HAUL Indicator

- Four-Wheel Drive LOW Mode Indicator

- Four-Wheel Drive and 4LOCK Mode Indicator

- Exhaust Brake Indicator (Diesel Only)

- Door Ajar Indicator

- Electronic Speed Control On Indicator

- Loose Gas Cap Indicator

Odometer Messages

LoWASH - Low Washer Fluid Water in Fuel - (Diesel Only)

noFUSE* - Fuse Fault Wait to Start - (Diesel Only)

CHAngE OIL* - Change Engine Oil

* If equipped

** Bulb Check with Key On

GETTING STARTED

Information Provided by:

KEY FOB

Locking And Unlocking The Doors

• Press the LOCK button once to lock all the doors. Press the UNLOCK button once to unlock the driver’s door only and twice within five seconds to unlock all the doors.

• All doors can be programmed to unlock on the first press of the UNLOCK button. Refer to Programmable Features in this guide.

Panic Alarm

• Press the PANIC button once to turn the panic alarm on.

• Wait approximately three seconds and press the button a second time to turn the panic alarm off.

Express Window Feature

• To remotely lower both front door windows at the same time, press and release the UNLOCK button and then immediately press and hold the UNLOCK button until the windows lower to the level desired or until they lower completely.

Emergency Key

• Should the battery in the vehicle or the Key Fob transmitter go dead, there is an emergency key located in the Key Fob. To remove the emergency key, slide the button at the top of the Key Fob sideways with your thumb and then pull the key out with your other hand.

WARNING!

• Leaving unattended children in a vehicle is dangerous for a number of reasons. A child or others could be severely injured or killed. Children should be warned not to touch the parking brake, brake pedal, or the shift lever. Do not leave the Key Fob inside the vehicle or in the ignition. A child could start the vehicle, operate power windows, other controls, or move the vehicle.

• Do not leave children or animals inside parked vehicles in hot weather. Interior heat build-up may cause them to be severely injured or killed.

GETTING STARTED

Information Provided by:

REMOTE START

• Press the REMOTE START button REMOTE START button a third time shuts the engine off.

• In order to allow proper engine pre-heating (diesel engine only), depending on engine temperature, there may be a delay of up to 30 seconds before the engine starts.

• To drive the vehicle, press the UNLOCK button, insert the Key Fob in the ignition and turn to the ON/RUN position.

• With remote start, the engine will only run for 15 minutes (timeout) unless the ignition Key Fob is placed in the ON/RUN position.

• The vehicle must be started with the Key Fob after two consecutive timeouts.

• Do not start or run an engine in a closed garage or confined area. Exhaust gas contains Carbon Monoxide (CO) which is odorless and colorless. Carbon Monoxide is poisonous and can cause you or others to be severely injured or killed when inhaled.

• Keep Key Fob transmitters away from children. Operation of the Remote Start System, windows, door locks or other controls could cause you and others to be severely injured or killed.

twice within five seconds. Pressing the

WARNING!

THEFT ALARM

To Arm

• Press the Key Fob LOCK button or the power door lock switch while the door is open.

To Disarm

• Press the Key Fob UNLOCK button and turn the ignition to the ON/RUN position.

SEAT BELT

• Be sure everyone in your vehicle is in a seat and using a seat belt properly.

• Position the lap belt across your thighs, below your abdomen. To remove slack in the lap portion, pull up a bit on the shoulder belt. To loosen the lap belt if it is too tight, tilt the latch plate and pull on the lap belt. A snug belt reduces the risk of sliding under the belt in a collision.

• Position the shoulder belt on your chest so that it is comfortable and not resting on your neck. The retractor will withdraw any slack in the belt.

• A shoulder belt placed behind you will not protect you from injury during a collision. You are more likely to hit your head in a collision if you do not wear your shoulder belt. The lap and shoulder belt are meant to be used together.

GETTING STARTED

Information Provided by:

• A belt that is too loose will not protect you properly. In a sudden stop you could move too far forward, increasing the possibility of injury. Wear your seat belt snugly.

• A frayed or torn belt could rip apart in a collision and leave you with no protection. Inspect the belt system periodically, checking for cuts, frays, or loose parts. Damaged parts must be replaced immediately. Do not disassemble or modify the system. Seat belt assemblies must be replaced after a collision if they have been damaged (bent retractor, torn webbing, etc.).

• The seat belts for both front seating positions may be equipped with pretensioning devices that are designed to remove slack from the seat belt in the event of a collision.

• A deployed pretensioner or a deployed airbag must be replaced immediately.

WARNING!

In a collision, you and your passengers can suffer much greater injuries if you are not buckled up properly. You can strike the interior of your vehicle or other passengers, or you can be thrown out of the vehicle. Always be sure you and others in your vehicle are buckled up properly.

SUPPLEMENTAL RESTRAINT SYSTEM (SRS) — AIRBAGS

• This vehicle has Advanced Front Airbags for both the driver and right front passenger as a supplement to the seat belt restraint system. The Advanced Front Airbags will not deploy in every type of collision.

• Advanced Front Airbags are designed to provide additional protection by supplementing the seat belts in certain frontal collisions depending on the severity and type of collision. Advanced Front Airbags are not expected to reduce the risk of injury in rear, side, or rollover collisions.

• This vehicle may be equipped with Supplemental Side Airbag Inflatable Curtains to protect the driver, front and rear passengers sitting next to a window.

• This vehicle may be equipped with Supplemental Seat-Mounted Side Airbags to provide enhanced protection to help protect an occupant during a side impact.

• If the Airbag Warning Light while driving, have the vehicle serviced by an authorized service center

immediately.

• Refer to the Owner's Manual on the DVD for further details regarding the Supplemental Restraint System (SRS).

is not on during starting, stays on, or turns on

GETTING STARTED

Information Provided by:

WARNING!

• Relying on the airbags alone could lead to more severe injuries in a collision. The airbags work with your seat belt to restrain you properly. In some collisions, the airbags won't deploy at all. Always wear your seat belts even though you have airbags.

• Being too close to the steering wheel or instrument panel during Advanced Front Airbag deployment could cause serious injury, including death. Airbags need room to inflate. Sit back, comfortably extending your arms to reach the steering wheel or instrument panel.

• Supplemental Side Airbag Inflatable Curtains and Supplemental Seat-Mounted Side Airbags need room to inflate. Do not lean against the door or window. Sit upright in the center of the seat.

• Being too close to the Supplemental Side Airbag Inflatable Curtain and/or Seat-Mounted Side Airbag during deployment could cause you to be severely injured or killed.

• Do not drive your vehicle after the airbags have deployed. If you are involved in another collision, the airbags will not be in place to protect you.

• After any collision, the vehicle should be taken to an authorized dealer immediately.

CHILD RESTRAINTS

• Children 12 years and under should ride properly buckled up in a rear seat, if available. According to crash statistics, children are safer when properly restrained in the rear seats rather than in the front.

• Every state in the United States and all Canadian provinces require that small children ride in proper restraint systems. This is the law, and you can be prosecuted for ignoring it.

Installing The LATCH - Compatible Child Restraint System

• Your vehicle’s second row passenger seats are equipped with the child restraint anchorage system called LATCH, which stands for Lower Anchors and Tether for CHildren. LATCH child restraint anchorage systems are installed in the rear seat outboard positions.

• LATCH equipped seating positions have both lower anchor bars, located at the back of the seat cushion, and tether strap anchorages, located behind the seat back.

Installing The Lower Attachments:

• The vehicle lower anchorages are round bars located at the rear of the seat cushion where it meets the seatback. The rear seat lower anchors can be readily identified by the symbol

anchorages and are just visible when you lean into the rear seat to install the child restraint.

located on the seatback directly above the

GETTING STARTED

Information Provided by:

• Loosen the child seat adjusters on the lower straps and on the tether strap so that you can more easily attach the hooks or connectors to the vehicle anchors.

• Attach the lower hooks or connectors over the top of the seatcover material.

• Then tighten the straps as you push the child restraint rearward and downward into the seat.

Installing The Top Tether Strap (With Either Lower Anchors Or Vehicle Seat Belt) Regular Cab - Front Seat:

• Place the child restraint on the seat and adjust the tether strap so that it will reach over the seat back under the head restraint to the tether anchor directly behind the seat.

• Lift the cover (if so equipped), and attach the hook to the square opening in the sheet metal.

• Install the child restraint and remove the slack in the tether strap according to the manufacturer's instructions.

Installing The Top Tether Strap (With Either Lower Anchors Or Vehicle Seat Belt) Crew Cab - Rear Seats:

• Obtain tether straps by raising the head restraints and reaching between the rear glass and rear seat. The tether strap may be retained with an elastic band. Accessibility to the tether strap is greatly improved by raising the seat cushion to the “up” position. Remove the elastic before use.

• Place a child restraint on each outboard rear seat and adjust the tether strap so that it will reach under the head restraint to the tether anchor directly behind the seat and then to the anchor directly behind the center rear seat.

• Pass each tether strap hook under the head restraint and through the loop of webbing behind the child seat.

• Route each tether strap to the anchor behind the center seat, and attach the hooks to the metal ring.

• Place a child restraint on the center rear seat and adjust the tether strap so that it will reach under the head restraint to the tether anchor directly behind the seat and to the anchor directly behind the right seat.

GETTING STARTED

Information Provided by:

• Install the child restraint and remove the slack in the tether strap according to the manufacturer’s instructions.

1. Inner Anchor Strap Ring(s)

2. Snap Hook

3. Tether Strap

4. Passenger's Side Rear Child Seat

5. Rear Center Child Seat

6. Driver's Side Rear Child Seat

Installing The Child Restraint Using The Vehicle Seat Belts

• To install a child restraint, first, pull enough of the seat belt webbing from the retractor to route it through the belt path of the child restraint and slide the latch plate into the buckle.

• Next, extract all the seat belt webbing out of the retractor and then allow the belt to retract into the retractor. Finally, pull on any excess webbing to tighten the lap portion around the child restraint. Any seat belt system will loosen with time, so check the belt occasionally, and pull it tight if necessary.

• Route the tether strap to provide the most direct path for the strap between the anchor and the child seat, preferably between the head restraint posts underneath the head restraint.

• Attach the tether strap hook of the child restraint to the tether anchor and remove slack in the tether strap according to the child restraint manufacturer’s instructions.

NOTE: Ensure that the tether strap does not slip into the opening between the seatbacks as you remove slack in the strap.

WARNING!

• In a collision, an unrestrained child, even a tiny baby, can become a projectile inside the vehicle. The force required to hold even an infant on your lap could become so great that you could not hold the child, no matter how strong you are. The child and others could be severely injured or killed. Any child riding in your vehicle should be in a proper restraint for the child's size.

• Improper installation of a child restraint to the LATCH anchorages can lead to failure of an infant or child restraint. The child could be severely injured or killed. Follow the manufacturer’s directions exactly when installing an infant or child restraint.

(Continued)

GETTING STARTED

Information Provided by:

WARNING! (Continued)

• An incorrectly anchored tether strap could lead to increased head motion and possible injury to the child. Use only the anchor positions directly behind the child seat to secure a child restraint top tether strap.

• Rearward-facing child seats must never be used in the front seat of a vehicle with a front passenger airbag. An airbag deployment could cause infants in this position to be severely injured or killed.

FRONT SEATS

Power Seats

• The seat switch controls forward/backward and up/down.

• The recline switch controls the angle of the seatback. Push switch forward or rearward and the seatback will move in either direction.

Power Lumbar

• The lumbar controls are located on the outboard side of the seat cushion. The lumbar support can be increased by pressing the front of the switch and decreased by pressing the back of the switch.

Memory Seats

• The memory seat feature allows you to save the driver's seat position (excluding lumbar position), driver's outside mirror position, adjustable brake and accelerator pedals, Automatic Temperature Control (ATC) temperature setting and radio station preset settings. The driver's memory buttons are located on the outboard side of the driver's seat cushion.

• Adjust all memory profile settings, press the SET button, then press 1 or 2 within five seconds.

• To program a Key Fob to the memory position, place the ignition switch in the LOCK position and remove the Key Fob, press and release the LOCK button on the Key Fob to be programmed within 5 seconds of pressing button 1 or 2.

• Press 1 or 2 to recall the saved positions, or press UNLOCK on the programmed Key Fob.

• Refer to the Owner's Manual on the DVD for further details.

Manual Seats

Information Provided by:

Forward/Rearward

Recliner

GETTING STARTED

• Lift up on the adjusting bar located at the front of the seat near the floor and release at the desired position, then release the handle to lock the seat into position.

• Lift the recliner lever located on the outboard side of the seat, lean back and release at the desired position.

CAUTION!

Do not place any article under a power seat or impede its ability to move as it may cause damage to the seat controls. Seat travel may become limited if movement is stopped by an obstruction in the seat’s path.

WARNING!

• Adjusting a seat while the vehicle is moving is dangerous. The sudden movement of the seat could cause you to lose control. The seat belt might not be properly adjusted, and you could be severely injured or killed. Only adjust a seat while the vehicle is parked.

(Continued)

GETTING STARTED

Information Provided by:

WARNING! (Continued)

• Actuating the recliner handle will allow the seatback to swing (dump) forward on manual recliner seats. Do not stand or lean in front of the seat while actuating the handle. The seatback may swing forward and hit you, causing injury. This dump feature allows access to the storage bin behind the seat. To avoid injury, place your hand on the seatback and actuate the handle, then position the seatback in the desired position.

• Do not ride with the seatback reclined so that the seat belt is no longer resting against your chest. In a collision, you could slide under the seat belt and be severely injured or killed. Use the recliner only when the vehicle is parked.

HEATED/VENTILATED SEATS

Front Heated Seats

• The controls for front heated seats are located on the center instrument panel below the climate controls.

• Press the switch once to select High-level heating. Press the switch a second time to select Low-level heating. Press the switch a third time to shut the heating elements Off.

Front Ventilated Seats

• Small fans that draw the air from around the occupant and exhaust it underneath the seat and into the passenger compartment are located in the seat cushion and seatback. The fans draw this air across the surface of the seat using air ducts and fine perforations in the covering to help keep the driver cooler in higher ambient temperatures.

• The ventilated seat switches are located in the center instrument panel below the climate controls. Press the switch once to select High speed. Press the switch a second time to select Low speed. Press the switch a third time to turn the fans Off.

GETTING STARTED

Information Provided by:

Rear Heated Seats

• Second row heated seat switches are located on the rear of the center console.

• Press the switch once to select High-level heating. Press the switch a second time to select Low-level heating. Press the switch a third time to shut the heating elements Off.

CAUTION!

Repeated overheating of the seat could damage the heating element and/or degrade the material of the seat.

WARNING!

• Persons who are unable to feel pain to the skin because of advanced age, chronic illness, diabetes, spinal cord injury, medication, alcohol use, exhaustion or other physical conditions must exercise care when using the seat heater. It may cause burns even at low temperatures, especially if used for long periods of time.

• Do not place anything on the seat that insulates against heat, such as a blanket or cushion. This may cause the seat heater to overheat. Sitting in a seat that has been overheated could cause serious burns due to the increased surface temperature of the seat.

HEATED STEERING WHEEL

• The steering wheel contains a heating element that heats the steering wheel to one temperature setting.

• The heated steering wheel switch is located on the center instrument panel below the climate controls.

• Press the switch once to turn the heating element On. Press the switch a second time to turn the heating element Off.

GETTING STARTED

Information Provided by:

• Once the heated steering wheel has been turned on, it will operate for approximately 58 to 70 minutes before automatically shutting off. The heated steering wheel can shut off early or may not turn on when the steering wheel is already warm.

TILT STEERING COLUMN / ADJUSTABLE PEDALS

Tilt Steering Column

• The tilt lever is located on the steering column, below the turn signal lever.

• Pull forward on the lever and move the steering wheel up or down as desired.

• Release the lever to lock the steering wheel into position.

Adjustable Pedals

• Press the switch located on the left side of the steering column forward to move the brake and accelerator pedals away from the driver and press the switch rearward to move the pedals closer to the driver.

NOTE: The pedals cannot be adjusted when the vehicle is in REVERSE or when the Electronic Speed Control is set.

CAUTION!

Do not place any article under the adjustable pedals or impede its ability to move, as it may cause damage to the pedal controls. Pedal travel may become limited if movement is stopped by an obstruction in the adjustable pedal's path.

WARNING!

• Tilting the steering column while the vehicle is moving is dangerous. Without a stable steering column, you could lose control of the vehicle and have a collision. Adjust the column only while the vehicle is stopped. Be sure it is locked before driving.

• Do not adjust the pedals while the vehicle is moving. You could lose control and have a collision. Always adjust the pedals while the vehicle is parked.

GETTING STARTED

Information Provided by:

DIESEL ENGINE STARTING PROCEDURES

Engine Block Heater

• For ambient temperatures below 0°F (-18°C), engine block heater usage is recommended.

• For ambient temperatures below –20°F (-29°C), engine block heater usage is required.

• The engine block heater cord is routed under the hood to the right side and can be located just behind the grille near the headlamp.

• Connect the heater cord to a ground-fault interrupter protected 110–115 volt AC electrical outlet with a grounded, three-wire extension cord.

NOTE: The block heater will require 110 volts AC and 6.5 amps to activate the heater element.

• The block heater must be plugged in at least one hour to have an adequate warming effect on the coolant.

Water In Fuel Message

• If a Water In Fuel message or indicator appears in the cluster and a chime sounds five times, the fuel/water separator will need to be drained

immediately to prevent engine damage.

• Refer to Maintaining Your Vehicle in this guide for draining instructions or see your dealer.

Cold Start Procedure

• Turn the ignition switch to the ON position. If the Wait To Start light appears in the cluster, wait for the light to turn off before starting.

• In extremely cold conditions, when the engine temperature may be below 0°F (-18°C), cycle the manifold heaters twice with a five-second pause between cycles.

• Refer to the Owner's Manual Diesel Supplement on the DVD for further details.

WARNING!

Remember to disconnect the cord before driving. Damage to the 110–115 volt electrical cord could cause electrocution.

OPERATING YOUR VEHICLE

Information Provided by:

TURN SIGNALS/WIPER/WASHER/HIGH BEAMS LEVER

Turn Signals/Lane Change Assist

• Tap the lever up or down once and the turn signal (right or left) will flash three times and automatically turn off.

Wipers

Intermittent, Low And High Operation

• Rotate the end of the lever to the first detent position for one of five intermittent settings, the second detent for low wiper operation and the third detent for high wiper operation.

Washer Operation

• Push the end of the lever inward to the second detent and hold for as long as spray is desired.

High Beams

• Push the lever away from you to activate the high beams.

• A high beam symbol will illuminate in the cluster to indicate the high beams are on.

NOTE: For safe driving, turn off the high beams when oncoming traffic is present to prevent headlight glare and as a courtesy to other motorists.

OPERATING YOUR VEHICLE

Information Provided by:

HEADLIGHT SWITCH

Automatic Headlights/Parking Lights/Headlights

• Rotate the headlight switch, located on the instrument panel to the left of the steering wheel, to the first detent for parking lights second detent for headlights

• With the parking lights or low beam headlights on, push the headlight switch once for fog lights.

• Rotate the headlight switch to “A” for AUTO headlights.

• When set to “A” (AUTO), the system automatically turns the headlights on or off based on ambient light levels.

Instrument Panel Dimmer

• Rotate the dimmer control to the extreme left position to fully dim the instrument panel lights and prevent the interior lights from illuminating when a door is opened.

• Rotate the dimmer control right to increase the brightness of the instrument panel when the parking lights or headlights are on.

• Rotate the dimmer control right to the next detent position to fully brighten the odometer and radio when the parking lights or headlights are on. Refer to your Media Center/Radio User Manual on the DVD for display dimming.

• Rotate the dimmer control right to the last detent position to turn on the interior lighting.

Cargo Light

• The cargo light is strategically placed lighting that helps illuminate the bed area of the truck. A cargo light symbol will illuminate in the cluster to indicate the light is on.

• Push the button to turn ON/OFF the cargo lighting.

and to the

OPERATING YOUR VEHICLE

Information Provided by:

SPEED CONTROL LEVER

Cruise ON/OFF

• Push the ON/OFF button to activate the Speed Control.

• The cruise symbol will appear on the instrument cluster to indicate the Speed Control is on.

• Push the ON/OFF button a second time to turn the system off.

Set

• With Speed Control on, push down and release the lever to set a desired speed.

Accel/Decel

• Push and hold the lever up to accelerate or down to decelerate the vehicle; release the lever to save the new set speed.

• Once a speed is set, tapping the lever up or down will increase or decrease the set speed approximately 1 mph (2 km/h).

• Push and hold the lever up to accelerate in 5 mph (8 km/h) increments or push and hold the lever down to decelerate in 5 mph (8 km/h) increments; release the lever to save the new set speed.

Resume

• To resume a previously selected speed in memory, push the lever up and release.

Cancel

• Pull the lever toward you, push the clutch pedal or apply the brakes to cancel the set speed and maintain the set speed in memory.

• Push the ON/OFF button to turn the system off and erase the set speed memory.

or CRUISE

OPERATING YOUR VEHICLE

Information Provided by:

WARNING!

• Leaving the Electronic Speed Control system on when not in use is dangerous. You could accidentally set the system or cause it to go faster than you want. You could lose control and have a collision. Always leave the Electronic Speed Control system off when you are not using it.

• Electronic Speed Control can be dangerous where the system cannot maintain a constant speed. Your vehicle could go too fast for the conditions, and you could lose control. A collision could be the result. Do not use Electronic Speed Control in heavy traffic or on roads that are winding, icy, snow-covered or slippery.

ELECTRONIC RANGE SELECT (ERS) OPERATION

• Electronic Range Select (ERS) allows you to limit the highest available transmission gear, and can be activated during any driving condition. When towing a trailer or operating the vehicle in off-road conditions, using ERS shift control will help you maximize both performance and engine braking.

• Toggle the switch on the column shift lever down (-) or up (+) to select the desired top gear.

• For maximum deceleration (engine braking) toggle the switch on the column shift lever down (-). Your vehicle will automatically select the lowest safe gear for optimal engine braking.

• To disable ERS, push and hold the column shift lever switch up (+) until “D” is displayed in the odometer.

• Switching between ERS and DRIVE mode can be done at any vehicle speed.

• Refer to your Owner's Manual on the DVD for further details.

OPERATING YOUR VEHICLE

Information Provided by:

MANUAL CLIMATE CONTROLS

Air Recirculation

• Rotate the Temperature Control to the MAX A/C position to automatically turn on both Air Conditioning and Recirculation.

• For window defogging, turn the recirculation button off.

• Recirculation is not allowed in defrost, floor, defrost/floor (mix) modes.

/Max A/C

AUTOMATIC TEMPERATURE CONTROL (ATC)

• Rotate both the Mode Control and Blower Control to the AUTO position.

• Select the desired temperature by pushing the up or down temperature buttons for the driver or passenger.

• The system will maintain the set temperature automatically.

Air Conditioning (A/C)

• If the A/C button is pushed while in the AUTO mode, the indicator light may flash three times to indicate the cabin air is being controlled automatically.

OPERATING YOUR VEHICLE

Information Provided by:

SYNC Temperature Button

• Push the SYNC button once to control the driver and passenger temperatures simultaneously. Push the SYNC button a second time to control the temperatures individually.

Air Recirculation

• Use recirculation for maximum A/C operation.

• For window defogging turn the recirculation button off.

• If the recirculation button is pushed while in the AUTO mode, the indicator light may flash three times to indicate the cabin air is being controlled automatically.

DIESEL EXHAUST BRAKE (ENGINE BRAKING)

• The exhaust brake feature will only function when the driver turns the exhaust brake switch to the ON position.

• The switch is located on the switch bank below the audio system.

• Once the switch is in the ON position and the vehicle is moving faster than 5 mph (8 km/h), the exhaust brake will automatically operate when the driver removes pressure from the accelerator pedal.

• Exhaust braking is most effective when the engine RPM is higher.

NOTE: For optimum braking power, it is recommended to use the exhaust brake while in TOW/HAUL mode.

CAUTION!

Use of aftermarket exhaust brakes is not recommended and could lead to engine damage.

WARNING!

Do not use the exhaust brake feature when driving in icy or slippery conditions as the increased engine braking can cause the rear wheels to slide and the vehicle to swing around with the possible loss of vehicle control, which may cause a collision possibly resulting in personal injury or death.

OPERATING YOUR VEHICLE

Information Provided by:

IDLE-UP FEATURE (DIESEL/AUTOMATIC TRANSMISSION ONLY)

• The Idle-Up Feature uses the speed control switches to increase engine idle speed and quickly warm the vehicle’s interior. This feature must be enabled by your dealer. See your local dealer.

• With the transmission in PARK, the parking brake applied, and the engine running, push the speed control ON/OFF switch on, then push the SET switch.

• The engine RPM will go up to 1100 RPM. To increase the RPM, push and hold the ACCEL/RESUME switch and the idle speed will increase to approximately 1500 RPM. To decrease the RPM, push and hold the DECEL switch and the idle speed will decrease to approximately 1100 RPM.

• To cancel the Idle Up Feature, either push the CANCEL switch, push the ON/OFF switch or push the brake pedal.

COOL–DOWN IDLE CHART – DIESEL ONLY

TURBOCHARGER "COOL DOWN" CHART

Driving Conditions Load Turbocharger

Stop and Go Empty Cool Less than 1

Stop and Go Medium Warm 1

Highway Speeds Medium Warm 2

City Traffic Max. GCWR Warm 3

Highway Speeds Max. GCWR Warm 4

Uphill Grade Max. GCWR Hot 5

Temperature

Idle Time (in

minutes) Before

Shut Down

OPERATING YOUR VEHICLE

Information Provided by:

POWER SLIDING REAR WINDOW

• The switch for the power sliding rear window is located on the overhead console.

• Pull the switch to open the glass and push the switch to close the glass.

WIND BUFFETING

• Wind buffeting can be described as a helicopter-type percussion sound. If buffeting occurs with the rear windows open, adjust the front and rear windows together.

• If buffeting occurs with the sunroof open, adjust the sunroof opening, or adjust any window. This will minimize buffeting.

ELECTRONICS

Information Provided by:

YOUR VEHICLE'S SOUND SYSTEM

ELECTRONICS

Information Provided by:

ELECTRONICS

Information Provided by:

NON-TOUCH-SCREEN RADIOS

Media Center 130 (Sales Code RES)

Media Center 130 with Satellite Radio (Sales Code RES + RSC)

ELECTRONICS

Information Provided by:

NOTE: Your radio may not be equipped with Voice Command or Uconnect™ Phone. To determine if your radio has this feature, press the Voice Command button on the radio. You will hear a voice prompt if you have the feature, or see a message on the radio stating “Uconnect Phone not available” if you do not.

• Your radio has many features that add to the comfort and convenience of you and your passengers. Some of these radio features should not be used when driving because they take your eyes from the road or your attention from driving.

• The radio sales code is located on the lower right side of the radio faceplate.

Seek Up/Down Buttons

• Press to seek through radio stations in AM, FM, or SAT bands. Seek through tracks in CD mode.

• Hold either button to bypass stations without stopping.

Audio Settings

• Press the TUNE/SCROLL control knob and BASS, MID, TREBLE, BALANCE and FADE will display. Rotate the TUNE/SCROLL control knob to select the desired setting.

Audio Jack

• The Audio Jack allows a portable device, such as an MP3 player or a cassette player, to be plugged into the radio and utilize the vehicle’s audio system, using a 3.5 mm cable, to amplify the source and play through the vehicle speakers.

• Pressing the AUX button will change the mode to auxiliary device if the Audio Jack is connected, allowing the music from your portable device to be heard through the vehicle's speakers.

• The functions of the portable device are controlled using the device buttons. The volume may be controlled using the radio or portable device.

Clock Setting

• Press and hold the TIME button until the hours blink; turn the TUNE/SCROLL control knob to set the hours.

• Press the TUNE/SCROLL control knob until the minutes begin to blink; turn the TUNE/SCROLL control knob to set the minutes.

• Press the TUNE/SCROLL control knob to save the time change.

• To exit, press any button/knob or wait five seconds.

Store Radio Presets

• Press the SET/RND button once and SET 1 will show in the display. Then select the button (1–6).

• A second station may be added to each push button. Press the SET/RND button twice and SET 2 will show in the display, then select button (1–6).

ELECTRONICS

Information Provided by:

TOUCH-SCREEN RADIOS

Media Center 430/430N CD/DVD/HDD (Sales Code RBZ/RHB)

NOTE:

Uconnect Phone. To determine if your radio has this feature, press the Voice Command button on the radio. You will hear a voice prompt if you have the feature, or see a message on the radio stating “Uconnect Phone not available” if you do not.

Your radio may not be equipped with Uconnect Voice Command or

• The radio sales code is located on the lower right side of the radio faceplate.

Seek Up/Down

• Press the SEEK up/down arrow soft-keys to change the currently playing station in AM, FM or SAT bands. Seek through tracks in CD or iPod through songs in the HDD playlist.

modes or

Audio Jack

• The Audio Jack allows a portable device, such as an MP3 player or a cassette player, to be plugged into the radio and utilize the vehicle’s audio system, using a 3.5 mm audio cable, to amplify the source and play through the vehicle speakers.

• Pressing the AUX button will change the mode to auxiliary device if the Audio Jack is connected, allowing the music from your portable device to be heard through the vehicle's speakers.

ELECTRONICS

Information Provided by:

• The functions of the portable device are controlled using the device buttons. The volume may be controlled using the radio or portable device.

Clock Setting

• Turn the radio on, then touch the screen where the time is displayed.

• Touch the USER CLOCK soft-key (Navigation radio only).

• To adjust the hours, touch either the HOUR FORWARD or HOUR BACKWARD soft-key.

• To adjust the minutes, touch either the MINUTE FORWARD or MINUTE BACKWARD soft-key.

• To save the new time setting, touch the screen where the word “Save” is displayed.

Store Radio Presets

• Press the RADIO hard-key to display AM FM SAT in the upper left corner of the screen.

• Select the radio band by touching either the AM, FM, or SAT soft-key.

• Find the station to store by touching the right and left arrow soft-keys, touching the SCAN soft-key, or by using the DIRECT TUNE soft-key.

• Once the station is found, touch and hold one of the PRESET soft-keys in the list to the right, until you hear a confirmation beep.

Hard Disk Drive Operation

Copy Complete Audio Disc To Hard-Drive

• Press the LOAD hard-key.

• Insert a disc, then press the MENU hard-key.

• Touch the MY FILES soft-key, then select MY MUSIC.

• Touch the Add Music Files to HDD soft-key, then touch the From Disc soft-key in the next screen to start the process.

Copying From USB

• The USB port on the radio face plate is for copying files to your hard drive. To access, lift up on the cover.

• Insert a USB device (e.g. thumb drive or memory stick), then select MY MUSIC.

• Touch the Add Music Files to HDD soft-key, then touch the From USB soft-key in the next screen.

• Select the folders or titles you would like to copy, then touch the DONE soft-key to start the copy process.

Copy Pictures To The Hard-Drive

• Insert either a CD or a USB device containing your pictures in JPEG format into the USB port on the radio face.

• Touch the MY FILES soft-key, then go to the MANAGE MY FILES screen.

ELECTRONICS

Information Provided by:

• Touch the MY PICTURES soft-key to get an overview of the currently stored images.

• Touch one of the ADD PICTURES soft-keys, then select the type of media inserted.

• Use the PAGE soft-keys to page through a list of pictures and press the picture you would like to import.

• Confirm your selection by touching the YES soft-key. The imported picture is now available in the MANAGE MY PICTURES screen.

• In order to display the imported picture in the radio screen, touch the desired picture soft-key.

• Select this picture by pressing the PICTURE VIEW soft-key. A check mark indicates the currently used picture.

Cleaning Your Touch-Screen Radio

• Do not spray any liquid or caustic chemicals directly on the screen. Use a clean and dry micro fiber lens cleaning cloth in order to clean the touch-screen.

• If necessary, use a lint-free cloth dampened with a cleaning solution such as isopropyl alcohol or an isopropyl alcohol and water solution ratio of 50:50. Be sure to follow the solvent manufacturer's precautions and directions.

USB Port

• The USB Port on the radio allows you to copy songs from a connected USB drive or supported media device onto your Media Center hard drive.

• Media Center 430 and 430N also offer the ability to play songs from connected USB drives, or supported media devices, through the USB port located in the upper glove box. Supported devices may be controlled through the vehicles steering wheel or radio controls, or even with voice commands, and may be charged through the USB port.

Navigation – Media Center 430N (Sales Code RHB) Only

• For software updates, visit http://www.garmin.com/chrysler website, or contact your authorized dealer for the latest available software.

• The Navigation system receives GPS signals from satellites to display the position of your vehicle. You may experience interruptions or delays in receiving navigation information in garages, tunnels, large cities, or other situations where the vehicle does not have a direct line of sight to the sky.

• Voice Command is not available for navigation commands on this radio (although Voice Command functions for all other radio functions).

New Destination

• Touch the NAV soft-key in the upper-right corner of your radio screen, to access the Navigation system.

• Touch the Where To? soft-key to program a destination.

ELECTRONICS

Information Provided by:

• Next touch one of the subcategories to search for your destination. Address, Points of Interest, Recently Found, Favorites and Intersection are a few of the options.

• After touching one of the subcategories, follow the on-screen steps to complete the process and be routed to your destination.

Program/Storing Home Location

• Touch the NAV soft-key in the upper-right corner of your radio screen, to access the Navigation system.

• Touch the Where To? soft-key, then touch Go Home.

• Next, select from:

• Enter My Address – enter an address for the location using the on-screen

keyboard.

• Use my current location – sets your current location as your Home Location.

• Choose from Recently Found – select a location from your recently found

locations.

• After you set your Home Location, touch Where To? , then touch Go Home.

Change Stored Home Location

• Touch the NAV soft-key in the upper-right corner of your radio screen, to access the Navigation system.

• Touch the Where To? soft-key, then touch Favorites.

• Touch the location you want to edit.

• Next, touch Press for More.

• Touch Edit.

• Follow the on-screen steps for editing the Home Location.

Guide Me Home

• Touch the NAV soft-key in the upper-right corner of your radio screen, to access the Navigation system.

• Touch Where To? , then touch Go Home.

Map

• Touch the NAV soft-key in the upper-right corner of your radio screen, to access the Navigation system.

• Touch the View Map soft-key to display a map of your current position.

SIRIUS Travel Link (Media Center 430N Only)

• To access SIRIUS Travel Link, press the MENU hard-key then touch the Travel Link soft-key.

NOTE: SIRIUS Travel Link requires a subscription, sold separately after trial subscription included with vehicle purchase.

• SIRIUS Travel Link brings a wealth of useful information into your vehicle and right to your fingertips:

ELECTRONICS

Information Provided by:

• Weather

• View detailed weather conditions at your current location.

• Ski Info

• View ski and snowboarding conditions at ski resorts.

• Fuel Prices

• Check detailed price information for fuel stations near your current location.

• Movie Listings

• Check which movies (includes start times, ratings, run lengths and summaries) are playing at theaters near your current location.

• Sports Scores

• View scores and upcoming events for all major sports.

• Your favorite location, theater and sports teams can be stored for quick access.

• Refer to your Media Center 430/430N (RBZ/RHB) User's Manual for more details.

STEERING WHEEL AUDIO CONTROLS

• The steering wheel audio controls are located on the rear surface of the steering wheel.

Right Switch

• Press the switch up or down to increase or decrease the volume.

• Press the button in the center to change modes AM/FM/CD/SAT.

Left Switch

• Press the switch up or down to search for the next listenable station or select the next or previous CD track.

• Press the button in the center to select the next preset station (radio) or to change CDs if equipped with a CD Changer.

Uconnect™ Phone

• To determine if your vehicle is equipped with Uconnect™ Phone, press the Uconnect™ Phone button voice prompt. If not, you will see a message on the radio “Uconnect phone not available”.

• The Uconnect™ Phone is a voice-activated, hands-free, in-vehicle communications system with Voice Command Capability (see Voice Command section).

. If your vehicle has this feature, you will hear a

ELECTRONICS

Information Provided by:

• The Uconnect™ Phone allows you to dial a phone number with your mobile phone using simple voice commands.

• For vehicles equipped with Video Entertainment System (VES)™, refer to the Uconnect™ Phone section of the Uconnect™ User's Manual on the DVD for further details.

• For vehicles not equipped with VES™, refer to your vehicle Owner's Manual on the DVD for further details.

NOTE: The Uconnect™ Phone requires a mobile phone equipped with the Bluetooth support, call 1–877–855–8400 or visit jeep.com/uconnect for Jeep vehicles, dodge.com/uconnect for Dodge and Ram Truck vehicles, or chrysler.com/ uconnect for Chrysler vehicles.

Phone Pairing

NOTE: Pairing is a one-time initial setup before using the phone. You will also

need to follow the Bluetooth®instructions in your cell phone user guide to complete the phone pairing setup.

Making A Phone Call

Hands-Free Profile, Version 0.96 or higher. For Uconnect™ customer

• Press the Phone button

• Wait for the “ready” prompt and BEEP.

• (After the BEEP), say “Uconnect setup”.

• (After the BEEP), say “phone pairing”.

• (After the BEEP), say “pair a phone”.

• Follow the audible prompts.

• You will be asked to enter a four-digit Personal Identification Number (PIN), which you will later need to enter into your mobile phone. You can enter any four-digit PIN. You will not need to remember this PIN after the initial pairing process.

• You will then be prompted to give the phone pairing a name (each phone paired should have a unique name).

• Next you will be asked to give this new pairing a priority of 1 thru 7 (up to seven phones may be paired); 1 is the highest and 7 is the lowest priority. The system will only connect to the highest priority phone that exists within the proximity of the vehicle.

• Press the Phone button .

• (After the BEEP), say “dial” (or “call” a name).

• (After the BEEP), say number (or name).

to begin.

ELECTRONICS

Information Provided by:

Phonebook Edit

• Press the Phone button .

• (After the BEEP), say “phonebook”.

• (After the BEEP), say “new entry” or “list names” or “delete”.

• Follow the prompts.

Receiving A Call – Accept (And End)

• When an incoming call rings/is announced on Uconnect™, press the Phone button

• To end a call, press the Phone button

Mute (Or Unmute) Microphone During Call

• During a call, press the Voice Command button .

• (After the BEEP), say “mute on” (or “mute off”).

Transfer Ongoing Call Between Handset And Vehicle

• During a call, press the Voice Command button .

• (After the BEEP), say “transfer call”.

Bluetooth Streaming Audio (Media Center 430N Only)

• Music can be streamed from your Bluetooth mobile phone through Uconnect™ Phone and played through the vehicle's sound system.

• This feature allows you to control your Bluetooth device through the radio, steering wheel audio controls or voice commands.

Changing The Volume

• Start a dialogue by pressing the Phone button , then adjust the volume during a normal call.

• Use the radio ON/OFF VOLUME rotary knob to adjust the volume to a comfortable level while the Uconnect™ system is speaking. Please note the volume setting for Uconnect™ is different than the audio system.

NOTE: To access the tutorial, press the Uconnect™ hard-key. After the BEEP, say “tutorial”. Press any hard-key/button or touch the display (Touch-Screen radio) to cancel the tutorial.

WARNING!

• Any voice commanded system should be used only in safe driving conditions following local laws and phone use. All attention should be kept on the roadway ahead. Failure to do so may result in a collision causing you and others to be severely injured or killed.

• In an emergency, to use Uconnect™ Phone, your mobile phone must be:

• turned on,

(Continued)

ELECTRONICS

Information Provided by:

WARNING! (Continued)

• paired to Uconnect™ Phone,

• and have network coverage.

Uconnect™ VOICE COMMAND

• The Uconnect™ Voice Command system allows you to control your AM, FM radio, satellite radio, disc player, Uconnect™ Phone, a memo recorder, and supported portable media devices. The Voice Command system also provides limited capability to select and play music by artist, song, album, music, genre, or playlist from your compatible iPod available for Media Center 430/430N when connected to the USB port in the center console).

• When you press the Voice Command button faceplate or steering wheel, you will hear a beep. The beep is your signal to

give a command. If you do not say a command within a few seconds, the system will present you with a list of options. If you ever wish to interrupt the system while it lists options, press the Voice Command button

for the BEEP, and say your command.

Voice Command for Text Messaging (Media Center 430/430N/230/130 only)

• If equipped with Uconnect™ Voice Command, your Media Center 430N radio can play incoming SMS messages through the vehicle sound system.

• It also allows you to respond by selecting from various pre-defined phrases.

• Not all phones are compatible with this feature. Refer to the phone compatibility list at jeep.com/uconnect for Jeep vehicles, dodge.com/ uconnect for Dodge and Ram Truck vehicles, or chrysler.com/uconnect for Chrysler vehicles. Connected mobile phones must be bluetooth-compatible, and paired with your radio.

• For vehicles equipped with Video Entertainment System (VES)™, refer to the Uconnect™ Voice Command section of the Uconnect™ User's Manual on the DVD for further details.

• For vehicles not equipped with VES™, refer to your vehicle Owner's Manual on the DVD for Uconnect™ Voice Command information.

Changing The Volume

• Start a dialogue by pressing the Voice Command button , then say a command (for example, “tutorial”).

• Use the radio ON/OFF VOLUME rotary knob to adjust the volume to a comfortable level while the Voice Command system is speaking. The volume setting for Voice Command is different than the audio system.

• For vehicles equipped with Video Entertainment System (VES)™, refer to the Uconnect™ Voice Command section of the Uconnect™ User's Manual on the DVD for further details.

device (this capability is

located on the radio

, listen

ELECTRONICS

Information Provided by:

• For vehicles not equipped with VES™, refer to your vehicle Owner's Manual on the DVD for Uconnect™ Voice Command information.

NOTE: To access the tutorial, press the Voice Command button BEEP, say “tutorial”. Press any hard-key/button or touch the display (Touch-Screen radio) to cancel the tutorial.

WARNING!

Any voice commanded system should be used only in safe driving conditions following local laws and phone use. All attention should be kept on the roadway ahead. Failure to do so may result in a collision causing you and others to be severely injured or killed.

iPod®CONTROL

• There are many ways to play music from iPod®players or other portable devices through your vehicle's speakers. Your choices depend on what radio your vehicle is equipped with.

• The radio sales code is located on the lower right side of the radio faceplate.

If Equipped With Media Center 130 with Satellite Radio (Sales Code RES + RSC) Or Media Center 430/430N (Sales Code RBZ/RHB)

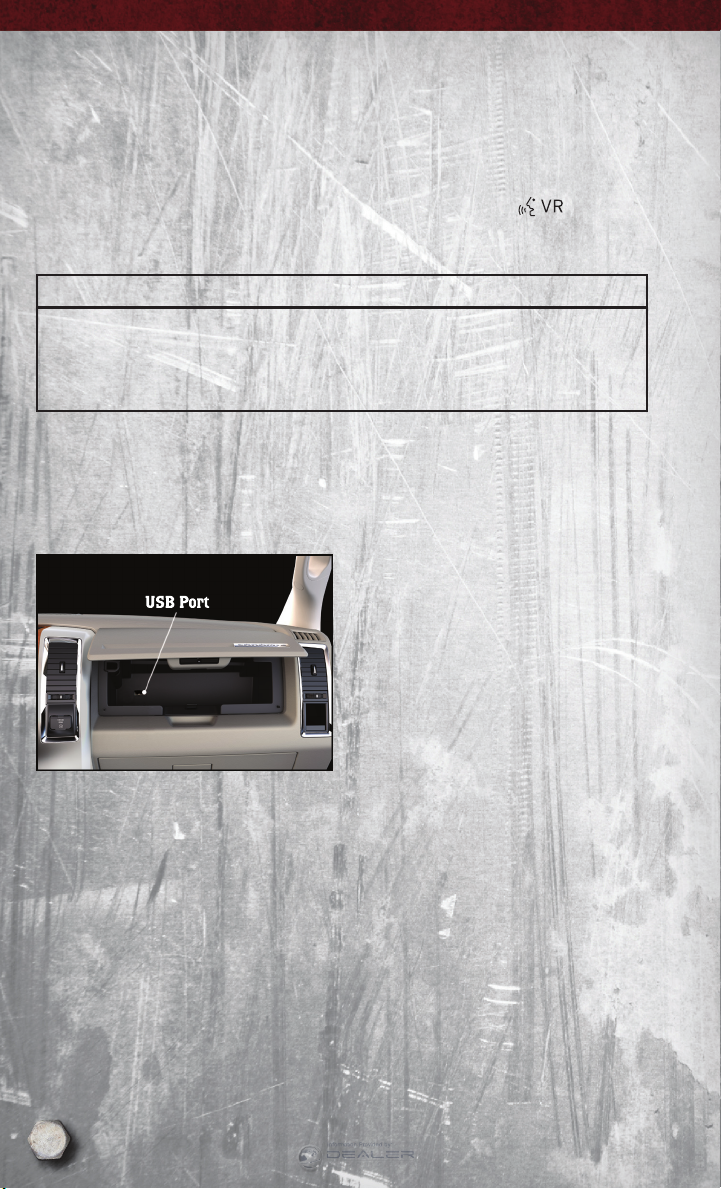

• The USB port, located inside the upper glove box, allows you to plug

an iPod system.

into the vehicle's sound

. After the

• To hear audio from devices connected to this port from a non-touch-screen radio, press the AUX button on the radio faceplate. From a touch-screen radio, press the MEDIA hard-key, then touch the AUX or iPod

• When connected to this feature:

• The iPod

List the iPod the DVD for details.

• The iPod

the specific audio device).

• Compatible iPod

(Media Center 430/430N with Uconnect™ Phone required). Refer to the Owner's Manual on the DVD for details.

can be controlled using the radio buttons to Play, Browse, and

or external devices contents. Refer to the Owner's Manual on

battery charges when plugged into the USB port (if supported by

devices may also be controllable using voice commands

soft-key.

ELECTRONICS

Information Provided by:

NOTE:

• The USB port supports certain Mini, Classic, Nano, Touch, and iPhone The USB port also supports playing music from compatible external USB Mass Storage Class memory devices. For supported audio file formats, refer to the USB Port section in the Owner's Manual on the DVD. Refer to www.jeep.com/ uconnect website for a list of tested iPod not fully support the USB port features. Please visit Apple’s website for iPod software updates.

Bluetooth

If equipped with Uconnect™ Voice Command, your Bluetooth-equipped iPod devices, cell phones or other media players, may also be able to stream music to your vehicle's speakers. Your connected device must be Bluetooth-compatible, and paired with your Media Center radio (see Uconnect™ Phone for pairing instructions). Press the AUX button on the radio faceplate until "BT" is displayed on the radio screen.

Streaming Audio (Media Center 430/430N/230/130 only)

s. Some iPod®software versions may

devices.

WARNING!

Do not plug in or remove the iPod®or external device while driving. Failure to follow this warning could result in a collision.

ELECTRONIC VEHICLE INFORMATION CENTER (EVIC)

• The EVIC features a driver interactive display that is located in the instrument cluster. Pressing the controls on the steering wheel allows the driver to select vehicle information and Personal Settings. For additional information, refer to Programmable Features in this guide.

• Press and release the UP sub menus.

• Press and release the DOWN menus and sub menus.

• Press and release the SELECT select a personal setting in the setup menu.

• Press the BACK

button to scroll upward through the menus and

button to scroll downward through the main

button for access to main menus or to

button to scroll back to a previous menu.

ELECTRONICS

Information Provided by:

PROGRAMMABLE FEATURES

Electronic Vehicle Information Center (EVIC) – If Equipped

• The EVIC can be used to program the following Personal Settings. Press the UP

SELECT button button. Press the SELECT button to change the setting.

• Select Language • Headlamp Off Delay

• Nav-Turn By Turn • Headlamps With Wipers

• Park Assist System • Wiper Mode – If Equipped

• Auto Door Locks • Easy Exit Seat – If Equipped

• Auto Unlock Doors • Tilt Mirror In Reverse

• Remote Unlock Sequence • Key-Off Power Delay

• RKE Linked To Memory • Illuminated Approach

• Remote Start Comfort Sys. • Hill Start Assist (HSA)

• Horn With Remote Start • Display Fuel Saver – If Equipped

• Horn With Remote Lock • Compass Variance

• Flash Lamps With Lock • Calibrate Compass

Key Fob Programmable Features

• The following features may also be programmed by using the Key Fob transmitter or the ignition switch and driver's door lock switch.

NOTE: Pressing the LOCK button while you are inside the vehicle will activate the Vehicle Security Alarm. Opening a door with the Vehicle Security Alarm activated will cause the alarm to sound. Press the UNLOCK button to deactivate the Vehicle Security Alarm.

Unlock On First Press

• To unlock either the driver's side, or all doors, on the first press of the UNLOCK button:

• Press and hold the LOCK button for at least 4 seconds, but no longer than

• Release both buttons at the same time.

Auto Unlock Doors On Exit

• To have all of the vehicle doors unlock when any door is opened:

• Enter your vehicle, close all the doors and fasten your seat belt.

• Within 15 seconds, cycle the ignition switch from the OFF position to the ON

• Within 30 seconds, press the driver’s door lock switch in the UNLOCK

or DOWN button until SYSTEM SETUP displays, then press the

. Scroll through the settings using the UP or DOWN

10 seconds. Then, press and hold the UNLOCK button while still holding the LOCK button.

position a minimum of four times, ending in the OFF position (do not start the engine).

direction. A single chime will indicate that programming is complete.

ELECTRONICS

Information Provided by:

Auto Door Lock

• To have the doors lock automatically when the vehicle’s speed exceeds 15 mph (24 km/h):

• Enter your vehicle, close all the doors and fasten your seat belt.

• Within 15 seconds, cycle the ignition switch from the OFF position to the ON

position a minimum of four times, ending in the OFF position (do not start the engine).

• Within 30 seconds, press the driver’s door lock switch in the LOCK direction.

A single chime will indicate that programming is complete.

Sound Horn With Lock

• To turn the horn chirp on or off when the doors are locked:

• Press the LOCK button for at least 4 seconds, but no longer than

10 seconds. Then, press the PANIC button while still holding the LOCK button.

• Release both buttons at the same time.

Flashing Lights With Lock

• The turn signal lights flashing feature, when the doors are locked or unlocked, can be turned on or off. To turn this feature on or off:

• Press and hold the UNLOCK button for at least 4 seconds, but no longer

than 10 seconds. Then, press and hold the LOCK button while still holding the UNLOCK button.

• Release both buttons at the same time.

ELECTRONICS

Information Provided by:

POWER INVERTER

• A 115 Volt, 150 Watt power inverter outlet is located on the lower instrument panel next to the climate control knob. This outlet can power cellular phones, electronics and other low power devices requiring power up to 150 Watts.

• To turn on the power outlet, press the switch once.

• Press the switch a second time to turn the power outlet off. The status indicator of the AC power inverter indicates whether the inverter is producing AC power.

NOTE: The power inverter is designed with built-in overload protection. If the power rating of 150 Watts is exceeded, the power inverter will automatically shut down. Once the electrical device has been removed from the outlet, the inverter should automatically reset. If the power rating exceeds approximately 170 Watts, the power inverter may have to be reset manually. To reset the inverter manually, unplug the device and plug it in again. To avoid overloading the circuit, check the power ratings on electrical devices prior to using the inverter.

WARNING!

To avoid serious injury or death: Do not use a three-prong adapter. Do not insert any objects into the receptacles. Do not touch with wet hands. Close the lid when not in use. If this outlet is mishandled it may cause an electric shock and failure.

ELECTRONICS

Information Provided by:

POWER OUTLET

• There are three possible 12 Volt power outlets located in the vehicle. Lower left and lower right of the instrument panel and inside the upper lid of the center storage compartment. A key symbol on the outlet cover indicates that the key must be in the ON or ACC positions for the outlet to provide power. The battery symbol on the outlet cover indicates that the outlet is connected to the battery, and can provide power at all times.. All accessories connected to the outlet(s) should be removed or turned off when the vehicle is not in use to protect the battery against discharge.

NOTE:

• Do not exceed the maximum power of 160 Watts (13 Amps) at 12 Volts. If the 160 Watt (13 Amp) power rating is exceeded, the fuse protecting the system will need to be replaced.

• Power outlets are designed for accessory plugs only. Do not insert any other object in the power outlet as this will damage the outlet and blow the fuse. Improper use of the power outlet can cause damage not covered by your warranty.

OFF-ROAD CAPABILITIES

Information Provided by:

FOUR-WHEEL DRIVE OPERATION

• The electronically shifted and manually shifted transfer case provides four mode positions.

• Two-wheel drive high range (2H)

• Four-wheel drive high range (4H)

• NEUTRAL (N)

• Four-wheel drive low range (4L)

• This transfer case is intended to be driven in the 2H position for normal street and highway conditions, such as dry, hard-surfaced roads.

• When additional traction is required, the 4H and 4L positions can be used to lock the front and rear driveshafts together.

• When operating your vehicle in 4L, do not exceed 25 mph (40 km/h).

Shifting Procedure

• Shifting between 2H and 4H can be made with the vehicle stopped or in motion at speeds up to 55 mph (88 km/h).

• Shifting between 2H or 4H and 4L must be made with the transmission in NEUTRAL and the vehicle stopped or rolling at 2 to 3 mph (3 to 5 km/h).

WARNING!

You or others could be injured if you leave the vehicle unattended with the transfer case in the NEUTRAL position without first fully engaging the parking brake. The transfer case NEUTRAL position disengages both the front and rear driveshafts from the powertrain and will allow the vehicle to move regardless of the transmission position. The parking brake should always be applied when the driver is not in the vehicle.

UTILITY

Information Provided by:

TRAILER TOWING WEIGHTS (MAXIMUM TRAILER WEIGHT RATINGS)

NOTE: For additional trailer towing information (maximum trailer weight ratings) refer to the following website addresses:

• http://www.ramtrucks.com.

• http://www.ramtrucks.ca (Canada).

INTEGRATED TRAILER BRAKE MODULE

• The Integrated Trailer Brake Controller allows you to automatically or manually activate the electronic brakes on properly equipped trailers for greater stopping power on downhill grades. The controller and status display are on the instrument panel to the left of the steering wheel, and the included control lever can activate the trailer brakes independent of the truck's brakes.

GAIN Adjustment Buttons (+/-)

• Pressing the +/- buttons, located on the left side of the module, will increase/decrease the brake control power output to the trailer brakes in 0.5 increments. The GAIN setting can be increased to a maximum of 10 or decreased to a minimum of 0 (no trailer braking).

• Refer to your Owner's Manual on the DVD for further details.

WARNING!

The ITBM module has been designed and verified for electric trailer brakes. Connecting a trailer that is not compatible with the ITBM system may result in reduced or complete loss of trailer braking. There may be a increase in stopping distance or trailer instability which could result in personal injury.

RECREATIONAL TOWING (BEHIND MOTORHOME, ETC.)

Recreational Towing – Two-Wheel Drive Models

• Recreational towing of two-wheel drive models is not allowed. Towing with the rear wheels on the ground can result in severe transmission damage.

Recreational Towing – Four-Wheel Drive Models

NOTE: Both the manual shift and

electronic shift transfer cases must be shifted into NEUTRAL for recreational towing. Automatic transmissions must be shifted into the PARK position for recreational towing. Refer to the following for the proper transfer case NEUTRAL shifting procedure for your vehicle.

Recreational Towing Procedure — Manual Shift Transfer Case

• Bring the vehicle to a complete stop, shut off the engine and depress the brake pedal.

• Shift the transmission and transfer case into NEUTRAL.

• Start the engine and shift the transmission into REVERSE.

UTILITY

Information Provided by:

• Release the brake pedal for five seconds and ensure that there is no vehicle movement.

• Repeat the previous two steps with the transmission in DRIVE.

• Shut OFF the engine and place the ignition key in the unlocked OFF position.

• Shift the transmission into PARK and apply the parking brake.

• Attach the vehicle to the tow vehicle with the tow bar and release the parking brake.

Recreational Towing Procedure — Electronic Shift Transfer Case

• Use the following procedure to prepare your vehicle for recreational towing:

• Bring the vehicle to a complete stop, turn the ignition key to the ON/RUN position, but do not start the engine.

• Press the brake pedal and shift the transmission into NEUTRAL.

• Press and hold the transfer case switch NEUTRAL button for four seconds.

• After the shift is completed and the NEUTRAL light turns on, release the NEUTRAL button.

• Start the engine and shift the transmission into REVERSE.

• Release the brake pedal for five seconds and ensure that there is no vehicle movement.

• Repeat the previous two steps with the transmission in DRIVE.

• Turn the engine OFF and place the ignition key in the unlocked OFF position.

• Shift the transmission into PARK and apply the parking brake.

• Attach the vehicle to the tow vehicle with the tow bar and release the parking brake.

NOTE:

• The first two steps are requirements that must be met prior to depressing the NEUTRAL button, and must continue to be met until the four seconds elapse and the shift has been completed. If any of these requirements (with the exception of Key ON) are not met prior to depressing the NEUTRAL button or are no longer met during the four second timer, then the NEUTRAL indicator light will flash continuously until all requirements are met or until the NEUTRAL button is released.

• The flashing NEUTRAL indicator light indicates that shift requirements have not been met.

• Refer to your Owner's Manual on the DVD for further details.

CAUTION!

Failure to follow these requirements can cause severe damage to the transmission and/or transfer case.

AUXILIARY SWITCHES

• There are four auxiliary switches

located in the lower switch bank of the instrument panel which can be used to power various electronic devices. Connections to the switches are found under the hood in the connectors attached to the auxiliary Power Distribution Center.

• For further information on using the

auxiliary switches please refer to the Dodge Body Builders Guide by accessing www.dodge.com/ bodybuilder and choosing the appropriate links.

WHAT TO DO IN EMERGENCIES

Information Provided by:

24-HOUR TOWING ASSISTANCE - U.S. ONLY

• Dial toll-free 1-800-521-2779 or 1-800-363-4869 for Canadian residents.

• Provide your name, vehicle identification number and license plate number.

• Provide your location, including telephone number, from which you are calling.

• Briefly describe the nature of the problem and answer a few simple questions.

• You will be given the name of the service provider and an estimated time of arrival. If you feel you are in an “unsafe situation”, please let us know. With your consent, we will contact local police or safety authorities.

INSTRUMENT CLUSTER WARNING LIGHTS

- Engine Temperature Warning Light

• This light warns of an overheated engine condition.

• If the light turns on and a warning chime sounds while driving, safely pull over and stop the vehicle. If the A/C system is on, turn it off. Also, shift the transmission into NEUTRAL and idle the vehicle. If the temperature reading does not return to normal, turn the engine off immediately.

• We recommend that you do not operate the vehicle or engine damage will occur. Have the vehicle serviced immediately.

WARNING!

A hot engine cooling system is dangerous. You or others could be badly burned by steam or boiling coolant. You may want to call an authorized service center for service if your vehicle overheats.

BRAKE

- Brake Warning Light

• The Brake Warning light illuminates when there is either a system malfunction or the parking brake is applied. If the light is on and the parking brake is not applied, it indicates a possible brake hydraulic malfunction, brake booster problem or an Anti-Lock Brake System problem.

• We recommend you drive to the nearest service center and have the vehicle serviced immediately.

WARNING!

Driving a vehicle with the red brake light on is dangerous. Part of the brake system may have failed. It will take longer to stop the vehicle. You could have a collision. Have the vehicle checked immediately.

WHAT TO DO IN EMERGENCIES

Information Provided by:

- Malfunction Indicator Light (MIL)

• Certain conditions, such as a loose or missing gas cap, poor fuel quality, etc., may illuminate the MIL after engine start. The vehicle should be serviced if the light stays on through several typical driving cycles. In most situations, the vehicle will drive normally and not require towing.

• If the MIL flashes when the engine is running, serious conditions may exist that could lead to immediate loss of power or severe catalytic converter damage. We recommend you do not operate the vehicle. Have the vehicle serviced immediately.

- Charging System Light

• This light shows the status of the electrical charging system. If the charging system light remains on, it means that the vehicle is experiencing a problem with the charging system.

• We recommend you do not continue driving if the charging system light is on. Have the vehicle serviced immediately.

- Oil Pressure Warning Light

• This light indicates low engine oil pressure. If the light turns on while driving, stop the vehicle and shut off the engine as soon as possible. A chime will sound for four minutes when this light turns on.

• We recommend you do not operate the vehicle or engine damage will occur. Have the vehicle serviced immediately.

- Anti-Lock Brake (ABS) Light

• This light monitors the Anti-Lock Brake System (ABS).

• If the light is not on during starting, stays on, or turns on while driving, we recommend you drive to the nearest service center and have the vehicle serviced immediately.

- Electronic Throttle Control (ETC) Light

• This light informs you of a problem with the Electronic Throttle Control (ETC) system.

• If a problem is detected, the light will come on while the engine is running. Cycle the ignition when the vehicle has completely stopped and the shift lever is placed in the PARK position; the light should turn off.

• If the light remains lit with the engine running, your vehicle will usually be drivable; however, see an authorized service center immediately. If the light is flashing when the engine is running, immediate service is required and you may experience reduced performance, an elevated/rough idle or engine stall and your vehicle may require towing.

- Airbag Warning Light

• If the light is not on during starting, stays on, or turns on while driving, have the vehicle serviced by an authorized service center immediately.

WHAT TO DO IN EMERGENCIES

Information Provided by:

- SERV (Service) 4WD Indicator Light

• If the light stays on or comes on during driving, it means that the 4WD system is not functioning properly and that service is required. We recommend you drive to the nearest service center and have the vehicle serviced immediately.

- Transmission Temperature Warning Light

• This light indicates that there is excessive transmission fluid temperature that might occur with severe usage such as trailer towing. If this light turns on, stop the vehicle and run the engine at idle, with the transmission in NEUTRAL, until the light turns off. Once the light turns off, you may continue to drive normally.

Fuel Cap/Loose Gas Cap Message

• If a “gas cap” message (shown as gASCAP) appears, tighten the gas cap until a “clicking” sound is heard.

• Press the odometer reset button to turn the message off.

• If the message continues to appear for more than three days after tightening the gas cap, see your authorized service center.

Oil Change Indicator

Message

• If an “oil change” message (shown as CHAngE OIL) appears and a single chime sounds, it is time for your next required oil change.

Resetting The Light After Servicing

• Turn the ignition switch to the ON/RUN position (do not start engine).

• Fully depress the accelerator pedal three times within 10 seconds.

• Turn the ignition switch to the OFF/LOCK position.

IF YOUR ENGINE OVERHEATS

• In any of the following situations, you can reduce the potential for overheating by taking the appropriate action.

• On the highways — slow down.

• In city traffic — while stopped, shift transmission into NEUTRAL, but do not

increase engine idle speed.

NOTE: There are steps that you can take to slow down an impending overheat condition:

• If your air conditioner (A/C) is on, turn it off. The A/C system adds heat to the engine cooling system and turning the A/C off can help remove this heat.

• You can also turn the Temperature Control to maximum heat, the Mode Control to floor and the Fan Control to high. This allows the heater core to act as a supplement to the radiator and aids in removing heat from the engine cooling system.

• If the temperature reading does not return to normal, turn the engine off immediately.

• We recommend that you do not operate the vehicle or engine damage will occur. Have the vehicle serviced immediately.

WHAT TO DO IN EMERGENCIES

Information Provided by:

CAUTION!

Driving with a hot cooling system could damage your vehicle. If the temperature gauge reads HOT (H), pull over and stop the vehicle. Idle the vehicle with the air conditioner turned off until the pointer drops back into the normal range. If the pointer remains on HOT (H), and you hear continuous chimes, turn the engine off immediately and call for service.

WARNING!

You or others can be badly burned by hot engine coolant (antifreeze) or steam from your radiator. If you see or hear steam coming from under the hood, do not open the hood until the radiator has had time to cool. Never try to open a cooling system pressure cap when the radiator or coolant bottle is hot.

JACKING AND TIRE CHANGING

Jack Location

3500 Models

• The jack and jack tools are stored under the front passenger seat.

• Lift the flap on the side of the seat for access.

• Remove the jack and tools by removing the wing bolt and sliding the assembly from under the seat.

4500/5500 Models

• These vehicles do not come equipped with a jack.

NOTE: Jacking and tire changing on 4500/5500 models should be performed by an authorized dealer, or knowledgeable service personnel with the appropriate heavy duty equipment, like a tire service company.

Preparations For Jacking

• Park on a firm, level surface. Avoid ice or slippery areas.

• Set the parking brake and shift the automatic transmission into PARK, or a manual transmission into REVERSE. On Four-Wheel Drive vehicles, shift the transfer case to the 4L position.

• Turn the ignition to LOCK and turn on the Hazard Warning flasher.

WHAT TO DO IN EMERGENCIES

Information Provided by:

• Block both the front and rear of the wheel diagonally opposite of the jacking position. For example, if changing the right front tire, block the left rear wheel.

Hub Caps/Wheel Covers — If Equipped

• The hub caps must be removed before raising the vehicle off the ground.

• For single rear-wheel (SRW) models, use the blade on the end of the lug wrench to pry the hub cap off. Insert the blade end into the pry-off notch and carefully pop off the hub cap with a back-and-forth motion.

• On models with dual rear wheels (DRW), position the hook on the jack handle driver into the notch on the hub cap and pull out firmly. The hub cap should pop off. The wheel skins can now be removed. For the front hub cap, use the blade on the end of the lug wrench to pry the caps off. The wheel skins can now be removed by using the flat end of the lug wrench to pry them off. Insert the flat tip completely and using a back-and-forth motion, loosen the wheel skin.

NOTE: Passengers should not remain in the vehicle when the vehicle is being jacked.

Jacking And Tire Changing Instructions

• Remove the spare tire, jack and tools from the stored location.

• Loosen (but do not remove) the wheel lug nuts by turning them counterclockwise one turn while the wheel is still on the ground.

• Assemble the jack and jacking tools. Connect the jack handle driver to the extension, then to the lug wrench.

WHAT TO DO IN EMERGENCIES

Information Provided by:

• Place the jack:

• For front wheels, place the jack under the axle as close to the tire as possible, with the drive tubes extending to the front.

• For rear wheels, place the jack under the sway bar bracket (unless both tires are flat on one side, then place jack under shock bracket) facing forward in vehicle.

• Turn the jack screw clockwise to firmly engage the jack saddle with the lift area.

• Raise the vehicle by turning the jack screw clockwise. Raise the vehicle only until the tire just clears the surface and enough clearance is obtained to install the spare tire.

• Remove the lug nuts and wheel.

• Position the spare wheel/tire on the vehicle and install the lug nuts with the cone-shaped end toward the wheel. Lightly tighten the lug nuts clockwise. To avoid the risk of forcing the vehicle off the jack, do not tighten the nuts fully until the vehicle has been lowered.

• Lower the vehicle by turning the jack screw counterclockwise, and remove the jack and wheel blocks.

NOTE: If the jack will not lower by turning the screw by hand, it may be necessary to use the jack drive tube in order to lower the jack.

• Finish tightening the lug nuts using a crisscross pattern. Push down on the wrench while tightening for increased leverage. The correct wheel nut tightness is:

• 135 ft lbs (183 N·m) torque for single rear-wheel (SRW) models,

• 145 ft lbs (197 N·m) for dual rear-wheel (DRW) models.

• If in doubt about the correct tightness, have them checked with a torque wrench by your authorized dealer or at a service station.

• Install the wheel center cap and remove the wheel blocks. Do not install chrome or aluminum wheel center caps on the spare wheel. This may result in cap damage.

• Secure the tire, jack, and tools in their proper locations.

WHAT TO DO IN EMERGENCIES

Information Provided by:

• Position the wheel so that the valve stem is facing the ground. Slide the wheel retainer through the center of the wheel and position it properly across the wheel opening.

CAUTION!

Before raising the wheel off the ground, make sure that the jack will not damage surrounding truck parts and adjust the jack position as required.

WARNING!

• Do not attempt to change a tire on the side of the vehicle close to moving traffic. Pull far enough off the road to avoid the danger of being hit when operating the jack or changing the wheel.

• Getting under a jacked-up vehicle is dangerous. The vehicle could slip off the jack and fall on you. You could be crushed. Never get any part of your body under a vehicle that is on a jack. If you need to get under a raised vehicle, take it to a service center where it can be raised on a lift.

• The jack is designed to use as a tool for changing tires only. The jack should not be used to lift the vehicle for service purposes. The vehicle should be jacked on a firm, level surface only. Avoid ice or slippery areas.

• If it is necessary to retrieve the spare tire from under the vehicle on the side of the vehicle close to moving traffic, pull far enough off the road to avoid the danger of being hit.

Carefully follow these tire changing procedures to help prevent personal injury or damage to your vehicle: Always park on a firm, level surface as far from the edge of the roadway as possible before raising the vehicle.

• Raising the vehicle higher than necessary can make the vehicle less stable and could cause it to slip off the jack and hurt someone near it. Raise the vehicle only enough to remove the tire.

• A loose tire or jack, thrown forward in a collision or hard stop, could endanger the occupants of the vehicle. Always stow the jack parts and the spare tire in the places provided.

WHAT TO DO IN EMERGENCIES

Information Provided by:

JUMP-STARTING

• If your vehicle has a discharged battery it can be jump-started using a set of jumper cables and a battery in another vehicle or by using a portable battery booster pack.

• Jump-starting can be dangerous if done improperly so please follow the procedures in this section carefully.

NOTE: When using a portable battery booster pack follow the manufacturer’s operating instructions and precautions.

Preparations for Jump-Start

• The battery in your vehicle is located in the front of the engine compartment, behind the left headlight assembly.

NOTE: The positive battery post is covered with a protective cap. Lift up on the cap to gain access to the positive battery post.

• Set the parking brake, shift the automatic transmission into PARK and turn the ignition to LOCK.

• Turn off the heater, radio, and all unnecessary electrical accessories.

• If using another vehicle to jump-start the battery, park the vehicle within the jumper cables reach, set the parking brake and make sure the ignition is OFF.

Jump-Starting Procedure

• Connect the positive (+) end of the jumper cable to the positive (+) post of the discharged vehicle.

WHAT TO DO IN EMERGENCIES

Information Provided by:

• Connect the opposite end of the positive (+) jumper cable to the positive (+) post of the booster battery.

• Connect the negative end (-) of the jumper cable to the negative (-) post of the booster battery.

• Connect the opposite end of the negative (-) jumper cable to a good engine ground (exposed metal part of the discharged vehicle’s engine) away from the battery and the fuel injection system.

• Start the engine in the vehicle that has the booster battery, let the engine idle a few minutes, and then start the engine in the vehicle with the discharged battery.

Once the engine is started, remove the jumper cables in the reverse sequence:

• Disconnect the negative (-) jumper cable from the engine ground of the vehicle with the discharged battery.

• Disconnect the negative end (-) of the jumper cable from the negative (-) post of the booster battery.

• Disconnect the opposite end of the positive (+) jumper cable from the positive (+) post of the booster battery.

• Disconnect the positive (+) end of the jumper cable from the positive (+) post of the discharged vehicle.

• If frequent jump-starting is required to start your vehicle you should have the battery and charging system inspected at your authorized dealer.

CAUTION!

• Do not use a portable battery booster pack or any other booster source with a system voltage greater than 12 Volts or damage to the battery, starter motor, alternator or electrical system may occur.

• Failure to follow these procedures could result in damage to the charging system of the booster vehicle or the discharged vehicle.

• Accessories that can be plugged into the vehicle power outlets draw power from the vehicle’s battery, even when not in use (i.e., cellular phones, etc.). Eventually, if plugged in long enough, the vehicle’s battery will discharge sufficiently to degrade battery life and/or prevent the engine from starting.

WARNING!

• When temperatures are below the freezing point, electrolyte in a discharged battery may freeze. Do not attempt jump-starting because the battery could rupture or explode and cause personal injury. Battery temperature must be brought above the freezing point before attempting a jump-start.

(Continued)

WHAT TO DO IN EMERGENCIES

Information Provided by:

WARNING! (Continued)

• Take care to avoid the radiator cooling fan whenever the hood is raised. It can start anytime the ignition switch is on. You can be injured by moving fan blades.

• Remove any metal jewelry, such as watch bands or bracelets, that might make an inadvertent electrical contact. You could be severely injured.

• Batteries contain sulfuric acid that can burn your skin or eyes and generate hydrogen gas which is flammable and explosive. Keep open flames or sparks away from the battery.

• Do not allow vehicles to touch each other as this could establish a ground connection and personal injury could result.

• Failure to follow this procedure could result in personal injury or property damage due to battery explosion.

• Do not connect the cable to the negative post (-) of the discharged battery. The resulting electrical spark could cause the battery to explode and could result in personal injury.

EMERGENCY TOW HOOKS

• If your vehicle is equipped with tow hooks, they are mounted in the front.

• For off-road recovery, it is recommended to use both of the front tow hooks to minimize the risk of damage to the vehicle.

CAUTION!

Tow hooks are for emergency use only, to rescue a vehicle stranded off-road. Do not use tow hooks for tow truck hookup or highway towing. You could damage your vehicle. Tow straps are recommended when towing the vehicle; chains may cause vehicle damage.

WARNING!

• Chains are not recommended for freeing a stuck vehicle. Chains may break, causing serious injury or death.

• Stand clear of vehicles when pulling with tow hooks. Tow straps and chains may break, causing serious injury.

WHAT TO DO IN EMERGENCIES

Information Provided by:

SHIFT LEVER OVERRIDE

• If a malfunction occurs and the shift lever cannot be moved out of the PARK position, you can use the following procedure to temporarily move the shift lever.

Column Shifter

• Tilt the steering wheel to the full up position and firmly set the parking brake.

• Turn the Key Fob to the ACC or ON/RUN position without starting the engine.

• Press and maintain firm pressure on the brake pedal.

• Using a screwdriver, press and hold the override tab through the access port (ringed circle) on the bottom of the steering column.

• Move the shift lever into the NEUTRAL position and start the vehicle.

• Release the parking brake.

• Have your vehicle inspected by your local authorized dealer immediately if the shift lever override has been used.

WHAT TO DO IN EMERGENCIES

Information Provided by:

Rear Wheels Raised,

Front Wheels on the

Ground

Permitted

Front Wheels Raised,

Rear Wheels on the

Ground

towing dolly

Permitted

NEUTRAL, the speed

less than 30 mph

(48 km/h) and the

distance traveled less

than 15 mi (24 km).

Transfer case must be

in NEUTRAL and

transmission in PARK

Flatbed Towing (all four

Model Flat Towing (all four

TOWING A DISABLED VEHICLE

wheels suspended OFF

the ground)

wheels on the ground)

Not Permitted Recommended Method NOT Permitted without

Two-Wheel Drive -

Transmission not

operable

Not Permitted Recommended Method Shift lever must be in

Two-Wheel Drive -

Transmission operable

Recommended Method Transfer case must be

Four-Wheel Drive Transfer case must be

in NEUTRAL and

transmission in PARK

Ignition key must be in

unlocked OFF position

Must use appropriate

tow bar device

WHAT TO DO IN EMERGENCIES

Information Provided by:

FREEING A STUCK VEHICLE

• If your vehicle becomes stuck in mud, sand or snow, it can often be moved by a rocking motion. Turn your steering wheel right and left to clear the area around the front wheels. Then, move the shift lever back and forth between REVERSE and DRIVE. Using minimal accelerator pedal pressure to maintain the rocking motion, without spinning the wheels, is most effective.

• Allow the engine to idle with the transmission shift lever in NEUTRAL for at least one minute after every five rocking-motion cycles. This will minimize overheating and reduce the risk of transmission failure during prolonged efforts to free a stuck vehicle.

NOTE: If your vehicle is equipped with Electronic Stability Program (ESP) or Traction Control

Revving the engine or spinning the wheels too fast may lead to transmission overheating and failure. It can also damage the tires. Do not spin the wheels above 30 mph (48 km/h) while in gear (no transmission shifting occurring).

Fast spinning tires can be dangerous. Forces generated by excessive wheel speeds may cause tire damage or failure. A tire could explode and injure someone. Do not spin your vehicle's wheels faster than 30 mph (48 km/h) when you are stuck. Do not let anyone near a spinning wheel, no matter what the speed.

, turn the system off before attempting to “rock” the vehicle.

CAUTION!

WARNING!

WHAT TO DO IN EMERGENCIES

Information Provided by:

EVENT DATA RECORDER (EDR)

• This vehicle is equipped with an event data recorder (EDR). The main purpose of an EDR is to record, in certain crash or near crash-like situations, such as an air bag deployment or hitting a road obstacle, data that will assist in understanding how a vehicle’s systems performed. The EDR is designed to record data related to vehicle dynamics and safety systems for a short period of time, typically 30 seconds or less. The EDR in this vehicle is designed to record such data as:

• How various systems in your vehicle were operating;

• Whether or not the driver and passenger safety belts were buckled/

fastened;

• How far (if at all) the driver was depressing the accelerator and/or brake

pedal; and,

• How fast the vehicle was traveling.

• These data can help provide a better understanding of the circumstances in which crashes and injuries occur.

NOTE: EDR data are recorded by your vehicle only if a non-trivial crash situation occurs; no data are recorded by the EDR under normal driving conditions and no personal data (e.g. name, gender, age, and crash location) are recorded. However, other parties, such as law enforcement, could combine the EDR data with the type of personally identifying data routinely acquired during a crash investigation.

• To read data recorded by an EDR, special equipment is required, and access to the vehicle or the EDR is needed. In addition to the vehicle manufacturer, other parties such as law enforcement, that have the special equipment, can read the information if they have access to the vehicle or the EDR.

MAINTAINING YOUR VEHICLE

Information Provided by:

OPENING THE HOOD

• Pull the hood release lever located below the steering wheel at the base of the instrument panel.

• Reach into the opening beneath the center of the hood and move the safety latch lever while lifting the hood at the same time.

WARNING!

Be sure the hood is fully latched before driving your vehicle. If the hood is not fully latched, it could open when the vehicle is in motion and block your vision. Failure to follow this warning could result in serious injury or death.

MAINTAINING YOUR VEHICLE

Information Provided by:

ENGINE COMPARTMENT

5.7L Engine

MAINTAINING YOUR VEHICLE

Information Provided by:

6.7L Diesel Engine

MAINTAINING YOUR VEHICLE

Information Provided by:

FUEL FILTER/WATER SEPARATOR — DIESEL ONLY

Draining Fuel/Water Separator

• If the “Water in Fuel” indicator light is illuminated and an audible chime is heard five times, you should stop the engine and drain the water from the

separator.

• The drain is located on the bottom of the Fuel Filter and Water Separator assembly which is located on the driver's side of the engine.

• Turn the drain valve (located on the side of the filter) counterclockwise 1/4 turn, then turn the ignition switch to the ON/RUN position to allow any accumulated water to drain.

• When clean fuel is visible, close the drain and switch the ignition to OFF.

• Refer to the Owner's Manual on the DVD for further details.

Fuel Filter Replacement — Diesel Only

• With the engine off and a drain pan under the fuel filter drain hose, open the water drain valve 1/4 turn counterclockwise and completely drain fuel and water into the approved container.

• Close the water drain valve and remove the lid using a socket or strap wrench; rotate counterclockwise for removal. Remove the used o-ring and discard it.

• Remove the used filter cartridge from the housing and dispose of according to your local regulations.

• Wipe clean the sealing surfaces of the lid and housing and install the new o-ring into ring groove on the filter housing and lubricate with clean engine oil.

• Install a new filter in the housing. Push down on the cartridge to ensure it is properly seated. Do not pre-fill the filter housing with fuel.

• Install the lid onto the housing and tighten to 22.5 ft lbs (30.5 Nm). Do not overtighten the lid.

• Start the engine and confirm no leaks are present.

CAUTION!

• Diesel fuel will damage blacktop paving surfaces. Drain the filter into an appropriate container.

• Do not prefill the fuel filter when installing a new fuel filter. There is a possibility debris could be introduced into the fuel filter during this action. It is best to install the filter dry and allow the in-tank lift pump to prime the fuel system.

• If the “Water In Fuel Indicator Light” remains on, DO NOT START the engine before you drain water from the fuel filter to avoid engine damage.

• Diesel fuel will damage blacktop paving surfaces. Drain the filter into an appropriate container.

MAINTAINING YOUR VEHICLE

Information Provided by:

EXHAUST REGENERATION — DIESEL ONLY

• Under certain conditions, your Cummins®diesel engine and exhaust after-treatment system may never reach the conditions required to remove the trapped particulate matter. If this occurs, the “Exhaust System — Regeneration Required Now” message will be displayed on the EVIC screen in your cluster and you will hear one chime to alert you of this condition. Driving your vehicle at highway speeds for as little as 45 minutes can remedy the condition and allow the engine and exhaust after-treatment system to remove the trapped particulate matter.

• PLEASE NOTE: Under typical operating conditions, NO indications of regeneration state will be displayed. If you do reach 80% of filter capacity, the following messages will assist you in inducing and understanding the regeneration process.

Exhaust System — Regeneration Required Now

• “Exhaust System—Regeneration Required Now” will be displayed on the EVIC if the exhaust particulate filter reaches 80% of its maximum storage capacity.

Exhaust Filter XX% Full

• Indicates that the Diesel Particulate Filter (DPF) is approaching full.

Exhaust System — Regeneration in Process

• Indicates that the Diesel Particulate Filter (DPF) is self-cleaning. Maintain your current driving condition until regeneration is completed.

Exhaust System — Regeneration Completed

• Indicates that the Diesel Particulate Filter (DPF) self-cleaning is completed. If this message is displayed, you will hear one chime to assist in alerting you of this condition.

Service Required — See Dealer Now

• Regeneration has been disabled due to a system malfunction. The Powertrain control Module (PCM) will register a fault code and the instrument panel will display the MIL light.

Exhaust Filter Full — Power Reduced See Dealer

• The PCM derates the engine in order to limit the likelihood of permanent damage to the after-treatment system. If this condition is not corrected and a dealer service is not performed, extensive exhaust after-treatment damage can occur. Have your vehicle serviced by your local authorized dealer.

CAUTION!

• See your authorized dealer, as damage to the exhaust system could occur soon with continued operation.

MAINTAINING YOUR VEHICLE

Information Provided by:

DIESEL EXHAUST FLUID

• Diesel Exhaust Fluid (DEF) sometimes known simply by the name of its active component, UREA—is a key component of selective catalytic reduction (SCR) systems, which help diesel vehicles meet stringent emission regulations. DEF is a liquid reducing agent that reacts with engine exhaust in the presence of a catalyst to convert smog-forming nitrogen oxides (NOx) into harmless nitrogen and water vapor.

• Your vehicle is equipped with a Selective Catalytic Reduction system in order to meet the very stringent diesel emissions standards required by the Environmental Protection Agency. Selective Catalytic Reduction (SCR) is the first and only technology in decades to be as good for the environment as it is good for business and vehicle performance.

• The purpose of the SCR system is to reduce levels of NOx (oxides of nitrogen emitted from engines) that are harmful to our health and the environment to an almost near-zero level. Small quantities of Diesel Exhaust Fluid (DEF) are injected into the exhaust upstream of a catalyst where, when vaporized, convert smog-forming nitrogen oxides (NOx) into harmless nitrogen (N2) and water vapor (H2O), two natural components of the air we breathe. You can operate with the comfort that your vehicle is contributing to a cleaner, healthier world environment for this and generations to come.

System Overview

• This vehicle is equipped with a Diesel Exhaust Fluid (DEF) injection system and a Selective Catalytic Reduction (SCR) catalyst to meet the emission requirements.

• The DEF injection system consists of the following components:

• DEF tank

• DEF pump

• DEF injector

• DEF control module

• NOx sensors

• Temperature sensors

• SCR catalyst

• The DEF injection system and SCR catalyst enable the achievement of diesel emissions requirements; while maintaining outstanding fuel economy, drivability, torque and power ratings.

NOTE: The DEF pump will run for a period of time after engine shutdown to purge the DEF system. This is normal operation.

Diesel Exhaust Fluid Storage

• Diesel Exhaust Fluid (DEF) is considered a very stable product with a long shelf life. If DEF is kept in temperatures between 10° to 90°F (-12° to 32°C), it will last a minimum of one year.

MAINTAINING YOUR VEHICLE

Information Provided by:

• DEF is subject to freezing at the lowest temperatures. For example, DEF may freeze at temperatures at or below 12° F (-11° C). The system has been designed to operate in this environment.

NOTE: When working with DEF, it is important to know that:

• Any containers or parts that come into contact with DEF must be DEF compatible (plastic or stainless steel). Copper, brass, aluminum, iron or non-stainless steel should be avoided as they are subject to corrosion by DEF.

• If DEF is spilled, it should be wiped up completely.

Adding Diesel Exhaust Fluid

• The DEF gauge (located on the EVIC display) will display the level of DEF

remaining in the tank.

• When the DEF gauge reads 75%, add approximately 2.5 gallons (9.5 Liters) to

fill the DEF tank.

• When the DEF gauge reads 50%, add approximately 4 gallons (15 Liters) to fill

the DEF tank.

• When the DEF gauge reads 25%, add approximately 6 gallons (23 Liters) to fill

the DEF tank.

NOTE: Driving conditions (altitude, vehicle speed, load, etc.) will effect the amount of DEF that is used in your vehicle.

MAINTAINING YOUR VEHICLE

Information Provided by:

DEF Fill Procedure

• Remove cap from DEF tank (located on drivers side of the vehicle).

• Insert DEF container into DEF tank.

CAUTION!

• To avoid DEF spillage and overfilling, do not “top off” the DEF tank after filling.

• When DEF is spilled, clean the area immediately with water or a mild solvent.

• Reinstall cap onto DEF tank.

• Refer to your Owner's Manual on the DVD for further details.

MAINTAINING YOUR VEHICLE

Information Provided by:

FLUIDS AND CAPACITIES

Component Fluid, Lubricant, or Genuine Part Capacities

Engine Coolant

5.7L 3500 Models

Engine Coolant

6.7L Turbo Diesel Engine

Engine Oil with Filter 5.7L

Engine Oil with Filter 6.7L Turbo Diesel Engine

Fuel Selection

5.7L

Fuel Selection

6.7L Turbo Diesel

Engine Oil Filter 5.7L, 6.7L

MOPAR Year/100,000 Mile Formula HOAT (Hybrid Organic Additive Technology) or equivalent.

API certified 5W-20 engine oil, meeting the requirements of Chrysler Material Standard MS-6395. Refer to your oil filler cap for correct SAE grade.

In ambient temperatures below 0°F (-18°C), 5W-40 synthetic engine oil that meets Chrysler Materials Standard MS-10902 and the API CJ-4 engine oil category is required. In ambient temperatures above 0°F (-18°C), 15W-40 engine oil that meets Chrysler Materials Standard MS-10902 and the API CJ-4 engine oil category is required.

87 Octane Acceptable. 89 Octane Recommended.

Use good quality diesel fuel from a reputable supplier in your vehicle. Federal law requires that you must fuel this vehicle with Ultra Low Sulfur Highway Diesel fuel (15 ppm Sulfur maximum) and prohibits the use of Low Sulfur Highway Diesel fuel (500 ppm Sulfur maximum) to avoid damage to the emissions control system. For most year-round service, No. 2 diesel fuel meeting ASTM specification D-975 Grade S15 will provide good performance. If the vehicle is exposed to extreme cold (below 20°F or -7°C), or is required to operate at colder-than-normal conditions for prolonged periods, use climatized No. 2 diesel fuel or dilute the No. 2 diesel fuel with 50% No. 1 diesel fuel. This will provide better protection from fuel gelling or wax-plugging of the fuel filters. This vehicle is fully compatible with biodiesel blends up to 5% biodiesel meeting ASTM specification D-975.

MOPAR

Antifreeze/Coolant Five

Engine Oil Filter or equivalent.

18.7 Quarts (17.7 Liters)

5.7 Gallons (21.4 Liters)

5.7L 7 Quarts (6.6 Liters)

12 Quarts (11.4 Liters)

Standard Rear Tank 52 Gallons (197 Liters) Optional Midship Tank 22 Gallons (83 Liters)

—

MAINTAINING YOUR VEHICLE

Information Provided by:

Component Fluid, Lubricant, or Genuine Part Capacities

Engine Fuel Filter 6.7L Turbo Diesel

Crankcase Ventilation Filter 6.7L Turbo Diesel

Spark Plug

5.7L

Automatic Transmission (5-Speed 545RFE)

Automatic Transmission (6-Speed AS68RC)

Clutch Linkage MOPAR

Manual Transmission G-56

Transfer Case MOPAR

Transfer Case NVG 246 Only

Front and Rear Axle

Brake Master Cylinder

Power Steering Reservoir

Diesel Exhaust Fluid Tank (Approximate)

MOPAR 5 micron rating. Using a fuel filter that does not meet the manufacturer's filtration and water separating requirements can severely impact fuel system life and reliability.

MOPAR

LZFR5C-11 (Gap 0.043 in [1.09 mm])

MOPAR Fluid or equivalent licensed ATF+4

MOPAR Fluid or equivalent.

E.P. or equivalent.

MOPAR Fluid or equivalent licensed ATF+4®product. —

Fluid or equivalent licensed ATF+4®product.

MOPAR Fluid or equivalent.

Synthetic, GL-5 SAE, 75W-90 Synthetic (MS-9763) or equivalent.

MOPAR used or equivalent. If DOT 3 is not available, then DOT 4 is acceptable. Use only recommended Brake Fluids.

MOPAR ATF+4®Automatic Transmission Fluid or equivalent licensed ATF+4

MOPAR®Diesel Exhaust Fluid (API Certified) (DEF) or equivalent that has been API Certified to the ISO 22241 standard. Use of fluids not API Certified to ISO 22241 may result in system damage.

Fuel Filter or equivalent. Must meet

CCV Filter or equivalent.

ATF+4®Automatic Transmission

AS68RC Automatic Transmission

Multi-Purpose Grease, NLGI Grade 2

ATF+4®Automatic Transmission

NVG 246 Automatic Transmission

DOT 3 and SAE J1703 should be

Power Steering Fluid +4 or MOPAR

product.

—

8 Gallons

(30 Liters)

MAINTAINING YOUR VEHICLE

Information Provided by:

XXXX

MAINTENANCE CHART

8,000 16,000 24,000 32,000 40,000 48,000 56,000 64,000 72,000 80,000 88,000 96,000 104,000

Miles:

Gasoline Engine

13,000 26,000 39,000 52,000 65,000 78,000 91,000 104,000 117,000 130,000 143,000 156,000 169,000

Or Months: 6 12 18 24 30 36 42 48 54 60 66 72 78

Or Kilometers:

Change the engine oil and filter. XXXXXXXXXXXXX

Rotate the tires, rotate at the first sign of irregular

XXX

XXXXXXXXXXXXX

wear, even if it occurs before scheduled

maintenance.

If using your vehicle for any of the following: dusty

or off-road conditions. Inspect the engine air

cleaner filter; replace if necessary.

XXXXXXXXXXXXX

Lubricate the front drive shaft fittings (4x4 models

only).

Inspect the brake linings; replace if necessary. X X X X X X

Inspect the CV joints. X XXXX

Inspect the exhaust system. X XXXX

Replace the engine air cleaner filter. X X X

Inspect the front and rear axle fluid, change if

using your vehicle for fleet, off-road or frequent

trailer towing.

Inspect the transfer case fluid. X X

Change the transfer case fluid if using your vehicle

for any of the following: fleet or frequent trailer

towing.XChange the automatic transmission fluid and filter

if using your vehicle for any of the following: snow

plowing, fleet or frequent trailer towing.

MAINTAINING YOUR VEHICLE

Information Provided by:

XXX

8,000 16,000 24,000 32,000 40,000 48,000 56,000 64,000 72,000 80,000 88,000 96,000 104,000

Miles:

Or Months: 6 12 18 24 30 36 42 48 54 60 66 72 78

XXXXXX

13,000 26,000 39,000 52,000 65,000 78,000 91,000 104,000 117,000 130,000 143,000 156,000 169,000

Or Kilometers:

Inspect the front suspension, tie rod ends and

boot seals for cracks or leaks and all parts for

damage, wear, improper looseness or end play;

replace if necessary.

Replace the spark plugs. X X X

Adjust parking brake on vehicles equipped with

four wheel disc brakes.

Flush and replace the engine coolant if not done

at 104,000 miles (169 000 km).XFlush and replace the engine coolant if not done

at 60 months.XInspect and replace PCV valve if necessary. X

• Refer to the Owner's Manual on the DVD for the complete maintenance schedule.

Flush and replace power steering fluid. X

MAINTAINING YOUR VEHICLE

Information Provided by:

Maintenance Record (Gasoline Engine)

Odometer Date Signature, Authorized Service Center

8,000 Miles (13,000 km) or 6 Months

16,000 Miles (26,000 km) or 12 Months

24,000 Miles (39,000 km) or 18 Months

32,000 Miles (52,000 km) or 24 Months

40,000 Miles (65,000 km) or 30 Months

48,000 Miles (78,000 km) or 36 Months

56,000 Miles (91,000 km) or 42 Months

64,000 Miles (104,000 km) or 48 Months

72,000 Miles (117,000 km) or 54 Months

80,000 Miles (130,000 km) or 60 Months

88,000 Miles (143,000 km) or 66 Months

96,000 Miles (156,000 km) or 72 Months

104,000 Miles (169,000 km) or 78 Months

MAINTAINING YOUR VEHICLE

Information Provided by:

7,500 15,000 22,500 30,000 37,500 45,000 52,500 60,000 67,500 75,000 82,500 90,000 97,500

Miles:

Diesel Engine

12,000 24,000 36,000 48,000 60,000 72,000 84,000 96,000 108,000 120,000 132,000 144,000 156,000

Or Months: 6 12 18 24 30 36 42 48 54 60 66 72 78

Or Kilometers:

When prompted by the Engine Oil Indicator

XXXXXXXXXXXXX

System, the engine oil and filter must be changed.

If not prompted by the Engine Oil Indicator System

within 7,500 miles (12 000 km) or six months since

the last oil and filter change, change the engine oil

and engine oil filter. Under no circumstances

should oil change intervals exceed 7,500 miles

(12 000 km) or six months, whichever comes first.

Rotate the tires. XXXXXXXXXXXXX

XXXXXX

Lubricate front drive shaft fitting (4x4). XXXXXXXXXXXXX

Lubricate outer tie rod ends. XXXXXXXXXXXXX

Replace fuel filter element. X X X X X X

Inspect the brake linings. XXXX

Inspect and adjust parking brake. XXXX

Inspect the front (4x4) and rear axle fluid; change if

using your vehicle for fleet, off-road or frequent

trailer towing.

Inspect drive belt; replace as required. X X X X

Check the transfer case fluid (4x4). X X

Change the transfer case fluid (4x4). X

XXXXXX

XXXXXXXXXXXXX

Inspect the manual transmission fluid; add if

necessary.XInspect the front suspension, tie rod ends and

boot seals for cracks or leaks and all parts for

damage, wear, improper looseness or end play;

replace if necessary.

Inspect wheel bearings. X X X

• Refer to the Owner's Manual on the DVD for the complete maintenance schedule.

Change automatic transmission fluid. X X X

Check the Diesel Exhaust Fluid (DEF) tank; refill if

necessary.

MAINTAINING YOUR VEHICLE

Information Provided by:

Maintenance Record (Diesel Engine)

Odometer Date Signature, Authorized Service Center

7,500 Miles (12,000 km) or 6 Months

15,000 Miles (24,000 km) or 12 Months

22,500 Miles (36,000 km) or 18 Months

30,000 Miles (48,000 km) or 24 Months

37,500 Miles (60,000 km) or 30 Months

45,000 Miles (72,000 km) or 36 Months

52,500 Miles (84,000 km) or 42 Months

60,000 Miles (96,000 km) or 48 Months

67,500 Miles (108,000 km) or 54 Months

75,000 Miles (120,000 km) or 60 Months

82,500 Miles (132,000 km) or 66 Months

90,000 Miles (144,000 km) or 72 Months

97,500 Miles (156,000 km) or 78 Months

MAINTAINING YOUR VEHICLE

Information Provided by:

FUSES

Integrated Power Module (fuses)

• The Integrated Power Module is located in the engine compartment near the battery. This center contains cartridge fuses and mini fuses.

Cavity Cartridge Fuse Mini Fuse Description

J01 30 Amp Pink Bat — Presafe #1/CM2200

J02 30 Amp Pink Bat — Trailer Tow Main

J03 25 Amp Natural Bat — Passenger Door Node

J04 40 Amp Green Bat — ABS Pump

J05 30 Amp Pink Bat — ABS Valve

J06 30 Amp Pink Bat — H/Lamp Wash/MTV/CM2200/

J07 25 Amp Natural Bat — Driver Door Node

J08 30 Amp Pink Bat — DTCM/Axle Locks

J09 30 Amp Pink Bat — Plg/Electric Brake

J10 40 Amp Green Bat — L/Bar/Off-Road

J11 30 Amp Pink Bat — Sway/Thatchum/Rear Doors

J12 40 Amp Green Starter Solenoid

J13 60 Amp Yellow Bat — Rad Fan #1/#2/SSR

J14 40 Amp Green Bat — Folding Seat/PZEV

J15 60 Amp Yellow Bat — IOD Main

Elec Vac Pump

MAINTAINING YOUR VEHICLE

Information Provided by:

Cavity Cartridge Fuse Mini Fuse Description

J16 40 Amp Green Frt HVAC Motor

M17 25 Amp Natural Bat — Sunroof/Skylight

M18 25 Amp Natural TCM/Trans Range

M19 5 Amp Tan Ign R/ACC — Sunroof/Window Sw

M20 25 Amp Natural Frt Wiper

M21 25 Amp Natural Door Locks

M22 20 Amp Yellow Fuel Pump

M23 20 Amp Yellow Bat — Trlr Light/Pre-Safe #2

M24 20 Amp Yellow Bat — Trlr Tow BUX/HGM

M25 10 Amp Red Bat — J1962 Diag/Mirrors

M26 10 Amp Red Bat — Ign Sw, WIN, PASS

M27 15 Amp Blue Bat — CHMSL/Brake Sw

M28 10 Amp Red Bat — Corax TPM/PEM/HVAC Htr

M29 15 Amp Blue Bat — Folding Mirror

M30 25 Amp Natural Bat — Inverter

M31 20 Amp Yellow Bat — Pwr Out #1

M32 20 Amp Yellow Fr/Rr Washer

M33 15 Amp Blue Bat — NGC/EATX/PCM

M34 15 Amp Blue Bat — CCN/Interior Light/SCM/Sw

M35 20 Amp Yellow Ign R-Frt Seat/Vent

M36 20 Amp Yellow Ign R-Rear Seat/Steer Wheel

M37 10 Amp Red Horn #1

M38 20 Amp Yellow IOD-CCN/Interior Mods

M39 30 Amp Green IOD-Amp/Radio

M40 25 Amp Natural Rear Wiper

M41 15 Amp Blue IOD-SDARS/VES 2–3/DVD/HFM/

M42 10 Amp Red IOD-HVAC, U/Hood Lamp

M43 10 Amp Red Horn #2

M44 10 Amp Red IGN R/S-ORC/OCM

M45 10 Amp Red IGN R-ORC/Trail Tow (BUX) Sense

M46 20 Amp Yellow IGN R-Trail Tow (BUX)

M47 10 Amp Red IGN R-H/Lamp Wash/HVAC/Park

M48 20 Amp Yellow IGN R/ACC-Pwr Outlet #2

M49 20 Amp Yellow IGN R/ACC/Bat-Pwr Outlet #3

M50 25 Amp Natural ASD #1, #2

Illum

Pump

Bank

UGDO/Vanity Lamp

Assist/Ir Sns

MAINTAINING YOUR VEHICLE

Information Provided by:

Cavity Cartridge Fuse Mini Fuse Description

M51 20 Amp Yellow ASD #3

M52 10 Amp Red IGN R/S-SWAY/TCASE/DTCM/FAD

M53 15 Amp Blue IGN R/S-MFSW/CNN/SCM/TPM/RR

M54 20 Amp Yellow IOD — Spare

CAUTION!

• When installing the integrated power module cover, it is important to ensure the cover is properly positioned and fully latched. Failure to do so may allow water to get into the integrated power module and possibly result in a electrical system failure.

• When replacing a blown fuse, it is important to use only a fuse having the correct amperage rating. The use of a fuse with a rating other than indicated may result in a dangerous electrical system overload. If a properly rated fuse continues to blow, it indicates a problem in the circuit that must be corrected.

TIRE PRESSURES

• Check the inflation pressure of each tire, including the spare tire, at least monthly and inflate to the recommended pressure for your vehicle.

• The tire pressures recommended for your vehicle are found on the “Tire and Loading Information” label located on the driver’s side door opening.

NOTE: Refer to the Owner's Manual on the DVD for more information regarding tire warnings and instructions.

View

WARNING!

• Overloading of your tires is dangerous. Overloading can cause tire failure, affect vehicle handling, and increase your stopping distance. Use tires of the recommended load capacity for your vehicle. Never overload them.

• Improperly inflated tires are dangerous and can cause collisions. Under-inflation is the leading cause of tire failure and may result in severe cracking, component separation, or “blow out”. Over-inflation reduces a tire’s ability to cushion shock. Objects on the road and chuck holes can cause damage that results in tire failure. Unequal tire pressures can cause steering problems. You could lose control of your vehicle. Over-inflated or under-inflated tires can affect vehicle handling and can fail suddenly, resulting in loss of vehicle control.

MAINTAINING YOUR VEHICLE

Information Provided by:

WHEEL AND WHEEL TRIM CARE

• All wheels and wheel trim, especially aluminum and chrome plated wheels, should be cleaned regularly with a mild soap and water to prevent corrosion.

• To remove heavy soil and/or excessive brake dust, use MOPAR Cleaner or equivalent or select a non-abrasive, non-acidic cleaner.

CAUTION!

Do not use scouring pads, steel wool, a bristle brush, or metal polishes. Do not use oven cleaner. These products may damage the wheel's protective finish. Avoid automatic car washes that use acidic solutions or harsh brushes that may damage the wheel's protective finish. Only MOPAR Wheel Cleaner or equivalent is recommended.

EXTERIOR BULBS

LIGHT BULBS – Exterior Bulb Number

Backup 921

Center High-Mounted Stop Lamp (CHMSL)

Fog Lamp – If Equipped 9145

Front Park/Turn Signal 3757A

Front Side Marker 3757A

Front Position Lamp W5W

Dual Headlamp H13

Quad Headlamp – Low Beam H11

Quad Headlamp – High Beam 9005

Side Marker (Dual Headlamp) 3157K

Side Marker (Quad Headlamp) 3157NA

Rear Cargo Lamp 921

Rear Tail/Turn and Stop 3157K

Cab Roof Marker Lamps 194NA

Side Marker Lamps (Dual Rear Wheels) 194

Rear Lamp Bar ID Marker Lamp 194

License Lamp 194

921

Wheel

CONSUMER ASSISTANCE

Information Provided by:

CHRYSLER GROUP LLC CUSTOMER CENTER

P.O. Box 21–8004

Auburn Hills, MI 48321–8004

Phone: 1–866–726–4636

CHRYSLER CANADA INC. CUSTOMER CENTER

P.O. Box 1621

Windsor, Ontario N9A 4H6

Phone: 1–800–465–2001

ASSISTANCE FOR THE HEARING IMPAIRED

• To assist customers who have hearing difficulties, the manufacturer has installed special TDD (Telecommunication Devices for the Deaf) equipment at its customer center. Any hearing or speech impaired customer, who has access to a TDD or a conventional teletypewriter (TTY) in the United States, can communicate with the manufacturer by dialing 1–800–380–CHRY. Canadian residents with hearing difficulties that require assistance can use the special needs relay service offered by Bell Canada. For TTY teletypewriter users, dial 711 and for Voice callers, dial 1–800–855–0511 to connect with a Bell Relay Service operator.

WARNING!

Engine exhaust, some of its constituents, and certain vehicle components contain, or emit, chemicals known to the State of California to cause cancer and birth defects, or other reproductive harm. In addition, certain fluids contained in vehicles and certain products of component wear contain, or emit, chemicals known to the State of California to cause cancer and birth defects, or other reproductive harm.

PUBLICATIONS ORDERING

• If you are the first registered retail owner of your vehicle, you may

obtain one free printed copy of the Owner's Manual, Warranty Booklet or Radio Manuals on your DVD by calling 1–877–726–4636 (U.S.) or 1–800–387–1143 (Canada) or by contacting your dealer.

• Replacement User Guide kits or DVDs or, if you prefer, additional printed copies of the Owner's Manual, Warranty Booklet or Radio Manuals may be purchased by visiting www.techauthority.com or by calling 1–800–890–4038 (U.S.) or 1–800–387–1143 (Canada). Visa, Master Card, American Express and Discover orders are accepted. If you prefer mailing your order, please call the above numbers for an order form.

NOTE: A street address is required when ordering manuals (no P.O. Boxes).

NOTE:

• The Owner's Manual and User Guide electronic files are also available on the Chrysler, Jeep and Dodge websites.

CONSUMER ASSISTANCE

Information Provided by:

• Click on the "For Owners" tab, select "Owner/Service Manuals", then select your desired model year and vehicle from the drop down lists.

REPORTING SAFETY DEFECTS IN THE 50 UNITED STATES AND WASHINGTON, D.C.

• If you believe that your vehicle has

a defect that could cause a collision or cause injury or death, you should immediately inform the National Highway Traffic Safety Administration (NHTSA) in addition to notifying the manufacturer.

• If NHTSA receives similar

complaints, it may open an investigation, and if it finds that a safety defect exists in a group of vehicles, it may order a recall and remedy campaign. However, NHTSA cannot become involved in individual problems between you, your authorized dealer, and the manufacturer.

• To contact NHTSA, you may either

call the Auto Safety Hotline toll free at 1–888–327–4236 (TTY: 1–800–424– 9153), or go to http://www.safercar.gov; or write to: Administrator, NHTSA, 1200 New Jersey Avenue, SE., West Building, Washington, D.C. 20590. You can also obtain other information about motor vehicle safety from http://www.safercar.gov.

In Canada

• If you believe that your vehicle has a safety defect, you should contact the Customer Service Department immediately. Canadian customers who wish to report a safety defect to the Canadian government should contact Transport Canada, Motor Vehicle Defect Investigations and Recalls at 1-800-333-0510 or go to http://www.tc.gc.ca/ roadsafety/

• French Canadian customers who wish to report a safety defect to the Canadian government should contact Transport Canada, Motor Vehicle Defect Investigations and Recalls at 1-800-333-0510 or go to http://www.tc.gc.ca/securiteroutiere/

MOPAR ACCESSORIES

Information Provided by:

AUTHENTIC RAM ACCESSORIES BY MOPAR

• The following highlights just some of the authentic Ram Truck Accessories by

• To see the full line of accessories, stop by your dealer or visit MOPAR.com.

EXTERIOR:

• Chrome Exhaust Tip • Chrome Tubular Side

• Aluminum Running Boards

• Body Side Moldings • Side Window Air

INTERIOR:

• Premium Carpet Floor Mats

• Ambient Light Kit • Bright Pedal Kit • Heated Seats

• Roadside Safety Kit • Katzkin Leather Seats

ELECTRONICS:

• Portable Navigation Systems

• iPod

• Engine Block Heater • Remote Start • Uconnect™ Phone

MOPAR

that have been engineered to customize your Ram Truck.

Steps

• Front Air Deflector • Cold Weather Front End

Deflectors

• Door Sill Guards • Slush Mats

• Uconnect™ Web (WiFi) • Sirius Satellite Radio

Adapter • Kicker®Sound Systems • Media Center 430

• Heavy Duty Splash Guards

Cover

(RBZ/RHB Multimedia Radio w/Navigation)

(Hands Free Communication)

• iPod

• Kicker

is a registered trademark of Apple, Inc.

is a registered trademark of Stillwater Designs and Audio, Inc.

INDEX

Information Provided by:

Adjustable Pedals . . . . . . . . . . . 18

Air Conditioning . . ..........24

Airbag . . . . . . . ...........10

Airbag Light . . . . ..........50

Alarm, Panic . . . . . ..........8

Anti-Lock Brake System (ABS) . . . 50

Arming Theft System

(Security Alarm) . . . . . ........9

Automatic Headlights . . . . . . . 21,51

Automatic Temperature Control

(ATC)...................24

Automatic Transmission

Fluid Type . . . . . .........71

Axle Fluid . . . . . . ..........71

Battery

Charging System Light . . . . . . 50

Belts, Seat . . . .............9

Brake Fluid . . . . . . . . . . . . . . . 71

Brake System

Warning Light . . ..........49

Bulb Replacement . . . . . . ....81

Cargo Light . . . ............21

Change Oil Indicator . . . . . . . . . 51

Charging System Light . . . . . . . . 50

Check Engine Light (Malfunction

Indicator Light) . . . ..........50

Child Restraint . . . ..........11

Child Restraint Tether Anchors . . . 11

Climate Control . . ..........24

Clock Setting . . . . . . . . . . . . 31,33

Cooling System

Coolant Capacity . . . .......71

Crankcase Emission Control

System . . . . . . . . . . . . . . . . . 21

Cruise Control (Speed Control) . . . 22

Cruise Light . . . . ..........22

Customer Assistance . ........82

Defects, Reporting ..........83

Defroster, Rear Window . . . . . . . 24

Defroster, Windshield . . . . . . . . . 24

Dimmer Control . . ..........21

Disarming, Theft System .......9

Driver Cockpit . . . . . . . . . . . . . . 4

Electronic Speed Control (Cruise

Control) .................22

Electronic Throttle Control

Warning Light . . . . . . . . . ....50

Electronic Vehicle Information

Center (EVIC) ............41,42

Engine

Block Heater . . ..........19

Compartment . . . . . . . . ....64

Malfunction Indicator

(Check Engine) . ..........50

Oil Selection . . . . . . . . . . . . 71

Overheating .............51

Event Data Recorder . . . . . ....62

Exhaust Brake . . ...........25

Express Down Windows . . ......8

Exterior Lights . . . . . . . . .....81

Fluid Capacities . . . .........71

Fluids ..................71

Fog Lights . . .............21

Four Wheel Drive Operation .....46

Freeing A Stuck Vehicle . . .....61

Front Heated Seats . . . . . . ....16

Fuel

Filler Cap (Gas Cap) . . . . ....51

Specifications . . . ........71

Fuses

Hard Disk Drive . . . . . . . . . . . . 33

Headlights

Heater, Engine Block . . . . . ....19

High Beam/Low Beam Select

(Dimmer) Switch . . . . . . . . . . . . 20

Hood Release . . . . . . . . . . . . . 63

Idle Up Feature . . . . . . . .....26

Instrument Cluster . . . . . . . ....6

Instrument Cluster Warning

Lights . . . . . ............6,49

Integrated Trailer Brake Controls . . 47 Intermittent Wipers

(Delay Wipers) . . . . .........20

Introduction . ..............2

. . . . . . . . . . . .......78

Automatic . . . . . . . . ......21

Dimmer Switch . . . . . ......21

High Beam . . ...........20

INDEX

Information Provided by:

Inverter Outlet (115V) . ........44

Inverter, Power . . . . . . . ......44

Control . . . . . . . . . ....40

iPod

Jack Location . . . . . . . ......52

Jump Starting . . . . . . .......56

KeyFob .................8

Key Fob Programmable Features . . 42

Lane Change Assist . . ........20

LATCH (Lower Anchors and Tether

for CHildren) . . . . . . ........11

Lights

Turn Signal . . . . . . .......20

Warning (Instrument Cluster

Description) . . . . .........6

Maintenance Record . . .....75,77

Maintenance Schedule . . . . . . 73,76

Malfunction Indicator Light

(Check Engine) . . . . .........50

Memory Seat . . . . . . . . . . ....14

Message Center

Water in Fuel . . . . . . ......19

Oil Change Indicator . . . . . . . . . 51

Oil Change Indicator, Reset . ....51

Oil, Engine

Capacity . . . . . . . . . . . ....71

Oil Pressure Light . . . . .......50

Overheating, Engine . ........51

Panic Alarm . . . . . . . ........8

Pedals, Adjustable . .........18

Phone (Pairing) . . . . . .......37

Phone (Uconnect) . . . . . . . . . . . 36

Power

Inverter . . . . . . . . .......44

Outlet (Auxiliary Electrical

Outlet) . . . . . . . . . .......45

Seats . . . . . . . . . . .......14

Sliding Rear Window . . . . . . . 27

Steering . . . . . . .........71

Preparation for Jacking .......52

Programmable Electronic

Features . . . . . . . . . . . . . . . . 42

Radio Operation . . . .......30,32

Rain Sensitive Wiper System . . . . 20

Rear Heated Seats . . . .......17

Recreational Towing . . . . .....47

Remote Starting System . . . . ....9

Replacement Bulbs ..........81

Restraints, Child . . . . . . ......11

Seat Belts ................9

Seats . . . . . . . . . . . . . . . . . . 14

Adjustment . ............15

Lumbar Support . . . . . . . . . . 14

Memory . . . . . . . . . . . . . . . 14

Power . . . . . . . . . .......14

Ventilated . . . . . . . . . . . . . . 16

Setting the Clock . . . . . . . . . 31,33

Shift Lever Override . .........59

Signals, Turn . . ............20

Spark Plugs . . . . . .........71

Speed Control (Cruise Control) . . . 22 Starting

Cold Weather . . . . ........19

Remote . . ..............9

Starting Procedures

(Diesel Engines) . ...........19

Steering

Tilt Column . . . . . . . . .....18

Wheel, Heated . . . ........

Steering Wheel Audio Controls . . . 36

Store Radio Presets . . . .....31,33

Supplemental Restraint System -

Airbag ..................10

Temperature Control, Automatic

(ATC)...................24

Theft Alarm (Security Alarm) . ....9

Theft System Arming . . . .......9

Theft System Disarming . . . . ....9

Tilt Steering Column . . . . . . . . . 18

Tires

Air Pressure . . . . . . . . . . . . . 80

Changing . . . . . . . . . . . . . . 53

Flat Changing . . . . . . . . . . . . 53

Jacking . . . . . . . . . . . . . . . 53

INDEX

Information Provided by:

Tow Hooks, Emergency . . . . . . . 58

Towing . . . . . . . . .........47

24-Hour Towing Assistance . . . 49

Disabled Vehicle . . . . . . . . . . 60

Recreational . . ..........47

Towing Vehicle Behind a

Motor Home . . . . . .........47

Trailer Towing

Trailer and Tongue Weight . . . . 47

Trailer Weight . . . ..........47

Transfer Case

Fluid . . . . . . . ..........71

Transmission

Fluid . . . . . . . ..........71

Warning Light . . ..........51

Turn Signals . . . . . .........20

Uconnect™ Phone . . . . ......36

USB Port . . . . . . . . . .....34,40

Voice Command . . . .........39

Washers, Windshield . . . ......20

Water in Fuel . . . ...........19

Wheel and Wheel Trim Care .....81

Wind Buffeting . . . . . . . . .....27

Windows, Express Down . ......8

Windshield Washers . . . . . . . . . 20

Windshield Wipers . . . . ......20

NOTES

Information Provided by:

Driving and Alcohol: Drunken driving is one of the most frequent causes of accidents. Your driving ability can be seriously impaired with blood alcohol levels far below the legal minimum. If you are drinking, don’t drive. Ride with a designated non-drinking driver, call a cab, a friend, or use public transportation.

Driving after drinking can lead to an accident. Your perceptions are less sharp, your reexes are slower, and your judgment is impaired when you have been drinking. Never drink and then drive.

Information Provided by:

WARNING!

This guide has been prepared to help you get quickly acquainted

RAMTRUCKS.COMRAMTRUCKS.COM

Information Provided by:

with your new RAM and to provide a convenient reference source for common questions. However, it is not a substitute for your Owner’s Manual.

For complete operational instructions, maintenance procedures and important safety messages, please consult your Owner’s Manual, Navigation/Media Center Manuals, Multimedia User Manual and other Warning Labels in your vehicle.

Not all features shown in this guide may apply to your vehicle. For additional information on accessories to help personalize your vehicle, visit www.mopar.com or your local RAM dealer.

11DD43-926-AA Chassis Cab 3500/4500/5500 Third Edition User Guide

RAM 3500 2011, 4500 2011, 5500 2011 Owner's Manual

Specifications and Main Features

Frequently Asked Questions

User Manual

INTRODUCTION/WELCOME

WELCOME FROM CHRYSLER GROUP LLC

Vehicles Sold In Canada

CONTROLS AT A GLANCE

DRIVER COCKPIT

INSTRUMENT CLUSTER

Warning Lights

Indicators

Odometer Messages

GETTING STARTED

KEY FOB

Locking And Unlocking The Doors

Panic Alarm

Express Window Feature

Emergency Key

REMOTE START

THEFT ALARM

To Arm

To Disarm

SEAT BELT

SUPPLEMENTAL RESTRAINT SYSTEM (SRS) — AIRBAGS

CHILD RESTRAINTS

Installing The LATCH - Compatible Child Restraint System

Installing The Child Restraint Using The Vehicle Seat Belts

FRONT SEATS

Power Seats

Power Lumbar

Memory Seats

Manual Seats

HEATED/VENTILATED SEATS

Front Heated Seats

Front Ventilated Seats

Rear Heated Seats

HEATED STEERING WHEEL

TILT STEERING COLUMN / ADJUSTABLE PEDALS

Tilt Steering Column

Adjustable Pedals

DIESEL ENGINE STARTING PROCEDURES

Engine Block Heater

Water In Fuel Message

Cold Start Procedure

OPERATING YOUR VEHICLE

TURN SIGNALS/WIPER/WASHER/HIGH BEAMS LEVER

Turn Signals/Lane Change Assist

Wipers

High Beams

HEADLIGHT SWITCH

Automatic Headlights/Parking Lights/Headlights

Instrument Panel Dimmer

Cargo Light

SPEED CONTROL LEVER

Cruise ON/OFF

Accel/Decel

Resume

Cancel

ELECTRONIC RANGE SELECT (ERS) OPERATION

MANUAL CLIMATE CONTROLS

AUTOMATIC TEMPERATURE CONTROL (ATC)

Air Conditioning (A/C)

SYNC Temperature Button

Air Recirculation

DIESEL EXHAUST BRAKE (ENGINE BRAKING)

IDLE-UP FEATURE (DIESEL/AUTOMATIC TRANSMISSION ONLY)

COOL–DOWN IDLE CHART – DIESEL ONLY

POWER SLIDING REAR WINDOW

WIND BUFFETING

ELECTRONICS

YOUR VEHICLE'S SOUND SYSTEM

NON-TOUCH-SCREEN RADIOS

Media Center 130 (Sales Code RES)

Media Center 130 with Satellite Radio (Sales Code RES + RSC)

Seek Up/Down Buttons

Audio Settings

Audio Jack

Clock Setting

Store Radio Presets
