Raloy RNX119 User Manual

Download

User Manual

RNX119

1U LCD Console Drawer

Options :

» AV / DVI-D / HDMI / Audio » Full Range of Integrated KVMs » DC power

Contents

Safety Notice iii

1 Product Overview 1

1-1 Package Content 1 1-2 Structure Diagram 1 1-3 Dimensions & Weight 2

2 Installation 3

2-1 Before Installation 3 2-2 Unpacking 3 2-3 How To Clean Your LCD Monitor 3 2-4 How To Install 4 2-5 Connecting to a PS/2 or USB Server 5 2-6 Connecting to an External KVM Switch 5

3 Basic Operation 6

3-1 Opening the Drawer 6 3-2 On-screen Display Operation (OSD) 7

4 Product Specications 8

4-1 Specications Table 8 4-2 Keyboard / Mouse Specications 10

5 Product Options 11

5-1 Port Options 11 5-2 DC Power Options 11

6 Integrated KVM Options 12

IP Enabled KVM Switches 12 High Density CATx KVMs 12 Basic Cabled Style KVMs 12 Specialty KVMs 12

7 Important Information 13

Warranty Information 13 What the Warranty Does Not Cover 14 Regulatory Notices Federal Communications Commission (FCC) 14 Legal Information 14

Safety Notice

Please read the following before using your Raloy unit:

■ Unplug equipment before cleaning. Don’t use liquid or spray detergent; use a moist cloth.

■ Keep equipment away from excessive humidity and heat. Preferably, keep it in an air-conditioned

environment wit temperatures not exceeding 40º Celsius (104º Fahrenheit).

■ When installing, place the equipment on a sturdy, level surface to prevent it from accidentally falling and causing damage to other equipment or injury to people nearby.

■ When the equipment is in an open position, do not cover, block or in any way obstruct the gap between it and the power supply. Proper air convection is necessary to keep the unit from overheating.

■ Arrange the equipment’s power cord in such a way that others won’t trip or fall over it.

■ If you are using a power cord that didn’t ship with the equipment, ensure that it is rated for the voltage and

current labeled on the equipment’s electrical ratings label. The voltage rating on the cord should be higher than the one listed on the equipment’s ratings label.

■ Observe all precautions and warnings attached to the equipment.

■ If you don’t intend on using the equipment for a long time, disconnect it from the power outlet to prevent the

unit from potentially being damaged by transient over-voltage.

■ Keep all liquids away from the equipment to minimize the risk of accidental spillage. Liquid spilled on to the power supply or on other hardware may cause damage, re or electrical shock.

■ Only qualied service personnel should open the chassis. Opening it yourself could damage the equipment and invalidate its warranty.

iii

1 Product Overview

1-1 Package Content

1 x RNX119 Rackmount Console

1 x CE-6 6ft Combo KVM cable

1 x Power cord

8 x M6 screw, cage nut & cup washer

The above package content is only for the single console models. Options such as KVM, HDMI, DVI-D, AV, audio & DC power may cause package contents to change.

1-2 Structure Diagram

Carry handle to release the 2-pt lock

2-point lock

Installation Slides

LCD membrane

LCD interchangeable module kit

Micro switch for screen auto power off

Keyboard interchangeable module kit

Mouse interchangeable module kit

Membrane switch (KVM option)

1-3 Dimensions & Weight

Front View

Side View

Top View

1mm = 0.03937 inch

UNIT : mm

Model

RNX119 Series

The weight listed is only for the single console drawer. Weight will vary depending on additional accessories & options such as Integrated KVM, HDMI, DVI-D, AV, audio & DC power.

Product Dimension

(W x D x H)

441.6 x 500 x 44 mm

17.4 x 19.7 x 1.73"

Packing Dimension

(W x D x H)

590 x 768 x 140 mm

23.2 x 30.2 x 5.5”

Net Weight Gross Weight

12.5 kg

27.5 lb

17 kg

37.4 lb

2 Installation

2-1 Before Installation

■ It is very important to mount the equipment in a suitable cabinet or on a stable surface.

■ Make sure the place has a good ventilation, is out of direct sunlight, away from sources of excessive dust,

dirt, heat, water, moisture and vibration.

2-2 Unpacking

The equipment comes with the standard parts shown in package content. Check and make sure they are included and in good condition. If anything is missing, or damaged, contact the supplier immediately.

2-3 How To Clean Your LCD Monitor

Caution. Read this before cleaning:

■ To avoid the risk of electric shock, make sure your hands are dry before unplugging your monitor from or plugging your monitor into an electrical outlet.

■ When you clean your monitor, do not press down on the LCD screen. Pressing down on the screen can scratch or damage your display. Pressure damage is not covered under warranty.

■ Use only cleansers made specically for cleaning monitors and monitor screens. Cleansers not made to clean monitors and monitor screens can scratch the LCD display or strip off the nish.

■ Do not spray any kind of liquid directly onto the screen or case of your monitor. Spraying liquids directly onto the screen or case can cause damage which is not covered under warranty.

■ Do not use paper towels or abrasive pads to clean your monitor. Using an abrasive pad or any wood based paper product such as paper towels can scratch your LCD screen.

Cleaning Your Monitor

To clean your LCD safely, please follow these steps :

1. Disconnect the power cord.

2. Gently wipe the surface using a clean, dry microfiber cloth. Use as little pressure as possible.

Cleaning Tough Marks and Smudges

To remove tough marks and smudges, please follow these steps :

1. Disconnect the power cord.

2. Spray a small amount of non-abrasive cleanser on a microfiber cloth.

3. Gently wipe the surface. Use as little pressure as possible.

4. Wait until your monitor is completely dry before plugging it in and powering it up.

Caution : Do not spray or apply any liquids directly onto the monitor. Always apply the solution to your

microber cloth rst, not directly on the parts you are cleaning.

2-4 How To Install

Step 1

■ Insert the left and right rear mounting brackets into the LCD console drawer.

Step 2

■ Measure the depth of the front and rear mounting rails.

■ Align each rear mounting bracket to a suitable length.

Step 3

■ Fix the LCD console drawer into the rack using the included M6 screws, cage nuts & cup washers

2-5 Connecting to a PS/2 or USB Server

LCD console drawer LCD console drawer

KVM

RCE-6 Combo KVM cable

PS/2 server USB server

2-6 Connecting to an External KVM Switch

LCD console drawer LCD console drawer

KVM KVM

RCE-6 Combo KVM cable

KVM

RCE-6 Combo KVM cable

PS/2 console KVM

Caution: The LCD console drawer is hot-pluggable, but components of connected devices, such as the servers and KVM

switch, may not be hot-pluggable. Plugging and unplugging cables while servers and KVM are powered on may cause ir-

reversible damage to the servers, KVM and LCD console drawer. Before attempting to connect anything to the LCD console

drawer, we suggest turning off the power to all devices. Apply power to connected devices again only after the LCD console

drawer is receiving power. The company is not responsible for damage caused in this way.

USB console KVM

3 Basic Operation

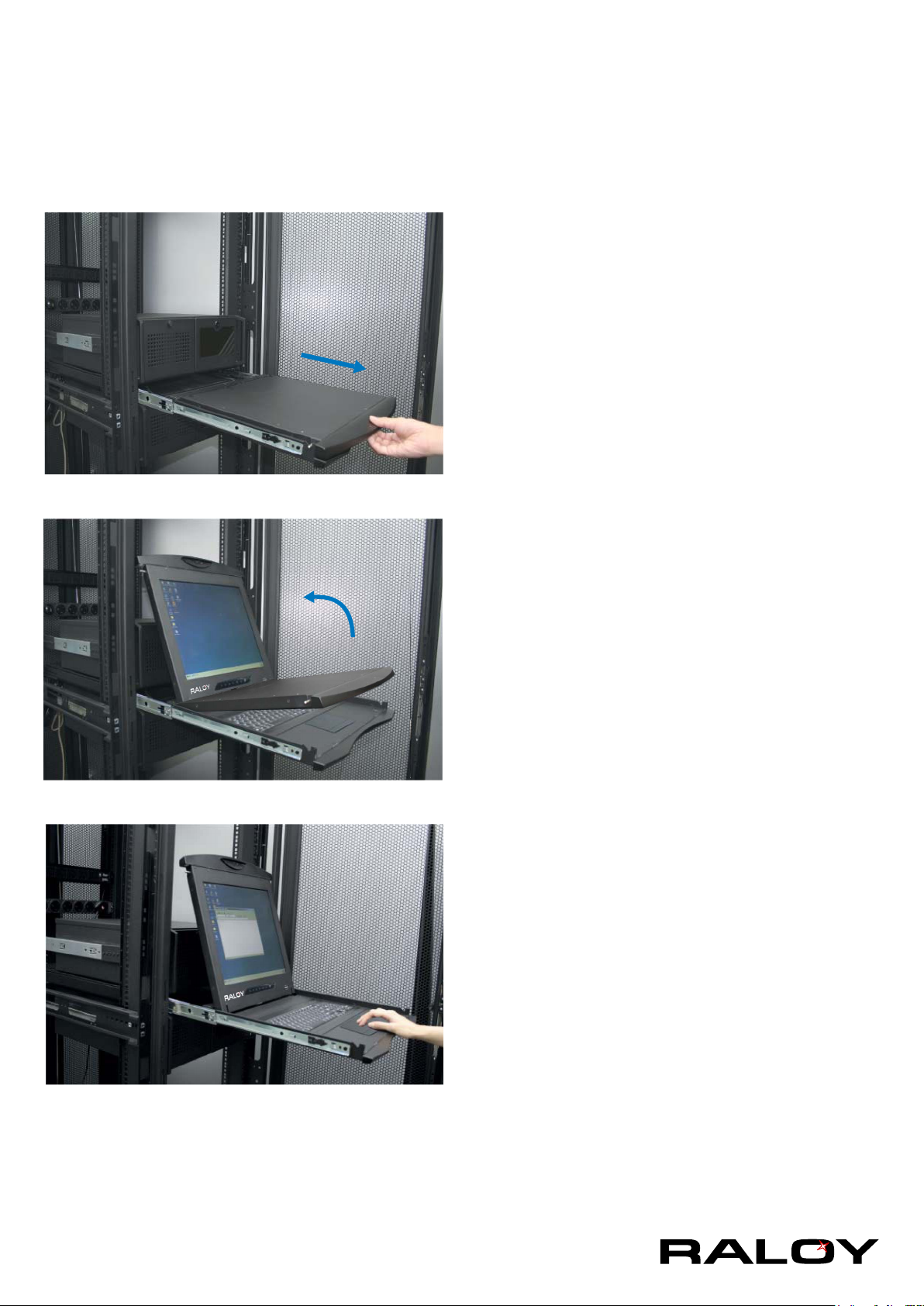

3-1 Opening the Drawer

Step 1

■ Pull the tab on the front handle and gently slide out the drawer.

Step 2

■ Flip up the LCD to a suitable angle.

Step 3

■ Operate the LCD console drawer.

3-2 On-screen Display Operation (OSD)

Membrane Switch Function

Turn the monitor on or off

Display the OSD menu. Press Enter key to select screen

Scroll through menu options and adjust the displayed control

Exit the OSD screen. Go back to the previous on-screen sub-menu or

main menu

Note:

1. All LED touch buttons turn off after 10 minutes of idle status (except the Power ).

2. Light up all membrane buttons, please press any button for 1-2 seconds (except the Power ).

All LED touch buttons in WHITE light. The LED of Power touch button will ash continuously when there is no signal input.

OSD Conguration Page

Image: for the brightness, contrast, color temp, red, green, and blue

Geometry: for the auto adjust, H position, V position, phase and clock

Video: for the colour, tint, sharpness, noise reduction, DCDi and TV Setup

Audio: for volume, bass, treble, balance, AVL and mute

Misc: for the language, OSD position, graphic mode, ratio, reset and timer

4 Product Specications

4-1 Specications Table

LCD Panel

Video Connectivity

Manufacturer

Panel Size ( diagonal ) 19-inch TFT color LCD

Display pixel ( dots x lines )

Brightness ( typ. ) 250

Contrast Ratio ( typ. ) 1000:1

Color 16.7 M

Viewing Angle ( L/R/U/D ) 85/85/80/80

Response Time ( ms ) 5

Dot pitch ( mm ) 0.294

Display Area ( mm ) 376.32H x 301.06V

Surface treatment Haze 25%, Hard-coating

Surface hardness 3H

Backlight Type LED

MTBF ( hrs ) 30,000

Digital HDMI 1.1, CEA-861-D

Analog

Plug & Play VESA EDID structure 1.3

Synchronization Separate, Composite & SOG

1280 x 1024

DVI-D, TMDS single link

Analog 0.7Vp-p

NTSC & PAL

Audio Connectivity

*When the audio output is connected, speaker output is OFF

Power Power Supply Auto-sensing 100 to 240VAC, 50 / 60Hz

Regulatory Safety cUL, FCC & CE certied

Audio Input 3.5mm stereo jack

30kΩ / 750mV

Audio Output

Speaker Output 2 x 2W

Power Consumption

Environmental RoHS2 & REACH compliant

3.5mm stereo jack

30kΩ / 2.8V

25W or less

4W or less

1W or less

Environmental Conditions

Operating Temperature 0 to 50°C degree

Humidity 20~90%, non-condensing

Storage

Temperature -5 to 60°C degree

Humidity 5~90%, non-condensing

Shock 10G acceleration (11ms duration)

Vibration 5~500Hz 1G RMS random

Physical

Specication

Applicable Format

Product ( W x D x H ) 441.6 x 500 x 44 mm

17.4 x 19.7 x 1.73 inch

Packing ( W x D x H )

Net Weight 12.5 kgs / 27.5 lbs

Gross Weight 17 kgs / 37.4 lbs

VGA Input PC Signal 1280 x 1024 x 60 / 75Hz

590 x 768 x 140 mm

23.2 x 30.2 x 5.5 inch

1280 x 960 x 60Hz

1280 x 760 x 60 / 75Hz

1152 x 864 x 75Hz

1024 x 768 x 60 / 70 / 75Hz

848 x 480 x 60Hz

800 x 600 x 60 / 72 / 75Hz

720 x 400 x 70Hz

640 x 480 x 60 / 72 / 75Hz

640 x 400 x 70Hz

640 x 350 x 70Hz

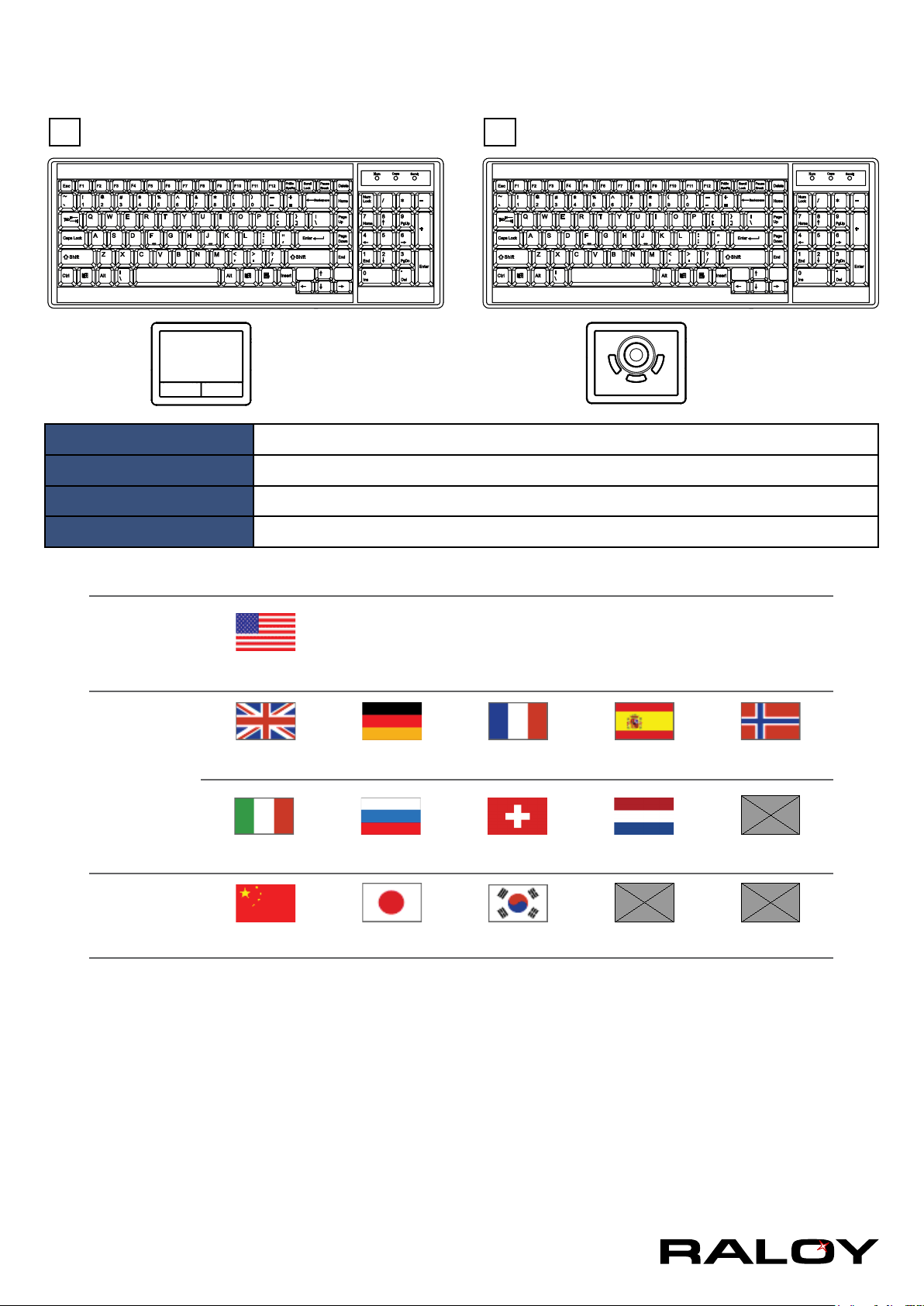

4-2 Keyboard / Mouse Specications

G keyboard integrated with touchpad

Key force 55 ± 5g

Travelling distance 3 ± 0.3mm

Switch life > 10 million life cycle time

Software support MS Windows 7 / 2008 / 2003 / 2000 / XP / ME / 98 / DOC / Linux / Mac

G keyboard integrated with trackball

Supporting layouts

America

United States

United Kingdom Germany France Spain Norway

EMEA

Italy Russia Switzerland Netherlands Portugal

Asia

China Japan Korea Arabia Turkey

P. 8

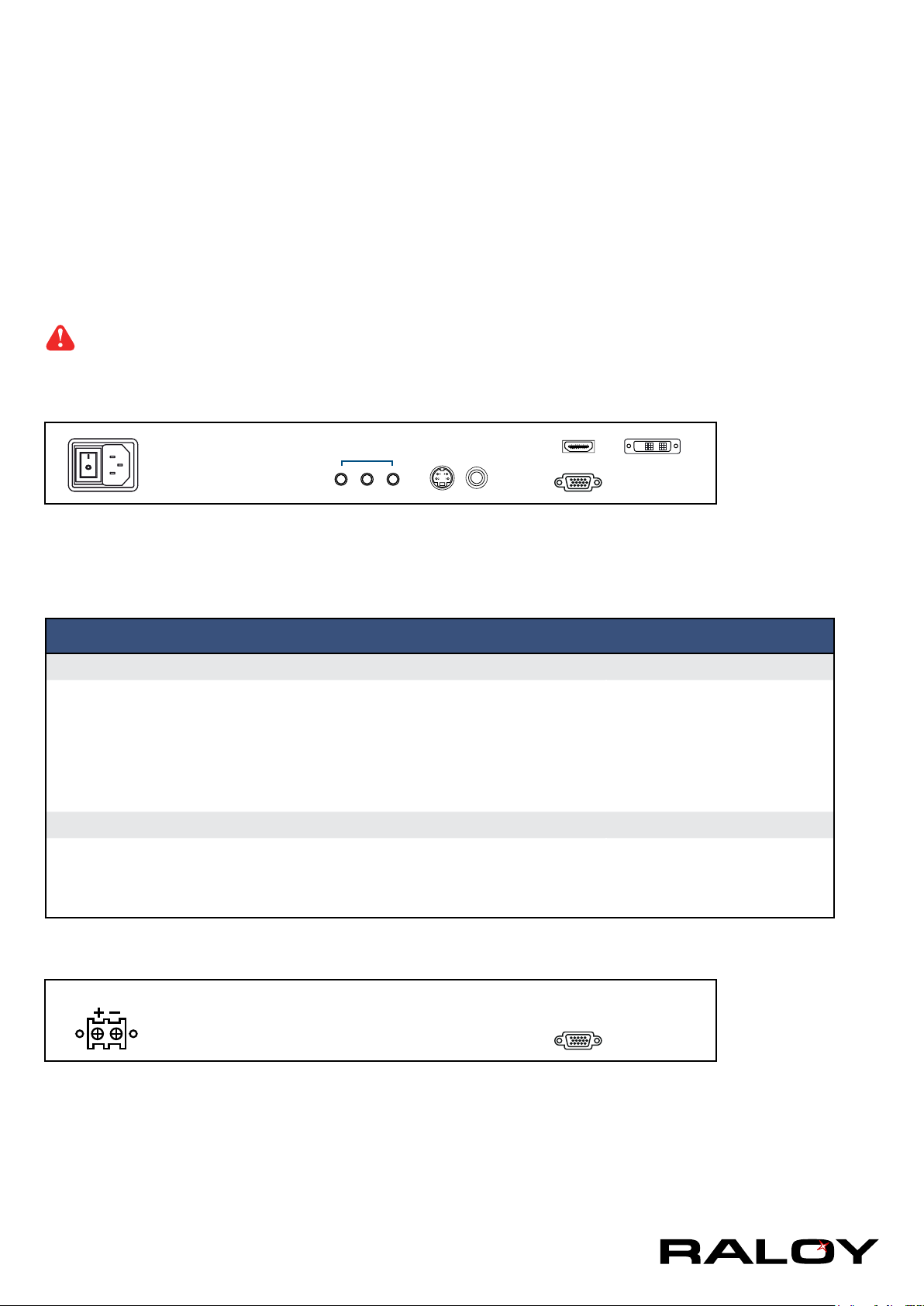

5 Product Options

5-1 Port Options

■ HDMI (HDMI 1.1, CEA-861-D)

■ DVI-D (DVI-D TMDS single link)

■ AV (S-Video + Composite, BNC)

■ Audio (3.5mm audio jacks for audio in & out, and 2W + 2WW Speakers

■ Either HDMI or DVI-D can be selected.

■ For the above options, casing depth will be extended from 500mm ( 19.7" ) to 570mm ( 22.4" )

Power

Audio

in - in - out

PC Video

S-Video BNC

KVM

DVI-DHDMI

5-2 DC Power Options

Model 12V 24V 48V

Input rating

Input voltage: 12-Volt 24-Volt 48-Volt

Input range: 9 ~ 18V 18 ~ 36V 36 ~ 75V

Input current

- No load 50 mA 50 mA 50 mA

- Full load 4950 mA 2450 mA 1220 mA

Output rating

Output voltage: 12-Volt 12-Volt 12-Volt

Output current: 4.16A 4.16A 4.16A

Efciency 84% 85% 85%

DC Power

KVM

For DC power option :

■ Option excludes 1 x power cord and 1 x AC power adapter.

■ Casing depth will be extended from 500mm ( 19.7” ) to 570mm ( 22.4” )

6 Integrated KVM Options

IP Enabled KVM Switches

■ CATx Style

■ Basic Cabled Style

High Density CATx KVMs

■ Multi-User Matrix

■ Single User
