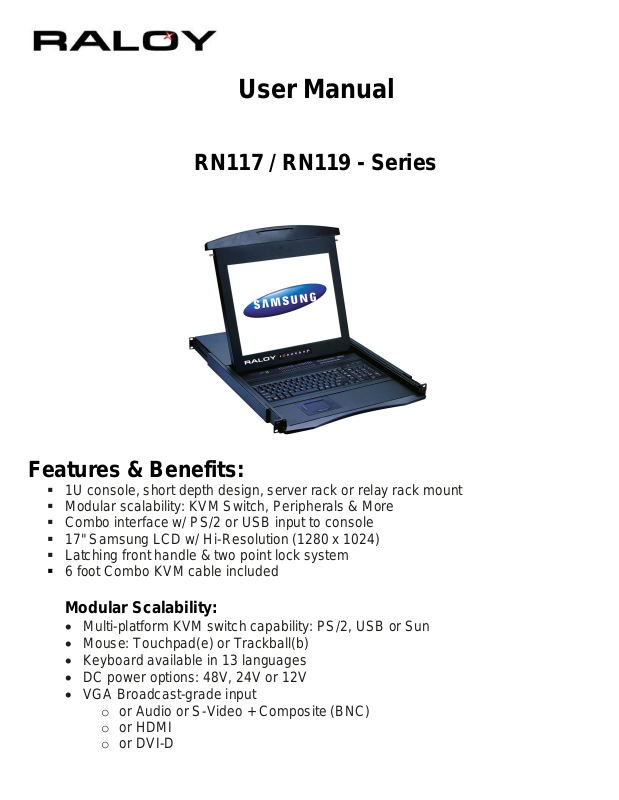

Raloy RN117 User Manual
Features & Benefits:
1U console, short depth design, server rack or relay rack mount
Modular scalability: KVM Switch, Peripherals & More
Combo interface w/ PS/2 or USB input to console
17" Samsung LCD w/ Hi-Resolution (1280 x 1024)
Latching front handle & two point lock system
6 foot Combo KVM cable included
User Manual
RN117 / RN119 - Series
Modular Scalability:
Multi-platform KVM switch capability: PS/2, USB or Sun
Mouse: Touchpad(e) or Trackball(b)
Keyboard available in 13 languages
DC power options: 48V, 24V or 12V
VGA Broadcast-grade input
o or Audio or S-Video + Composite (BNC)
o or HDMI
o or DVI-D
Contents
Chapter 1 Getting Started .............................................................................................................................. 3
1.1 Important Safeguards ...................................................................................................................................... 3
1.2 Regulatory Notice ............................................................................................................................................ 4
Legal Information ....................................................................................................................................................................................... 4
Safety Instructions ..................................................................................................................................................................................... 4
Regulatory Notices Federal Communications Commission (FCC) .................................................................................................... 4
1.3 Package Contents ............................................................................................................................................ 5
1.4 Before Installation ........................................................................................................................................... 6
1.5 Unpacking ......................................................................................................................................................... 6
1.6 Optional Accessories ...................................................................................................................................... 6
1.7 Default Password & Reset Diagram .............................................................................................................. 7
1.8 Structure Diagram ........................................................................................................................................... 8
1.9 Installation .................................................................................................................................................... 9-10
1.10 How to use the slides ..................................................................................................................................... 11
1.11 How to use the LCD Keyboard Drawer ........................................................................................................ 12
1.15 RN117/119 (Single console) – PS/2 KVM Connection ................................................................................ 13
1.16 RN117/119 (Single console) – USB KVM Connection ................................................................................ 14
Chapter 2 Operation ..................................................................................................................................... 15
2.1 On-screen Display Operation ........................................................................................................................ 15
2.2 On-screen Menu .............................................................................................................................................. 16
Chapter 3 Standard Specifications ............................................................................................................ 17
3.1 Specifications .................................................................................................................................................. 17
3.2 Keyboard & Mouse ......................................................................................................................................... 18
Chapter 4 Optional Specifications ............................................................................................................. 19
4.1 KVM Options ................................................................................................................................................... 19
4.2 DVI-D Option .................................................................................................................................................... 19
4.3 BNC + S-Video Option .................................................................................................................................... 20
4.4 Audio Option ................................................................................................................................................... 20
4.5 DC Power Options .......................................................................................................................................... 21
Chapter 5 Troubleshooting ......................................................................................................................... 21
Chapter 6 Dimensions ................................................................................................................................. 22
2
www.raloy.com
Chapter 1 Getting Started
1.1 Important Safeguards
Please read all of these instructions carefully before you use the device. Save this manual for future reference.
What the warranty does not cover
Any product, on which the serial number has been defaced, modified or removed.
Damage, deterioration or malfunction resulting from:
o Accident, misuse, neglect, fire, water, lightning, or other acts of nature, unauthorized product
modification, or failure to follow instructions supplied with the product.
o Repair or attempted repair by anyone not authorized by us.
o Any damage of the product due to shipment.
o Removal or installation of the product.
o Causes external to the product, such as electric power fluctuation or failure.
o Use of supplies or parts not meeting our specifications.
o Normal wear and tear.
o Any other causes which does not relate to a product defect.
Removal, installation, and set-up service charges.
www.raloy.com
3
1.2 Regulatory Notice
Legal Information
First English printing, October 2002
Information in this document has been carefully checked for accuracy; however, no guarantee is given to the
correctness of the contents. The information in this document is subject to change without notice. We are not
liable for any injury or loss that results from the use of this equipment.
Safety Instructions
Unplug equipment before cleaning. Don’t use liquid or spray detergent; use a moist cloth.
Keep equipment away from excessive humidity and heat. Preferably, keep it in an air-conditioned
environment with temperatures not exceeding 40º Celsius (104º Fahrenheit).
When installing, place the equipment on a sturdy, level surface to prevent it from accidentally falling and
causing damage to other equipment or injury to persons nearby.
When the drawer is in an open position, do not cover, block or in any way obstruct the gap between it and
the power supply. Proper air convection is necessary to keep it from overheating.
Arrange the equipment’s power cord in such a way that others won’t trip or fall over it.
If you are using a power cord that didn’t ship with the equipment, ensure that it is rated for the voltage and
current labeled on the equipment’s electrical ratings label. The voltage rating on the cord should be higher
than the one listed on the equipment’s ratings label.
Observe all precautions and warnings attached to the equipment.
If you don’t intend on using the equipment for a long time, disconnect it from the power outlet to prevent
being damaged by transient over-voltage.
Keep all liquids away from the equipment to minimize the risk of accidental spillage. Liquid spilled on to
the power supply or on other hardware may cause damage, fire or electrical shock.
Only qualified service personnel should open the chassis. Opening it yourself could damage the
equipment and invalidate its warranty.
If any part of the equipment becomes damaged or stops functioning, have it checked by qualified service
personnel.
CAUTION: Slide/rail mounted equipment is not to be used as a shelf or a work space.
Regulatory Notices Federal Communications Commission (FCC)
This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to Part
15 of the FCC rules. These limits are designed to provide reasonable protection against harmful interference in a
residential installation.
Any changes or modifications made to this equipment may void the user’s authority to operate this equipment.
This equipment generates, uses, and can radiate radio frequency energy and, if not installed and used in
accordance with the instructions, may cause harmful interference to radio communications.
However, there is no guarantee that interference will not occur in a particular installation. If this equipment does
cause harmful interference to radio or television reception, which can be determined by turning the equipment off
and on, the user is encouraged to try to correct the interference by one or more of the following measures:
Re-position or relocate the receiving antenna.
Increase the separation between the equipment and receiver.
Connect the equipment into an outlet on a circuit different from that to which the receiver is connected.
www.raloy.com
4
1.3 Package Contents
1) LCD keyboard drawer x 1 pc
2) RCE-6 Combo 4-in-1 KVM cable x 1 pc
3) User manual x 1 pc
4) Power cord x 1 pc
5) Auto switch power adapter (for external power version) x 1 pc
6) Mounting bracket x 2 pcs
7) M6*15mm screw x 8 pcs
8) M6 cage nut x 8 pcs
9) Cup washer x 8 pcs
www.raloy.com
5
1.4 Before Installation
1. Combo 4-in-1 KVM cable
1.1 RCE-6 6 feet
1.2 RCE-10 10 feet
1.3 RCE-15 15 feet
2. USB 2-in-1 KVM cable
2.1 RCB-10 10 feet
2.2 RCB-15 15 feet
3.
Power Cord
3.1 IEC power cord
3.2 REC-NEMA 5-15 power cord (US)
3.3 REC-BS 1363 power cord (UK)
3.4 REC-CEE 7/4 power cord (German)
3.5 REC-AS 3112 power cord (Australia)
It is very important to place the LCD Keyboard Drawer in a suitable environment.
The surface for placing and fixing the LCD Keyboard Drawer should be stable and level or mounted into a
suitable cabinet.
Make sure the location is well ventilated, out of direct sunlight, away from sources of excessive dust, dirt,
heat, water, moisture and vibration.
Position LCD Keyboard Drawer with respect to related facilities.
1.5 Unpacking
The LCD keyboard drawer comes with the standard parts as shown in the package contents. Check and make
sure they are included and in good condition. If anything is missing, or damage, contact the supplier immediately.
1.6 Optional Accessories
www.raloy.com
6
1.7 Default KVM Password & Reset Diagram
The user name & password can be reset to default “00000000” (8 digits of zero via keyboard not 10Key)
1) The KVM password can be reset on the KVM PCB board
2) Open the KVM top metal cover
3) Find the jumper J7, then use either paper clip or scissors to touch the two boxes of J7 in order to
close/short the jumper 5 ~ 10 second
www.raloy.com
7
