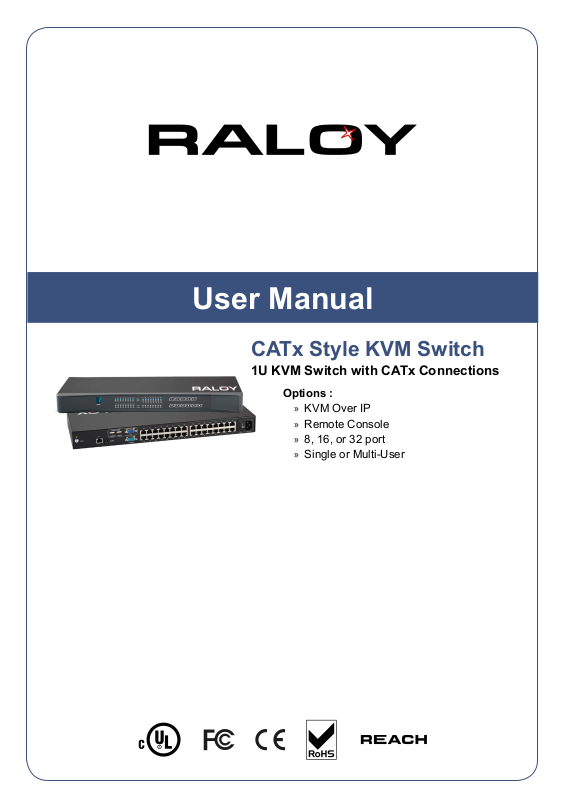

User Manual
CATx Style KVM Switch
1U KVM Switch with CATx Connections
Options :
» KVM Over IP
» Remote Console
» 8, 16, or 32 port
» Single or Multi-User

Contents
Safety Notice iii
1 Product Overview 1
1-1 Package Content (Standalone KVM) 1
1-2 Package Content (Integrated KVM) 1
1-3 CATx Style KVM Table 2
2 Installation 3
2-1 Before Installation 3
2-2 Unpacking the Unit 3
2-3 Installation Instructions (Standalone KVM) 3
2-4 KVM Port & CATx Dongle Connection 4
2-5 Cascading the KVM 5
2-6 Local and Remote Console Diagram 6
2-7 Connecting a Remote Console 7
3 Operation 8
3-1 KVM Button 8
3-2 Password 9
3-3 On-Screen Display (OSD) 10
3-4 IP Operations 11
3-5 Hotkeys for KVM & Remote Console 11
4 Product Specications 12
4-1 Specications Table 12
4-2 Resolution Support Information 13
4-3 DC Power: 12V, 24V, 48V Input 13
5 Important Information 14
Warranty Information 14
What the Warranty Does Not Cover 15
Regulatory Notices Federal Communications Commission (FCC) 15
Legal Information 15
II

Safety Notice
Please read the following before using your Raloy unit:
■ Unplug equipment before cleaning. Don’t use liquid or spray detergent; use a moist cloth.
■ Keep equipment away from excessive humidity and heat. Preferably, keep it in an air-conditioned
environment with temperatures not exceeding 40º Celsius (104º Fahrenheit).
■ When installing, place the equipment on a sturdy, level surface to prevent it from accidentally falling and
causing damage to other equipment or injury to persons nearby.
■ When the equipment is in an open position, do not cover, block or in any way obstruct the gap between it
and the power supply. Proper air convection is necessary to keep it from overheating.
■ Arrange the equipment’s power cord in such a way that others won’t trip or fall over it.
■ If you are using a power cord that didn’t ship with the equipment, ensure that it is rated for the voltage and
current labeled on the equipment’s electrical ratings label. The voltage rating on the cord should be higher
than the one listed on the equipment’s ratings label.
■ Observe all precautions and warnings attached to the equipment.
■ If you don’t intend on using the equipment for a long time, disconnect it from the power outlet to prevent
being damaged by transient over-voltage.
■ Keep all liquids away from the equipment to minimize the risk of accidental spillage. Liquid spilled on to the
power supply or on other hardware may cause damage, re or electrical shock.
■ Only qualied service personnel should open the chassis. Opening it yourself could damage the equipment
and invalidate its warranty.
iii

1 Product Overview
Remote
USB console
Receiver
Remote
USB console
Receiver
1-1 Package Content (Standalone KVM)
■ 1 x KVM Unit
KVM unit
KVM unit
■ 1 x Mounting set w/ bracket & screws
■ 1 x Power cord (for KVM)
KVM with Remote User
■ 1 x KVM Unit
■ 1 x Mounting set w/ bracket & screws
■ 1 x Power cord (for KVM)
■ 1 x Receiver box for remote console
■ 1 x Power adapter with power cord (for receiver)
■ 1 x RCE-6 6ft combo KVM cable for receiver
1-2 Package Content (Integrated KVM)
■ 1 x KVM Unit
KVM with Remote User
1
KVM unit
■ 1 x KVM Unit
■ 1 x Receiver box for remote console
■ 1 x Power adapter with power cord (for receiver)
■ 1 x RCE-6 6ft combo KVM cable for receiver

1-3 CATx Style KVM Table
www.Raloy.com/support/downloads.html
Multi-User Matrix
Single User
* Replace with either an e for the touchpad or b for the trackball. i.e CATx10108e
Part Numbers Concurrent Users Local Remote Ports
CATx21016* 2 1 1 0 16
CATx21032* 2 1 1 0 32
CATx31116* 3 1 1 1 16
CATx31132* 3 1 1 1 32
CATx32016* 3 1 2 0 16
CATx32032* 3 1 2 0 32
CATx42116* 4 1 2 1 16
CATx42132* 4 1 2 1 32
CATx41216* 4 1 1 2 16
CATx41232* 4 1 1 2 32
CATx43016* 4 1 3 0 16
CATx43032* 4 1 3 0 32
Part Numbers Concurrent Users Local Remote Ports
CATx10008* 1 1 0 0 8
CATx10016* 1 1 0 0 16
CATx10032* 1 1 0 0 32
CATx10108* 1 1 0 1 8
CATx10116* 1 1 0 1 16
CATx10132* 1 1 0 1 32
2

2 Installation
2-1 Before Installation
■ It is very important to mount the equipment in a suitable cabinet or on a stable surface.
■ Make sure the place has a good ventilation, is out of direct sunlight, away from sources of excessive
dust, dirt, heat, water, moisture and vibration.
2-2 Unpacking the Unit
The equipment comes with the standard parts shown in package content. Check and make sure they are
included and in good condition. If anything is missing, or damaged, contact Raloy immediately.
2-3 Installation Instructions (Standalone KVM)
Step 1
A
B
■ Install each bracket using the screws provided.
Screw A: 2 pcs Screw B: 8 pcs
M3.2 x 4.5 mm M4 x 10 mm
Step 2
■ Mount the KVM into the rack.
3
