Features

General

• High-performance, Low-power 32-bit ARM®-SC100

• Von Neumann Load / Store Architecture

– single 32-bit Data Bus for Instructions and Data

• Memory Protection unit

• Internal Oscillator (VFO) (up to 50 MHz)

• ESD Protection to ± 2000V (± 6000V on the ISO interfaces)

• Operating Ranges: 3.3V (+/- 10%)

• Compliant with EMV Level 1, VISA PED, APACS, ZKA, Common Criteria (EAL4+),

FINREAD

™

Enhanced RISC Architecture

Memory

• 256 bits of Key Storage (battery backup)

• 32K Bytes of internal ROM Memory (Bootstrap & Crypto library)

• 256K Bytes of Internal EEPROM, Including 128 OTP Bytes and 384-byte Bit-

addressable Bytes

– 1 to 128-byte Program/Erase – 2 ms Program, 2 ms Erase – Endurance: 100,000 Write/Erase Cycles at temperature of 25 degrees C – 10 Years Data Retention

•

100K Bytes of Internal RAM (4KB Crypto RAM)

• up to 16M Bytes of External Memory (AT91SO100/101 only)

Peripherals

• Page Unit to access External Memory Page (AT91SO100/101 only)

• Static Memory Controller (AT91SO100/101 only)

• Two ISO 7816 controllers with DC/DC (one of them can be multiplexed to address 4

SAM). The DC/DC converter AT83C26 is not included in the versions AT91SO100, AT91SO50 and AT91SO25. But the two ISO 7816 controllers are still available

• USB 2.0 Full Speed (8 endpoints)

• SPI Controller (up to 6Mbps) and Two Wire Interface

• Two Universal Synchronous/Asynchronous Receiver Transmitters (USART)

• Triple Track Magstripe Logical Interface

• 5 8-bit I/O Port Interface (LEDs, Keyboard, LCD, spare...)

• Real Time Clock (RTC) with Alarm interrupt

• System Timer including a 16-bit Counter, Watchdog and Second Counter

• Six-channel 16-bit Timer/counter

• 2-level, 28-interrupt Controller

• Hardware DES and Triple DES DPA Resistant

• Hardware AES 128-192-256

• Hardware SHA-1, SHA-256

• True Random Number Generator (RNG)

• Two CRC 16 Engines and one CRC 32 Engine (Compliant with ISO/IEC 3309)

• AdvX - Advanced crypto multiplier for cryptography and authentication (including

RSA, DSA, Key Generation, ECC)

Secure Microcontroller for Electronic Transaction Terminal / Reader

AT91SO100/101 AT91SO50/51 AT91SO25

Summary

Security

• Dedicated Hardware for Protection Against SPA/DPA Attacks

• Advanced Protection Against Physical Attack, Including Active Shield

• Intrusion sensors (mesh and switches).

• Environmental Protection Systems (Voltage, Frequency, UV andTemperature)

• Secure Memory Management/Access Protection (MPU)

• Real time clock and battery back up

• Compliant with EMV standard, VISA PED and FINREAD

Note: This is a summary document. A complete document will be available under NDA. For more information, please contact your local Atmel sales office.

6514BS–SPD–10 May 07

Description

The AT91SO100/101, AT91SO50/51 and the AT9 1 S O 2 5 are a low-power, high-performance, SC100 32-bit microcontroller based on the ARM® enhanced RISC architecture. This new SC100 core allows the linear addressing of up to 1M bytes of code and data as well as a number of new functional and security features. A 3-level instruction pipeline allows the performance of one instruction in a single clock cycle, the SC100 achieves throughputs close to 1 MIPS per MHz. The SC100 processor employs a unique architectural strategy known as Thumb® a super reduced instruction set that is ideally suited for high volume applications with memory restrictions and applications where code density is an important factor.

The AT91SO100/101, AT91SO50/51 and the AT91SO25 have internal EEPROM that can be used as program or data memory. It also includes a ROM (for the bootstrap and crypto library and some native functions) and a large SRAM. The AT91SO100/101 can also address up to 16Mbytes of external memory.

The AT91SO100/101, AT91SO50/51 and the AT91SO25 also comprises of strong security mechanisms and has a impressive set of cry- tography features , hardware DES/TDES, hardware AES, hardware SHA-n, hardware cryptography accelerator for asymmetric algorithms (RSA, Elliptic Curve, Key generation) and a true random number generator.

The AT91SO100/101, AT91SO50/51 and the AT91SO25

includes a lot of dedicated peripherals as ISO 7816 controller and mag-

netic stripe card interface, as well as USB, SPI, TWI, USARTs and I/O ports.

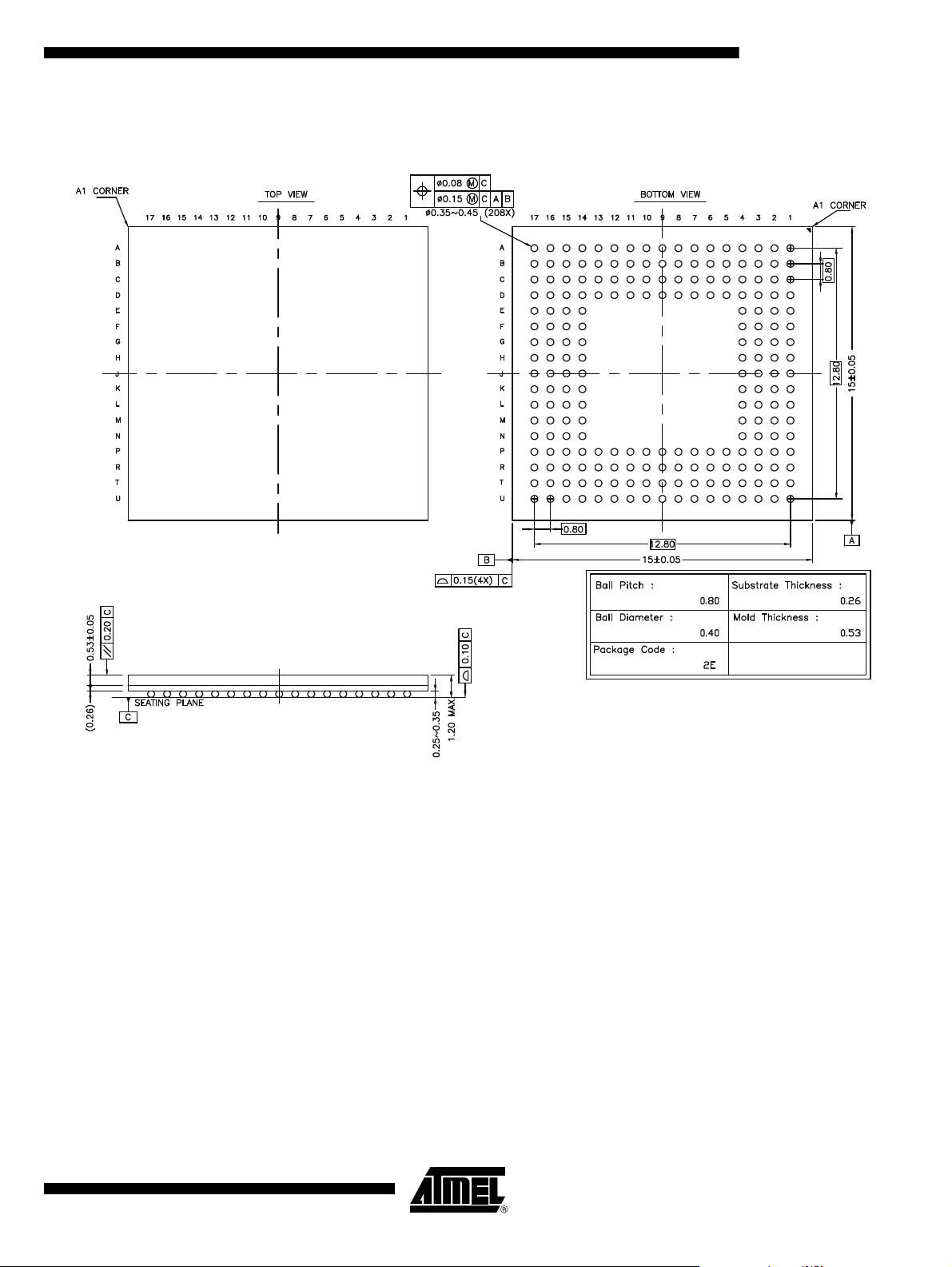

The AT91SO101 is a single package solution in BGA256 embedding two chips, the secure controller and the AT83C26 which physically interface with up to 2 smart cards and 3 secure access module, or 1 smart card and 4 secure access module.

The AT91SO100 is available using the same package (BGA256) pin to pin compatible with the AT91SO101 but without the AT83C26.

The AT91SO51 is a single package solution in BGA208 (cost effective solution) embedding two chips, the secure controller and the AT83C26 which physically interface with up to 2 smart cards and 3 secure access module, or 1 smart card and 4 secure access module. The external bus is not connected on this product.

The AT91SO50 is available using the same package (BGA208) pin to pin compatible with the AT91SO51 but without the AT83C26. The external bus is not connected on this product.

The AT91SO25 is a single package solution in BGA144 (low cost solution) embedding one chip, the secure controller only. The external bus is also not connected on this product.

AT91SO100

6514BS–SPD–10 May 07

Figure 1. Block Diagram (Secure controller)

ARM SC100

EEPROM

256 KB

RAM

96 KB

Crypto RAM

4KB

ADVX

Crypto Coprocessor

RSA, ECC

Power

Management

RTC

Page Unit

SMC

USB

Device

USART0

USART1

SPI

Smart Card

interface 0

Smart Card

Interface 1

MAGSTRIPE

RNG

DES / TDES

AES

CP15 (MPU)

Clock

Management

48 MHz

USB

8 bits PortB

8 bits PortD

Interrupt

Controller

16 bit Timer/Counter

Channel0

Channel1

Channel2

CRC 16/32

ROM

32 KB

System

Timers

Security

32KHz

A0 - A23

D0 - D15

from RTC

BRIDGE

Channel0

Channel1

Channel2

8 bits PortA

8 bits PortC

8 bits PortE

6 Mhz

32.768 Khz

CS0 - CS3

nrd

nwe_nwe0

nbs1_nwe1

USB + USB -

Intrusion Mesh Sensors

TC0 TC1

SCK MOSI MISO NSS

IO, CLK, VCC, RST, C4, C8, Card_Pres

IO, CLK, VCC, RST

VBat

Vcc

ext_nwait

Intrusion Switch

Sensors

256 bit

User Key

DPRAM

SHA

AT91SO100

6514BS–SPD–10 May 07
