RADWAG PS 510.R2.CT User Manual
Number of instruction:
IMMU-03-10-10-14-ENG
LCD RADWAG BALANCES
MANUFACTURER
OF ELECTRONIC WEIGHING INSTRUMENTS
RADWAG 26 – 600 Radom, 28 Bracka Street, POLAND
Phone +048 48 38 48 800, fax +48 48 385 00 10
Export department +0-48 48 366 80 06
www.radwag.com
- 2 -
OCTOBER 2014
- 3 -
TABLE OF CONTENTS
1 TECHNICAL DATA .................................................................................7
1.1 Connection ports....................................................................................... 11
1.2 PS R2.H series ......................................................................................... 11
2 BASIC INFORMATION ........................................................................ 14
2.1 Intended use ............................................................................................. 14
2.2 Inappropriate use ...................................................................................... 14
2.3 Warranty ................................................................................................... 14
2.4 Monitoring the metrological parameters of the instrument ........................ 15
2.5 Data included in this user manual ............................................................. 15
2.6 Staff training ............................................................................................. 15
3 TRANSPORT AND STORAGE ........................................................... 15
3.1 Delivery check .......................................................................................... 15
3.2 Packaging ................................................................................................. 15
4 UNPACKING, ASSEMBLING AND START-UP .................................. 16
4.1 Assembling and place of use .................................................................... 16
4.2 Unpacking ................................................................................................. 16
4.3 Levelling ................................................................................................... 22
4.4 Cleaning ................................................................................................... 22
5 BASIC FUNCTIONS ............................................................................ 27
6 KEYBOARD ......................................................................................... 29
7 START-UP ........................................................................................... 30
7.1 Connecting peripheral devices ................................................................. 30
7.2 Balance temperature stabilisation period .................................................. 30
8 USER MENU ....................................................................................... 31
8.1 User menu operation ................................................................................ 31
8.2 Return to weighing .................................................................................... 34
9 LOGGING IN ....................................................................................... 34
10 WEIGHING .......................................................................................... 36
10.1 Required weighing procedures ................................................................. 36
10.2 Zeroing ..................................................................................................... 38
10.3 Taring ....................................................................................................... 38
10.4 Settings for mode <WEIGHING> .............................................................. 40
10.4.1. Setting level of filtering ............................................................... 41
10.4.2. Value release ............................................................................. 42
10.4.3. Autozero function ....................................................................... 42
10.4.4. Displaying the last digit ............................................................... 43
10.4.5. Balance ambient conditions ........................................................ 43
10.5 AUTOTARE .............................................................................................. 43
10.6. Printing mode ........................................................................................... 44
10.7. Temporary measuring unit ........................................................................ 46
10.8. Information ................................................................................................ 47
10.9. Non-standard information ......................................................................... 48
10.10. F button shortcuts .................................................................................. 49
10.11. Dual range balance (NPS 200/2000.R2) ................................................ 50
11 UNITS .................................................................................................. 51
11.1 Units avaialability ...................................................................................... 51
- 4 -
11.2 Start unit selection .................................................................................... 52
11.3 User’s unit ................................................................................................. 52
12 OTHER PARAMETERS ....................................................................... 53
12.1 Available menu languages ........................................................................ 53
12.2 Access levels ............................................................................................ 53
12.3 ‘Beep’ sound – reaction on pressing function button ................................ 53
12.4 Backlight and adjusting display brightness ............................................... 54
12.5 Backlit turn-off time ................................................................................... 54
12.6 Auto switch-off .......................................................................................... 54
12.7 Date .......................................................................................................... 55

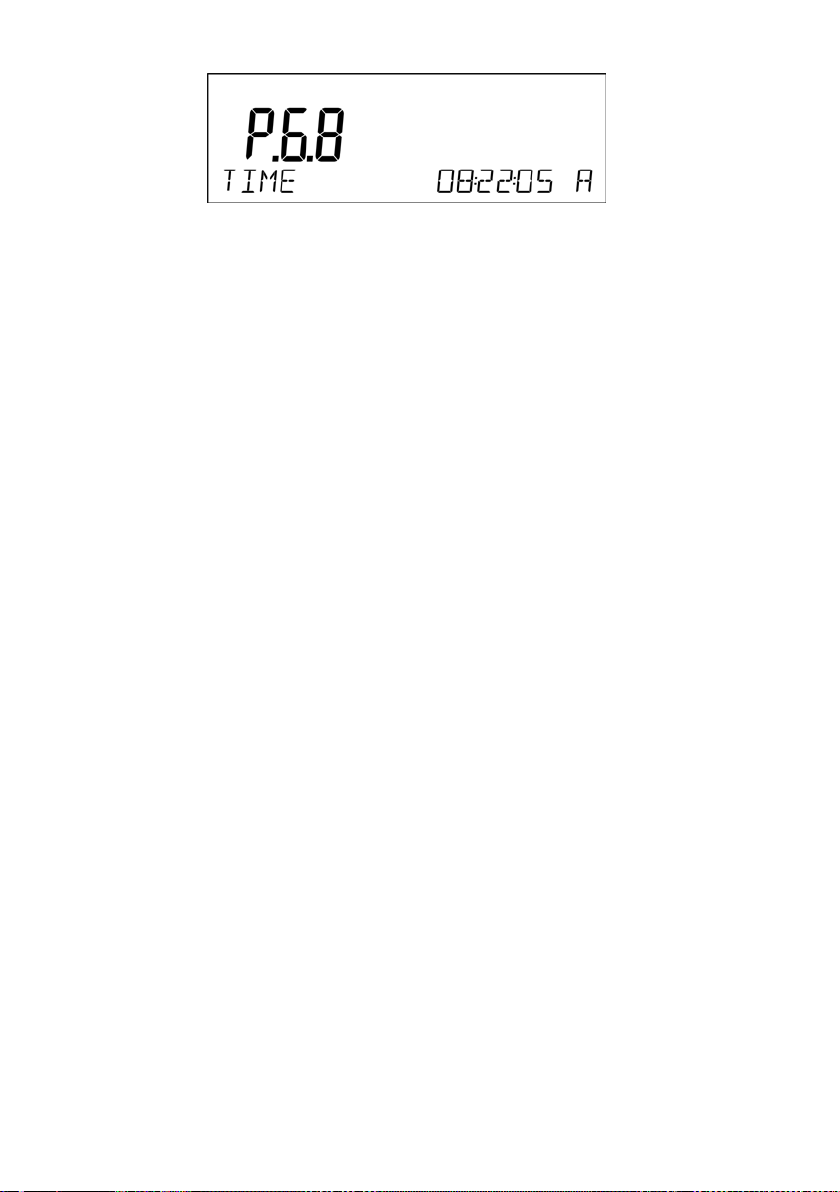

12.8 Time .......................................................................................................... 55
12.9 Date format ............................................................................................... 55
12.10 Time format ............................................................................................... 55
12.11 GLP autotest ............................................................................................. 56
13 INFORMATION ABOUT THE BALANCE ............................................. 58
14 BALANCE ADJUSTMENT ................................................................... 59
14.1 Internal adjustment ................................................................................... 59
14.2 Menu adjustment settings ......................................................................... 61
14.3 Manual adjustment ................................................................................... 63
14.3.1. Internal adjustments...................................................................... 63
14.3.2. External adjustment ...................................................................... 64
14.3.3. User adjustment ............................................................................ 65
14.4 Adjustment report printout......................................................................... 66
15 DETERMINING CONTENT OF A PRINOUT ....................................... 67
15.1 Adjustment report ..................................................................................... 67
15.2 Header printout ......................................................................................... 69
15.3 Measurement result printout – GLP PRINTOUT ....................................... 71
15.4 Footer printout .......................................................................................... 73
15.5 Non-standard printouts ............................................................................. 75
15.5.1. Inserting texts ............................................................................... 75
15.6 Variables ................................................................................................... 78
16 DATABASE .......................................................................................... 79
16.1 Users ........................................................................................................ 79
16.2 Products.................................................................................................... 82
16.3 Tares ........................................................................................................ 83
16.4 Weighments .............................................................................................. 84
16.5 ALIBI ......................................................................................................... 87
17 EXPORT AND IMPORT OF DATABASE ............................................. 89
17.1 Export database ........................................................................................ 90
17.2 Import database ........................................................................................ 91
17.3 Measurement data print-out ...................................................................... 91
18 BALANCE WORKING MODES ............................................................ 93
18.1 Setup for availability of working modes ..................................................... 94
18.2 Counting parts of the same mass ............................................................. 95
18.2.1. Setup for mode COUNTING PIECES ........................................... 95
18.2.2. Setting the reference mass by determining from the sample of
known quantity............................................................................ 96
18.2.3. Setting the reference mass by entering its mass .......................... 98
- 5 -
18.2.4. Returning to the weighing mode ................................................. 100
18.3 Checkweighing ....................................................................................... 100
18.3.1. Declaration of mass thresholds ................................................... 101
18.4 Dosing .................................................................................................... 103
18.4.1. Setting a target weight by entering values .................................. 104
18.4.2. Returning to the weighing mode ................................................. 106
18.5 Deviations % against the mass of the standard ...................................... 106
18.5.1. Setup for reference mass determined by weighing ..................... 107
18.5.2. Setup for reference mass by typing its mass .............................. 108
18.5.3. Returning to the weighing mode ................................................. 109
18.6 Animal weighing...................................................................................... 109
18.6.1. Additional setting for animal weighing mode ............................... 109
18.6.2. Method of operation to manually start the process ..................... 111
18.6.3. Method of operation to automatically start the process ............... 113
18.7 Density of solids...................................................................................... 114
18.7.1. Density determination of solids ................................................... 117
18.8 Density of liquid ...................................................................................... 121
18.8.1. Density of liquids determination .................................................. 121
18.9 Statistics ................................................................................................. 124
18.9.1. Means of operation ................................................................... 125
18.9.2. Deleting statistics ..................................................................... 128
18.9.3. Returning to the weighing mode ............................................... 129
18.10 Totalising ................................................................................................ 129
18.10.1. Means of operation ................................................................... 130
18.10.2. Returning to the weighing mode ............................................... 133
18.11 Peak hold ................................................................................................ 133
18.11.1. Means of operation ................................................................... 134
18.11.2. Returning to the weighing mode ............................................... 135
18.12 Pipettes calibration ................................................................................. 136
18.12.1. Additional settings of pipettes calibration mode ........................ 136
18.12.2. Means of operation ................................................................... 138
18.12.3. Returning to the weighing mode ............................................... 141
19 COMMUNICATION ............................................................................ 142
19.1 RS 232 ports settings ............................................................................. 142
19.2 WIFI port settings.................................................................................... 143
19.3. USB port ................................................................................................. 145
20 PERIPHERALS .................................................................................. 149
20.1 Computer ................................................................................................ 149
20.1.1. Port for computer connection ...................................................... 149
20.1.2. Continuous transmission............................................................. 150
20.1.3. Printouts interval for continuous transmission ............................. 150
20.1.4. Cooperation with E2R ................................................................ 151
20.2 Printer ..................................................................................................... 151
20.3 Bar code reader ...................................................................................... 153
20.4 Additional display .................................................................................... 154
20.5 External buttons ...................................................................................... 154
21 WORKING WITH EXTERNAL DEVICES SUCH AS PRINTER OR
COMPUTER ................................................................................ 156
21.1 Cable pinout diagram .............................................................................. 157
- 6 -
21.2 Format of data setting ............................................................................. 158
21.3 Format of data sent on pressing of PRINT button ................................... 158
21.3.1. Format of data sent as response for commands generated from a
computer .................................................................................. 158
22 COMMUNICATION PROTOCOL ....................................................... 159
22.1 List of commands .................................................................................... 160
22.2 Responses format for commands sent from computer level ................... 161
22.3 Commands description ........................................................................... 162
23 ERROR MESSAGES ......................................................................... 171
24 UNDER HOOK WEIGHING ............................................................... 172
25 ADDITIONAL EQUIPMENT ............................................................... 173
25.1 Anti-vibration table .................................................................................. 173
25.2 Rack for under hook weighing ................................................................ 173
25.3 Density determination kit (for solids and liquids) ..................................... 173
25.4 Additional display .................................................................................... 173
- 7 -
1 TECHNICAL DATA
Tare range
Repeatability
Linearity
Eccentric load deviation
Pan size
Balance XA series:
XA 52.R2 XA 82/220.R2
Max capacity 52 g 82/220 g
Min capacity 1 mg 1 mg
Readability 0,01 mg 0,01/0,1 mg
-52 g -220 g
0,02 mg 0,02 /0.08 mg
± 0,06 mg ± 0,06/0,2 mg
0,06mg 0,2mg
Ø85mm
Dimensions:
- 8 -
Balance AS series:
Working
temperature
AS
60/220.R2
Max capacity 60/220g 160g 220g 310g
Min capacity 1mg 10 mg 10 mg 10 mg
Readability 0.01/0.1mg 0.1mg 0.1mg 0.1mg
Tare range -220g -160 g -220 g -310 g
Pan size Φ 85 mm
Sensitivity drift 1 ppm/°C in temperature +10 ° - +40 °C
Power supply 12 ÷ 16 V DC / 2.1 A
AS
160.R2
+10 ° - +40 °C
AS
220.R2
AS
310.R2
Dimensions:
- 9 -
Balance PS series with weighing pan 128 x 128 mm:
Working
temperature
Type balance
Max capacity
PS
200/2000.R2
200/2000g 210g 360g 600g 750g 1000g
PS
210.R2
PS
360.R2
PS
600.R2
PS
750.R2
PS
1000.R2
Tare range
Min capacity
Readability
Power supply
Sensitivity drift
Pan size
Dimensions:
-2000g -210g -360g -600g -750g -1000g
20mg 20mg 20mg 20mg 20mg 20mg
1/10mg 1mg 1mg 1mg 1mg 1mg
+10°C - +40°C
12 ÷ 16 V DC / 2,1 A
2 ppm/°C in temperature +10°C -+ 40°C
128x128 mm
- 10 -
Working
temperature
Balance PS series with weighing pan 195 x 195 mm:
Type balance
Max capacity 1200g 2100g 3500g 4500g 6000g
Tare range -1200g -2100g -3500g -4500g -6000g
Min capacity 500mg 500mg 500mg 500mg 500mg
Readability 10mg 10mg 10mg 10mg 10mg
Power supply 12 ÷ 16 V DC / 2,1 A
Sensitivity drift 2 ppm/°C in temperature +10°C - +40°C
Pan size 195x195mm
PS
1200.R2
PS
2100.R2
PS
3500.R2
+10°C - +40°C
PS
4500.R2
Dimensions:
PS
6000.R2
- 11 -
Balance APP series:
1
- power port
2
- COM 2 port (e.g. additional display)
3
- COM 1 port (e.g. printer)
4
- USB 2 port (e.g. computer)
5
- USB 1 port (e.g. computer keyboard)
APP
10.R2
35.R2
Max capacity 10 kg 35 kg
Tare range -10 kg -35 kg
Min capacity 2 g 2 g
Readability 0.01 g 0.1 g
Working temperature
+10 °C - +40 °C
Power supply 12 ÷ 16 V DC / 2,1 A
1.1 Connection ports
APP
1.2 PS R2.H series
PS R2.H series redefine the level of standard f or precision balances. Not
only do they share all the features of R series balances, but can also work
in adverse operating conditions (condensed dust, drops of water falling
down at different angles typical for IP 54).
PS.R.H balances are offered with round pans of two possible sizes:
ø115mm and ø170mm. Balances with pans of a sma ller size feature draft
shield as well.
- 12 -
Additional asset of PS R2.H balances are their interfaces build-in a hermetic
Balance with pan Φ 115 mm
Balance with pan Φ 170 mm
closed housing which is separated from the balance. The interfa ces include
2×RS 232, USB type A, USB type B, and WiFi optionally.
Balance housing is made of plastic, whereas its pan of stainless steel.
PS R2.H series metrological para meters are identical like those of standard
design balances.
- 13 -
Balance assembly
Upon unpacking the balance
remove any protective
elements and assembly the
assembly the metal pan
the power adapter
interfaces housing, next
connect the power adapter
to mains. The balance will
balance:
(2) on the balance base,
mounted onto the balance
- assemlby draft shield (1),
only for balances with pan Φ
115 mm
- plug
interface into the port of
activate automatically.
CAUTION:
While cleaning it is advisabl e to follow below precautions. Additionally it is a
must to disconnect the device from mains and unplug all the peripherals
(printers, computer etc.) remembering at th e same time to protect ports by
means of stoppers. Only thus prepared device can be cleaned. Upon
completion of the cleaning process the device may be connected to mains for
futher operation.
- 14 -
2 BASIC INFORMATION
2.1 Intended use
The purchased balanced serves to determine the weighing value of loads in
laboratory environment. It is intended for application as a non-automatic
weighing instrument only, i.e. the material to be weighed is manually and
carefully placed in the centre of the weighing pan. Weighing result should be
read only after stable reading has been obtained.
2.2 Inappropriate use
Do not use the balance as a dynamic weighing instrument. Even if small
quantities of weighed material are added or removed from the weighing pan of
the instrument, the reading should be taken only after stabilisation of the
measurement results. Do not place any magnetic materials on the weighing
pan, as this can cause damage to the measuring system of the instrument.
Be sure to avoid impact shock and overloading the balance in excess of the
prescribed maximum measuring range (max capacity), minus any possible tare
weight that has been applied.
Never use the balance in an environment where explosion is possible. This
balance has not been adjusted for operation in explosive areas.
There must not be any modification made to the balance.
2.3 Warranty
Warranty is invalid for the following:
• non- observation of the guidelines of this user manual,
• use of the balance other than specified in this manual,
• alteration to or opening of the device,
• mechanical damage and damage caused by media, water, wear and
tear,
• inappropriate assembling or defects of electric installation,
• overloading of the measuring instrument.
- 15 -
2.4 Monitoring the metrological parameters of the instrument
Metrological characteristics of the balance require periodical inspection to be
carried out by its user. Inspection frequency is dependent on ambient
conditions in which the balance is used, types of performed processes and
accepted quality management system in organisation.
2.5 Data included in this user manual
Please read the user manual carefully before assembling and start-up, even if
the user is experienced with this type of weighing instruments.
2.6 Staff training
This balance should only be operated and maintained by personnel who is
trained and experienced in using this type of balances.
3 TRANSPORT AND STORAGE
3.1 Delivery check
Please check the packaging immediately upon delivery and the device during
unpacking for any visible signs of external damage.
3.2 Packaging
Please retain all parts of the original packaging should the balance be
transported in the future. Only the original packaging should be used for
shipping the balance. Before packing, disconnect all attached cables and
remove any loose/movable parts (weighing pan, anti-draft shield, etc.). Please
place balance and its components in their original packaging, and protect them
against damage during transport.
- 16 -
4 UNPACKING, ASSEMBLING AND START-UP
4.1 Assembling and place of use
• The balance should be stored and used in locations free of vibrations and
shakes, free of air movement and dust,
• ambient air temperature should not exceed the range of: +10 °C ÷ +40 °C,
• ambient relative humidity should not exceed 80%,
• during balance operation, ambient temperature in the weighing room should
not change more than 3°C within one hour,
• the balance should be located on a stable wall console desk or a stable
working table which is not affected by vibrations and distant from heat
sources,
• take special precaution when weighing magnetic objects, as part of the
balance is a strong magnet. Should such loads be weighed, use under hook
weighing option, which removes the weighed load from area influenced by
the balance’s magnet. For assembling the hook for under hook weighing
option see the bottom section of balance’s housing,
• in order to avoid the influence of static electricity on the measurement
process, ground the balance’s housing. The grounding bolt is located at the
back of the balance’s housing.
4.2 Unpacking
Cut the sealing tape. Take the balance out of the packaging. Open the box with
accessories and take the items necessary for correct balance operation. Upon
placing the balance in the desired location assembly its weighing pan and other
parts in accordance with the following instruction.
XA and AS balances view with a transport safety catch assembled
- 17 -
Steps:
the back of balance housing)
XA R.2 Balance
- open side doors of the weighing
chamber,
- remove the transport protection
(6)
- press the safety catch gently
and turn it accordingly to
<OPEN> instruction, next
remove the safety catch. Please
retain the safety catch should
the device be transported in the
future,
- place bottom shield of the
drying chamber (5) inside
- place centering ring (4) upon
the bottom shield,
- assembly the weighing pan (1)
- assembly anti-draft shield (1) or
(3),
- close side doors of the weighing
chamber,
- plug the balance to mains (pin
of power adaptor should be
connected to socket located in
XA R.2.P Balance
- 18 -
Upon balance installation onto its
- put glass lid (1) (option).
workstation Remove the transport
protection (9) – press the safety catch
gently and turn it accordingly to <OPEN>
instruction, next remove the safety catch.
Please retain the safety catch should the
device be transported in the future. Next:
- open side doors of the weighing
chamber,
- inside the weighing chamber place
bottom ring (8), next
- put glass ring (7) onto it,
- place weighing pan (6) inside the glass
ring, next
- put top ring (5) onto the glass ring,
- place evaporation ring (4) onto the top
ring,
- inside place calibration vessel (3),
- onto the top ring place glass cover
plate (2), next
- 19 -
AS R.2 balances
the back of balance housing.
AS balance with d=0.01/0.1 mg AS balance with d=0.1 mg
• open side doors of the weighing chamber,
• remove transport safety catch (1) – press the lock gently and turn it accordingly to
OPEN/CLOSE instruction, next remove the lock; please retain the lock should the
device be transported in the future,
• inside the weighing chamber place lower shield of the weighing chamber (2),
• put centering ring [framing facing downwards] (3),
• in the centre of centering ring assembly the weighing pan (4),
• put anti-draft shield in the chamber (5),
• close side doors of the weighing chamber,
• plug the balance to mains, pin of power adaptor should be connected to socket in
- 20 -
Balance PS
mass spring on one of the rubber bumpers
Remove the adhesive tape. Carefully remove the balance from its packaging.
Remove all the elements necessary for correct operation from the accessory
box. Carefully remove the plastic and foil transport protective elements and
gently place the balance in its intended place of use.
Assemble the weighing pan, and other elements according to below schema:
Assembling a balance with reading interval 10mg:
- remove the adhesive tape
protecting the mass spring on one
of the rubber bumpers (1),
- assemble the weighing pan (2) on
the rubber bumpers (1),
- after assembling the balance
components, check whether the
weighing pan is firmly placed on the
rubber bumpers.
Assembling a balance with reading interval 1mg:
- remove the adhesive tape protecting the
(1),
- assemble the weighing pan (2) on the
rubber bumpers (1),
- assemble the glass anti-draft shield (3)
- after assembling the balance components,
check whether the weighing pan is firmly
placed on the rubber bumpers.
- 21 -
Balance APP
Remove the adhesive tape. Carefully remove the balance from its packaging.
Remove all the elements necessary for correct operation from the accessory
box.
APP 10.R1 and APP 10.R2 balances are equipped with 2 weighing pans which
can be used in turns. It must be remembered that balance activation is only
possible with one weighing pan assembled at a time. Attempt of activating the
balance with two weighing pans assembled simultaneously will result in display
of an “-LH-“ error. In such case one of the pans needs to removed.
Carefully take the balance out of the packaging, remove transport protective
elements and gently place the balance onto its workplace.
• Remove the weighing pan and remove transport protective elements as
shown in the picture above (if these elements are attached).
• After the unpacking of the balance unscrew the bolt (1) which blocks the
calibration mechanism.
• Assemble the weighing pan (for APP 10.R, one of the pans only).
• Make sure the weighing pan is placed properly on the shock absorbers:
the weighing pan cannot touch the housing and should be stable.
• Place the balance at the workplace.
• Levell the balance (see the instruction below).
• Using the wrench (3), after adjusting the balance level (see below); tighten
the bolt (2) on the foot (1) to the balance’s footing until the point of
resistance. Repeat the activity for each foot of the balance.
- 22 -
• After removing the protective elements of the weighing pan and after
unblocking the internal calibration mechanism (only R2 series balances),
plug the indicator into the port which is on the back of the housing. Next,
plug in all the additional devices. Only then can the balance be connected
to mains (the power port is located at the back of the balance’s housing).
4.3 Levelling
Before plugging to mains, level the balance by turning the
adjustable feet in a way that the air bubble of the level is in
its central ring. The balance should be placed at the
workplace firmly on all of its feet.
4.4 Cleaning
1. Disassembly the weighing pan and other portable parts (the parts differ
depending on a balance type – see Unpacking and Assembly sections).
Be careful while disassembling the balance so as not to cause any
damages to the balance mechanism.
- 23 -
2. Glass parts should be cleaned using a dry flannel cloth (mild cleanser may
be used if it does not contain any abrasive substances) – for draft shield
disassembly instruction go to the next section of this manual
3. Use a dry flannel cloth in order to clean disassembled parts (mild cleanser
may be used if it does not contain any abrasive substances)
CAUTION:
Cleaning of the weighing pan when assembled may cause damage of the
measuring system of the balance. Hence, it is crucial to remove it from the
balance before cleaning.
In order to clean the glass walls of the draft shield of the XA R2 and AS R2
series balance, it is acceptable to remove the walls of the draft shield following
the below instruction.
Steps for XA.R2 series balance:
1. Twist off and remove the top glass wall safety frame, and slide the top
glass wall out of the slideway
2. Remove the back glass wall.
- 24 -
3. Remove the side glass walls. The side glass walls are not replaceable,
so it is important to remember which one is left and right, and after
cleaning install them back properly in the draft shield.
4. CAUTION: do not remove the front glass wall.
5. Remove the weighing pan, the weighing pan safety rings and the
bottom metal plates, so as not to damage the balance mechanism durin
the cleaning.
Thus prepared draft shield and glass walls can be properly cleaned. All the
operations should be done carefully. Pay special CAUTION to the place
where the weighing pan was installed: dirt and other small elements might
enter the balance construction through this openiing, which might negatively
influence the balance parametres.
Upon completion of the cleaning proces reassembly the balance. To do it
repeat steps 1-5 in a reverse order. Be especially careful while assembling
side glass walls, they must take the right place. While sliding the glass
back onto its place remember to pull the protection ( like before
when dismantling the draft shield) .
- 25 -
Steps for AS.R2 series balance:
1. Twist off and remove the top glass wall safety frame, and slide the top
glass wall out of the slideway.
2. Remove the back glass wall.
3. Remove the side glass walls. The side glass walls are not replaceable, so
it is important to remember which one is left and right, and after cleaning
install them back properly in the draft shield.
- 26 -
4. CAUTION: do not remove the front glass wall.
5. Remove the weighing pan, the weighing pan safety rings and the bottom
metal plates, so as not to damage the balance mechanism durin the
cleaning.
Thus prepared draft shield and glass walls can be properly cleaned. All the
operations should be done carefully. Pay special CAUTION to the place
where the weighing pan was installed: dirt and other small elements might
enter the balance construction through this openiing, which might
negatively influence the balance parametres.
- 27 -
a) Plugging to mains
Balance can be connected to mains only with a power adapter that
comes standard with the balance. Nominal power supply of the power
adapter (specified on the data plate of the power adapter) should be
compatible to the power from mains.
Plug the balance to mains – the plugging socket is located at the back of
balance housing.
The test of the display unit takes place after connecting to the power (all the
elements and pictograms are backlit for a short time). Next, the name and the
program number appears consequently, the indication will reach ZERO level
(with reading unit depending on the b
alance). During the process of starting the balance, the test of the internal
mass adjustment mechanism occurs (single location and elevation of the
internal mass adjustment).
If the indication is different from zero, please press
CAUTION: If the balance is “verified”, automatic adjustment/calibration occurs
right after it has been switched on.
b) Connecting additional equipment
It is inevitable to plug the computer out of the main before connecting additional
equipment or changing it (printer, PC computer, additional display, computer
keypad, etc.).
Connect only the equipment recommended by the balance manufacturer.
When the devices are connected, plug the balance to the main.
button.
5 BASIC FUNCTIONS
• functions related to measuring units
- weighing in grams [g],
- weighing in milligrams [mg] (in balances with d≤0.001g),
- weighing in kilograms [kg] (in balances with d≥0.01g,
- weighing in carats [ct],
- weighing in units from beyond SI (available only in non-verified
instruments):
[lb], [oz], [ozt], [dwt], [tlh], [tls], [tlt], [tlc], [mom], [gr], [ti], [N], [baht], [tola]
• functions related to working modes
- counting pieces,
- checkweighing (control +/-),
- dosing,
- 28 -
- percent setup,
- density determination of solids,
- density determination of liquids,
- animal weighing,
- statistics
- totalising
- peak hold
• functions related to setting a balance to ambient conditions at a
workstation
- enabling and disabling autozero system,
- setting parameter of measurement result averaging,
- value release,
- display backlight,
- beep signal,
• functions related to use of communication ports (RS232, USB, WIFI)
- setting communication port,
- setting bound rate,
- continuous data transmission in basic measuring unit,
- continuous data transmission in current measuring unit,
- automatic operation mode.
Balance can be used to weigh loads under the weighing platform – i.e. under hook
weighing option. Balance software enables generating a report from adjustment
process in a form of a printout containing modifiable data (see CAL REPORT)
- 29 -
6 KEYBOARD
ON/OFF button enables switching on and off balance’s
F9 button of the computer keyboard.
cess to data stored in a databese: user, product,
Function button, which enables quick entering the settings
F11 button of the computer keyboard
PRINT/ENTER
sends current display status to a
peripheral device (PRINT) or accepts selected value of a
Adjustment – function button of immediate initiating the
F6 button of the computer keyboard.
Navigating arrows for moving in balance’s menu or
display. If switched off balance components other than the
display are powered, and balance is in stand-by mode.
Direct ac
tare. F10 button of the computer keyboard.
of an active working mode.
MODE button for selecting balance’s working mode. F5
button of the computer keyboard
UNITS button changes measuring units.
button-
parameter or function (ENTER).
ZERO button– zeroing of balance’s indication.
TARE –taring of balance’s indication.
adjustment / calibration process.
Function button for entering the main menu of a balance.
F7 button of the computer keyboard
changing parameter value.
- 30 -
7 START-UP
When plugged to mains, the balance displays name and number of software, and
afterwards proceeds to weighing mode.
7.1 Connecting peripheral devices
The balance must be unplugged from the mains before connecting or
disconnecting peripheral devices (printer or computer). Use only peripheral
devices recommended by the manufacturer with your balance. These have
been matched to your balance. After connecting a peripheral device, plug the
balance to mains.
7.2 Balance temperature stabilisation period
Before start of measuring processes, it is necessary to wait until the balance is
thermally stabilised.
For balances that were stored in much lower temperatures before plugging to
mains (e.g. during winter period) thermal stabilisation should last
approximately 4 hours for NPS balances, and 8 hours for NAS and NAPP
balances. During the thermal stabilization, the indications on the display panel
can change. Correct operation of a balance is possible within temperature
range specified in technical parameters, see point 1.
It is recommended that ambient temperature changes at balance’s place of
use are very small (slow to change).
