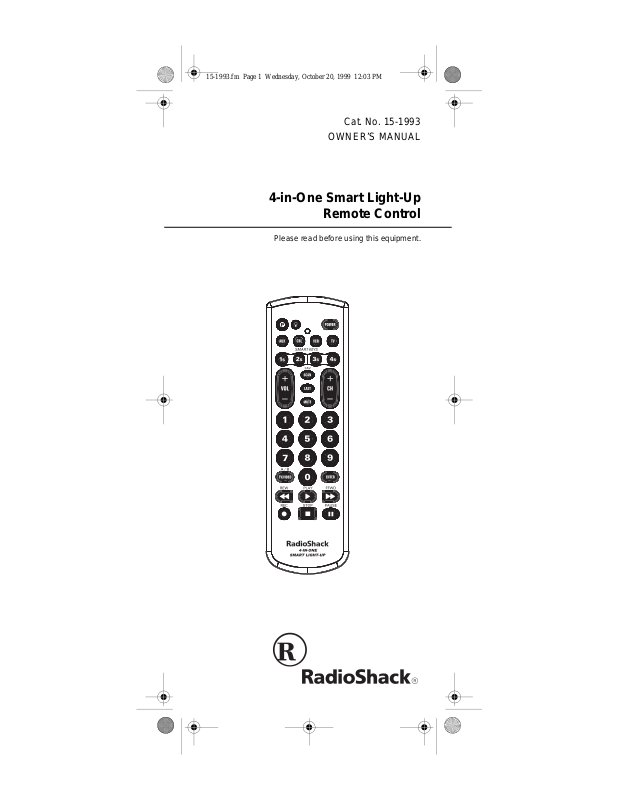

15-1993.fm Page 1 Wednesday, October 20, 1999 12:03 PM
Cat. No. 15-1993
OWNER’S MANUAL
4-in-One Smart Light-Up
Remote Control
Please read before using this equipment.
15-1993.fm Page 2 Wednesday, October 20, 1999 12:03 PM
FEATURES
Your RadioShack 4-in-One Smart Light-Up Remote Control is a pre-programmed universal
learning remote. It is both pre-programmed
with the most commonly used commands, and
equipped with "smar t tec hno lo gy " that le ts you
customize your r emo te t o me et y ou r hom e entertainment needs.
Its lighted keypad let s you easily see the remote's buttons in a dark room. Wh en y ou tur n
on this feature, pressi ng any button lights the
entire keypad.
This manual includ es a list of ma ny manufacturers' 4-digit codes for your TVs, VCRs, cable
converters, CD players, and more.
Your remote control's features include:
Powerful Infrared Beam
— lets you operate
your remote-controlle d devices from a greater
distance than many of the original remote controls.
Large, Easy-to-Use Keypad
— with buttons in
the ideal positions for easy operation.
Handy Reference Label
— provides a convenient place for you to w rite d own the manufacturers' codes for your devices.
Toll Free Support
— brings expert help for
your remote contro l directly to you when you
1-888-284-8735
call
Note:
You need four AAA batteri es (not sup-
.
plied) to power yo ur 4-in-One Smart Light-Up
Remote Control.
1999 Tandy Corporation.
©
RadioShack is a registered trademark used by
All Rights Reserved.
Tandy Corporation
2
15-1993.fm Page 3 Wednesday, October 20, 1999 12:03 PM
CONTENTS
Introduction ................................................ 4
Preparation .......................... ....................... 5
Installing Batteries .............................. .... 5
Device Types ............. ...... ...... ....... ...... .... 6
Setting Up Your Remote Control ............ 6
To Operate Your TV/VCR Combination .. 7
Operation ............................. ....................... 8
Using the Smart Technology .................. 8
Deleting Learned Functions from Smart
Keys ........................................................... 10
Converting Device Keys ....................... 10
Punch-Through .................................... 11
Turning Punch-Through Off /On .... 11
Favorite Channel Scan ......................... 12
Clearing Favorite Channel Scan ... 13
Using the Light ..................................... 13
If You Have Problems .............................. 14
Manual Code Search ........................... 14
Determining the 4-Digit Code ....... 15
Troubleshooting ......... ........................... 16
Manufacturer Codes ................................ 17
Cable Converters .................. ....... ...... .. 17
CD Players ........................................... 19
Home Automation ................................ 22
Laser Disc Players ............................... 22
Video Accessories ............................... 22
Satellite Receivers ............................... 23
Televisions ....................... ..................... 23
VCRs ............................... ..................... 29
TV/VCR Combinations ......................... 34
Care ................................ ........................... 36
Specifications .......................................... 37
3
15-1993.fm Page 4 Wednesday, October 20, 1999 12:03 PM
INTRODUCTION
Your RadioShack 4-in-One Smart Light-Up
was designed to control the most commonly
used functions on your TV, VCR, TV/VCR combination, cable converter, and CD player. It
might not be able to duplicate some of your
original remote control's seldom-used functions.
When you set up the remote c ontrol, its command keys wor k like th e keys on y our orig inal
remote controls. For example, the 4-in-One's
POWER
on your original remote control.
key works like a POWER ON/OFF k ey
Key Function
P
POWER, VOL +, VOL –,
CH +, CH –, LAST,
MUTE, digit keys, TV/
VIDEO, ENTER
VCR, CBL, TV, AUX Used when you set up the
REW , PLAY ,
FFWD , REC ,
STOP , PAUSE
FAV/SCAN Can be programmed to
Used in setting up your
devices
Used to light the keypad
Operate the same as the
corresponding keys on
your original remote control
remote control to replace
your original remote controls. Also used during
normal operation to tell
the remote control which
device you want to control
Control VCR functions
allow immediate access
to your 10 fav orite channels, or left unprogrammed to scan all
channels
Note:
To record, you must press
REC
.
twice. This helps avoi d accidentally recording
over tapes.
4
15-1993.fm Page 5 Wednesday, October 20, 1999 12:03 PM
PREPARATION
INSTALLING BATTERIES
Your remote control requires four AAA batt eries (not suppl ied) fo r pow er. For th e bes t pe rformance and longest life, we recommend
RadioShack alkaline batteries.
Cautions:
• Use only fresh batteries of the required
size and recommended type.
• Do not mix old an d new batter ies or d ifferent types of batteries.
• Do not press any of the remote control's
keys while installing batteries.
Note:
You do not need to reprogra m your remote control after rem oving the batteries, because no stored information is lost during
battery replacement.
1. Press the battery compartment cover's tab
and lift off the cover.
2. Place the batter ies in the com par tme nt as
indicated by the polarity symbols (+ and –)
marked inside.
3. Replace the cover.
When the remote control's range decreases or
it stops operating properly, replace the batteries.
Caution:
Batteries can leak chemi cals that can destroy
electronic parts.
Warning:
and properly. Do not burn or bury them.
Note:
mote control after you have installed the batter-
Always remove old or weak batteries.
Dispose of old batteries promptly
Do not place objects on top of th e re-
5
15-1993.fm Page 6 Wednesday, October 20, 1999 12:03 PM
ies. This can press keys for an extended period
of time and reduce the battery life.
DEVICE TYPES
You can use th e remote control's device keys
to control the following types of devices:
— TVs
TV
— VCRs and TV/VCR combinations
VCR
— Cable converters, satellite systems
CBL
— CD Players, Home Automation
AUX
SETTING UP YOUR REMOTE
CONTROL
1. Refer to “Manufacturer Codes” on Page 17
and write down the codes for your brand of
device on the 4-in-One’s label.
Note:
Some manufacturers have several
codes listed. Try each until you find the
right one. See “If You Have Problems” on
Page 14 if you cannot find the correct
code.
2. Press the device key for the type of remote
you are replacing (
TV, VCR, CBL
, or
AUX
The red light blinks.
3. Hold down
until the red light blinks twice,
P
then enter the 4-digit manufacturer's code.
For example, to replace a Panasonic TV's
remote control (manufacturer's code
0051), press
light blinks twice, then press
, hold down P until the red
TV
.
0 0 5 1
When the red light blinks twice, the remote
control has accepted the code.
Note:
If the code you entered is invalid,
the red light blinks.
).
6
15-1993.fm Page 7 Wednesday, October 20, 1999 12:03 PM
4. Point the remote control at your device and
press
POWER
(or on, if it was off).
If the remote does not operate your device,
try the othe r codes listed in “Manufacturer
Codes” on Page 17 for your brand of TV,
VCR, cable converter, or CD player.
5. Repeat Steps 2–4 for additional devices.
. Your device should tur n off
TO OPERATE YOUR TV/VCR
COMBINATION
1. Locate the codes for your TV/VCR combination in “TV/VCR Combinations” on
Page 34 and wri te them on the 4-in-One’s
label.
2. Press
3. Hold down
then enter the 4-digit manufacturer's code.
When the red light blinks twice, the remote
control has accepted the code.
Note:
the red light blinks.
4. Point the remote control at your TV/VCR
combination and press
device should turn off (or on, if it was off).
If the remote does not operate your device,
try the other codes you wrote down in Step
1.
Note:
a second code to control volume. If you
cannot control the volume, use the TV
code listed in “TV/VCR Combinations” on
Page 34.
. The red light blinks.
VCR
until the red light blinks twi ce,
P
If the code you entered is invalid,
POWER
Some TV/VCR combinations require
. Your
7
15-1993.fm Page 8 Wednesday, October 20, 1999 12:03 PM
OPERATION
1. Press the device key for the device you
want to control.
2. Point the remote control toward the device
you want to control, then press the desired
command keys.
3. Repeat Steps 1 and 2 for all oth er devices
you want to operate.
Note:
The command keys on the remote
control work the same as the keys on the
original remote control; however, the labeling might differ slightly.
4. To turn off the last device you selected,
press
POWER
press the device key for the device you
want to turn off, then press
. To tur n off other devices,
POWER
.
USING THE SMART
TECHNOLOGY
Your RadioShack 4-in-One Smart Light-Up Remote Control can “learn” up to 16 features from
your original remote control using Smart Technology. Its four smart keys (
can be programmed to per form functi ons from
your original remote that are not already available on your 4-in-One Smart Light-Up.
Example:
button called MENU. Unfor tunately, the 4-inone Smart Light-Up remote does not include
this feature. But with Smart Tech nology, you
can program one of the four smart keys to perform the functions of your original remote’s
MENU key.
Your original remote may have a
1s, 2s, 3s
, and 4s)
8
15-1993.fm Page 9 Wednesday, October 20, 1999 12:03 PM
1. Place your original remote control nos e-to nose with the RadioShack Smar t Light-Up
Remote Control.
2. Hold down
then press
until the red light blinks twi ce,
P
. The red light blinks twice
9 7 5
again.
3. Press the device key (
) for the mode where you want the
AUX
TV, VCR, CBL
, or
function to reside.
Note:
You can program each smart key for
a different function in each of the four
modes. For example,
might serve as a
1s
MENU key in TV mode and a TRACKING
key in VCR mode.
4. Press one of the smar t keys. The red light
blinks rapidly.
5. Hold down the key that you want to copy
on your original remote until the red light
on the 4-in-One Smart Light-Up blinks
twice.
6. Hold do wn
until the red light blinks twice.
P
7. Press the smart key you programmed. The
key should control the same function as
the key that you copied from your original
remote.
8. Repeat Steps 1–7 to pr ogram other smar t
keys.
9
15-1993.fm Page 10 Wednesday, October 20, 1999 12:03 PM
DELETING LEARNED
FUNCTIONS FROM SMART
KEYS
You can delete learned functions from the
smart keys (
other functions.
1s, 2s, 3s
, and 4s) to make room for
1. Hold down
2. Press
3. Press the device key (
) where the learned function resides.
AUX
4. Press the smart key you programmed with
the function twice to delete the learned
function. The red light blinks twice.
until the red light blinks twice.
P
. The red light blinks twice.
9 7 6
TV, VCR, CBL
, or
CONVERTING DEVICE KEYS
You can use the 4-in-One Smart Light-Up to
operate a second TV or VCR (o r oth er comp onents) for a tota l of up to fo ur devices. T o do
this, you must first co nvert an unused device
key (
TV, VCR, CBL, AUX
tional device. Fo r example, to convert
operate a second TV:
1. Hold down
2. Press
3. Press
until the red light blinks twice.
P
. The red light blinks twice.
9 9 2
.
TV
) to operate each addi-
to
AUX
4. Press
5. Program the converted device key (
with the code for the second TV. (See
“Setting Up Your Remote Control” on
Page 6.)
Repeat these steps f or each key you want to
convert. To convert a key back to its original
. The red light blinks twice.
AUX
10
AUX
)
15-1993.fm Page 11 Wednesday, October 20, 1999 12:03 PM
function, repeat Steps 1–2, then press
AUX
twice.
PUNCH-THROUGH
The punch-throug h feature lets you alterna tely
control two different devices without pressing
the device keys for each one.
A TV is often the only device that uses the volume keys. Punch-through allows you to control
the TV’s volume while the 4-in-O ne is in any device mode. With punch-through on, if you press
and use your volume keys, the 4 -in-One
VCR
will control the TV’s volume instead of the
VCR’s.
Turning Punch-Through Off /On
If your cable converter or VCR has volume control, you might want to turn off punch-through so
you can use the cable converter’s or VCR's volume instead of the TV's. To turn off punchthrough:
1. Hold
2. Press
until the red light blinks twice.
P
9 9 3
then
. The red light blinks
VOL +
four t imes.
3. When you want to control the volume
through your cable converter, press
before using the volume control.
To turn punch-through back on:
1. Hold do wn
2. Press
to control all volume (
until the red light blinks twice.
P
, then the device key you want
9 9 3
, for example). The
TV
red light blinks twice and the device you
chose controls volume whenever you
press a volume key on the 4-in-One.
11
CBL
15-1993.fm Page 12 Wednesday, October 20, 1999 12:03 PM
FAVO RITE CHANN EL SCAN
You can use your remote control to scan
through up to 10 of your favorite channe ls on
your TV, VCR, or cable box.
Note:
You can scan chan nels only fo r on e de vice (TV, VCR, cable converter) at a time. You
cannot set up a favorite channel list for another
device until you clear the existing list.
1. Press the device key for the device with
the channels you want to program (
VCR
, or
). The red light blinks.
CBL
TV
,
2. Hold down
then press
until the red light blinks twice,
P
.
9 9 6
3. Enter the channel number of the first channel you want to include in your favorite
channel list. Then press
.
P
Notes:
• Precede a single-digit number with a 0
(for example, 01, 02, and so on).
• If you enter a three-digit number, you do
not need to press
after entering the
P
number.
• If your TV requires an ENTER key when
entering a channel number, press
ENTER
after you enter the channel num-
ber.
4. Repeat Step 3 for other channels (up to
10) you want to include in your list. Then
hold down
until the red light blinks twice.
P
5. To scan through the favorite channel list,
press the device key for the device you
want to tune (
. The remote control repeatedly
SCAN
TV, VCR
, or
), then press
CBL
scans through the favorite channel list,
12
15-1993.fm Page 13 Wednesday, October 20, 1999 12:03 PM
stopping on each chan nel for about 3 seconds.
6. Press any key other than
SCAN
when you
see a channel you want to watch. Scanning stops.
Clearing Favorite Channel Scan
You must clear the channels in your favorite
channel scan list if you want to change them.
1. Hold down
2. Press
until the red light blinks twice.
P
, then hold down P until the red
9 9 6
light blinks twice.
USING THE LIGHT
The back light lets y ou se e the keys on your 4in-One Smart Light-Up in the dark. Press to
turn on the feature. Every time you press a key,
the 4-in-One Smart Light-Up lights and stays lit
for a few seconds. To tur n off the light, press
again.
13
15-1993.fm Page 14 Wednesday, October 20, 1999 12:03 PM
IF YOU HAVE PROBLEMS
MANUAL CODE SEARCH
If the 4-in-One Smart Light-Up Remote Control
does not operate your remote-controlled devices when you first set it up , you might have to
manually find the co rr ect c od e s for y our d evi c es. You can try all th e codes listed in “Manufacturer Codes” on Page 17 for your brand
device, or you can follow these steps to search
the remote control's entire library.
1. Manually turn on the device you want to
set up.
2. Press the corresponding device key (
VCR, CBL
3. Hold down
then press
, or
).
AUX
until the red light blinks twice,
P
. The red light blinks twice
9 9 1
TV
again.
4. Aim the remote control at the device you
want to operate.
5. Repeatedly press
key (
TV, VCR, CBL
POWER
, or
then the device
) until the device
AUX
turns off.
6. When the device turns off, press
within
P
10 seconds to save the code. The red light
blinks twice.
Note:
If you do not press
within 10 sec-
P
onds, the remote control does not save the
code.
• Because the 4-in-One's library has so
many codes, this can take several minutes.
• If your device turns off during the
search, but does not operate after you
lock in the code, begin the search
again, pausing longer between key
presses.
,
14
15-1993.fm Page 15 Wednesday, October 20, 1999 12:03 PM
If necessary, repeat these steps for each device.
Note:
Some VCRs and CD players do not have
a POWER key on the original remote. If so,
manually turn on the VCR, insert a tape or CD,
and repeat the manual code search using
instead of
press
. The red light blinks twice.
P
POWER
. When the device responds,
PLAY
Determining the 4-Digit Code
After you set up you r remote control u sing the
manual code search, you can find which 4-digit
code the remote control is set to by following
these steps.
1. Press the device key you want to get the
manufacturer's code from, then hold down
until the red light blinks twice.
P
2. Press
. The red light blinks twice
9 9 0
again.
3. Press
, then count the number of times
1
the red light blinks. This is the first digit of
the 4-digit code.
Note:
If the red light does not blink, the
digit is a
.
0
4. Repeat Step 3 three times to fi nd the second, third, and fourth numbers of the 4digit manufacturer's code, pressing
and
respectively for each additional digit.
4
15
2, 3
,
15-1993.fm Page 16 Wednesday, October 20, 1999 12:03 PM
TROUBLESHOOTING
If the remote control stops working after you
have successfully tested the control for each
device, or if you ar e unable to get the remote
control to work at all:
• Be sure you press the device key for the
device you want to control before you
press any other key.
• Confirm that your remote-controlled
devices are working proper ly by using the
original remote contr ol or the manual controls.
• Replace the batteries.
• If some keys do not function, try a different
device code.
1-888-284-8735
•Call
for technical support.
16
15-1993.fm Page 17 Wednesday, October 20, 1999 12:03 PM
MANUFACTURER CODES
The following list t ells you whic h 4-digit codes
to enter to set up the remote control to operate
your:
• Cable Converter (see below)
• CD Player (see Page 19)
• Home Automation (see Page 22)
• Laser Disc Player (see Page 22)
• Satellite Receiver (see Page 23)
• Television (see Page 23)
• TV/VCR Combination (see Page 34)
• VCR (see Page 29)
• Video Accessory (see Page22)
Notes:
• The remote control might not have every
command from your original remote controls.
• Use the 4-in-One’s label to record the
manufacturers' codes for your remotecontrolled devices.
• A key on the remote control that has the
same name as a key on your original
remote control might have a slightly different function.
Radio Shack
Manufacturer Code(s)
Cat. No.
Cable Converters
ABC 0003, 0008, 0014,
Allegro 0153, 0315
Antronix 0022, 0207
Archer 0153 16-1283
Bell & Howell 0014
Cabletenna 0022
Cableview 0022
Century 0153
0017, 0007, 0011,
0013
0022 15-1285
0207 16-1283
0797 15-1288
17
15-1993.fm Page 18 Wednesday, October 20, 1999 12:03 PM
Radio Shack
Manufacturer Code(s)
Citizen 0153, 0315
Colour Voice 0025
Comtronics 0040
Contec 0019
Eastern 0002
Emerson 0797
Everquest 0015, 0040
Focus 0400
GC Electronics 0207
Garrard 0153
Gemini 0015
General
Instrument
GoldStar 0144, 0040
Goodmind 0797
Hamlin 0020, 0259, 0009,
Hitachi 0011
Hytex 0007
Jasco 0015, 0153, 0315
Jerrold 0003, 0012, 0476,
Memorex 0000
Movie Time 0063
NSC 0063
Oak 0019, 0007
Optimus 0021
Panasonic 0000, 0107, 0021
Paragon 0000
Philips 0153, 0025
Pioneer 0144, 0533
Popular
Mechanics
Pulsar 0000
Quasar 0000
RCA 0021
Radio Shack 0015, 0315, 0883,
Realistic 0207 16-1283, 15-1285A
Recoton 0400
0476, 0276, 0011,
0810
0034
0276, 0014, 0015,
0011, 0810
0400
0303
0797 15-1288
Cat. No.
18
15-1993.fm Page 19 Wednesday, October 20, 1999 12:03 PM
Radio Shack
Manufacturer Code(s)
Regal 0020, 0259
Regency 0002
Rembrandt 0011
Runco 0000
SL Marx 0040
Samsung 0144, 0040
Scientific Atlanta 0008, 0477, 0017
Signal 0015, 0040
Signature 0011
Sprucer 0021
Starcom 0003, 0015
Stargate 0015, 0040, 0797
Starquest 0015
TV86 0063
Tandy 0258
Teleview 0040
Tocom 0012, 0013
Toshiba 0000
Tusa 0015
Unika 0153, 0022, 0207
United Artists 0007
Universal 0153, 0022, 0191,
0207
Viewstar 0063, 0258
Zenith 0000, 0525
Zentek 0400
Cat. No.
CD Players
ADC 0018
Adcom 0155
Aiwa 0157, 0124
Audio Alchemy 0194
Audio-Technica 0170
BSR 0194
Burmester 0420
California Audio
Lab
Carrera 0194
Carver 0157, 0179, 0437
DKK 0000
Denon 0003, 0873
0029
19
15-1993.fm Page 20 Wednesday, October 20, 1999 12:03 PM
Radio Shack
Manufacturer Code(s)
Emerson 0305, 0155, 0164,
0469
Fisher 0179, 0174, 0342
GE 0009
Garrard 0420, 0393, 0280
Genexxa 0032, 0305, 0164
Goodmans 0363
Harman/Kardon 0173, 0426
Hitachi 0032, 0155
JVC 0072
Kenwood 0028, 0037, 0190,
0826, 0681
Krell 0157
Kyocera 0018
LXI 0305
Linn 0157
MCS 0029
MTC 0420
Magnavox 0157, 0305
Marantz 0029, 0157, 0180
Mission 0157
NSM 0157
Nikko 0164, 0170, 0174
Onkyo 0101, 0868
Optimus 0000, 0087, 0280,
0671
0032 42-5041, 42-5044,
0179 13-1248, 14-545,
0305 42-5048, 42-5061
0037 13-1251
0420 31-3041, 42-5022,
0145 13-1258
0468 42-5045, 42-5060,
0175 42-5013
0194 42-5016
0196 42-5019, 42-5032
0342 42-5037
Cat. No.
42-5015, 42-5049
42-5025, 42-5071
42-5062, 42-5063,
42-5064
20
15-1993.fm Page 21 Wednesday, October 20, 1999 12:03 PM
Radio Shack
Manufacturer Code(s)
Optimus
(continued)
Panasonic 0029, 0367
Parasound 0420, 0194
Philips 0157
Pioneer 0032, 0305, 0468,
Proton 0157
QED 0157
Quasar 0029
RadioShack 0145 13-1259
RCA 0179, 0305, 0053,
Realistic 0179 42-5014
Rotel 0157, 0420
SAE 0157
STS 0018
Sansui 0157, 0305
Sanyo 0179, 0087
Scott 0305, 0155, 0164
Sears 0305
Sharp 0037, 0180
Sherwood 0114, 0180, 0196,
Sony 0000, 0185, 0490,
Staron 0398
Tascam 0420
T eac 0420, 0393, 0174,
T echnics 0029
Vector Research 0194
Victor 0072
Wards 0157, 0053
0426 42-5031, 42-5036,
0437 42-5023, 42-5024
0536 13-1261, 13-1263
0775 42-5059
0244
0009, 0155
0420 42-5022
0155 42-5004, 42-5007
0175 42-5010
0180 42-5020
0164, 0452, 0453
0426
0604, 0605
0180
Cat. No.
42-5038
21
15-1993.fm Page 22 Wednesday, October 20, 1999 12:03 PM
Radio Shack
Manufacturer Code(s)
Yamaha 0036, 0170, 0187
Yorx 0461
Cat. No.
Home Automation
GE 0240
One For All 0167
Radio Shack 0240
Security System 0167
Universal X10 0167
X10 0167
Laser Disc Players
Aiwa 0203
Denon 0059
Funai 0203
JVC 0558
Kenwood 0534
Magnavox 0503
Mitsubishi 0059, 0521
NAD 0059
Onkyo 0503
Optimus 0525 31-3040
Panasonic 0490
Philips 0503, 0539
Pioneer 0059, 0525, 0571
Proscan 0522
RCA 0522
Realistic 0203 16-302
Samsung 0573
Sharp 0001
Sony 0533, 0193, 0201
Technics 0490
Toshiba 0503
Yamaha 0490, 0545
Zenith 0503
Video Accessories
Archer 0160
GC Electronics 0160
Jebsee 0160
Radio Shack 0160
22
15-1993.fm Page 23 Wednesday, October 20, 1999 12:03 PM
Radio Shack
Manufacturer Code(s)
Cat. No.
Satellite Receivers
AlphaStar 0772
Chaparral 0216
Echostar 0775, 0269
Expressvu 0775
General Instru-
ment
HTS 0775
Hitachi 0819
Hughes Network
Systems
JVC 0775
Jerrold 0627, 0361
Legend 0269
Magnavox 0724, 0722
Memorex 0724
Next Level 0869
Optimus 0724 16-2575
Panasonic 0701
Philips 0724, 0722
Primestar 0627, 0361
RCA 0566 16-2530, 16-2531,
Realistic 0052 16-2502, 16-2507
Sony 0639 16-2545
Star Choice 0869
Toshiba 0790
Uniden 0722, 0052
Zenith 0856
0627, 0361, 0869
0749
0269 16-2511
16-2539
0143, 0855, 0392
0051 16-2501
Televisions
A-Mark 0003
AOC 0030, 0019, 0003,
Abex 0032
Admiral 0093
Adventura 0046
Aiko 0092
Akai 0030
0185
23
15-1993.fm Page 24 Wednesday, October 20, 1999 12:03 PM
Radio Shack
Manufacturer Code(s)
Alaron 0179
Ambassador 0177
Ampro 0751
Anam 0180
Anam National 0055
Archer 0003
Audiovo x 0451, 0180, 0003,
0092, 0623
Baysonic 0180
Belcor 0019
Bell & Howell 0154, 0016
Bradford 0180
Brockwood 0019
Broksonic 0236, 0463, 0003
CXC 0180
Candle 0030, 0056, 0046
Carnivale 0030
Carver 0054
Celebrity 0000
Cineral 0451, 0092
Citizen 0060, 0030, 0056,
0039, 0046, 0092,
0280
Clairtone 0185
Concerto 0056
Contec 0180, 0185
Craig 0180
Crosley 0054
Crown 0180, 0039
Curtis Mathes 0047, 0054, 0154,
0051, 0451, 0093,
0060, 0030, 0145,
0056, 0016, 0039,
0166, 0466, 1147,
1347
Daewoo 0451, 0019, 0039,
0092, 0623, 0624
Daytron 0019
Denon 0145
Dumont 0017, 0019
Dwin 0720, 0774
Electroband 0000, 0185
Cat. No.
24
15-1993.fm Page 25 Wednesday, October 20, 1999 12:03 PM
Radio Shack
Manufacturer Code(s)
Emerson 0154, 0236, 0463,
0180, 0282, 0178,
0019, 0179, 0039,
0177, 0185, 0280,
0623, 0624
Envision 0030
Fisher 0154
Fujitsu 0179
Funai 0180
0179, 0171
Futuretech 0180
GE 0047, 0051, 0451,
0093, 0282, 0178,
0021, 0055, 0135,
1147, 1347
Gibralter 0017, 0030, 0019
GoldStar 0030, 0019, 0056,
0032, 0178
Gradiente 0053, 0056
Grunpy 0180, 0179
Hallmark 0178
Harley Davidson 0179
Harman/Kardon 0054
Harvard 0180
Hitachi 0145, 0056, 0032,
0151
Infinity 0054
Inteq 0017
JBL 0054
JCB 0000
JVC 0053
Janeil 0046
KEC 0180
KTV 0180, 0030, 0039,
0185, 0280
Kenwood 0030, 0019
Kloss 0046
LG 0056
LXI 0047, 0054, 0154,
0156, 0178
Logik 0016
Luxman 0056
MEI 0185
Cat. No.
25
15-1993.fm Page 26 Wednesday, October 20, 1999 12:03 PM
Radio Shack
Manufacturer Code(s)
MGA 0150, 0030, 0178,
0019
MTC 0060, 0030, 0019,
0056, 0185
Magnavox 0054, 0030, 0179,
0020
Majestic 0016
Marantz 0054, 0030
Matsushita 0250
Megatron 0178, 0145, 0003
Memorex 0154, 0250, 0150,
0056, 0016, 0178
Midland 0047, 0017, 0051,
0039, 0032, 0135
Minutz 0021
Mitsubishi 0093, 0150, 0178,
0019
Motorola 0093, 0055
Multitech 0180
NAD 0156, 0178, 0166
NEC 0030, 0019, 0056
NTC 0092
Nikko 0030, 0178, 0092
Onwa 0180
Optimus 0154 13-1283
0166 31-3031, 31-3033,
0250
Optonica 0093, 0165
Orion 0236, 0463, 0179
Panasonic 0051, 0250, 0055
Penney 0047, 0156, 0051,
0060, 0030, 0178,
0021, 0019, 0056,
0039, 0003, 0032,
0135, 1347
Philco 0054, 0463, 0030,
0145, 0019, 0020
Philips 0054
Pilot 0030, 0019, 0039
Pioneer 0166
Portland 0019, 0039, 0092
Prism 0051
Cat. No.
31-3038, 31-3040
26
15-1993.fm Page 27 Wednesday, October 20, 1999 12:03 PM
Radio Shack
Manufacturer Code(s)
Proscan 0047
Proton 0178, 0003, 0466
Pulsar 0017, 0019
Quasar 0051, 0250, 0165,
0055
RCA 0047, 0051, 0093,
0019, 0090, 0135,
1047, 1147, 1247,
1347
Radio Shack 0047, 0154, 0019,
0039
0165 16-232, 16-233,
0180 16-252, 16-253,
0030 16-254, 16-255,
0178 16-256, 16-263,
0056 16-288
0032 16-230, 16-232,
Realistic 0154 16-229, 16-261,
0165 16-235, 16-235A,
0180, 0030, 0178,
0019, 0039, 0032
0056 16-288
Rhapsody 0185
Runco 0017, 0030, 0603
SSS 0180, 0019
Sampo 0030, 0039, 0032
Samsung 0060, 0030, 0178,
0019, 0056, 0032
Samsux 0039
Sansei 0451
Sansui 0463
Sanyo 0154
Scimitsu 0019
Scotch 0178
Cat. No.
16-236, 16-250,
16-260
16-262, 16-292
16-256, 16-265
16-268, 16-280,
16-289
16-233, 16-236,
16-250, 16-260
16-299
16-251
27
15-1993.fm Page 28 Wednesday, October 20, 1999 12:03 PM
Radio Shack
Manufacturer Code(s)
Scott 0236, 0180, 0178,
0019, 0179
Sears 0047, 0054, 0154,
0156, 0178, 0179,
0056, 0171
Semivox 0180
Semp 0156
Sharp 0093, 0165, 0039
Shogun 0019
Signature 0016
Sony 0000
Soundesign 0180, 0178, 0179
Spectricon 0003
Squareview 0171
Starlite 0180
Supre-Macy 0046
Supreme 0000
Sylvania 0054, 0030, 0020
Symphonic 0171
TMK 0178, 0056, 0177
Tandy 0093, 0218
Tatung 0055, 0003
Technics 0051, 0250
Technol Ace 0179
Techwood 0051, 0056, 0003
T eknika 0054, 0180, 0150,
0060, 0019, 0179,
0056, 0016, 0039,
0092
T elefunken 0056
Toshiba 0154, 0156, 0060
Tosonic 0185
Totevision 0039
Vector Research 0030
Victor 0053
Vidikron 0054
Vidtech 0178, 0019
Viking 0046
Wards 0054, 0165, 0030,
0178, 0021, 0019,
0179, 0056, 0016,
0020
Cat. No.
28
15-1993.fm Page 29 Wednesday, October 20, 1999 12:03 PM
Radio Shack
Manufacturer Code(s)
White
Westinghouse
Yamaha 0030, 0019
Zenith 0017, 0016, 0092
Zonda 0003
0623, 0624
Cat. No.
VCRs
Admiral 0048
Adventura 0000
Aiko 0278
Aiwa 0037, 0000, 0307
Akai 0041, 0061, 0106
American High 0035
Asha 0240
Audiovox 0037
Beaumark 0240
Bell & Howell 0104
Broksonic 0184, 0121, 0209,
CCE 0072, 0278
Calix 0037
Canon 0035
Capehart 0020
Carver 0081
Cineral 0278
Citizen 0037, 0278
Colt 0072
Craig 0037, 0047, 0240,
Curtis Mathes 0060, 0035, 0041,
Cybernex 0240
Daewoo 0045, 0278, 0020,
Daytron 0020
Denon 0042
Dynatech 0000
Electrohome 0037
Electrophonic 0037
Emerex 0032
0002, 0295, 0479
0072, 0271
0162
0561
29
15-1993.fm Page 30 Wednesday, October 20, 1999 12:03 PM
Radio Shack
Manufacturer Code(s)
Emerson 0037, 0184, 0000,
0121, 0043, 0209,
0002, 0278, 0036,
0061, 0068, 0208,
0212, 0295, 0479,
0561
Fisher 0047, 0104, 0054,
0066
Fuji 0035, 0033
Funai 0000
GE 0060, 0035, 0048,
0240, 0202
Garrard 0000
Go Video 0432, 0526
GoldStar 0037, 0038, 0480
Gradiente 0000, 0008
HI-Q 0047
Harley Davidson 0000
Harman/Kardon 0081, 0038
Harwood 0072, 0068
Headquarter 0046
Hitachi 0000, 0042, 0041,
0105
JVC 0067, 0041, 0008
Jensen 0041
KEC 0037, 0278
KLH 0072
Kenwood 0067, 0041, 0038
Kodak 0035, 0037
LXI 0037
Lloyd’s 0000, 0208
Logik 0072
MEI 0035
MGA 0240, 0043, 0061
MGN Technology 0240
MTC 0240, 0000
Magnasonic 0278
Magnavox 0035, 0039, 0081,
0000, 0149, 0110
Magnin 0240
Marantz 0035, 0081
Marta 0037
Matsushita 0035, 0162, 0454
Cat. No.
30
15-1993.fm Page 31 Wednesday, October 20, 1999 12:03 PM
Radio Shack
Manufacturer Code(s)
Memorex 0035, 0039, 0162,
0268, 0299, 0307,
0047
0037 16-524, 16-706
0000 16-406, 16-410,
0048 16-531, 16-618,
0046 16-529, 16-530
0104 16-412, 16-523,
0240 16-533, 16-655
Minolta 0042, 0105
Mitsubishi 0048, 0067, 0043,
0061
Motorola 0035, 0048
Multitech 0000, 0072
NAD 0058
NEC 0104, 0067, 0041,
0038, 0040
Nikko 0037
Nikon 0034, 0253
Noblex 0240
Olympus 0035
Optimus 0037 16-413, 16-419,
0048 16-538, 16-539,
0104 16-536, 16-537,
0162 16-547, 16-548,
0058 31-3023, 31-3031,
1048, 1062, 1162
Cat. No.
16-411, 16-517
16-622
16-525, 16-526,
16-529, 16-530,
16-619, 16-620,
16-621, 16-623
16-423, 16-534,
16-535, 16-624
16-540, 16-542,
16-543, 16-544,
16-546, 16-627,
16-628
16-617, 16-625,
13-1283
16-630, 16-631,
16-635, 16-640,
16-641, 16-642
31-3032, 31-3033,
31-3037, 31-3038
31
15-1993.fm Page 32 Wednesday, October 20, 1999 12:03 PM
Radio Shack
Manufacturer Code(s)
Optimus
(continued)
Optonica 0062
Orion 0184, 0002, 0295,
Panasonic 0035, 0162, 0077,
Penney 0035, 0037, 0240,
Pentax 0042, 0105
Philco 0035, 0209, 0479
Philips 0035, 0081, 0062,
Pilot 0037
Pioneer 0067, 0058
Portland 0020
Profitronic 0240
Proscan 0060, 0202
Protec 0072
Pulsar 0039
Quarter 0046
Quartz 0046
Quasar 0035, 0162, 0077,
RCA 0060, 0035, 0048,
Radio Shack 0000 16-417
Radix 0037
Randex 0037
Realistic 0035 16-472, 16-651,
0432 16-541
0240 16-541
0454 16-547, 16-548,
1262 16-426, 16-427
0479
0225, 0454, 1162
0042, 0038, 0040,
0054
0110
0454, 1162
0240, 0042, 0149,
0077, 0105, 0106,
0202
1037
0037 16-408, 16-413,
0000 16-404, 16-505,
Cat. No.
16-630, 16-631
16-705
16-414, 16-507
16-508, 16-510,
16-519, 16-522,
16-703, 16-704
32
15-1993.fm Page 33 Wednesday, October 20, 1999 12:03 PM
Radio Shack
Manufacturer Code(s)
Realistic
(continued)
Ricoh 0034, 0253
Runco 0039
STS 0042
Samsung 0240, 0045
Sanky 0048, 0039
Sansui 0000, 0067, 0041,
Sanyo 0047, 0240, 0104,
Scott 0184, 0045, 0121,
Sears 0035, 0037, 0047,
Semp 0045
Sharp 0048, 0062
Shintom 0072
Shogun 0240
Singer 0072
Sony 0035, 0032, 0000,
Sunpak 0253
Sylvania 0035, 0081, 0000,
Symphonic 0000
TMK 0240, 0036, 0208
Tandy 0000, 0104
Tatung 0041
0047 16-506, 16-511,
0104 16-520, 16-521,
0062 16-610, 16-700
0046 16-600, 16-601
0240 16-514
0066 16-503
0048
0271, 0479
0046, 0268
0043, 0210, 0212
0000, 0042, 0104,
0046, 0054, 0066,
0105
0033, 0034, 0253
0043, 0110
Cat. No.
16-512, 16-513,
16-515, 16-516,
16-518, 16-613,
16-614, 16-615,
16-652, 16-611,
16-612, 16-616,
16-653, 16-701,
16-702
16-563, 16-617
33
15-1993.fm Page 34 Wednesday, October 20, 1999 12:03 PM
Radio Shack
Manufacturer Code(s)
Teac 0000, 0041
Technics 0035, 0162
Teknika 0035, 0037, 0000
Thomas 0000
T oshiba 0045, 0043, 0066,
Totevision 0037, 0240
Unitech 0240
Vector 0045
Vector Research 0038, 0040
Video Concepts 0045, 0040, 0061
Videosonic 0240
Wards 0060, 0035, 0048,
White
Westinghouse
XR-1000 0035, 0000, 0072
Yamaha 0038
Zenith 0039, 0000, 0033,
0210, 0212
0047, 0081, 0240,
0000, 0042, 0072,
0149, 0062, 0212
0278
0034
Cat. No.
TV/VCR Combinations
Brocksonic 0002, 0479 (TV:
Citizen 0278
Colt 0072
Curtis Mathes 0035 (TV: 0051)
Daewoo 0278 (TV: 0624)
Emerson 0002, 0278 (TV:
Funai 0000
GE 0240, 0035 (TV:
Goldstar 0037 (TV: 0056)
Harley Davidson 0000
Hitachi 0000
Lloyds 0000
Magnasonic 0278
0463)
0624), 0479 (TV:
0463)
0051), 0048 (TV:
0093), 0060 (TV:
0047)
34
15-1993.fm Page 35 Wednesday, October 20, 1999 12:03 PM
Radio Shack
Manufacturer Code(s)
Magnavox 0000, 0081 (TV:
Magnin 0240
Memorex 0037, 1162
MGA 0240
Mitsubishi 0048 (TV :0093)
Optimus 1162 16-421, 16-422,
Orion 0002
Panasonic 1162, 1262
Radio Shack 0037 16-415
RCA 0240, 0035 (TV:
Sansui 0000, 0240, 0479
Sanyo 0240
Sears 0000, 0037 (TV:
Sharp 0048 (TV: 0093)
Sony 0000, 0032 (TV:
Sylvania 0081 (TV: 0054)
Symphonic 0000
Thomas 0000
White
Westinghouse
Zenith 0000, 0479
0054)
1037 16-412
1262 16-421, 16-422,
1048 16-546
1062 16-632, 16-549,
0479 (TV: 0463)
0035 (TV: 0051)
1037 16-417
0051), 0060 (TV:
0047),
0048(TV:0093)
(TV: 0463)
0056)
0000)
0278 (TV: 0624)
Cat. No.
16-426, 16-427,
16-548, 16-631
16-424, 16-425,
16-426, 16-427
16-650, 16-633,
16-636, 16-634,
16-636, 16-640,
16-641, 16-642
35
15-1993.fm Page 36 Wednesday, October 20, 1999 12:03 PM
CARE
To enjoy your 4-in-One Smart Light-Up Remote Control for a long time:
• Keep the remote control dry. If it gets wet,
wipe it dry immediately.
• Use and store the remote control only in
normal temperature environments.
• Handle the remote control gently and
carefully. Don’t drop it.
• Keep the remote control away from dust
and dirt.
• Wipe the remote control wi th a d amp cloth
occasionally to keep it looking new.
Modifying or tampering with the remote control’s internal components can cause a malfunction and invalidate its warranty. If your
remote control i s not performing as i t should,
take it to your local Ra dioSha ck stor e for ass istance.
36
15-1993.fm Page 37 Wednesday, October 20, 1999 12:03 PM
SPECIFICATIONS
Power .................................... 4 AAA Batteries
IR Control Range ........................... 26 ft.
1
Dimensions (HWD) ...... 71/4 ×
2
/8 × 11/4 Inches
(185 × 55 × 32 mm)
±30
Weight (Without Batteries) .. 4.1 oz. (116 gm)
Specifications are typical; individual units might
vary. Specifications are subject to change and
improvement without notice.
°
37
15-1993.fm Page 38 Wednesday, October 20, 1999 12:03 PM
NOTES
38
15-1993.fm Page 39 Wednesday, October 20, 1999 12:03 PM
39
15-1993.fm Page 40 Wednesday, October 20, 1999 12:03 PM
Limited Ninety-Day Warranty
This product is warran ted by RadioShack against manufactu ring
defects in materia l and wo rkmanship un der norma l use for ninety
(90) days from the d ate of purchase from RadioShack companyowned stores and authorized RadioShack franchisees and dealers. EXCEPT AS PROVIDED HEREIN, RadioShack MAKES NO
EXPRESS WARRANTIES AND ANY I MPLIED WARRANTIES, INCLUDING THOSE OF MERCHANTABILITY AND FITNESS FOR
A PARTICULAR PURPOSE, ARE LIMITED IN DURATION TO
THE DURATION OF THE WRITTEN LIMITED WARRANTIES
CONTAINED HEREIN. EXCEPT AS PROVIDED HEREIN, RadioShack SHALL HAVE NO LIABILITY OR RESPONSIBILITY TO
CUSTOMER OR ANY OTHER PERSON OR ENTITY WITH RESPECT TO ANY LIABILITY, LOSS OR DAMAGE CAUSED DIRECTLY OR INDIRECTLY BY USE OR PERFORMANCE OF THE
PRODUCT OR ARISING OUT OF ANY BREACH OF THIS WARRANTY, INCLUDING, BUT NOT LIMITED TO, ANY DAMAGES
RESULTING FROM INCONVENIENCE, LOSS OF TIME, DATA,
PROPERTY, REVENUE, OR PROFIT OR ANY INDIRECT, SPECIAL, INCIDENTAL, OR CONSEQUENTIAL DAMAGES, EVEN IF
RadioShack HAS BEEN ADVISED OF THE POSSIBILITY OF
SUCH DAMAGES.
Some states do not allow the limitations on h ow long an implied
warranty lasts or the excl usion of i ncide nta l or con sequ ential damages, so the above limitations or exclusions may not apply to you.
In the event of a product de fect during the warranty period , take
the product and the RadioShack sales receipt as proof of purchase
date to any RadioShack sto re. RadioShack will, at its op tion, unless otherwise provid ed by law: (a) correct the defect by product
repair without cha rge for parts and l abor; (b) replace t he product
with one of the same or simila r design; or (c) refund the purchase
price. All replaced parts and products, and products on which a refund is made, become th e prop erty of Ra dioSh ack. New or reconditioned parts and products may be used in the performance of
warranty service. Repaired or replaced parts and products are
warranted for the rem ainder of the original warranty per iod. You
will be charged for repair or replacement of the product made after
the expiration of the warranty period.
This warranty does not co ver: (a) damag e or failure caused by or
attributable to acts of God, abuse, accident, misuse, improper or
abnormal usage, failure to follow instruction s, improper installation
or maintenance, alter ation, lightning or other incidence of excess
voltage or current ; (b) any r epairs other than thos e provided b y a
RadioShack Authorized Service Facility; (c) consumables such as
fuses or batteries; (d) co smetic damage; (e) transporta tion, shipping or insurance costs; or (f) costs of product removal, ins tallation, set-up service adjustment or reinstallation.
This warranty gives y ou specific legal rights, and yo u may also
have other rights which vary from state to state.
RadioShack Customer Relations, 200 Taylor Street, 6th Floor, Fort
Worth, TX 76102
We Service What We Sell
04/99
A Division of Tandy Corporation
RadioShack
Fort Worth, Texas 76102
10A99 Printed in Korea
Loading...
