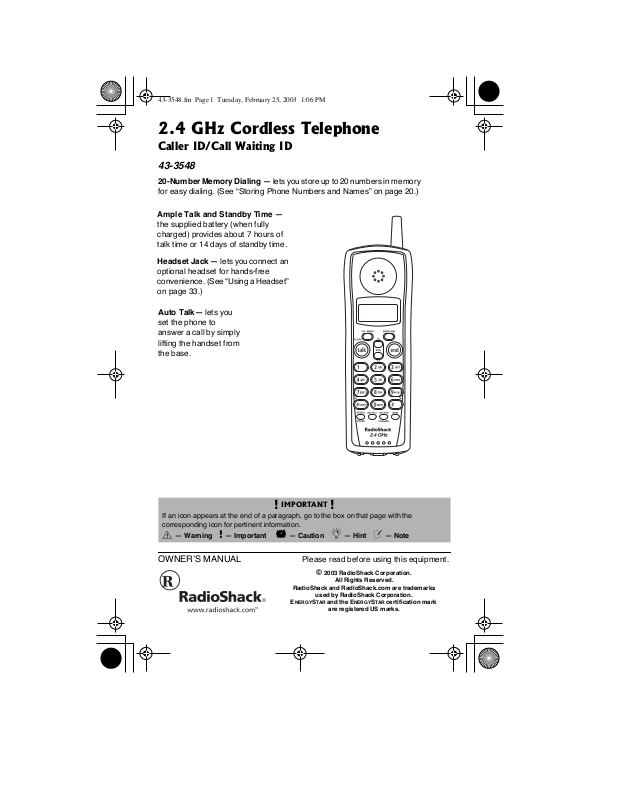

2.4 GHz Cordless Telephone
Caller ID/Call Waiting ID
43-3548
20-Number Memory Dialing — lets you store up to 20 numbers in memory
for easy dialing. (See “Storing Phone Numbers and Names” on page 20.)
Ample Talk and Standby Time —
the supplied battery (when fully
charged) provides about 7 hours of
talk time or 14 days of standby time.
Headset Jack — lets you connect an
optional headset for hands-free
convenience. (See “Using a Headset”
on page 33.)
Auto Talk— lets you
set the phone to
answer a call by simply
lifting the handset from
the base.
IMPORTANT
If an icon appears at the end of a paragraph, go to the box on that page with the
!
corresponding icon for pertinent information.
— Warning! — Important
o
— Caution ÓÓÓÓ — Hint Ô — Note
!
OWNER’S MANUAL Please read before using this equipment.
© 2003 RadioShack Corporation.
RadioShack and RadioShack.com are trademarks
NERGYSTAR and the ENERGYSTAR certification mark
E
All Rights Reserved.
used by RadioShack Corporation.
are registered US marks.
CONTENTS
Important Information . 2
FCC Statement .......... 2
Surge Proection ......... 3
Important Information
Important Safety
Instructions ............... 4
Battery Safety
Instructions ................. 5
Introduction .............. 7
Installation ................ 8
Selecting a Location ... 8
Connecting/Charging
the Battery Pack ....... 11
Operation ............... 13
Making and Receiving
Calls ........................ 13
Adjusting the Handset
Ringer and Earpiece
Volume ..................... 14
Redial ....................... 15
Tone Dialing
Switch-over ............... 15
Tr aveling
Out-of-Range ........... 15
Selecting a Different
Channel .................... 16
Page ......................... 16
Flash and Call
Waiting ..................... 16
Voice Mail Waiting
Indicator ................... 16
Setting Menu
Options ..................... 17
Area Code ................ 18
Steps for Entering
Names and Special
Characters ................ 22
(continued)
Ô NOTE Ô
You must not connect your
phone to:
• coin-operated systems
• party-line systems
• most electronic key
telephone systems
As an ENERGYSTAR Partner,
RadioShack Corporation has
determined that this product
meets the E
for energy efficiency.
NERGYSTAR guidelines
IMPORTANT
INFORMATION
This telephone has been tested and found
to comply with all applicable UL and FCC
standards.
FCC STATEMENT
Your telephone compiles with Part 68 of the
FCC Rules.Upon request, you must provide
the phone’s FCC registration number and
REN to your phone company. These
numbers are on the base unit.
Your phone is not intended to be used with
party-line systems. Connection to party line
service is subject to state tariffs. Contact the
state public utility commission, public
service commission, or corporation
commission for information. Ô
We have designed your phone to conform
to federal regulations, and you can connect
it to most telephone lines. However, each
phone (and each device, such as a
telephone or answering machine) that you
connect to the telephone line draws power
from the telephone line. We refer to this
power draw as the device’s ringer
WARNING: To reduce the risk of
fire or shock hazard, do not expose
this product to rain or moisture.
The lightning symbol is intended to alert you to the presence of
uninsulated dangerous voltage within this product’s enclosure that
might be of sufficient magnitude to constitute a risk of electric shock.
Do not open the product’s case.
2
CAUTION.
RISK OF ELECTRIC
SHOCK DO NOT OPEN
CAUTION: TO REDUCE THE RISK OF ELECTRIC
SHOCK, DO NOT REMOVE COVER OR BACK. NO USERSERVICEABLE PARTS INSIDE. REFER SERVICING TO
!
QUALIFIED PERSONNEL.
The exclamation symbol is intended to inform you that important operating
and maintenance instructions are included in the literature accompanying
!
this product.
equivalence number, or REN on the back of
your phone.
If you use more than one phone or other
device on the line, add up all of the RENs. If
the total is more than five (three in rural
areas), your telephones might not ring. If
ringer operation is impaired, remove a
device from the line.
In the unlikely event that your phone causes
problems on the phone line, the phone
company can temporarily discontinue your
service. If this happens, the phone company
attempts to notify you in advance. If
advance notice is not practical, the phone
company notifies you as soon as possible
and advises you of your right to file a
complaint with the FCC.
Also, the phone company can make
changes to its lines, equipment, operations,
or procedures that could affect the operation
of this phone. The telephone company
notifies you of these changes in advance, so
you can take the necessary steps to prevent
interruption of your telephone service.
SURGE PROECTION
Your telephone has built-in protection
circuits to reduce the risk of damage from
surges in telephone line and power line
current. These protection circuits meet or
exceed the FCC requirements. However,
lightning striking the telephone or power
lines can damage your telephone.
Lightning damage is not common.
Nevertheless, if you live in an area that has
severe electrical storms, we suggest that
you unplug your phone when storms
approach to reduce the possibility of
damage.
CONTENTS
(continued)
Making Calls with
Memory Dialing ........ 23
Chain Dialing ........... 24
Editing a Stored Name
and/or Phone
Number .................... 24
Erasing a Stored Name
and Phone Number .. 26
Testing Stored
Emergency
Numbers .................. 27
One-touch speed
dial ........................... 27
Storing And Editing
The Speed Dial ........ 27
Making Calls with the
SPEED DIAL ............ 28
Deleting the SPEED
DIAL ......................... 28
Caller ID ................... 28
When the Telephone
Rings ........................ 29
Viewing the Caller ID
Message List ............ 30
Deleting Information
from the Caller ID
List ........................... 30
Using the Caller ID
List ........................... 31
Using a Headset ..... 33
Troubleshooting ...... 34
Care ........................ 35
Service and Repair .. 35
Important Information
3
IMPORTANT SAFETY INSTRUCTIONS
When using your telephone equipment, basic safety precautions should
Important Safety Instructions
always be followed to reduce the risk of fire, electric shock and injury to
persons, including the following:
1. Read and understand all instructions.
2. Follow all warnings and instructions marked on the product.
3. Never install telephone wiring during a lightning storm.
4. Never install telephone jacks in wet locations unless the jack is
specifically designed for wet locations.
5. Never touch uninstalled telephone wires or terminals unless the
telephone line has been discon-nected at the network interface.
6. Use caution when installing or modifying telephone lines.
7. Do not fix the AC power supply cord to building surfaces with metal
fittings (if the product has an AC power cord).
8. Unplug this product from the wall outlet before cleaning. Do not use
liquid cleaners or aerosol cleaners. Use a damp cloth for cleaning.
9. Do not use this product near water, for example, near a bathtub,
wash bowl, kitchen sink, or laundry tub, in a wet basement, or near a
swimming pool.
10. Do not place this product on an unstable cart, stand, or table. The
product may fall, causing serious damage to the product.
11. Slots and openings in the cabinet and the back or bottom are
provided for ventilation. To protect it from overheating, these
openings must not be blocked or covered. The openings should
never be blocked by placing the product on a bed, sofa, rug, or other
similar surface. This product should never be placed near or over a
radiator or heat register. This product should not be placed in a builtin installation unless proper ventilation is provided.
12. This product should be operated only from the type of power source
indicated on the marking label. If you are not sure of the type of
power supply to your home, consult your local power company.
4
13. Do not allow anything to rest on the power cord. Do not locate this
product where the cord will be stepped on.
14. Do not overload wall outlets and extension cords as this can result in
a risk of fire or electric shock.
15. Never push objects of any kind into this product through cabinet slots
as they may touch dangerous voltage points or short out parts that
could result in a risk of fire or electric shock. Never spill liquid of any
kind on the product.
16. To reduce the risk of electric shock, do not disassemble this product.
Ta ke it to a qualified service technician when service or repair work
is required. Opening or removing covers may expose you to
dangerous voltage or other risks. Incorrect reassembly can cause
electric shock when the product is subsequently used.
17. Unplug this product from the wall outlet and refer servicing to
qualified service personnel under the following conditions:
• When the power cord plug is damaged or frayed.
• If liquid has been spilled, into the product.
• If the product has been exposed to rain or water.
• If the product does not operate normally by following the
operating instructions. Adjust only those controls that are covered
by the operating instructions because improper adjustment of
other controls may result in damage and will often require
extensive work by a qualified technician to restore the product to
normal operation.
• If the product has been dropped or the cabinet has been
damaged.
Important Safety Instructions
• If the product exhibits a distinct change in performance.
18. Avoid using a telephone (other than a cordless type) during an
electrical storm. There may be a remote risk of electric shock from
lightning.
19. Do not use the telephone to report a gas leak in the vicinity of the leak.
BATTERY SAFETY INSTRUCTIONS
To reduce the risk of fire or injury, read and follow these instructions
5
1. Use only the appropriate type and size battery pack specified in the
Important Safety Instructions
instruction manual provided for this product.
2. Do not dispose of the battery pack in a fire. The cell may explode.
Check with local codes for possible special disposal instructions.
3. Do not open or mutilate the battery pack. Released electrolyte is
corrosive and may cause damage to the eyes or skin. It may be toxic
if swallowed.
4. Exercise care in handling the battery pack in order not to short it with
conducting materials such as rings, bracelets, and keys. The battery
or conductor may overheat and cause burns.
5. Charge the battery pack provided or identified for use with this
product only in accordance with the instructions and limitations
specified in the instruction manual provided for this product.
6. Observe proper polarity orientation between the battery pack and
battery charger.
SAVE THESE INSTRUCTIONS
6
INTRODUCTION
!
IMPORTANT
!
• When AC power is lost,
the phone loses the
security accessprotection code connection between the
base and the hand-set.
When power is restored,
put the handset on the
base briefly to restore
this connection so you
can use the handset.
• Your phone operates on
standard radio
frequencies as allocated
by the FCC.
• It is possible for other
radio units operating
nearby on similar
frequencies to
unintentionally intercept
your conversation or
cause interference. This
possible lack of privacy
can occur with any
cordless phone.
Thank you for purchasing a RadioShack 2.4
GHz Cordless Telephone. Your phone uses
advanced technology to give you superior
audio quality and extended range. The
phone’s Caller ID unit records each caller’s
telephone number (and name, if available in
your area) and the date and time of the call,
as provided by your local phone company to
Caller ID service subscribers. If you
subscribe to Call Waiting with Caller ID, the
phone shows you the incoming caller
information, even when you are already
talking on the phone.
Cordless phones require AC power to
operate. When the power is off, you cannot
make or receive calls using your phone.
You should also have a phone that does not
need AC power to operate (not a cordless
phone), so you can still make and receive
calls if there is an AC power failure.
!
Introduction
7
CAUTION
You must use
a Class 2
!
power source
that supplies 9V DC and
delivers at least 210 mA.
Its center tip must be set
to positive and its plug
must fit the phone's DC
IN 9V jack. The supplied
adapter meets these
specifications. Using an
adapter that does not
meet these
specifications could
damage the phone or
the adapter.
• Always connect the AC
adapter to the phone
before you connect it to
AC power. When you
finish, disconnect the
adapter from AC power
before you disconnect it
from the phone.
Ô NOTE Ô
• If your home has
specially wired alarm
equipment connected to
the telephone line, be
sure that installing the
system does not disable
your alarm equipment.
If you have questions
Installation
about what will disable
alarm equipment,
contact your telephone
company or a qualified
installer.
• The USOC number of
the jack to be installed is
RJ11C (or RJ11W for a
wall plate jack).
INSTALLATION
Before using your phone, carefully peel the
protective film off the display. The film
protects the handset window during
shipment and is not necessary for use.
SELECTING A LOCATION
You can place the phone’s base on a desk
or table, or mount it on a standard wall plate
or directly on a wall. Select a location that
is:Ô
• near an accessible AC outlet
• near a telephone line jack
• out of the way of normal activities
•away from electrical machinery,
electrical appliances, metal walls or
filing cabinets, wireless intercoms,
alarms, and room monitors
•away from other cordless phones
The base’s location affects the handset’s
range. If you have a choice of several
locations, try each to see which provides the
best performance.
Your telephone connects directly to a
modular telephone line jack. If your
telephone wiring does not have a modular
jack, you can update the wiring yourself
using jacks and adapters (available at your
local RadioShack store), or have the
telephone company update the wiring for
you. You must use compatible modular
jacks that are compliant with Part 68 of FCC
Rules. Ô
8
On a Desk Top
1. Plug one end of
the supplied long
modular cord into
the
TEL LINE jack
on the back of
the base.
2. Plug the modular
cord’s other end
into a modular
phone line jack.
3. Insert the
supplied AC
DC IN 9V
adapter’s barrel plug into the
TEL
LINE
DC IN 9V
jack on the back of the base.
4. Route the adapter’s cord through the
strain relief slot on the base, then plug
the adapter into a standard AC outlet.
5. Lift the base’s antenna to a vertical
position.
On a Wall Plate
1. Plug one end of the supplied short
modular cord into the
the back of the base. Then insert the
supplied AC adapter’s barrel plug into
the
DC IN 9V jack on the back of the
base.
TEL LINE jack on
2. Route the adapter and modular cords
through the grooves on the bottom of
the base.
3. Plug the short modular cord into the
wall plate jack, then align the base’s
keyhole slots with the wall plate studs
and slide the base down to secure it.
Installation
9
4. Plug the adapter into a standard AC
outlet.
5. Lift the base’s antenna to a vertical
position.
On a Wall
To mount the phone directly on a wall, you
need two screws (not supplied) with heads
that fit into the keyhole slots on the bottom
of the base.
15
1. Drill two holes 3
apart. Then thread a screw into each
hole, letting the heads extend about 1/8
inch (3 mm) from the wall.
2. Plug one end of the supplied long
modular cord into the
the back of the base.
3. Insert the supplied AC adapter’s barrel
plug into the
of the base.
4. Route the adapter and modular cords
through the grooves on the bottom of
the base.
/16 inches (100 mm)
TEL LINE jack on
DC IN 9V jack on the back
Installation
10
5. Align the base’s keyhole slots with the
mounting screws and slide the base
downward to secure it.
6. Plug the modular cord’s other end into
the phone jack, and plug the adapter
into a standard AC outlet.
7. Lift the base’s antenna to a vertical
position.
CONNECTING/CHARGING THE
!
IMPORTANT
!
The EPA
certified
RBRC
®
Battery
Recycling
Seal on the nickelcadmium (Ni-Cd) battery
indicates RadioShack is
voluntarily participating in
an industry program to
collect and recycle these
batteries at the end of their
useful life, when taken out
of service in the United
States or Canada. The
RBRC program provides a
convenient alternative to
placing used Ni-Cd
batteries into the trash or
the municipal waste
stream, which may be
illegal in your area. Please
call 1-800-THE-SHACK (1800-843-7422) for
information on Ni-Cd
battery recycling and
disposal bans/restrictions
in your area. RadioShack’s
involvement in this
program is part of the
company’s commitment to
preserving our
environment and
conserving our natural
resources.
o
WARNING
o
Dispose of the old battery
pack promptly and properly.
Do not burn or bury it. See
“Battery Safety Instructions”
on Page 5 for additional
information on proper
battery handling.
BATTERY PACK
The phone comes with a rechargeable
nickel-cadmium battery pack in the handset,
but not connected. Before using your
phone, you must connect the battery pack,
then charge it for about 15–20 hours.
1. Press down and slide off the battery
compartment cover.
2. Lift the battery pack out of the
compartment.
3. Plug the battery pack’s connector into
the socket in the compartment (the
connector fits only one way), then place
the battery pack in the compartment.
4. Replace the cover.
To charge the battery pack, place the
handset on the base. The
indicator on the base lights and
appears on the handset display.
Recharge the battery pack when
BBBBaaaatttttttteeeerrrryy
If you have trouble replacing the battery
pack, take the phone to your local
RadioShack for assistance.
Recharging the Battery Pack
• When you first use the phone after
charging or recharging the battery
pack, the phone might not work and
you might hear an error tone when you
press
the handset to the base for about 3
seconds to change the security accessprotection code.
CHARGE/IN USE
yy
flashes on the display.
o
TALK. While holding PAG E, return
!
TTTToooottttaaaallll::::000000
ww
LLLLooooww
!
00
Installation
11
Loading...
