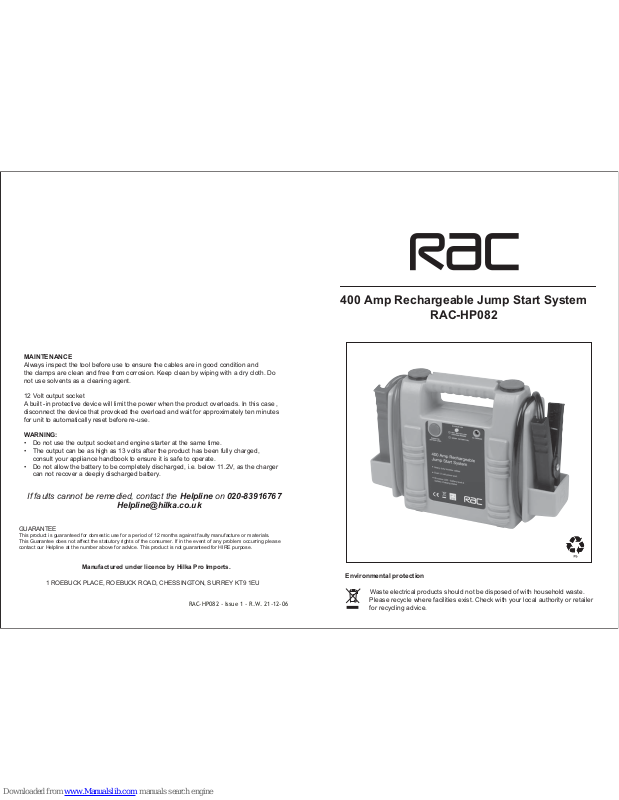

Rac RAC-HP082 User Manual

RAC-HP082 - Issue 1 - R.W. 21-12-06

GUARANTEE

This product is guaranteed for domestic use for a period of 12 months against faulty manufacture or materials.
This Guarantee does not affect the statutory rights of the consumer. If in the event of any problem occurring please
contact our Helpline at the number above for advice. This product is not guaranteed for HIRE purpose.

Manufactured under licence by Hilka Pro Imports.

1 ROEBUCK PLACE, ROEBUCK ROAD, CHESSINGTON, SURREY KT9 1EU

If faults cannot be remedied, contact the Helpline on 020-8391676 7

[e-mail]

400 Amp Rechargeable Jump Start System

RAC-HP082

Environmental protection

Waste electrical products should not be disposed of with household waste.
Please recycle where facilities exist. Check with your local authority or retailer
for recycling advice.

MAINTENANCE

Always inspect the tool before use to ensure the cables are in good condition and
the clamps are clean and free from corrosion. Keep clean by wiping with a dry cloth. Do
not use solvents as a cleaning agent.

12 Volt output socket
A built -in protective device will limit the power when the product overloads. In this case ,
disconnect the device that provoked the overload and wait for approximately ten minutes
for unit to automatically reset before re-use.

WARNING:

• Do not use the output socket and engine starter at the same time.

• The output can be as high as 13 volts after the product has been fully charged,
consult your appliance handbook to ensure it is safe to operate.

• Do not allow the battery to be completely discharged, i.e. below 11.2V, as the charger
can not recover a deeply discharged battery.

-2- -3-

SPECIFICATIONS & FEATURES

Suitable for vehicles up to 1500cc

Specifications:

Battery type: 10 Ah Sealed lead acid battery
Spill-proof rechargeable,
Maintenance free.

DC output Sockets: 12 volts - 10 Amps in total

Boost Rate: 400 Amp Peak

Circuit breaker: 20 Amp internal, with automatic reset
Reset time 10-25 minutes.

Charging time: 24 Hrs for first time charging.
Up to 36 hrs to recharge with supplied ac/dc charger
Up to 10 hrs with a 12 volt DC charger.
Storage: Store in a cool dry area

Note. This unit may be stored in any position. Make sure that clamps are stored correctly,
and if not used recharge every 2 months to maintain battery.

Failure to maintain battery could lead to an unrecoverable flat battery.

COMPONENTS

1

2

3

6

4

5

7

Components

1. 230V/12V DC charging adaptor

2. DC charger lead (integrated 2 amp fuse)

3. 12 Volt outlet sockets

4. Charging jack point

5. Battery check button

6. Battery power indicator

7. Battery clamps
