RAC-HP029

RAC-HP029 - Issue 1 - R.W. 26-10-07

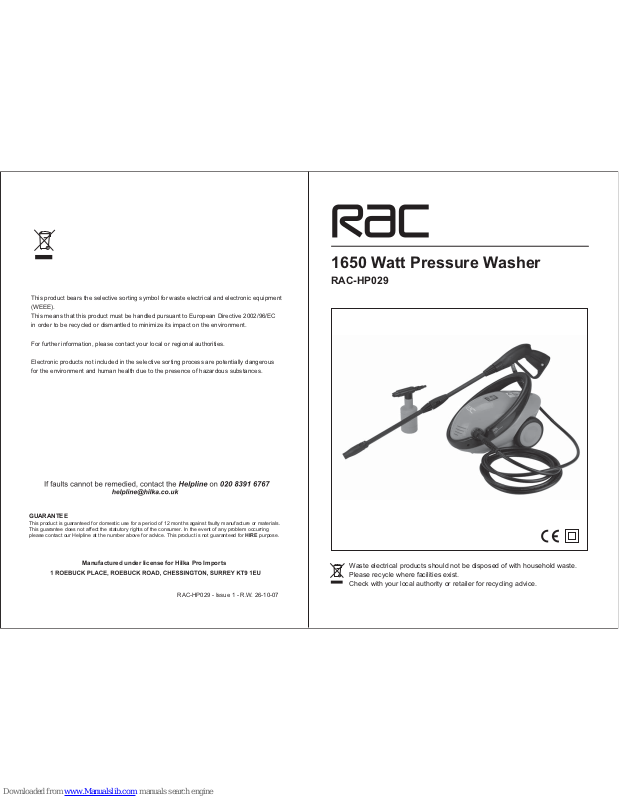

1650 Watt Pressure Washer

Manufactured under license for Hilka Pro Imports

This product bears the selective sorting symbol for waste electrical and electronic equipment

(WEEE).

This means that this product must be handled pursuant to European Directive 2002/96/EC

in order to be recycled or dismantled to minimize its impact on the environment.

For further information, please contact your local or regional authorities.

Electronic products not included in the selective sorting process are potentially dangerous

for the environment and human health due to the presence of hazardous substances.

Waste electrical products should not be disposed of with household waste.
Please recycle where facilities exist.
Check with your local authority or retailer for recycling advice.

GUARANTEE

This product is guaranteed for domestic use for a period of 12 months against faulty manufacture or materials.
This guarantee does not affect the statutory rights of the consumer. In the event of any problem occurring
please contact our Helpline at the number above for advice. This product is not guaranteed for HIRE purpose.

-1- -2-

SAFETY AND WARNING INFORMATION COMPONENTS

General Safety Rules

WARNING: Read the instructions fully before using the product for the first time. Failure
to follow the instructions may result in fire, electric shock and or serious injury.
We recommend the user wears safety equipment during use.
We recommend the product be used with a RCD (Residual Current Device).

Please Retain These Instructions For Future Use And Referral

• This unit must not be used by children or untrained personnel.

• When operating the unit in high pressure mode the lance may cause kickback. Therefore
please ensure that you hold the spray gun firmly. When using the unit we recommend that
other people are at least 10m away from the working area.

• High-pressure jets can be dangerous if misused. The jet MUST NOT be directed at yourself,
other people, animals, live electrical equipment or the pressure washer itself. The trigger gun
safety lock prevents the trigger from accidentally being engaged. This safety feature does not
lock trigger in the ‘on’ position.

• Do not use the pressure washer if the supply cord or other important parts are damaged
(e.g. high pressure lance or hoses). Never carry your pressure washer by the cord.

• Do not disconnect the high-pressure hose whilst the system is under pressure. This system is
capable of producing 1300PSI. To avoid rupture and injury, do not operate this pump with
components rated less than 1300PSI working pressure (including but not limited to spray guns,
hose and hose connections.)

• Do not use acids or flammable liquids in the machine.

• When using a pressure washer always ensure that your water connection is protected by a
backflow preventer (as per water bylaws). This will avoid possible contamination of your water
supply. Use cold water feed only.

• Protect the unit against freezing. Avoid storing the machine where it may be susceptible to frost.

• Prior to starting the pressure washer in cold weather, be sure ice has not formed in any part of
the equipment.

• The unit must run continuously with water. Dry running will cause serious damage to the seals.

IMPORTANT: The pressure washer is equipped with an auto stop device. When the trigger is
released it will open the power circuit to the motor and cause the pressure washer motor to
stop. The motor will resume when the trigger is pulled. The pressure washer is also equipped with a
main power ON/OFF switch located on the unit. It should always be moved to the OFF position when
the pressure washer is not being used.
This product is a class II product-double insulated. No means of grounding (to earth) is provided
on this product nor should it be added. Only a qualified person should carry out servicing.
If an extension lead is to be used with this product, please ensure that:
Only extension cords having an electrical rating not less than the rating of the product are used.
Only extension cords that are intended for outdoors are used.
To reduce the risk of electrocution, you keep all connections dry and off the ground.
You do not touch the plug with wet hands.

Hose: Water supply hose must be at least 1/ 2" in diameter with a minimum recommended
length of 5 meters.

Component List

Technical specification

1. High pressure hose

2. Soap/detergent dispenser

3. On / Off switch

4. High pressure lance

5. Male quick fit connector

6. Trigger gun

7. Lance extension

8. Cleaning needle

Rated voltage:
Rated power:
Rated frequency:
Protection class:
Degree of protection:
Permissible pressure:
Rated pressure:
Inlet pressure:
Supply water temperature:
Nozzle spray angle:
Max output flow rate:
Net weight (machine only):

220-240V AC
1650W
50HZ
II
IPX5
105bar
70bar

1.5 - 4.0 bar
0-50

o

C

0-90

o

5.5L/min

5.5 kg

Cable lenght:
Hose lenght:
Noise valve:
Noise valve:

5m
5m
96 Lwa
76 Lpa

1

2

3

4

7

6

5

8
