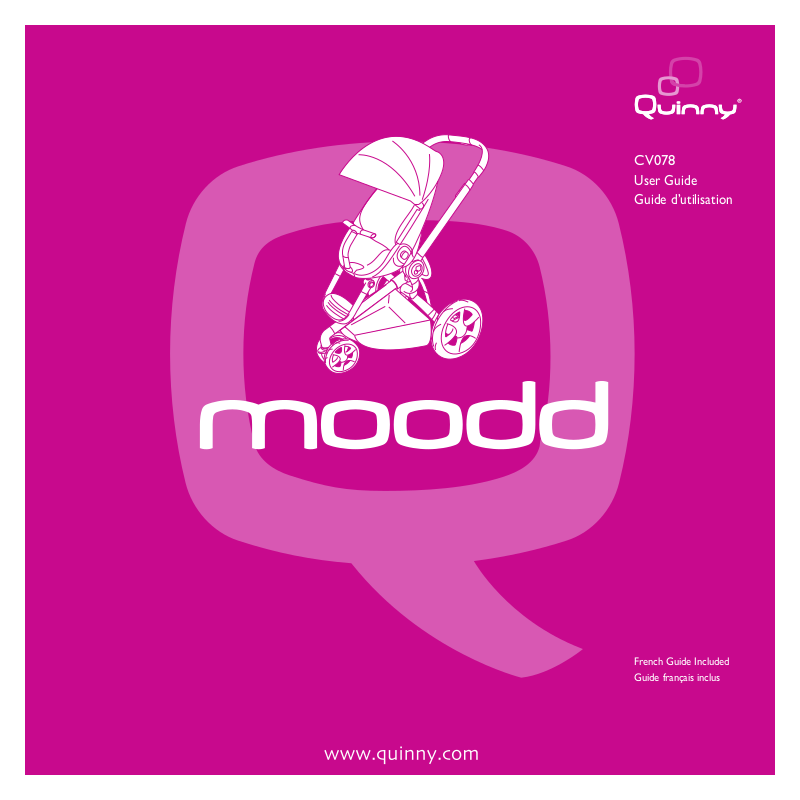

Quinny CV078 User Manual
CV078
User Guide
Guide d’utilisation
French Guide Included
Guide français inclus
Contents
English User Guide:
Guide d’utilisation français
Warnings 1
Parts List 2
Assembly 3-5
To Use 6-7
Install Infant Car Seat 8
To Remove Seat Pad 9
Stroller Care and Maintenance 10
Replaceable Parts 10
Warranty 10
Guide d’utilisation français: 10
Avertissements 1
Liste de pièces 2
Assemblage 3-5
Utilisation 6-7
Installation du Siège d’auto pour bébé 8
Enlever la housse du siège 9
Pièces de remplacement 10
Soin et Entretien de la poussette 10
Garantie 10
i
Warnings
WARNING
FOR THE SAFETY OF YOUR CHILD, PLEASE READ THE FOLLOWING WARNINGS AND ASSEMBLY
INSTRUCTIONS AND KEEP FOR FUTURE REFERENCE.
• Adult assembly required.
• CAUTION: Keep small parts away from children during assembly.
• NEVER LEAVE CHILD UNATTENDED. ALWAYS keep child in view when in stroller.
• AVOID SERIOUS INJURY from falling or sliding out. ALWAYS use seat belt. Check frequently to make sure it is secure.
• ALWAYS keep fingers away from moving parts, when folding, unfolding or adjusting stroller to prevent
finger entrapment.
• ALWAYS make sure stroller is FULLY OPEN AND LOCKED before using.
• ALWAYS use the brakes when stroller is stopped.
• ALWAYS remove protective material and poly bags and dispose before assembly.
• NEVER use stroller on stairs or escalators.
• NEVER rollerblade with stroller.
• NEVER allow children to play with or hang onto the stroller.
• NEVER allow children to climb into the stroller unassisted. Stroller may tip over and injure child.
• NEVER place or hang parcels, bags or accessories on the handle or canopy. The stroller may tip over or the
canopy may collapse.
• This product will become unstable if a parcel bag or rack is used when there is no provision for one.
• This product may become unstable if a parcel bag, other than the one recommended by the manufacturer is used.
• This product will become unstable if the manufacturer’s recommended load is exceeded.
• DO NOT carry additional children, goods or accessories in or on this product except as recommended in the
manufacturer’s instructions.
• NEVER place more than 11-LBS. (5-kg) in the storage basket. If weight is exceeded, hazardous unstable
conditions may exist.
• STROLLER is only for use with children up to 50-LBS. (22.73-kg), and WHEN SEATED, the midpoint of the
child’s head is at or below the top of the stroller seat.
• ONLY use this stroller with ONE child at a time.
• STROLLER is for use with children who can sit up unassisted, and is NOT recommended for newborns.
1
Parts List
A
A
Adjustable height handle
B
Seat
C
Canopy
D
Canopy inserts (2)
E
Front bar
F
B
I
J
C
D
E
F
G
H
K
Front bar insert plate
G
Rear wheels (2)
H
Front wheel unit
I
Transport strap
J
Shopping basket
K
Maxi-Cosi Mico® and Prezi® car seats and
Quinny DreamiTM bassinet adapters* (2)
Maxi-Cosi Mico® and Prezi® Infant Car Seats and
*
Quinny Dreami
• Keep these instructions for future use.
• Lay out and identify all parts.
• Do not return this product to the place of purchase.
If any parts are missing, call Consumer Relations at
(800) 951-4113. Or visit our website at
www.quinny.com.
• Include the model number and manufacture date
(found on the bottom rail of stroller).
TM
bassinet sold separately.
2
Assembly
1 Install Rear Wheels
Slide the rear wheel axle into
the frame until you hear a “click”
(Figure 1). Repeat for other rear
wheel. Pull to confirm each is
assembled securely.
2 Attach Shopping Basket
Slide basket onto frame tube
through opening (Figure 2) then
slide tab into tube at the front
center (Figure 2a).
Secure hook-and-loop strap
around frame above each rear
wheel (Figure 2b).
2a
2b
1
4 Unfold Stroller
4
Unfasten transport strap
(Figure 4).
Push back on frame lock to
release and gently pull up on
frame from handlebar (Figure 4a).
Frame will begin to unfold
automatically and click into place
(Figure 4b).
4a
2
NOTE: The Moodd stroller frame has
a unique mechanism that enables the
automatic unfolding of the frame. The
temperature can affect the functioning
of this mechanism. In cold or frosty
weather, the stroller may unfold
more slowly than usual (at room
temperature).
5 Adjust Handlebar Height
Squeeze the adjustment button
and slide the handlebar to desired
height (Figure 5). The handlebar
will click into place.
4b
5
3 Install Front Wheel Unit
Squeeze the front wheel fork
while inserting it into the frame
tube. Push front wheel into frame
tube until you hear a “click”
(Figure 3).
Pull to confirm it is assembled
securely.
3
6 Parking Brake
Always use the parking brake,
even when standing still for only a
few moments! Push firmly down
on the red pedal (P) behind the
rear wheel to set the parking
brake (Figure 6). Push the
opposite pedal to release the
parking brake.
3
6
Assembly
2x
NOTES: The seat can be positioned facing the handlebar or forward. The
Moodd stroller seat is suitable for children from 6 months (maximum
50-LBS. / 22.73-kg).
7 Attach Seat Facing Handlebar or Forward
Slide both sides of the seat into the frame until you hear each side
click.
To Recline Seat Facing Handlebar or Forward
To recline the seat use recline mechanism located behind seat. Recline
to desired position, seat will click into place (Figure 7). There are only
THREE positions in each orientation.
7
8 To Remove Seat
Squeeze up on the buttons on both sides (Figure 8) and lift the seat
from the frame (Figure 8a).
NOTE: When buttons are depressed they stay depressed until the
seat is locked into the stroller.
8
8a
4
Assembly
9 Canopy
Remove inserts before
installing canopy (Figure 9).
Align tabs to rails on each side
of seat and slide down into
place (Figure 9a).
Unsnap and pull back top of
seat fabric. Line up tab on top
of canopy with top of seat
and slide into place until it
clicks (Figure 9b).
NOTE: Once canopy is fully
attached re-attach the seat
pad.
9b
9a
9
10 Front Bar
Remove insert on seat from underneath as shown by pushing on
depression underneath (Figure 10). Slide front bar into place until it clicks.
Attach elastic underneath seat as shown (Figure 10a).
To Remove Front Bar
Unhook elastic under seat. Push depression under seat and slide front bar
out (Figure 10b). Replace with front insert (Figure 10c).
10
10a
10b
10c
5
To Use
5
3
2
4
2x
11 Footrest
To adjust the footrest up, pull
footrest up. To adjust down,
press the buttons on both sides
and push down (Figure 11).
11
2x
12 Swivel Wheel
Lock the swivel wheel when using
the stroller in a straight direction
for a long period. To lock, push
the lock lever downward and
rotate wheel until it locks into
place (Figure 12). To unlock,
push the lock lever upward.
12
TIRE PRESSURE NOTE: Maximum tire pressure is 25-psi. Use a manual
bike pump to inflate tires. NEVER use an air compressor to fill tires
with air (like those used at gas stations).
WARNING
• NEVER LEAVE CHILD UNATTENDED. ALWAYS keep
child in view when in stroller.
• AVOID SERIOUS INJURY from falling or sliding out.
ALWAYS use seat belt. Check frequently to make sure it is
secure. Belts must be threaded exactly as shown (Fig. 13b).
• Failure to follow these instructions could result in the
serious injury or death of your child.
13 To Use Restraint
System
Unbuckle restraint system by
pressing center button. Place
child in seat. Fit clips together.
Slide clips into buckle until you
hear a “click” (Figure 13).
Adjust straps snugly around
your child (Figure 13a).
To tighten strap, pull strap end
down (Figure 13a).
To loosen strap, back strap
back through loops (Figure
13b).
13
13a
13b
14 Adjust Restraint Height
The shoulder straps have
three height positions for
your growing child. Unsnap
shoulder cushions from harness.
Unthread shoulder straps
(Figure 14). Push shoulder
straps through back of the seat
pad into the desired slot (Figure
14a). Thread straps as shown
(Figure 14b). Secure restaint
covers with snaps.
6
14
14a
14b
