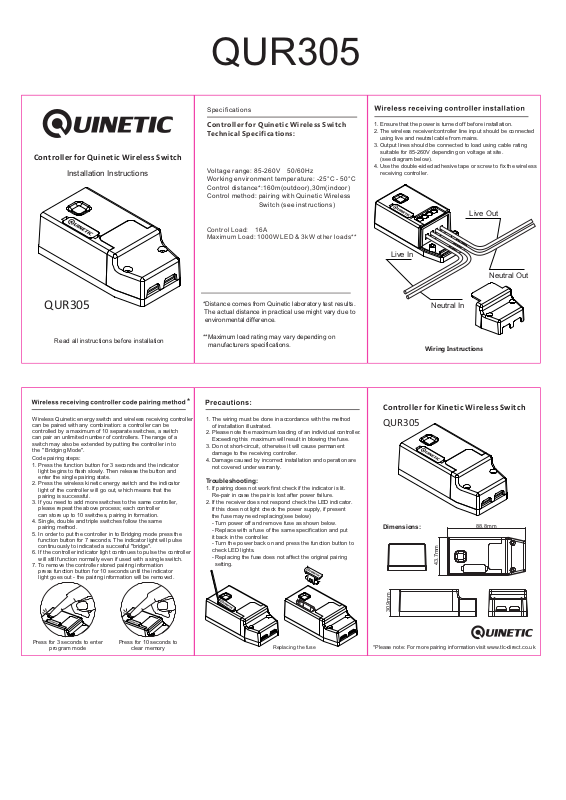

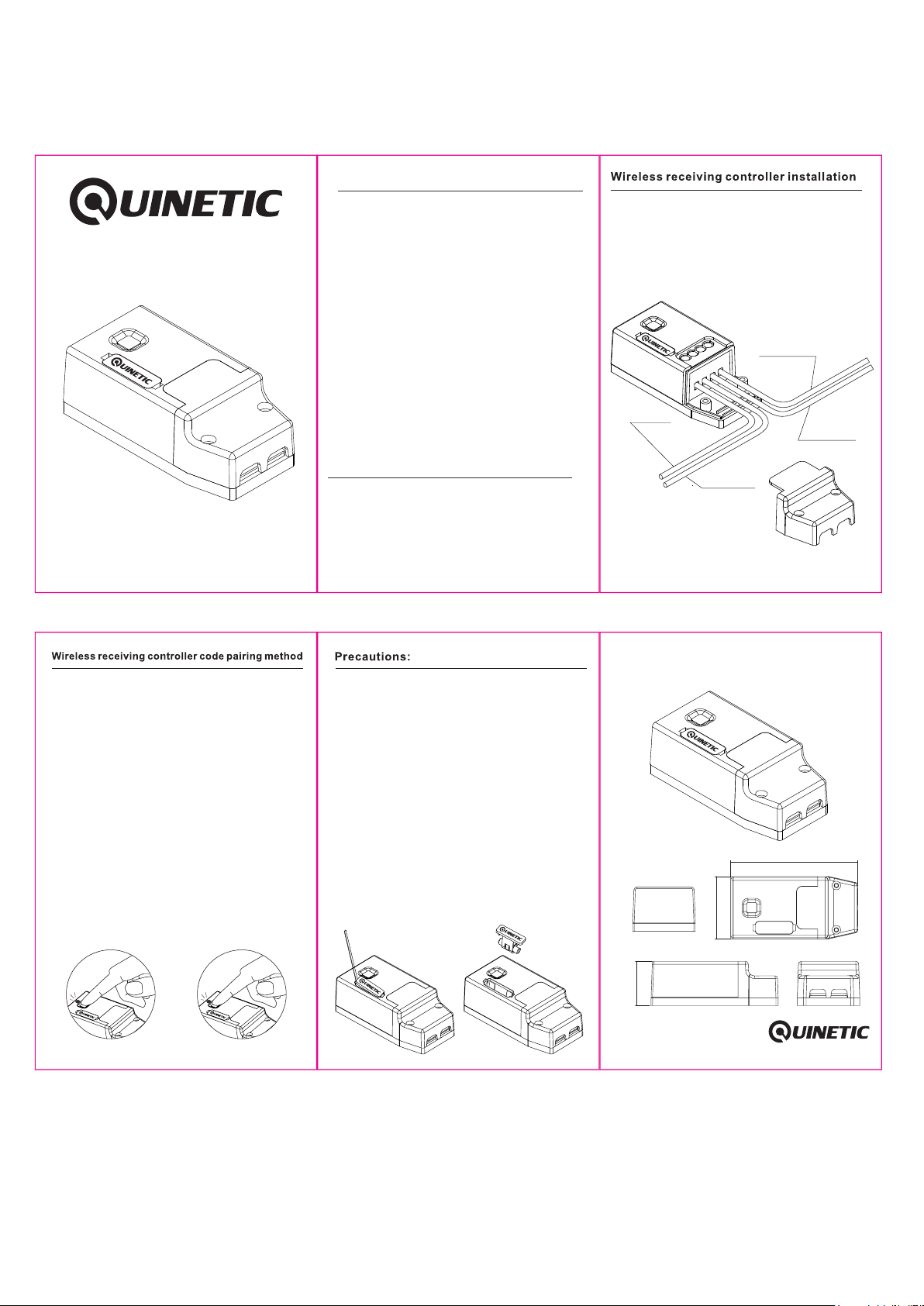

Control le r for Quinetic Wire le ss S wi tch
Installation Instructions
QUR305
Specifi ca ti on s
Cont ro ll er for Quinet ic W ir eless Switch
Tech nical Speci fi ca tions:
Voltage ra ng e: 8 5- 260V 50/6 0H z
Wor ki ng e nv ironmen t te mp er ature: -2 5° C - 50 °C
Control d is ta nc e*:160m (o ut do or ),30m(i nd oo r)
Control m et ho d: p airing wi th Q ui ne ti c Wireles s
Switc h (s ee i ns tr uctions )
Contr ol Load : 16 A
Maxim um Load : 10 00W LED & 3 kW o ther lo ad s**
1. Ensure that the power is turned off before installation.
2. The wireless receiver/controller line input should be connected
using live and neutral cable from mains.
3. Output lines should be connected to load using cable rating
suitable for 85-260V depending on voltage at site.
(see diagram below).
4. Use the double-sided adhesive tape or screw to fix the wireless
receiving controller.
Live Out
Live In
Neutral Out
QUR305
Read all instructions before installation
Wireless Quinetic energy switch and wireless receiving controller
can be paired with any combination: a controller can be
controlled by a maximum of 10 separate switches, a switch
can pair an unlimited number of controllers. The range of a
switch may also be extended by putting the controller in to
the " Bridging Mode".
Code pairing steps:
1. Press the function button for 3 seconds and the indicator
light begins to flash slowly. Then release the button and
enter the single pairing state.
2. Press the wireless kinetic energy switch and the indicator
light of the controller will go out, which means that the
pairing is successful.
3. If you need to add more switches to the same controller,
please repeat the above process; each controller
can store up to 10 switches, pairing in formation.
4. Single, double and triple switches follow the same
pairing method.
5. In order to put the controller in to Bridging mode press the
function button for 7 seconds. The indicator light will pulse
continuously to indicated a succesful "bridge".
6. If the controller indicator light continues to pulse the controller
will still function normally even if used with a single switch.
7. To remove the controller stored pairing information
press function button for 10 seconds until the indicator
light goes out - the pairing information will be removed.
*Distance comes from Quinetic laboratory test results.
The actual distance in practical use might vary due to
environmental difference.
**Maximum load rating may vary depending on
manufacturers specifications.
*
1. The wiring must be done in accordance with the method
of installation illustrated.
2. Please note the maximum loading of an individual controller.
Exceeding this maximum will result in blowing the fuse.
3. Do not short-circuit, otherwise it will cause permanent
damage to the receiving controller.
4. Damage caused by incorrect installation and operation are
not covered under warranty.
Troubleshooting:
1. If pairing does not work first check if the indicator is lit.
Re-pair in case the pair is lost after power failure.
2. If the receiver does not respond check the LED indicator.
If this does not light check the power supply, if present
the fuse may need replacing(see below)
- Turn power off and remove fuse as shown below.
- Replace with a fuse of the same specification and put
it back in the controller.
- Turn the power back on and press the function button to
check LED lights.
- Replacing the fuse does not affect the original pairing
setting.
Neutral In
Wiring Instructions
Control le r for Kinetic Wirel es s Sw itch
QUR305
Dimensions:
43.7mm
88.8mm
Press for 3 seconds to enter
program mode
Press for 10 seconds to
clear memory
Replacing the fuse
30.9mm
*Please note: For more pairing information visit www.tlc-direct.co.uk
