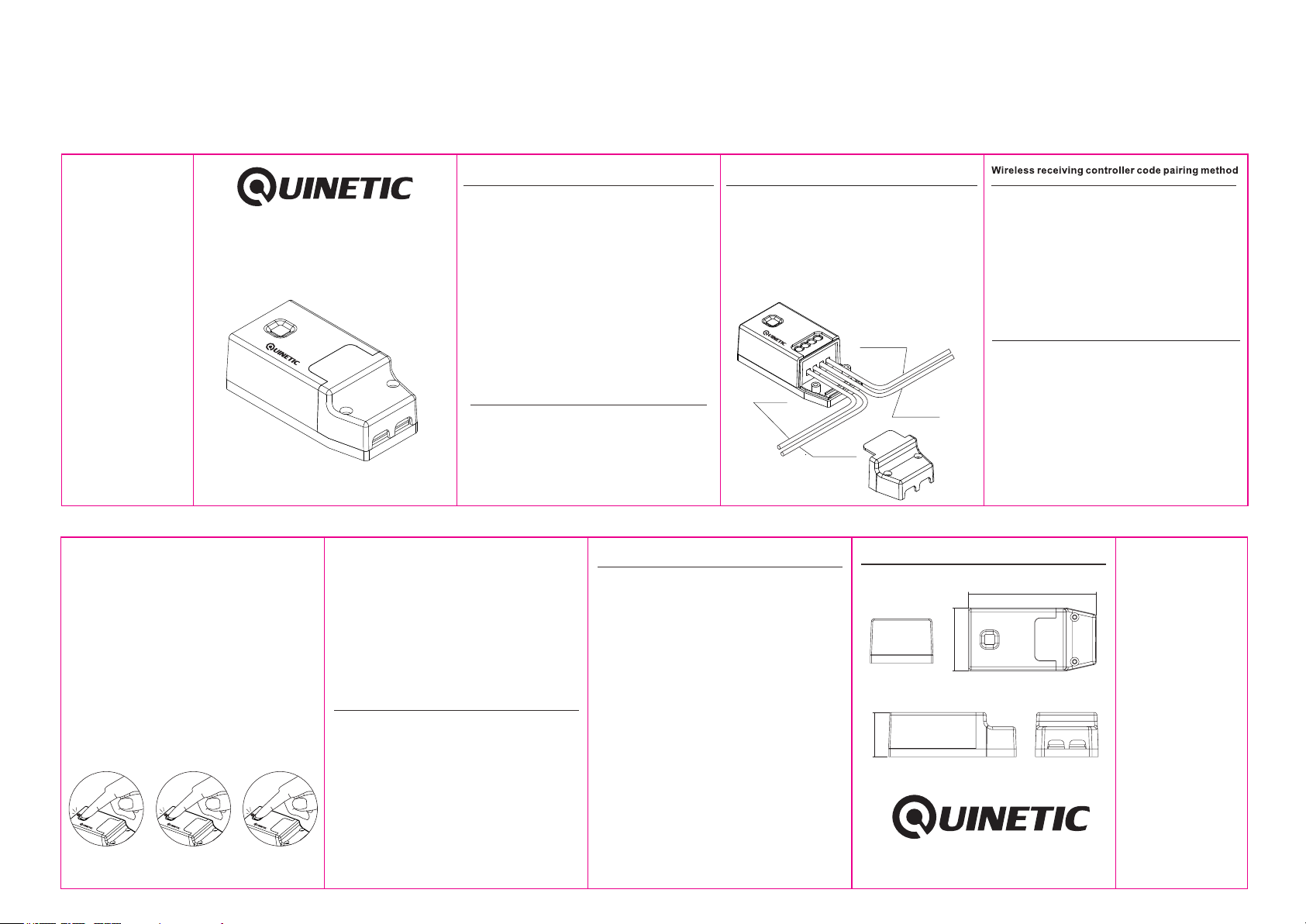

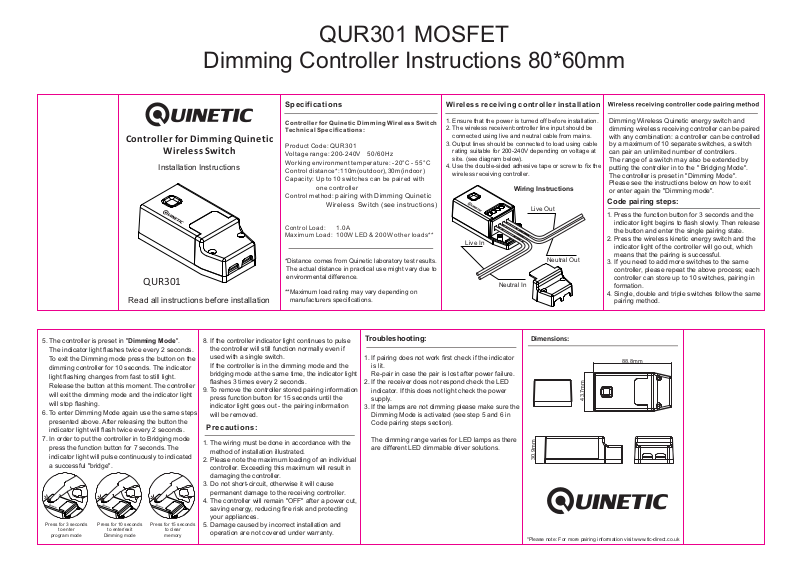

QUR301 MOSFET
Dimming Controller Instructions 80*60mm
Controller for Dimming Quinetic
Wireless Switch
Installation Instructions
QUR301
Read all instructions before installation
5. The controller is preset in "Dimming Mode".
The indicator light flashes twice every 2 seconds.
To exit the Dimming mode press the button on the
dimming controller for 10 seconds. The indicator
light flashing changes from fast to still light.
Release the button at this moment. The controller
will exit the dimming mode and the indicator light
will stop flashing.
6. To enter Dimming Mode again use the same steps
presented above. After releasing the button the
indicator light will flash twice every 2 seconds.
7. In order to put the controller in to Bridging mode
press the function button for 7 seconds. The
indicator light will pulse continuously to indicated
a successful "bridge".
Press for 3 seconds
to enter
program mode
Press for 10 seconds
to enter/exit
Dimming mode
Press for 15 seconds
to clear
memory
8. If the controller indicator light continues to pulse
the controller will still function normally even if
used with a single switch.
If the controller is in the dimming mode and the
bridging mode at the same time, the indicator light
flashes 3 times every 2 seconds.
9. To remove the controller stored pairing information
press function button for 15 seconds until the
indicator light goes out - the pairing information
will be removed.
Specifications
Co ntr ol le r for Q ui ne tic D im mi ng Wi re less Sw it ch
Techni ca l Spe ci fi cat io ns :
Produ ct C ode : QU R301
Voltag e ra nge : 20 0-240 V 50/60 Hz
Wor ki ng en vi ronme nt temp er atu re : -20°C - 5 5°C
Contr ol d ist an ce*:1 10m(o ut doo r) ,30m( indoo r)
Capac it y: Up t o 10 s witch es can be p ai red w it h
one con troll er
Contr ol m eth od : pairi ng w ith Dimmi ng Q uinet ic
Wirel es s Switch (s ee i nstruct io ns)
Contr ol Lo ad: 1.0 A
Maxim um Lo ad: 100 W LED & 2 00W oth er lo ads**
*Distance comes from Quinetic laboratory test results.
The actual distance in practical use might vary due to
environmental difference.
**Maximum load rating may vary depending on
manufacturers specifications.
Precautions:
1. The wiring must be done in accordance with the
method of installation illustrated.
2. Please note the maximum loading of an individual
controller. Exceeding this maximum will result in
damaging the controller.
3. Do not short-circuit, otherwise it will cause
permanent damage to the receiving controller.
4. The controller will remain "OFF" after a power cut,
saving energy, reducing fire risk and protecting
your appliances.
5. Damage caused by incorrect installation and
operation are not covered under warranty.
Wireless rece iv in g co nt ro ller installation
1. Ensure that the power is turned off before installation.
2. The wireless receiver/controller line input should be
connected using live and neutral cable from mains.
3. Output lines should be connected to load using cable
rating suitable for 200-240V depending on voltage at
site. (see diagram below).
4. Use the double-sided adhesive tape or screw to fix the
wireless receiving controller.
Live In
Neutral In
Troubleshooting:
1. If pairing does not work first check if the indicator
is lit.
Re-pair in case the pair is lost after power failure.
2. If the receiver does not respond check the LED
indicator. If this does not light check the power
supply.
3. If the lamps are not dimming please make sure the
Dimming Mode is activated (see step 5 and 6 in
Code pairing steps section).
The dimming range varies for LED lamps as there
are different LED dimmable driver solutions.
Dimming Wireless Quinetic energy switch and
dimming wireless receiving controller can be paired
with any combination: a controller can be controlled
by a maximum of 10 separate switches, a switch
can pair an unlimited number of controllers.
The range of a switch may also be extended by
putting the controller in to the " Bridging Mode".
The controller is preset in "Dimming Mode".
Wiring Instructions
Live Out
Neutral Out
Please see the instructions below on how to exit
or enter again the "Dimming mode".
Code pairing steps:
1. Press the function button for 3 seconds and the
indicator light begins to flash slowly. Then release
the button and enter the single pairing state.
2. Press the wireless kinetic energy switch and the
indicator light of the controller will go out, which
means that the pairing is successful.
3. If you need to add more switches to the same
controller, please repeat the above process; each
controller can store up to 10 switches, pairing in
formation.
4. Single, double and triple switches follow the same
pairing method.
Dimensions:
88.8mm
43.7mm
30.9mm
*Please note: For more pairing information visit www.tlc-direct.co.uk
