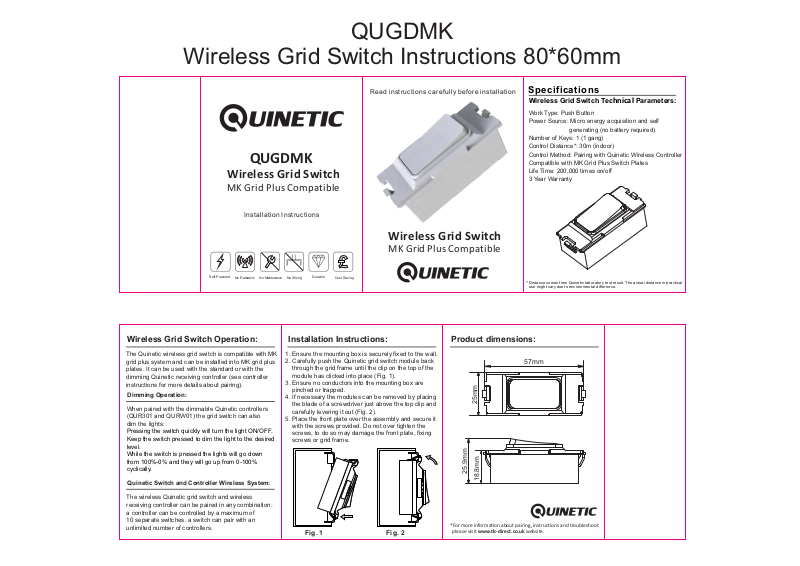

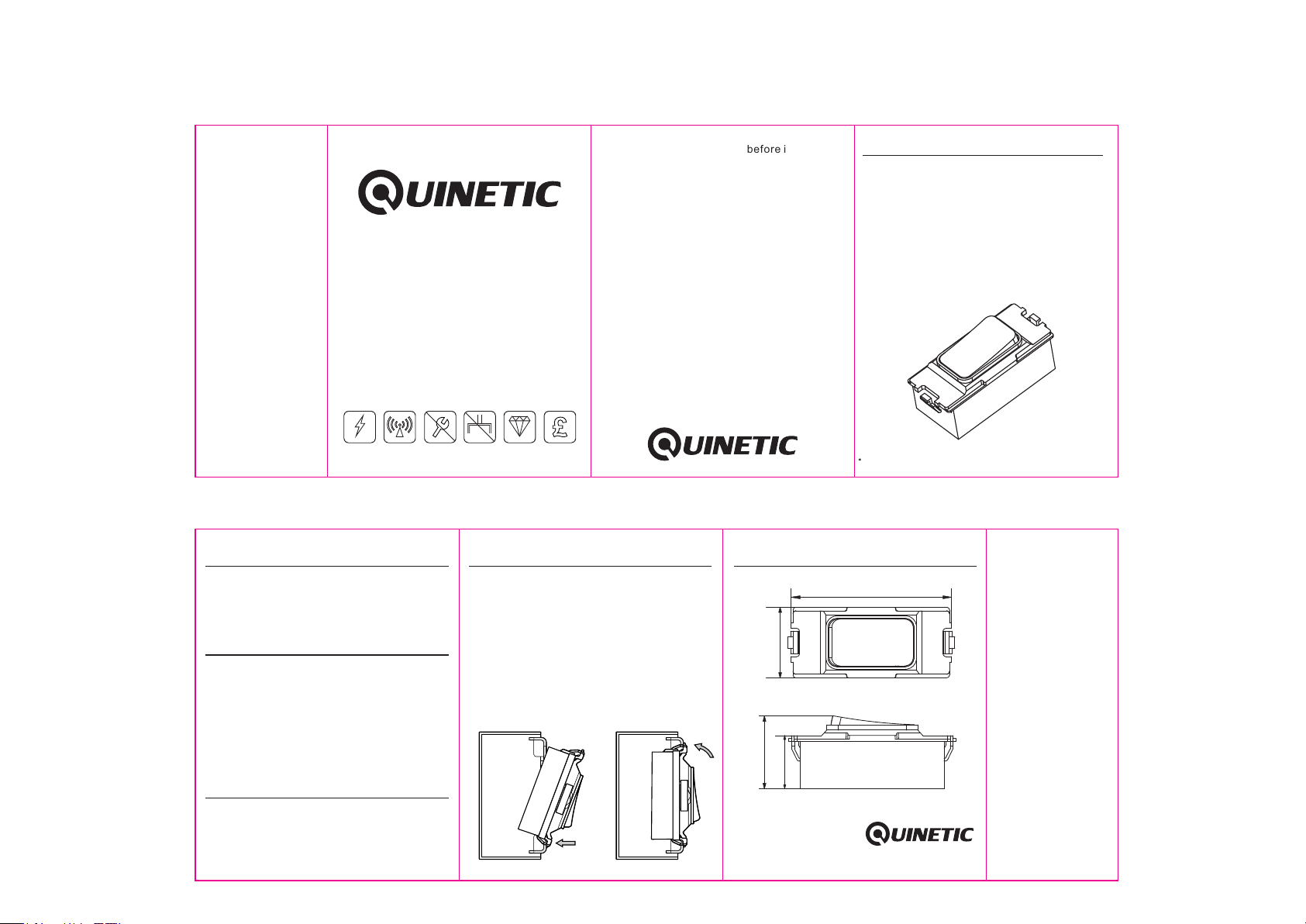

Page 1
QUGDMK
Wireless Grid Switch Instructions 80*60mm
QUGDMK
Wireless Grid Switch
MK Grid Plus Compatible
Installation Instructions
Self Powered
No Radiation No Maintenance No Wiring
Wireless Grid Switch Operation:
The Quinetic wireless grid switch is compatible with MK
grid plus system and can be installed into MK grid plus
plates. It can be used with the standard or with the
dimming Quinetic receiving controller (see controller
instructions for more details about pairing).
Dimming Operation:
When paired with the dimmable Quinetic controllers
(QUR301 and QURW01) the grid switch can also
dim the lights:
Pressing the switch quickly will turn the light ON/OFF.
Keep the switch pressed to dim the light to the desired
level.
While the switch is pressed the lights will go down
from 100%-0% and they will go up from 0-100%
cyclically.
Quinetic Switch and Controller Wireless System:
The wireless Quinetic grid switch and wireless
receiving controller can be paired in any combination:
a controller can be controlled by a maximum of
10 separate switches, a switch can pair with an
unlimited number of controllers.
Read instructions carefully before installation
Wireless Grid Switch
MK Grid Plus Compatible
Durable
Cost Saving
Installation Instructions:
1. Ensure the mounting box is securely fixed to the wall.
2. Carefully push the Quinetic grid switch module back
through the grid frame until the clip on the top of the
module has clicked into place (Fig. 1).
3. Ensure no conductors into the mounting box are
pinched or trapped.
4. If necessary the modules can be removed by placing
the blade of a screwdriver just above the top clip and
carefully levering it out (Fig. 2).
5. Place the front plate over the assembly and secure it
with the screws provided. Do not over tighten the
screws, to do so may damage the front plate, fixing
screws or grid frame.
Fig. 1 Fig. 2
Specifications
Wireless Grid Switch Technical Parameters:
Work Type: Push Button
Power Source: Micro energy acquisition and self
generating (no battery required)
Number of Keys: 1 (1 gang)
Control Distance*: 30m (indoor)
Control Method: Pairing with Quinetic Wireless Controller
Compatible with MK Grid Plus Switch Plates
Life Time: 200,000 times on/off
3 Year Warranty
Dist ance co mes fro m Quine tic lab orato ry test r esult . The act ual dis tance i n pract ical
use mi ght var y due to en viron menta l diffe rence .
Product dimensions:
57mm
25mm
25.9mm
18.8mm
*For more informaon about pairing, instrucons and troubleshoot
please visit www.tlc-direct.co.uk website.
