QUFB1

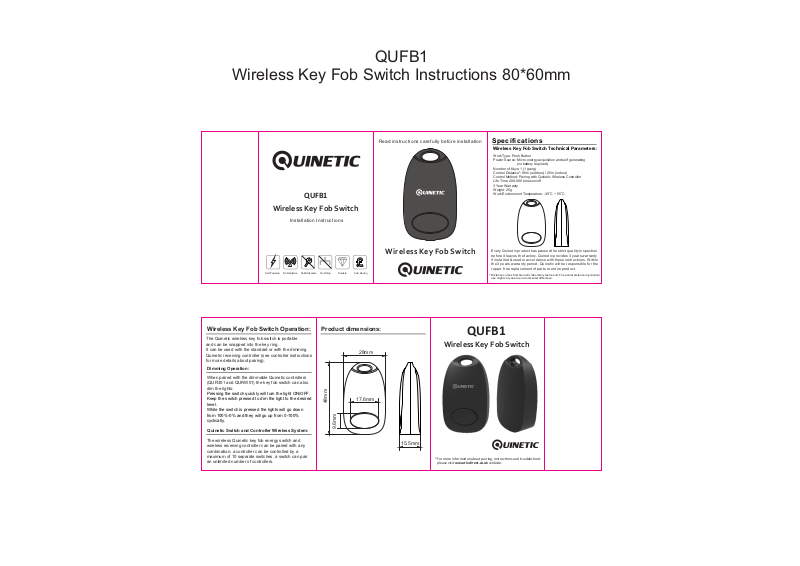

Wireless Key Fob Switch Instructions 80*60mm
QUFB1
Wireless Key Fob Switch
Installation Instructions
Self Powered
No Radiation No Maintenance No Wiring
Wireless Key Fob Switch Operation:
The Quinetic wireless key fob switch is portable
and can be snapped into the key ring.
It can be used with the standard or with the dimming
Quinetic receiving controller (see controller instructions
for more details about pairing).
Dimming Operation:
When paired with the dimmable Quinetic controllers
(QUR301 and QURW01) the key fob switch can also
dim the lights:
Pressing the switch quickly will turn the light ON/OFF.
Keep the switch pressed to dim the light to the desired
level.
While the switch is pressed the lights will go down
from 100%-0% and they will go up from 0-100%
cyclically.
Quinetic Switch and Controller Wireless System:
The wireless Quinetic key fob energy switch and
wireless receiving controller can be paired with any
combination: a controller can be controlled by a
maximum of 10 separate switches, a switch can pair
an unlimited number of controllers.
Durable
Cost Saving
Product dimensions:
28mm
48mm
17.6mm
9.6mm
Read instructions carefully before installation
Wireless Key Fob Switch
QUFB1
Wireless Key Fob Switch
15.5mm
*For more informaon about pairing, instrucons and troubleshoot
please visit www.tlc-direct.co.uk website.
Specifications
Wireless Key Fob Switch Technical Parameters:
Work Type: Push Button
Power Source: Micro energy acquisition and self generating
(no battery required)
Number of Keys: 1 (1 gang)
Control Distance*: 80m (outdoor) / 25m (indoor)
Control Method: Pairing with Quinetic Wireless Controller
Life Time: 200,000 times on/off
3 Year Warranty
Weight: 25g
Work Environment Temperature: -30 C ~ 55 C
Eve ry Quin etic pr oduct h as pass ed the st rict qu ality i nspec tion
bef ore it le aves th e facto ry. Quin eti c provi des 3 yea rs warr anty
if in stall ed & used i n accor dance w ith the se inst ructi ons. Wi thin
the 3 y ears wa rrant y perio d, Quin etic wi ll be res ponsi ble for t he
rep air, fre e repla cemen t of part s or enti re prod uct.
Dis tance co mes fro m Quine tic lab orato ry test r esult . The act ual dis tance i n pract ical
use mi ght var y due to en viron menta l diffe rence .
