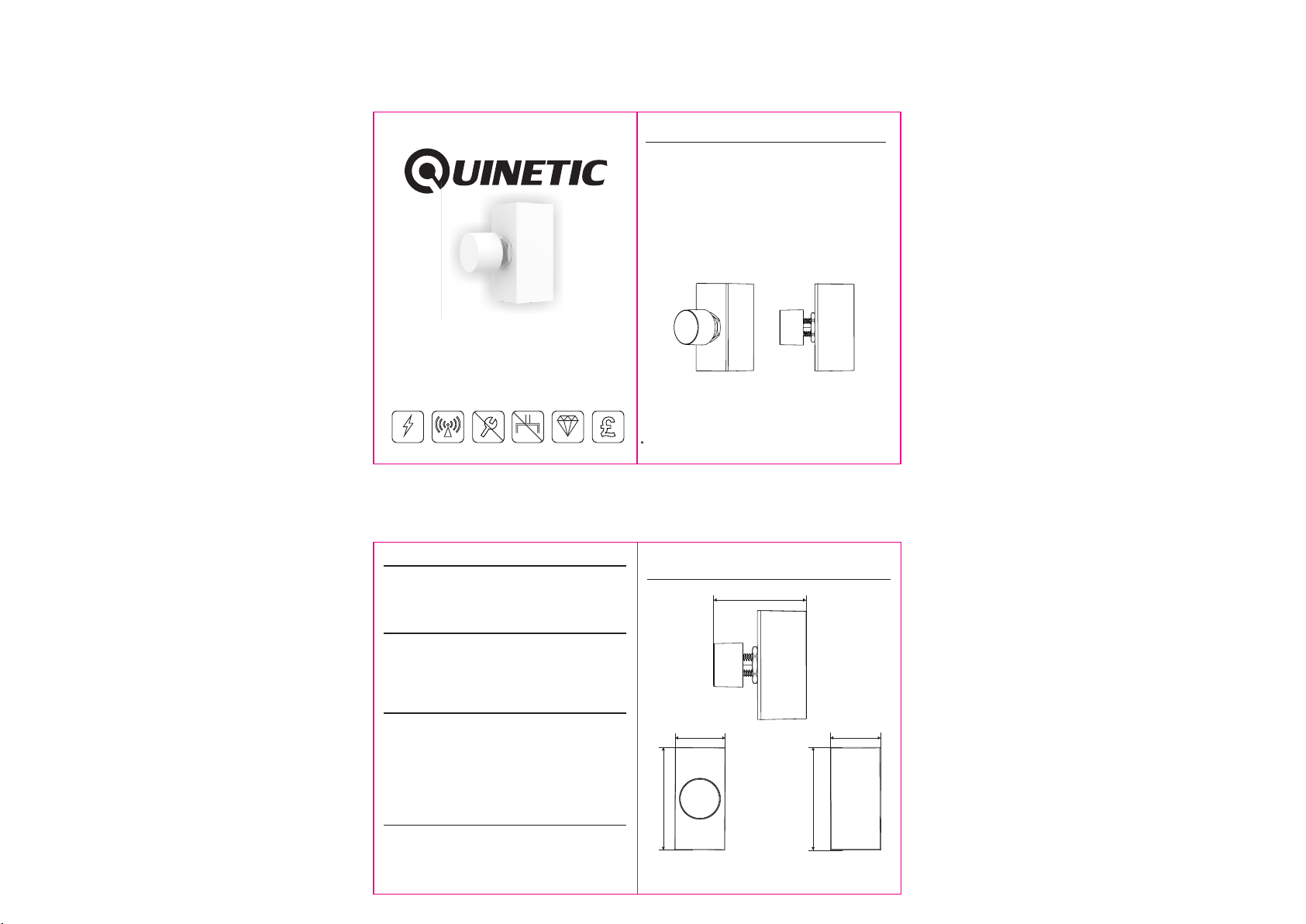

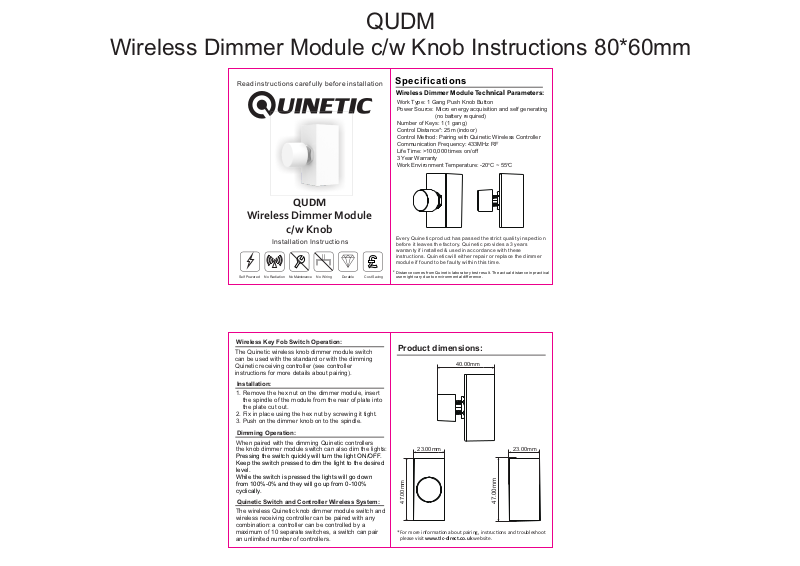

Wireless Dimmer Module c/w Knob Instructions 80*60mm
Read instructions carefully before installation
QUDM
Wireless Dimmer Module
c/w Knob
Installation Instructions
Self Powered
No Radiation No Maintenance No Wiring
Wireless Key Fob Switch Operation:
The Quinetic wireless knob dimmer module switch
can be used with the standard or with the dimming
Quinetic receiving controller (see controller
instructions for more details about pairing).
Installation:
1. Remove the hex nut on the dimmer module, insert
the spindle of the module from the rear of plate into
the plate cut out.
2. Fix in place using the hex nut by screwing it tight.
3. Push on the dimmer knob on to the spindle.
Dimming Operation:
When paired with the dimming Quinetic controllers
the knob dimmer module switch can also dim the lights:
Pressing the switch quickly will turn the light ON/OFF.
Keep the switch pressed to dim the light to the desired
level.
While the switch is pressed the lights will go down
from 100%-0% and they will go up from 0-100%
cyclically.
Quinetic Switch and Controller Wireless System:
The wireless Quinetic knob dimmer module switch and
wireless receiving controller can be paired with any
combination: a controller can be controlled by a
maximum of 10 separate switches, a switch can pair
an unlimited number of controllers.
Durable
Cost Saving
Specifications
Wireless Dimmer Module Technical Parameters:
Work Type: 1 Gang Push Knob Button
Power Source: Micro energy acquisition and self generating
(no battery required)
Number of Keys: 1 (1 gang)
Control Distance*: 25m (indoor)
Control Method: Pairing with Quinetic Wireless Controller
Communication Frequency: 433MHz RF
Life Time: >100,000 times on/off
3 Year Warranty
Work Environment Temperature: -20 C ~ 55 C
Eve ry Quin etic pr oduct h as pass ed the st rict qu ality i nspec tion
bef ore it le aves th e facto ry. Quin eti c provi des a 3 yea rs
war ranty i f insta lled & us ed in acc ordan ce with t hese
ins truct ions. Q uinet ic will e ither r epair o r repla ce the di mmer
mod ule if fo und to be f aulty w ithin t his tim e.
Dis tance co mes fro m Quine tic lab orato ry test r esult . The act ual dis tance i n pract ical
use m ight var y due to en viron menta l diffe rence .
Product dimensions:
40.00mm
23.00mm
47.00mm
*For more informaon about pairing, instrucons and troubleshoot
please visit www.tlc-direct.co.uk website.
0 0
23.00mm
47.00mm
