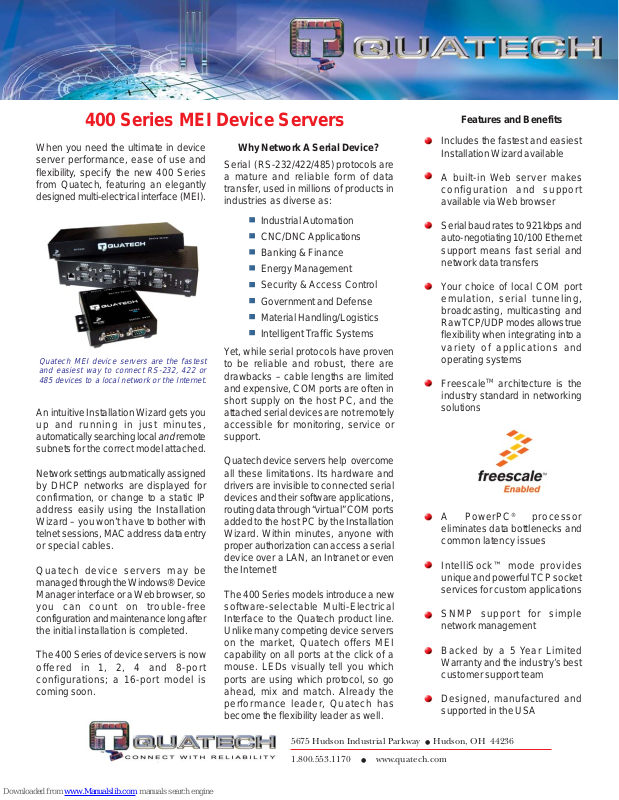

Quatech DSE-400D, ESE-400D, QSE-400D, SSE-400D Specifications

400 Series MEI Device Servers

Features and Benefits

When you need the ultimate in device
server performance, ease of use and
flexibility, specify the new 400 Series
from Quatech, featuring an elegantly
designed multi-electrical interface (MEI).

Quatech MEI device servers are the fastest
and easiest way to connect RS-232, 422 or
485 devices to a local network or the Internet.

An intuitive Installation Wizard gets y ou
up and running in just minutes,
automatically searching local

and

remote

subnets for the correct model attached.
Network settings automatically assigned

by DHCP networks are displayed for
confirmation, or change to a static IP
address easily using the Installation
Wizard – you won’t have to bother with
telnet sessions, MAC address data entry
or special cables.

Quatech device servers may be
managed through the Windows® De vice
Manager interface or a W eb browser , so
you can count on trouble-free
configuration and maintenance long after
the initial installation is completed.

The 400 Series of device servers is now
offered in 1, 2, 4 and 8-port
configurations; a 16-port model is
coming soon.

Why Network A Serial Device?

Serial (RS-232/422/485) protocols are
a mature and reliable form of data
transfer , used in millions of products in
industries as diverse as:

Industrial Automation
CNC/DNC Applications
Banking & Finance
Energy Management
Security & Access Control
Government and Defense
Material Handling/Logistics

I Intelligent T r affic Systems
Yet, while serial protocols have prov en

to be reliable and robust, there are
drawbacks – cable lengths are limited
and expensive , COM ports are often in
short supply on the host PC, and the
attached serial devices are not remotely
accessible for monitoring, service or
support.

Quatech device servers help overcome
all these limitations. Its hardware and
drivers are invisible to connected serial
devices and their software applications,
routing data through “virtual” COM ports
added to the host PC by the Installation
Wizard. Within minutes, anyone with
proper authorization can access a serial
device over a LAN, an Intranet or even
the Internet!

The 400 Series models introduce a new
software-selectable Multi-Electrical
Interface to the Quatech product line.
Unlike many competing device servers
on the market, Quatech offers MEI
capability on all ports at the click of a
mouse. LEDs visually tell you which
ports are using which protocol, so go
ahead, mix and match. Already the
performance leader, Quatech has
become the flexibility leader as well.

Includes the fastest and easiest
Installation Wizard available

A built-in Web server makes
configuration and support
available via Web browser

Serial baud rates to 921kbps and
auto-negotiating 10/100 Ethernet
support means fast serial and
network data transfers

Your choice of local COM port
emulation, serial tunneling,
broadcasting, multicasting and
Raw TCP/UDP modes allows true
flexibility when integrating into a
variety of applications and
operating systems

FreescaleTM architecture is the
industry standard in networking
solutions

A PowerPC® processor
eliminates data bottlenecks and
common latency issues

IntelliSock™ mode provides
unique and powerful TCP socket
services for custom applications

SNMP support for simple
network management

Backed by a 5 Year Limited
Warranty and the industry’ s best
customer support team

Designed, manufactured and
supported in the USA

5675 Hudson Industrial Parkway ● Hudson, OH 44236

1.800.553.1170 ● www.quatech.com

SPECIFICATIONS

DB-9 Male Serial Connector, External View

Hardware

LAN interface
10/100 Base T (IEEE 802.3) auto-negotiation,
auto MDI/MDIX and RJ-45 Ethernet connector

Serial interface (RS-232/422/485)

Model Ports Connector
SSE-400D 1 DB-9 Male
DSE-400D 2 DB-9 Male

QSE-400D 4 DB-9 Male
ESE-400D 8 DB-9 Male

Each port is a fully independent asynchronous
DTE serial port, with:

❖ Full modem control
❖ Hardware flow control
❖ Available 10-pin RJ-45 adapter for

DB-9M connector

Receiver inputs:

RS-232:

Input Voltage Rating: -15V to +15V
Receiver Skew:120 ns (typical),250 ns (max)

RS-422/485:

Input Voltage Rating: -15V to +15V Common

Mode Input Voltage

Receiver Skew: 13 ns (typical)

Transmitter outputs:

RS-232:

High Level Output: +5V (min), +5.4V typical
Low Level Output: -5V (min), -5.4V typical
Transmitter Skew: 50 ns (typical),

200 ns (max)

RS-422/485:

Transmitter Outputs: 2V (min) for 100Ω load
Transmitter Skew: 5 ns (typical), 10 ns (max)
Distance: 4000 feet

Parity, Stop Bits:

Parity configurable as: None, Even, Odd
Data bits configurable as: 5, 6, 7, 8
Stop bits configurable as: 1, 1.5, 2

Speed:

Each serial port supports data transfer speeds
of up to 921.6 kbps, depending on flow control
protocols used, cable length and condition, and
other factors

Surge Suppression (SS) Option
Surge suppressor is capable of sustaining up to
40-A peak, 8 x 20-µs transient surges, a clamp­ing voltage of 30V (RS-232) or 15.5V (RS-422/
485 ), and a peak energy dissipation of 0.1 Joules

Signal Information:

RS-232

DB-9M

Pin #

RS-422/485

DCD 1 AuxIn­RxD 2 RxD+
TxD 3 TxD+
DTR 4 AuxOut­GND 5 GND
DSR 6 RxD­RTS 7 AuxOut+
CTS 8 AuxIn+
RI 9 TxD-

Protocols and software
Management: UDP, TCP/IP, HTTP, DHCP,

ARP, ICMP, SNMP (MIB II)

Initial IP address configuration: DHCP, static IP
(set through Installation Wizard) or a custom
UDP datagram utility (with command line
interface) for unattended installations

Quatech provides several ways to manage,
monitor and configure device servers after
installation:

O Windows® Device Manager (Quatech

Device Manager in Windows NT)

O On-board HTML pages accessible from a

standard web browser

O Simple Network Management Protocol

(SNMP)

O Intellisock™ TCP socket ser vices

Communication modes: Normal, T unneling, Raw
TCP, Auto TCP, Raw UDP and Intellisock TCP
advanced socket services

OS support
Device drivers provided for Windows NT,

Windows 2000, Windows XP, and Linux
Raw TCP, Raw UDP (including broadcast and

multicast), Tunneling, AutoTCP and Intellisock
modes are O/S independent

Please check Quatech’s website for the latest
O/S driver support information

Processor: Freescale™ PowerPC®
SDRAM: 8 MB
FLASH Memory: 2 MB
Firmware stored in FLASH may be upgraded
via LAN interface

Power supply
+5V, 2A (10 W) max DC, with auto-sensing AC

adapter provided for 100VAC–240VAC, 50Hz–
60Hz worldwide operation

Typical power consumption: +5V, 0.8A (4W)

Environment
Operating: 0° C to 70° C

Storage: –40° C to 70° C
Relative Humidity: 10% to 90% non-condensing

Dimensions
SSE/DSE-400D:

Height: 1.18” (2.99 cm)
Width: 3.33” (8.46 cm)
Depth: 4.69” (11.91 cm)

QSE-400D:

Height: 1.50” (3.40 cm)
Width: 9.96” (25.30 cm)
Depth: 4.69” (11.91 cm)

ESE-400D:

Height: 1.96” (4.97 cm)
Width: 9.96” (25.30 cm)
Depth: 5.40” (13.72 cm)

Certifications
FCC, CE

Accessories
Surge Suppression

DB-9M to RJ-45 Adapters
DB-9M to Screw Ter minal Adapters
International Power Cords
DIN Rail Mounting Kit
RS-422 & 485 Ter mination Blocks

Freescale and the Freescale Enabled logo are
trademarks of Freescale Semiconductor Inc.

PowerPC is a registered trademark of IBM Corporation
and is used under license

Microsoft, Windows, and the Windows logo are
registered trademarks of Microsoft Corporation

5675 Hudson Industrial Parkway, Hudson, OH 44236

1.800.553.1170 ● www.quatech.com

Rev 2.0, 12.1.04
