Quatech DS-102 User Manual

DS-102
Dual Channel RS-232 Asynchronous
Communications Adapter
for ISA compatible machines
INTERFACE CARDS FOR IBM PC/AT AND PS/2
User's Manual
QUATECH, INC. TEL: (330) 434-3154 662 Wolf Ledges Parkway FAX: (330) 434-1409 Akron, Ohio 44311 BBS: (330) 434-2481
22
SCRATCHPAD
REGISTER
22
MODEM STATUS REGISTER
21
LINE STATUS REGISTER
20
MODEM CONTROL REGISTER
19
LINE CONTROL REGISTER
18
FIFO CONTROL REGISTER (16550 only)
8
6
Enabling or disabling ports
4
Setting the address
4
2
1
Table of Contents
Quatech
DS-102 User's Manual
I. GENERAL INFORMATION II. INSTALLATION III. ENABLING AND ADDRESSING PORTS

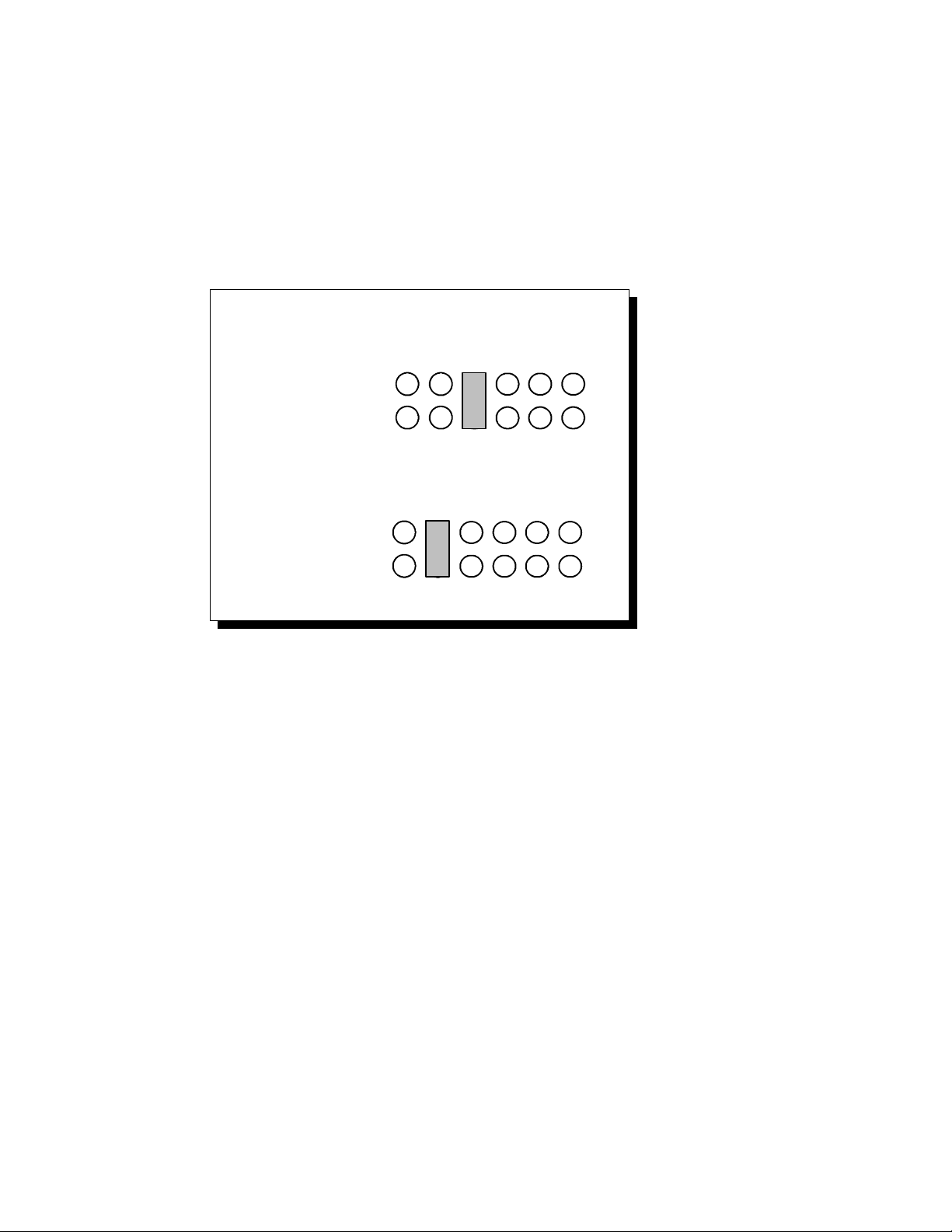

IV. SETTING INTERRUPT LEVELS (IRQS)

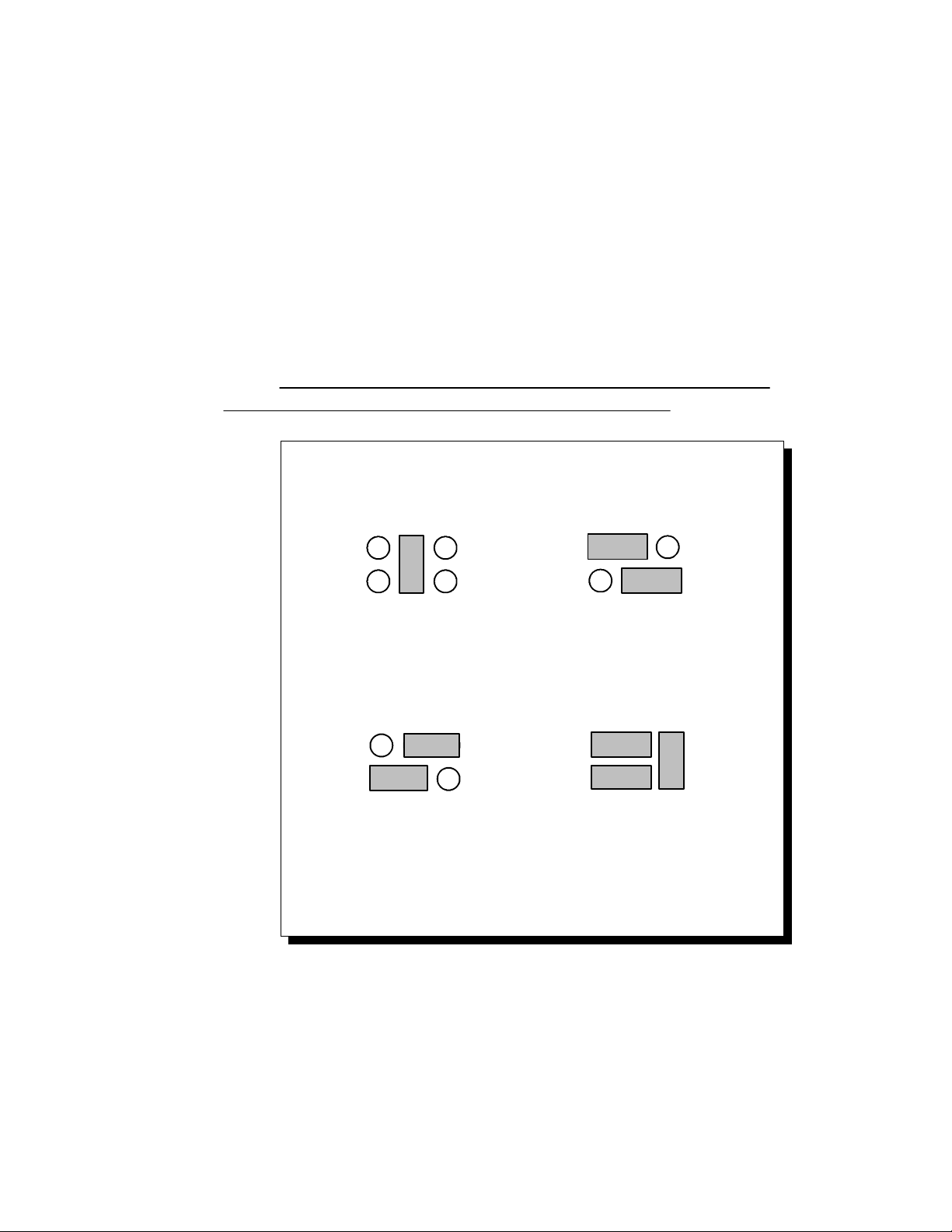

Interrupt Sharing

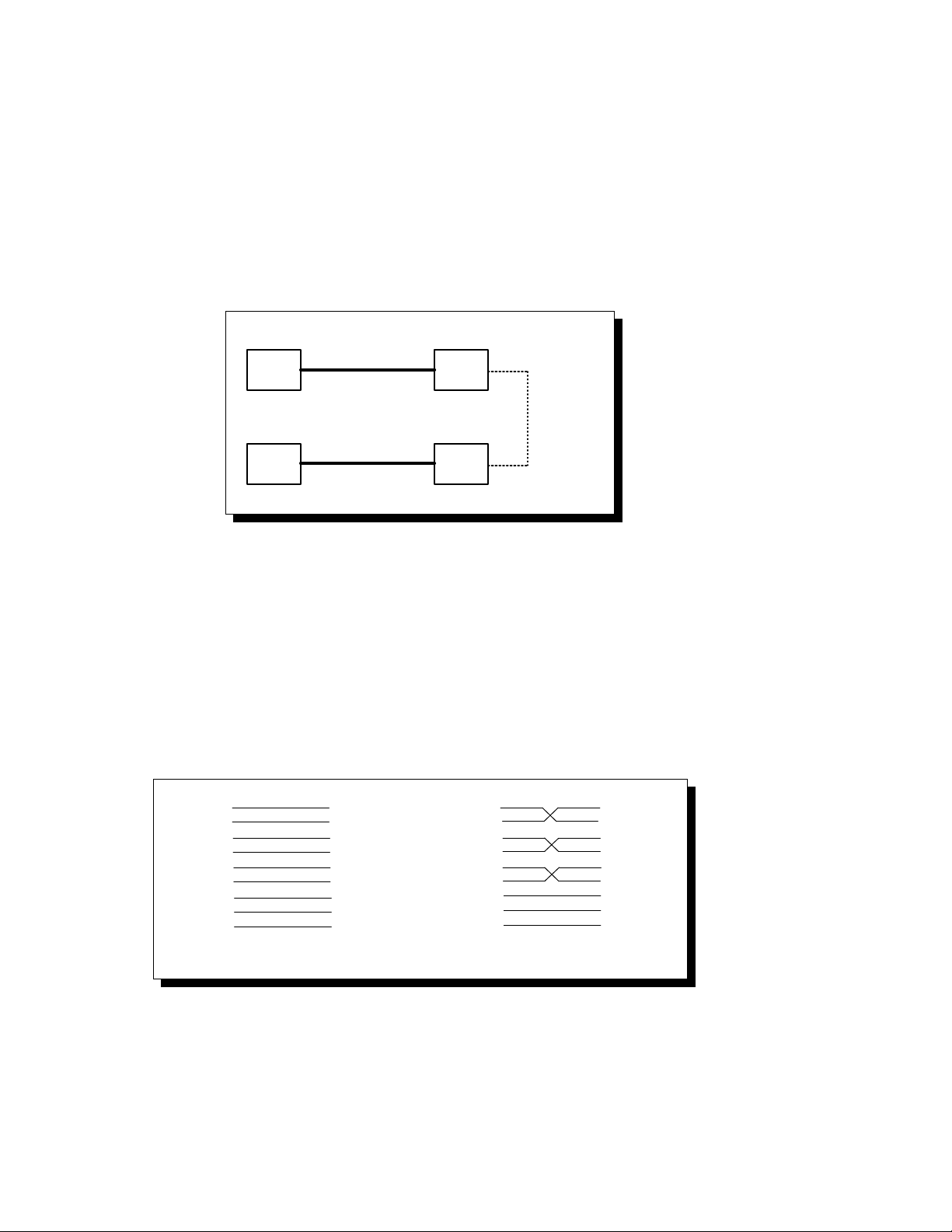

V. EXTERNAL CONNECTIONS VI. SERIAL PORT FUNCTIONAL
DESCRIPTION
Accessing the Serial Port registers INTERRUPT ENABLE REGISTER INTERRUPT IDENTIFICATION REGISTER
FIFO INTERRUPT MODE OPERATION (16550 UART
9
10 14
15 16 16
23
only) FIFO polled mode operation (16550 UART only) BAUD RATE SELECTION
VII. SPECIFICATIONS VIII. TROUBLESHOOTING
24 25
27 28
WARRANTY INFORMATION
Quatech
DS-102 User's Manual
Quatech, Inc. warrants the DS-102 to be free of defects for one (1) year from the date of purchase. Quatech, Inc. will repair or replace any board that fails to perform under normal operating conditions and in accordance with the procedures outlined in this document during the warranty period. Any damage that results from improper installation, operation, or general misuse voids all warranty rights.
Please complete the following information and retain for your records. Have this information available when requesting warranty service.
DATE OF PURCHASE: MODEL NUMBER: DS-102 PRODUCT DESCRIPTION: Dual Channel RS-232 Asynchronous
Communications Adapter
SERIAL NUMBER:
© 1993, Quatech, Inc.
Quatech
DS-102 User's Manual
NOTICE
The information contained in this document cannot be reproduced in any form without the written consent of Quatech, Inc. Likewise, any software programs that might accompany this document can be used only in accordance with any license agreement(s) between the purchaser and Quatech, Inc. Quatech, Inc. reserves the right to change this documentation or the product to which it refers at any time and without notice.
The authors have taken due care in the preparation of this document and every attempt has been made to ensure its accuracy and completeness. In no event will Quatech, Inc. be liable for damages of any kind, incidental or consequential, in regard to or arising out of the performance or form of the materials presented in this document or any software programs that might accompany this document.
Quatech, Inc. encourages feedback about this document. Please send any written comments to the Technical Support department at the address listed on the cover page of this document.
IBM PCTM, PC-ATTM, PS/2™, and Micro Channel™ are trademarks of International Business Machines Corporation.
I. GENERAL INFORMATION
Quatech
DS-102 User's Manual
1
The Quatech, Inc. DS-102 provides two RS-232 asynchronous serial communication interfaces for IBM-compatible personal computer systems using the ISA (Industry Standard Architecture) expansion bus.
The DS-102's two serial ports are implemented using 16450 Universal Asynchronous Receiver/Transmitters (UARTs). For higher performance, 16550 UARTs can be installed in place of the 16450 UARTs. The 16550 contains a hardware buffer that reduces processing overhead. Software must be aware of the 16550 UART for the device's extra capabilities to be used, otherwise it will act as a 16450 UART. The 16550 is suggested for multitasking environments and for applications involving high data rates.
The DS-102 is highly flexible with respect to addressing and interrupt level use. The base I/O address of each serial port can be independently set anywhere within the range of 0000 hex to 07FF hex, and available interrupt levels include IRQ2 through IRQ7.
II. INSTALLATION
YES
3
2F8 hex
(COM2)
Serial 2
YES
4
3F8 hex
(COM1)
Serial 1
ENABLED ?
IRQ
ADDRESS
PORT
2
Quatech
DS-102 User's Manual
If the default address and interrupt settings are sufficient, the DS-102 can be quickly installed and put to use. The factory defaults are listed in Figure 1.
Figure 1 --- Default address and IRQ settings for DS-102
The serial port outputs on the DS-102 are CN1 and CN2, which are shielded D-9 connectors. Serial 1 is available on CN1 and Serial 2 is available on CN2.
1. If the default settings are correct, skip to step 2, otherwise refer to sections III and IV of this document for detailed information on how to set the address and IRQ level for each port, and for how to disable or enable each port.
2. Turn off the power of the computer system in which the DS-102 is to be installed.
3. Remove the system cover according to the instructions provided by the computer manufacturer.
4. Install the DS-102 in any vacant expansion slot. The board should be secured by installing the Option Retaining Bracket (ORB) screw.
5. Replace the system cover according to the instructions provided by the computer manufacturer.
6. Attach and secure the D-9 connectors to the desired equipment.
Set addresses here
Quatech
DS-102 User's Manual
3
(SW1, SW2)
J1
J2
SW1
Serial 1
J3
QUATECH INC. DS-102
Set IRQ levels here
(J5, J6)
16450/16550
16450/16550
SW2
J4
Serial 2
Serial 1
J5
Serial 2
J6
IRQ2
IRQ3
IRQ4
IRQ5
IRQ6
(Diagram not to scale)
IRQ7
J7
J8
CN1
Serial 1
Serial 2
CN2
Figure 2 --- Diagram of DS-102
III. ENABLING AND ADDRESSING PORTS
15 (decimal), and is made up of four binary bits given weights of eight, four,
4
Quatech
DS-102 User's Manual
Setting the address
Each serial port on the DS-102 uses 8 consecutive I/O locations in
the range of 0000 hex to 07FF hex. The base address of each port is set using a DIP switch pack on the DS-102. When setting the address selection switches, a switch in the "ON" position specifies that the corresponding address line must be a logic 0 for the port to be selected. Similarly, a switch in the "OFF" position forces the corresponding address line to be a logic 1 for the port to be selected.
Switch SW1 selects address lines A10 through A3 for Serial 1.
Switch SW2 serves the same purpose with respect to Serial 2. The remaining address lines (A2, A1 and A0) are used by the UART to select the register being accessed. Address lines A11 through A15 must be at logic 0 for a port to be selected. The serial ports may be independently enabled or disabled by installing or removing a jumper from jumper pack J4.
Figure 3 shows how the switches on the DS-102 represent the
address values for serial ports. This figure can be used to explain the examples shown in Figure 4.
A serial port's address is a 16-bit quantity that is most often expressed
in four hexadecimal (base 16) digits. A hex digit can hold a value from 0 to two, and one, hence the maximum value of 8+4+2+1 = 15.
A common serial port address is 03F8 hex. The example below shows how the hex digits are broken down into binary bits.
Binary bits
Bit weight Sum of bits Hex digits
0 0 0 0 0 0 1 1 1 1 1 1 1 0 0 0 8 4 2 1 8 4 2 1 8 4 2 1 8 4 2 1 0+0+0+0 0+0+2+1 8+4+2+1 8+0+0+0
0
These address bits are set by the switches. All other bits are considered to be zero.
0 0 0 0 0 0 1 1 1 1 1 1 1 0 0 0
3
F
8
Figure 3 --- Examination of a serial port base address
Switch on
Quatech
DS-102 User's Manual
5
bit = 0
Factory default setting for Serial 1 --- 03F8 hex (COM1)
Switch off
bit = 1
Serial 1 uses SW1 Serial 2 uses SW2
SW1
ON
1 2 3 4 5 6 7 8
2 1
0
3
Factory default setting for Serial 2 --- 02F8 hex (COM2)
8 2 1
4
F
SW2
ON
1 2 3 4 5 6 7 8
8 2 1
2 0
0
2
4
F
8
8
8
8
Example: 03E8 hex (typical for COM3)
ON
1 2 3 4 5 6 7 8
2 1
0
3
Example: 02E8 hex (typical for COM4)
ON
1 2 3 4 5 6 7 8
2 0
0
2
8 2 0
4
E
8 2 0
4
E
8
8
8
8
Figure 4 --- Serial Port base I/O address selection switches
