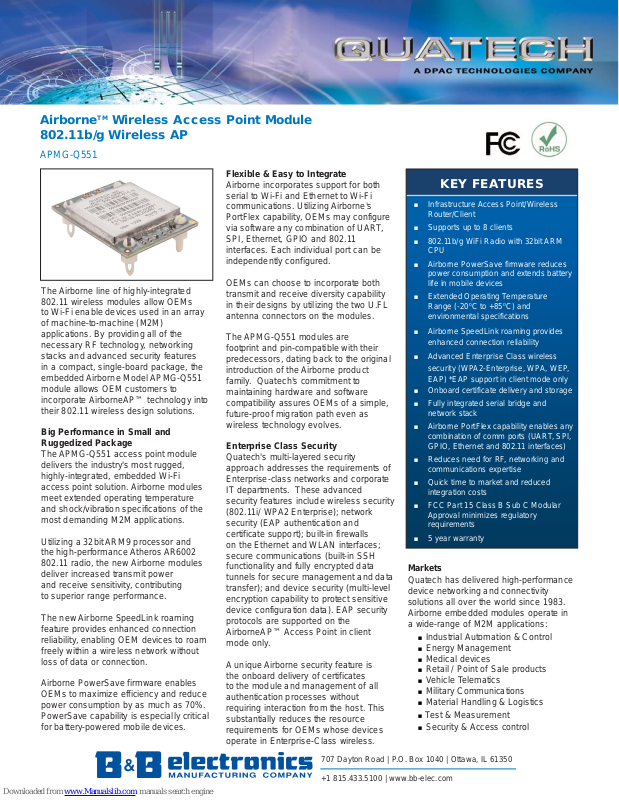

Quatech APMG-Q551 Specifications

AirborneTMWireless Access Point Module

802.11b/g Wireless AP

APMG-Q551

Flexible & Easy to Integrate

Airborne incorporates support for both
serial to Wi-Fi and Ethernet to Wi-Fi
communications. Utilizing Airborne's
PortFlex capability, OEMs may configure
via software any combination of UART,
SPI, Ethernet, GPIO and 802.11
interfaces. Each individual port can be
independently configured.

The Airborne line of highly-integrated

802.11 wireless modules allow OEMs
to Wi-Fi enable devices used in an array
of machine-to-machine (M2M)
applications. By providing all of the
necessary RF technology, networking
stacks and advanced security features
in a compact, single-board package, the
embedded Airborne Model APMG-Q551
module allows OEM customers to
incorporate AirborneAP™ technology into
their 802.11 wireless design solutions.

Big Performance in Small and
Ruggedized Package

The APMG-Q551 access point module
delivers the industry's most rugged,
highly-integrated, embedded Wi-Fi
access point solution. Airborne modules
meet extended operating temperature
and shock/vibration specifications of the
most demanding M2M applications.

Utilizing a 32bit ARM9 processor and
the high-performance Atheros AR6002

802.11 radio, the new Airborne modules
deliver increased transmit power
and receive sensitivity, contributing
to superior range performance.

The new Airborne SpeedLink roaming
feature provides enhanced connection
reliability, enabling OEM devices to roam
freely within a wireless network without
loss of data or connection.

Airborne PowerSave firmware enables
OEMs to maximize efficiency and reduce
power consumption by as much as 70%.
PowerSave capability is especially critical
for battery-powered mobile devices.

OEMs can choose to incorporate both
transmit and receive diversity capability
in their designs by utilizing the two U.FL
antenna connectors on the modules.

The APMG-Q551 modules are
footprint and pin-compatible with their
predecessors, dating back to the original
introduction of the Airborne product
family. Quatech's commitment to
maintaining hardware and software
compatibility assures OEMs of a simple,
future-proof migration path even as
wireless technology evolves.

Enterprise Class Security

Quatech's multi-layered security
approach addresses the requirements of
Enterprise-class networks and corporate
IT departments. These advanced
security features include wireless security
(802.11i/ WPA2 Enterprise); network
security (EAP authentication and
certificate support); built-in firewalls
on the Ethernet and WLAN interfaces;
secure communications (built-in SSH
functionality and fully encrypted data
tunnels for secure management and data
transfer); and device security (multi-level
encryption capability to protect sensitive
device configuration data). EAP security
protocols are supported on the
AirborneAP™ Access Point in client
mode only.

A unique Airborne security feature is
the onboard delivery of certificates
to the module and management of all
authentication processes without
requiring interaction from the host. This
substantially reduces the resource
requirements for OEMs whose devices
operate in Enterprise-Class wireless.

KEY FEATURES

 Infrastructure Access Point/Wireless

Router/Client

 Supports up to 8 clients
 802.11b/g WiFi Radio with 32bit ARM

CPU

 Airborne PowerSave firmware reduces

power consumption and extends battery
life in mobile devices

 Extended Operating Temperature

Range (-20
environmental specifications

 Airborne SpeedLink roaming provides

enhanced connection reliability

 Advanced Enterprise Class wireless

security (WPA2-Enterprise, WPA, WEP,
EAP) *EAP support in client mode only

 Onboard certificate delivery and storage
 Fully integrated serial bridge and

network stack

 Airborne PortFlex capability enables any

combination of comm ports (UART, SPI,
GPIO, Ethernet and 802.11 interfaces)

 Reduces need for RF, networking and

communications expertise

 Quick time to market and reduced

integration costs

 FCC Part 15 Class B Sub C Modular

Approval minimizes regulatory
requirements

 5 year warranty

Markets

Quatech has delivered high-performance
device networking and connectivity
solutions all over the world since 1983.
Airborne embedded modules operate in
a wide-range of M2M applications:

 Industrial Automation & Control
 Energy Management
 Medical devices
 Retail / Point of Sale products
 Vehicle Telematics
 Military Communications
 Material Handling & Logistics

 Test & Measurement
 Security & Access control

O

C to +85OC) and

707 Dayton Road | P.O. Box 1040 | Ottawa, IL 61350
+1 815.433.5100 | www.bb-elec.com

Block Diagram

Mechanical Outline

Model Selection Guide

Model # Description

APMG-Q551

802.11b/g, Industrial Access Point/Wireless Router/Client; 10/100 Ethernet, UART,
SPI and RS-232/422/485 wired interfaces; WPA/WPA2 Enterprise Security

Specifications

Access Point Infrastructure Access Point/Wireless Router/Client, supports up to 8 clients

Technology IEEE 802.11b/g, WiFi compliant

Frequency

Modulation Technology DSSS, CCK, OFDM
Modulation Type DBPSK, DQPSK, CCK, BPSK, QPSK, 16QAM, 64QAM

Network Access Modes Access Point, Infrastructure, Ad Hoc

Channels

Wireless Data Rate

MAC CSMA/CAwith ACK, RTS, CTS
Network Protocols TCP/IP, ARP, ICMP, DHCP, DHS, UDAP, TFTP, UDP, PING

Receive Sensitivity

Security Protocols

Antenna Two (2) U.FLcoaxial connectors, 50 ohms, supports Rx and Tx diversity
Supply 3.3VDC +/-5%, 850mA(MAX)
Supply In-rush Current 3000mA(MAX) for 20ms

DC Characteristics

Environmental

Interfaces
Digital I/O 8 GPIO

LED Indicators 4 indicator LED signals (RF_ACT, POST, CONNECT, RF_LINK), Signal Strength
Connector 36 pin High Density SMT connector from Hirose (DF12-36DS-0.5V), 4mm Height

Agency Approvals

2.4 ~ 2.4835 GHz (US/Canada/Europe)

2.4 ~ 2.497 GHz (Japan)

USA/Canada: 11 channels
Europe: 13 channels
France: 7 channels
Japan: 14 channels (13 channels for 802.11g)

802.11b = 11, 5.5, 2, 1 Mbps

802.11g = 54, 48, 36, 24, 18, 12, 9, 6 Mbps

54Mb/s = -75dBm
36Mb/s = -82dBm
18Mb/s = -88dBm

6Mb/s = -93dBm

11Mb/s = -88dBm

1Mb/s = -98dBm

Disabled, WEP 64 & 128bit, WPA(TKIP), WPA (AES), WPA2 (AES), 802.1x (EAP)Supplicant

802.11I, WPA & WPA2 Enterprise supplicants (EAP-TLS, EAP-TTLS(MSCHAPv2),
EAPTTLS(MDS5), EAP-PEAPv0(MSCHAPv2, LEAP), EAP-FAST, LEAP)
Supports Certificates and Private Key Upload and Storage (Multiple)
*Enterprise and EAP available in client mode only

Operating Current (Tx, 802.11g) = 240mATyp.
Operating Current (Rx, 802.11g) = 310mATyp.
Power Save (Doze) = TBD mATyp.
Power Down (Sleep) = TBD mATyp.

Operating Temperature: -20°C - +85OC, Storage: -55OC - +150OC
Relative humidity: 5% - 95% (non-condensing)
Vibration: 20G peak-to-peak, 20Hz-2KHz swept
Shock: 1500G peak-to-peak, 0.5mS duration

Dual UART (960KBAUD), RS232/422/485, SPI (1bit/20MHz),
10/100 Ethernet (Infrastructure Bridge Mode, NAT3 Router Mode), PortFlex

North America: FCC Title 47 Part 15 Class B Sub C Intentional Radiator, IOCRSS210
Europe: CE ETSI EN300 328
RoHS & WEEE compliant

707 Dayton Road | P.O. Box 1040 | Ottawa, IL 61350
+1 815.433.5100 | www.bb-elec.com

Rev. B 2/2012© 2012 B&B Electronics Mfg. Co.
