AirborneTMEmbedded Radio Modules (802.11b/g)
KEY FEATURES
Extended operating temperature range
(-40°C to +85°C) and environmental
specifications
Advanced Security Support for 802.11i
through integrated AES/CCMP, WPA,
TKIP, WEP
Low power modes
Quick time to market & reduced
development costs
FCC Part 15 Class B Sub C Modular
Approval
Reduces need for RF and
communications expertise
CF interface using high density SMT
connector
Support for antenna diversity
Device drivers available for a range of
embedded OS’s
RoHS compliant
Five year warranty
High performance embedded
device networking solutions
AirborneTMis a line of highly integrated
802.11 wireless modules. AirborneTM
Embedded Radio Modules provide instant
LAN and Internet connectivity, and
connect through standard interfaces to a
wide variety of applications. By contrast,
the wireless device server and ethernet
bridge modules include the radio as well
as a base-band processor, an application
processor and software for a “drop-in”
web-enabled WiFi solution. With all the
modules, there’s no need to develop the
software or the RF and communications
expertise in-house, OEMs can realize
reduced product development costs and a
quick time-to-market.
Interoperable with advanced
security
The extremely small footprint design
makes AirborneTMeasy to embed into new
or existing designs. The radio integrates
the 802.1 1 standards including the 802.11i
security standard. The radio includes a
full implementation of AES/CCMP, WPA
and WEP security mechanisms.
Enterprise applications are enabled by
support for EAP. Additionally, the radio
supports the 802.11e Quality of Service
(QOS) and 802.11h Transmit Power
Control (TPC ) standards. Allowing you
access to the latest functionality and
maximizing interoperability with existing
infrastructure.
Model No.
WiFi Interface Security
RoHS
Compliant
802.11b 802.11b/g CompactFlash
WEP
(64 & 128 bit)
WPA AES/CCMP EAP
WLRG-RA-DP101
Also available
To evaluate all available features and receive evaluation tools, order below.
WLEG-RA-DP101 Evaluation & Design Kit, b/g radio only
WLRG-RA-DP100 series
5675 Hudson Industrial Parkway Hudson, OH 44236
1.800.553.1170 www.quatech.com
Applications
The AirborneTMEmbedded Radio Modules
have been designed to provide wireless
LAN and Internet connectivity in these
industries:
transportation
medical
warehouse and logistics
Point-of-sale (POS)
industrial automation
military
scientific research
Equipment with an AirborneTMEmbedded
Radio Module can be monitored and
controlled by a handheld device, by a PC
in a central location or over the Internet.
The Evaluation & Design Kit provides
software and utilities that allow a
developer to quickly and easily operate
and evaluate the radio module in a
Wireless Device Server module or
Wireless Ethernet Bridge module.
For information about Airborne Modules and Evaluation Kits, please call or go to www.quatech.com
Model Selection Guide
Page 2

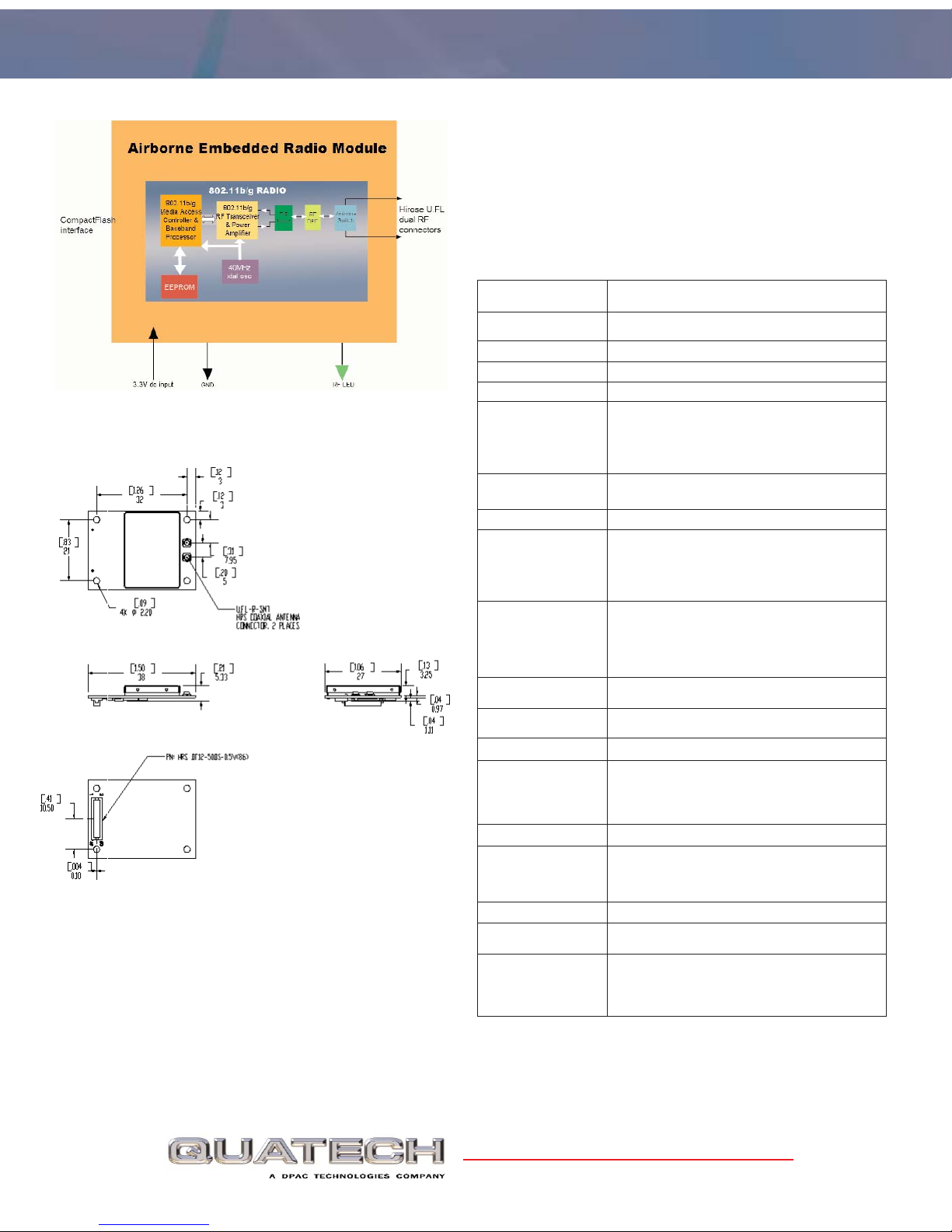

Mechanical Outline
Technology
IEEE 802.11b/g, WiFi compliant
(802.11i, 802.11e, 802.11d capable)
Frequency
2.400 ~ 2.4835 GHz (US/Can/Europe)
2.471 ~ 2.497 GHz (Japan)
Modulation Technology DSSS, CCK, OFDM
Modulation Type DBPSK, DQPSK, CCK, BPSK, QPSK, 16QAM, 64QAM
Network Access Modes Ad-hoc, infrastructure
Channels
USA/Canada: 11 channels (1 - 11)
Europe: 13 channels (1 - 13)
Japan: 14 channels (1 - 13 for g rates)
(1 - 14 for b rates)
France: 4 channels (10 - 13)
Wireless Data Rate 802.11b - 11, 5.5, 2, 1 Mbps
802.11g - 54, 48, 36, 24, 12, 9, 6 Mbps
MAC
CSMA/CAwith ACK, RTS, CTS
RF Power
+19.3 dBm peak (85mW) at 802.11b data rates
+15 dBm average (32mW) at 802.11b data rates
+21.5 dBm peak (141mW) at 802.11g data rates
+12 dBm average (16mW) 802.11g data rates
Sensitivity
-71dBm for 54Mbps
-77dBm for 36Mbps
-83dBm for 18 Mbps
-85dBm for 11Mbps
-87dBm for 1Mbps
Security WEP 64 and 128bit (RC4), WPA(TKIP), 802.1x (EAP)
Antenna
Two U.FLcoaxial connectors, 50 ohms, supports receive
diversity
Supply 3.3 Vdc +/-5%
Current Consumption 475mA- transmit mode (typical)
275mA- receive mode (typical)
To be spec’d - power save mode (IEEE)
5 mAsleep mode (full power down)
Power Up Inrush Current
3000 mA(max) 20ms
Operating Temperature
Temperature: -40°C - +85°C
Relative humidity: 5% - 95% (non-condensing)
Vibration: 20G peak-to-peak, 20 Hz-2KHz
Shock: 1500G, peak-to-peak, 0.5mS
Connector 50 Pin (P/N: Hirose DF12-50DS-0.5 V) 4-mm height
Interface
CF+ via a 50pin Hirose 0.5mm pitch surface mount
connector
Agency Approvals FCC Part 15 Class B Sub C Intentional Radiator
CE ETSI EN300 328, EN301 489, ETSI 60950-1
IC RSS210
RoHS and WEEE compliant
Block Diagram
5675 Hudson Industrial Parkway Hudson, OH 44236
1.800.553.1170 www.quatech.com
Rev. E 8/2006© 2007 Quatech, Inc.
