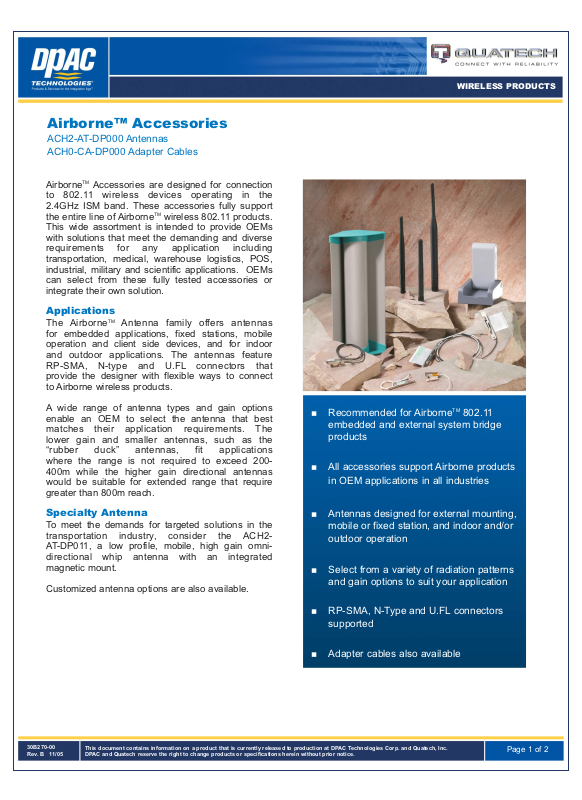

Quatech ACH2-AT-DP000, ACH0-CA-DP000 User Manual

WIRELESS PRODUCTS

Airborne™ Accessories

ACH2-AT-DP000 Antennas
ACH0-CA-DP000 Adapter Cables

AirborneTMAccessories are designed for connection
to 802.11 wireless devices operating in the

2.4GHz ISM band. These accessories fully support
the entire line of Airborne

TM

wireless 802.11 products.
This wide assortment is intended to provide OEMs
with solutions that meet the demanding and diverse
requirements for any application including
transportation, medical, warehouse logistics, POS,
industrial, military and scientific applications. OEMs
can select from these fully tested accessories or
integrate their own solution.

Applications

The AirborneTMAntenna family offers antennas
for embedded applications, fixed stations, mobile
operation and client side devices, and for indoor
and outdoor applications. The antennas feature
RP-SMA, N-type and U.FL connectors that
provide the designer with flexible ways to connect
to Airborne wireless products.

A wide range of antenna types and gain options
enable an OEM to select the antenna that best
matches their application requirements. The
lower gain and smaller antennas, such as the
“rubber duck” antennas, fit applications
where the range is not required to exceed 200­400m while the higher gain directional antennas
would be suitable for extended range that require
greater than 800m reach.

Specialty Antenna

To meet the demands for targeted solutions in the
transportation industry, consider the ACH2­AT-DP011, a low profile, mobile, high gain omni­directional whip antenna with an integrated
magnetic mount.

Customized antenna options are also available.

 Recommended for Airborne

TM

802.11
embedded and external system bridge
products

 All accessories support Airborne products

in OEM applications in all industries

 Antennas designed for external mounting,

mobile or fixed station, and indoor and/or
outdoor operation

 Select from a variety of radiation patterns

and gain options to suit your application

 RP-SMA, N-Type and U.FL connectors

supported

 Adapter cables also available

30B270-00
Rev. B 11/05

This document contains information on a product that is currently released to production at DPAC Technologies Corp. and Quatech, Inc.
DPAC and Quatech reserve the right to change products or specifications herein without prior notice.

Page 1 of 2

30B270-00
Rev. B 11/05

Page 2 of 2

DPAC Technologies Products & Services for the integration Age
7321 Lincoln Way, Garden Grove, CA 92841 Tel [phone] Fax [phone] www.dpactech.com

©2005 DPAC Technologies and Quatech, Inc. All rights reserved. DPAC Technologies®, Airborne™ are trademarks of DPAC Technologies Corp.

WIRELESS PRODUCTS

Airborne™ - Antenna Product Family

Product Line

Adapter Cable RP-SMA (Jack) to U.FL (Plug)

ACHO-CA-DP004

Adapter Cable U.FL (Plug) to U.FL (Plug)

ACHO-CA-DP001

This adapter is designed to provide an enclosure-mountable direct
cable connection to the Airborne

TM

embedded modules. The DP004
eliminates the need for board-level design or RF layout by enabling a
direct Coaxial connection between the Airborne module and an RP­SMA Jack. An RP-SMA jack can be directly mounted to the equipment
enclosure.

This adapter makes the connection from the AirborneTMembedded
module to a board-mounted U.FL connector. This allows a direct coaxial
connection between the AirborneTMmodule and the main-board.
Connection to the antenna can then be made through routing and
appropriate board mounted connector.

Model No. Description Indoor/Outdoor Internal/External Gain Connector Style Radiation Pattern

ACH2-AT-DP002 2Dbl Portable(Rubber duck) Antenna (RP-SMA) I E 2 dBi RP-SMA Whip Omni

ACH2-AT-DP003 5Dbl Portable (Rubber duck) Antenna (RP-SMA) I E 5 dBi RP-SMA Whip Omni

ACH2-AT-DP004 5Dbl Portable(Rubber duck) Antenna, Flying Lead (U.FL) I E 5 dBi U.FL Whip Omni

ACH2-AT-DP005 15 dBi Corner Reflector Antenna (RP-SMA), Indoor/Outdoor I/O E 15 dBi RP-SMA

Corner

Reflector

Directional

ACH2-AT-DP006 7 dBi Patch (RP-SMA) Antenna, Indoor/Outdoor I E 7 dBi RP-SMA Patch Directional

ACH2-AT-DP007 8.5 dBi Fiberglass Omnidirectional Antenna (N-Type) Indoor/Outdoor I/O E 8.5 dBi N-type Fiberglass Omni

ACH2-AT-DP008 10 dBi Patch Antenna (RP-SMA) Indoor/Outdoor I/O E 10 dBi RP-SMA Patch Directional

ACH2-AT-DP009 20 dBi Panel (N-Type) Antenna, Indoor/Outdoor I/O E 20 dBi N-Type Patch Directional

ACH2-AT-DP010 11 dBi Fiberglass Omnidirectional Antenna (N-Type) Indoor/Outdoor I/O E 11 dBi N-Type Fiberglass Omni

ACH2-AT-DP011 5 dBi Magnetic mount vehicle Antenna, Indoor/Outdoor I/O E 5 dBi RP-SMA

Whip -

Magnetic

mount

Omni

Model No. Other Accessories

Indoor/Outdoor Internal/External Connector Cable Length

ACH0-CA-DP001 Adapter Cable, U.FL (plug) to U.FL (plug), 200mm, Internal - I U.FL to U.FL 200mm

ACH0-CA-DP004 Adapter Cable, RP-SMA (Jack) to U.FL (plug), 100mm, Indoor/Outdoor I/O - RP-SMA 100mm
